BMW X3 E83 12.3″ 2K Android Screen with Wireless CarPlay, Android Auto and 4G | QGB24X3MK
SKU: QGB24X3MK
£499.00
Check if this fits your car
1
Key specifications
- Operating system
- Android 14
- Processor
- Qualcomm Snapdragon 680
- Cores
- 4 x Kryo 265 Gold and 4 x Kryo 265 Silver cores
- Clock speed
- up to 2.4GHz
- Memory
- Dual Channel 8GB DDR4 RAM, 128GB Solid State ROM
- Screen size
- 12.3″ Screen

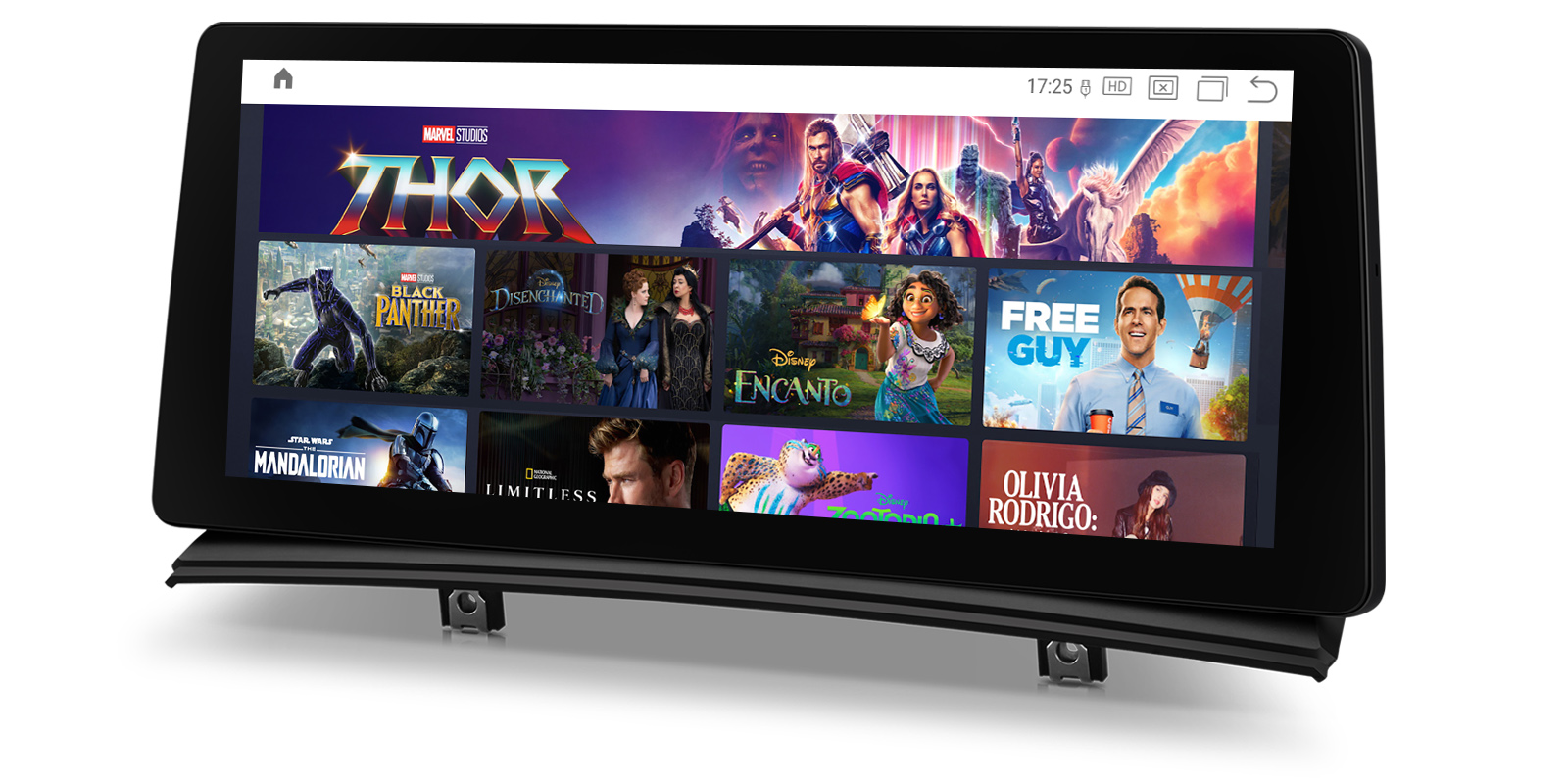

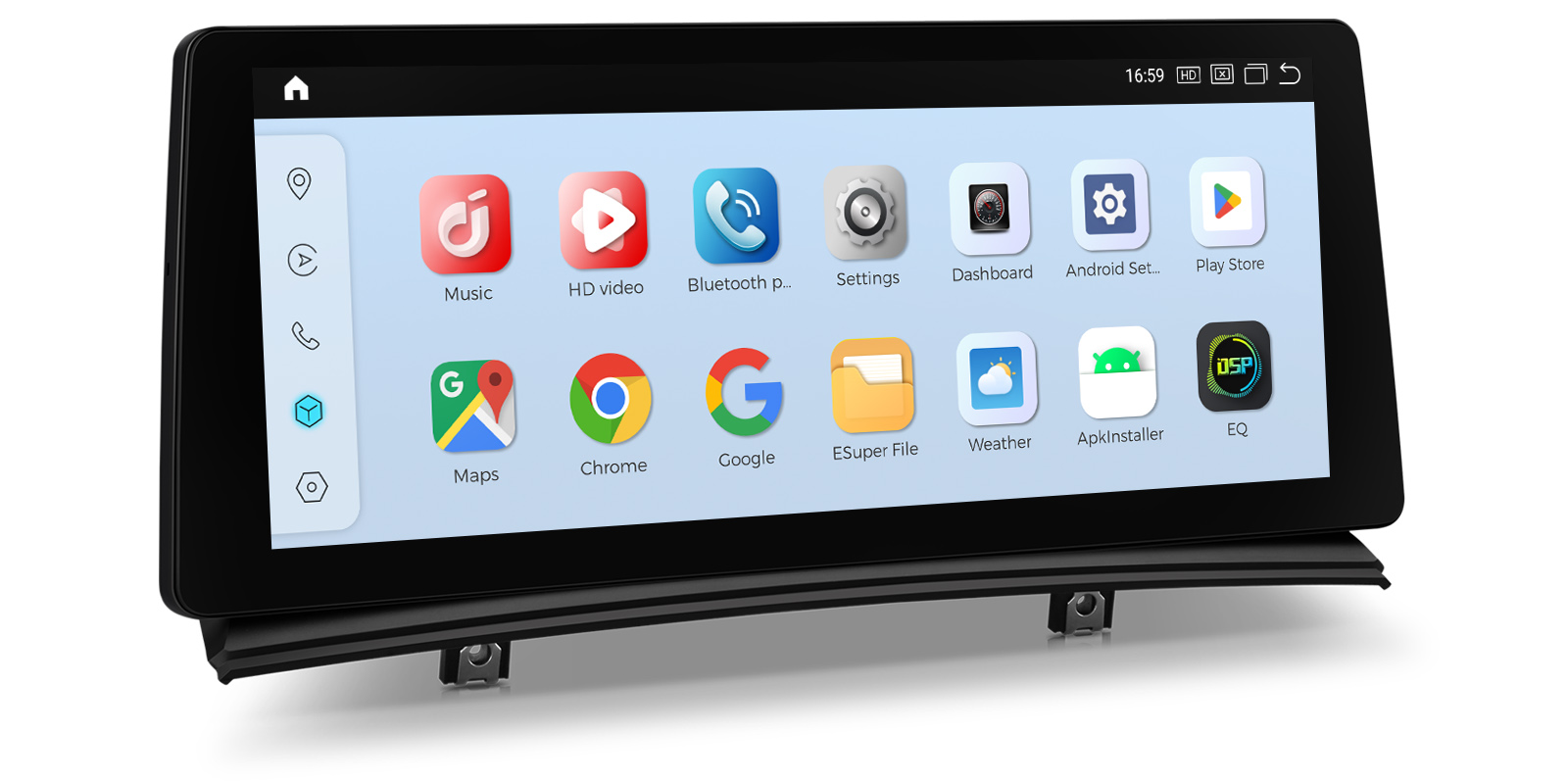

XTRONS QGB24X3MK is a 12.3″ 2K Android 14 screen for the BMW X3 E83 with the M-ASK system. It works alongside the original stereo, so you keep the CD player, radio and iDrive while adding CarPlay, Android Auto and 4G.
- Keeps the factory CD player, radio and iDrive
- 12.3″ QHD 2K (2400 x 900) IPS panel with G+G touch
- Wireless CarPlay and wireless Android Auto
- Integrated 4G LTE with wide carrier band support
- Qualcomm Snapdragon 680 with 8GB RAM and 128GB storage
Android alongside the original BMW stereo
The screen is made for the X3 E83 with the M-ASK system. Android runs next to the original software, so the CD player, radio and iDrive carry on working.
If your X3 doesn't have a factory screen and you want iDrive controller functionality, you'll also need AKX3IDRIVEL01.

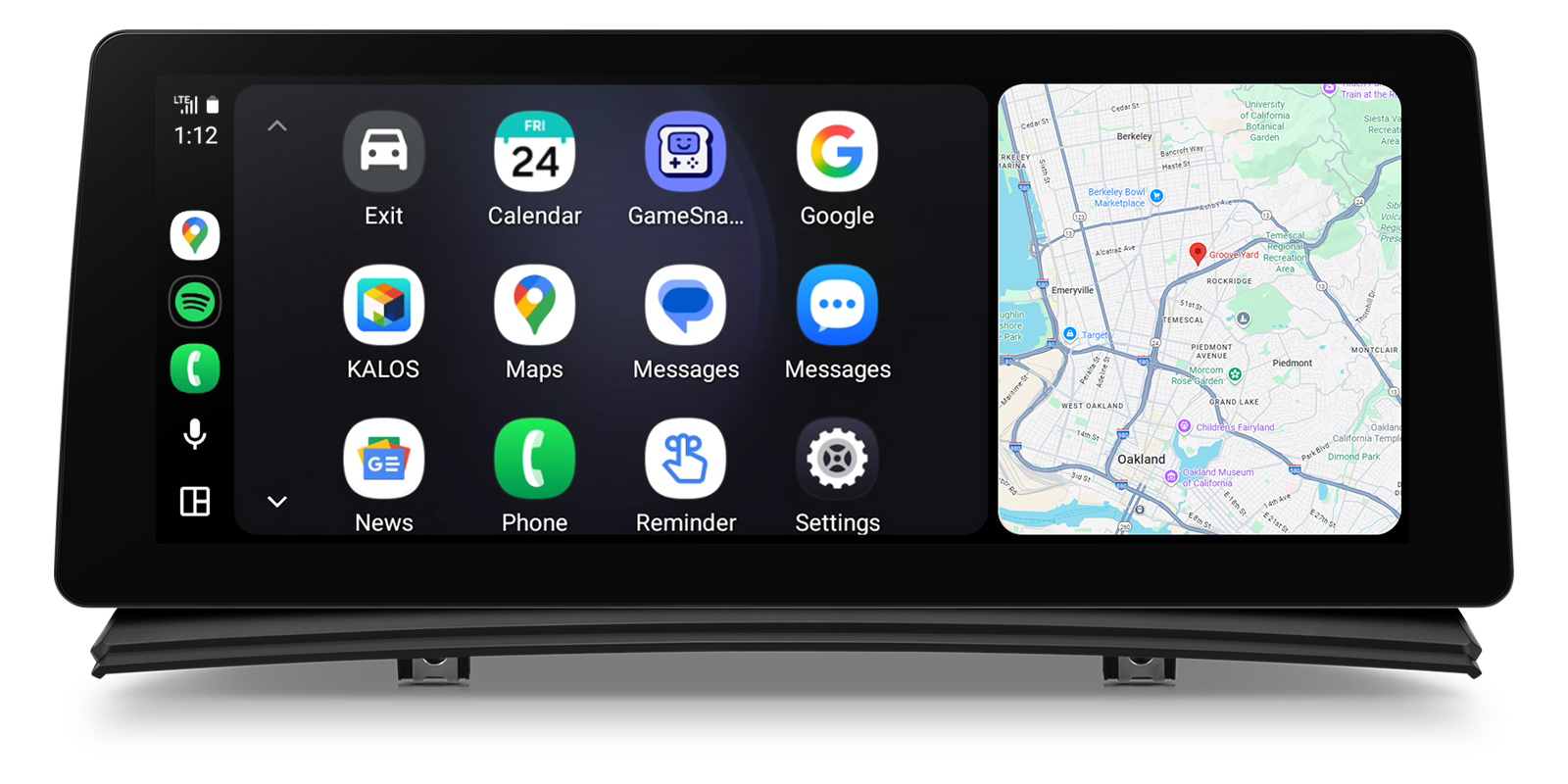

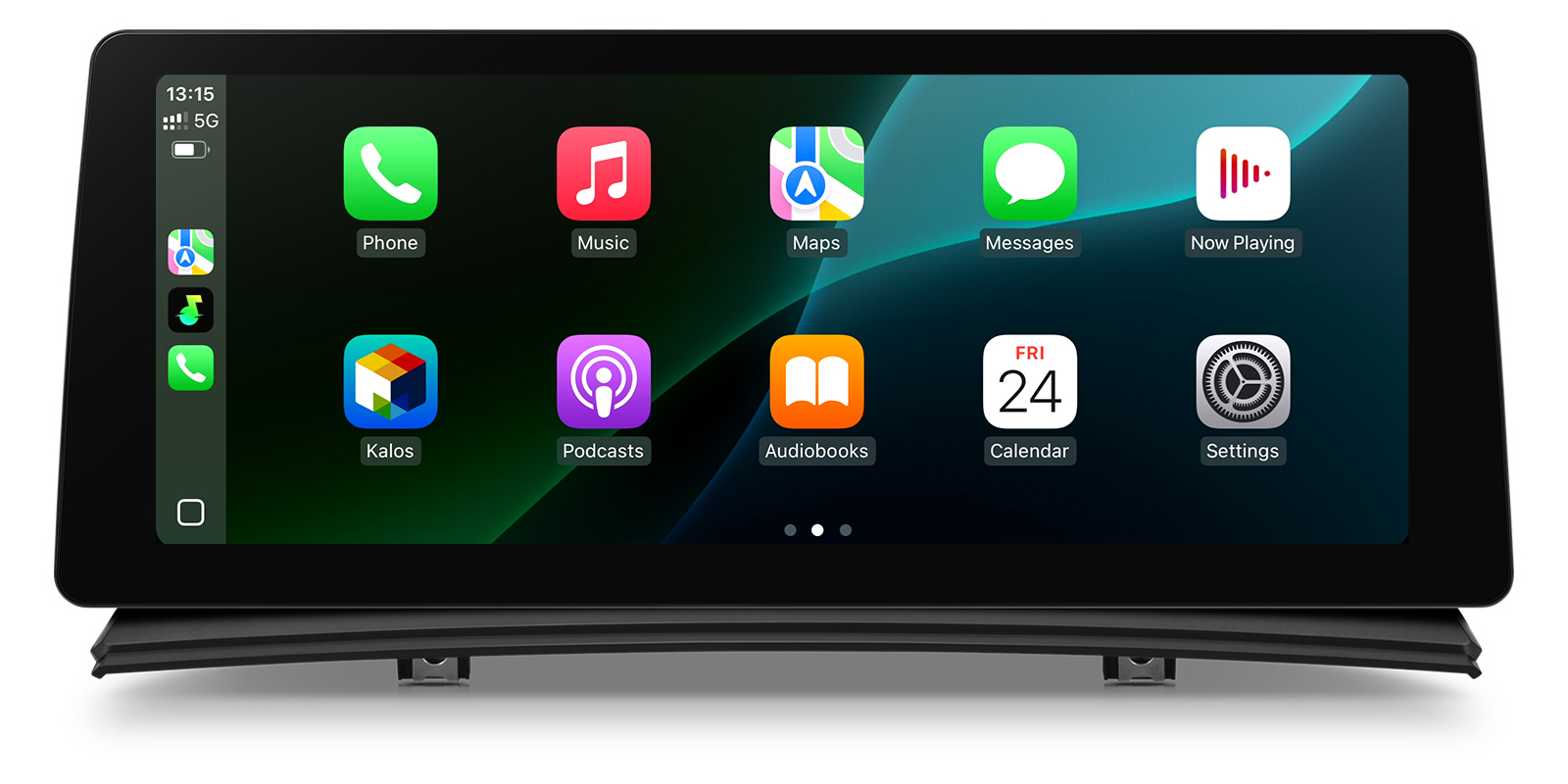

Wireless Apple CarPlay
CarPlay connects without a cable, so your iPhone can stay in your pocket. Maps, calls and music move onto the wide screen and Siri takes voice requests.
Wireless Android Auto
Android phones connect wirelessly for Google Maps, music and calls on the 12.3″ screen, with Google Assistant for voice control.

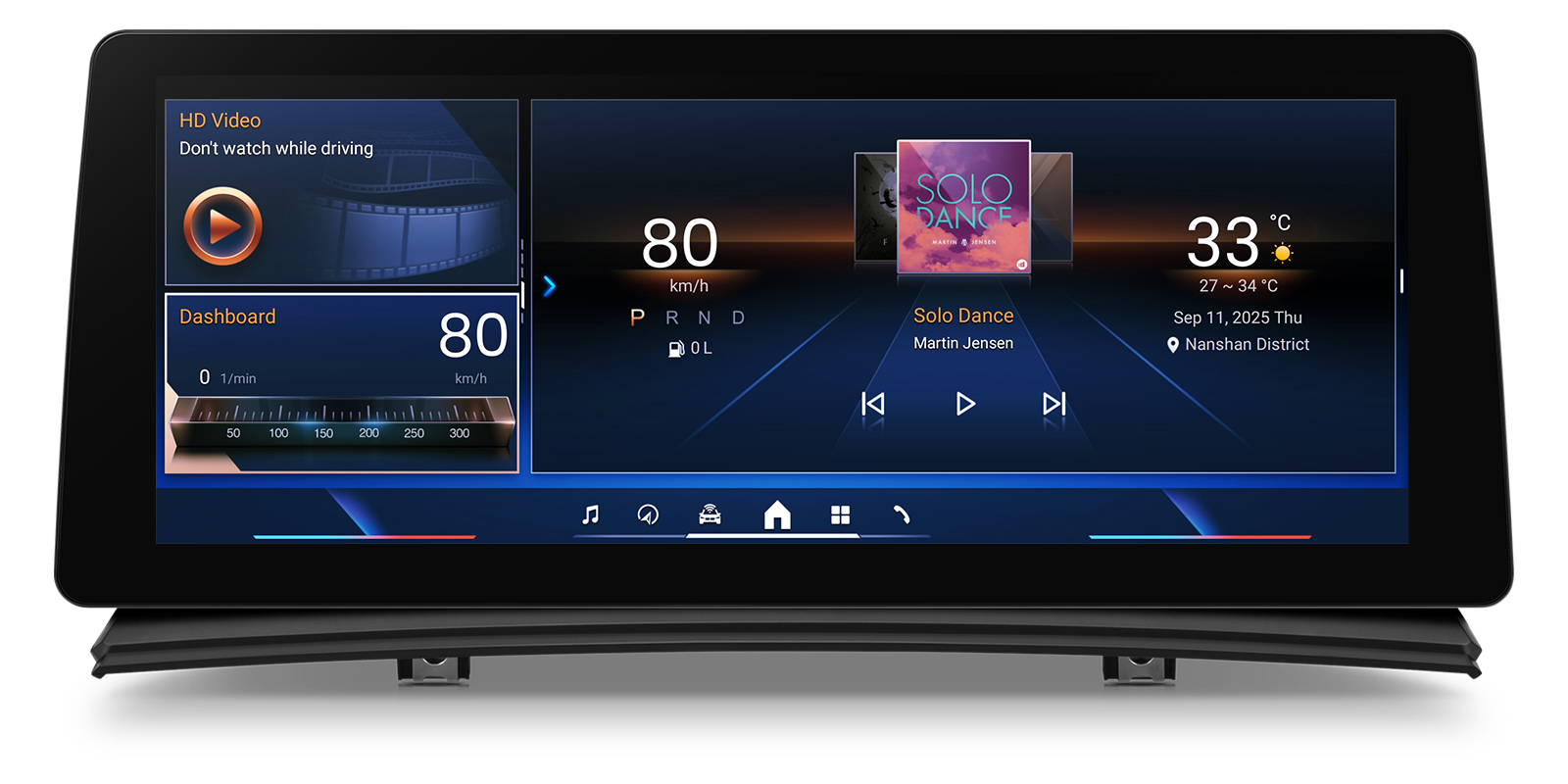

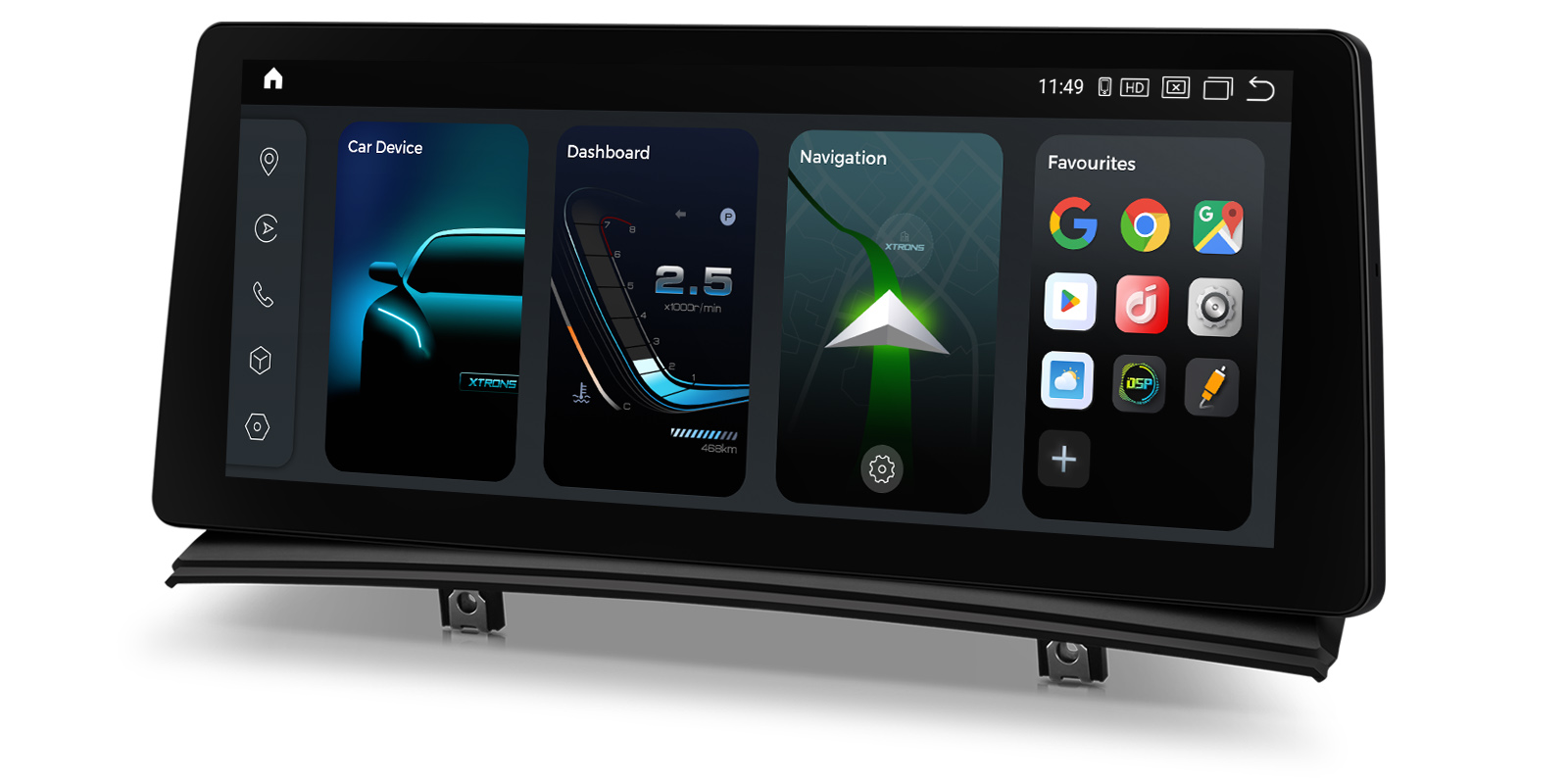

12.3″ 2K IPS display
The fully laminated IPS panel runs at QHD 2K (2400 x 900) with rich, accurate colour. G+G touch glass makes it responsive, and it reads clearly from both front seats.
Integrated 4G LTE
With a SIM in the unit, 4G gives it its own connection for music streaming and real-time GPS navigation, and you can share it with passengers.
It covers a wide range of FDD-LTE, TDD-LTD and WCDMA bands, and a 4G antenna is included.
Dual-band Wi-Fi
Wi-Fi covers both 2.4GHz and 5GHz bands for a faster, steadier link to a hotspot or home network.
Microphone for calls
The unit supports hands-free calls and voice commands. For clearer calls, add an external microphone such as MIC001, MIC002, MIC003 or ACMIC005.
DAB+ with an external tuner
Add an external DAB+ tuner such as USBDAB01, USBDAB02, USBDAB04, ACUSBDAB05T or ACUSBDAB06 for digital radio with a stronger signal.
Reversing camera option
You can add a reversing camera, for example CAM005, CAM018, CAM009S (AHD 720P), or ACCAM716S, CAM1080, ACCAM10802 or ACCAMAI01 (AHD 1080P), to see behind the car on the screen.
Dash cam option
An external DVR records your journey. DVR025S, DVR027S, DVR028S, DVR030S, ACDVR2K01 and ACWIFIDVR02 are compatible.
OBD2 diagnostics option
An OBD2 scanner such as OBD01S, OBD02, OBD03 or OBD04 reads real-time data and trouble codes from the car's computer and shows them on the screen.
Tyre pressure monitoring option
TPMS08 sensors on the wheels show tyre pressures on the head unit in real time.

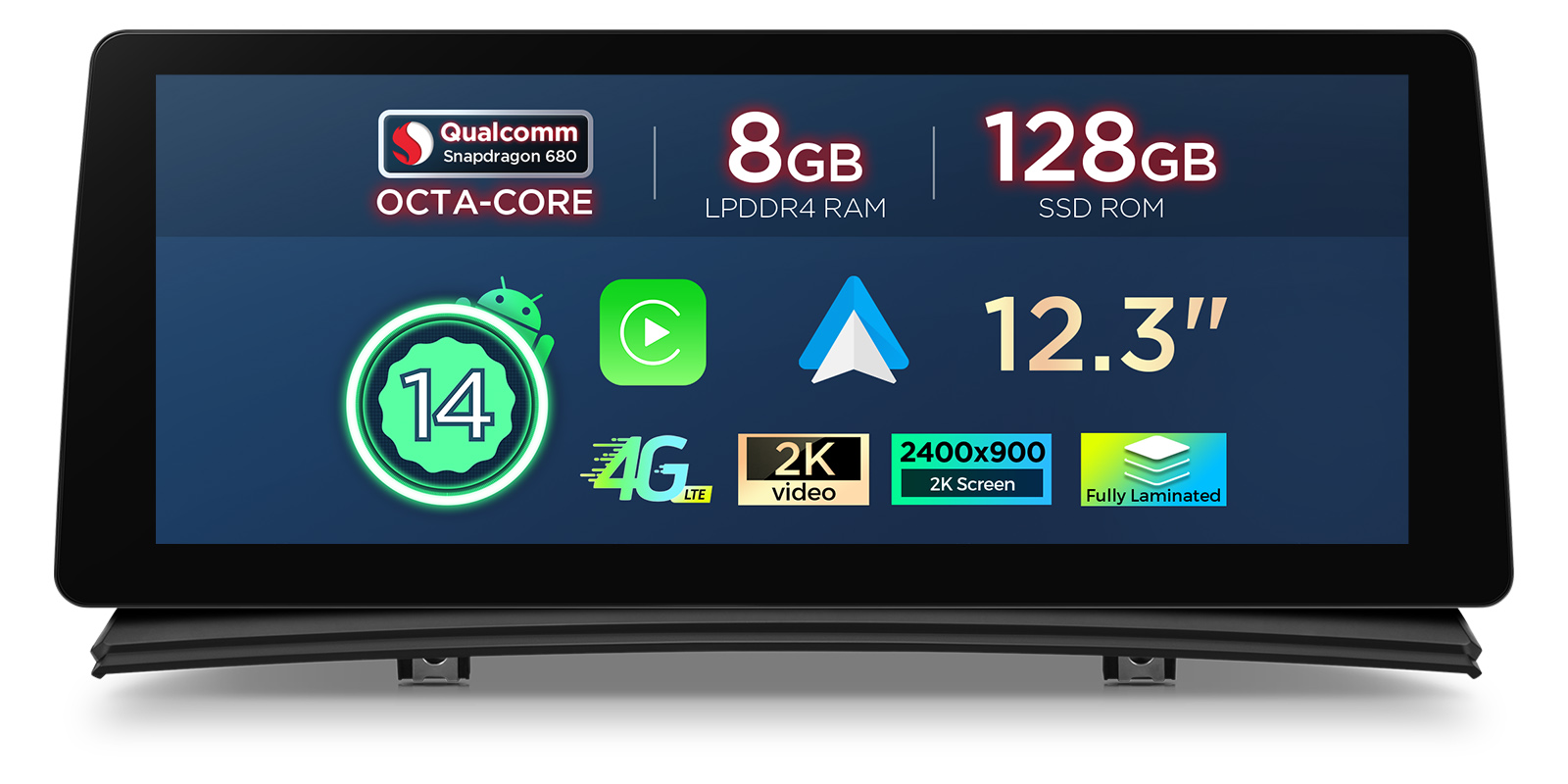

Qualcomm Snapdragon 680 performance
The Qualcomm Snapdragon 680 is a 64-bit octa-core processor built on 6nm, reaching up to 2.4GHz. With 8GB DDR4 RAM and 128GB storage on Android 14, it runs navigation, music and other apps together without slowing down.
Works with
- Universal External Microphone with 2.0m Cable and 3.5mm PlugICE/ACS/MIC001
- USB DAB+ Digital Radio Tuner Stick for XTRONS Android Head UnitsICE/ACS/USBDAB01
- Universal 720P AHD Reversing Camera with 120° ViewICE/SS/CAM009S
- Universal 1080P Hidden USB Dash Cam for Android Head UnitsICE/SS/DVR025S
- Universal Bluetooth OBD2 Diagnostic Scanner with On/Off SwitchICE/SS/OBD01S
- Universal USB TPMS Tyre Pressure Monitoring System with Internal Sensors for XTRONS UnitsICE/ACS/TPMS08
- DAB RadioBrowse the range
- Reversing CamerasBrowse the range

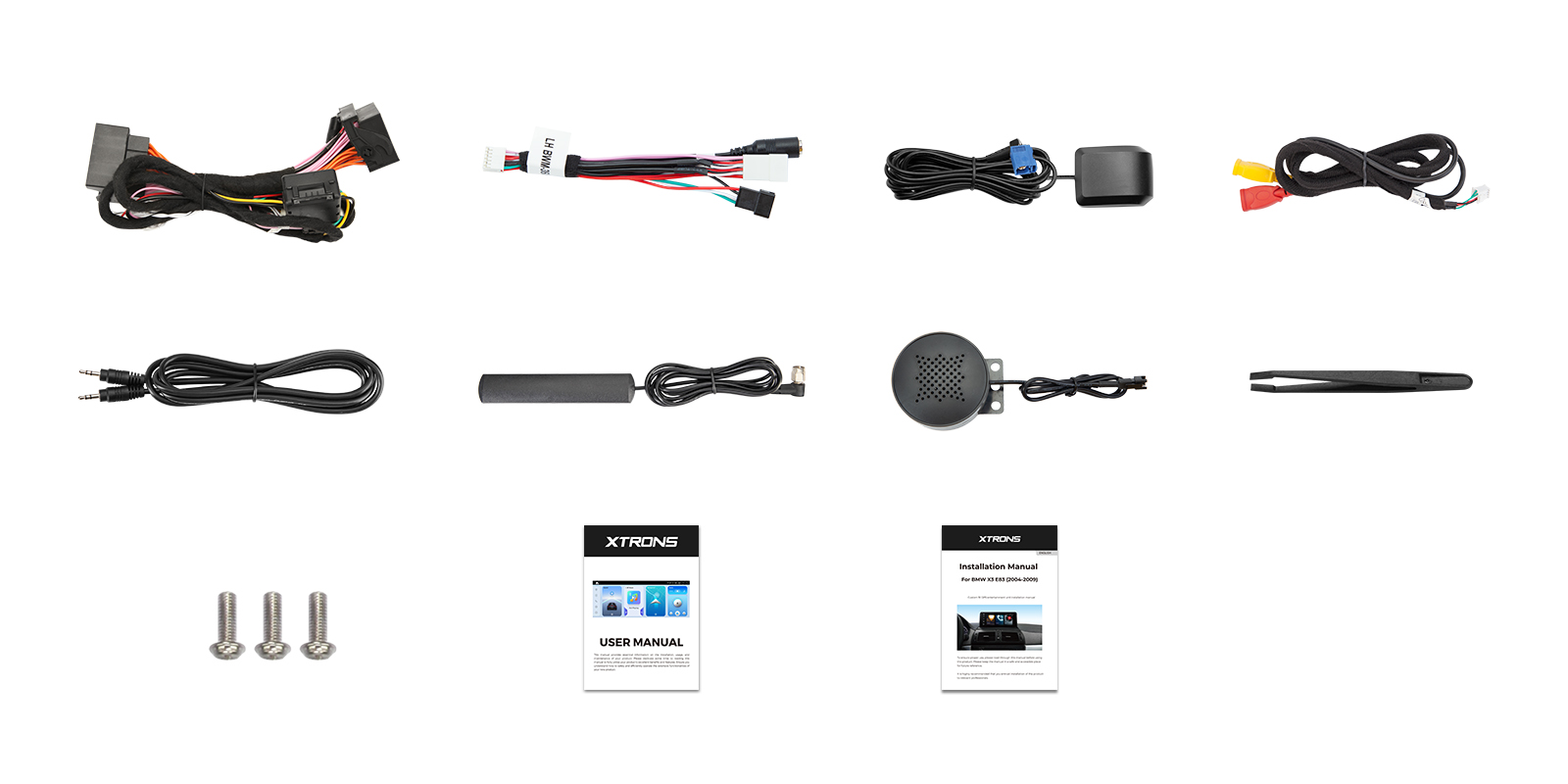

What's in the box
- 1 x 4G Antenna
- 1 x Audio Cable
- 1 x GPS Antenna
- 1 x Installation Instruction
- 1 x ISO Wiring Harness
- 1 x Mini Speaker
- 1 x Plastic Bracket
- 1 x RCA Cable
- 1 x Tweezers
- 1 x USB Cable
- 1 x User Manual
- Screws

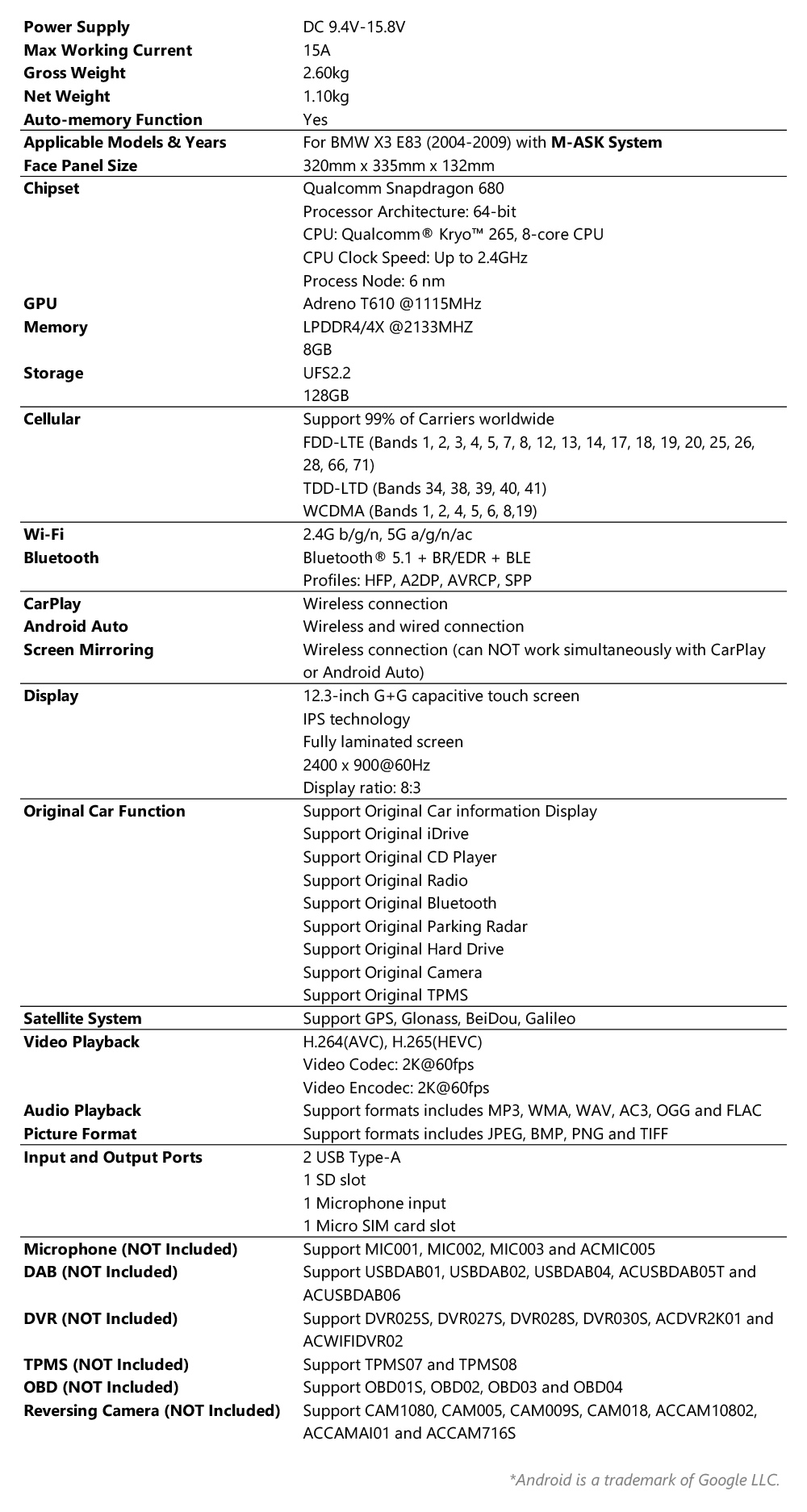

| Operating system | Android 14 |
|---|---|
| Processor | Qualcomm Snapdragon 680 |
| Cores | 4 x Kryo 265 Gold and 4 x Kryo 265 Silver cores |
| Clock speed | up to 2.4GHz |
| Memory | Dual Channel 8GB DDR4 RAM, 128GB Solid State ROM |
| Screen size | 12.3″ Screen |
|---|---|
| Resolution | QHD 2K (2400 x 900) |
| Panel | IPS Technology |
| Touch screen | G+G Touch Screen |
| Wi-Fi | supports both 2.4GHz and 5GHz bands |
|---|---|
| FDD-LTE | FDD-LTE (Bands 1,2, 3, 4, 5,7,8, 12, 13, 14, 17,18, 19, 20, 25, 26, 28, 66, 71) |
| TDD-LTE | TDD-LTD (Bands 34, 38, 39, 40, 41) |
| WCDMA | WCDMA(Bands 1, 2, 4, 5, 6, 8, 19) |

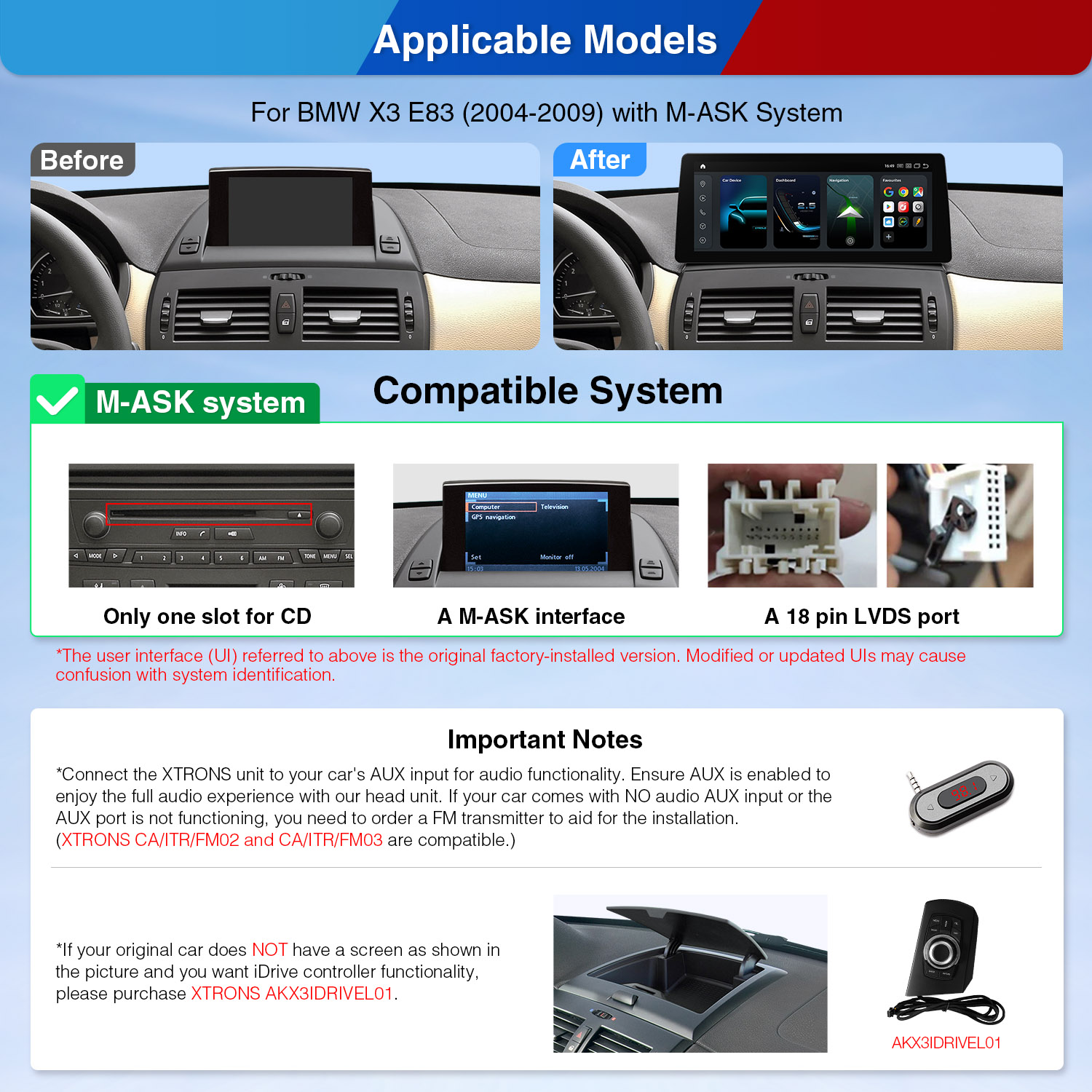

- BMW X3 E83 (2004-2010)
- For BMW X3 E83 (2004-2009) with M-ASK System
- This unit is for BMW vehicles that come with M-ASK system.
- If your original car does NOT have a screen as shown in the picture and you want iDrive controller functionality, please purchase XTRONS AKX3IDRIVEL01.

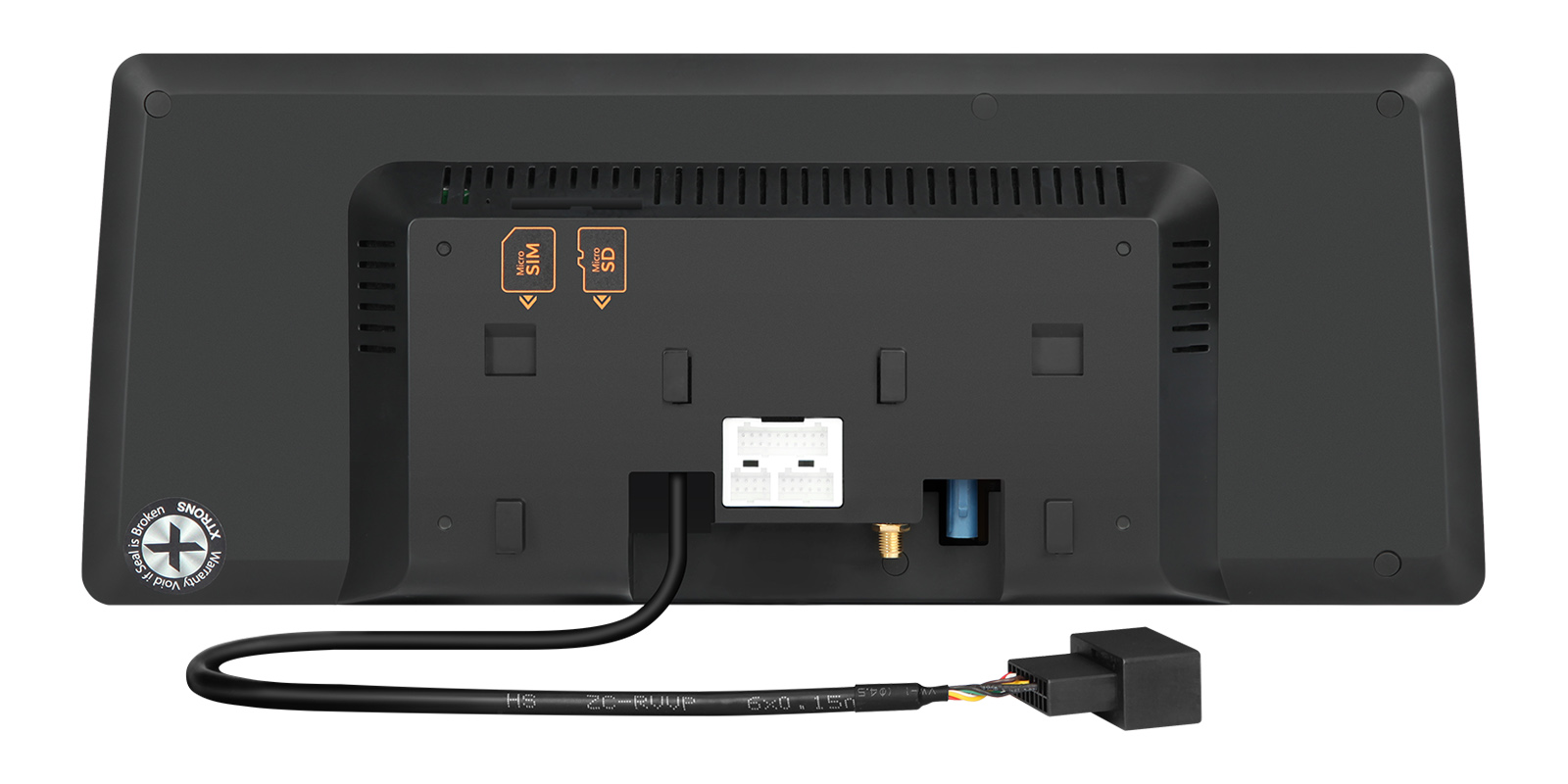

The screen is a plug-and-play replacement for the factory display, connecting through the supplied ISO wiring harness. Sound runs through the car's AUX input, so AUX must be enabled; without a working AUX input you'll need an FM transmitter such as CA/ITR/FM02 or CA/ITR/FM03. Modified or updated factory menus can make the system hard to identify, so check yours is M-ASK.
Will I keep my CD player and radio?
Yes. The CD player, radio and iDrive keep working alongside Android.
What if my car has no AUX input?
You'll need an FM transmitter, such as CA/ITR/FM02 or CA/ITR/FM03, because the screen plays its sound through AUX.
My X3 has no factory screen. Will iDrive work?
For iDrive controller functionality on a car without the factory screen, add AKX3IDRIVEL01.
Which X3 does it fit?
The X3 E83 (2004-2009) with the M-ASK system.
Reviews
What customers say
Bought this product? Sign in to write a review.

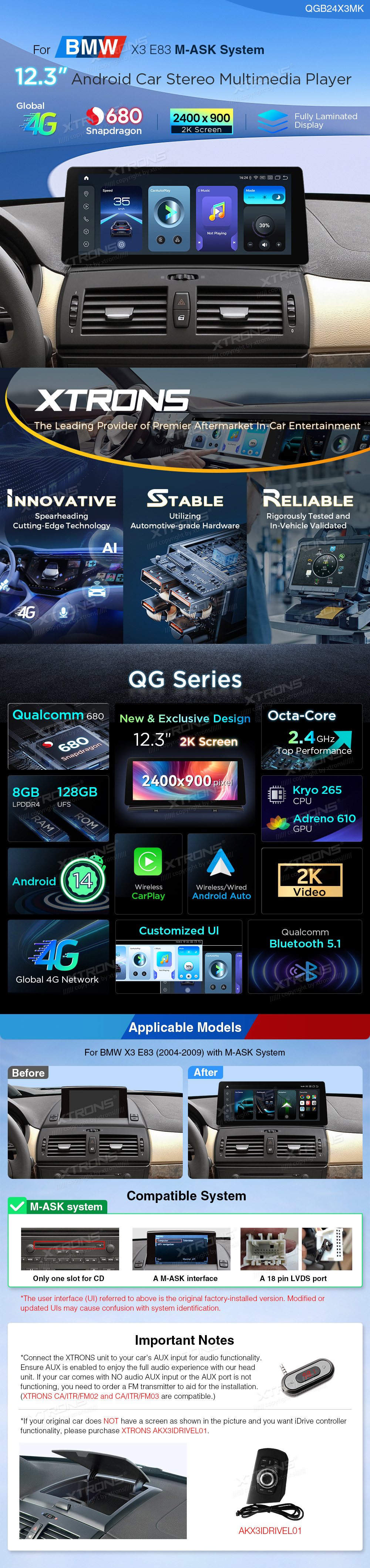

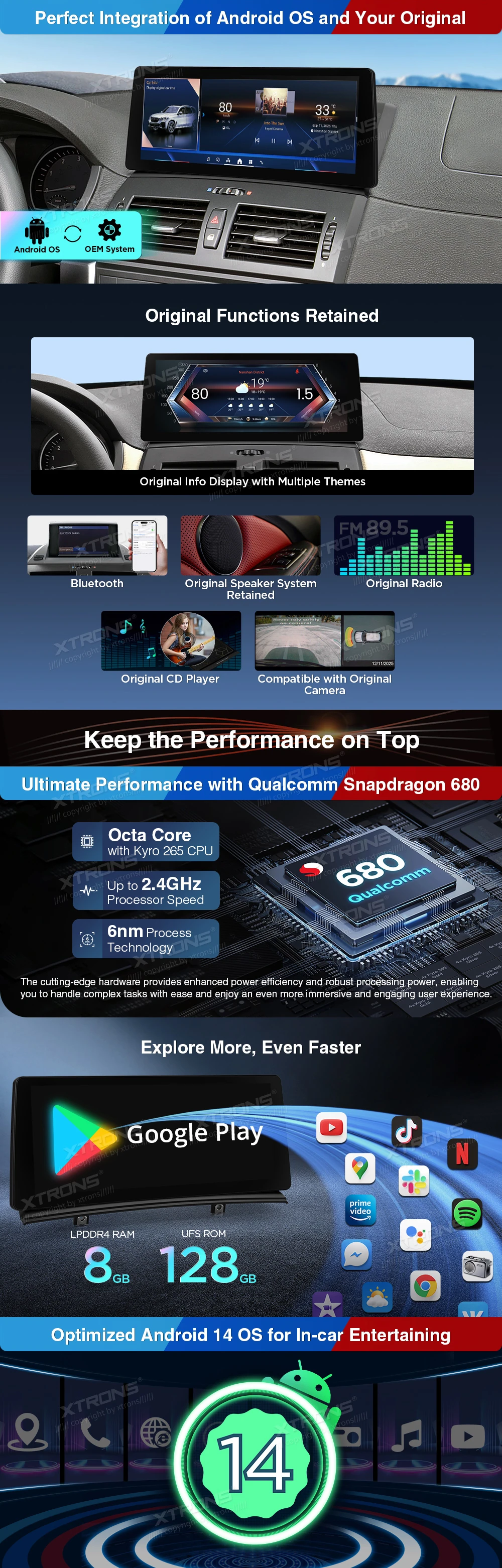

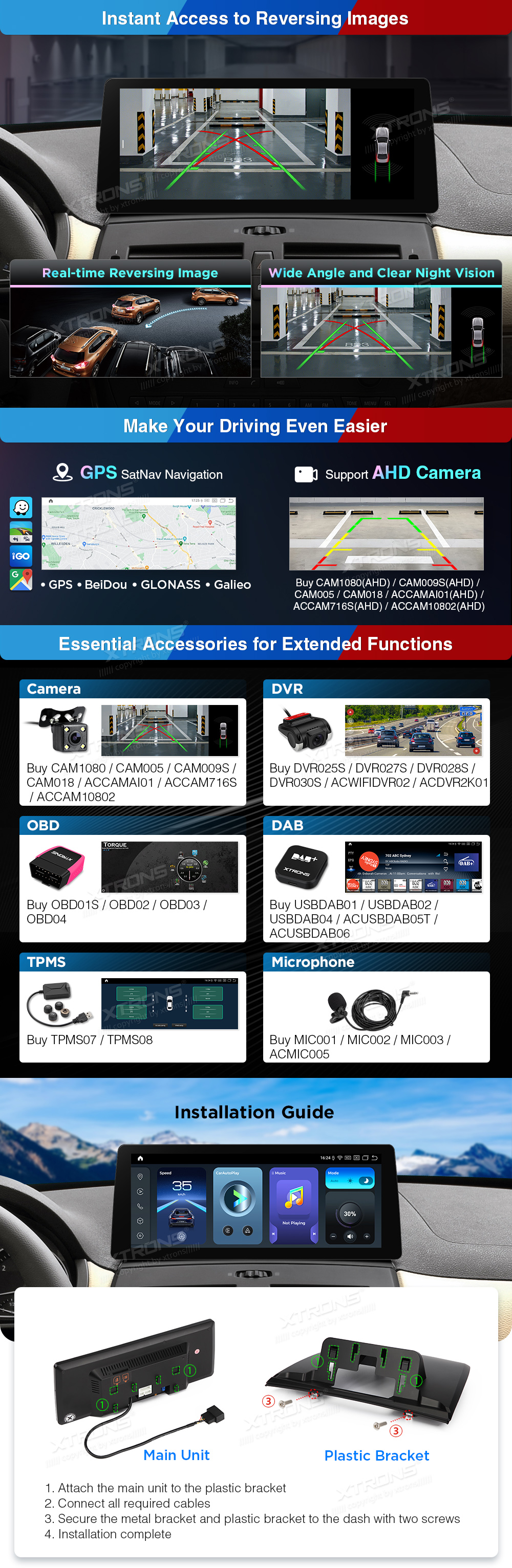

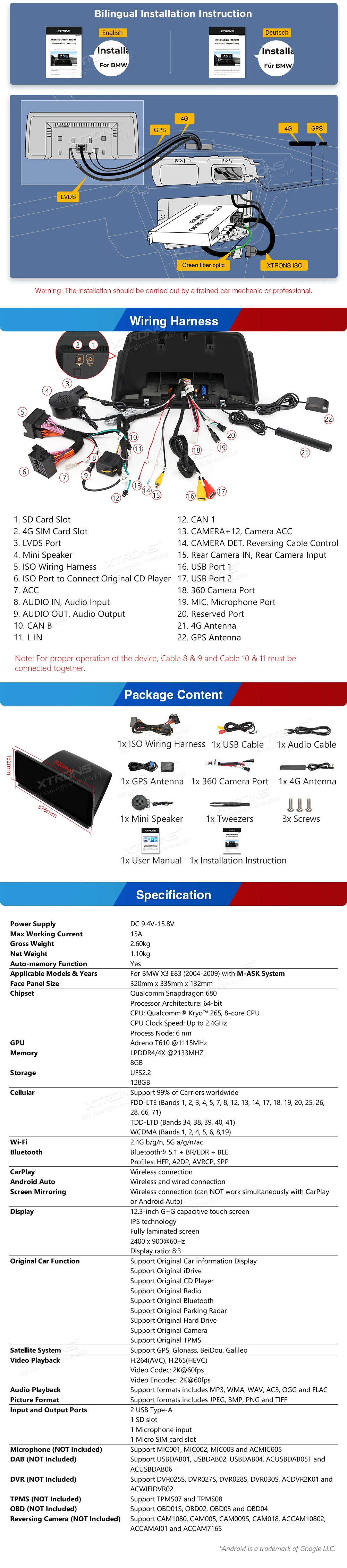

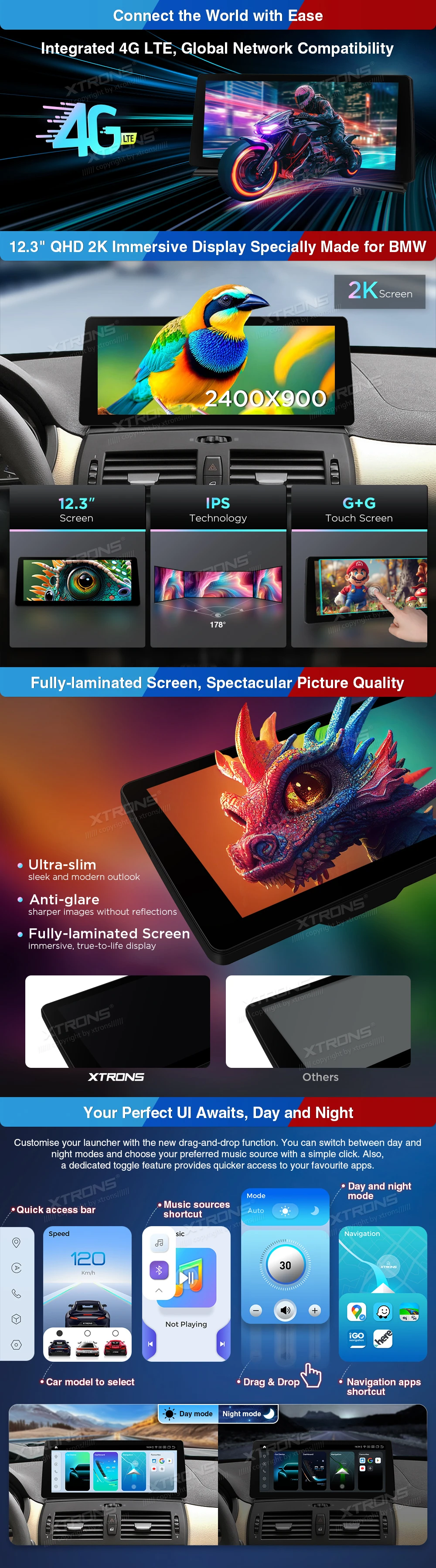

Full specification from XTRONS
