USB DAB+ Digital Radio Tuner Stick for XTRONS Android Head Units | ICE/ACS/USBDAB01
SKU: ICE/ACS/USBDAB01
£53.99
Check if this fits your car
1
Key specifications
- Signal to noise ratio
- SNR is over 95db
- Encoding rate
- 192kbps
- Connection
- USB 2.0

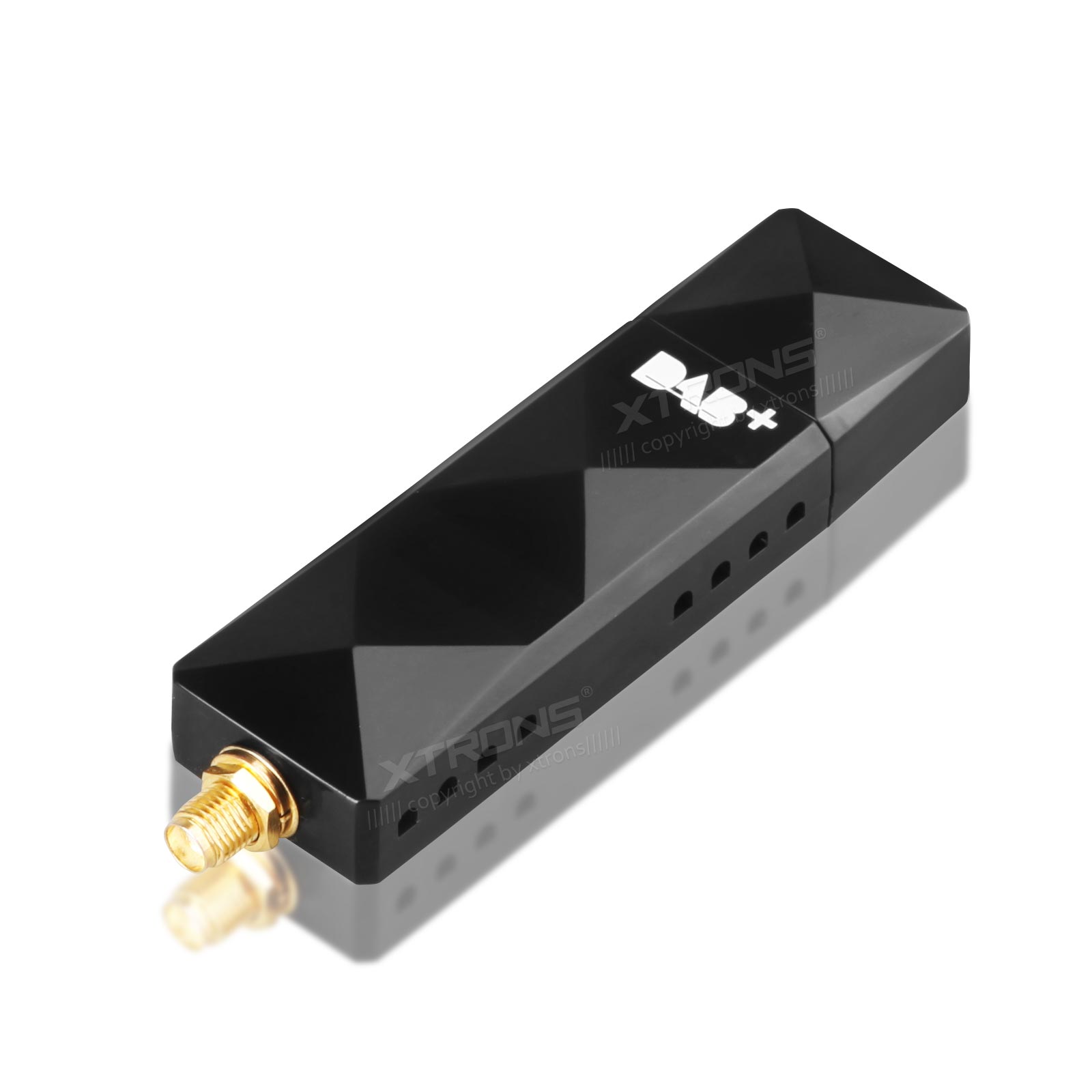

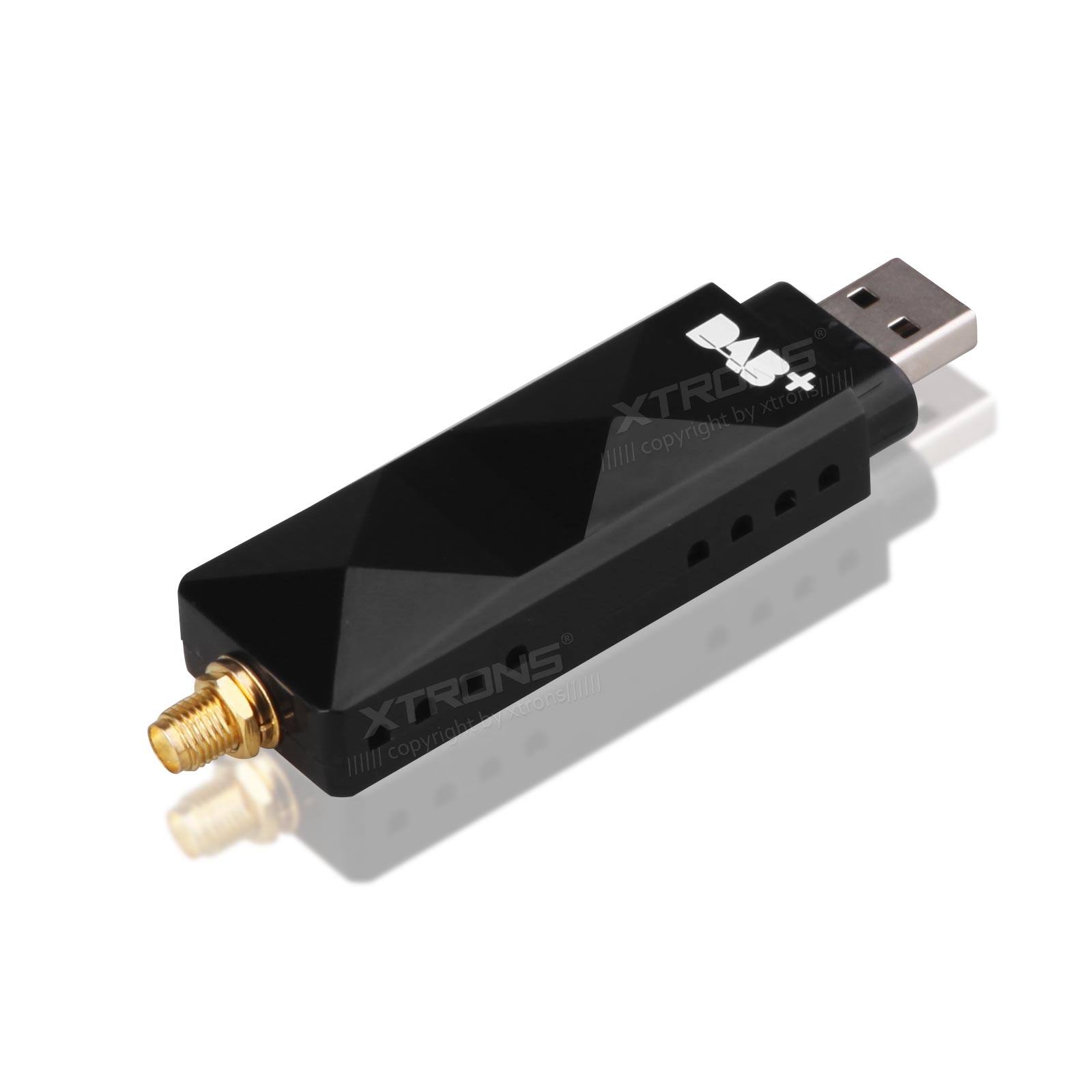

The XTRONS USBDAB01 is a USB DAB+ tuner that adds digital radio to an XTRONS Android head unit. It plugs into the unit's USB port and comes with a windscreen DAB+ aerial.
- Adds DAB+ digital radio with station information on screen
- Plugs into the USB port of an XTRONS Android head unit
- SNR over 95db and a 192kbps encoding rate
- DAB+ aerial included, fitted to the windscreen by the A pillar
Digital radio on your XTRONS head unit
Plug the stick into your XTRONS Android head unit and it receives DAB+ digital radio, with more stations to choose from, quick switching between them and details of what's playing shown on screen. The signal-to-noise ratio is over 95db, which helps keep the sound clean on the move.
It only works with XTRONS Android head units: the IA, ID, IM, IP, IQ, IX, PX, UA, QA, QB, QD, QL, QG, QIR, QT and QW Series. It doesn't support the North American region.
Fitting the aerial
Remove the passenger-side A pillar trim and scrape away a little paint to fix the copper grounding lug, making sure it has a good earth. Then stick the aerial to the windscreen pointing upward, at least 60mm from any metal, run the cable to the head unit and test before refitting the trim.

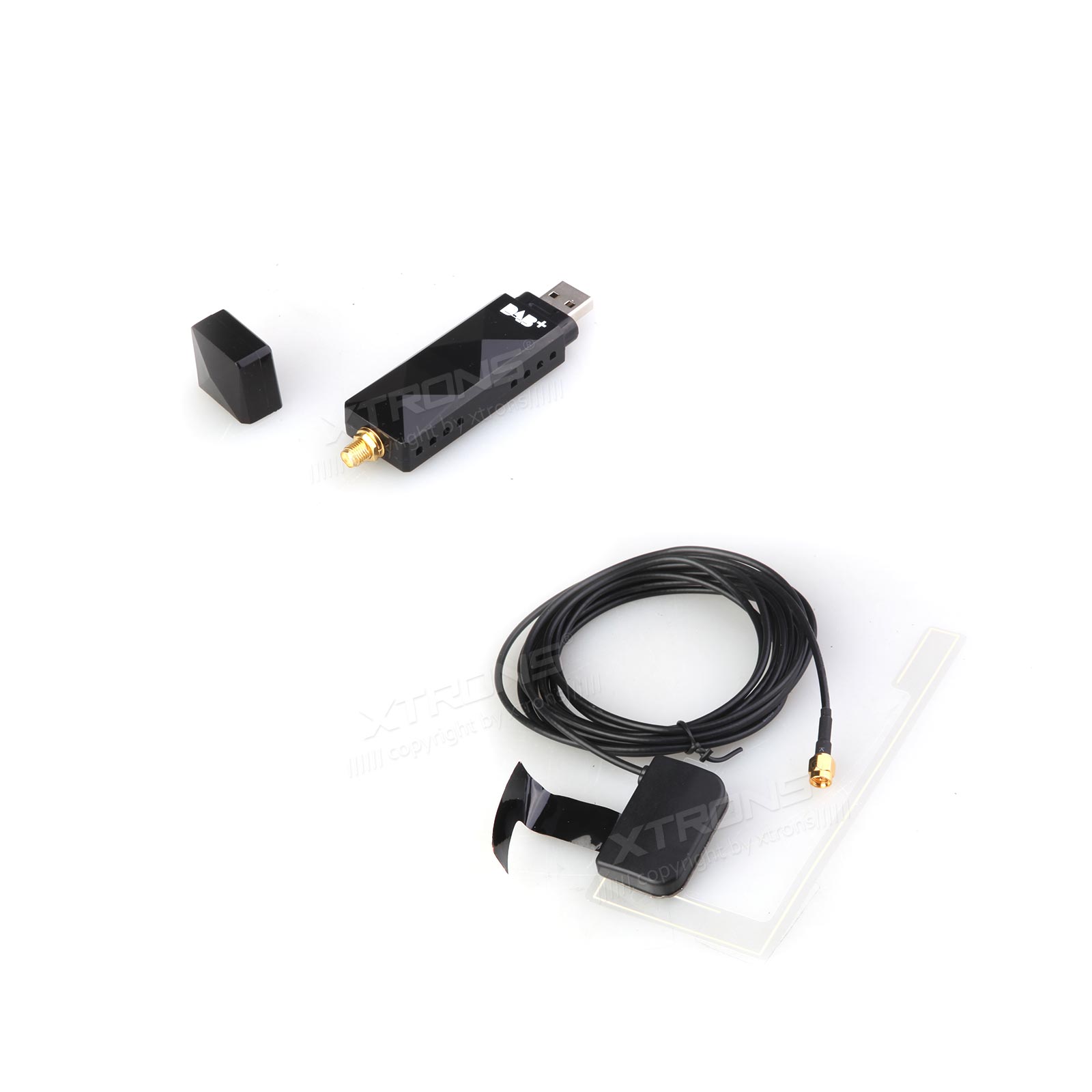

What's in the box
- 1 x USB Stick
- 1 x DAB+ Antenna
| Signal to noise ratio | SNR is over 95db |
|---|---|
| Encoding rate | 192kbps |
| Connection | USB 2.0 |
- Perfect Fit for XTRONS IA/ID/IM/IP/IQ/IX/PX/UA/QA/QB/QD/QL/QG/QIR/QT/QW Series head units.
- This USB DAB+ radio receiver stick is only designed specially for XTRONS Android head units.
- It doesn't support North American region.
Connect the stick to the head unit's USB port. Fit the aerial to the windscreen behind the passenger-side A pillar trim, earthing the copper grounding lug to bare metal and keeping the aerial at least 60mm from metal, then run the cable to the head unit and test.
Will it work with any car stereo?
No. It's made only for XTRONS Android head units in the IA, ID, IM, IP, IQ, IX, PX, UA, QA, QB, QD, QL, QG, QIR, QT and QW Series.
Is an aerial included?
Yes, a DAB+ antenna comes with the USB stick.
Where should the aerial go?
On the windscreen by the passenger-side A pillar, pointing upward and at least 60mm from metal, with the grounding lug earthed to bare metal.
Reviews
What customers say
Bought this product? Sign in to write a review.

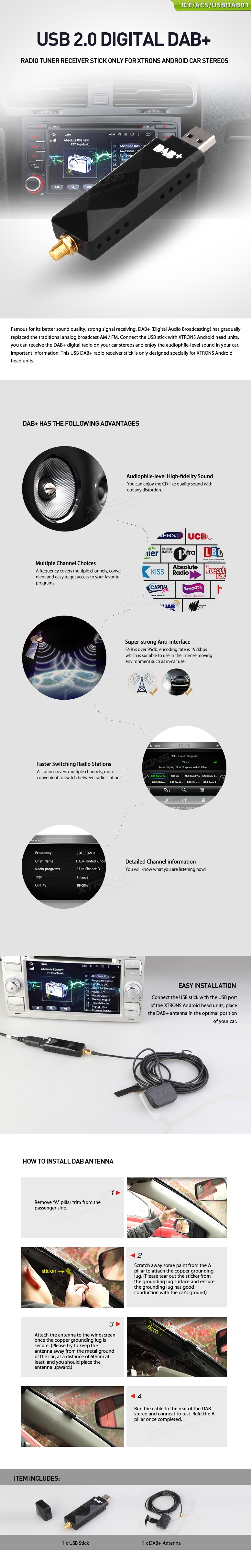

Full specification from XTRONS
