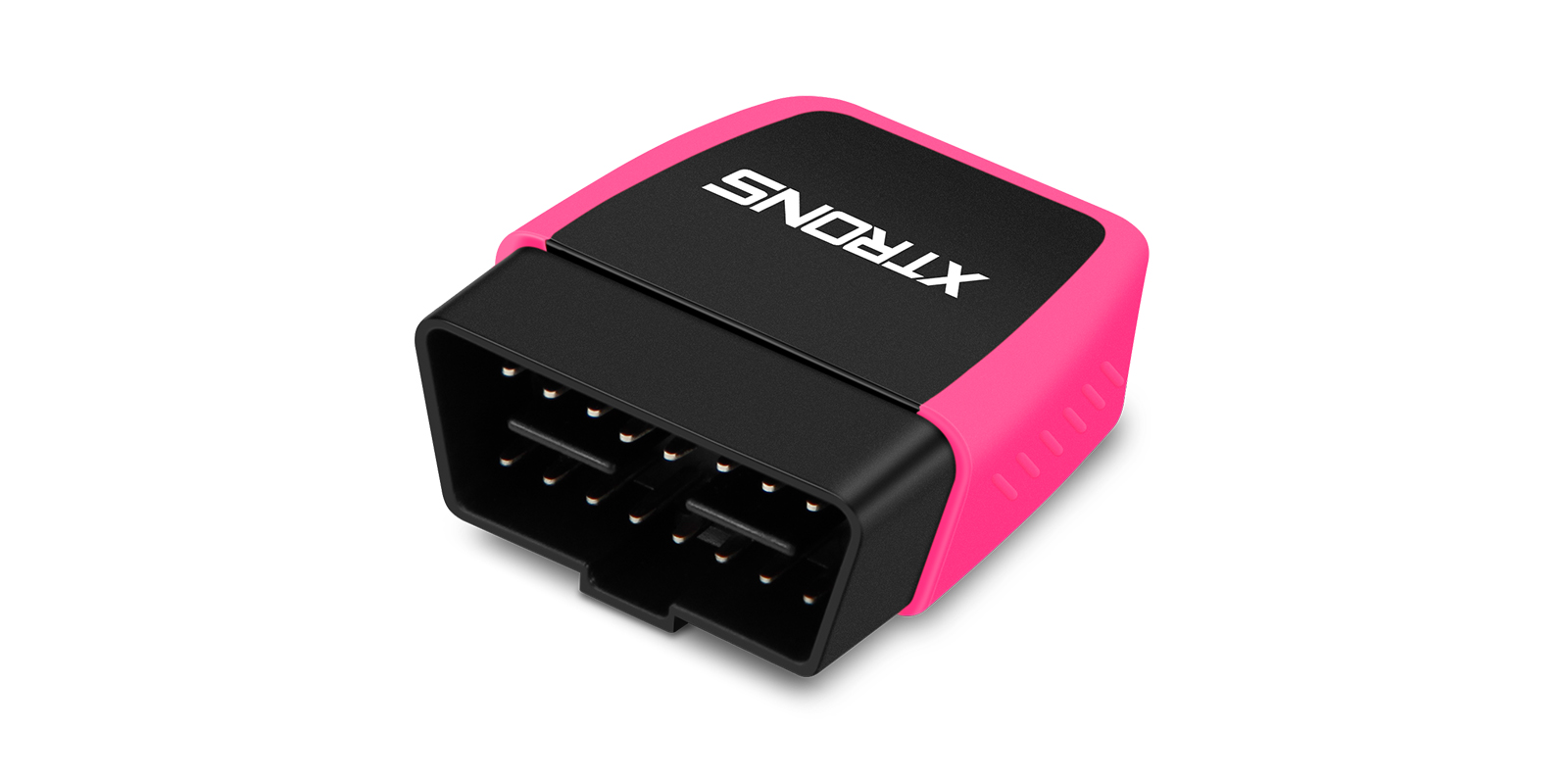

Image 1 of 3.
Functions
- Bluetooth
- OBD2 diagnostics
In stock
Universal Bluetooth OBD2 Diagnostic Scanner Tool | ICE/SS/OBD03
SKU: ICE/SS/OBD03
£30.99
Check if this fits your car
1
Key specifications
- SAE J1850 PWM
- SAE J1850 PWM (41.6 kbaud)
- SAE J1850 VPW
- SAE J1850 VPW (10.4 kbaud)
- ISO 9141-2
- ISO 9141-2 (5 baud init, 10.4 kbaud)
- ISO 14230-4 KWP
- ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
- ISO 14230-4 KWP fast
- ISO 14230-4 KWP (fast init, 10.4 kbaud)
- ISO 15765-4 CAN
- ISO 15765-4 CAN (11 bit ID, 500 kbaud)
A mini Bluetooth OBD2 scanner that plugs into your car's diagnostic port and pairs with an XTRONS head unit or an Android phone or tablet. It reads and clears engine fault codes and shows live engine data.
- Reads and clears trouble codes and the check engine light
- Live sensor data such as engine RPM, coolant temperature and fuel trims
- Pairs by Bluetooth with XTRONS head units or Android phones and tablets

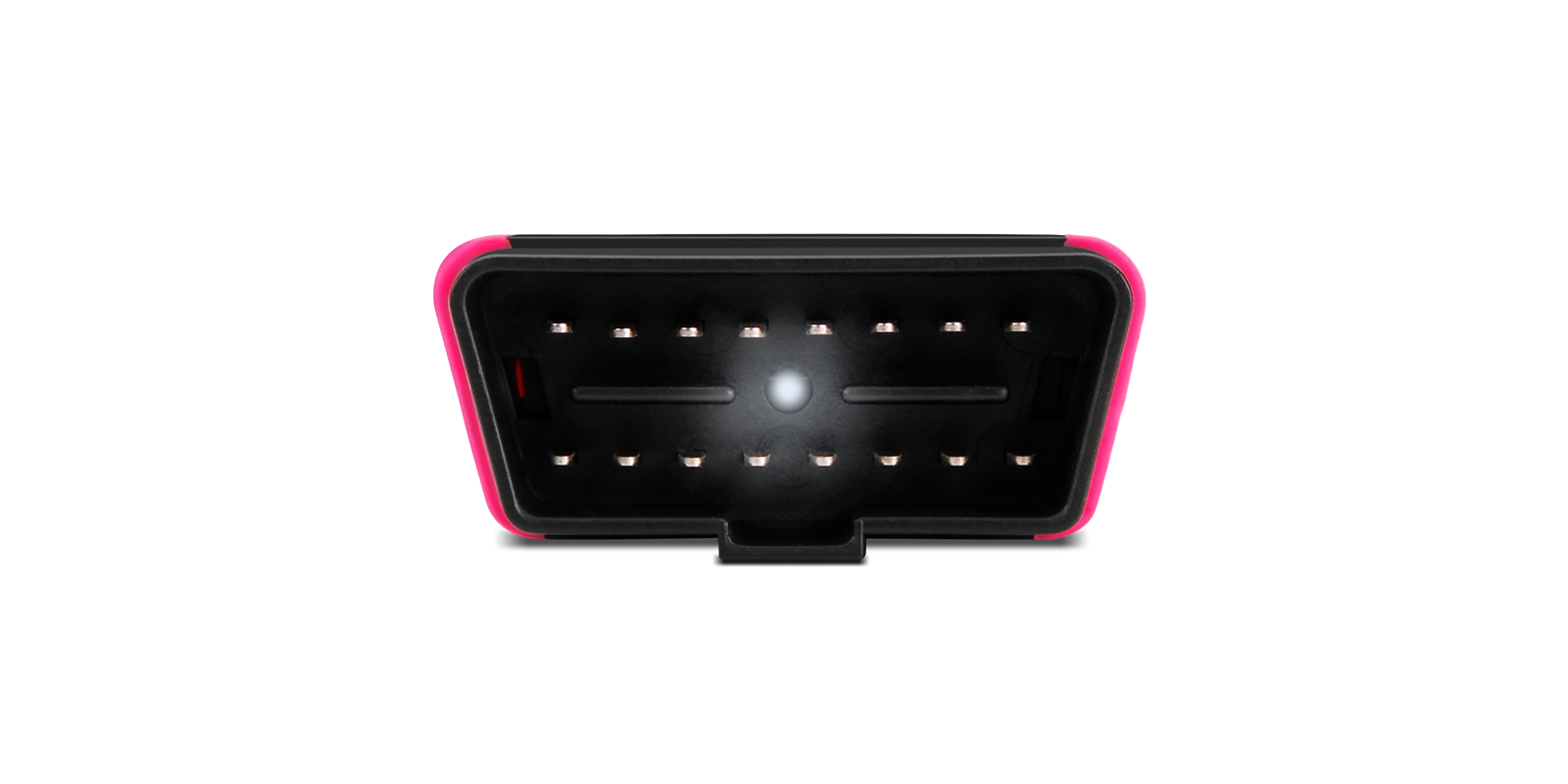

- Built-in light to help find the connector in the dark
Read and clear fault codes
Plug the scanner into the car's 16-pin diagnostic connector and, with a suitable app, you can read both generic and manufacturer-specific trouble codes. The code descriptions come from a database of over 3000 universal definitions, so you get an idea of what's wrong before visiting a garage.
Once a fault is fixed, you can clear the codes and the check engine light.
Live engine data
The scanner shows real-time sensor data, including engine RPM, coolant temperature, calculated load value, MPH speed, short and long term fuel trims, intake manifold pressure, timing advance, air flow rate, throttle position, oxygen sensor voltages and fuel pressure. You can view and save the readings.
Bluetooth connection
It connects by Bluetooth to an Android smartphone or tablet. The OBD2 app is already on XTRONS head units, so you can see the data on the dashboard screen.
What's in the box
- 1 x OBD2 Scan Tool
| SAE J1850 PWM | SAE J1850 PWM (41.6 kbaud) |
|---|---|
| SAE J1850 VPW | SAE J1850 VPW (10.4 kbaud) |
| ISO 9141-2 | ISO 9141-2 (5 baud init, 10.4 kbaud) |
| ISO 14230-4 KWP | ISO 14230-4 KWP (5 baud init, 10.4 kbaud) |
| ISO 14230-4 KWP fast | ISO 14230-4 KWP (fast init, 10.4 kbaud) |
| ISO 15765-4 CAN | ISO 15765-4 CAN (11 bit ID, 500 kbaud) |
| ISO 15765-4 CAN | ISO 15765-4 CAN (29 bit ID, 500 kbaud) |
| ISO 15765-4 CAN | ISO 15765-4 CAN (11 bit ID, 250 kbaud) |
| ISO 15765-4 CAN | ISO 15765-4 CAN (29 bit ID, 250 kbaud) |
| SAE J1939 | SAE J1939 (250 Kbaud) |
| SAE J1939 | SAE J1939 (500 Kbaud) |
| Size | 46x40x18x16mm |
|---|---|
| Connection | Bluetooth |
Universal: fits most cars. Check the dimensions in the specifications against your dash.
- For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.
- Alfa Romeo / Audi / Bentley / BMW / Cadillac / Chevrolet / Chrysler / Citroen / Daewoo / Fiat / Ford / GM /Honda / Hyundai / Isuzu / Jaguar / Jeep / Kia / Land Rover / Lexus / Mazda / Mercury / Mini / Mitsubishi / Opel / Peugeot / Porsche / Renault / Rover / Saab / Seat / Skoda / Toyota / Vauxhall / Volvo / VW
- Perfect Fit for XTRONS IA/ID/IM/IP/IQ/IX/PX/UA/QA/QB/QL/QG/QIR/QT/QW Series head units.
Plug the scanner into the 16-pin diagnostic connector under the dash and pair it by Bluetooth with your XTRONS head unit or Android device. The OBD2 app is on XTRONS units, and it can also be downloaded from the XTRONS website.
Will it work with my car?
Your car needs a 16-pin diagnostic connector under the dash, and its Vehicle Emission Control Information Label must say it's OBD II compliant.
Does it work with an iPhone?
It pairs with Android smartphones and tablets and with XTRONS head units. Check your phone is Android before ordering.
Where do I get the app?
The OBD2 app is already on XTRONS head units, or you can download it from the XTRONS website.
Reviews
What customers say
Bought this product? Sign in to write a review.

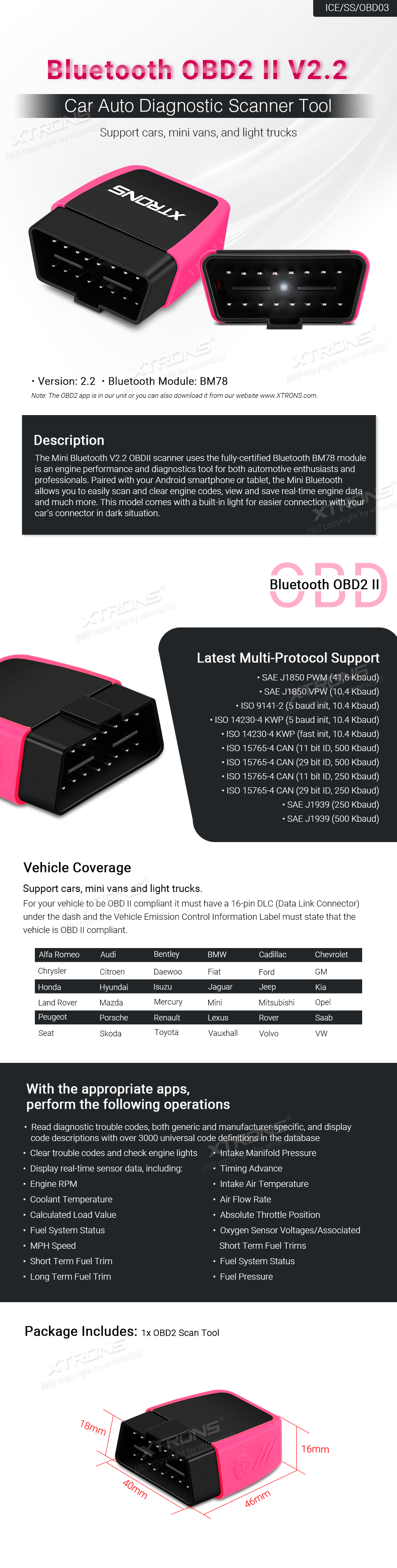

Full specification from XTRONS
