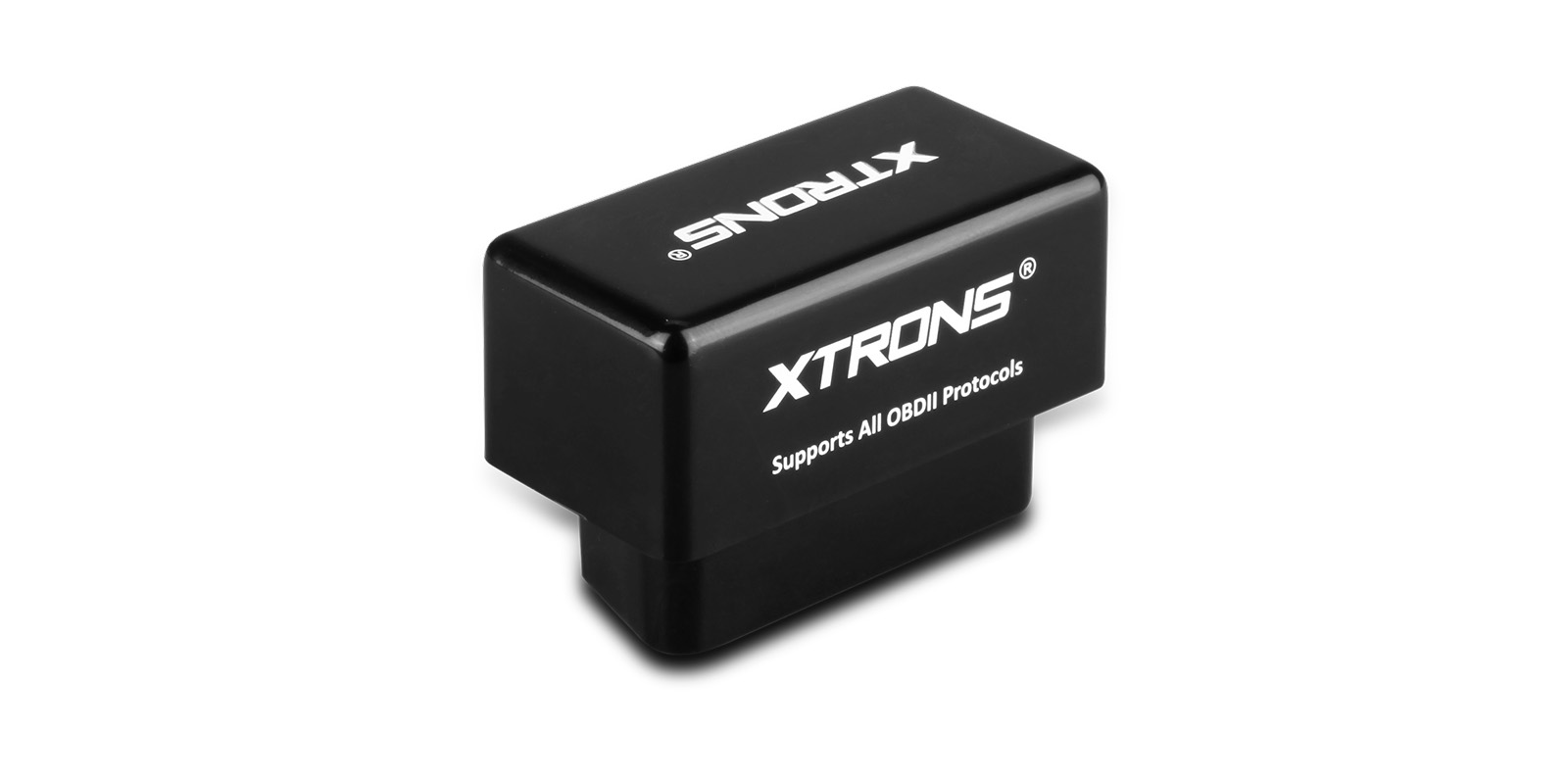

Image 1 of 4.
Functions
- Bluetooth
- OBD2 diagnostics
In stock

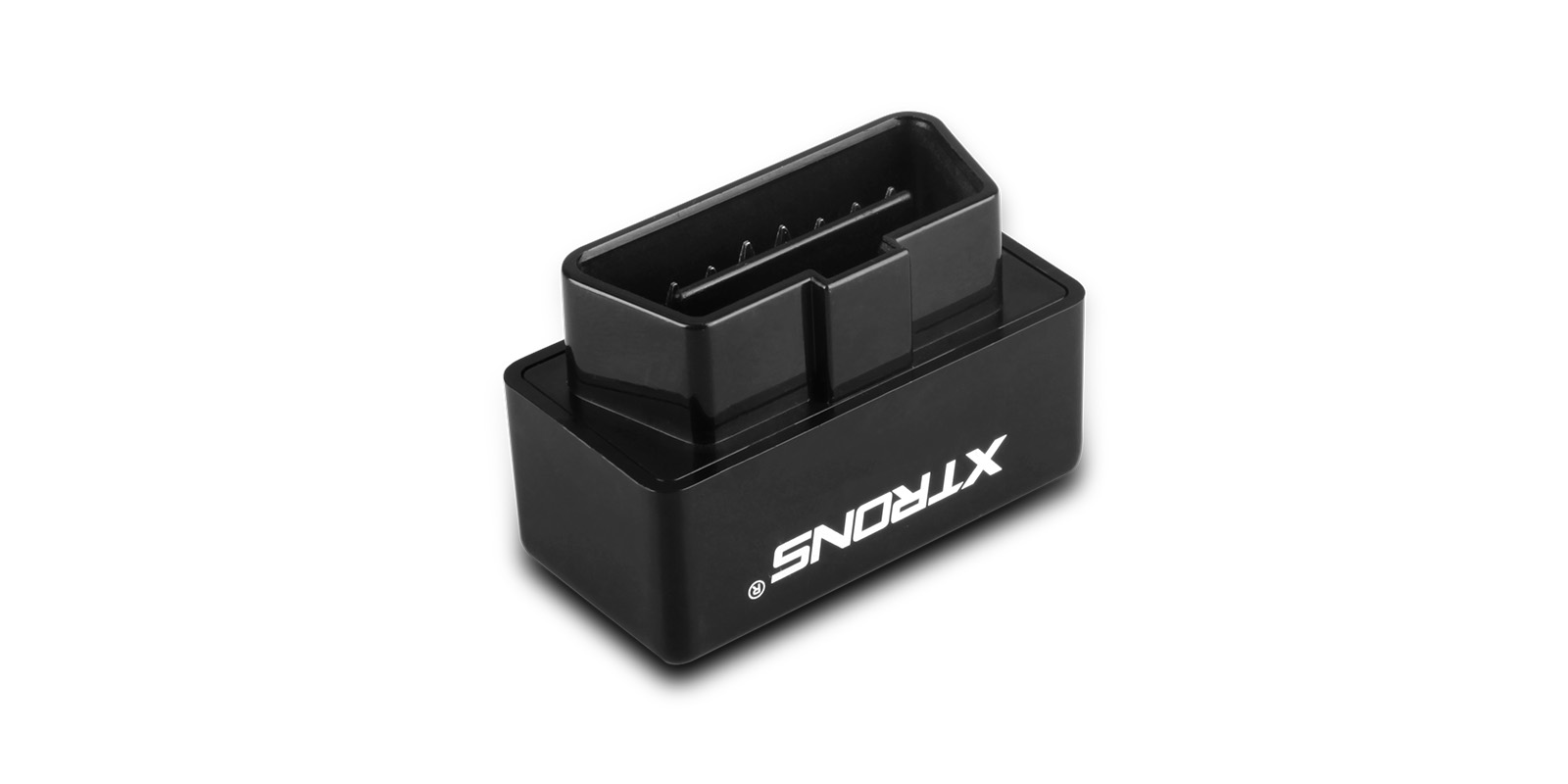

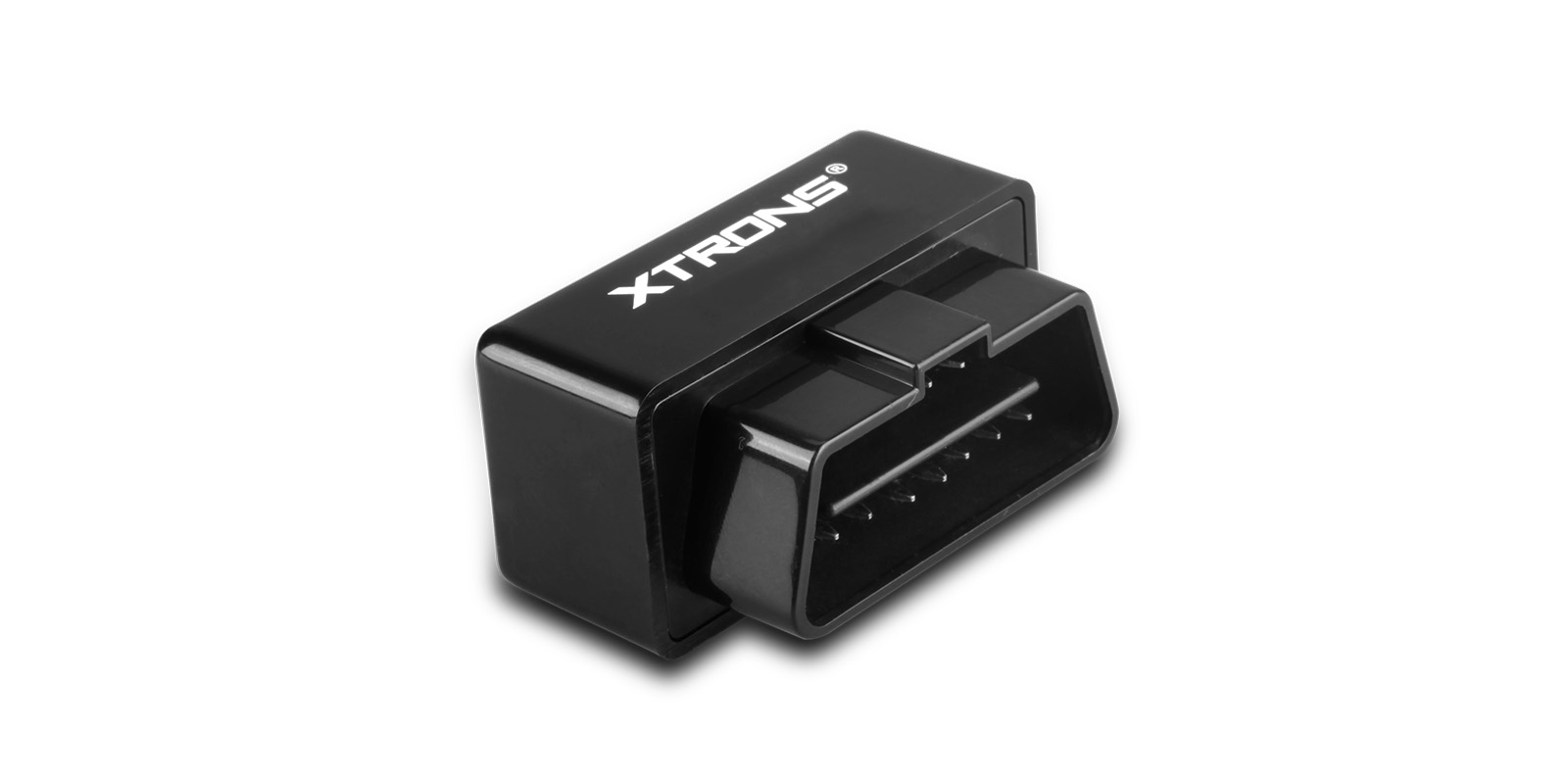

Mini Bluetooth OBD2 Diagnostic Scanner for Android and XTRONS Head Units | ICE/SS/OBD02
SKU: ICE/SS/OBD02
£9.99
Check if this fits your car
1
Key specifications
- Connection
- Connects wireless via Bluetooth up to 3 meters (no cable connection)
- Bluetooth password
- 1234
- Code database
- over 3000 universal code definitions

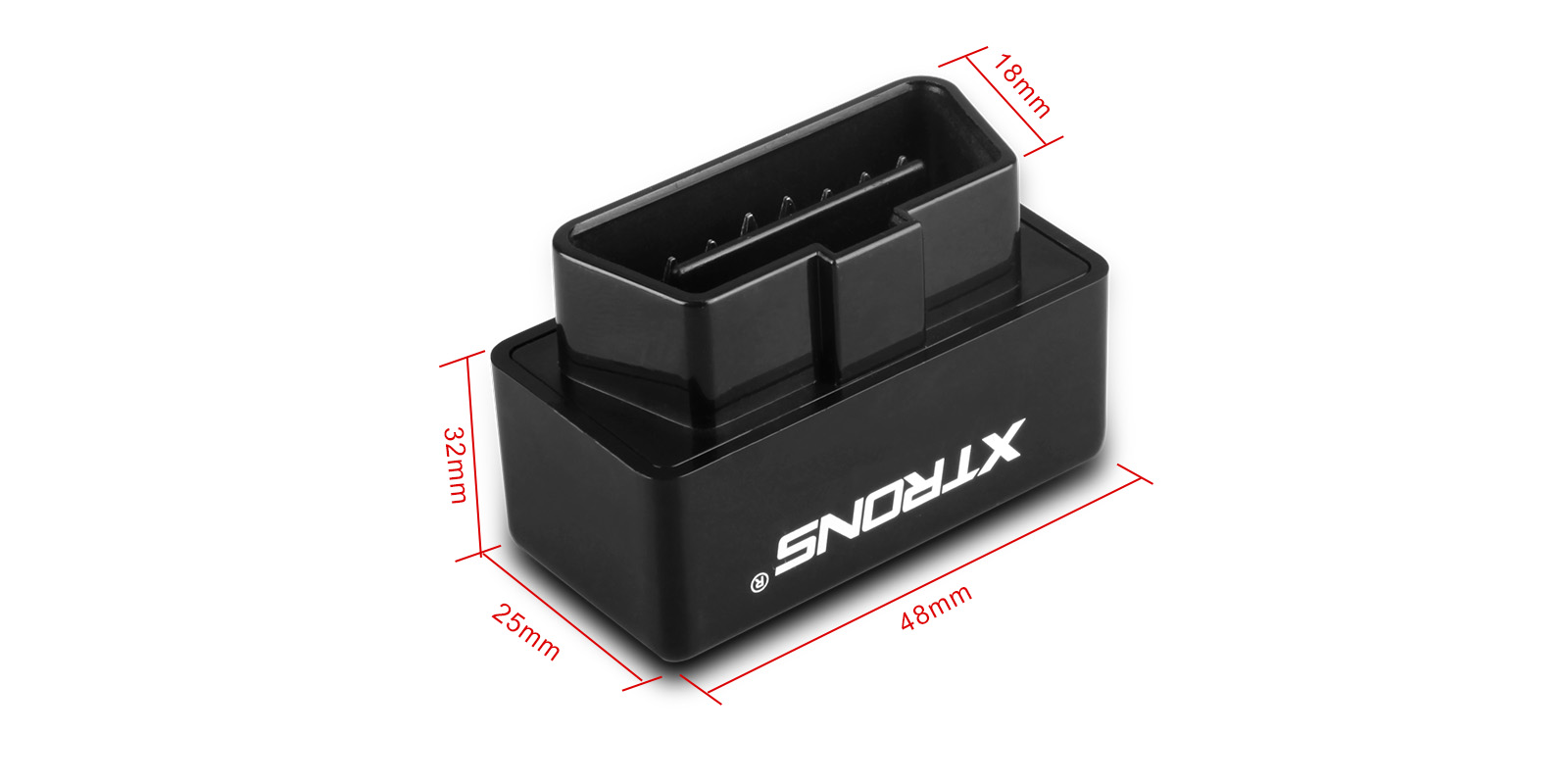

- Dimensions
- 48 x 25 x 32 mm
- SAE J1850 PWM
- SAE J1850 PWM (41.6 kbaud)
- SAE J1850 VPW
- SAE J1850 VPW (10.4 kbaud)
A mini Bluetooth OBD2 scanner that plugs into your car's diagnostic port. Paired with an Android phone, tablet or XTRONS head unit, it reads and clears engine fault codes and shows live engine data while you drive.
- Reads and clears fault codes and the check engine light
- Live data such as engine RPM, coolant temperature and fuel trim, with a suitable app
- Bluetooth connection up to 3 meters, with no cable
- Works with OBD II compliant vehicles that have a 16-pin connector
Read and clear fault codes
Plug the scanner into the 16-pin diagnostic port under the dash and it reads diagnostic trouble codes, both generic and manufacturer-specific, with descriptions from over 3000 universal code definitions. You can clear codes and switch off the check engine light once a fault is fixed.
With an appropriate app it also shows live sensor data while you drive, including engine RPM, coolant temperature, calculated load, speed, fuel trims, intake manifold pressure, timing advance, intake air temperature and flow, throttle position, oxygen sensor voltages and fuel system status. That helps you spot problems before they turn into breakdowns.
Wireless connection
The scanner connects by Bluetooth up to 3 meters away, so there's no cable trailing across the footwell. Pair it with an Android phone or tablet using a compatible app, or with a Bluetooth enabled computer using the supplied software. The pairing password is 1234.
It suits XTRONS IA/ID/IM/IP/IQ/IX/PX/UA/QA/QB/QE/QP/QX/QL/QG/QIR/QT/QW Series head units.
| Connection | Connects wireless via Bluetooth up to 3 meters (no cable connection) |
|---|---|
| Bluetooth password | 1234 |
| Code database | over 3000 universal code definitions |
| Dimensions | 48 x 25 x 32 mm |
| SAE J1850 PWM | SAE J1850 PWM (41.6 kbaud) |
|---|---|
| SAE J1850 VPW | SAE J1850 VPW (10.4 kbaud) |
| ISO 9141-2 | ISO 9141-2 (5 baud init, 10.4 kbaud) |
| ISO 14230-4 KWP | ISO 14230-4 KWP (5 baud init, 10.4 kbaud) |
| ISO 14230-4 KWP fast | ISO 14230-4 KWP (fast init, 10.4 kbaud) |
| ISO 15765-4 CAN | ISO 15765-4 CAN (11 bit ID, 500 kbaud) |
| ISO 15765-4 CAN | ISO 15765-4 CAN (29 bit ID, 500 kbaud) |
| ISO 15765-4 CAN | ISO 15765-4 CAN (11 bit ID, 250 kbaud) |
| ISO 15765-4 CAN | ISO 15765-4 CAN (29 bit ID, 250 kbaud) |
| SAE J1939 | SAE J1939 |
- For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.
- Perfect Fit for XTRONS IA/ID/IM//IP/IQ/IX/PX/UA/QA/QB/QE/QP/QX/QL/QG/QIR/QT/QW Series head units.
- Alfa Romeo / Audi / Bentley / BMW / Cadillac / Chevrolet / Chrysler / Citroen / Daewoo / Fiat / Ford / GM /Honda / Hyundai / Isuzu / Jaguar / Jeep / Kia / Land Rover / Lexus / Mazda / Mercury / Mini / Mitsubishi / Opel / Peugeot / Porsche / Renault / Rover / Saab / Seat / Skoda / Toyota / Vauxhall / Volvo / VW
Plug the scanner into the 16-pin diagnostic connector under the dash, then pair it over Bluetooth with your Android device, computer or XTRONS head unit using the password 1234. Live data needs an appropriate app.
Will it work with my car?
It works with OBD II compliant vehicles. Your car needs a 16-pin connector under the dash, and its emission control label should say it's OBD II compliant.
Does it work with iPhone?
It's made to pair with Android phones and tablets, Bluetooth enabled computers and XTRONS head units.
What's the Bluetooth password?
1234.
Reviews
What customers say
Bought this product? Sign in to write a review.

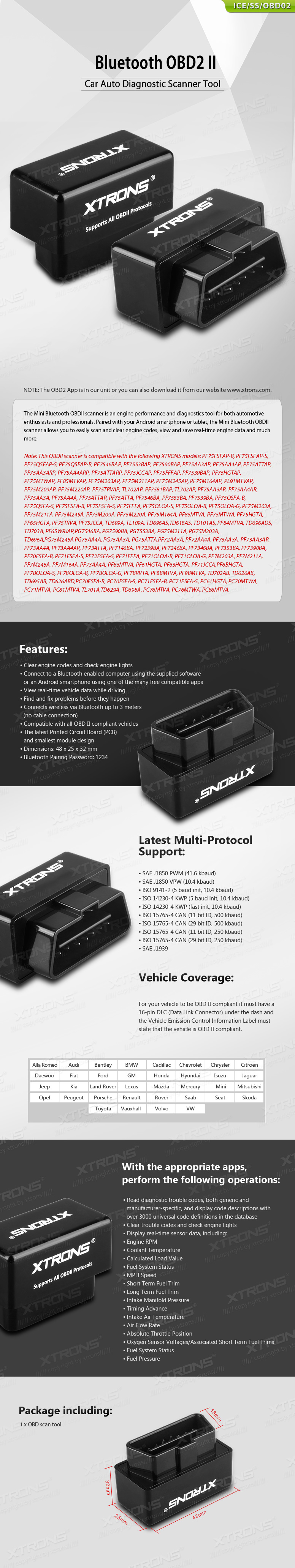

Full specification from XTRONS
