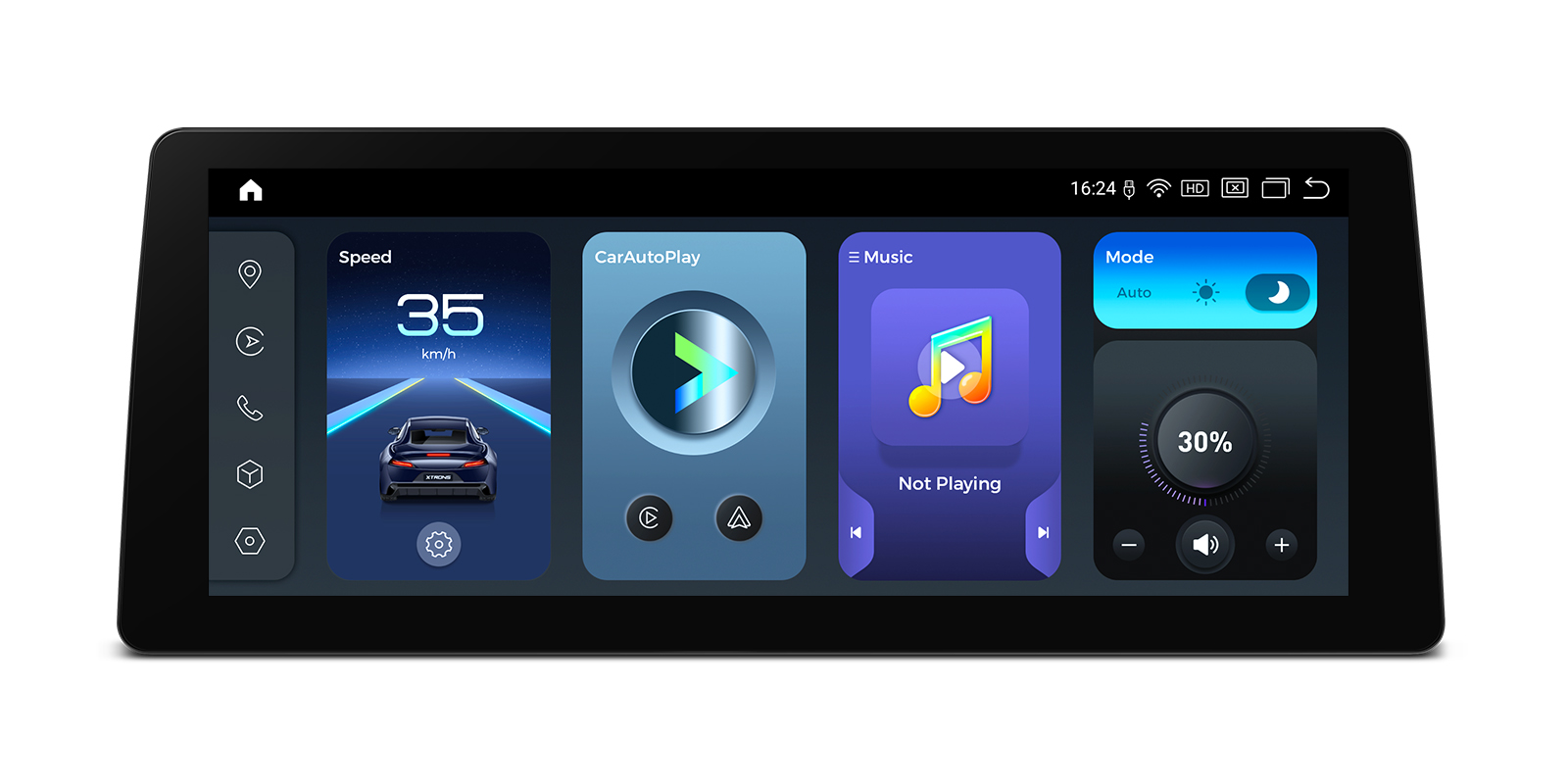

BMW 3 Series E90 E91 E92 E93 CCC 12.3 inch 2K Android Screen with Wireless CarPlay and 4G | QGB24CCB12E92
SKU: QGB24CCB12E92
£479.00
Check if this fits your car
1
Key specifications
- Processor
- Qualcomm Snapdragon 680
- Cores
- 4 x Kryo 265 Gold and 4 x Kryo 265 Silver cores
- Clock speed
- up to 2.4GHz
- Memory
- Dual Channel 8GB DDR4 RAM, 128GB Solid State ROM
- Operating system
- Android 14
- Screen
- 12.3″ Screen | IPS Technology | G+G Touch Screen

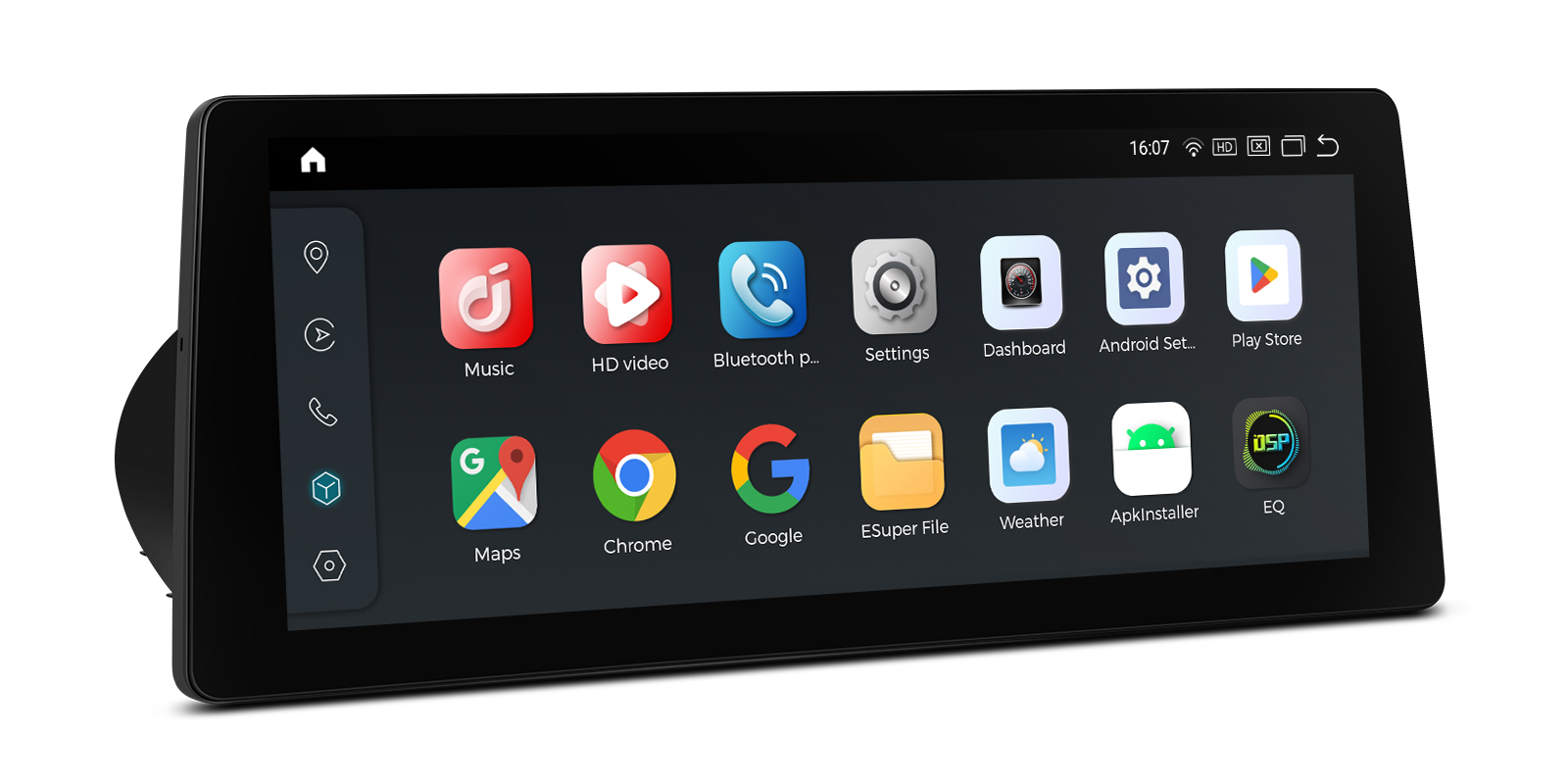

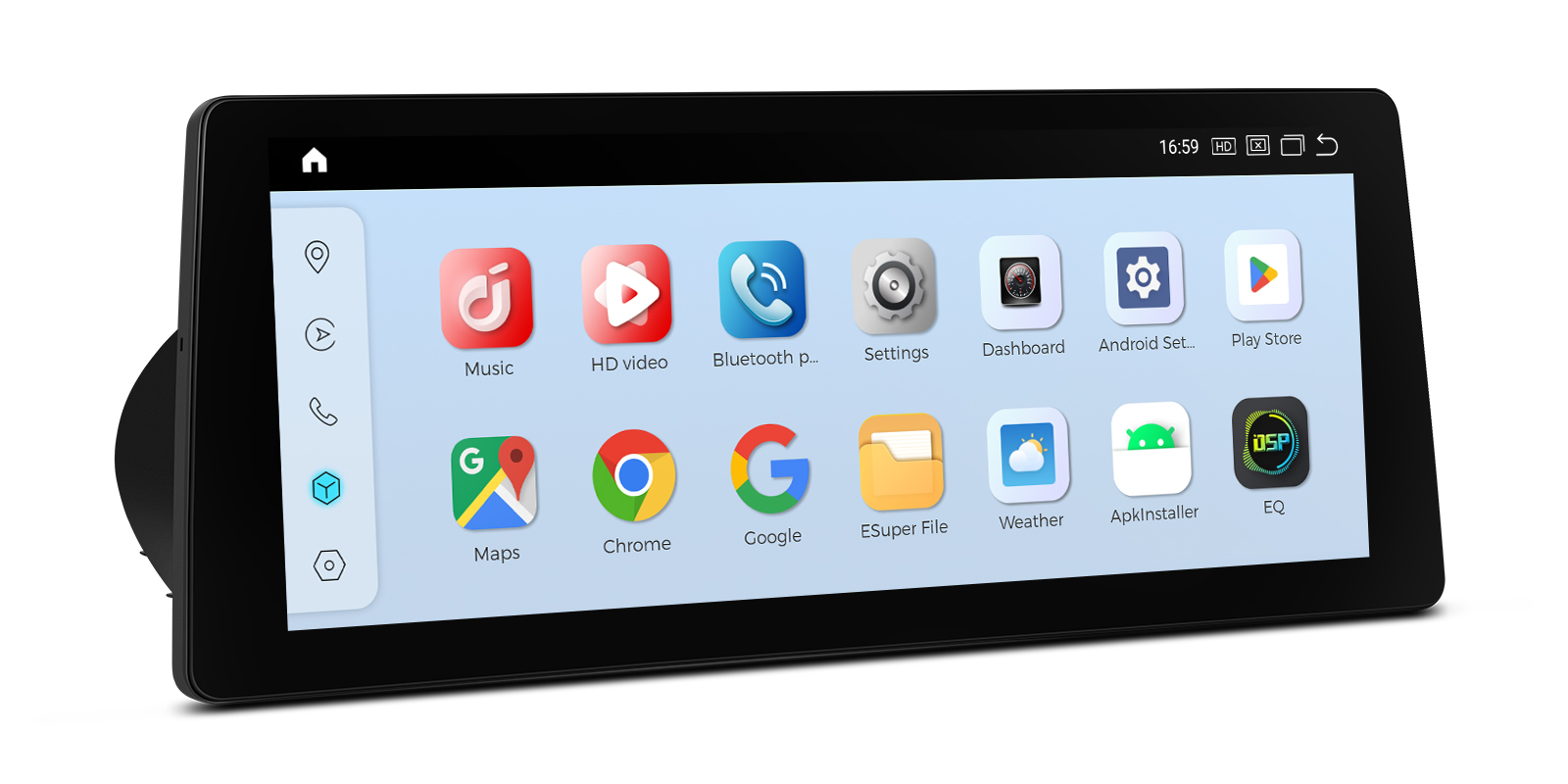

A 12.3 inch 2K Android 14 screen for the BMW 3 Series E90 / E91 /E92 /E93 and M3 (2004-2008) with the CCC system. It replaces the factory display and adds wireless CarPlay, wireless Android Auto and built-in 4G, while the CD player, radio and iDrive stay.
- Wireless Apple CarPlay and wireless Android Auto

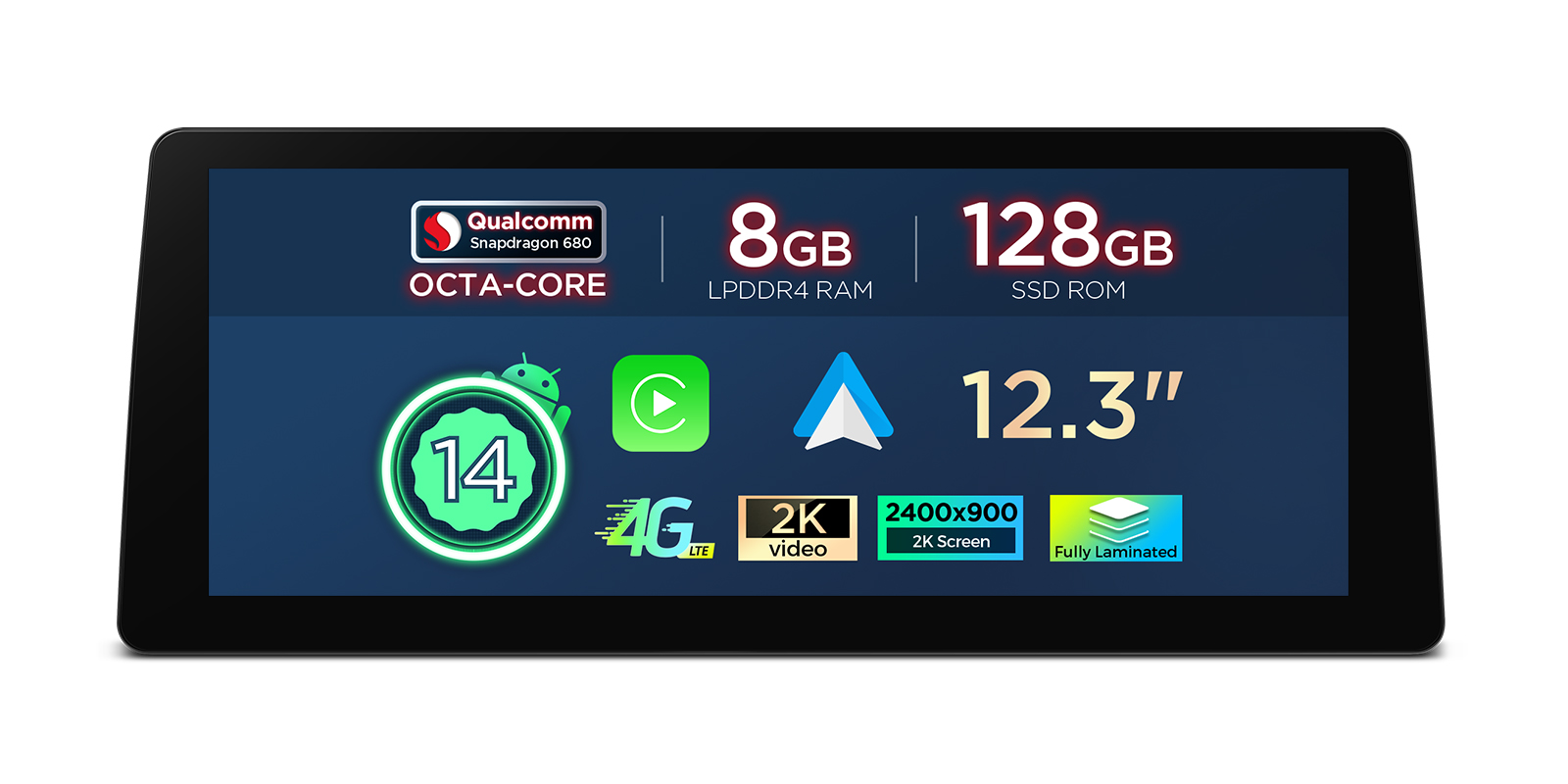

- Qualcomm Snapdragon 680 at up to 2.4GHz with 8GB RAM and 128GB storage
- 12.3 inch 2K IPS screen at 2400 x 900, fully laminated
- Built-in 4G LTE and dual-band Wi-Fi
- Keeps the CD player, radio and iDrive

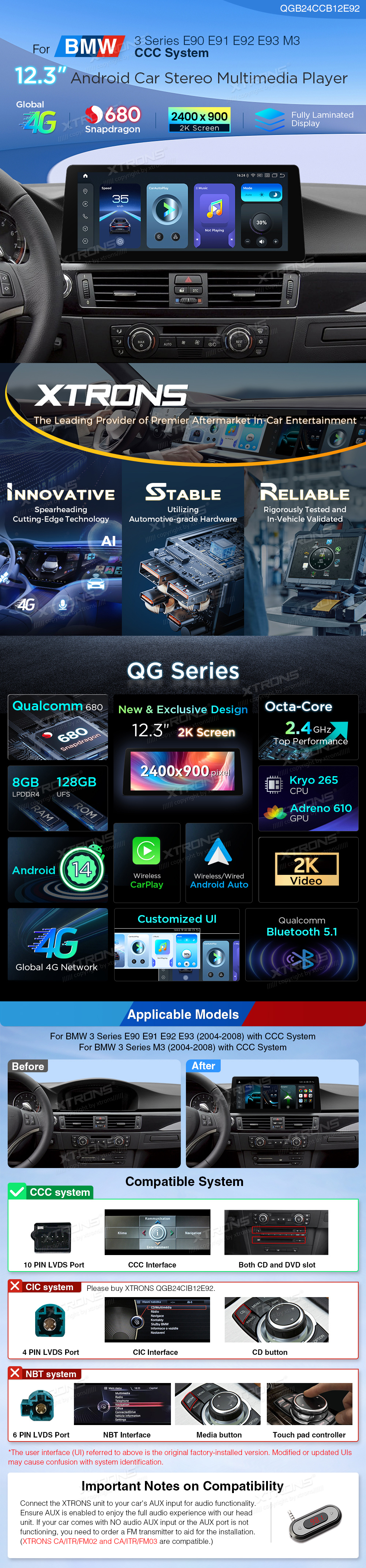

Made for the E90 family with CCC
This screen replaces the factory display in 3 Series E90 / E91 /E92 /E93 and M3 cars from 2004-2008 with the CCC system. Android runs alongside the original BMW system, so the CD player, radio and iDrive carry on as before.

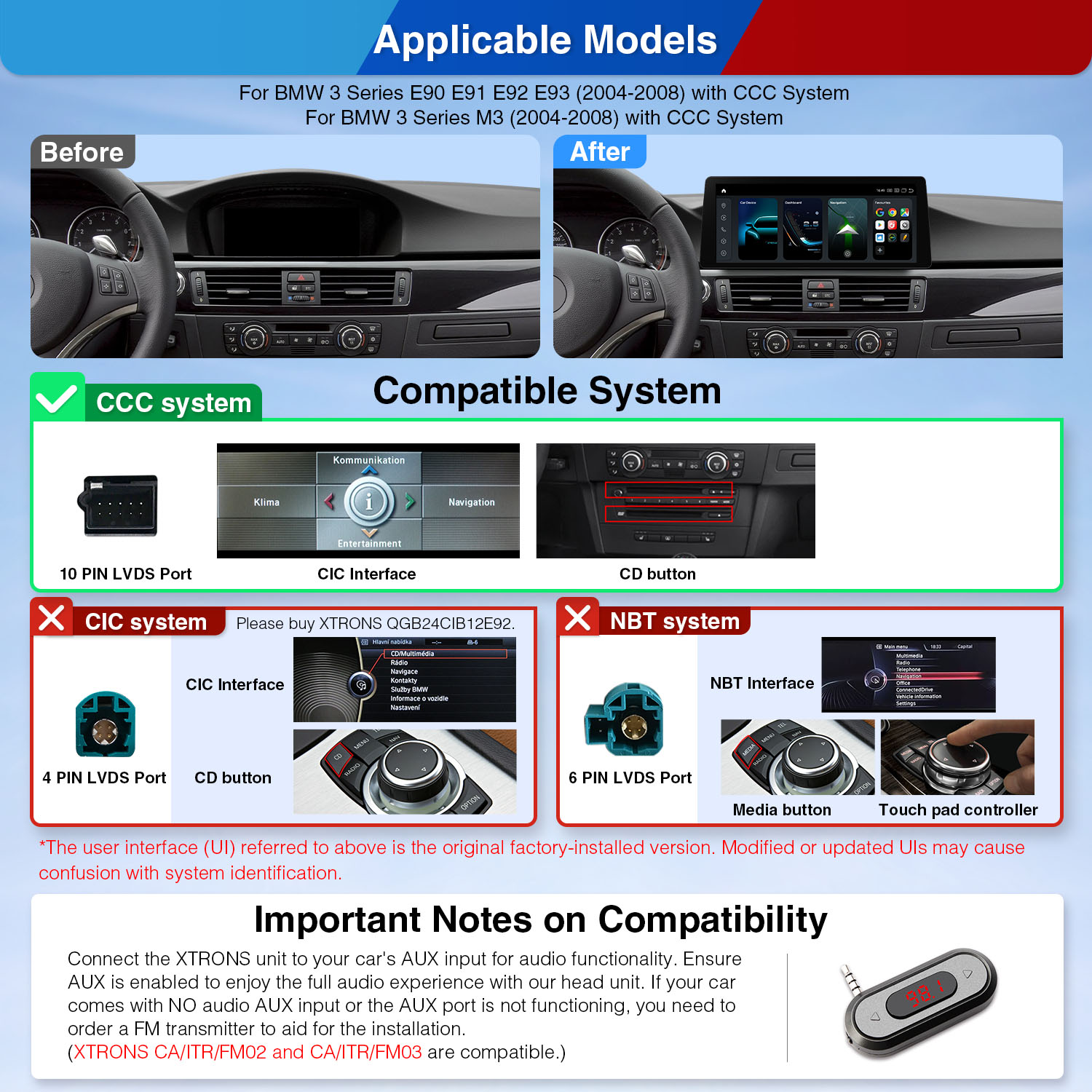

A CCC radio usually has separate slots for CD and DVD, a 10-pin LVDS port and the BMW Car Communication Computer interface. Modified or updated menus can make the system hard to identify, so check the hardware too. Cars with CIC need QGB24CIB12E92.
The Qualcomm Snapdragon 680 is a 6nm, 64-bit octa-core chip running at up to 2.4GHz. With 8GB DDR4 RAM and 128GB solid state storage, Android 14 opens apps quickly and handles several at once.

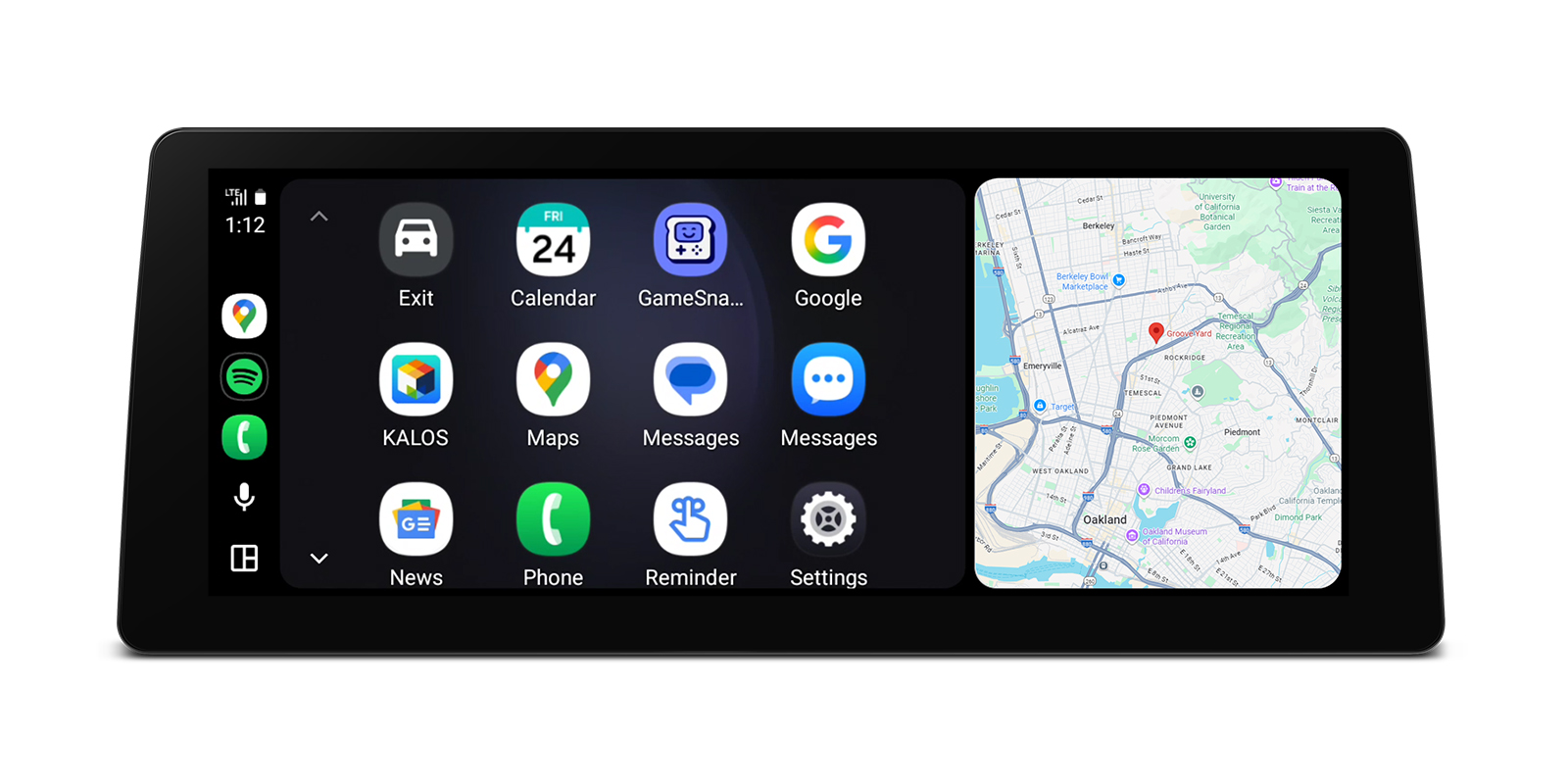

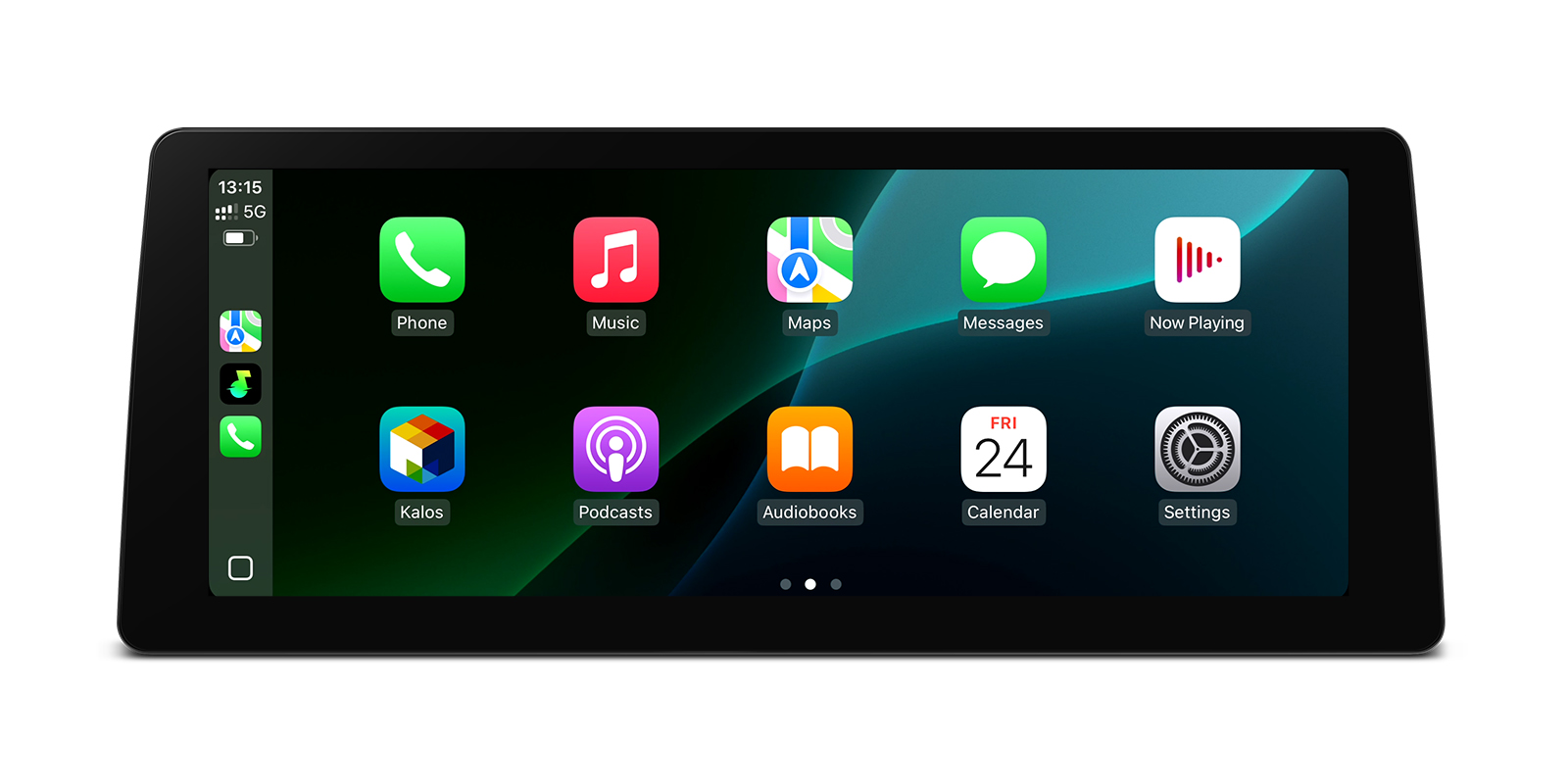

Wireless Apple CarPlay
Your iPhone connects without a cable, so maps, calls and music show on the 12.3 inch screen while the phone stays in your pocket.
Wireless Android Auto
Android phones connect wirelessly as well. Google Maps, music apps and messages are on the dashboard, with voice control to cut down on tapping.

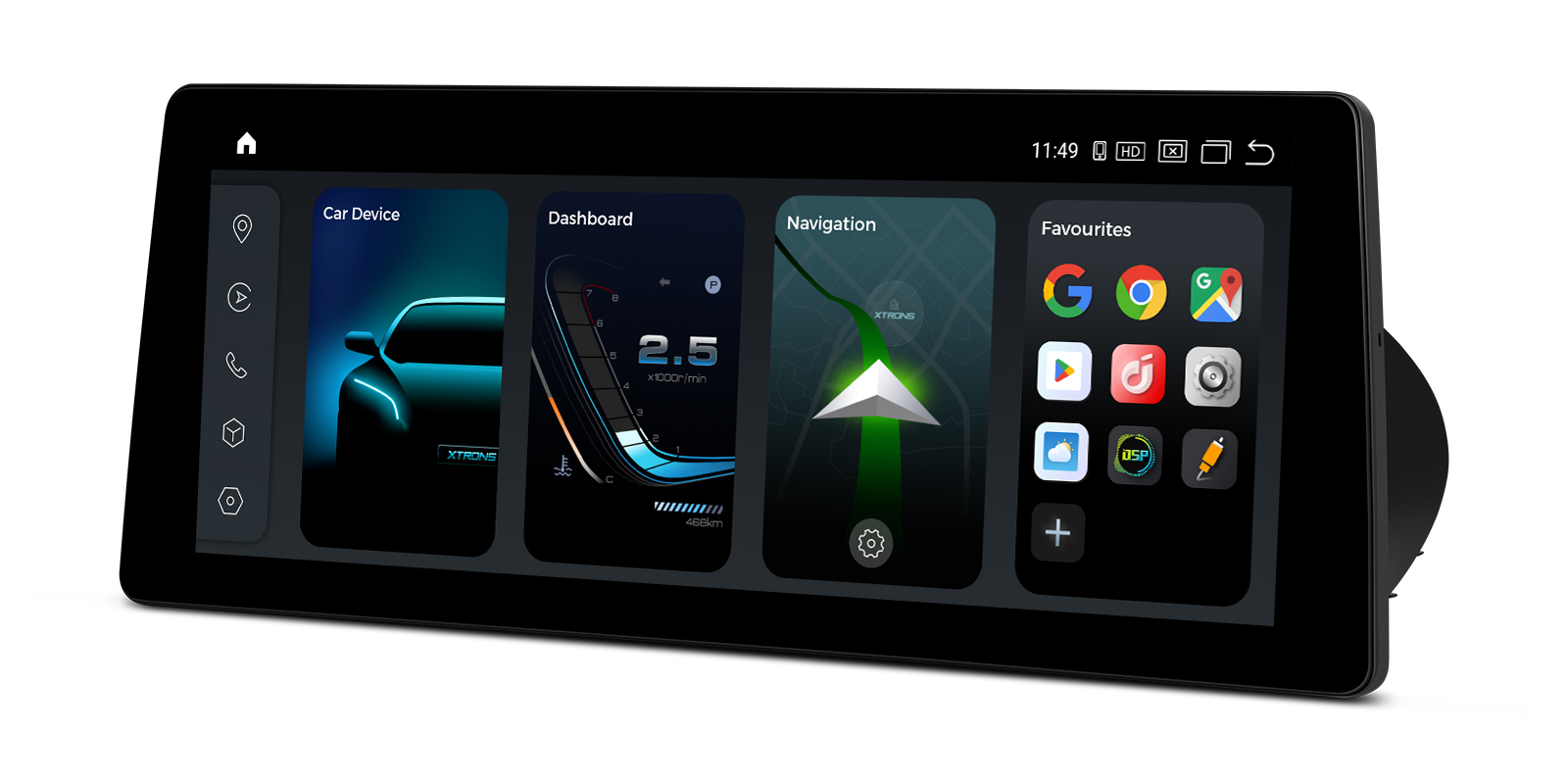

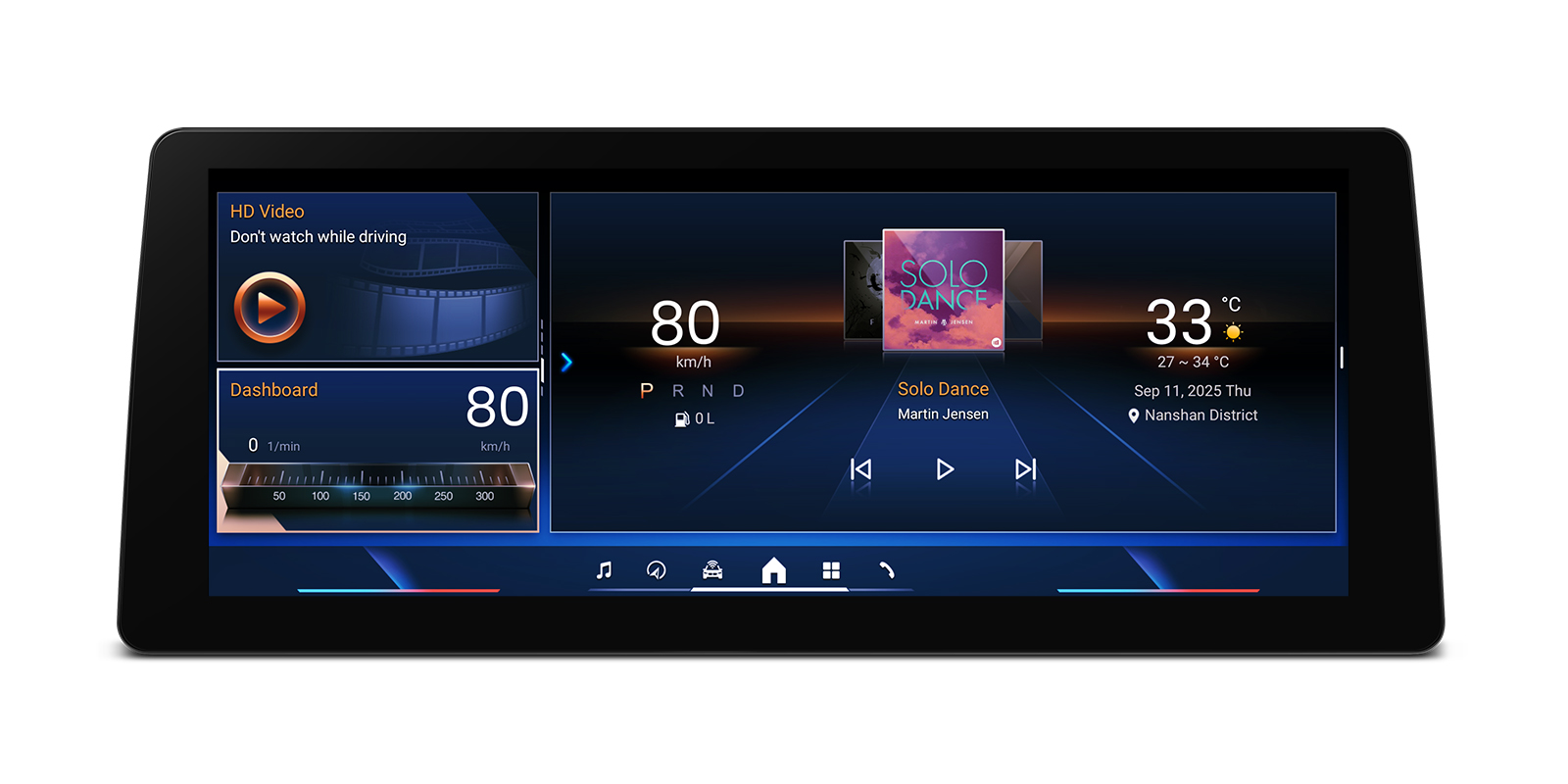

12.3 inch 2K IPS display
The QHD 2K IPS panel has a 2400 x 900 resolution and accurate colours. It's fully laminated with a G+G touch screen, made to suit the BMW dashboard.
Built-in 4G LTE
Fit a SIM card and the unit gets online by itself for music streaming and real-time navigation, and can share its connection with passengers. It covers FDD-LTE bands including 1, 3, 7 and 20, and a 4G antenna is supplied.
Dual-band Wi-Fi
Wi-Fi on 2.4GHz and 5GHz lets you browse, stream and update apps from a hotspot or your home network.
Microphone options
The unit supports an external microphone for clearer hands-free calls, such as XTRONS MIC001, MIC002, MIC003 or ACMIC005.
DAB+ with an external tuner
Add an external DAB+ tuner such as XTRONS USBDAB01, USBDAB02, USBDAB04, ACUSBDAB05T or ACUSBDAB06 for digital radio. There's no tuner built in.

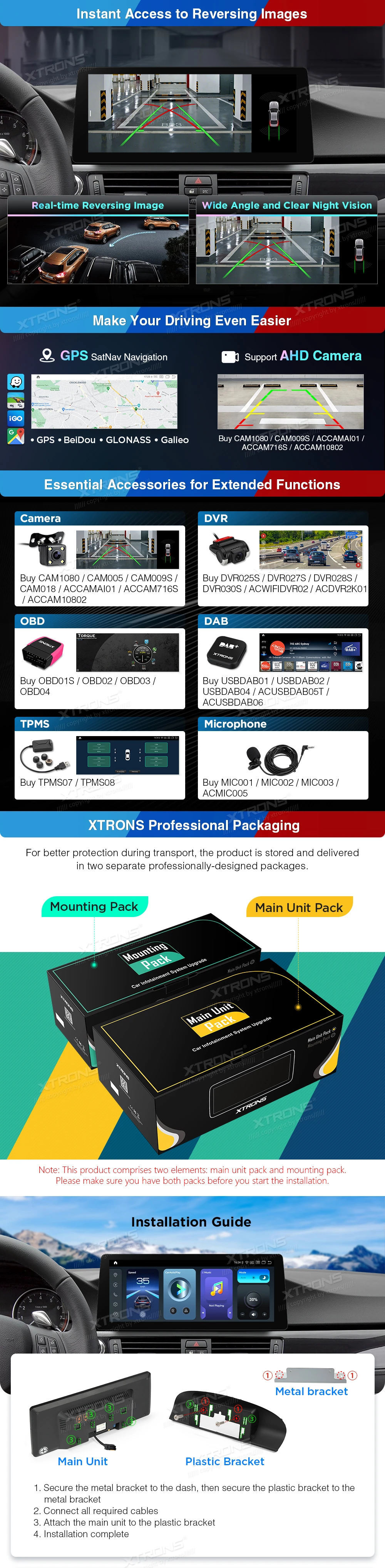

Reversing camera option
XTRONS reversing cameras, for example CAM009S (AHD 720P) or ACCAMAI01 (AHD 1080P), can be connected to show the view behind on the screen.
Dash cam, OBD2 and TPMS add-ons
An external DVR such as DVR028S or ACWIFIDVR02 records your journeys. OBD2 scanners (OBD01S, OBD02, OBD03, OBD04) read live data and trouble codes, and TPMS08 sensors show tyre pressures on the screen.
USB
A USB cable comes with the unit for a phone or USB storage.
Works with
- Universal External Microphone with 2.0m Cable and 3.5mm PlugICE/ACS/MIC001
- USB DAB+ Digital Radio Tuner Stick for XTRONS Android Head UnitsICE/ACS/USBDAB01
- Universal 720P AHD Reversing Camera with 120° ViewICE/SS/CAM009S
- Universal 1280×720 USB Mini Dash Cam with Micro TF RecordingICE/SS/DVR028S
- Universal Bluetooth OBD2 Diagnostic Scanner with On/Off SwitchICE/SS/OBD01S
- Universal USB TPMS Tyre Pressure Monitoring System with Internal Sensors for XTRONS UnitsICE/ACS/TPMS08
- DAB RadioBrowse the range
- Reversing CamerasBrowse the range

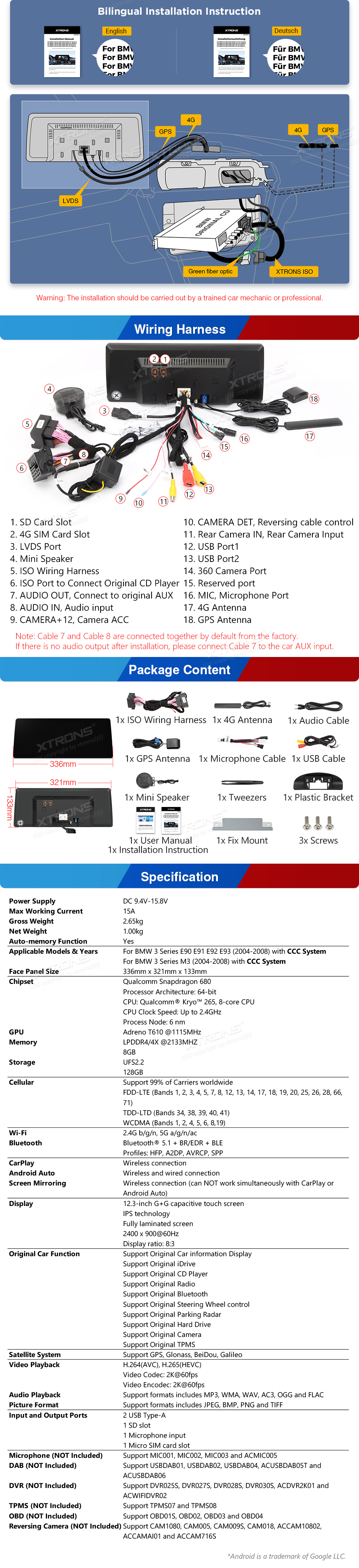

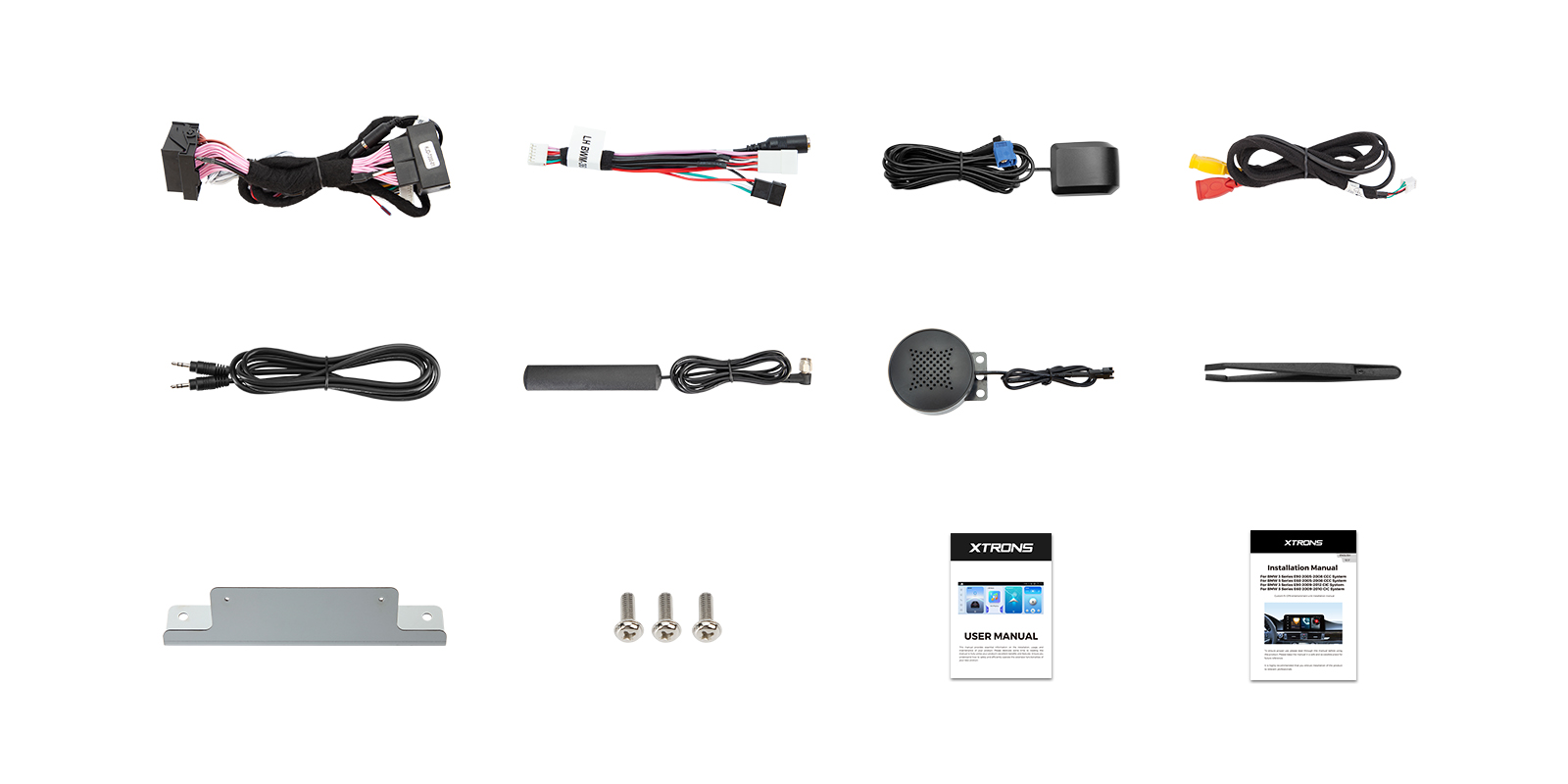

What's in the box
- 1 x 4G Antenna
- 1 x Audio Cable
- 1 x Fix Mount
- 1 x GPS Antenna
- 1 x Installation Instruction
- 1 x ISO Wiring Harness
- 1 x Mini Speaker
- 1 x Plastic Bracket
- 1 x RCA Cable
- 1 x Tweezers
- 1 x USB Cable
- 1 x User Manual
- Screws
| Processor | Qualcomm Snapdragon 680 |
|---|---|
| Cores | 4 x Kryo 265 Gold and 4 x Kryo 265 Silver cores |
| Clock speed | up to 2.4GHz |
| Memory | Dual Channel 8GB DDR4 RAM, 128GB Solid State ROM |
| Operating system | Android 14 |
| Screen | 12.3″ Screen | IPS Technology | G+G Touch Screen |
|---|---|
| Resolution | QHD 2K (2400 x 900) |
| Wi-Fi | Dual-band Wi-Fi supports both 2.4GHz and 5GHz bands |
|---|---|
| FDD-LTE | FDD-LTE (Bands 1,2, 3, 4, 5,7,8, 12, 13, 14, 17,18, 19, 20, 25, 26, 28, 66, 71) |
| TDD-LTE | TDD-LTD (Bands 34, 38, 39, 40, 41) |
| WCDMA | WCDMA(Bands 1, 2, 4, 5, 6, 8, 19) |
- BMW 3 Series (1998 onwards)
- For BMW 3 Series E90 / E91 /E92 /E93 / M3 (2004-2008) with CCC System
- This unit ONLY works with the original BMW CCC system. A CCC system car radio usually comes with independent slots for CD and DVD, a 10-pin LVDS port, and a BMW Car Communication Computer Interface.
- Please see XTRONS QGB24CIB12E92 if your vehicle comes with a CIC system.

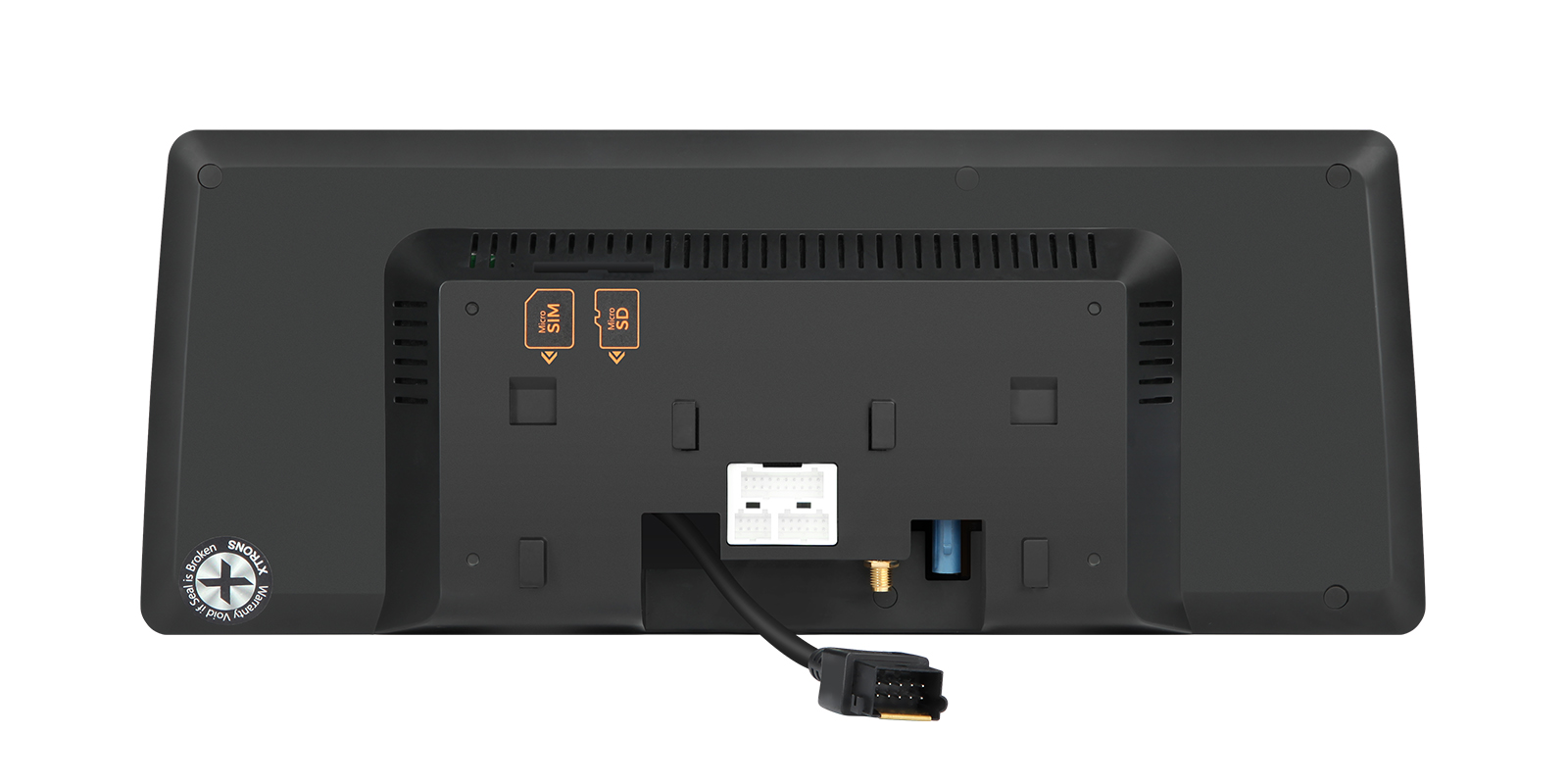

The unit is a plug-and-play replacement for the factory display, fitted with the supplied mount, plastic bracket, screws, ISO wiring harness and audio cable. Sound goes through the car's AUX input, so AUX must be enabled. If there's no working AUX input you'll need an FM transmitter (XTRONS CA/ITR/FM02 and CA/ITR/FM03 are compatible).
Does it fit a car with CIC?
No. This model is for CCC only. For CIC, choose QGB24CIB12E92.
How do I recognise a CCC system?
A CCC radio usually has separate slots for CD and DVD, a 10-pin LVDS port and the BMW Car Communication Computer interface.
Do I keep the iDrive controller and radio?
Yes. The CD player, radio and iDrive system are kept.
What if the car has no AUX input?
You will need an FM transmitter. XTRONS CA/ITR/FM02 and CA/ITR/FM03 are compatible.
Reviews
What customers say
Bought this product? Sign in to write a review.

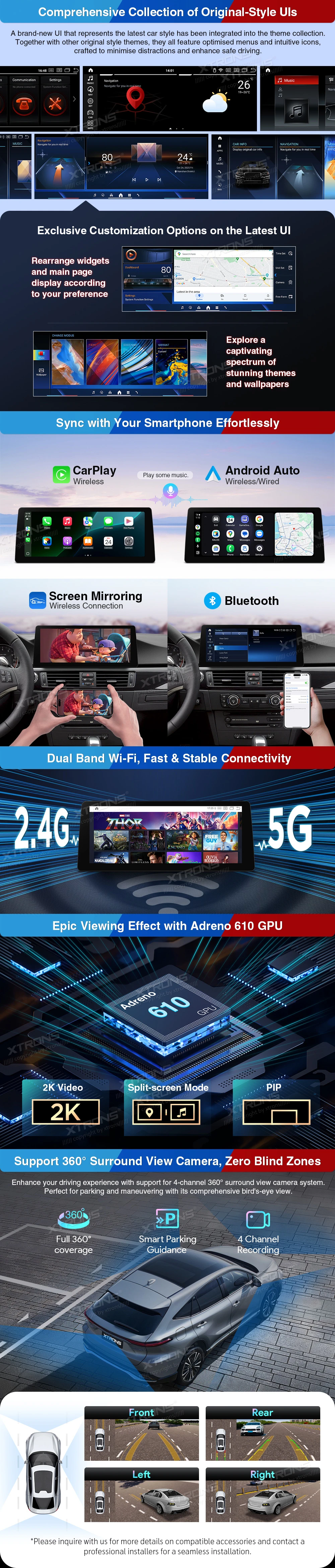

Full specification from XTRONS
