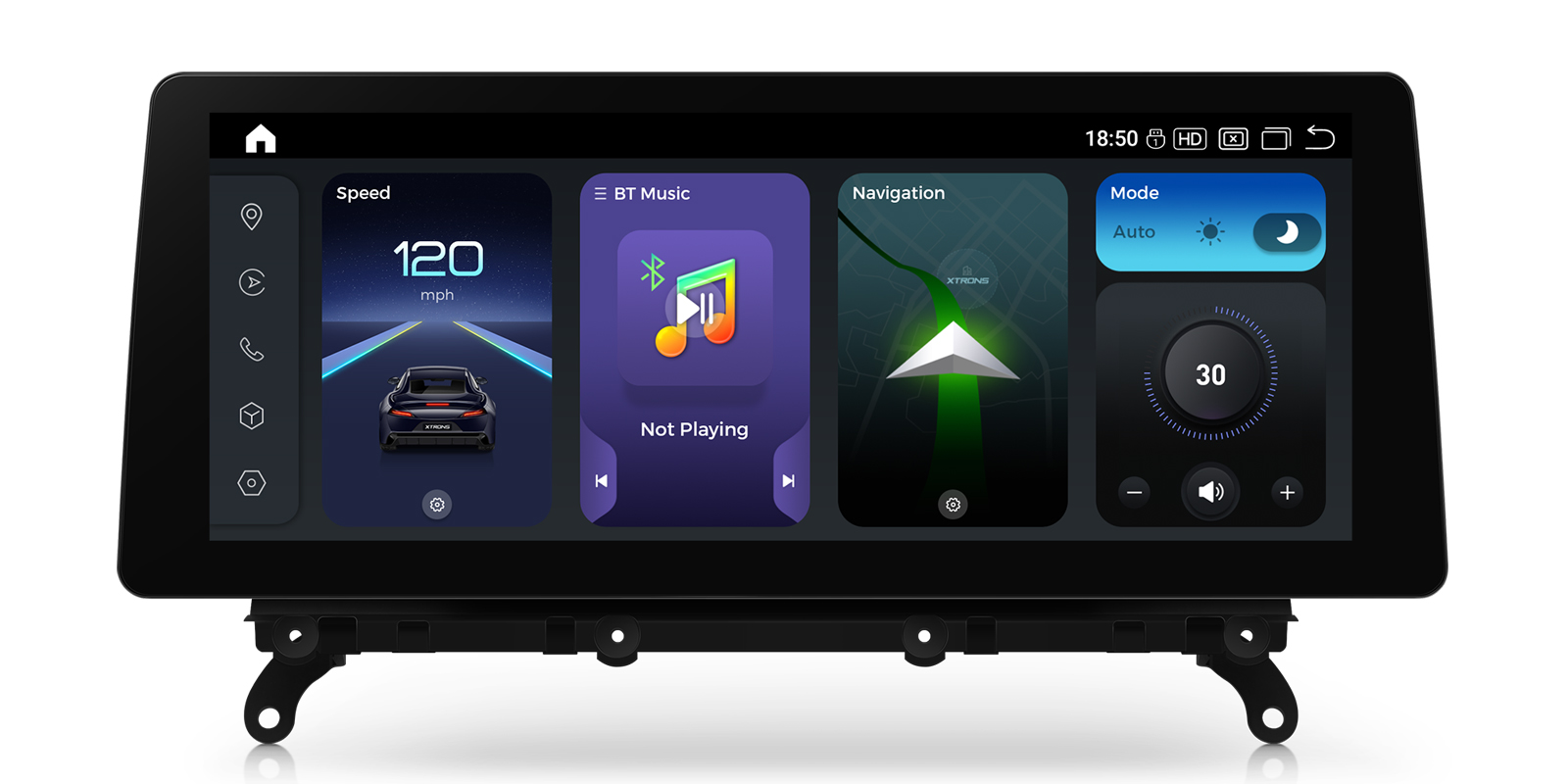

BMW X3 F25 and X4 F26 NBT EVO 12.3 inch Android Screen with Wireless CarPlay, Android Auto and 4G | QGB24EVB12X3
SKU: QGB24EVB12X3
£509.99
Check if this fits your car
1
Key specifications
- Processor
- Qualcomm Snapdragon 680
- Cores
- 4 x Kryo 265 Gold and 4 x Kryo 265 Silver cores
- Process
- 6nm technology
- Clock speed
- up to 2.4GHz
- RAM
- Dual Channel 8GB DDR4 RAM
- Storage
- 128GB Solid State ROM

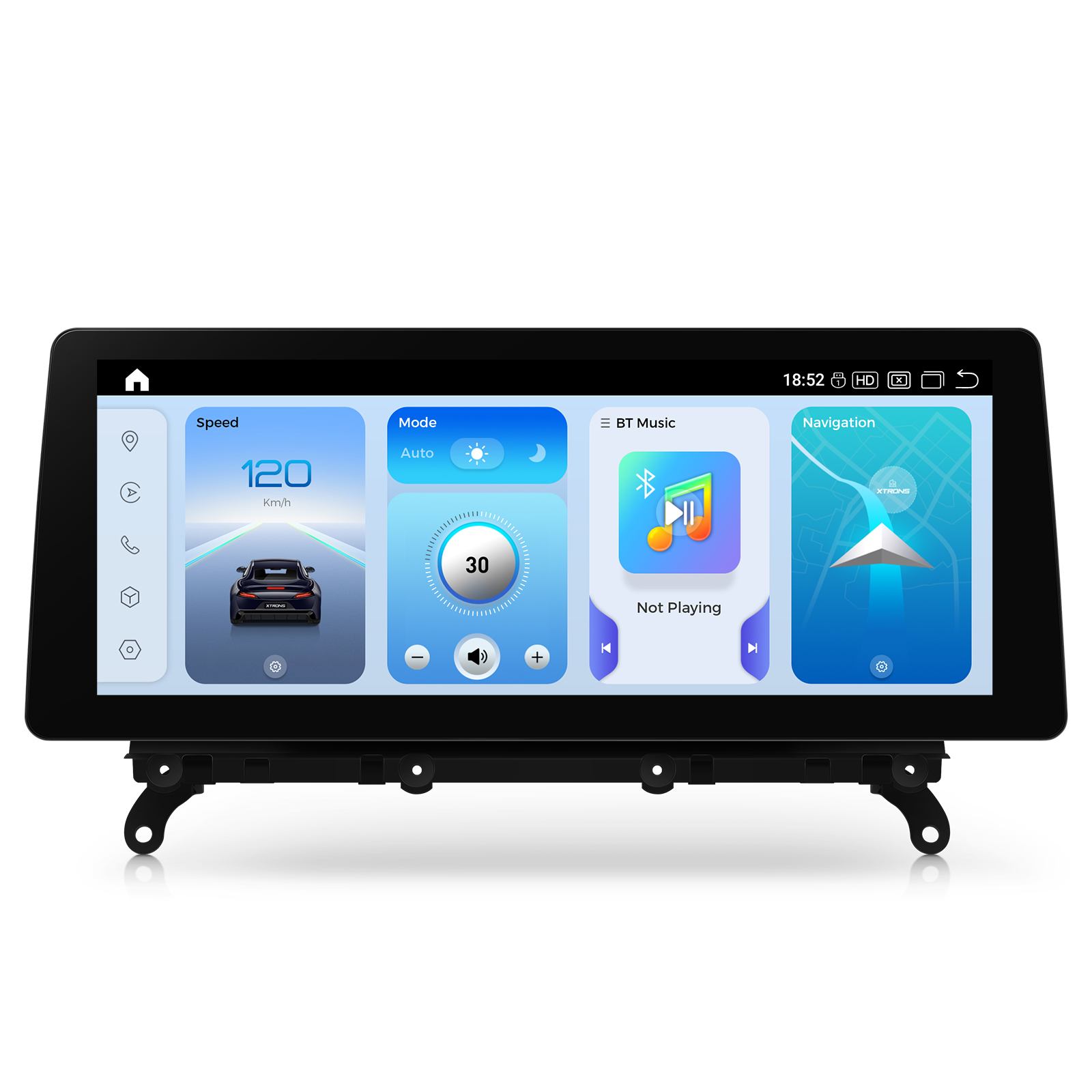

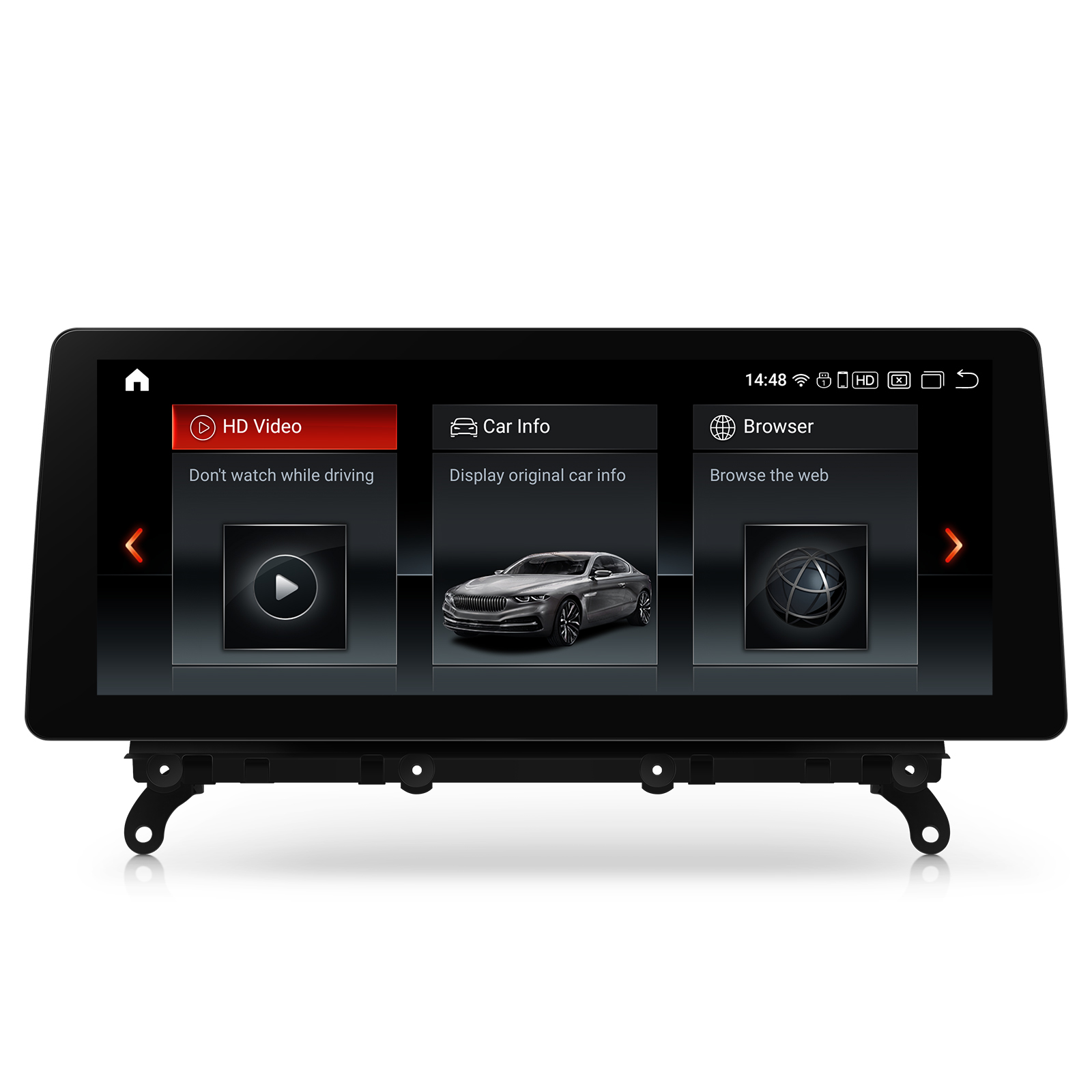

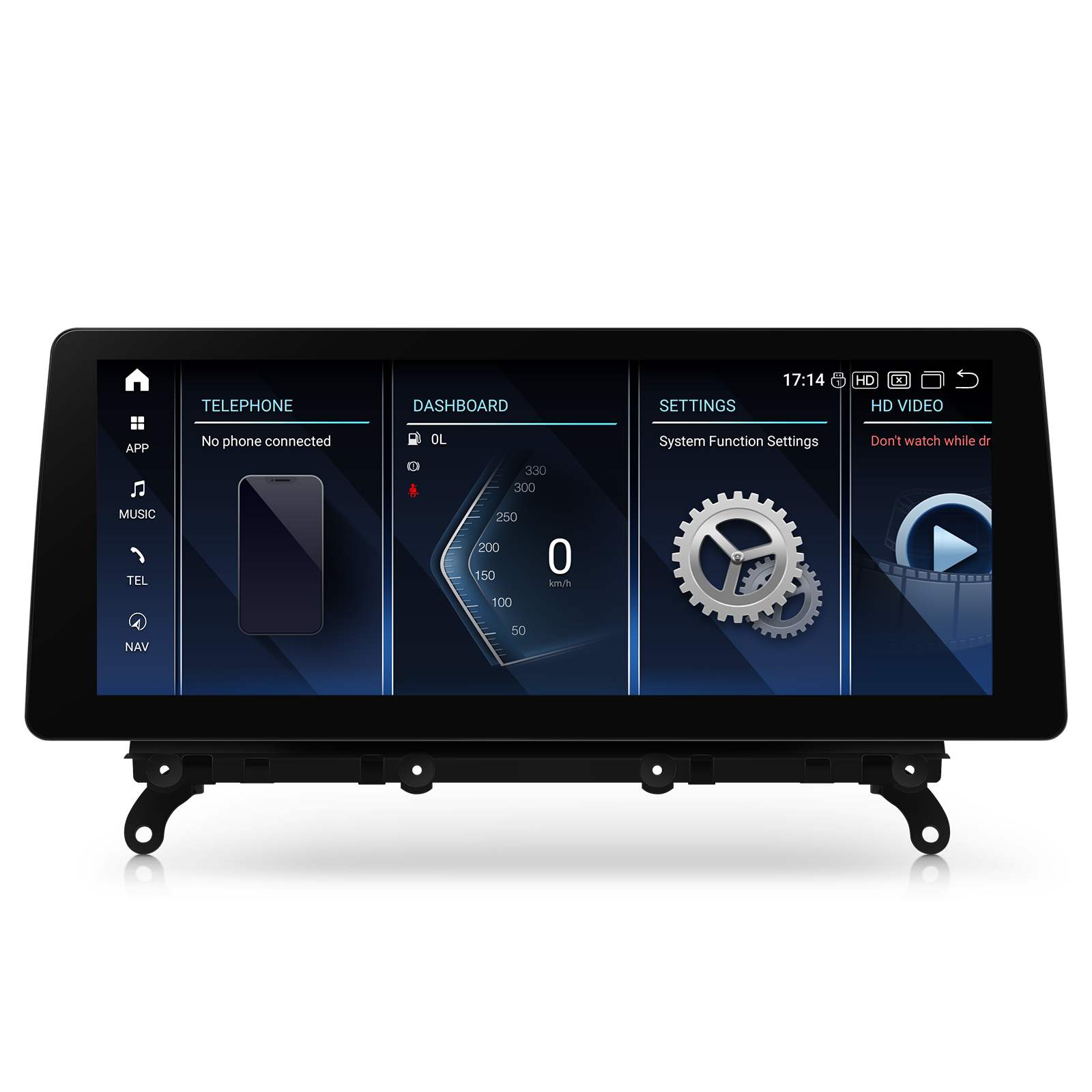

A 12.3 inch Android 14 screen for the BMW X3 F25 and X4 F26 (2016-2018) with the NBT EVO system. It keeps the CD player, radio and iDrive, and adds wireless CarPlay, Android Auto and 4G on a 2K IPS touch screen.
- Keeps the original CD player, radio and iDrive system
- Wireless CarPlay and wireless Android Auto
- Qualcomm Snapdragon 680 up to 2.4GHz with 8GB RAM and 128GB ROM
- 12.3 inch QHD 2K IPS screen at 2400 x 900
- Integrated 4G LTE and dual band Wi-Fi
Android alongside your BMW system
The screen works with the original NBT EVO system, so the CD player, radio and iDrive all stay. Android, CarPlay and Android Auto are added on top.
After fitting, gesture control can't be activated. When you switch back to the original system, the touch screen doesn't work there, so you use the iDrive controller as before.
Wireless Apple CarPlay
CarPlay connects your iPhone without a cable and shows maps, calls and music on the wide 12.3 inch screen.
Wireless Android Auto
Android Auto also connects wirelessly, so Google Maps and your music apps appear as soon as you're in the car.
Snapdragon 680 and Android 14
A Qualcomm Snapdragon 680 with 4 x Kryo 265 Gold and 4 x Kryo 265 Silver cores, built on 6nm, runs at up to 2.4GHz. Dual channel 8GB DDR4 RAM and 128GB of solid state storage give room for plenty of apps and quick switching between them.
It runs Android 14.
12.3 inch 2K IPS screen
The QHD 2K IPS panel runs at 2400 x 900 and is fully laminated, with rich, accurate colour. The G+G touch screen is quick to respond.
Integrated 4G LTE
Built-in 4G LTE gives you music streaming and real-time navigation without tethering a phone, and you can share the connection with passengers. It supports 99% of carriers worldwide, but check your SIM works in this kind of device.
Dual band Wi-Fi
Wi-Fi on 2.4GHz and 5GHz connects to a hotspot or your home network for browsing, streaming and online games.
Microphone for calls
An external microphone (XTRONS MIC001, MIC002, MIC003 or ACMIC005) gives clearer voice quality for hands-free calls.
External DAB+
For digital radio, add an external DAB+ tuner such as the XTRONS USBDAB01, USBDAB02, USBDAB04, ACUSBDAB05T or ACUSBDAB06.
Camera, dash cam, OBD2 and TPMS add-ons
XTRONS reversing cameras, DVR dash cams, OBD2 scanners and TPMS kits all work with this unit. A TPMS shows tyre pressure on the screen in real time, and an OBD2 scanner reads trouble codes from the car.
Works with
- Universal External Microphone with 2.0m Cable and 3.5mm PlugICE/ACS/MIC001
- USB DAB+ Digital Radio Tuner Stick for XTRONS Android Head UnitsICE/ACS/USBDAB01
- DAB RadioBrowse the range
- Reversing CamerasBrowse the range
- Dash CamsBrowse the range
- OBD ToolsBrowse the range
- Tyre Pressure MonitoringBrowse the range

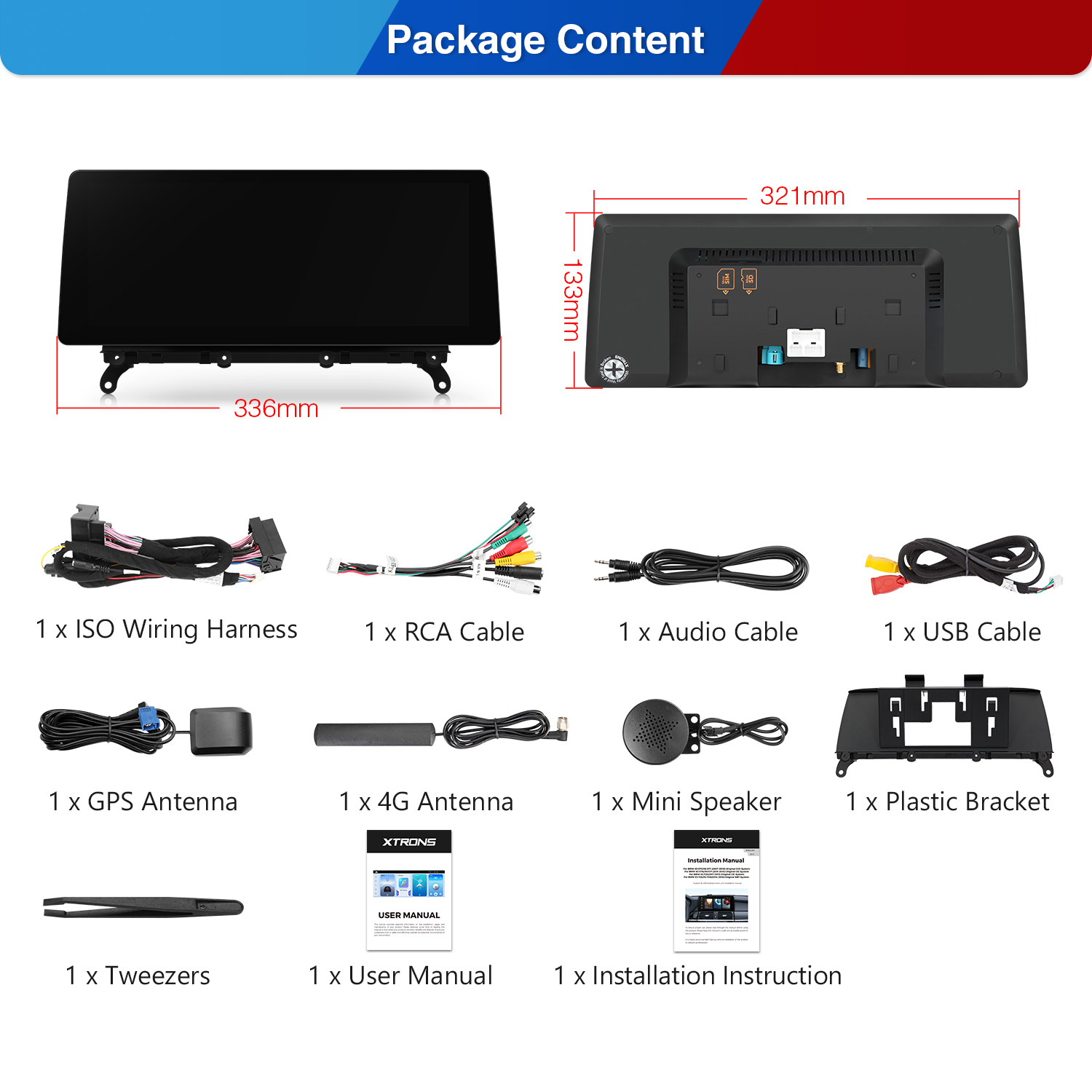

What's in the box
- 1 x 4G Antenna
- 1 x Audio Box
- 1 x Audio Cable
- 1 x GPS Antenna
- 1 x Installation Instruction
- 1 x ISO Wiring Harness
- 1 x Mini Speaker
- 1 x Plastic Bracket
- 1 x RCA Cable
- 1 x Tweezers
- 1 x USB Cable
- 1 x User Manual
| Processor | Qualcomm Snapdragon 680 |
|---|---|
| Cores | 4 x Kryo 265 Gold and 4 x Kryo 265 Silver cores |
| Process | 6nm technology |
| Clock speed | up to 2.4GHz |
| RAM | Dual Channel 8GB DDR4 RAM |
| Storage | 128GB Solid State ROM |
| Operating system | Android 14 |
| Screen size | 12.3″ Screen |
|---|---|
| Resolution | QHD 2K (2400 x 900) |
| Panel | IPS Technology |
| Touch screen | G+G Touch Screen |
| 4G FDD-LTE | FDD-LTE (Bands 1,2, 3, 4, 5,7,8, 12, 13, 14, 17,18, 19, 20, 25, 26, 28, 66, 71) |
|---|---|
| 4G TDD-LTE | TDD-LTD (Bands 34, 38, 39, 40, 41) |
| WCDMA | WCDMA(Bands 1, 2, 4, 5, 6, 8, 19) |
| Wi-Fi | both 2.4GHz and 5GHz band |
- BMW X3 (2004-2024)
- For BMW X3 F25 / X4 F26 (2016-2018) with NBT EVO System
- Note: This unit is for BMW vehicles that come with a NBT EVO system.
- Please see XTRONS QGB24NB12X3 if your vehicle comes with a NBT system.
- Please see XTRONS QGB24CIB12X3 if your vehicle comes with a CIC system.
- After installation the gesture control function cannot be activated and the touch function will not work when you switch to your original system (you can use the iDrive controller to control it on the original system).
It's a plug-and-play replacement for the factory display, with an ISO wiring harness, audio box, plastic bracket and installation instructions supplied. Confirm your car has NBT EVO first: it has a 6-pin LVDS port and EVO ID5 or EVO ID6. Cars with NBT need QGB24NB12X3, and cars with CIC need QGB24CIB12X3.
How do I know if my car has NBT EVO?
NBT EVO has a 6-pin LVDS port and runs EVO ID5 or EVO ID6.
Will I keep my CD player and iDrive?
Yes. The CD player, radio and iDrive system all stay.
Does the touch screen work on the BMW system?
No. On the original system you use the iDrive controller, and gesture control can't be activated after fitting.
Does it fit the X4 too?
Yes, the X4 F26 (2016-2018) with NBT EVO, as well as the X3 F25.
Reviews
What customers say
Bought this product? Sign in to write a review.

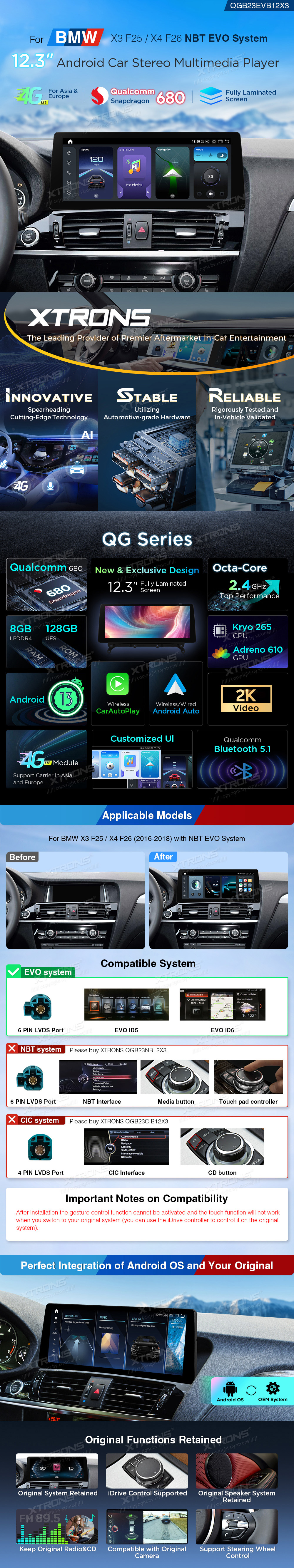

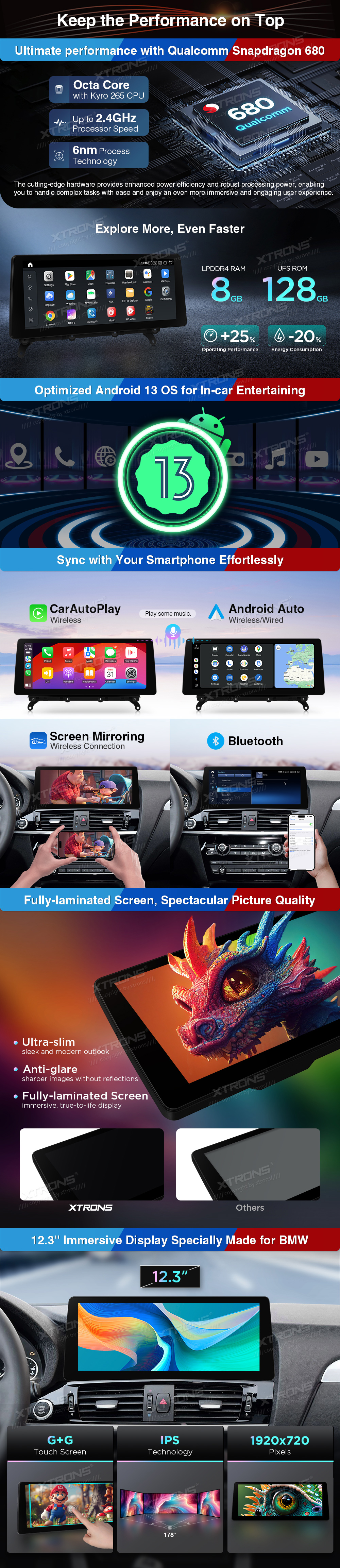

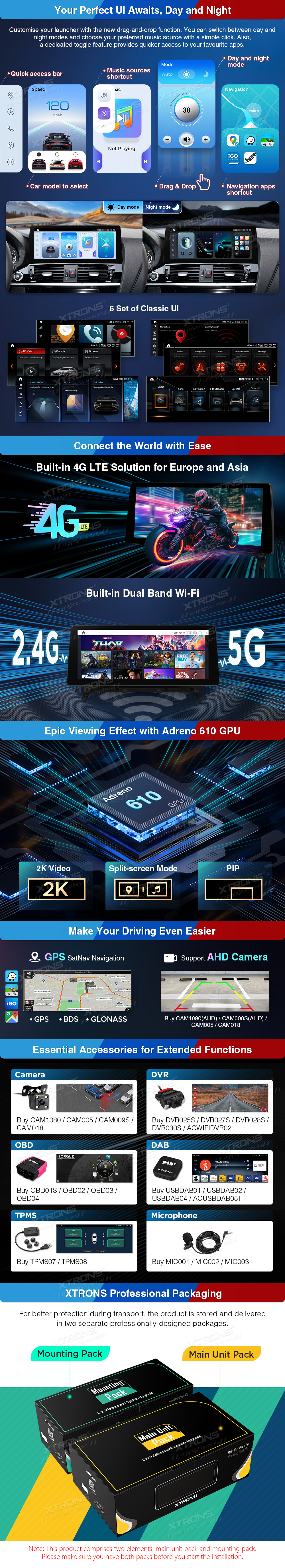

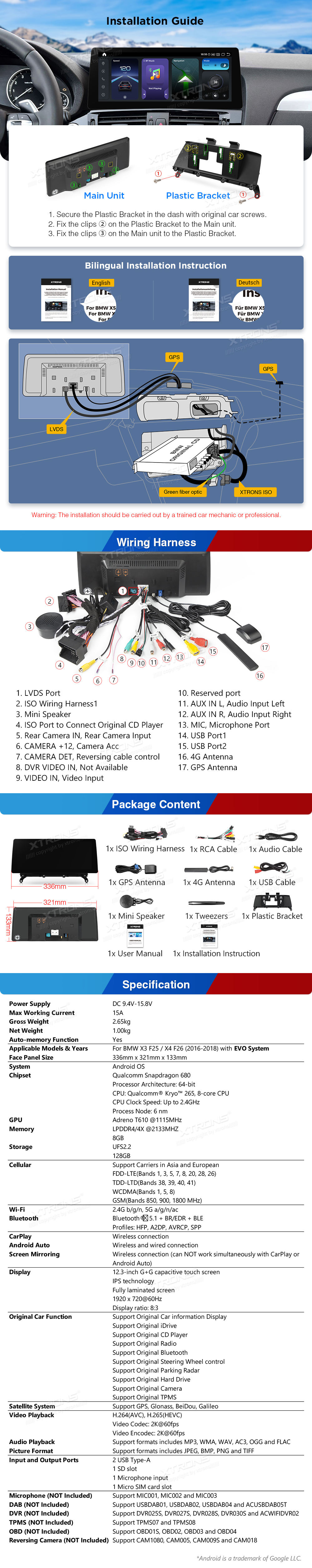

Full specification from XTRONS
