BMW X3 F25 and X4 F26 NBT 12.3 inch Android Screen with Wireless CarPlay, Android Auto and 4G | QGB24NB12X3
SKU: QGB24NB12X3
£469.99
Check if this fits your car
1
Key specifications
- Processor
- Qualcomm Snapdragon 680
- Cores
- 4 x Kryo 265 Gold and 4 x Kryo 265 Silver cores
- Speed
- up to 2.4GHz
- Process
- 6nm technology
- Memory
- 8GB RAM and 128GB ROM
- Operating system
- Android 14

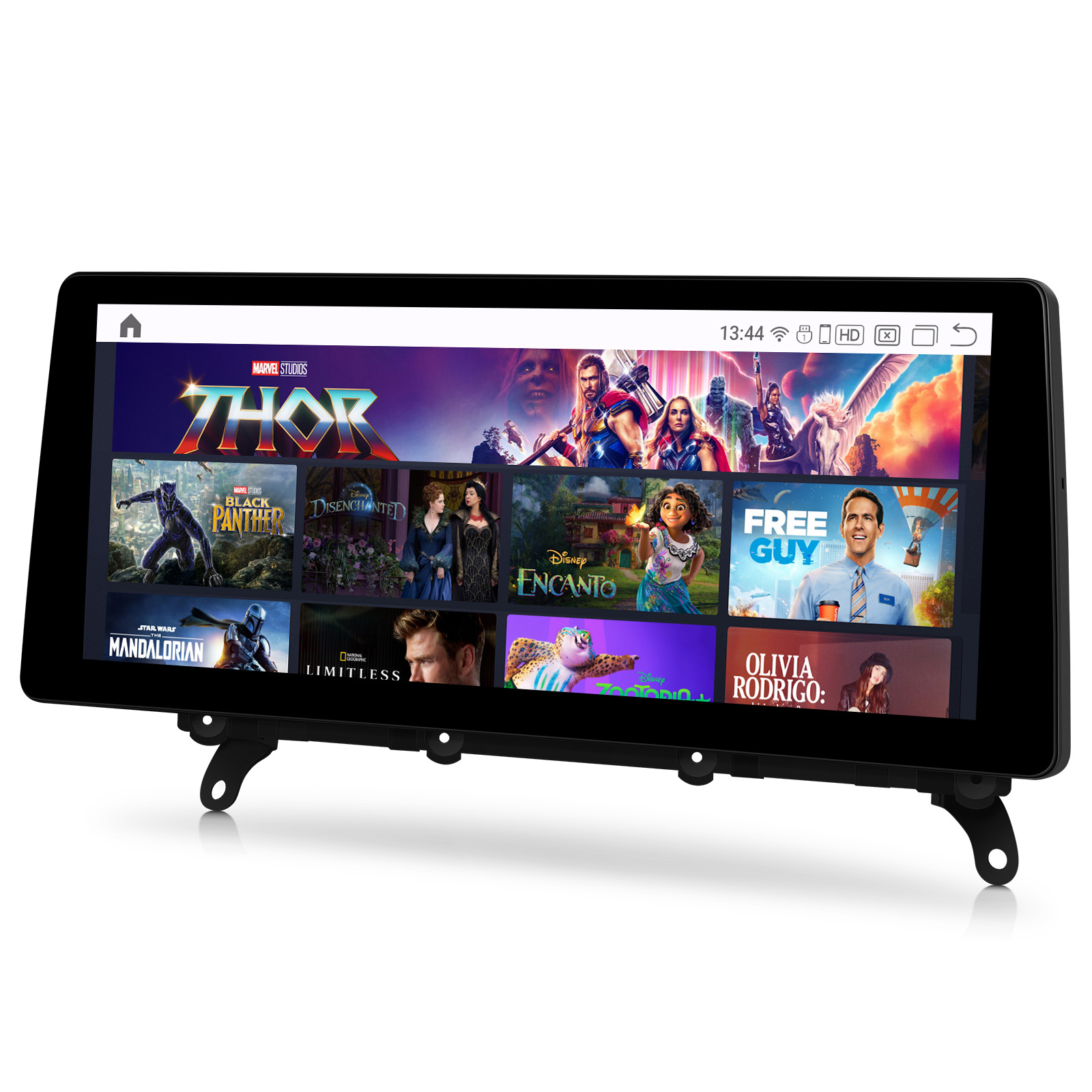

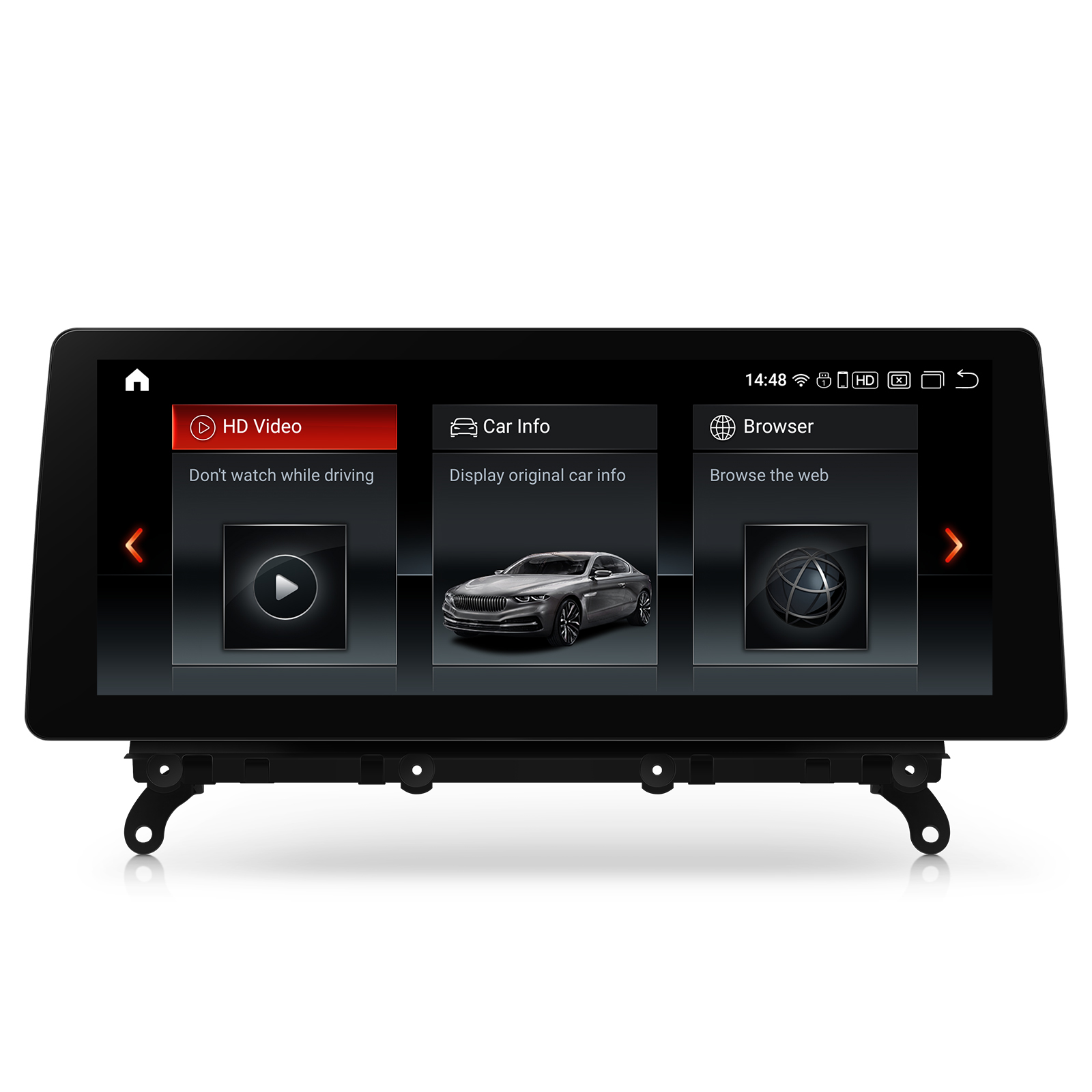

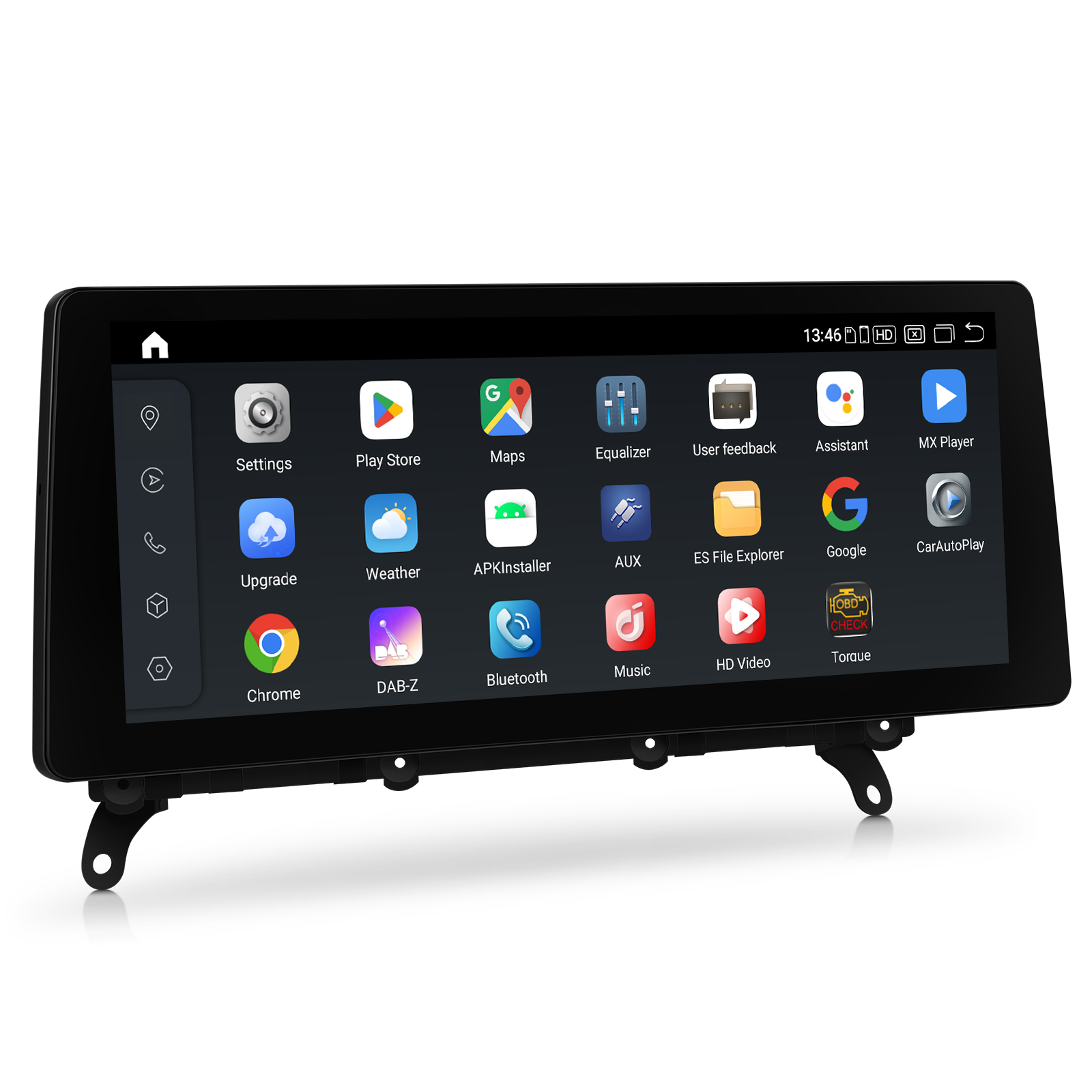

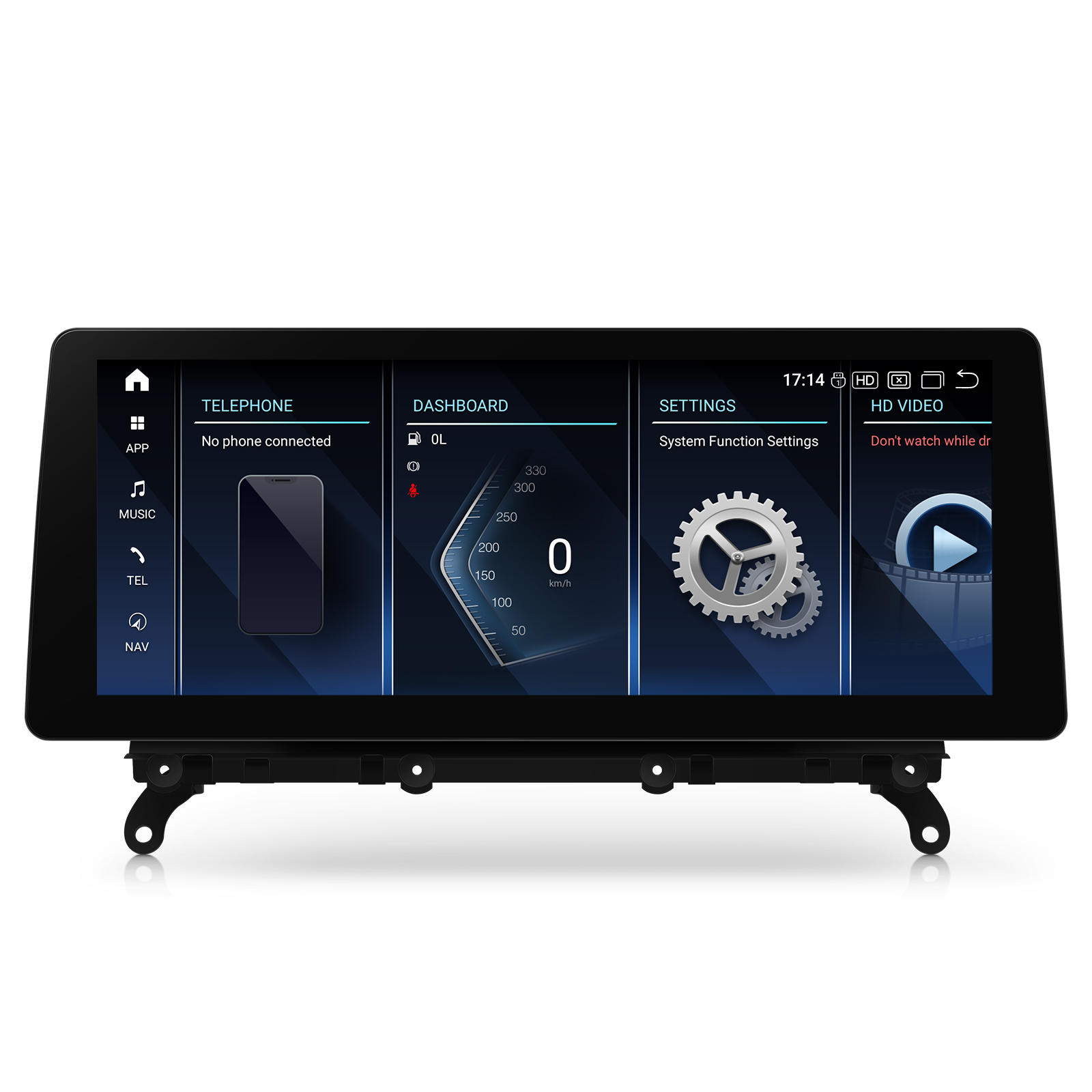

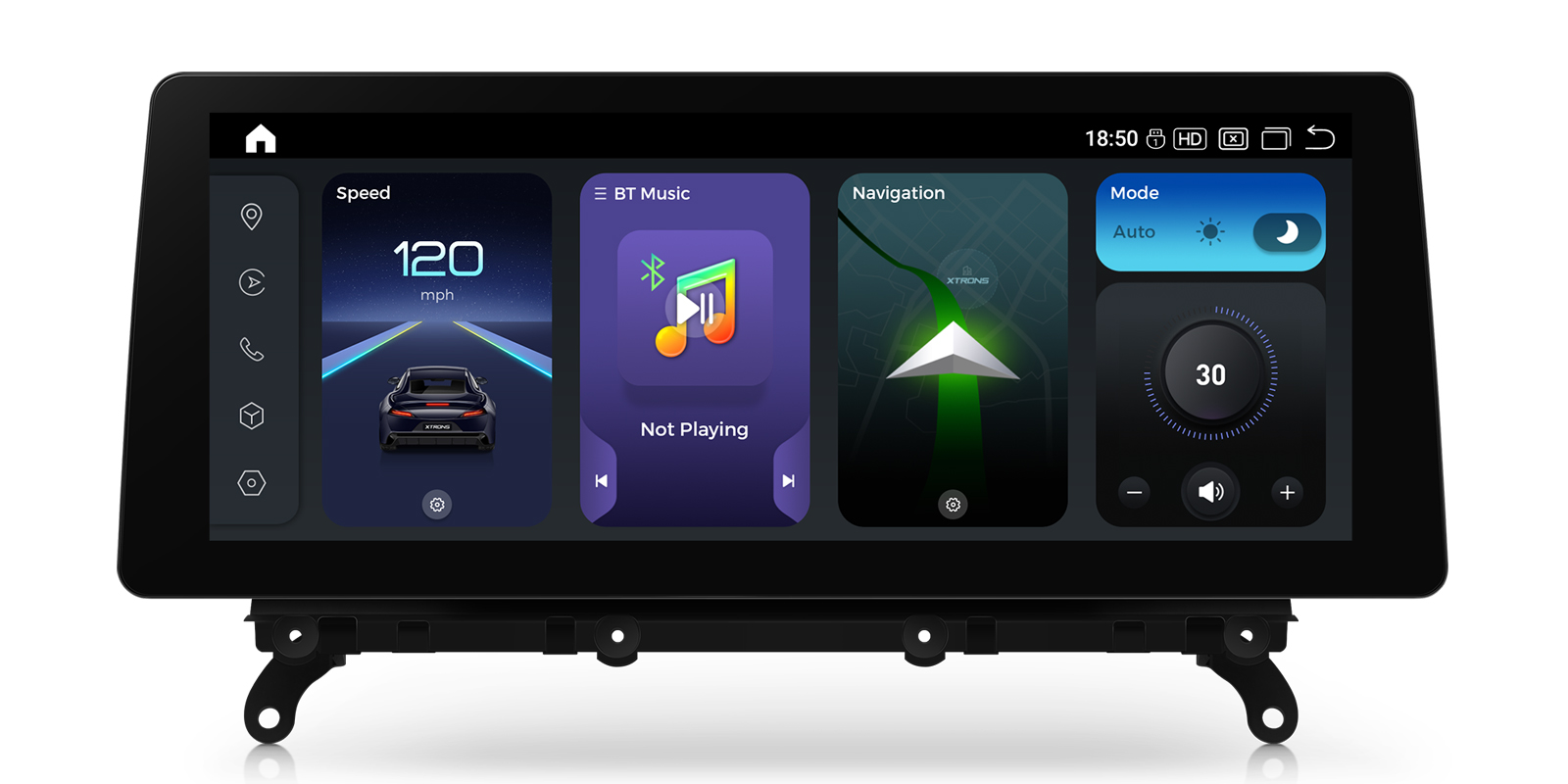

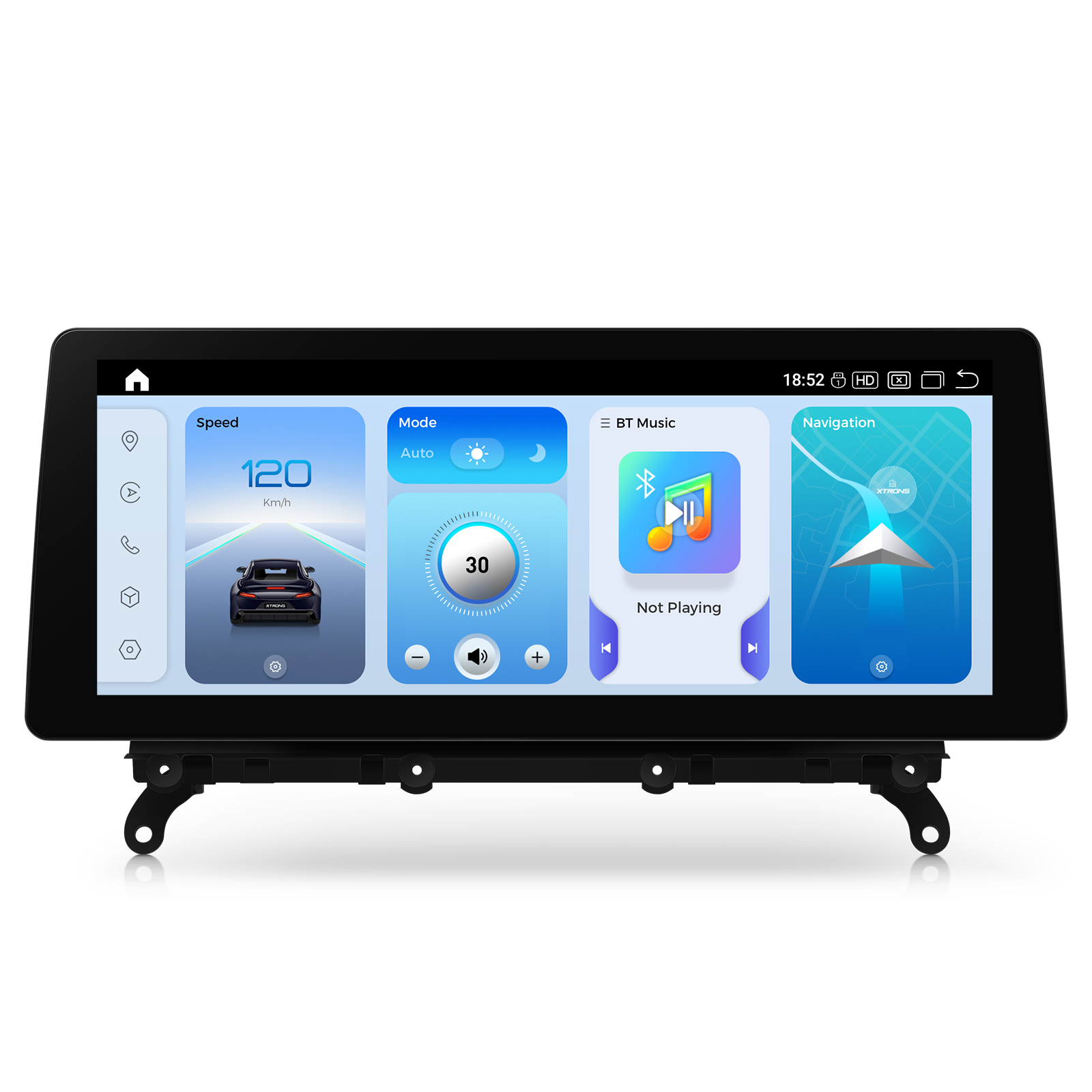

A 12.3 inch 2K Android 14 screen made as a plug-and-play replacement for the factory display in the BMW X3 F25 and X4 F26 (2014-2016) with the NBT system. You keep the CD player, radio and iDrive, and gain wireless CarPlay, Android Auto and built-in 4G.
- Wireless CarPlay and wireless Android Auto
- Keeps the original CD player, radio and iDrive system
- 12.3″ fully laminated QHD 2K IPS screen at 2400 x 900

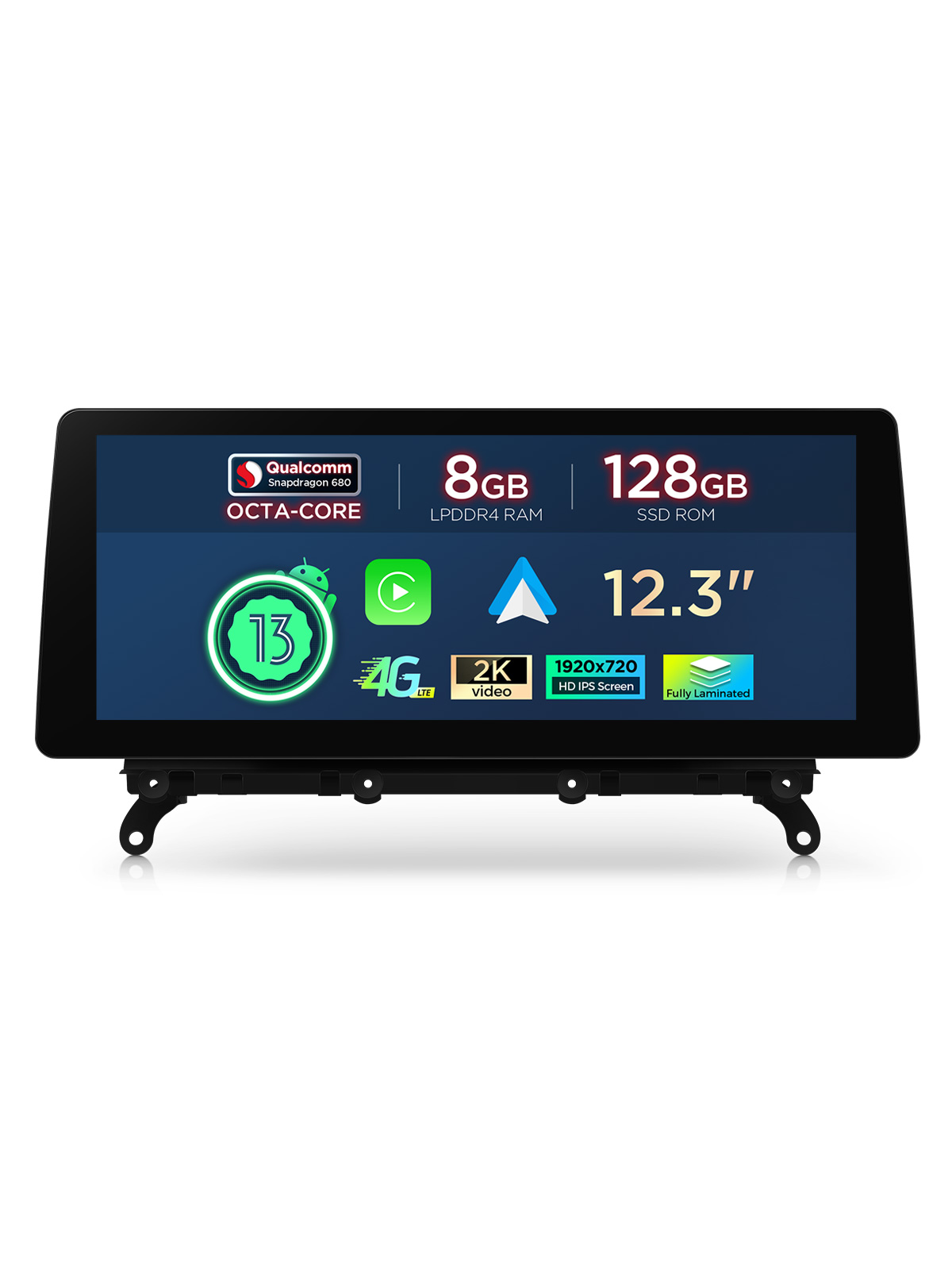

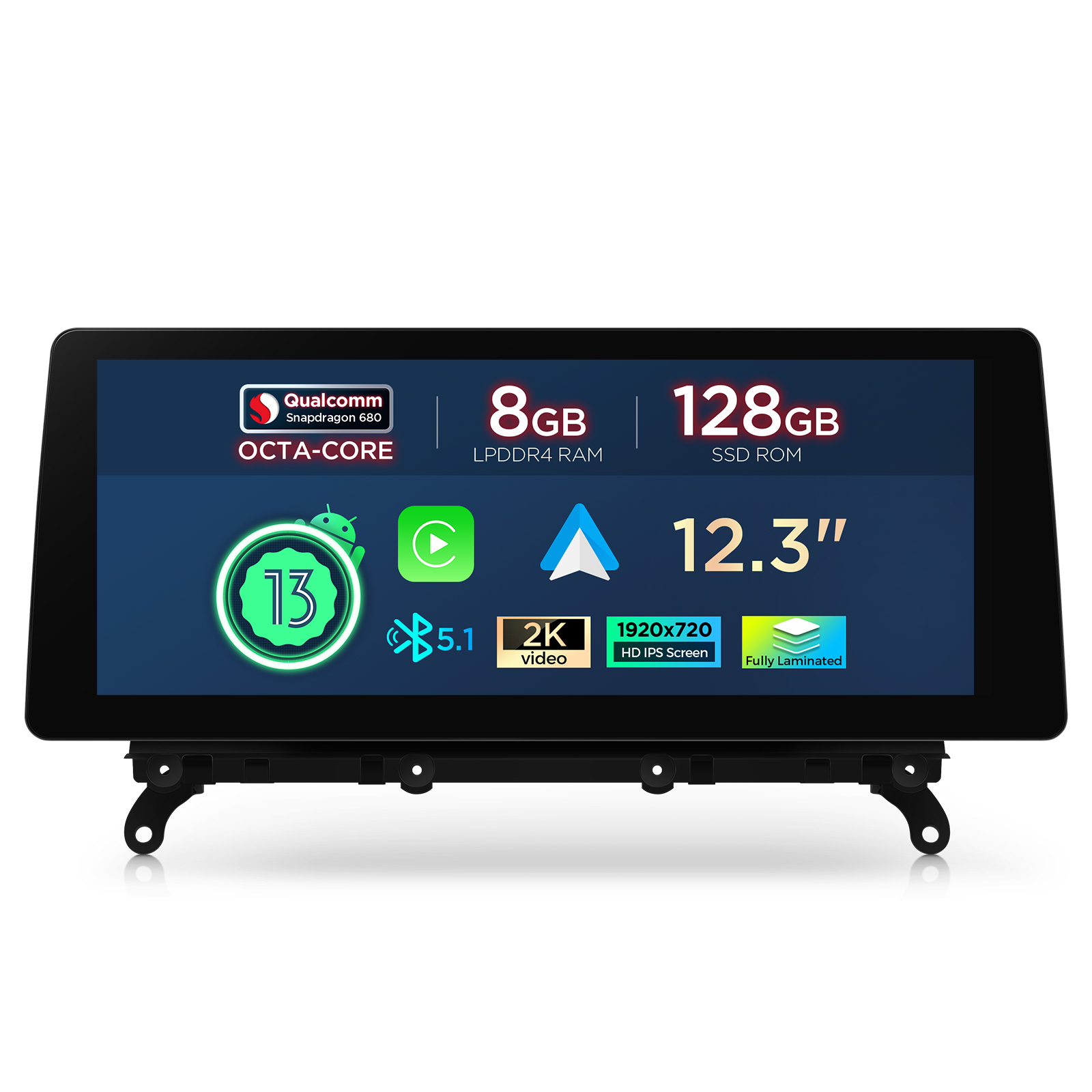

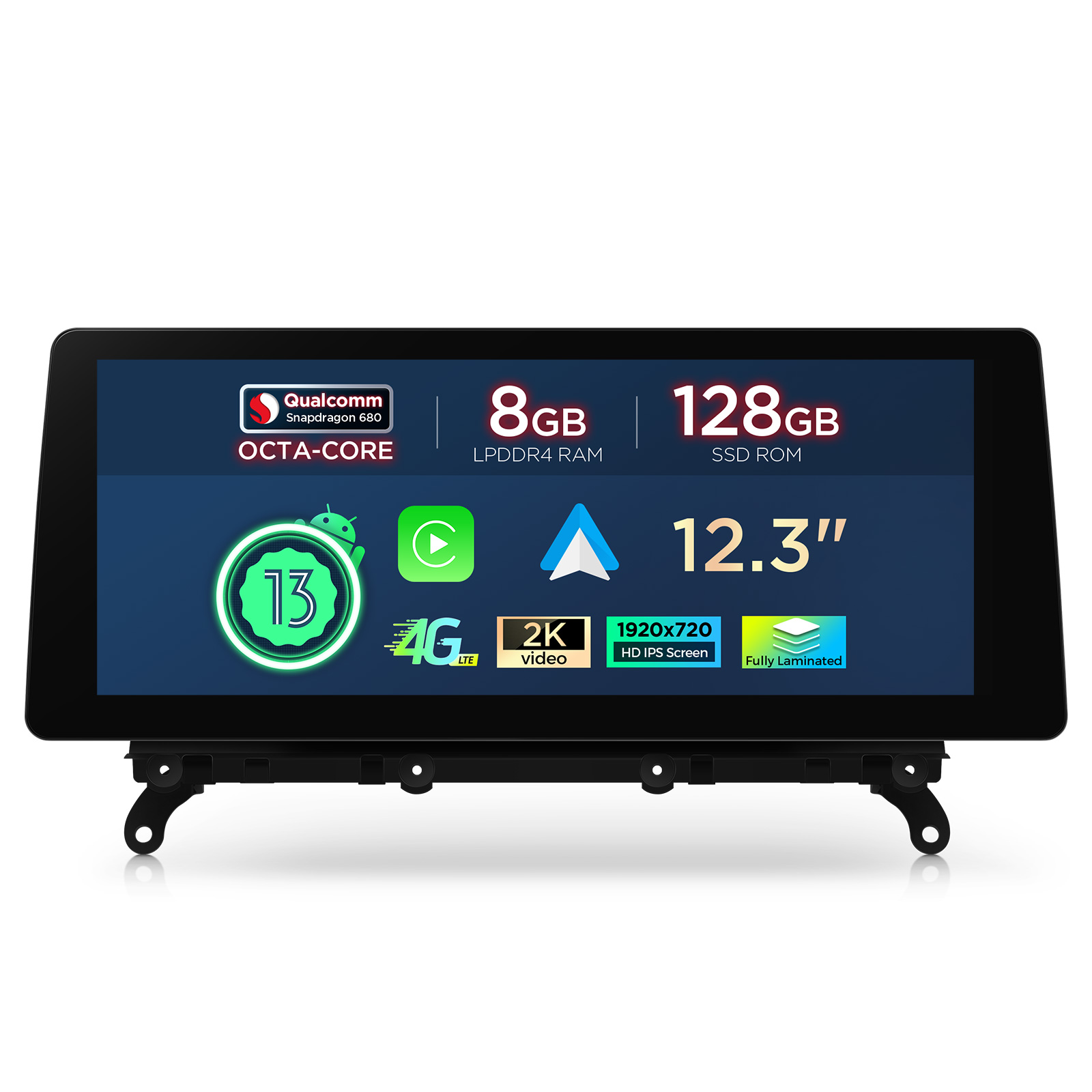

- Qualcomm Snapdragon 680 with 8GB RAM and 128GB storage on Android 14
- Built-in 4G LTE with wide band support
Android alongside your BMW system
The screen works with the factory NBT system rather than replacing it. Your CD player, radio and iDrive controller all stay, and Android is added on a large touch screen.

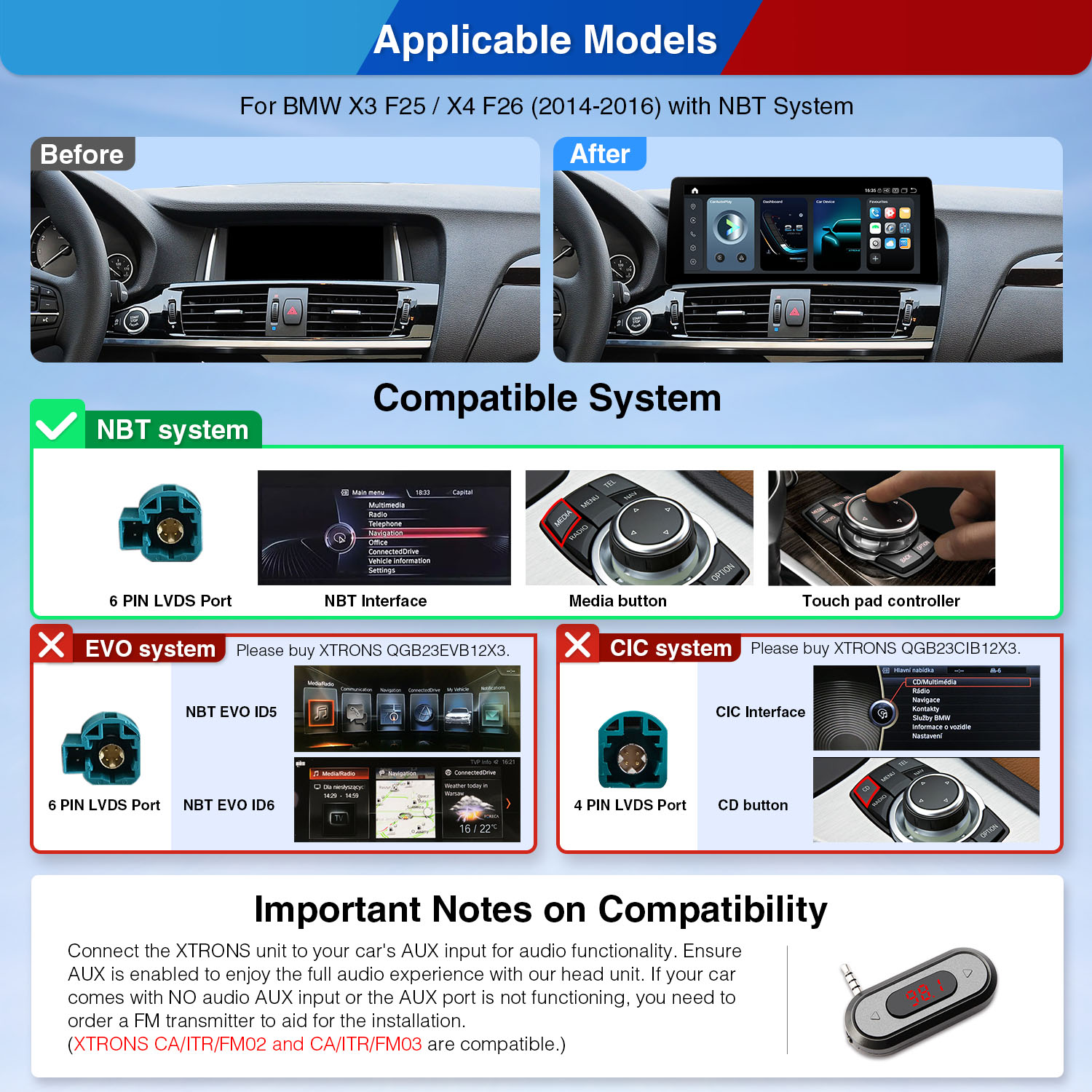

An NBT car has BMW Connected Drive, an iDrive controller with a touch pad, a 6 pin LVDS port at the back of the unit and a Media button. Cars with CIC need the XTRONS QGB24CIB12X3, and cars with NBT EVO need the QGB24EVB12X3.
Wireless CarPlay
Your iPhone connects without a cable, so maps, calls and music appear on the 12.3 inch screen while the phone stays in your pocket.
Wireless Android Auto
Android phones connect wirelessly to Android Auto, with navigation, music and messages on the wide screen.
12.3 inch 2K IPS screen
The QHD 2K (2400 x 900) IPS panel is fully laminated with a G+G touch screen. Colours are accurate and text is sharp, and the wide format suits the BMW dashboard.
Built-in 4G

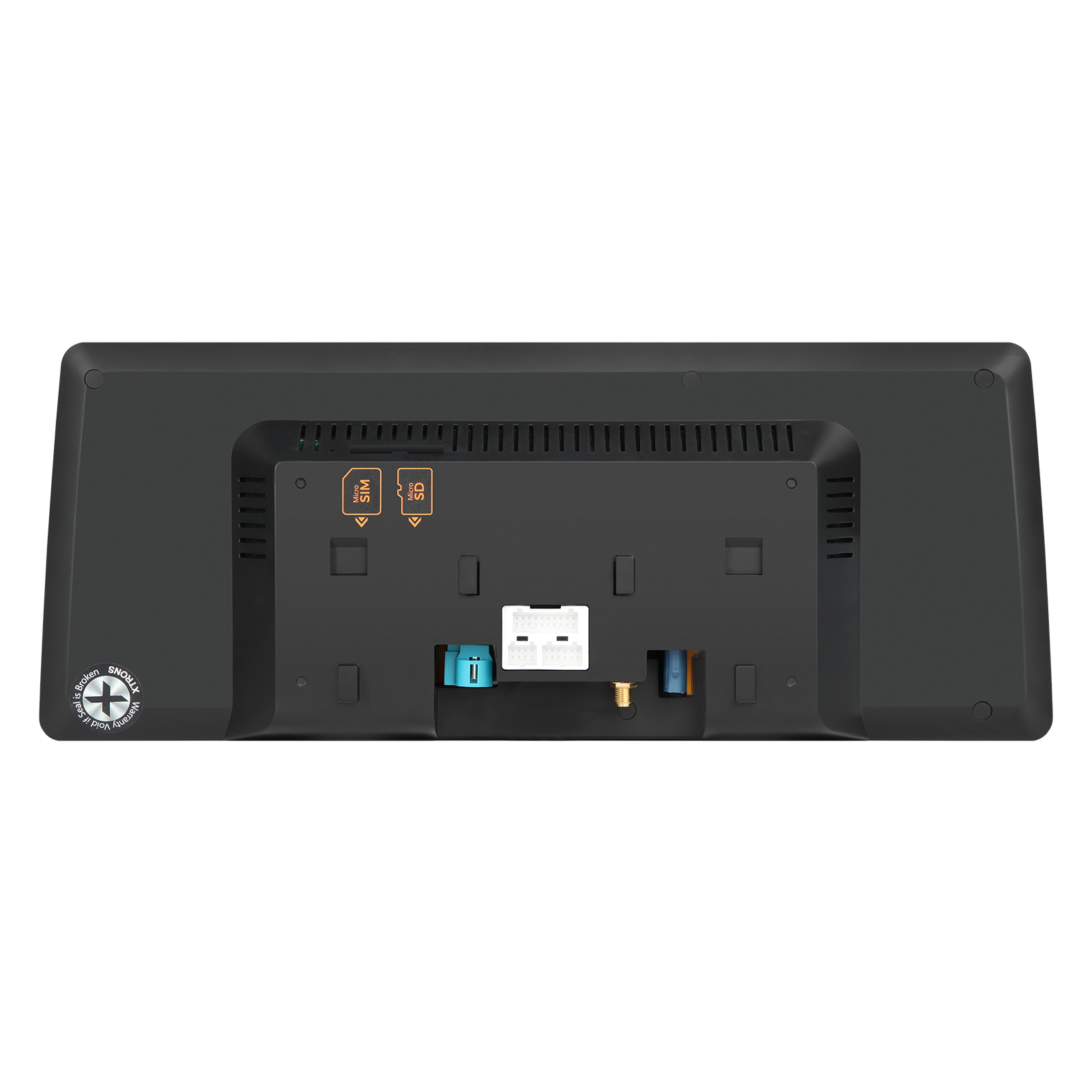

Fit a SIM card and the unit has its own 4G connection for music streaming and real-time navigation, and it can share internet with passengers. It covers FDD-LTE, TDD-LTE and WCDMA bands. A 4G antenna is included.
Dual-band Wi-Fi
Dual-band Wi-Fi supports both 2.4GHz and 5GHz, for browsing, streaming and downloads over a hotspot or home network.
Microphone
An external microphone (XTRONS MIC001/MIC002/MIC003/ACMIC005) gives clearer voice quality for hands-free calls.
DAB with an external tuner
Digital radio needs an external DAB+ tuner, such as the XTRONS USBDAB01/USBDAB02/USBDAB04/ACUSBDAB05T/ACUSBDAB06.
Reversing camera
An optional reversing camera can be added, including AHD 720P and AHD 1080P models such as the CAM009S, ACCAM716S, CAM1080, ACCAM10802 and ACCAMAI01.
Dash cam
An external DVR records your journeys. Compatible models include the XTRONS DVR025S(ADAS), DVR027S(ADAS), DVR028S, DVR030S(ADAS), ACDVR2K01(ADAS) and ACWIFIDVR02.
OBD2 diagnostics
With an OBD2 scanner (XTRONS OBD01S/OBD02/OBD03/OBD04), the screen shows real-time data and trouble codes from the car's computer.
Tyre pressure monitoring
A TPMS kit (XTRONS TPMSO7/TPMS08) shows tyre pressures on the screen in real time.
Works with
- Universal 720P AHD Reversing Camera with 120° ViewICE/SS/CAM009S
- Universal 1080P Hidden USB Dash Cam for Android Head UnitsICE/SS/DVR025S
- Universal Mini FM Transmitter AUX Adapter with 3.5mm JackCA/ITR/FM02
- DAB RadioBrowse the range
- Reversing CamerasBrowse the range
- Dash CamsBrowse the range
- OBD ToolsBrowse the range
- Tyre Pressure MonitoringBrowse the range

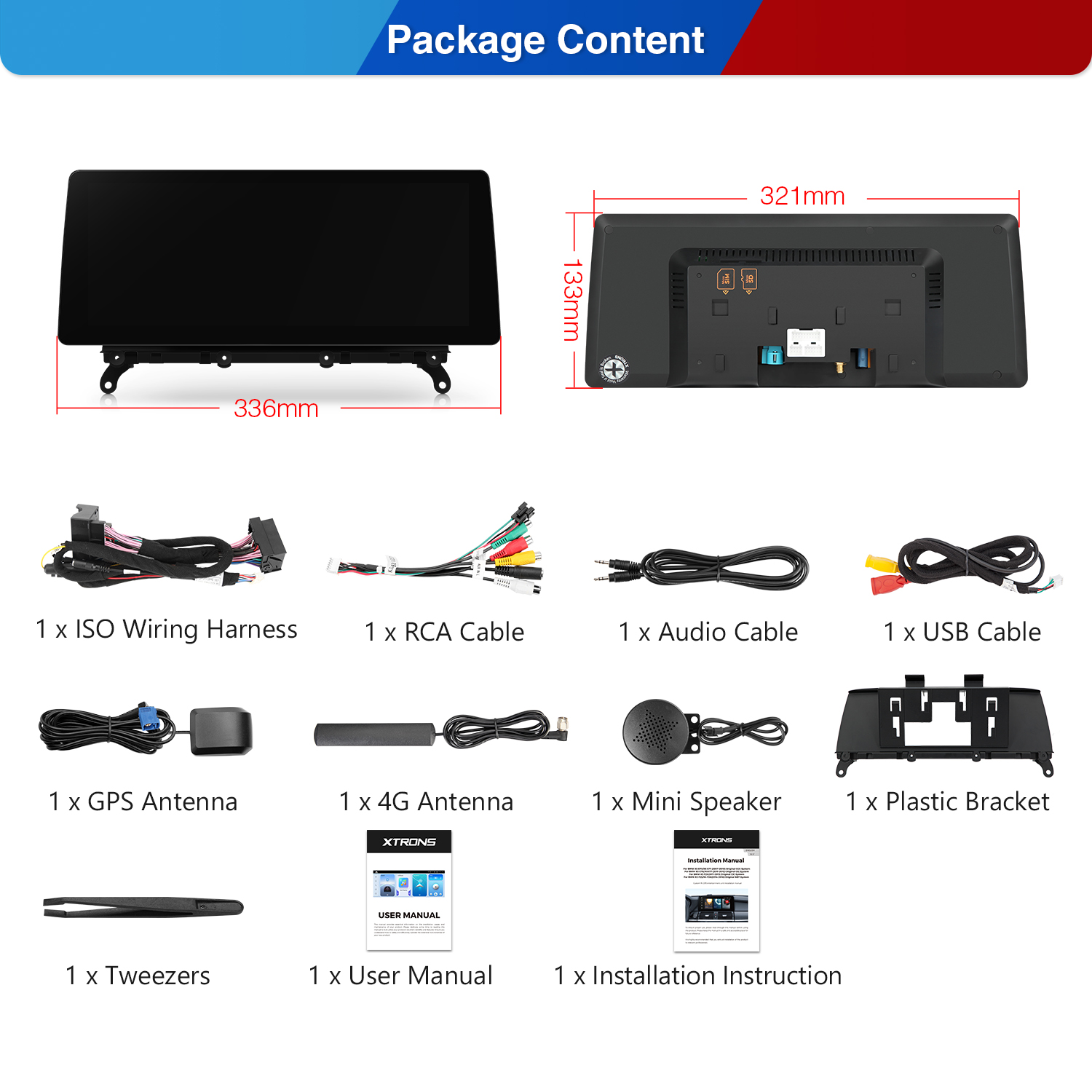

What's in the box
- 1 x 4G Antenna
- 1 x Audio Cable
- 1 x GPS Antenna
- 1 x Installation Instruction
- 1 x ISO Wiring Harness
- 1 x Mini Speaker
- 1 x Plastic Bracket
- 1 x RCA Cable
- 1 x Tweezers
- 1 x USB Cable
- 1 x User Manual
| Processor | Qualcomm Snapdragon 680 |
|---|---|
| Cores | 4 x Kryo 265 Gold and 4 x Kryo 265 Silver cores |
| Speed | up to 2.4GHz |
| Process | 6nm technology |
| Memory | 8GB RAM and 128GB ROM |
| Operating system | Android 14 |
| Screen | 12.3″ Screen | IPS Technology | G+G Touch Screen |
|---|---|
| Resolution | QHD 2K (2400 x 900) |
| FDD-LTE | FDD-LTE (Bands 1,2, 3, 4, 5,7,8, 12, 13, 14, 17,18, 19, 20, 25, 26, 28, 66, 71) |
|---|---|
| TDD-LTE | TDD-LTD (Bands 34, 38, 39, 40, 41) |
| WCDMA | WCDMA(Bands 1, 2, 4, 5, 6, 8, 19) |
| Wi-Fi | Dual-band Wi-Fi supports both 2.4GHz and 5GHz bands |
- BMW X3 (2004-2024)
- For BMW X3 F25 / X4 F26 (2014-2016) with NBT System
- Note: This unit is for BMW vehicles that come with a NBT system.
- 4. Connect the XTRONS unit to your car's AUX input for audio functionality. Ensure AUX is enabled to enjoy the full audio experience with our head unit.
The screen replaces the factory display and connects with the supplied ISO wiring harness and audio cable, keeping the NBT system. Sound plays through the car's AUX input, so AUX must be enabled. If the car has no AUX input or it doesn't work, you'll need an FM transmitter such as the XTRONS CA/ITR/FM02 or CA/ITR/FM03.
How do I know if my X3 has NBT?
NBT cars have BMW Connected Drive, an iDrive controller with a touch pad, a 6 pin LVDS port at the rear of the unit and a Media button.
Do I keep my iDrive and CD player?
Yes. The CD player, radio and iDrive all stay in use.
What if my car has no AUX input?
You'll need an FM transmitter; the XTRONS CA/ITR/FM02 and CA/ITR/FM03 are compatible.
Does it have DAB?
DAB needs an external DAB+ tuner, sold separately.
Reviews
What customers say
Bought this product? Sign in to write a review.

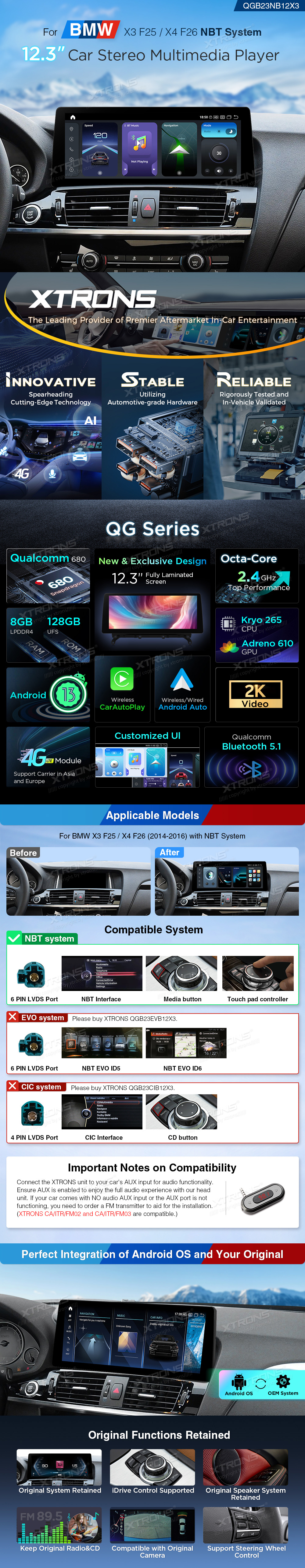

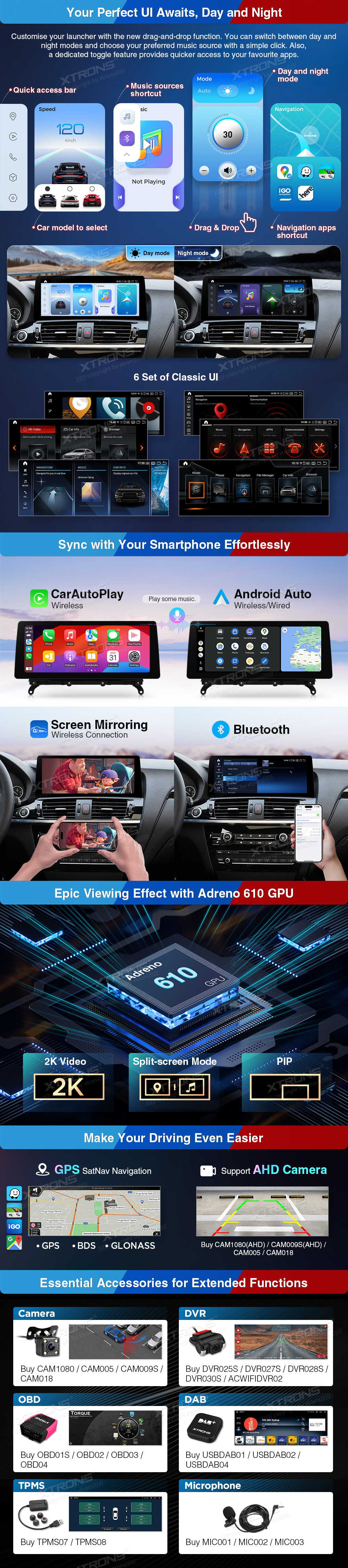

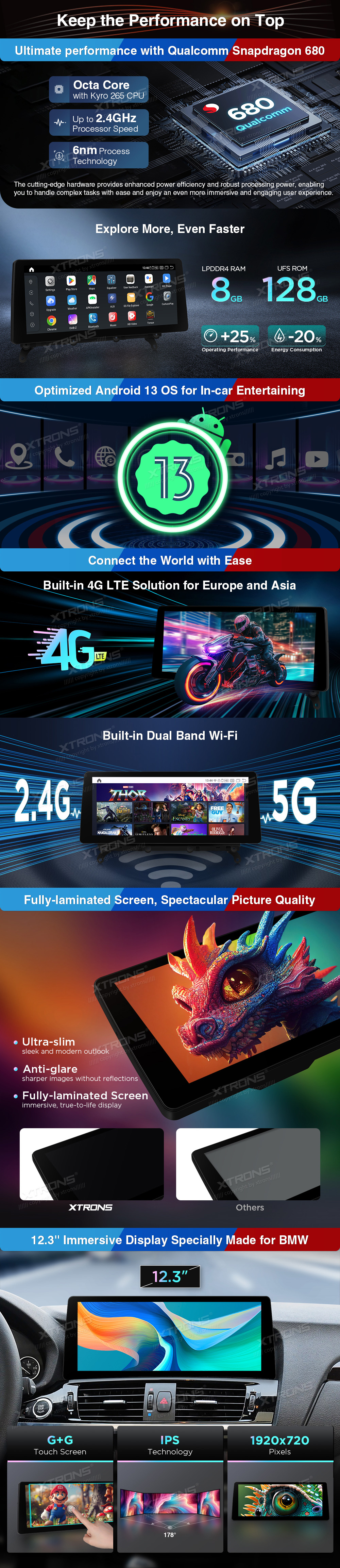

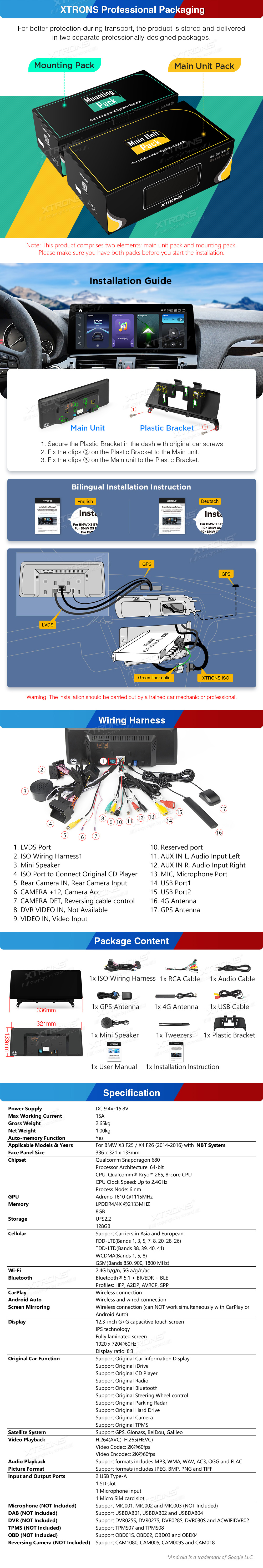

Full specification from XTRONS
