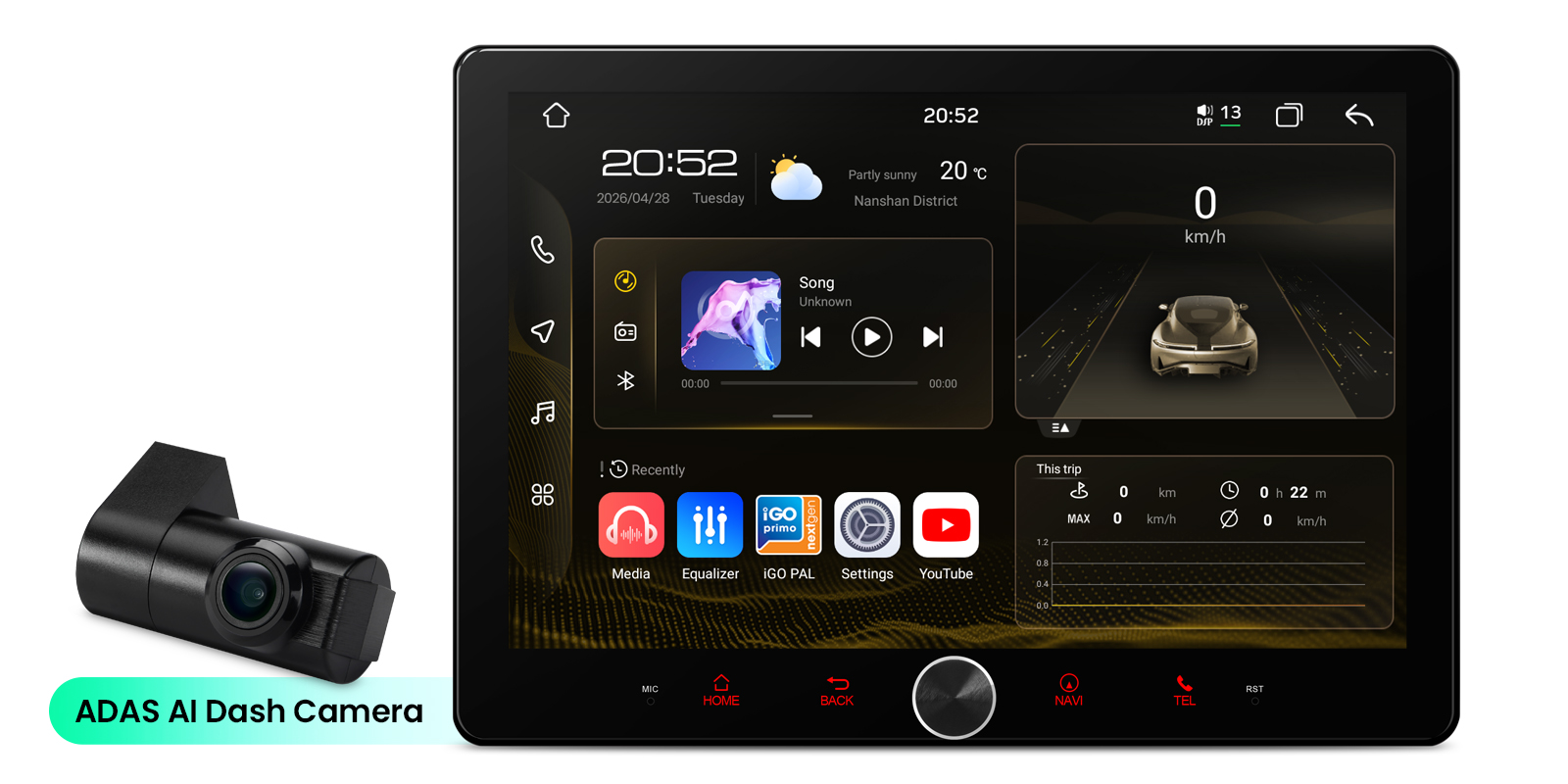

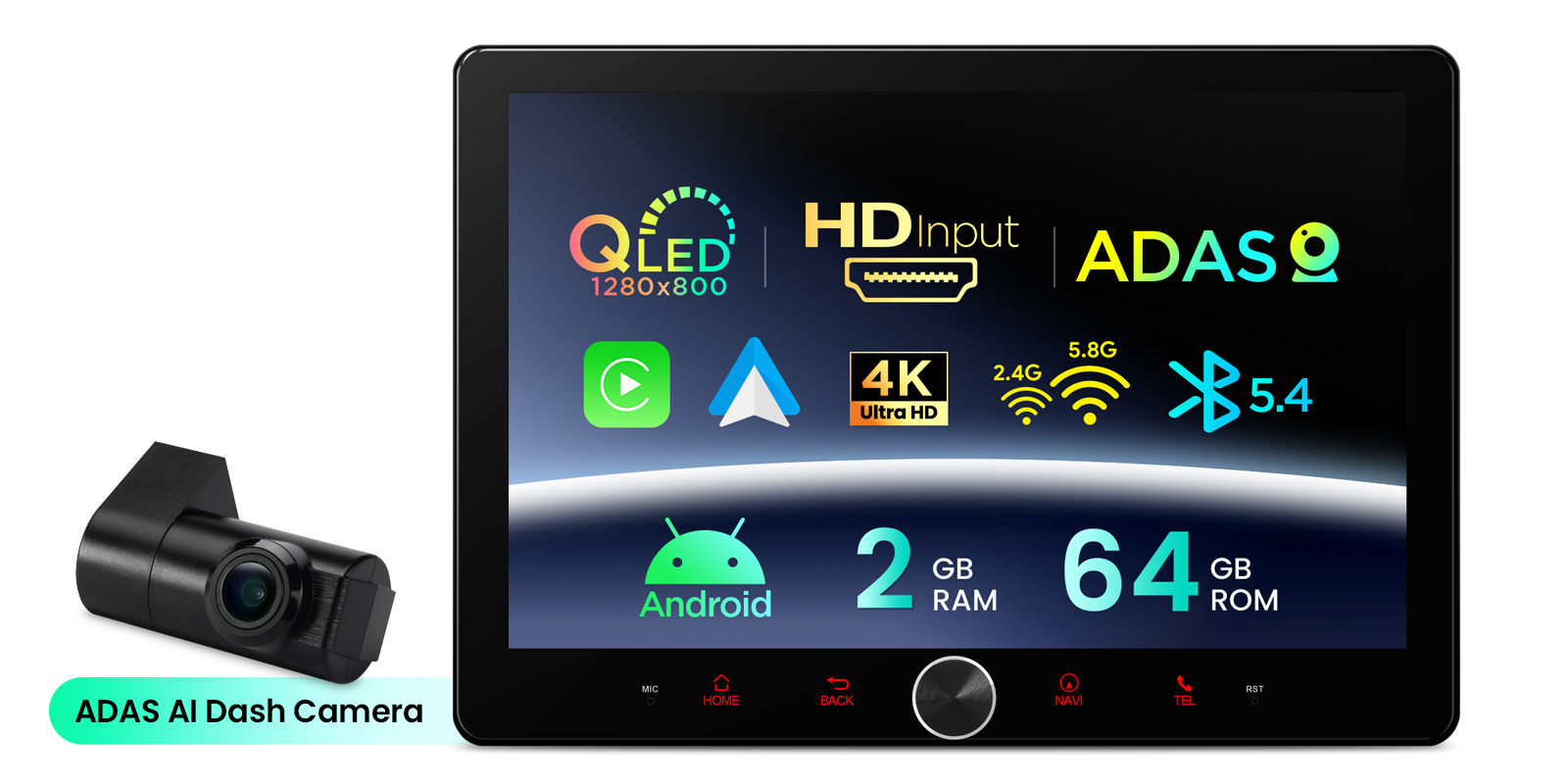

10.1 inch Double DIN Android Stereo with ADAS

A universal 10.1 inch Android 14 car stereo for cars with a double DIN factory radio. It comes with an ADAS camera for dash cam recording and driving alerts, and adds wired or wireless CarPlay and Android Auto on a floating QLED screen.

CarPlay and Android Auto, each with wireless and wired options
Included ADAS camera for dash cam recording, lane departure and forward collision warnings
10.1” QLED IPS touch screen at 1280×800
Floating panel with 60mm vertical adjustment and tilt and swivel up to 30°
Android 14 with 2GB DDR4 RAM and 64GB ROM

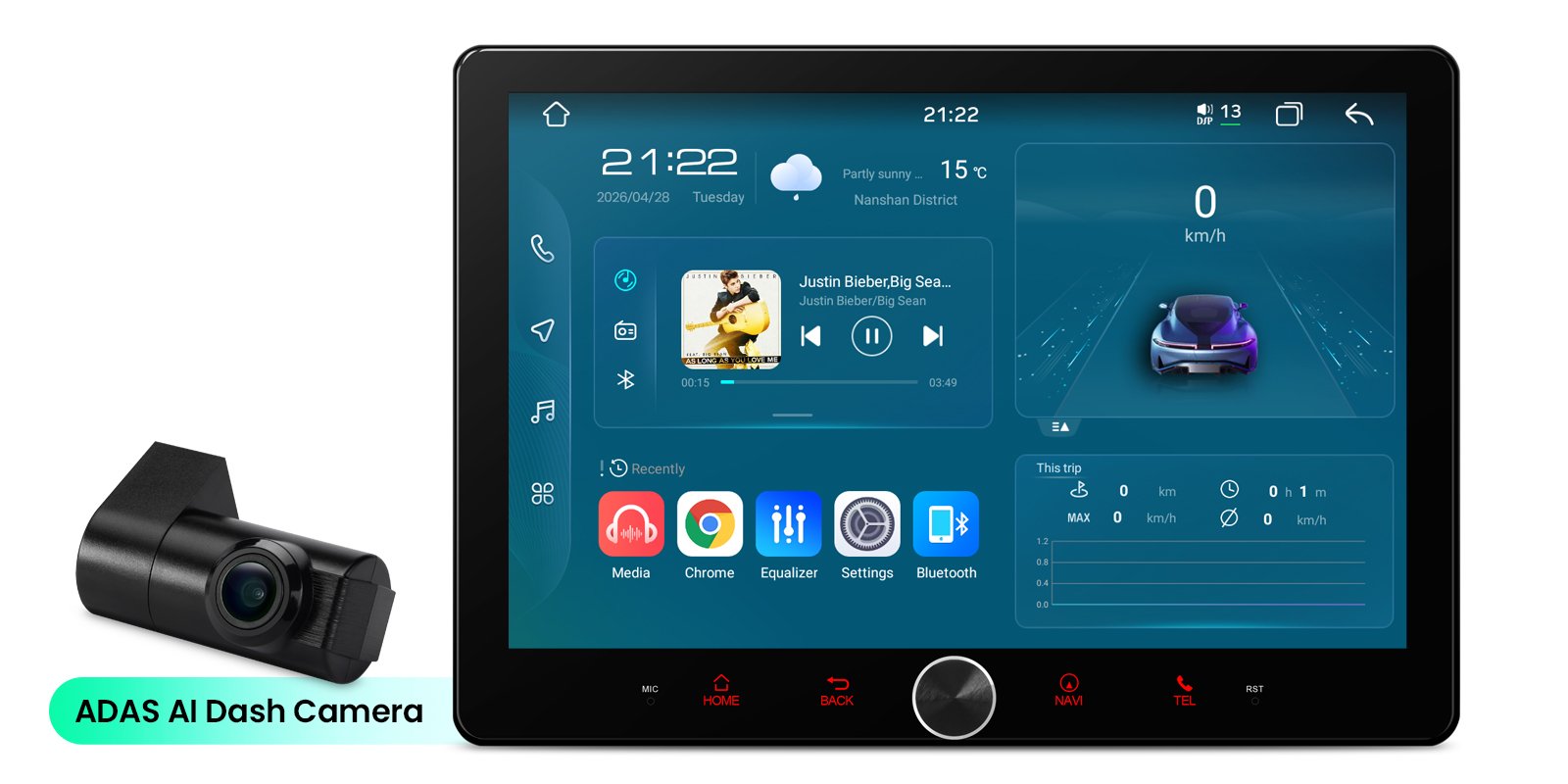

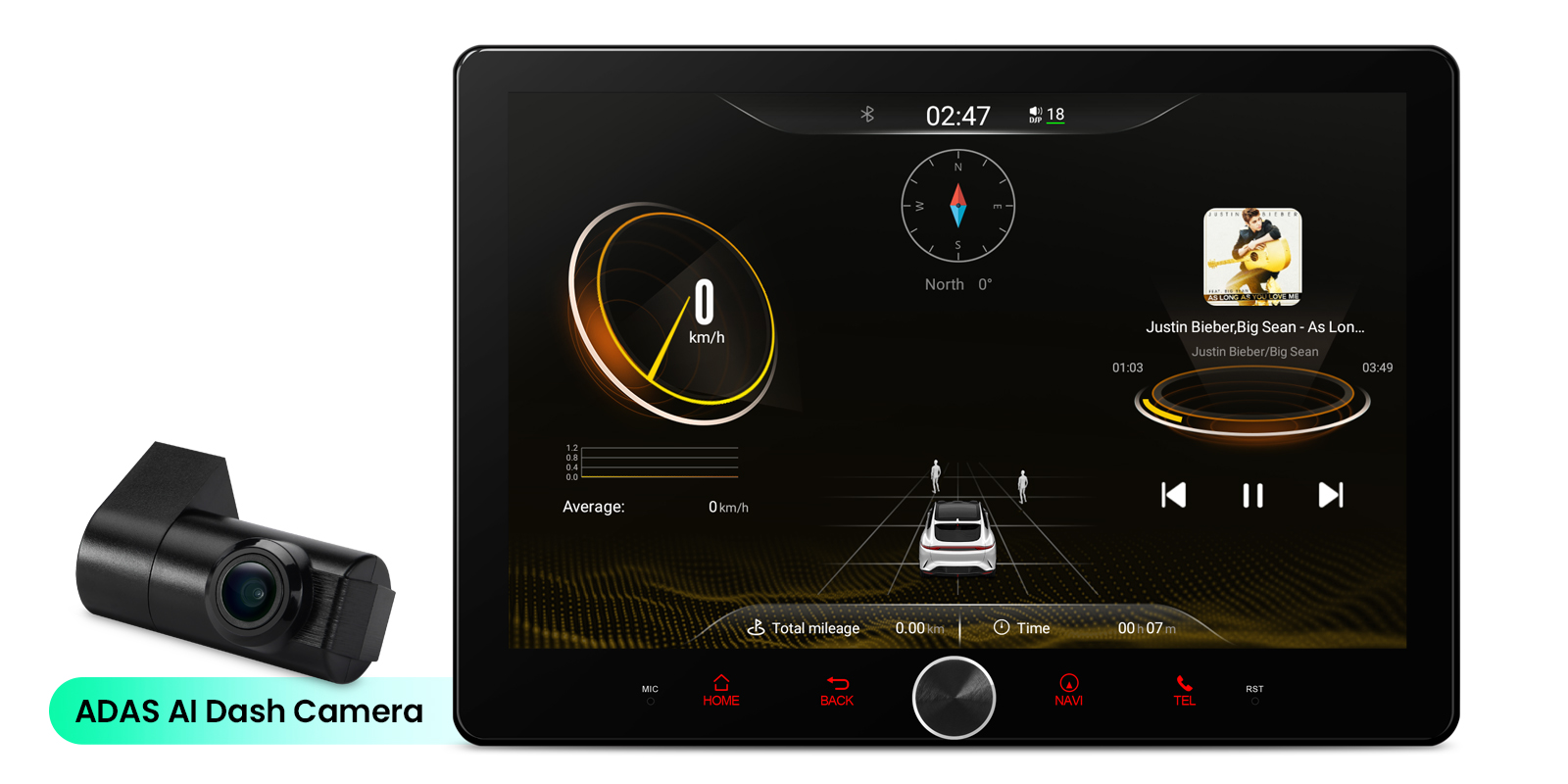

Built-in driver assistance and dash cam

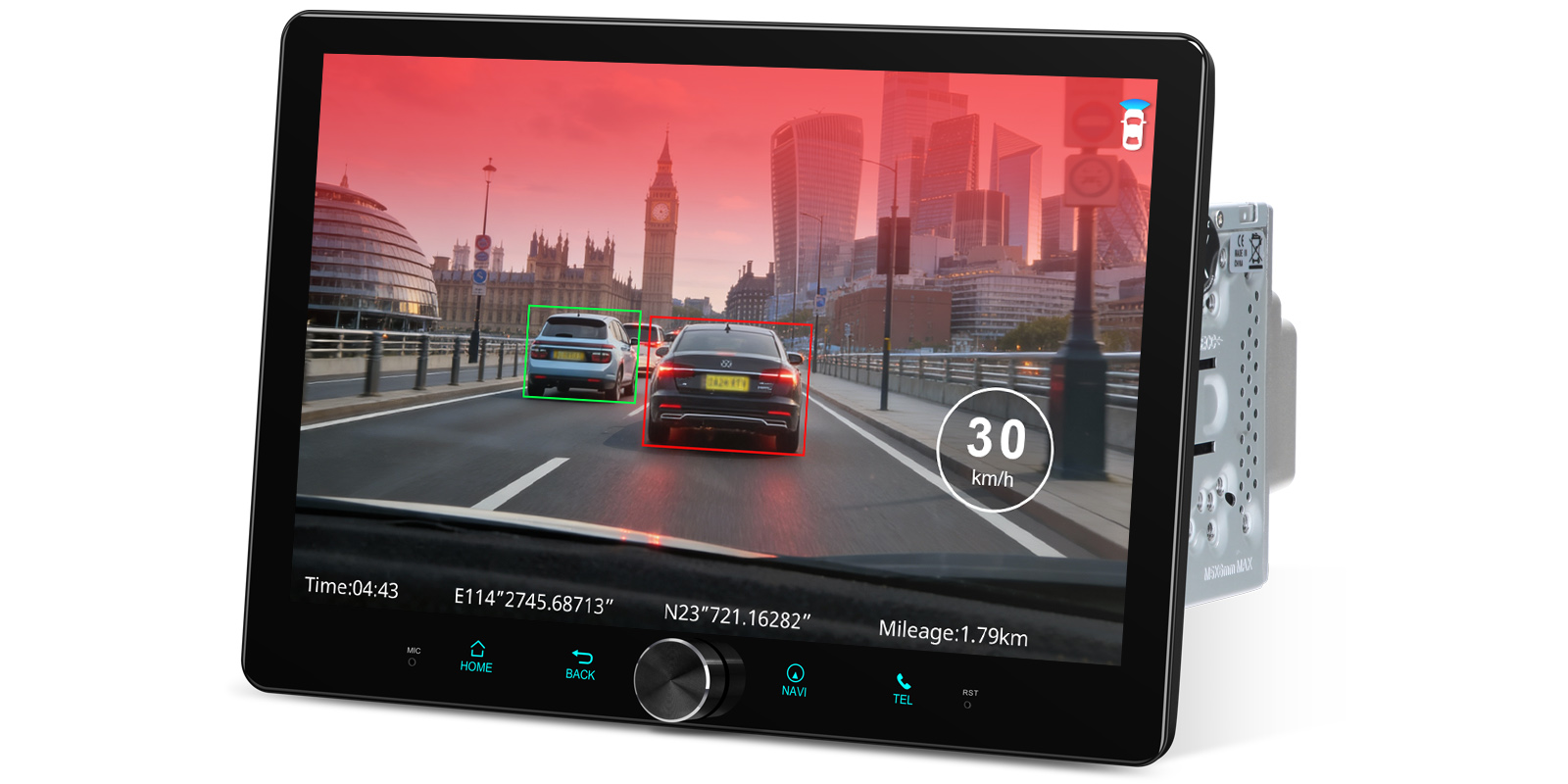

The camera in the box works with the stereo's ADAS software. It records your journey like a dash cam and shows safety alerts on a dedicated screen: lane departure warning, forward collision warning and pedestrian detection.

The ADAS function is calibrated only for the included camera, so use that camera rather than another one.

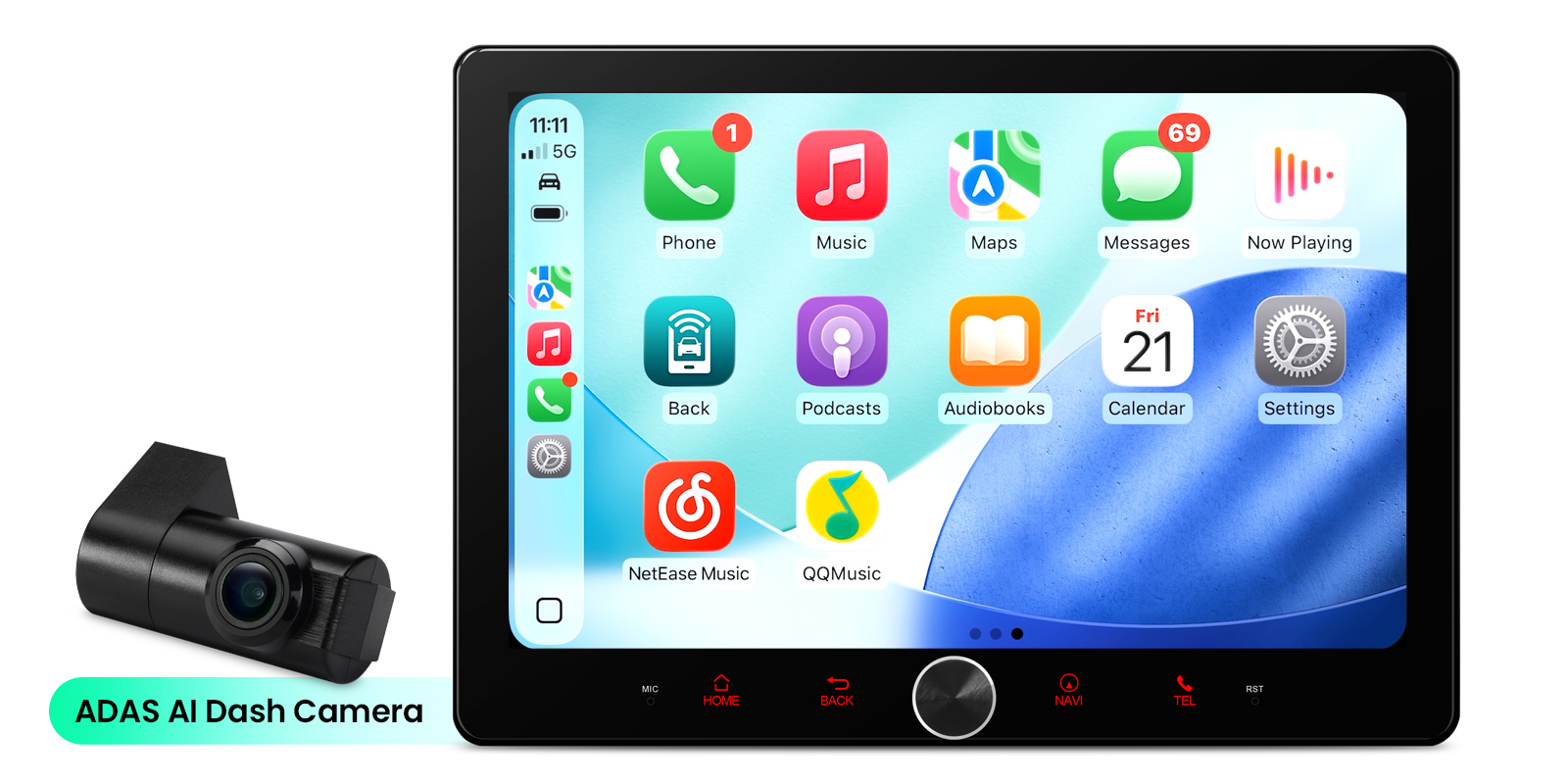

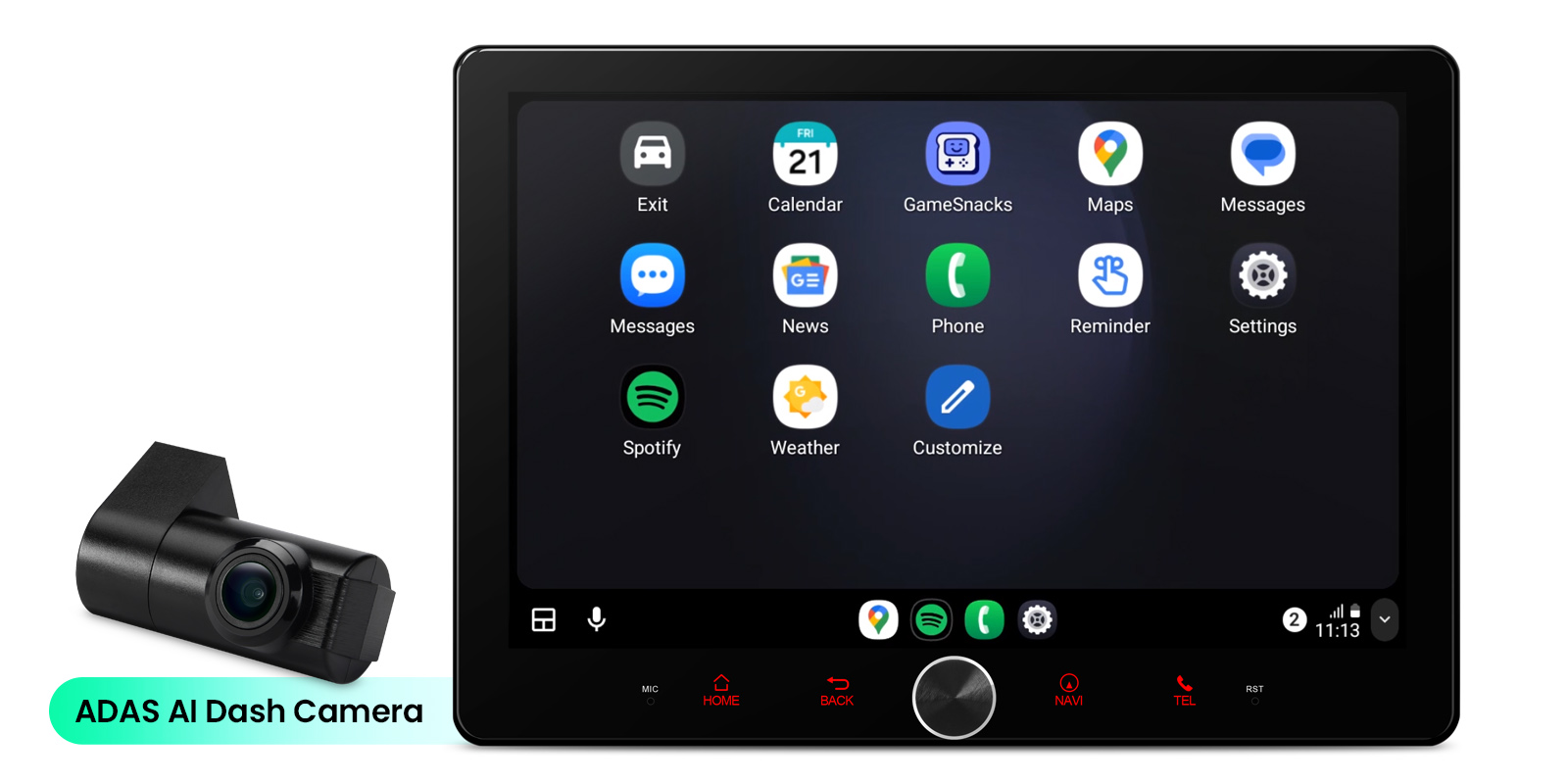

Apple CarPlay

CarPlay works wirelessly or with a cable. Your iPhone's maps, music and messages appear on the 10.1 inch screen, so the phone can stay out of reach while you drive.

Android Auto

Android Auto also has wireless and wired options. Navigation, music and calls run on the stereo's screen with your usual apps.

10.1 inch QLED screen

The QLED panel uses quantum dot technology for a wider colour range and higher brightness, which helps the map stay readable on bright days. Resolution is 1280*800 with a G+G touch screen.

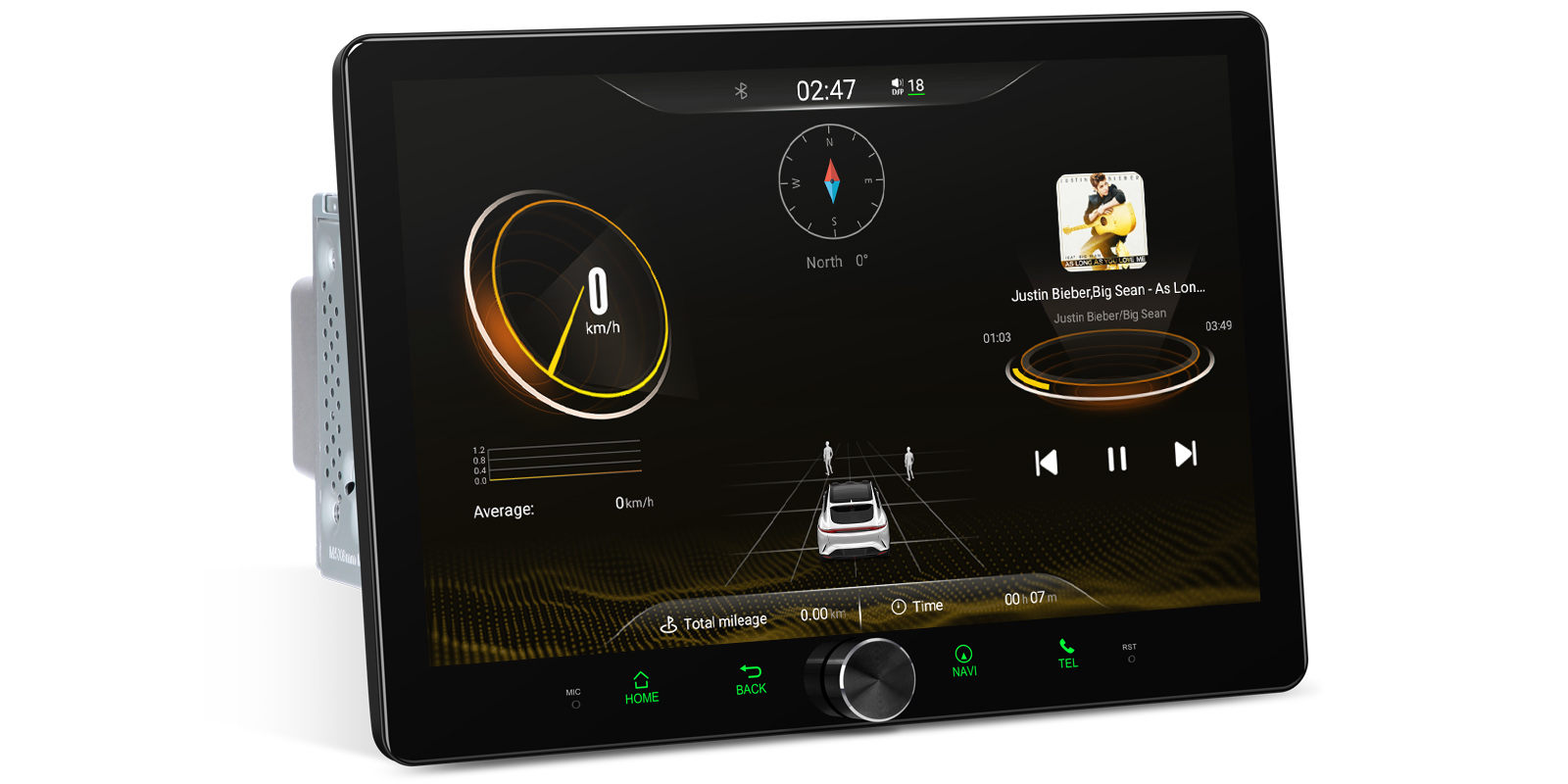

The floating panel has 3-way position adjustment: 60mm of vertical travel and tilt and swivel up to 30°, so you can set it clear of vents and controls.

IPS panel

As an IPS display, the screen keeps its colours when viewed from the side, so the passenger can see it clearly too.

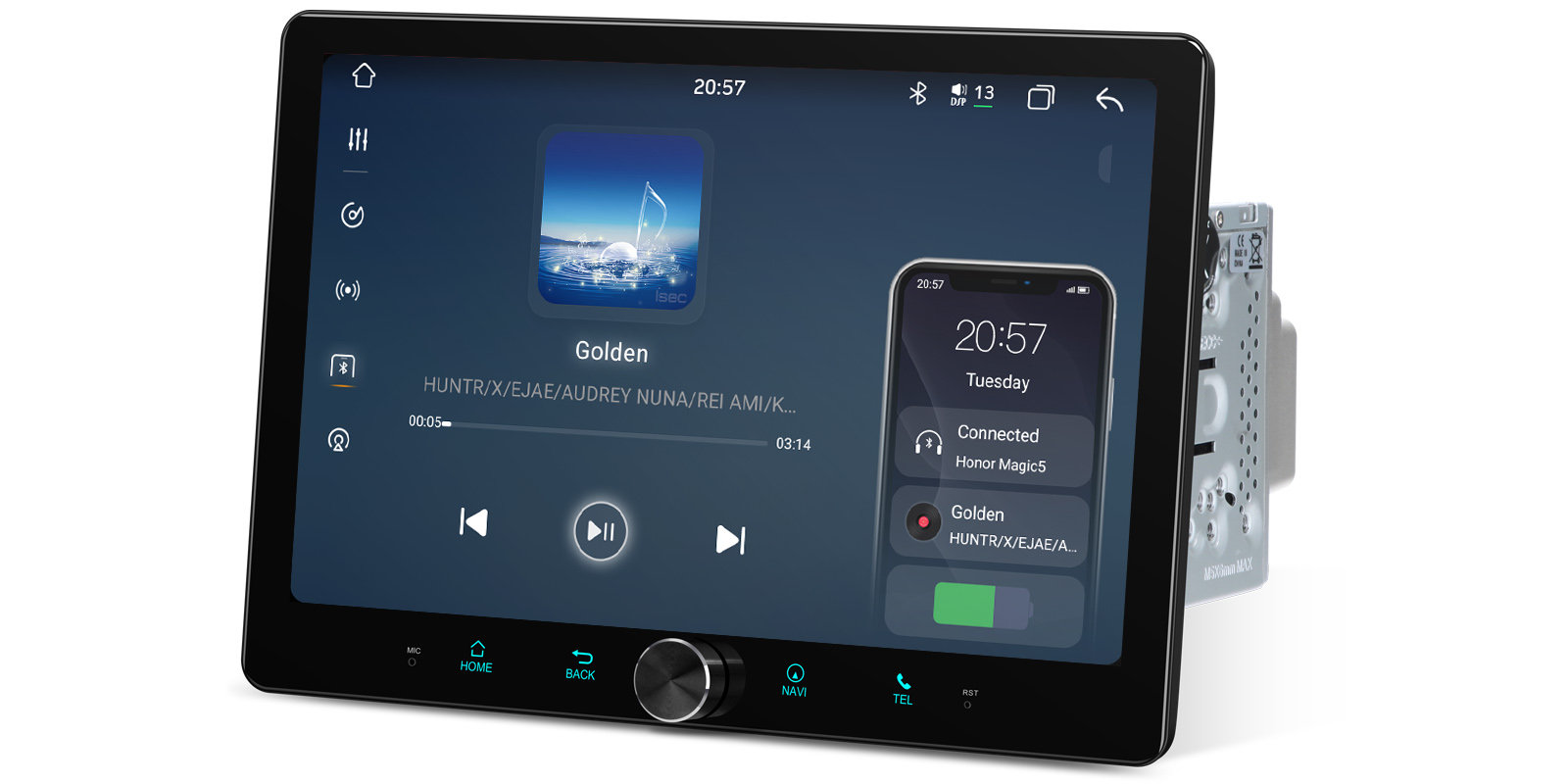

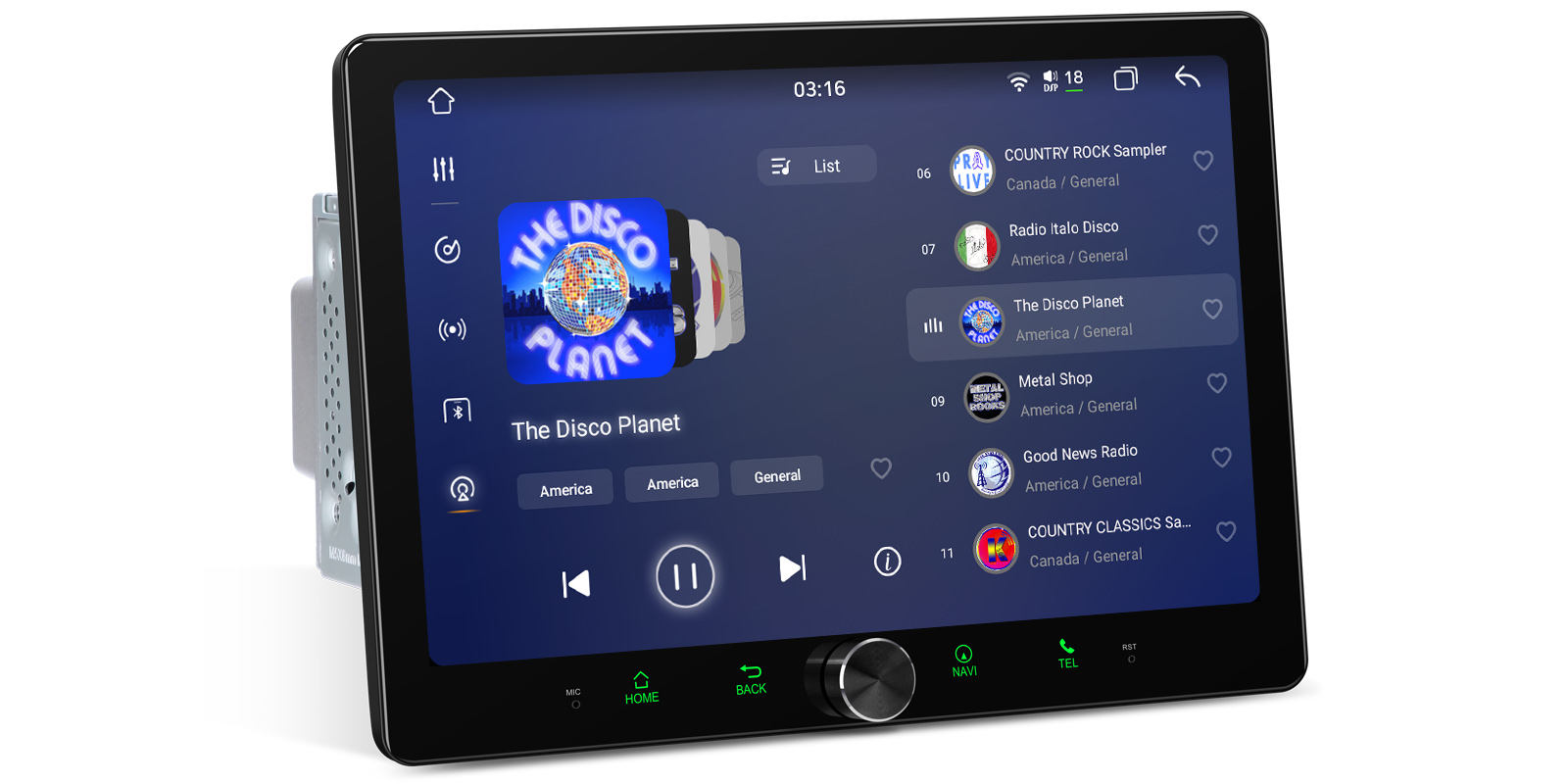

Sound settings

The DSP lets you fine-tune the EQ to suit your speakers. Radio, local files, Bluetooth streaming and digital radio are all controlled from the same audio screen.

A TDA7388 amplifier drives the speakers, and the SI4755 radio has RDS.

Wi-Fi

Wi-Fi connects the stereo to a phone hotspot or home network for app downloads and streaming. A Wi-Fi antenna is included.

Screen mirroring

Screen mirroring shows your phone's display on the stereo, handy for apps that aren't available in CarPlay or Android Auto.

Reversing camera support

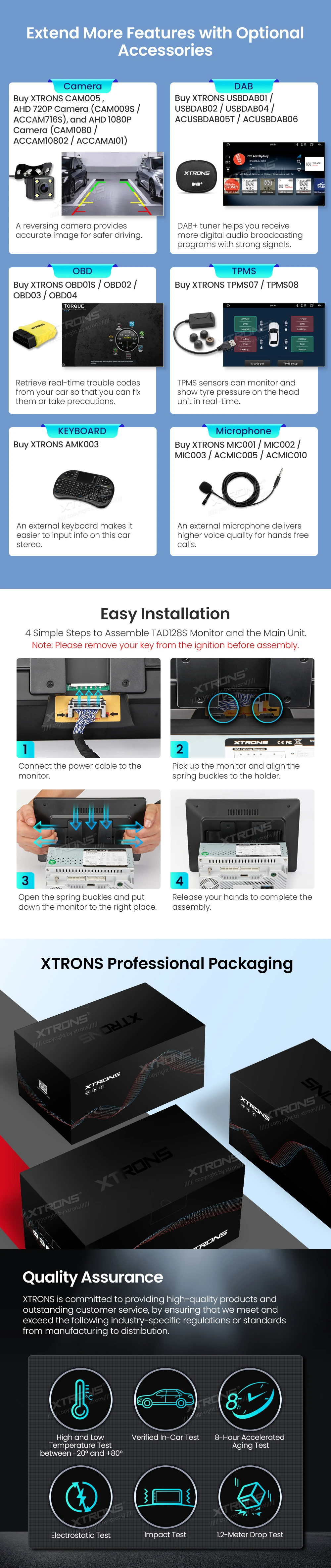

The stereo supports AHD cameras. Add a reversing camera (for example the XTRONS CAM009S, ACCAM716S, CAM1080, ACCAM10802 or ACCAMAI01) and the rear view appears on the screen.

HD input and 4K playback

The HD input takes HDMI sources such as a TV box, games console or media player. 4K video decoding gives smooth, sharp playback when you're parked.

DAB with an external tuner

Digital radio needs an external DAB+ tuner, such as the XTRONS USBDAB01 / USBDAB02 / USBDAB04 / ACUSBDAB05T / ACUSBDAB06.

External microphone

An external microphone (XTRONS MIC001/ MIC002/MIC003/ACMIC005) gives clearer voice quality on hands-free calls.

OBD diagnostics

With an XTRONS OBD01S / OBD02 / OBD03/OBD04 adapter, the stereo can read real-time trouble codes from your car.

Tyre pressure monitoring

Add a TPMS07/TPMS08 kit and tyre pressures are shown on the screen in real time.

Works with

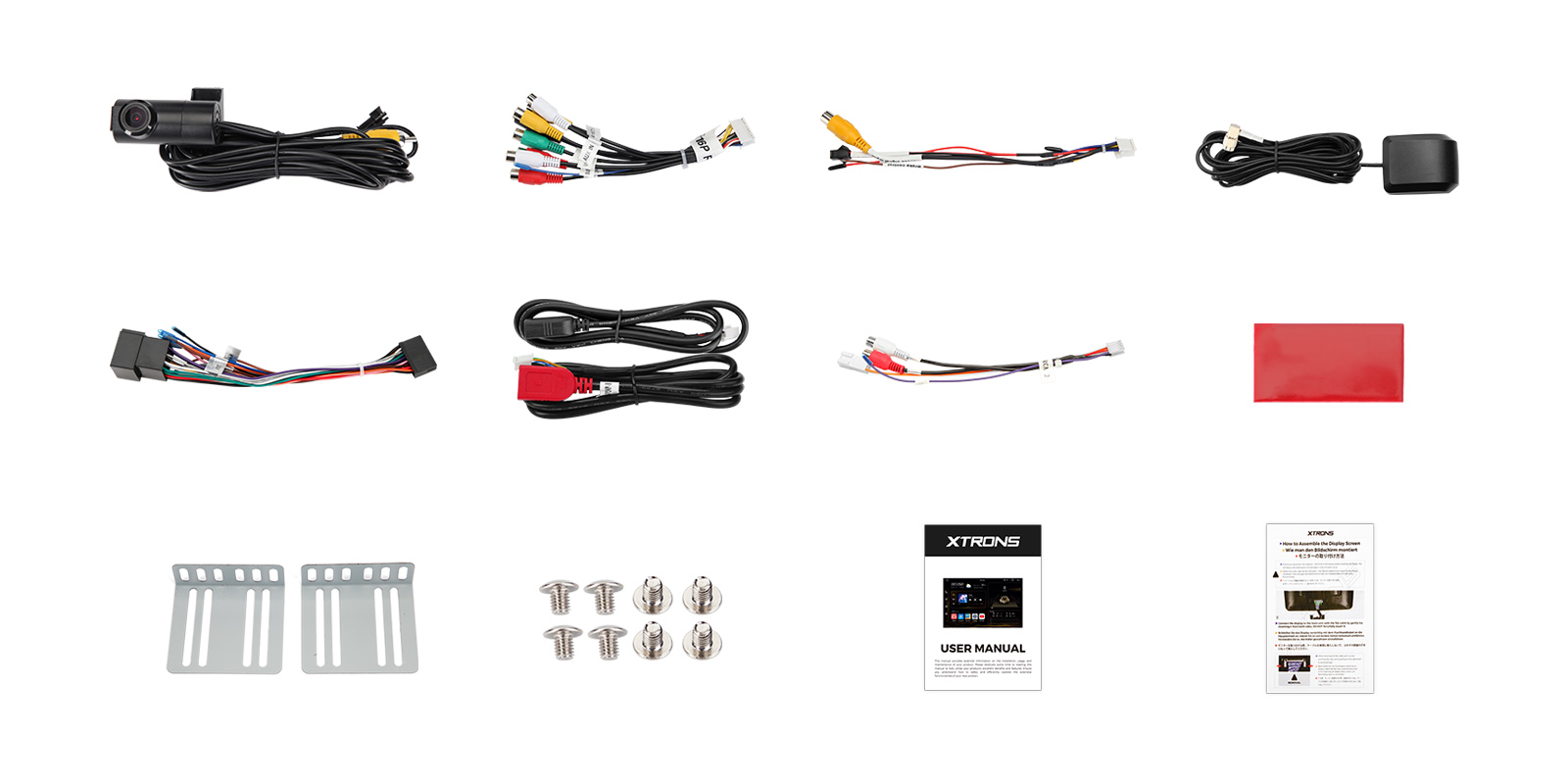

What's in the box

1 x Camera
1 x Camera Cable
1 x GPS Antenna
1 x Installation Instruction
1 x ISO Wiring Harness
1 x Sticker
1 x User Manual
1 x Wi-Fi Antenna
2 x Fitting Kits
2 x USB Cable
8 x Screws

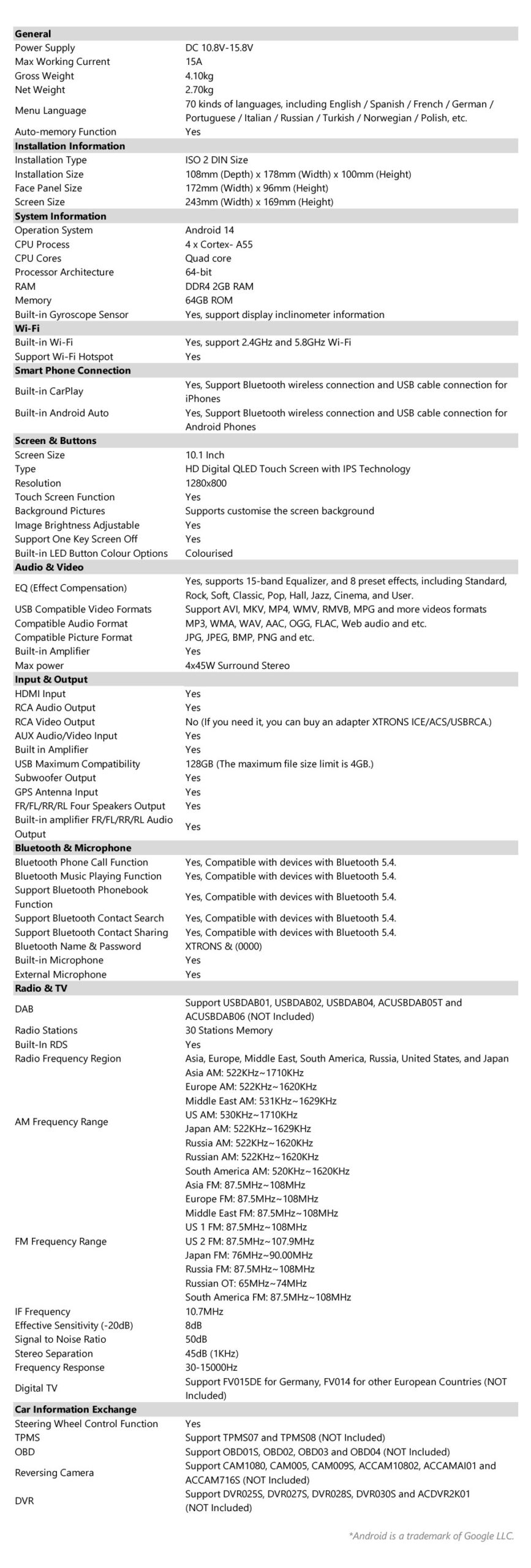

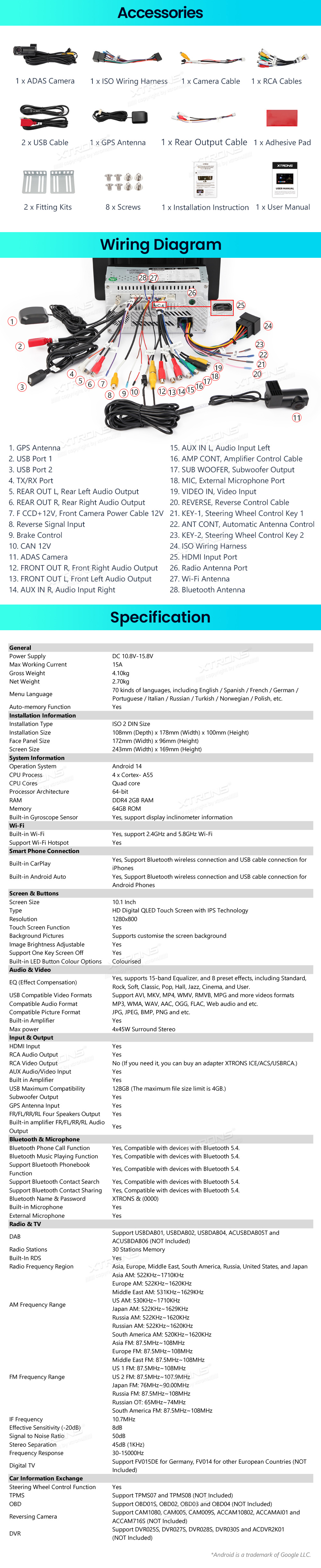

Performance
Operating system	Android 14
CPU	ARM Cortex-A55
NPU and GPU	3 TOPS NPU \| Mali-G52 GPU
Memory	2GB DDR4 RAM + 64GB ROM

Display
Screen	QLED 1280*800 Pixels IPS Display G+G Touch Screen
Vertical adjustment	60mm Vertical Adjustment
Tilt and swivel	Tilt & Swivel up to 30°

Audio
Radio	SI4755 Radio with RDS
Amplifier	TDA7388 Amplifier

Physical
Size	100mm(Height)x178mm(Width)x130mm(Depth)

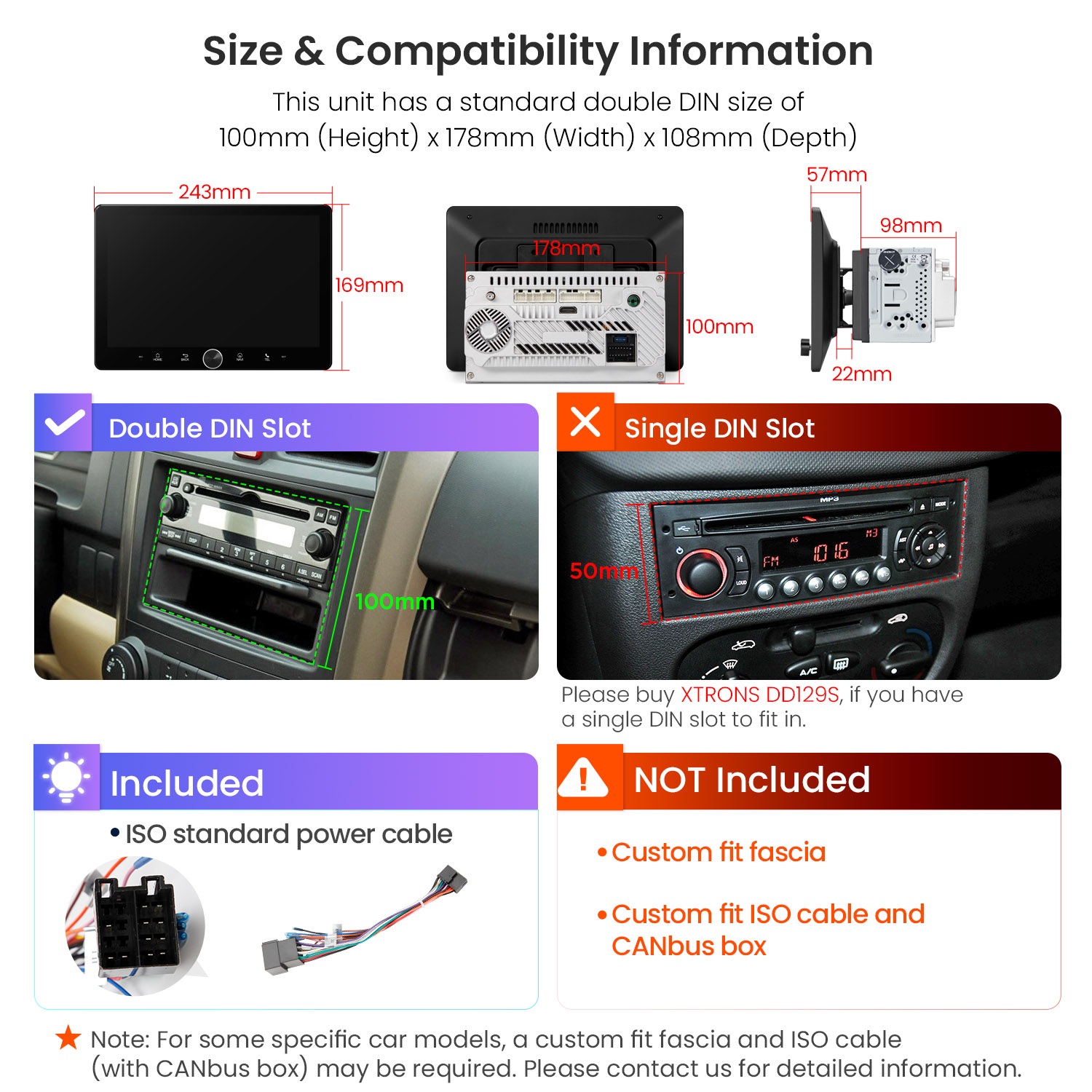

Universal: fits most cars with a double-DIN slot. Check the dimensions in the specifications against your dash.

Universal Fit for Cars with Double DIN Factory Radios.
It should be installed on a 178x100mm slot ONLY.
For some specific car models, a custom fit fascia and ISO cable (with CANbus box) may be required.
This unit does not play discs.

Some cars came with a choice of factory head unit. If a product asks for the original system, pick the one your car has. How to check compatibility

The stereo fits a 178x100mm double DIN slot and comes with an ISO standard power cable, fitting kits and screws. A custom fit fascia, custom ISO cable and CANbus box aren't included, and some cars need them. For a single DIN slot, XTRONS make the DX121LGS.

Universal Double DIN 10.1 inch Android 14 Car Stereo with CarPlay, Android Auto and ADAS Camera | TAD128S: installation video

Fitting it yourself? Our installation help covers the basics.

Is a camera included?

Yes. An ADAS camera comes in the box for dash cam recording and driver alerts. A reversing camera is sold separately.

Can I use a different camera for ADAS?

No. The ADAS function is calibrated only for the included camera.

Is CarPlay wireless?

CarPlay and Android Auto both have wireless and wired options.

Will it fit my car?

It fits cars with a 178x100mm double DIN slot. Some cars also need a custom fascia and ISO cable with CANbus box, which aren't included.

Does it play CDs?

No, it doesn't play discs.
