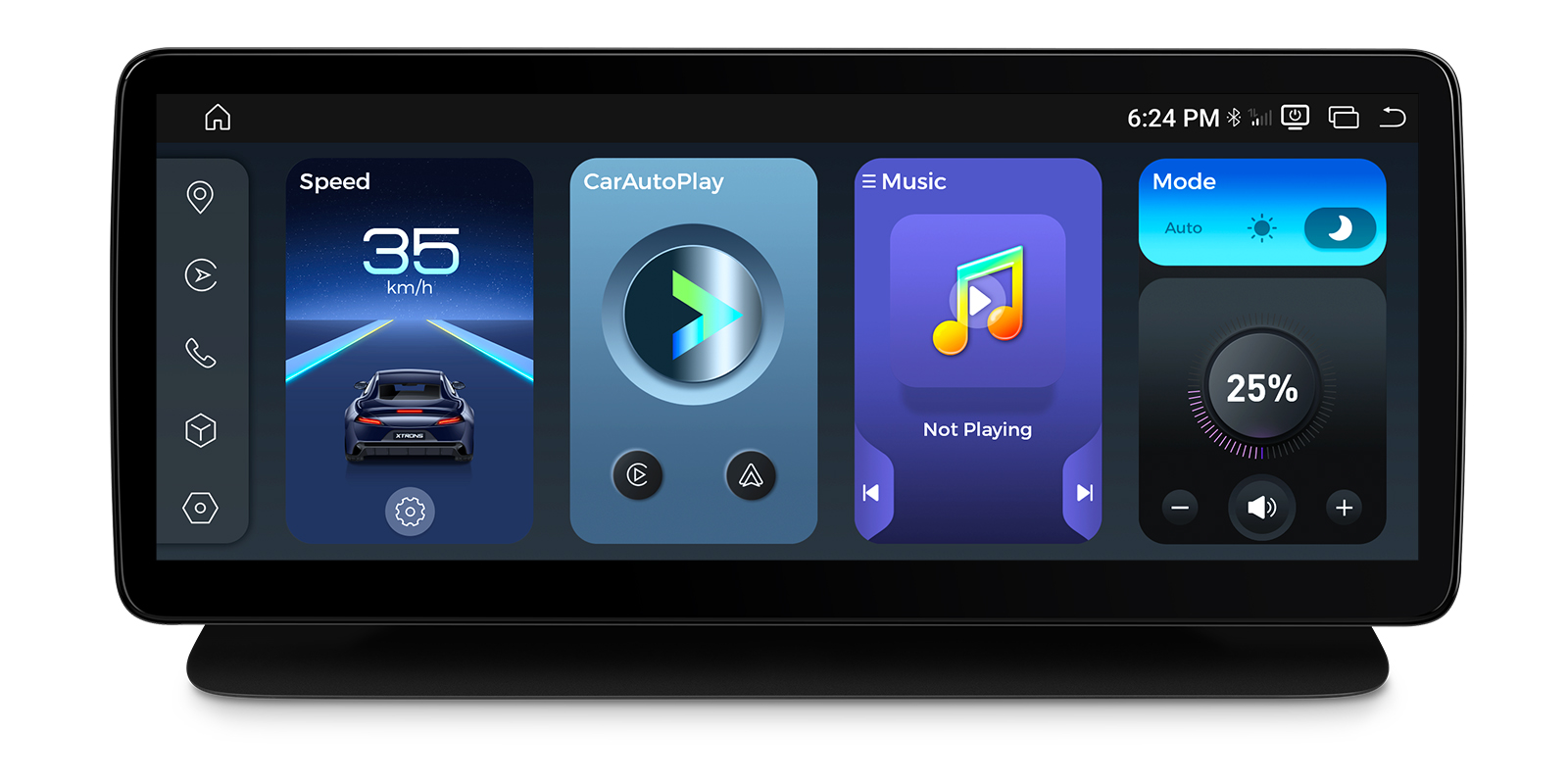

Mercedes-Benz CLS C218 W218 NTG 4.0 12.3 Inch Android Screen with Wireless CarPlay and 4G | QBMH2440M12CLS
SKU: QBMH2440M12CLS
£444.99
Check if this fits your car
1
Key specifications
- Processor
- Qualcomm Snapdragon 662 (Kryo 260, 8-core, 2.0GHz)
- Memory and storage
- 8GB LPDDR4 RAM + 128GB UFS 2.2 ROM
- Operating system
- Android 14
- Screen
- 12.3” 2K (2400×900) Nano-Texture IPS Screen
- Lamination
- Fully-laminated Screen
- Connectivity
- Wireless CarPlay/Android Auto, 4G LTE, Dual-Band WiFi (2.4/5GHz), Bluetooth 5.1

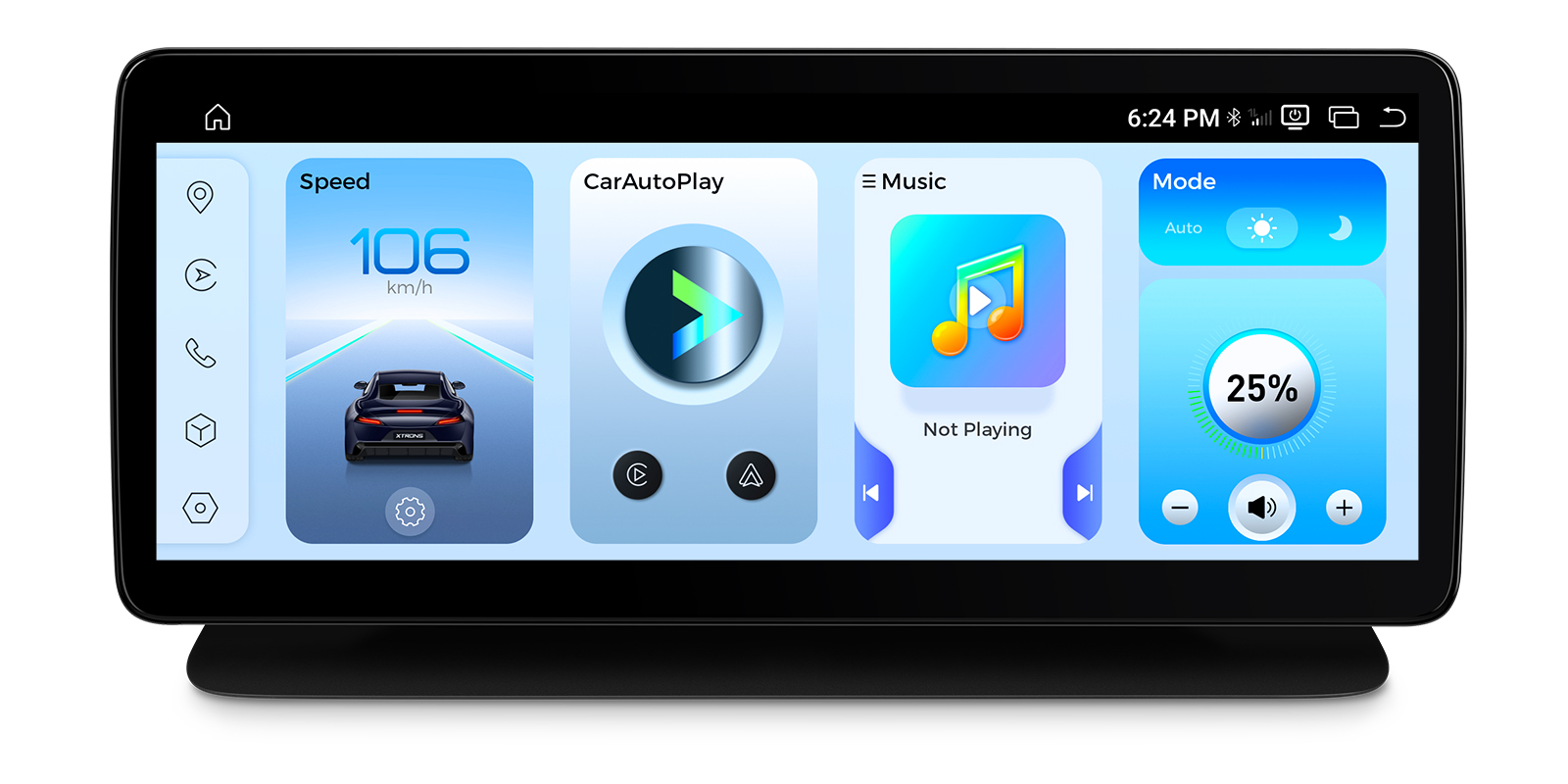

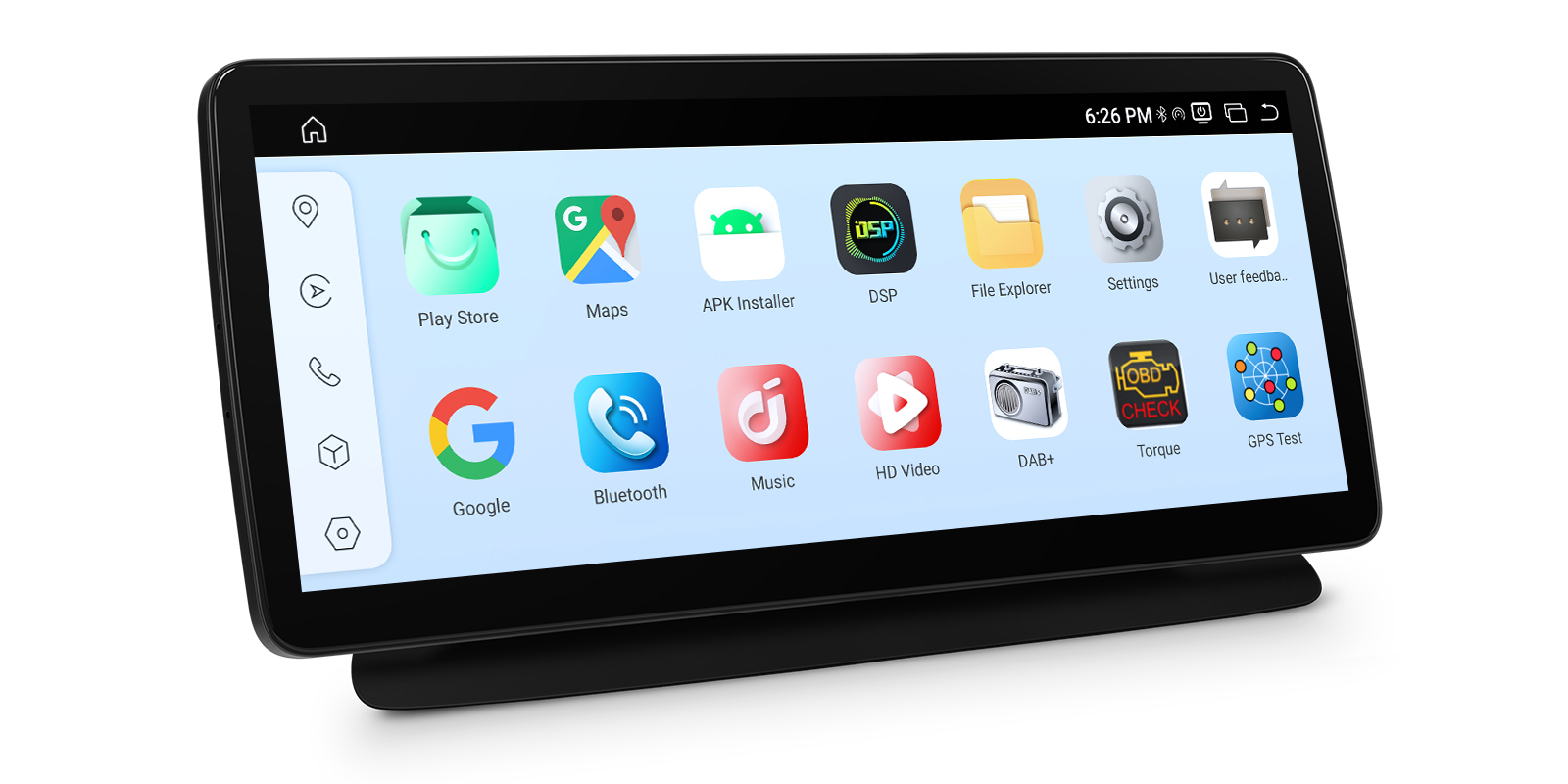

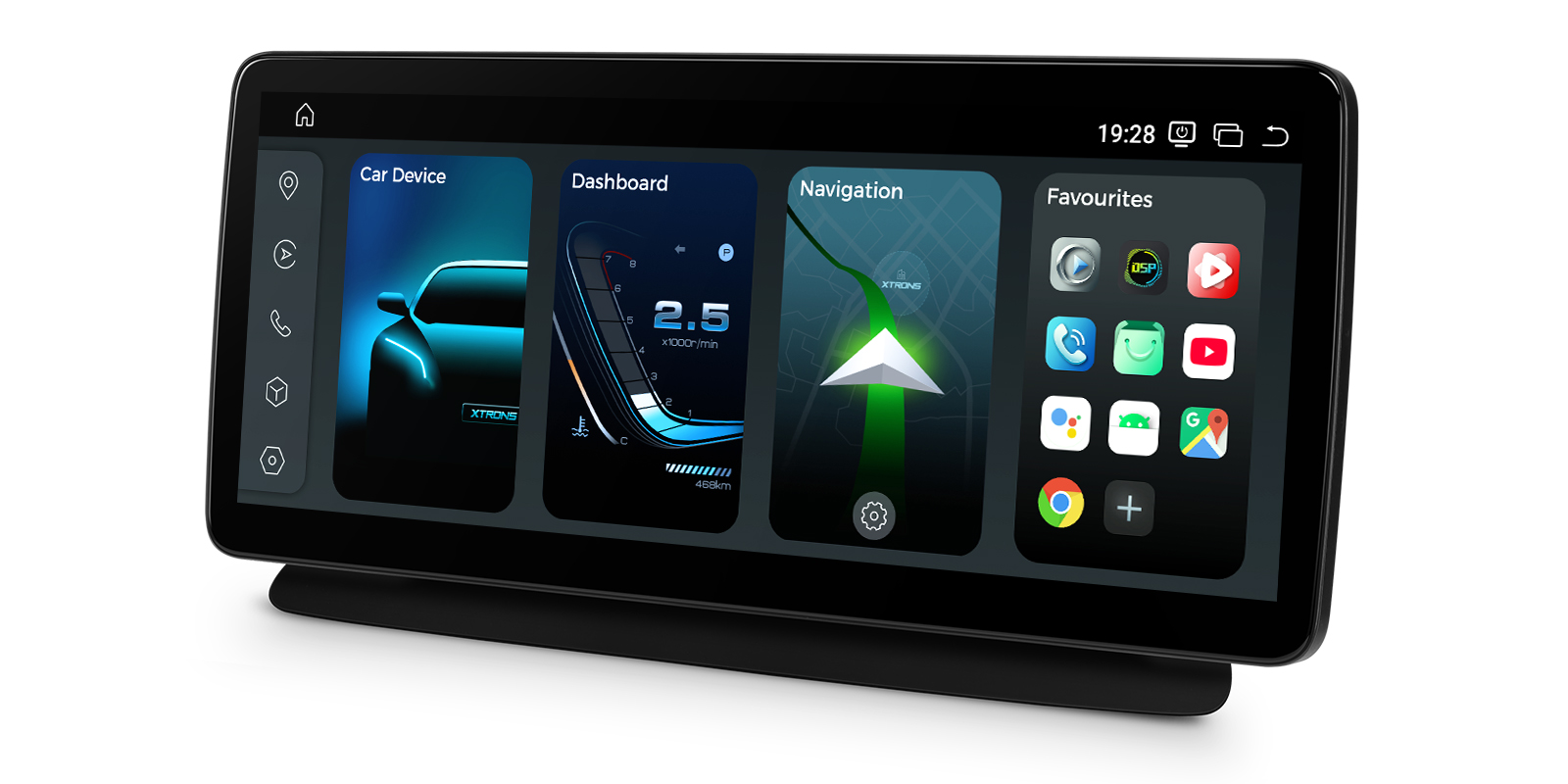

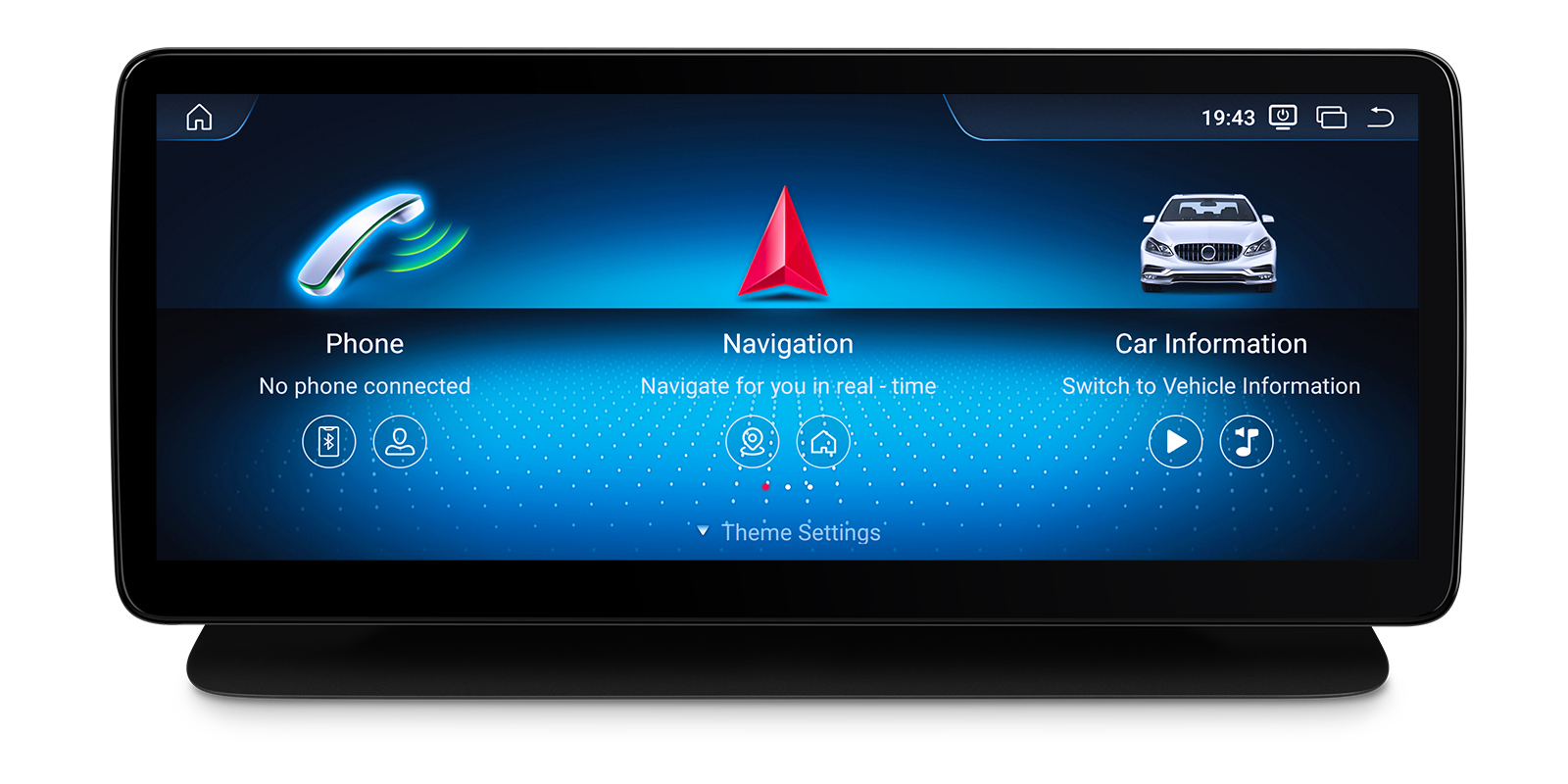

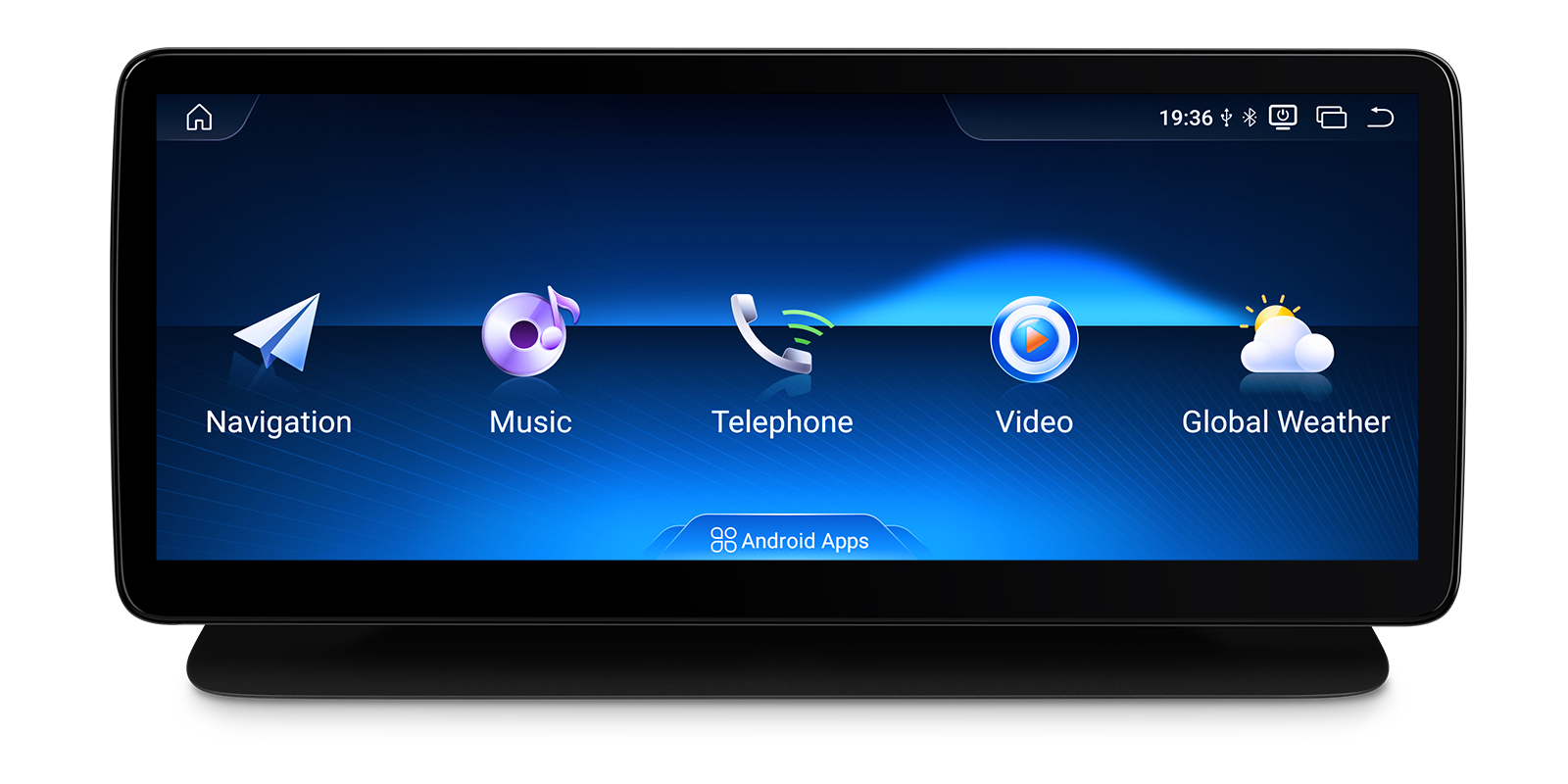

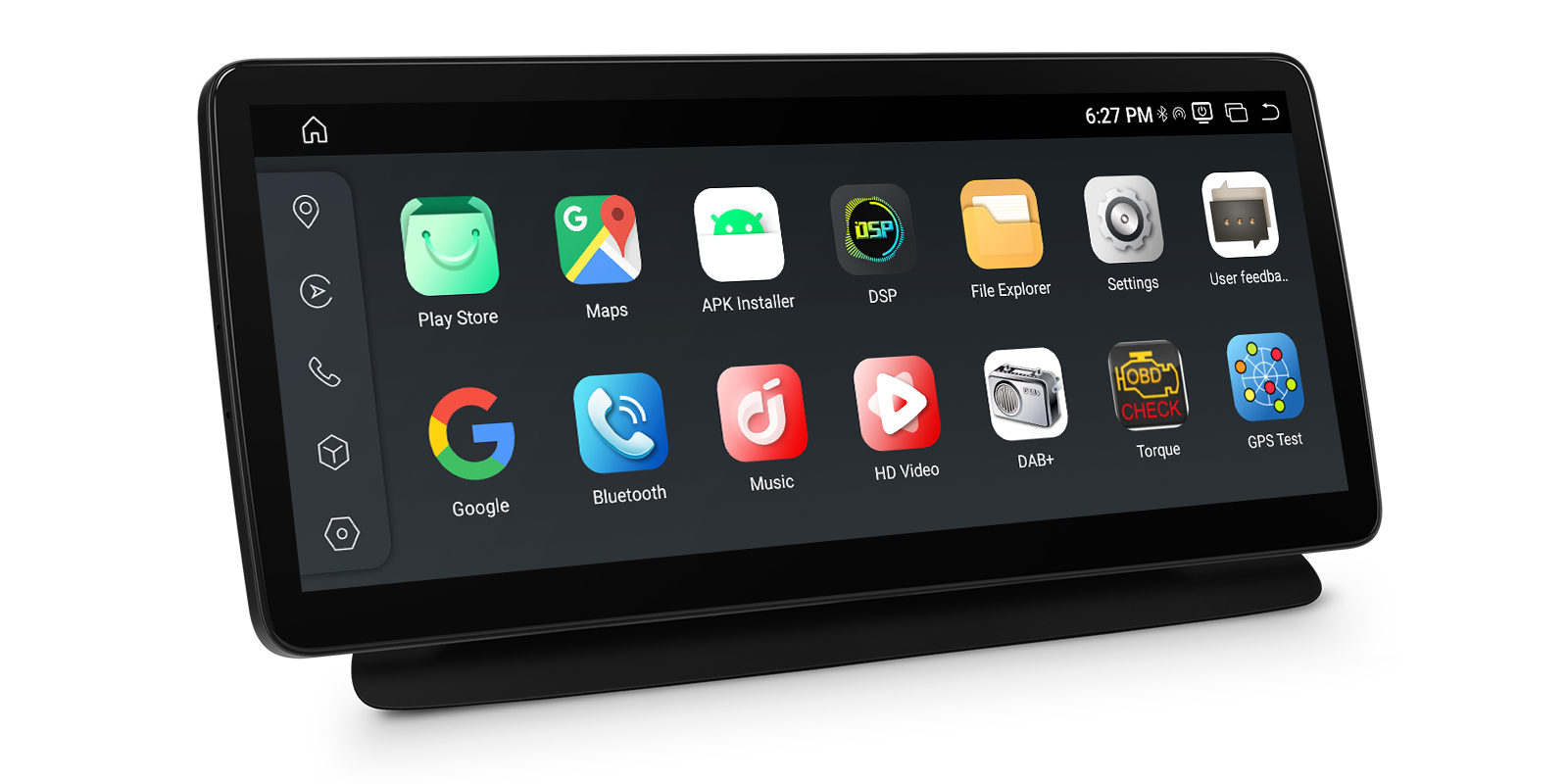

XTRONS QBMH2440M12CLS is a 12.3 inch 2K Android 14 screen for the Mercedes-Benz CLS-Class C218 / W218 with the COMAND APS NTG4.0 system. It adds wireless CarPlay, wireless Android Auto and built-in 4G, and you can switch back to the original COMAND whenever you like.
- Wireless CarPlay and wireless Android Auto
- 12.3 inch 2K IPS screen at 2400×900 with nano-texture anti-glare glass
- Keeps COMAND, steering wheel controls, the factory camera and parking sensors
- Qualcomm Snapdragon 662 with 8GB RAM and 128GB storage on Android 14
- Global 4G LTE and dual-band Wi-Fi

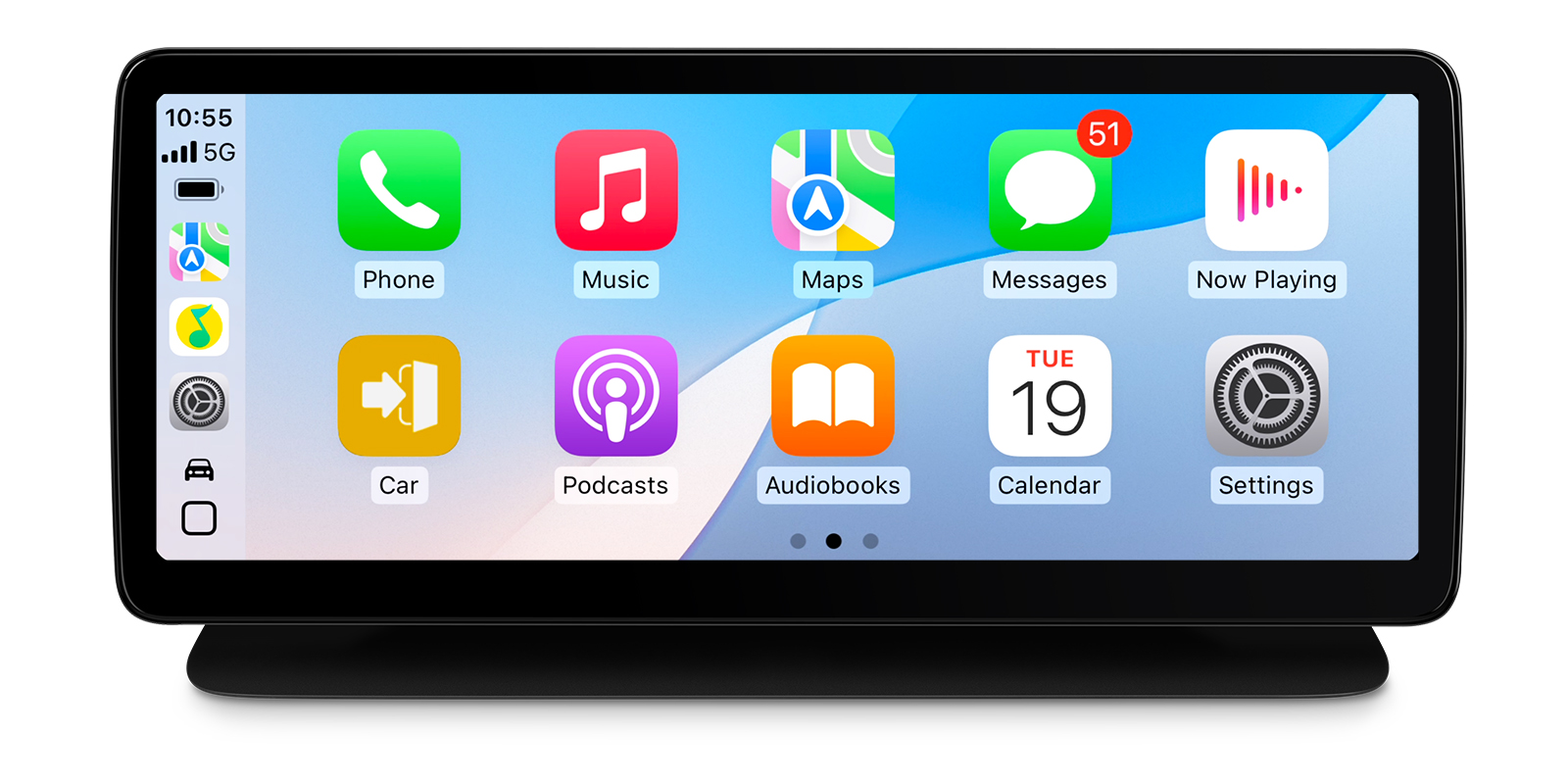

Wireless Apple CarPlay
CarPlay connects to your iPhone without a cable, so it's ready shortly after you start the car. Maps, calls and music fill the wide screen, and Siri handles voice requests.
Wireless Android Auto
Android phones connect wirelessly to Android Auto, with Google Maps, music apps and Google Assistant on the head unit.
12.3 inch 2K IPS screen
The 12.3 inch IPS display runs at 2400×900 and is fully laminated. Nano-texture glass with an anti-reflective coating cuts glare when the sun is on the dash.

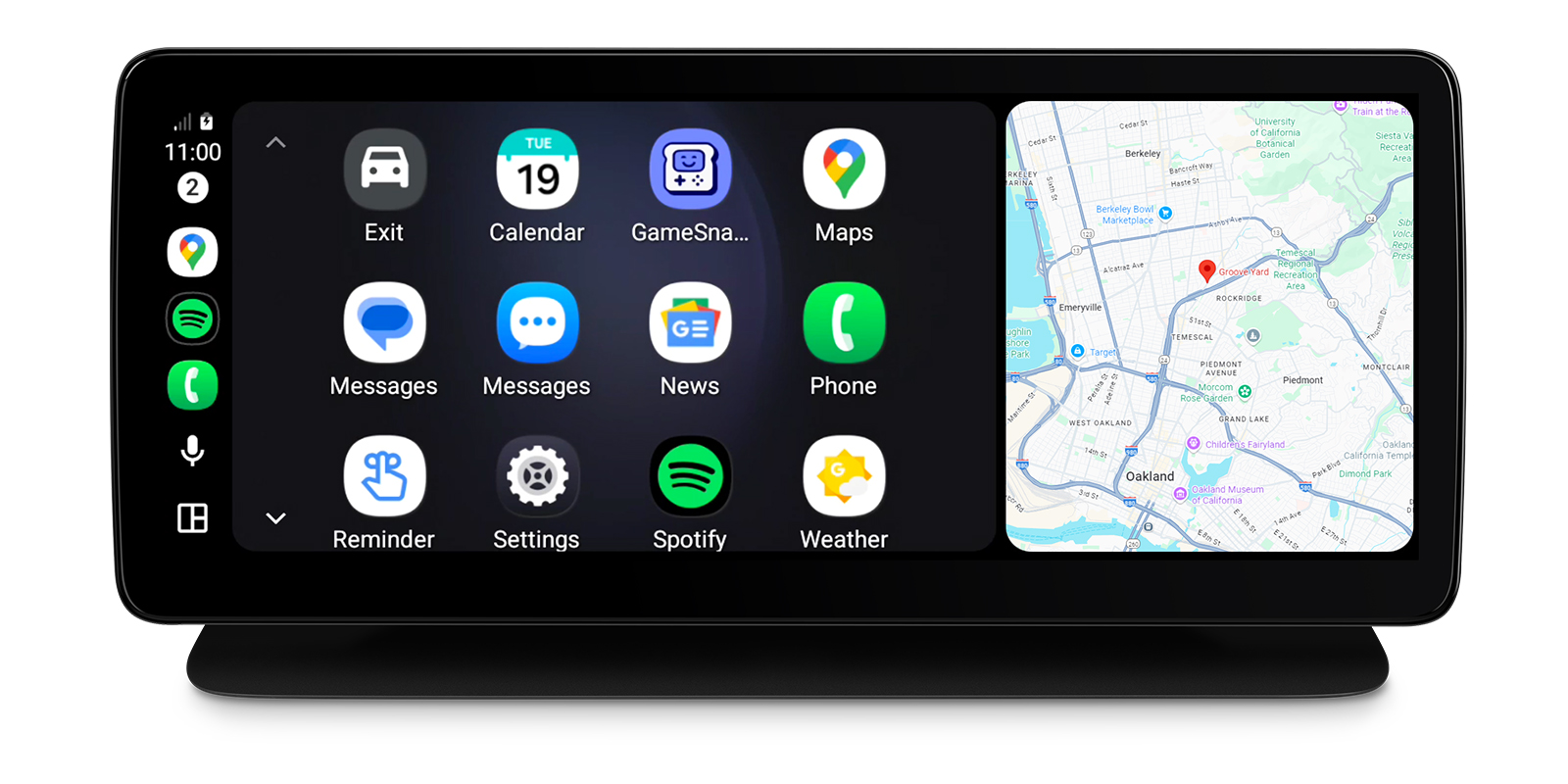

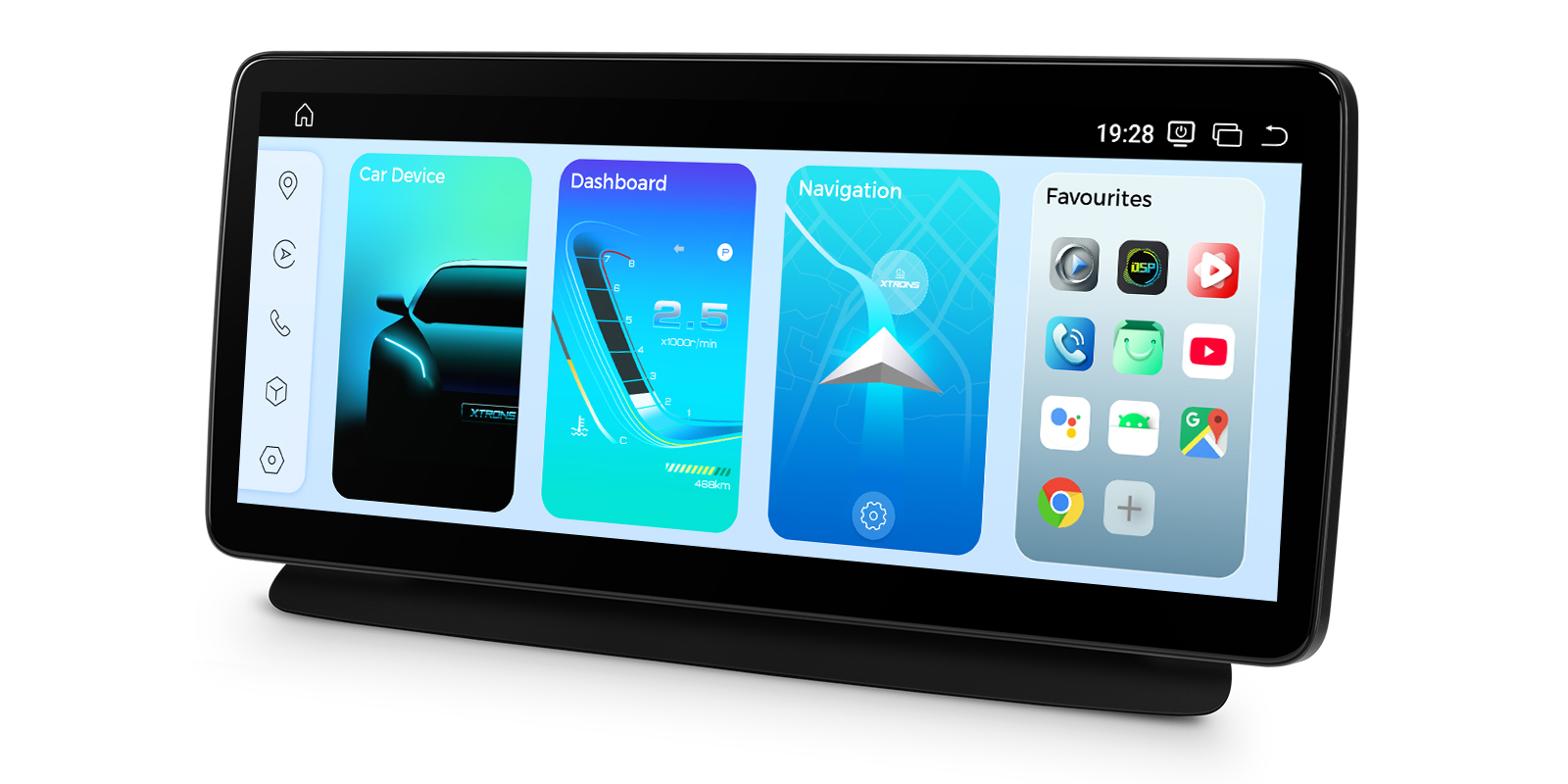

Split-screen lets you keep navigation on one side while using another app on the other.
Original COMAND and factory features kept
You can switch between Android 14 and the original COMAND system at any time. The steering wheel controls (volume, track skip and COMAND navigation) keep working through CANbus integration, without reprogramming.
The factory camera and parking sensors stay in use, and the CANbus link shows speed, fuel level and safety alerts.
Global 4G LTE
Fit a SIM and the head unit has its own data for streaming and live navigation, so there's no need to tether your phone. A 4G antenna comes in the box.
Dual-band Wi-Fi
Wi-Fi on 2.4GHz and 5GHz lets the unit join a phone hotspot or home network for app downloads and updates.
Bluetooth 5.1
Bluetooth 5.1 streams music from your phone and connects calls hands-free.
Dash cam support
The head unit supports a DVR dash cam, sold separately, so you can record the road ahead and play recordings back on the big screen.
DAB radio with an add-on
DAB digital radio works with an external DAB adapter, sold separately.
Screen mirroring
Screen mirroring puts your phone's display on the head unit for apps that don't run in CarPlay or Android Auto. Use it when parked.
Snapdragon 662 performance
The Qualcomm Snapdragon 662 has a Kryo 260 octa-core CPU at 2.0GHz and an Adreno 610 GPU. With 8GB LPDDR4 RAM and 128GB UFS 2.2 storage, it plays 2K video and runs navigation alongside other apps.
It's rated for -30°C to +80°C.
Works with

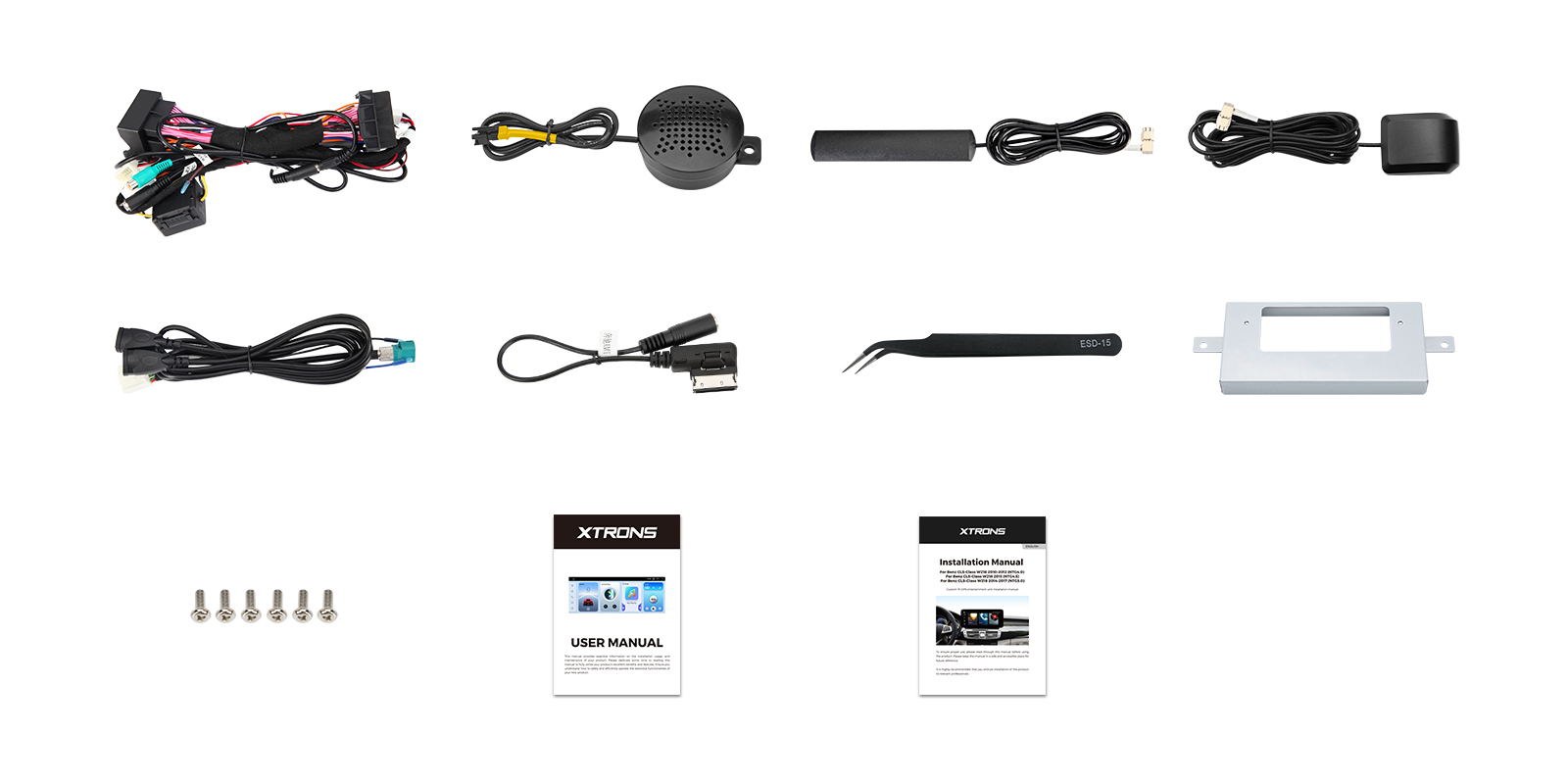

What's in the box
- 1 x 4G Antenna
- 1 X AMI Cable
- 1 x Fix Mount
- 1 x GPS Antenna
- 1 x Installation Instruction
- 1 x ISO Wiring Harness
- 1 x Mini Speaker
- 1 x Tweezers
- 1 x User Manual
- 6 x Screws
- LVDS Cable

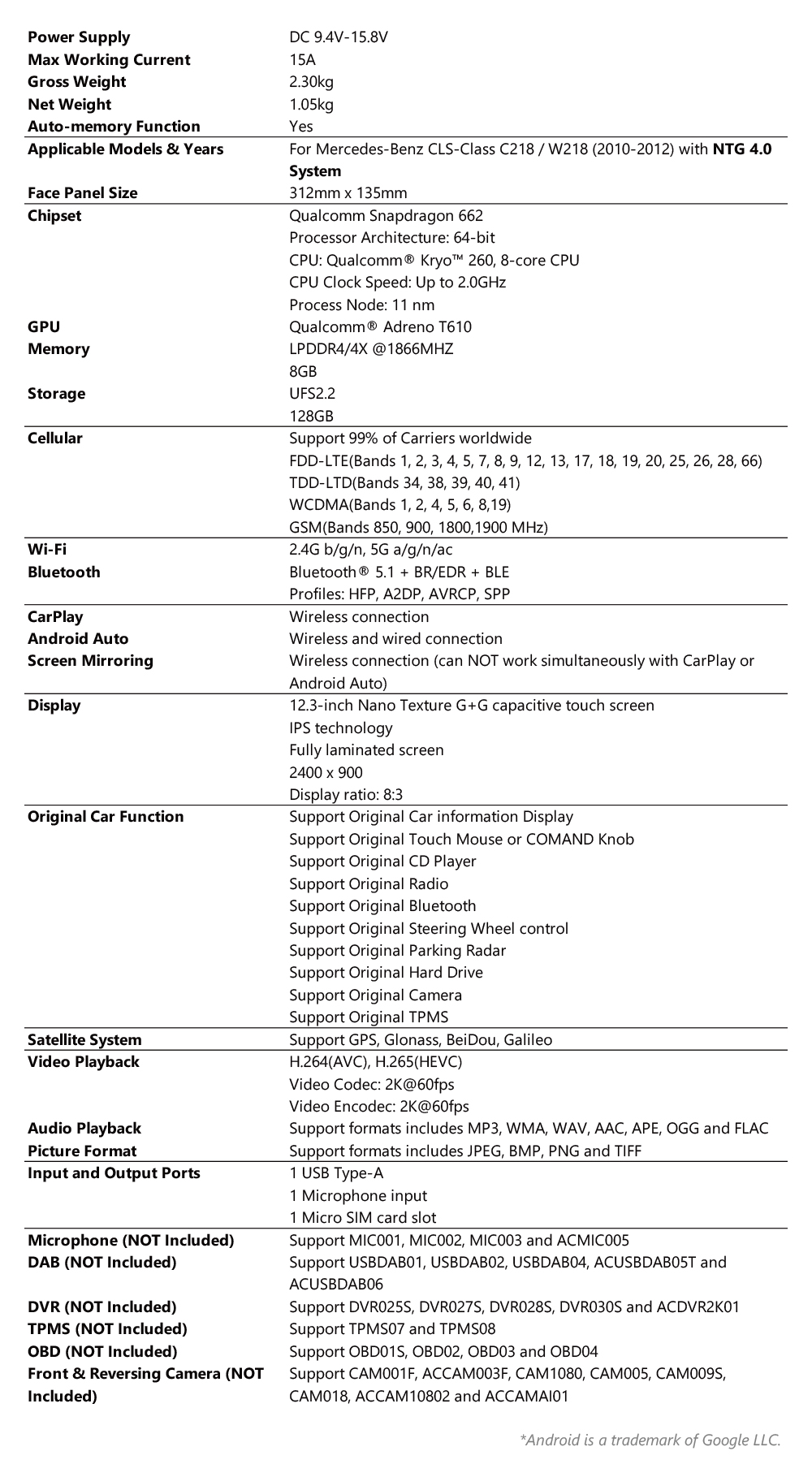

| Processor | Qualcomm Snapdragon 662 (Kryo 260, 8-core, 2.0GHz) |
|---|---|
| Memory and storage | 8GB LPDDR4 RAM + 128GB UFS 2.2 ROM |
| Operating system | Android 14 |
| Screen | 12.3” 2K (2400×900) Nano-Texture IPS Screen |
|---|---|
| Lamination | Fully-laminated Screen |
| Connectivity | Wireless CarPlay/Android Auto, 4G LTE, Dual-Band WiFi (2.4/5GHz), Bluetooth 5.1 |
|---|---|
| Navigation | GPS/GLONASS/BeiDou/Galileo |
| Power supply | DC 9.4V–15.8V, Max Current: 15A |
|---|
| Operating temperature | -30°C to +80°C |
|---|---|

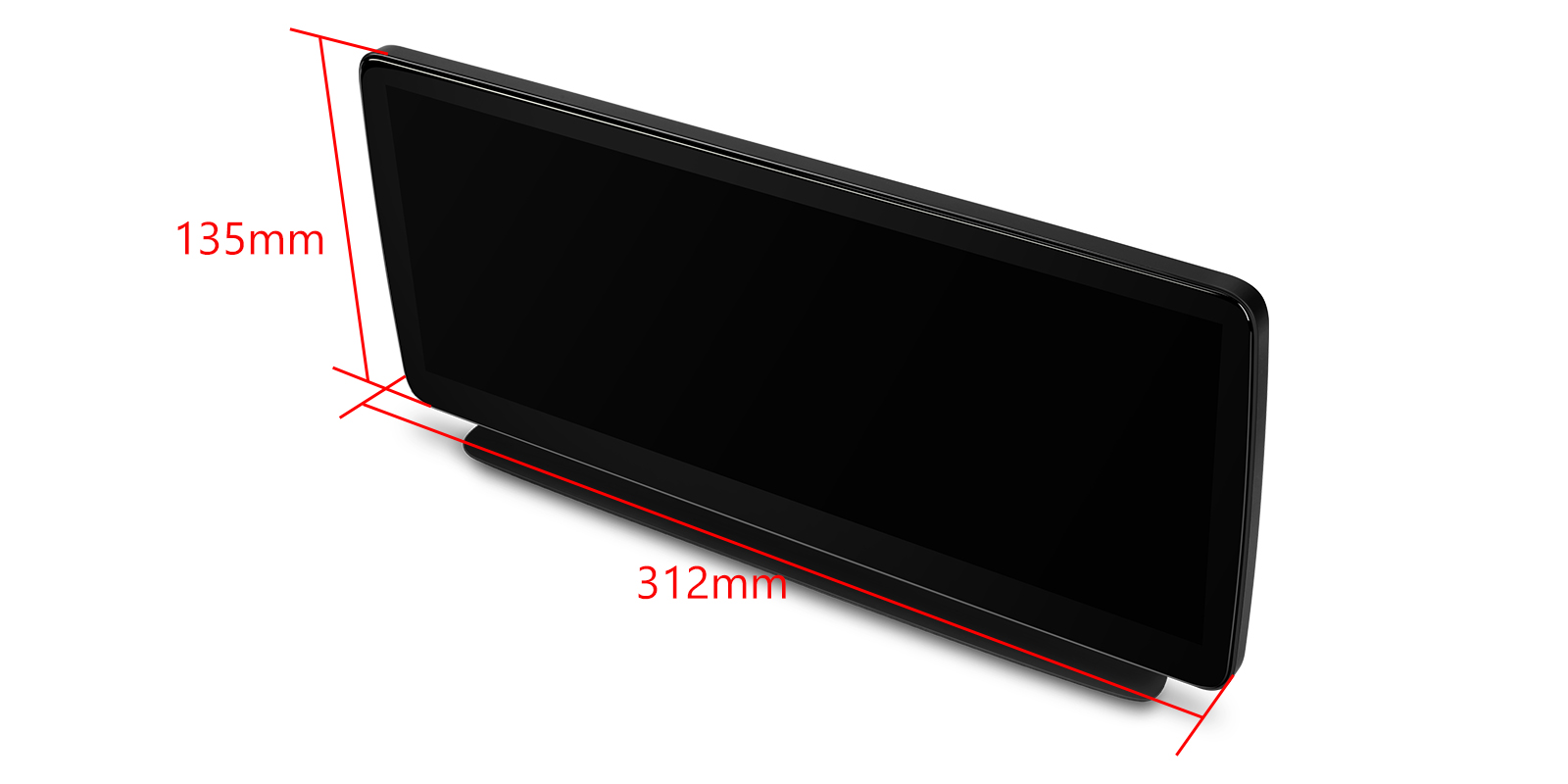

| Dimensions | 312mm x 135mm |
| Weight | 2.30kg (Gross) |

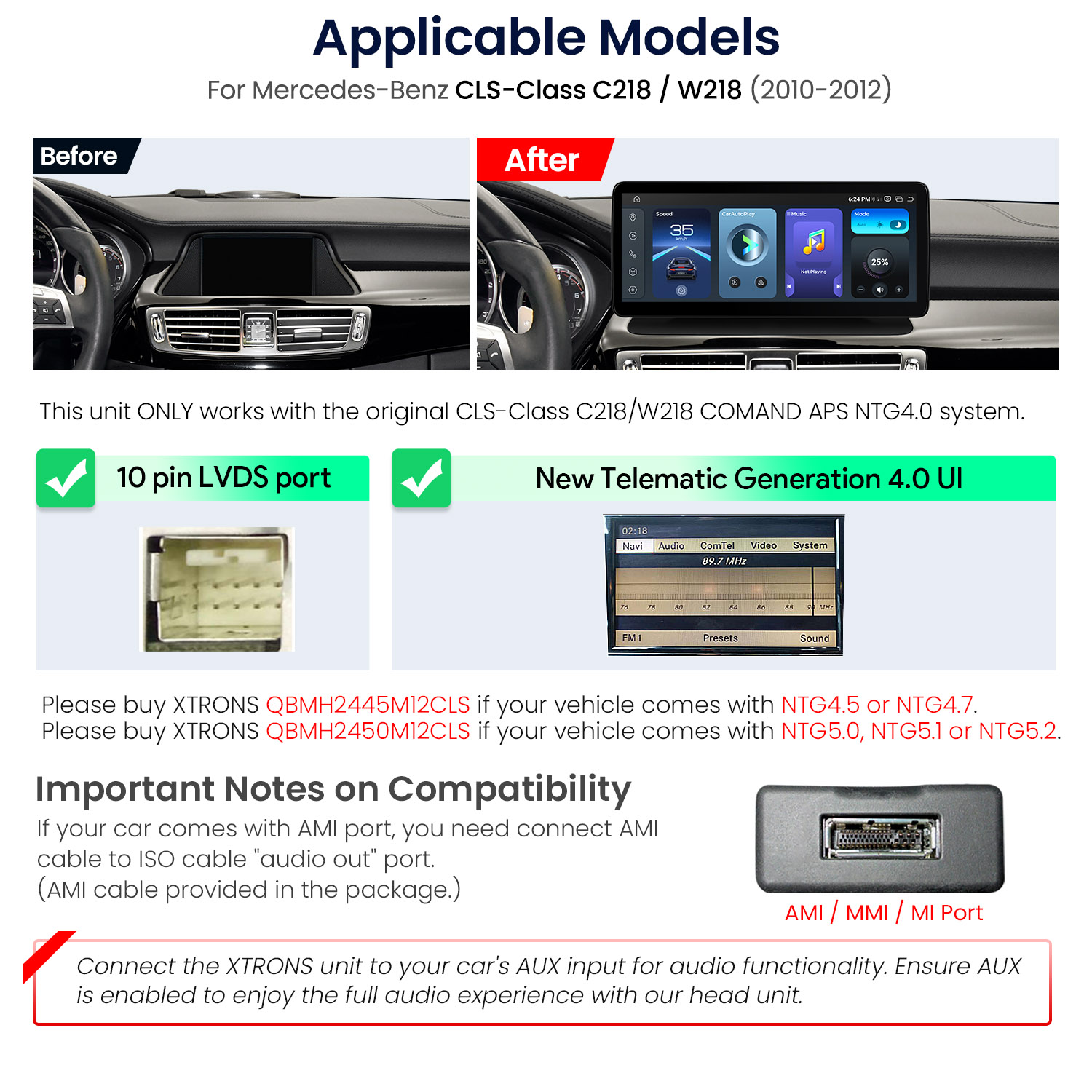

- Mercedes-Benz CLS-Class C218 (2011-2018)
- For Mercedes-Benz CLS-Class C218 / W218 (2010-2012) with NTG 4.0 System
- This unit ONLY works with the original Mercedes-Benz CLS-Class C218 / W218 COMAND APS NTG4.0 system which has the following features: a 10-pin LVDS port or a New Telematic Generation 4.0 UI.
- Please buy XTRONS QBMH2445M12CLS if your vehicle comes with NTG4.5 or NTG4.7.
- Please buy XTRONS QBMH2450M12CLS if your vehicle comes with NTG5.0, NTG5.1 or NTG5.2.
- If your car comes with an AMI port, you will need to connect the AMI cable to the ISO cable "audio out" port. (AMI cable provided in the package.)

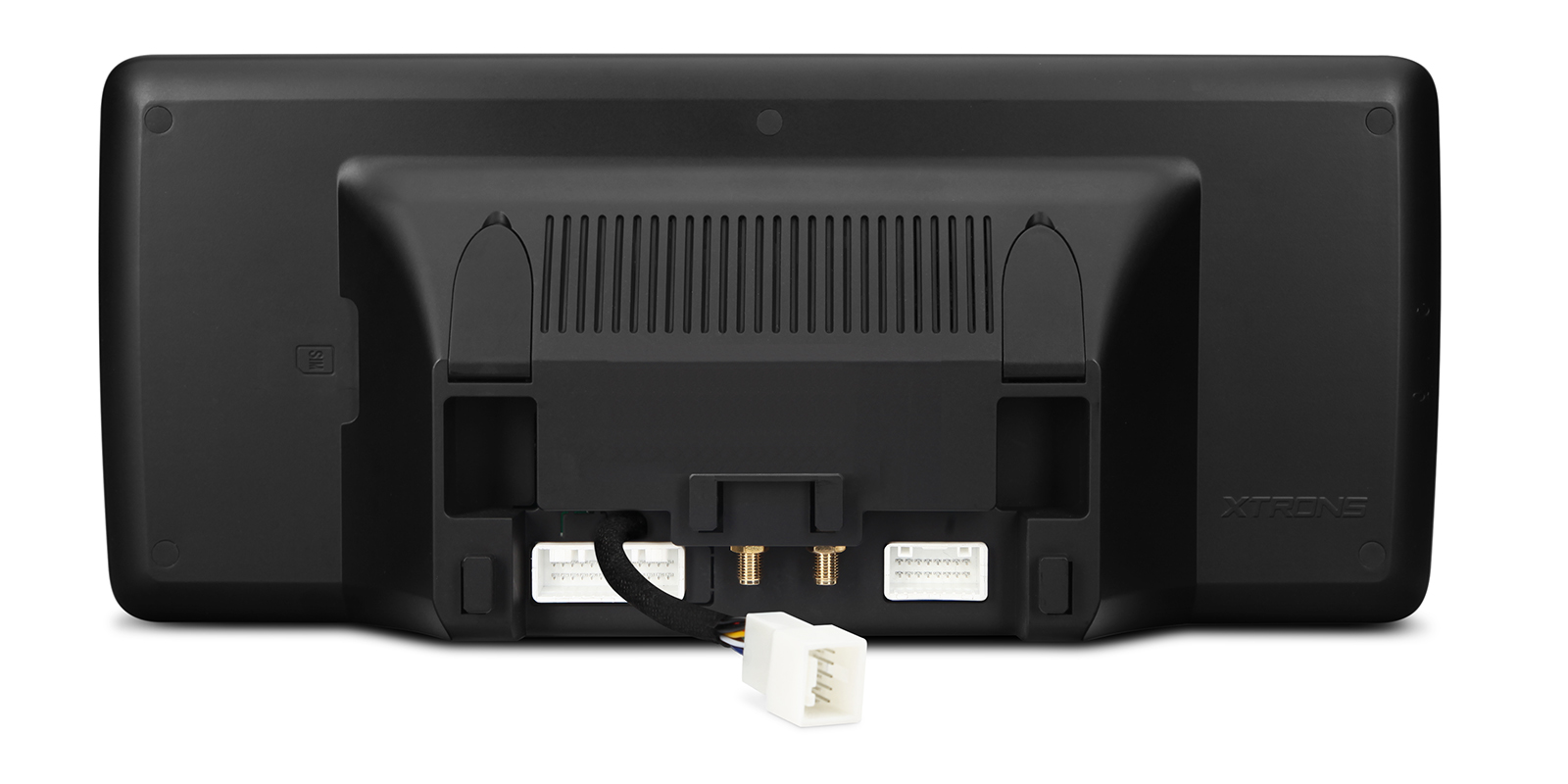

The screen is a plug-and-play fit for NTG4.0 cars, with an ISO wiring harness, LVDS cable, fix mount and screws supplied. Sound plays through the car's AUX input, so make sure AUX is enabled. If the car has an AMI port, connect the supplied AMI cable to the ISO cable's audio out port.
How do I know if my CLS has NTG4.0?
An NTG4.0 COMAND system has a 10-pin LVDS port or the New Telematic Generation 4.0 interface. For NTG4.5 or NTG4.7 choose the QBMH2445M12CLS, and for NTG5.0, NTG5.1 or NTG5.2 the QBMH2450M12CLS.
Will my steering wheel buttons still work?
Yes. Volume, track skip and COMAND navigation buttons keep working through CANbus integration, with no reprogramming.
Can I still use the original COMAND?
Yes. You can switch between Android and the original COMAND system, and the factory camera and parking sensors are kept.
My car has an AMI port. What do I do?
Connect the supplied AMI cable to the audio out port on the ISO cable.
Reviews
What customers say
Bought this product? Sign in to write a review.

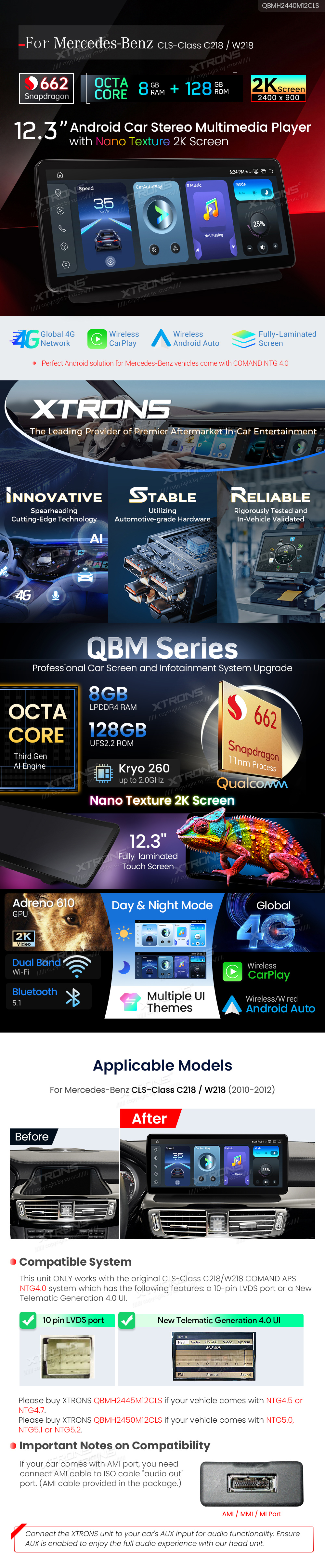

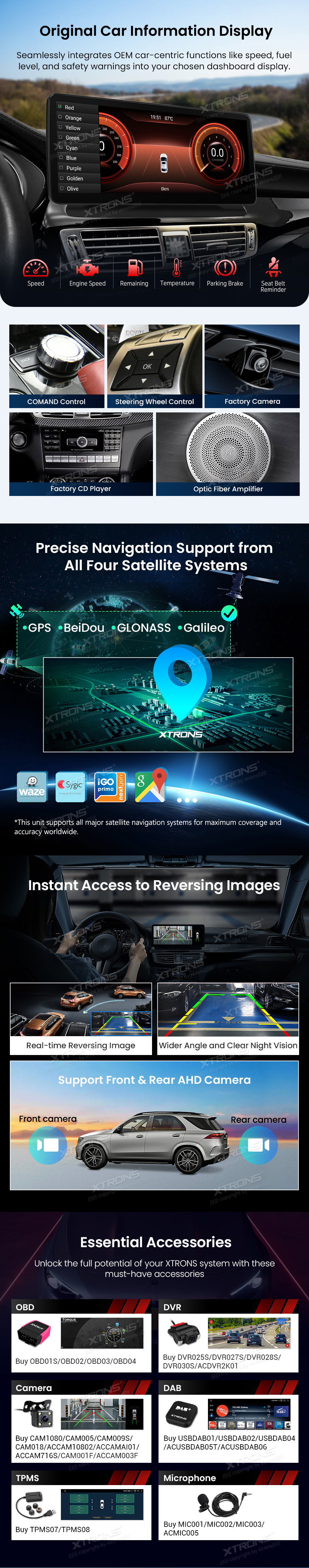

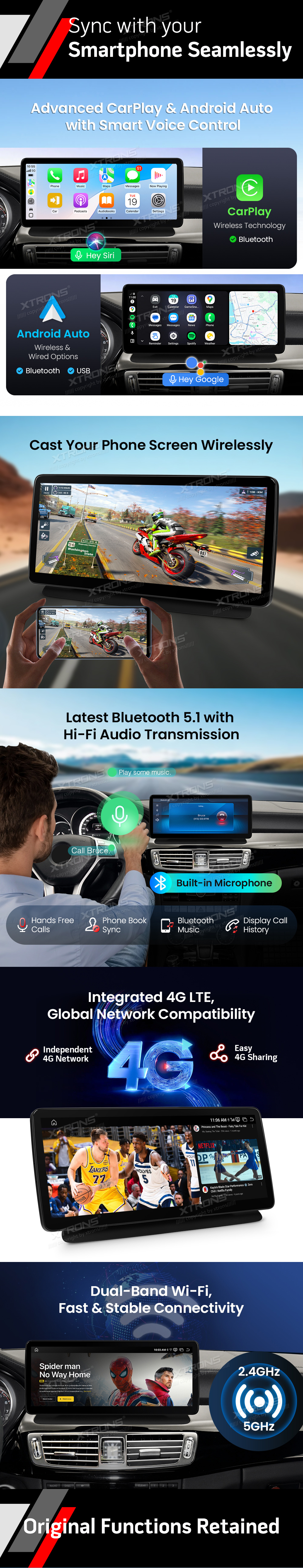

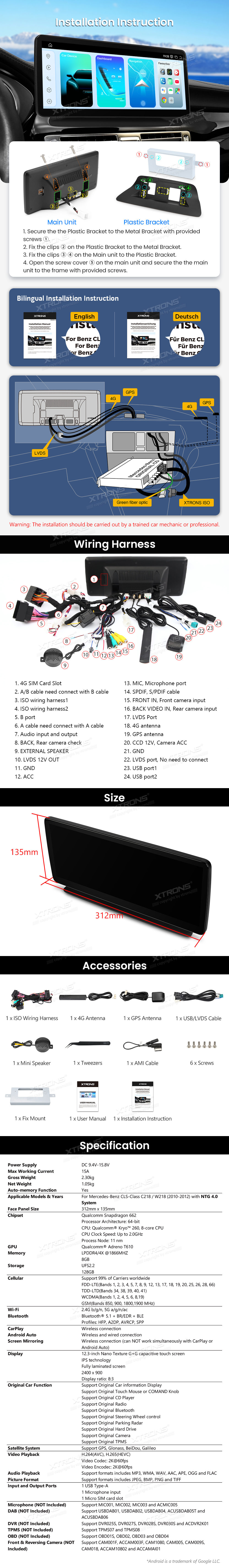

Full specification from XTRONS
