SaleIn stock

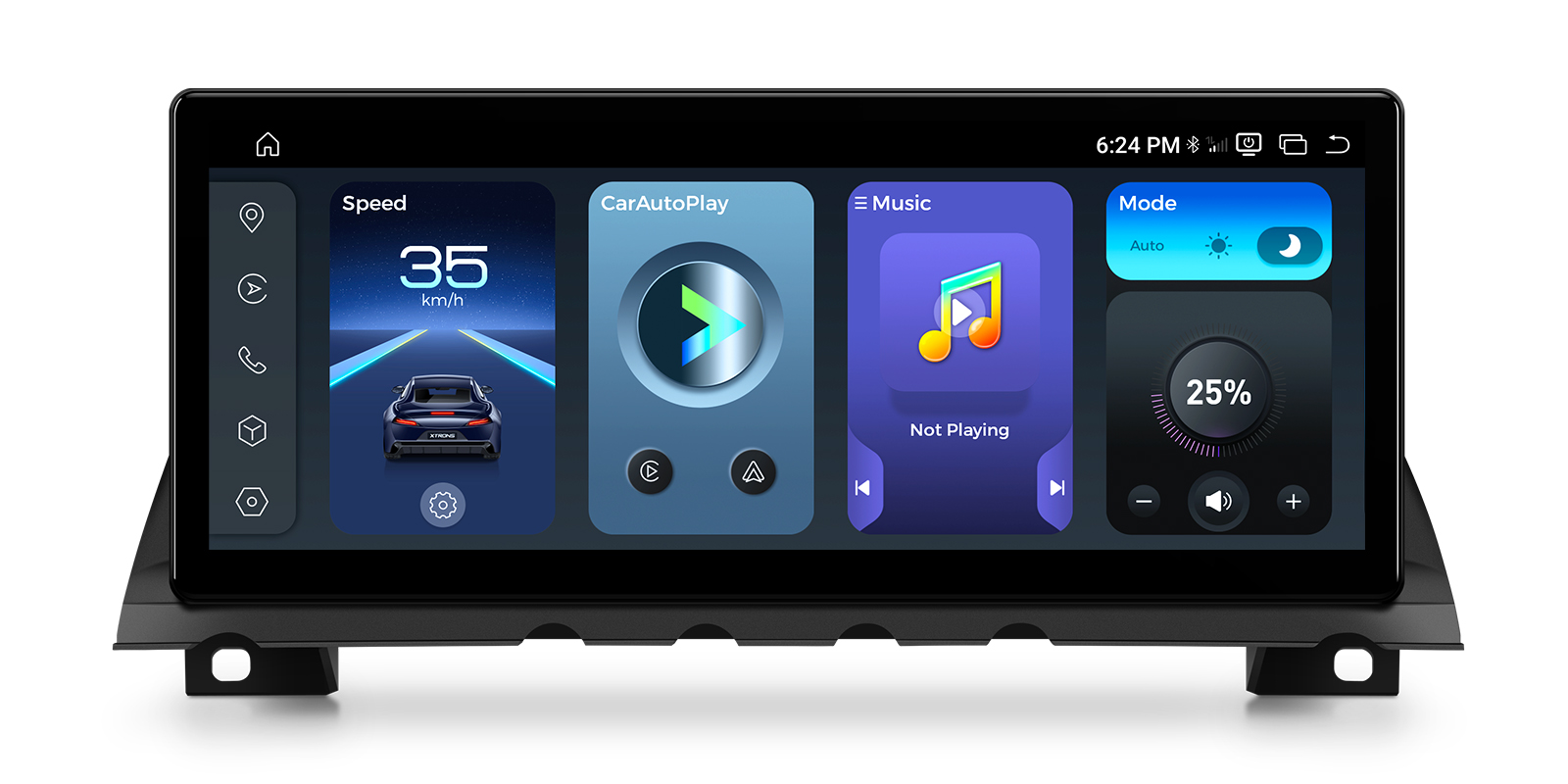

BMW 7 Series F01 F02 NBT 12.3 inch Android Screen with Wireless CarPlay, Android Auto and 4G | QWBX24NB12SV
SKU: QWBX24NB12SV
£472.17Was £555.49Save £83.32
Check if this fits your car
1
Key specifications
- Operating system
- Android 14
- Processor
- Qualcomm 685 octa-core processor
- Memory
- 8GB RAM and 256GB storage
- Screen
- 12.3″

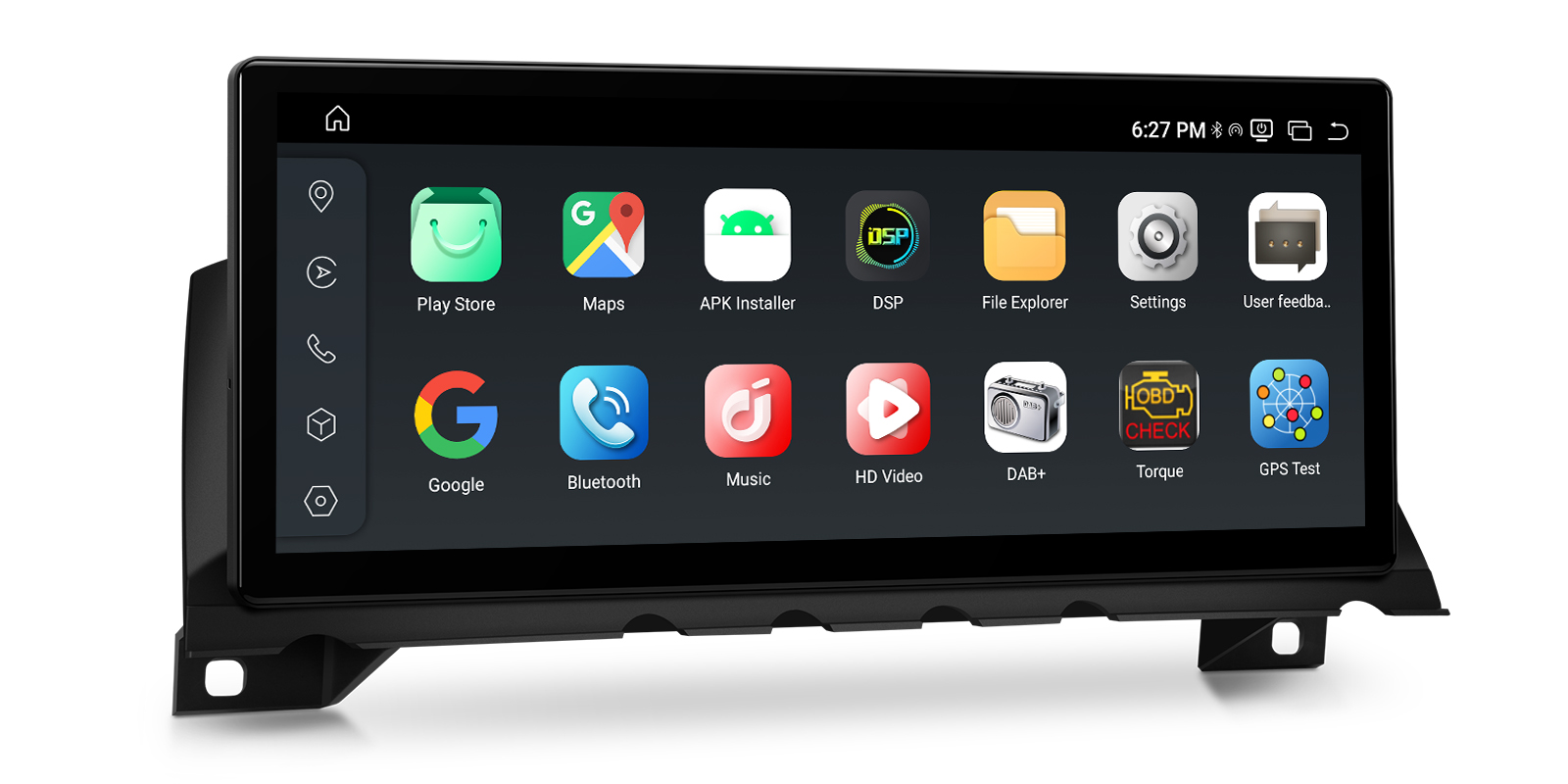

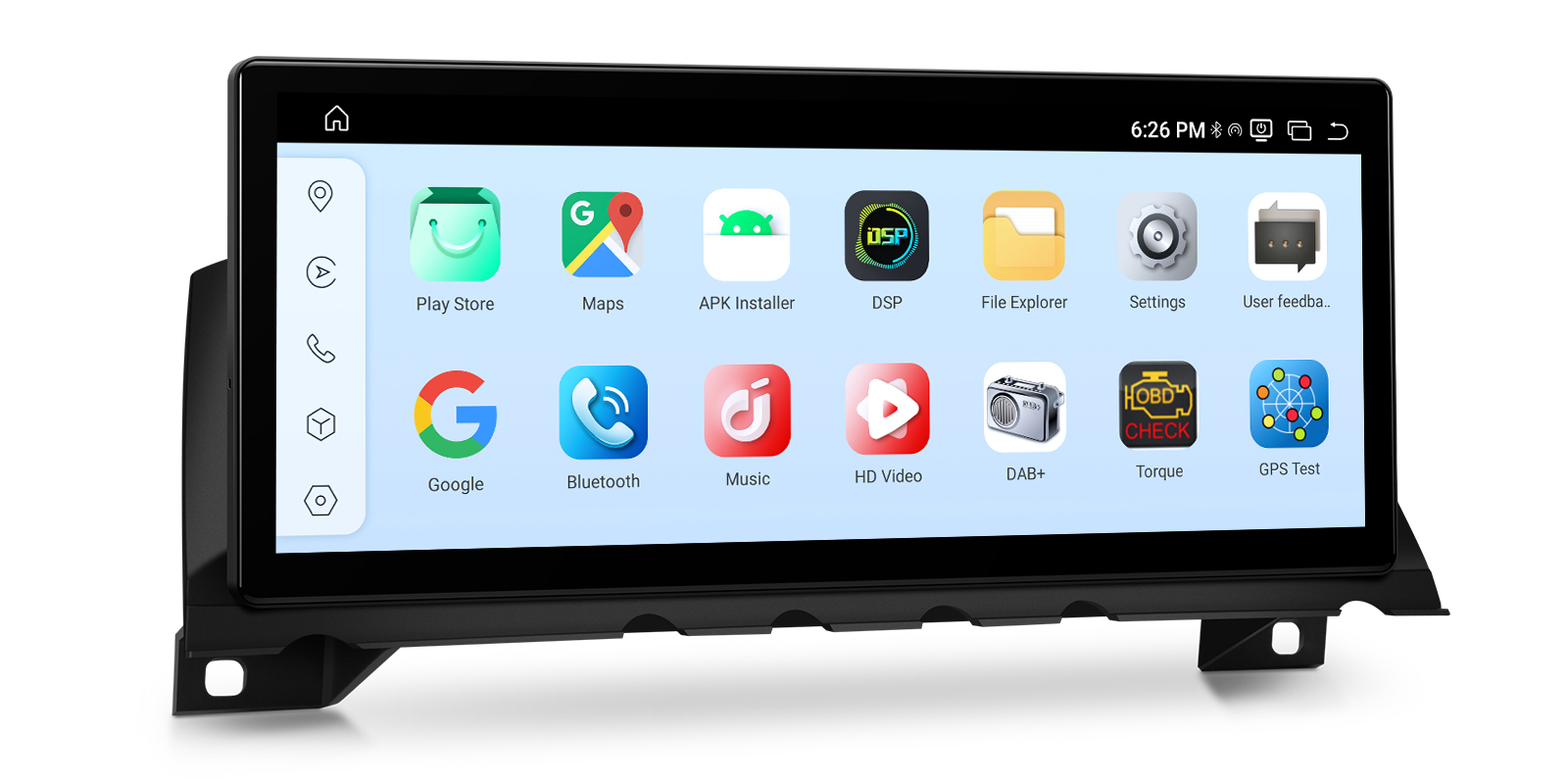

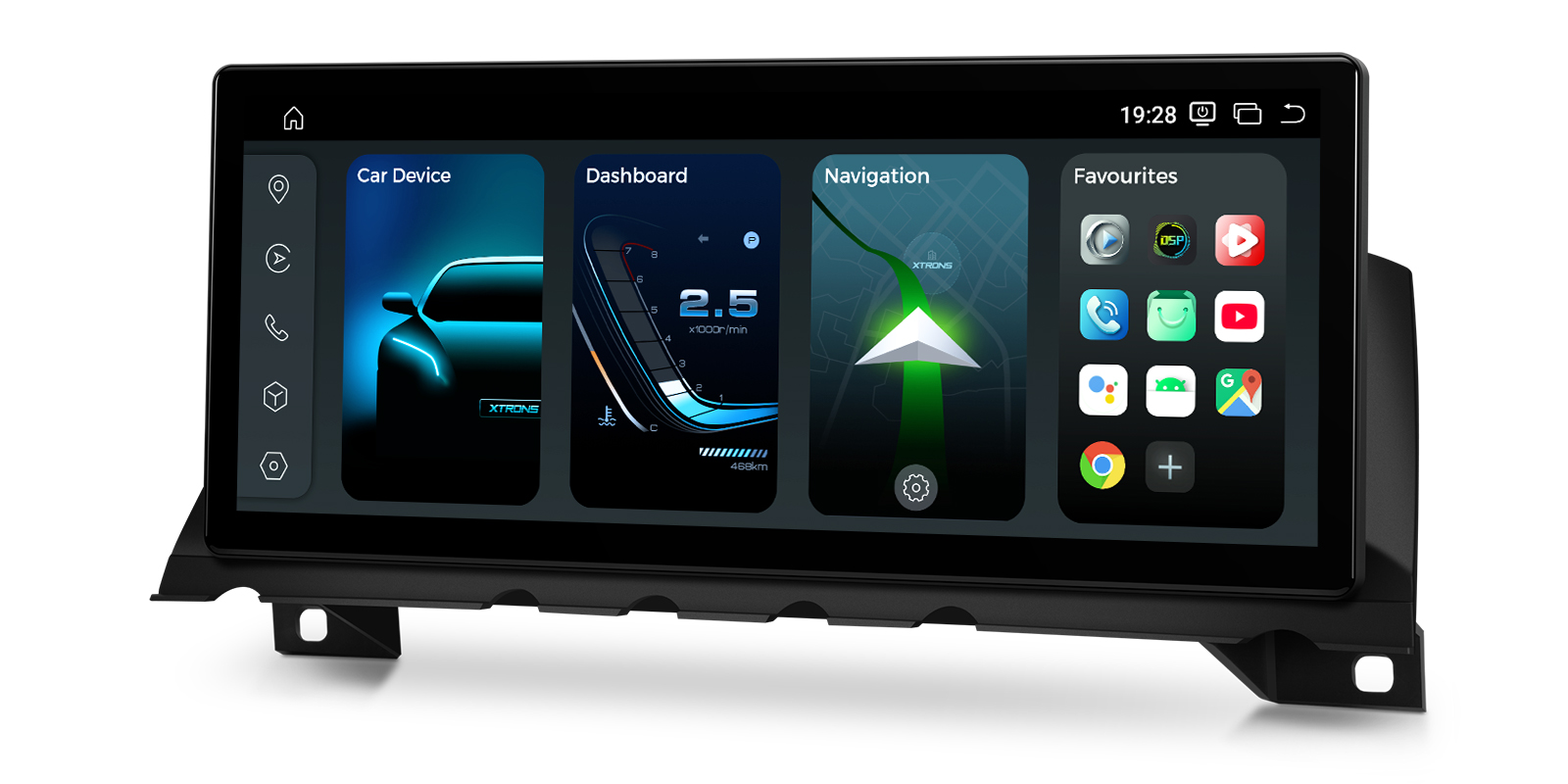

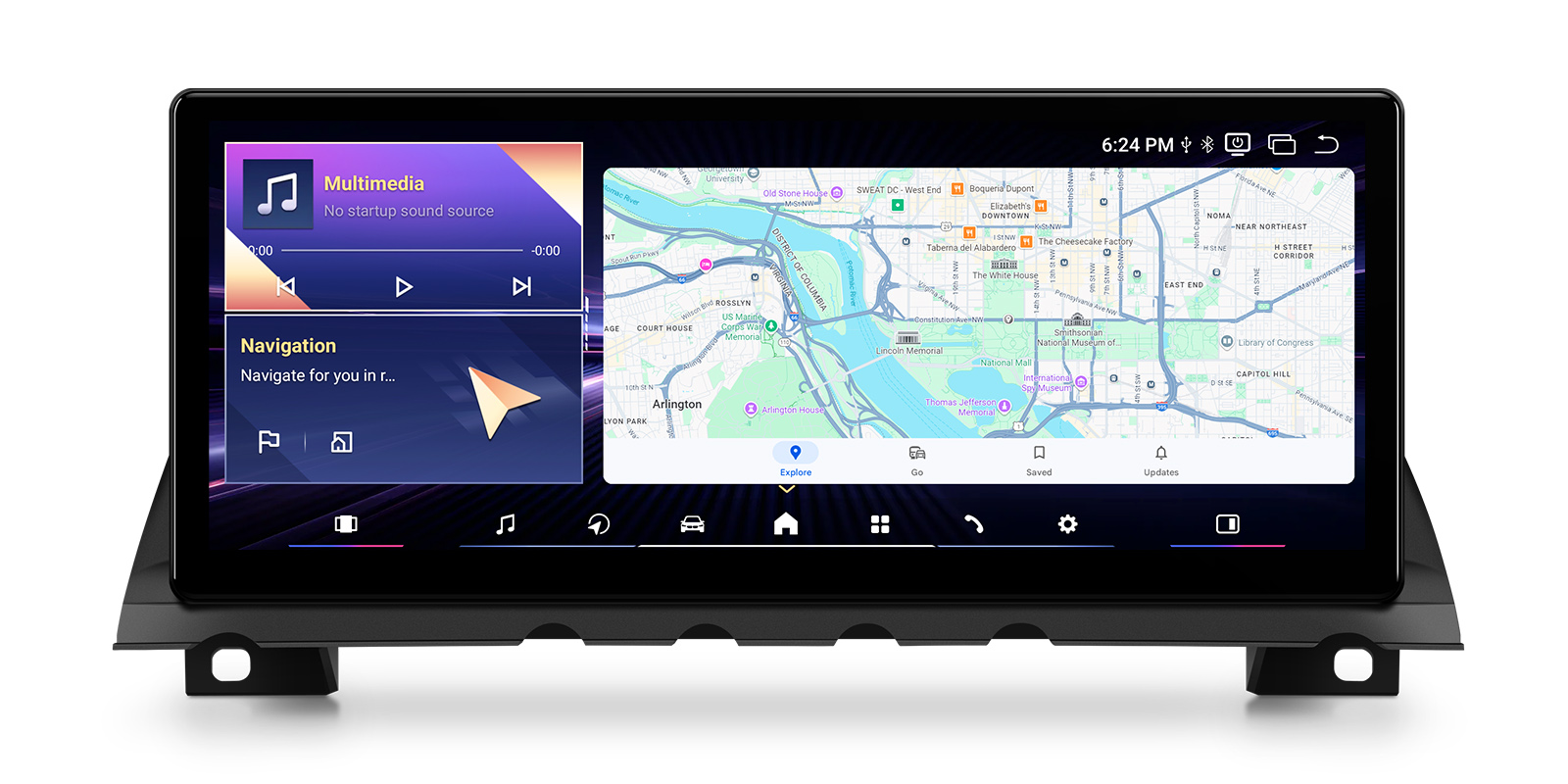

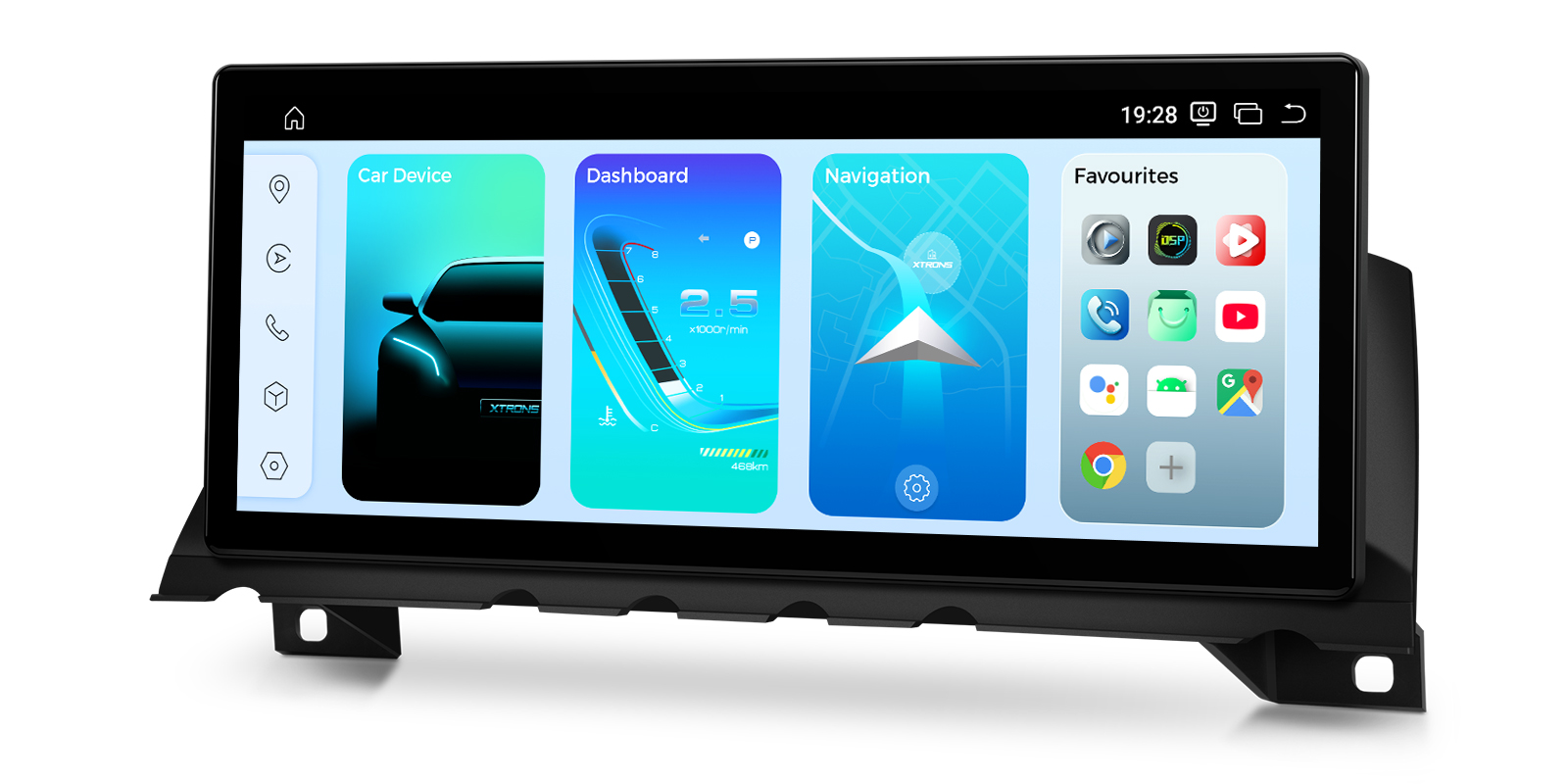

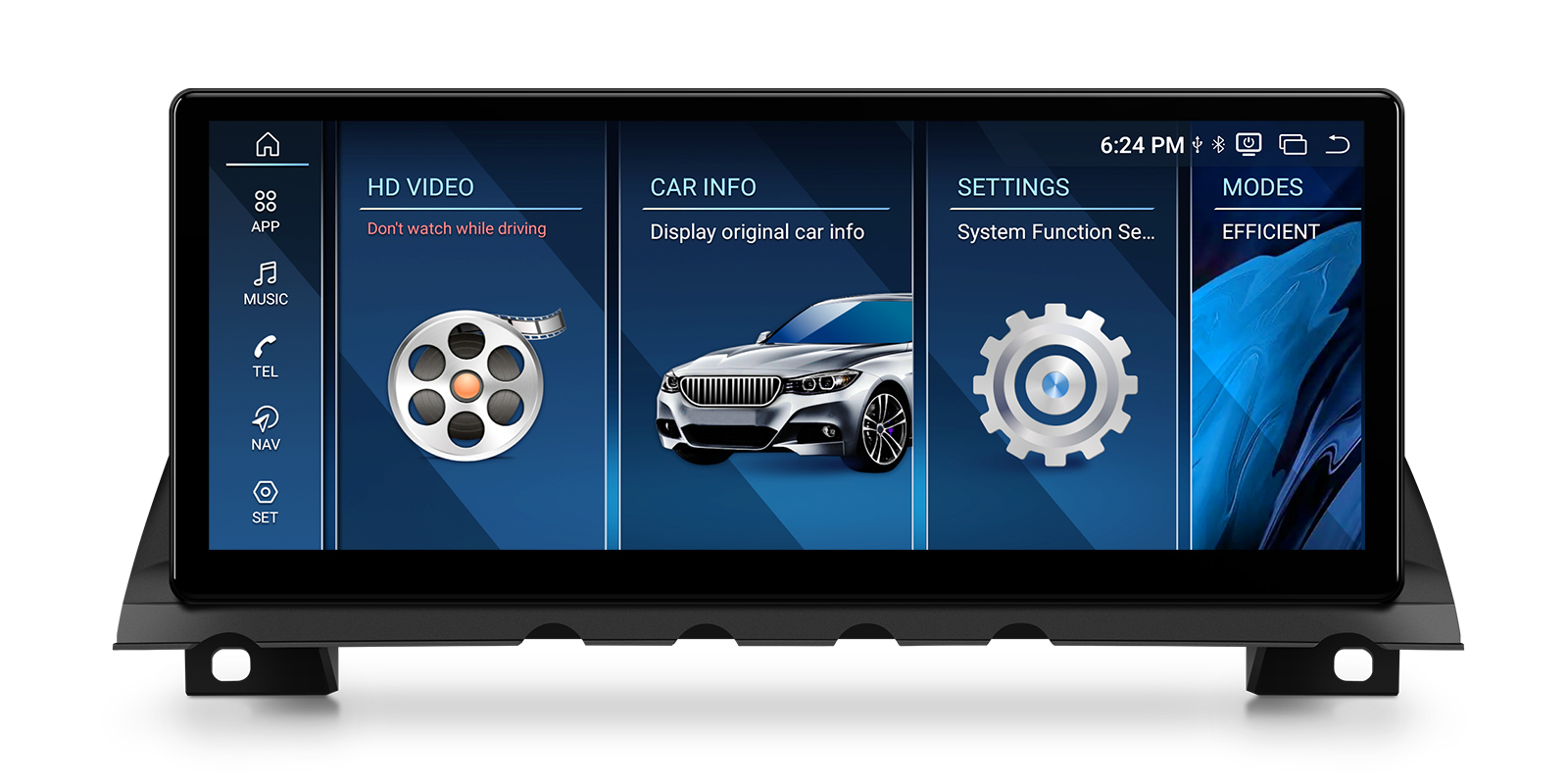

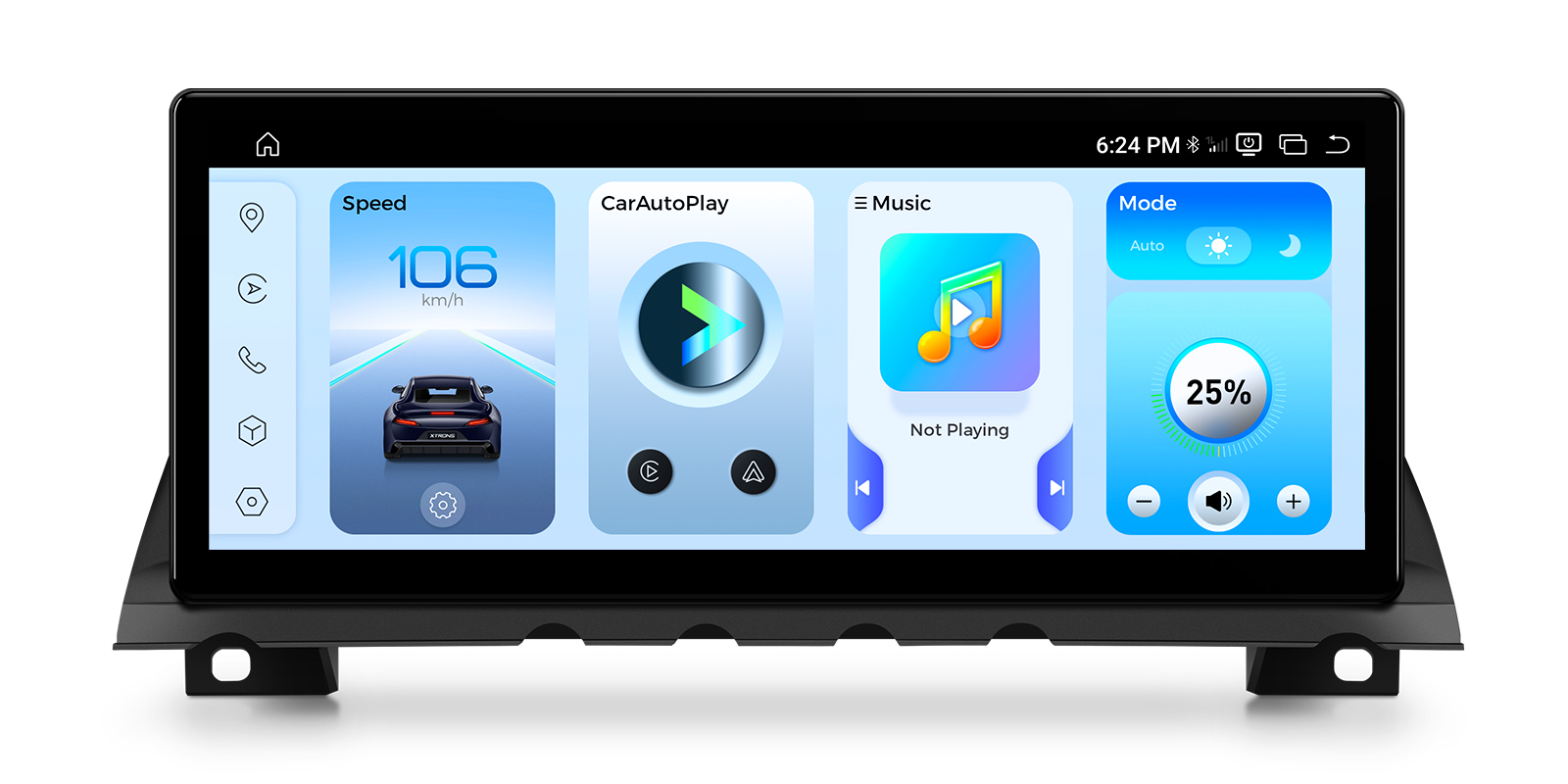

A 12.3 inch Android 14 screen made as a plug-and-play replacement for the factory display in the BMW 7 Series F01/F02 (2013-2015) with the NBT system. It adds wireless CarPlay, wireless Android Auto and 4G, on a Qualcomm 685 octa-core processor with 8GB RAM and 256GB storage.
- Wireless CarPlay and wireless Android Auto
- Plug-and-play replacement for the factory display in NBT cars

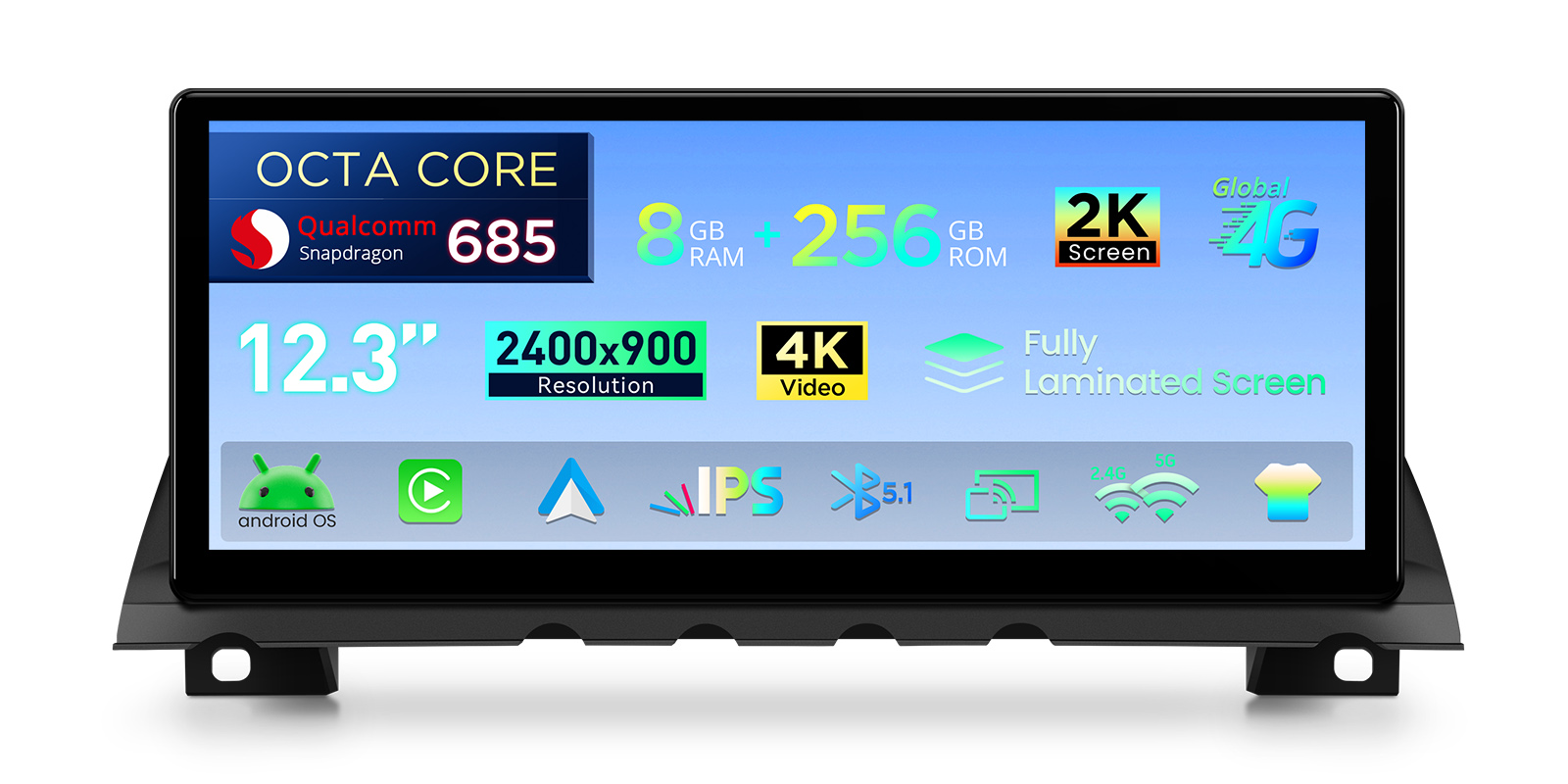

- Qualcomm 685 octa-core processor, 8GB RAM and 256GB storage on Android 14
- Built-in 4G with an antenna in the box
- Fully laminated 12.3 inch IPS touch screen

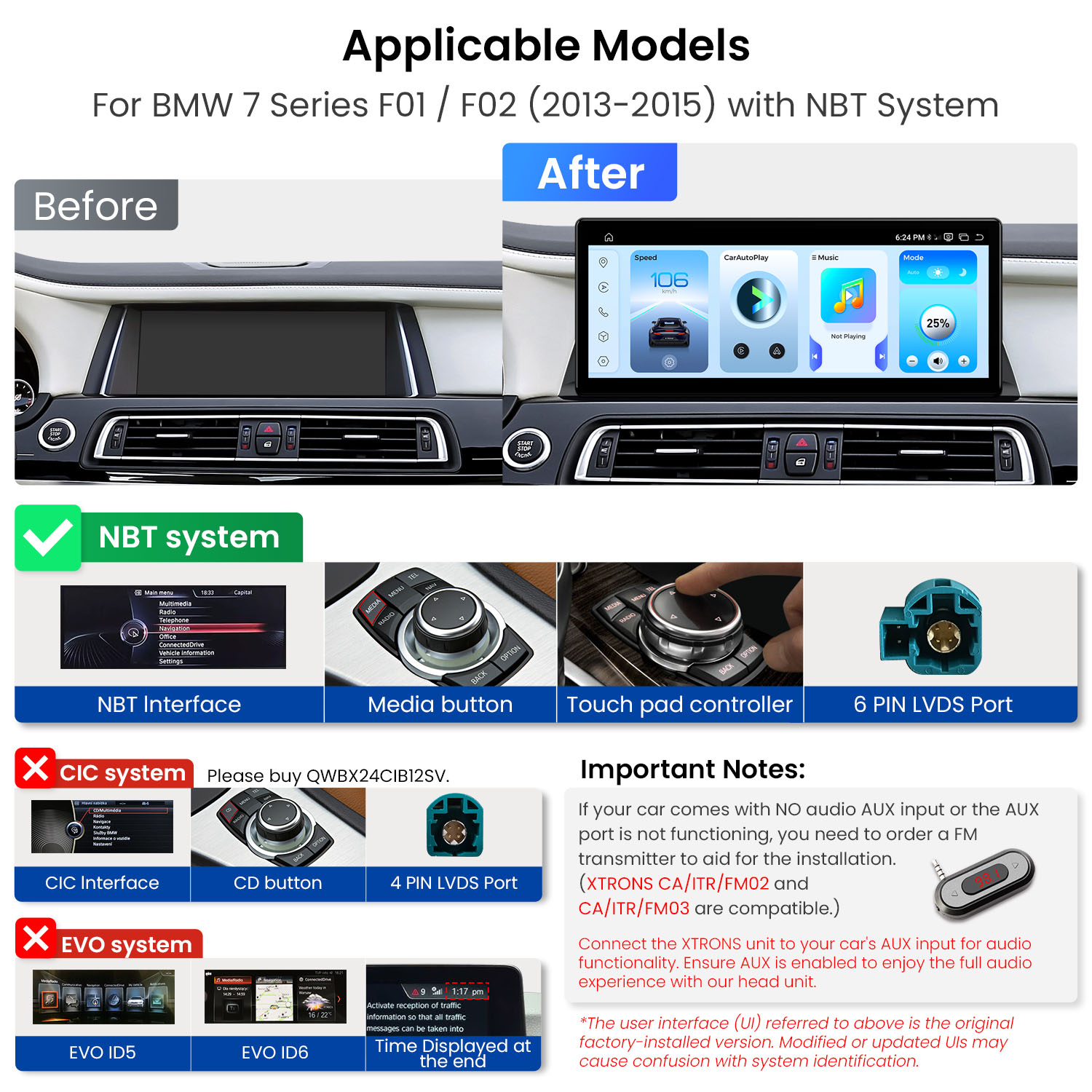

Made for the F01/F02 with NBT
This screen is for the 7 Series F01/F02 from 2013-2015 with the NBT system. An NBT radio usually has a Media button, a touch pad controller, a 6-pin LVDS port and the BMW NBT interface.
Cars with the CIC system need the XTRONS QWBX24CIB12SV instead.

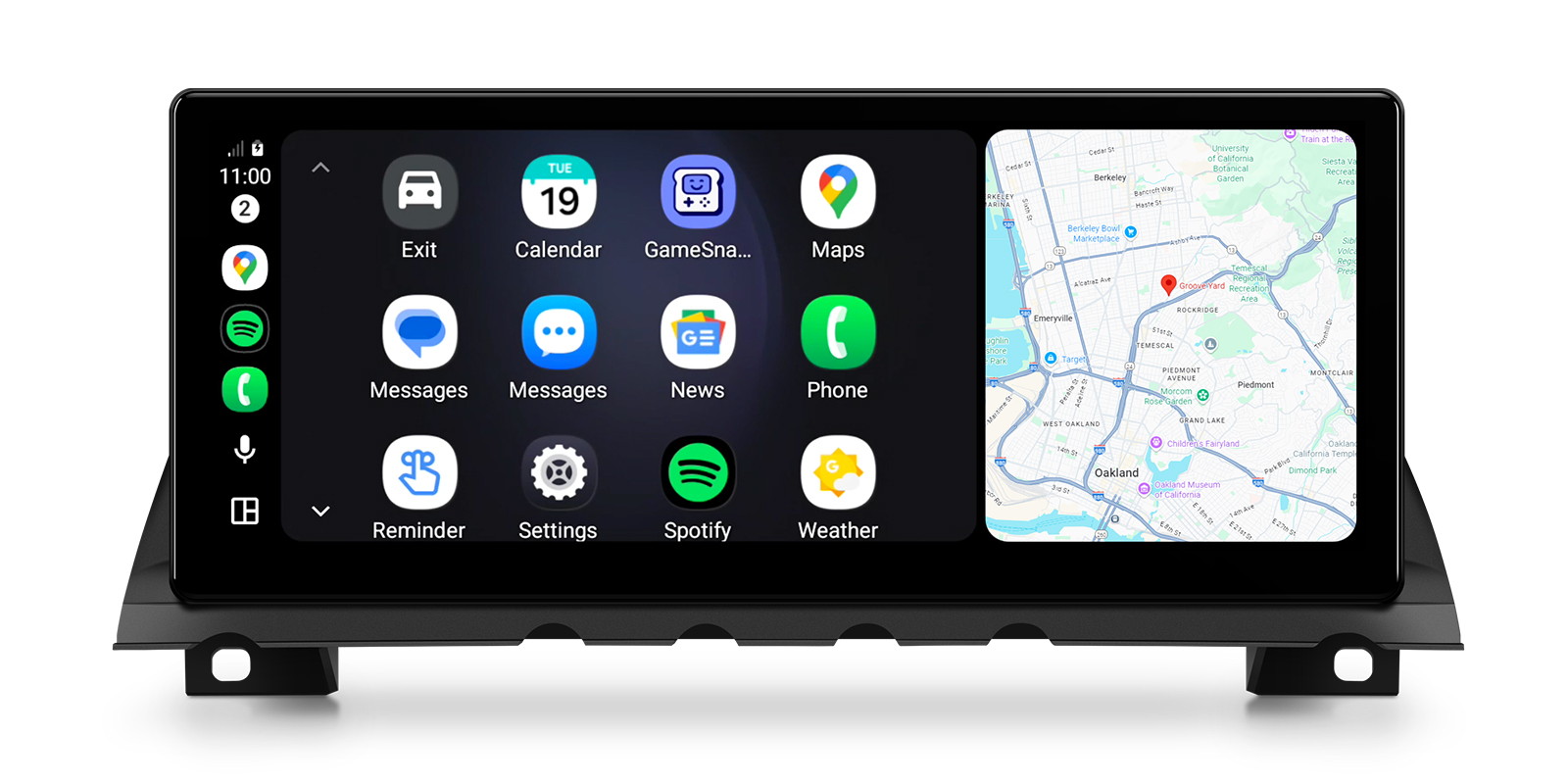

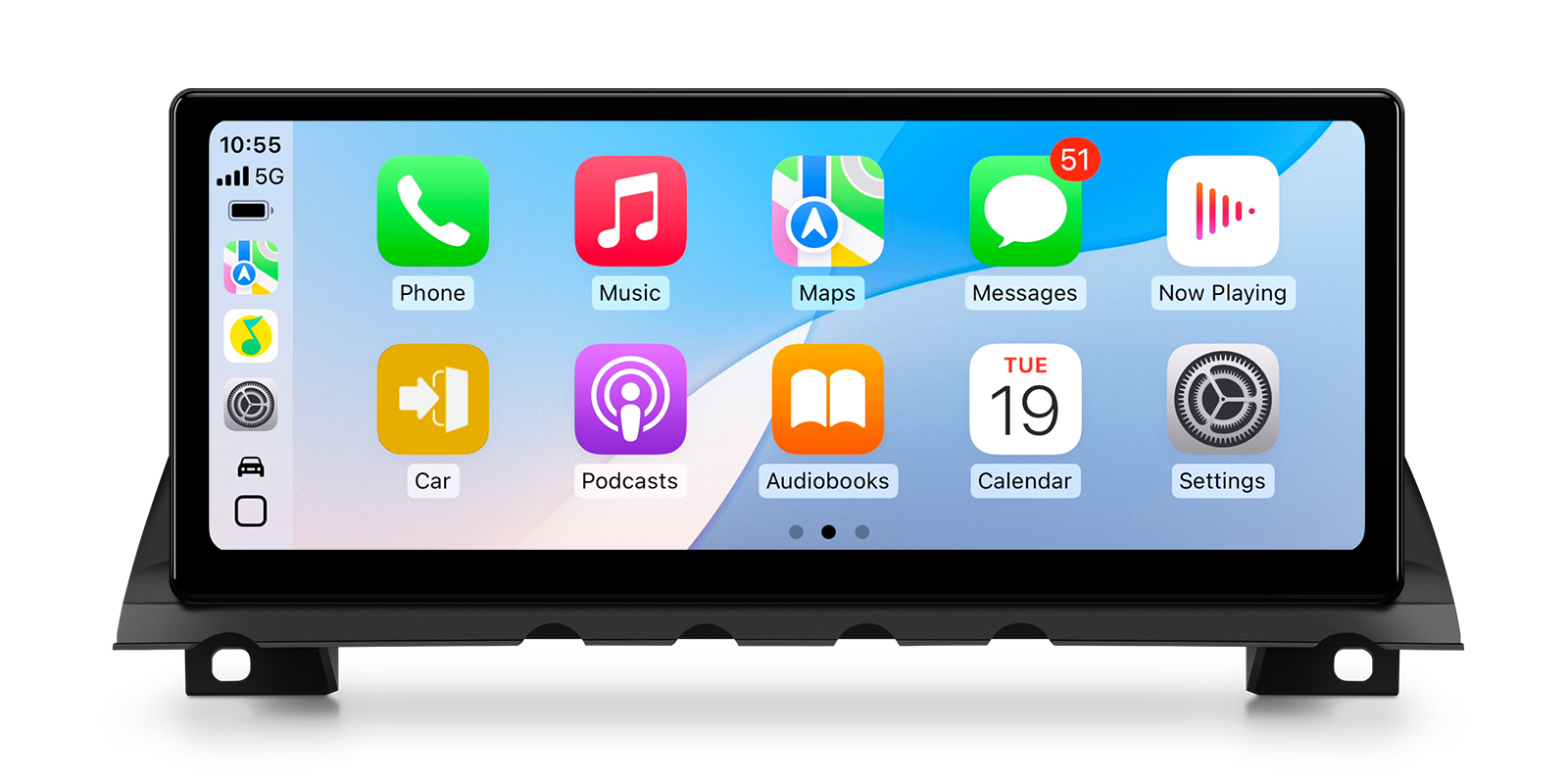

Wireless CarPlay
Your iPhone connects without a cable, so maps, calls and music appear on the 12.3 inch screen as you set off.
Wireless Android Auto
Android phones connect wirelessly to Android Auto, with navigation, music and messages on the wide display.
12.3 inch IPS screen
The fully laminated IPS touch screen fills the space of the factory display, with good viewing angles from both front seats. It plays 4K video.
Built-in 4G
With a SIM card fitted, the unit has its own 4G connection for live traffic, streaming and updates. A 4G antenna is supplied.
Wi-Fi
Wi-Fi connects the screen to a phone hotspot or your home network for downloads and updates.
Screen mirroring
Mirror your phone onto the display for apps that don't run in CarPlay or Android Auto.
Microphone
An external microphone can be used for clearer hands-free calls.
DAB with an external tuner
DAB radio is supported with an external DAB tuner, sold separately.
USB
A USB cable is included for connecting a phone or memory stick.
Works with

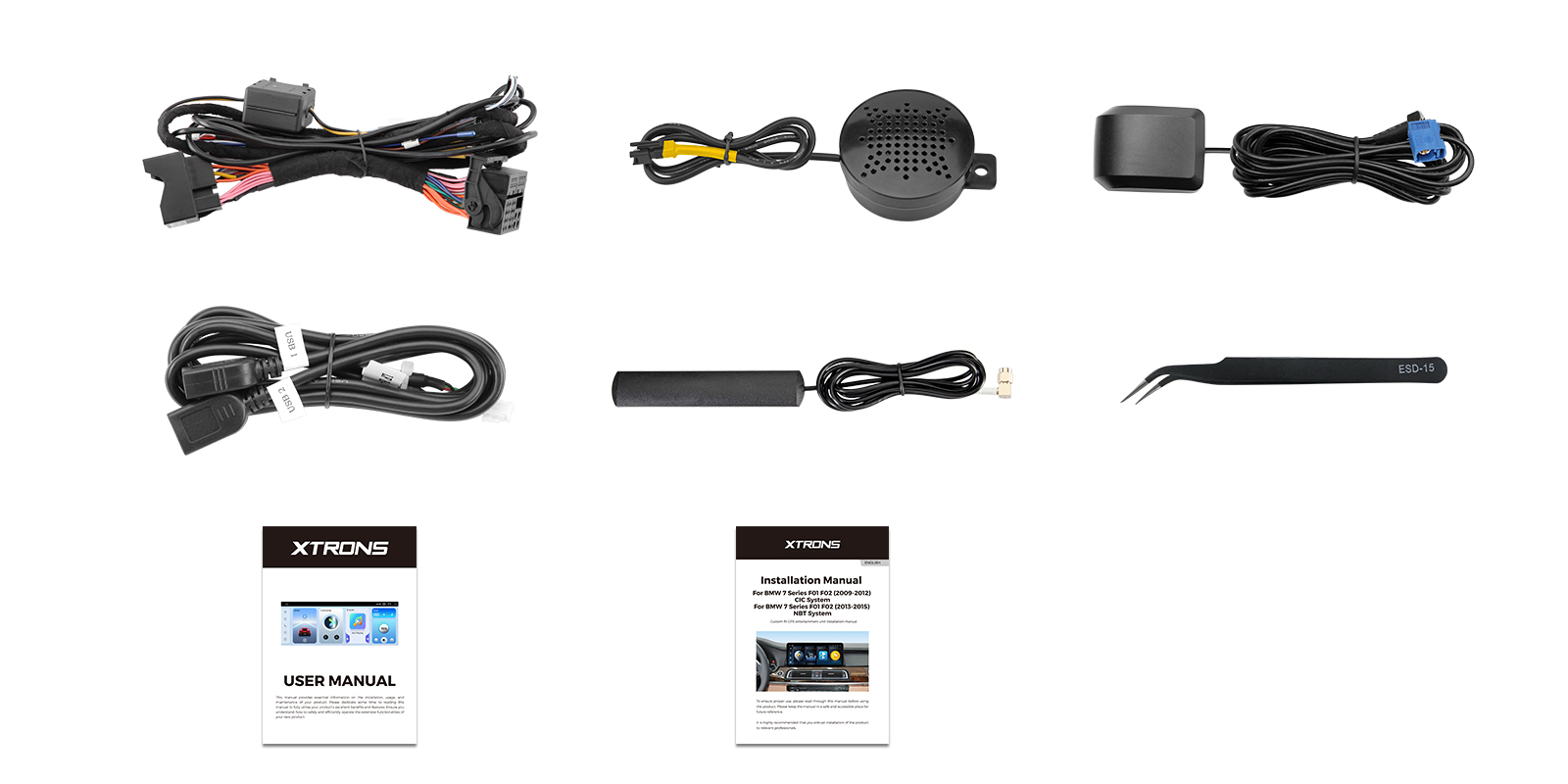

What's in the box
- 1 x 4G Antenna
- 1 x GPS Antenna
- 1 x Installation Instruction
- 1 x ISO Wiring Harness
- 1 x Mini Speaker
- 1 x Tweezers
- 1 x USB Cable
- 1 x User Manual
| Operating system | Android 14 |
|---|---|
| Processor | Qualcomm 685 octa-core processor |
| Memory | 8GB RAM and 256GB storage |
| Screen | 12.3″ |
|---|
- BMW 7 Series (2002-2022)
- For BMW 7 Series F01/F02 (2013-2015) with NBT System
- 1. This unit ONLY works with the original BMW NBT system. A NBT system car radio usually comes with Media button, touch pad controller, a 6-pin LVDS port and a BMW NBT Interface.
- Connect the XTRONS unit to your car's AUX input for audio functionality. Ensure AUX is enabled to enjoy the full audio experience with our head unit.

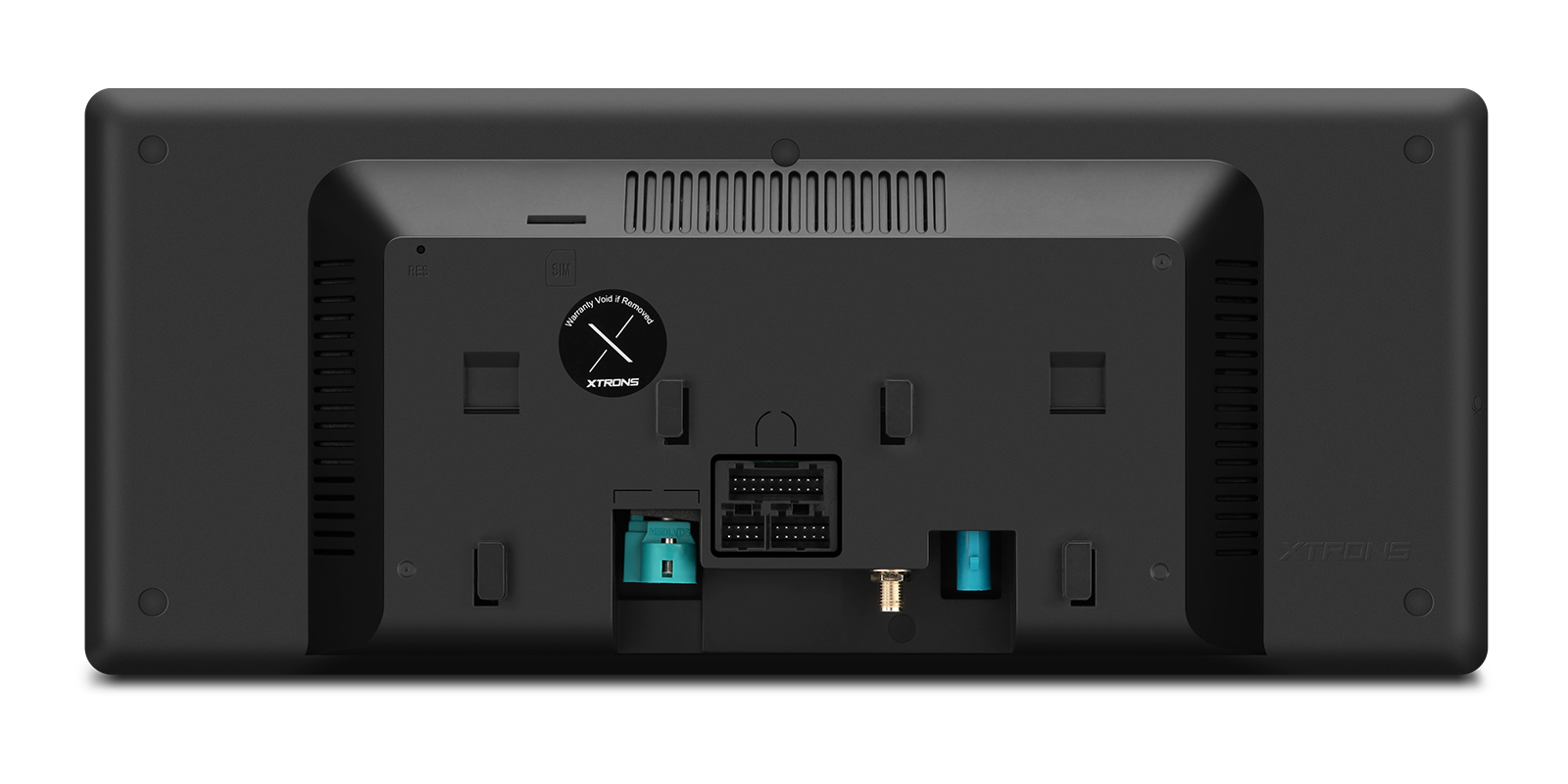

The screen replaces the factory display and connects with the supplied ISO wiring harness. Sound plays through the car's AUX input, so AUX must be enabled. If the car has no AUX input or it doesn't work, you'll need an FM transmitter such as the XTRONS CA/ITR/FM02 or CA/ITR/FM03.
How do I know if my 7 Series has NBT?
An NBT radio usually has a Media button, a touch pad controller, a 6-pin LVDS port and the BMW NBT interface.
My car has CIC. Will this fit?
No. CIC cars need the XTRONS QWBX24CIB12SV.
What if my car has no AUX input?
You'll need an FM transmitter; the XTRONS CA/ITR/FM02 and CA/ITR/FM03 are compatible.
Is CarPlay wireless?
Yes. It has wireless CarPlay and wireless Android Auto.
Reviews
What customers say
Bought this product? Sign in to write a review.

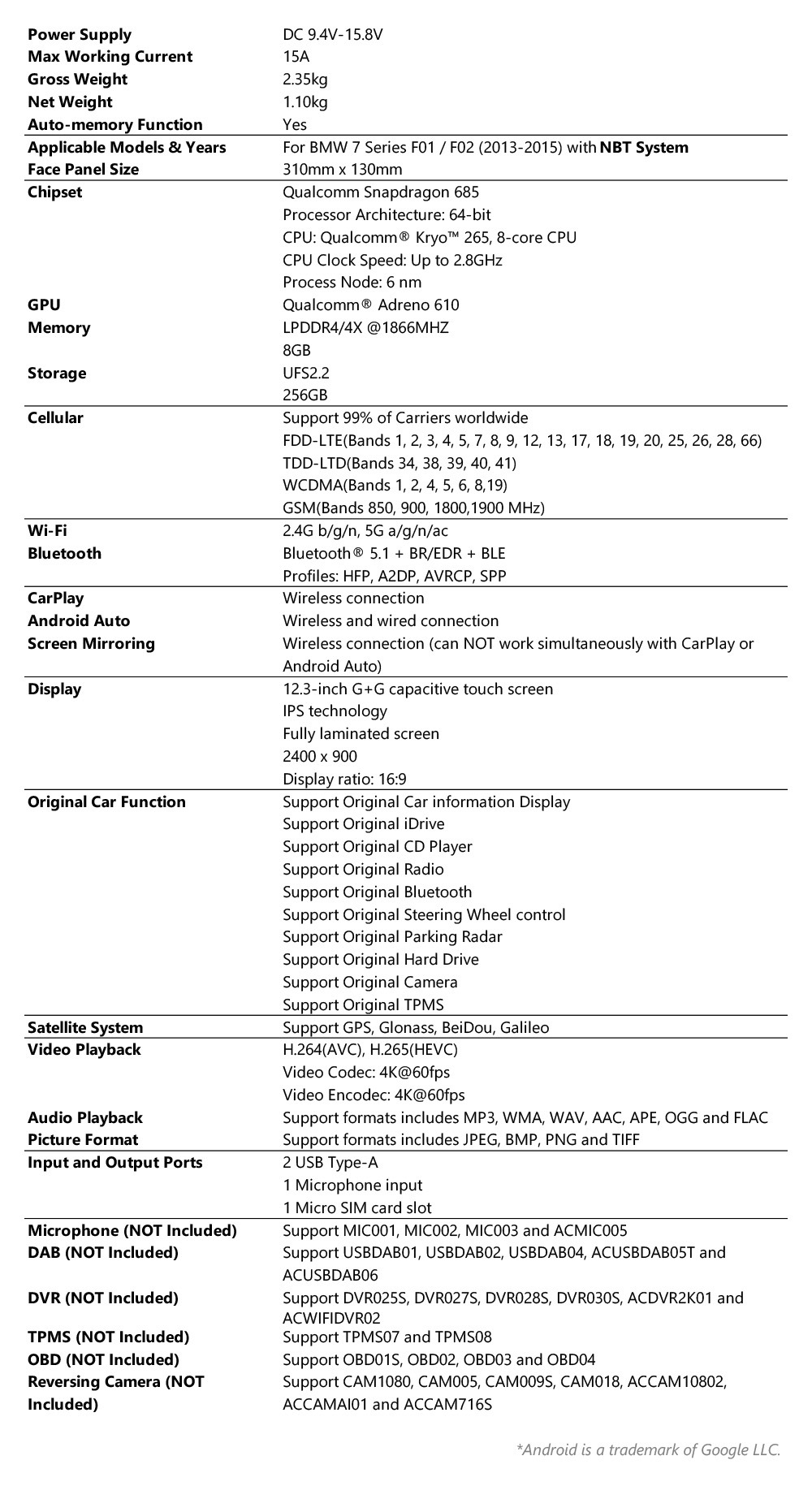

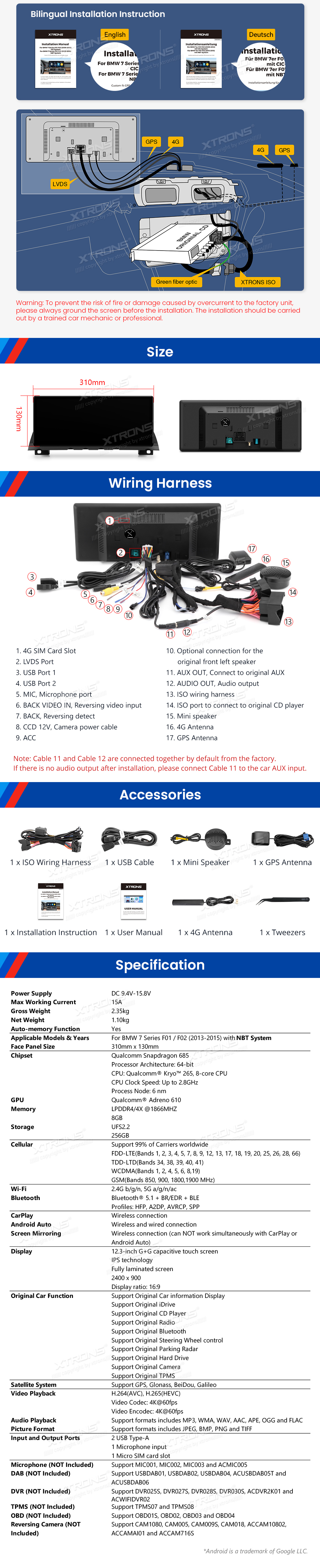

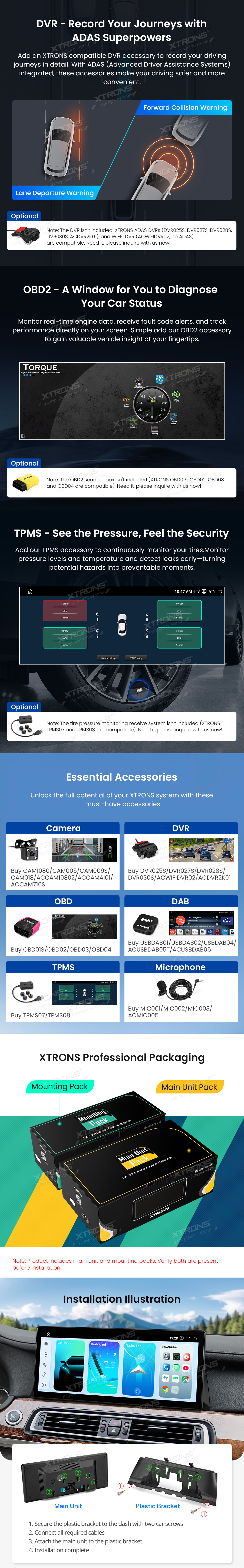

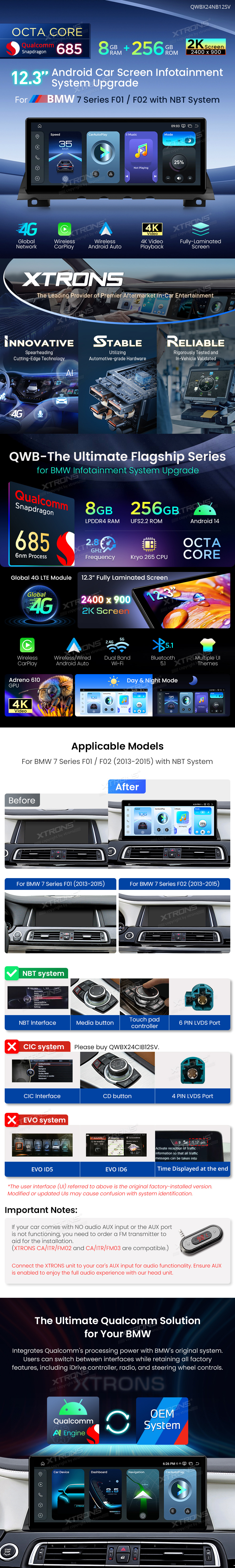

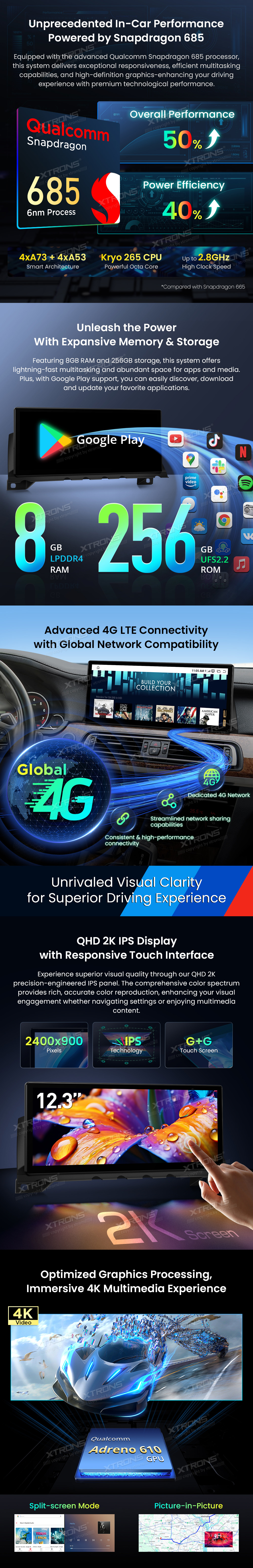

Full specification from XTRONS
