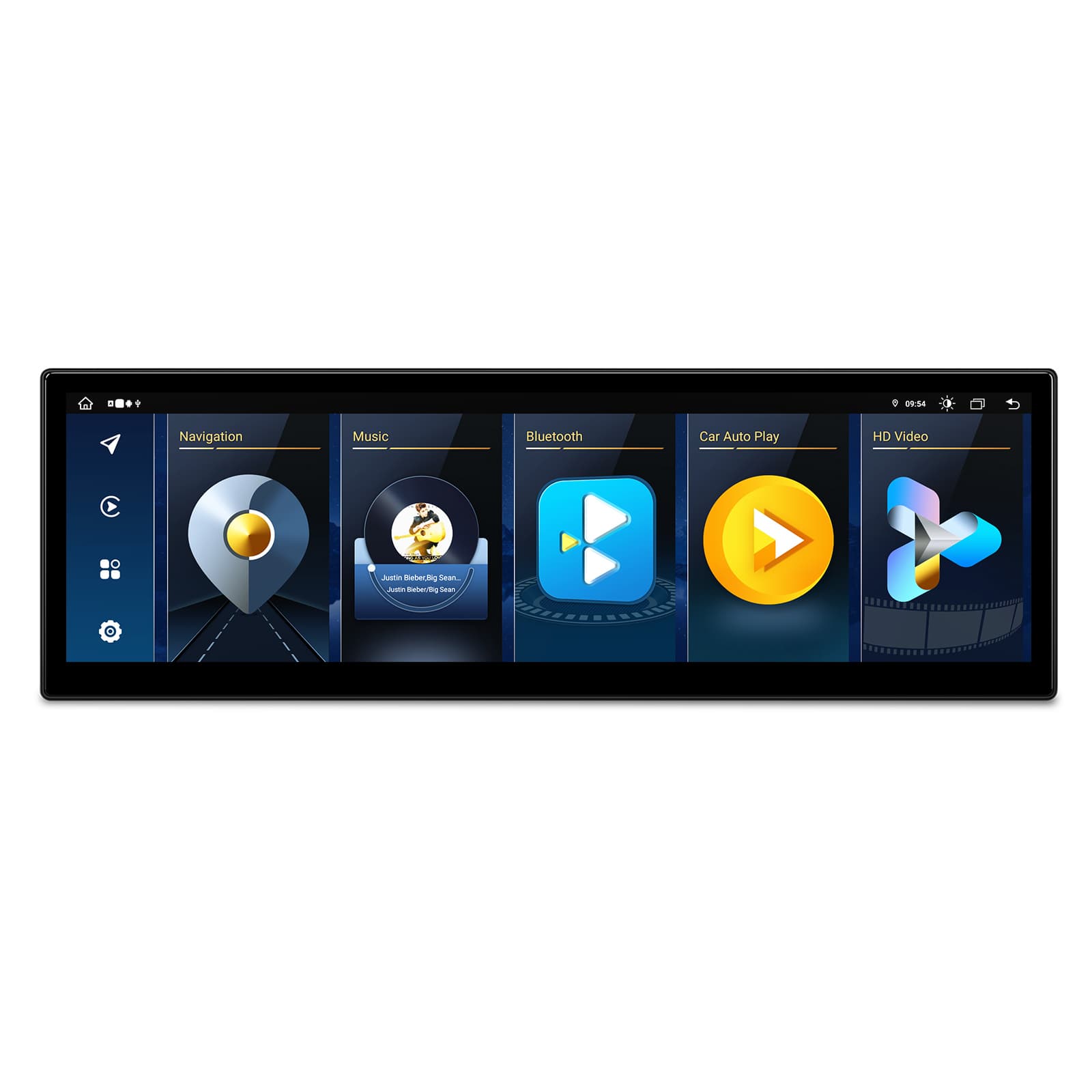

BMW 3 Series E90 CIC 14.9 Inch Android Head Unit with Wireless CarPlay, Android Auto and 4G
SKU: QLBH4492CI3
£509.00Was £599.00Save £90.00
Check if this fits your car
In stock
1
- Navway, UK car stereo specialists since 2014
- 5,000+ customers
- UK support Mon–Fri
SKU: QLBH4492CI3

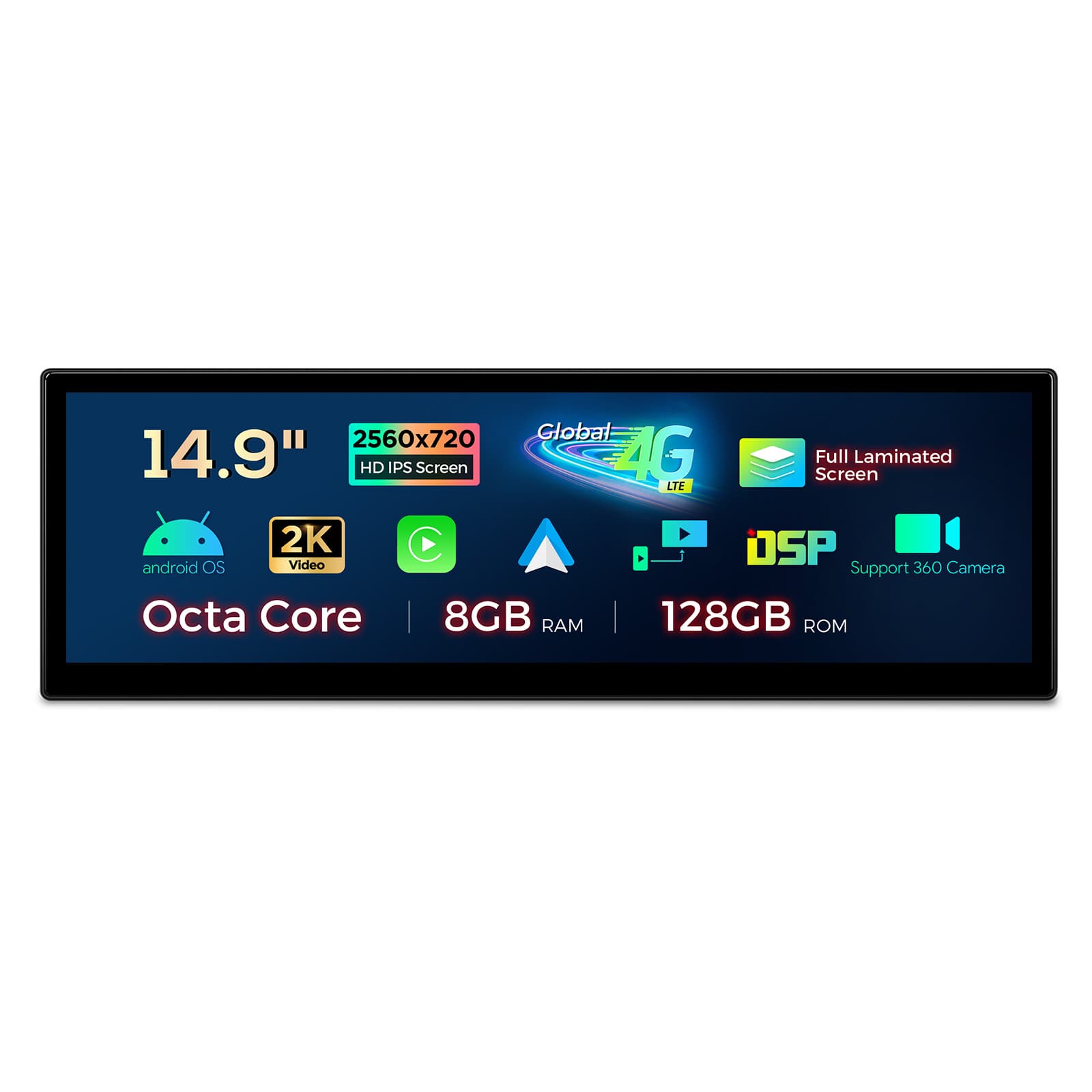

Key specifications
- Processor
- 12nm Octa-core chip
- CPU cores
- (2xCortex-A75 + 6xCortex-A55)
- RAM
- 8GB DDR4 RAM
- Storage
- 128GB Solid State ROM
- Operating system
- Android 14
- Screen
- 14.9″ Fully-laminated 2560×720 IPS Screen
Functions
- Wireless Apple CarPlay: read more below
- Android Auto: read more below
- DSP sound processor: read more below
- 4G LTE: read more below
- Wi-Fi: read more below
- IPS screen: read more below
- DAB radio (with an add-on): read more below
- Screen mirroring: read more below
- GPS navigation: read more below
- External microphone: read more below
What you need to fit this
1 · In the box
- 1 x 4G Antenna
- 1 x 4G SIM Card Slot
- 1 x 5m Video cable
- 1 x Audio Cable
- 1 x GPS Antenna
- 1 x Mini Microphone
- 1 x USB Cable
- 1 x User Manual
- 1x ISO Wiring Harness

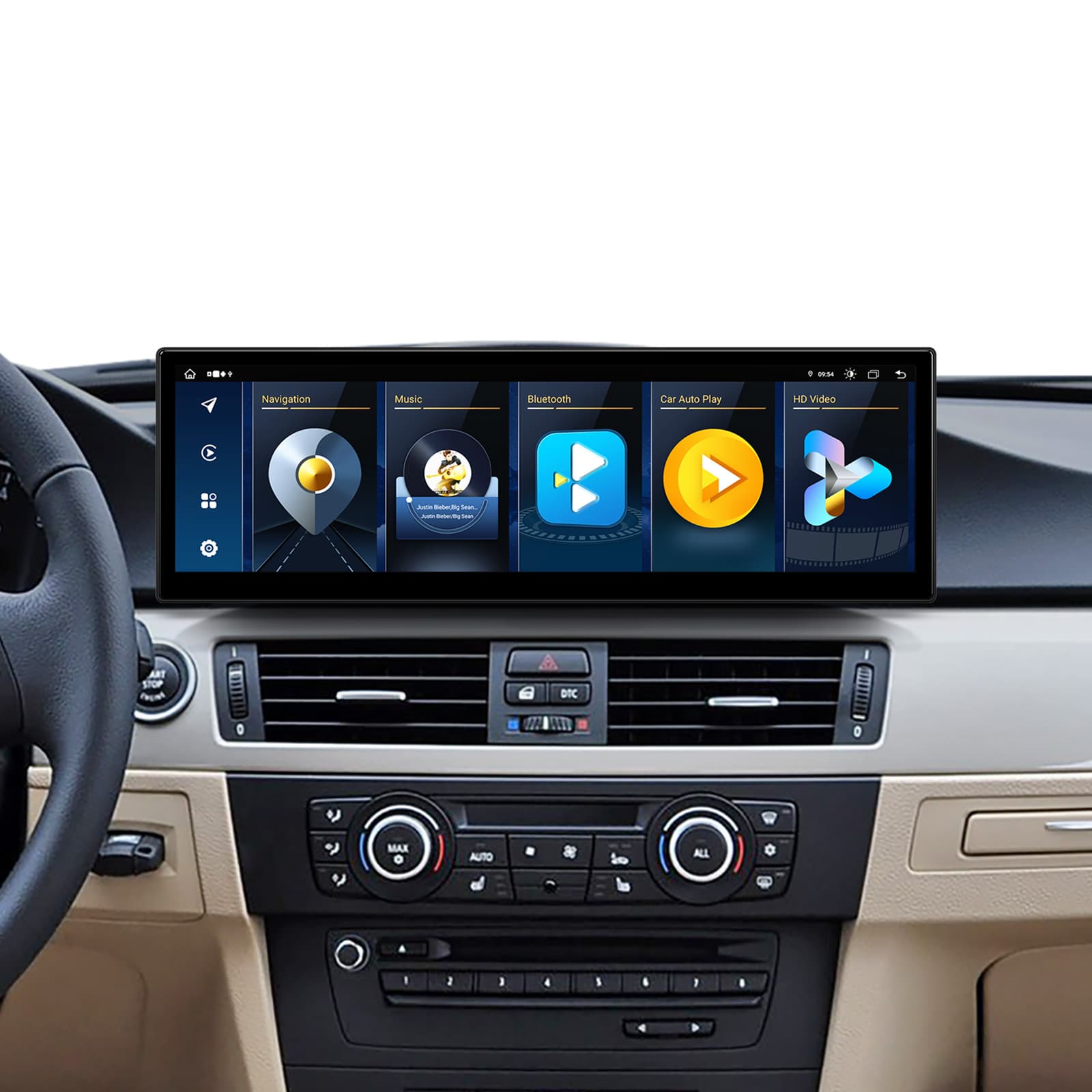

XTRONS QLBH4492CI3 is a 14.9 inch fully laminated Android 14 screen for the BMW 3 Series E90, E91, E92, E93 and M3 with the CIC system, 2009-2012. It works alongside the original system, so the CD player stays, and adds wireless CarPlay, Android Auto and built-in 4G.
- 14.9 inch fully laminated IPS screen at 2560×720 with a 2.5D edge
- Wireless CarPlay and Android Auto
- Built-in 4G LTE with a SIM card slot
- 12nm octa-core chip with 8GB DDR4 RAM and 128GB storage
- Keeps the original CD player and factory system

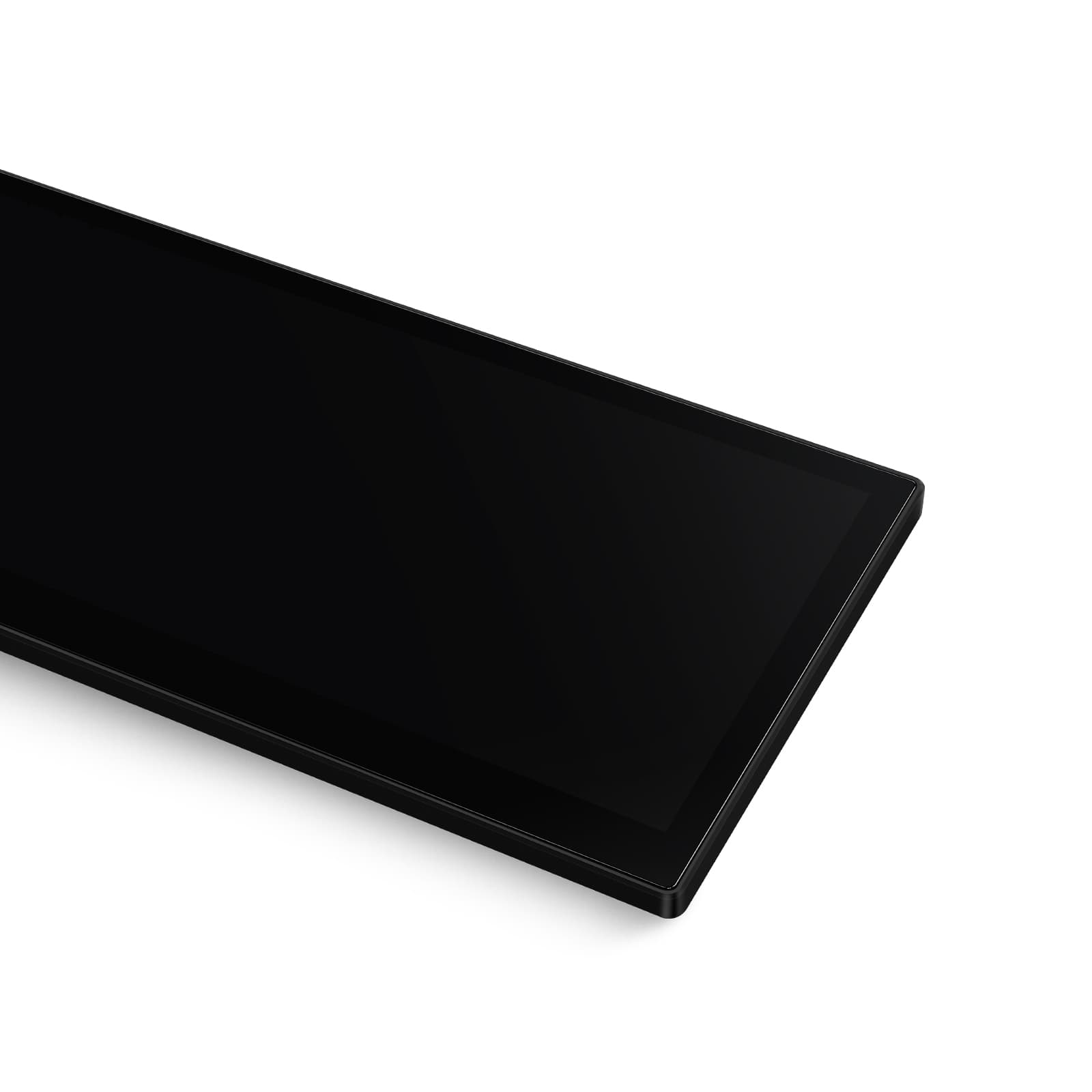

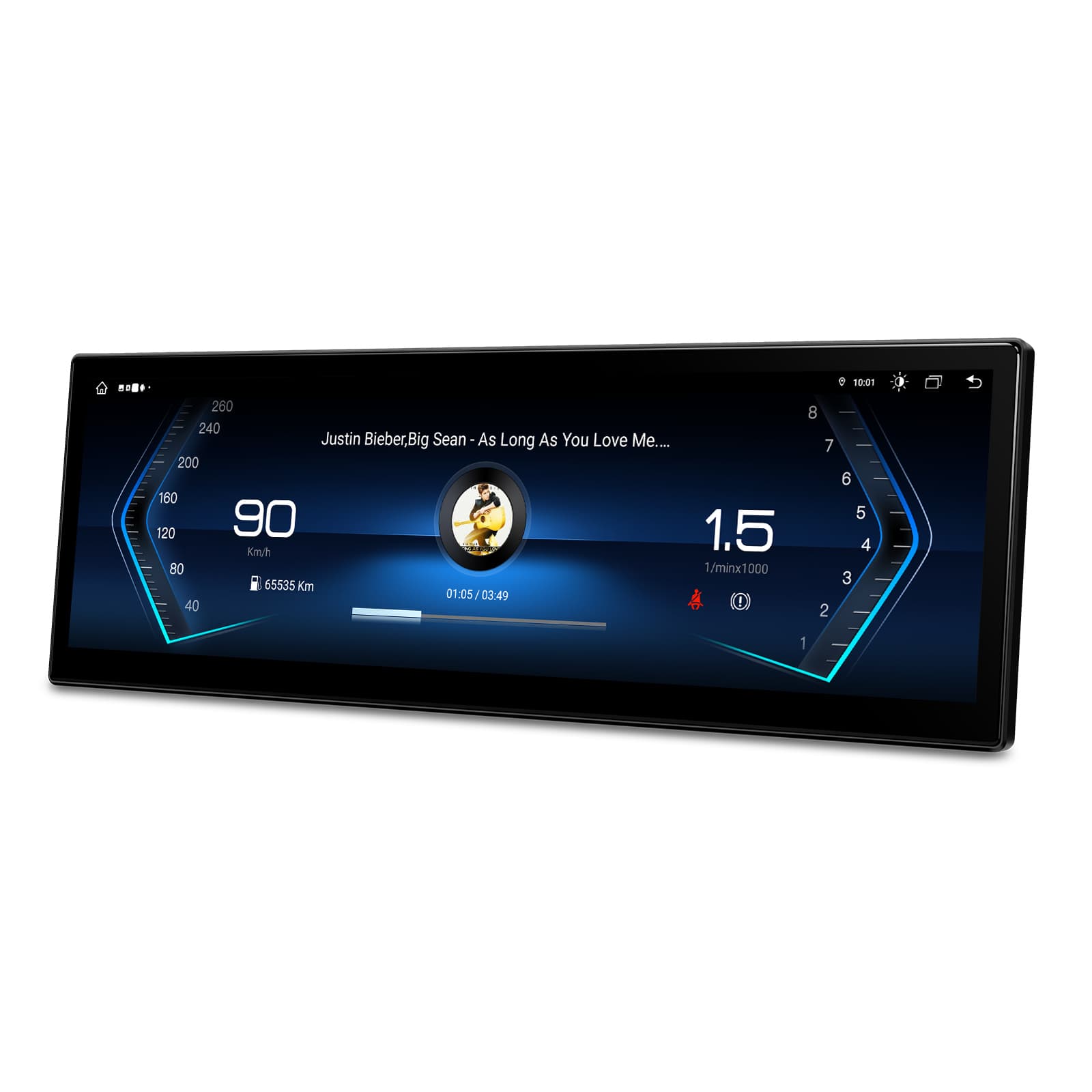

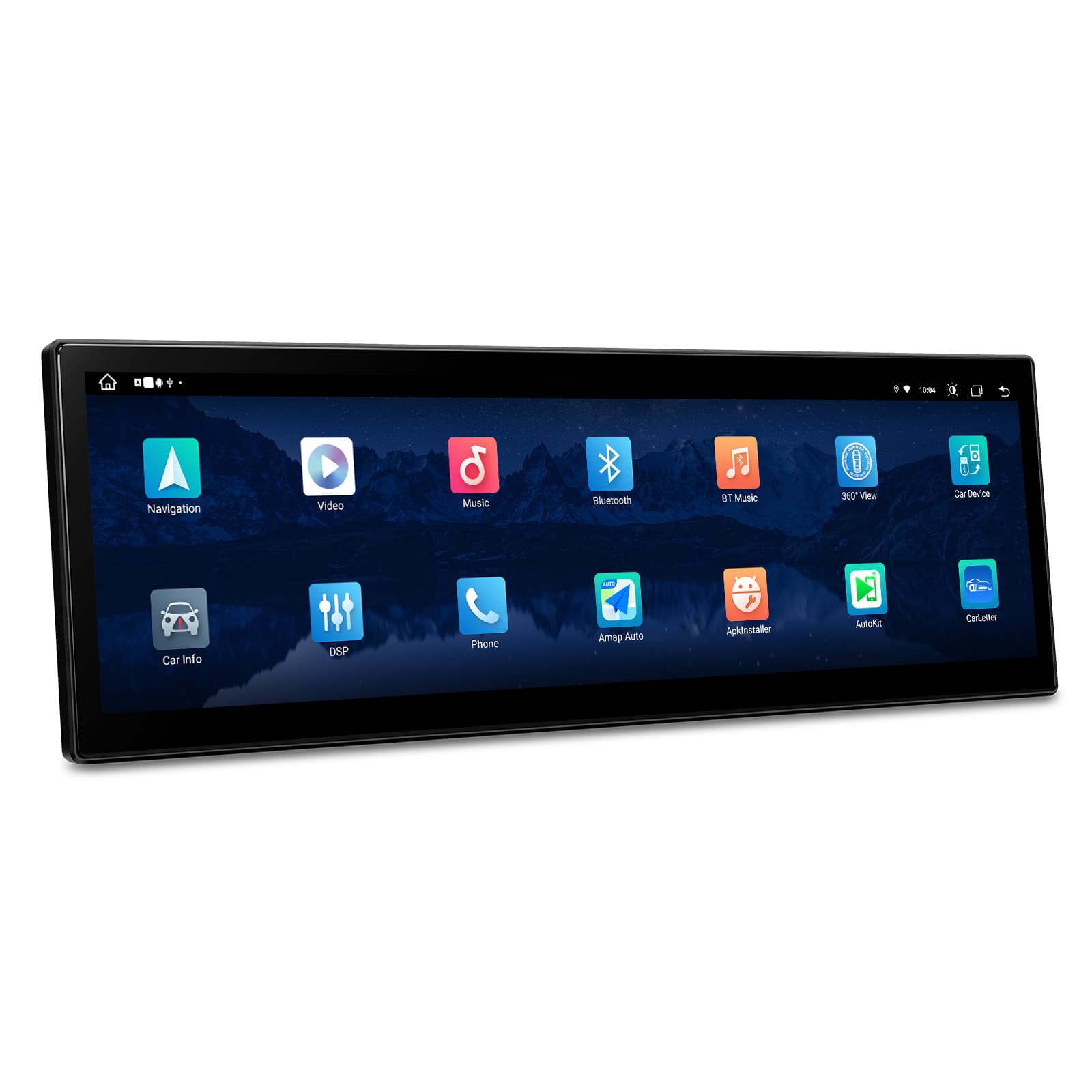

14.9 inch 2K IPS screen
The 14.9 inch IPS screen runs at 2560×720, a very wide format that shows a full map alongside music or calls. It's fully laminated with a slim custom bezel and a 2.5D edge, so it looks like part of a newer BMW dashboard.
It plays 2K video for passengers or while parked.

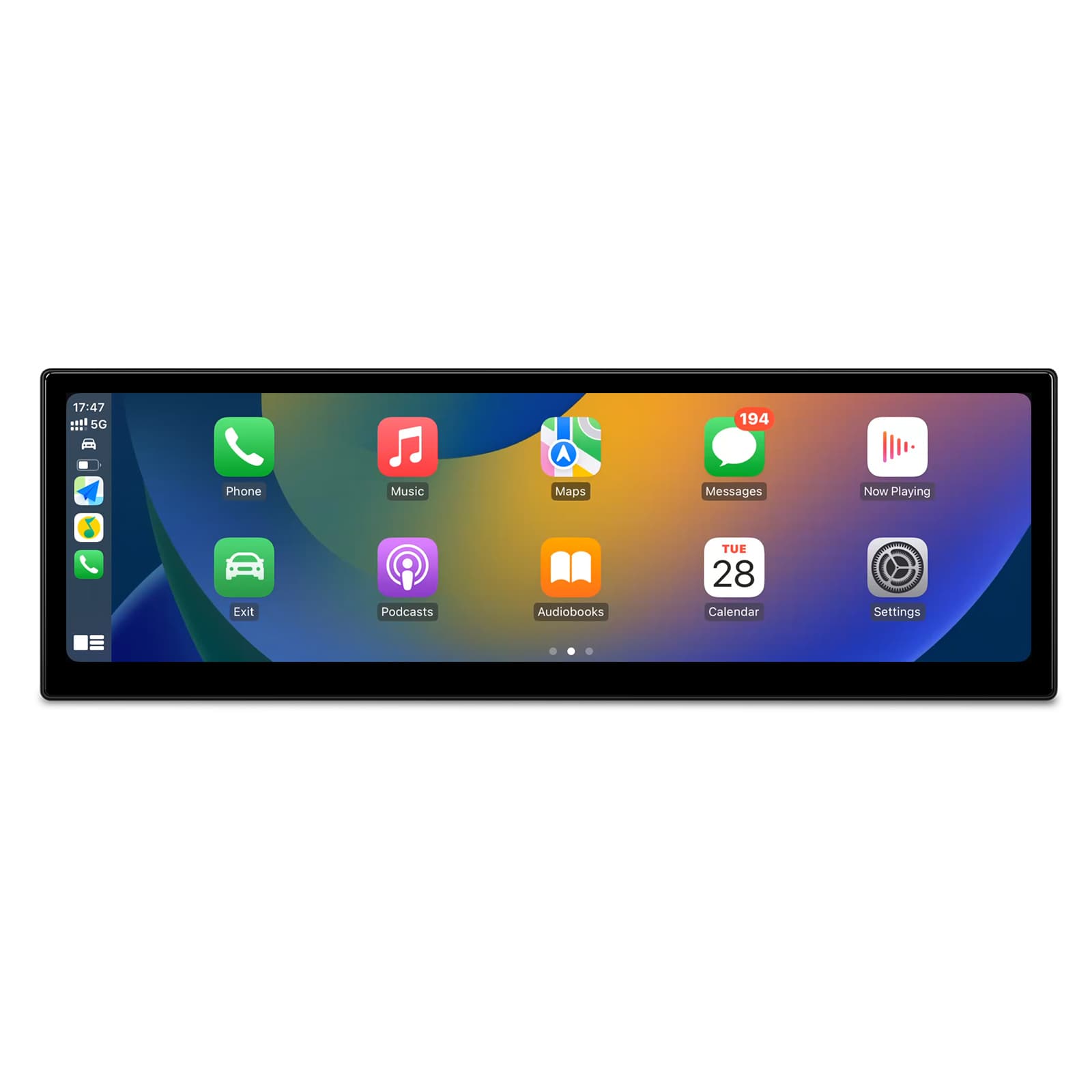

Wireless Apple CarPlay
Your iPhone connects to CarPlay without a cable. Maps, music and calls come up on the wide screen, and voice commands let you control them without taking your hands off the wheel.
Your iPhone connects on its own when you start the car, so there's no cable to plug in. It needs an iPhone with wireless CarPlay support; check yours in Settings > General > CarPlay. A cable still works when you'd rather charge on the way.

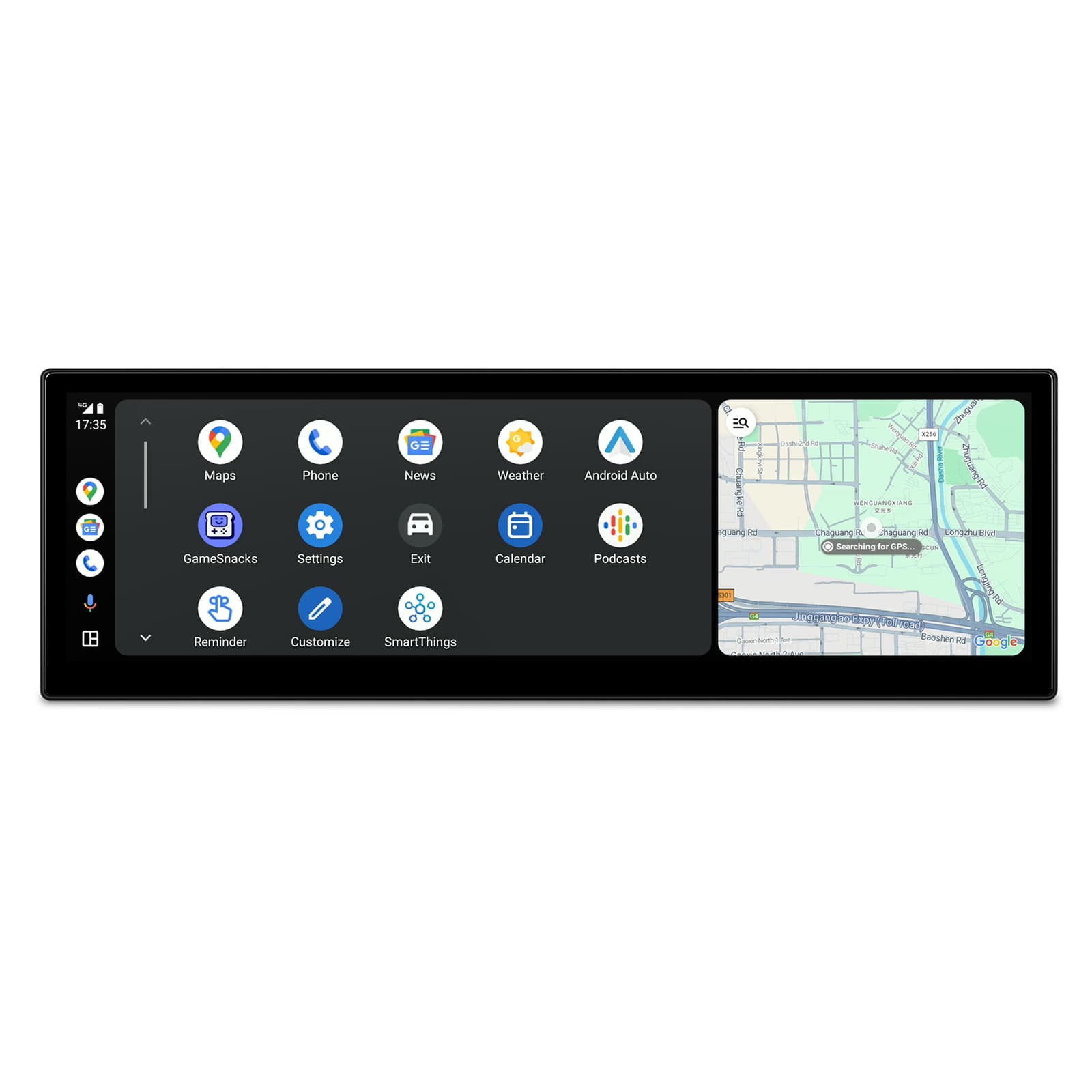

Android Auto
Android phones connect through Android Auto wirelessly, with Google Maps, music apps and voice commands on the head unit.
Maps, calls, messages and music from your Android phone appear on the car screen, with Google Assistant for voice control. It needs a phone with Google services, which most Android phones have. To connect without a cable, the phone must support wireless Android Auto too.
Built-in 4G
Insert a SIM card into the supplied 4G SIM card slot and the head unit has its own connection for navigation and video, without tethering a phone. A 4G antenna comes in the box.
A SIM card in the head unit gives it its own internet connection for maps, traffic and streaming, so it doesn't need your phone's hotspot. You supply the SIM and the data plan; a data-only SIM is usually the cheapest way to do it.
Wi-Fi
Wi-Fi lets the unit join a phone hotspot or home network for app downloads and updates.
Built-in DSP
The built-in DSP gives you control over the equaliser and sound settings, so you can tune the audio to the car. Sound plays through the car's AUX input, so make sure AUX is enabled.
The sound processor lets you tune the sound to your car: an equaliser, a delay for each speaker so the sound centres on your seat, and crossovers that keep deep bass away from small speakers. Start from a preset and change one setting at a time.
Mini microphone for calls
A mini microphone comes in the box for hands-free calls and voice commands. Mount it near the driver so your voice comes through clearly.

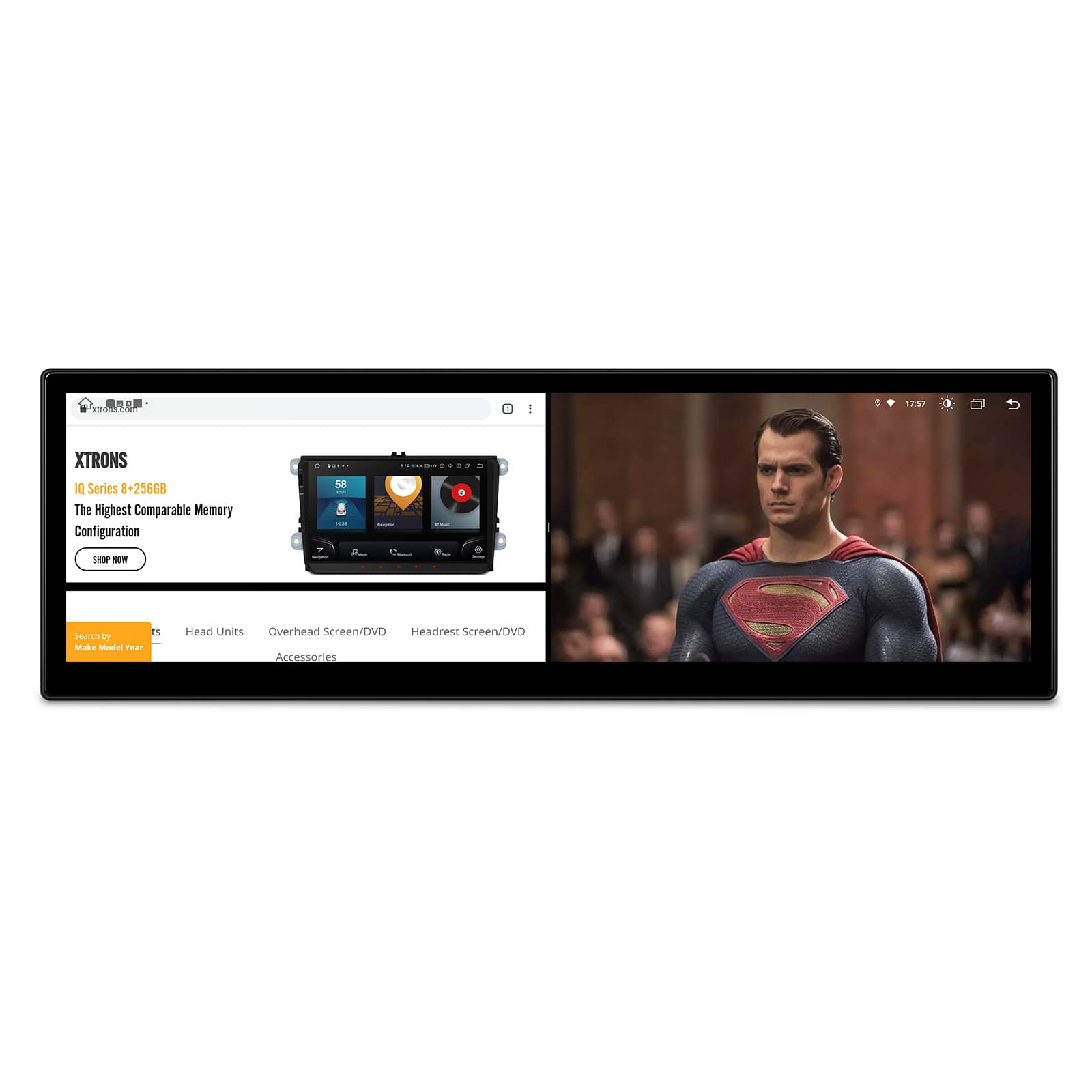

Screen mirroring
The head unit can act as a wireless display for your iOS or Android phone. Use mirroring when parked.
Mirroring shows your phone's whole screen on the car screen, unlike CarPlay and Android Auto, which show apps designed for driving. It usually needs a companion app on the phone, and paid video streaming apps often block it.

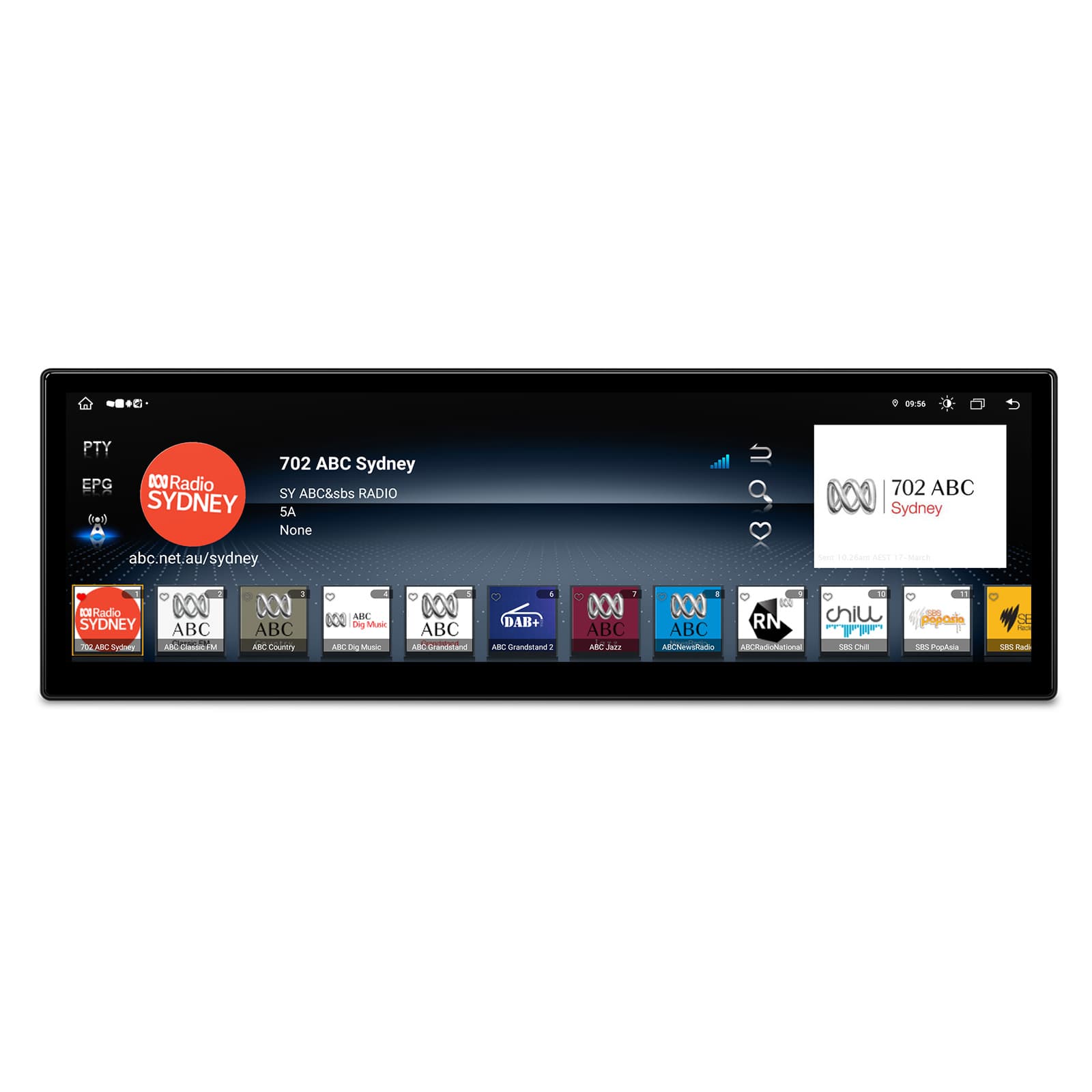

DAB radio with an add-on
DAB digital radio is supported through an external DAB adapter, sold separately.
Digital radio gives clearer sound and more stations than FM where there's DAB coverage. It needs a DAB aerial: a stick-on windscreen aerial is the usual choice, or a splitter if your car already has a combined FM and DAB aerial.
Octa-core performance and AHD camera support
A 12nm octa-core chip (2xCortex-A75 + 6xCortex-A55) runs Android 14 with 8GB DDR4 RAM and 128GB storage, so maps, music and apps run smoothly side by side.
It also supports an AHD camera, sold separately, and a video cable comes in the box.
Works with

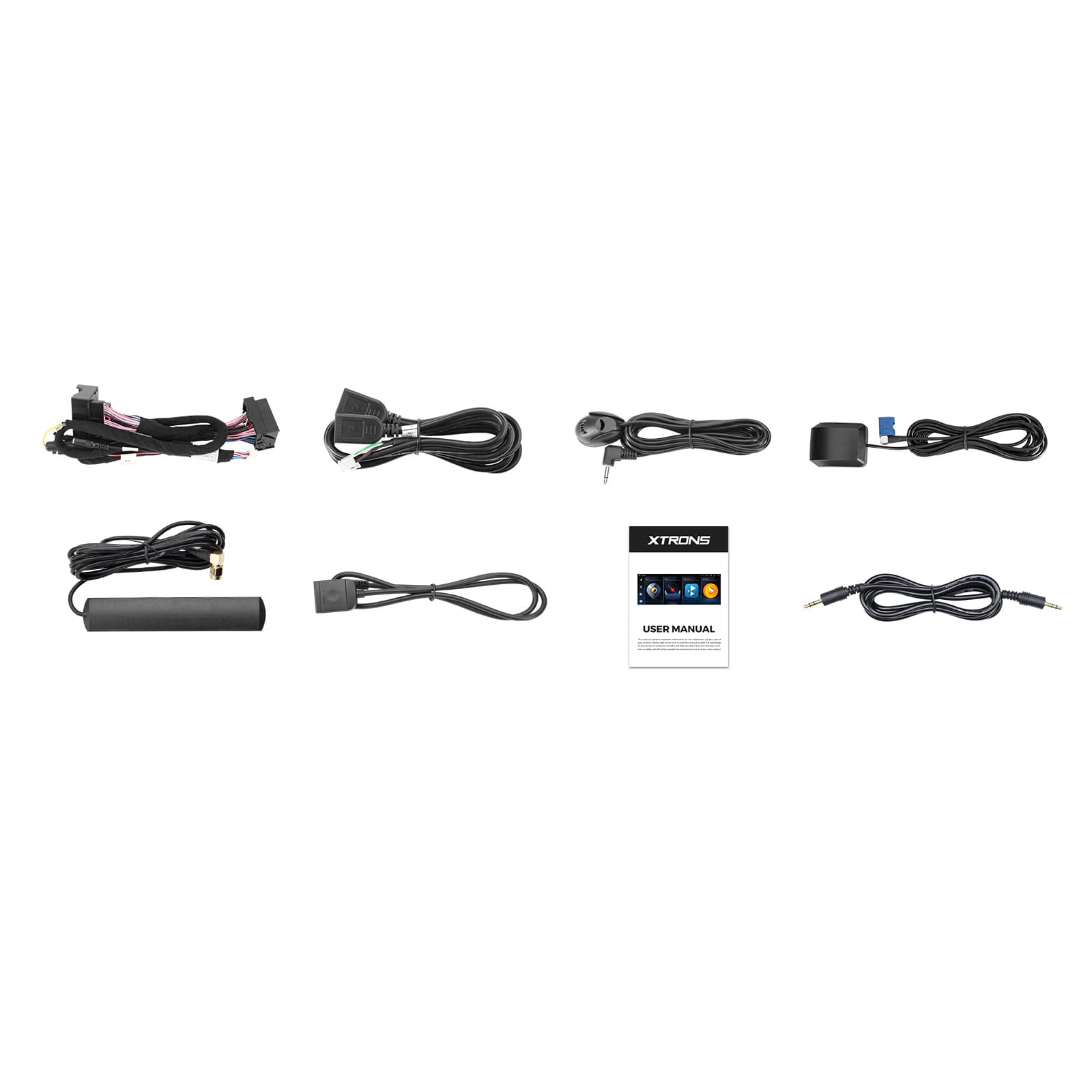

What's in the box
- 1 x 4G Antenna
- 1 x 4G SIM Card Slot
- 1 x 5m Video cable
- 1 x Audio Cable
- 1 x GPS Antenna
- 1 x Mini Microphone
- 1 x USB Cable
- 1 x User Manual
- 1x ISO Wiring Harness
| Processor | 12nm Octa-core chip |
|---|---|
| CPU cores | (2xCortex-A75 + 6xCortex-A55) |
| RAM | 8GB DDR4 RAM |
| Storage | 128GB Solid State ROM |
| Operating system | Android 14 |
| Screen | 14.9″ Fully-laminated 2560×720 IPS Screen |
|---|---|
| Video | 2K Video Playback |
- BMW 3 Series (1998 onwards)
- For BMW 3 Series E90/ E91 / E92 / E93 /M3 (2009-2012) CIC System Vehicles
- This unit ONLY works with the original BMW CIC system. A CIC system car radio usually comes with a 4-pin LVDS port, a "CD" button on the iDrive controller and a BMW "Car Information Computer" interface.
- Note: A "Car Information Computer" interface does not guarantee that you have the CIC system.
- If your car comes with NO audio AUX input, you will need an adapter to aid the installation. XTRONS CA/ITR/FM02 and CA/ITR/FM03 (not included) are compatible.
The screen works with the original CIC system, so the factory CD player doesn't have to come out, and an ISO wiring harness and audio cable are supplied. It connects to the car's AUX input for sound; without an AUX input you'll need an adapter such as the XTRONS CA/ITR/FM02 or CA/ITR/FM03.
How do I know if my car has CIC?
A CIC radio usually has a 4-pin LVDS port, a CD button on the iDrive controller and a BMW Car Information Computer interface. That interface alone doesn't guarantee CIC, so check all three.
Do I lose the CD player?
No. The original CD player doesn't need to be removed.
What if my car has no AUX input?
You'll need an adapter. The XTRONS CA/ITR/FM02 and CA/ITR/FM03 are compatible.
Can I add a reversing camera?
Yes. It supports an AHD camera, sold separately, and a video cable is included.

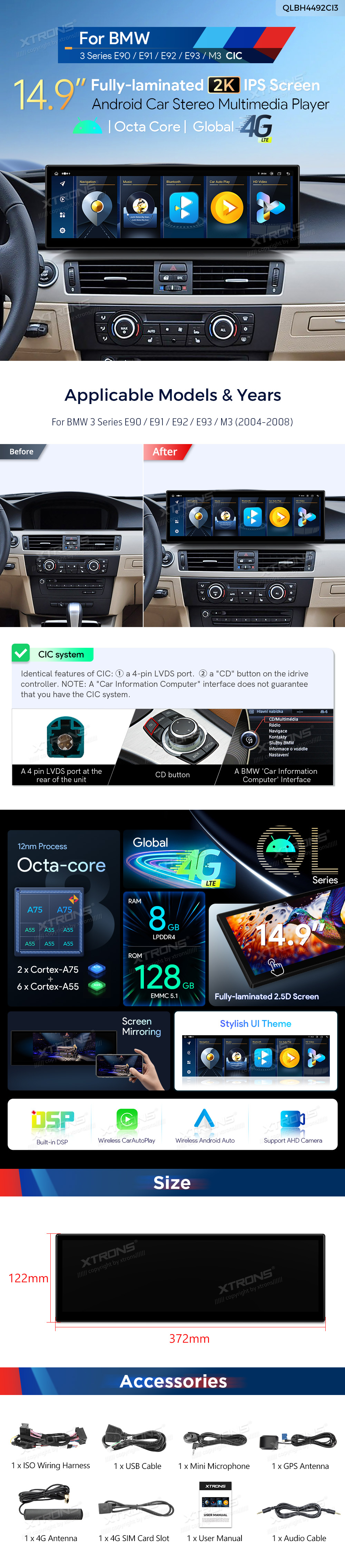

Full specification from XTRONS
