SKU: PL9MTVL
£139.00
Check if this fits your car

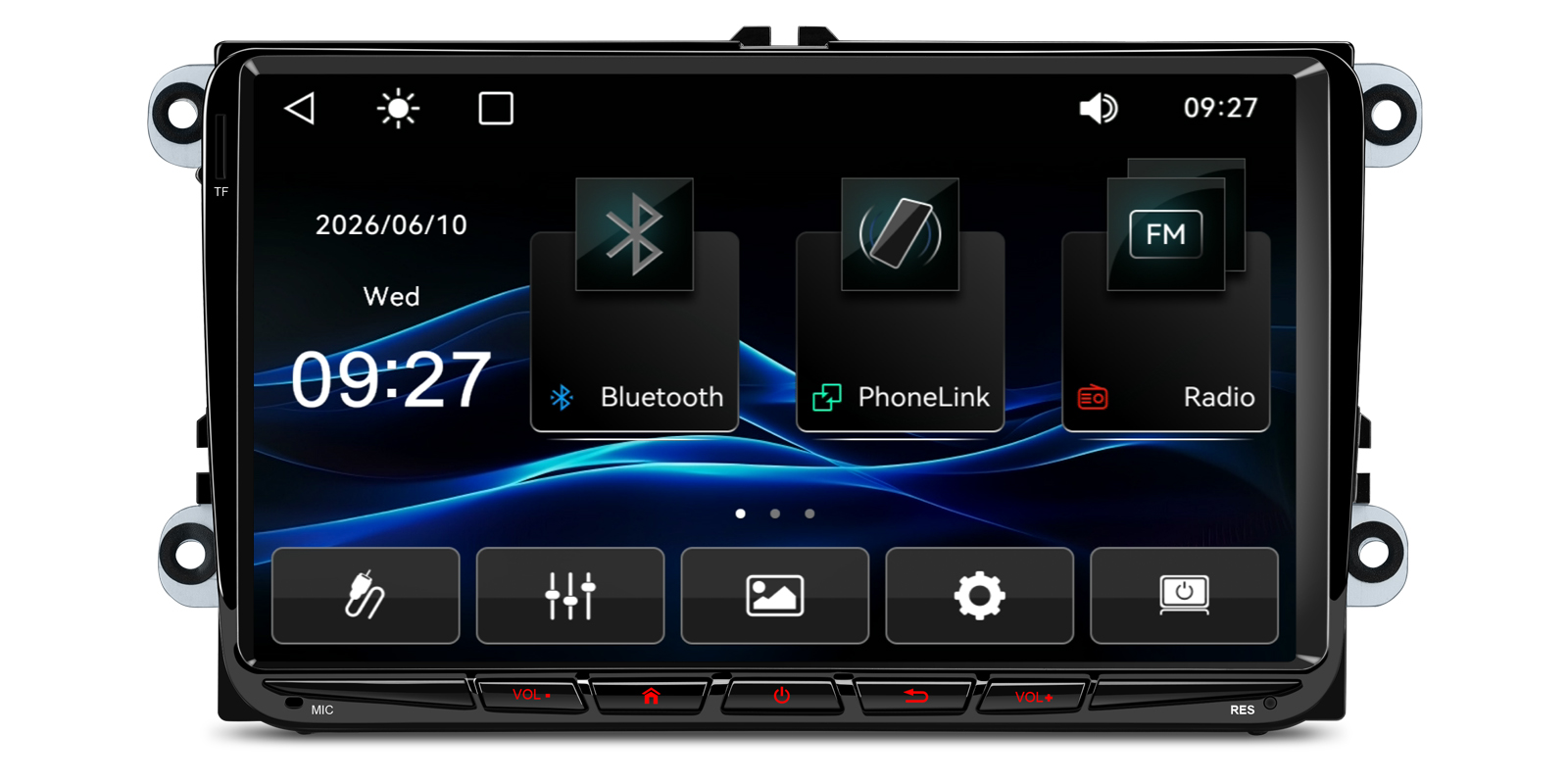

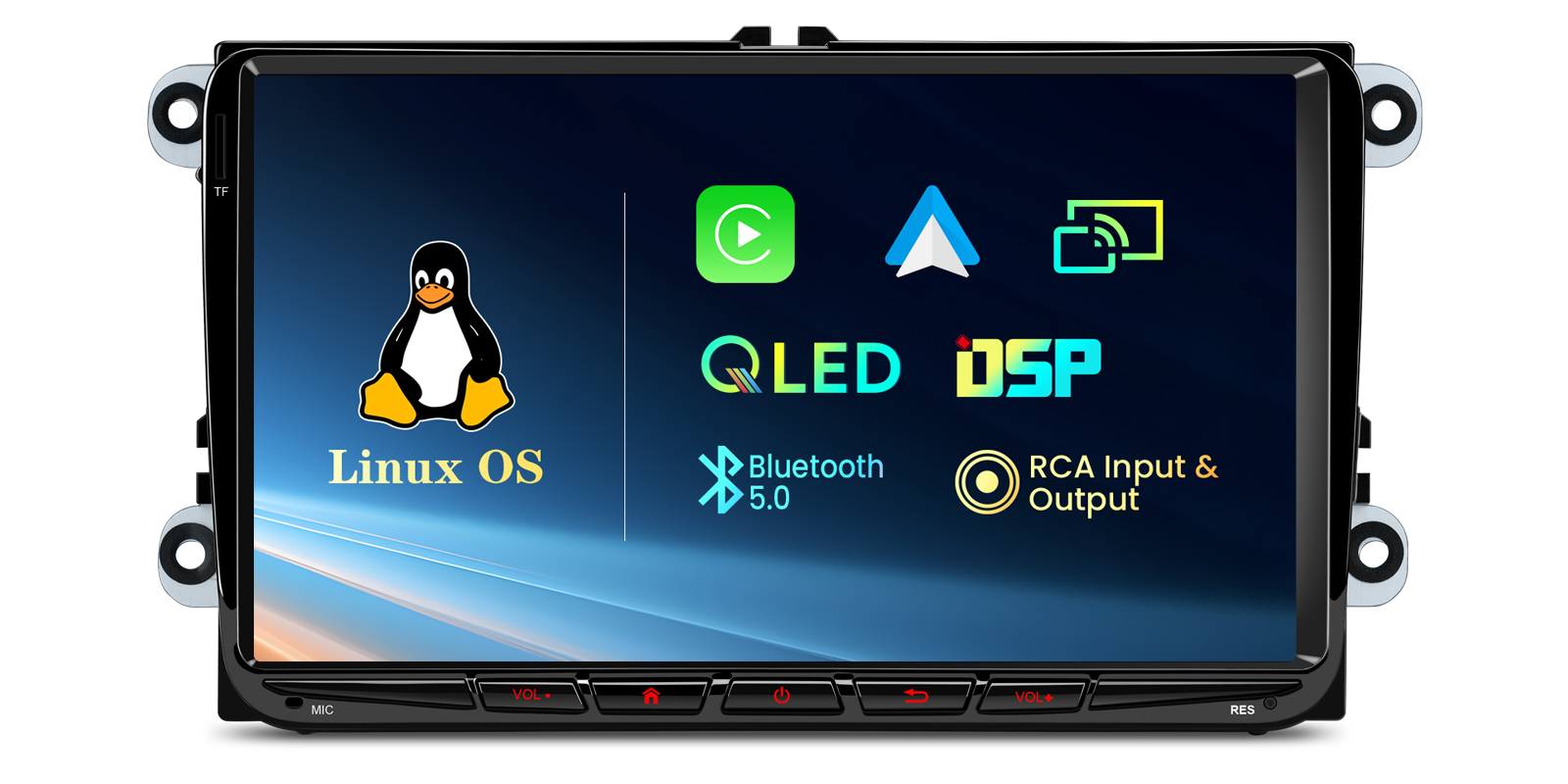

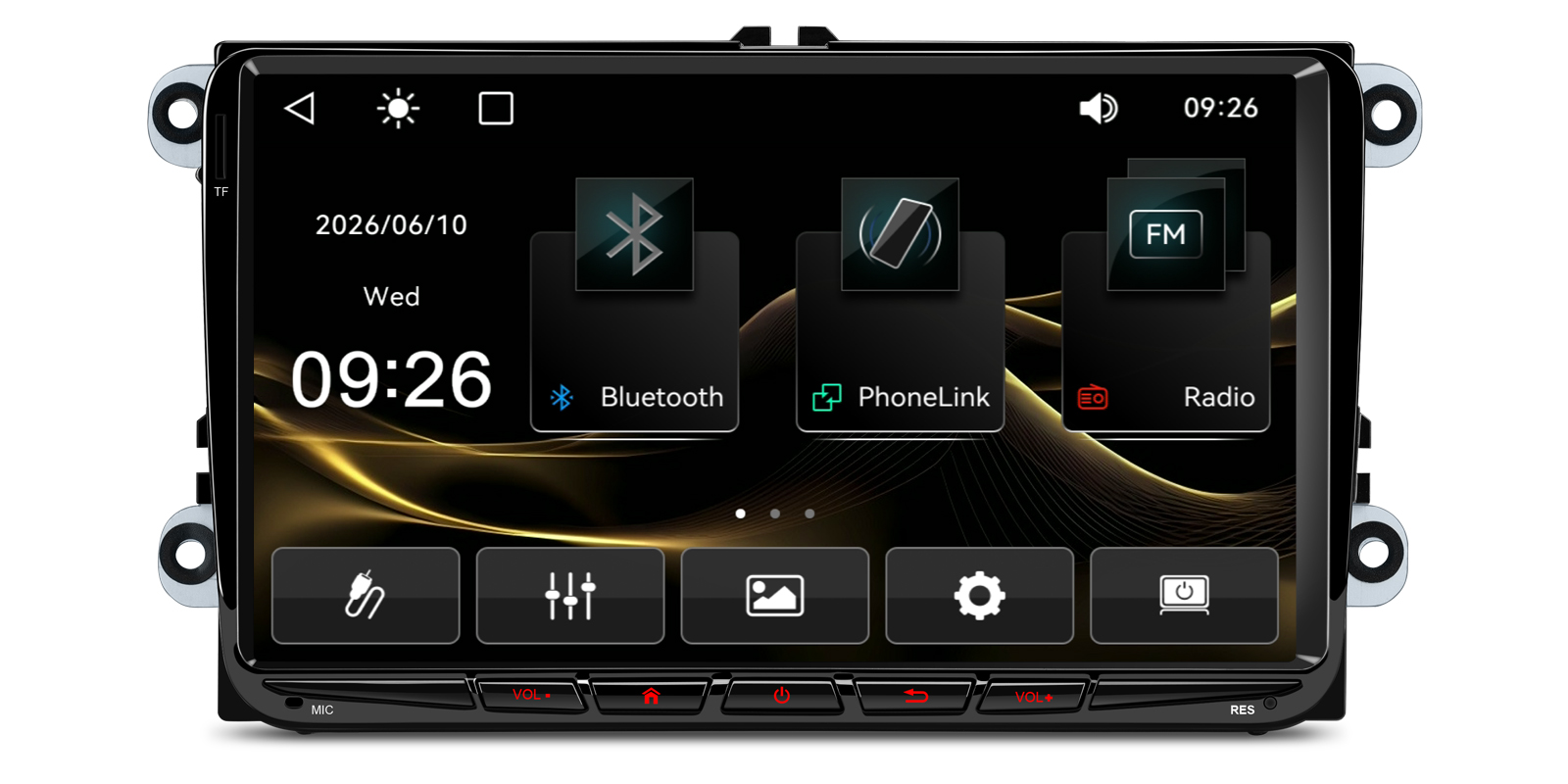

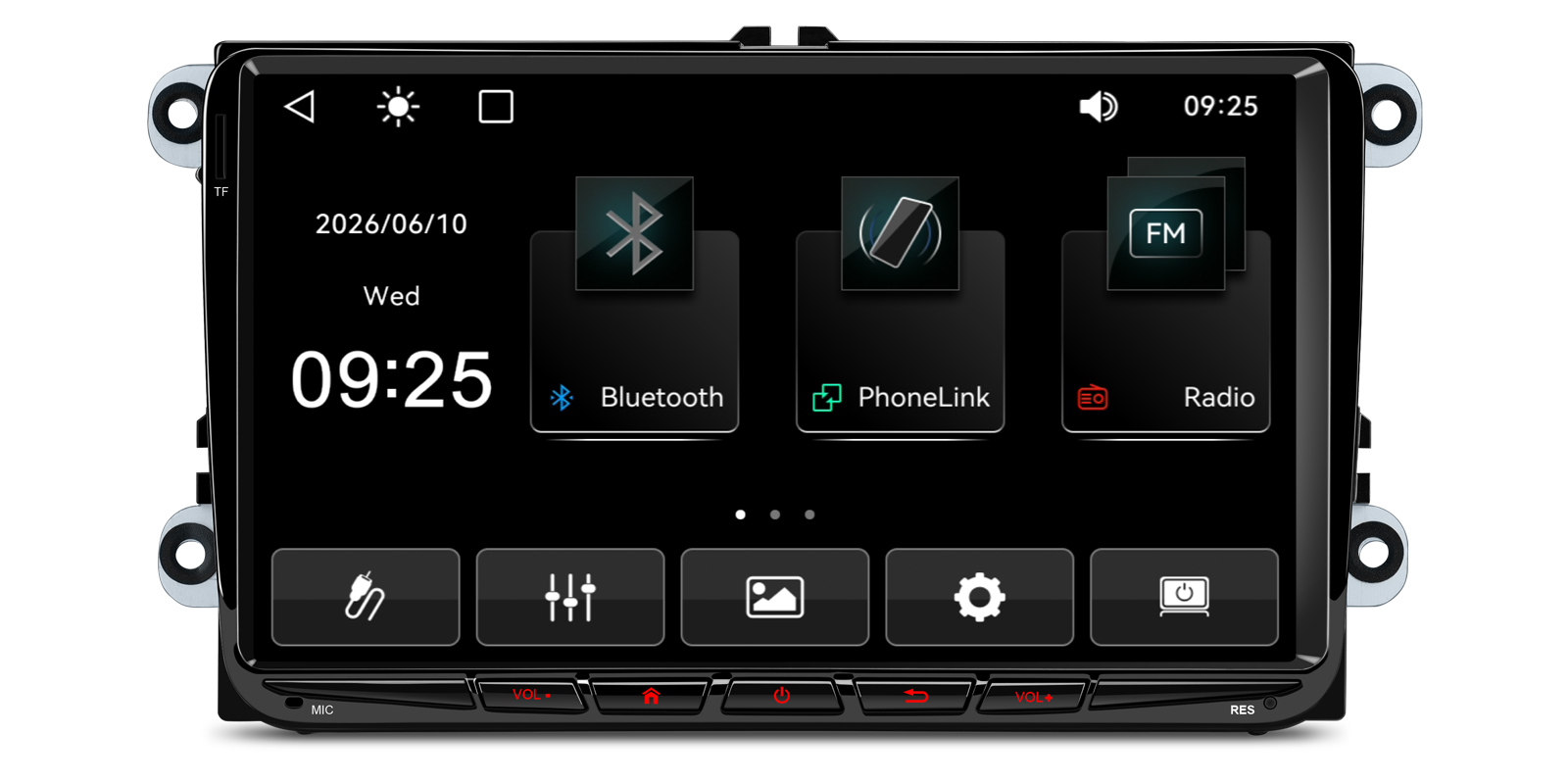

The XTRONS PL9MTVL is a 9 inch QLED car stereo for a long list of VW, Skoda and SEAT models, running Automotive Grade Linux. It starts in seconds, gives you wireless CarPlay and Android Auto, and keeps the steering wheel controls and car information display through CANbus.
Automotive Grade Linux gets the unit going quickly: a warm boot takes ≤1 second and a cold boot ≤3 seconds, so music and maps are ready by the time you've put your belt on.
Standby current is ≤5mA, which keeps the drain on the battery low while the car is parked.
The front has a piano finish with quiet tactile buttons and multi-colour button lighting.

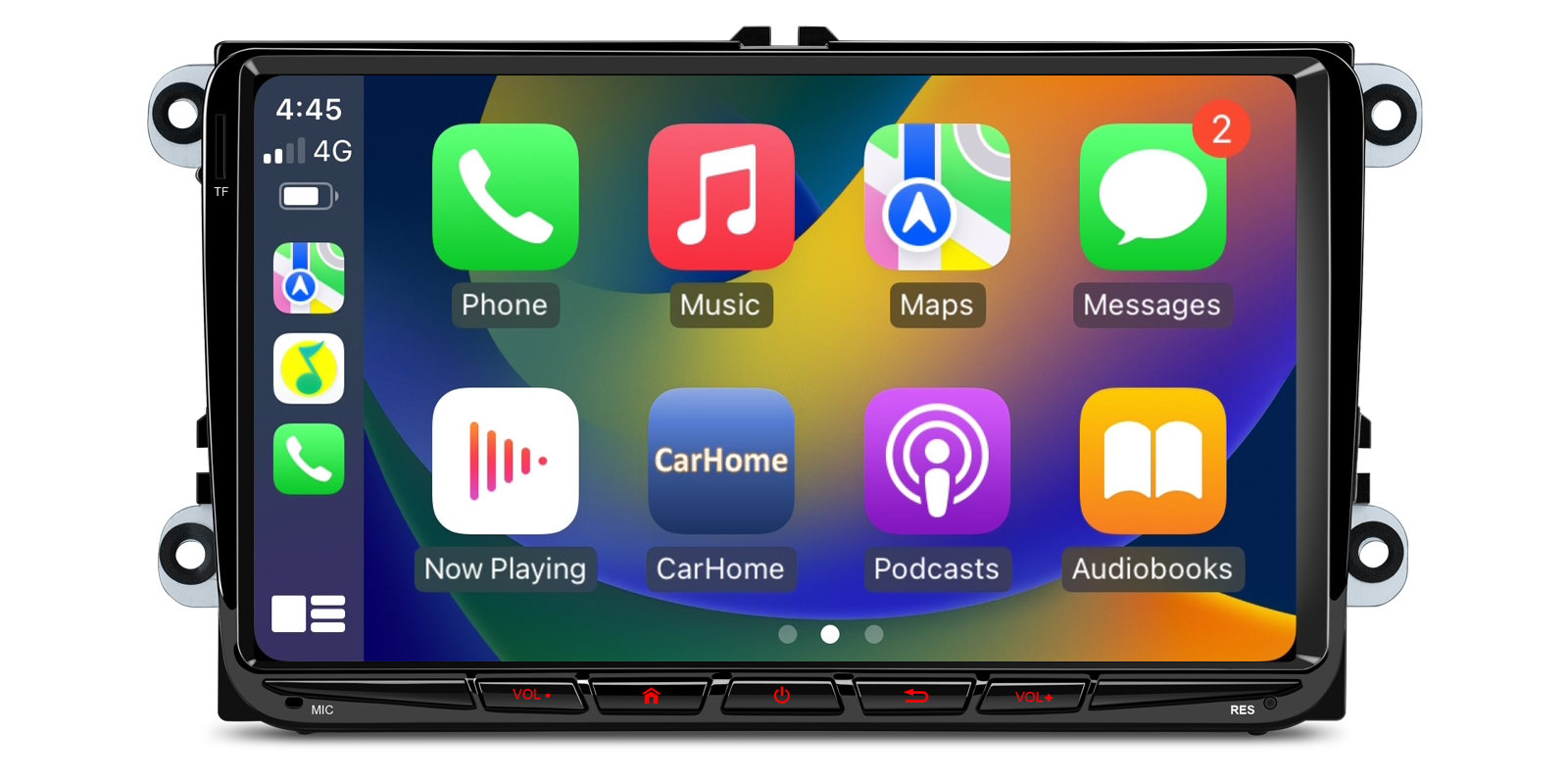

CarPlay connects to your iPhone without a cable, bringing maps, music, calls and messages to the 9 inch screen. Voice control means you can reply to a message or start a route without touching the screen. A wired connection is there too if you prefer it.

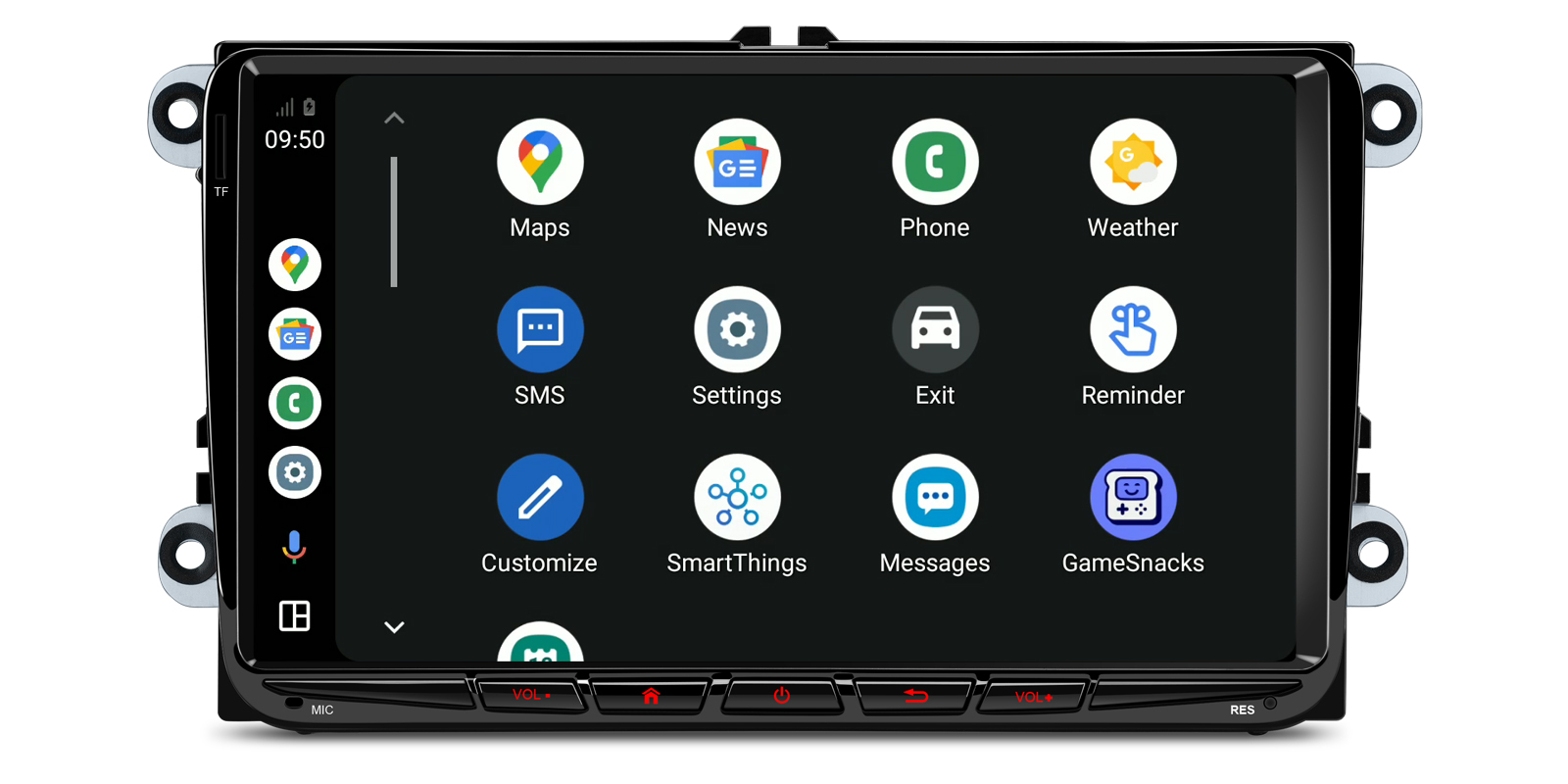

Android Auto runs wirelessly or by cable, with Google Maps, music and calls laid out for use on the move.

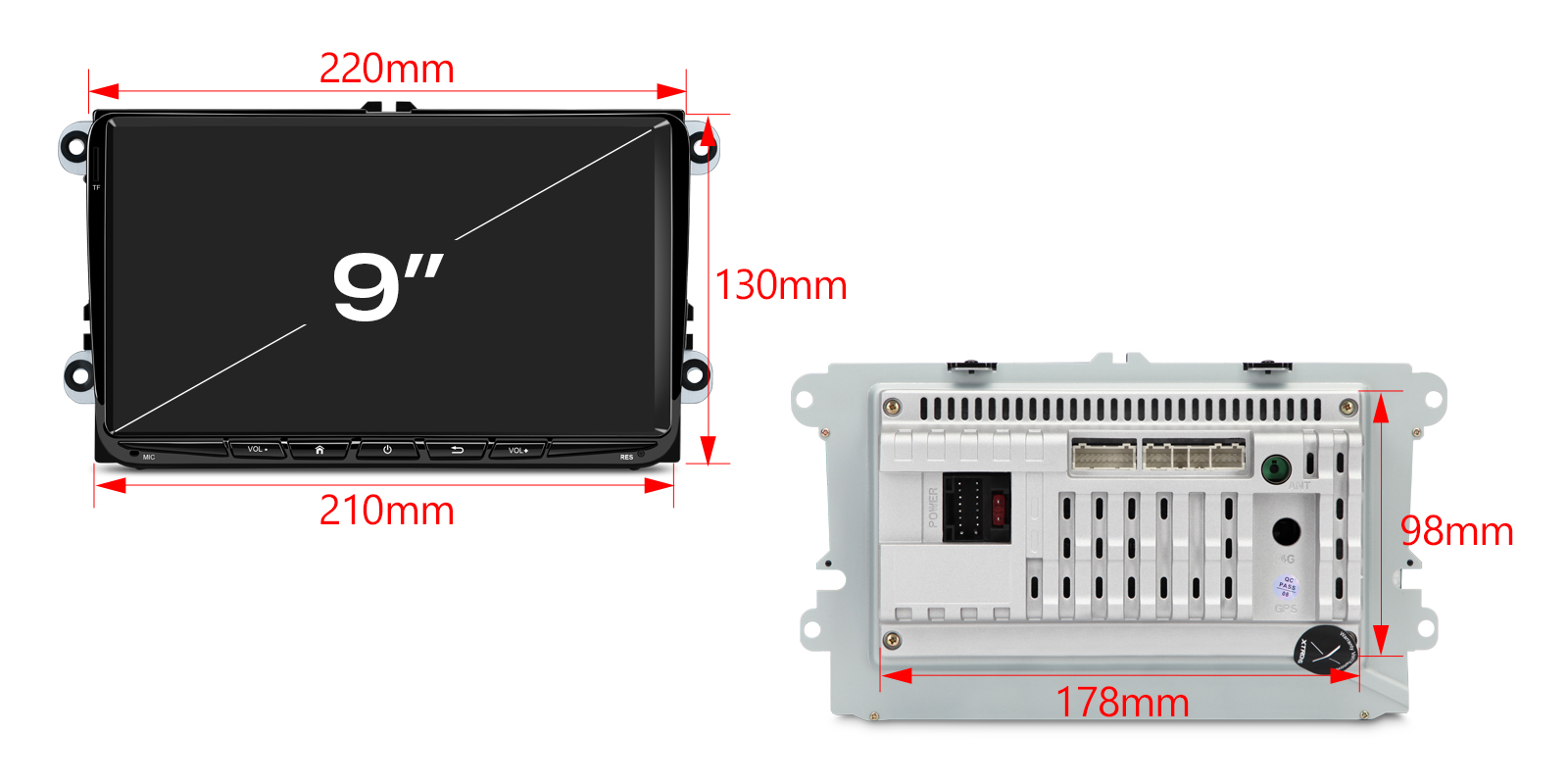

The 9 inch QLED screen gives strong colour at 1280×720, and the G+G touch glass is tough enough for daily use.
IPS technology keeps colours true from the side, so the passenger sees the same clear picture as the driver.

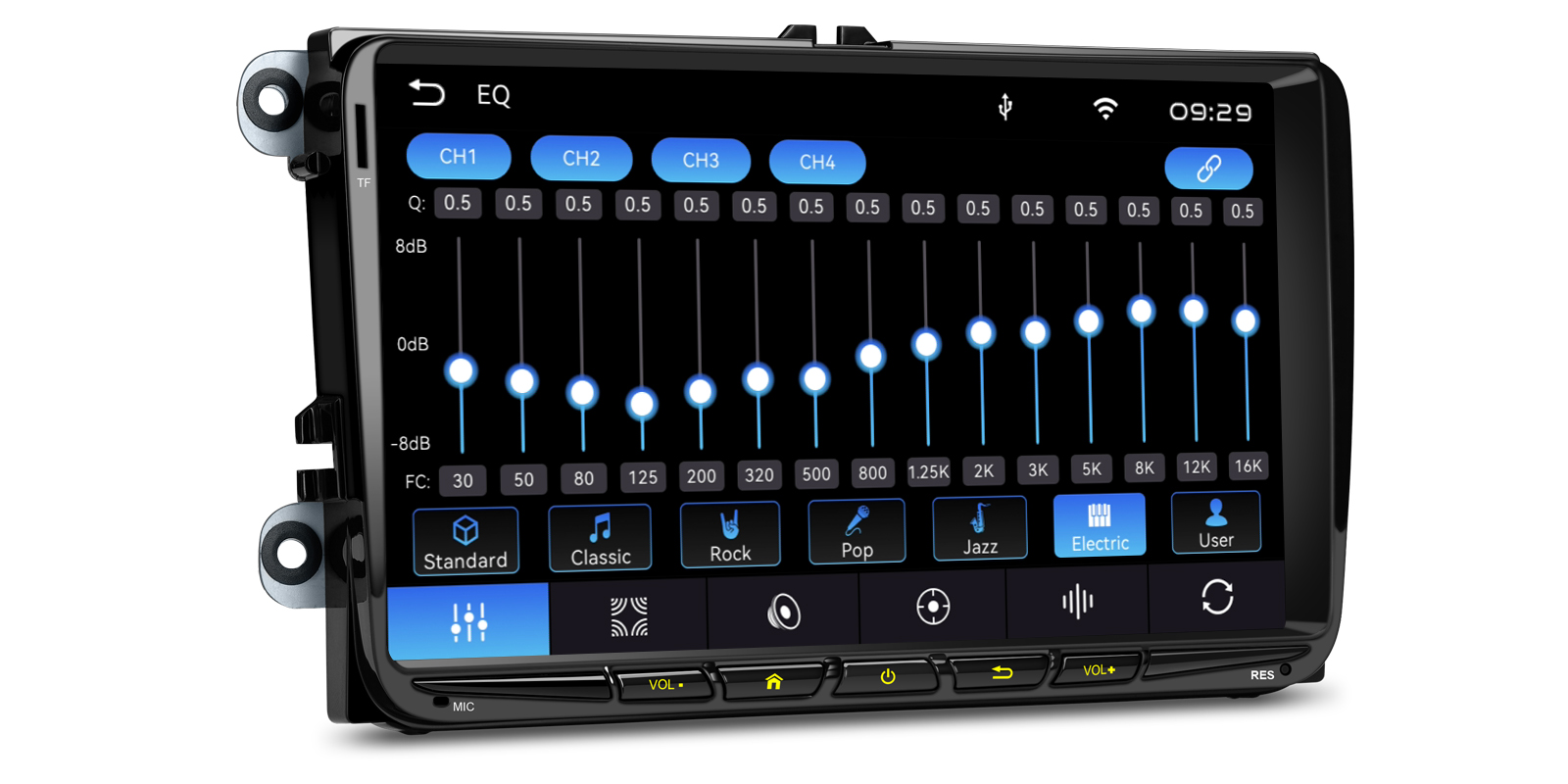

The built-in DSP lets you shape the sound, including crossover and equaliser settings, to suit your speakers. A 4x45W amplifier drives the car's speakers directly.
RCA preamp outputs (2V) let you add an external amplifier or subwoofer later. The RCA input and output also connect a digital TV box or a rear-seat monitor.
Bluetooth 5.0 streams music and handles hands-free calls from your phone.
Microphone support lets you speak to callers and use voice control without picking up the phone.

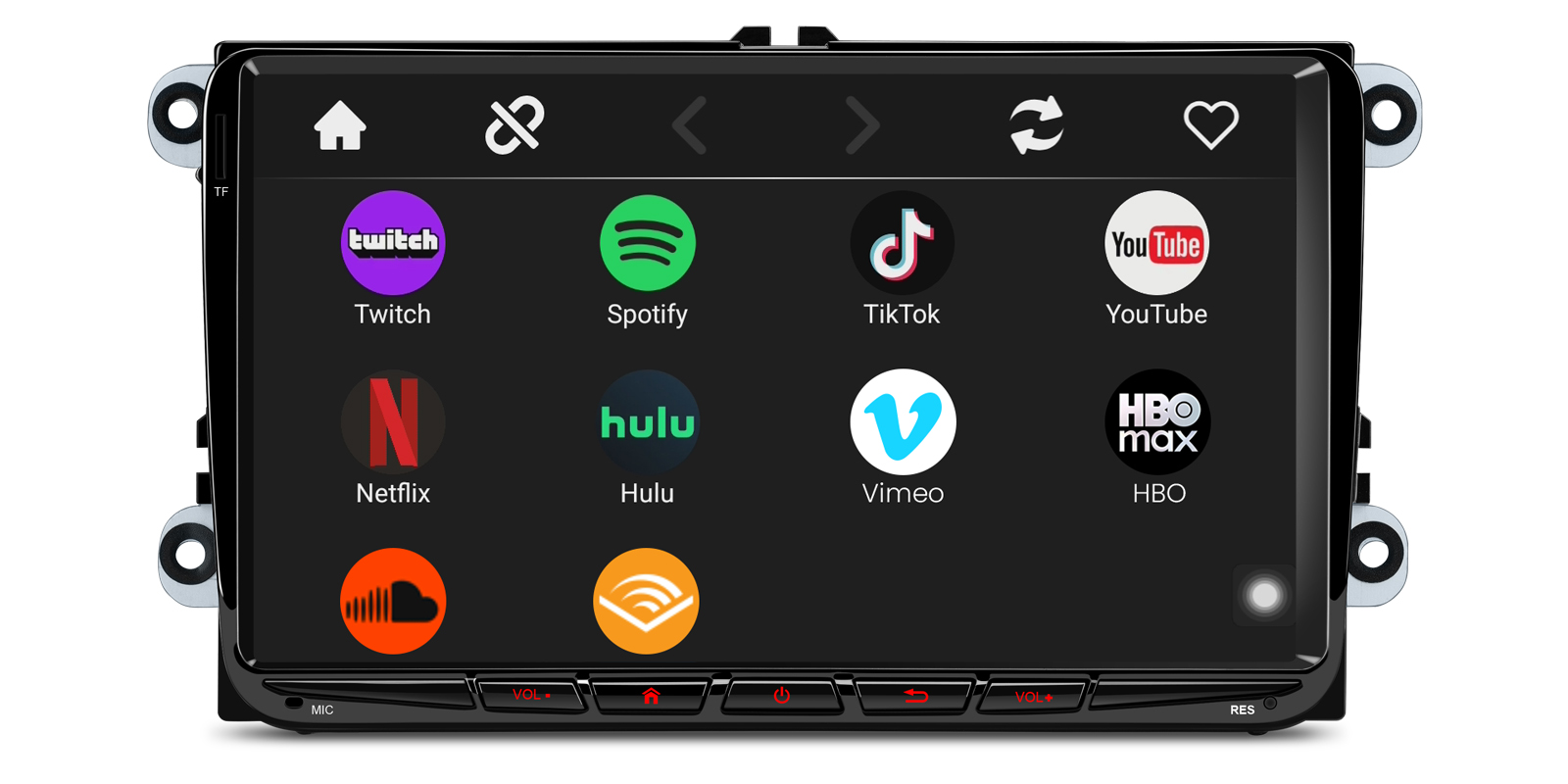

You can mirror your phone's screen wirelessly. With an Android phone, that also lets you play online video from mainstream entertainment apps on the head unit.
Two USB ports and an SD card slot let you play music and video from your own storage.
The unit supports AHD and CVBS reverse cameras. Select reverse and the camera picture appears straight away, with a wide angle and clear night vision. A camera cable is in the box.
The CANbus decoding keeps your steering wheel controls, original vehicle functions and information display working.

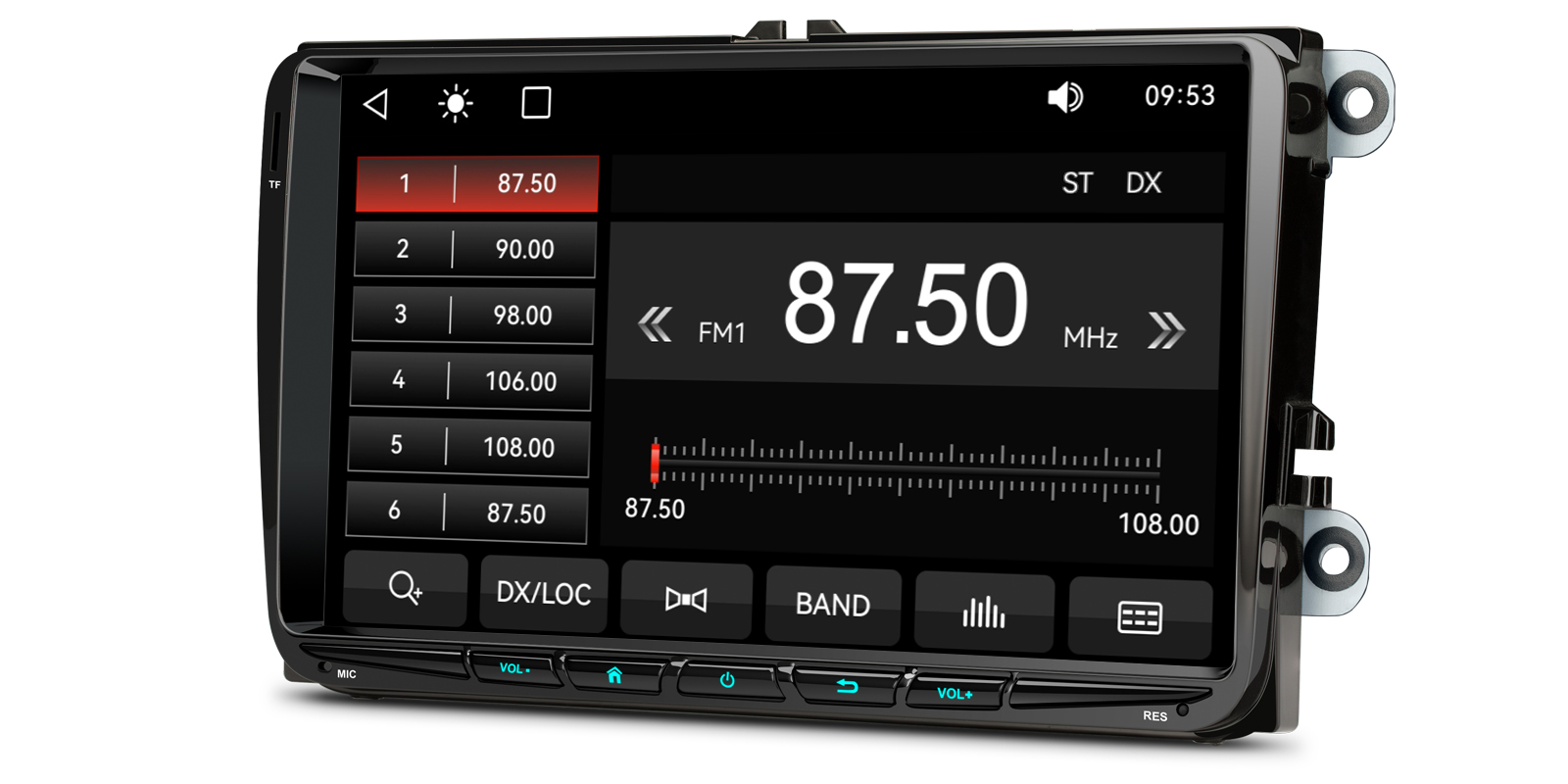

The SI4745 radio chip with RDS gives FM reception with station names on screen.

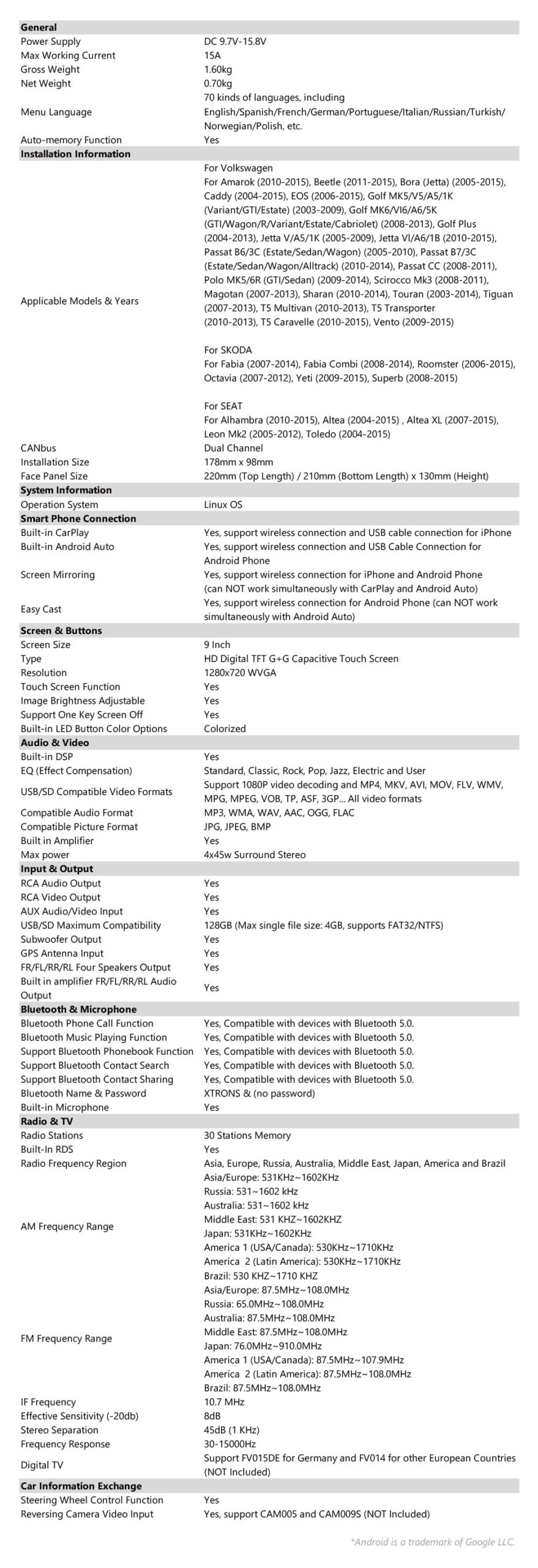

| Operating system | Automotive Grade Linux |
|---|---|
| Warm boot | Warm Boot in ≤1 second |
| Cold boot | Cold Boot in ≤3 seconds |
| Standby current | ≤5mA |
| Screen | 9-inch Premium QLED screen |
|---|---|
| Resolution | 1280×720 resolution |
| Touch | G+G touch glass |
| Amplifier | 4x45W amplifier |
|---|---|
| Radio chip | SI4745 radio chip with RDS |
| Preamp outputs | RCA preamp outputs (2V) |
| Bluetooth | Bluetooth 5.0 |
|---|---|
| Media ports | an SD slot and two USB ports |
| Camera | AHD and CVBS reverse cameras |

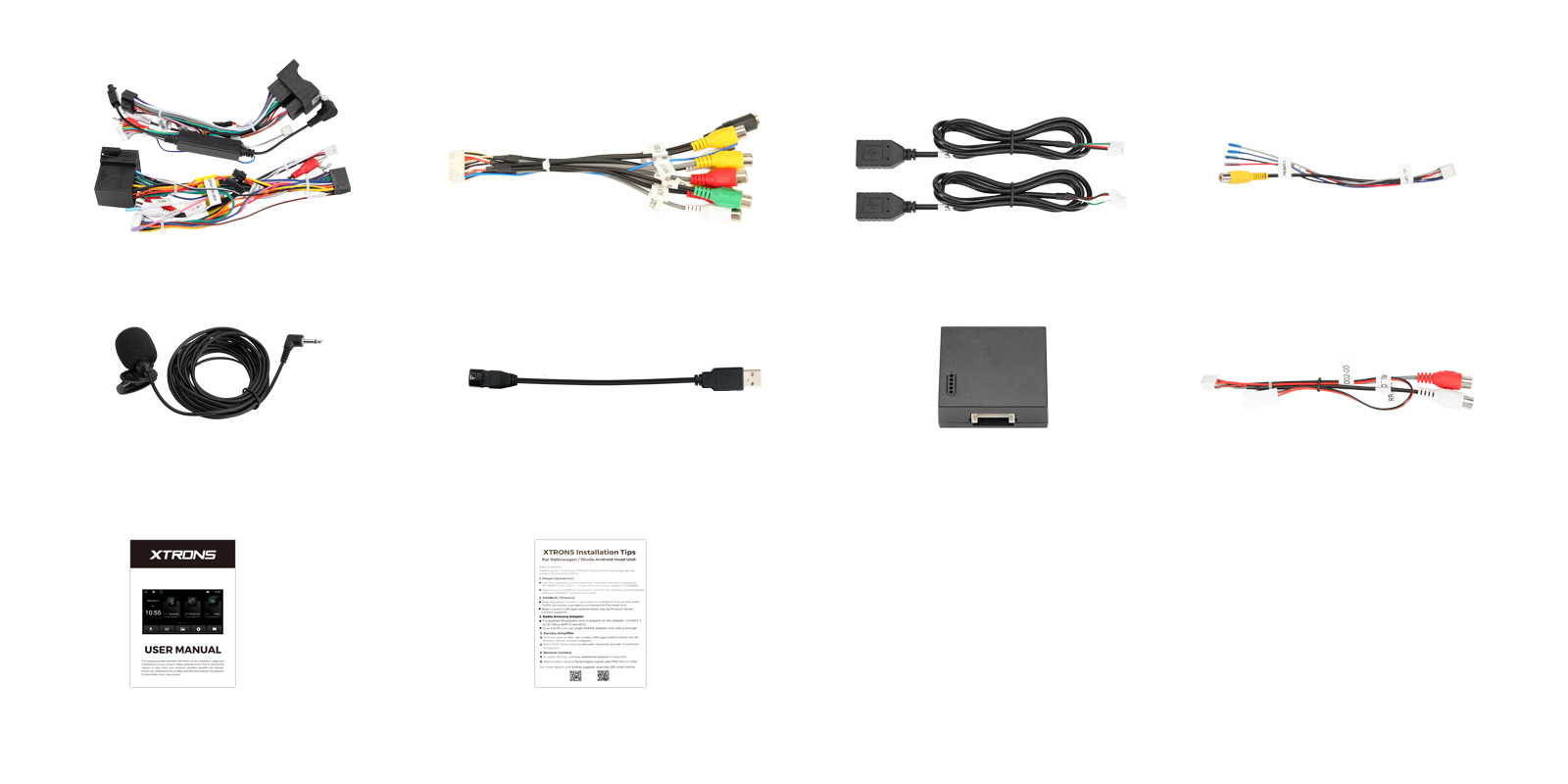

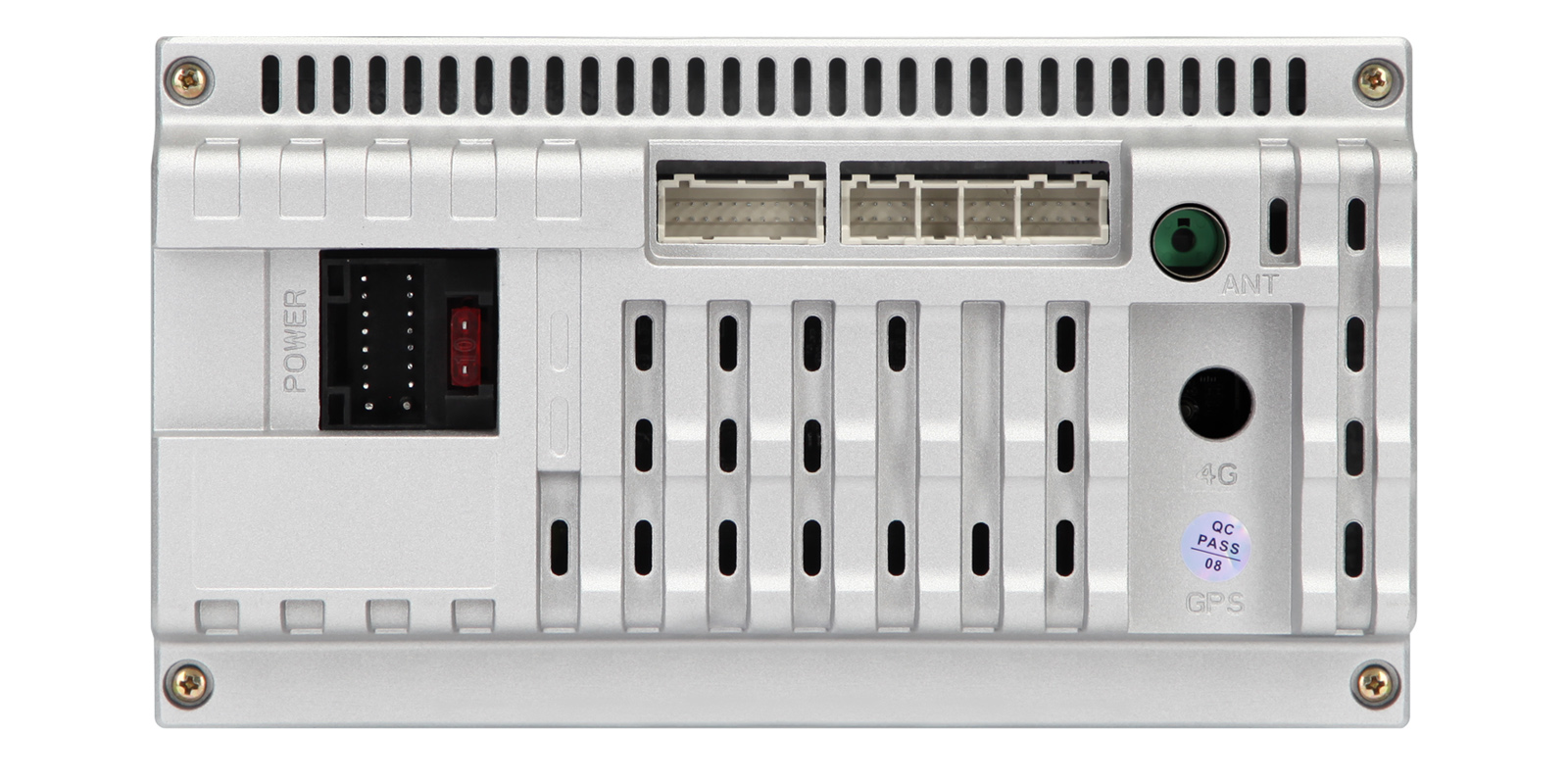

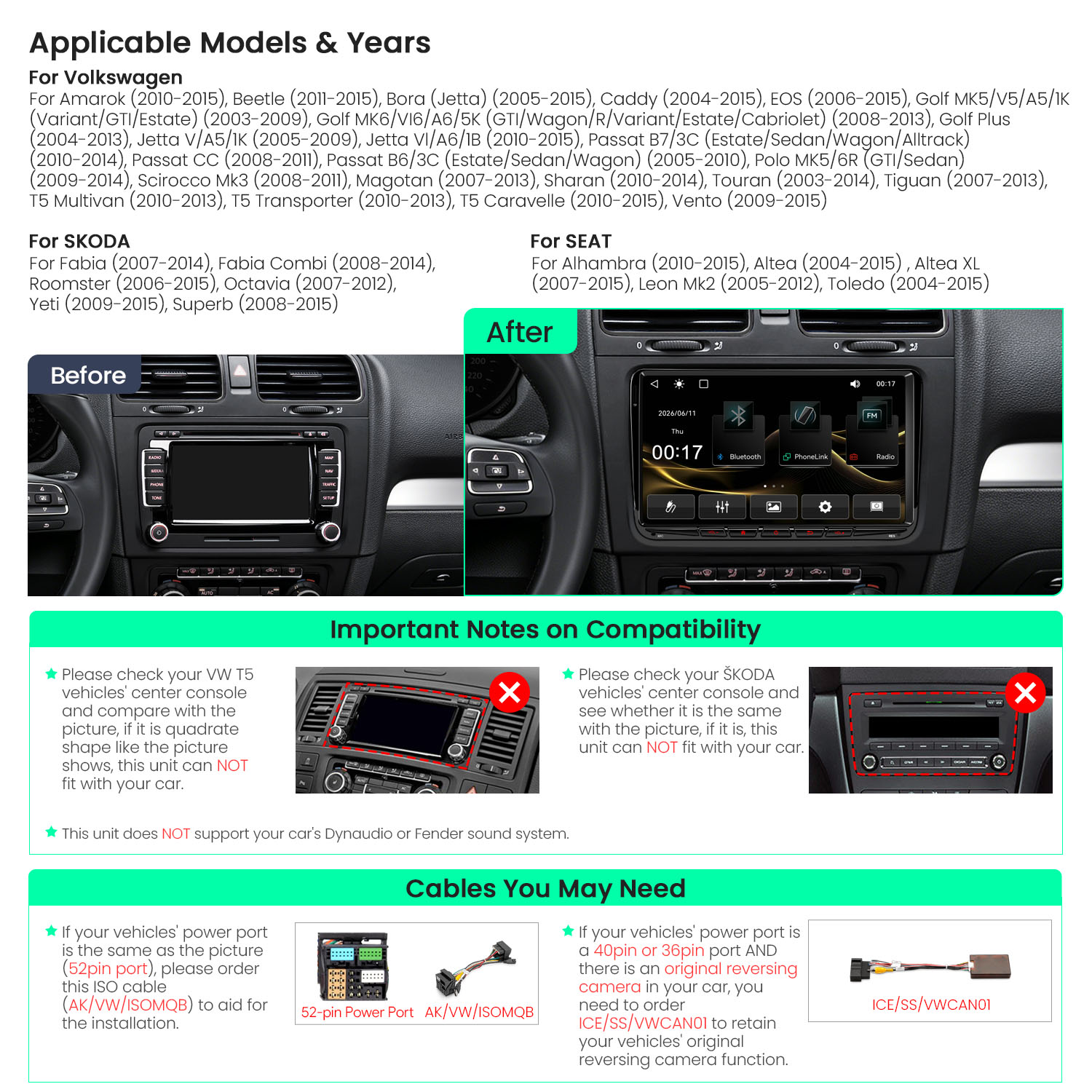

The unit fits with the ISO wiring harness, CANbus box, radio adapter cable and camera cable in the box. If your car has a 40pin or 36pin power port and an original reversing camera, you'll need the ICE/SS/VWCAN01 ISO cable to keep that camera working. Compare a T5's centre console with the product photo: a square-shaped console won't take this unit. Skoda owners should check the unit's shape against their dashboard.
It's made for the models in the compatibility list. It doesn't fit MQB-based models with a 52-pin power port, and it doesn't support Dynaudio or Fender sound systems.
Yes, with the ICE/SS/VWCAN01 ISO cable, if your car has a 40pin or 36pin power port and a factory camera.
Yes. RCA preamp outputs (2V) connect an external amplifier or subwoofer, and the DSP can manage the crossover and equaliser.
Standby current is ≤5mA, which is very low.
No, this unit doesn't have a DVD drive. It plays media from USB and SD.
Reviews
Bought this product? Sign in to write a review.

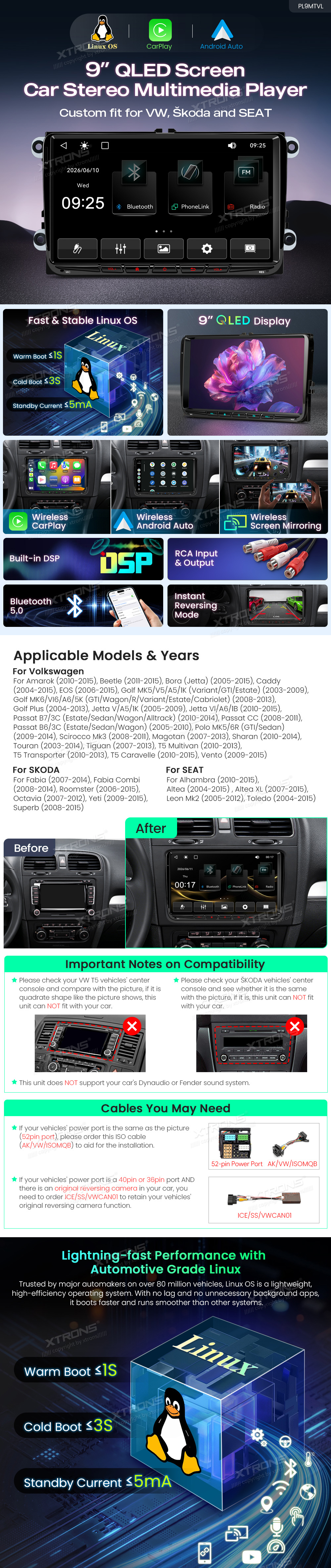

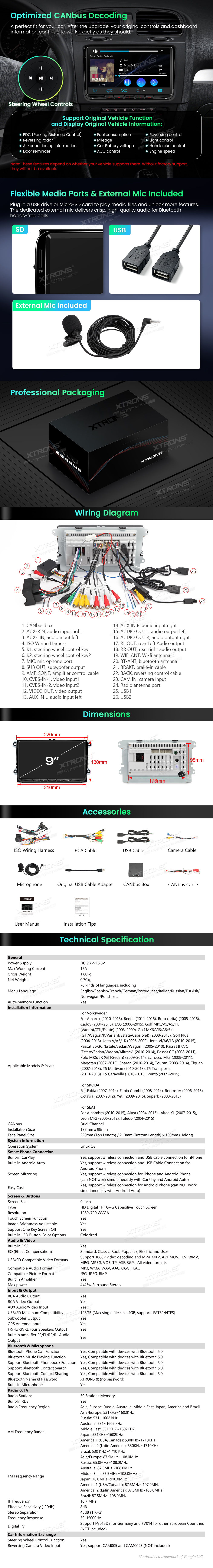

XTRONS's own pages for this product, as the manufacturer publishes them. Open any of them at full size to zoom in.
