VW, Skoda and SEAT 8 inch Android 15 Head Unit with Wireless CarPlay, Android Auto and 4G | UAH85MTVL
SKU: UAH85MTVL
£309.00
Check if this fits your car
1
Key specifications
- Operating system
- Android 15
- Processor
- ASR8662 Octa-Core CPU
- Graphics
- Arm Mali G310 GPU
- RAM
- 6 GB DDR4 RAM
- Storage
- 128GB UFS 2.2 ROM
- Boot time
- 50 seconds cold start, 1 second warm start

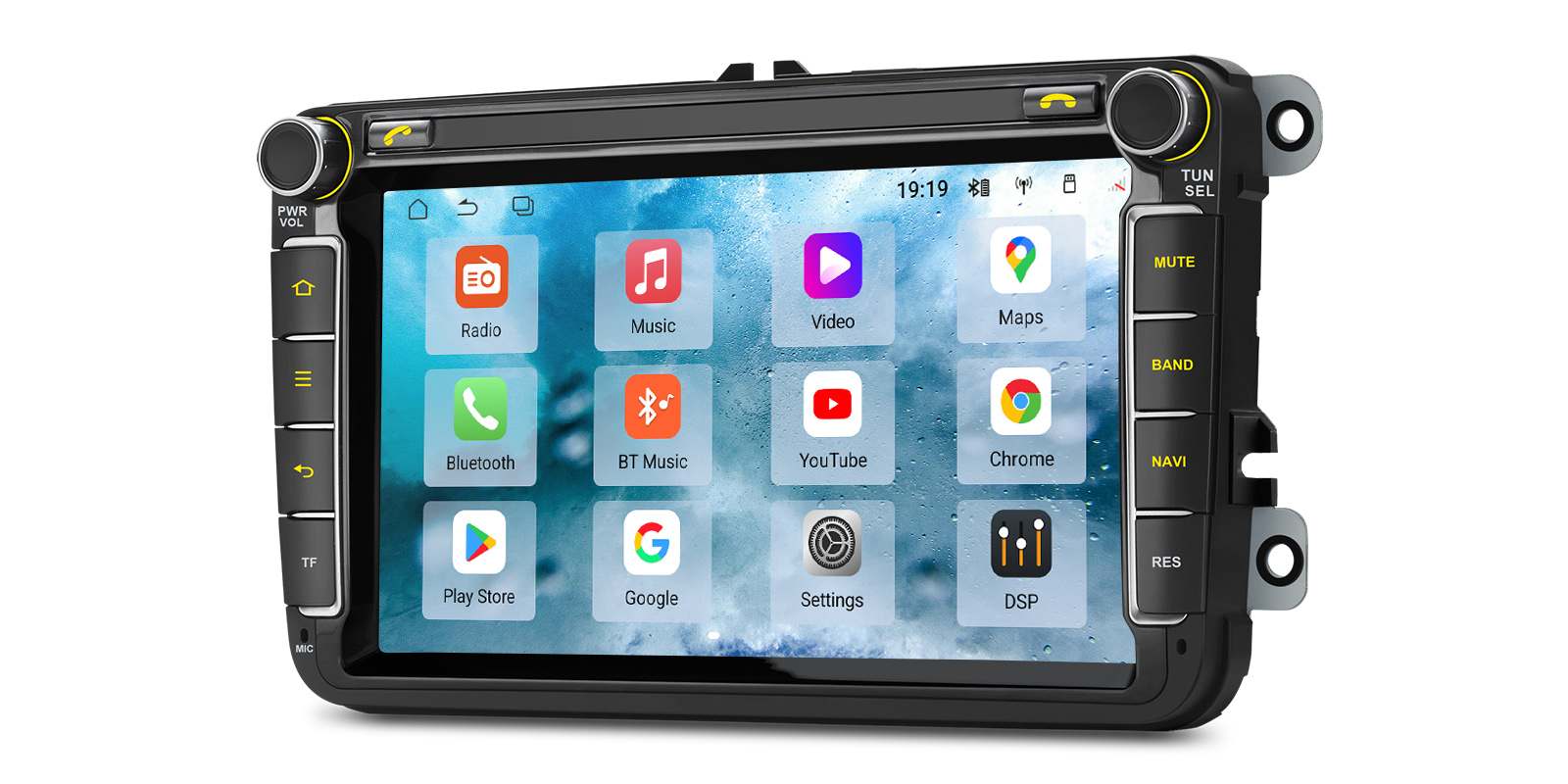

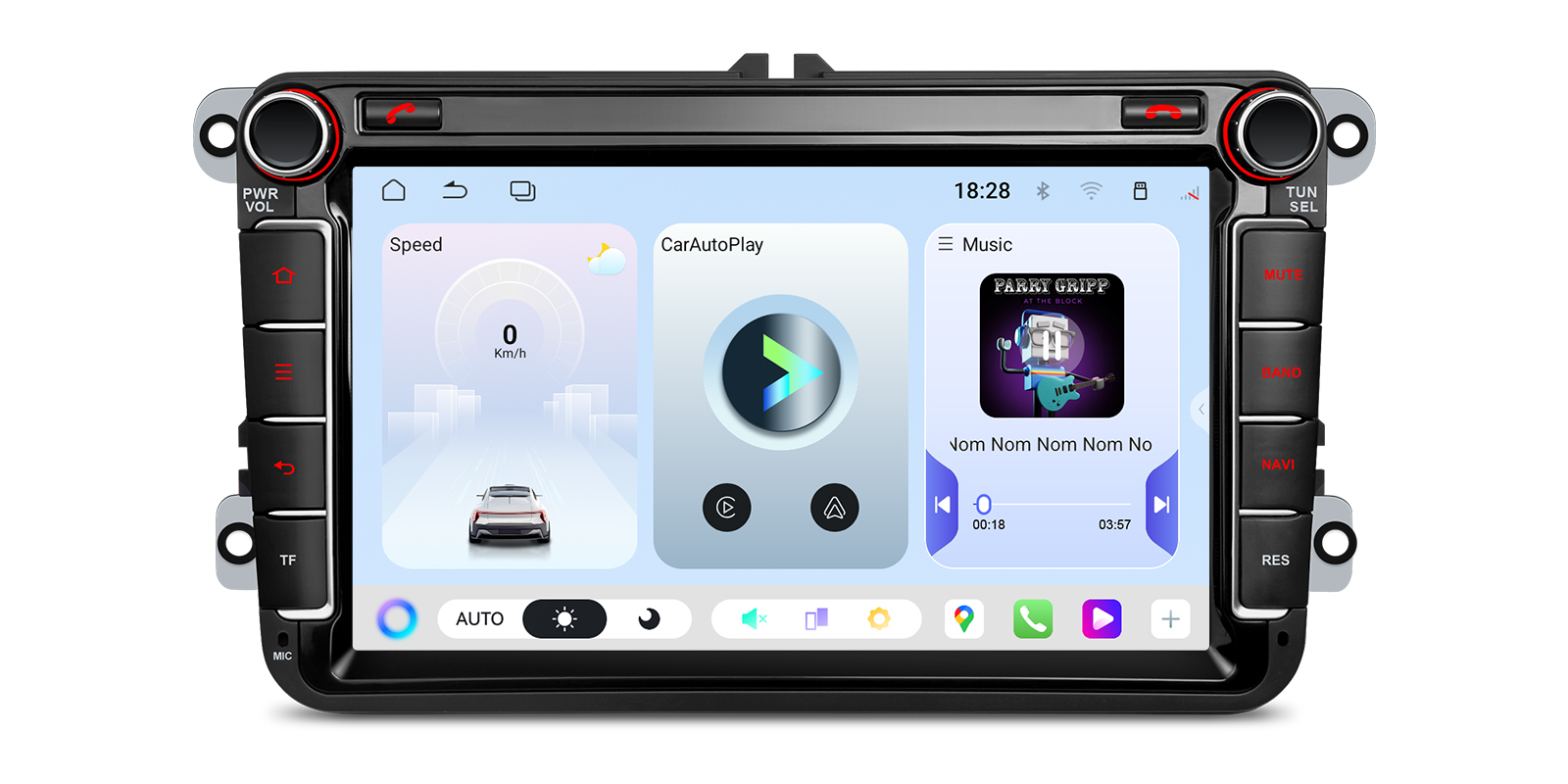

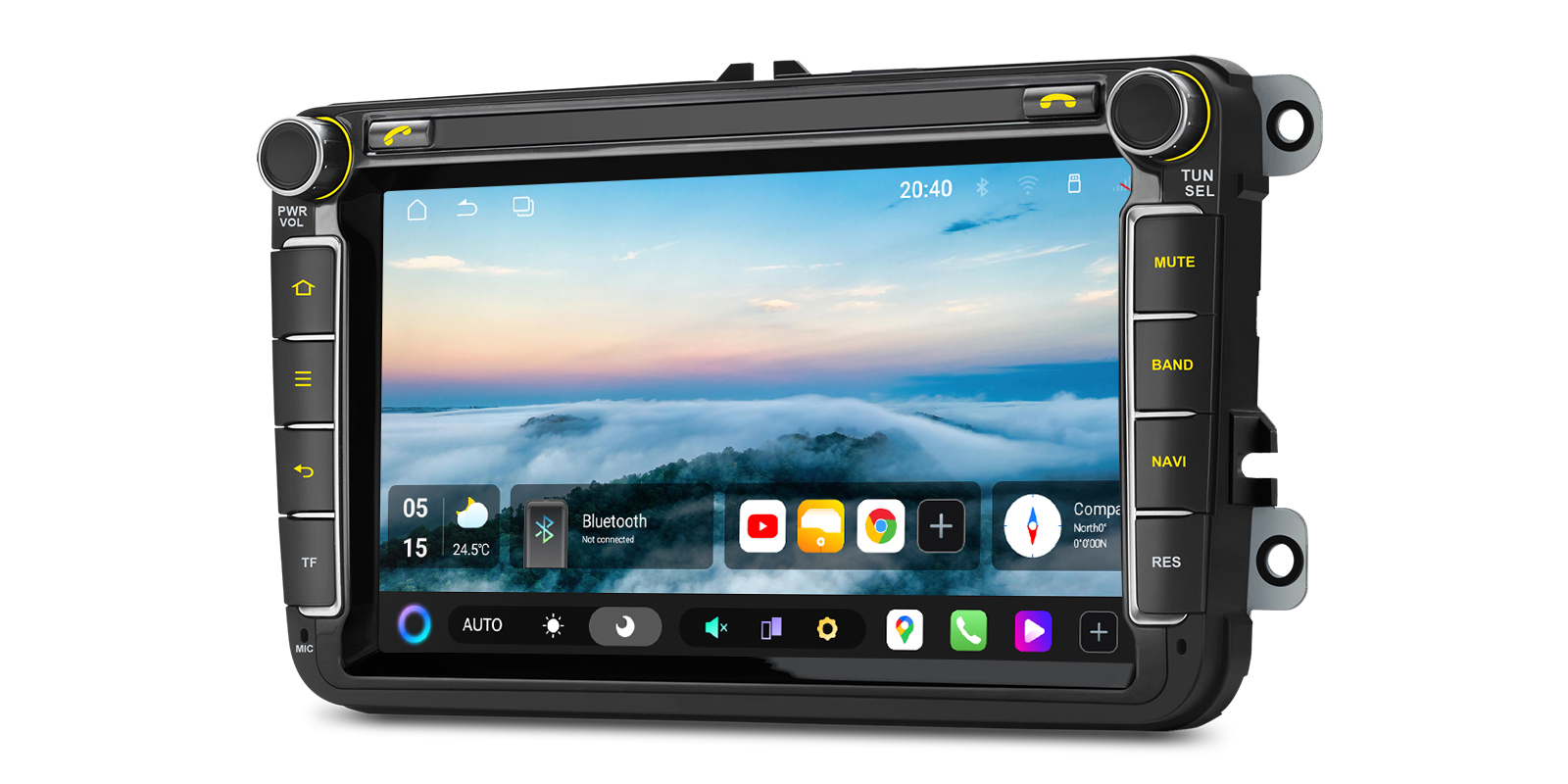

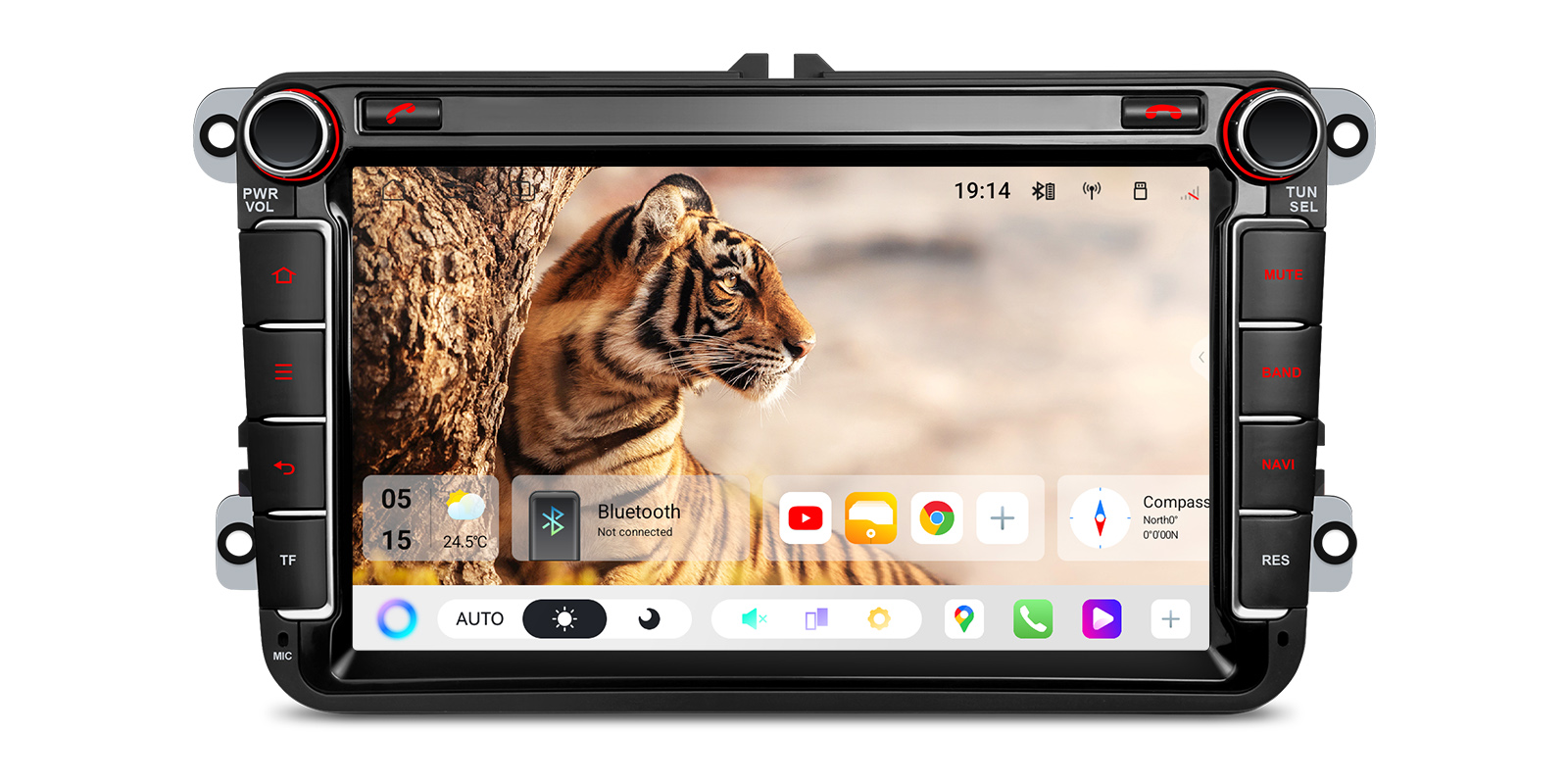

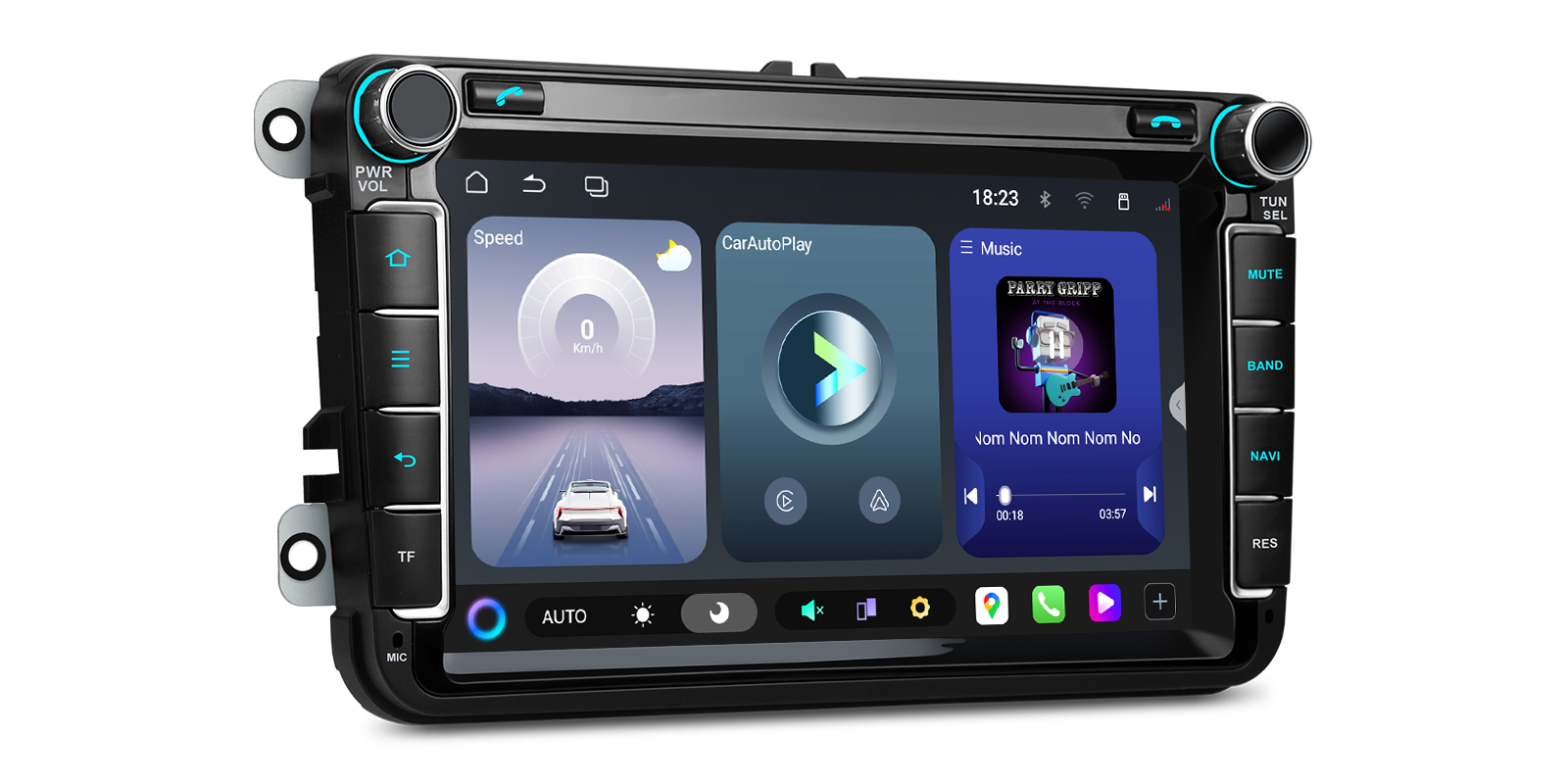

An 8 inch Android 15 head unit made to replace the factory stereo in a long list of Volkswagen, Skoda and SEAT models. It has wireless CarPlay and Android Auto, a built-in 4G LTE module, a QLED IPS screen and a DSP.
- Custom fit for VW, Skoda and SEAT, with a wiring harness and mounting kit so there's no cutting or splicing
- Wireless and wired Apple CarPlay and Android Auto
- Built-in 4G LTE module that takes a nano SIM

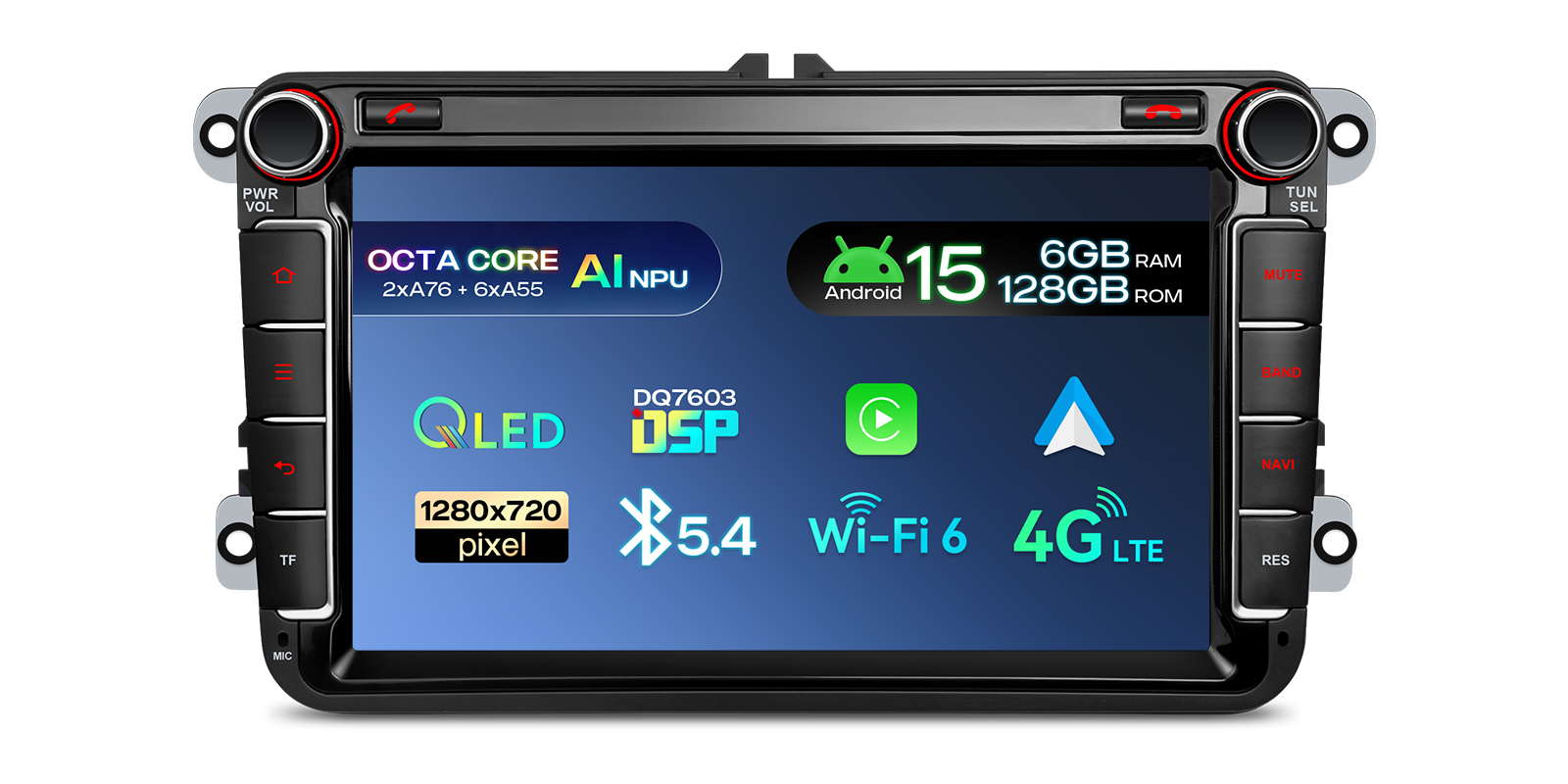

- Android 15 on an ASR8662 octa-core CPU with 6 GB DDR4 RAM and 128GB UFS 2.2 storage
- 8 inch QLED IPS screen at 1280×720
- DSP DQ7603 and a 4x45W amplifier, plus optical, coaxial and RCA outputs

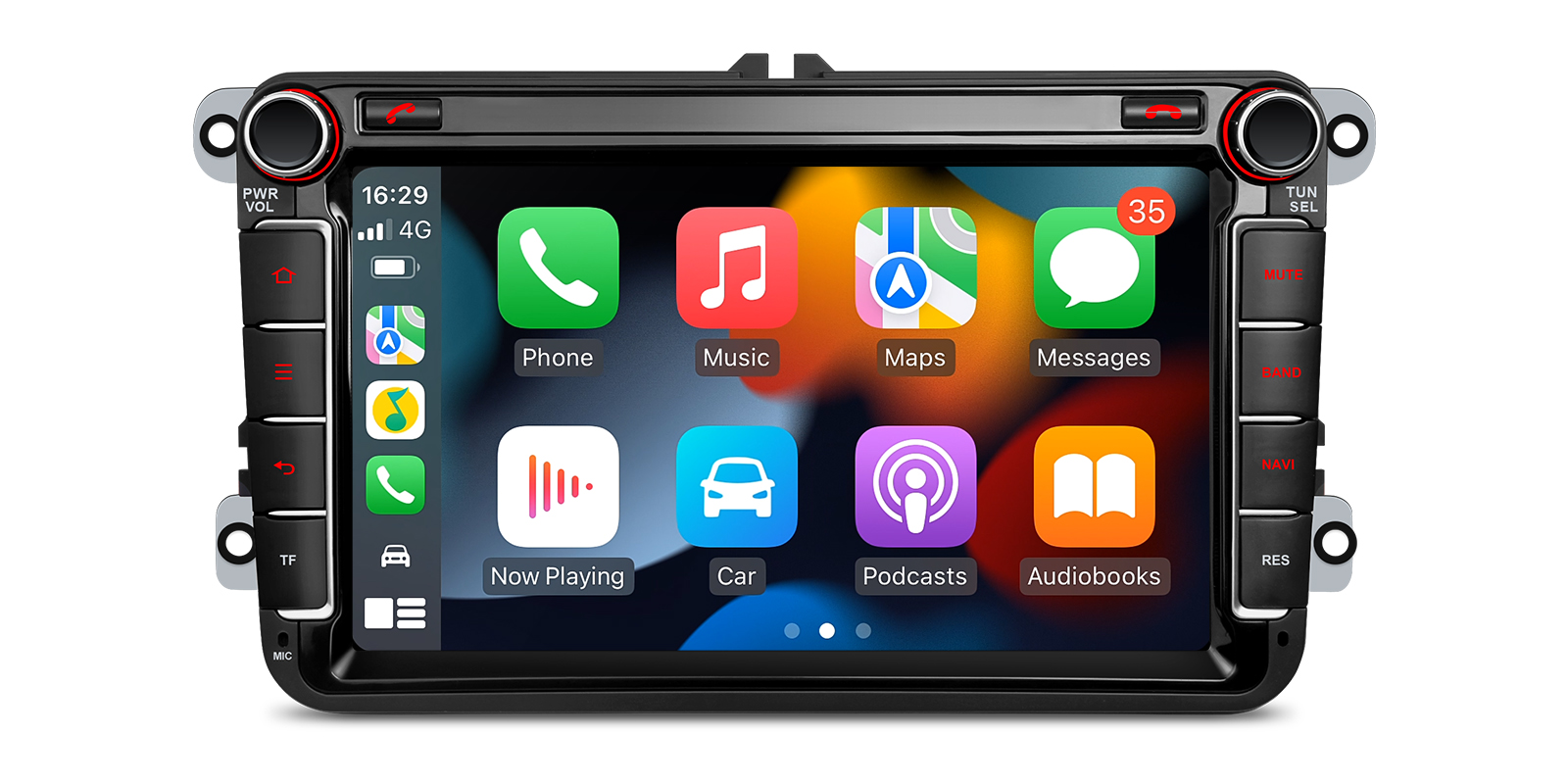

Wireless Apple CarPlay
Your iPhone links to the stereo without a cable, so maps, calls and music are on the dash while the phone stays in your pocket. A wired connection over USB works as well.

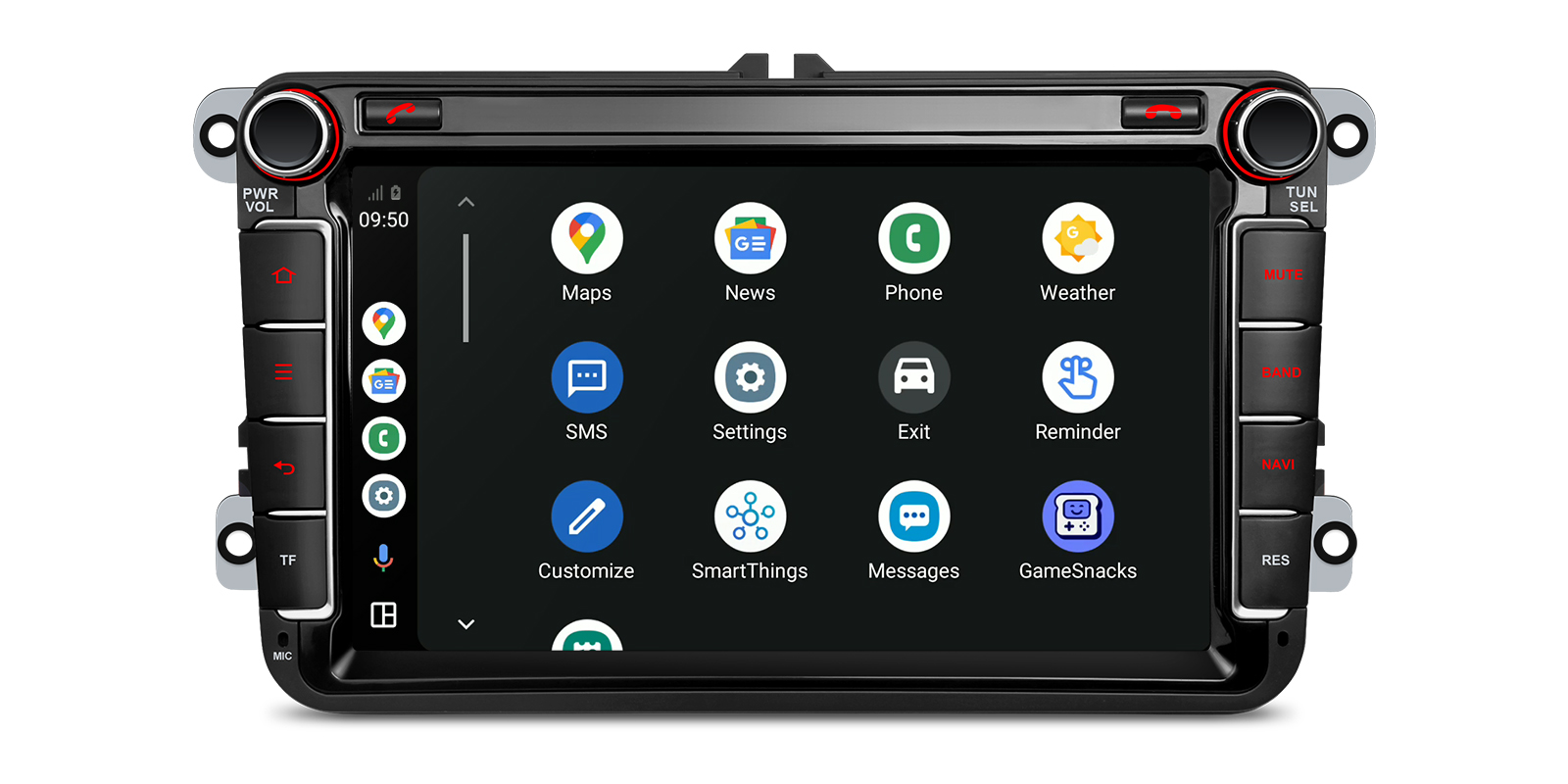

Android Auto
Android phones connect to Android Auto wirelessly or by USB. Navigation, calls and music appear on the 8 inch screen with controls sized for use on the move.
Built-in 4G LTE
Fit a standard nano SIM card and the stereo has its own mobile internet for maps, streaming and apps, without a hotspot from your phone.
The module supports 99% of carriers worldwide. Check with your network that your SIM works in this kind of device.
Dual band Wi-Fi
Wi-Fi runs on 2.4GHz and 5GHz. Connect to your home network on the drive to download updates and maps, or use a phone hotspot on the road.
Android 15 with plenty of memory
Android 15 runs on an ASR8662 octa-core CPU with an Arm Mali G310 GPU. 6 GB of DDR4 RAM and 128GB of UFS 2.2 storage give you room for apps and offline maps, and keep switching between them quick.
A warm start takes 1 second and a cold start 50 seconds. A cooling system keeps performance steady on long journeys.
8 inch QLED screen
The 8 inch Grade-A QLED screen shows 1280×720 with rich colour, so maps and album art are clear at a glance.
IPS viewing angles
It's an IPS panel with wide viewing angles, so the passenger sees the same clear picture as the driver.
DSP sound tuning
The built-in DSP DQ7603 lets you adjust the sound to suit the cabin and your speakers.
The STMicroelectronics TCB001HQ amplifier gives 4x45W to the speakers.

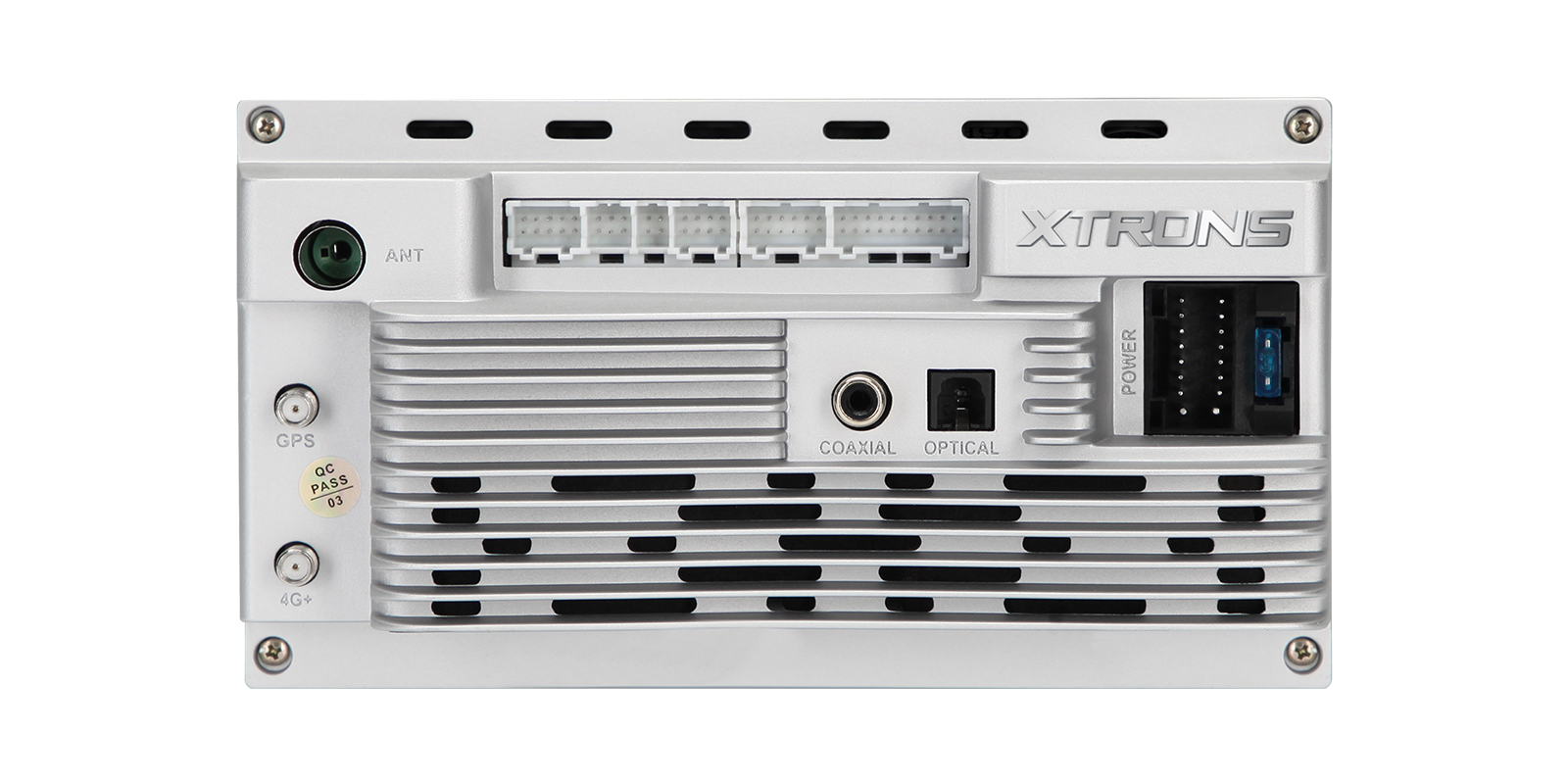

Optical, coaxial and RCA outputs
Optical, coaxial and RCA audio outputs let you add an external amplifier or sound processor later.
DAB+ ready radio

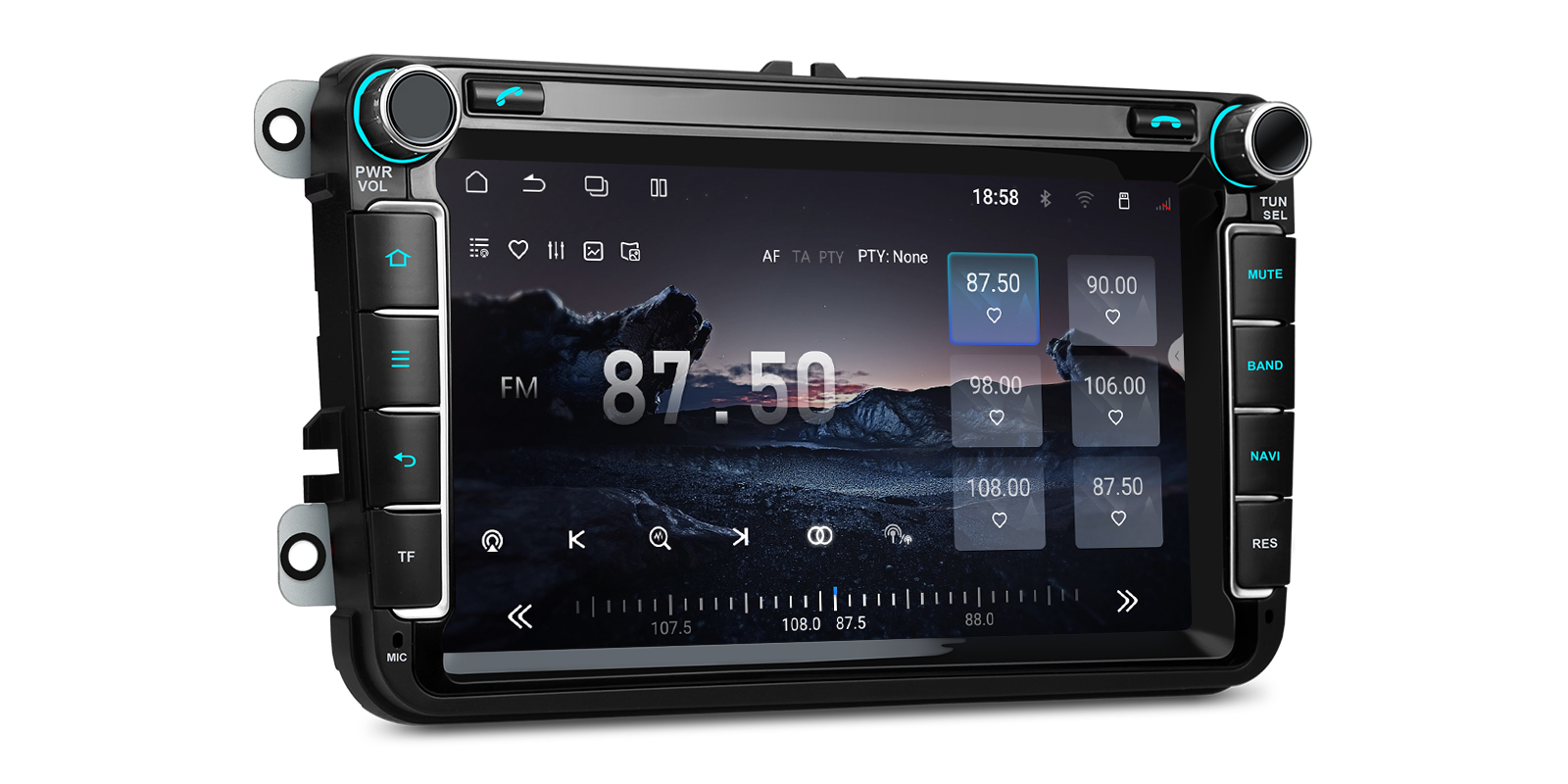

The RDS-FM/AM tuner is built in. The unit is DAB+ ready, and digital radio needs an external DAB tuner.
Screen mirroring
Screen mirroring shows your phone's display on the stereo, useful for apps that CarPlay and Android Auto don't support.
Bluetooth 5.4
Bluetooth 5.4 is there for hands-free calls and music streaming, and a microphone is included.
AHD reversing camera support
It supports 720P/1080P AHD cameras, with the reversing picture shown as soon as you shift into reverse.
If your car has a 40pin/36pin power port and a factory reversing camera, you'll need the ICE/SS/VWCAN01 ISO cable to keep that camera working.
Works with

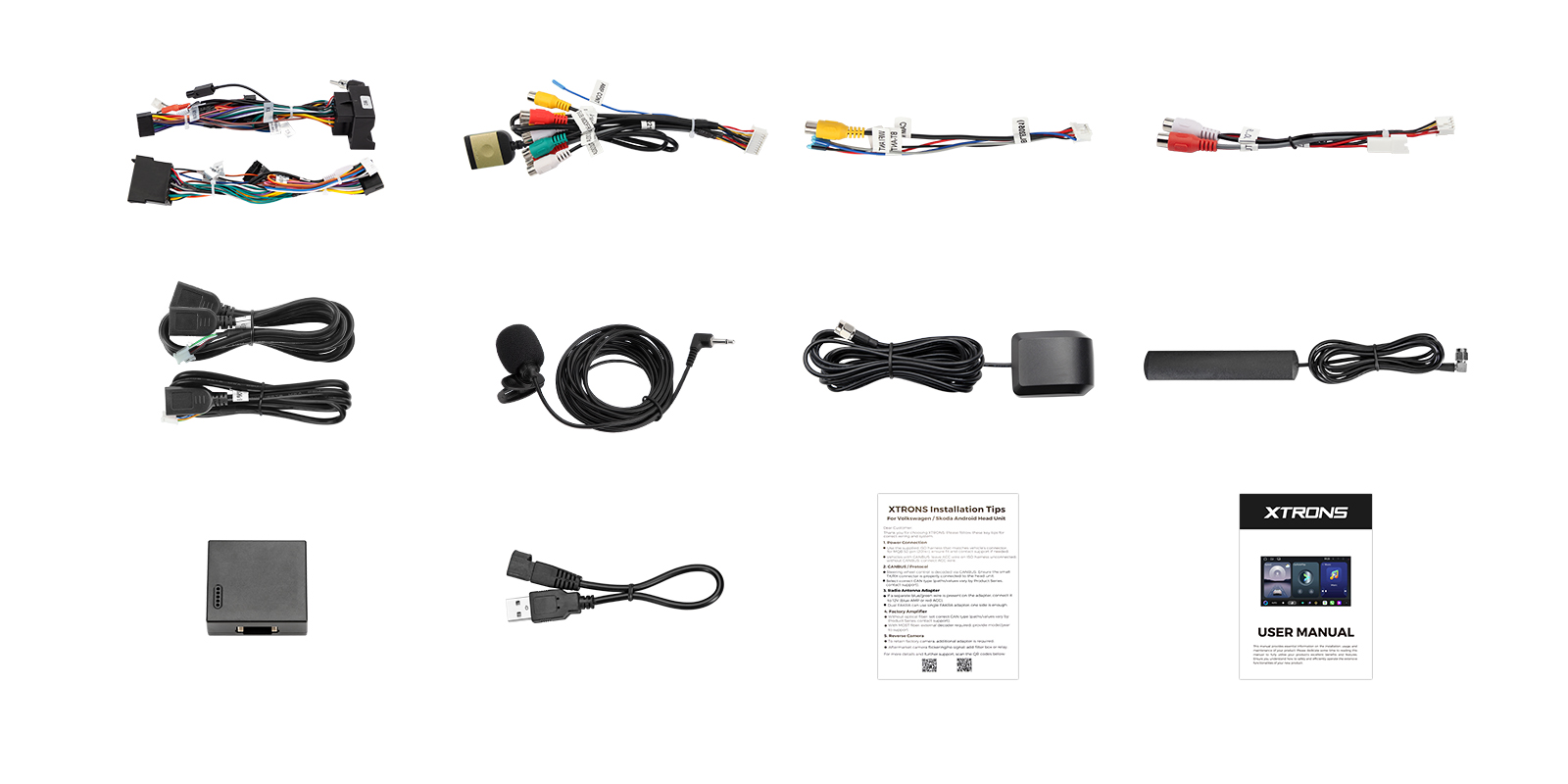

What's in the box
- 1 x 4G Antenna
- 1 x Camera Cable
- 1 x CANbus Box
- 1 x CANbus Cable
- 1 x GPS Antenna
- 1 x ISO Wiring Harness
- 1 x Microphone
- 1 x Original USB Adapter Cable
- 1 x RCA Cable
- 1 x USB Cable
- 1 x User Manual
- 1x Installation Tips

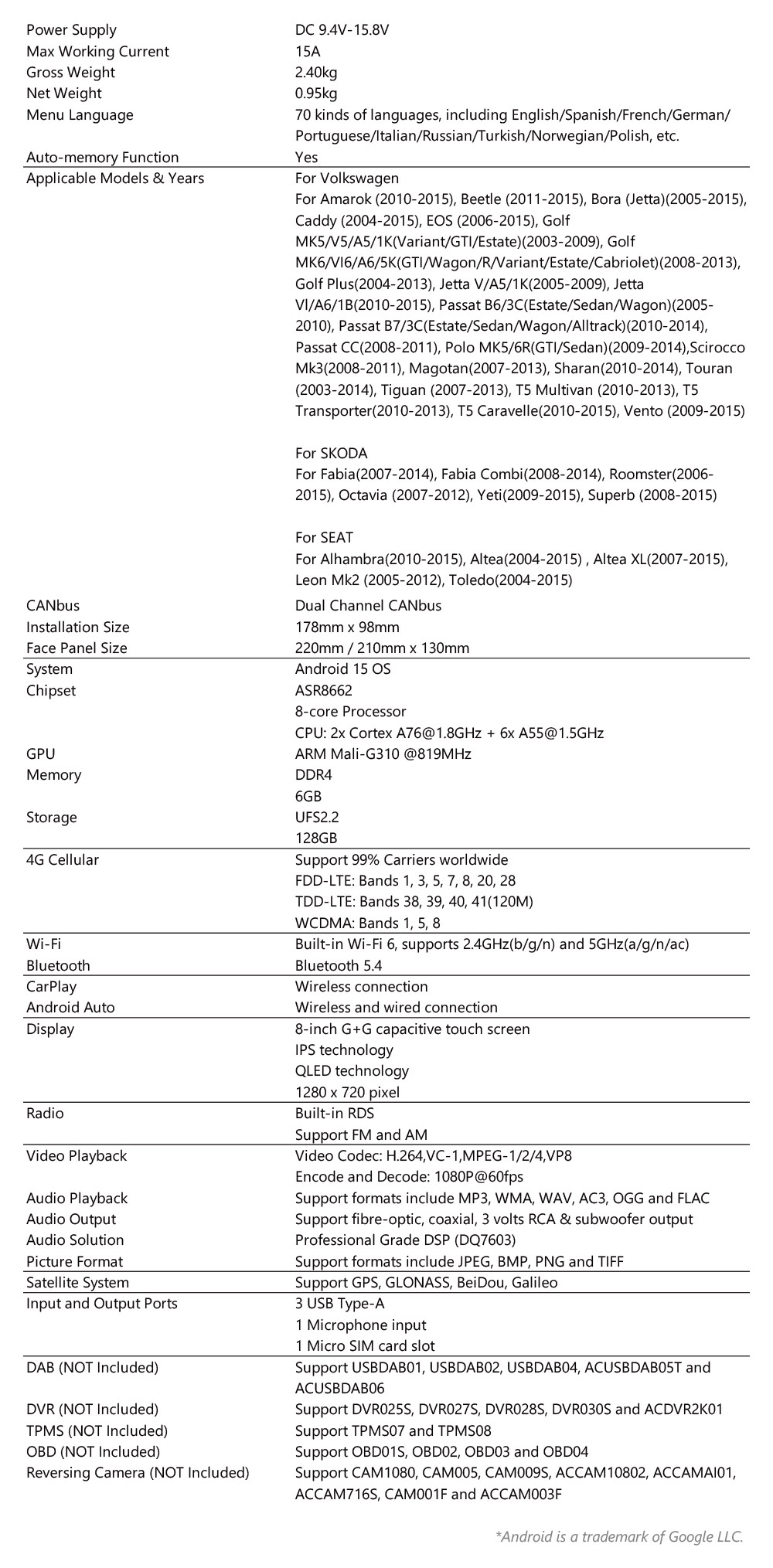

| Operating system | Android 15 |
|---|---|
| Processor | ASR8662 Octa-Core CPU |
| Graphics | Arm Mali G310 GPU |
| RAM | 6 GB DDR4 RAM |
| Storage | 128GB UFS 2.2 ROM |
| Boot time | 50 seconds cold start, 1 second warm start |
| Screen | 8-Inch Grade-A HD IPS QLED Screen |
|---|---|
| Resolution | 1280×720 |
| DSP | DSP DQ7603 |
|---|---|
| Amplifier | STMicroelectronics TCB001HQ amplifier (4x45W) |
| Outputs | optical, coaxial, and RCA outputs |
| Radio | RDS-FM/AM tuner |
| Mobile data | Built-in Global 4G LTE Module |
|---|---|
| Wi-Fi | Dual Band WiFi (2.4GHz & 5GHz) |
| Bluetooth | Bluetooth 5.4 |
| Navigation | GPS, Galileo, GLONASS, and BEIDOU |
- For Volkswagen
- Amarok (2010-2015)
- Beetle (2011-2015)
- Bora (Jetta) (2005-2015)
- Caddy (2004-2015)
- EOS (2006-2015)
- Golf MK5 / V5 / A5 / 1K (Variant / GTI / Estate) (2003-2009)
- Golf MK6 / VI6 / A6 / 5K (GTI / Wagon / R / Variant / Estate / Cabriolet) (2008-2013)
- Golf Plus (2004-2013)
- Jetta V / A5 / 1K (2005-2009)
- Jetta VI / A6/1B (2010-2015)
- Passat B6 /3C (Estate / Sedan / Wagon) (2005-2010)
- Passat B7 / 3C (Estate / Sedan / Wagon / Alltrack) (2010-2014)
- Passat CC (2008-2011)
- Polo MK5 / 6R (GTI / Sedan) (2009-2014)
- Scirocco Mk3 (2008-2011)
- Magotan (2007-2013)
- Sharan (2010-2014)
- Touran (2003-2014)
- Tiguan (2007-2013)
- T5 Multivan (2010-2013)
- T5 Transporter (2010-2013)
- T5 Caravelle (2010-2015)
- Vento (2009-2015)
- For Skoda
- Fabia (2007-2014)
- Fabia Combi (2008-2014)
- Roomster (2006-2015)
- Octavia (2007-2012)
- Yeti (2009-2015)
- Superb (2008-2015)
- For SEAT
- Alhambra (2010-2015)
- Altea (2004-2015)
- Altea XL (2007-2015)
- Leon Mk2 (2005-2012)
- Toledo (2004-2015)
- Note: This unit doesn't have a DVD drive.

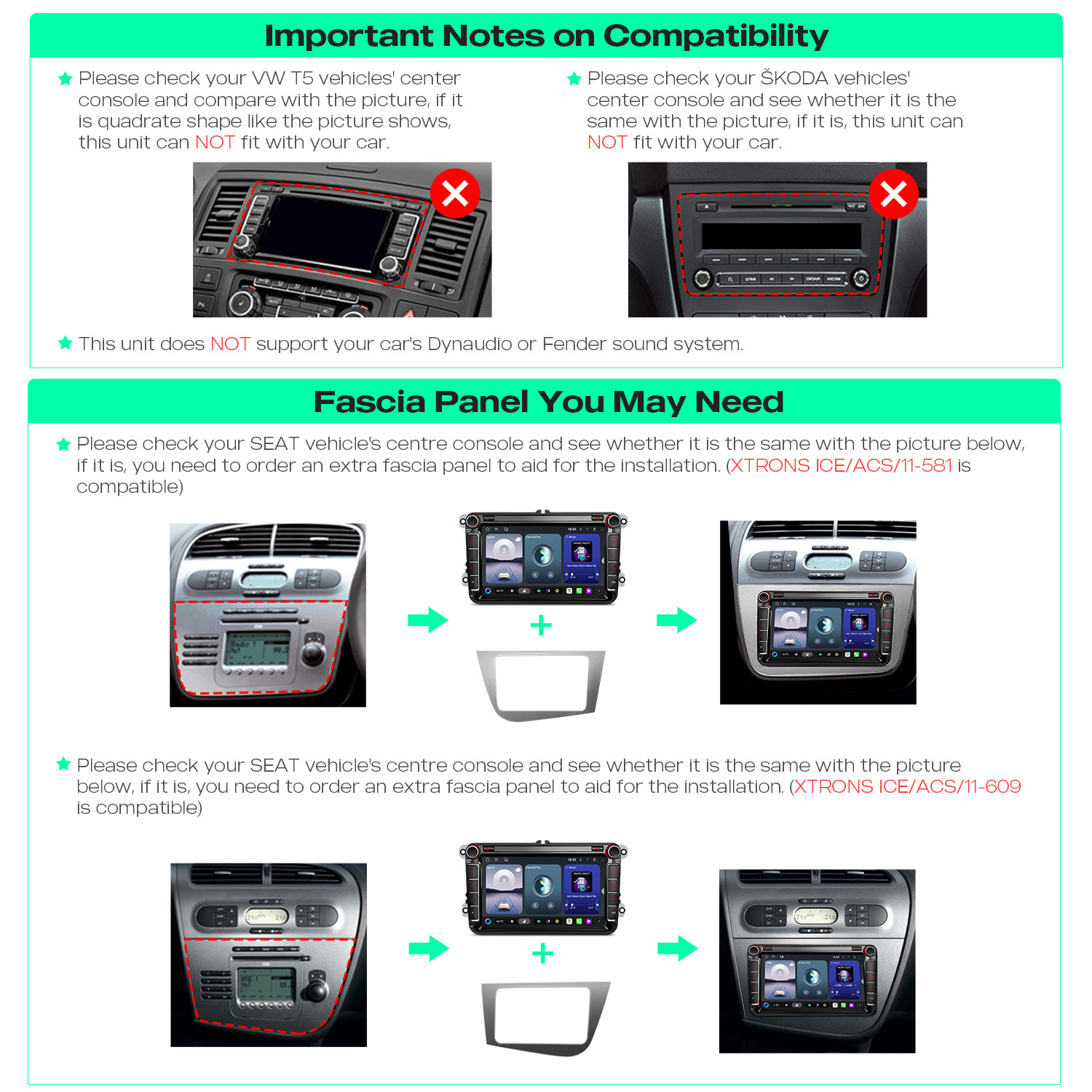

- Please check your SEAT vehicle's centre console and see whether it is the same with the picture, if it is, you need to order an extra fascia panel to aid for the installation.( XTRONS ICE/ACS/11-581/XTRONS ICE/ACS/11-609 is compatible)
- Please check your VW T5 vehicles' center console and compare with the picture, if it is quadrate shape like the picture shows, this unit can NOT fit with your car.
- Please check your SKODA vehicles' center console and see whether it is the same with the picture, if it is, this unit can NOT fit with your car.
- This unit does NOT support your car's Dynaudio or Fender sound system.

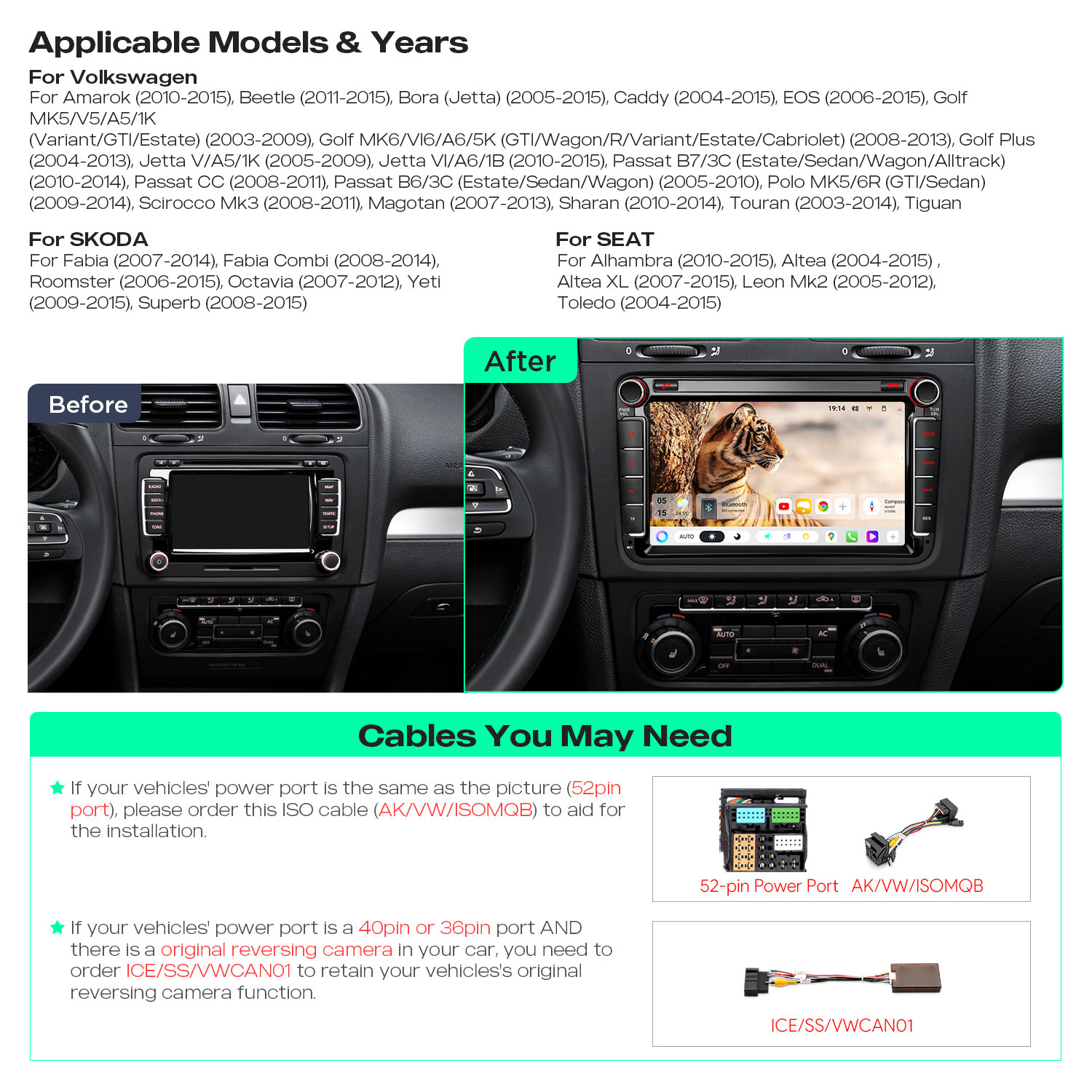

- If your vehicles' power port is 52pin port , please order this ISO cable ( AK/VW/ISOMQB ) to aid for the installtion.
- If your vehicles' power port is 40pin/36pin and there is an original reversing camera in your car. If so, you will need this ISO Cable - ICE/SS/VWCAN01 to retain your vehicles original reversing camera function.
The unit replaces the factory stereo directly and comes with an ISO wiring harness, a CANbus box and cable, and an installation tips sheet, so no cutting or splicing is needed. Cars with a 52pin power port need the AK/VW/ISOMQB ISO cable, and some SEAT consoles need an extra fascia panel (ICE/ACS/11-581 or ICE/ACS/11-609). Compare your VW T5 or Skoda centre console with the product photos first, as some shapes won't take this unit.
Will it fit my car?
It's made for the Volkswagen, Skoda and SEAT models in the compatibility list. Check your model and years there, and compare your centre console with the photos if you have a VW T5, a Skoda or a SEAT.
Does it work with a Dynaudio or Fender sound system?
No. This unit doesn't support the factory Dynaudio or Fender sound systems.
Can I use my own SIM card for 4G?
Yes. Insert a standard nano SIM card into the built-in 4G LTE module for internet access for maps, streaming and apps.
Can I keep my factory reversing camera?
If your car has a 40pin/36pin power port and an original reversing camera, add the ICE/SS/VWCAN01 ISO cable to keep it. The unit also supports 720P/1080P AHD cameras.
Are CarPlay and Android Auto wireless?
Both wireless and wired connections work, for CarPlay and for Android Auto.
