Universal Double DIN 10.1 inch Android 15 Car Stereo with Wireless CarPlay, Android Auto and 4G | TUAH122L
SKU: TUAH122L
£309.00
Check if this fits your car
1

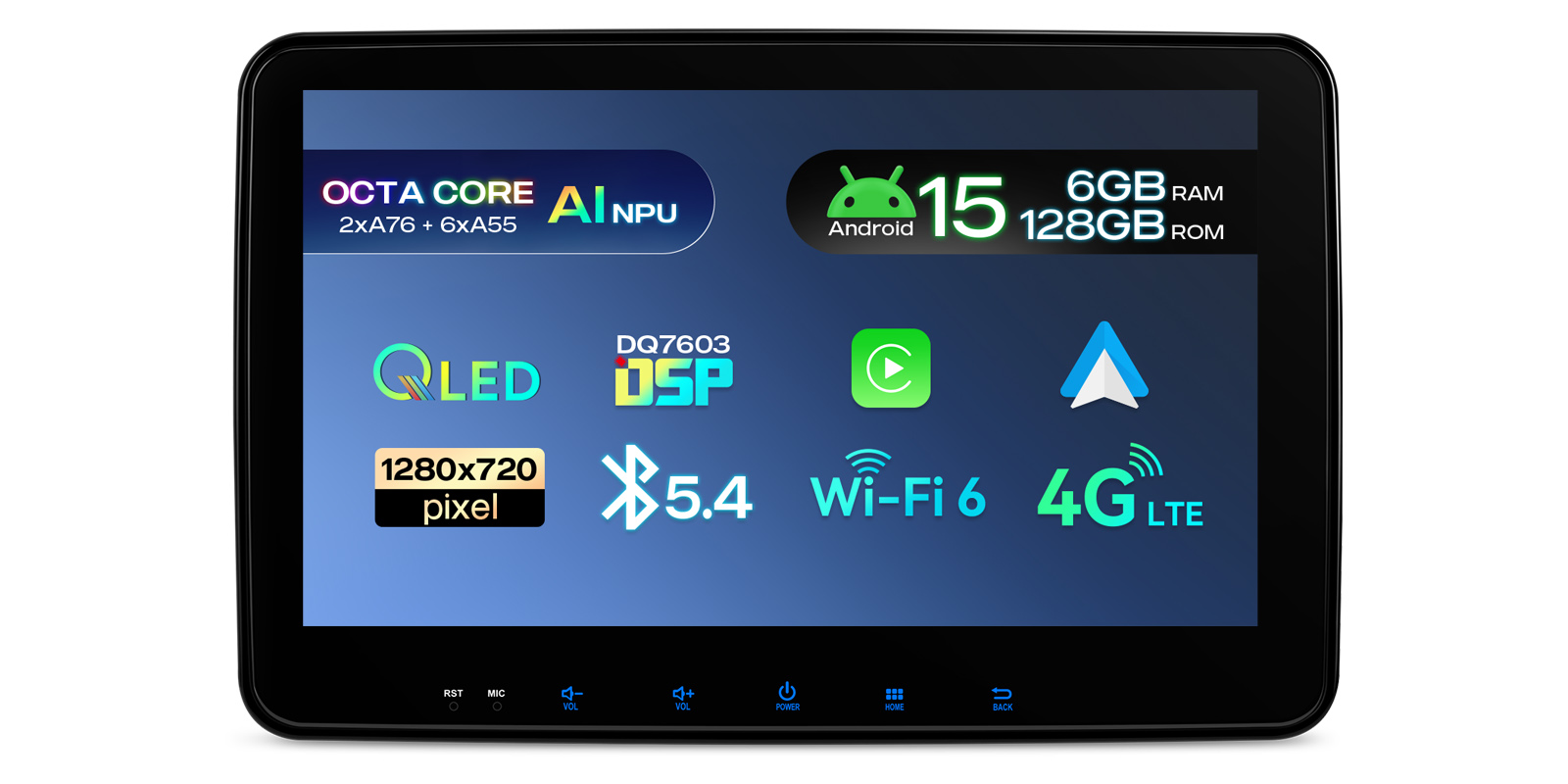

Key specifications
- Operating system
- Android 15
- Processor
- ASR8662 Octa-Core CPU
- RAM
- 6 GB DDR4 RAM
- Storage
- 128GB UFS 2.2 ROM
- Boot time
- 50 seconds cold start, 1 second warm start
- Screen
- 10.1-Inch Grade-A HD IPS QLED Screen

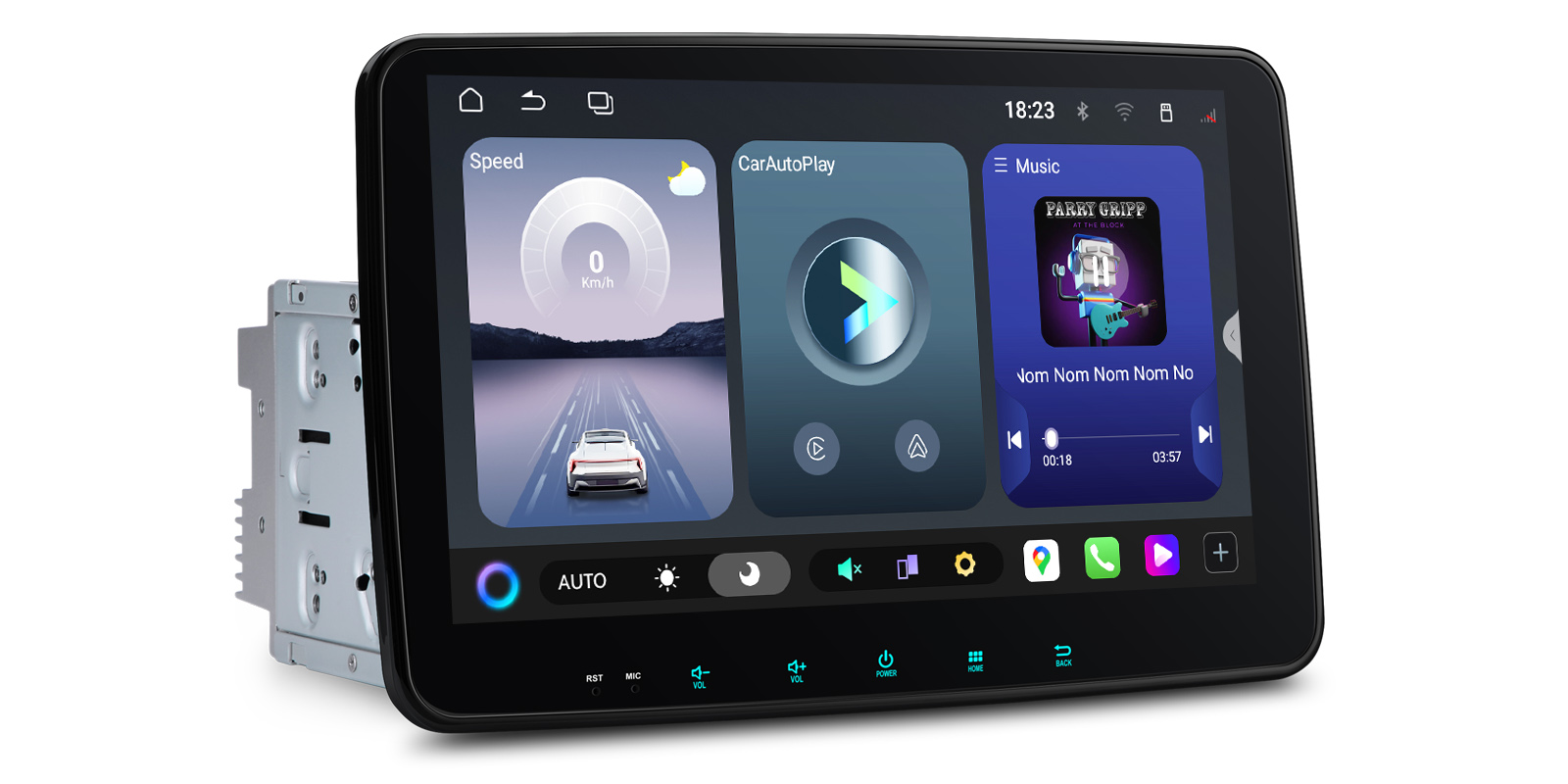

A universal double DIN Android 15 car stereo with a 10.1 inch QLED IPS screen, for cars with a standard double DIN opening. It has wireless CarPlay and Android Auto, a built-in 4G LTE module, 6GB RAM and 128GB of storage.
- Wireless and wired Apple CarPlay and Android Auto
- Built-in 4G LTE module takes a nano SIM, so there's no need for a phone hotspot
- 10.1 inch QLED IPS screen at 1280×720
- Android 15 on an ASR8662 octa-core CPU with 6 GB DDR4 RAM and 128GB UFS 2.2 storage
- DSP DQ7603 with a 4x45W amplifier and optical, coaxial and RCA outputs
- Dual band Wi-Fi on 2.4GHz and 5GHz

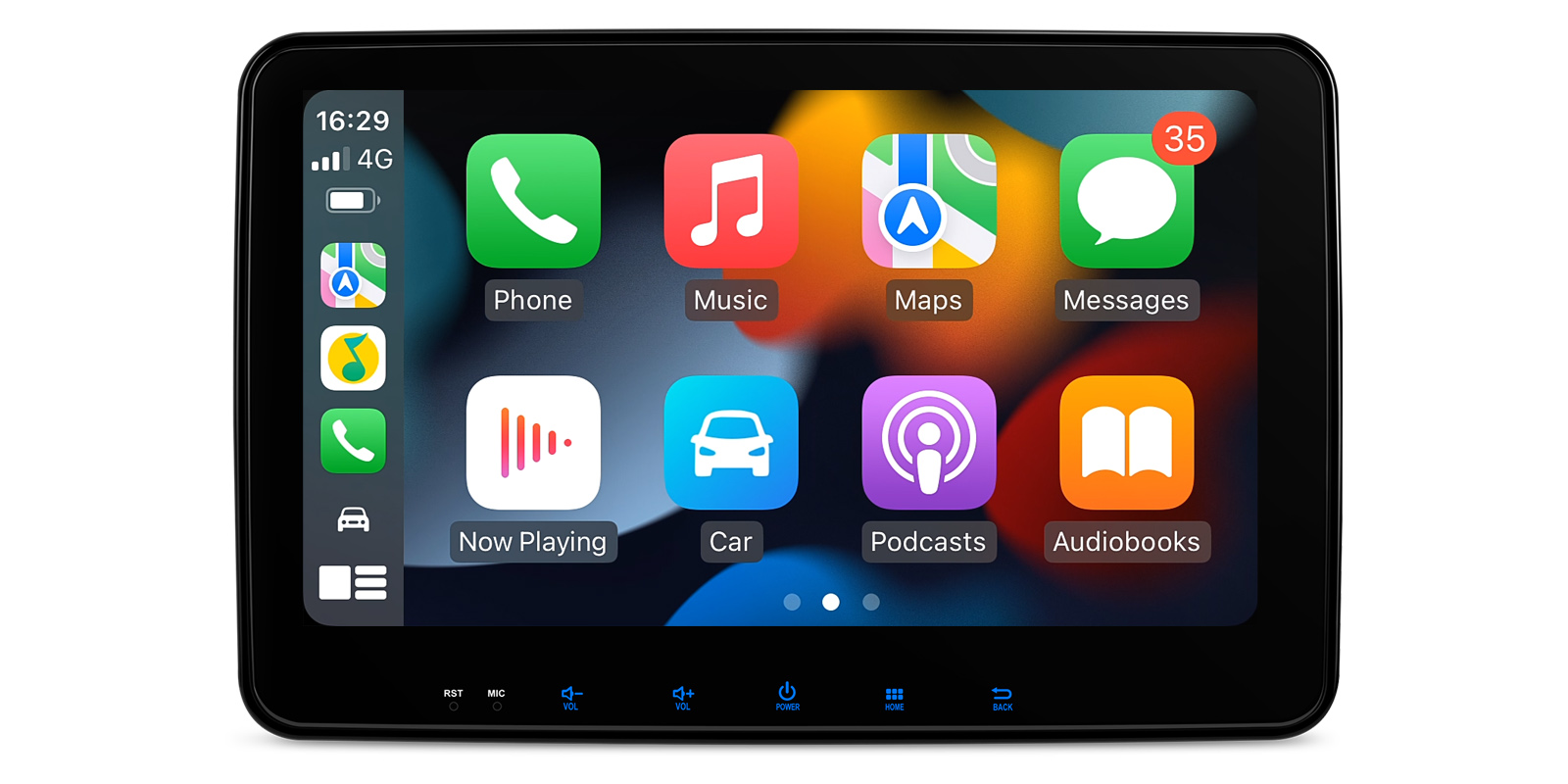

Wireless Apple CarPlay
Your iPhone connects over Wi-Fi without a cable, so maps, calls and music appear on the 10.1 inch screen as soon as you're in the car. If you'd rather plug in, wired CarPlay works over USB too.

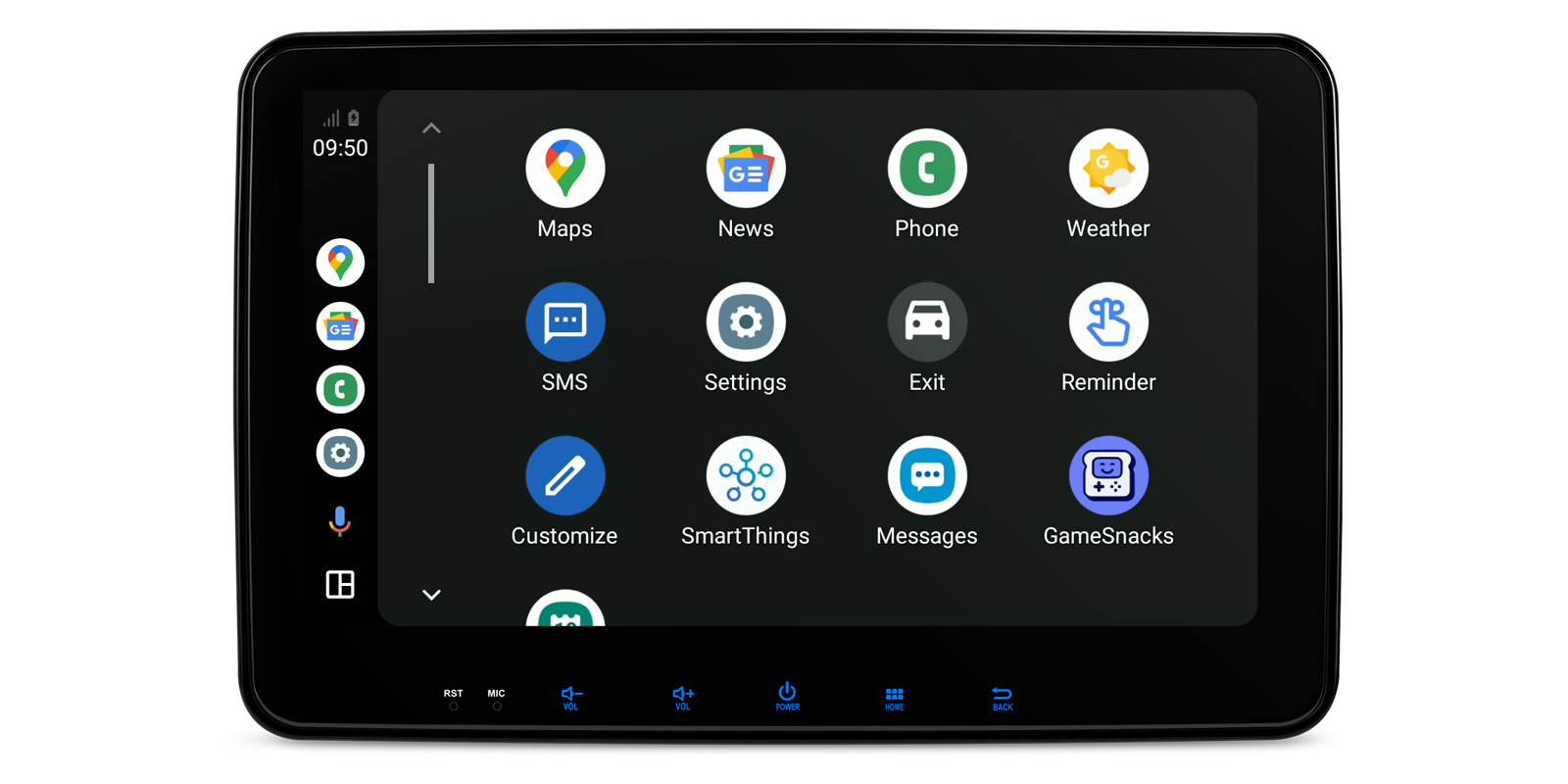

Android Auto
Android phones connect to Android Auto wirelessly or with a USB cable. Google Maps, your music apps and calls are on the big screen, with large buttons that are easy to hit while driving.
Built-in 4G LTE
The global 4G LTE module takes a standard nano SIM card. With a SIM fitted, the stereo has its own internet connection for maps, streaming and apps, so you don't have to set up a hotspot on your phone each time.
It supports 99% of carriers worldwide. Check with your network that your SIM works in this kind of device.
Dual band Wi-Fi
Wi-Fi works on both 2.4GHz and 5GHz. Join your home network or a phone hotspot to stream, download app updates and keep maps current.

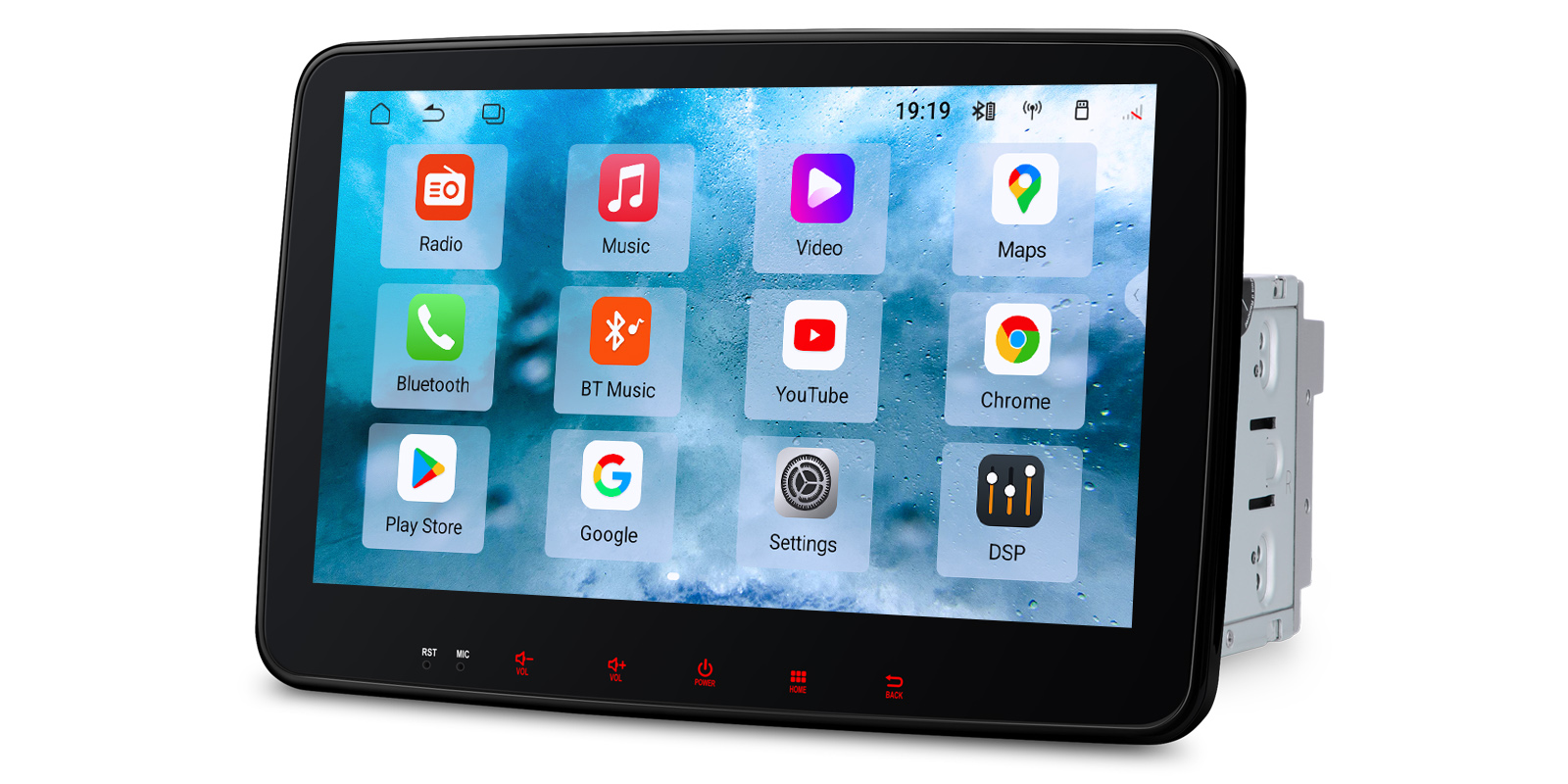

Android 15 and fast hardware
The stereo runs Android 15 on an ASR8662 octa-core CPU with an AI GPU. 6 GB of DDR4 RAM and 128GB of UFS 2.2 storage keep apps quick to open and leave room for downloads and offline maps.
A warm start takes 1 second and a cold start 50 seconds. There's a cooling system to keep performance steady on long drives.

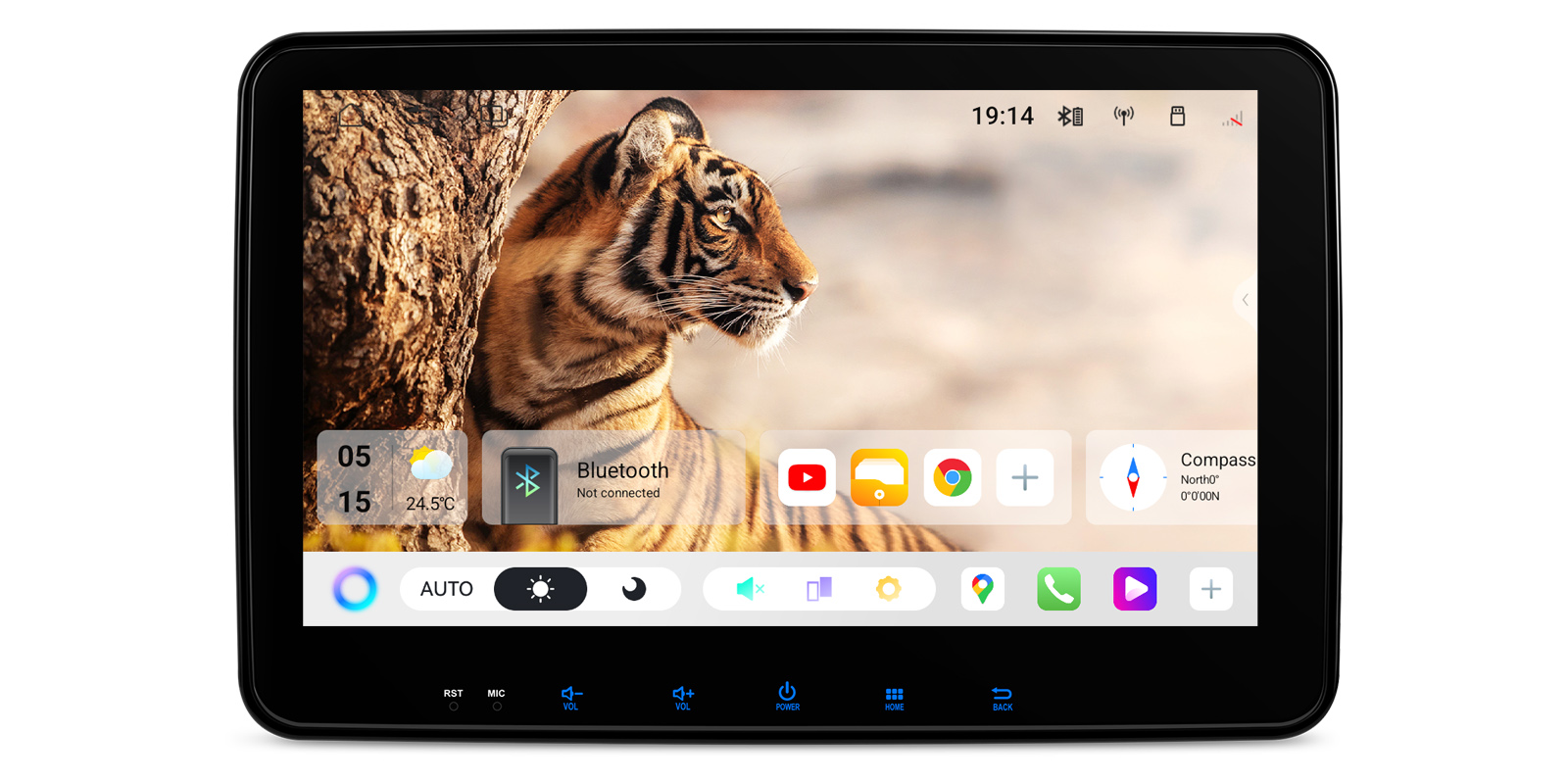

10.1 inch QLED screen
The 10.1 inch Grade-A QLED screen runs at 1280×720 with strong, accurate colour, which makes maps and media easy to read at a glance.
IPS viewing angles
Being an IPS panel, the picture stays clear from wide angles, so the passenger can see the screen as well as the driver.
DSP sound processing
The built-in DSP DQ7603 lets you tune the sound to your car and speakers.
A 4x45W amplifier (STMicroelectronics TCB001HQ) drives the speakers directly.

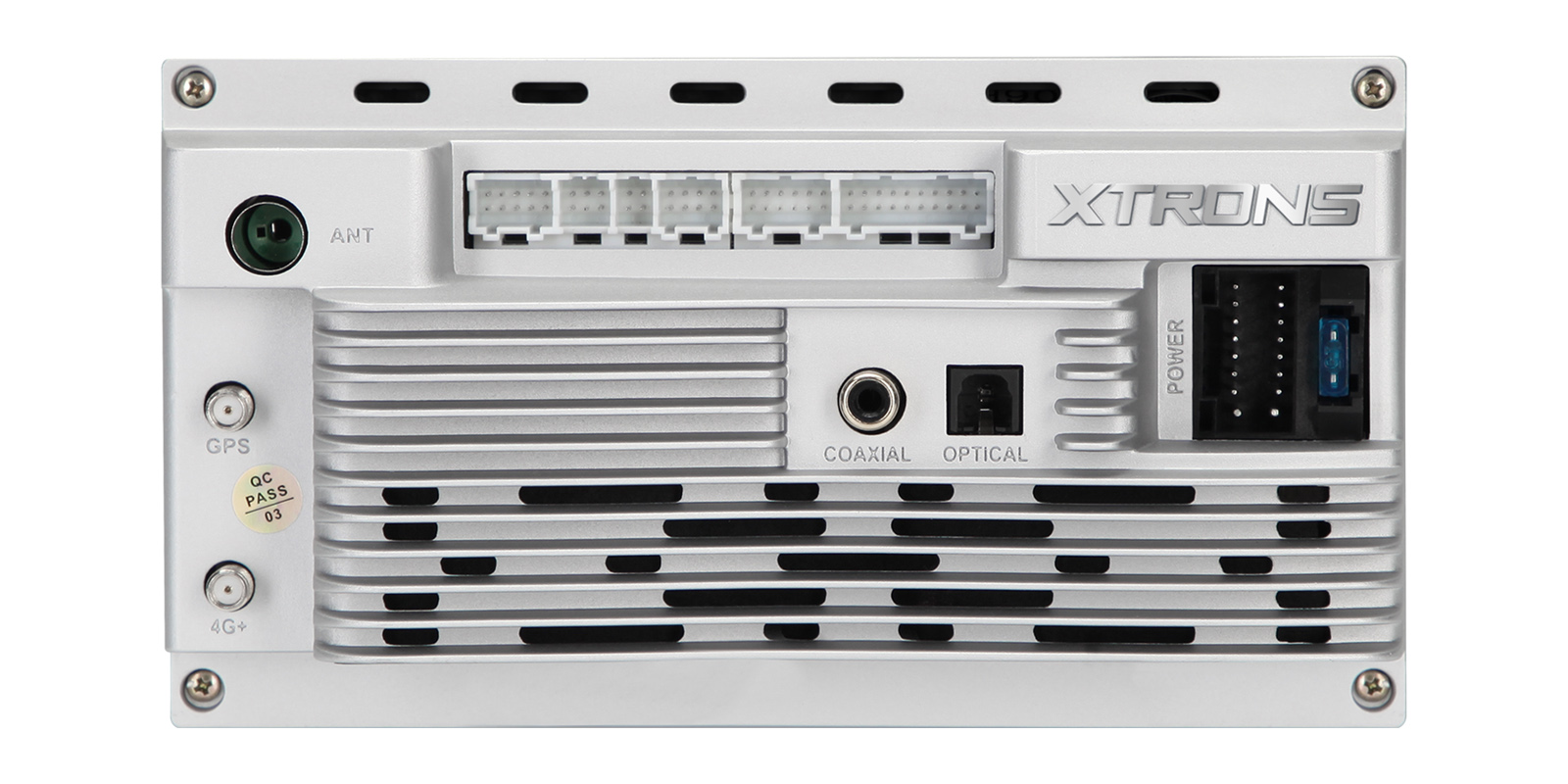

Optical, coaxial and RCA outputs
For a bigger system, there are optical, coaxial and RCA audio outputs to feed an external amplifier or processor.

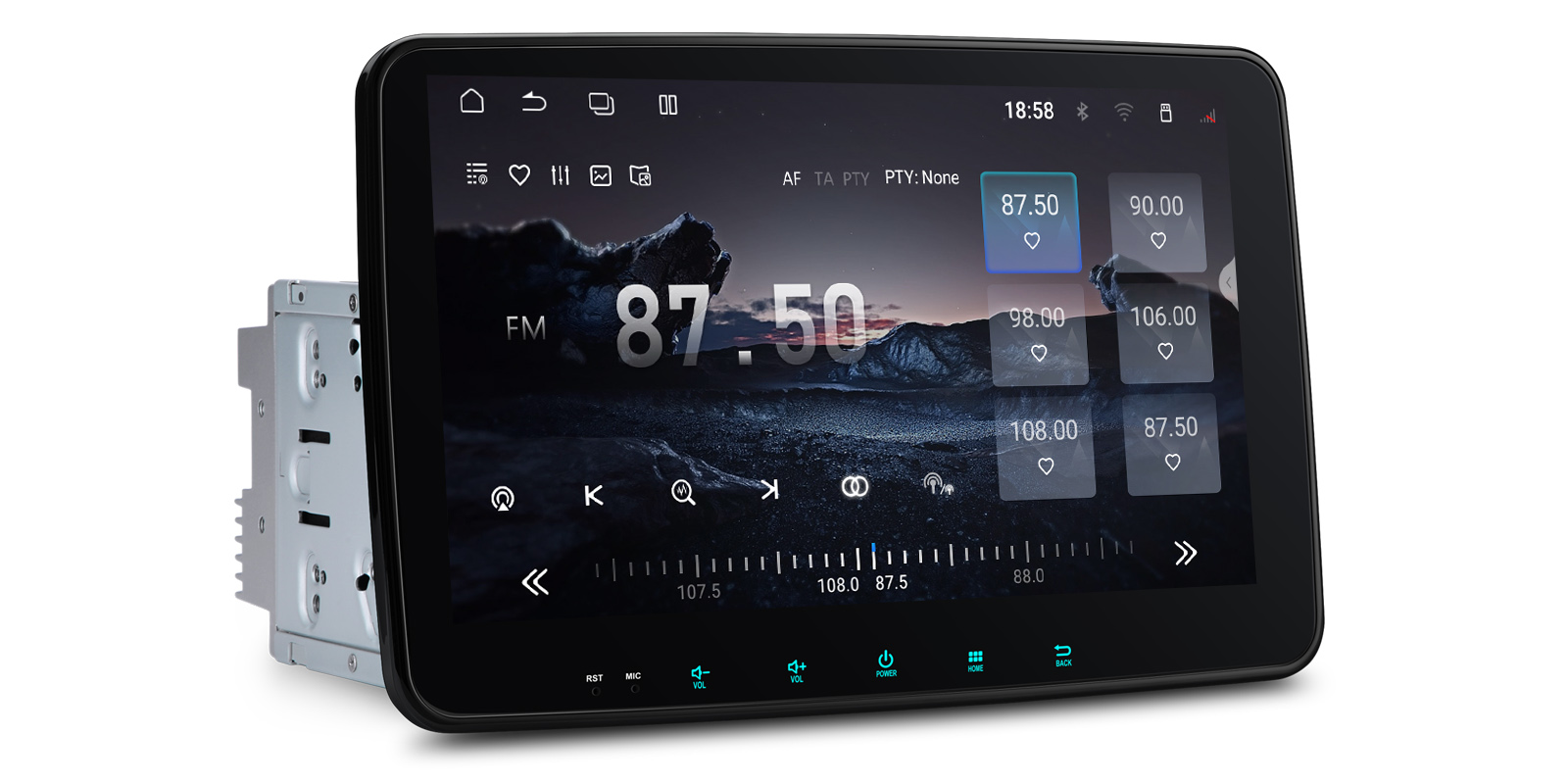

DAB+ ready radio
An RDS-FM/AM tuner is built in. The stereo is DAB+ ready: for digital radio, add an external DAB tuner.
Screen mirroring
Your phone's screen can be mirrored to the stereo, so an app that doesn't run in CarPlay or Android Auto can still be shown on the dash.
Bluetooth 5.4
Bluetooth 5.4 handles hands-free calls and music streaming. A microphone is included for clearer calls.
AHD reversing camera support
The stereo supports 720P/1080P AHD cameras, and the reversing picture appears when you shift into reverse. A camera cable is in the box. The camera is sold separately.
Works with

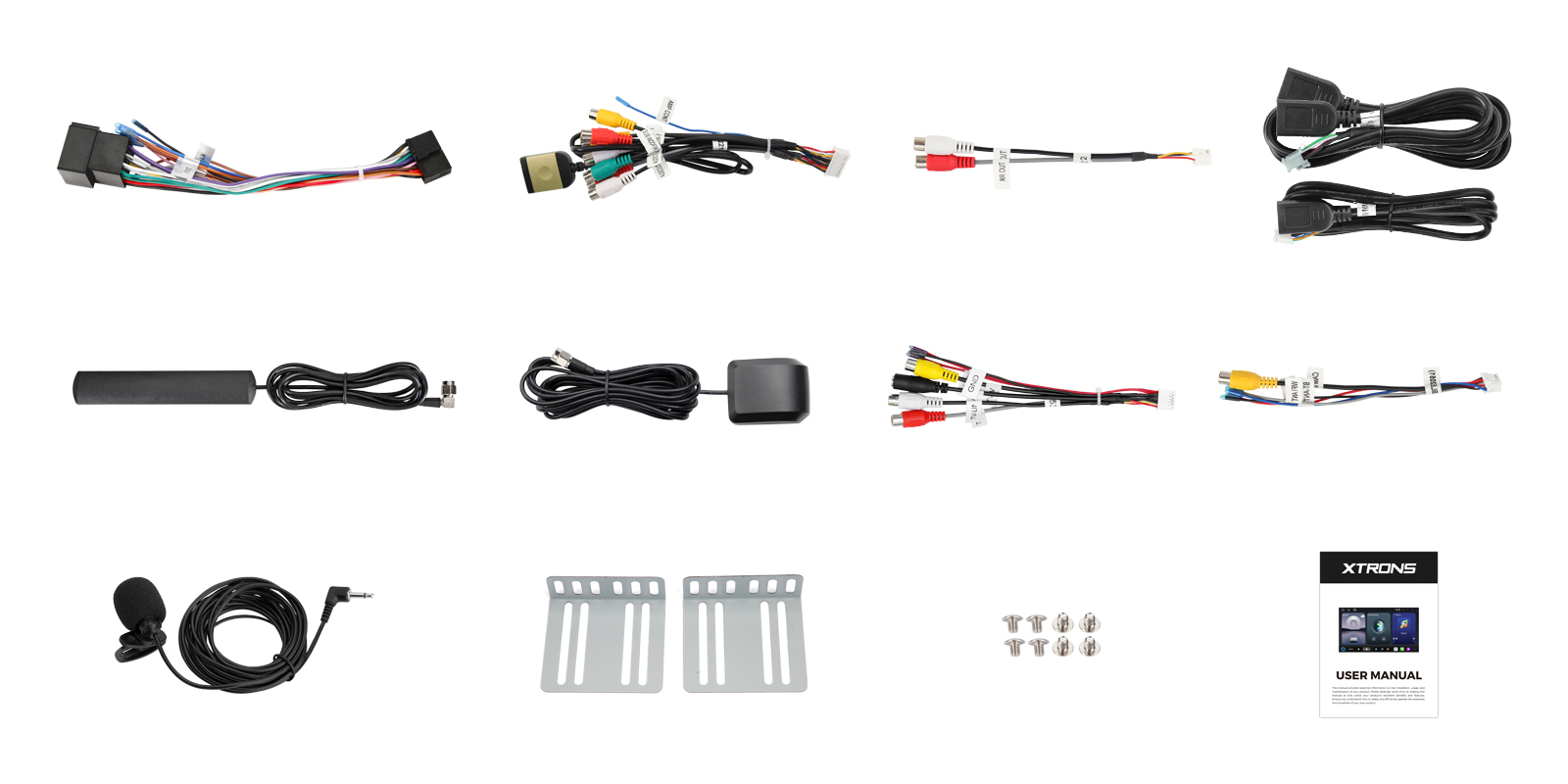

What's in the box
- 1 x 4G Antenna
- 1 x Cable for Digital TV
- 1 x Camera Cable
- 1 x GPS Antenna
- 1 x ISO Wiring Harness
- 1 x Microphone
- 1 x RCA Cable
- 1 x USB Cable
- 1 x User Manual
- 2 x Fitting Kits

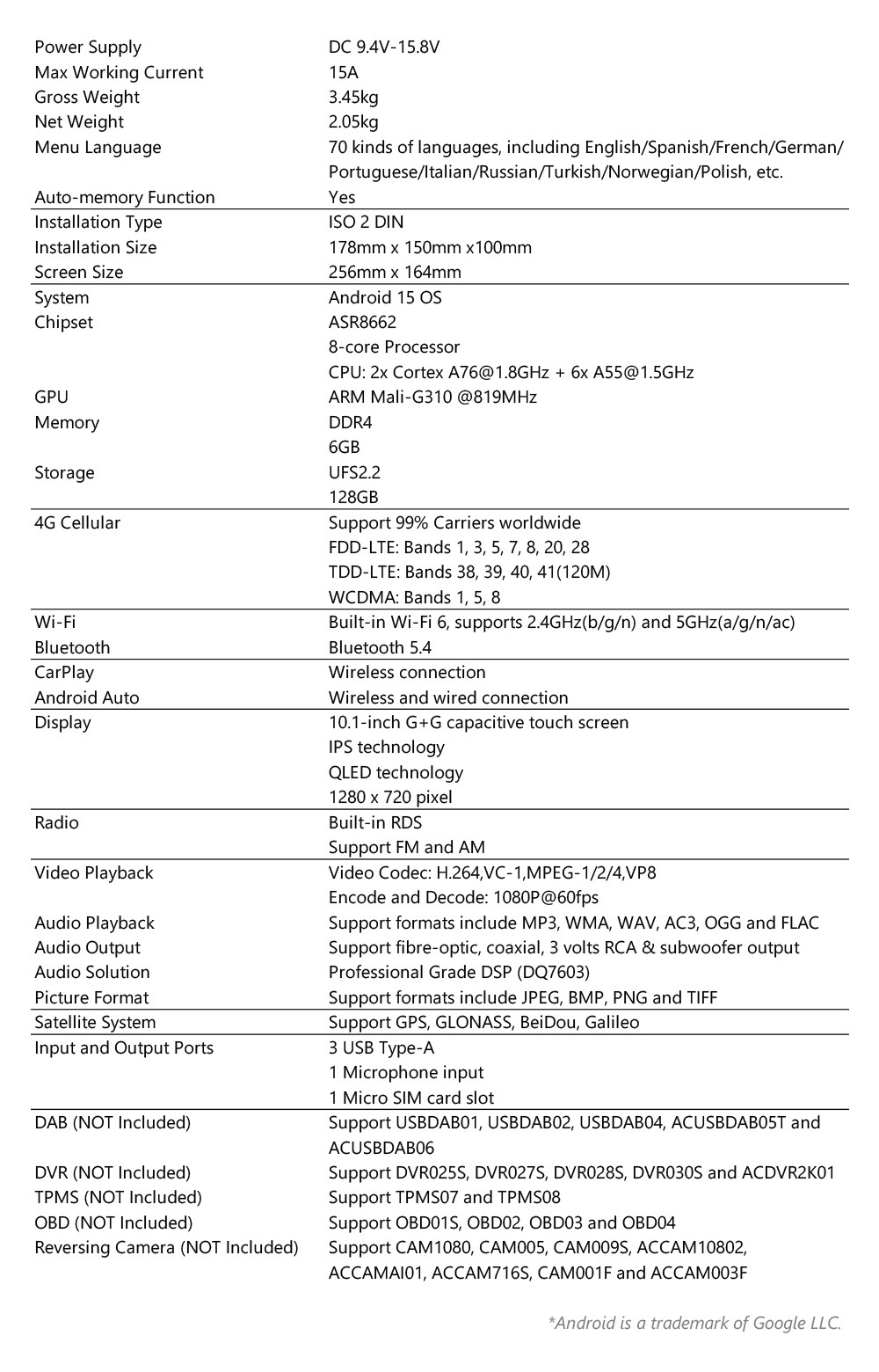

| Operating system | Android 15 |
|---|---|
| Processor | ASR8662 Octa-Core CPU |
| RAM | 6 GB DDR4 RAM |
| Storage | 128GB UFS 2.2 ROM |
| Boot time | 50 seconds cold start, 1 second warm start |
| Screen | 10.1-Inch Grade-A HD IPS QLED Screen |
|---|---|
| Resolution | 1280×720 |
| DSP | DSP DQ7603 |
|---|---|
| Amplifier | STMicroelectronics TCB001HQ amplifier (4x45W) |
| Outputs | optical, coaxial, and RCA outputs |
| Radio | RDS-FM/AM tuner |
| Mobile data | Built-in Global 4G LTE Module |
|---|---|
| Wi-Fi | Dual Band WiFi (2.4GHz & 5GHz) |
| Bluetooth | Bluetooth 5.4 |
| Navigation | GPS, Galileo, GLONASS, and BEIDOU |

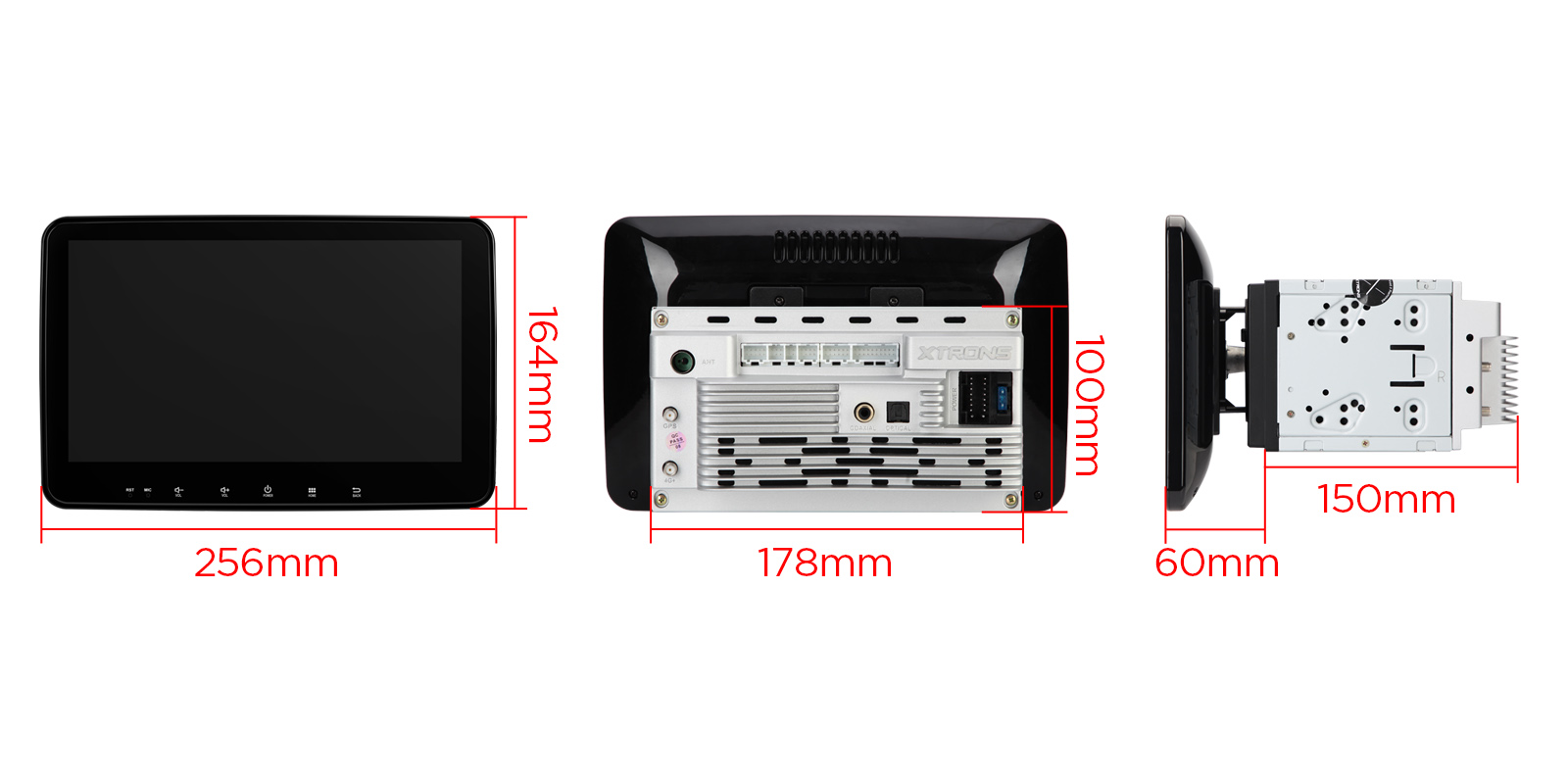

| Size | 100mm(Height) x 178mm(Width) x 150mm(Depth) |
|---|

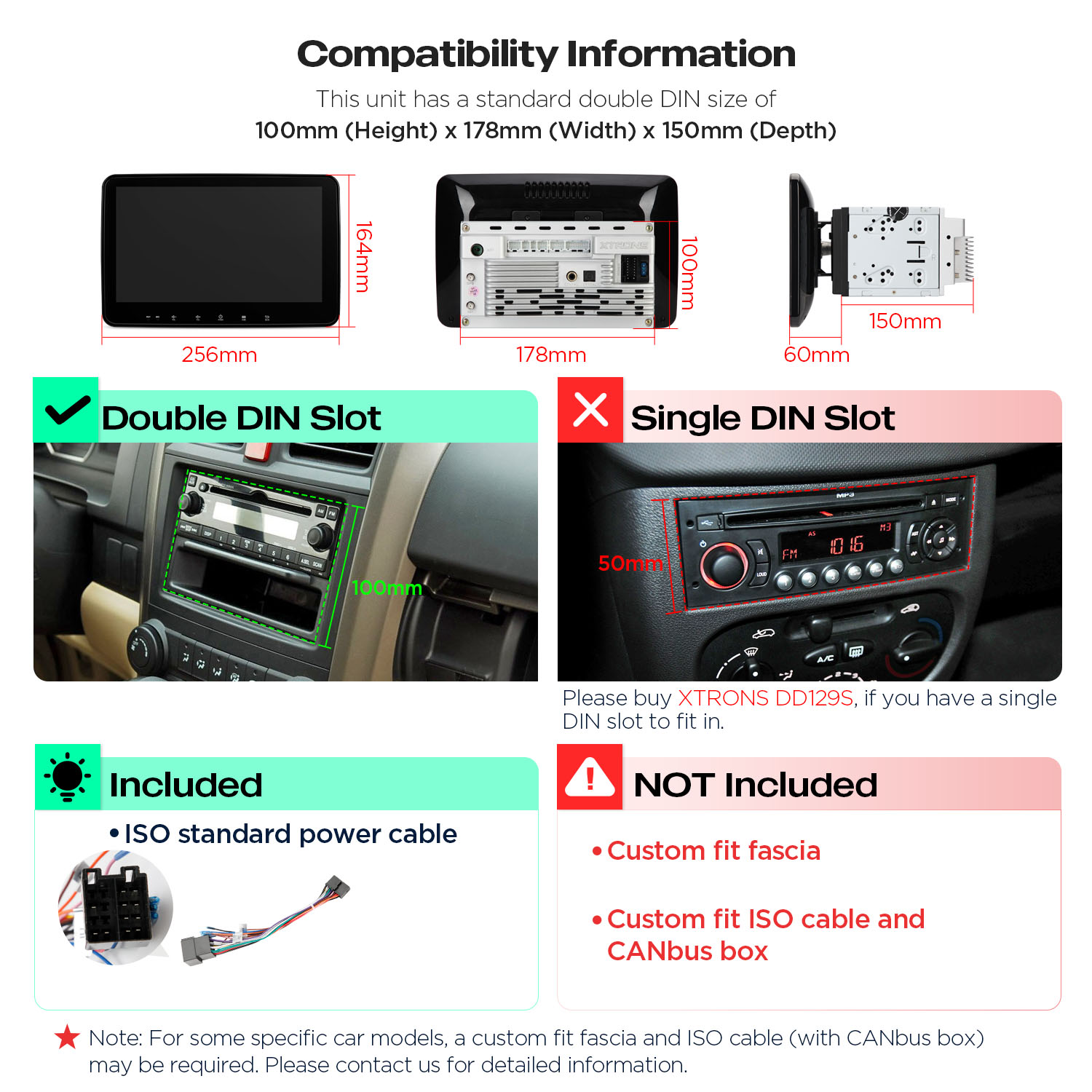

Universal: fits most cars with a double-DIN slot. Check the dimensions in the specifications against your dash.
- This unit has a standard double DIN size of
- 100mm(Height) x 178mm(Width) x 150mm(Depth)
- For single din slot, please buy XTRONS DD129S .
- Included: ISO standard power cable
- NOT Included: Custom fit fascia, Custom fit ISO cable and CANbus box
- Note: For some specific car models, a custom fit fascia and ISO cable (with CANbus box) may be reauired.
The unit is a standard double DIN size (100mm high, 178mm wide, 150mm deep) and comes with an ISO standard power cable and fitting kits. A custom fit fascia, custom fit ISO cable and CANbus box aren't included, and some cars need them. For a single DIN slot, XTRONS DD129S is the model to look at.
Can I use my own SIM card for 4G?
Yes. Fit a standard nano SIM card in the built-in 4G LTE module and the stereo has its own internet for maps, streaming and apps.
Are CarPlay and Android Auto wireless or wired?
Both. Connect wirelessly for CarPlay or Android Auto, or plug in by USB for a wired connection.
Will it fit my car?
It fits a standard double DIN opening of 100mm by 178mm. Some cars also need a custom fit fascia and ISO cable with a CANbus box, which aren't included, so check what your car needs before ordering.
Does it have DAB radio?
It's DAB+ ready, with an RDS-FM/AM tuner built in. DAB+ needs an external DAB tuner.
Does it work with a reversing camera?
Yes, it supports 720P/1080P AHD cameras and shows the picture when you shift into reverse.
