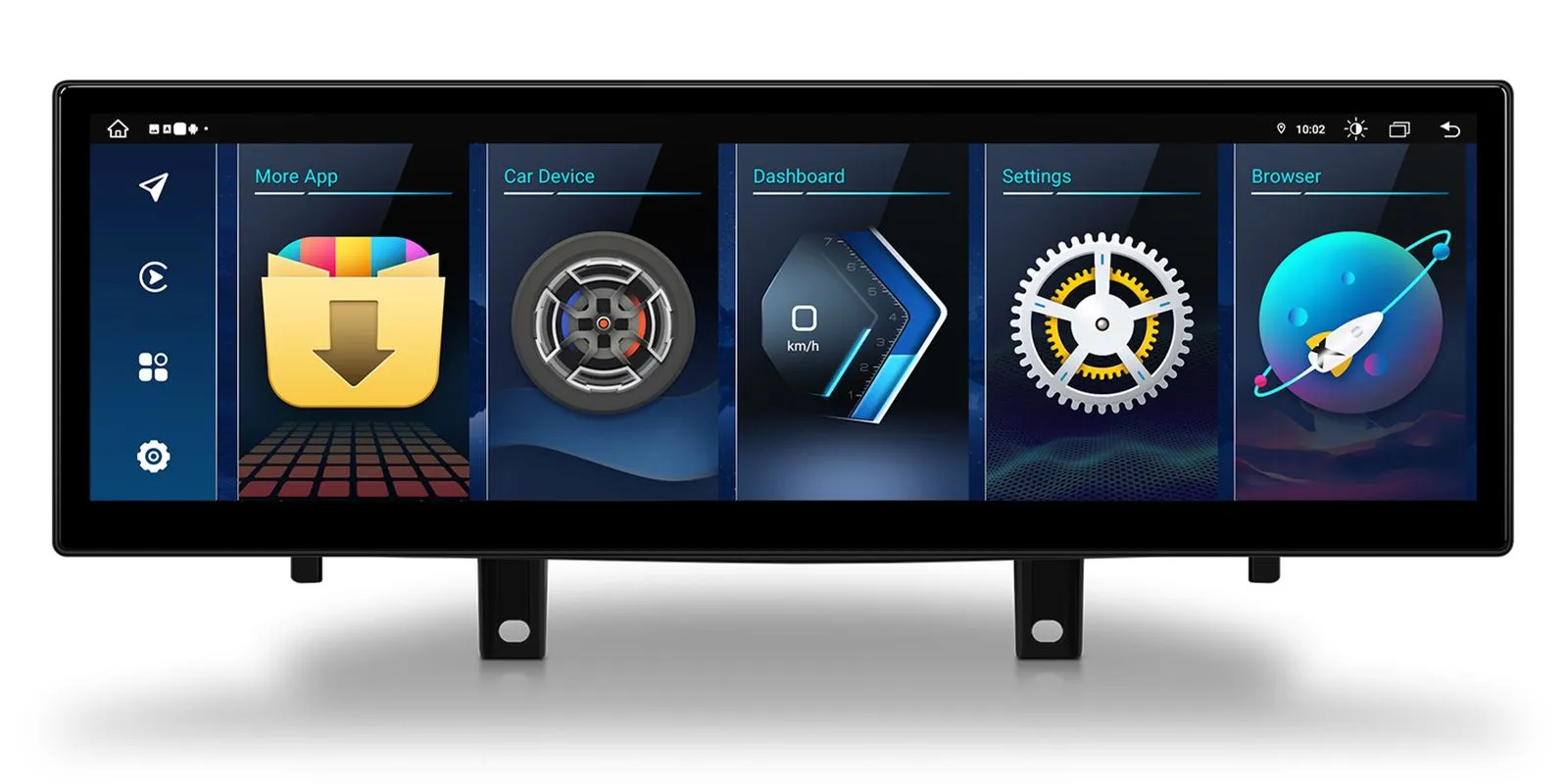

BMW X5 F15 and X6 F16 NBT 14.9 inch Android 14 Screen with Wireless CarPlay and Android Auto | QLBX44X5NB
SKU: QLBX44X5NB
£543.99Was £639.99Save £96.00
Check if this fits your car
1
Key specifications
- Operating system
- Android 14
- Processor
- 12nm Octa-core chip
- Cores
- (2xCortex-A75 + 6xCortex-A55)
- RAM
- 8GB DDR4 RAM
- Storage
- EMMC 256GB Solid State ROM
- Screen
- 14.9″ Fully-laminated 2560×720 IPS Screen

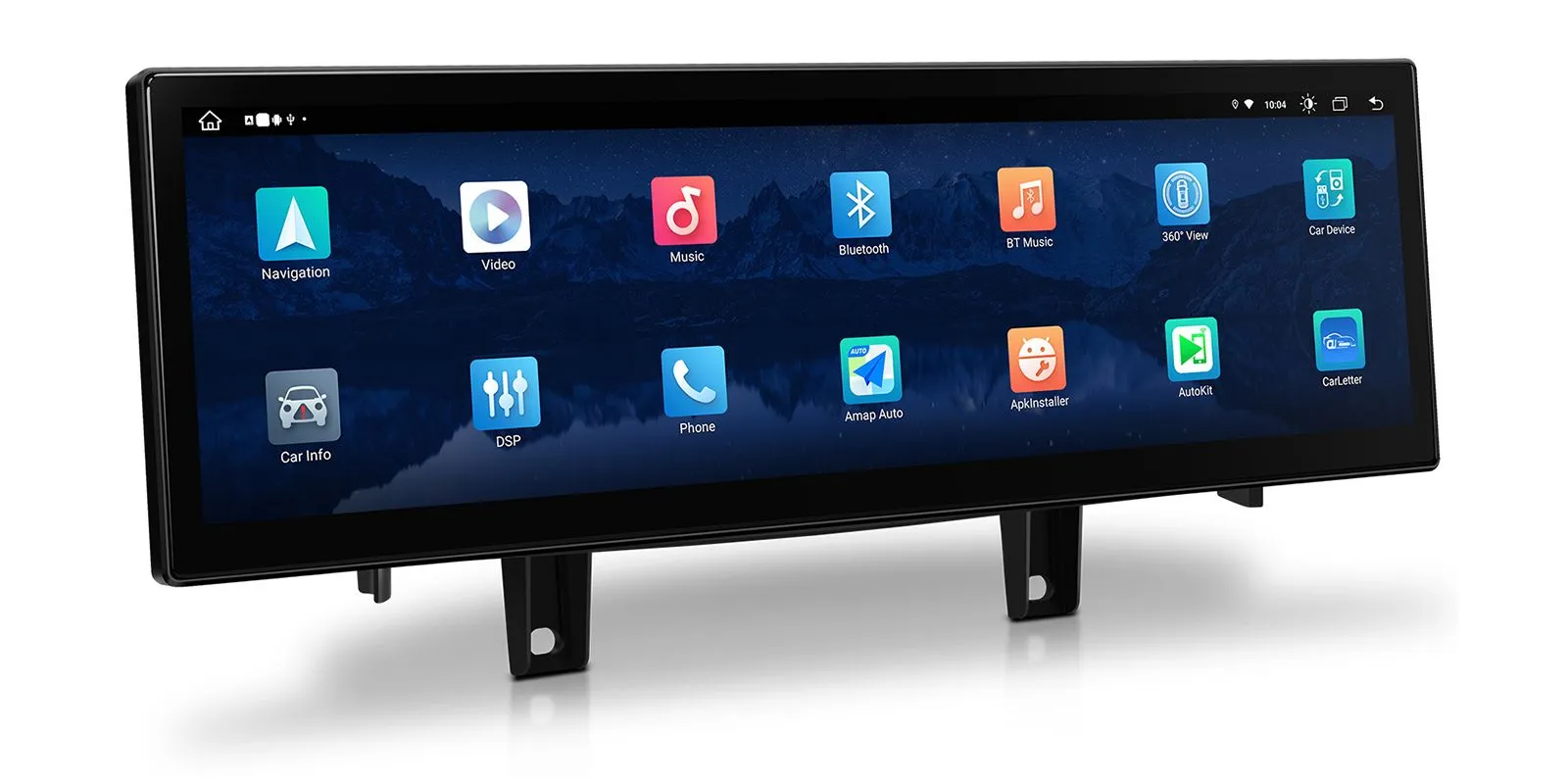

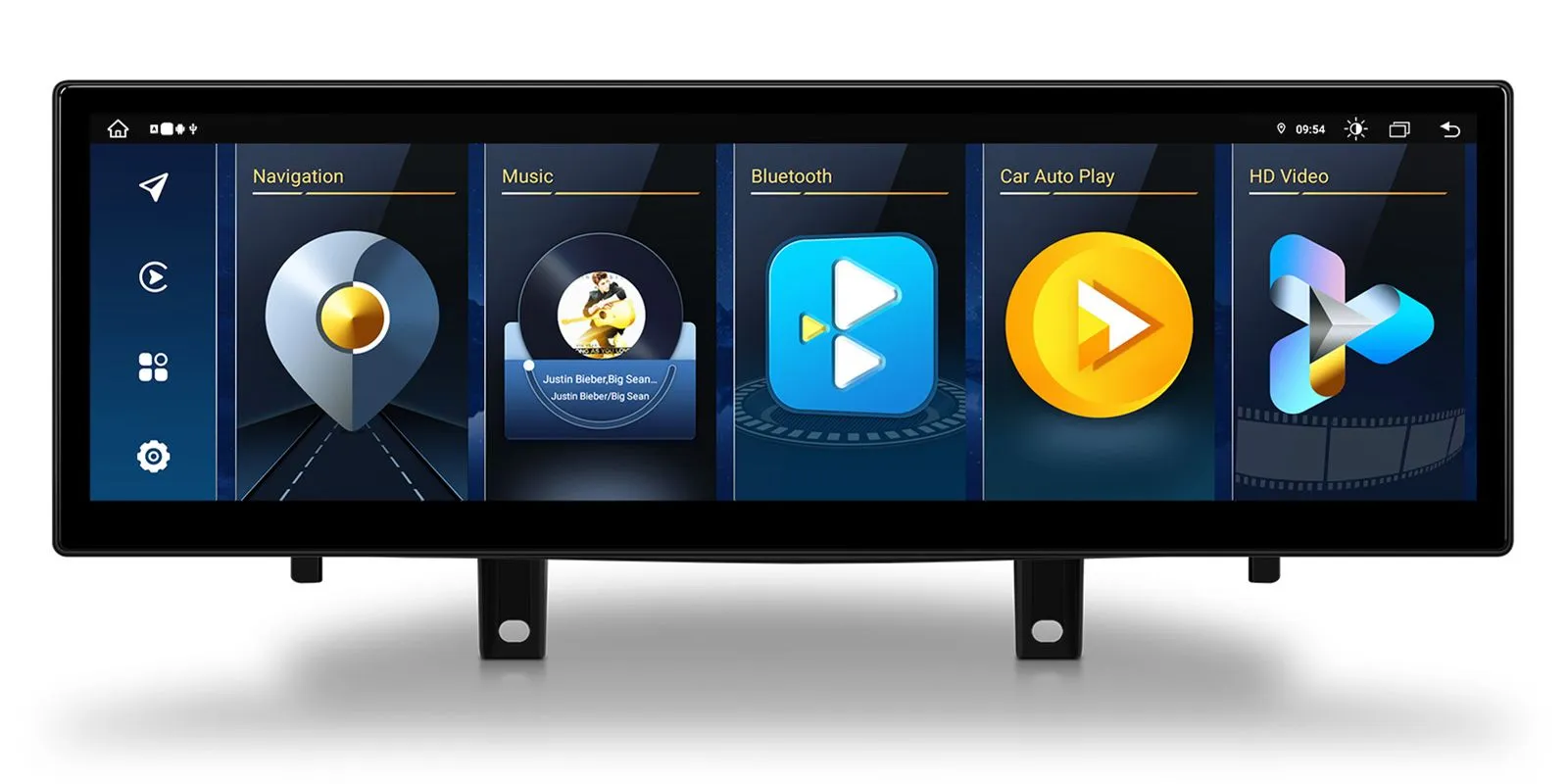

A 14.9-inch Android 14 screen upgrade for the BMW X5 F15 and X6 F16 (2014-2017) with the NBT system. It works alongside the original BMW system, so the CD player stays in place, and adds wireless CarPlay, Android Auto, built-in 4G and a DSP.
- 14.9-inch fully laminated 2K IPS screen at 2560×720 in an ultra-wide 32:9 format
- Wireless CarPlay and Android Auto
- Integrated 4G LTE with a SIM card slot
- Keeps the original BMW system and CD player
- 12nm octa-core chip with 8GB DDR4 RAM and 256GB storage, running Android 14

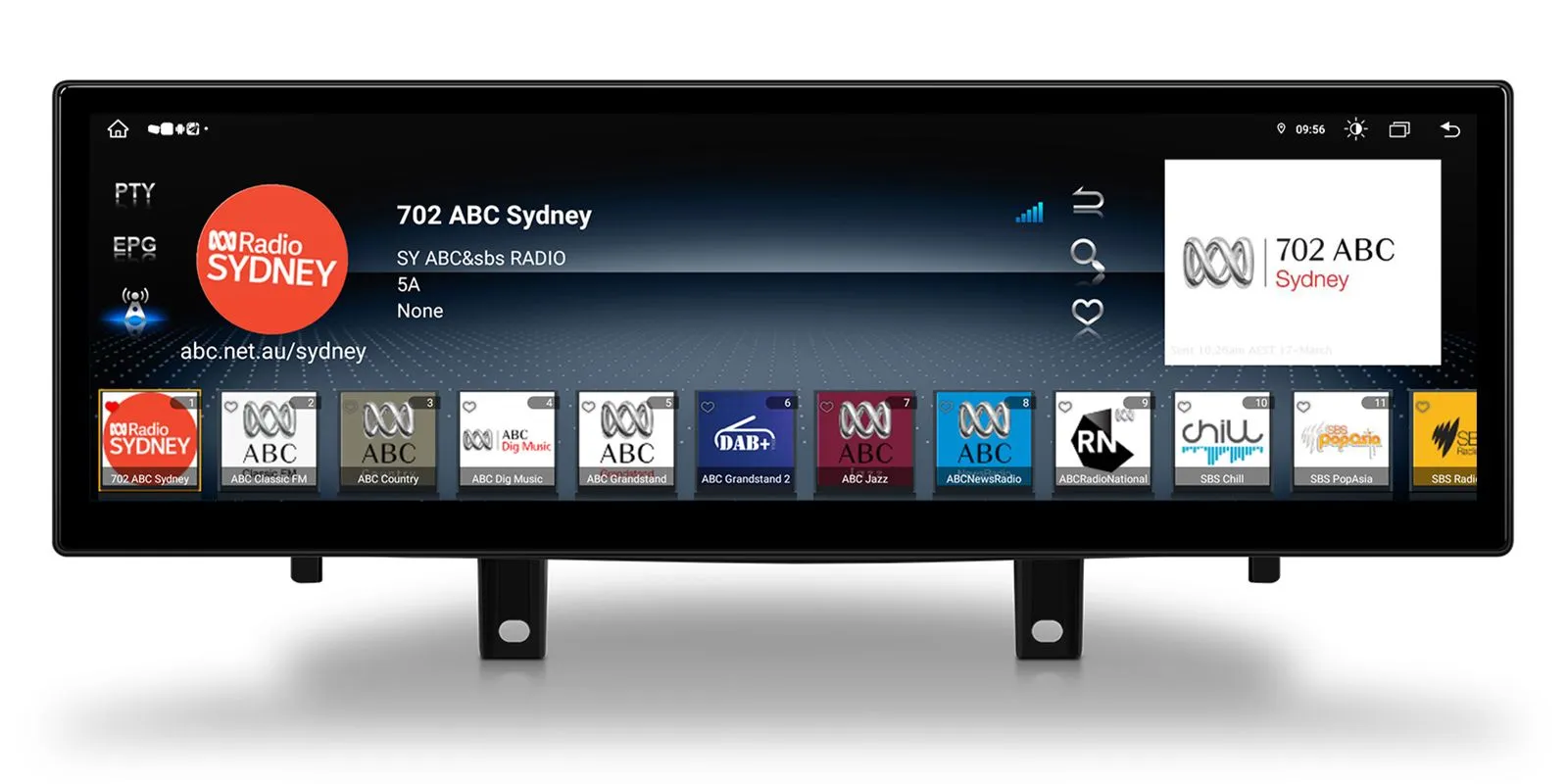

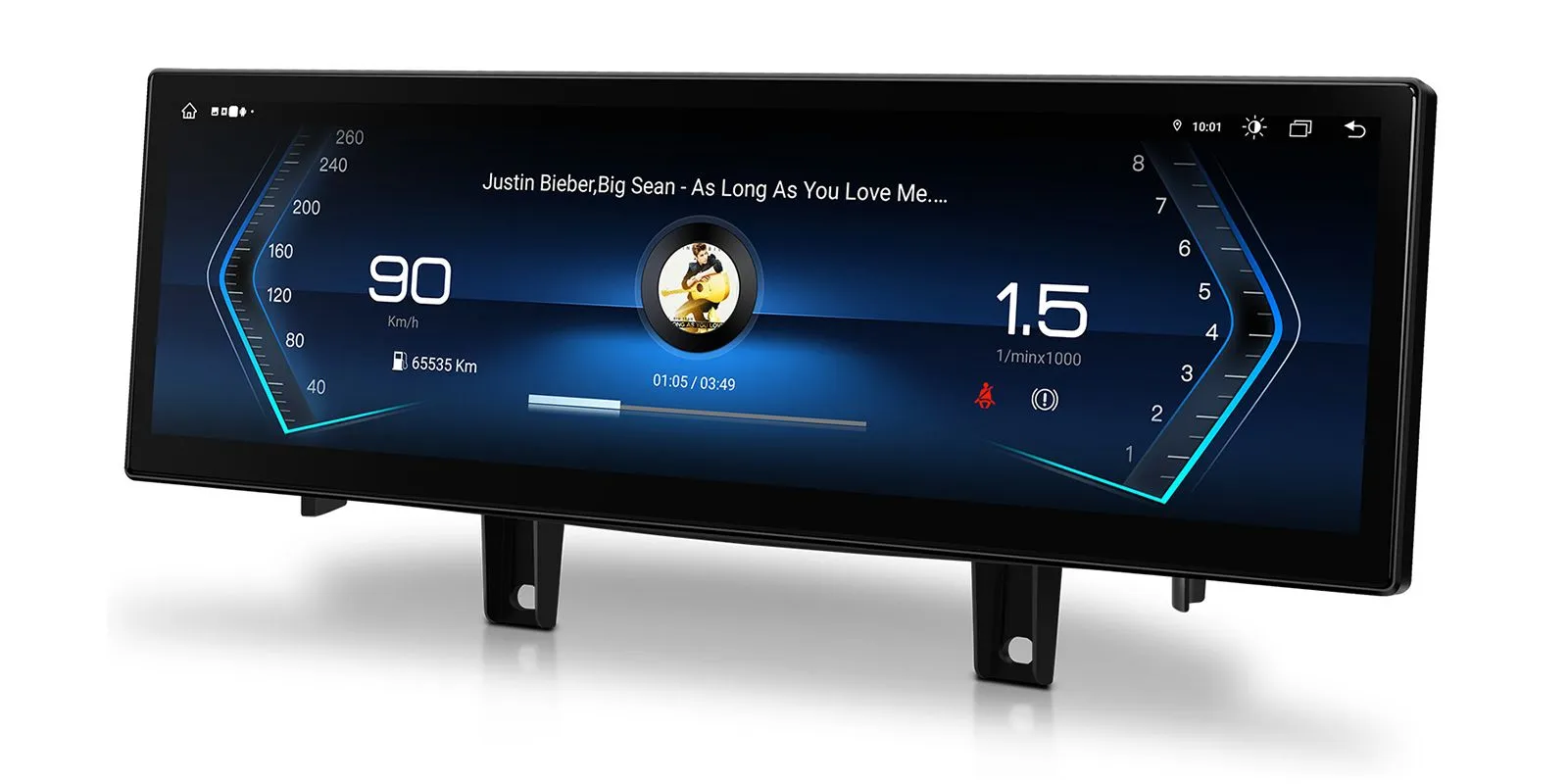

14.9-inch ultra-wide 2K IPS screen

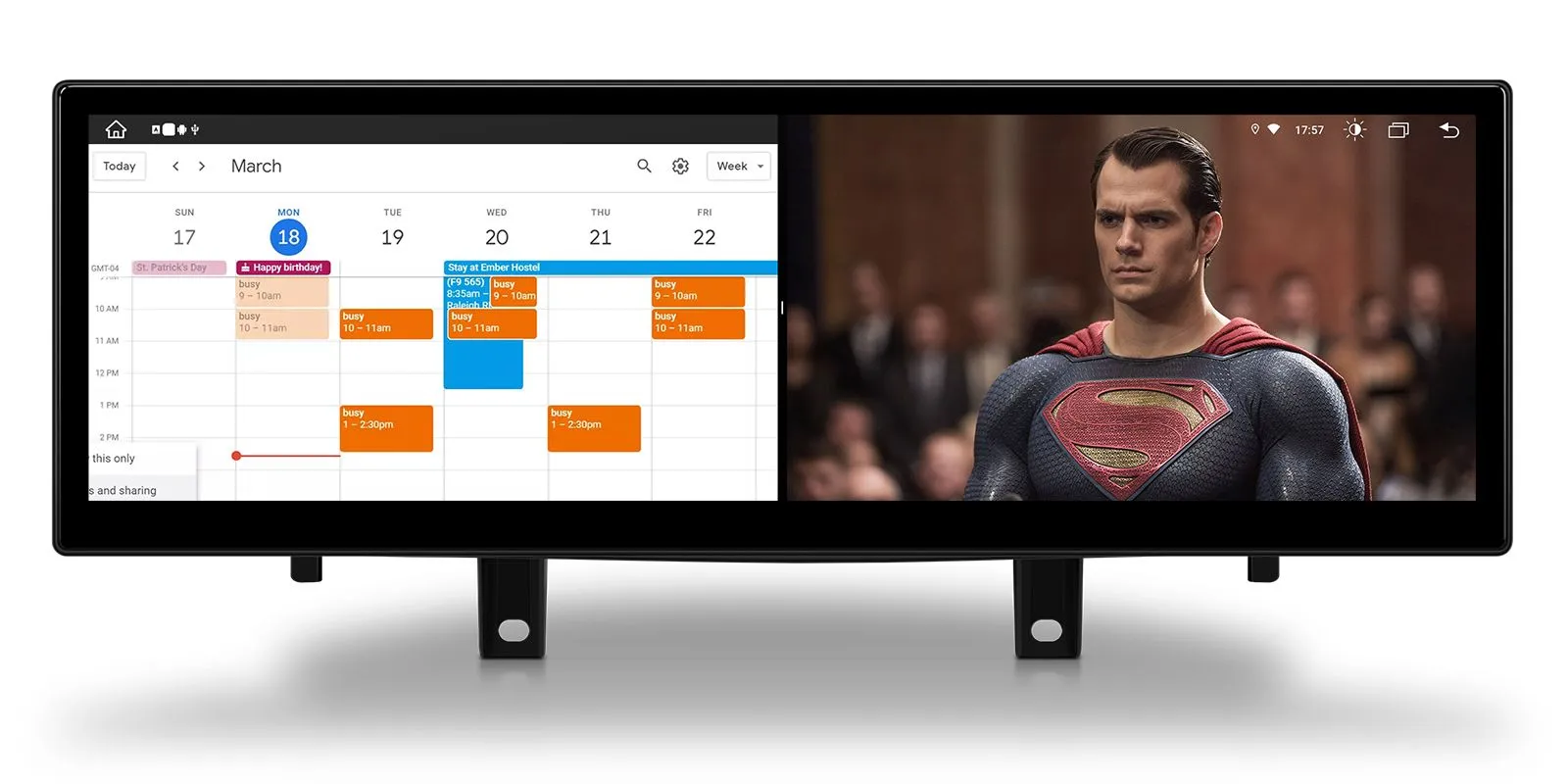

The 14.9-inch Grade-A 2K IPS screen has a 2560×720 resolution and an ultra-wide 32:9 aspect ratio, so you can keep the map, music and other apps on show together without switching between them.
It has a slim, fully laminated design with a custom bezel and 2.5D edge, made to suit the X5 and X6 dashboards, and IPS keeps the picture clear from the passenger seat.
Wireless Apple CarPlay

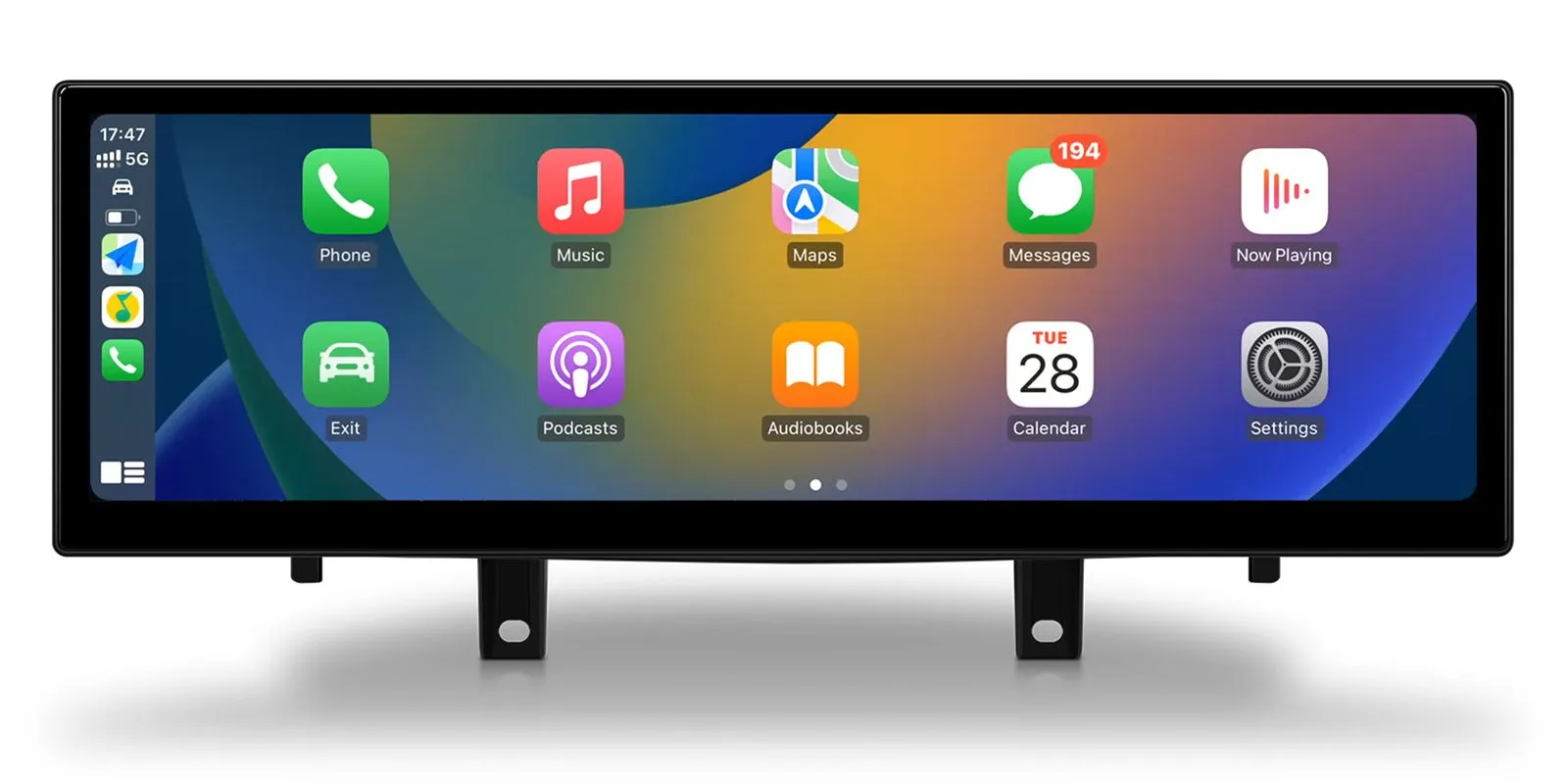

Your iPhone connects wirelessly, with no cable needed. Maps, calls and music appear on the big screen, and voice commands let you control them without reaching for the phone.
Android Auto

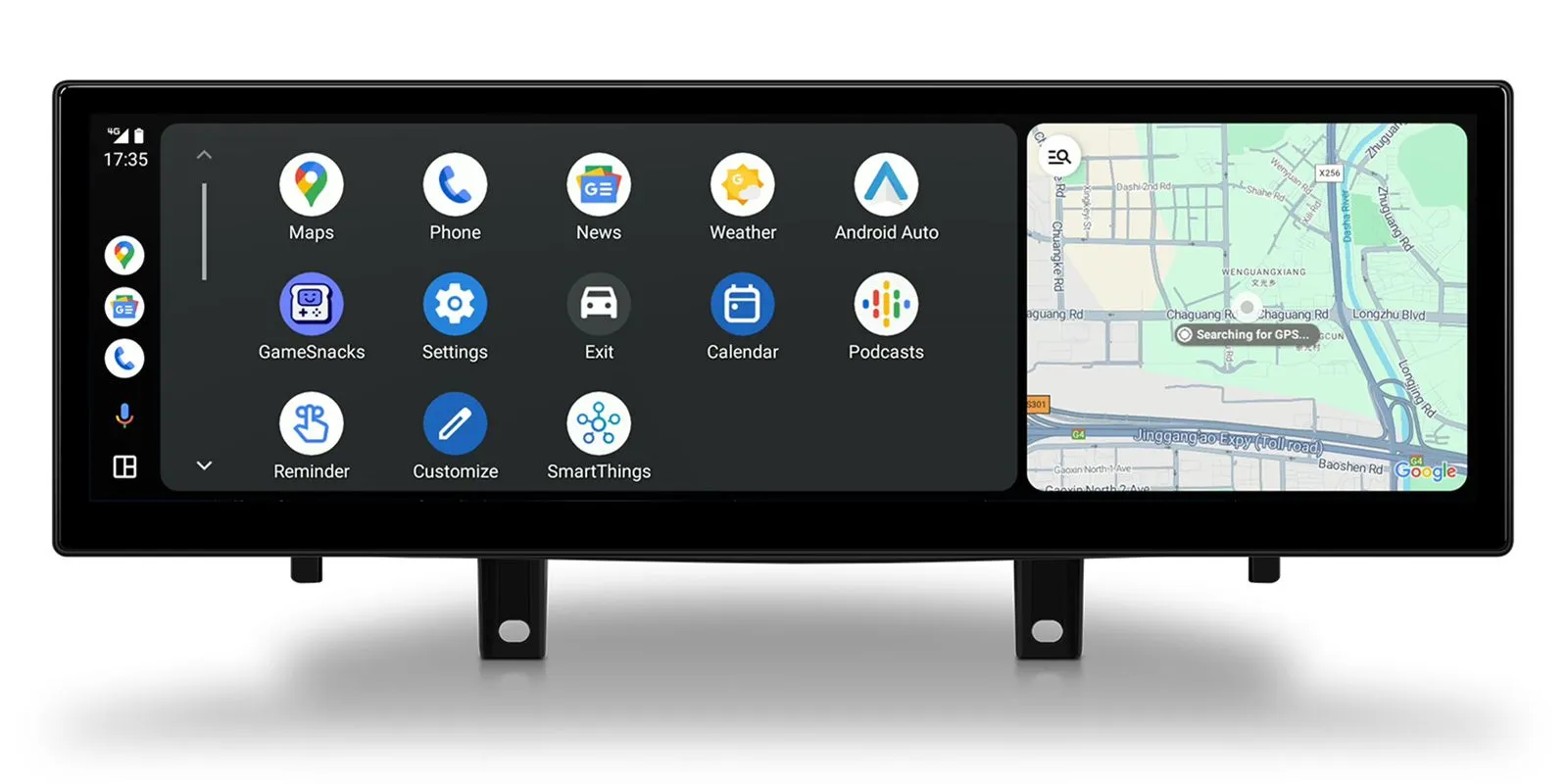

Android phones connect through Android Auto without wires, putting navigation, calls and music on the dashboard in an easy layout.
Works with the original BMW system
Android sits alongside the car's NBT system rather than replacing it, and the original CD player doesn't have to come out. You can still use the BMW functions you're used to and switch to Android when you want apps or phone mirroring.
Built-in 4G
Insert a SIM card and the unit has its own 4G connection for navigation, video and streaming, without relying on your phone's hotspot. A 4G antenna is included.
Wi-Fi
Wi-Fi lets the unit join a hotspot or your home network to download apps and updates.
Built-in DSP
The built-in DSP gives you control over how the sound is shaped, so you can balance it to suit the cabin and speakers.
Screen mirroring
Screen mirroring turns the head unit into a display for your phone, so you can use phone apps that aren't available in CarPlay or Android Auto.
Mini microphone for calls
A mini microphone is supplied for hands-free calls and voice commands. Mount it near the driver for the clearest pickup.
USB
A USB cable is included for connecting a phone or a USB stick with your music and video.
DAB with an external tuner
Connect an external DAB tuner to receive digital radio. The tuner is a separate accessory.
Performance
A 12nm octa-core chip (2xCortex-A75 + 6xCortex-A55) runs Android 14 with 8GB of DDR4 RAM and 256GB of solid state storage. There's room for a large music and video library, and apps open quickly.
The unit plays 2K video and supports an AHD camera.
Works with

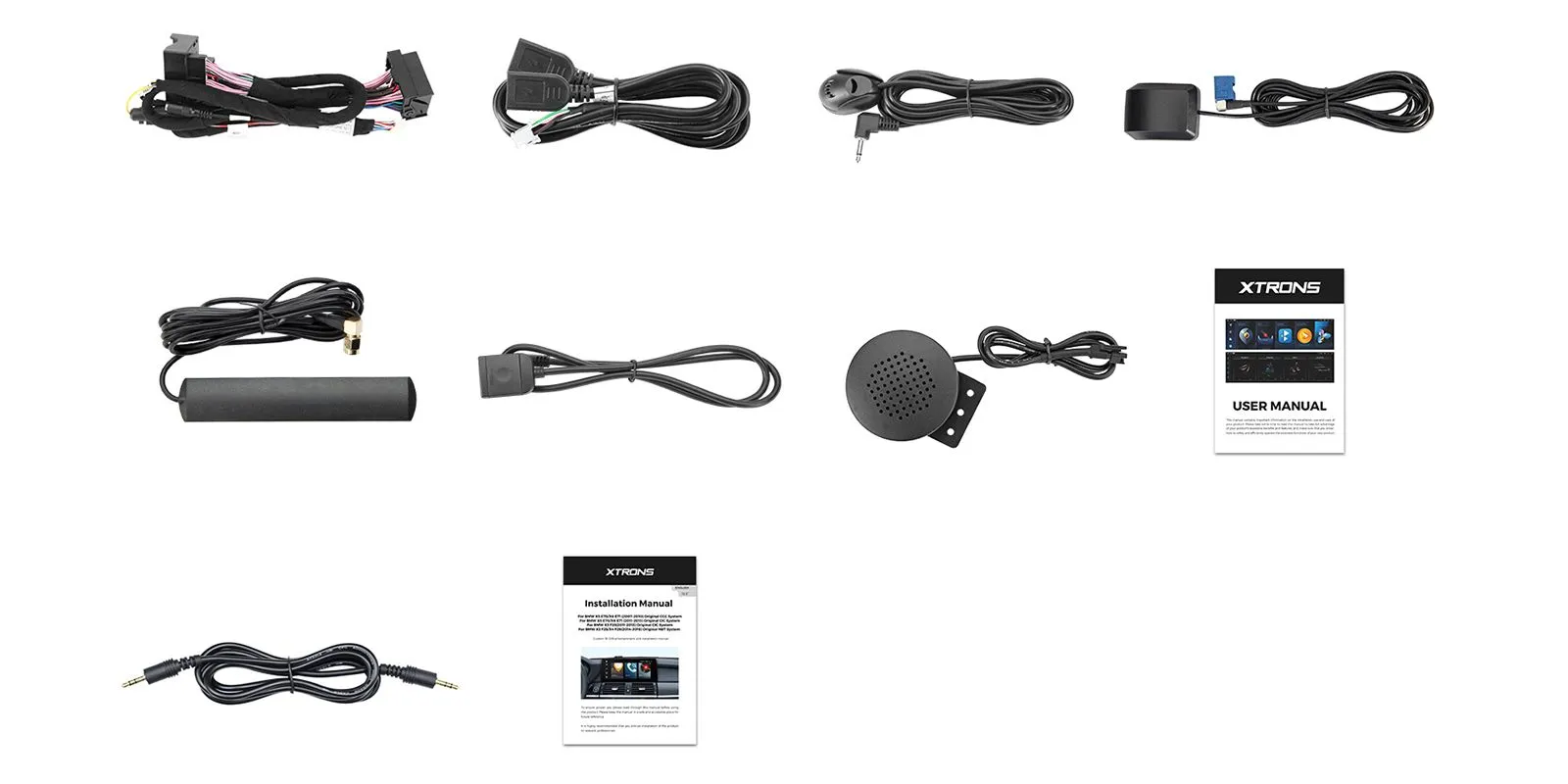

What's in the box
- 1 x 4G Antenna
- 1 x 4G SIM Card Slot
- 1 x GPS Antenna
- 1 x Installation Instructions
- 1 x Mini Microphone
- 1 x Mini Speaker
- 1 x USB Cable
- 1 x User Manual
| Operating system | Android 14 |
|---|---|
| Processor | 12nm Octa-core chip |
| Cores | (2xCortex-A75 + 6xCortex-A55) |
| RAM | 8GB DDR4 RAM |
| Storage | EMMC 256GB Solid State ROM |
| Screen | 14.9″ Fully-laminated 2560×720 IPS Screen |
|---|---|
| Aspect ratio | 32:9 |
| Mobile data | Integrated 4G LTE Solution |
|---|
| Camera | Supports AHD Camera |
|---|---|
| Video playback | 2K Video Playback |
- BMW X5 (2000 onwards)
- BMW X6 (2008 onwards)
- For BMW X5 F15 (2014-2017) with NBT System
- For BMW X6 F16 (2014-2017) with NBT System

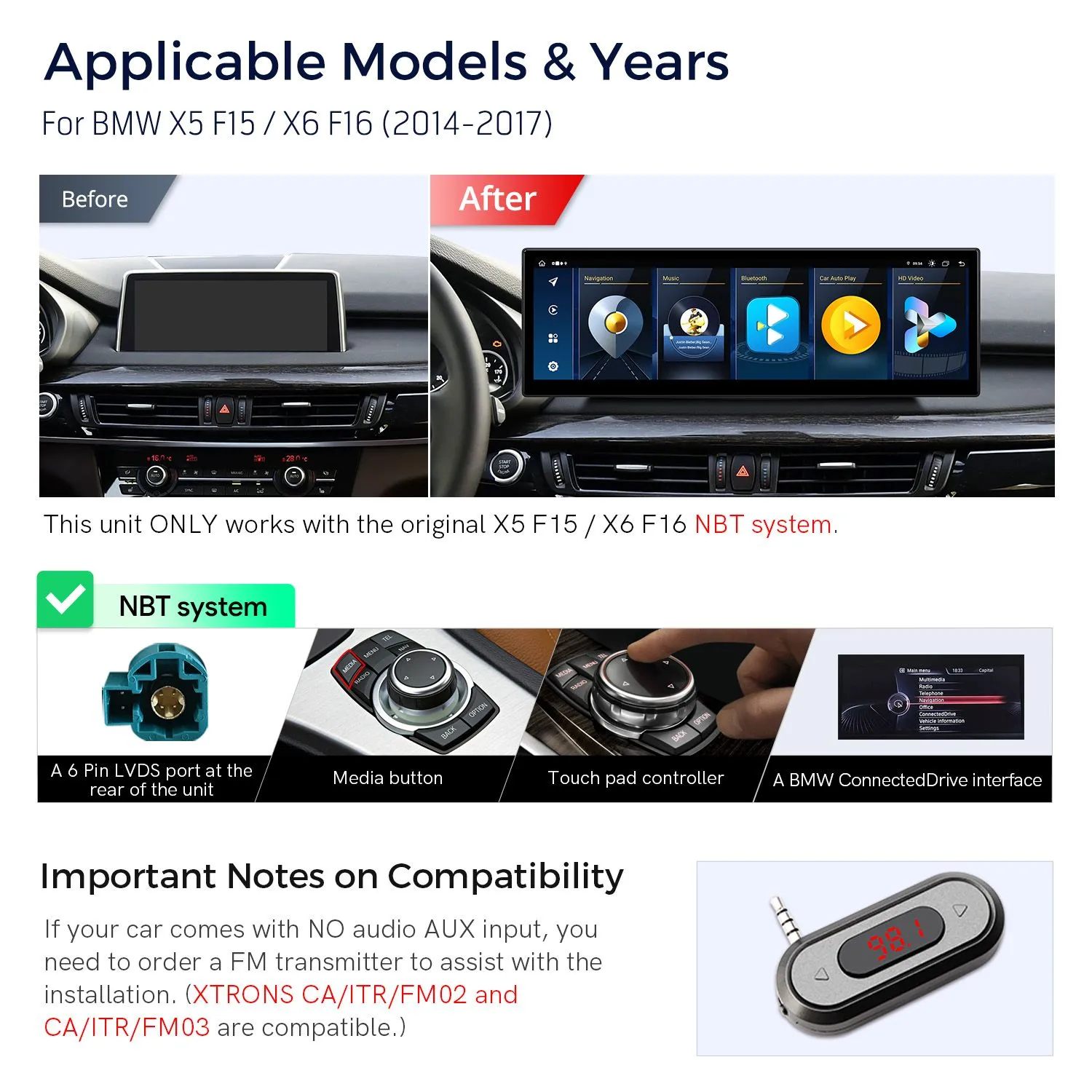

- This unit ONLY works with the original BMW X5 F15 / X6 F16 NBT system
- 1. Features of NBT: ① 6-pin LVDS port. ② a "MEDIA" button on the iDrive controller or a touch pad iDrive controller.
- Note: A "CarConnectDrive" interface does not guarantee that you have the NBT system.
- 2. Please see XTRONS QLBX44X5CCL (for left-hand driving cars) / QLBX44X5CCR3 (for right-hand driving cars) if your vehicle comes with a CCC system.
- 3. Please see XTRONS QLBX44X5CIL (for left-hand driving cars) / QLBX44X5CIR3 (for right-hand driving cars) if your vehicle comes with a CIC system.
- 4. Please see XTRONS QLBX44X5EV3 if your vehicle comes with the EVO system.
The screen is for X5 F15 and X6 F16 cars with the NBT system, which has a 6-pin LVDS port and a MEDIA button or touch pad on the iDrive controller. The original CD player stays where it is. Check your system before ordering, as CCC, CIC and EVO cars each need a different model.
How do I know if my car has NBT?
NBT has a 6-pin LVDS port and a MEDIA button or touch pad on the iDrive controller. A CarConnectDrive interface alone doesn't confirm it.
My car has CCC or CIC. Which model do I need?
For a right-hand drive car, the XTRONS QLBX44X5CCR3 for CCC or the QLBX44X5CIR3 for CIC.
My car has EVO. Which model do I need?
The XTRONS QLBX44X5EV3.
Do I have to remove the CD player?
No. The original CD player stays where it is.
Can I fit a reversing camera?
The unit supports an AHD camera.
Reviews
What customers say
Bought this product? Sign in to write a review.
Full specification from XTRONS

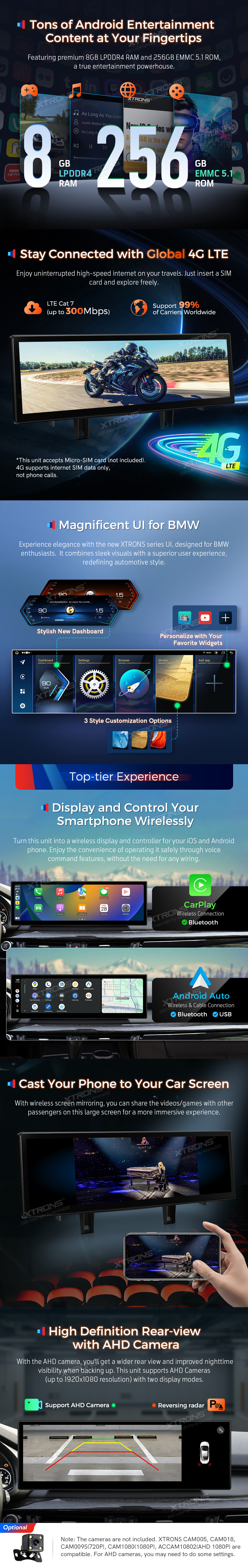

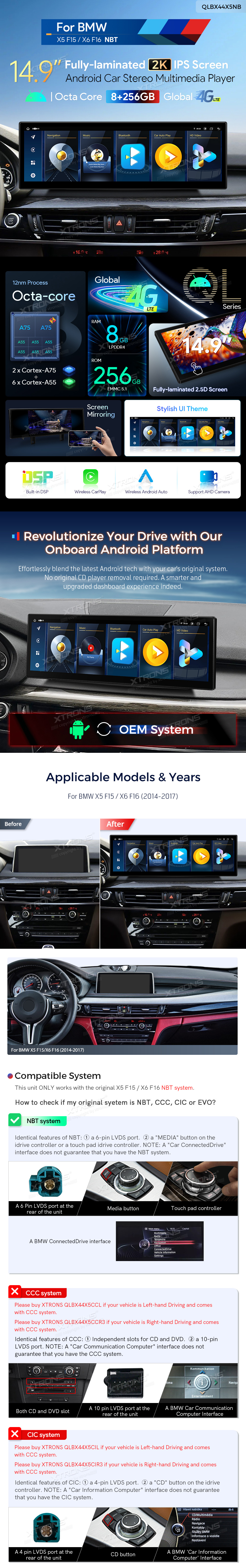

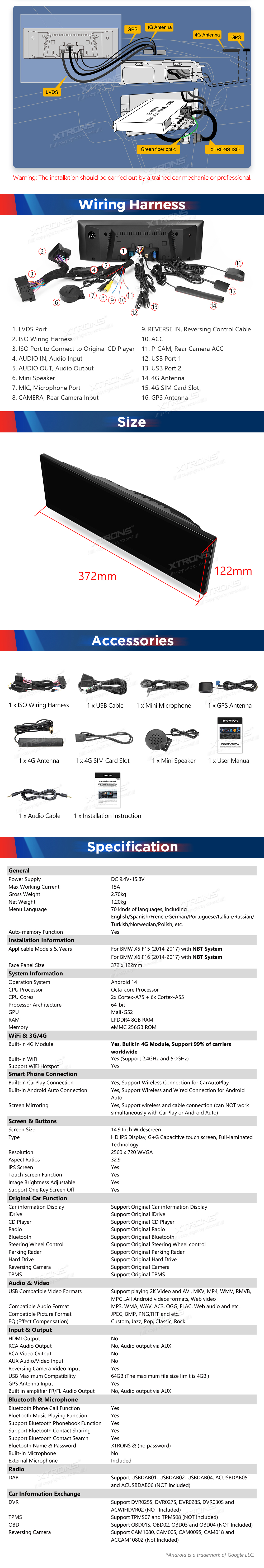

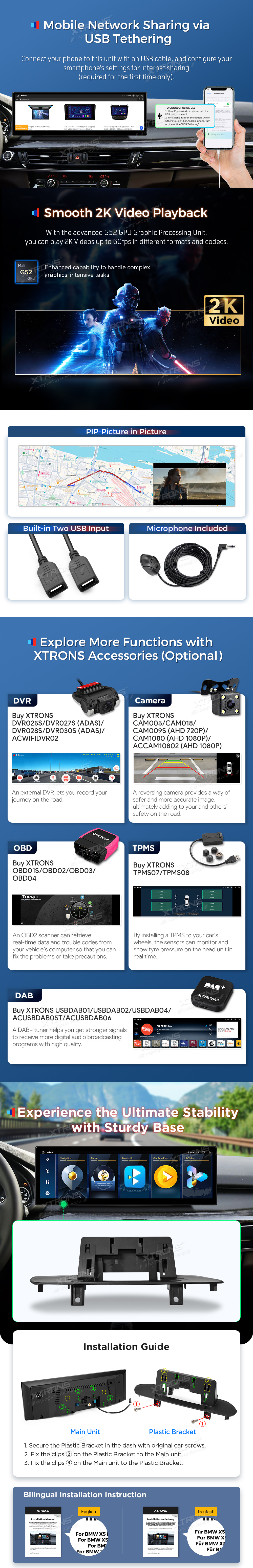

XTRONS's own pages for this product, as the manufacturer publishes them. Open any of them at full size to zoom in.
