BMW 1/2 Series 12.3 inch Android Head Unit with Wireless CarPlay, Android Auto and 4G | QLB22NB12NER
In stock

Image 1 of 16.
SKU: PXP9439BGDAB
£299.00Was £349.00Save £50.00
Check if this fits your car

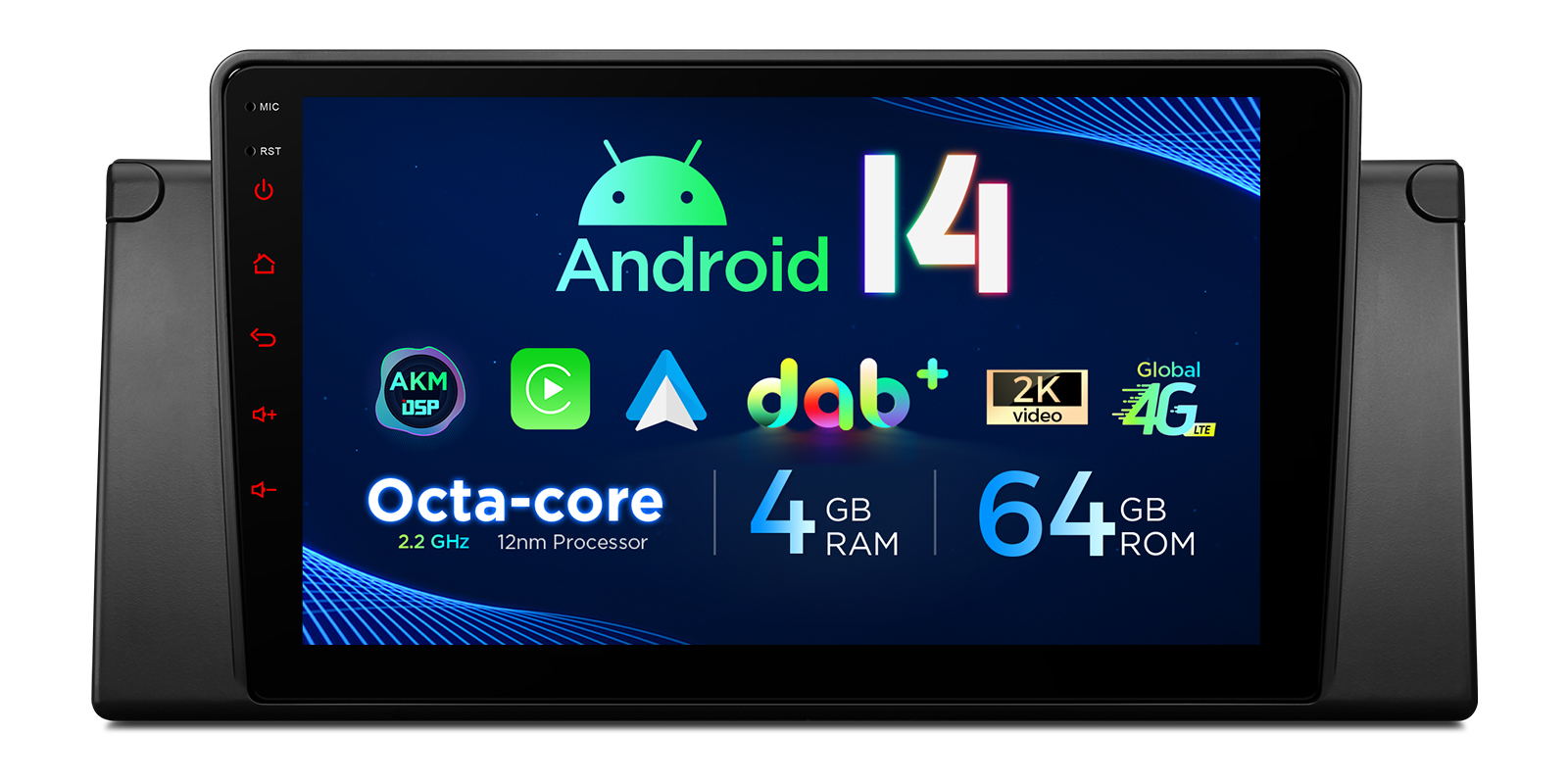

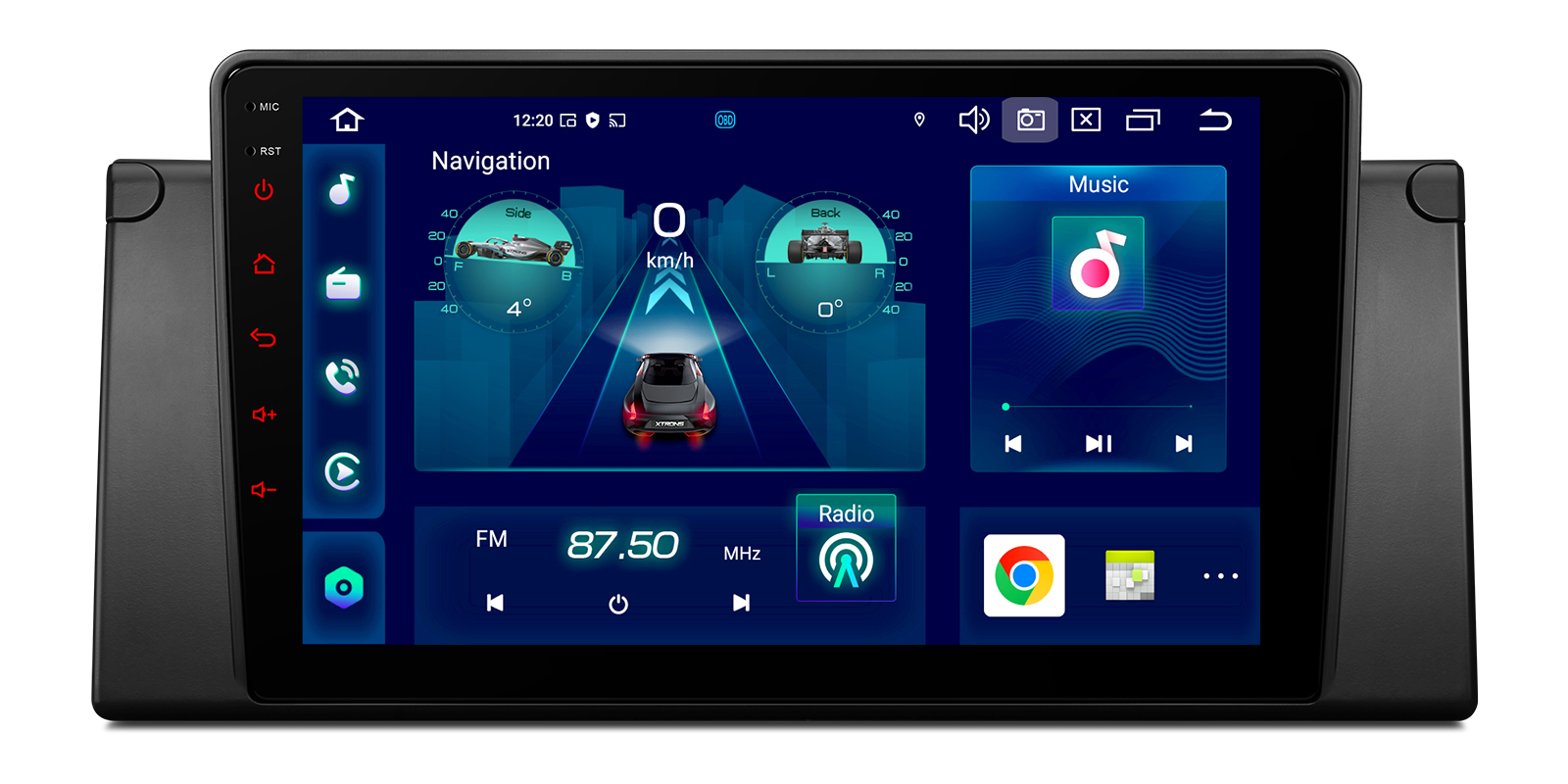

The XTRONS PXP9439BGDAB is a 9 inch Android 14 head unit made to fit the BMW E39 and E39 M5. It has built-in DAB+ radio, wireless CarPlay, Android Auto and 4G, plus an AKM DSP for tuning the sound.

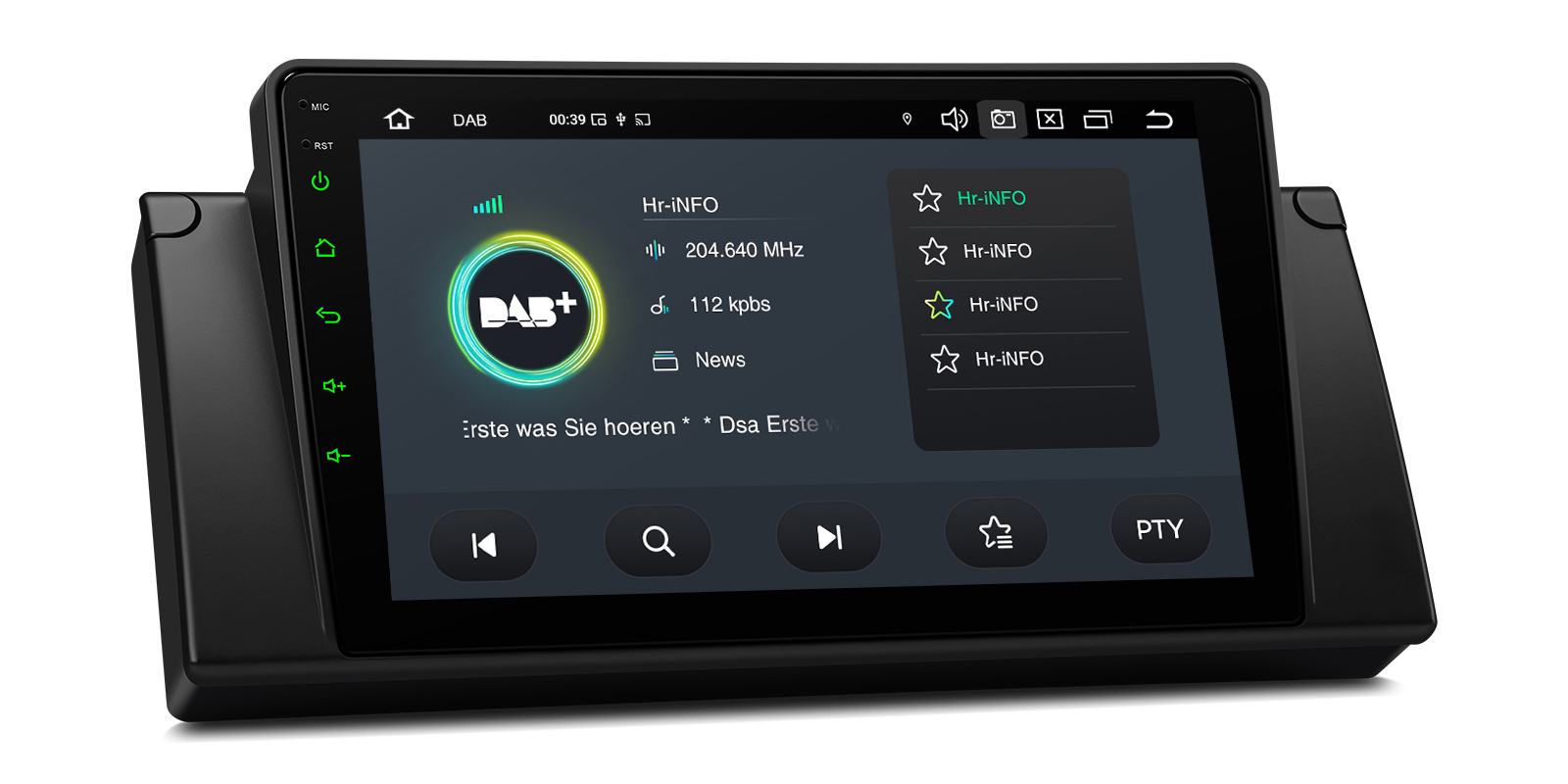

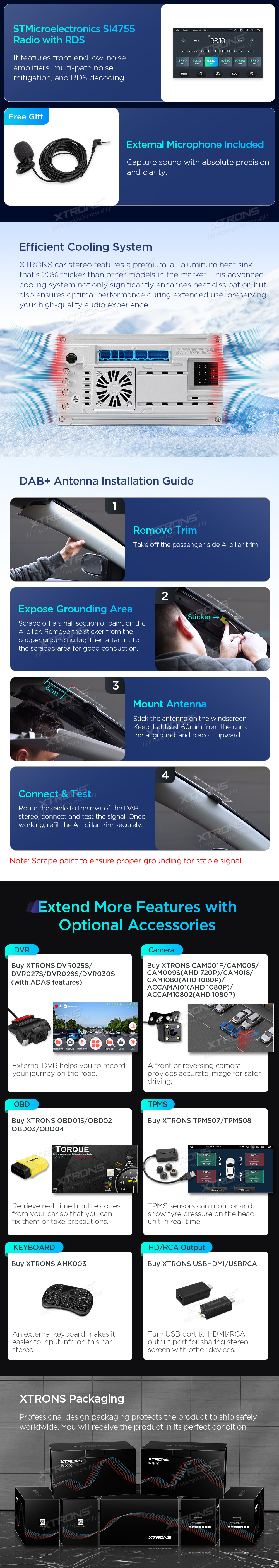

DAB+ is built in, so digital stations are there without adding a separate tuner. The DAB chip uses noise cancelling and signal optimisation to keep reception clear.

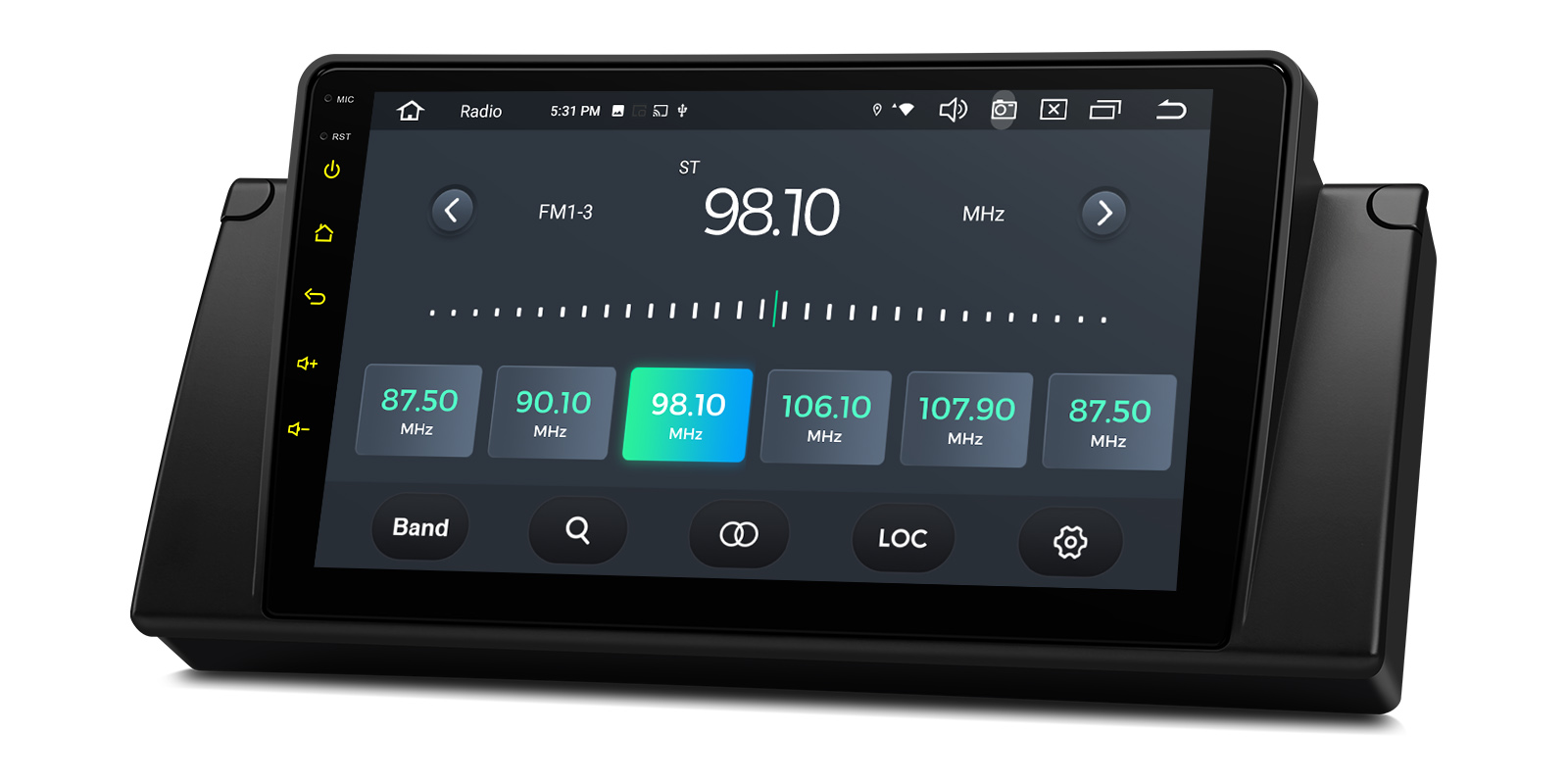

An SI4755 radio with RDS covers FM as well.

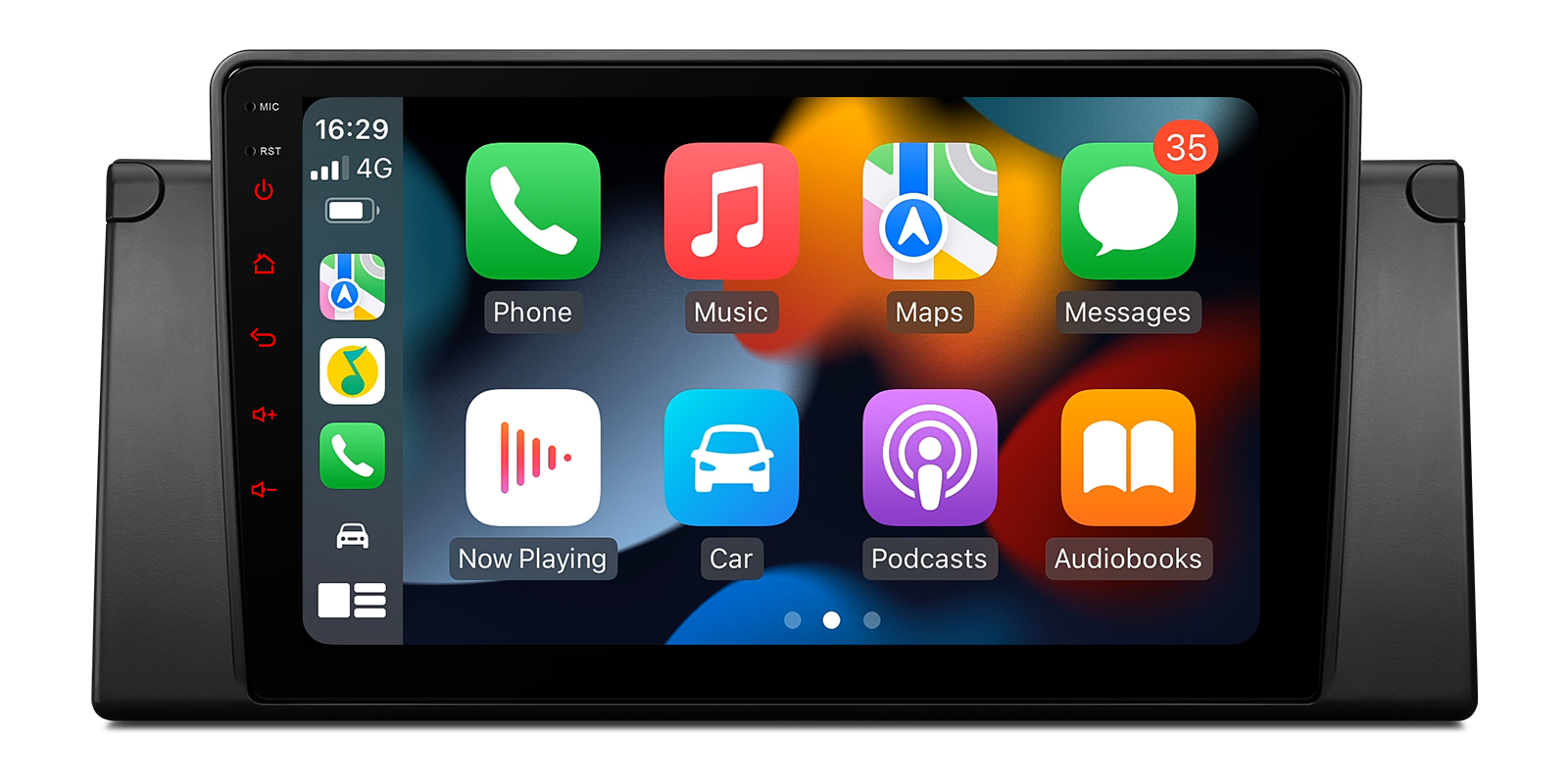

CarPlay connects without a cable, putting maps, messages and music on the 9 inch screen and letting you use voice commands. It supports iPhone 5 and later models with iOS 8 and above.

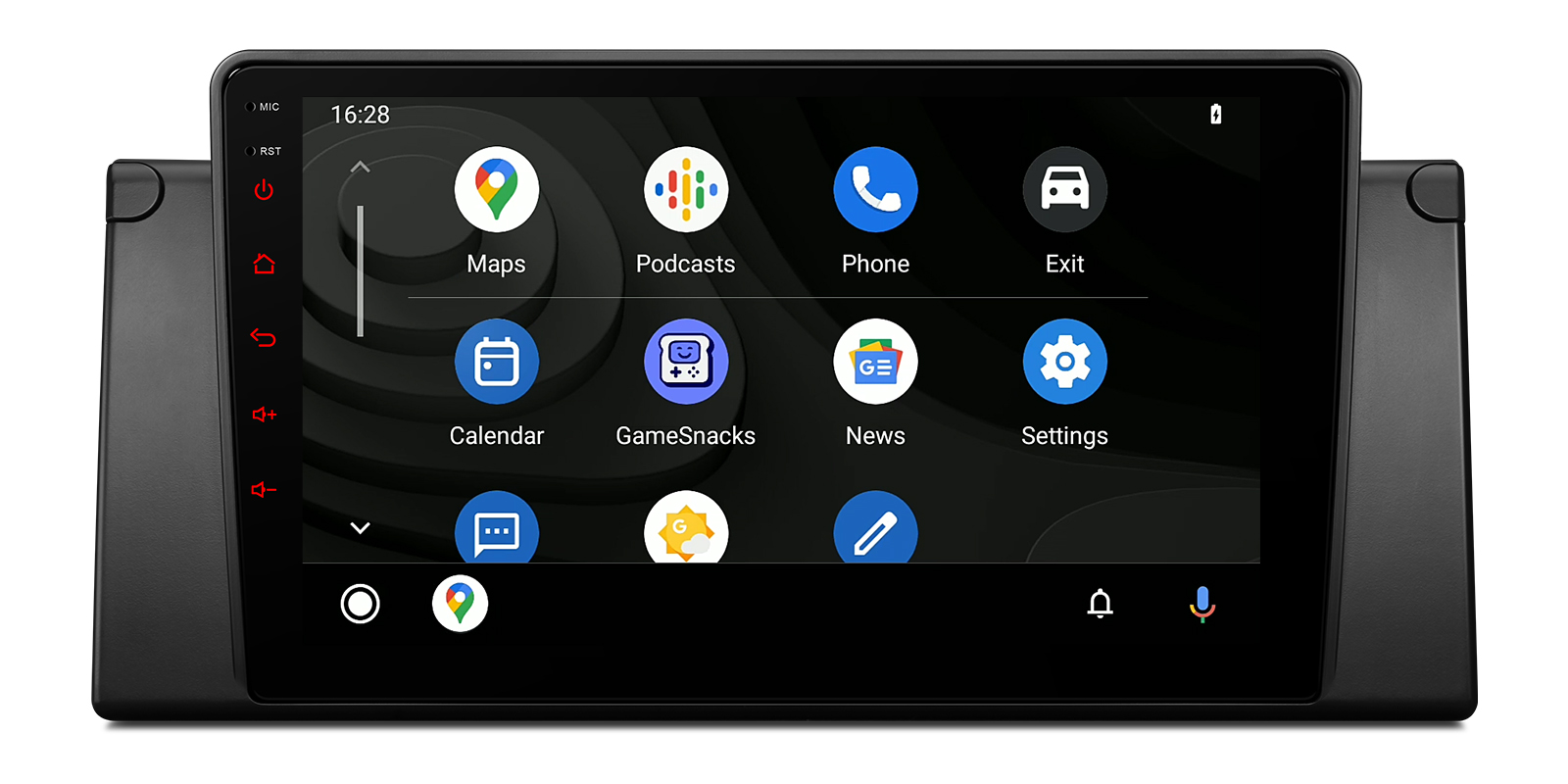

Full-featured Android Auto puts navigation, calls and music from your Android phone on the screen. It supports Android phones with Android 4.3 and above.

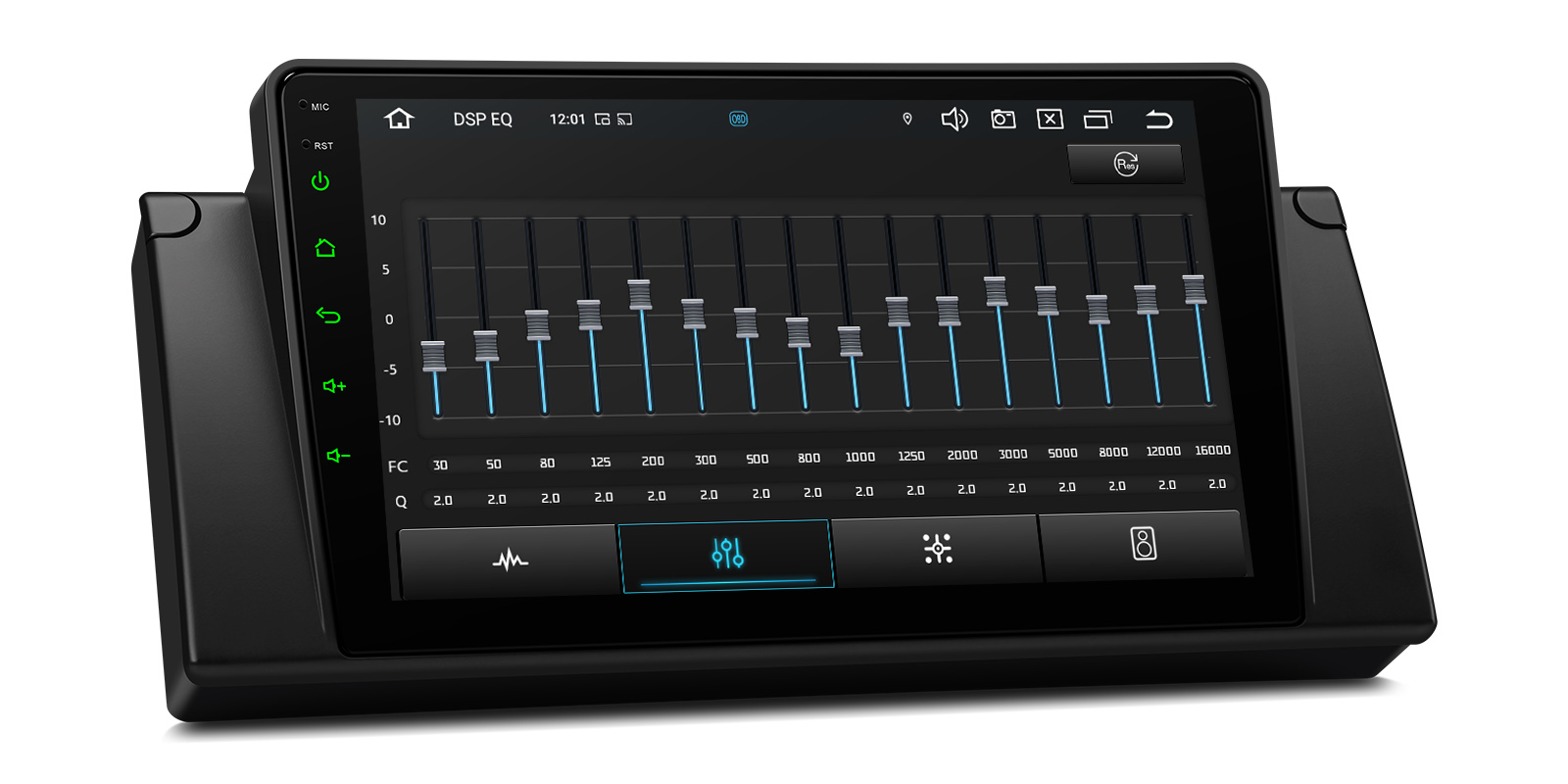

The automotive-grade AKM DSP chip lets you shape the sound with customisable modes and EQ settings, so you can set it up for the music you play most.

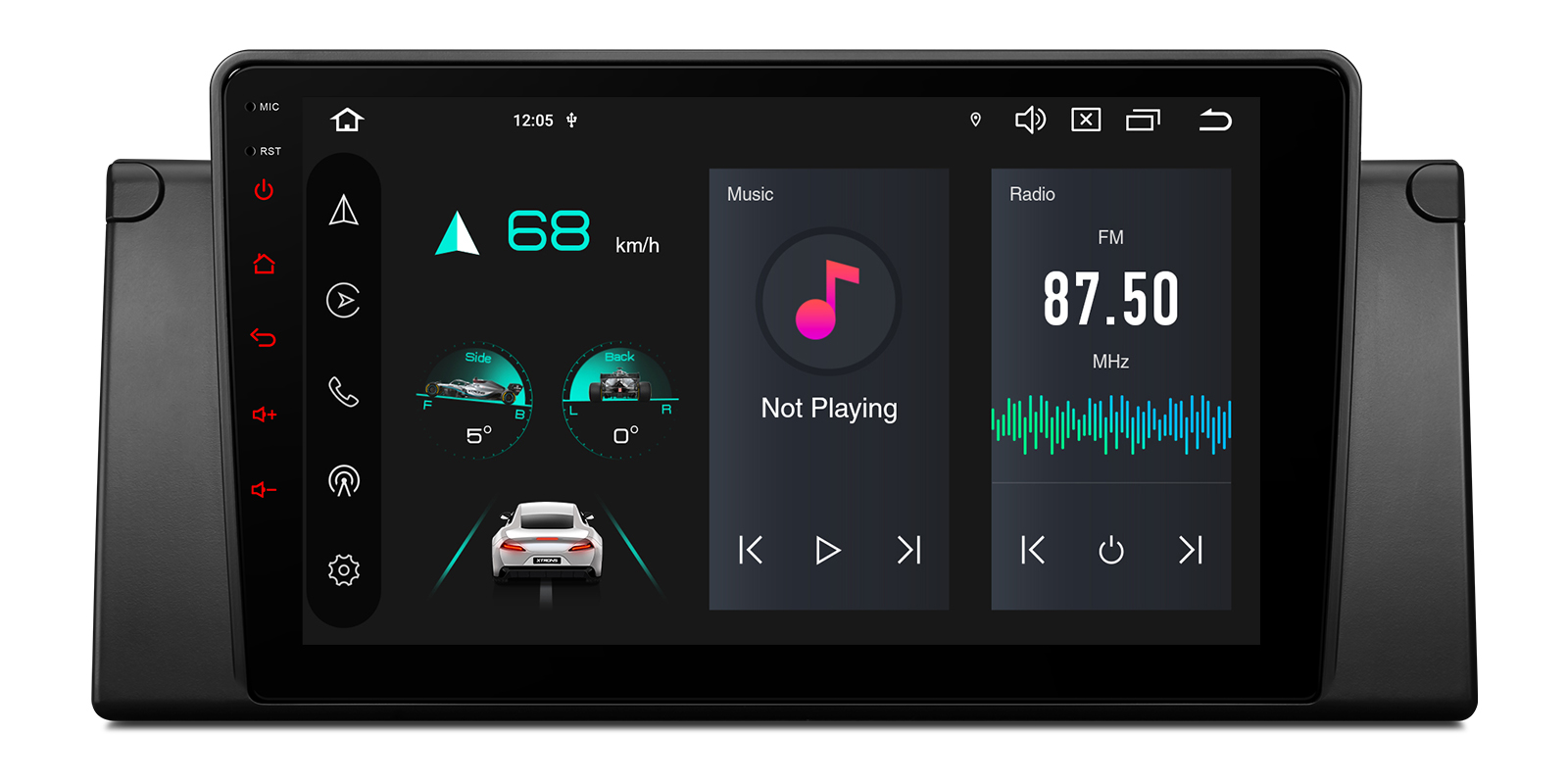

The 9 inch 1280×720 capacitive touch screen uses G+G glass and IPS technology. Colours don't shift when viewed from an angle, so the passenger sees the same picture as the driver.
A 12nm octa-core 2.2GHz processor runs Android 14 with 4GB RAM and 64GB of storage. It's tested to run from −30°C to +80°C and plays 2K video.
A TDA7388 amplifier drives the car's speakers.
Insert a Micro-SIM card and the unit has its own 4G connection for maps and streaming. A 4G antenna and a SIM card slot cable are included.
A separate Wi-Fi antenna comes in the box, helping the unit keep a steady connection to a hotspot or your home network.
A microphone is included. Mounted near the driver, it picks up your voice for hands-free calls and voice commands.

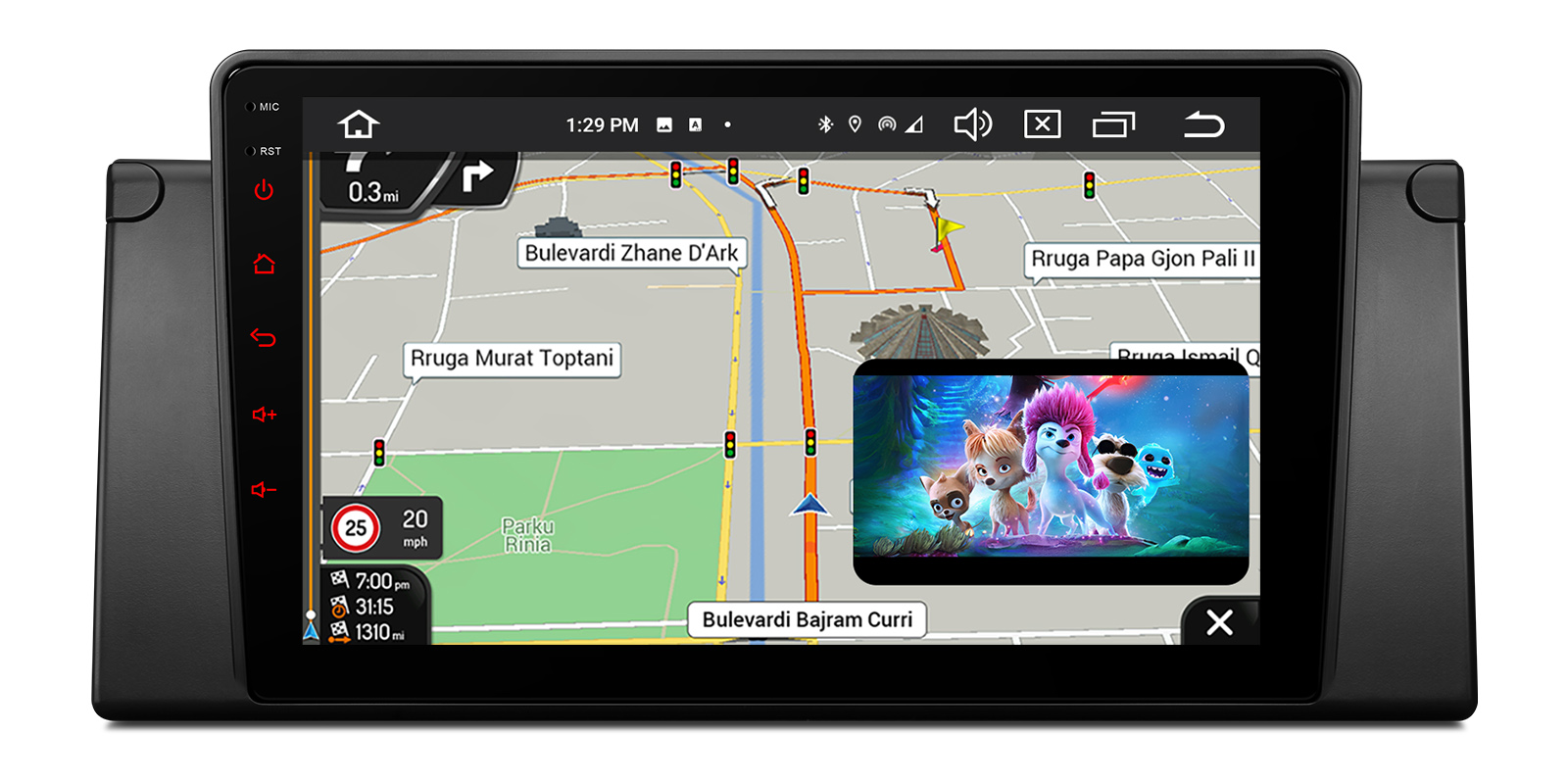

Screen mirroring shows your phone's display on the head unit, useful for apps outside CarPlay and Android Auto while parked.
Two USB cables are included. USB tethering lets the unit use your phone's mobile data over a cable, and AHD cameras connect through the included camera cable.

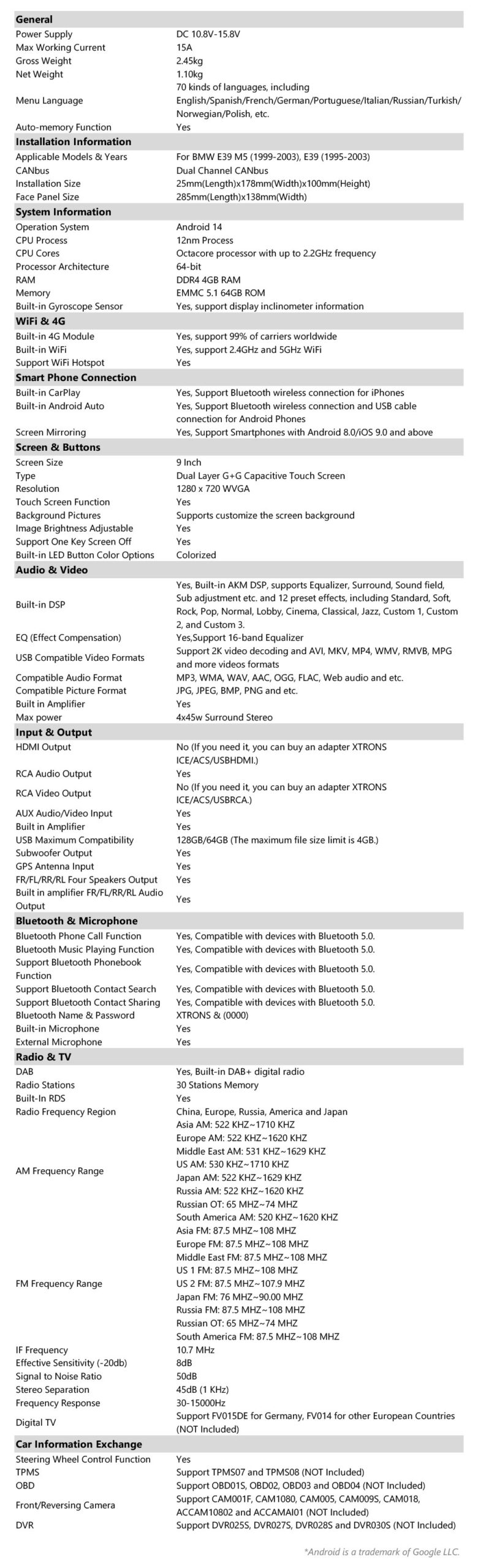

| Processor | 12nm octa core 2.2GHz processor |
|---|---|
| Memory | 4GB DDR4 RAM + 64GB Solid State ROM |
| Operating system | Android 14 |
| Operating temperature | −30°C to +80°C |
| Screen | 9” 1280×720 Capacitive Touch Screen |
|---|---|
| Video | 2K Video Playback |
| Radio | SI4755 Radio with RDS |
|---|---|
| DAB | Built-in DAB+ |
| Amplifier | TDA7388 Amplifier |
| Sound processing | AKM DSP |
| Mobile data | Integrated global 4G Solution |
|---|---|
| Wireless | Wi-Fi |
| Navigation | GPS |
| Android phones | Supports Android phones with Android 4.3 and above |
| iPhone | Supports iPhone 5 and later models with iOS 8 and above |

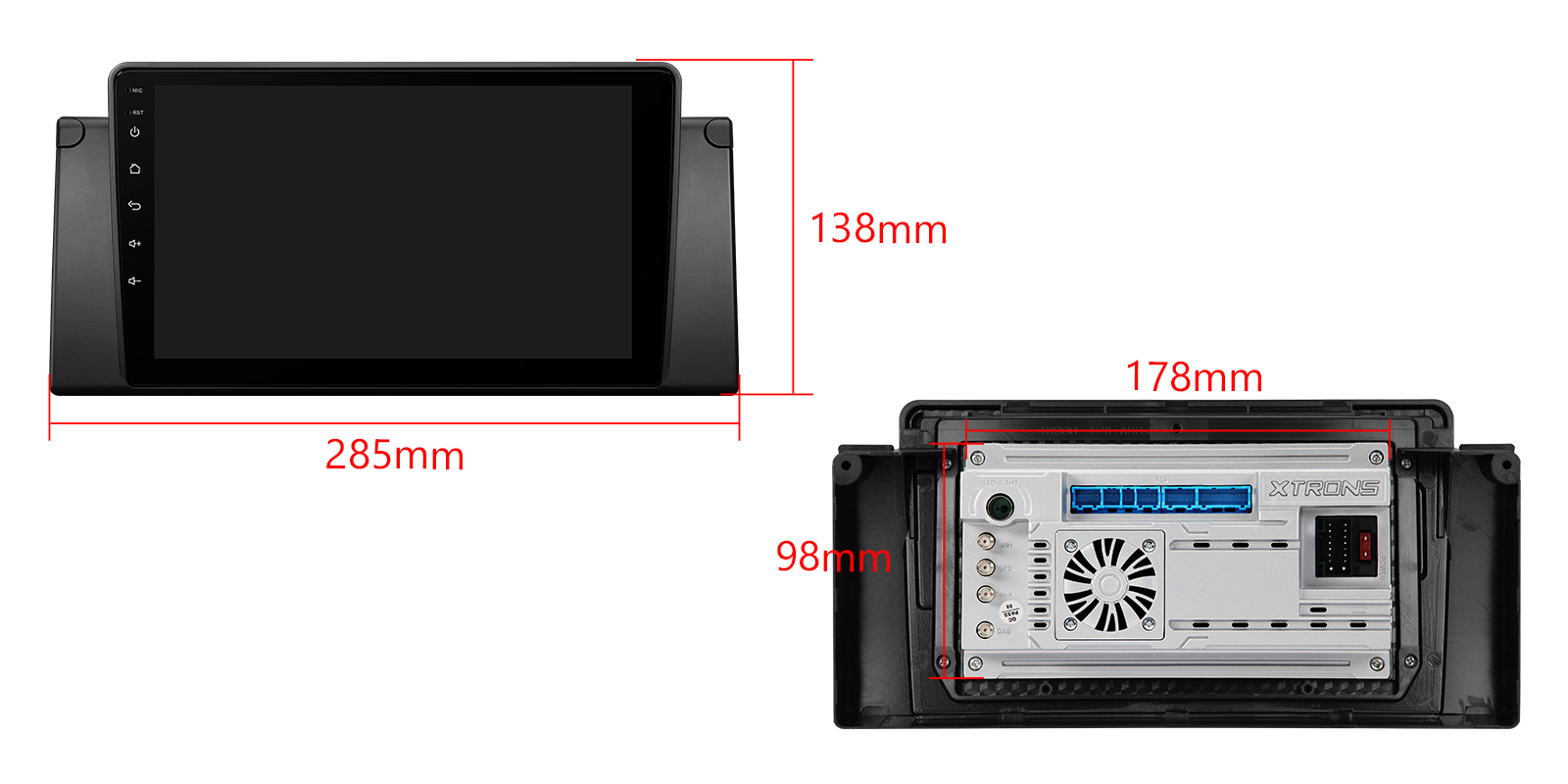

| Face panel | Face Panel: 285x138mm |
|---|

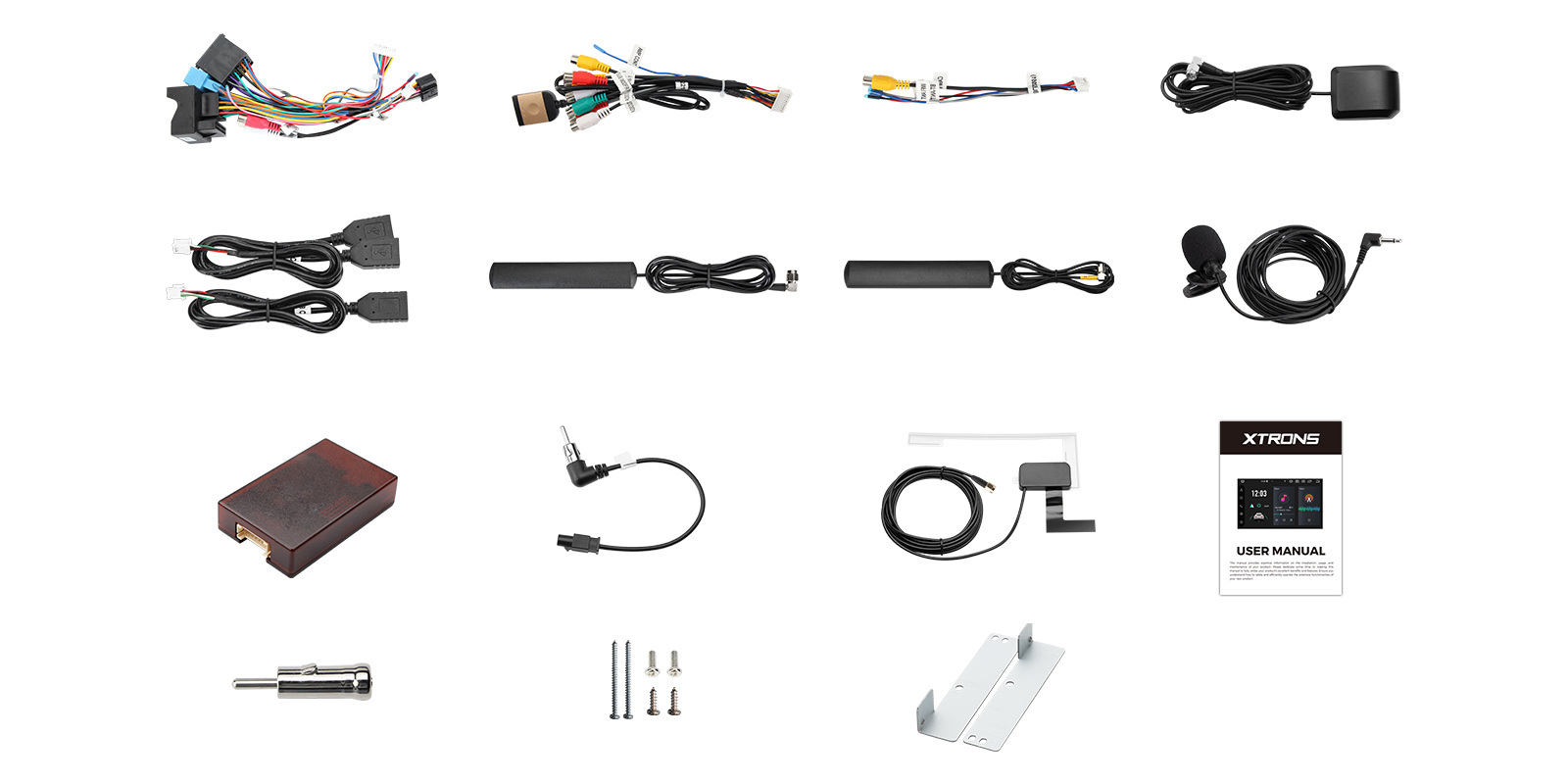

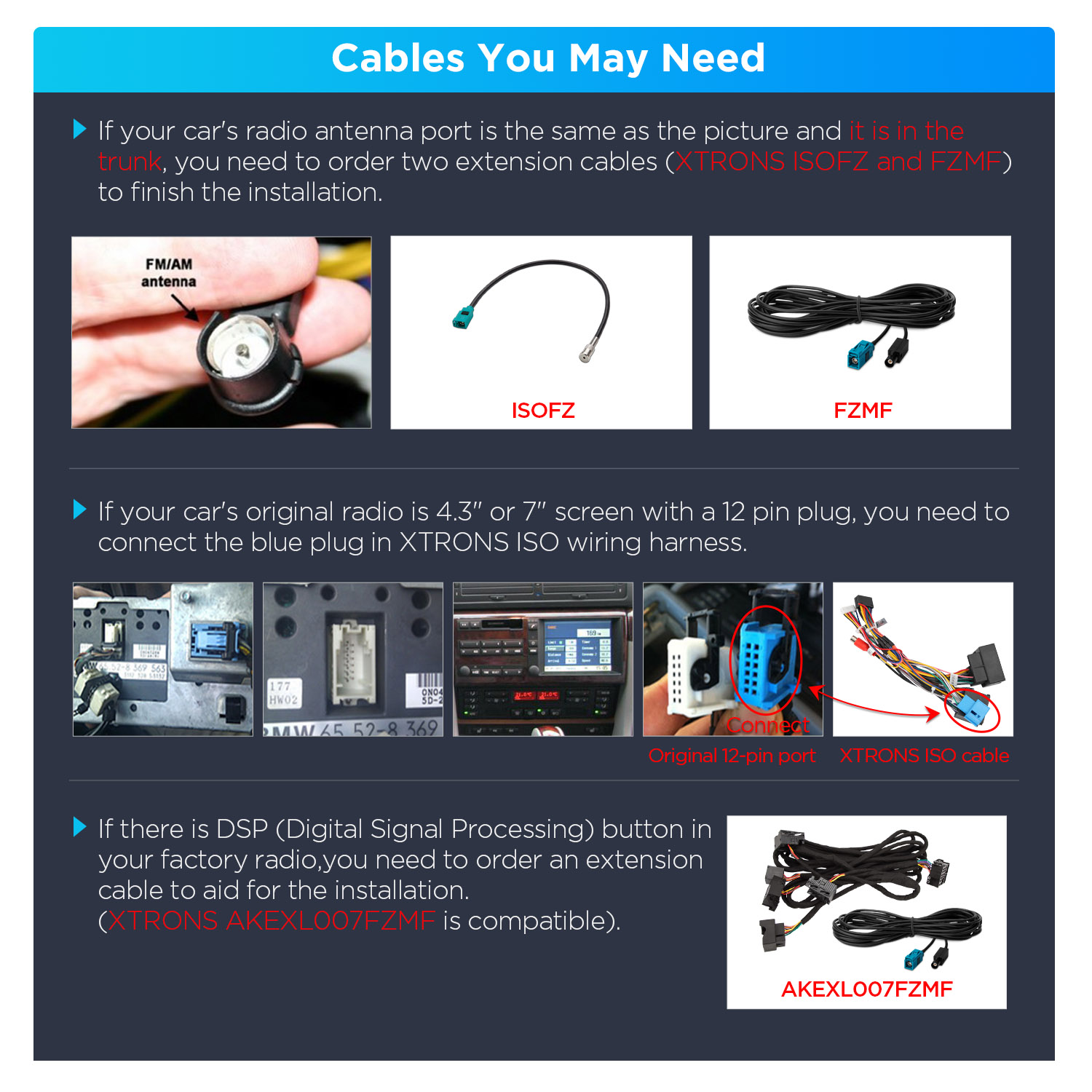

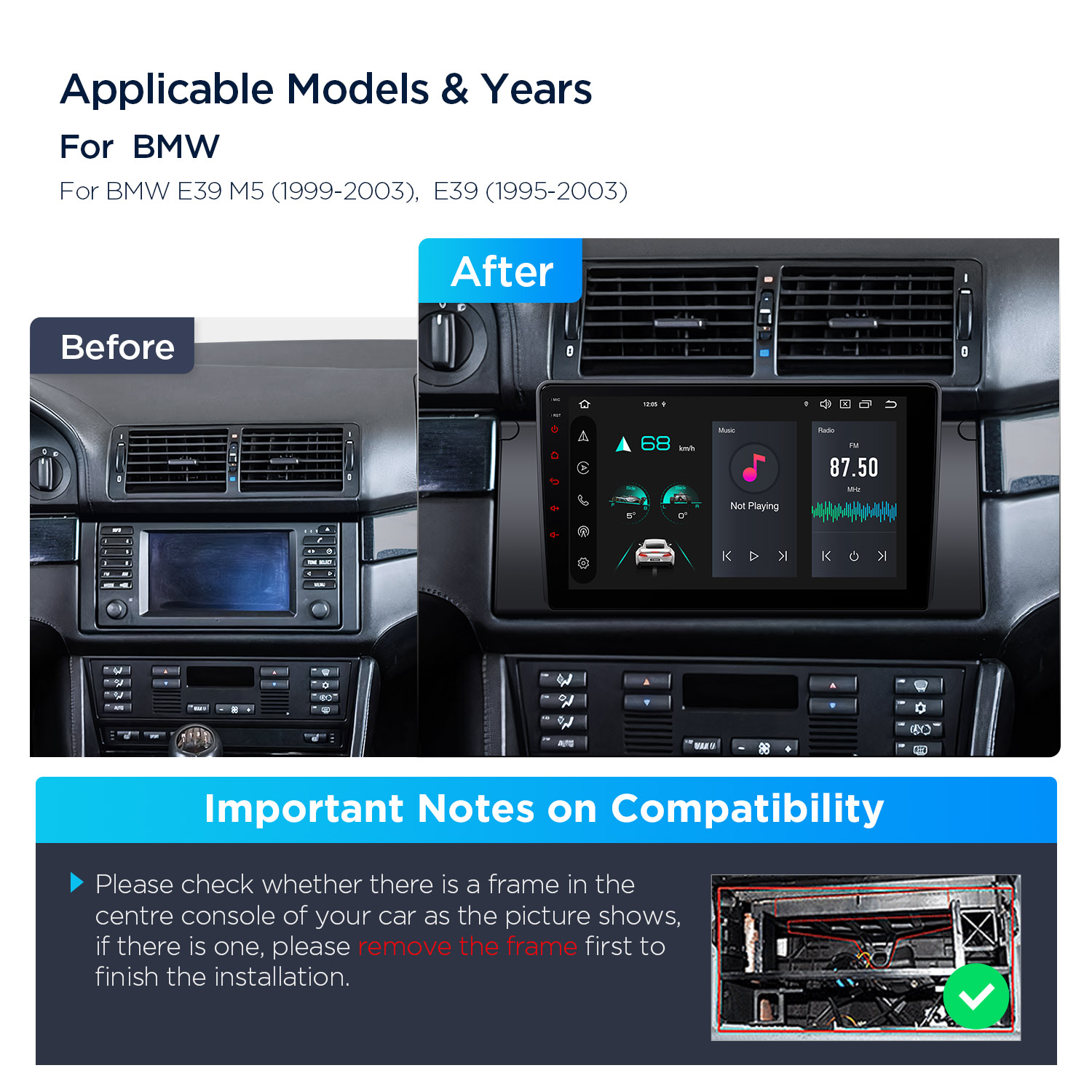

The unit is a custom fit for the E39, with a 285x138mm face panel, a CANbus box and two fitting kits. Remove any frame in the centre console before fitting. If your original radio has a 4.3" or 7" screen with a 12 pin plug, use the blue plug on the included ISO wiring harness. Cars with the antenna port in the boot need the XTRONS ISOFZ and FZMF extension cables, and a factory DSP button needs the AKEXL007FZMF.
Yes, DAB+ is built in, so no external tuner is needed.
No, this unit does not play discs.
It depends on your car. An antenna port in the boot needs two extension cables (XTRONS ISOFZ and FZMF), and a factory radio with a DSP button needs the XTRONS AKEXL007FZMF.
A Micro-SIM card with a data plan.
Reviews
Bought this product? Sign in to write a review.

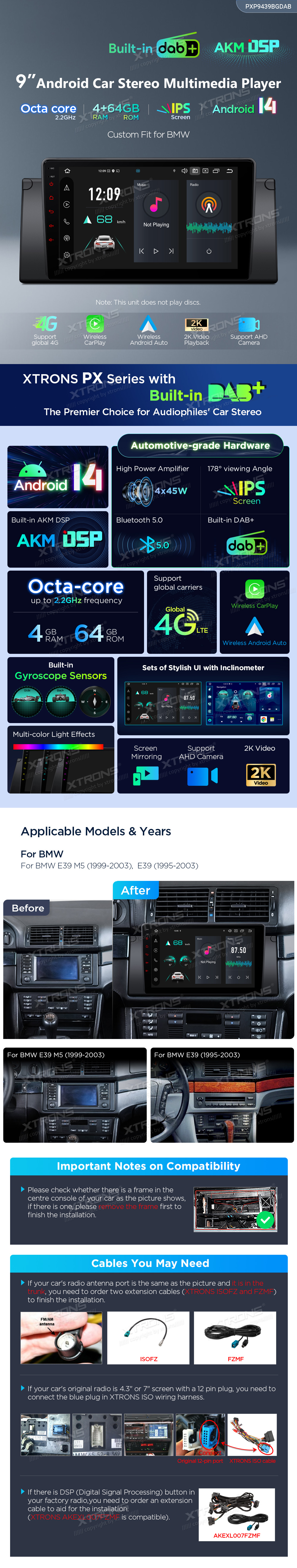

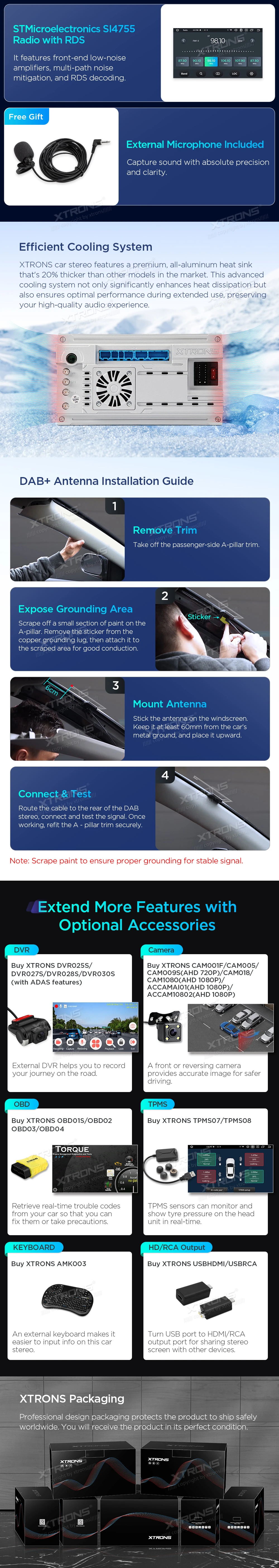

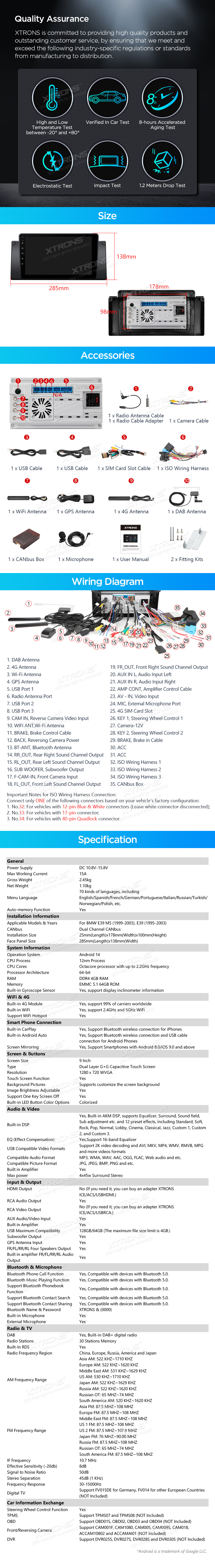

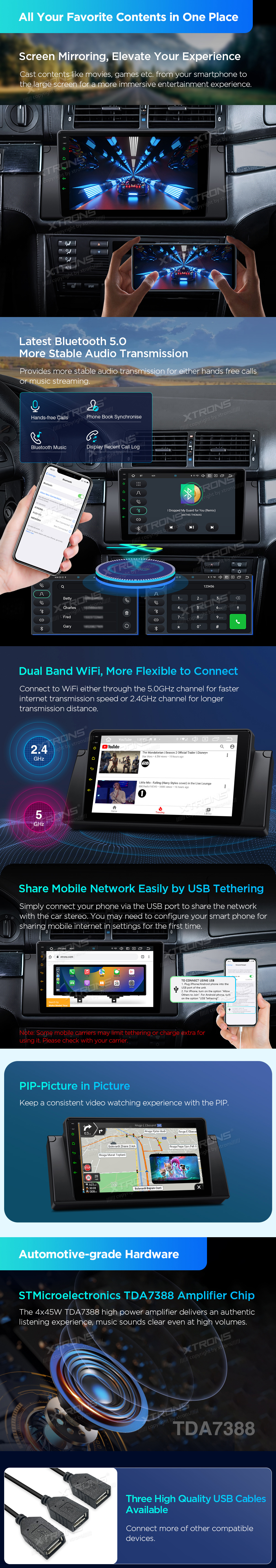

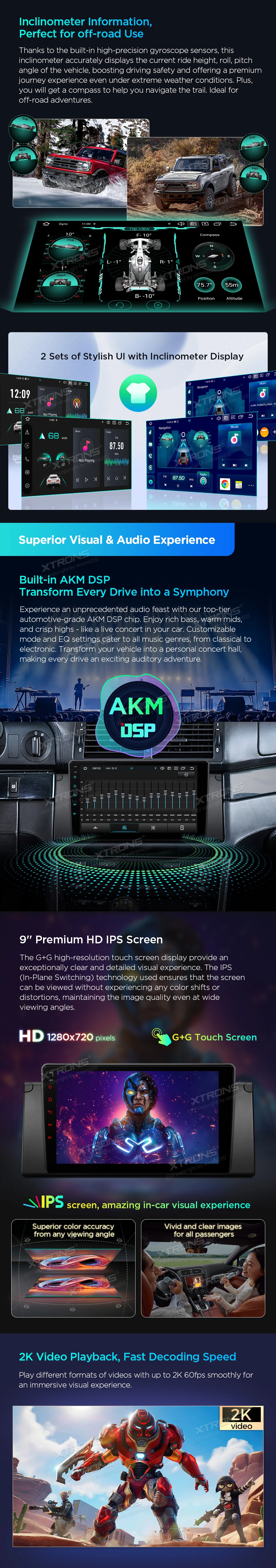

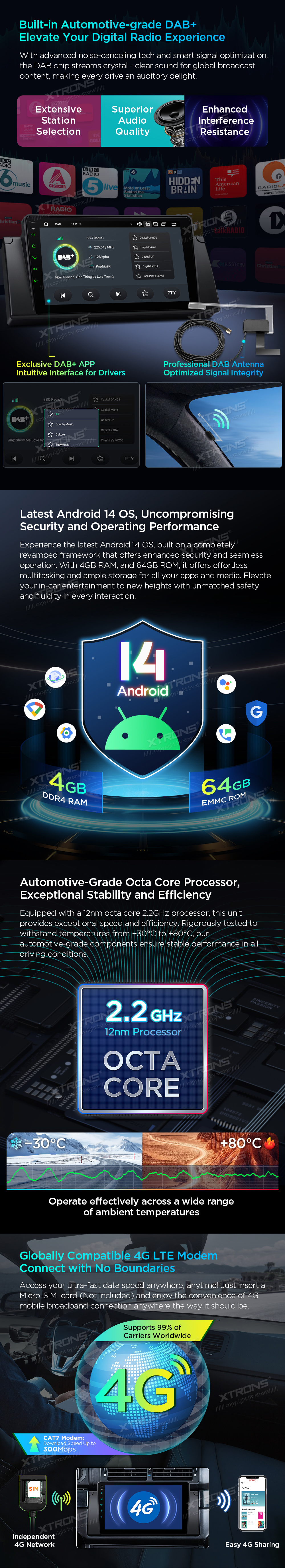

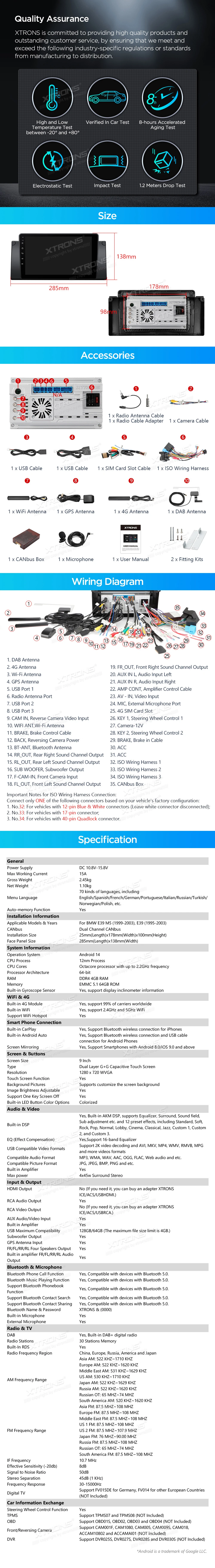

XTRONS's own pages for this product, as the manufacturer publishes them. Open any of them at full size to zoom in.
