BMW 1/2 Series 12.3 inch Android Head Unit with Wireless CarPlay, Android Auto and 4G | QLB22NB12NER
In stock

Image 1 of 19.
SKU: QBBH14NB12SX
£409.00Was £479.00Save £70.00
Check if this fits your car

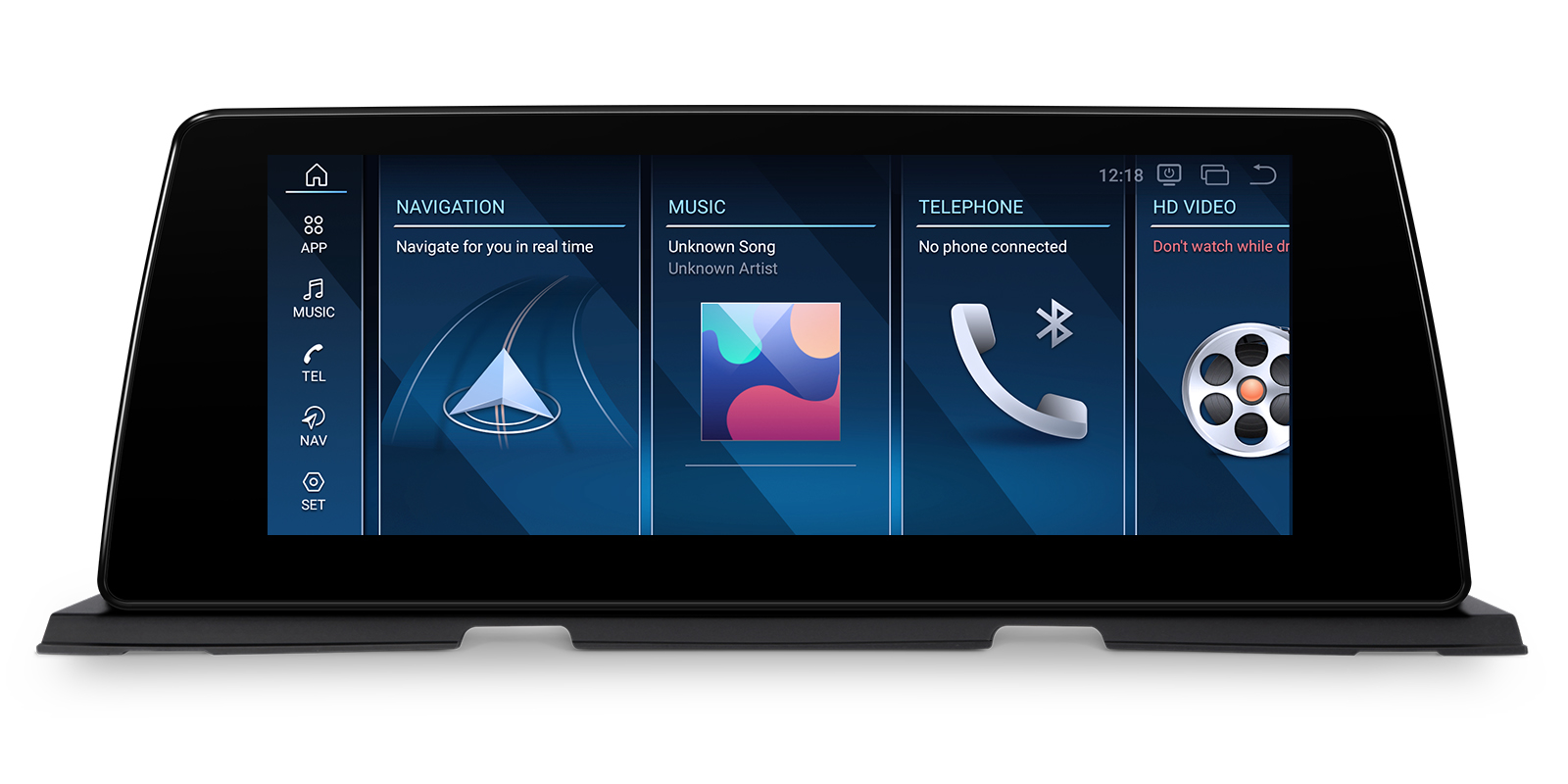

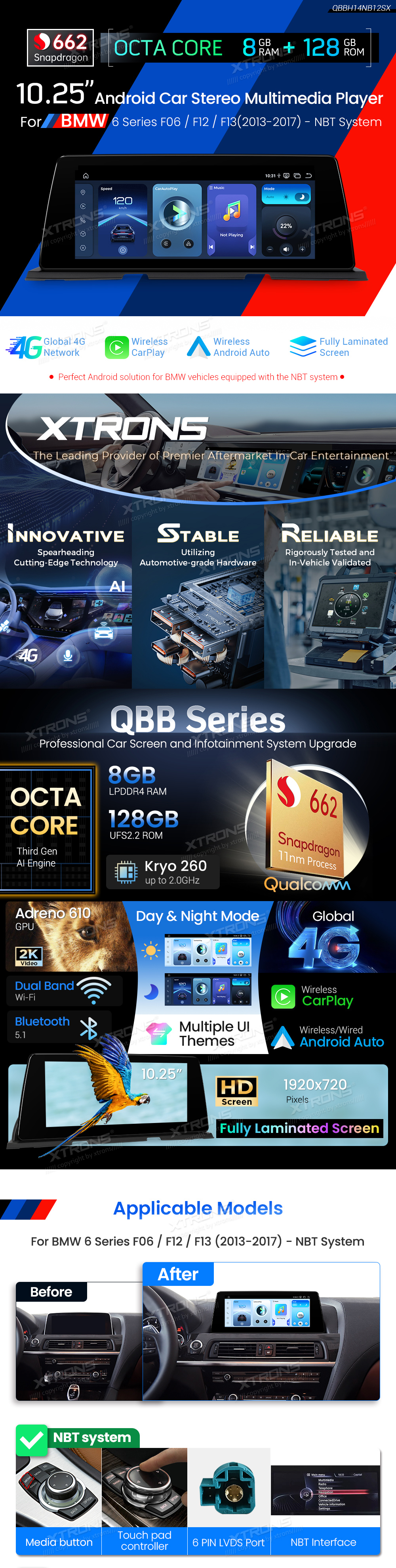

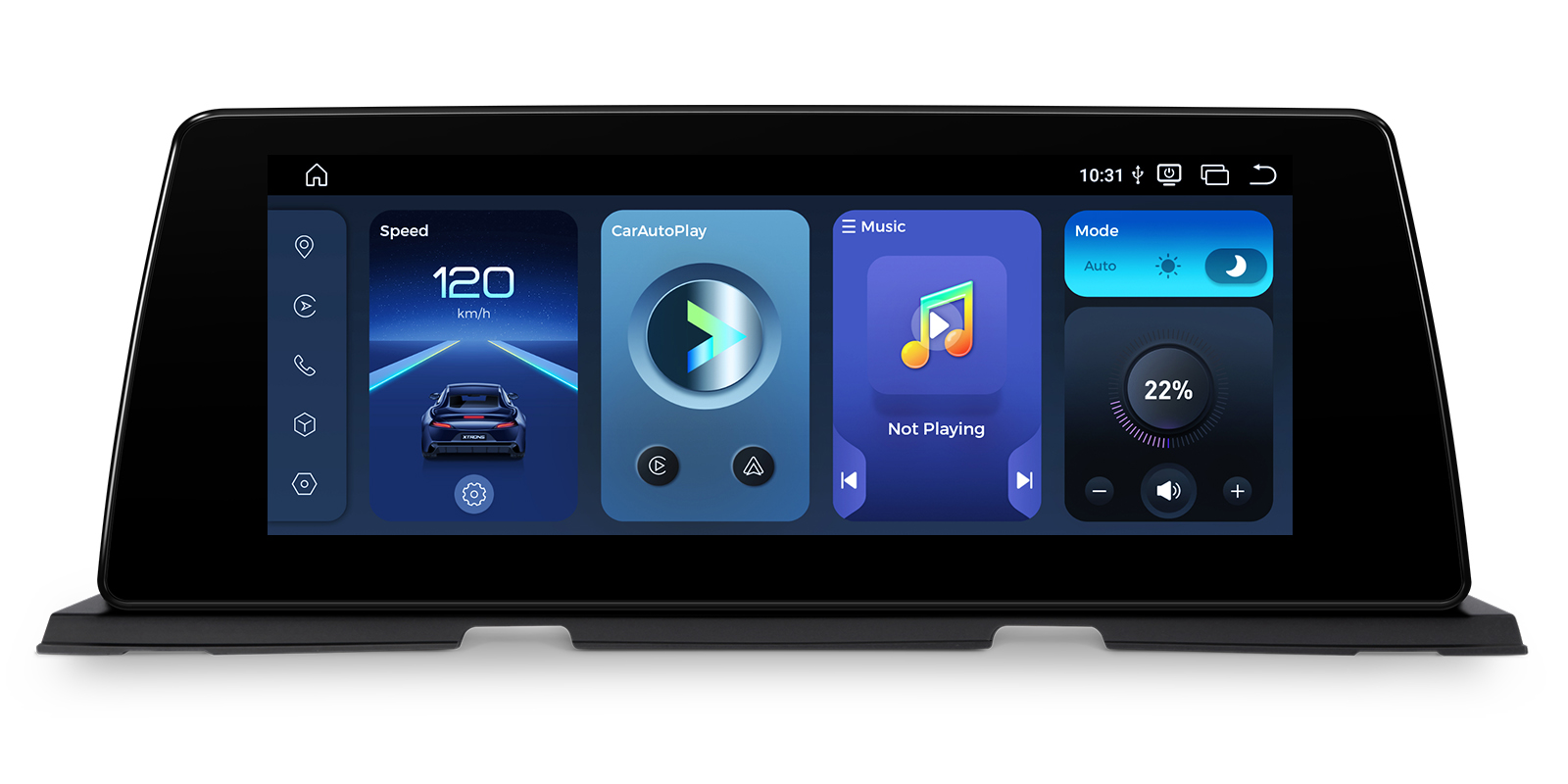

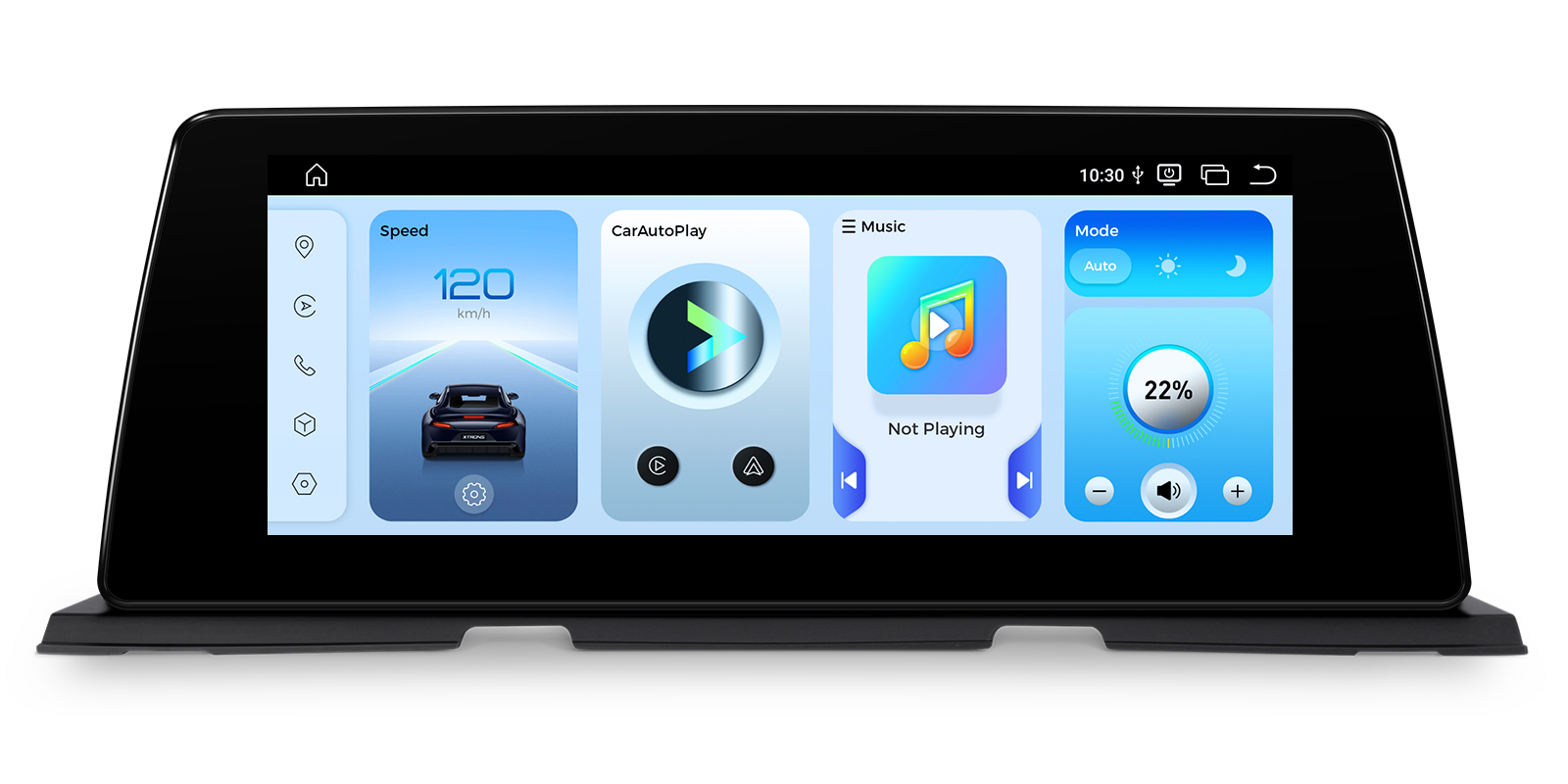

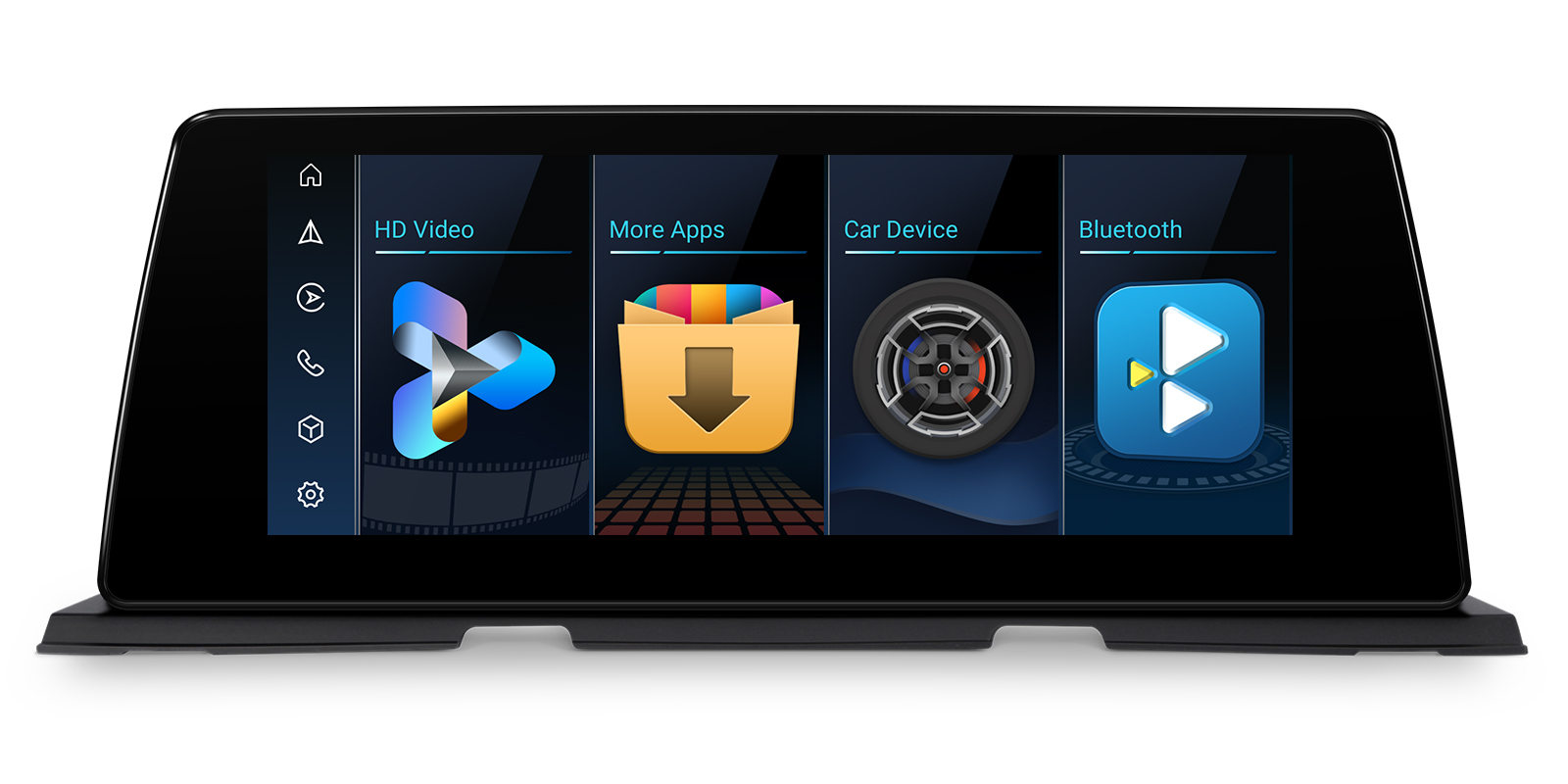

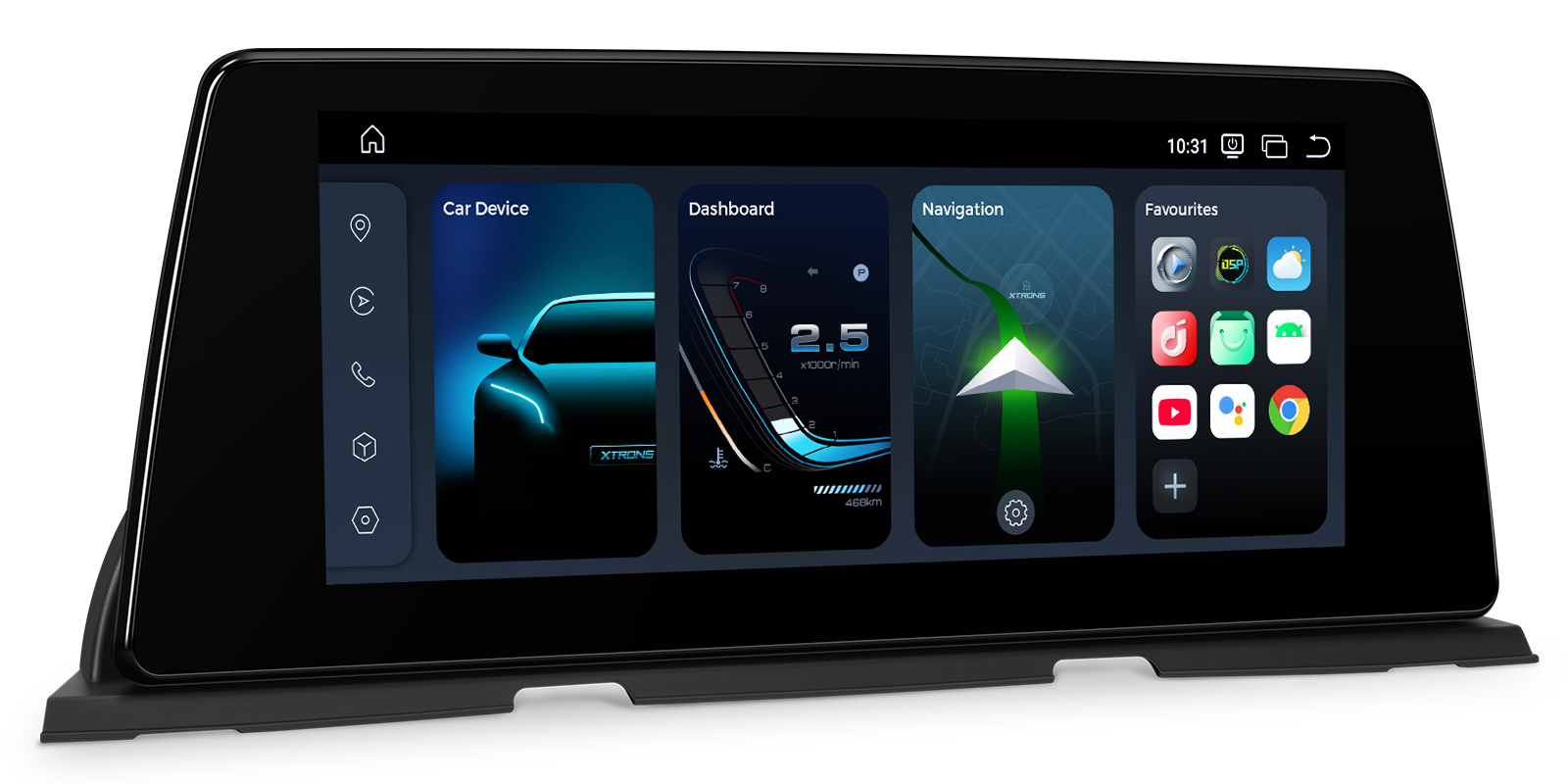

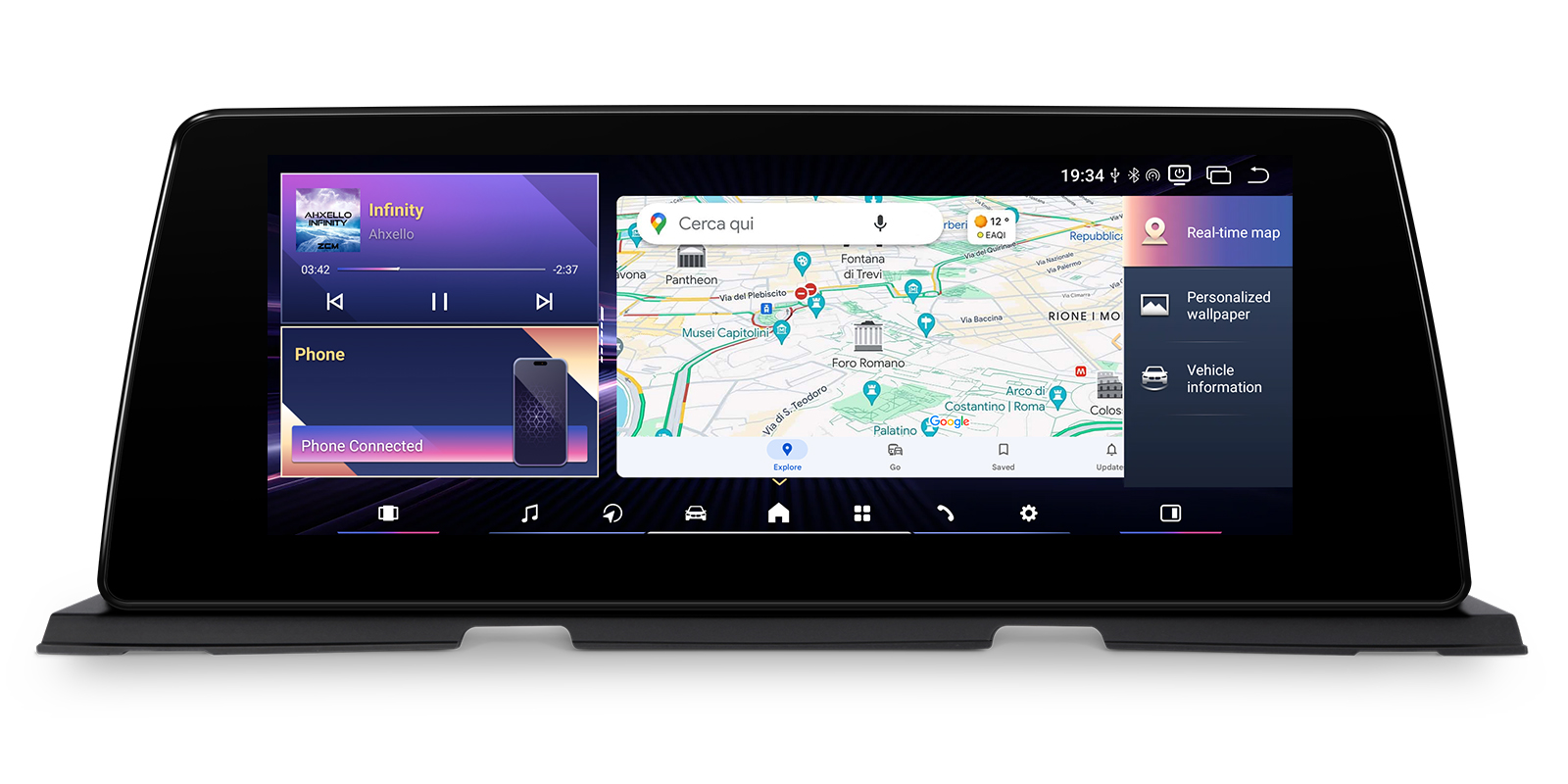

The XTRONS QBBH14NB12SX is a 10.25 inch 2K widescreen Android 14 display that replaces the factory screen in the BMW 6 Series F06, F12 and F13 (2013-2017) with the NBT system. It adds wireless CarPlay, wireless Android Auto and built-in 4G, and runs on a Qualcomm 662 octa-core processor with 8GB RAM and 128GB storage.

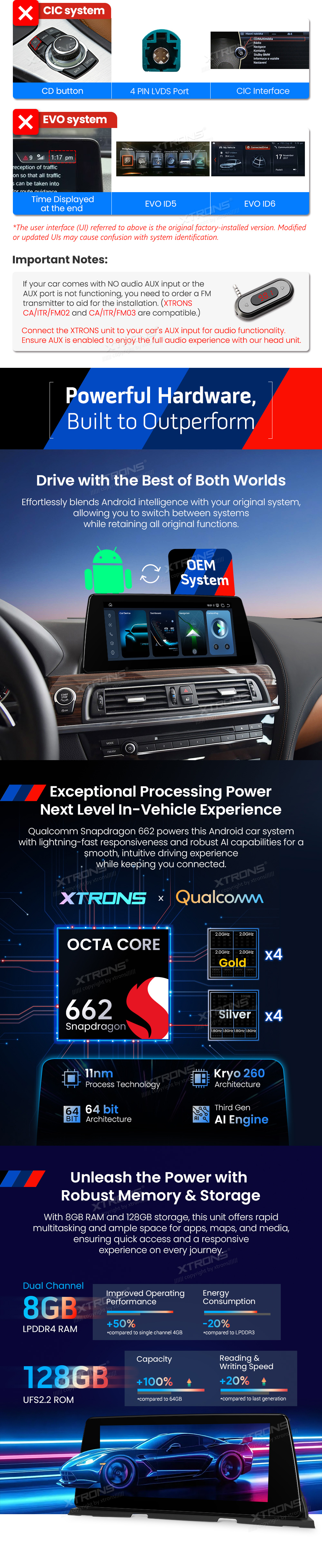

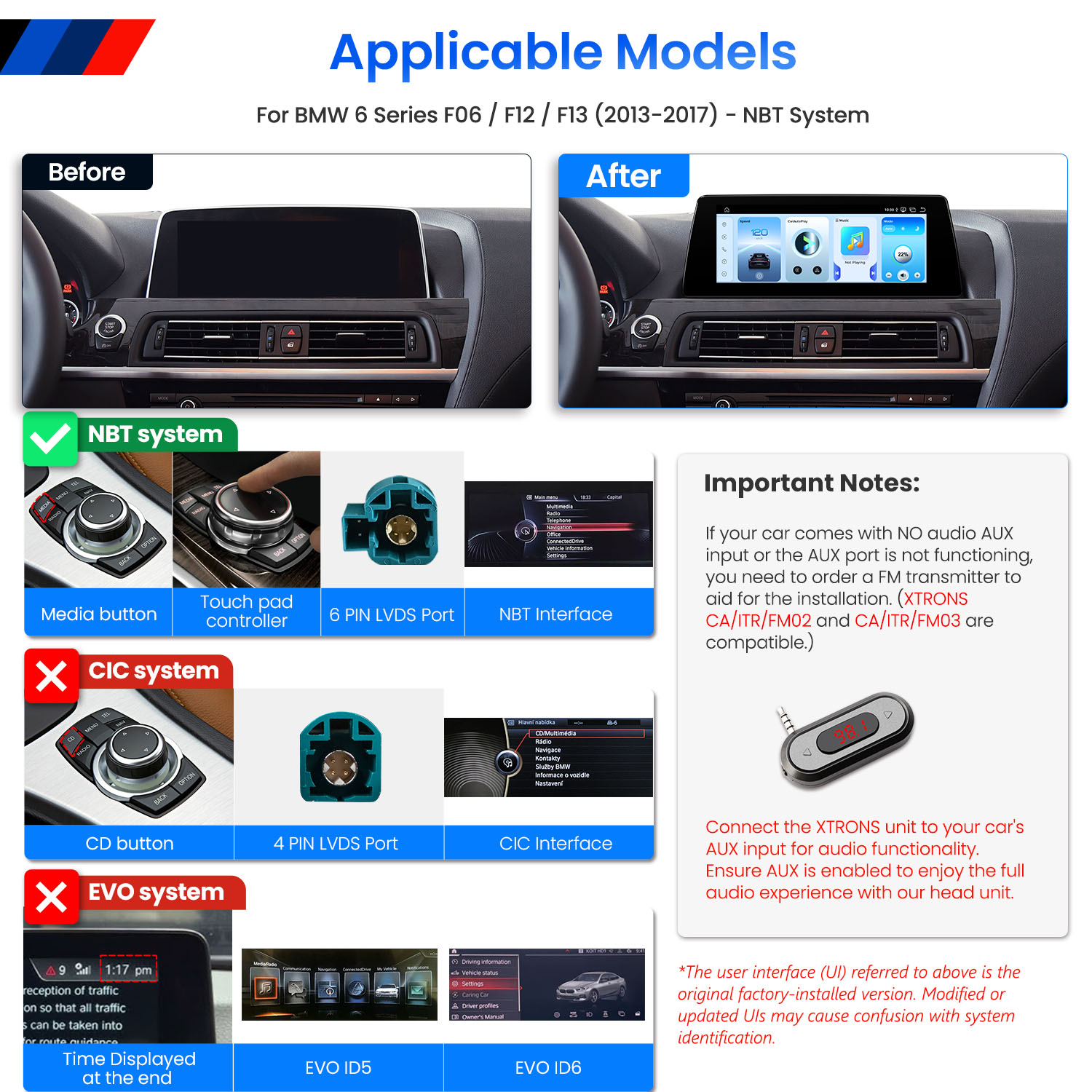

This screen replaces the factory display in 6 Series cars with the original NBT system. An NBT radio usually has a Media button, a touch pad controller, a 6-pin LVDS port and a BMW NBT interface. Those details refer to the factory-installed interface, so a modified or updated one can make the system harder to identify.
The unit's sound plays through the car's AUX input, which must be enabled. With no AUX input, or one that doesn't work, you'll need an FM transmitter; XTRONS CA/ITR/FM02 and CA/ITR/FM03 are compatible.

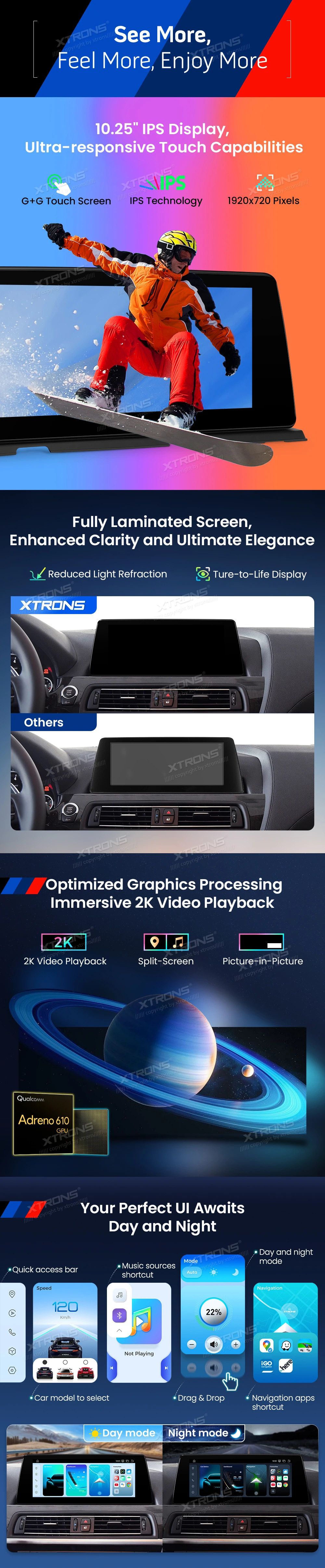

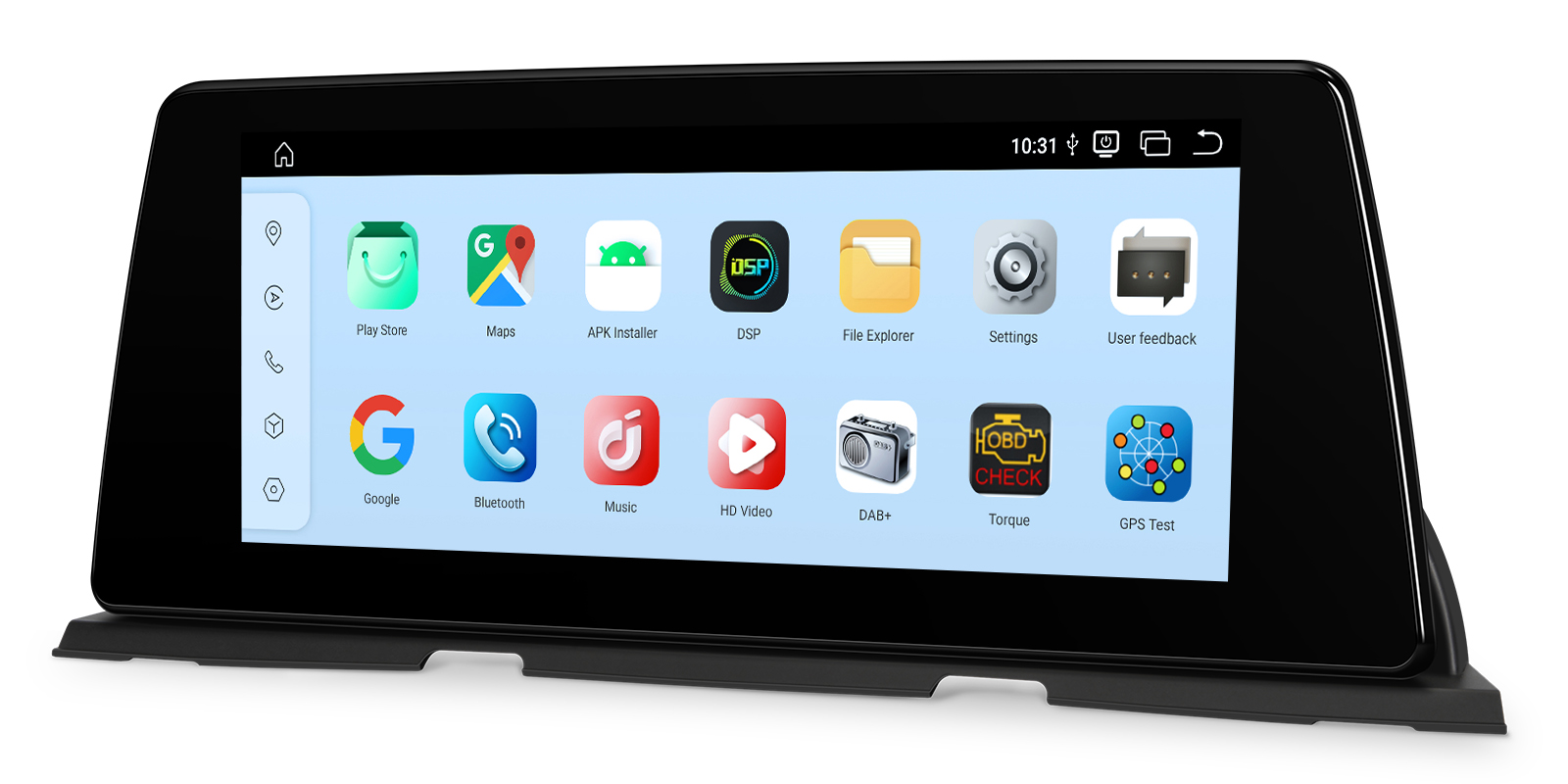

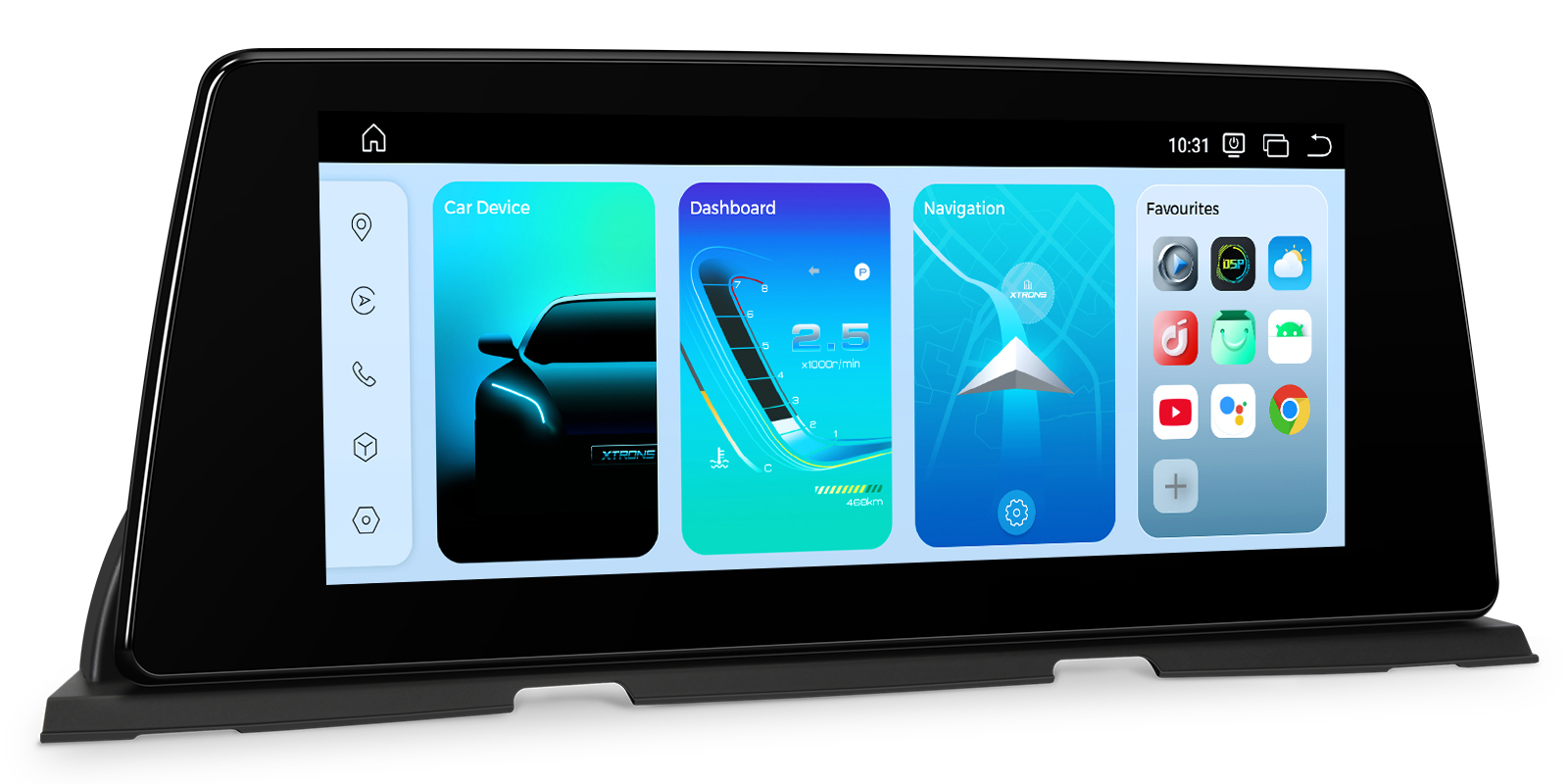

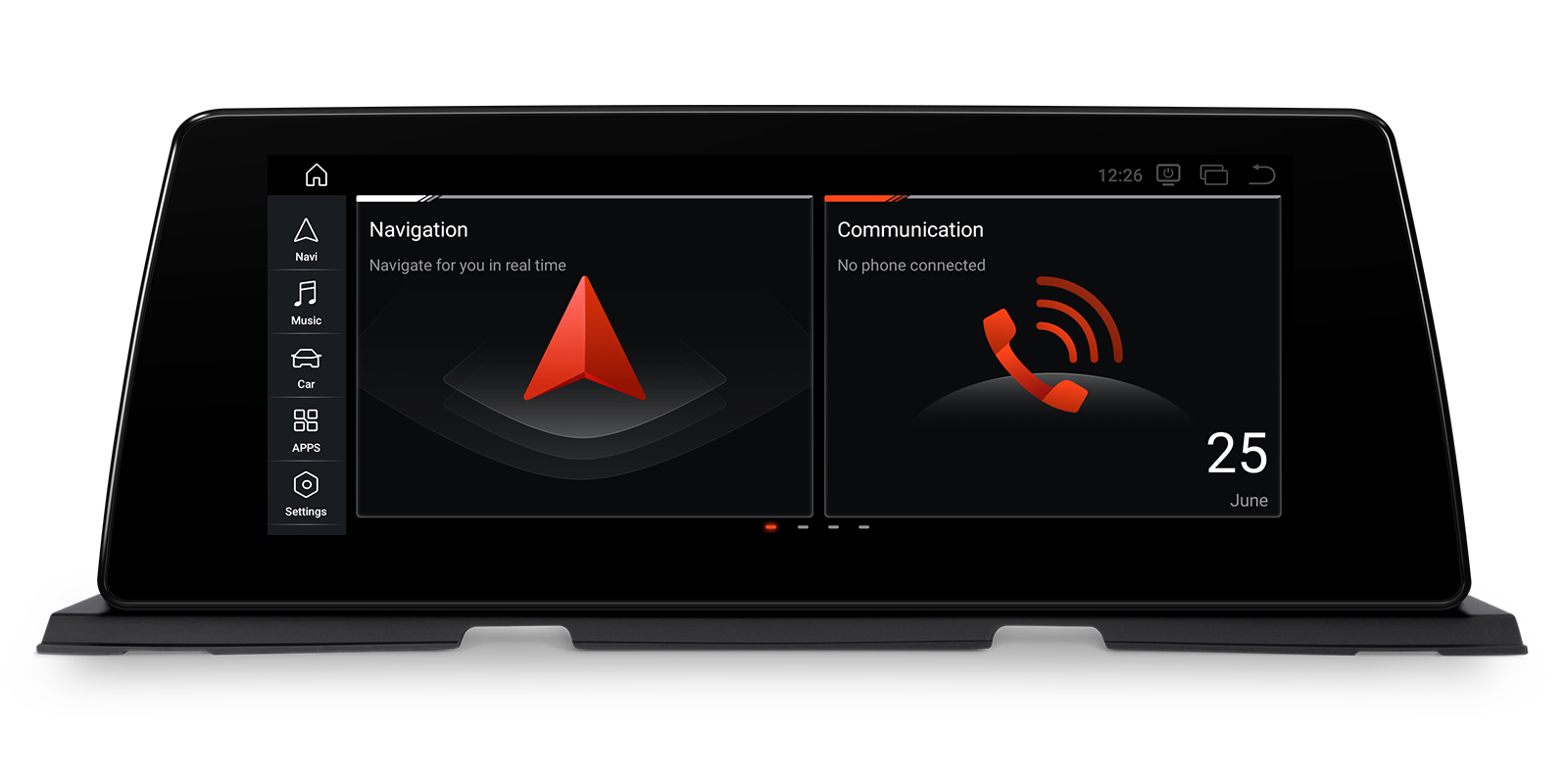

The 10.25 inch 2K widescreen is fully laminated and IPS, so it's sharp, has no air gap behind the glass and keeps its colours from the passenger seat. It's a touch screen, so you tap and swipe as you would on a phone.

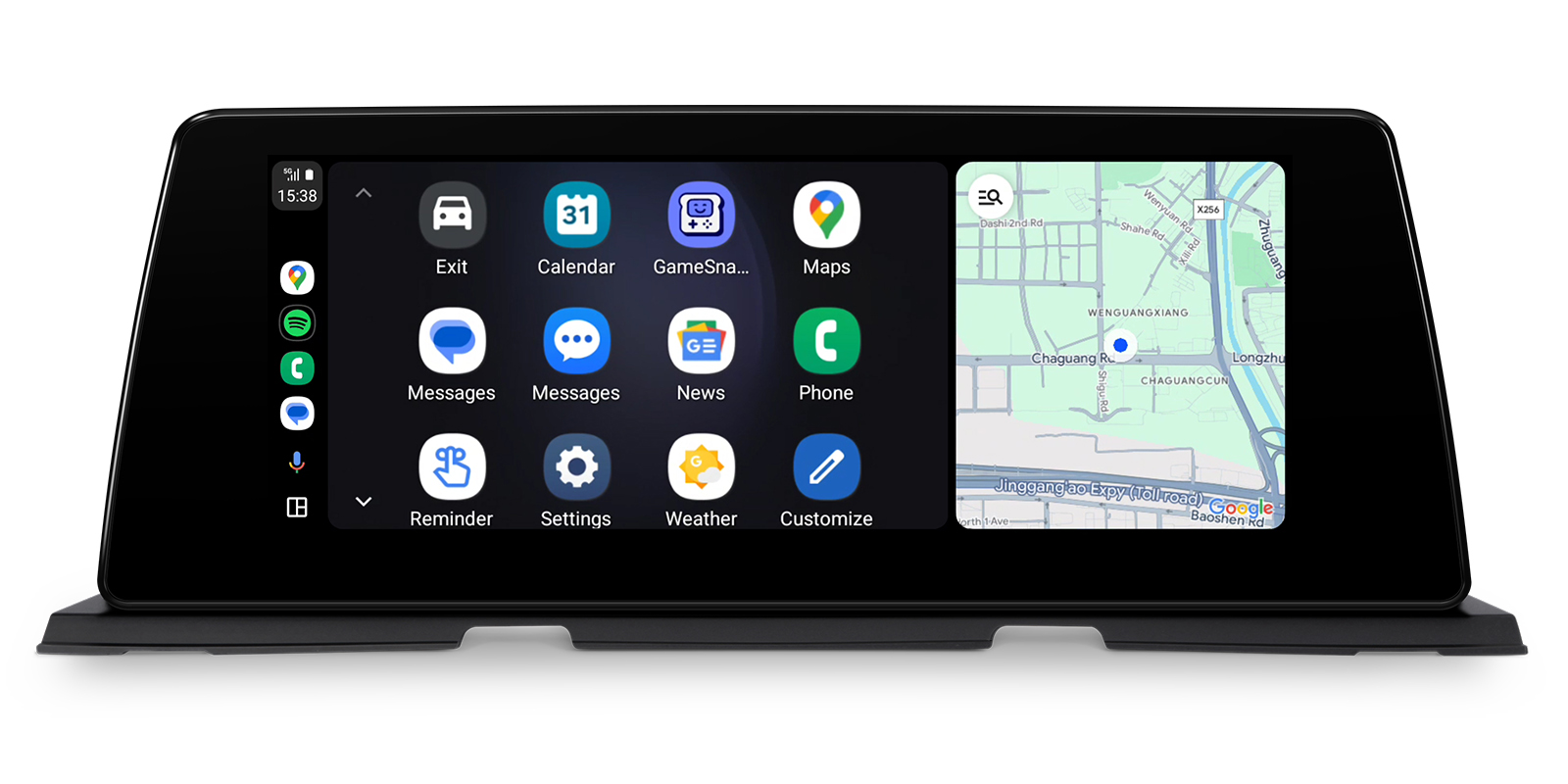

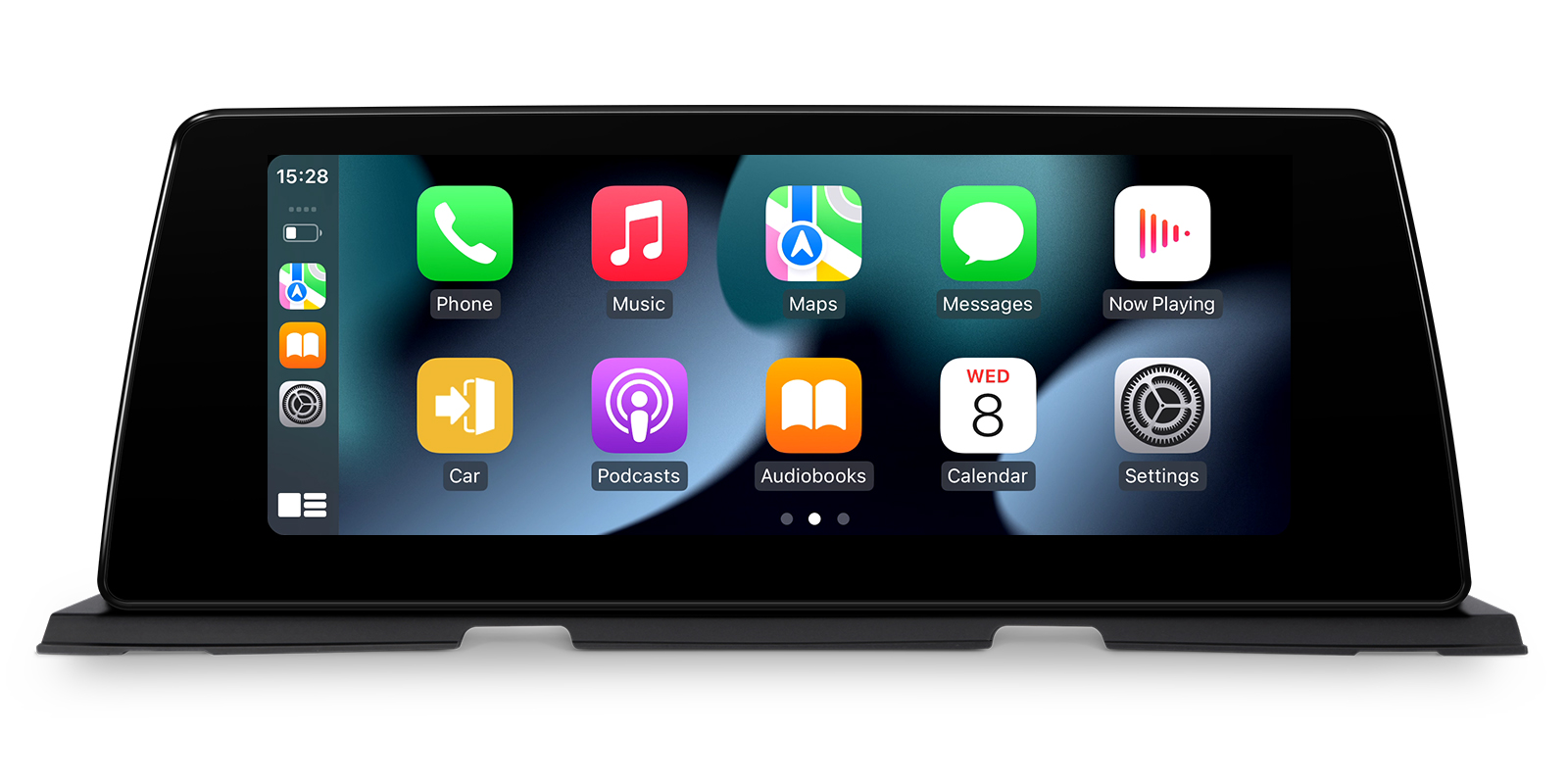

Your iPhone connects to CarPlay without a cable, putting maps, calls and music on the wide screen while the phone stays in your pocket.
Android Auto also works wirelessly, bringing Google Maps, calls and your music apps to the dashboard.
Fit a SIM card and the unit gets its own data connection, so live traffic and streaming work without using your phone as a hotspot.
Wi-Fi lets the unit connect to a hotspot or your home network for updates and app downloads.
Screen mirroring shows your phone's display on the head unit, useful for apps outside CarPlay and Android Auto.
The unit has a microphone for hands-free calls and for voice commands in CarPlay and Android Auto.
Add an external DAB tuner to receive digital radio through the unit.

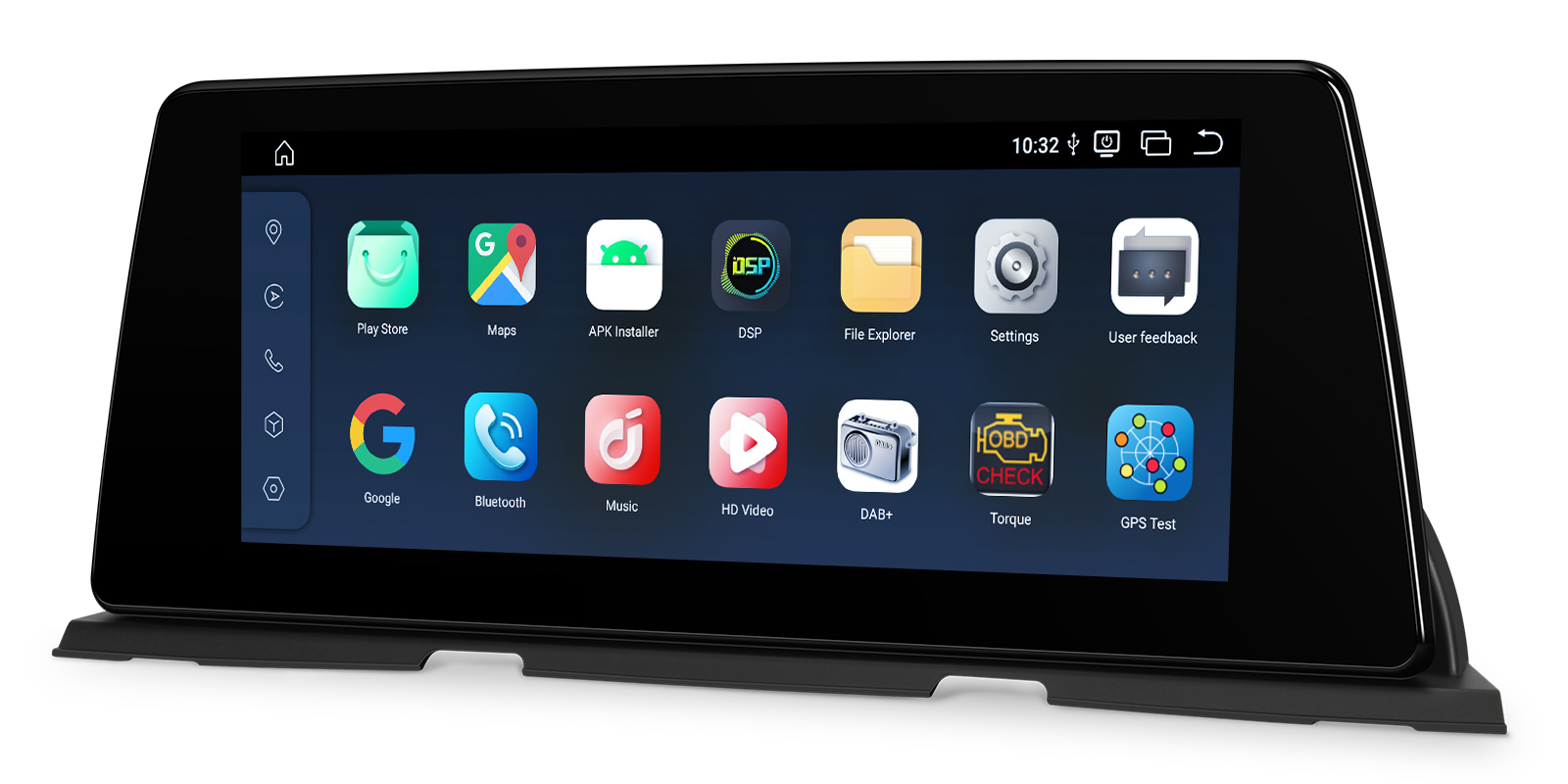

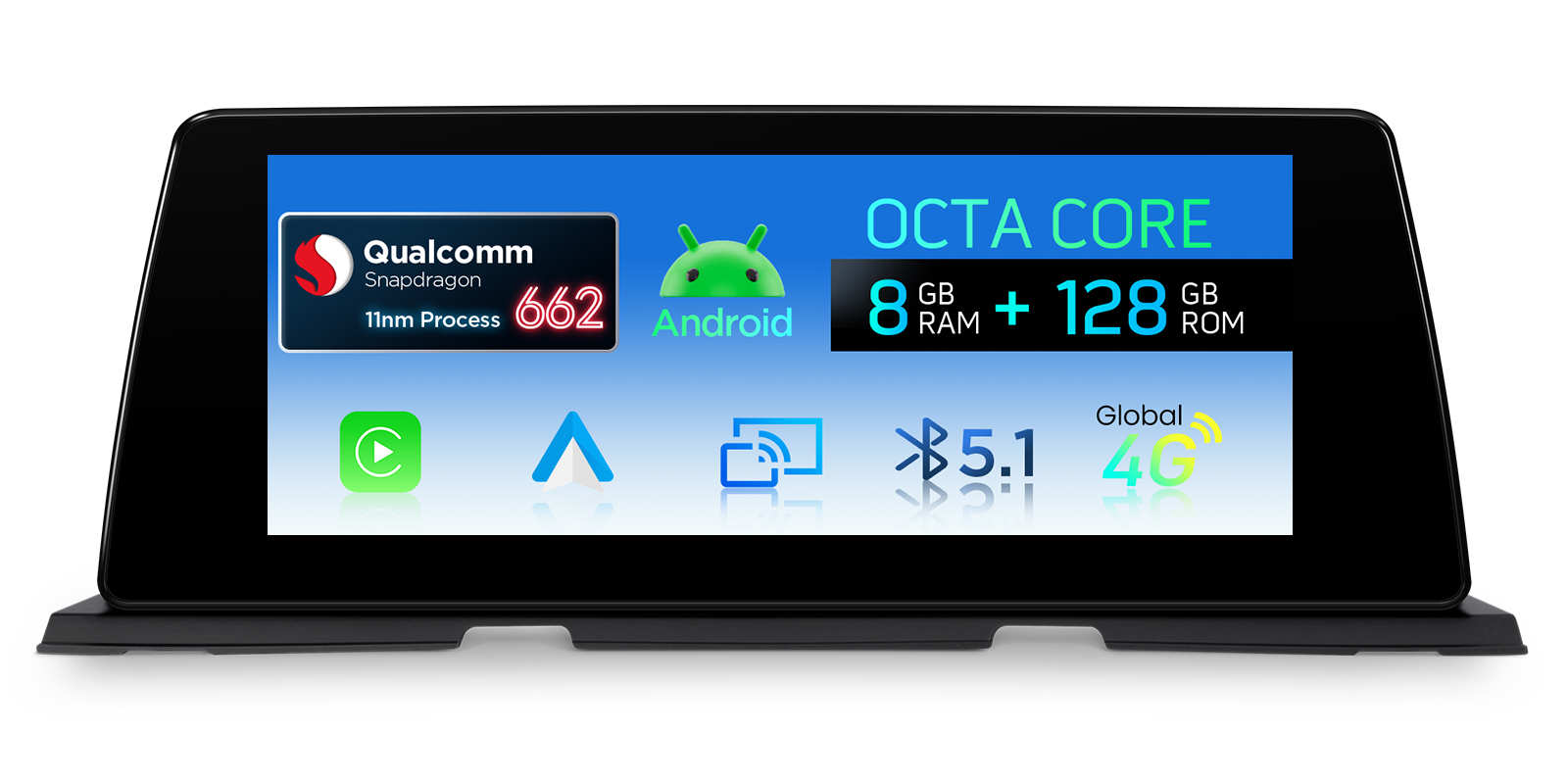

A Qualcomm 662 octa-core processor runs Android 14 with 8GB RAM and 128GB storage, enough for your apps, music and maps.

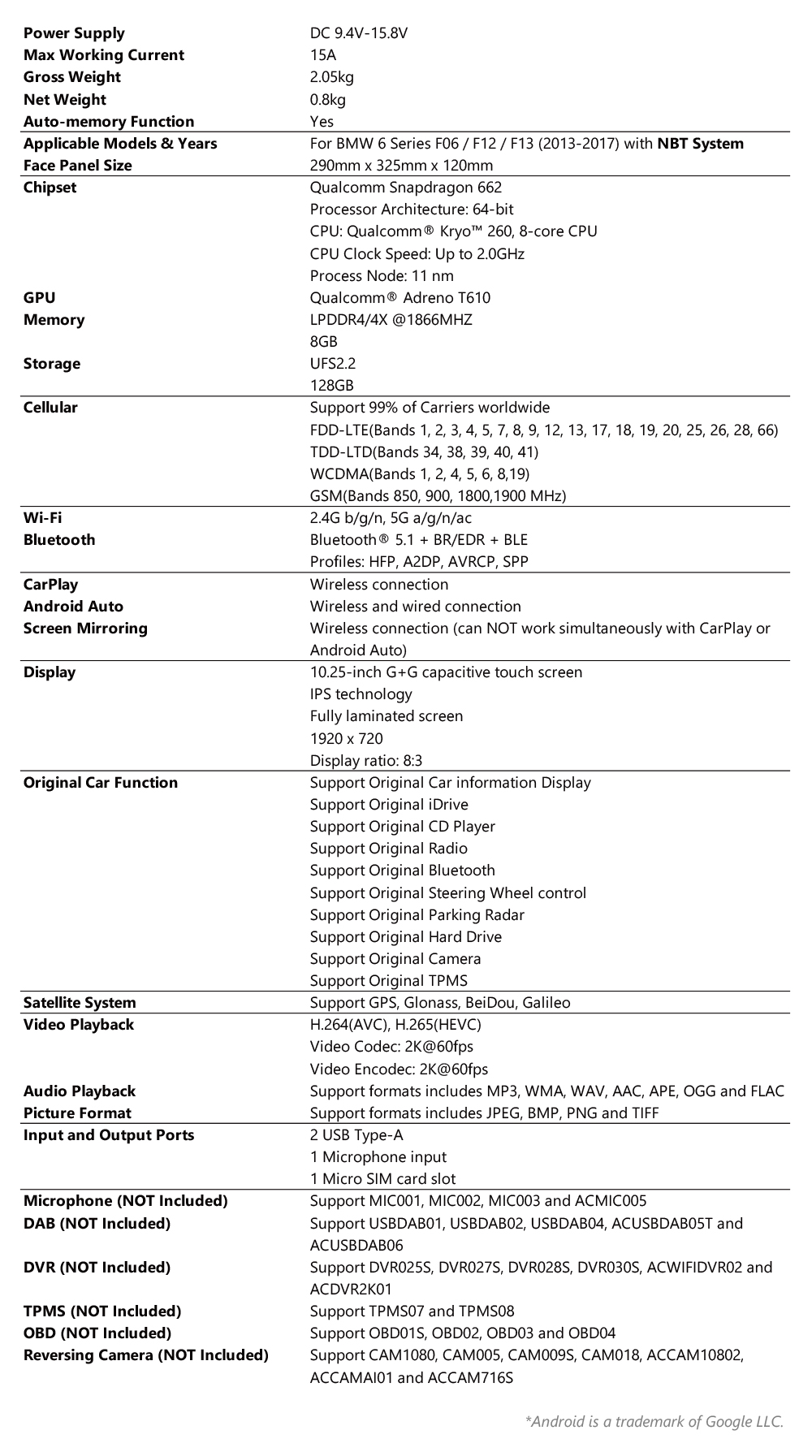

| Operating system | Android 14 |
|---|---|
| Processor | Qualcomm 662 octa-core processor |
| Memory | 8GB RAM and 128GB storage |

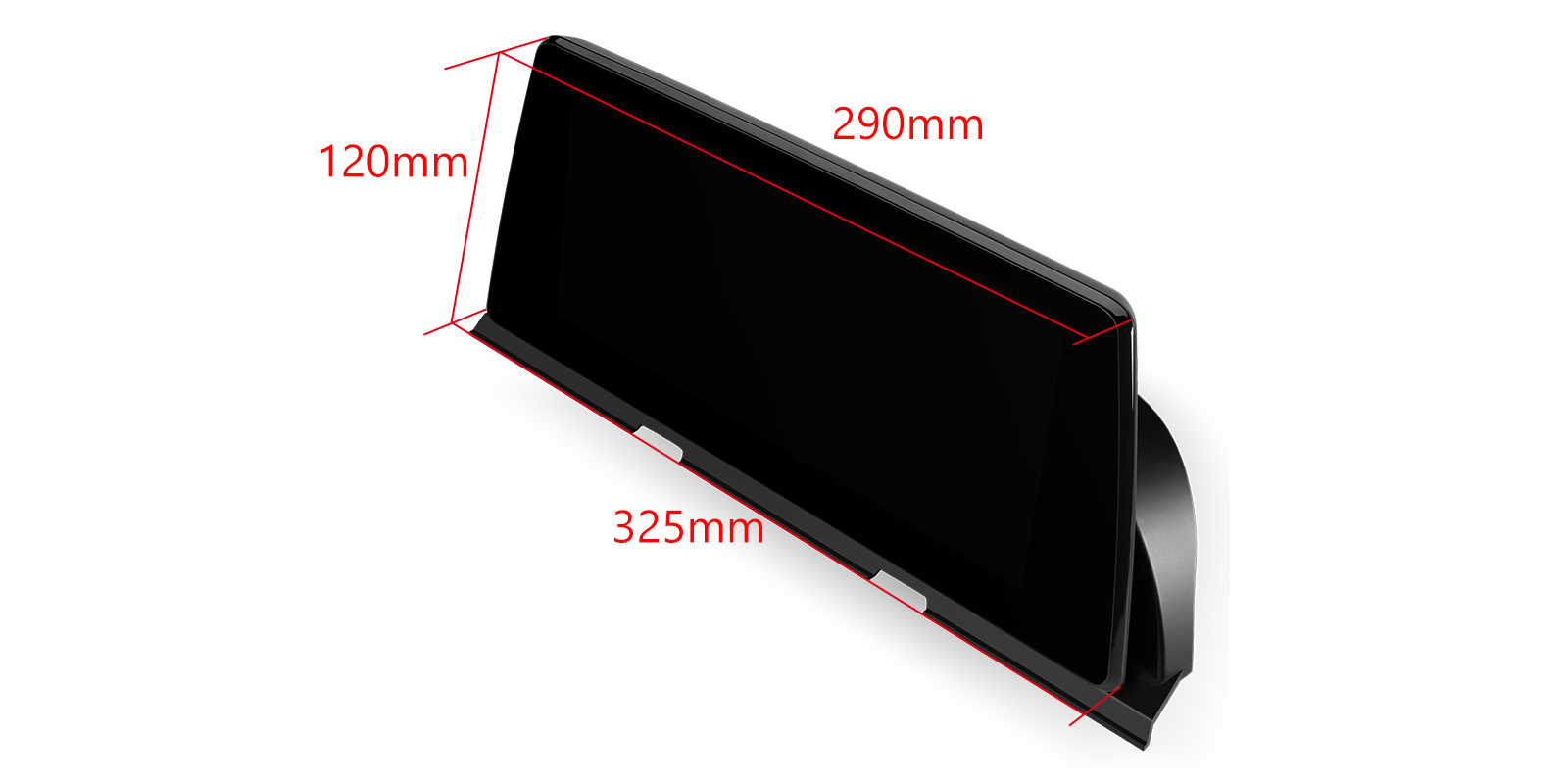

| Screen size | 10.25″ |
|---|---|
| Screen | 2k widescreen |
| Panel | IPS Screen |
| Lamination | Fully-laminated Screen |
| Touch | Touch Screen |
| Mobile data | 4G |
|---|---|
| Wi-Fi | Wi-Fi |
| Navigation | GPS |
| DAB | External DAB Supported |

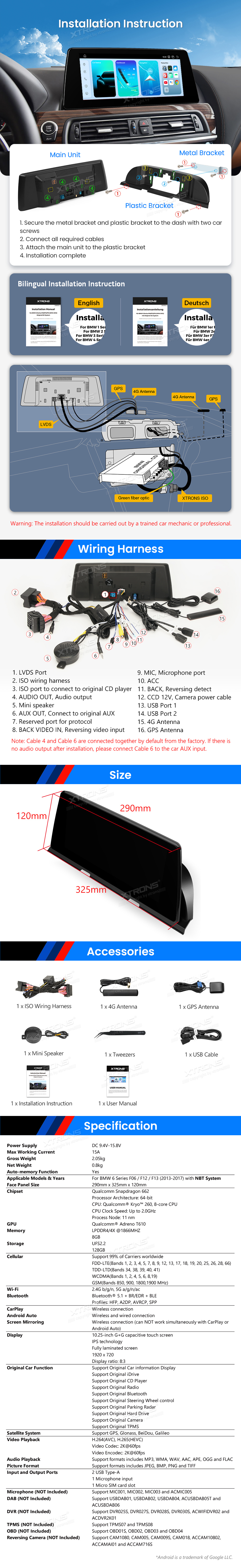

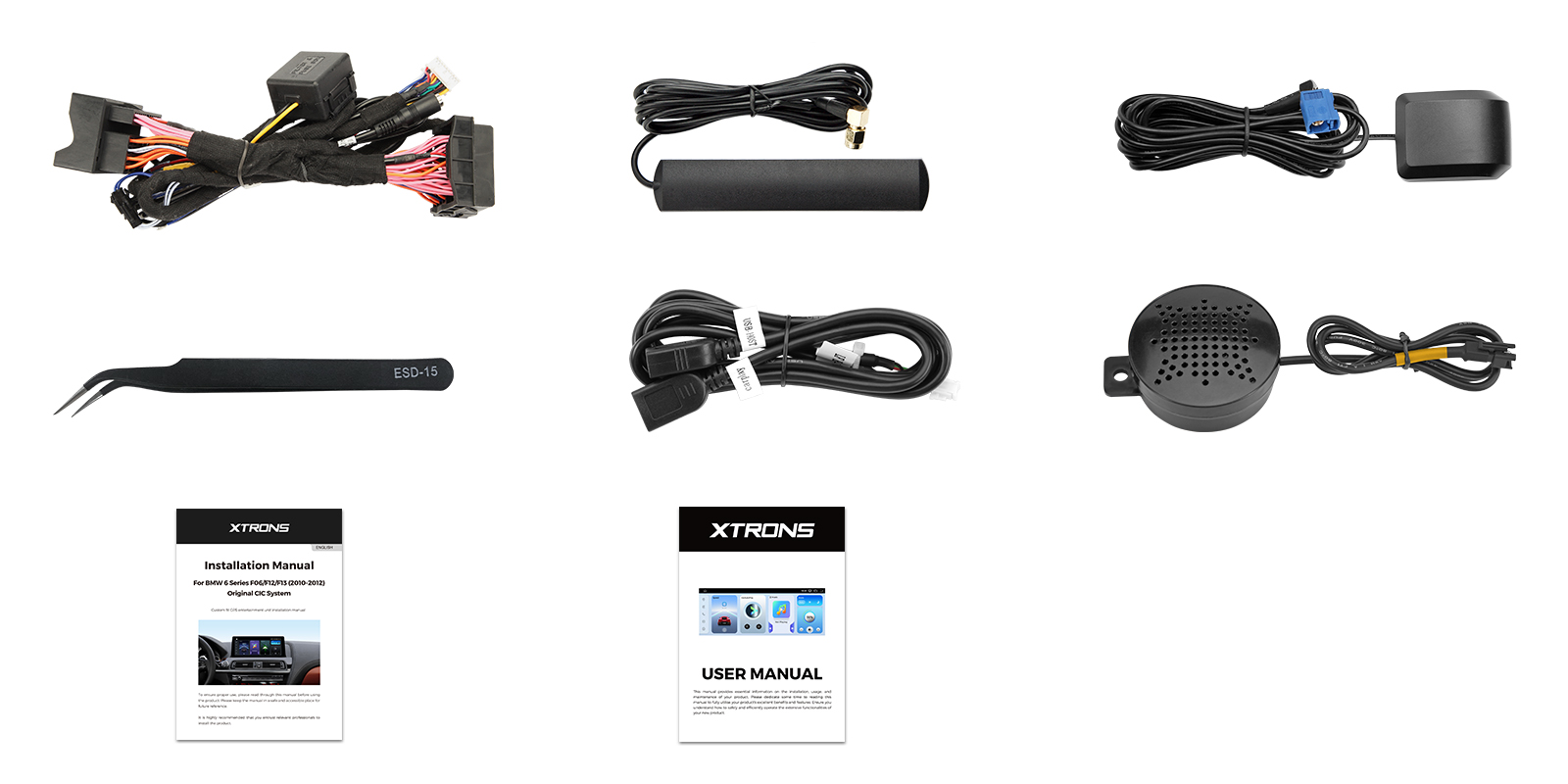

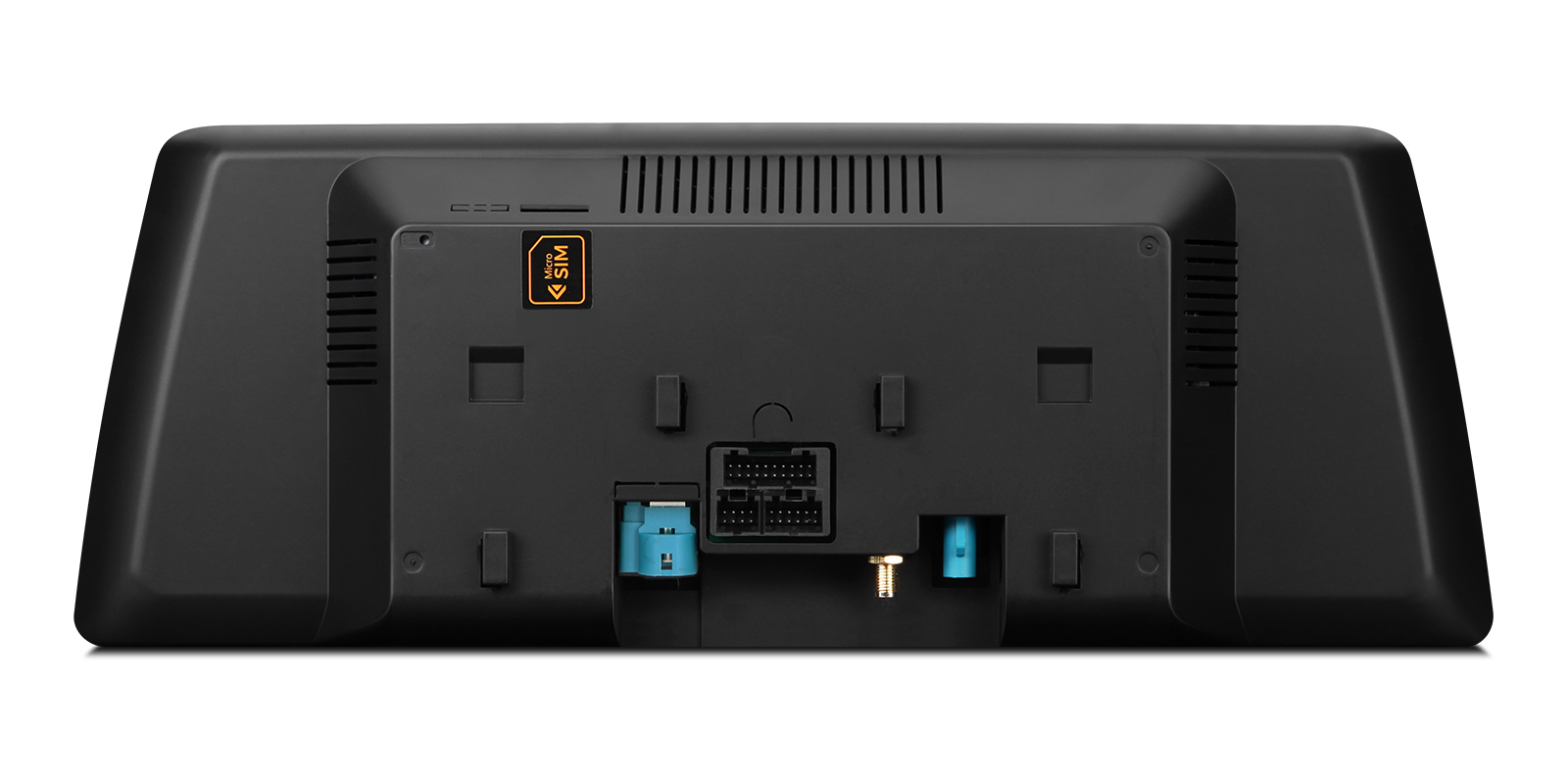

The QBBH14NB12SX is a plug-and-play replacement for the factory display, connected with the supplied ISO wiring harness and fitted using the installation instructions in the box. It only works with the original NBT system, so check your car first; your VIN is the most reliable way. Sound goes through the car's AUX input, so enable it, or add an FM transmitter such as XTRONS CA/ITR/FM02 if there's no working AUX.
An NBT radio usually has a Media button, a touch pad controller, a 6-pin LVDS port and a BMW NBT interface.
The BMW 6 Series F06, F12 and F13 from 2013 to 2017 with the NBT system.
You'll need an FM transmitter. XTRONS CA/ITR/FM02 and CA/ITR/FM03 are compatible.
Yes. It has wireless CarPlay and wireless Android Auto.
Reviews
Bought this product? Sign in to write a review.

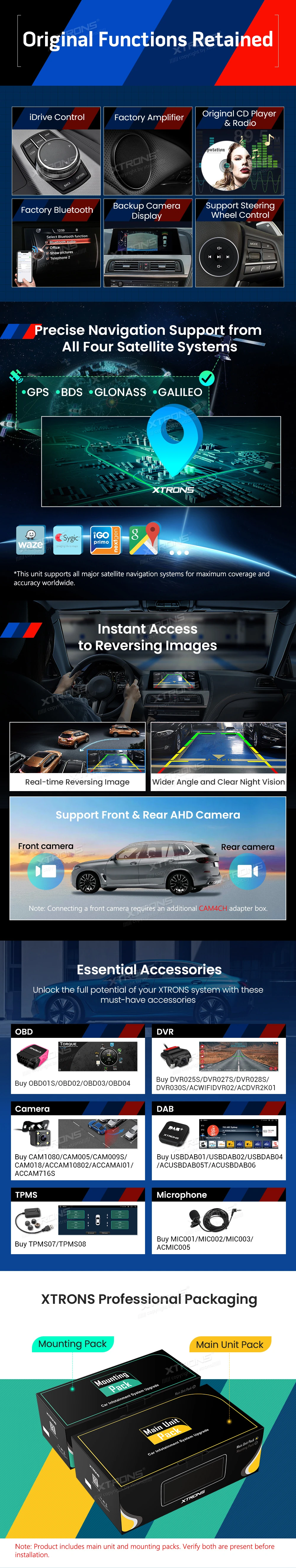

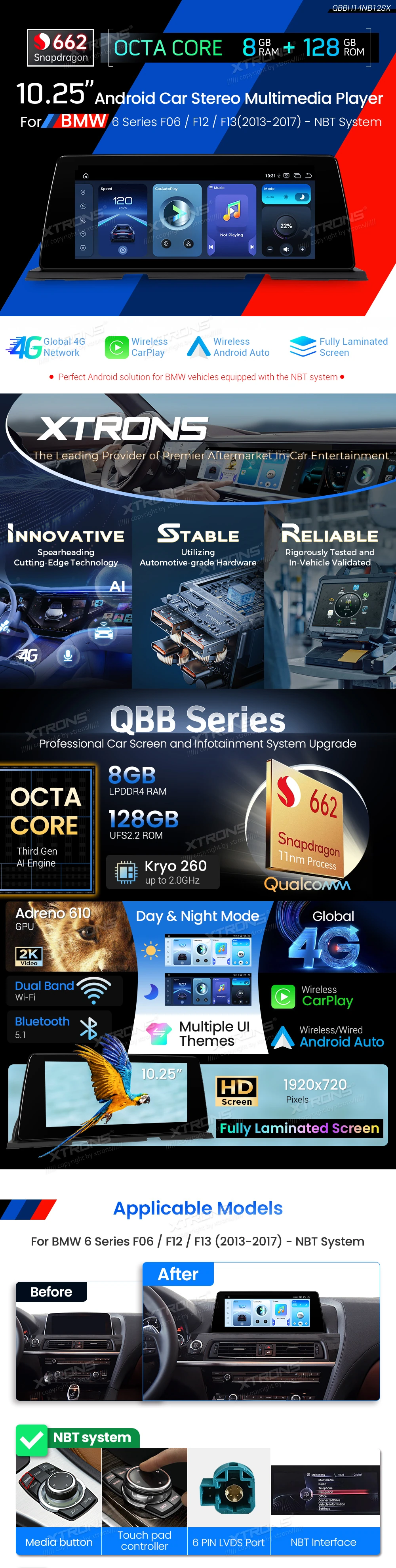

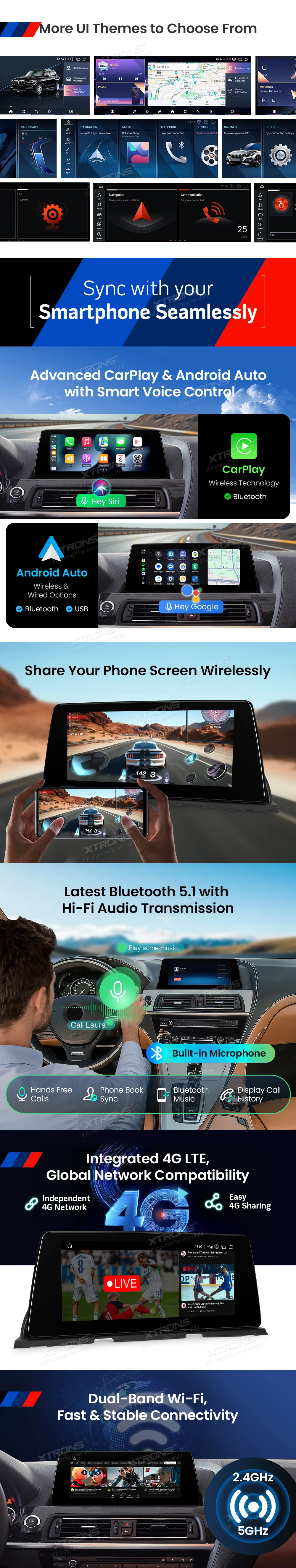

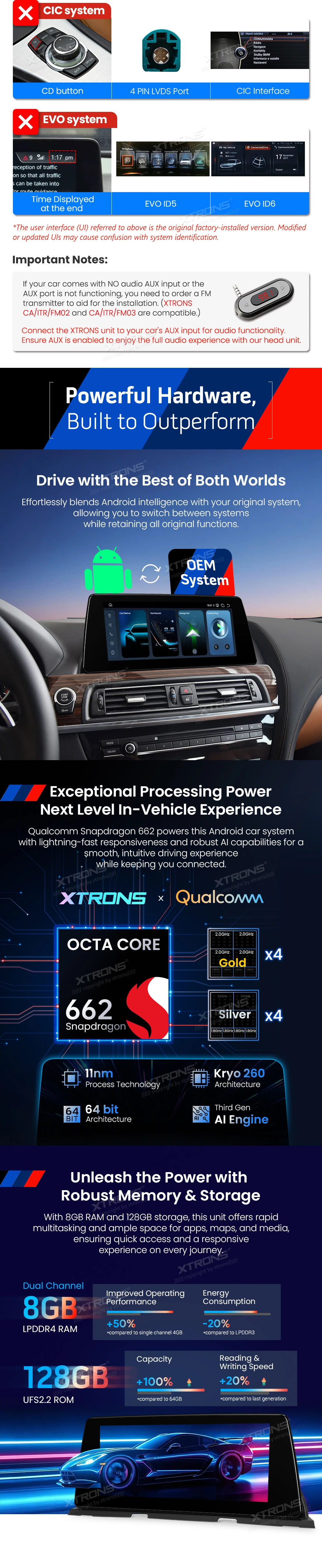

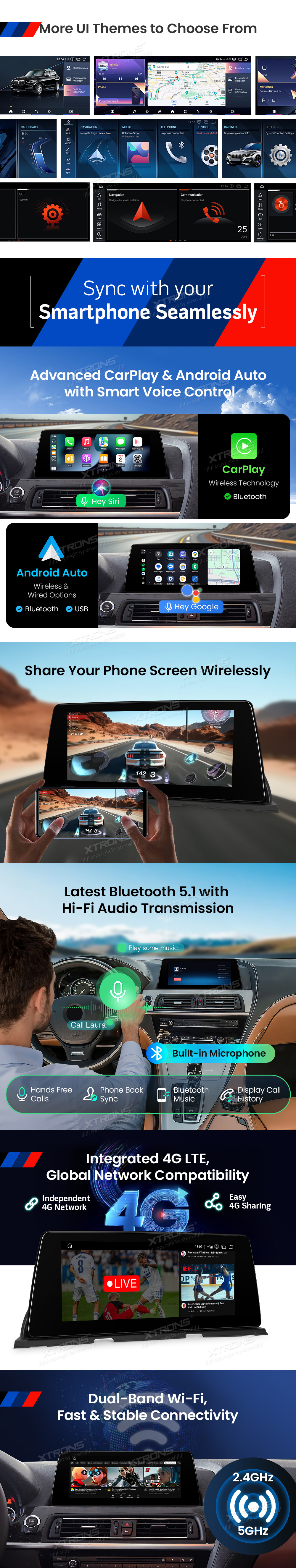

XTRONS's own pages for this product, as the manufacturer publishes them. Open any of them at full size to zoom in.
