BMW 1/2 Series 12.3 inch Android Head Unit with Wireless CarPlay, Android Auto and 4G | QLB22NB12NER
In stock

Image 1 of 15.
SKU: UAH7539BL
£254.99Was £299.99Save £45.00
Check if this fits your car

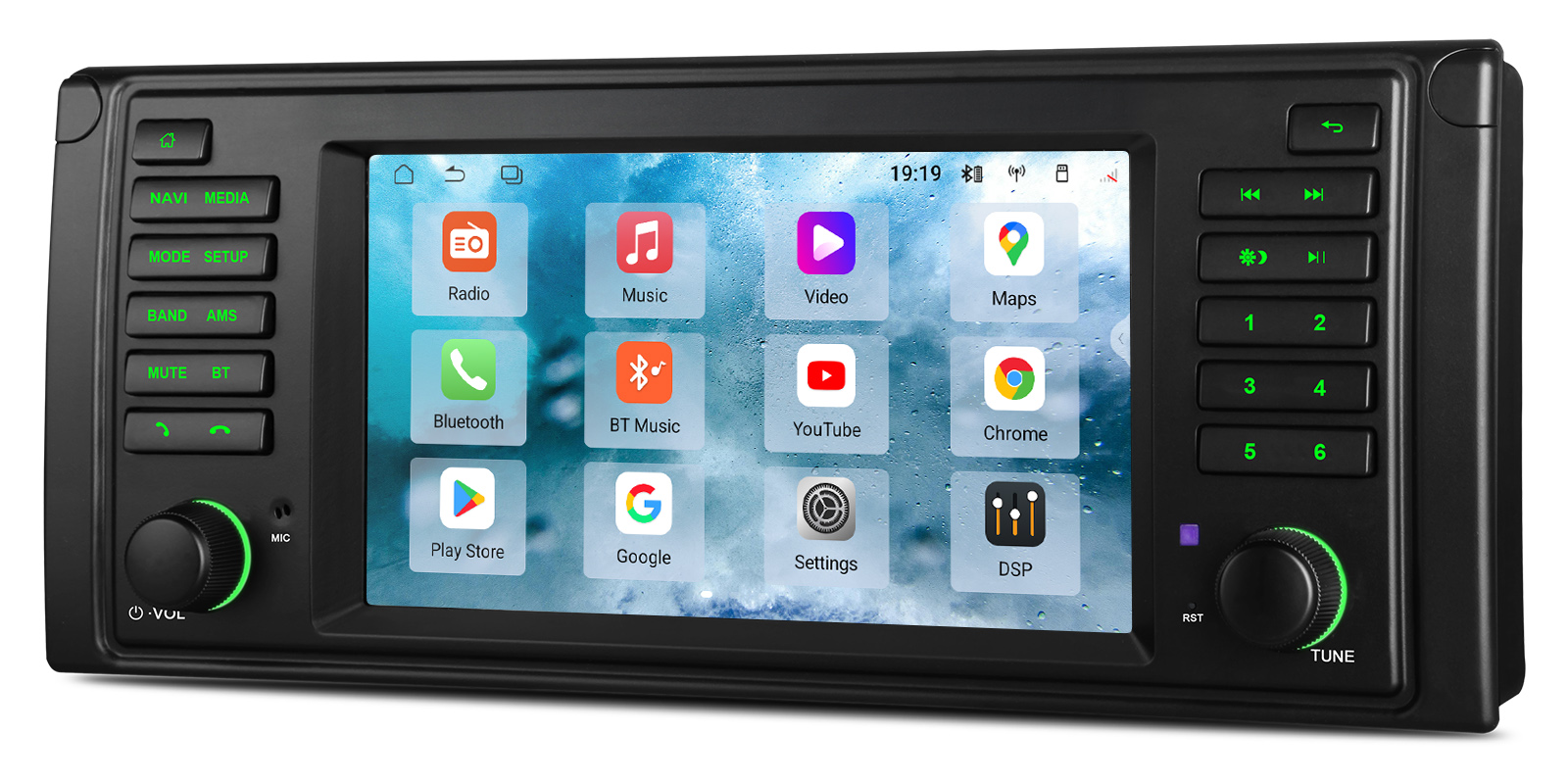

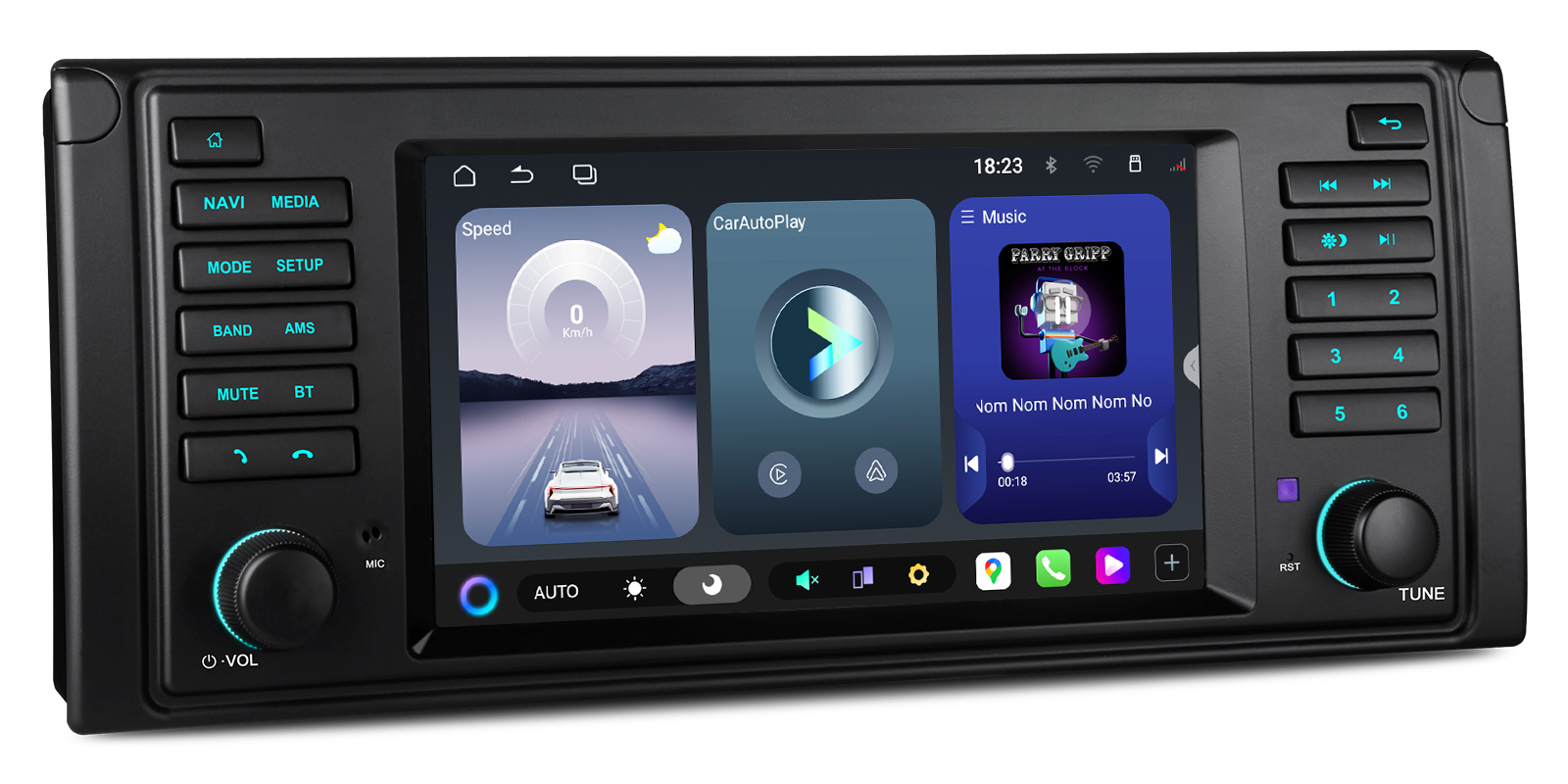

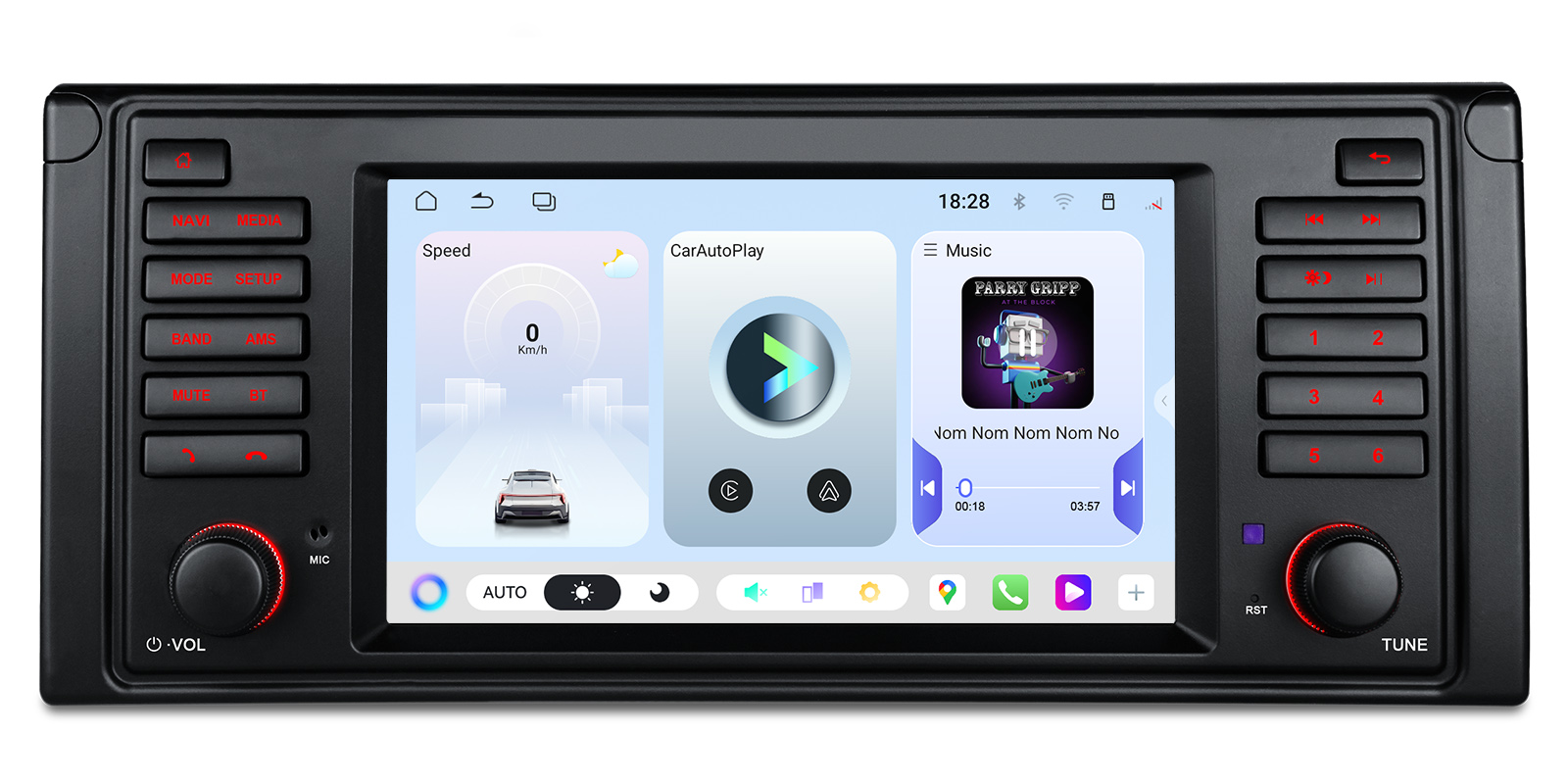

The XTRONS UAH7539BL is a 7 inch Android 15 head unit made for the BMW 5 Series E39 and E39 M5. It brings wireless CarPlay and Android Auto, built-in 4G and a DSP with optical, coaxial and RCA outputs to an older BMW dashboard.

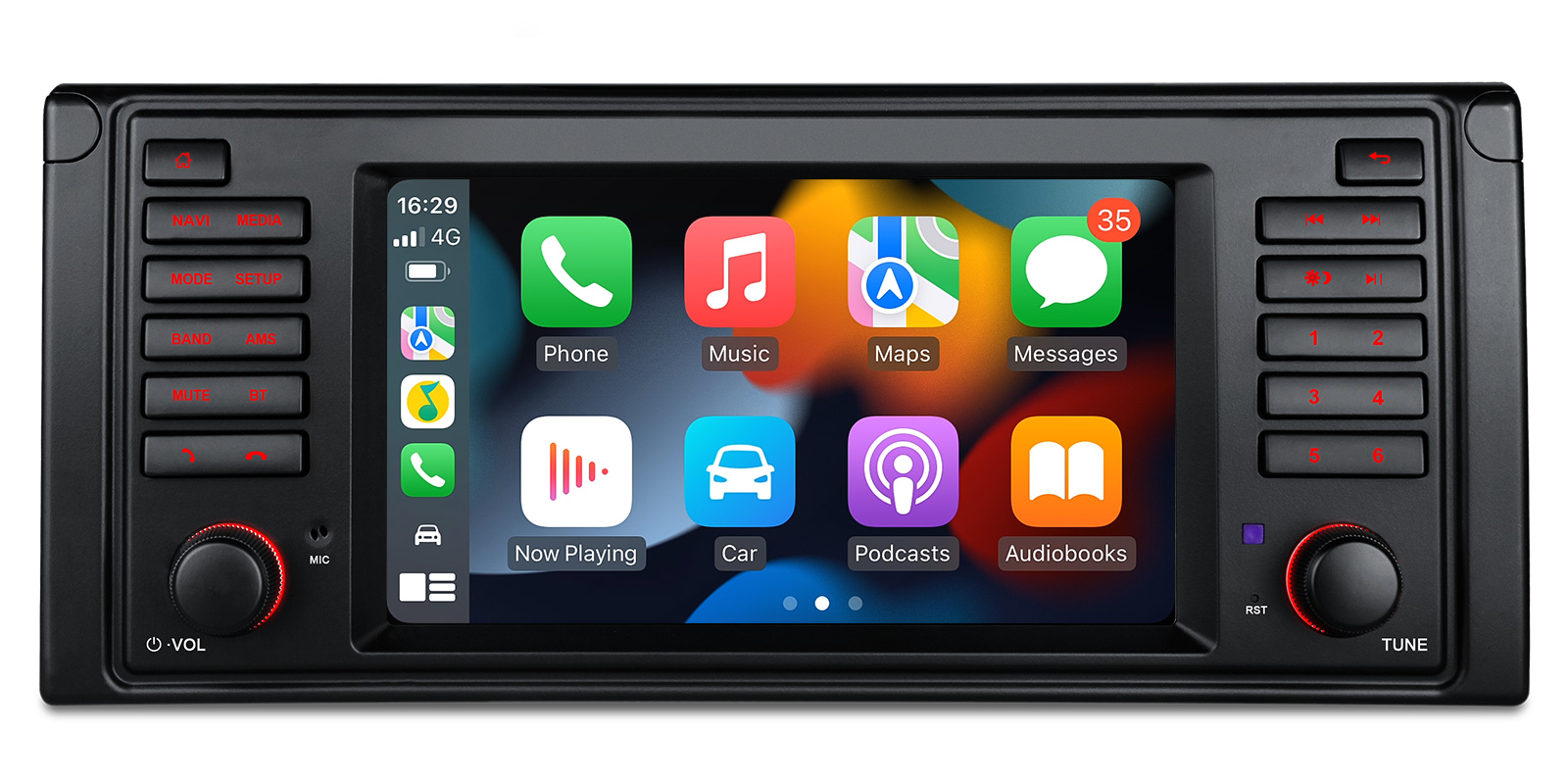

Your iPhone connects over Wi-Fi without a cable, so maps, calls and music are on the dashboard screen as soon as the unit is running. The phone can stay in a pocket or a door bin.
If you'd rather charge while you drive, CarPlay also works plugged in over USB.

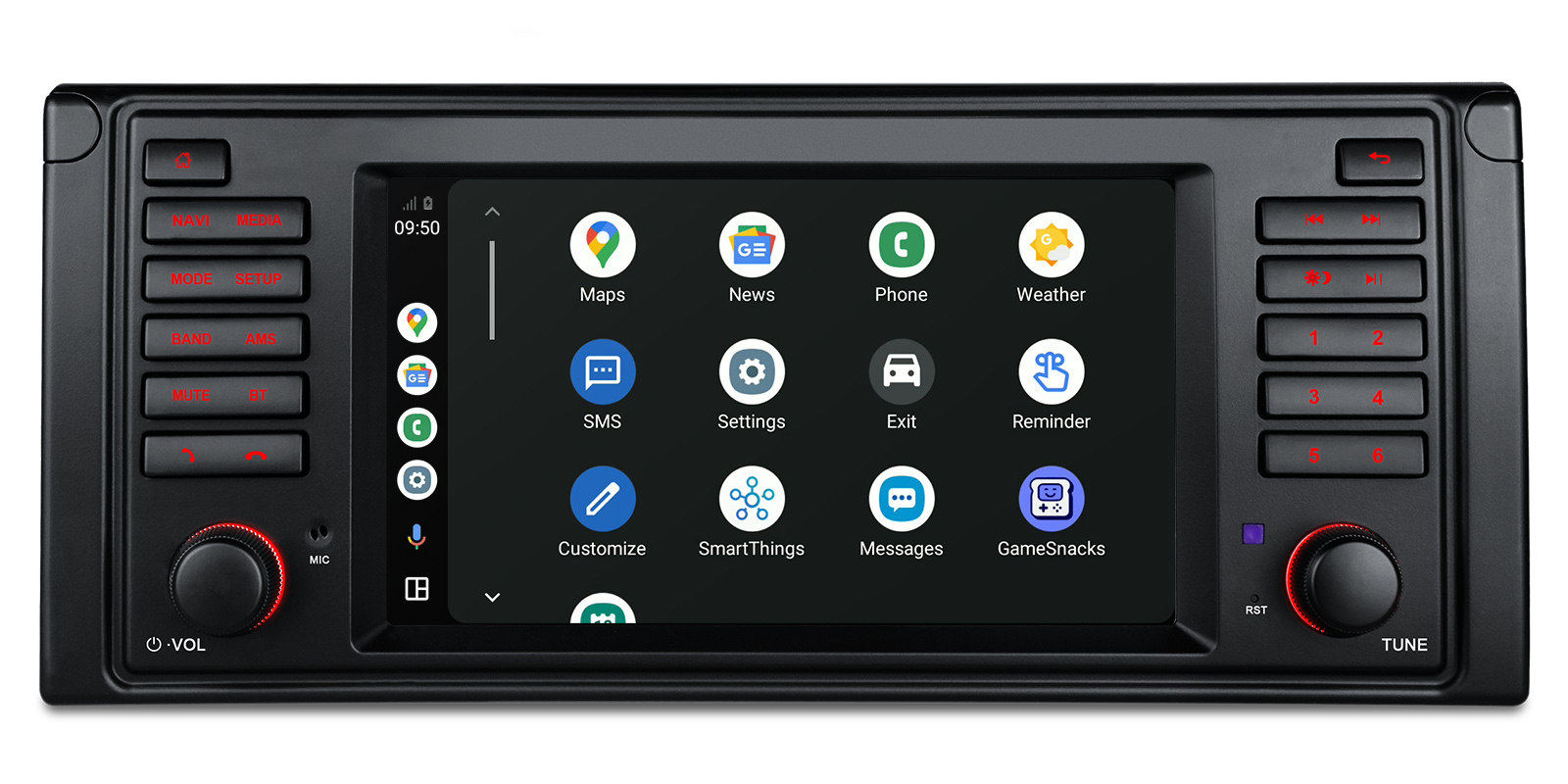

Android Auto works the same way, wireless or through a USB cable. Google Maps, calls and music apps appear on the 7 inch screen with big buttons that are easy to hit while driving.

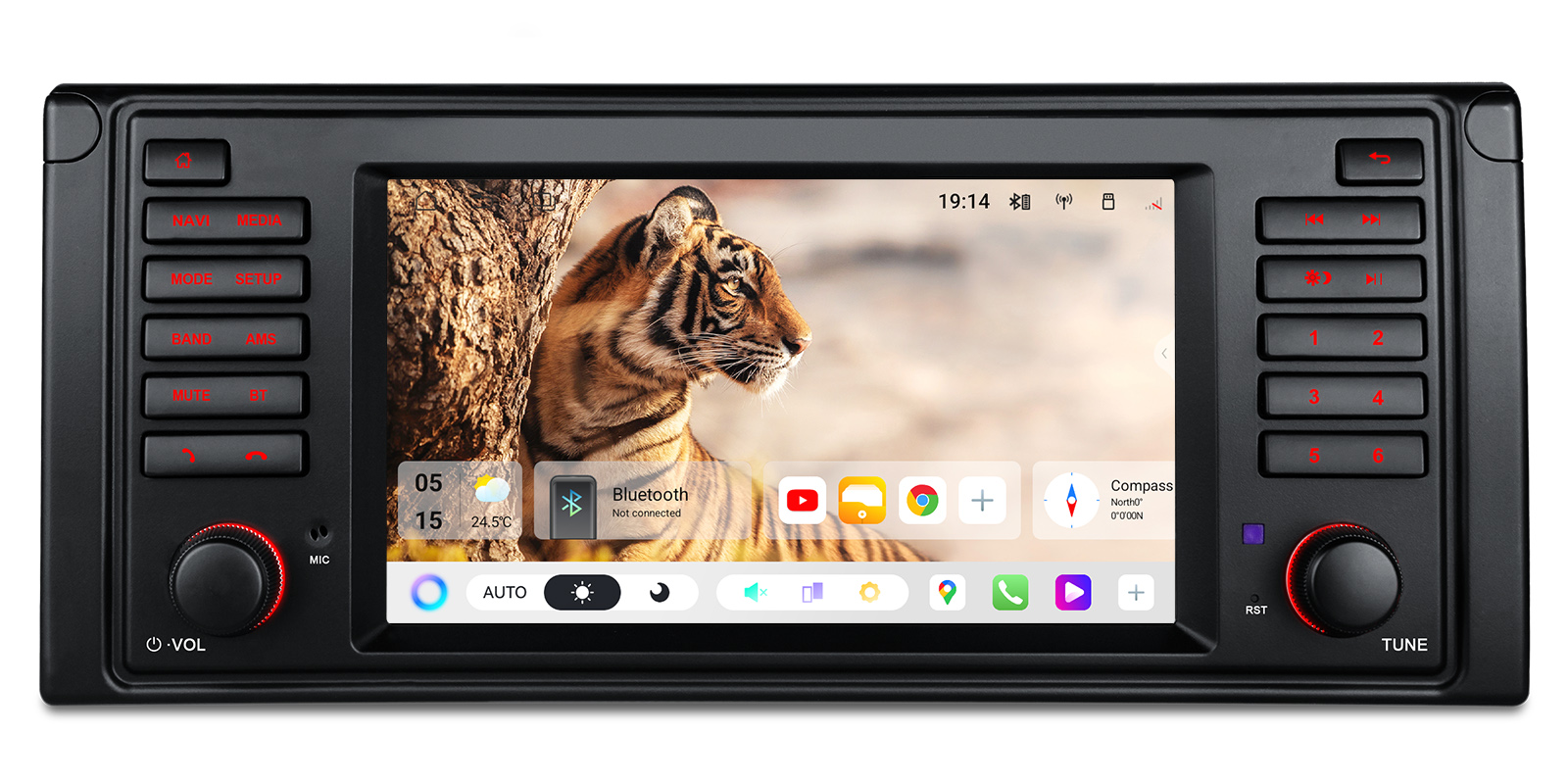

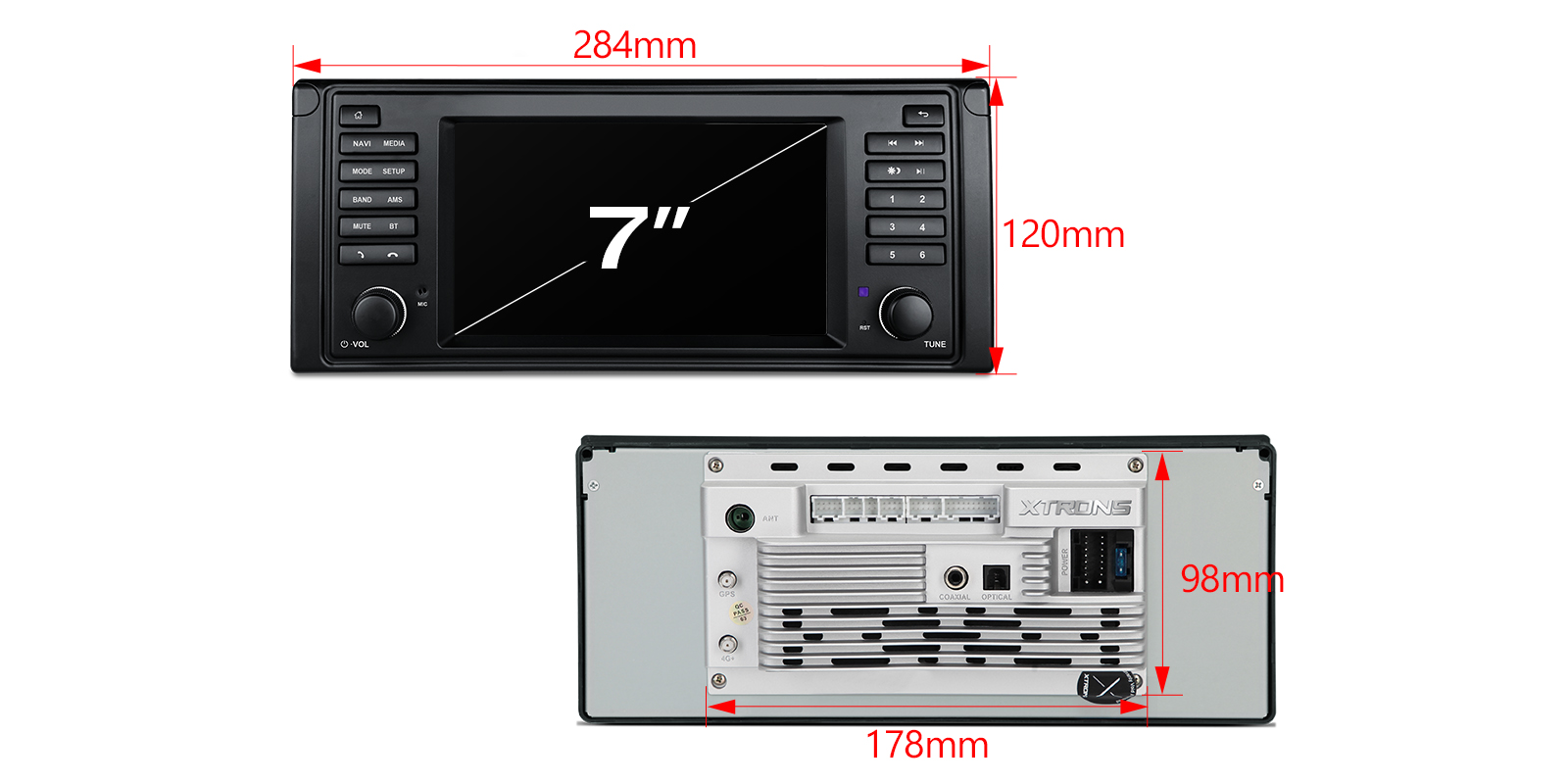

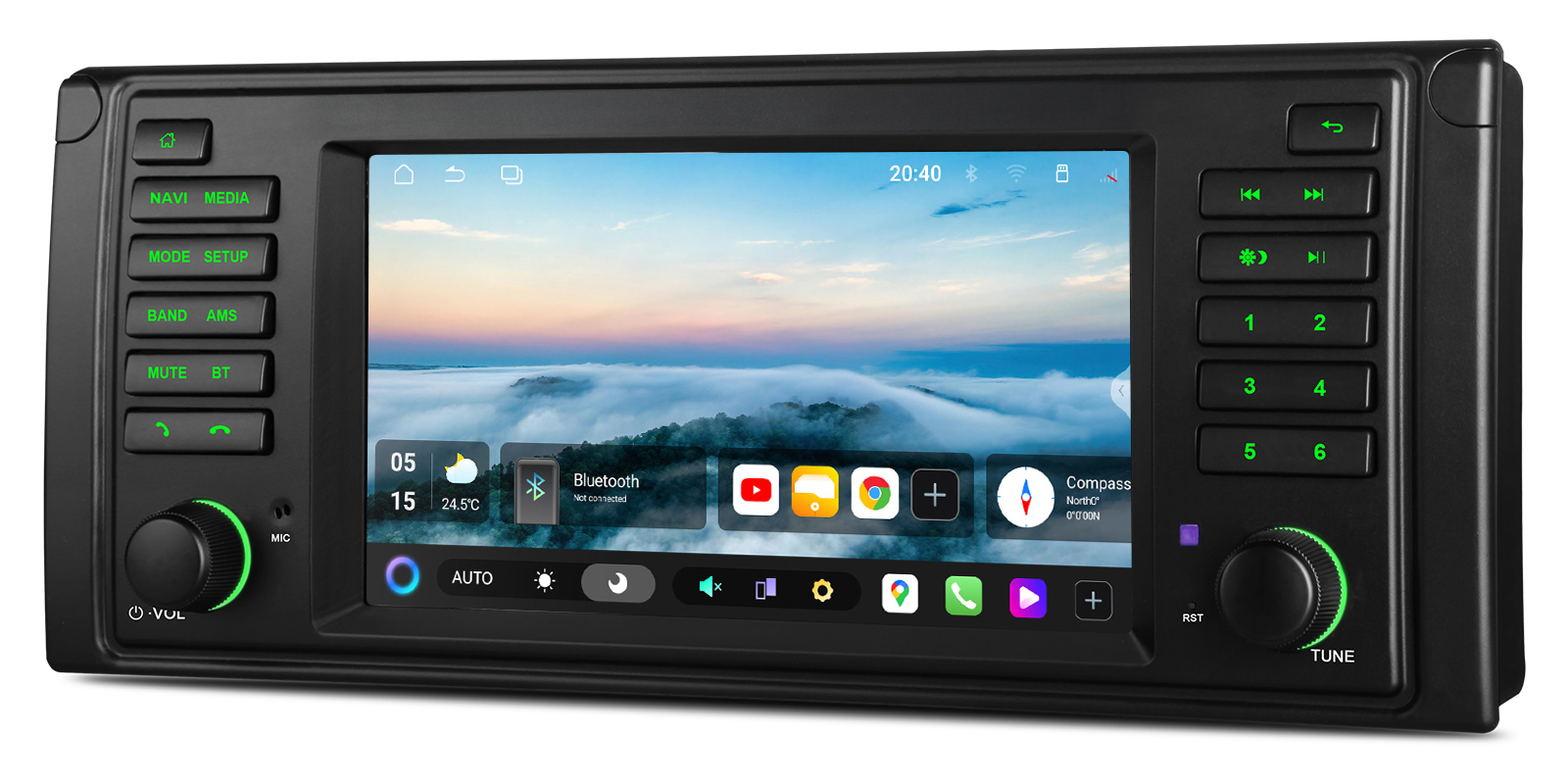

The 7 inch Grade-A HD QLED screen runs at 1280×720. Colours are vivid, which makes maps and album art easy to read at a glance.
As an IPS panel, the screen keeps its colours when seen from an angle, so the driver and front passenger both get a clear view.
The built-in DQ7603 DSP lets you shape the sound to suit the car and the way you listen, rather than settling for a flat factory setting.
An STMicroelectronics TCB001HQ amplifier rated at 4x45W drives the speakers directly, so you don't need a separate amplifier to get decent volume from the factory speakers.

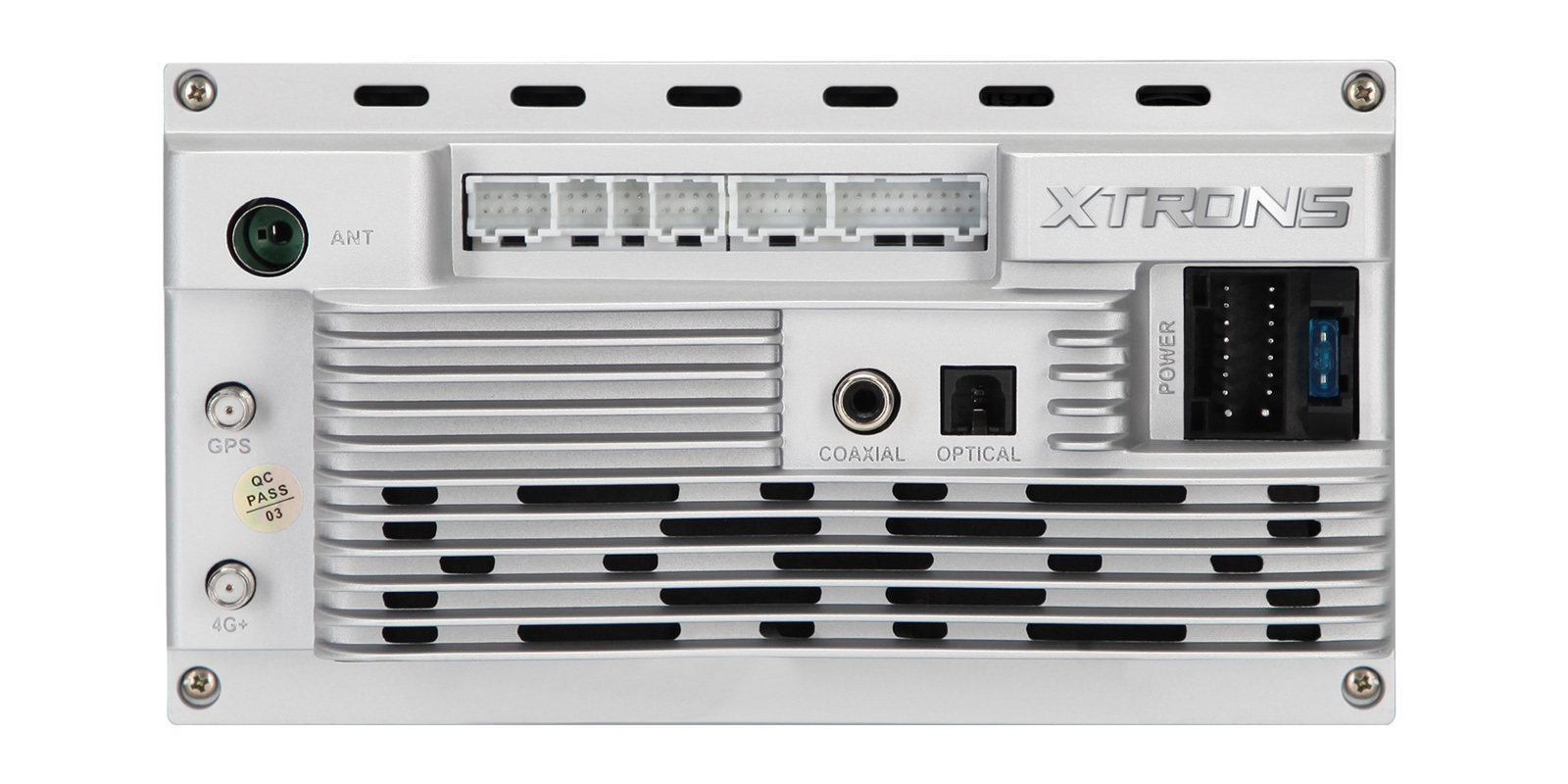

Optical, coaxial and RCA outputs make the unit a good base for a bigger system. You can feed an external amplifier or a separate DSP from them.
Insert a nano SIM card and the unit has its own internet connection, so there's no need to run a hotspot from your phone. Maps, streaming and apps then work wherever there's mobile signal.
Dual-band Wi-Fi on 2.4GHz and 5GHz gives a faster, steadier connection when you join a hotspot or your home network for updates and downloads.
Bluetooth 5.4 handles hands-free calls and music streaming. A microphone is supplied so you can mount it close to you for clearer calls.
With a wired connection you can also mirror your phone's screen to the head unit, handy for apps that don't run in CarPlay or Android Auto.

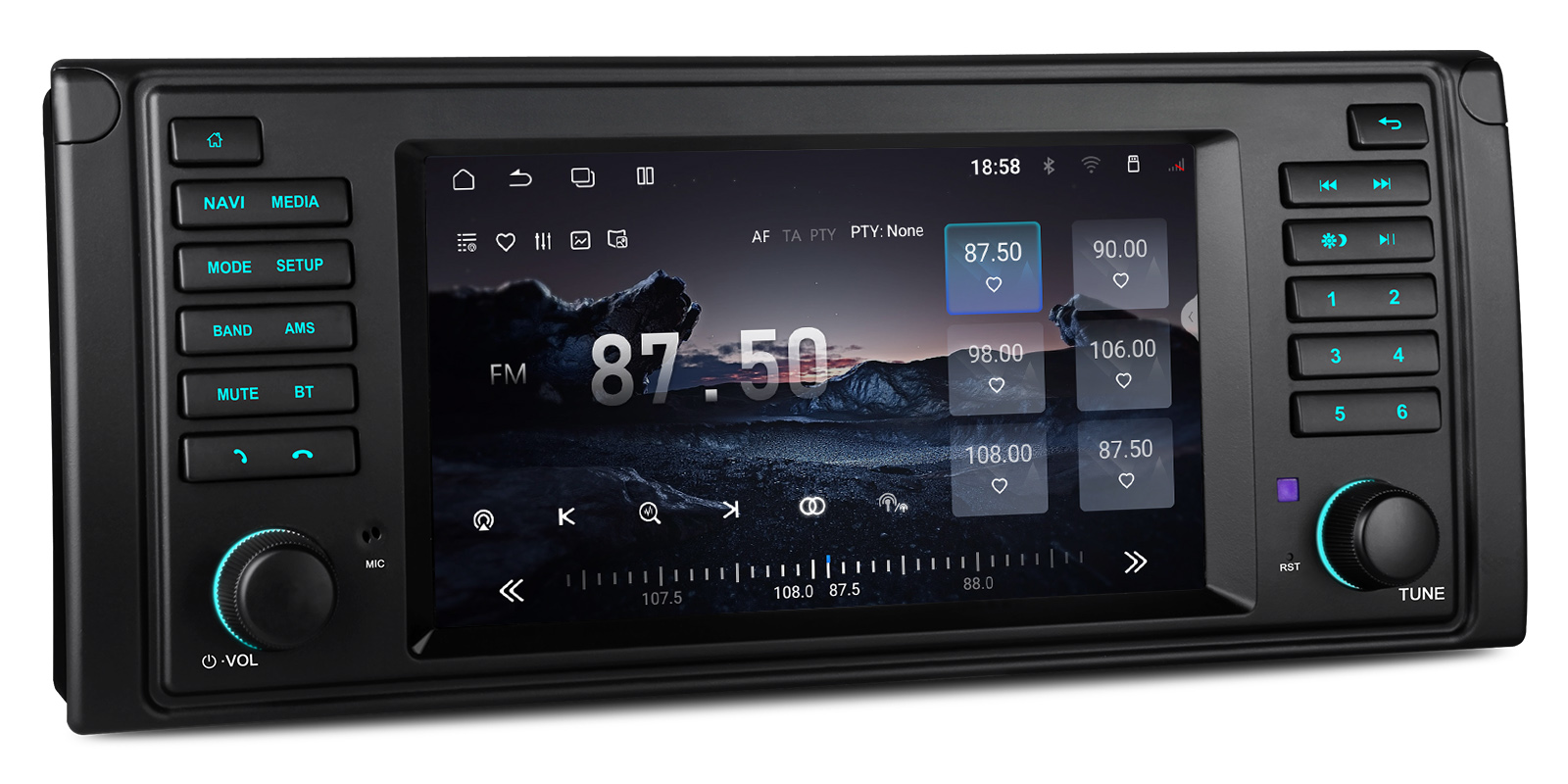

There's an RDS-FM/AM tuner built in. The unit is DAB+ ready: add an external DAB tuner if you want digital radio stations.
The unit works with 720P/1080P AHD cameras and shows the reversing picture as soon as you select reverse. A camera cable comes in the box; the camera itself is extra.

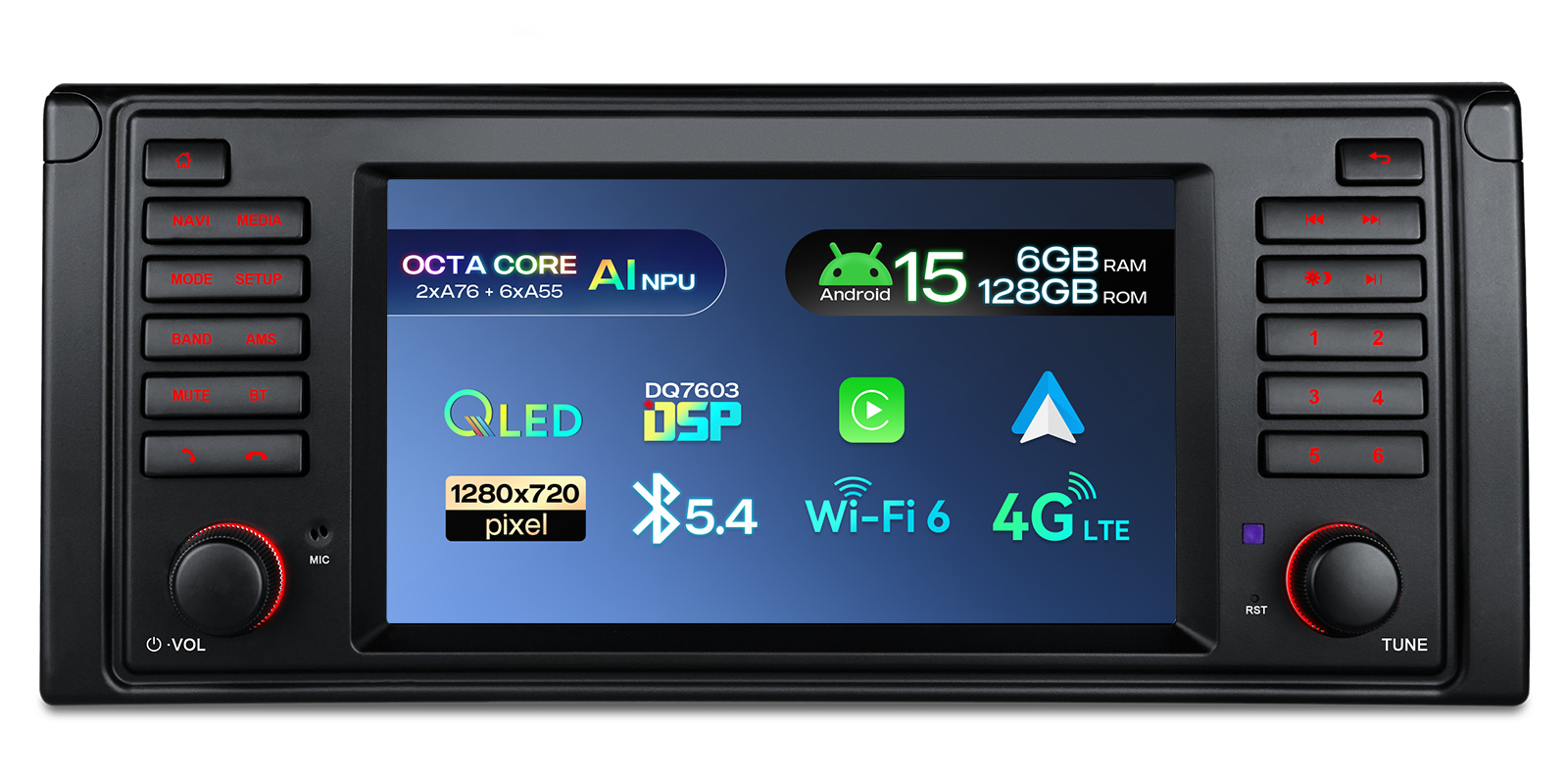

An ASR8662 octa-core CPU runs Android 15 with 6GB DDR4 RAM and 128GB UFS 2.2 storage, so apps open quickly and there's plenty of room for music and maps.
From cold it starts in 50 seconds, and from a warm start it's ready in 1 second. A cooling system keeps performance steady on long drives.

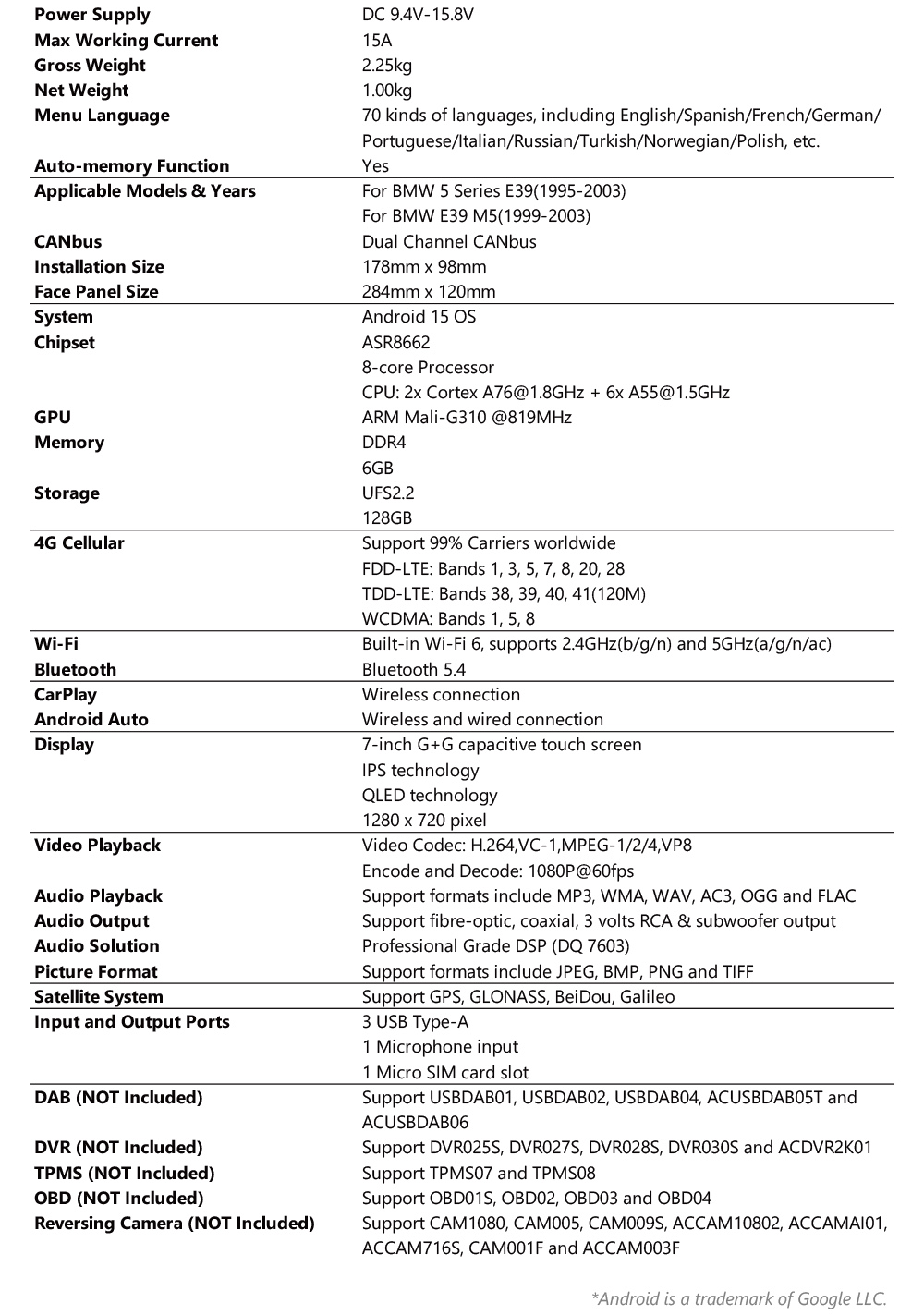

| Operating system | Android 15 |
|---|---|
| Processor | ASR8662 Octa-Core CPU |
| Memory | 6 GB DDR4 RAM and 128GB UFS 2.2 ROM |
| Start-up | 50 seconds cold start, 1 second warm start |
| Screen | 7-Inch Grade-A HD IPS QLED Screen |
|---|---|
| Resolution | 1280×720 |
| DSP | DSP DQ7603 |
|---|---|
| Amplifier | STMicroelectronics TCB001HQ amplifier (4x45W) |
| Outputs | optical, coaxial, and RCA outputs |
| Radio | RDS-FM/AM tuner |
| DAB | External DAB Supported |
| Mobile data | Built-in Global 4G LTE Module |
|---|---|
| Wi-Fi | Dual Band WiFi (2.4GHz & 5GHz) |
| Bluetooth | Bluetooth 5.4 |
| Navigation | GPS, Galileo, GLONASS, and BEIDOU |
| Reversing camera | 720P/1080P AHD cameras |
|---|

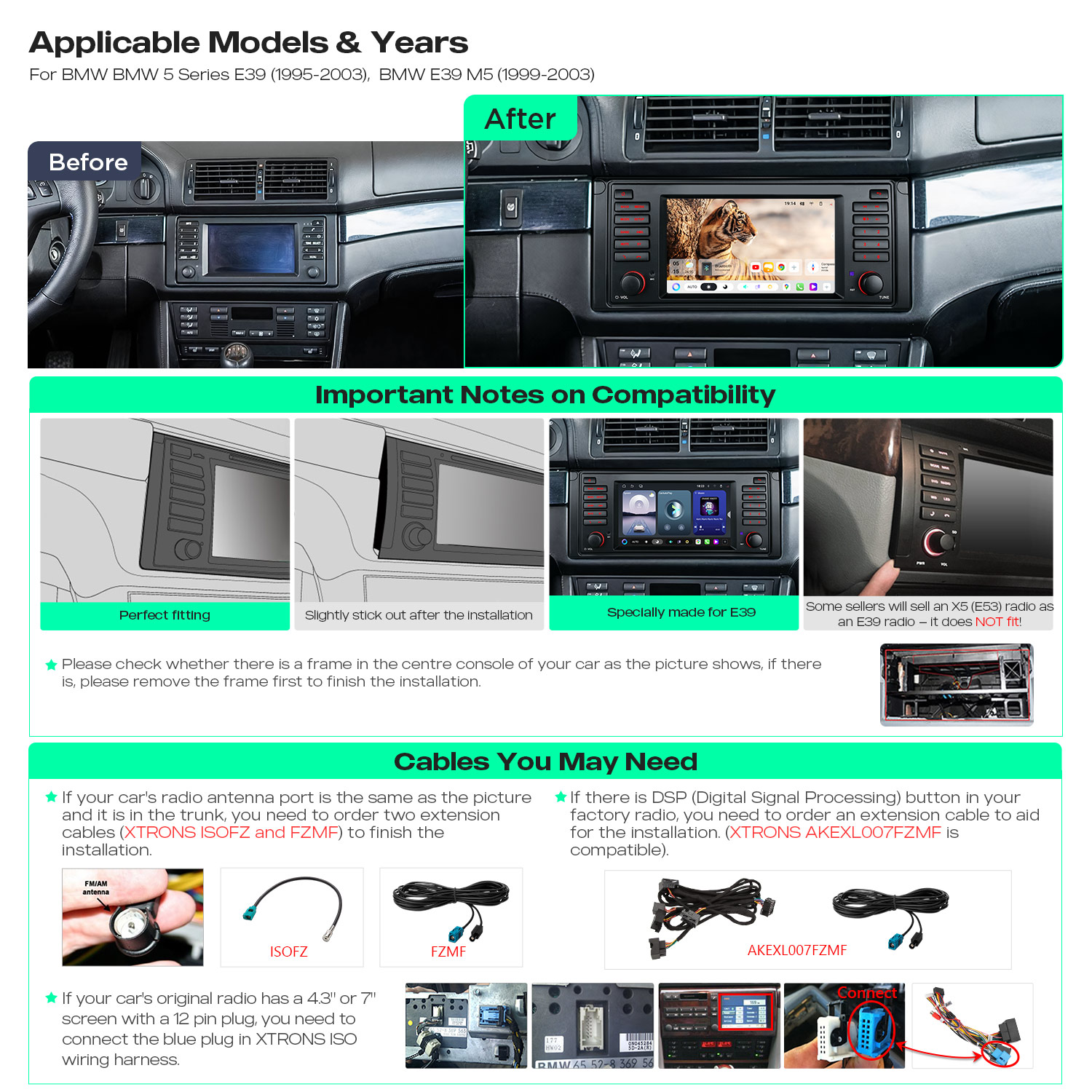

The unit connects with the supplied ISO wiring harness, CANbus box and installation holder. If there's a frame in your centre console, remove it first. Cars with the radio aerial port in the boot need the XTRONS ISOFZ and FZMF extension cables, and cars with a factory DSP button need an extension cable such as XTRONS AKEXL007FZMF. If the original radio has a 4.3" or 7" screen with a 12 pin plug, use the blue plug on the harness.
Both. Connect wirelessly, or plug in with USB for a wired connection, which also allows screen mirroring.
Yes. The built-in 4G LTE modem takes a standard nano SIM card for maps, streaming and apps.
Yes. It works with 720P/1080P AHD cameras and switches to the camera view when you select reverse. The camera cable is included.
It has an RDS-FM/AM tuner and supports DAB+ with an external DAB tuner, which you'd need to add.
Two extension cables, XTRONS ISOFZ and FZMF, if your aerial port matches the one in the product photos.
