SKU: IMH84A4AL
£319.00Was £379.00Save £60.00
Check if this fits your car
SKU: IMH84A4AL

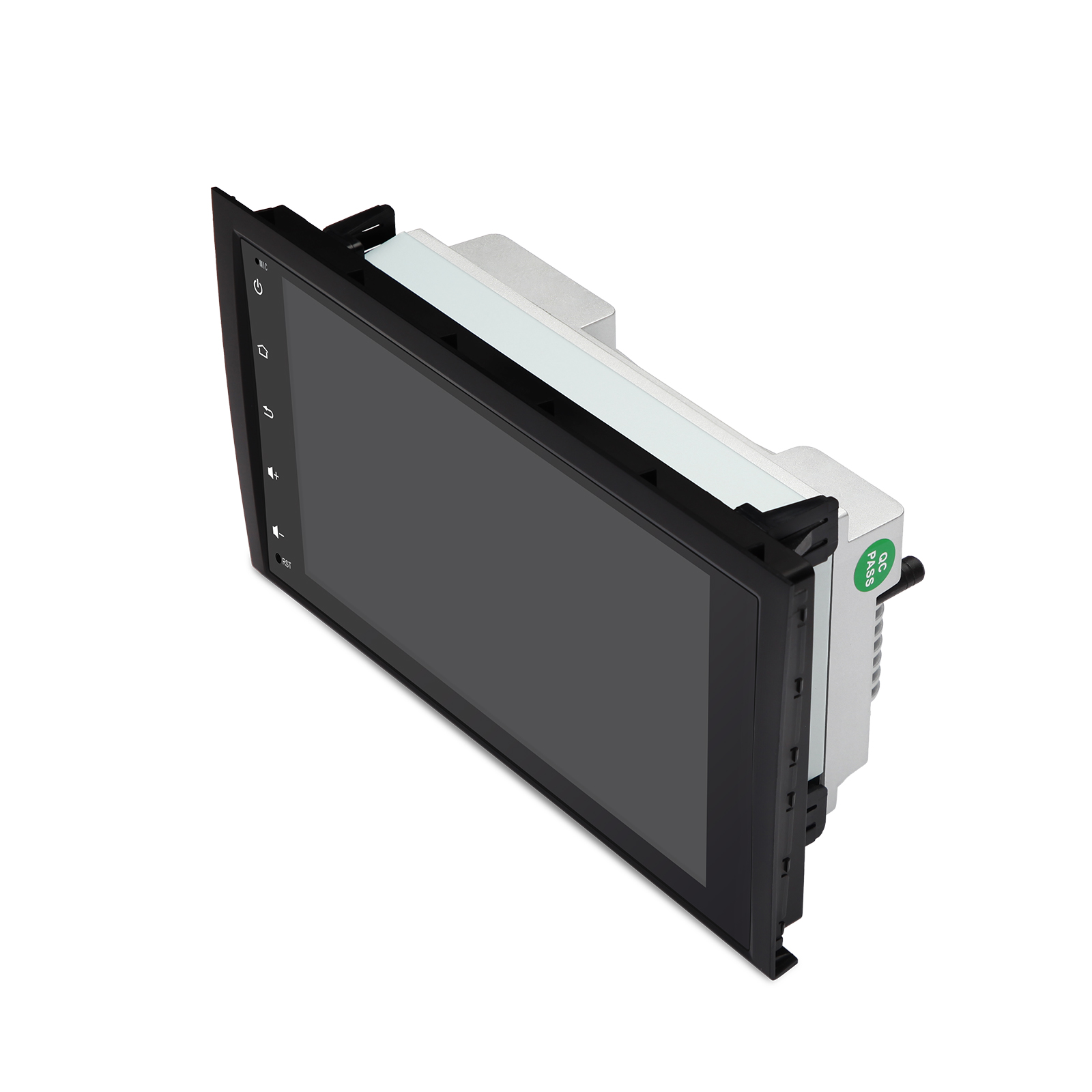

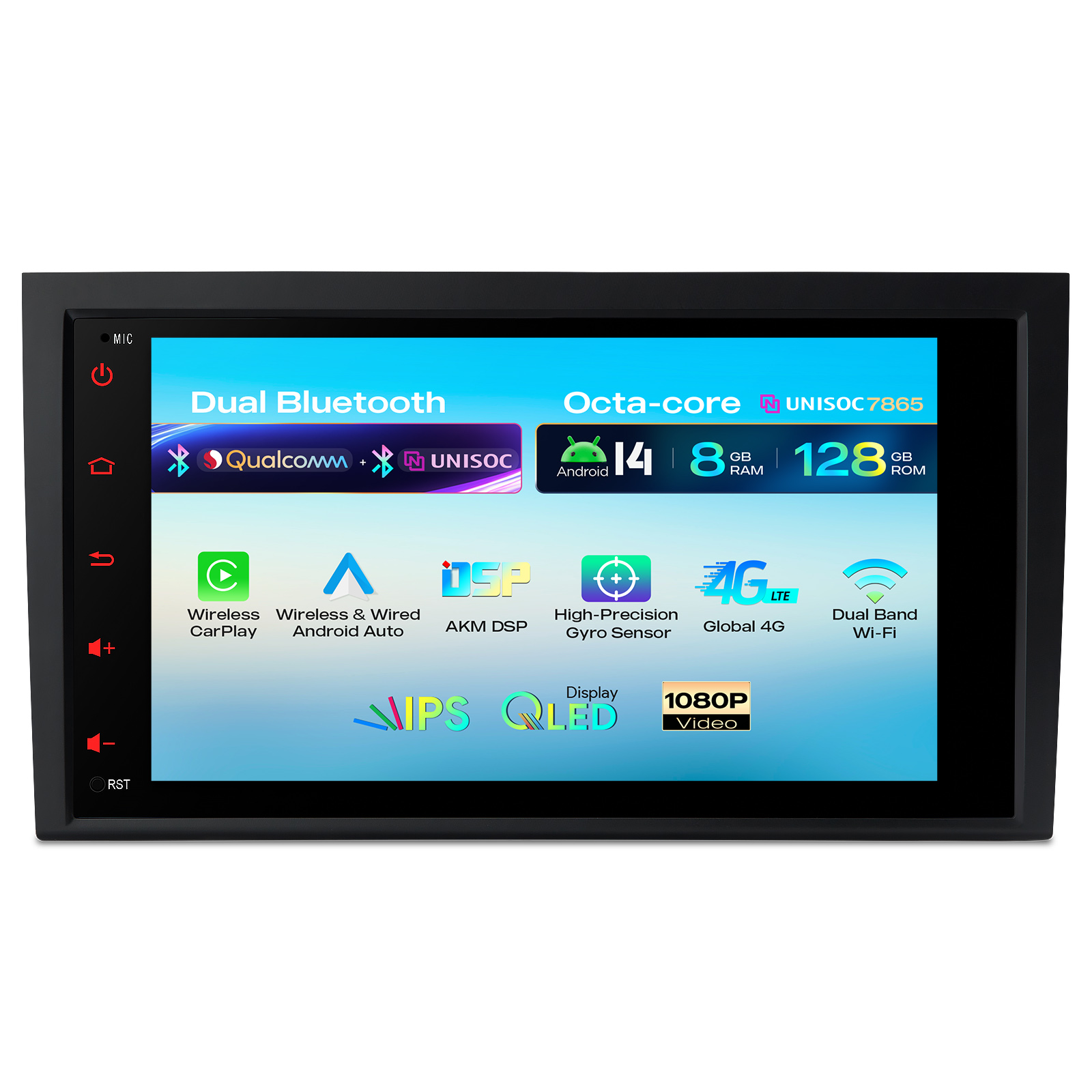

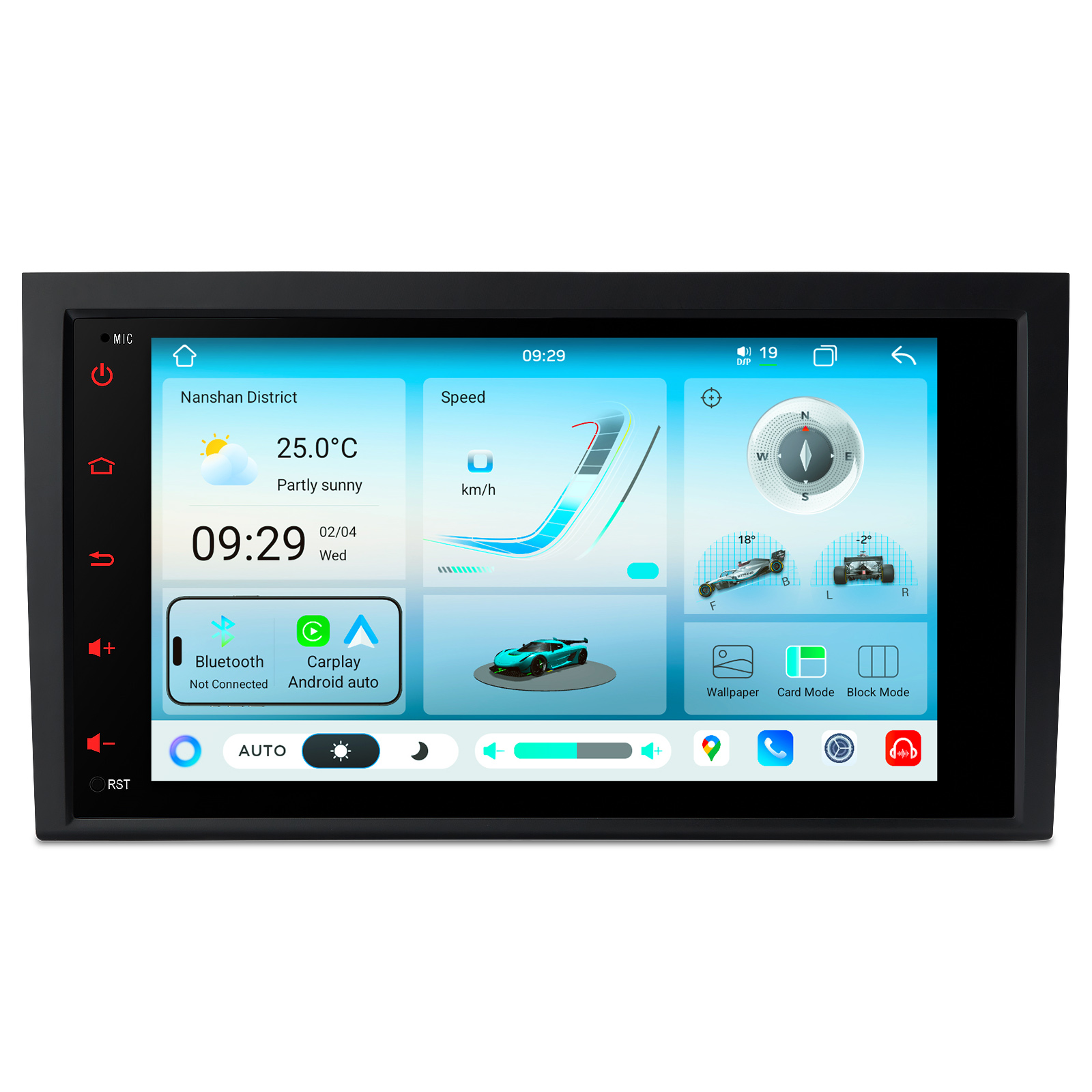

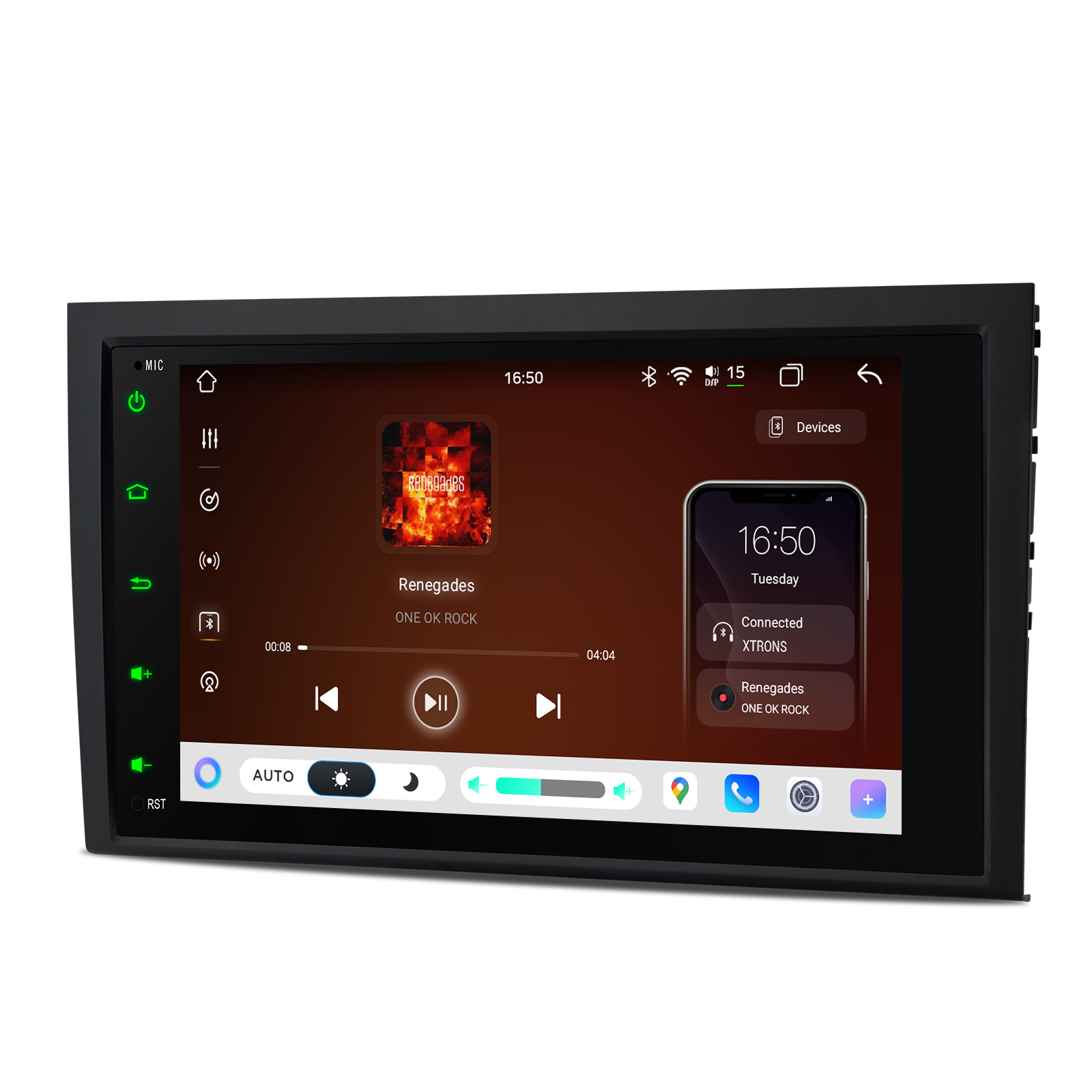

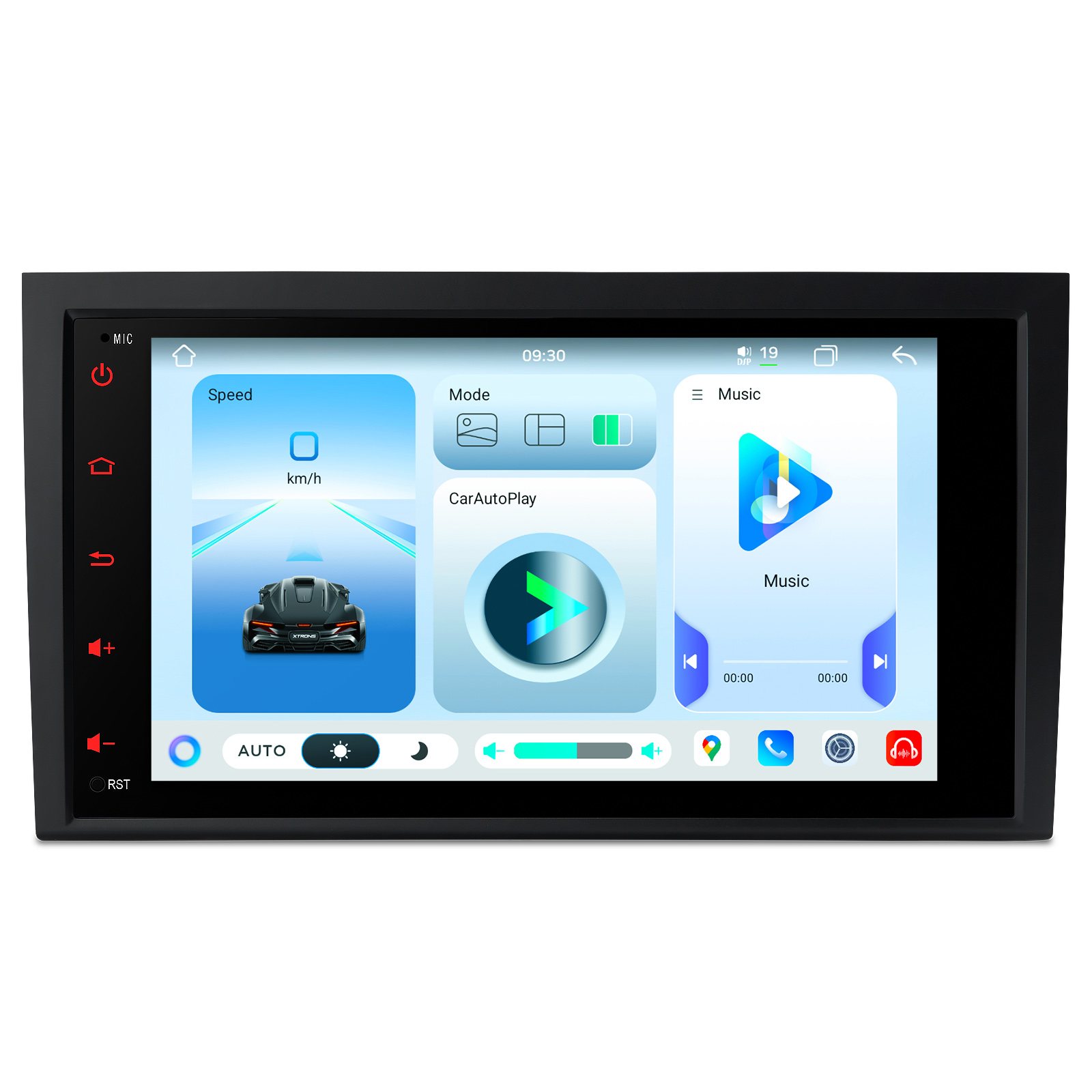

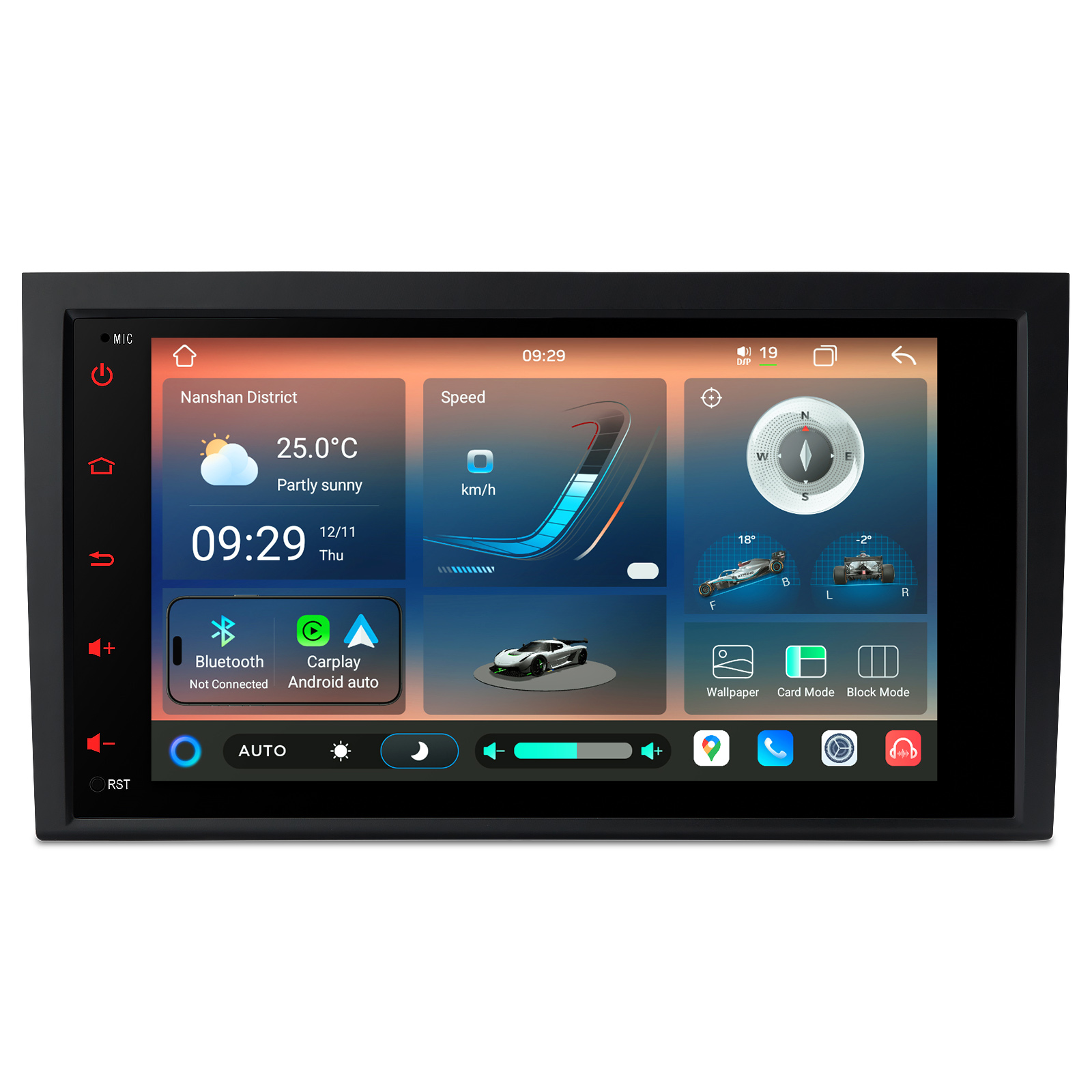

An 8 inch Android 14 head unit made to fit the Audi A4, S4 and RS4 (B6 and B7) and the SEAT Exeo. It adds wireless CarPlay and Android Auto, 4G, a QLED screen and an AKM DSP, and works with the original BOSE system.

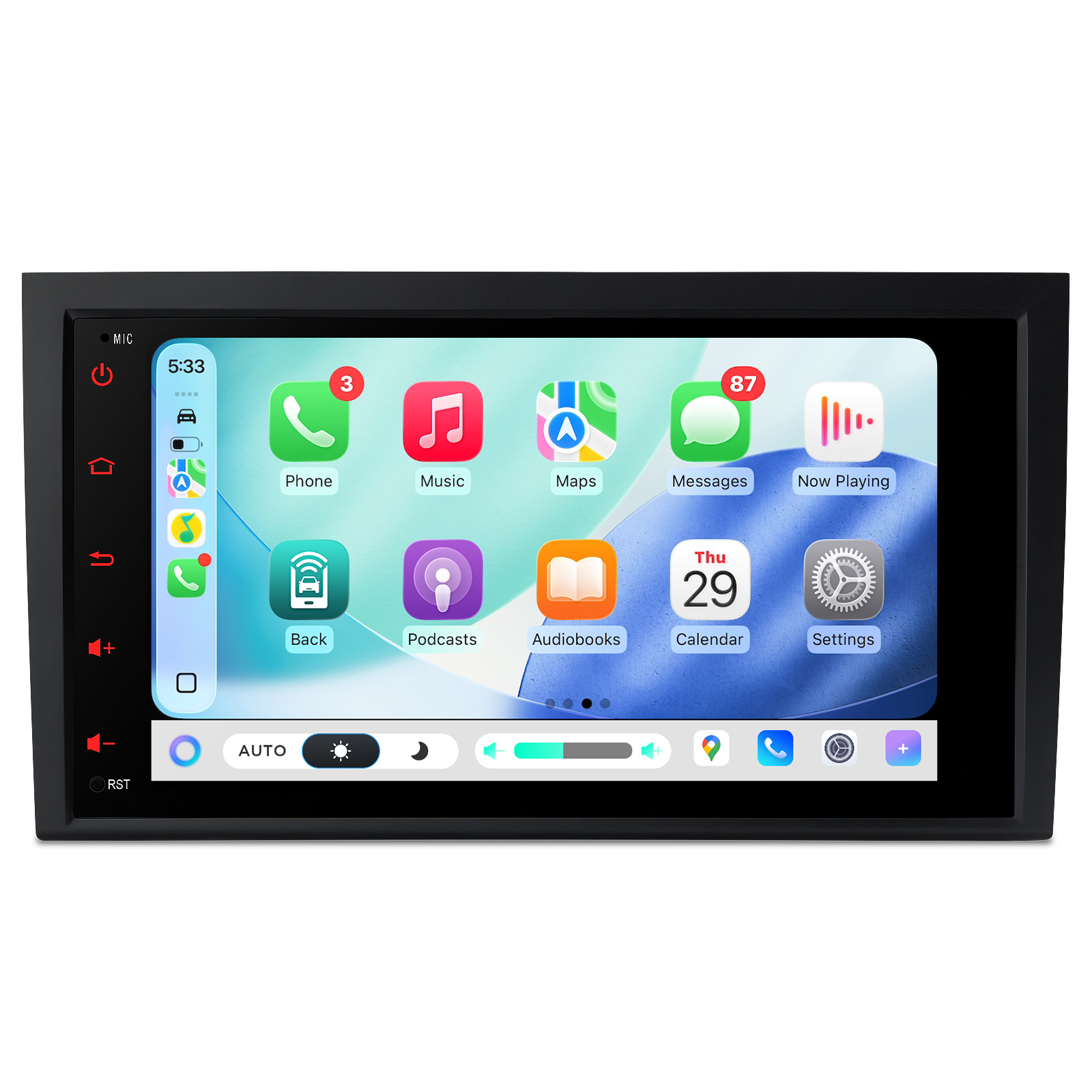

Your iPhone connects over Wi-Fi without a cable, so maps, calls and music appear on the 8 inch screen as you set off. Voice control through Siri keeps your hands on the wheel.
Your iPhone connects on its own when you start the car, so there's no cable to plug in. It needs an iPhone with wireless CarPlay support; check yours in Settings > General > CarPlay. A cable still works when you'd rather charge on the way.

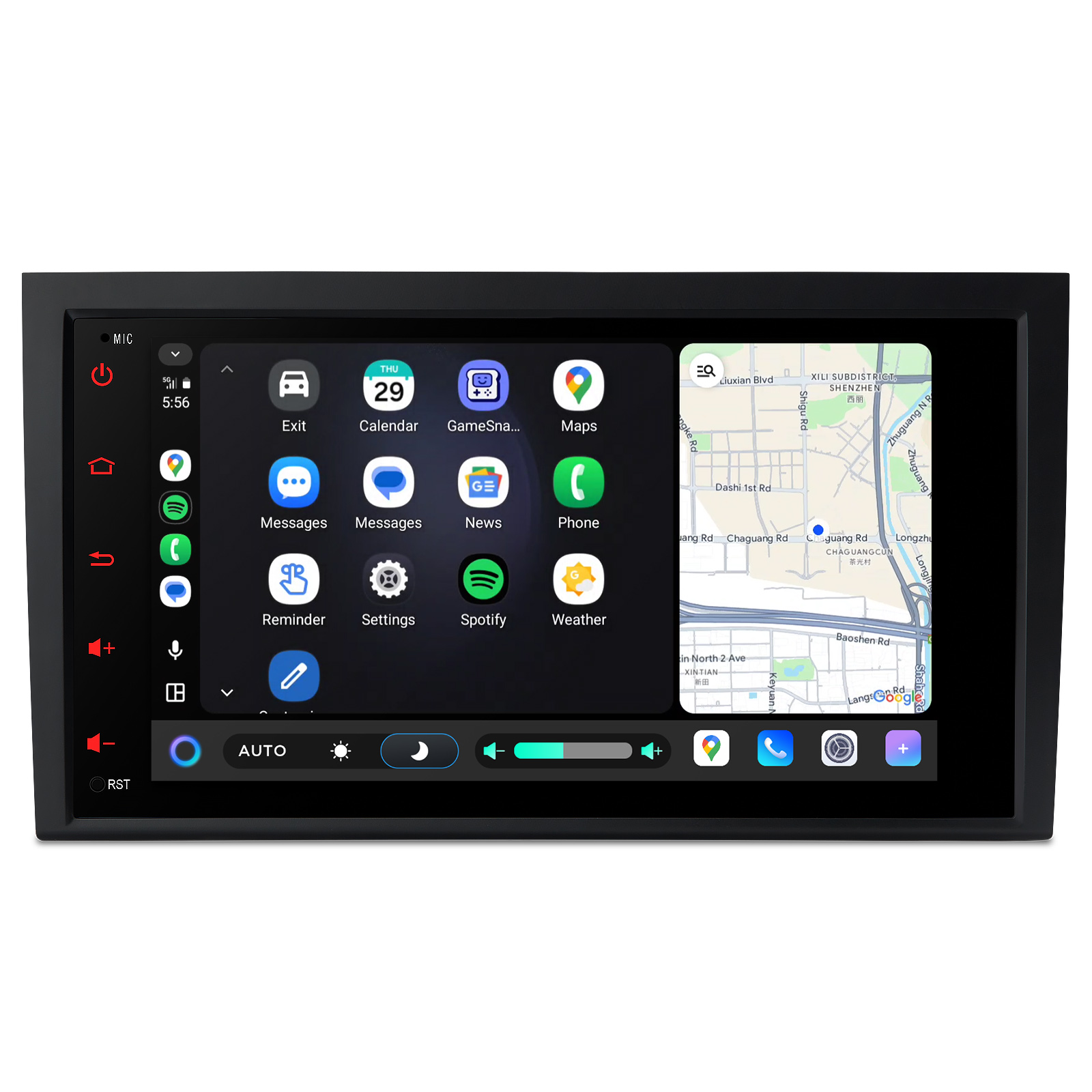

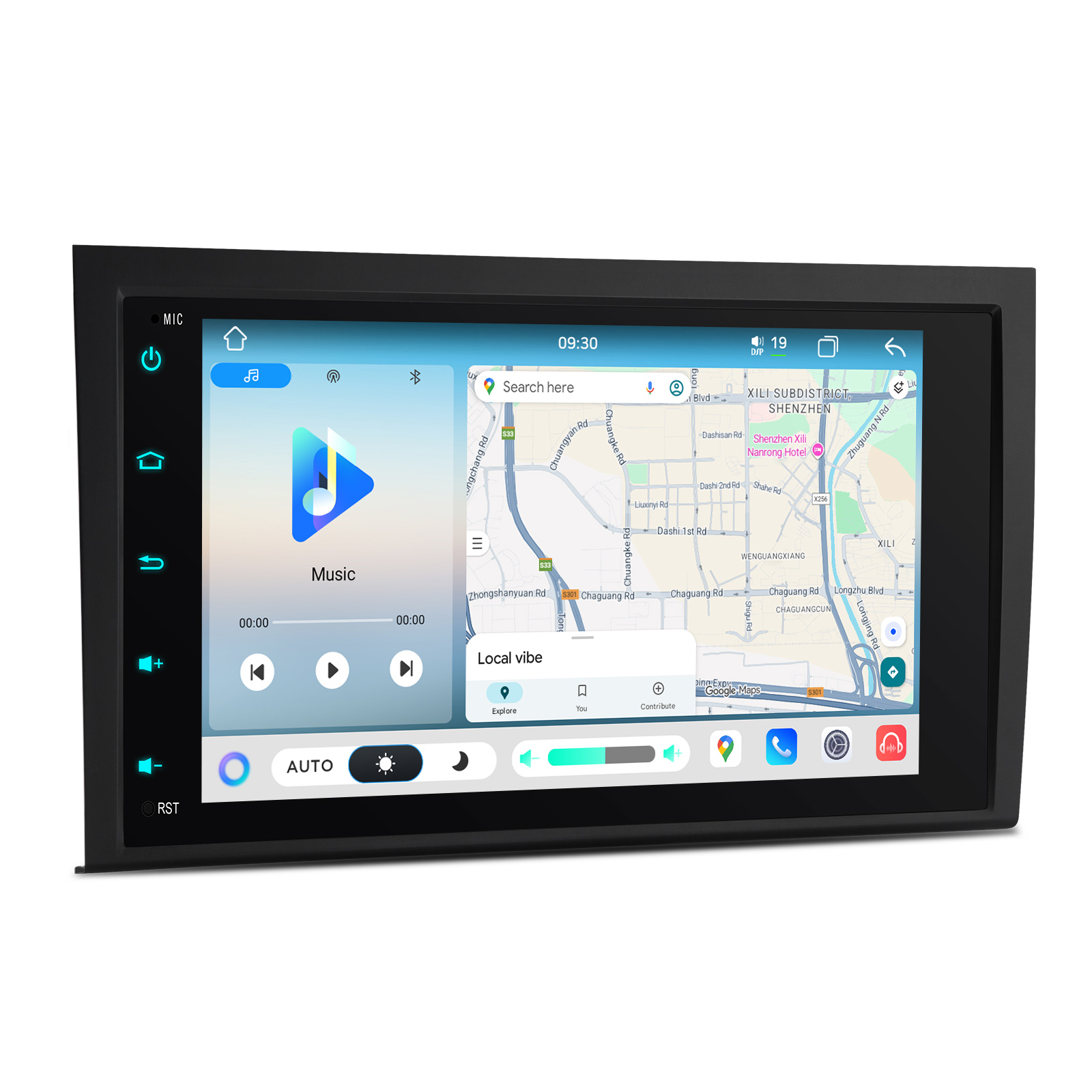

Android phones connect wirelessly too. Navigation, music and messages run on the head unit, and you can use voice commands for directions and calls.
Maps, calls, messages and music from your Android phone appear on the car screen, with Google Assistant for voice control. It needs a phone with Google services, which most Android phones have. To connect without a cable, the phone must support wireless Android Auto too.

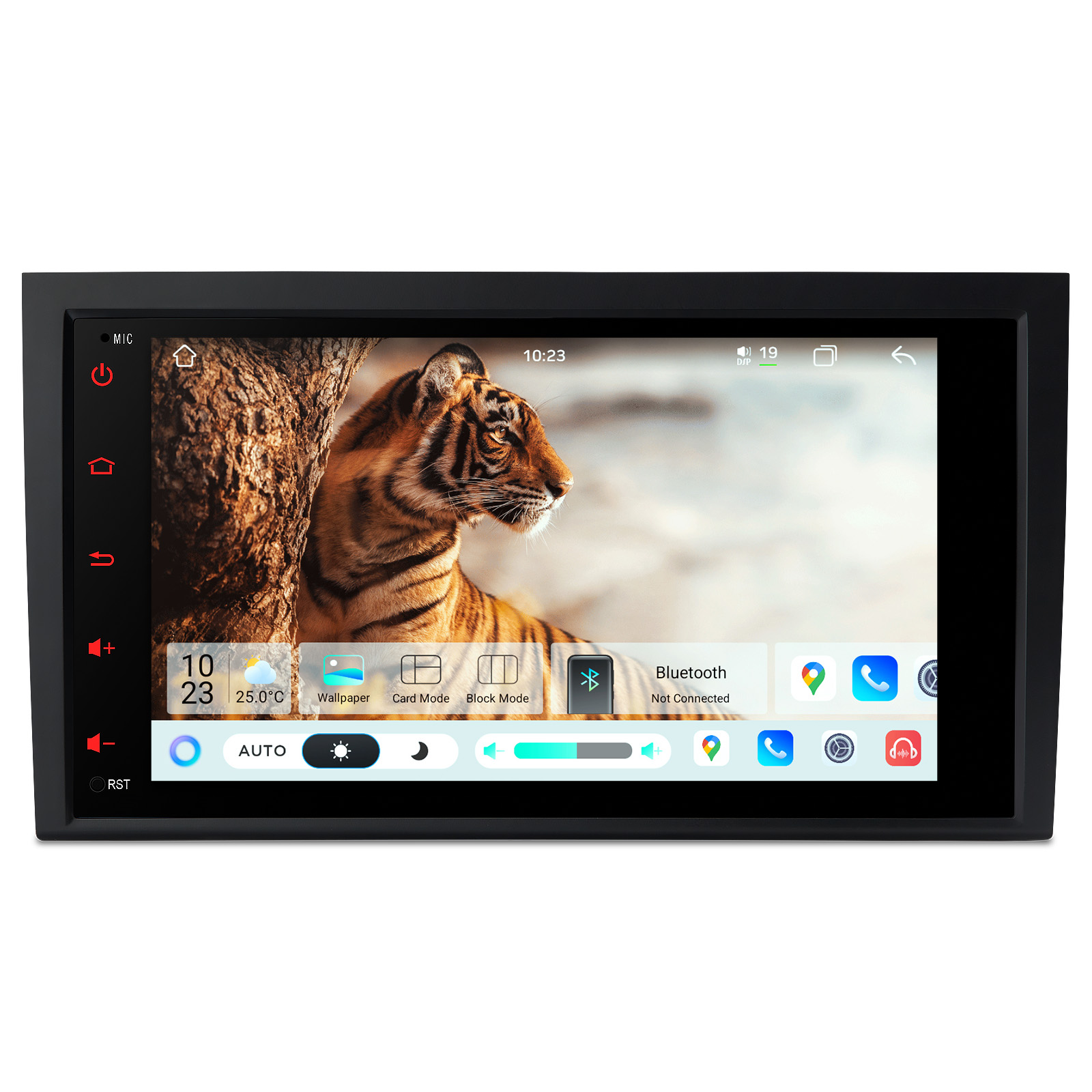

The 8″ QLED IPS screen runs at 1280×720 under G+G tempered glass. Colours are vivid and the screen has anti-glare clarity, which helps when the sun is low.
The IPS panel stays clear from the side, so the passenger can see the map as well as you can.
The AKM 7604 DSP with 36-band equalisation gives you fine control over the sound. You can correct for the cabin and speakers and get a balanced sound at the driver's seat.
The sound processor lets you tune the sound to your car: an equaliser, a delay for each speaker so the sound centres on your seat, and crossovers that keep deep bass away from small speakers. Start from a preset and change one setting at a time.
A TDA7851 amplifier with 4x 48W output drives the speakers directly.
The built-in amplifier drives your car's speakers directly, which is all most cars need. If your car has a factory amplifier, as many premium sound systems do, it usually stays in use and may need an adapter, so check before ordering.
Fibre-optic, coaxial and RCA outputs let you add an external amplifier or processor. An RCA cable is in the box.
RCA pre-outputs send a clean, low-level signal to an external amplifier or subwoofer. Count the channels you need (front, rear and sub) against the outputs in the specifications. You'll also need RCA leads and power wiring for the amplifier.
Put a SIM card in and the unit has its own 4G LTE connection for real-time traffic, weather and streaming. A 4G antenna is included.
A SIM card in the head unit gives it its own internet connection for maps, traffic and streaming, so it doesn't need your phone's hotspot. You supply the SIM and the data plan; a data-only SIM is usually the cheapest way to do it.
Dual-band 2.4G/5G Wi-Fi carries wireless CarPlay and Android Auto and connects to hotspots for downloads.

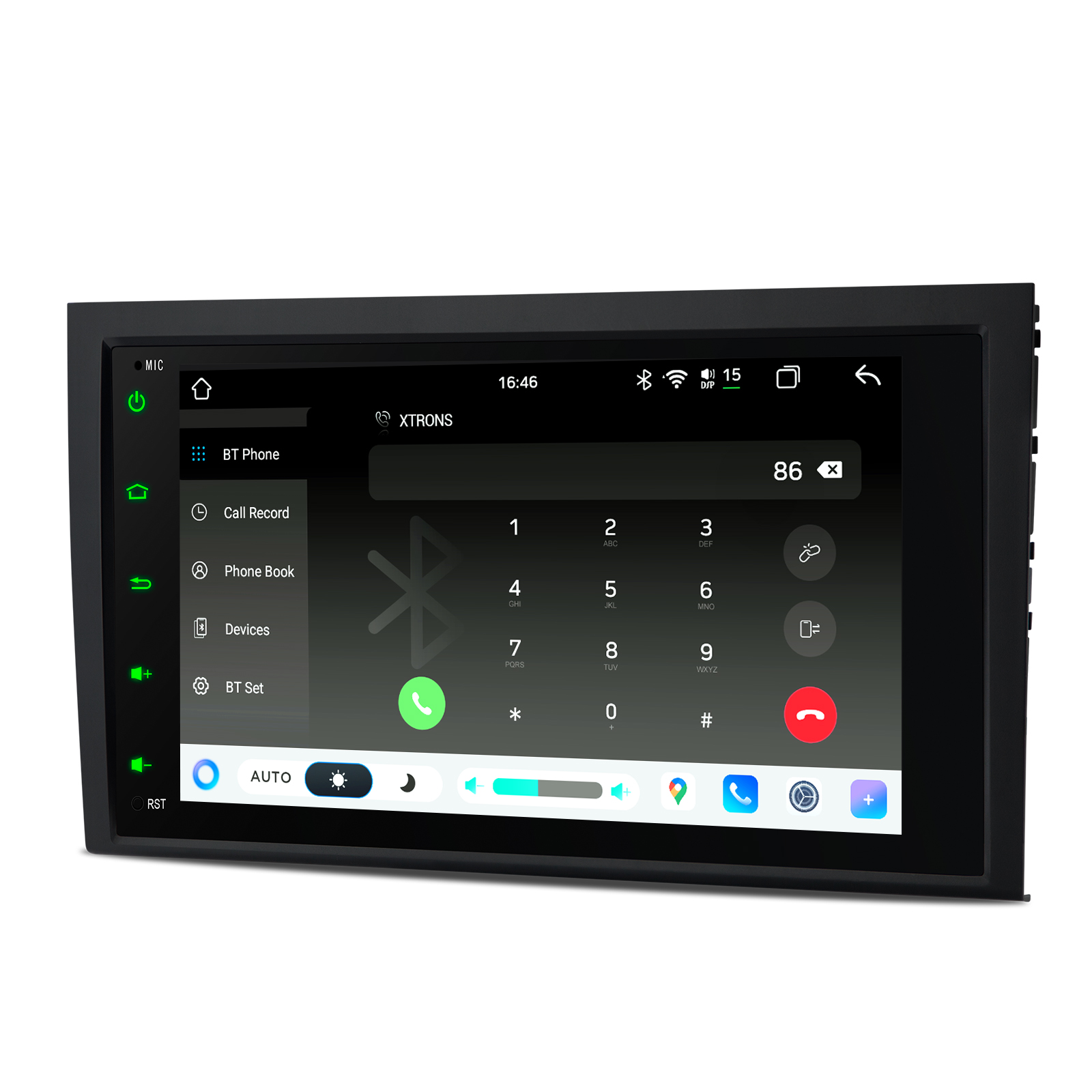

There are two Bluetooth modules (Qualcomm + Unisoc). The Qualcomm module streams music with aptX HD, while the Unisoc 5.2 module can connect to OBD-II scanners or dash cams at the same time.
CANbus integration keeps factory features such as the BOSE audio system, ACC and door reminders. The steering wheel controls keep working for volume, track and calls.
Your steering wheel buttons keep working with the new unit, either through a CAN bus decoder or by teaching the unit each button. Check which your car needs before ordering. A few buttons may do nothing if the unit has no matching function.
Mirror your phone's screen onto the head unit for apps that aren't in CarPlay or Android Auto.
Mirroring shows your phone's whole screen on the car screen, unlike CarPlay and Android Auto, which show apps designed for driving. It usually needs a companion app on the phone, and paid video streaming apps often block it.
DAB radio is supported with an external DAB tuner, sold separately.
Digital radio gives clearer sound and more stations than FM where there's DAB coverage. It needs a DAB aerial: a stick-on windscreen aerial is the usual choice, or a splitter if your car already has a combined FM and DAB aerial.
2 USB cables come in the box for connecting phones and memory sticks, and 1080P video plays from local files.

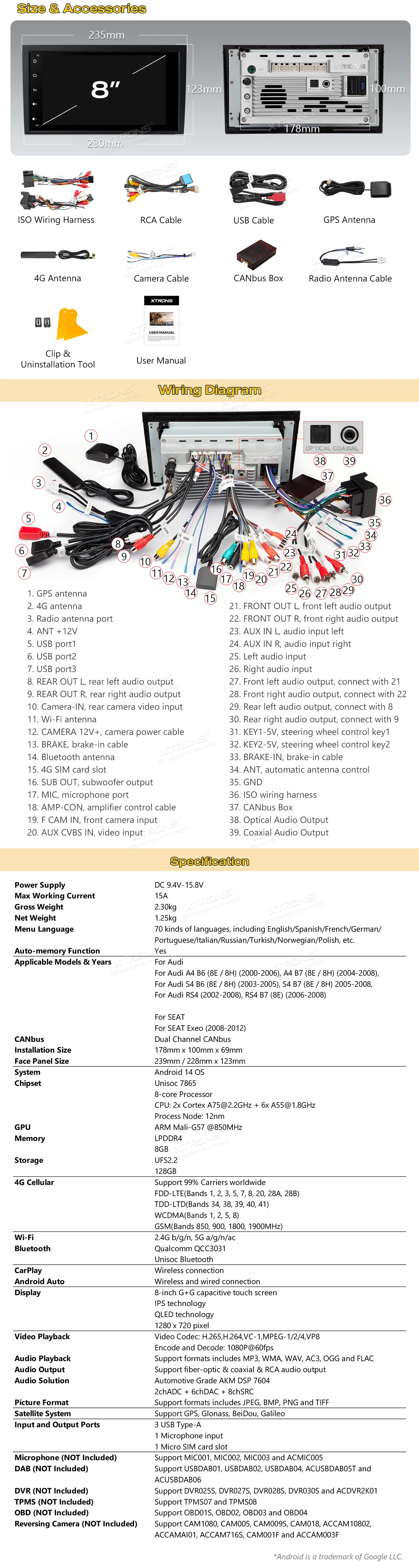

| System | Android 14 OS (UFS 2.2 High-Speed Storage) |
|---|---|
| Chipset | Unisoc 7865 Octa-Core (2x A75 @ 2.2GHz + 6x A55 @ 1.8GHz) |
| Memory | 8GB RAM + 128GB ROM |
| Screen | 8″ QLED IPS (1280×720) – G+G Tempered Glass |
|---|
| Audio output | Optical, Coaxial, RCA (Supports AKM 7604 DSP & 36-Band Equalization) |
|---|---|
| Amplifier | TDA7851 amplifier (4x 48W output) |
| Connectivity | Dual Bluetooth (Qualcomm + Unisoc), 4G LTE, Dual-Band WiFi (2.4G/5G) |
|---|
| Power supply | DC 9.4V–15.8V (15A Max Working Current) |
|---|
| Temperature range | -30°C to +80°C (Automotive-Grade Durability) |
|---|---|
| Face panel | 235/230x123mm |
| Make | Model | Years | Notes |
|---|---|---|---|
| Audi | A4 (B6) | 2000–2005 | |
| Audi | A4 (B7) | 2004–2008 |

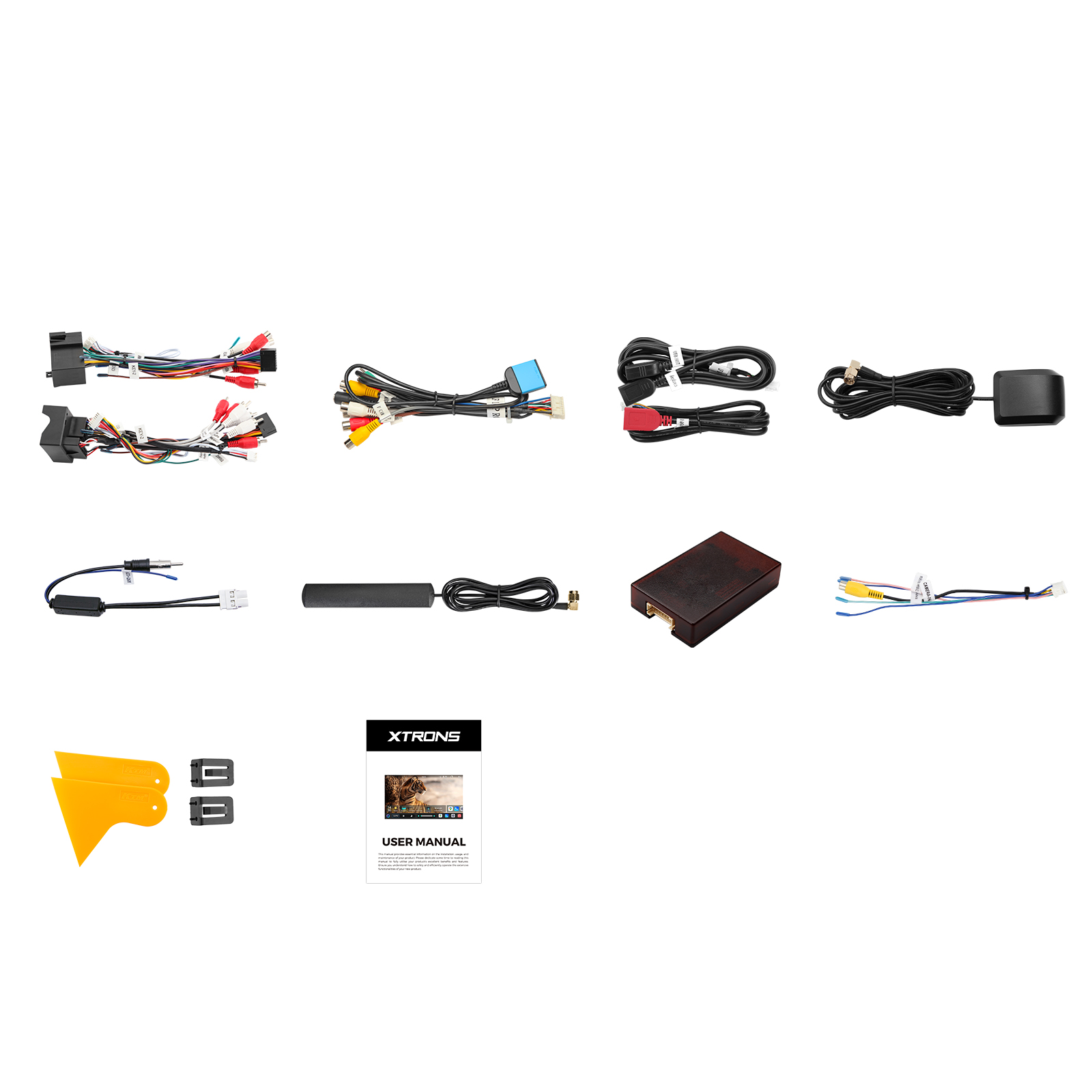

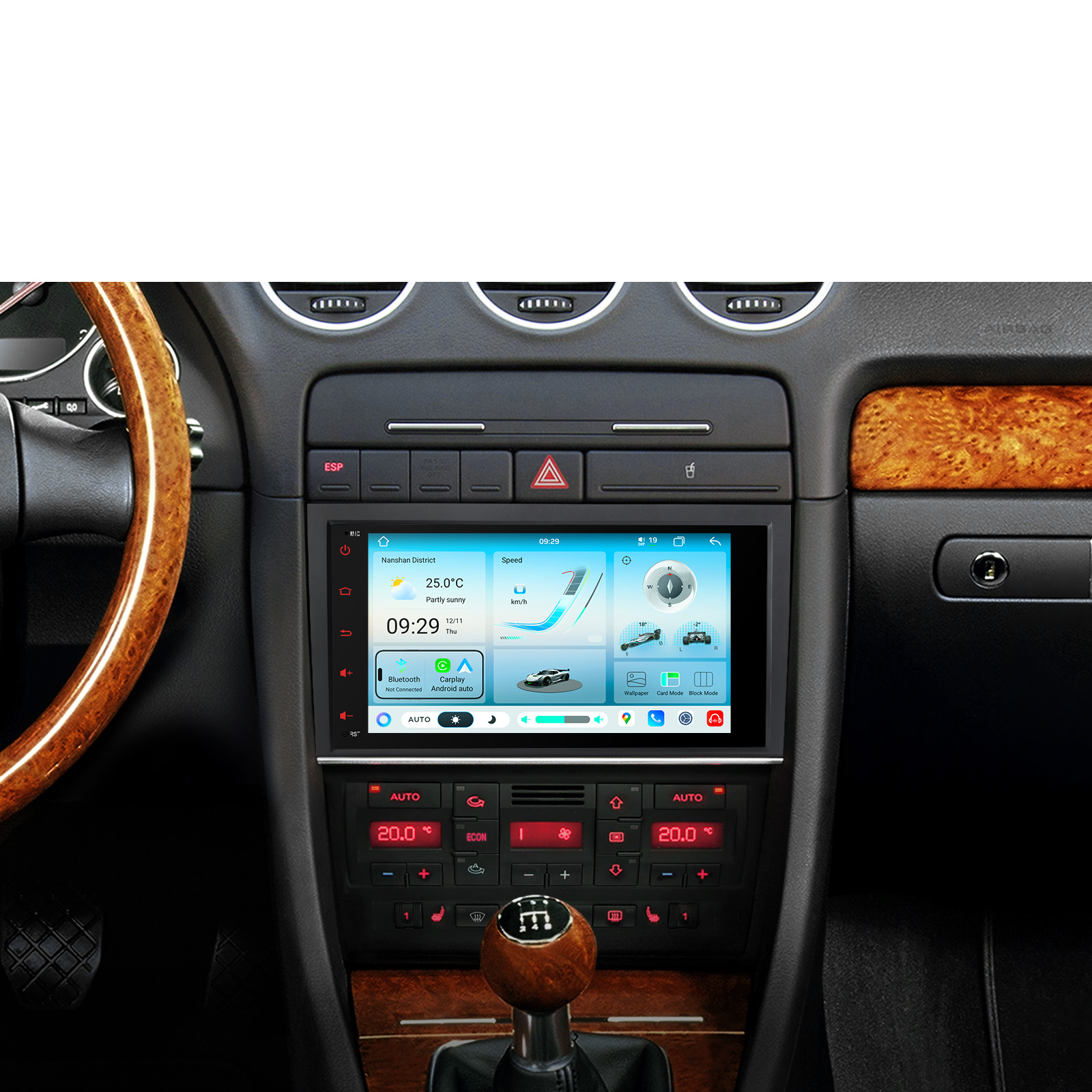

The unit is a custom fit with a 235/230x123mm face panel and comes with a CANbus box, ISO wiring harness and removal tools. It's double DIN size, so it won't fit cars with a single DIN CD player; check the year and the shape of your centre console. Depending on your radio antenna port you may need the XTRONS ICE/ACS/ISOFZ cable, and if the rear speakers have static or no sound after fitting, the AK/INIB/NRCBL (for cars with a 40pin ISO plug).
Yes. It's compatible with the car's original BOSE system.
No. This is a double DIN size unit and won't fit cars with a single DIN CD player.
Yes. Volume, track and call buttons work through the CANbus integration.
DAB needs an external tuner, sold separately.
The XTRONS AK/INIB/NRCBL cable fixes static or no sound from the rear speakers. Check your original ISO plug is 40pin first.
