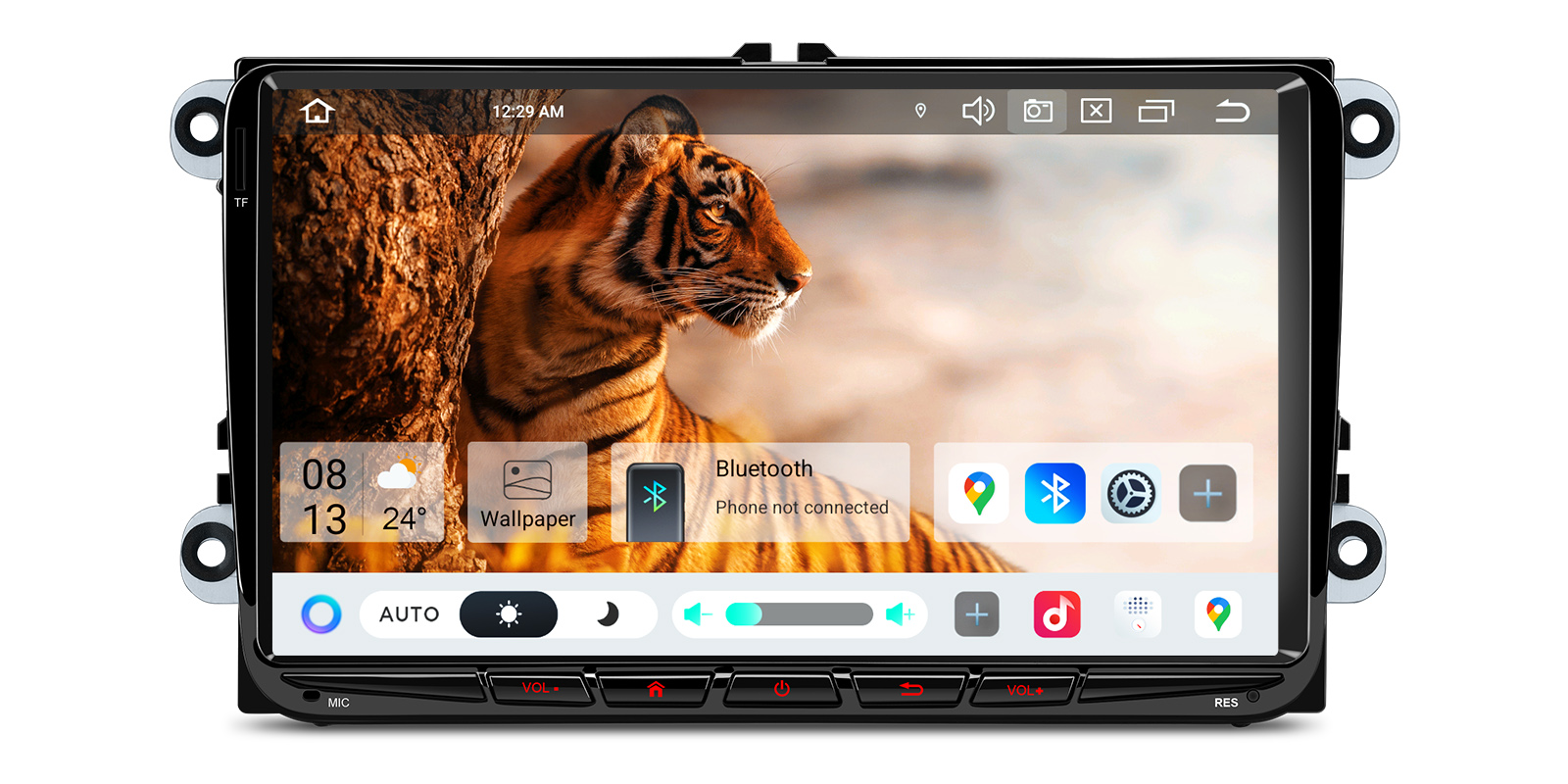

VW, Skoda and SEAT 9 Inch Android Head Unit with Wireless CarPlay, Built-in DAB+ and 4G | IP96MTVDABL

SKU: IP96MTVDABL

£279.99

Price includes VAT

Check if this fits your car

1

Dispatched by our warehouse partner, usually with you in 2 to 4 working days. to confirm

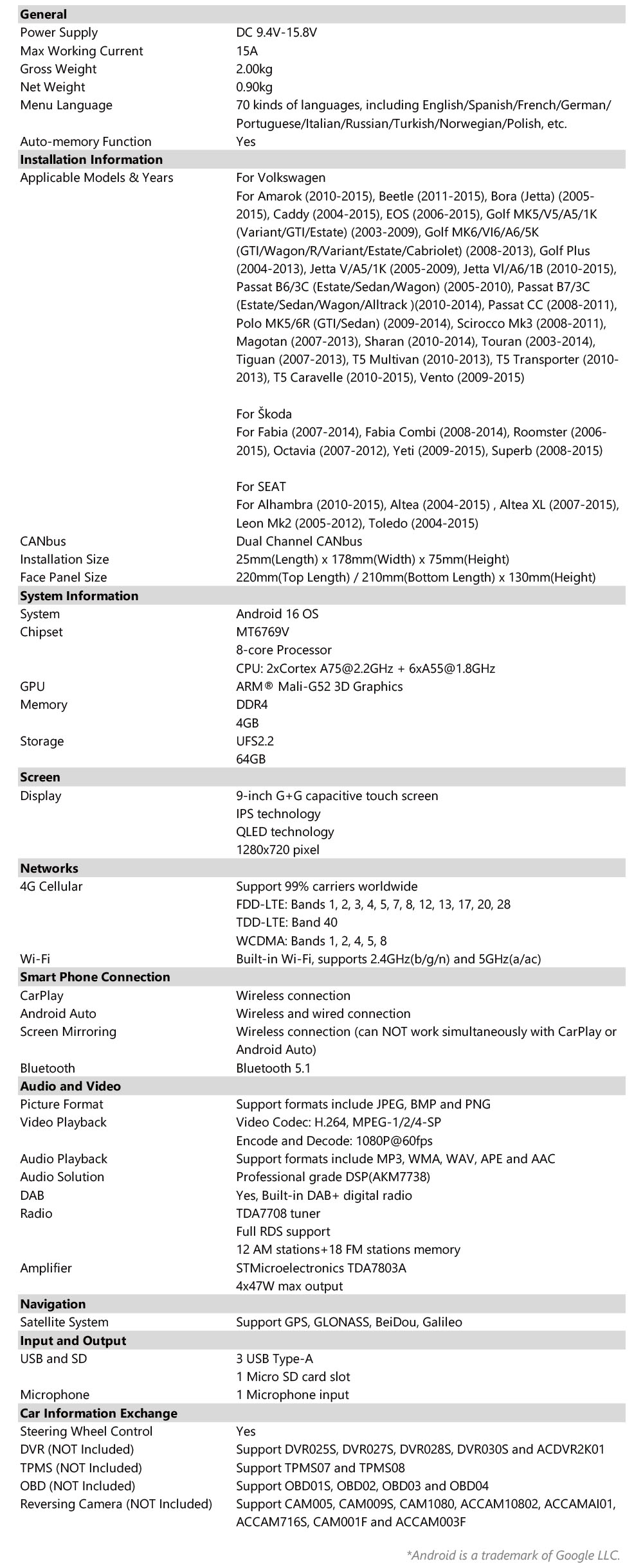

Key specifications

Operating system
Android 16
Chipset
MediaTek MT6769V Octa-Core (12nm)
CPU
2x Cortex A75 @ 2.2GHz + 6x Cortex A55
GPU
Mali-G52
Memory
4GB DDR4 RAM + 64GB UFS 2.2 ROM
Screen
9″ QLED (1280×720) G+G Touch Screen

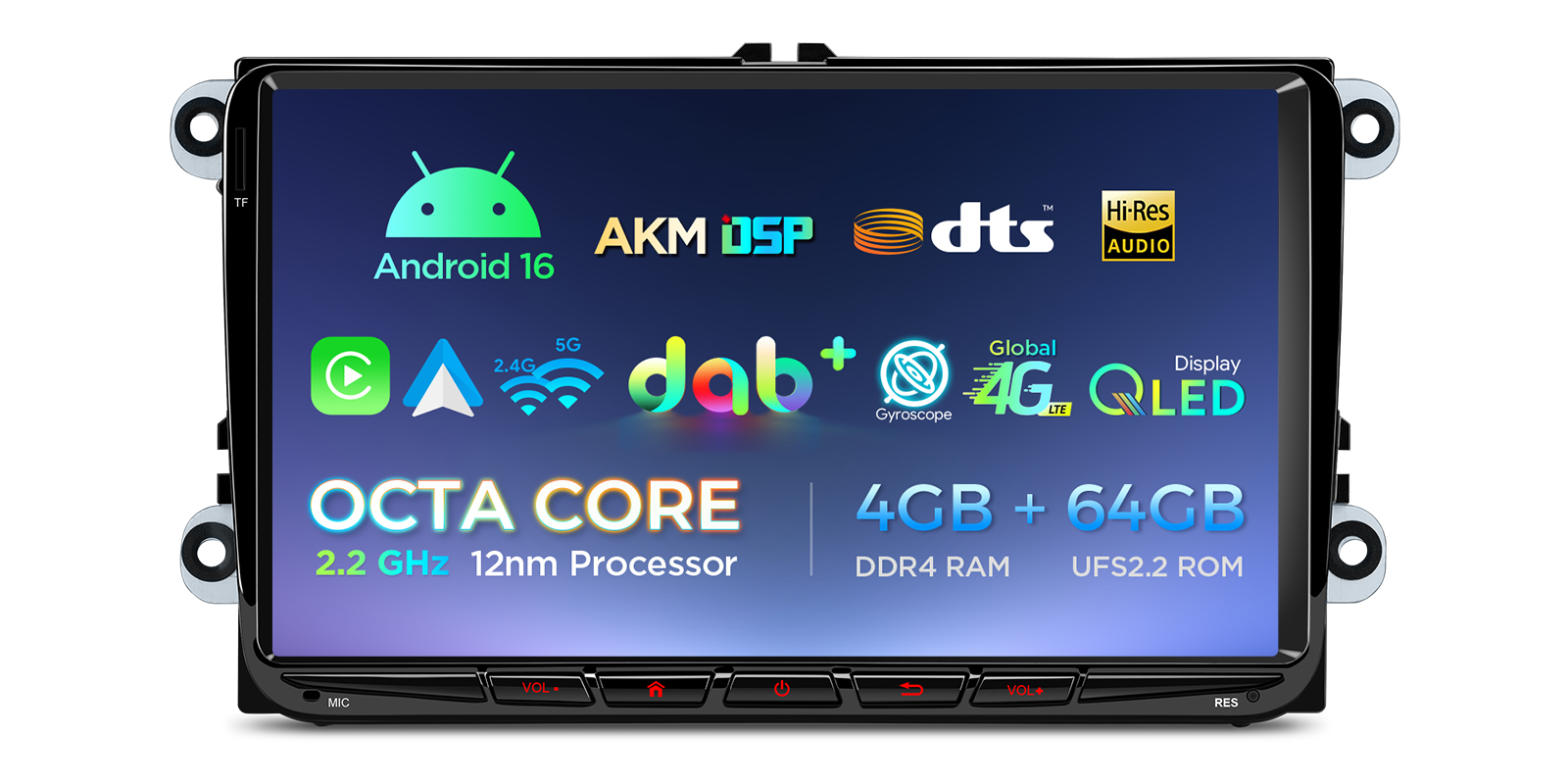

XTRONS IP96MTVDABL is a 9 inch Android 16 head unit made to replace the factory radio in a long list of Volkswagen, Skoda and SEAT models. It brings wireless CarPlay and Android Auto, built-in DAB+ and 4G to cars that left the factory with a basic stereo.

  • Wireless Apple CarPlay and Android Auto, so your phone can stay in your pocket
  • DAB+ tuner built into the unit, with no separate box to hide behind the dash
  • 9″ QLED touch screen at 1280×720 with G+G touch technology
  • AKM7738 DSP with DTS sound effects and Hi-Res Audio
  • 4G LTE with a nano-SIM, so maps and streaming work without your phone
  • CANbus decoding keeps steering wheel controls and factory car information
  • Android 16 on a MediaTek MT6769V Octa-Core chipset with 4GB RAM and 64GB storage

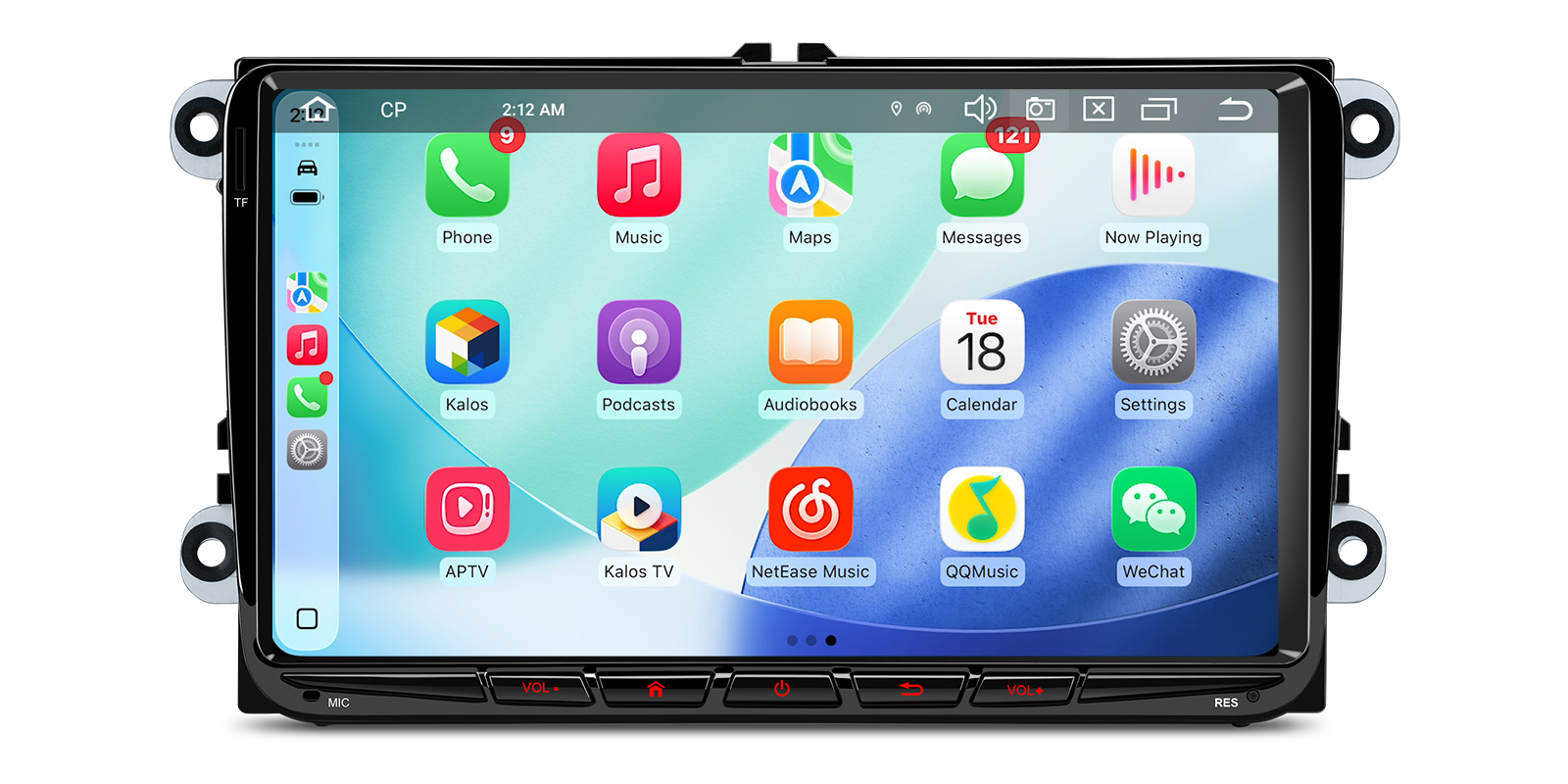

Wireless Apple CarPlay

Once your iPhone is paired, CarPlay connects by itself when you get in, so there's no cable to plug in for a short trip. Maps, messages, calls and music appear on the 9″ screen.

You can ask Siri for directions or to play something, which keeps your hands on the wheel.

How wireless apple carplay works

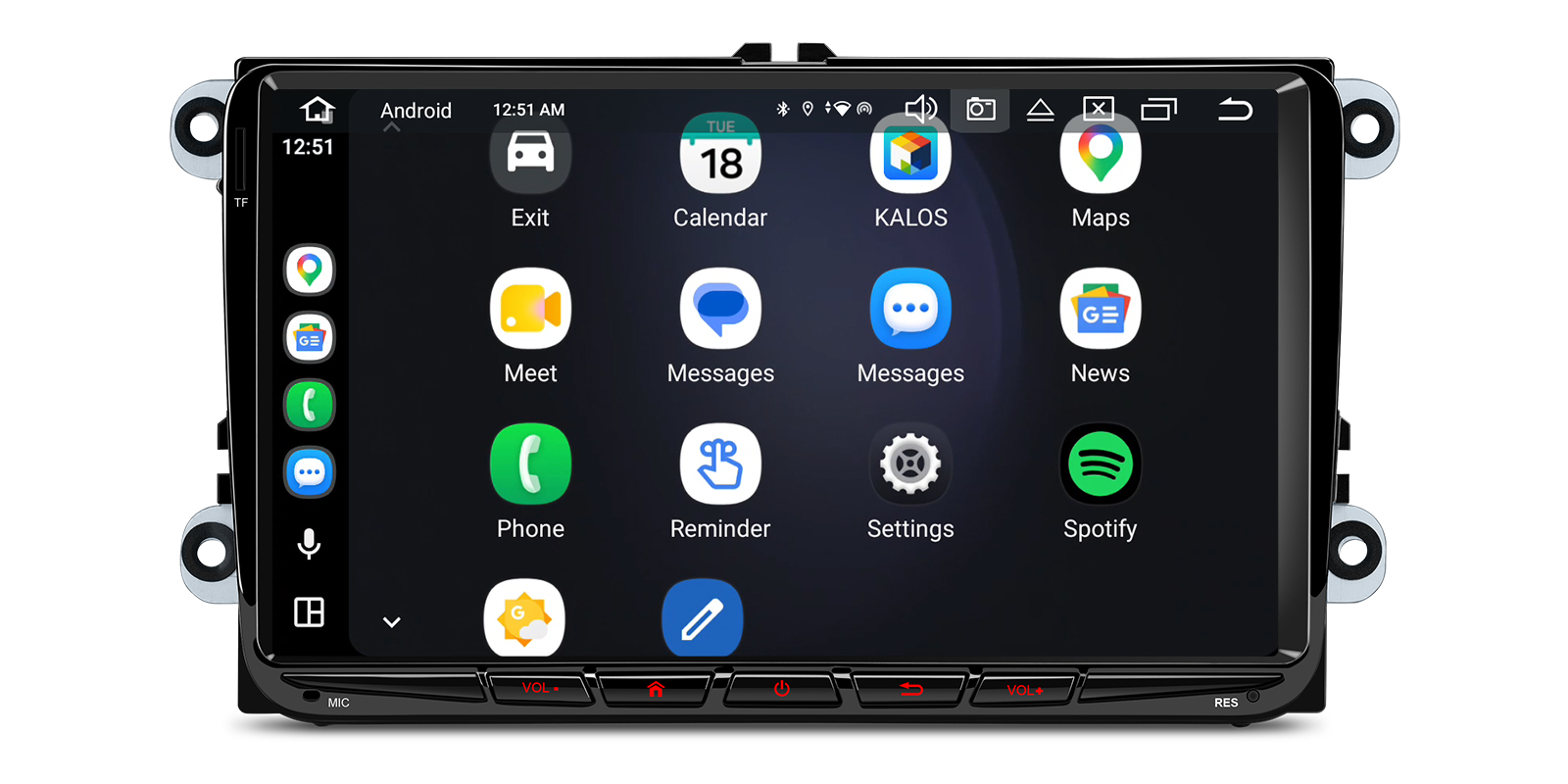

Wireless Android Auto

Android phones get the same treatment. Android Auto starts over the air and puts Google Maps, your music apps and calls on the head unit.

Voice commands let you reply to messages or change route without touching the phone.

How wireless android auto works

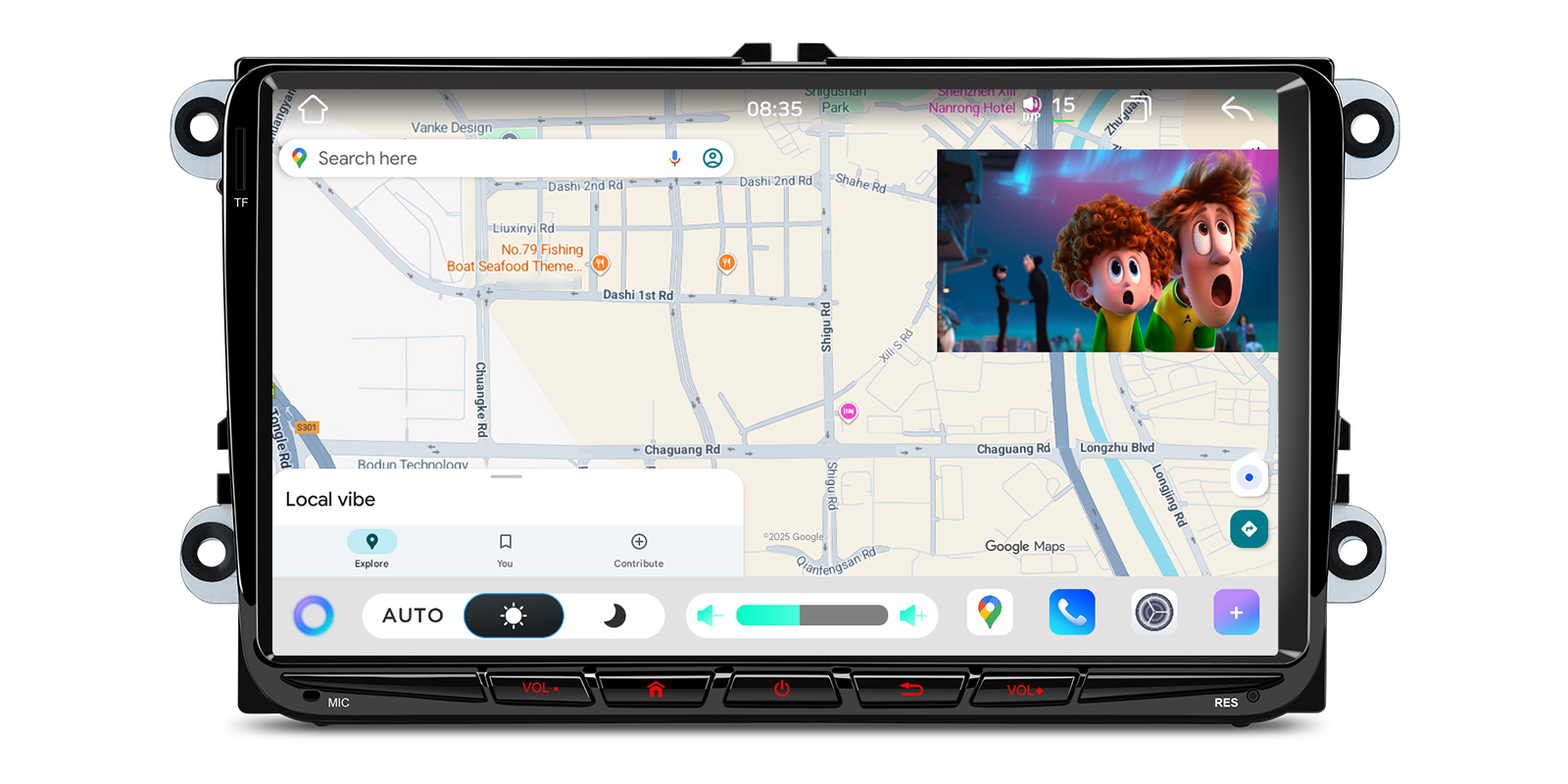

9″ QLED touch screen

The 9″ QLED display runs at 1280×720 and uses G+G touch technology. It's anti-glare, so the map stays readable when the sun is on the dash.

The Mali-G52 GPU keeps animations and live wallpapers smooth, and 1080P video plays back without fuss when you're parked.

How 9″ qled touch screen works

IPS panel for side viewing

The screen is an IPS type, so colours and contrast hold up when you look at it from an angle. That matters in a car, where the driver and passenger both see the screen off-centre.

How ips panel for side viewing works

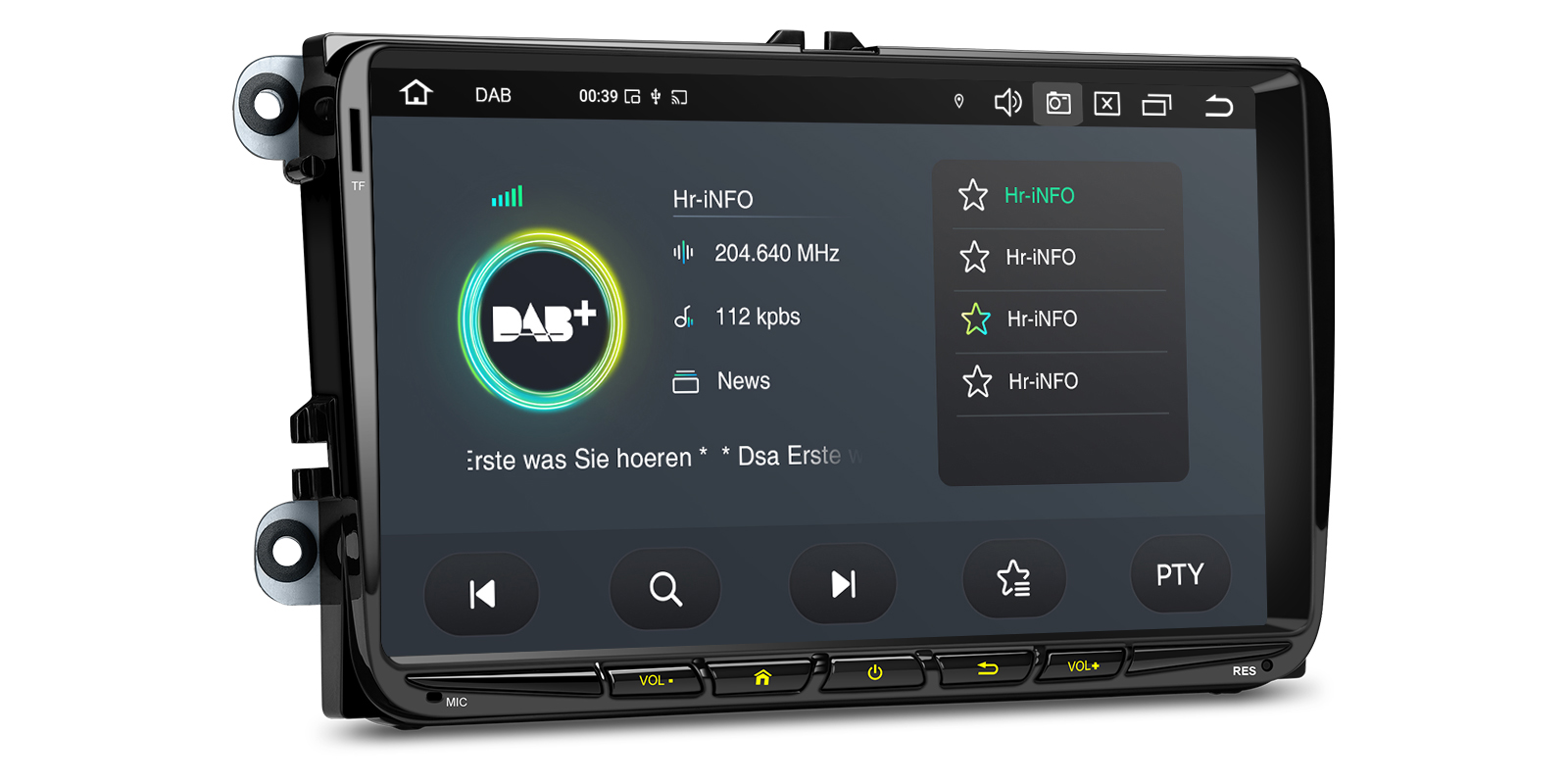

Built-in DAB+ radio

The DAB+ tuner sits inside the unit, so there's no external box to wire in. A DAB antenna comes with it.

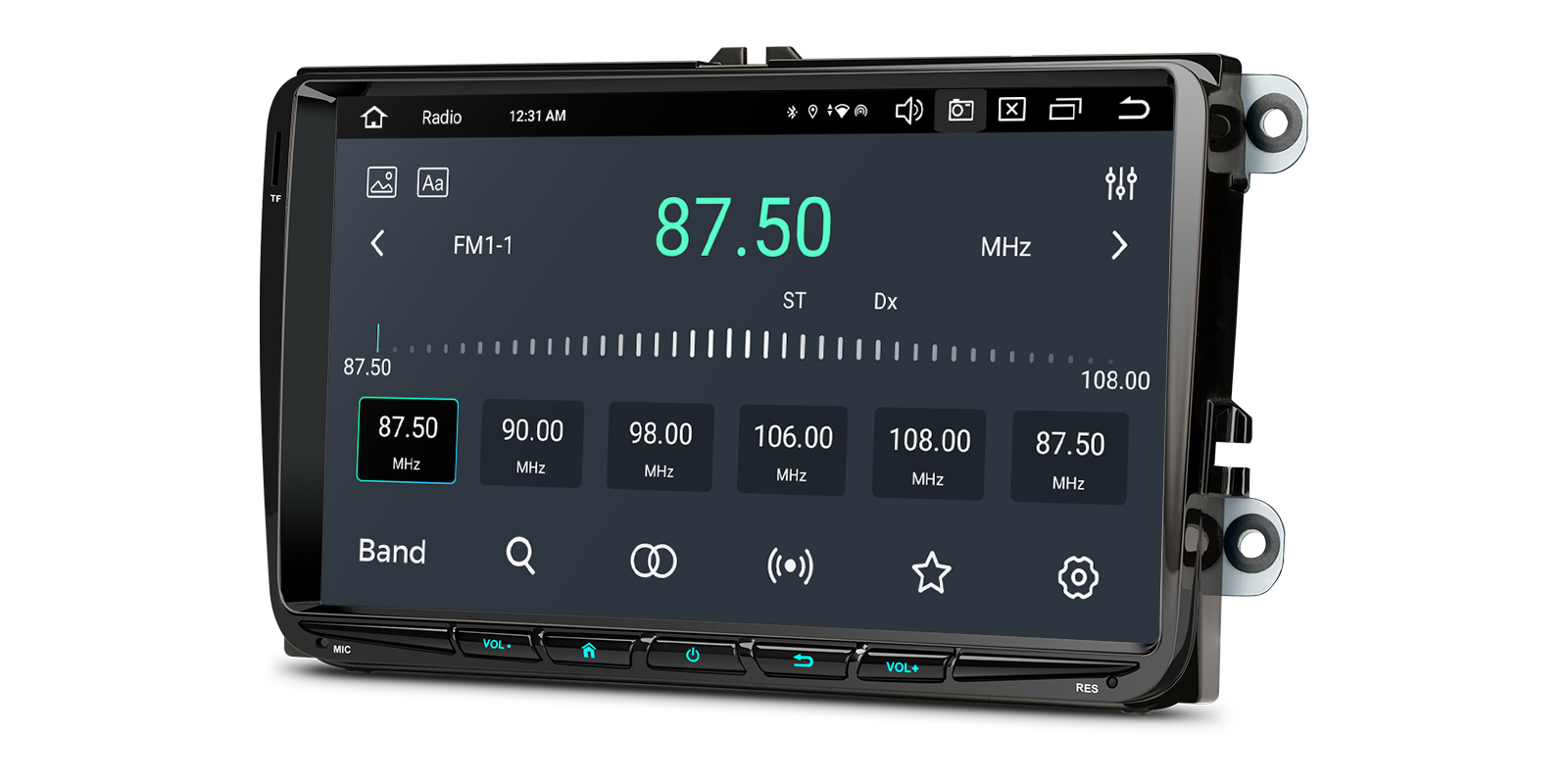

You get a wider choice of digital stations than on FM, and FM/AM with RDS is still there through the TDA7708 tuner.

How built-in dab+ radio works

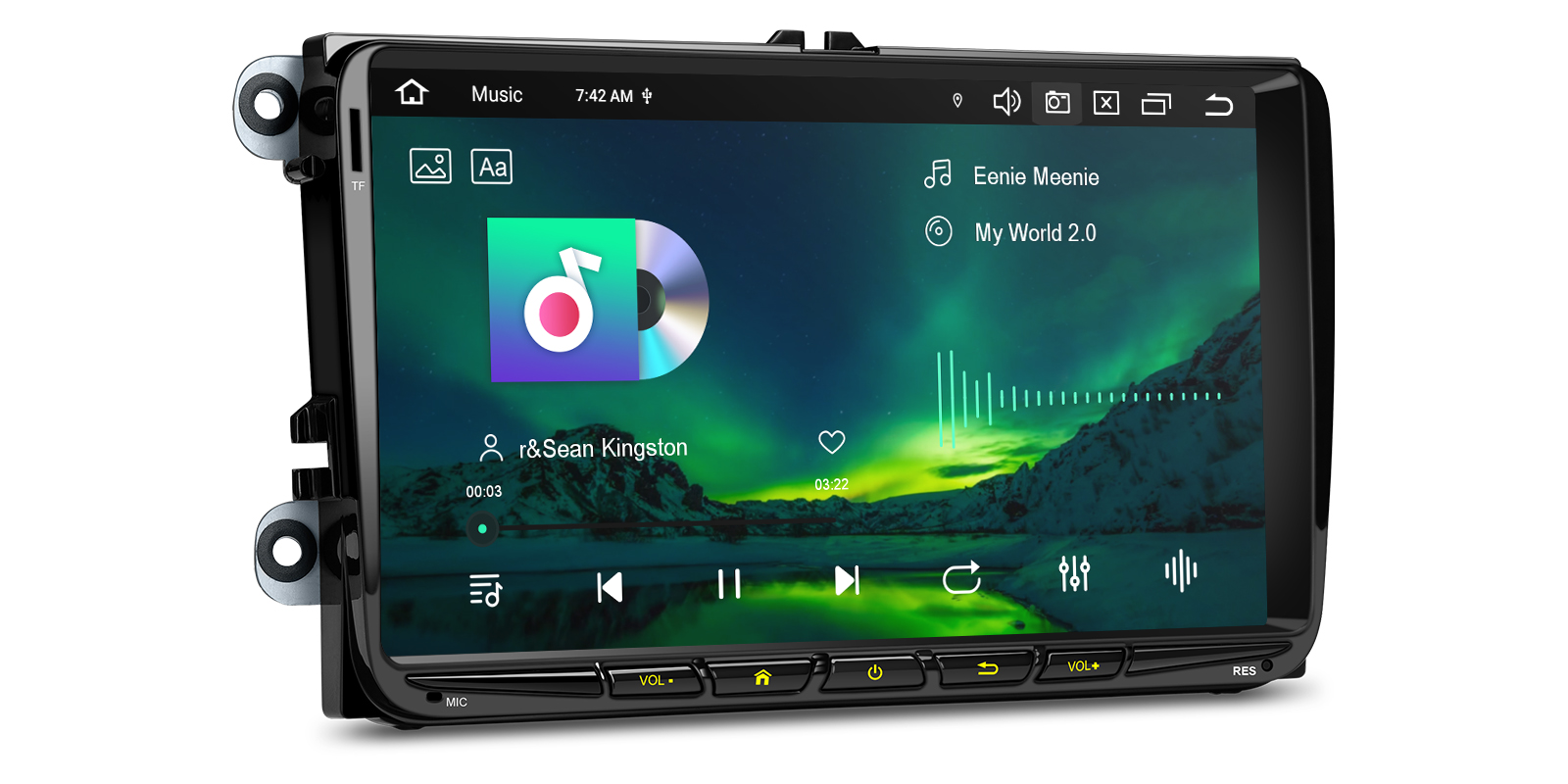

AKM DSP sound processing

An AKM7738 triple-core DSP handles the sound, with DTS sound effects and Hi-Res Audio support. That gives you more control over how the music sounds in your cabin than a factory radio allows.

High-resolution files keep their detail, which you'll notice most with good speakers.

How akm dsp sound processing works

TDA7803A amplifier

The built-in TDA7803A amplifier is rated at 4x47W max output. It drives the car's existing speakers directly, so you don't need a separate amp to get a decent volume.

How tda7803a amplifier works

4G LTE with your own SIM

Put a standard nano-SIM in the unit and it has its own data connection. Live traffic, weather and streaming keep working without tethering your phone.

A 4G antenna and a SIM card slot cable come in the box.

How 4g lte with your own sim works

Dual-band Wi-Fi

Dual-band Wi-Fi (2.4GHz/5GHz) lets the unit join a phone hotspot or your home network on the drive. The 5GHz band is quicker for downloading app updates and maps.

How dual-band wi-fi works

Bluetooth 5.1 calls and music

Bluetooth 5.1 handles hands-free calls and streams music from your phone. A separate microphone comes with the unit, so it can be mounted near you for clearer calls.

How bluetooth 5.1 calls and music works

GPS navigation

The GPS receiver uses GPS, BeiDou, GLONASS and Galileo satellites. Using several systems at once helps it hold a position in towns and between tall buildings.

A GPS antenna is supplied, and you can run the navigation apps you prefer.

How gps navigation works

Screen mirroring

Screen mirroring shows your phone's display on the head unit. It's handy for apps that don't run in CarPlay or Android Auto, best used by a passenger or when parked.

How screen mirroring works

Steering wheel controls and car information

CANbus decoding, with a CANbus box in the kit, keeps the factory steering wheel controls working. What works depends on what your car had originally.

It also shows factory information such as mileage, engine speed, fuel consumption, battery voltage, PDC and air conditioning info on the screen.

How steering wheel controls and car information works

Reversing camera input

Fast reverse mode brings up the camera picture quickly when you select reverse, and the unit supports 1080P AHD cameras (sold separately).

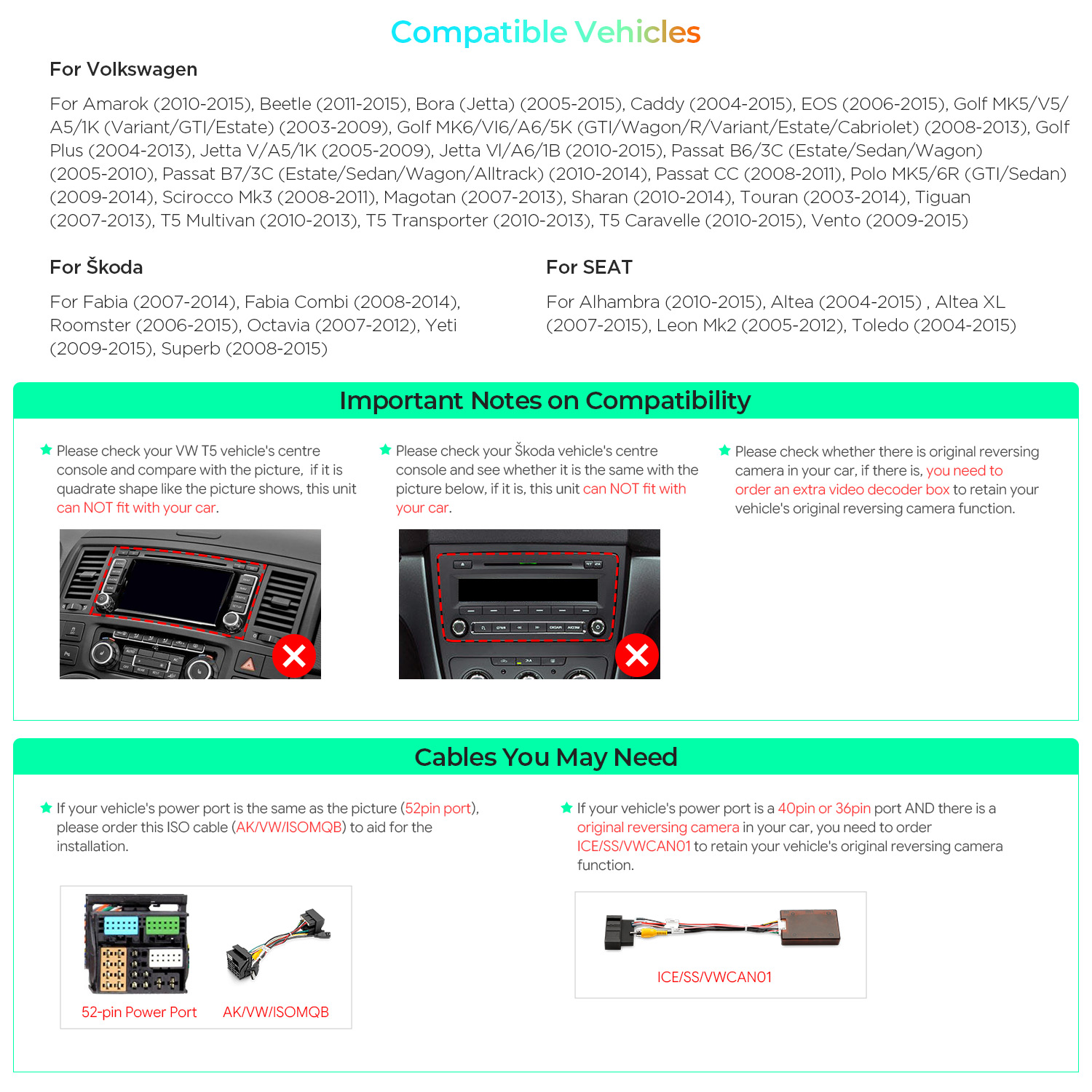

If your car already has an original reversing camera, you'll need an extra video decoder box to keep it.

How reversing camera input works

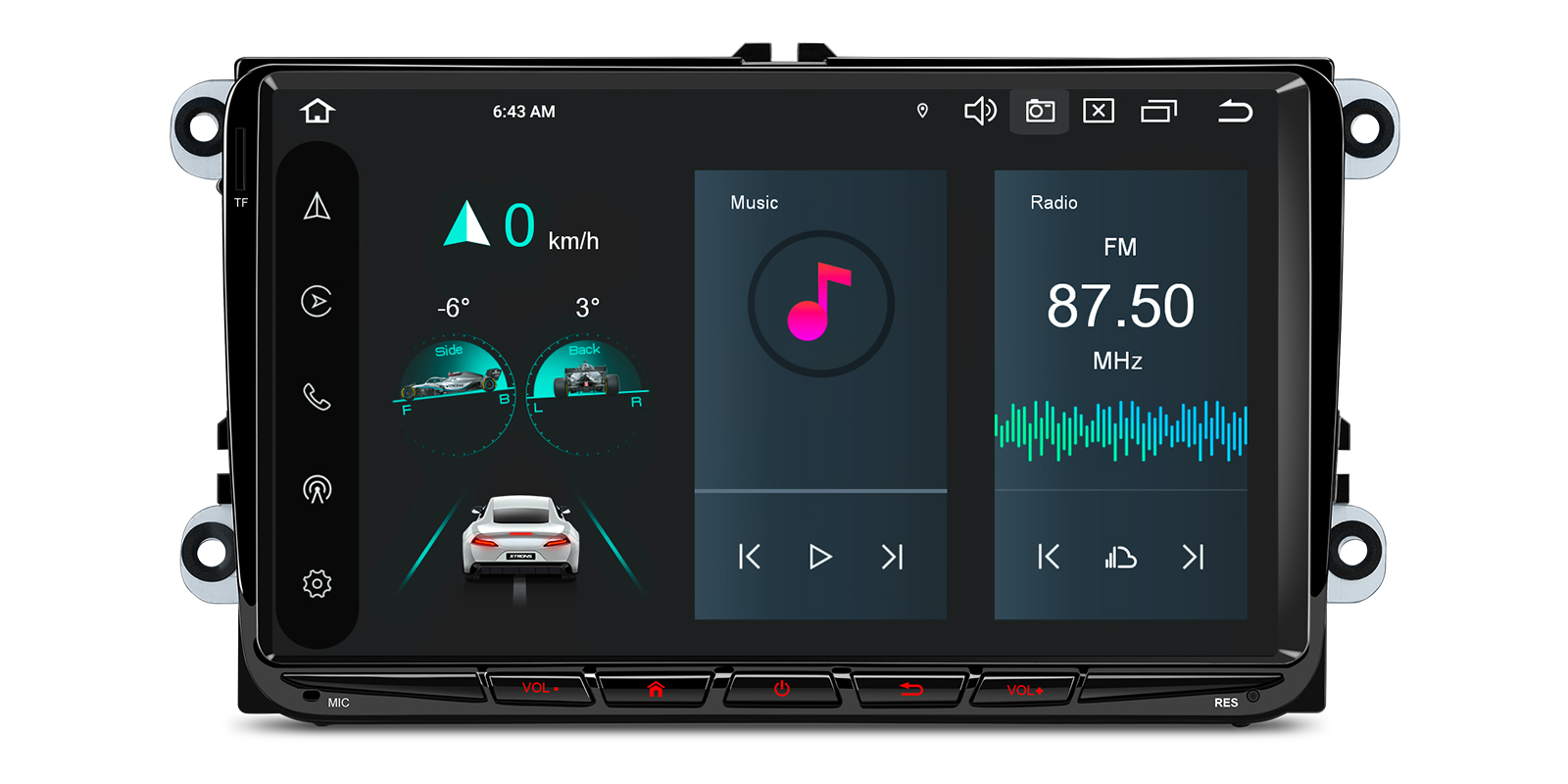

Android 16 and the gyroscope

Android 16 runs on a MediaTek MT6769V Octa-Core chipset with 4GB DDR4 RAM and 64GB UFS 2.2 storage. Menus respond quickly and you can keep navigation and music running together.

A built-in gyroscope gives an inclinometer display for pitch and roll. A cast aluminium heat sink keeps the unit stable on long drives.

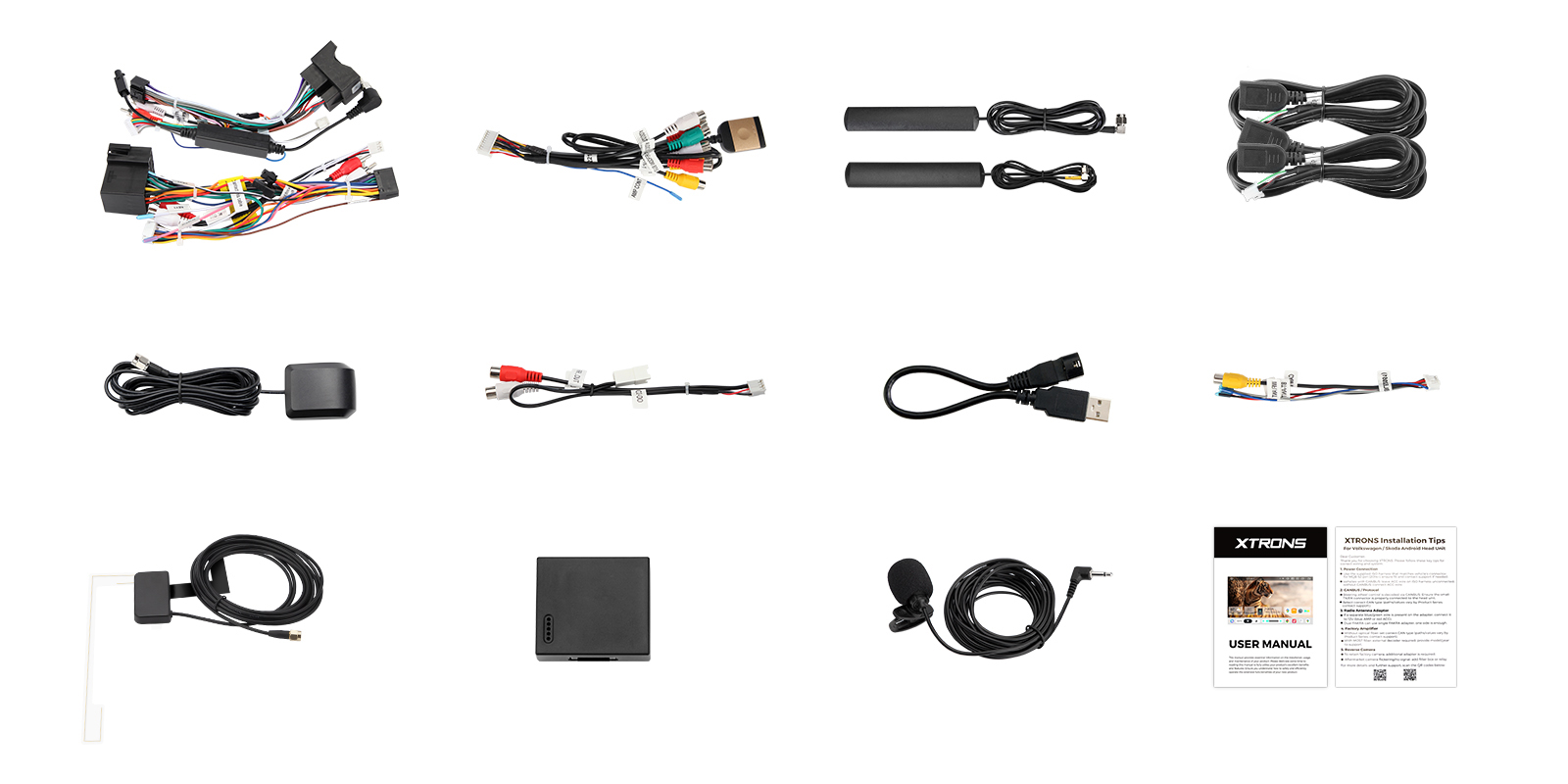

What's in the box

  • 1 x 4G Antenna
  • 1 x Camera Cable
  • 1 x CANbus Box
  • 1 x DAB Antenna
  • 1 x GPS Antenna
  • 1 x ISO Wiring Harness
  • 1 x Microphone
  • 1 x Radio Antenna Cable
  • 1 x Radio Cable Adapter
  • 1 x RCA Cable
  • 1 x SIM Card Slot Cable
  • 1 x User Manual
  • 2 x USB Cable
