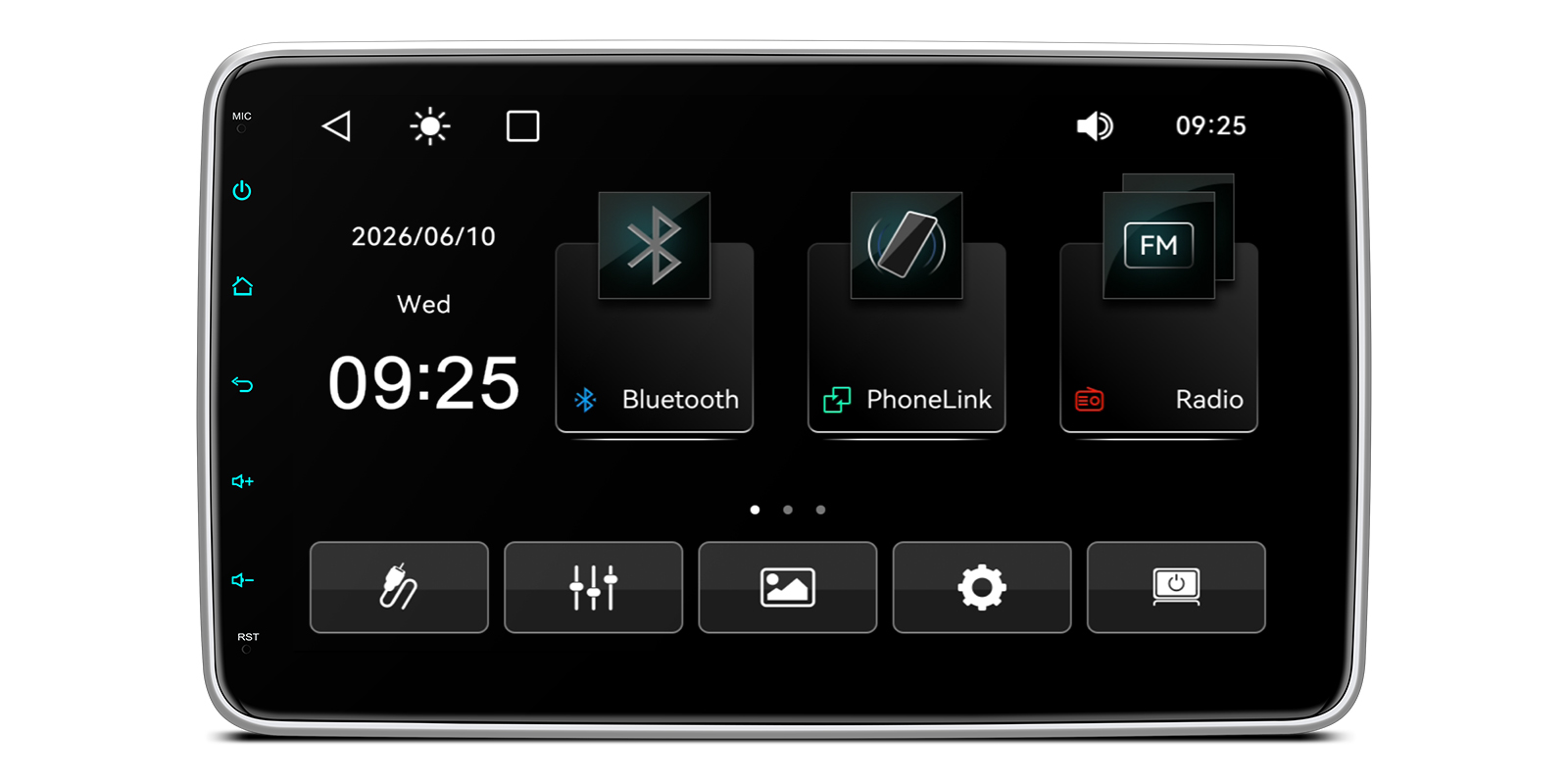

Universal Single DIN 10.1 inch Car Stereo with Wireless CarPlay, Android Auto and DSP | DL10H, image 1 of 15
  • Wireless CarPlay / Android Auto
  • QLED
  • DSP
Specifications: 10.1″

Image 1 of 15.

Functions

  • Wireless Apple CarPlay
  • Android Auto
  • DSP sound processor
  • Bluetooth
  • QLED screen
  • IPS screen
  • Reversing camera input
  • Steering wheel controls
  • Screen mirroring
  • RCA pre-outputs
  • GPS navigation
  • USB
  • External microphone
  • Built-in amplifier
In stock

Universal Single DIN 10.1 inch Car Stereo with Wireless CarPlay, Android Auto and DSP | DL10H

SKU: DL10H

£149.99

Price includes VAT

Pay in instalments with Klarna on baskets of £150 or more.

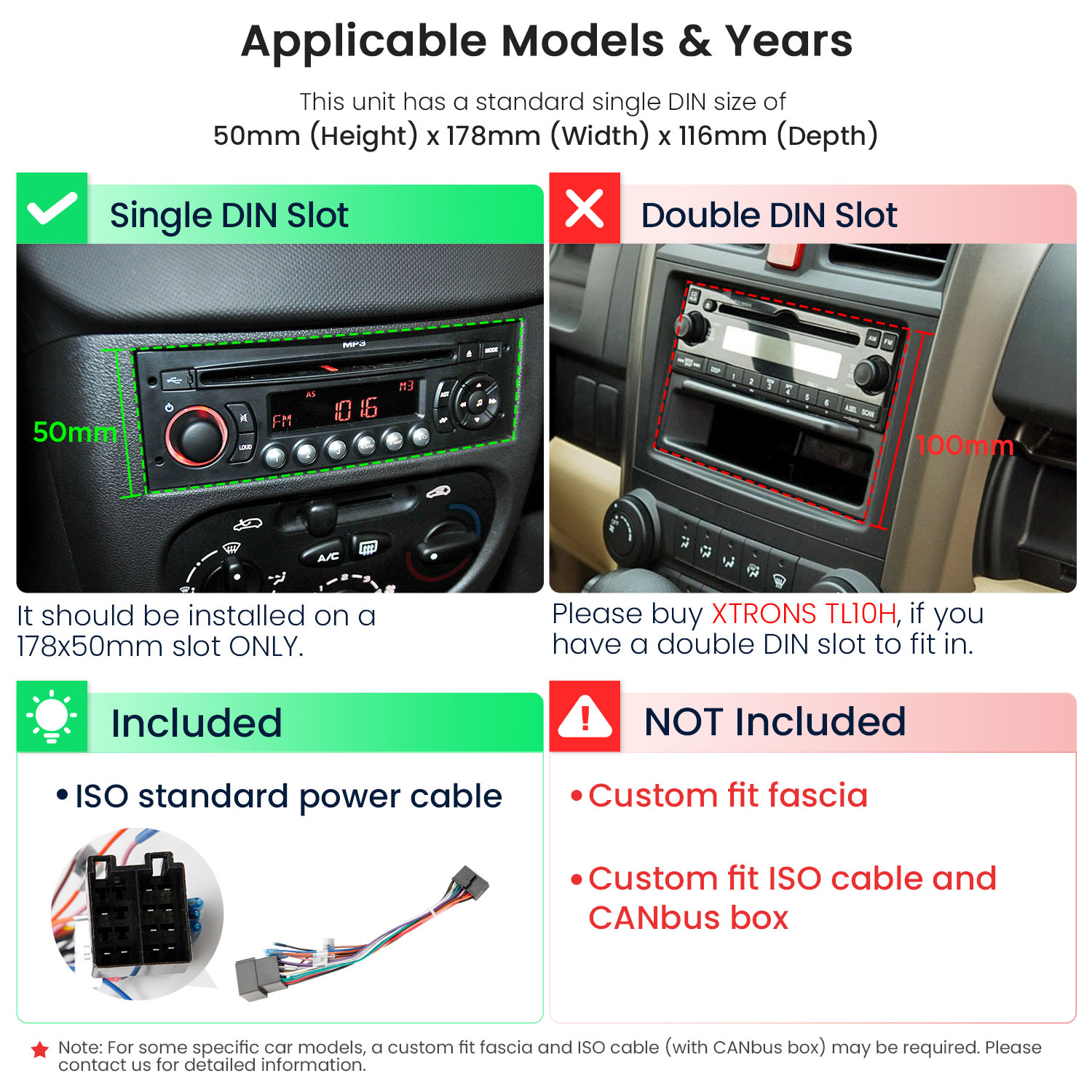

Check if this fits your car

1

Dispatched by our warehouse partner, usually with you in 2 to 4 working days. to confirm

Key specifications

Operating system
automotive-grade Linux
Warm boot
warm boot in under 1 second
Cold boot
cold boot in under 3 seconds
Standby current
≤5mA
Screen
10.1″ QLED IPS display (1280×720 resolution)
Touch glass
G+G touch glass

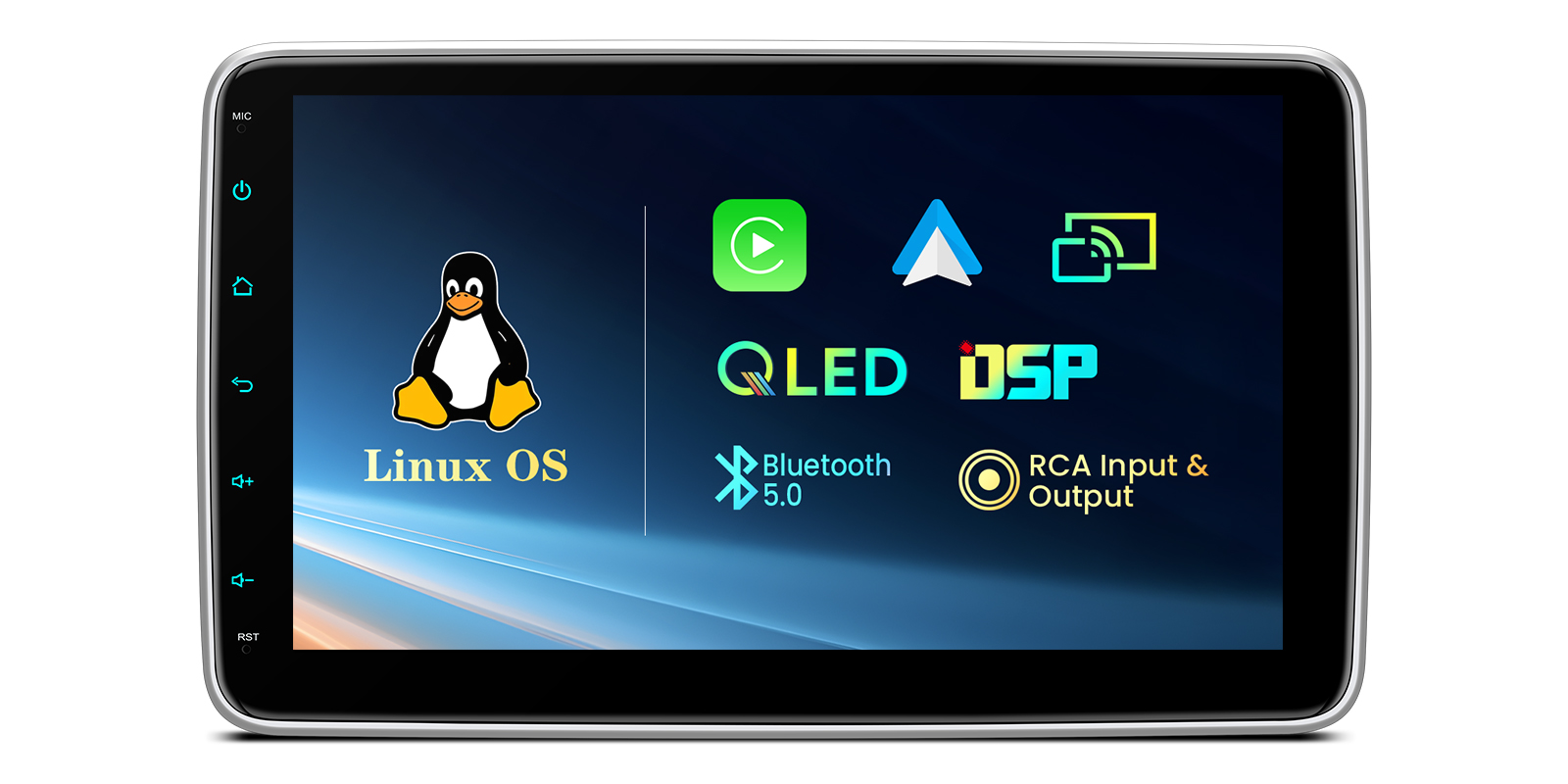

The XTRONS DL10H is a single DIN car stereo with a 10.1 inch floating QLED IPS touch screen, built for cars with a standard single DIN radio slot. It runs an automotive-grade Linux system that boots almost instantly and gives you wireless CarPlay and Android Auto, a DSP and a 4x45W amplifier.

  • Wireless CarPlay and Android Auto, with a USB option for wired use
  • Warm boot in under 1 second and cold boot in under 3 seconds
  • 10.1 inch QLED IPS display at 1280×720 with G+G touch glass
  • Floating panel with 50mm vertical travel, tilt and swivel
  • Built-in DSP with a 4x45W amplifier
  • AHD and CVBS reversing camera support

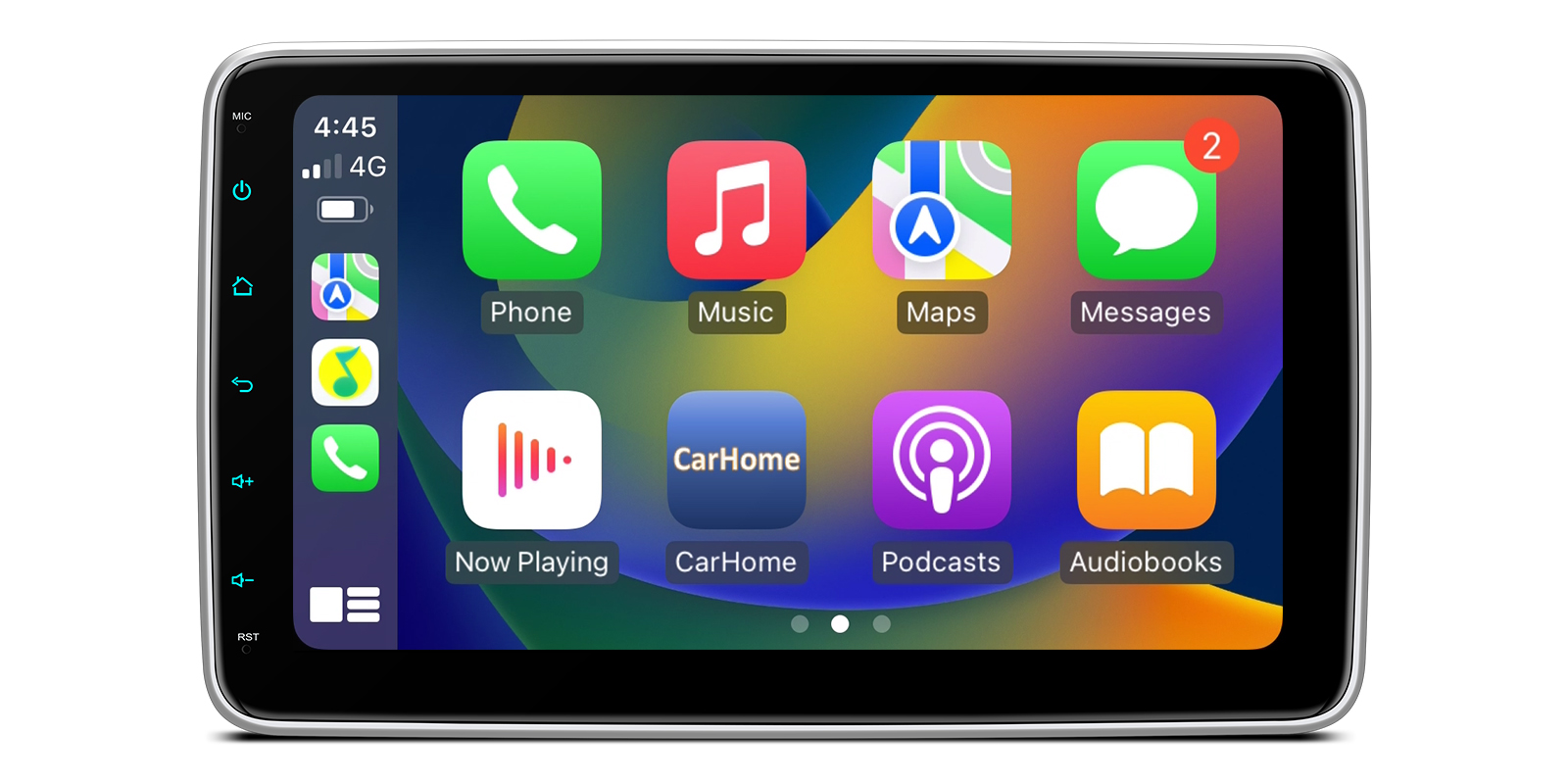

Wireless Apple CarPlay

CarPlay connects without a cable, so maps, calls and messages appear on the 10.1 inch screen while your iPhone stays in your pocket. Voice control handles calls, messages and navigation hands-free.

If you prefer, plug in by USB for a wired connection.

How wireless apple carplay works

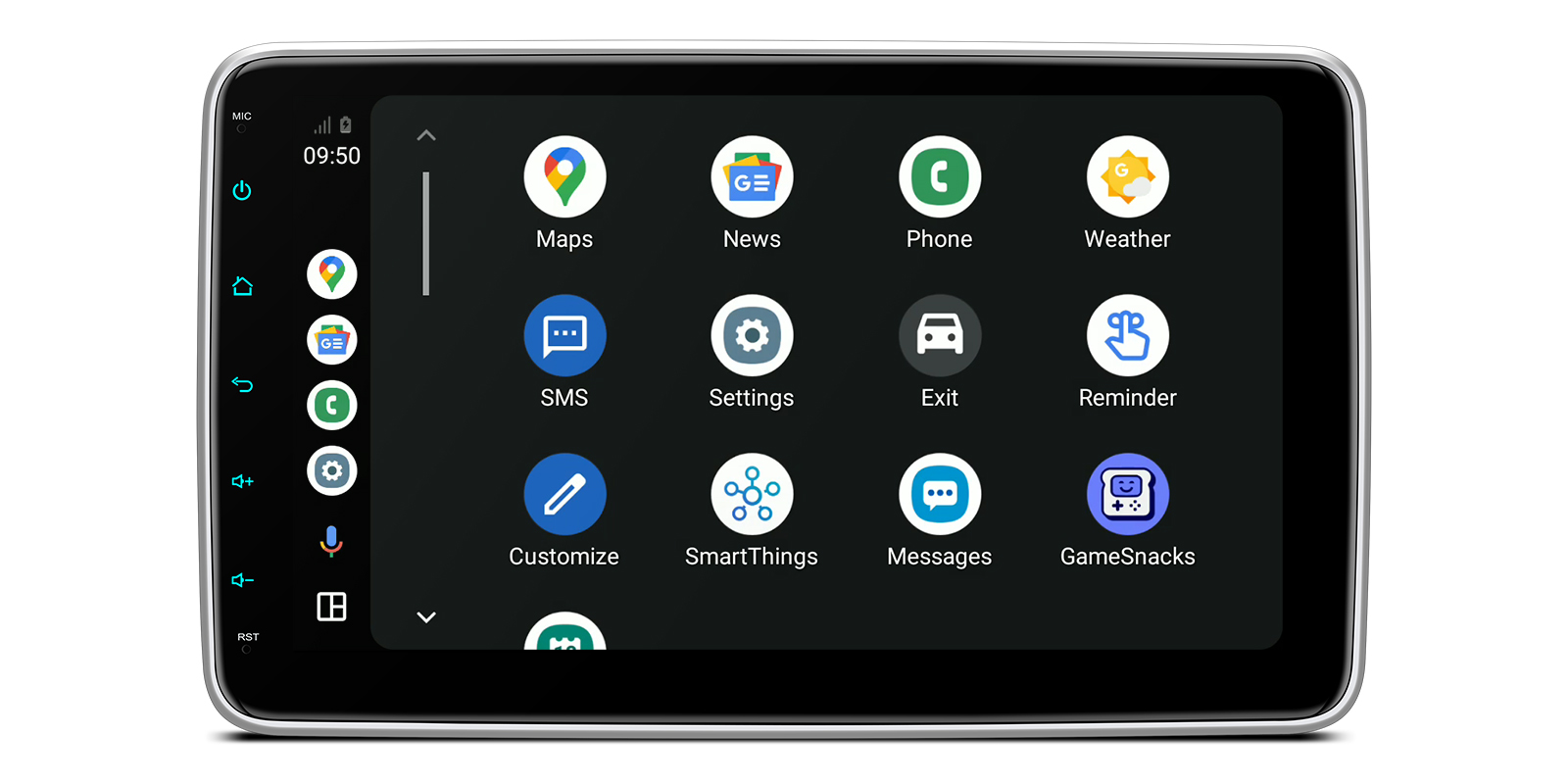

Android Auto

Android Auto is supported wirelessly or by USB. Maps, music and calls are on the big screen and controlled by touch or voice.

How android auto works

Linux system and fast start

Rather than Android, the DL10H runs an automotive-grade Linux system. The practical benefit is speed: it's ready in under 1 second from a warm boot and under 3 seconds from cold, so CarPlay or the radio is there almost as soon as you turn the key.

Standby current is ≤5mA, which keeps the drain on the battery low when the car is parked.

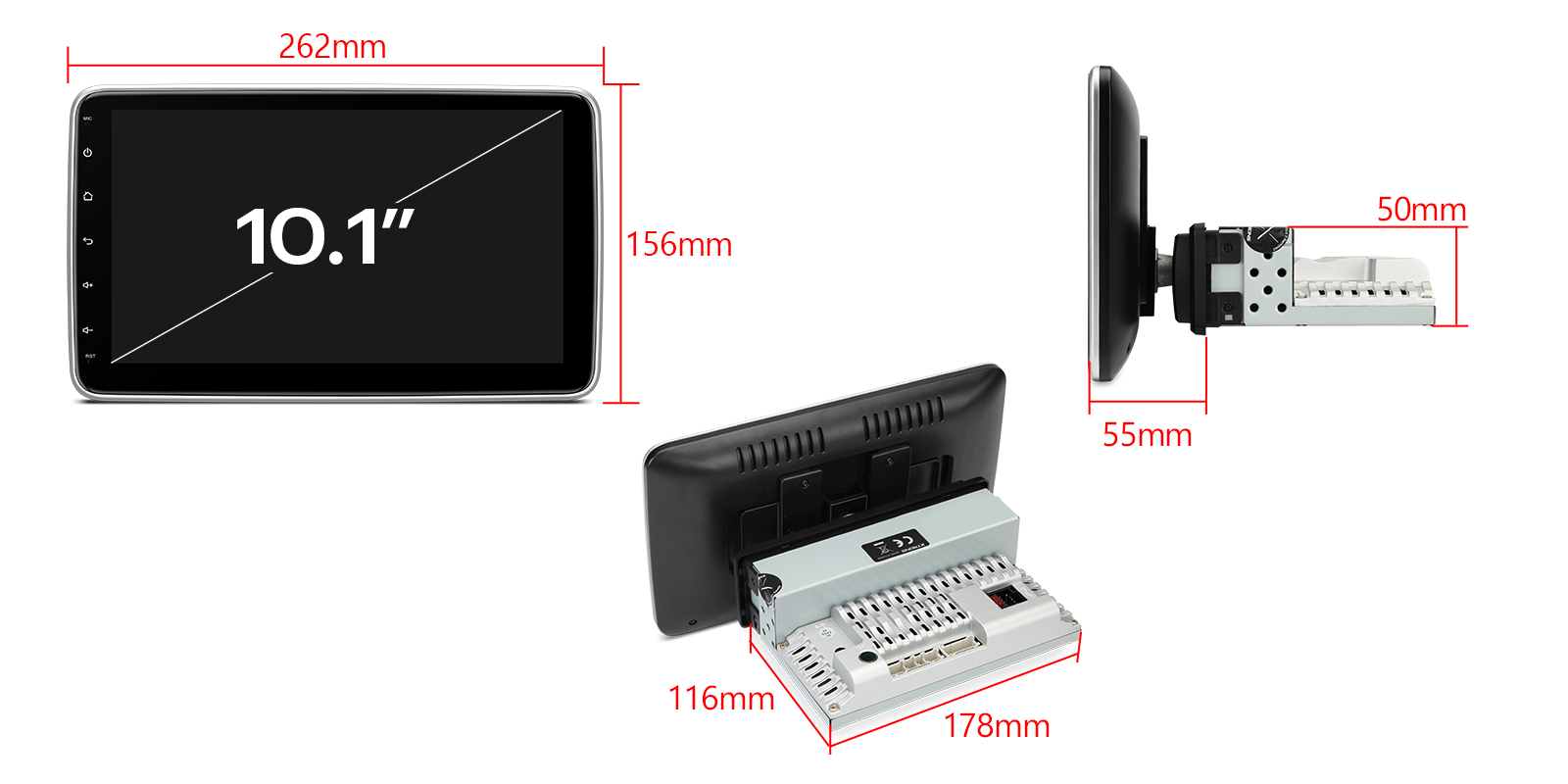

Adjustable floating screen

The screen sits on a floating panel in front of the dashboard. It has 50mm of vertical travel, tilts and swivels up to 40°, and has 3-way position adjustment.

That lets you place the screen where it's easy to see and reach, whatever the layout of your dashboard.

10.1 inch QLED display

The 10.1 inch QLED display runs at 1280×720 with G+G touch glass, so maps and menus look sharp and the screen responds well to touch.

How 10.1 inch qled display works

IPS viewing angles

As an IPS panel, the screen stays clear from the passenger seat as well as the driver's. That helps when the screen is angled towards the driver.

How ips viewing angles works

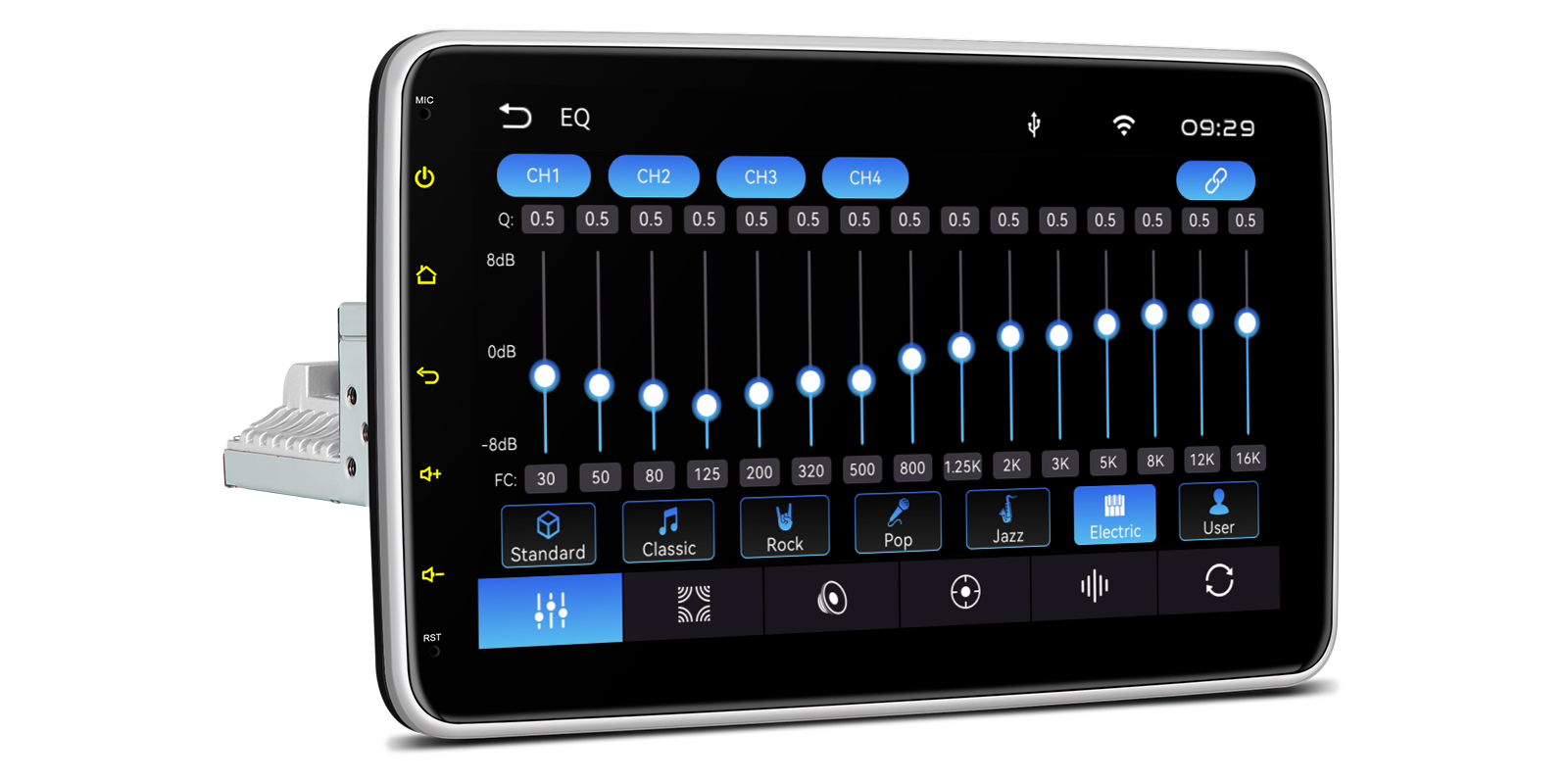

Built-in DSP

The built-in DSP gives you fine control over the sound settings, so you can tune the audio to suit your car's speakers and cabin.

How built-in dsp works

4x45W amplifier

A 4x45W amplifier is built in and drives the car's speakers directly. For most cars that's plenty without adding an external amp.

How 4x45w amplifier works

RCA input and output

RCA input and output let you add an external amplifier later, and an RCA cable comes in the box.

How rca input and output works

Reversing camera

The stereo works with AHD and CVBS cameras. When you shift into reverse, the camera picture appears on the screen straight away, which makes tight parking spaces easier. A camera cable is included.

How reversing camera works

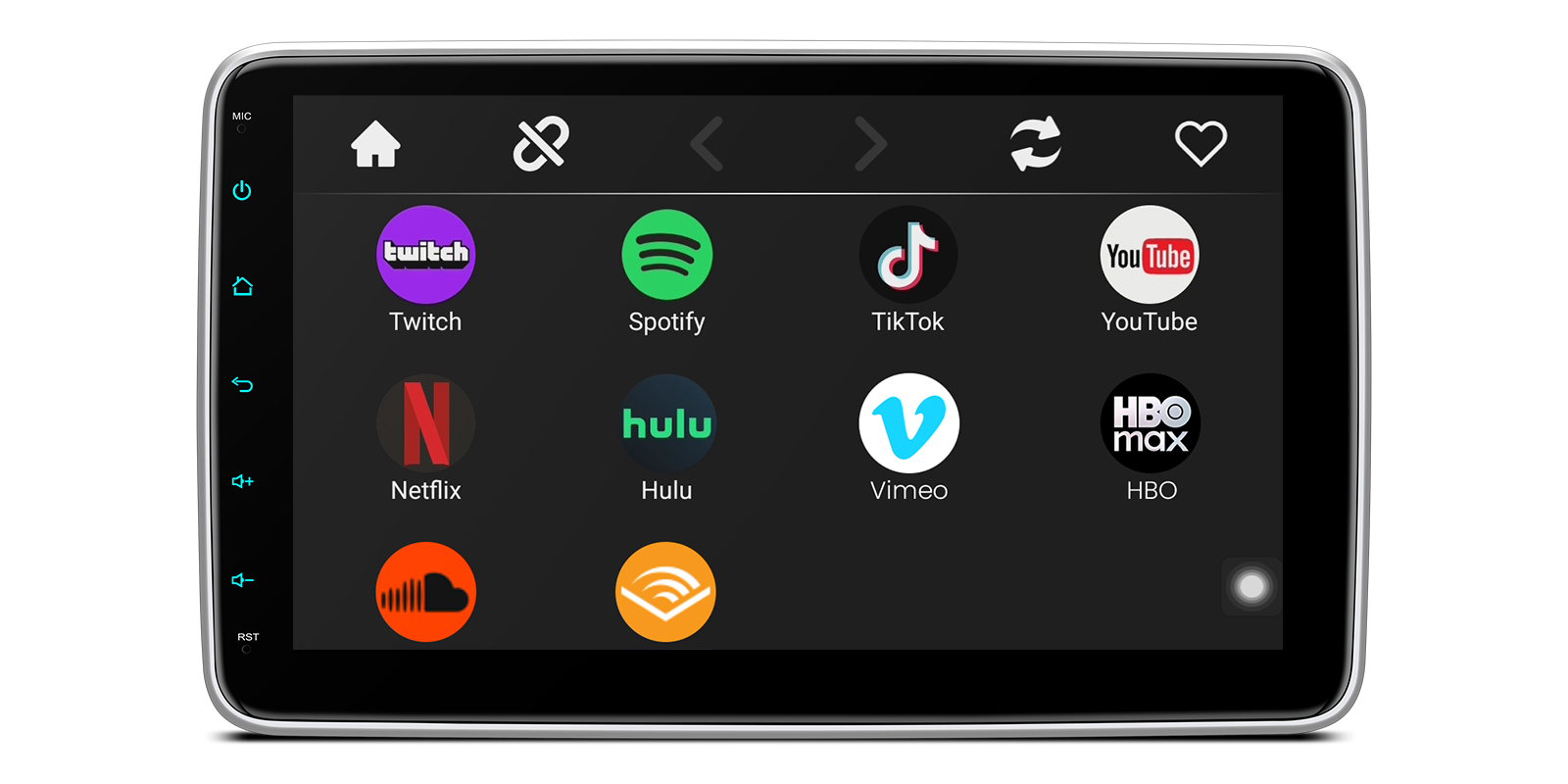

Screen mirroring

Android phones can mirror their screen wirelessly, which lets you stream online videos from mainstream apps. Watching video while driving may be restricted by law, so keep it for when you're parked.

How screen mirroring works

Navigation

Navigation runs through CarPlay or Android Auto, with the route on the 10.1 inch screen. Voice control lets you set a destination without taking your hands off the wheel.

How navigation works

Bluetooth 5.0

Bluetooth 5.0 gives a stable connection for hands-free calls and music from your phone.

How bluetooth 5.0 works

External microphone

There's a connection for an external microphone. Mounted near the driver, a separate mic picks up your voice better on calls and voice commands.

How external microphone works

USB and SD

The unit has 2 USB ports and an SD slot, and 2 USB cables are included. Use them for wired CarPlay or Android Auto, or to play music from a stick or card.

How usb and sd works

Steering wheel controls

Steering wheel control is supported, so you can keep using the buttons on your wheel. Some cars need an extra adapter, which isn't included.

How steering wheel controls works

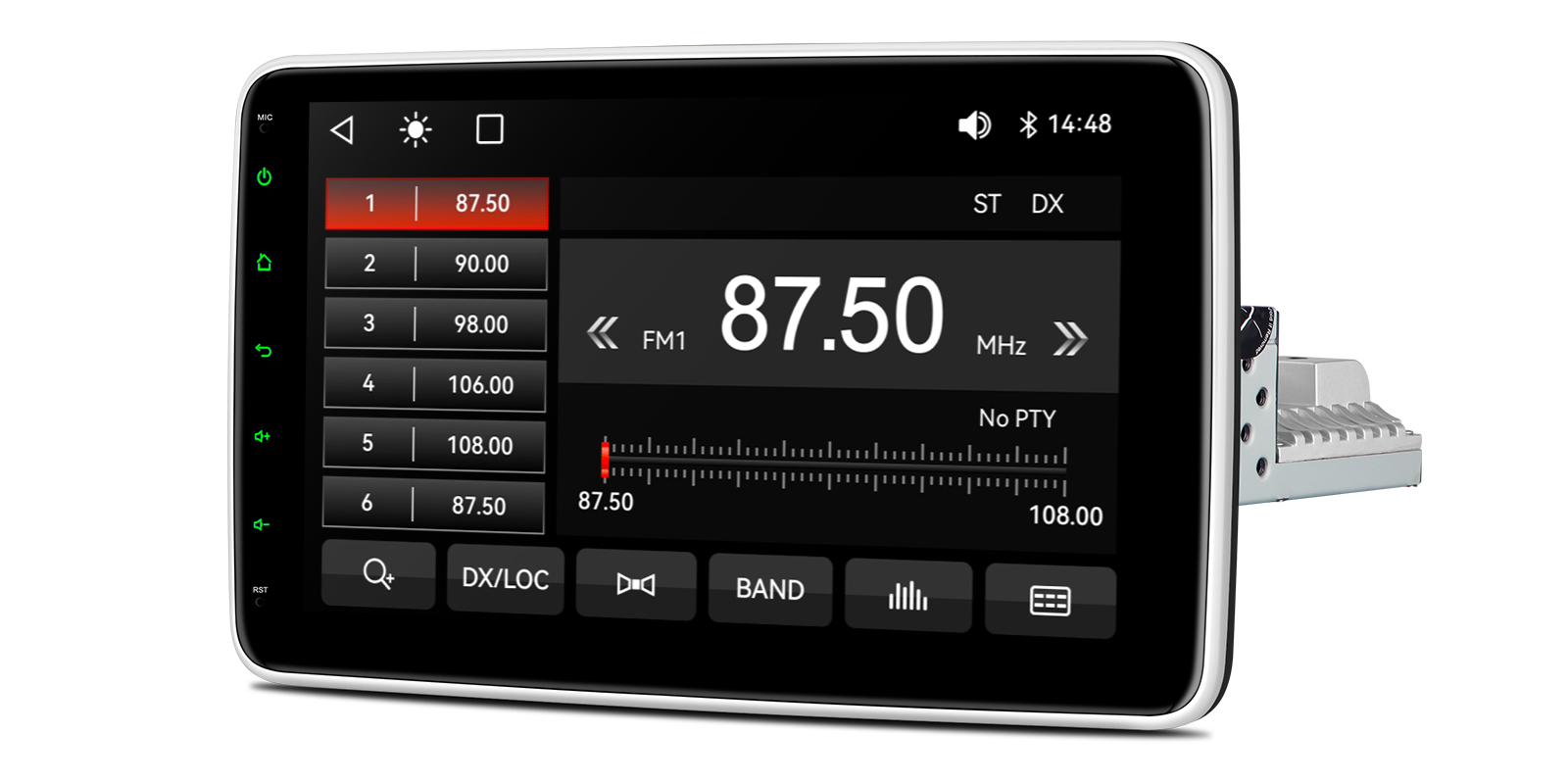

FM/AM radio

An SI4745 radio chip with RDS gives FM and AM reception. Note that this unit does not play discs.

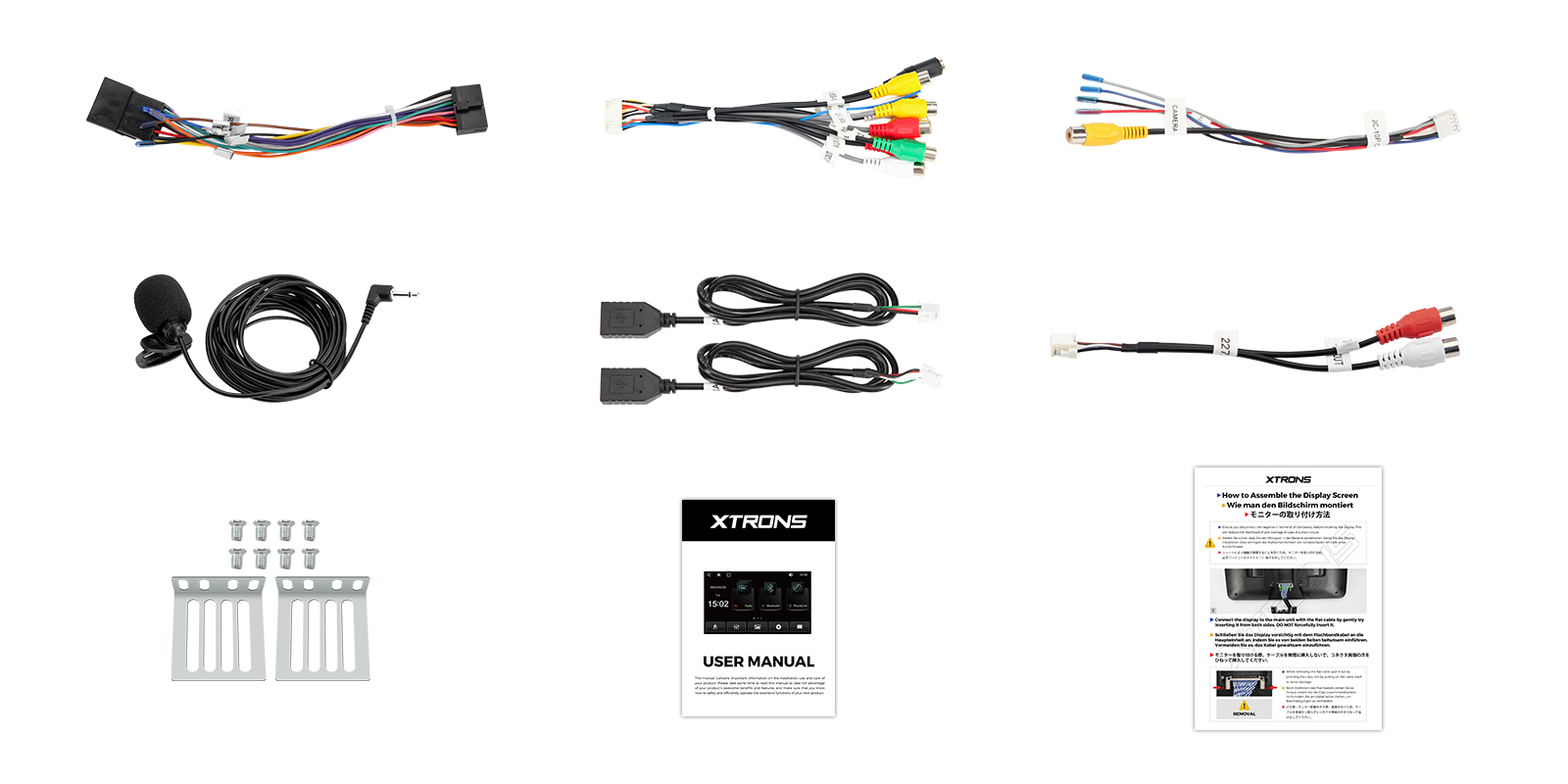

What's in the box

  • 1 x Camera Cable
  • 1 x ISO Wiring Harness
  • 1 x Radio Adapter Cable
  • 1 x Radio Antenna Cable
  • 1 x RCA Cable
  • 1 x User Manual
  • 2 x Fitting Kits
  • 2 x USB Cable
  • 8 x Screws

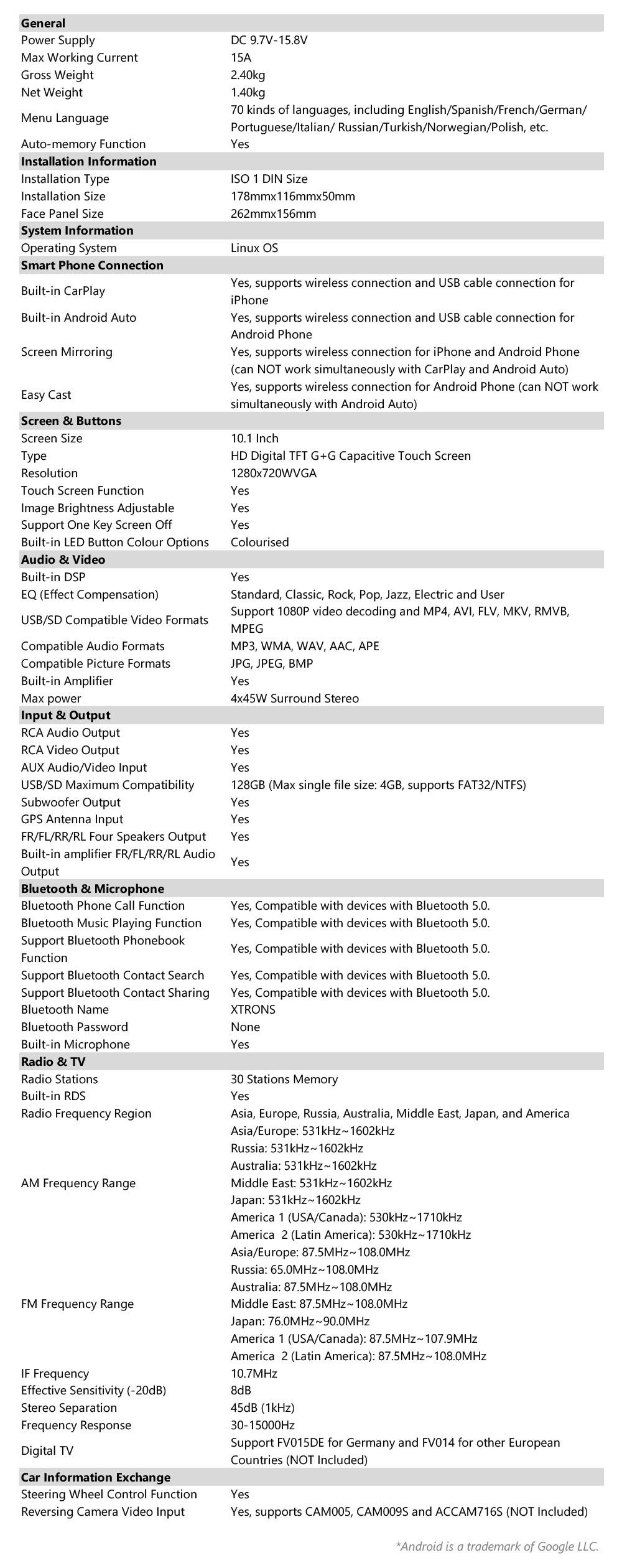

Full specification from XTRONS

XTRONS's own pages for this product, as the manufacturer publishes them.

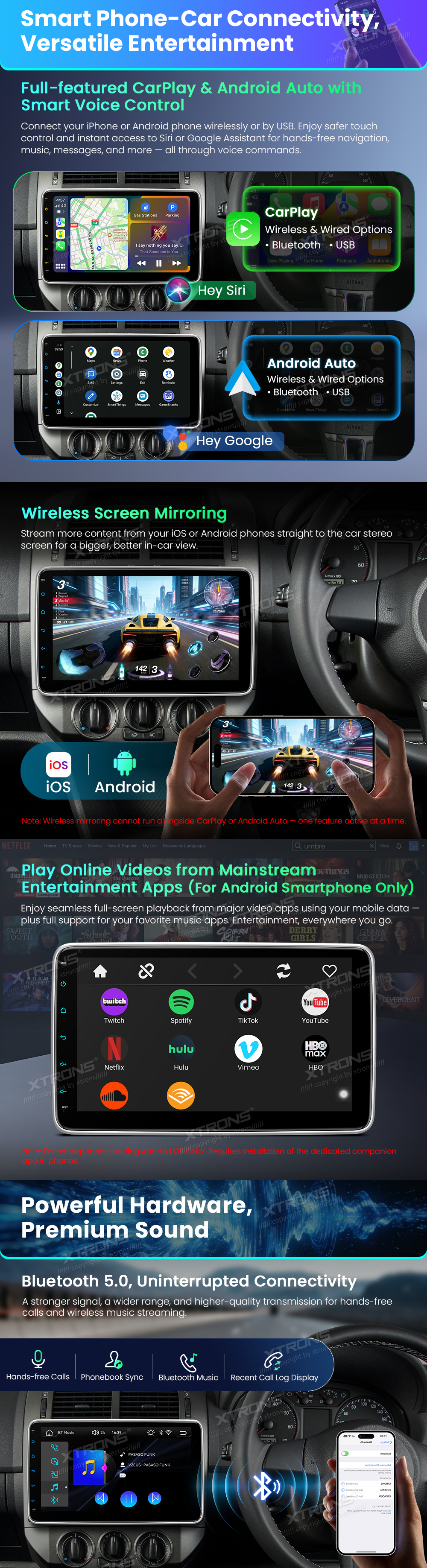

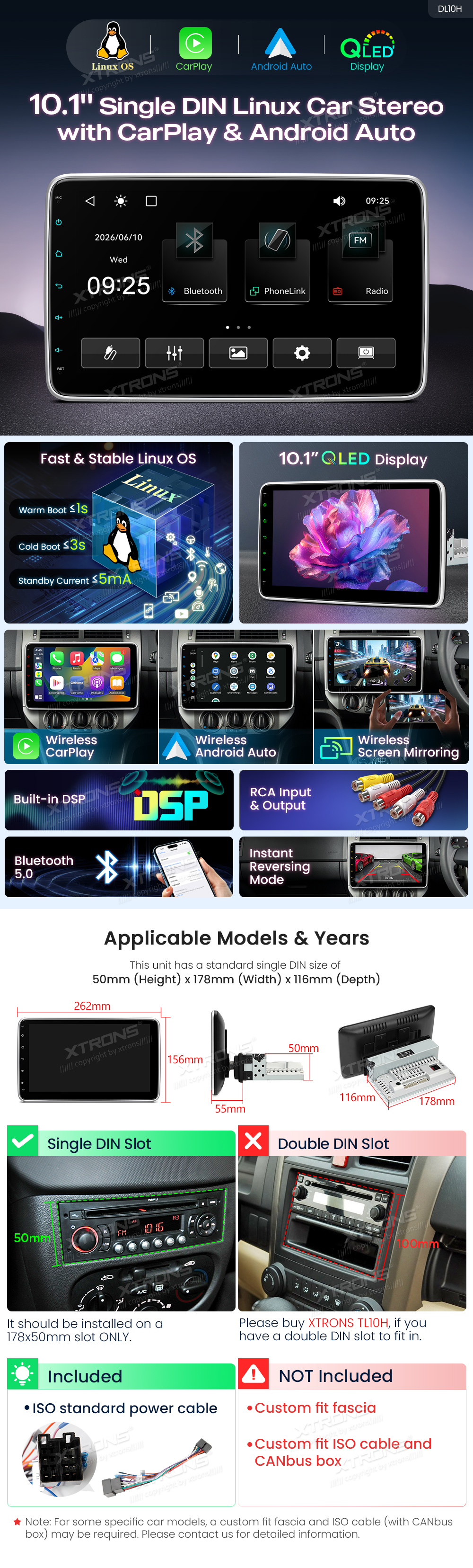

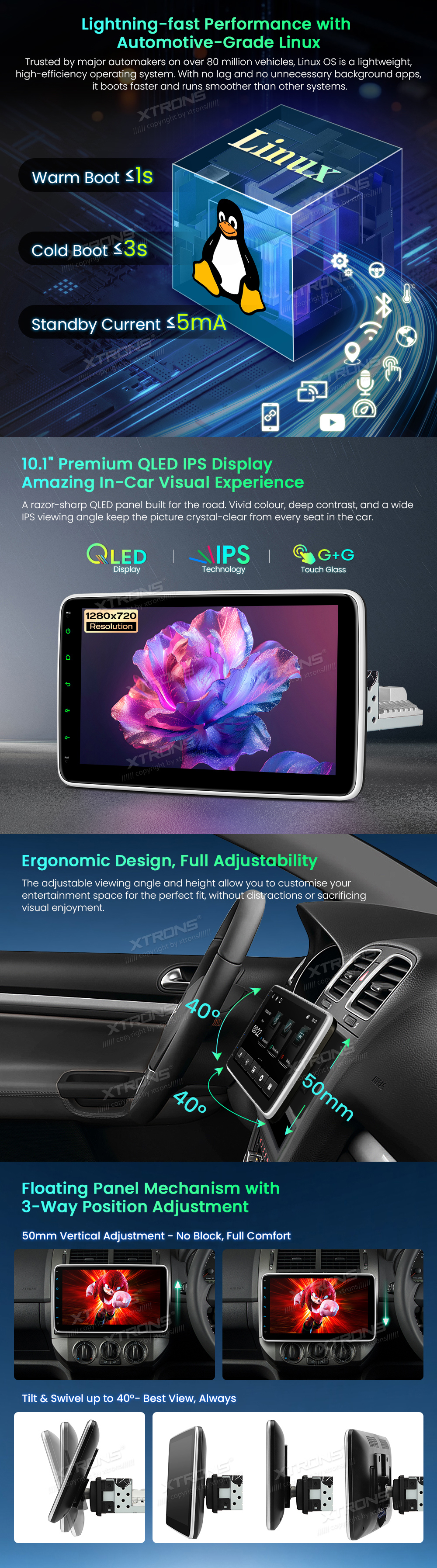

  1. Universal Single DIN 10.1 inch Car Stereo with Wireless CarPlay, Android Auto and DSP | DL10H: XTRONS specification poster 1 of 6
  2. Universal Single DIN 10.1 inch Car Stereo with Wireless CarPlay, Android Auto and DSP | DL10H: XTRONS specification poster 2 of 6

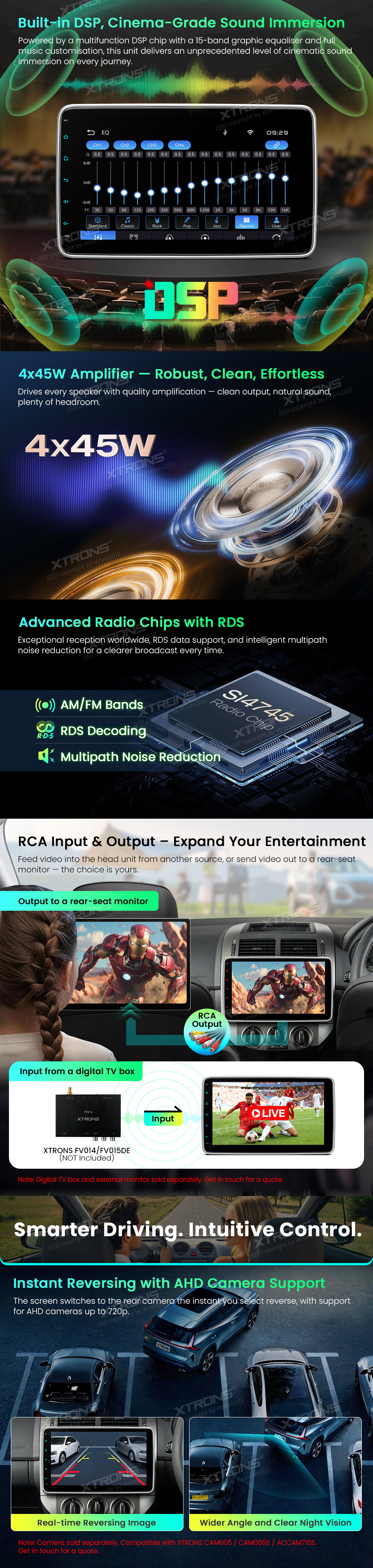

  3. Universal Single DIN 10.1 inch Car Stereo with Wireless CarPlay, Android Auto and DSP | DL10H: XTRONS specification poster 3 of 6
  4. Universal Single DIN 10.1 inch Car Stereo with Wireless CarPlay, Android Auto and DSP | DL10H: XTRONS specification poster 4 of 6

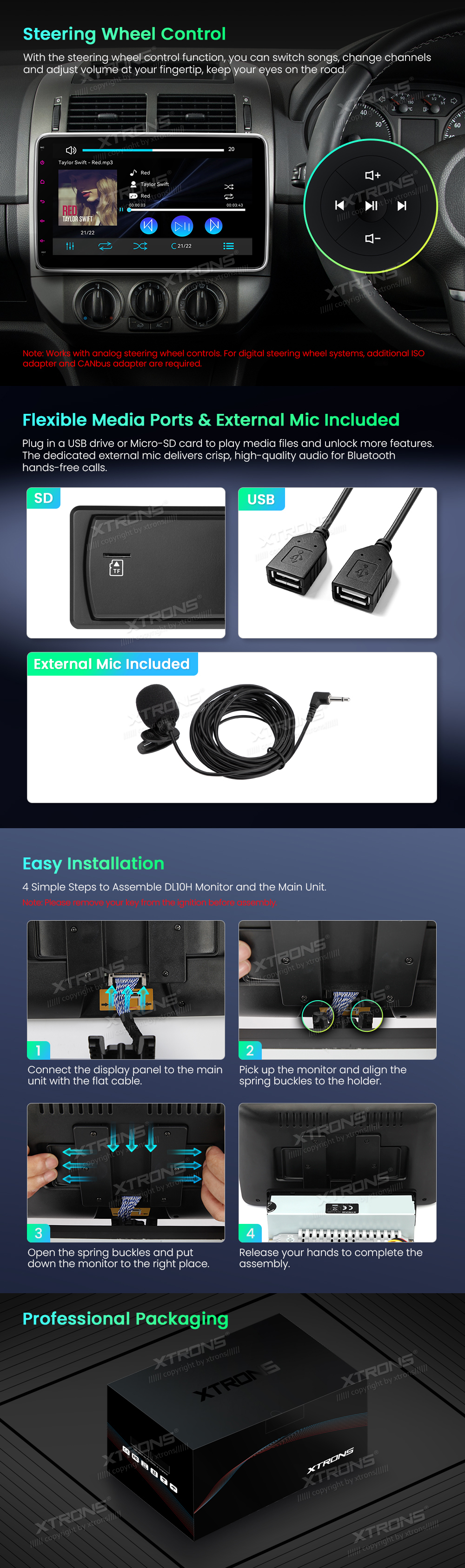

  5. Universal Single DIN 10.1 inch Car Stereo with Wireless CarPlay, Android Auto and DSP | DL10H: XTRONS specification poster 5 of 6

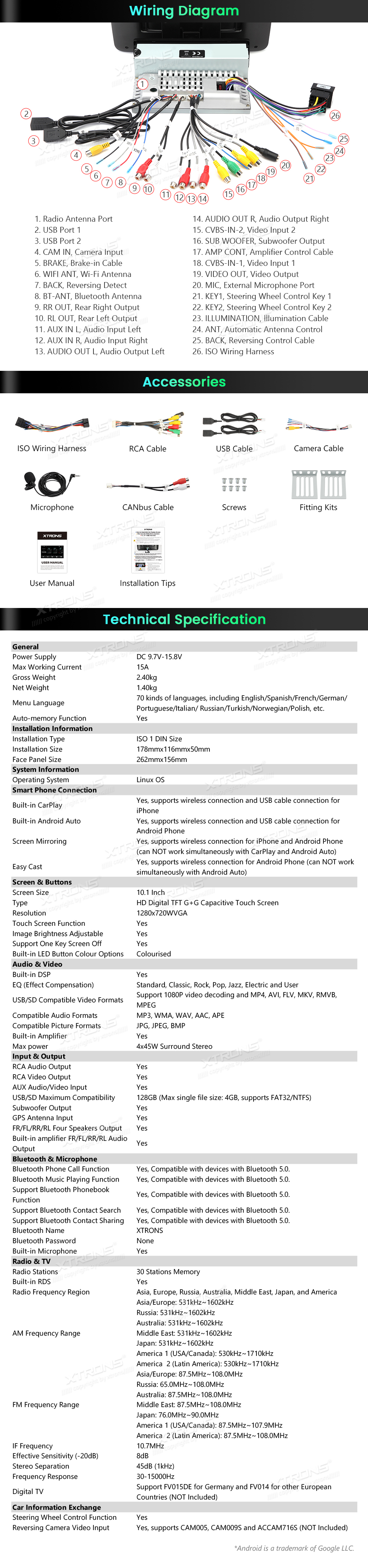

  6. Universal Single DIN 10.1 inch Car Stereo with Wireless CarPlay, Android Auto and DSP | DL10H: XTRONS specification poster 6 of 6
