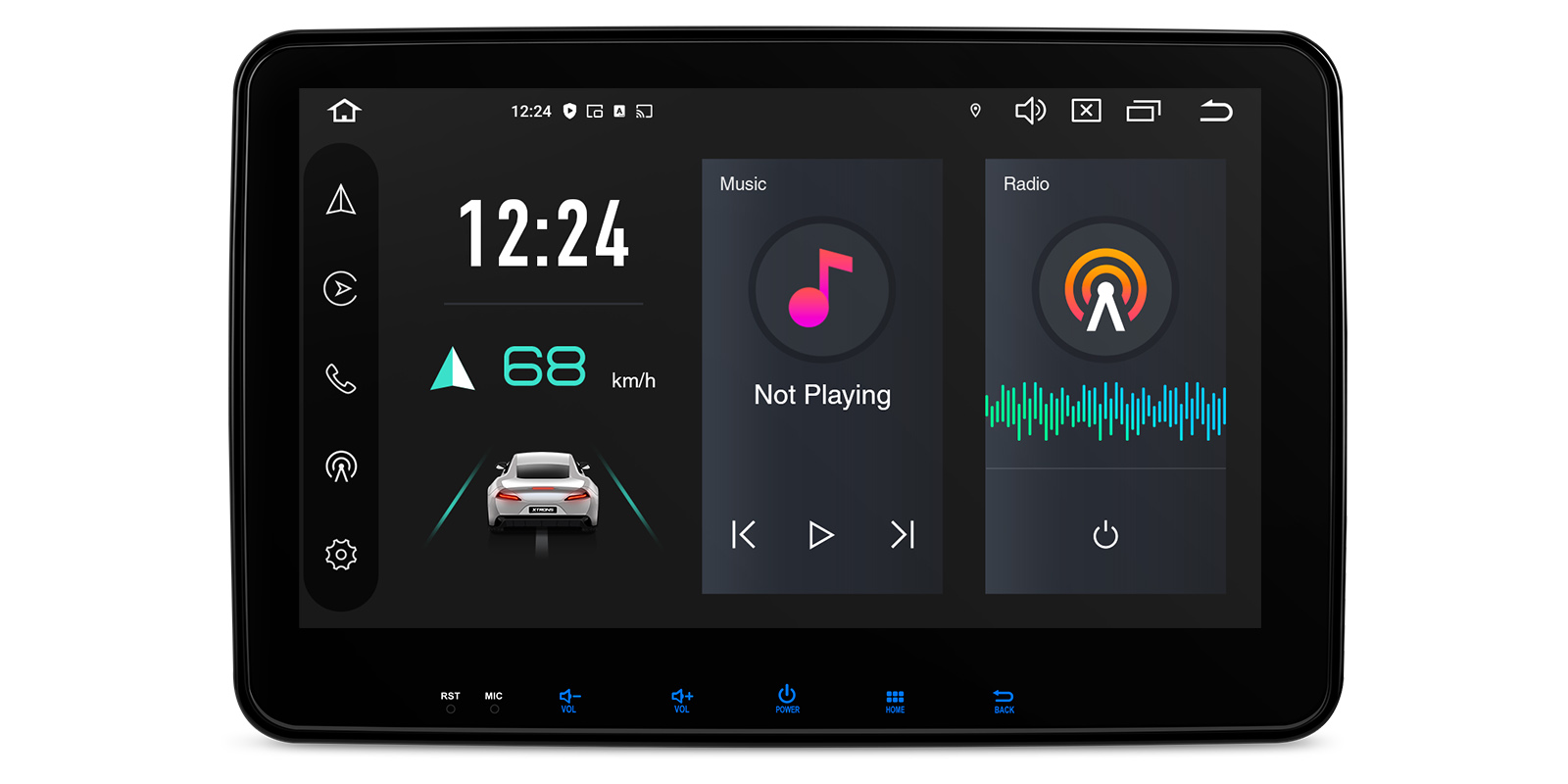

Universal Double DIN 10.1″ Android Head Unit with Wireless CarPlay, Android Auto and 4G | TX122L
SKU: TX122L
£319.00
Check if this fits your car
1
Key specifications
- Operating system
- Android 14
- Processor
- 12nm octa core 2.0GHz processor
- Memory and storage
- 4GB DDR4 RAM + 64GB Solid State ROM
- Operating temperature
- −30°C to +80°C
- Screen
- 10.1” 1280×720 Capacitive Touch Screen
- Panel
- 10.1″ QLED screen
XTRONS TX122L is a universal double DIN Android 14 head unit with a 10.1″ QLED touch screen. It fits cars with a 178x100mm double DIN slot and brings wireless CarPlay, Android Auto, 4G and an AKM DSP.
- Universal double DIN fit for a 178x100mm slot
- 10.1″ QLED capacitive touch screen at 1280×720
- Wireless CarPlay and full-featured Android Auto
- Integrated global 4G with a Micro-SIM
- AKM DSP with a TDA7388 amplifier
- 12nm octa core 2.0GHz processor with 4GB DDR4 RAM and 64GB storage
Universal double DIN fit

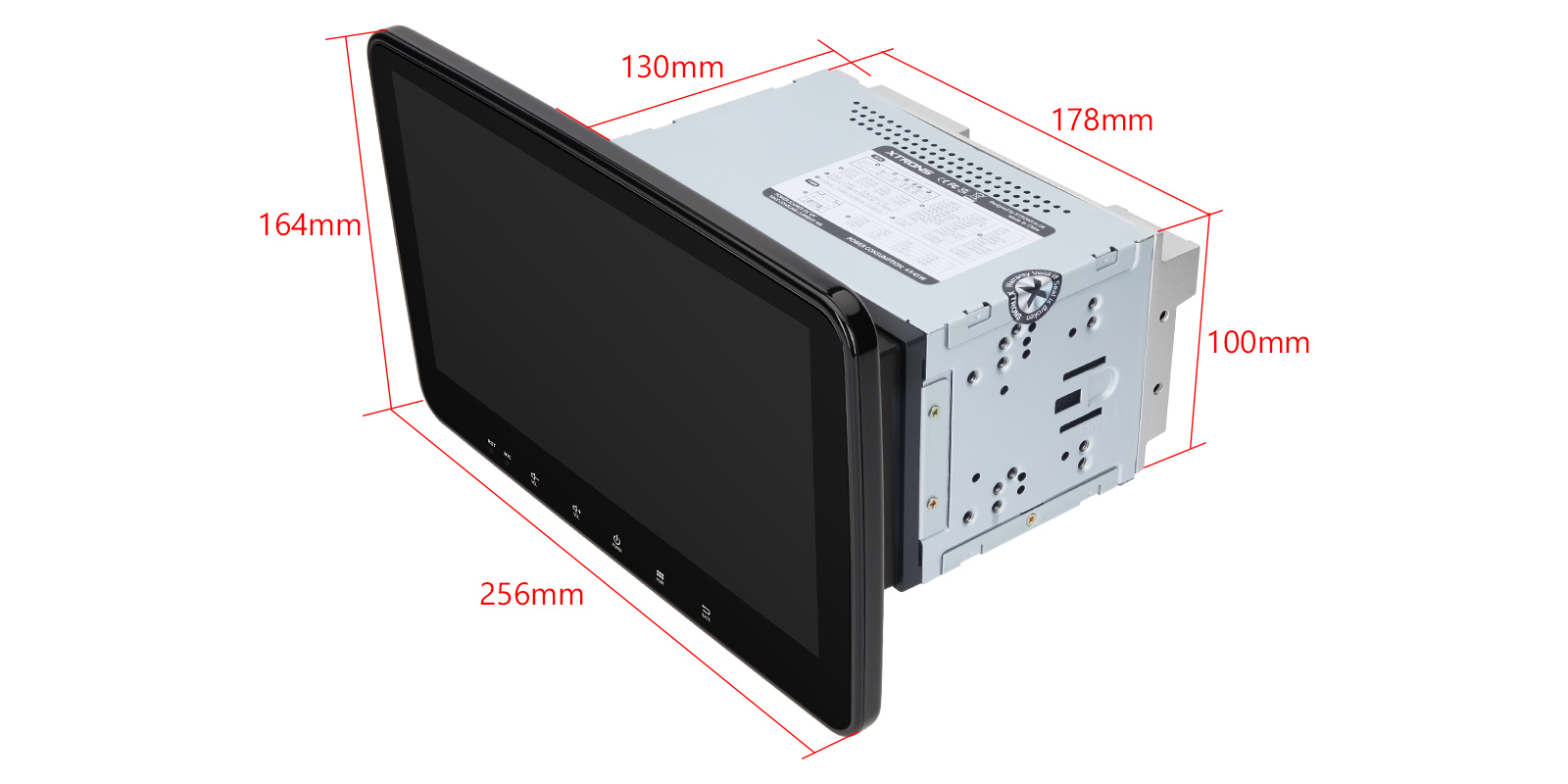

The TX122L has a standard 100mm(Height)x178mm(Width)x130mm(Depth) body and goes into a 178x100mm double DIN slot only. The 10.1″ screen sits in front of the dash, so you get a much bigger display than the slot size suggests.
An ISO standard power cable is included. Some cars also need a custom fit fascia and an ISO cable with a CANbus box, which aren't included, so check what your car needs. For a single DIN slot, look at DX121L instead.

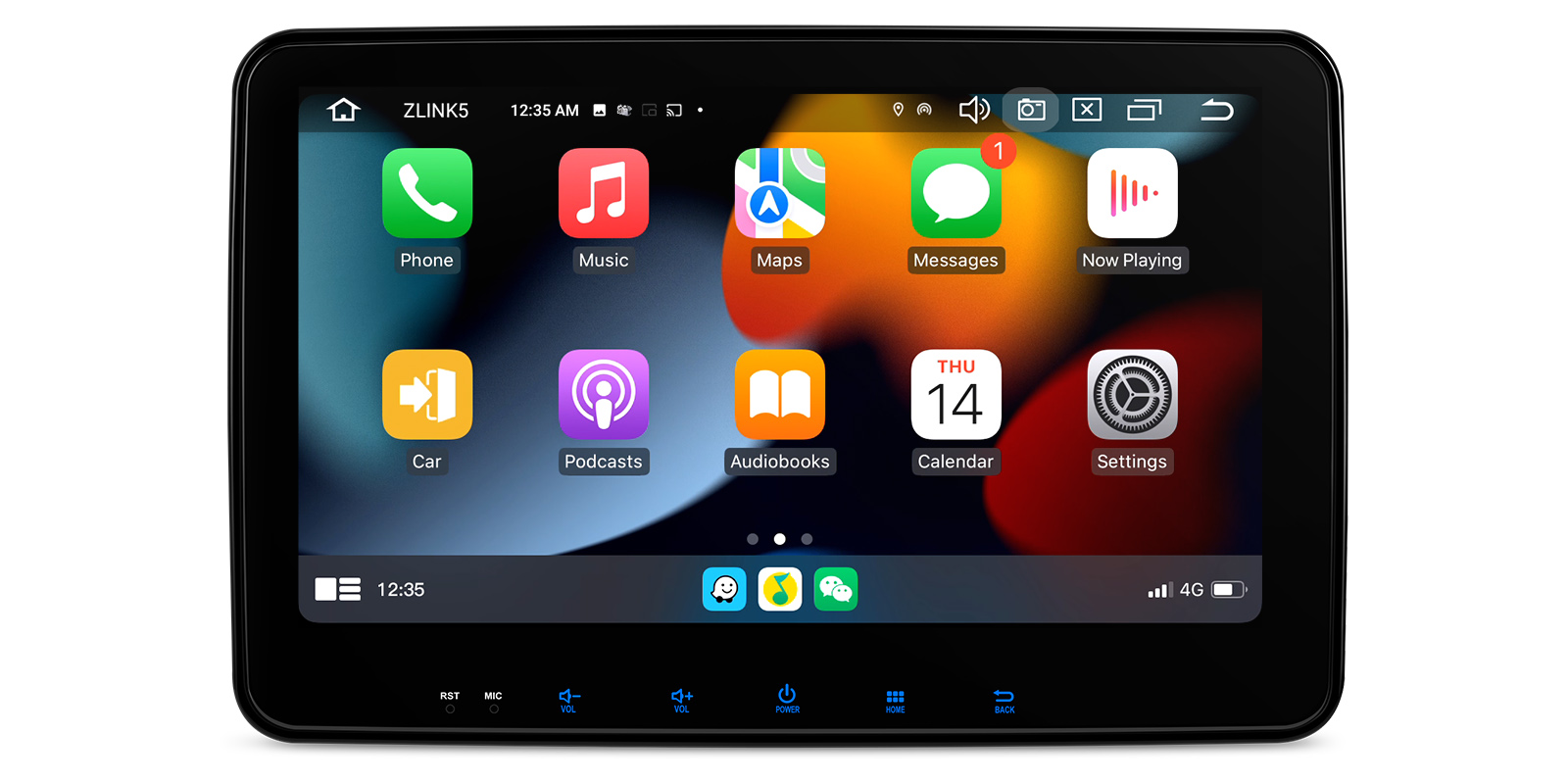

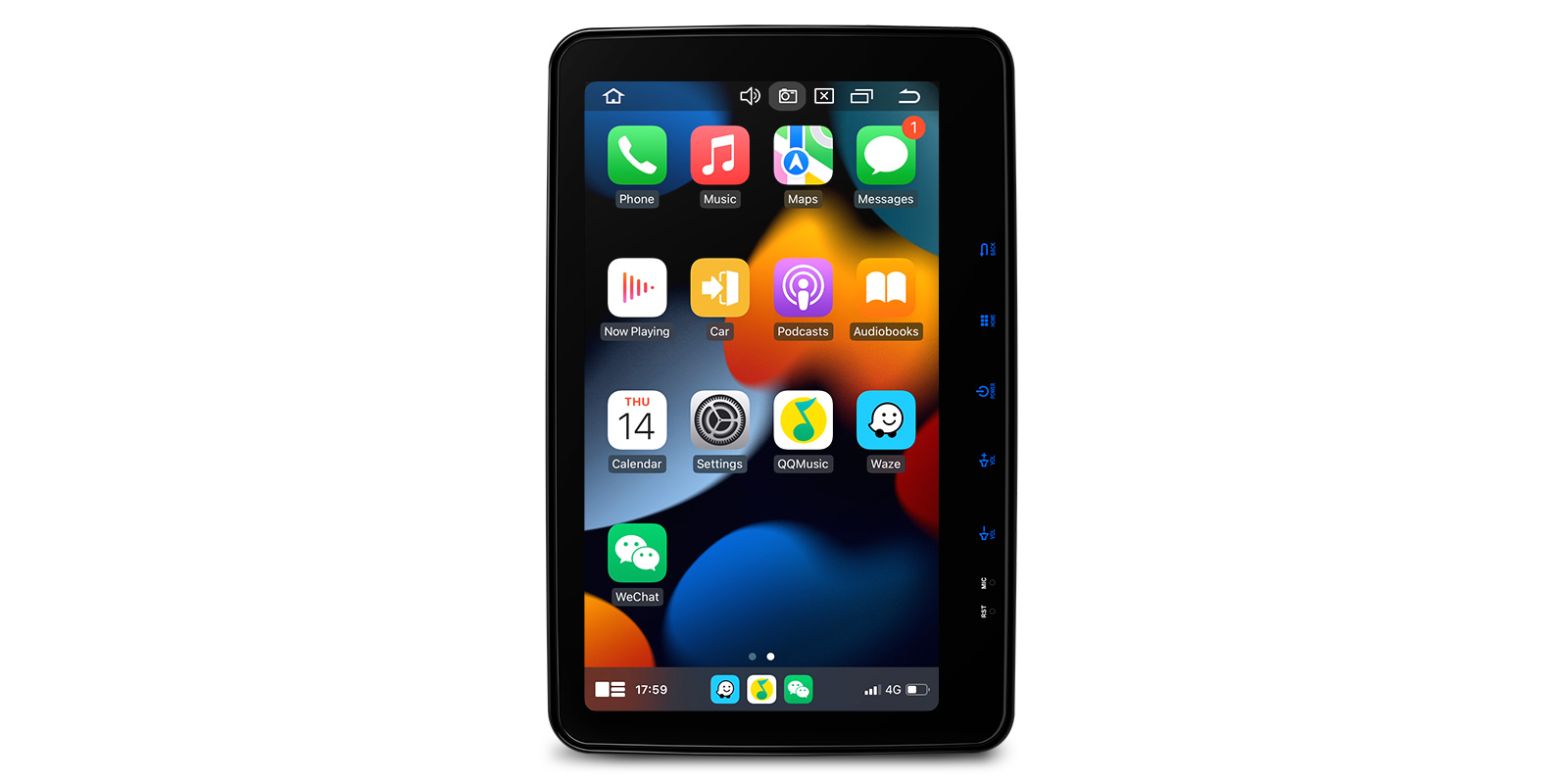

Wireless Apple CarPlay
CarPlay connects without any wiring. It works with iPhone 5 and later on iOS 8 and above, and Siri takes voice requests so your hands stay on the wheel.

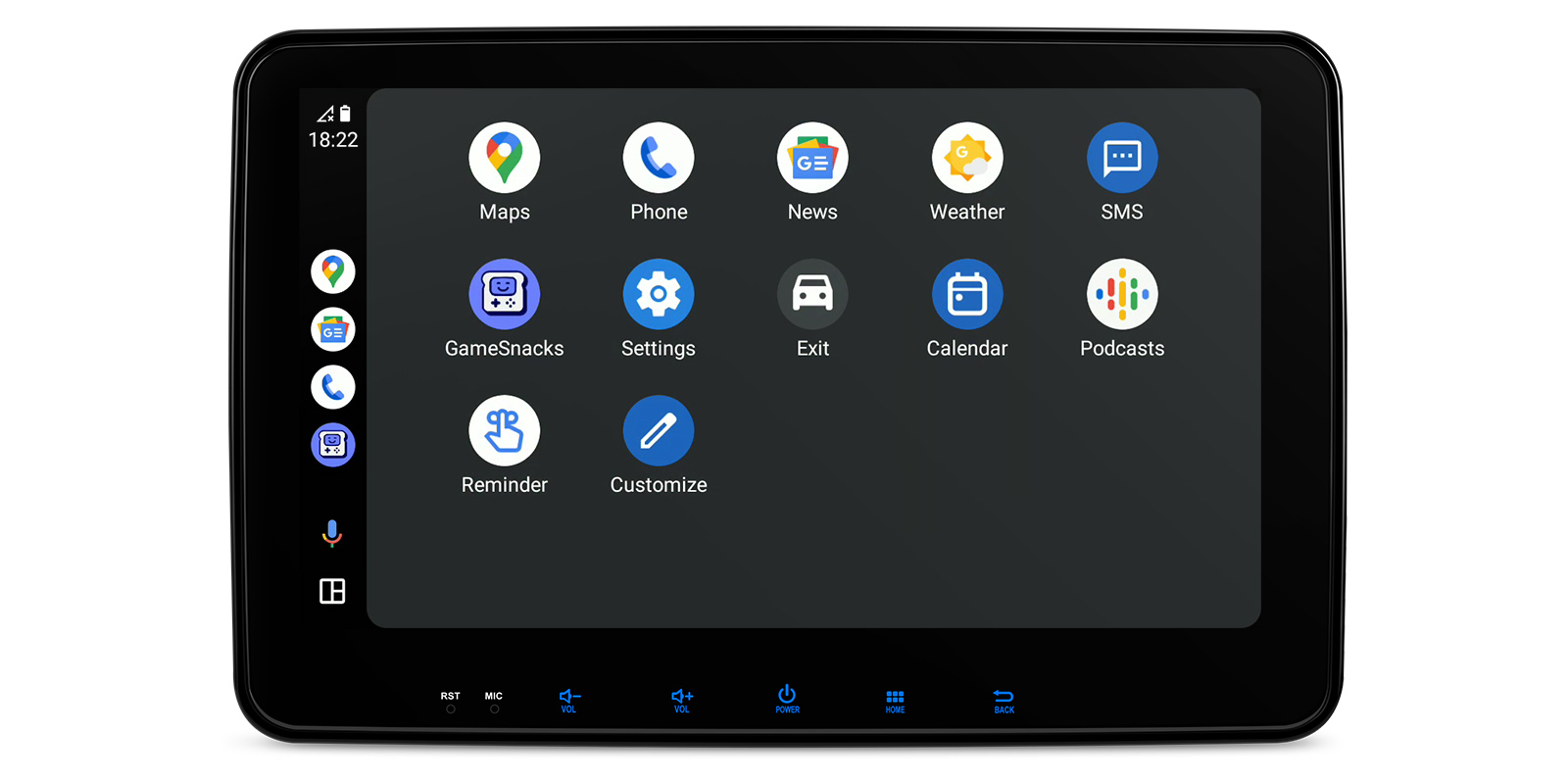

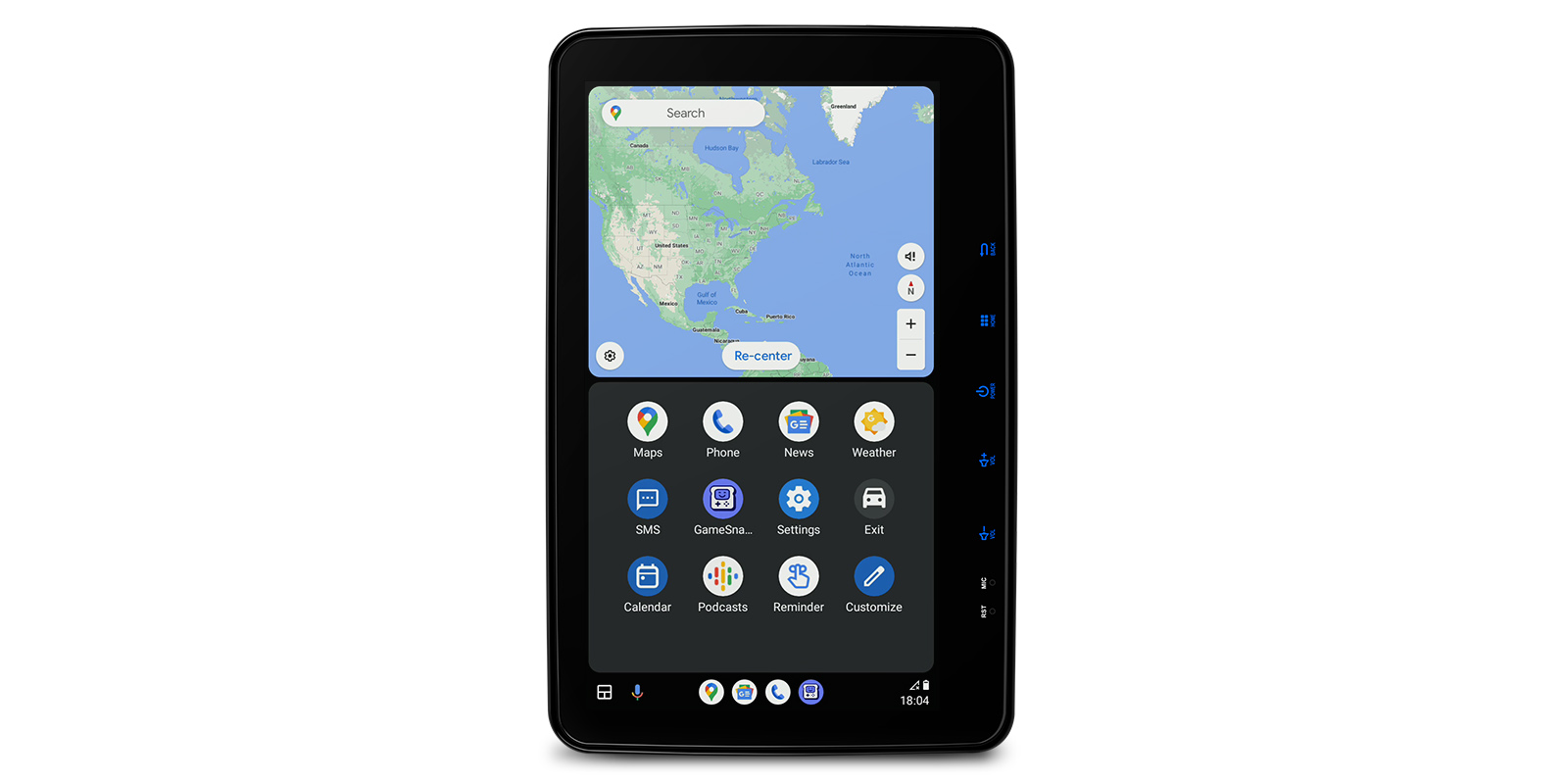

Full-featured Android Auto
Android phones on Android 4.3 and above get Android Auto, with maps, music and calls on the big screen and voice control through Google Assistant.

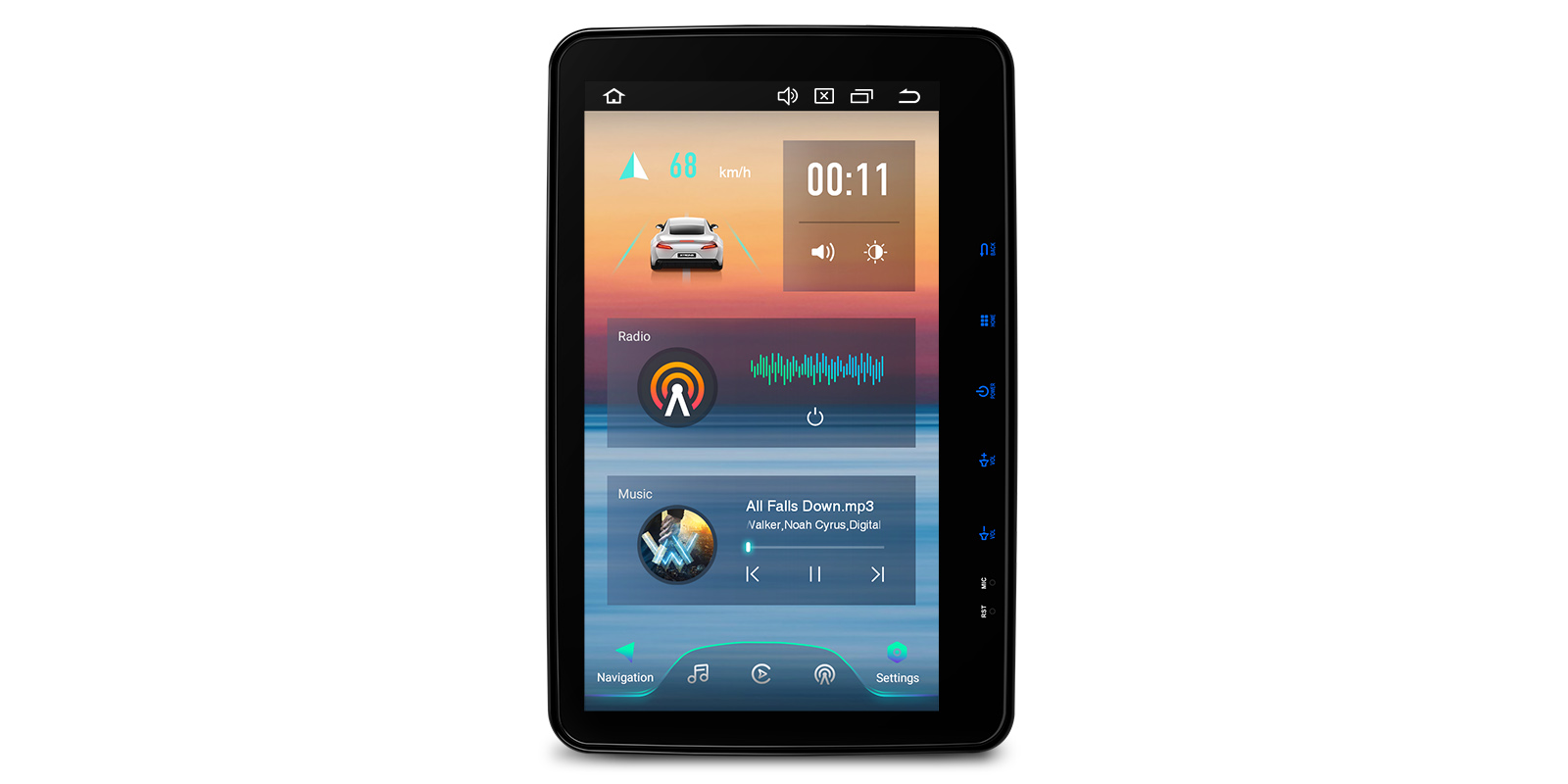

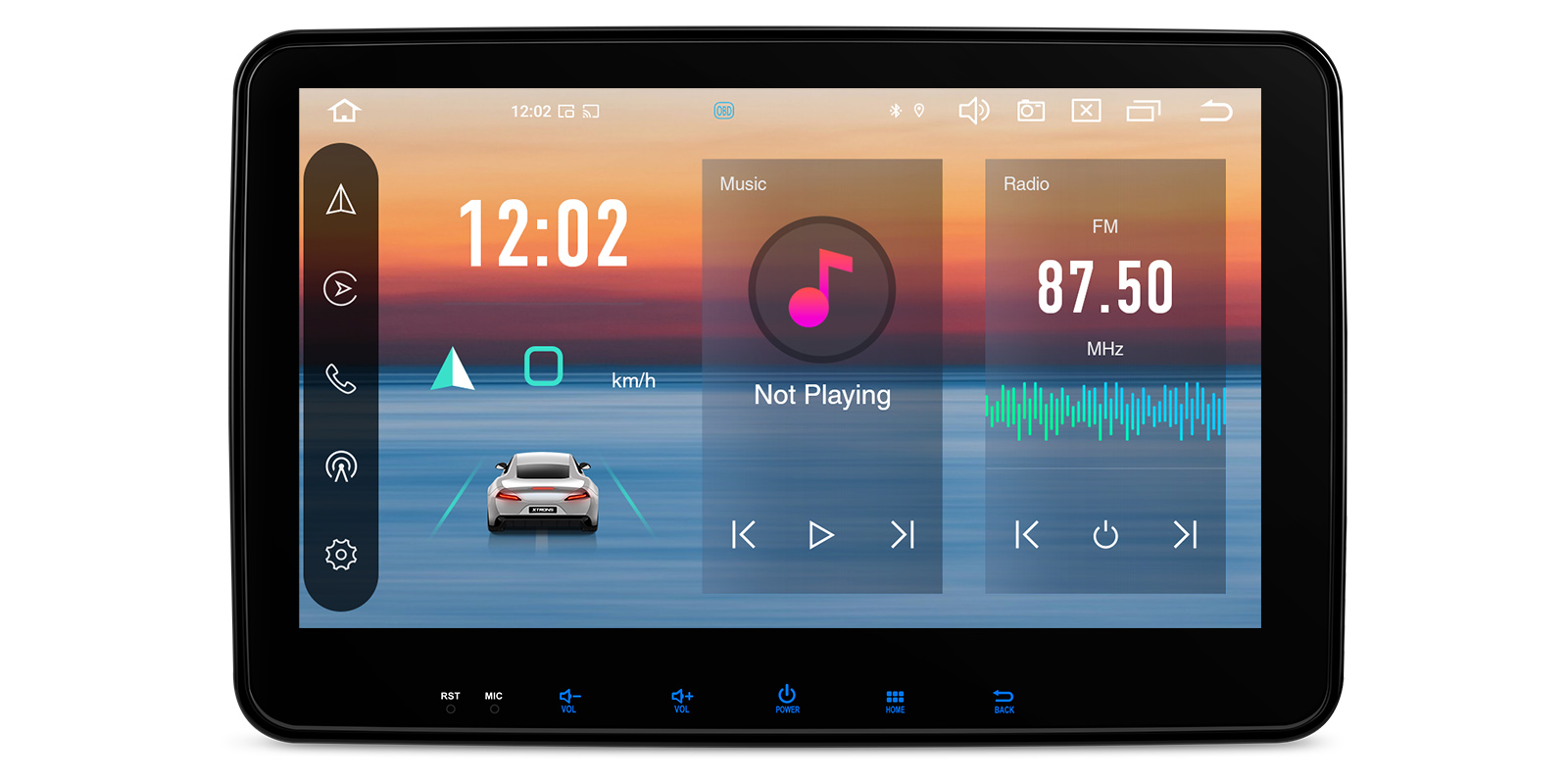

10.1″ QLED screen
The 10.1″ QLED capacitive touch screen runs at 1280×720 with bright, colourful images that hold up from different angles. It also plays 2K video when you're parked.

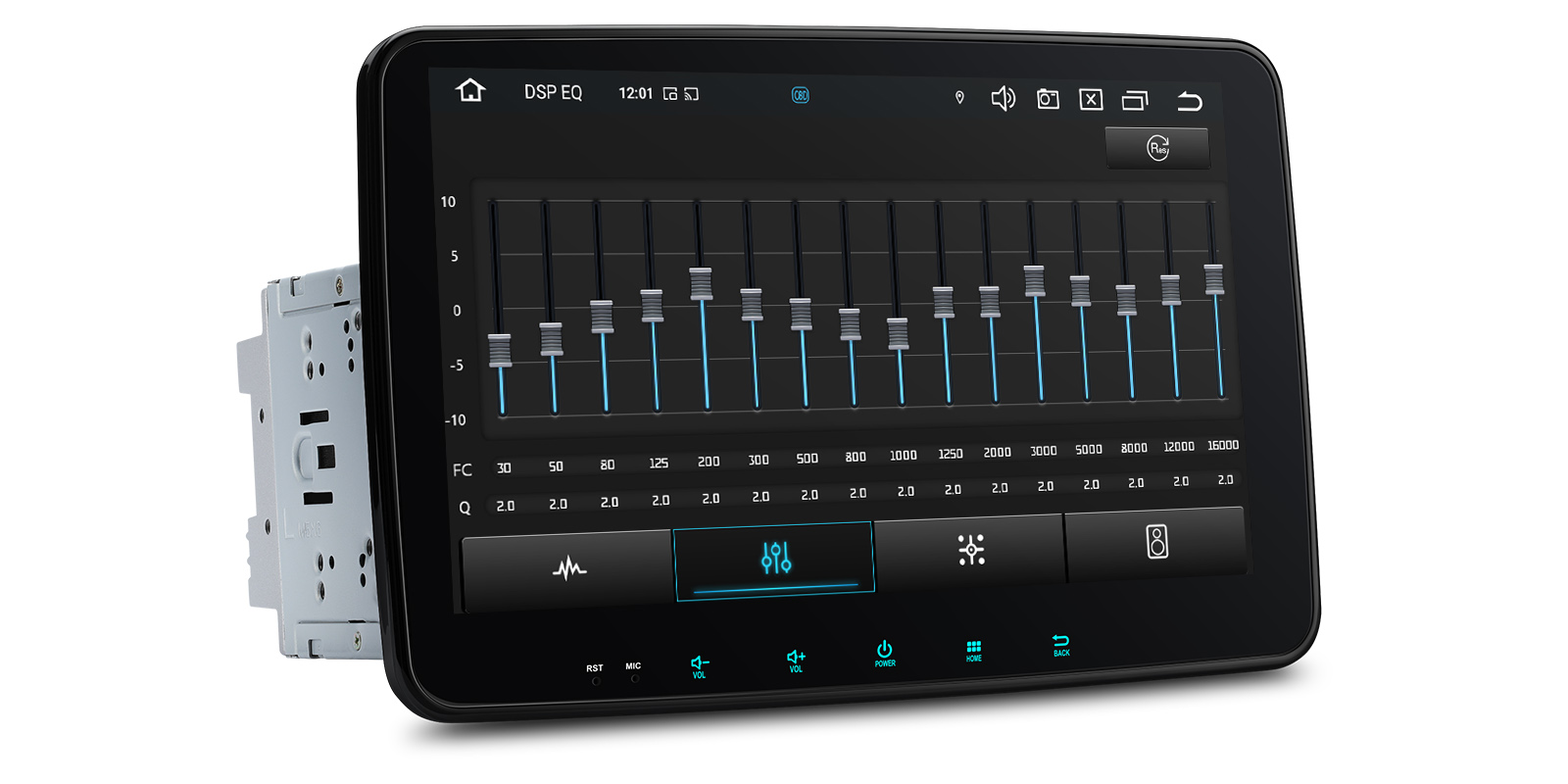

AKM DSP and amplifier
The automotive-grade AKM DSP chip has customisable modes and EQ settings, so you can tune the sound for different kinds of music. A TDA7388 amplifier drives the speakers.
Integrated global 4G

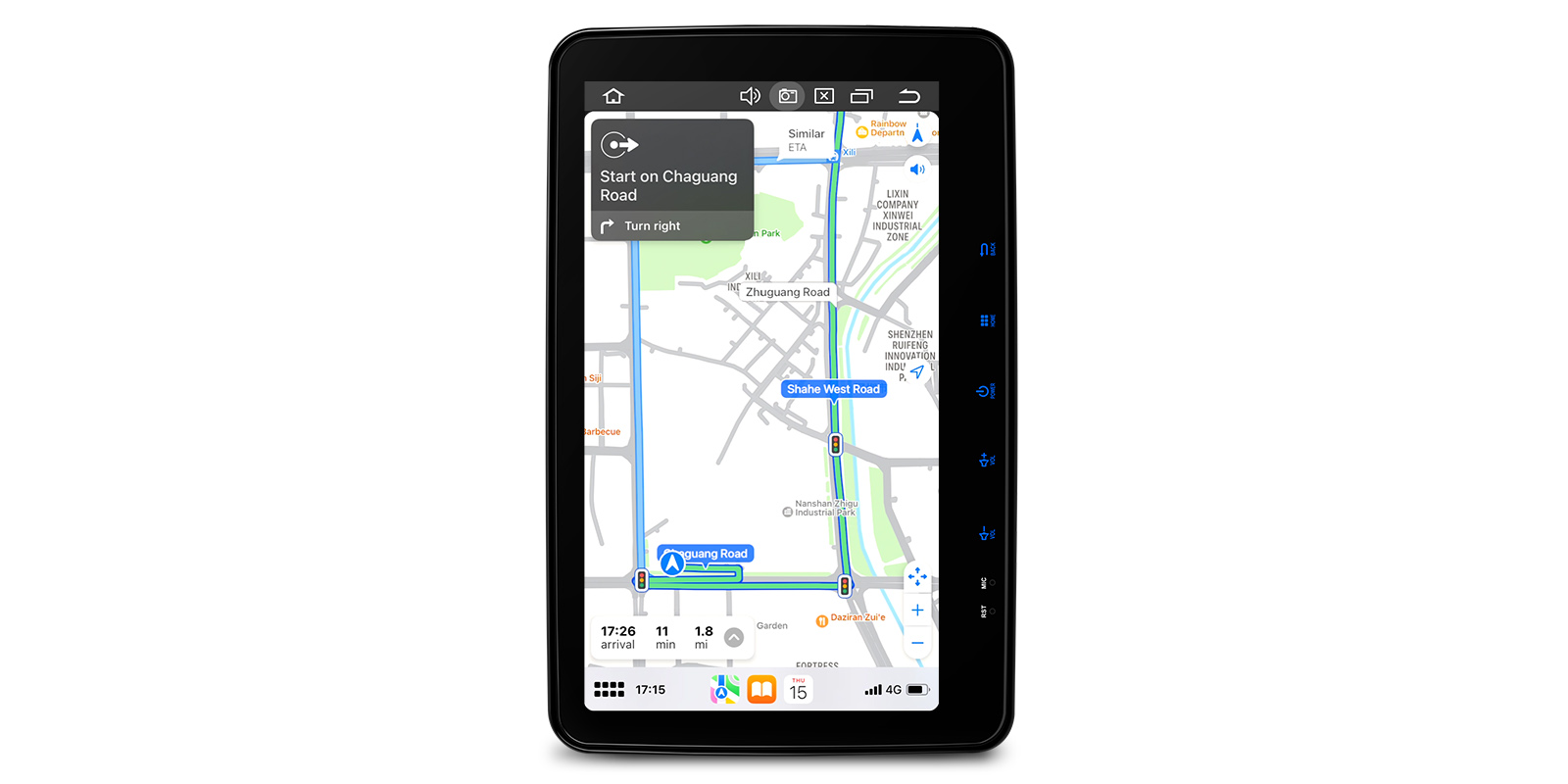

Insert a Micro-SIM card and the unit has its own 4G connection for maps and streaming. A 4G antenna and SIM card slot cable are in the box. USB tethering is also supported.
Wi-Fi
Wi-Fi, with a Wi-Fi antenna supplied, lets the unit join a phone hotspot or home network for downloads and updates.
Microphone for calls
A microphone is supplied for hands-free calls and voice commands. Mount it near the driver for the clearest sound.
DAB+ with an external tuner

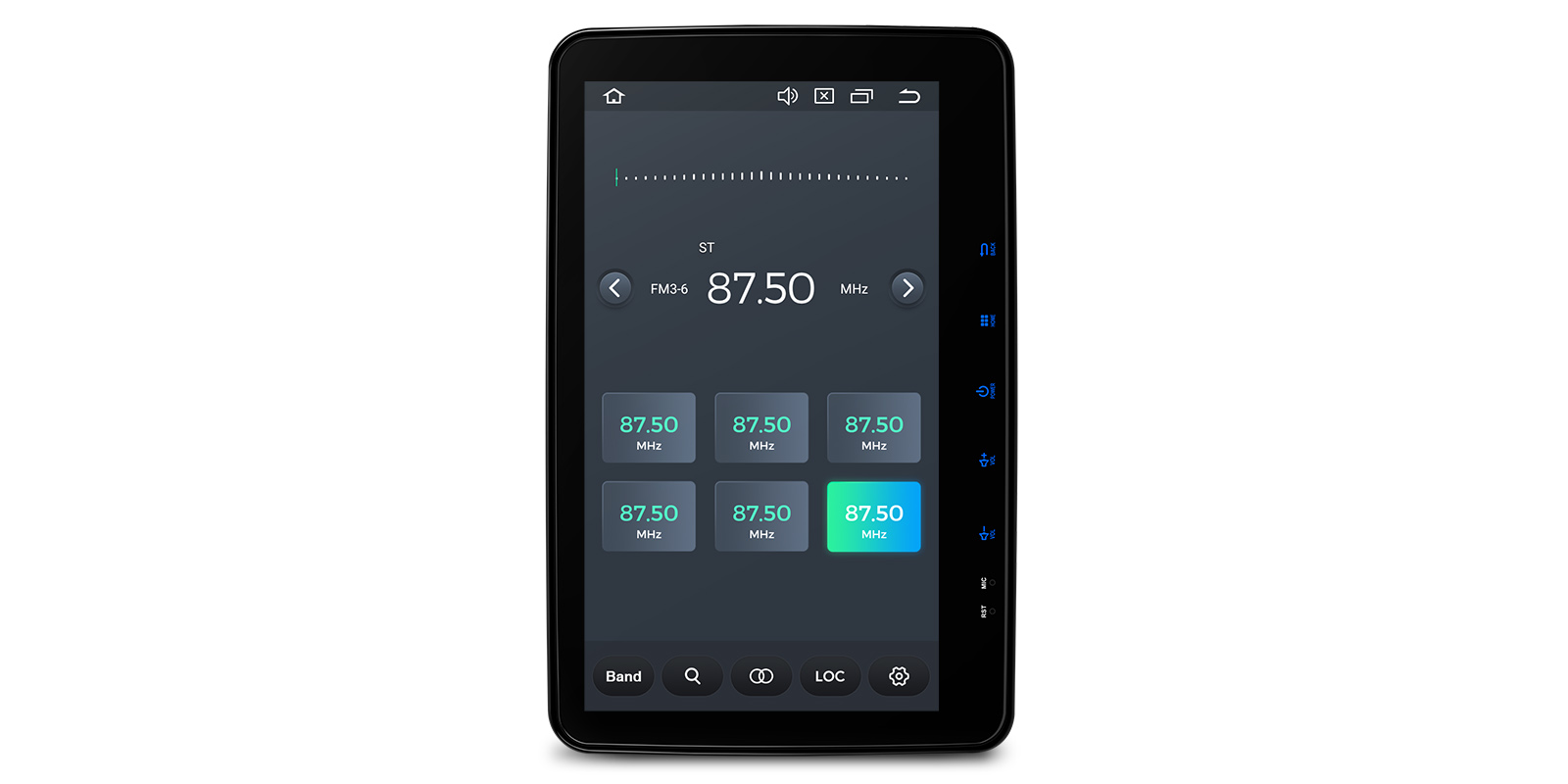

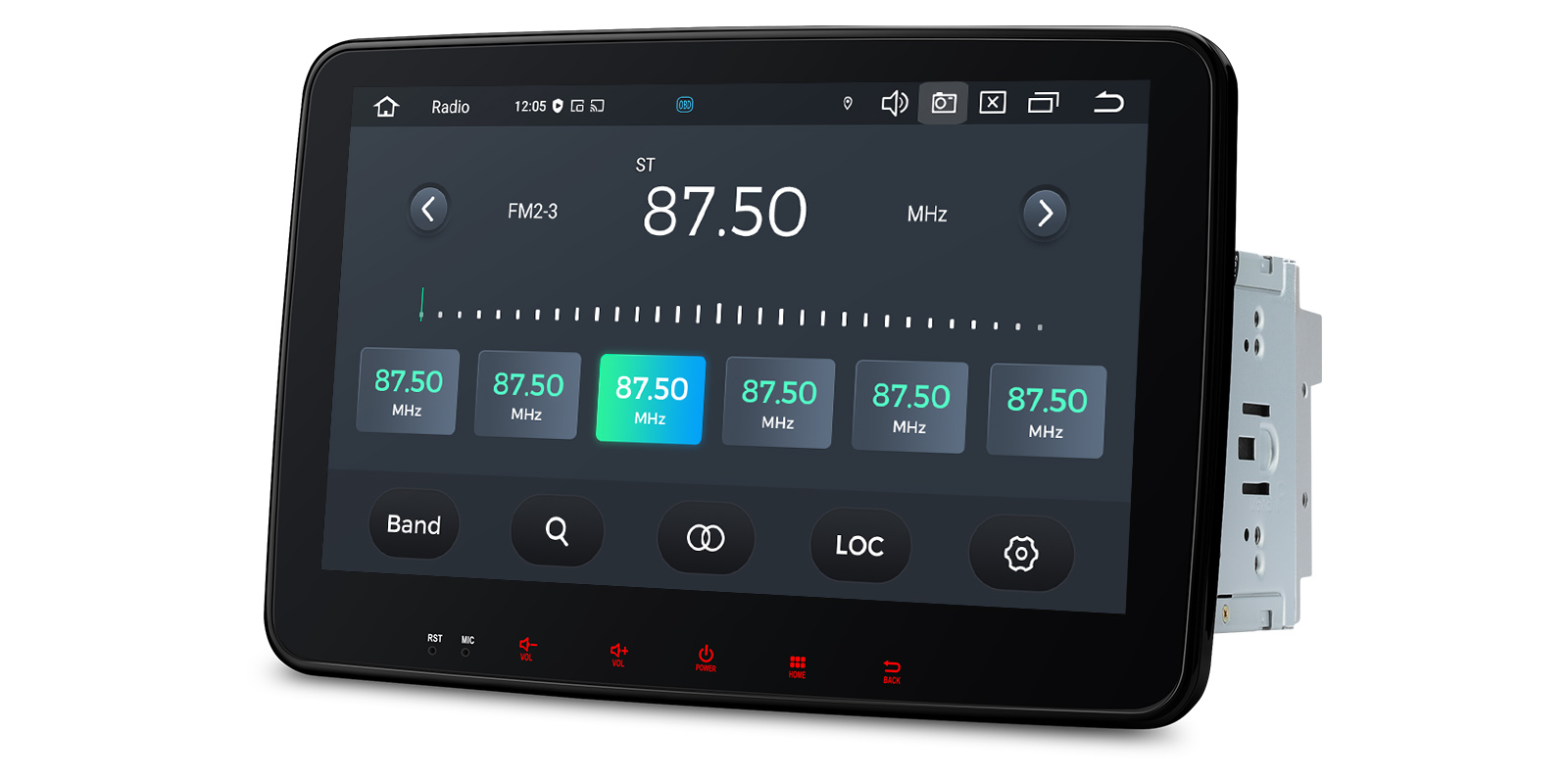

Digital radio works with an external DAB tuner, sold separately. The SI4755 radio with RDS handles FM as standard.
Screen mirroring

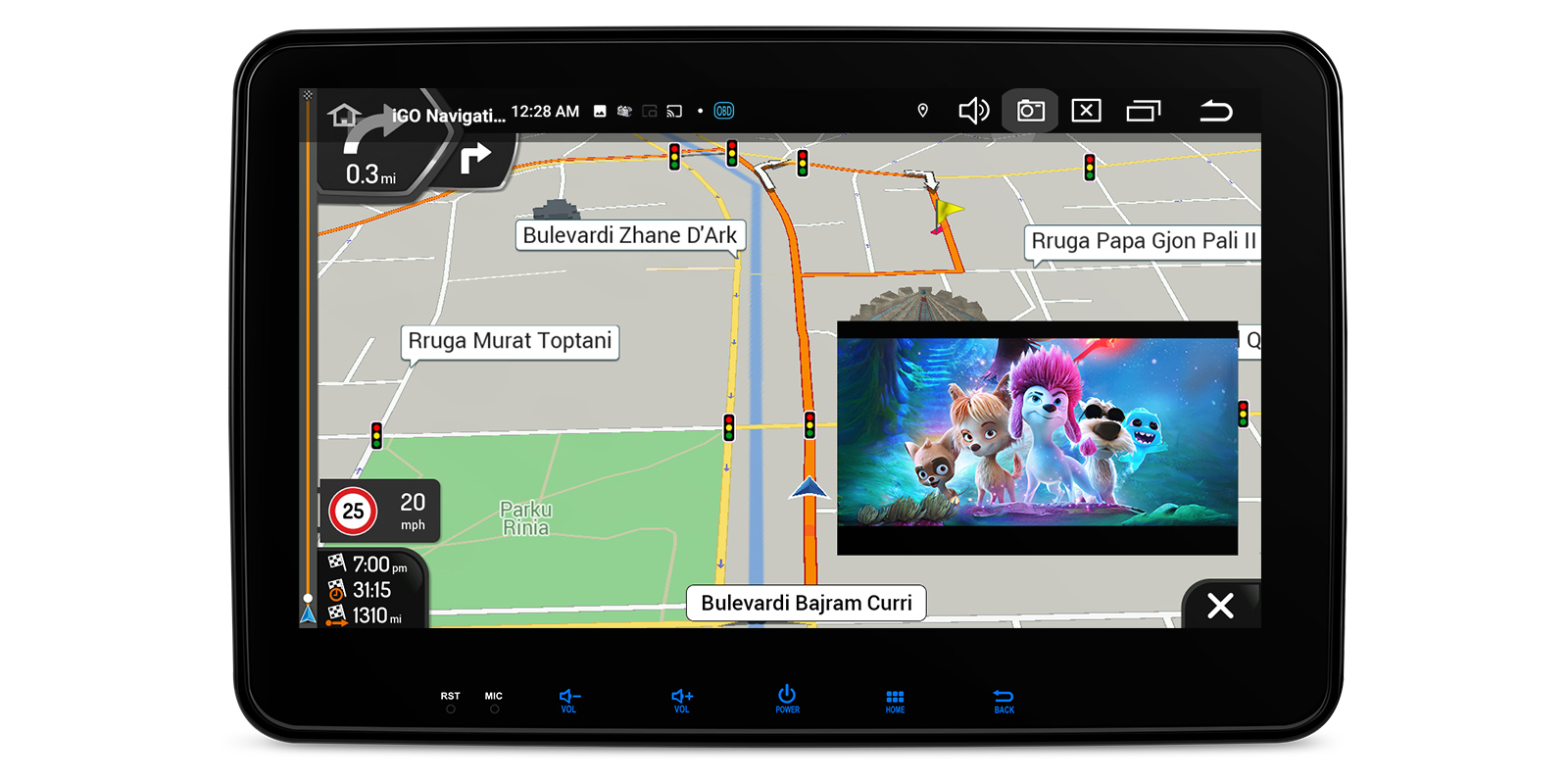

Screen mirroring shows your phone's display on the 10.1″ screen, handy for apps that don't run in CarPlay or Android Auto when parked.
Performance and camera support

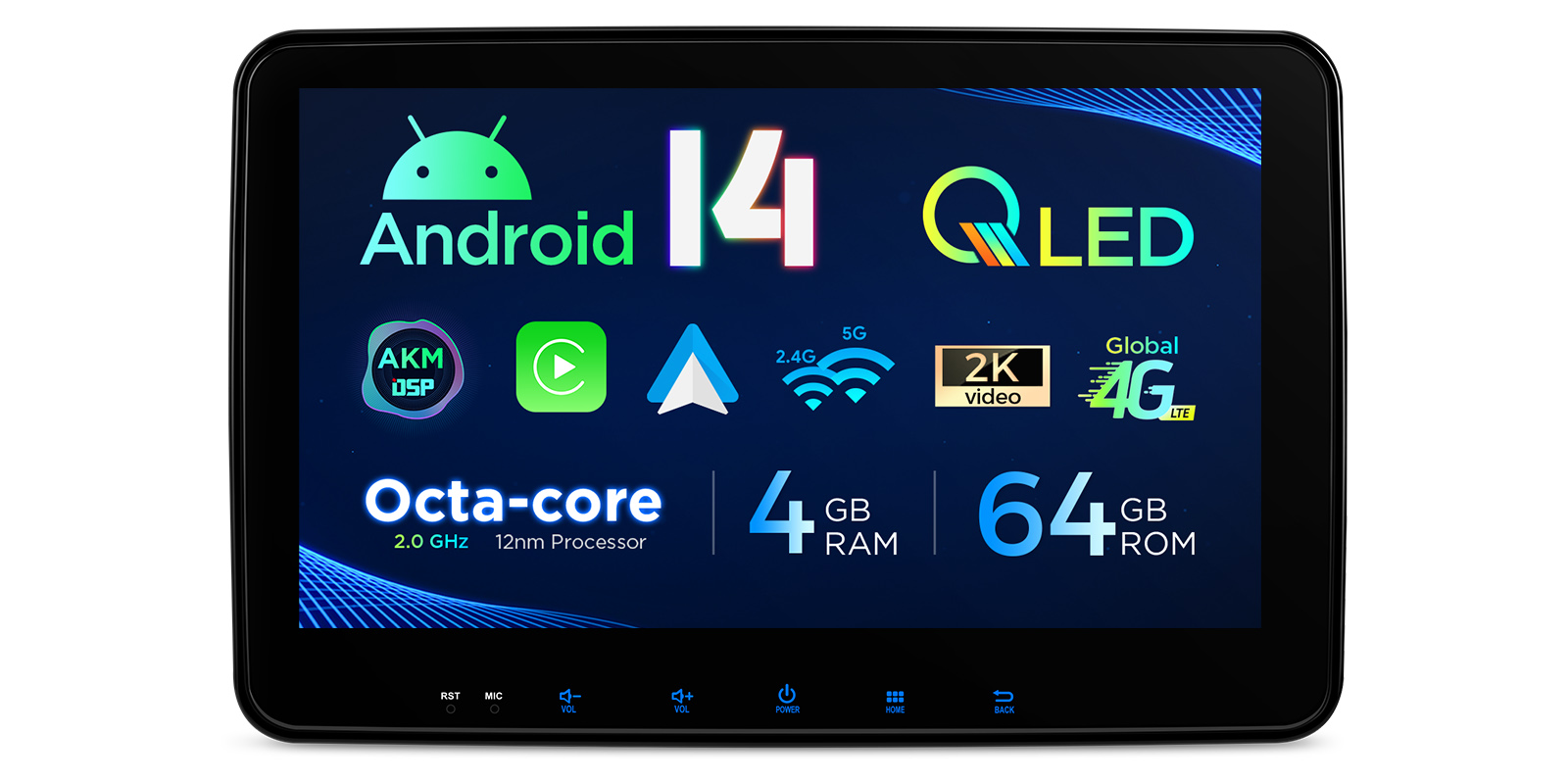

A 12nm octa core 2.0GHz processor runs Android 14 with 4GB DDR4 RAM and 64GB storage, and it's tested from −30°C to +80°C.
The unit supports AHD cameras, and a camera cable is included. It doesn't play discs.
Works with

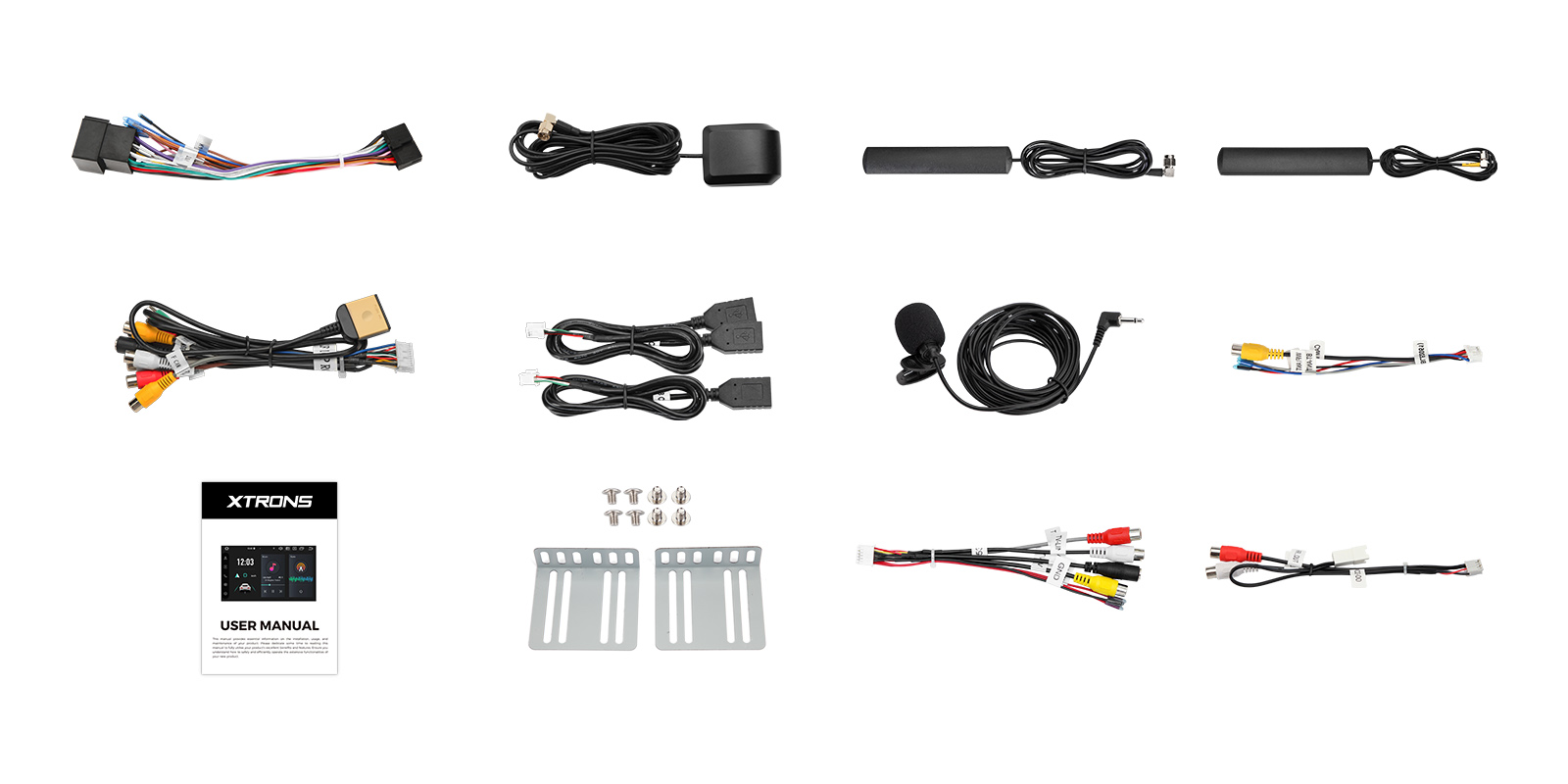

What's in the box
- 1 x 4G Antenna
- 1 x Camera Cable
- 1 x CANbus Cable
- 1 x GPS Antenna
- 1 x ISO Wiring Harness
- 1 x Microphone
- 1 x SIM Card Slot Cable
- 1 x User Manual
- 1 x Wi-Fi Antenna
- 2 x Fitting Kits
- 2 x USB Cable
- 8 x Screws

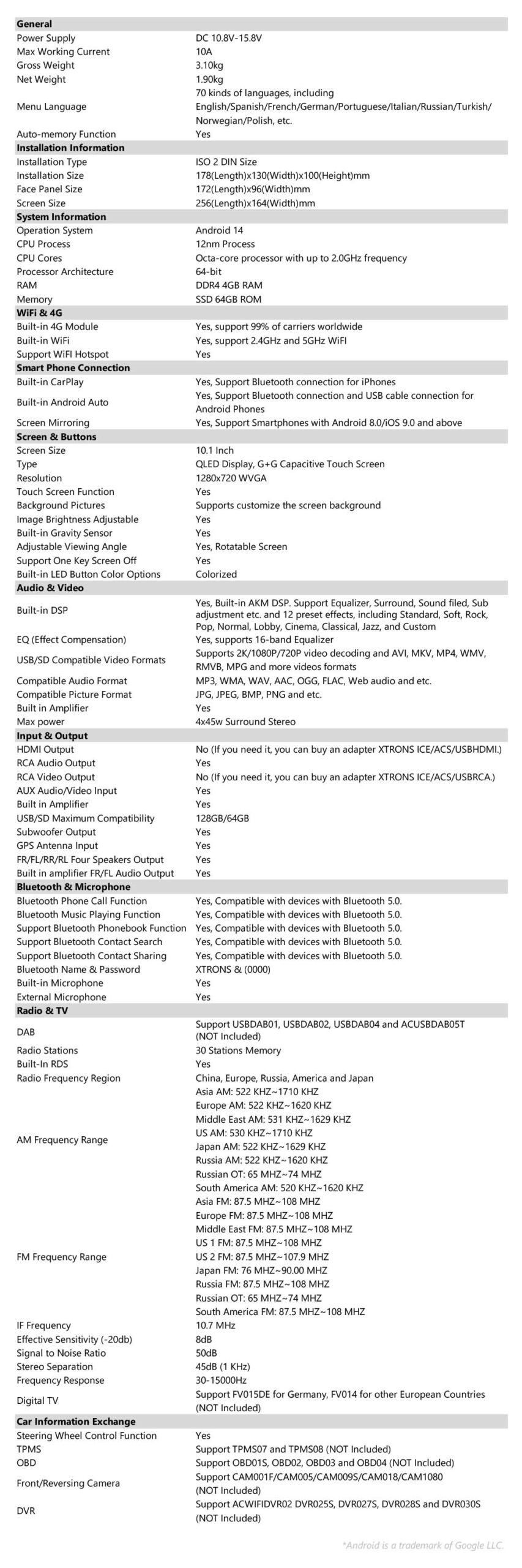

| Operating system | Android 14 |
|---|---|
| Processor | 12nm octa core 2.0GHz processor |
| Memory and storage | 4GB DDR4 RAM + 64GB Solid State ROM |
| Operating temperature | −30°C to +80°C |
| Screen | 10.1” 1280×720 Capacitive Touch Screen |
|---|---|
| Panel | 10.1″ QLED screen |
| Radio | SI4755 Radio with RDS |
|---|---|
| Amplifier | TDA7388 Amplifier |
| Unit size | 100mm(Height)x178mm(Width)x130mm(Depth) |
|---|---|
| Slot | It should be installed on a 178x100mm slot ONLY. |
| Disc playback | This unit does not play discs. |

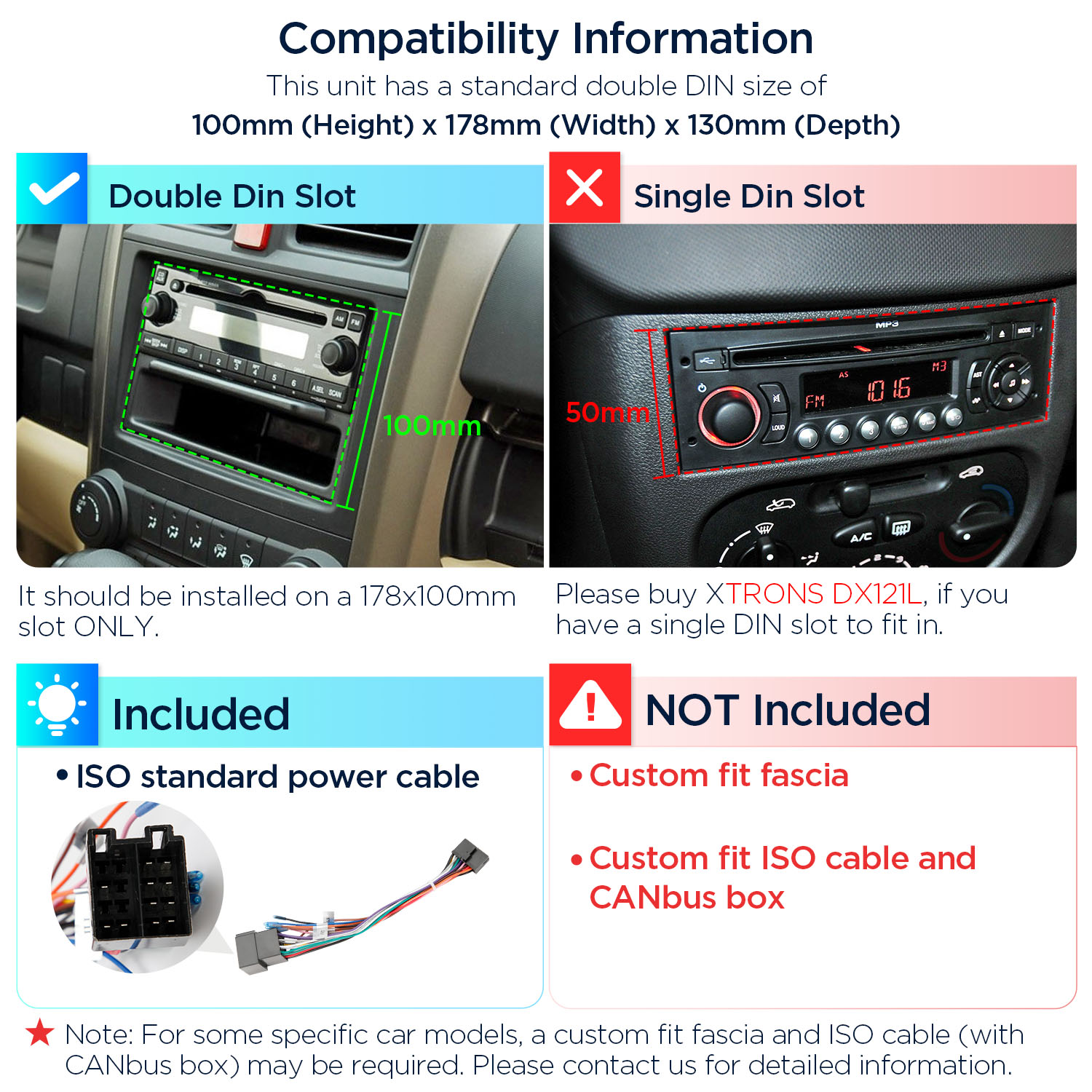

Universal: fits most cars with a double-DIN slot. Check the dimensions in the specifications against your dash.
- Universal Fit for Cars with Double DIN Factory Radios.
- It should be installed on a 178x100mm slot ONLY.
- For some specific car models, a custom fit fascia and ISO cable (with CANbus box) may be required. Please contact us for detailed information.
The unit fits a 178x100mm double DIN slot using the supplied fitting kits and screws, and connects with the ISO standard power cable. A custom fit fascia and an ISO cable with CANbus box aren't included, and some cars need them, so check before ordering.
Will it fit my car?
It fits cars with a 178x100mm double DIN slot. Some cars also need a custom fit fascia and ISO cable with CANbus box, which aren't included.
I have a single DIN slot. What can I use?
Look at DX121L, made for single DIN slots.
What SIM card does it take?
A Micro-SIM card for the integrated 4G.
Does it play CDs?
No, this unit does not play discs.
