BMW 1/2 Series 12.3 inch Android Head Unit with Wireless CarPlay, Android Auto and 4G | QLB22NB12NER
In stock

Image 1 of 12.
SKU: QAM1240M12CLS
£499.99
Check if this fits your car

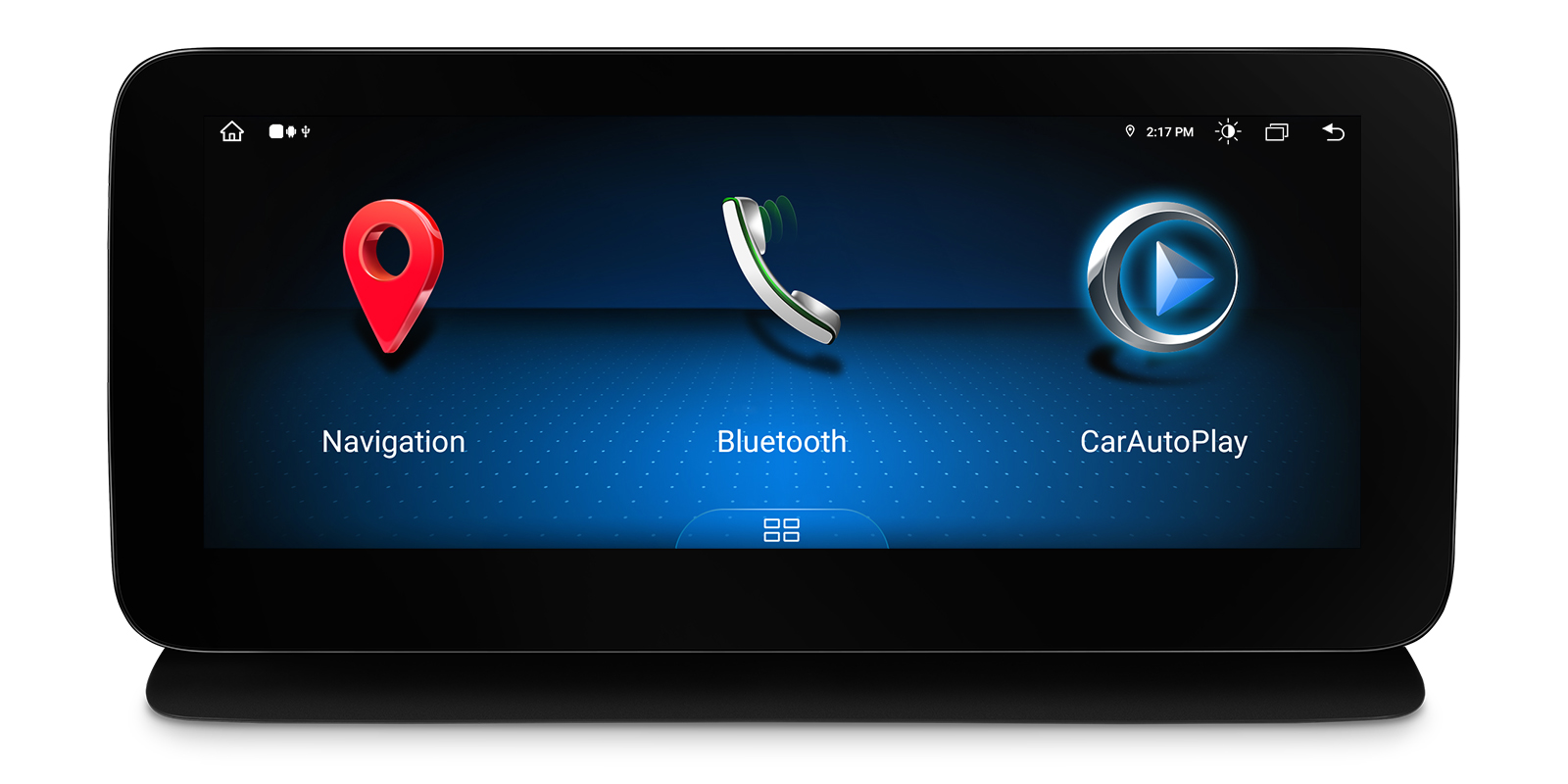

The XTRONS QAM1240M12CLS is a 10.25 inch Android 13 screen made as a plug-and-play replacement for the factory display in the Mercedes-Benz CLS-Class C218/W218 (2010-2012) with COMAND APS NTG 4.0. It keeps your CD player, radio and COMAND, and adds wireless CarPlay, Android Auto and a built-in 4G module.
The screen is matched to the Mercedes dashboard and runs Android alongside the original system, so you don't have to remove the CD player, radio or COMAND. Swipe on the screen to move between Android and the factory system.
It only works with the original COMAND APS NTG 4.0 system, which usually has a 10 pin LVDS port and the NTG 4.0 interface. For NTG 4.5 or NTG 4.7, choose XTRONS QAM1245M12CLS, and for NTG 5.1 or NTG 5.2, QAM1250M12CLS.

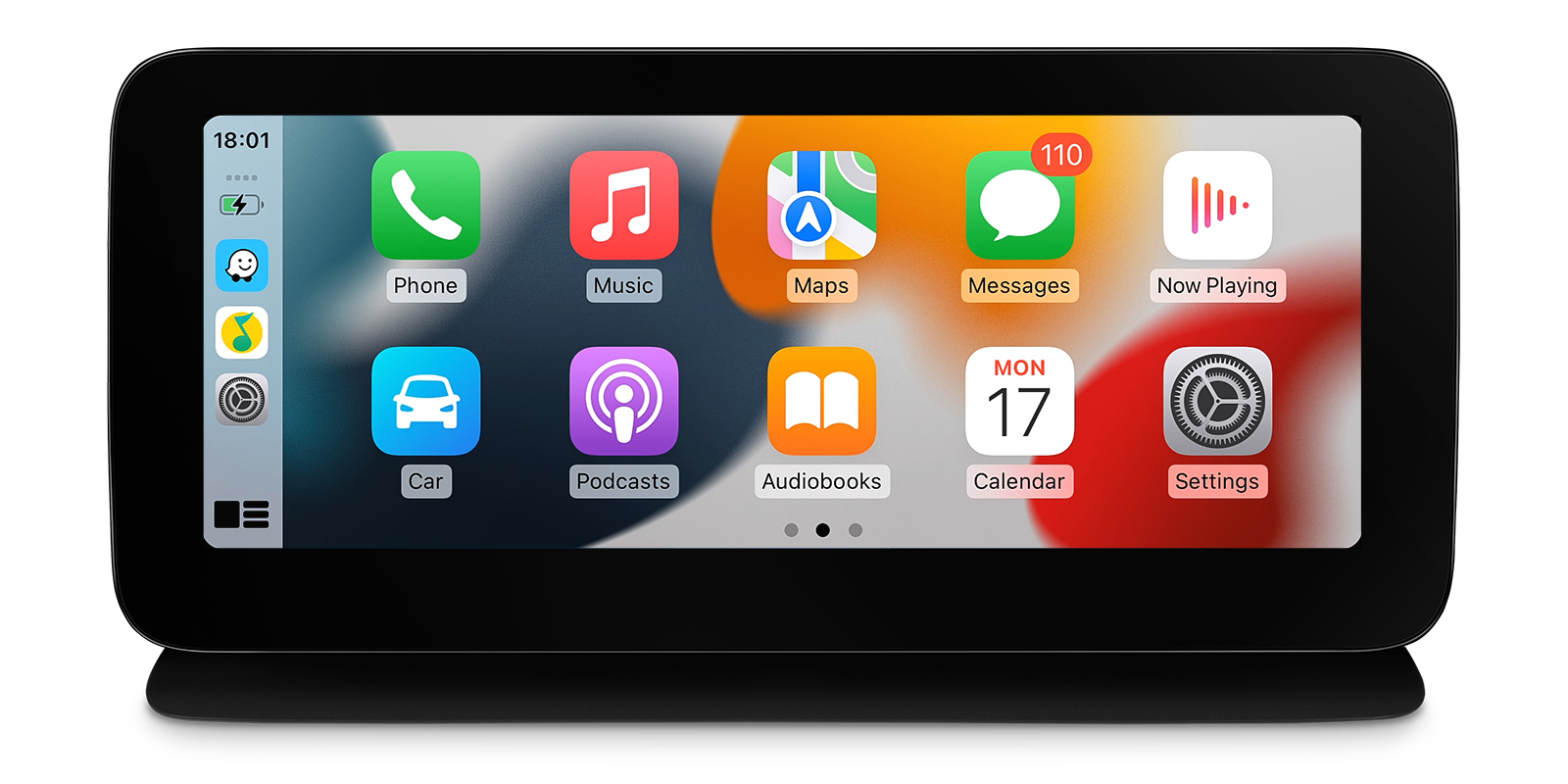

CarPlay connects wirelessly, so your iPhone's maps, calls and music come up on the 10.25 inch screen without plugging in. Siri voice commands let you ask for directions or a song while you drive.

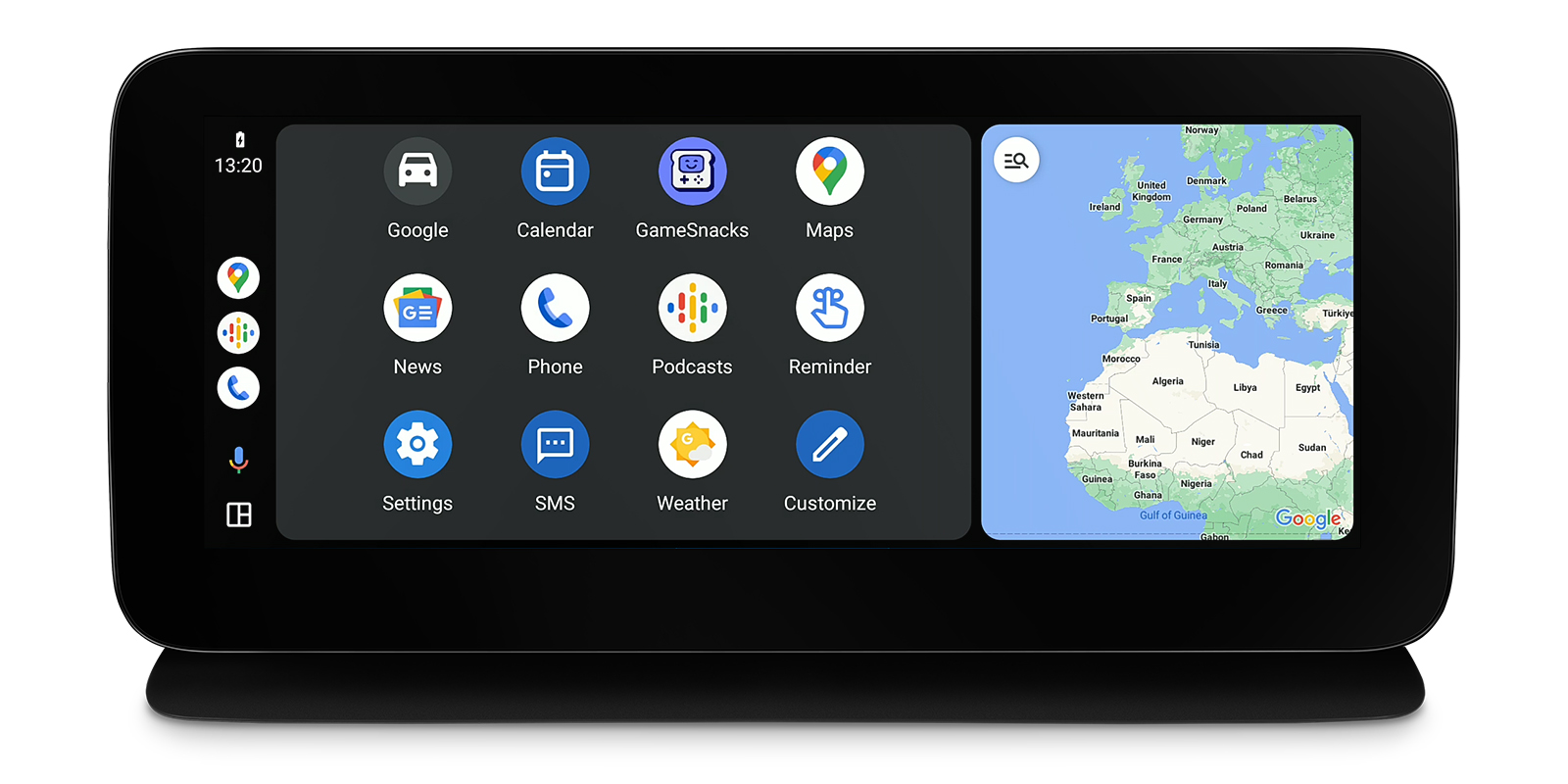

Android Auto works wirelessly or over a cable. Google Maps, calls and music apps run on the dashboard, with Google Assistant for voice control.
The 10.25 inch QLED screen gives strong, vivid colour, so maps and album art are easy to read at a glance.
The IPS panel keeps its colour when seen from the side, so the front passenger gets as clear a view as the driver.

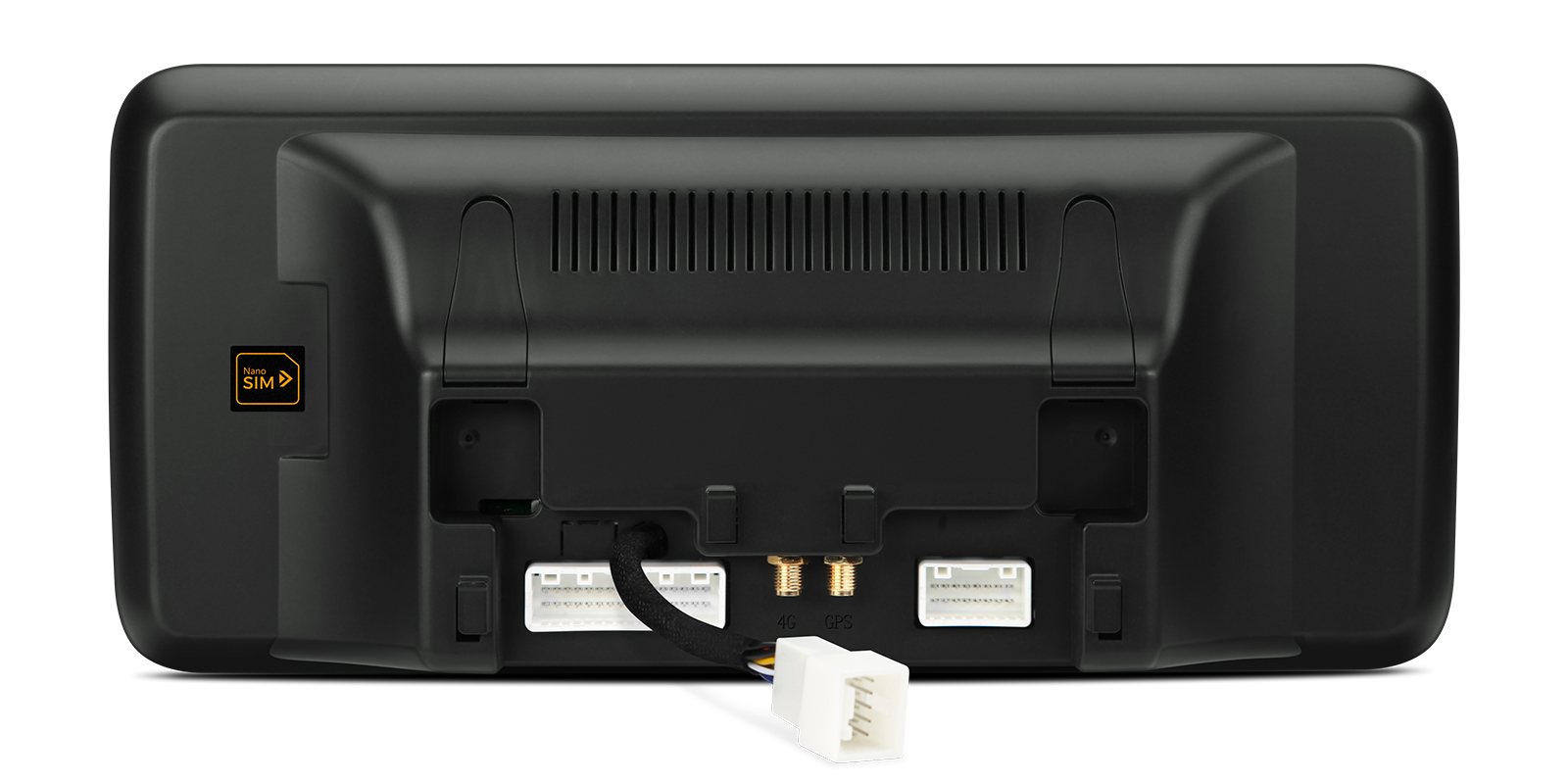

The independent 4G module gives the unit its own internet connection once you insert a SIM card (bought separately), and you can share it as a hotspot. It carries internet data only, not phone calls, though you can make voice or video calls through apps.

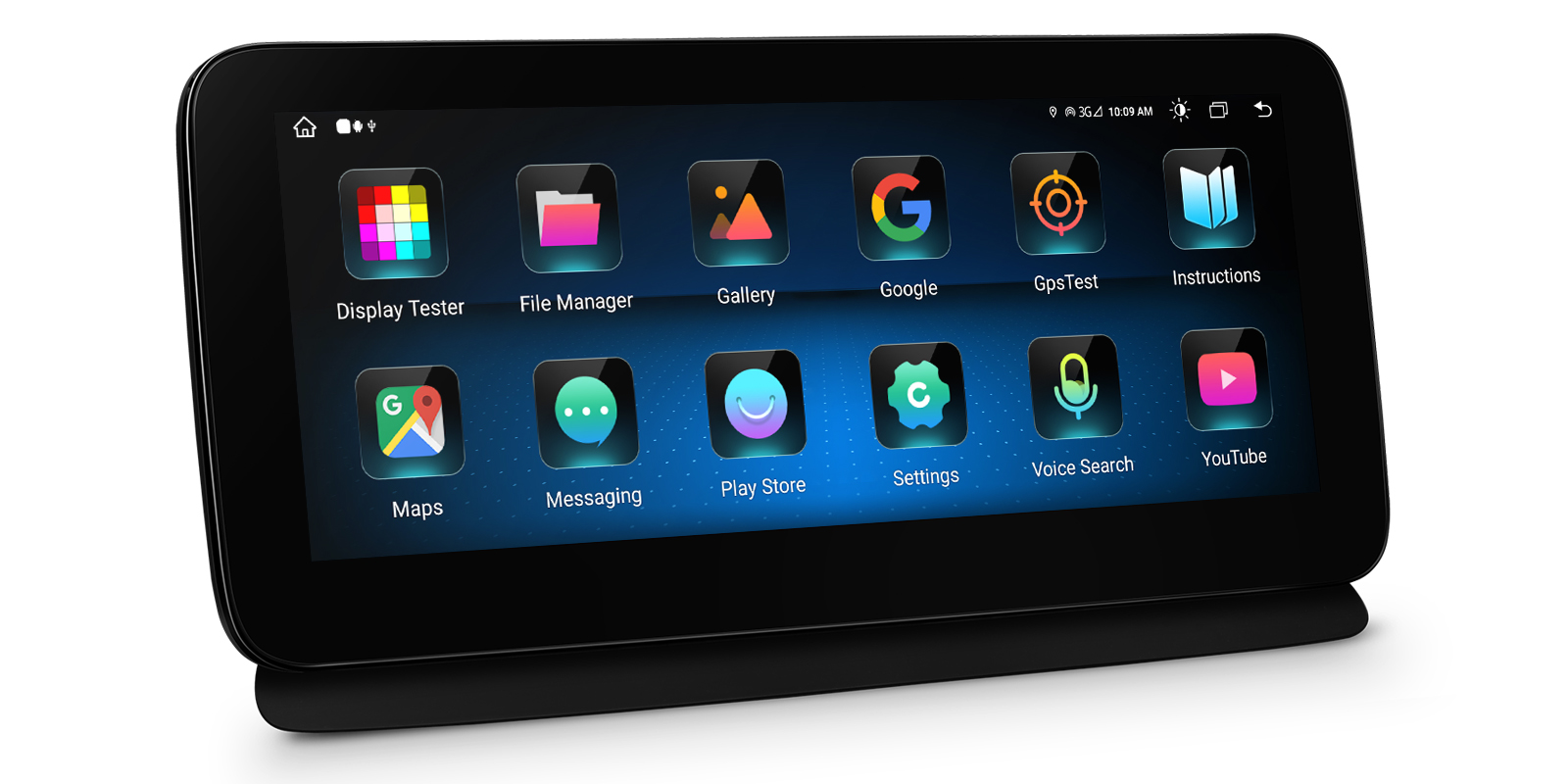

Wi-Fi lets the unit join a hotspot or your home network for app downloads and updates.
Screen mirroring puts your phone's display on the dashboard, useful for apps that don't run in CarPlay or Android Auto.

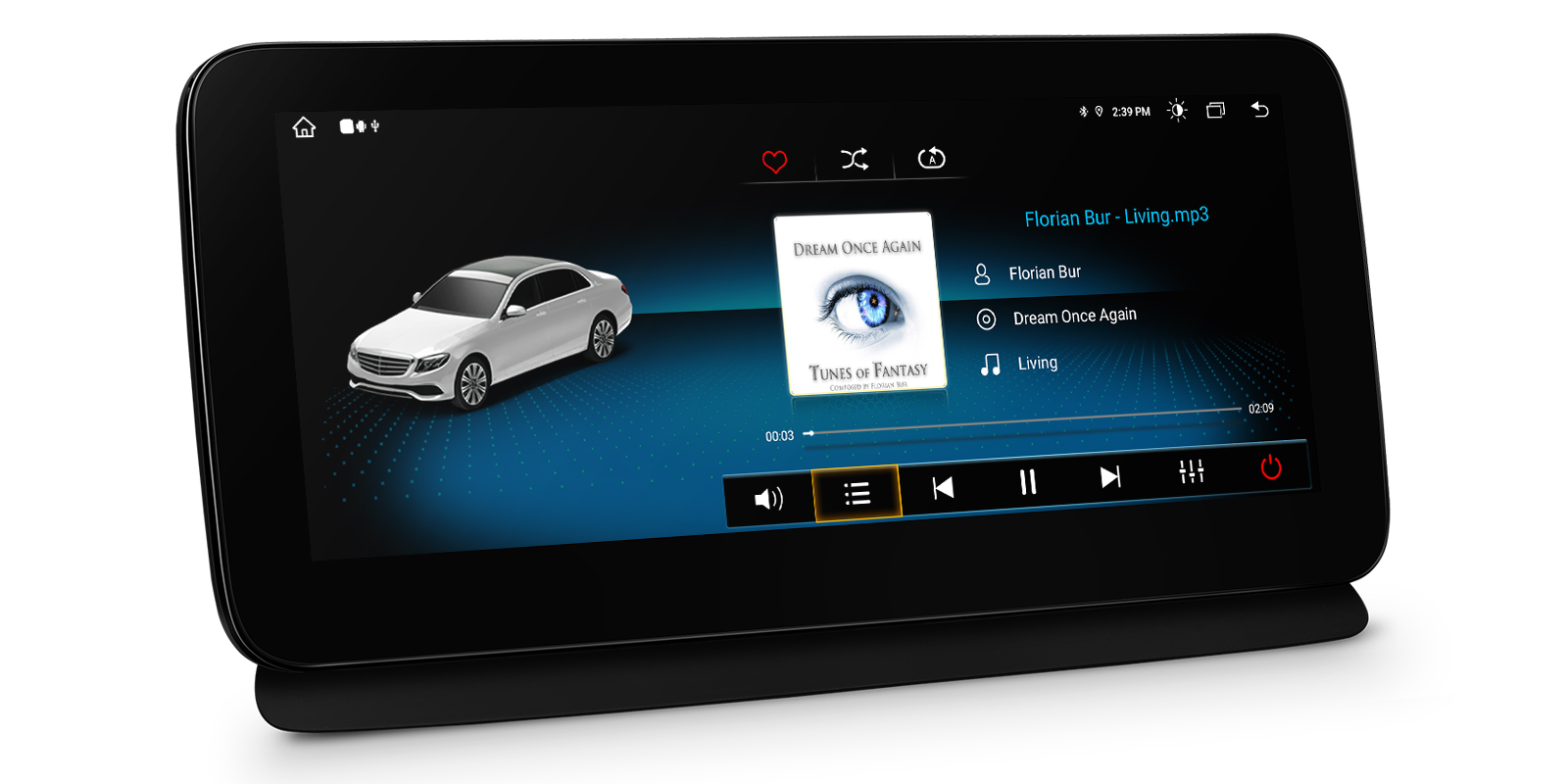

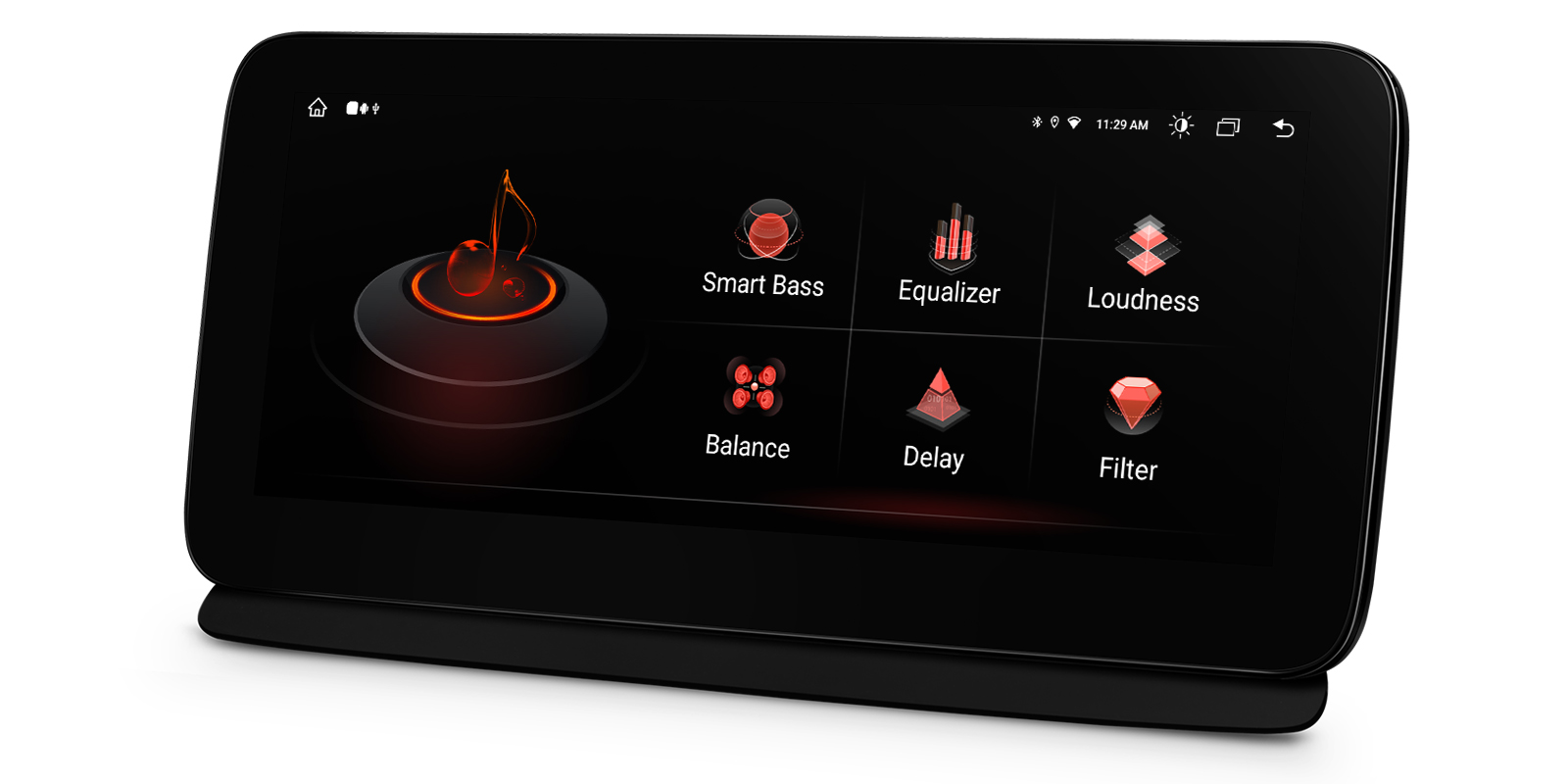

A built-in DSP lets you adjust how the unit's audio sounds in the car.
An RCA audio output lets you connect an external amplifier if you want to add to the system later.

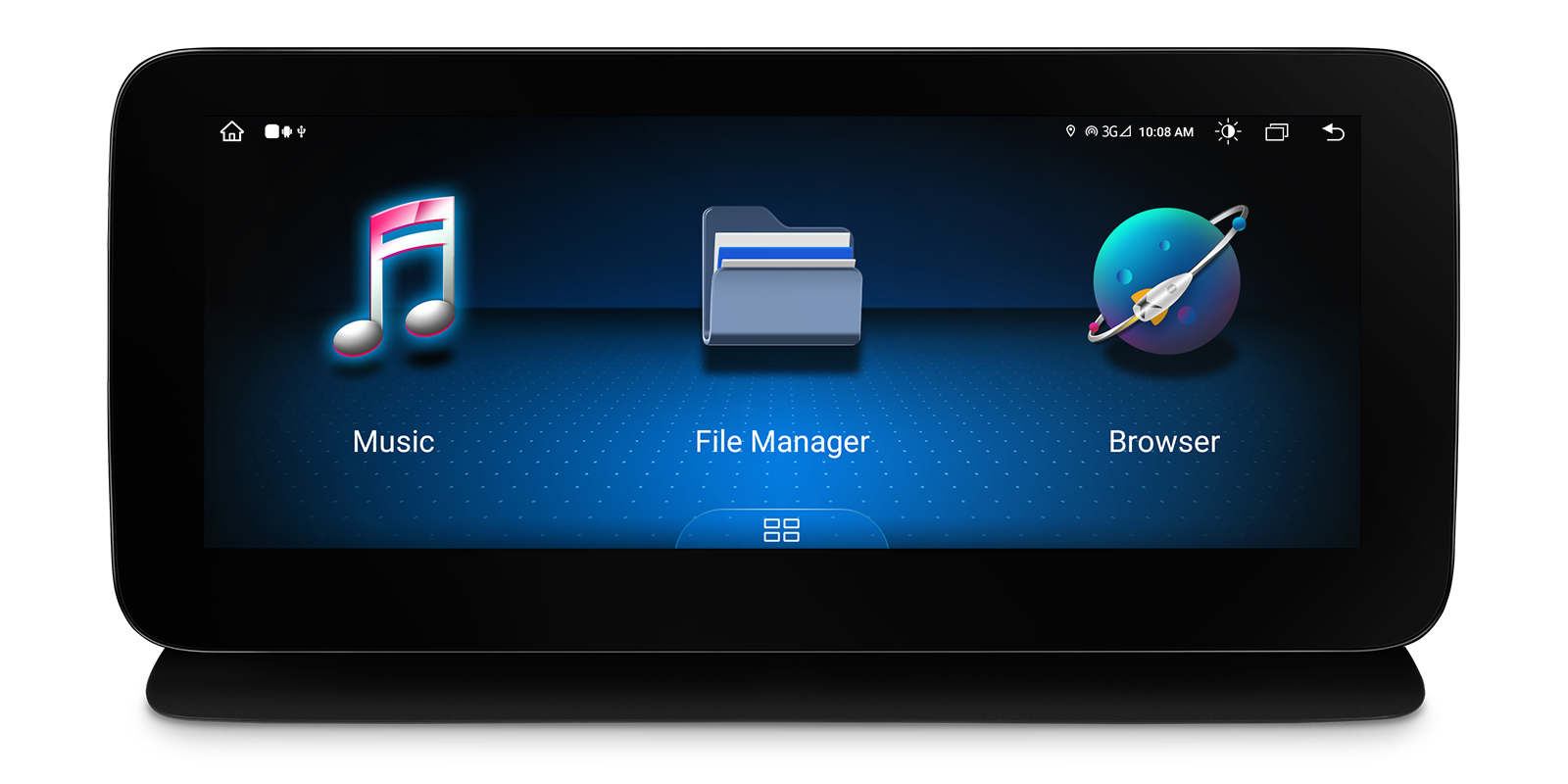

USB gives a wired connection for Android Auto and a way to play media from a USB stick.
The unit has a microphone for hands-free calls and for Siri or Google Assistant voice commands.

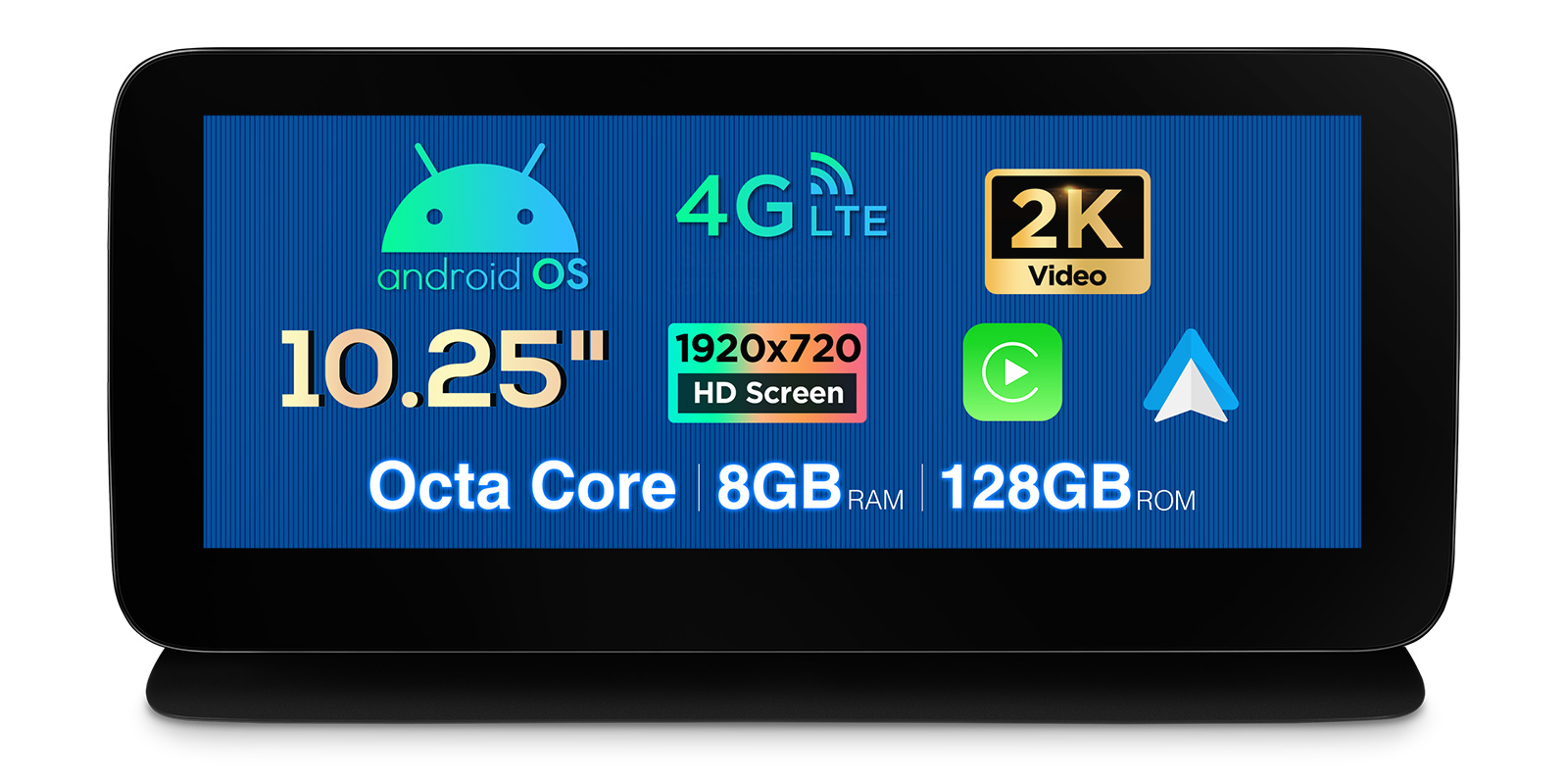

A 12nm octa-core chip with two Cortex-A75 cores at 2.0GHz and six Cortex-A55 cores runs Android 13 with 8GB DDR4 RAM and 128GB of solid state storage, so navigation, music and apps run together without long waits.
| Operating system | Android 13 |
|---|---|
| Processor | 12nm Octa-core chip |
| CPU cores | (2xCortex-A75 2.0GHz + 6xCortex-A55) |
| Memory | 8GB DDR4 RAM and 128GB Solid State ROM |

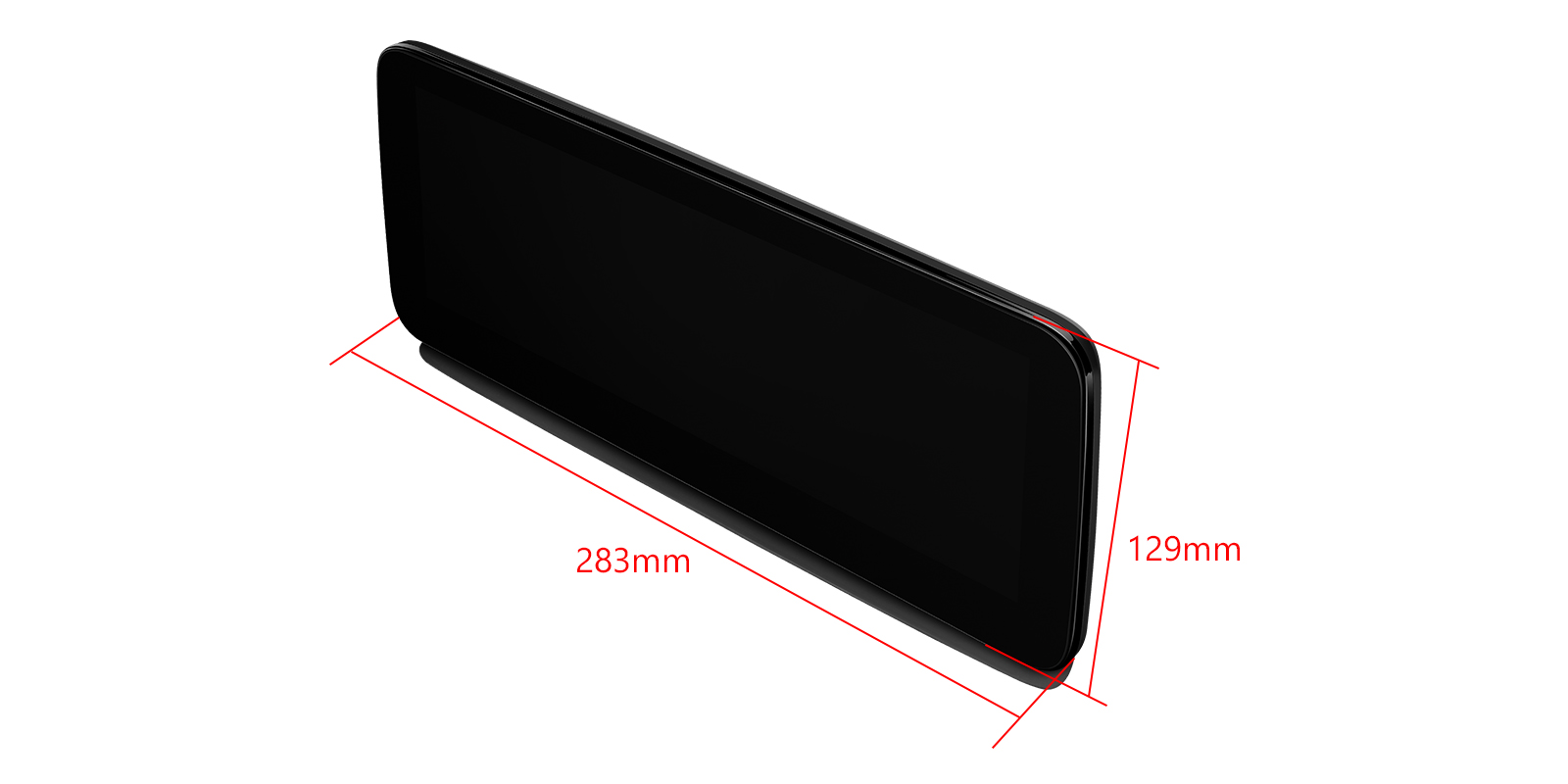

| Screen size | 10.25″ |
|---|---|
| Screen type | QLED Screen |
| Panel | IPS Screen |
| Phone connection | CarAutoPlay supports wireless connection and Android Auto supports both wireless and wired connections. |
|---|---|
| Mobile data | 4G supports internet SIM data ONLY, not phone calls. |
| Wi-Fi | Wi-Fi |
| Audio output | RCA Audio Output |
This is a plug-and-play replacement for the factory display in CLS C218/W218 cars with COMAND APS NTG 4.0. Check your system before ordering: an NTG 4.0 system usually has a 10 pin LVDS port.
An NTG 4.0 system usually has a 10 pin LVDS port and the New Telematic Generation 4.0 interface.
XTRONS QAM1245M12CLS for NTG 4.5 or NTG 4.7, and QAM1250M12CLS for NTG 5.1 or NTG 5.2.
No. The 4G supports internet data only, but you can make voice and video calls through apps.
Yes. The unit works alongside the original system, so the CD player, radio and COMAND stay.
