BMW 1/2 Series 12.3 inch Android Head Unit with Wireless CarPlay, Android Auto and 4G | QLB22NB12NER
In stock

Image 1 of 15.
SKU: UAHP15M639
£319.00
Check if this fits your car

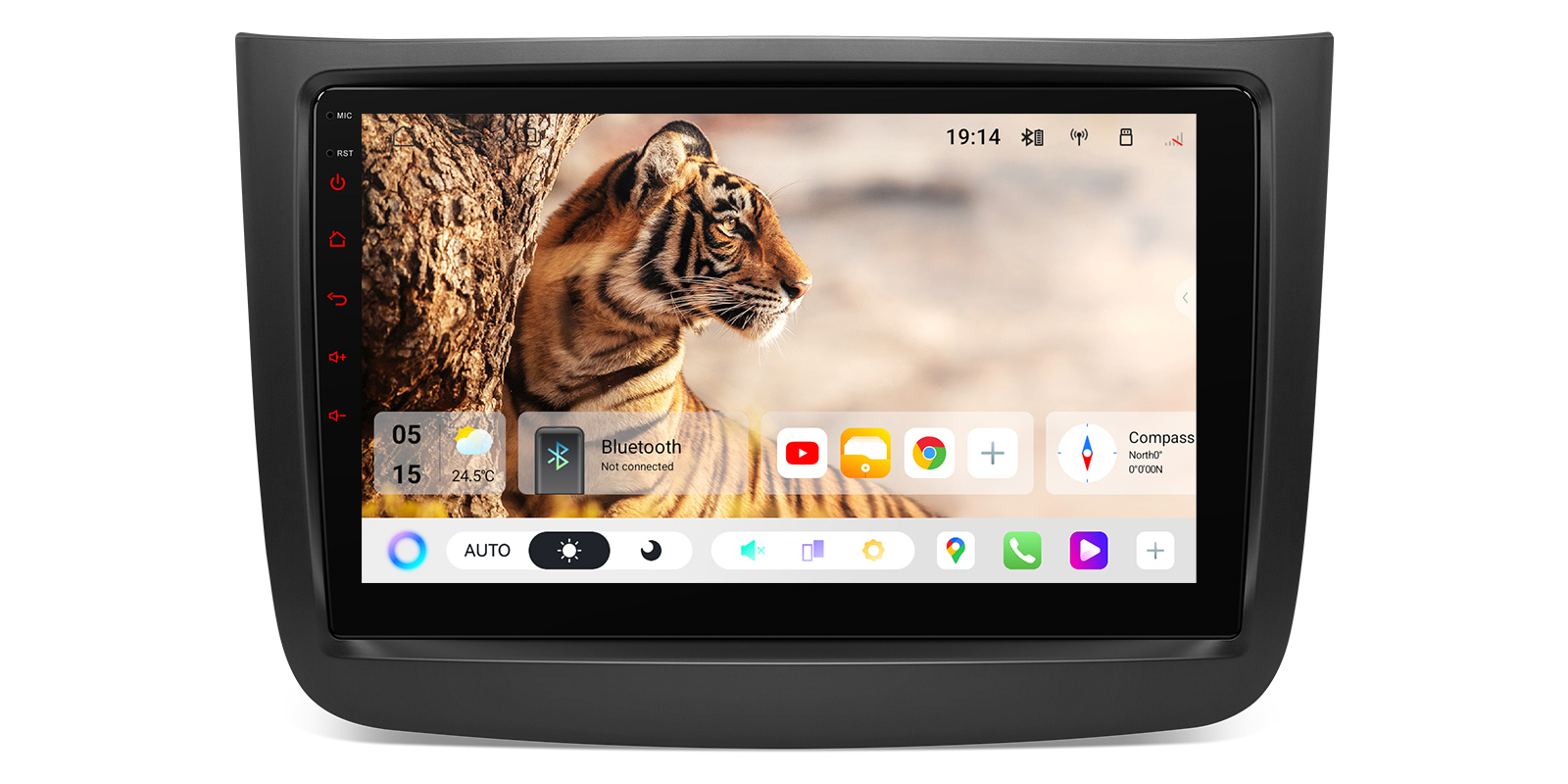

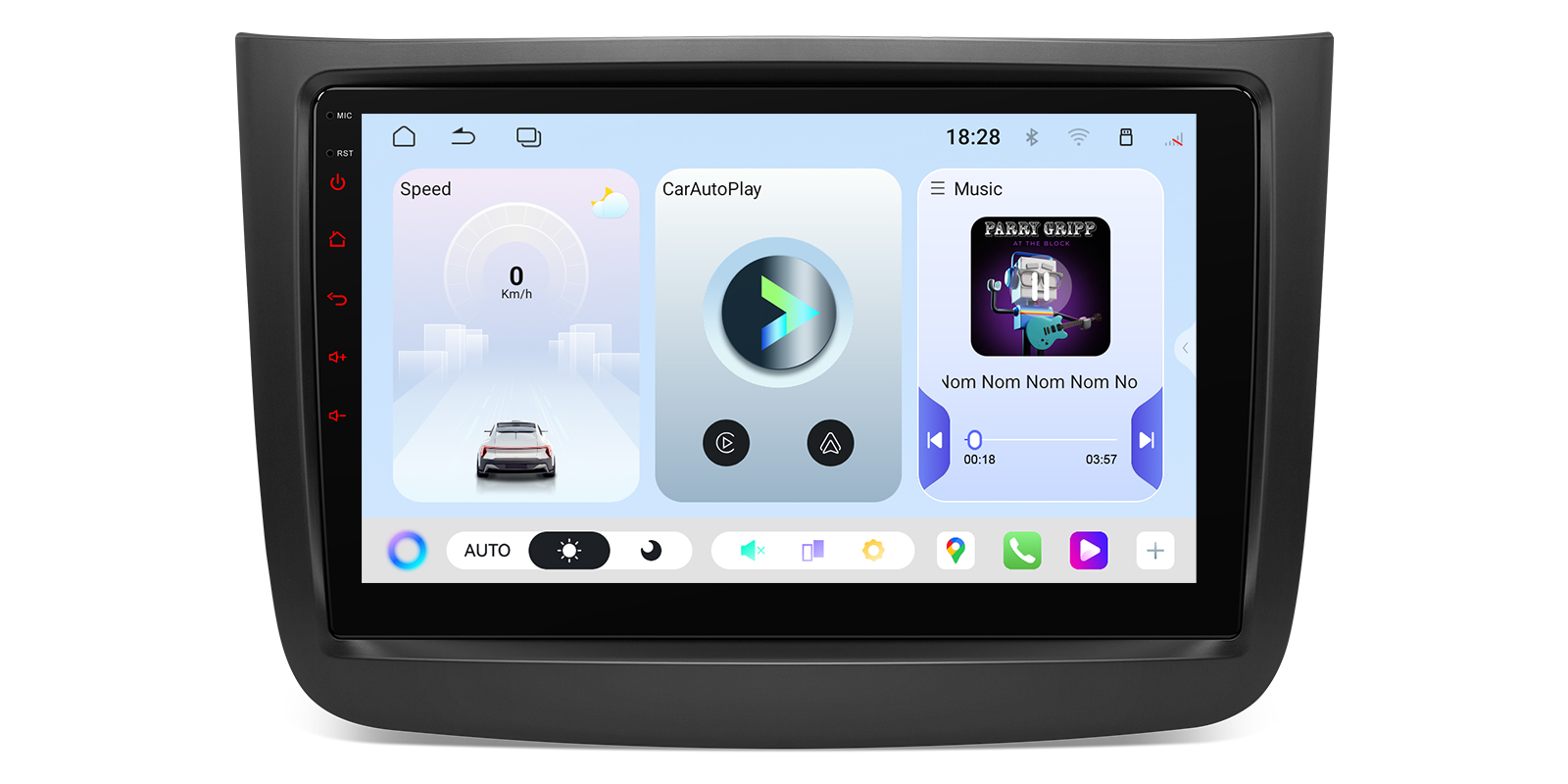

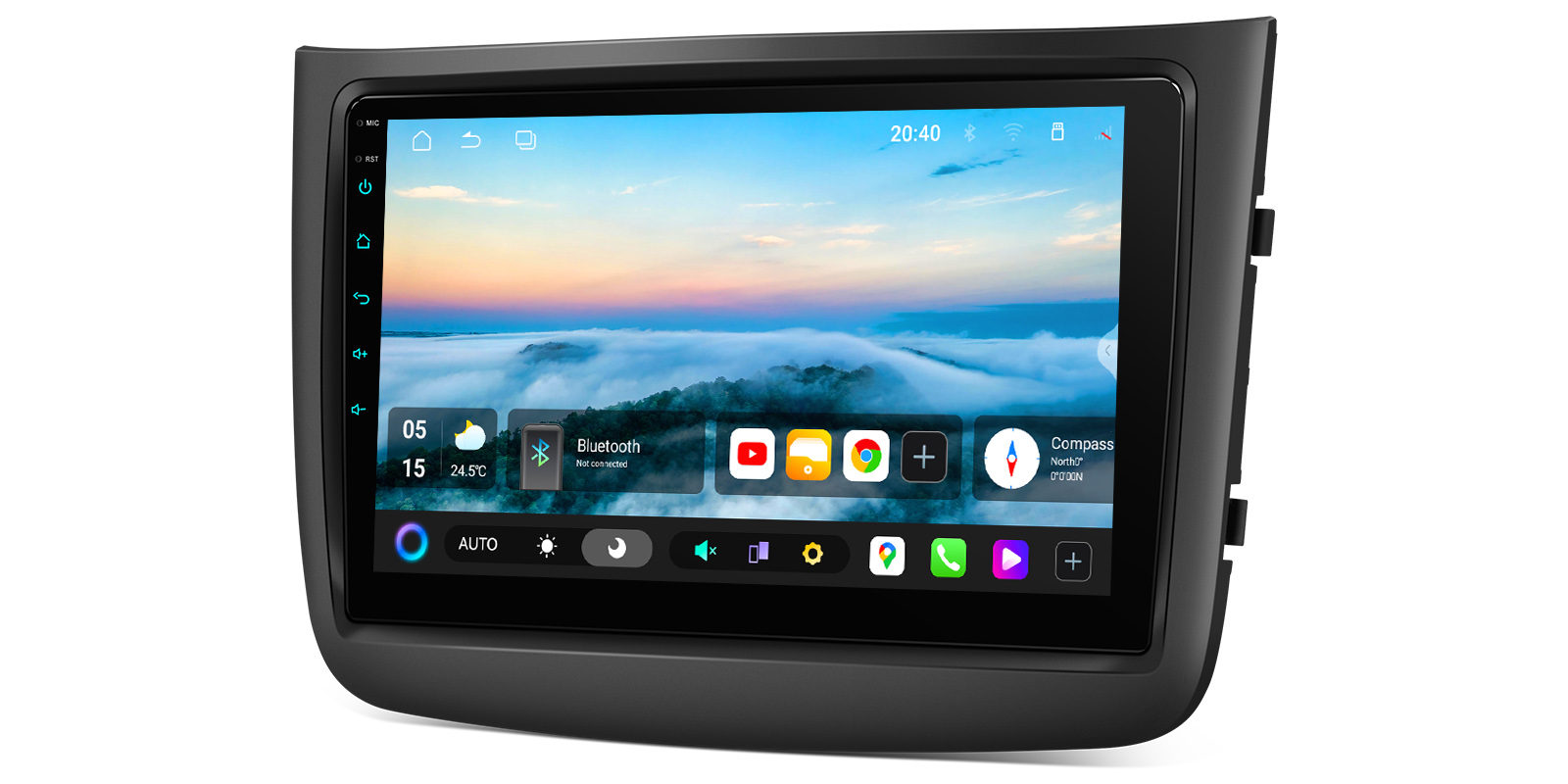

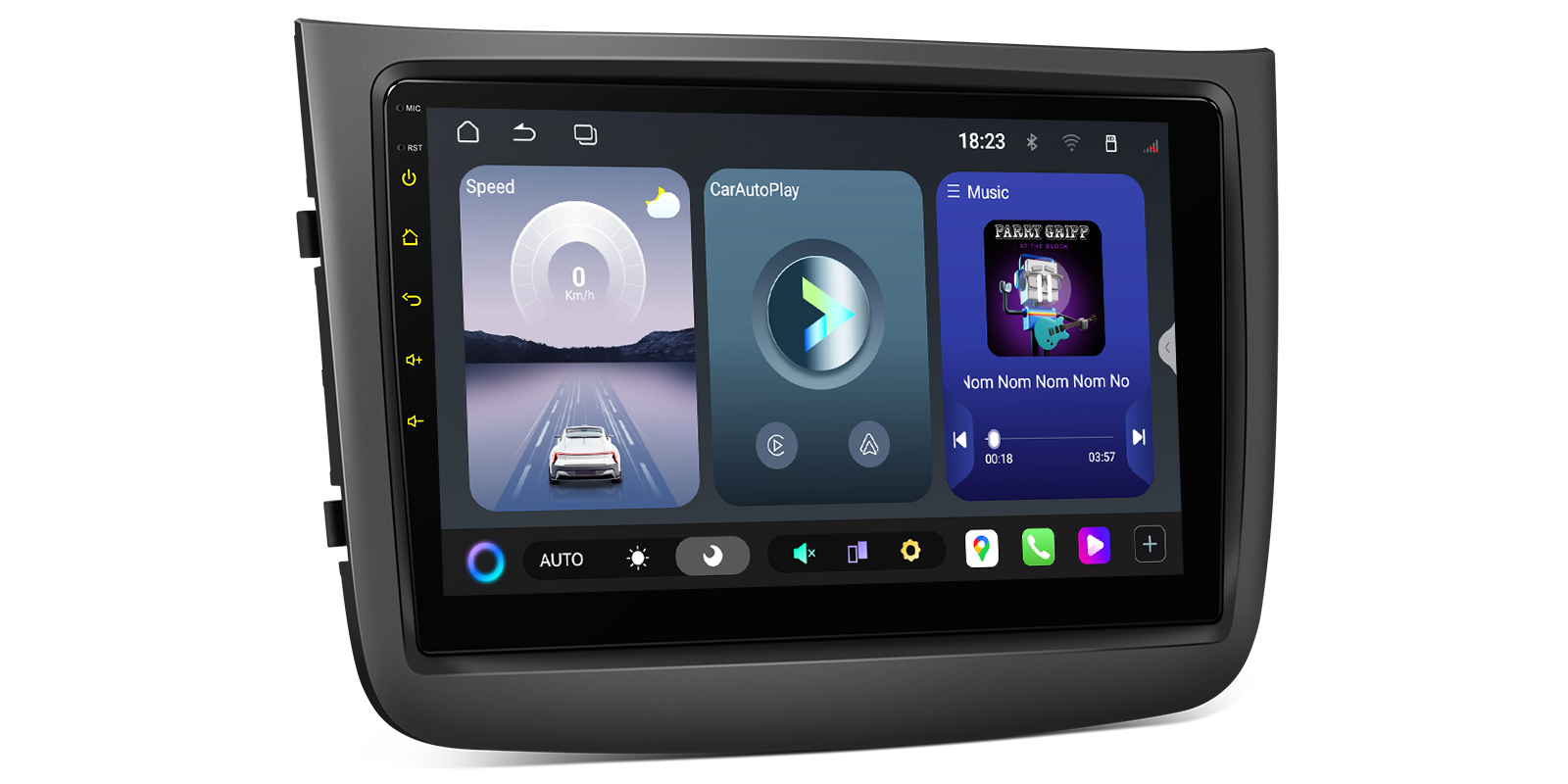

A custom-fit Android 15 head unit for the Mercedes-Benz Vito and Viano W639 (2004-2014), with a 10.1-inch QLED touch screen. It brings wireless Apple CarPlay and Android Auto, built-in 4G and a DSP sound processor to the van's dashboard, replacing the factory radio.

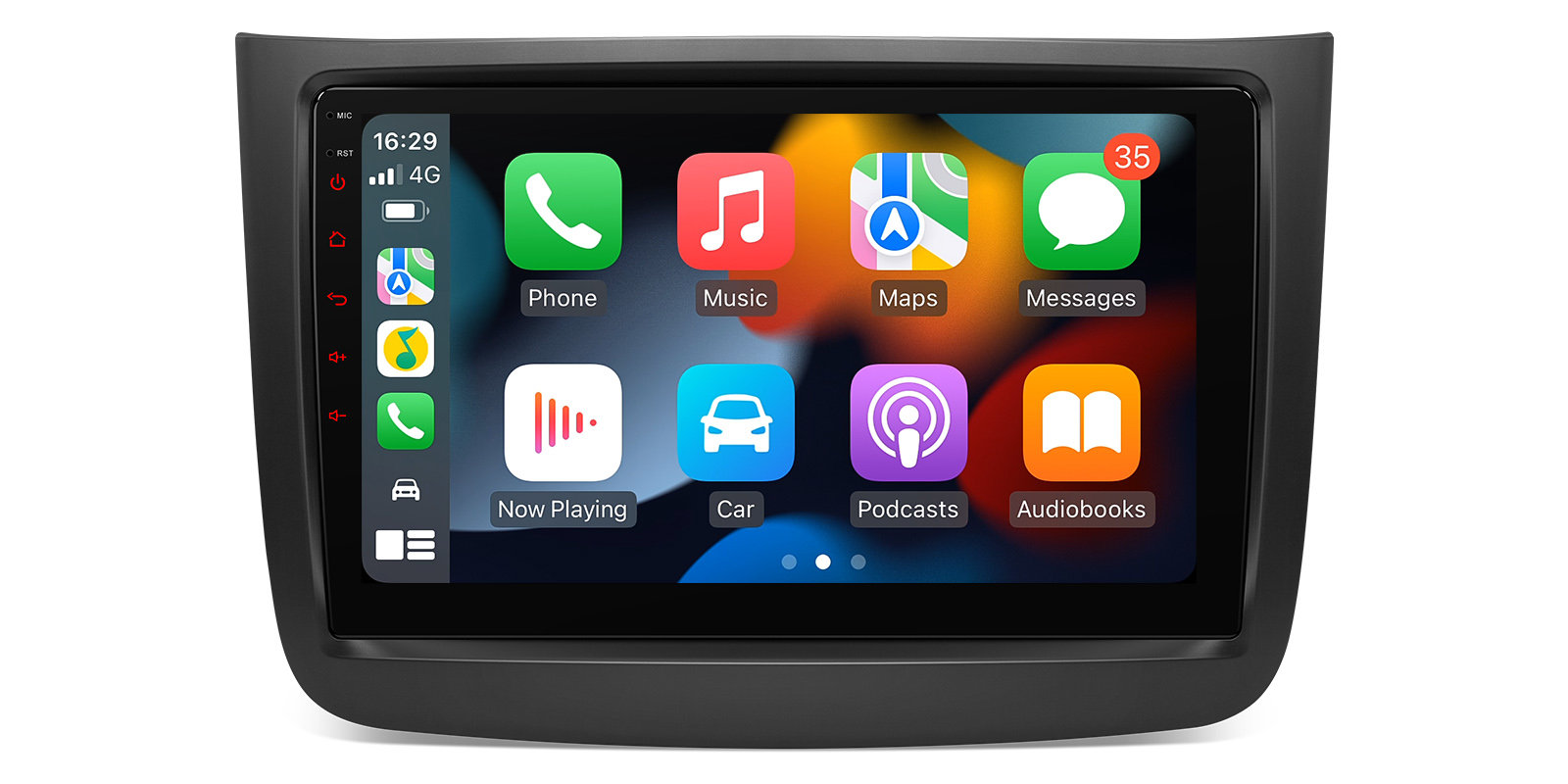

Pair your iPhone once and CarPlay starts on the screen when you get in, without plugging in. Your maps, messages, calls and music apps come up in a layout made for driving, and the phone can stay in your pocket or bag.
If you'd rather charge as you drive, you can plug in with a USB cable and use CarPlay wired instead.

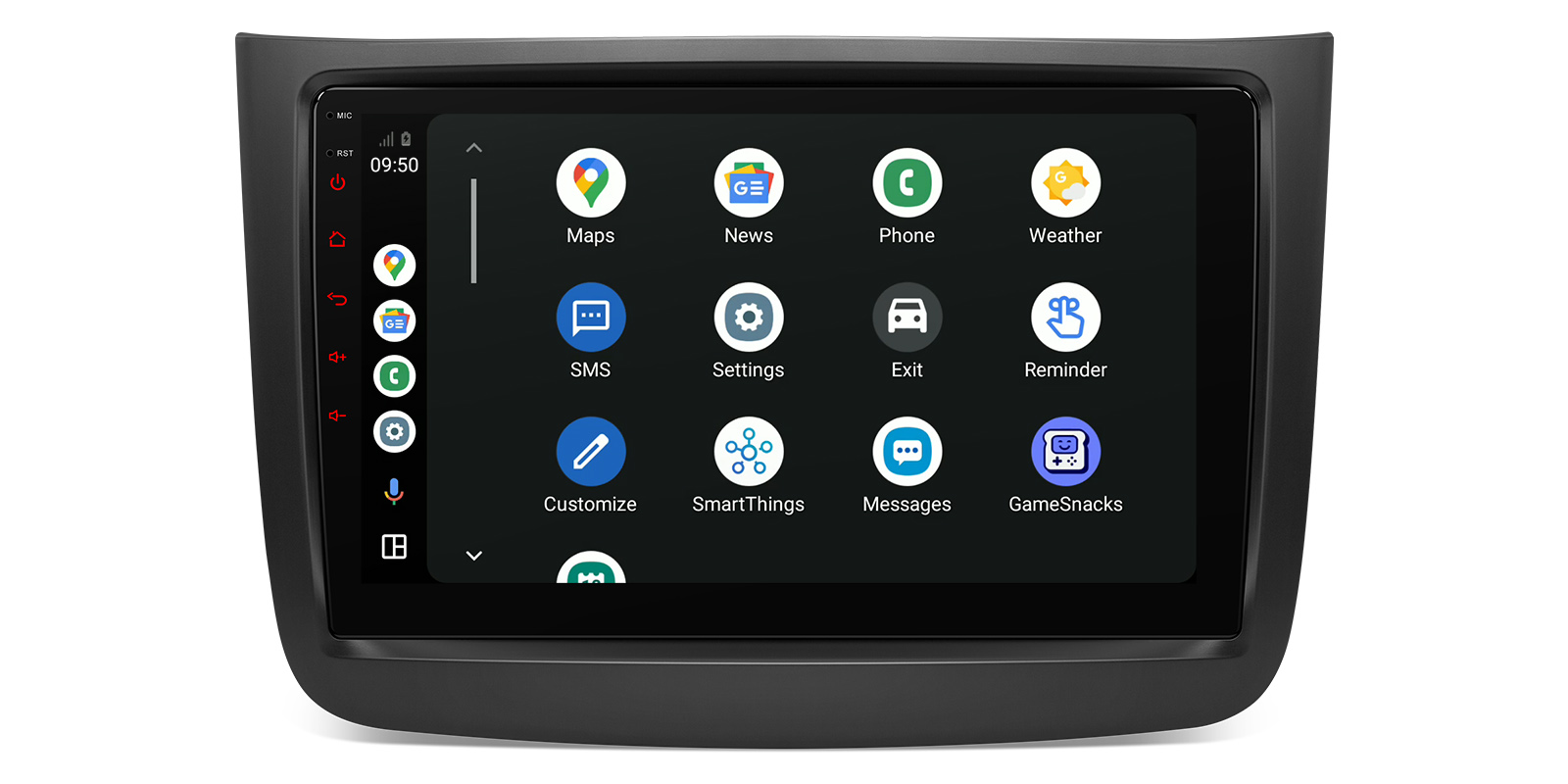

Android phones get the same treatment through Android Auto. It connects wirelessly over Wi-Fi, or through USB if you prefer a cable, and puts navigation, calls and your music apps on the 10.1-inch screen.
The unit has its own 4G LTE modem. Put a standard nano SIM in it and it has an internet connection for maps, streaming and apps, without tethering to your phone.
That's handy on longer runs, as live traffic and music streaming keep working even when your phone is busy or low on battery.
The 10.1-inch QLED panel shows a 1280×720 picture with strong colour, which keeps map details and album art easy to pick out at a glance.
It's a touch screen, so you control everything with a tap or swipe, as you would on a phone.
The screen uses IPS technology, so the picture stays clear when viewed from an angle. In a van, that means the passenger can read the map or pick a track just as easily as the driver.
The built-in DQ7603 DSP lets you shape the sound to suit the cabin and your speakers, so music sounds balanced rather than boomy or thin.
It works alongside the built-in amplifier and the extra audio outputs if you plan to add amplifiers or a subwoofer later.
A STMicroelectronics TCB001HQ amplifier rated at 4x45W drives the speakers directly, so you don't need a separate amplifier for a standard speaker setup.

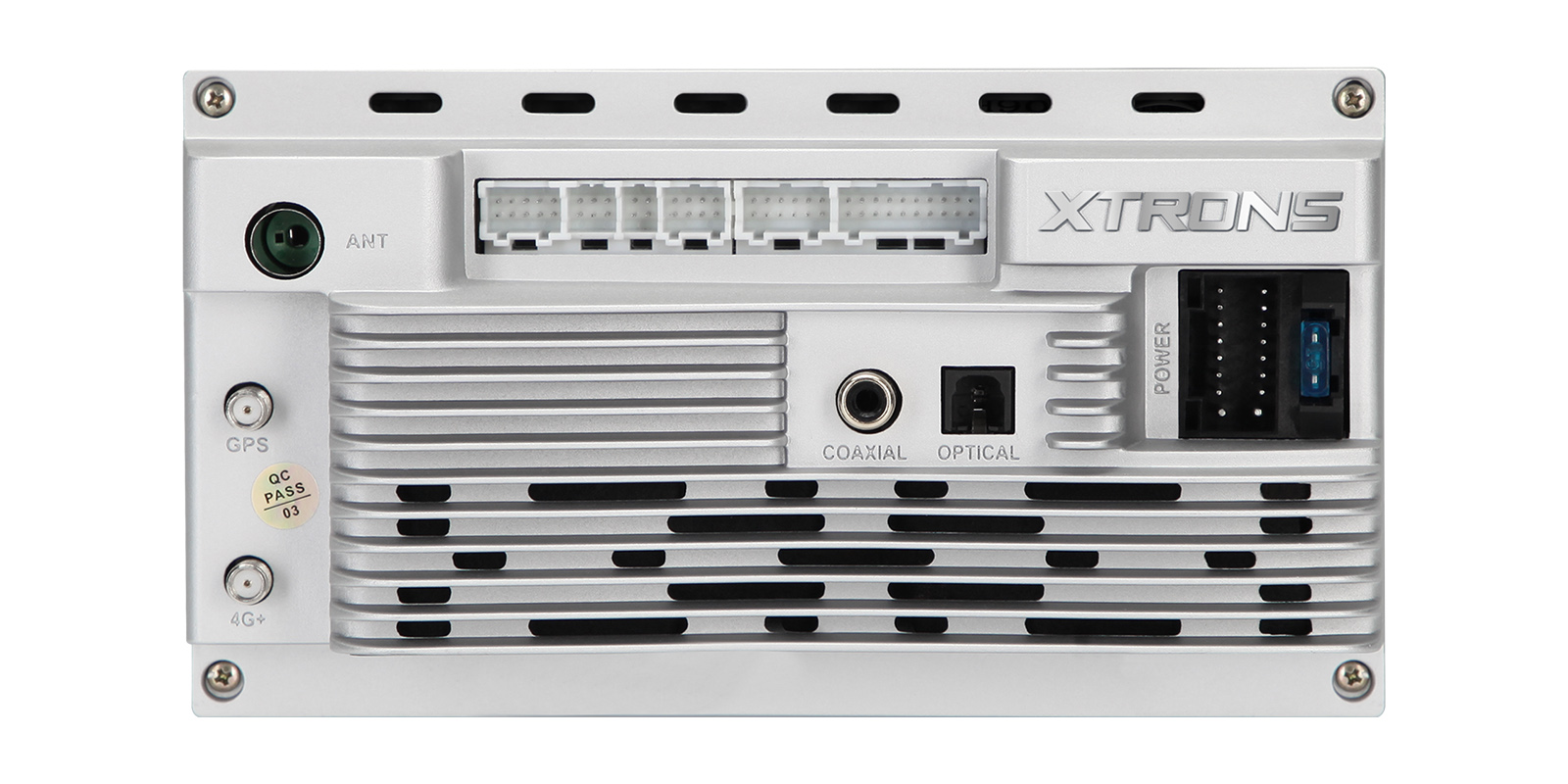

As well as RCA outputs, the unit has optical and coaxial audio outputs. These let you feed an external amplifier or sound processor if you want to build a bigger system around the head unit. An RCA cable is in the box.
Wi-Fi works on both 2.4GHz and 5GHz, so you can connect to a hotspot or home network for app downloads and system updates. The 5GHz band is usually faster and less crowded.
Screen mirroring shows your phone's own screen on the head unit, so you can use an app that doesn't run in CarPlay or Android Auto. Mirroring works when the phone is connected by USB.

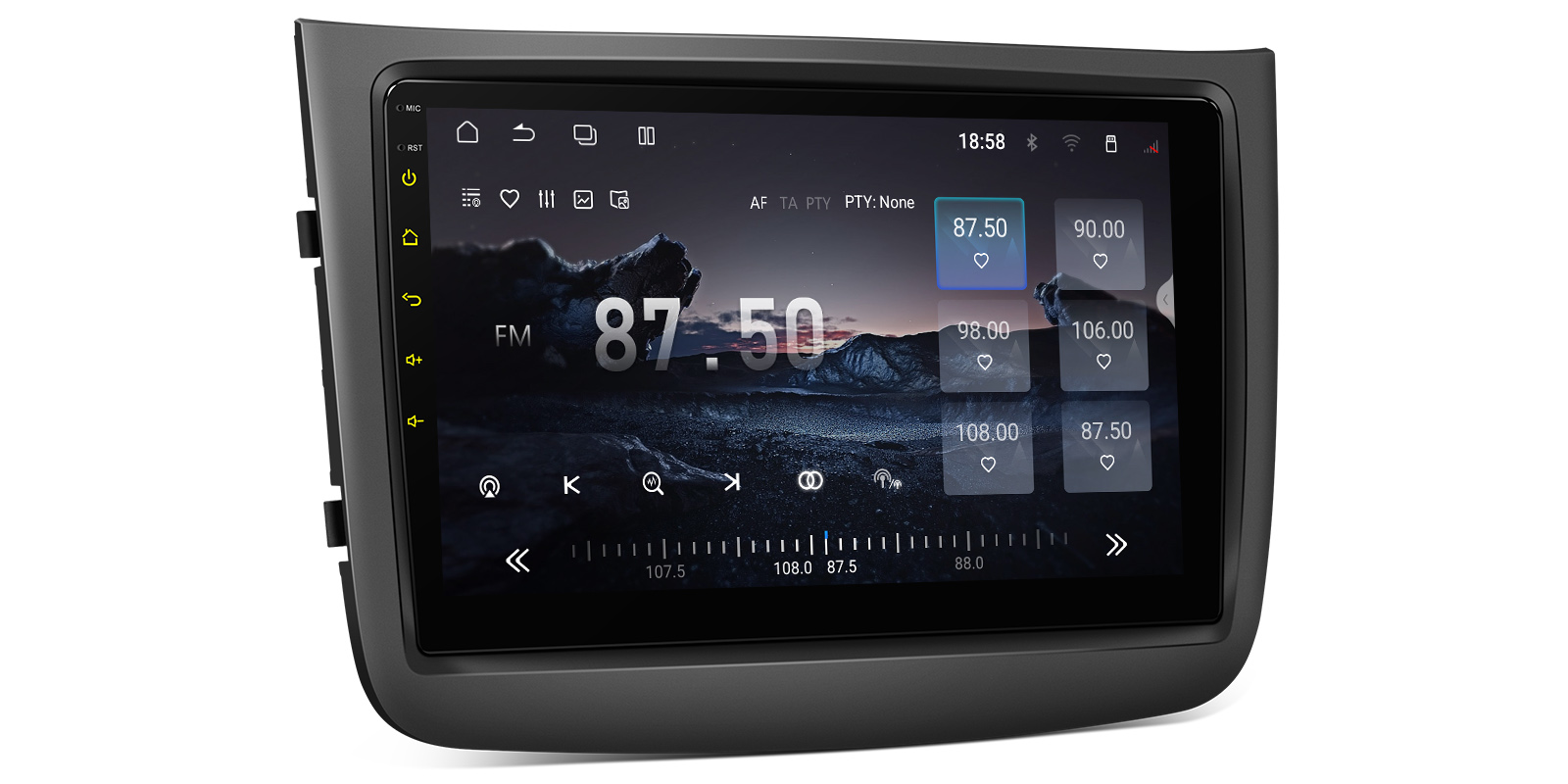

The radio is DAB+ ready: connect an external DAB tuner and you can listen to digital stations. Without one, the built-in RDS-FM/AM tuner handles FM and AM radio and shows station information.
Bluetooth 5.4 handles hands-free calls and streams music from your phone. A microphone comes in the box so callers can hear you clearly.
Connect a 720P or 1080P AHD camera and the picture appears as soon as you select reverse, which makes backing a van into a tight space far easier. The camera connection is part of the wiring harness, and a camera cable is included.

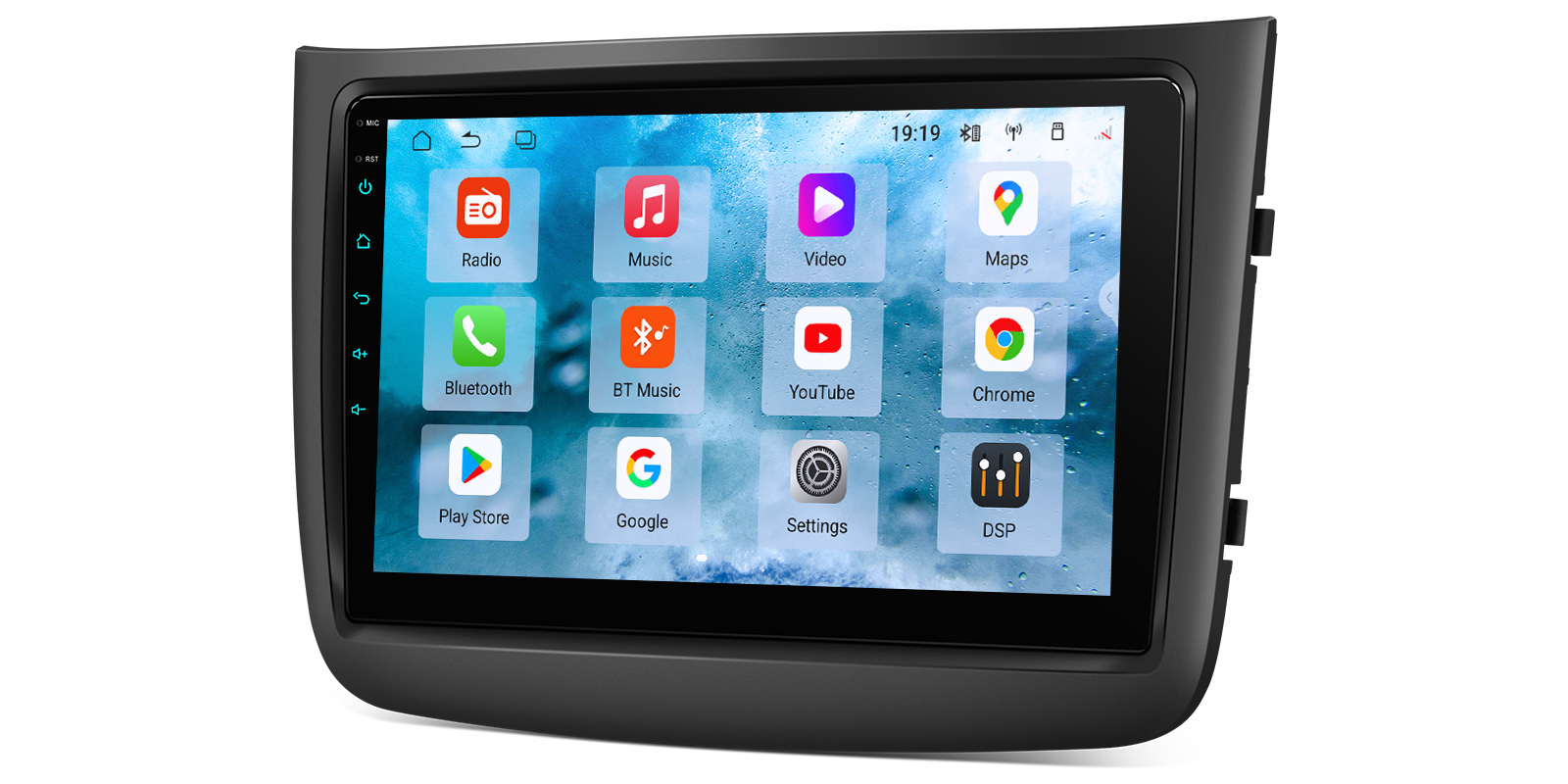

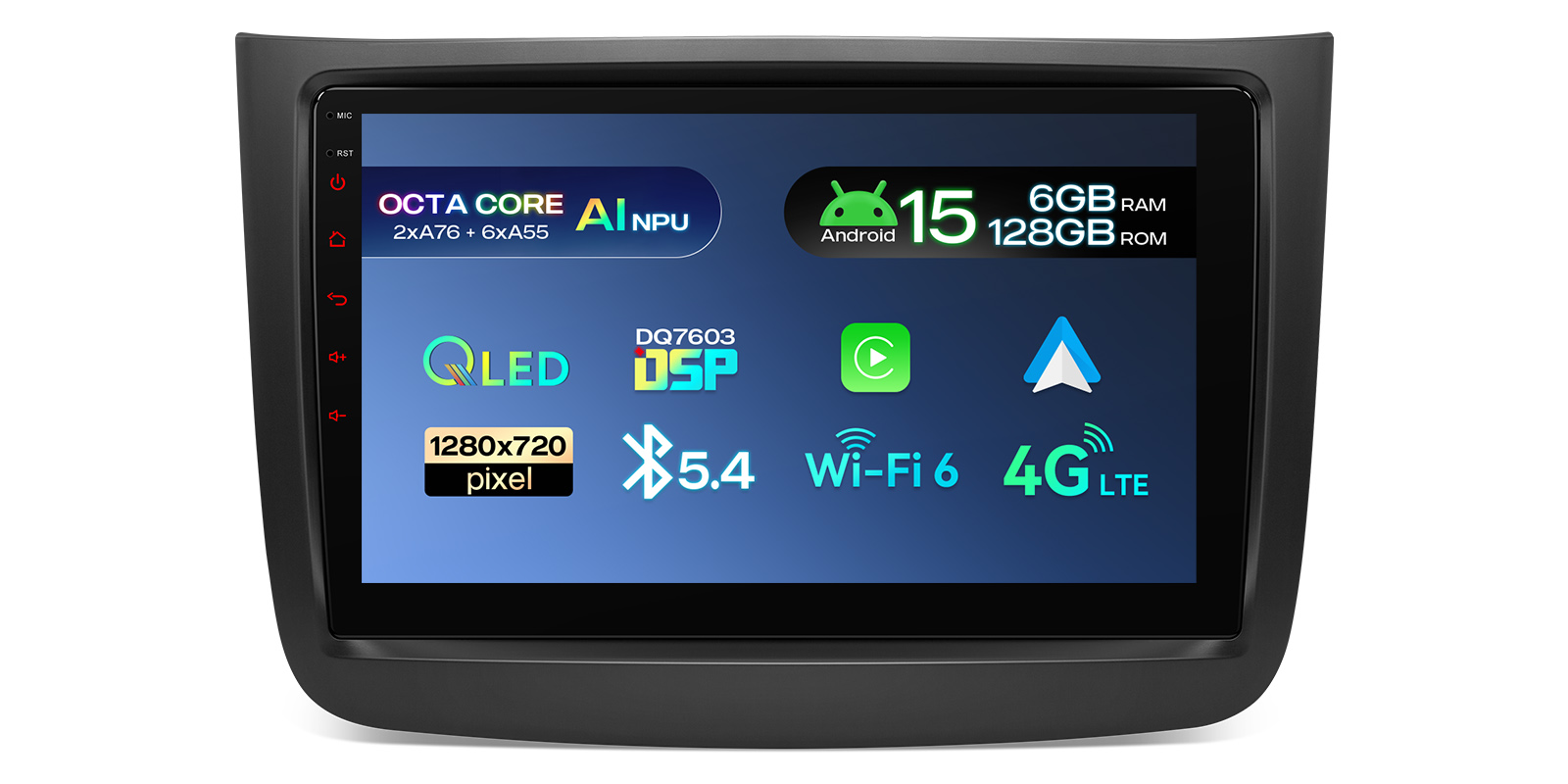

Android 15 runs on an ASR8662 octa-core processor with 6 GB of DDR4 RAM and 128GB of UFS 2.2 storage, which leaves room for your apps and keeps them quick to open.
From cold it starts in 50 seconds, and from a warm start it's ready in 1 second. A cooling system keeps performance steady on long drives.

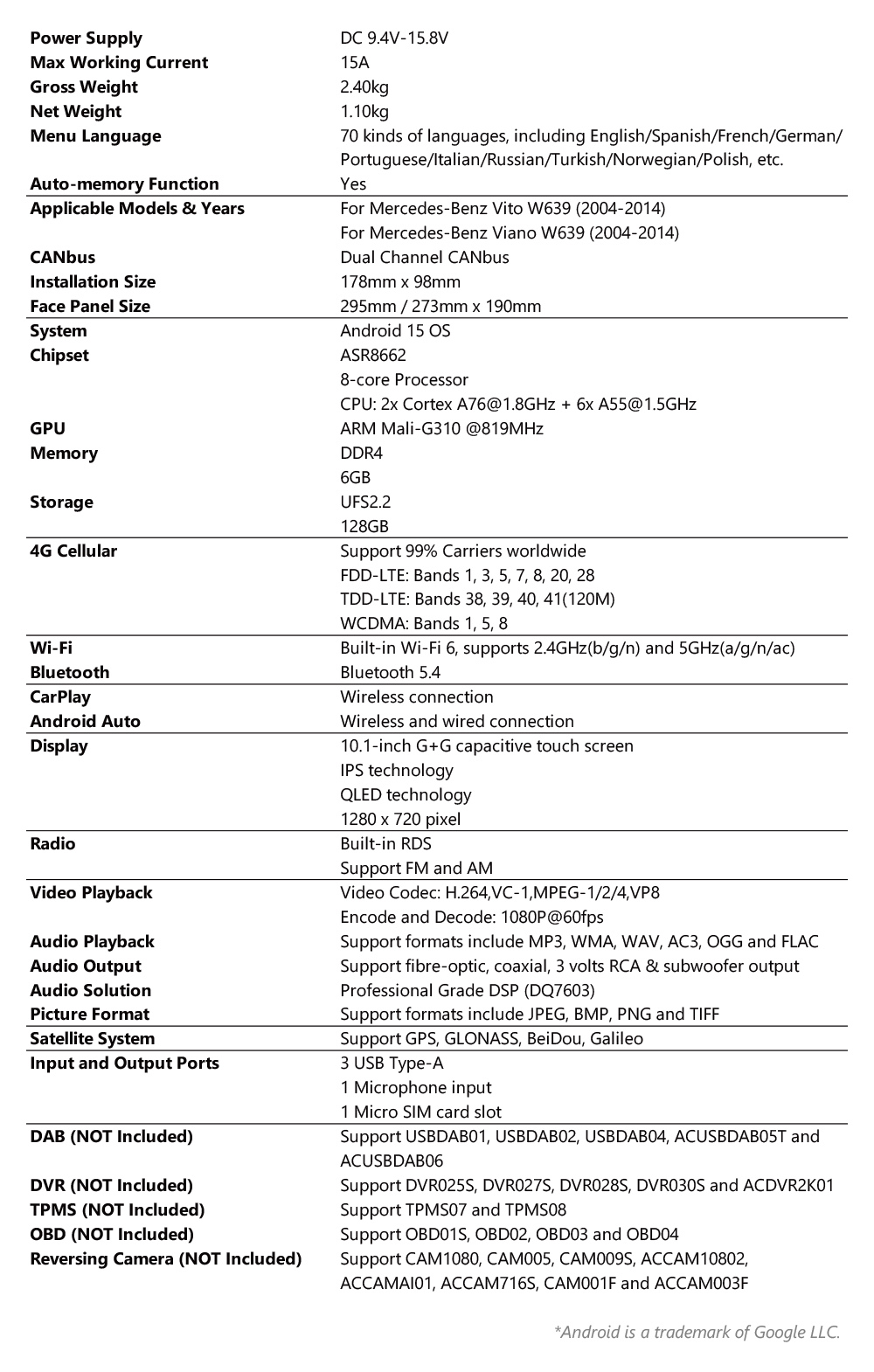

| Operating system | Android 15 |
|---|---|
| Processor | ASR8662 Octa-Core CPU |
| RAM | 6 GB DDR4 RAM |
| Storage | 128GB UFS 2.2 ROM |
| Boot time | 50 seconds cold start, 1 second warm start |
| Screen | 10.1-Inch Grade-A HD IPS QLED Screen |
|---|---|
| Resolution | 1280×720 |
| DSP | DSP DQ7603 |
|---|---|
| Amplifier | STMicroelectronics TCB001HQ amplifier (4x45W) |
| Audio outputs | optical, coaxial, and RCA outputs |
| Radio | RDS-FM/AM tuner |
| Bluetooth | Bluetooth 5.4 |
|---|---|
| Wi-Fi | Dual Band WiFi (2.4GHz & 5GHz) |
| Mobile data | Built-in Global 4G LTE Module |
| Navigation | GPS, Galileo, GLONASS, and BEIDOU |
| Camera | 720P/1080P AHD cameras |
|---|

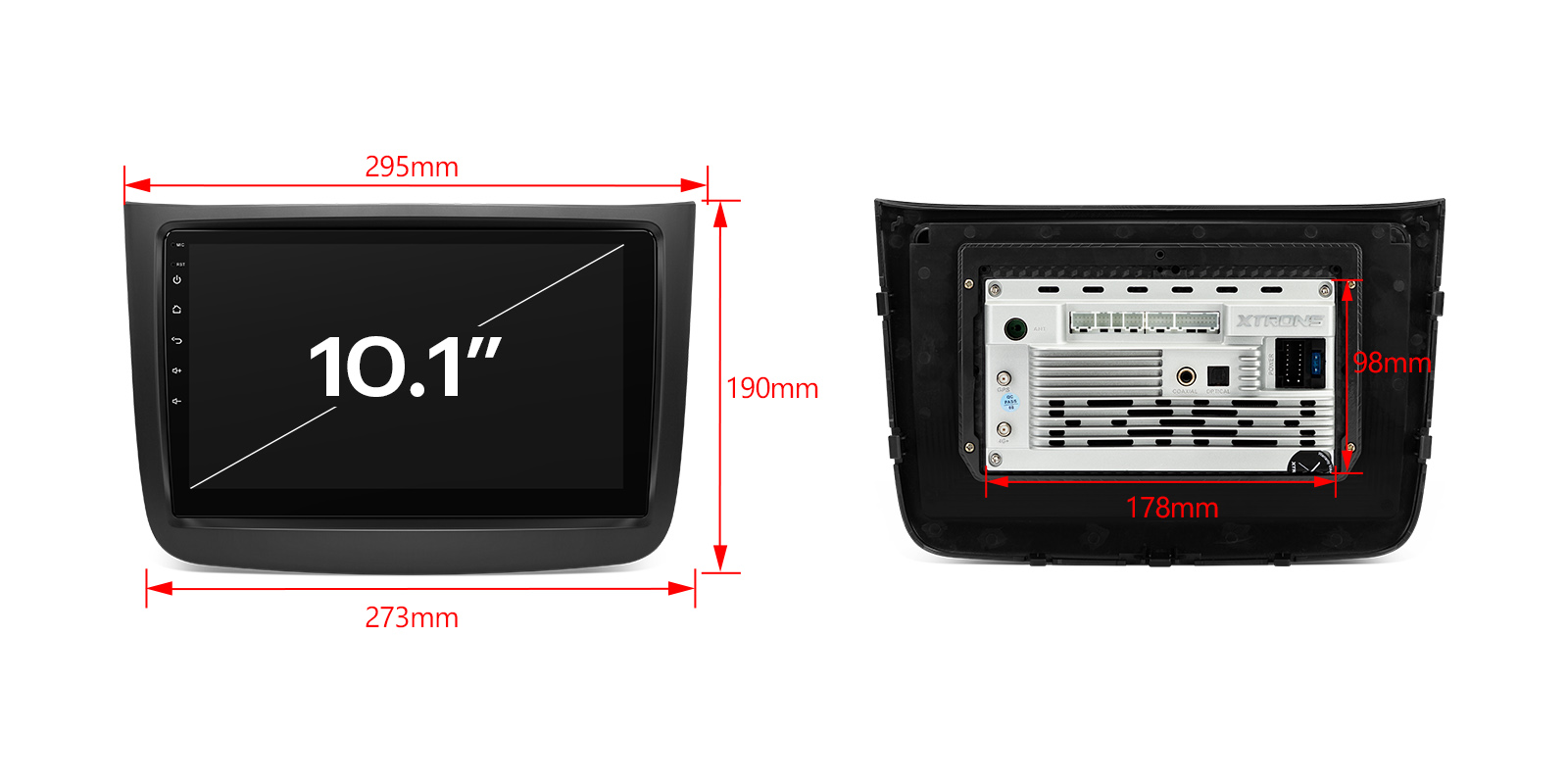

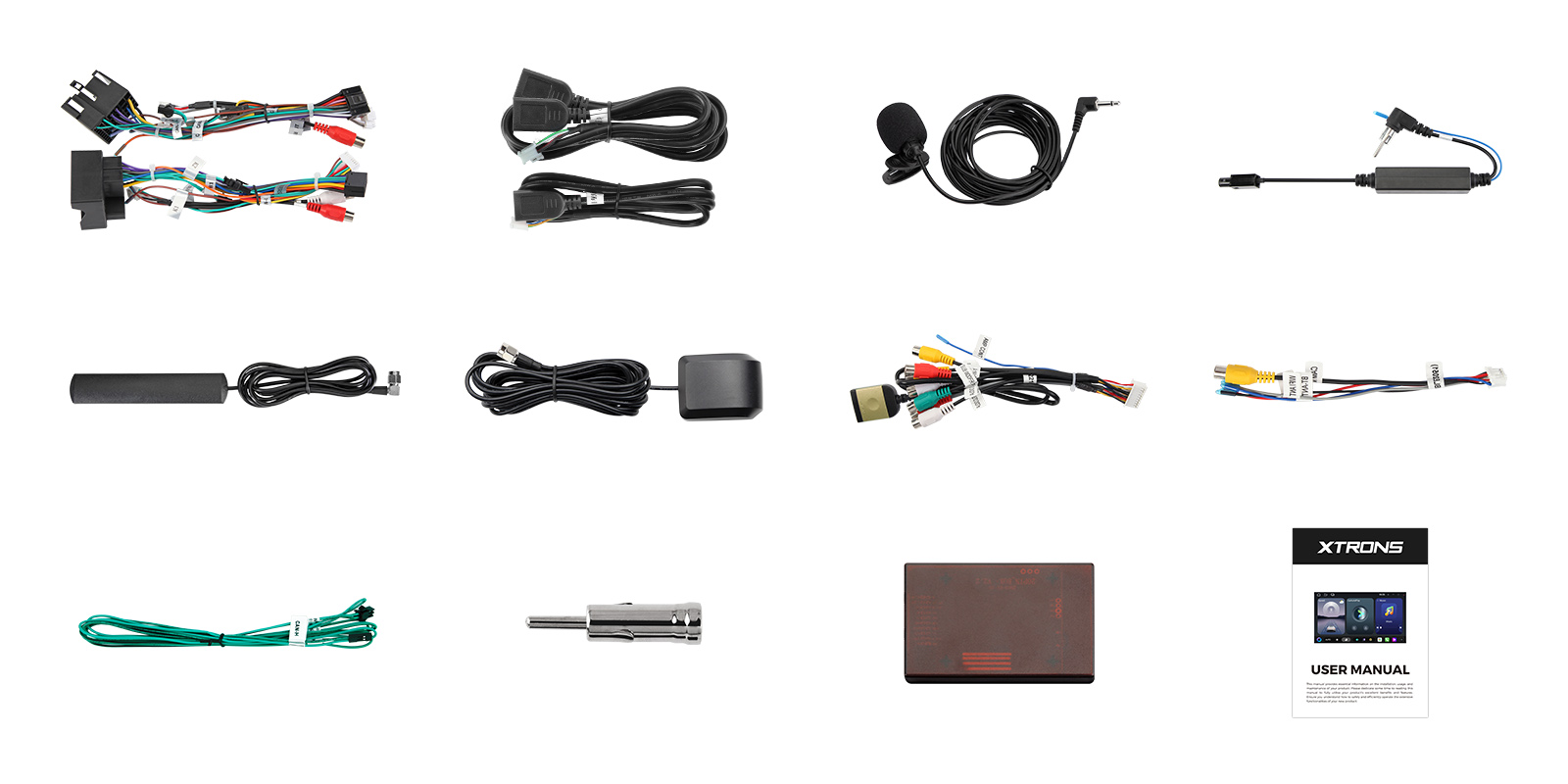

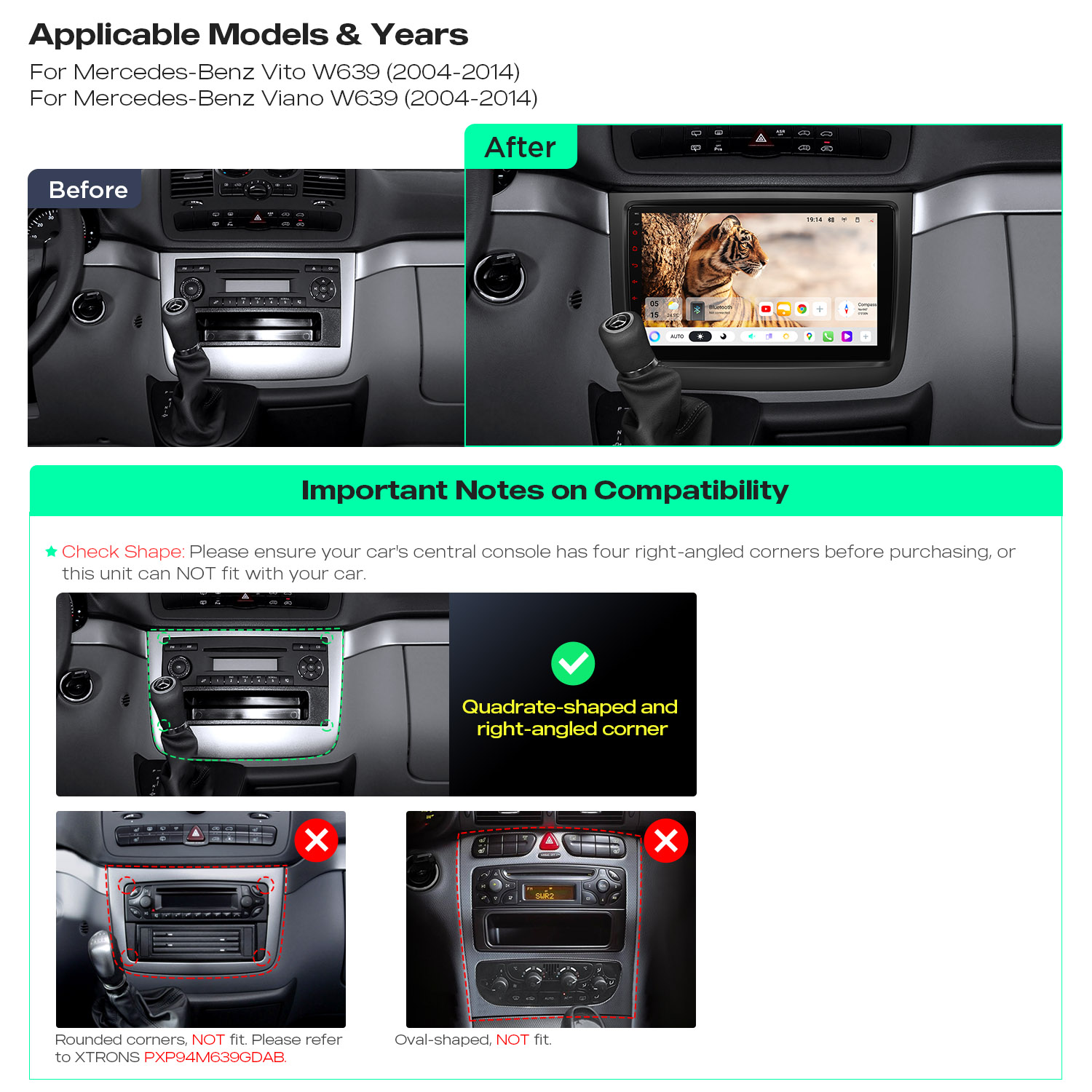

The unit is a custom fit for the Vito and Viano W639 dashboard and comes with an ISO wiring harness, a CANbus box and extension, and a radio antenna adapter. Before ordering, check that the centre console opening has four right-angled corners, as the unit won't fit otherwise.
Yes. The unit has a built-in 4G LTE modem that takes a standard nano SIM, and a 4G antenna is included.
Both. You can connect wirelessly, or plug in by USB for a wired connection, which also allows screen mirroring.
Yes. It works with 720P and 1080P AHD cameras, and the camera picture shows when you select reverse.
It's made for the Mercedes-Benz Vito and Viano W639 (2004-2014). Check your centre console has four right-angled corners before ordering.
It's DAB+ ready and needs an external DAB tuner for digital radio. FM and AM work through the built-in RDS tuner.
