Mercedes-Benz E-Class W211 and CLS W219 9″ Android Head Unit with Wireless CarPlay and 4G | IMHP94M211
SKU: IMHP94M211
£305.99Was £359.99Save £54.00
Check if this fits your car
1
Key specifications
- System
- Android 14 OS (UFS 2.2 High-Speed Storage)
- Chipset
- Unisoc 7865 Octa-Core (2x A75 @ 2.2GHz + 6x A55 @ 1.8GHz)
- Memory
- 8GB RAM + 128GB ROM
- Screen
- 9″ QLED IPS (1280×720) – G+G Tempered Glass
- Audio output
- Optical, Coaxial, RCA (Supports AKM 7604 DSP & 36-Band Equalization)
- Amplifier
- TDA7851 amplifier (4x 48W output)

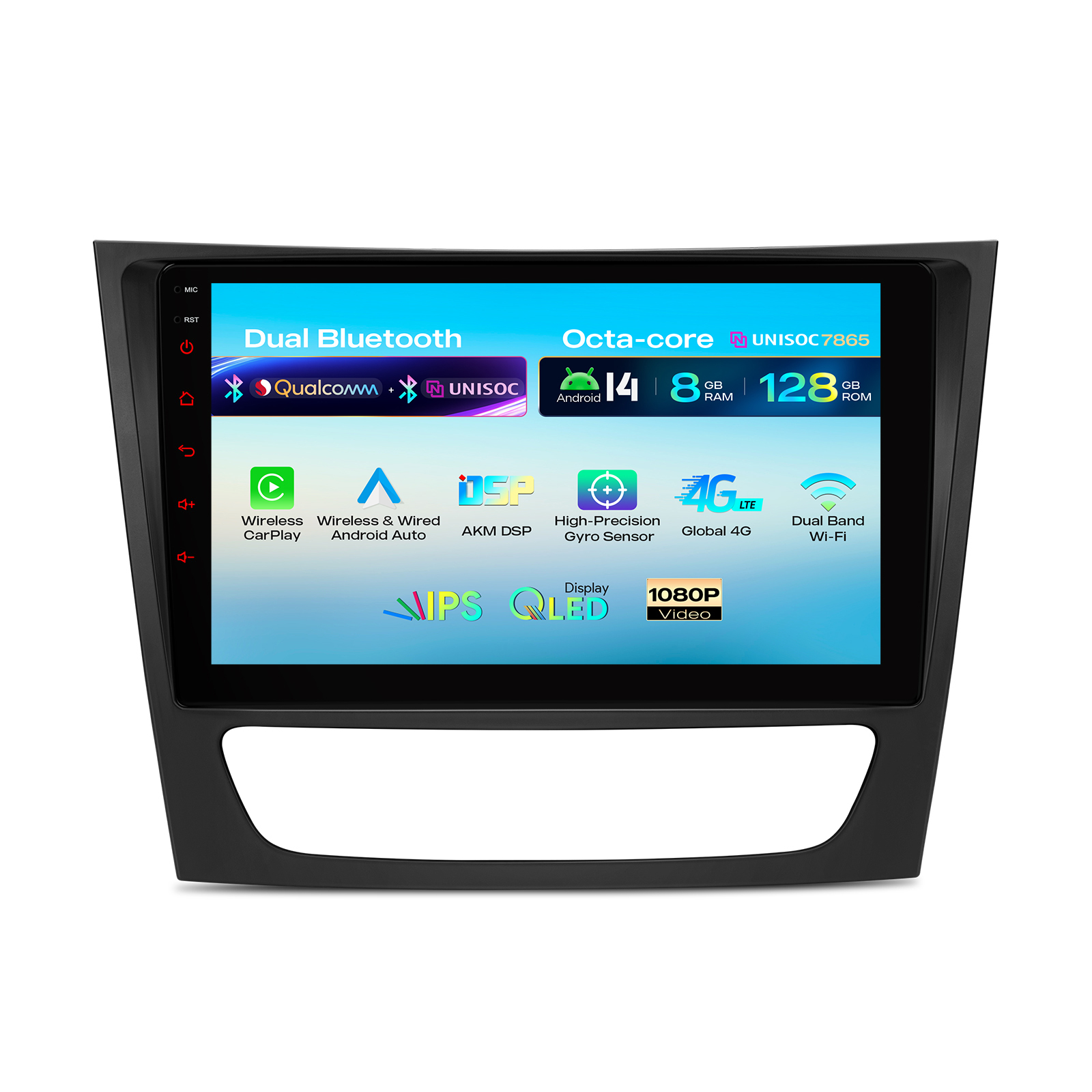

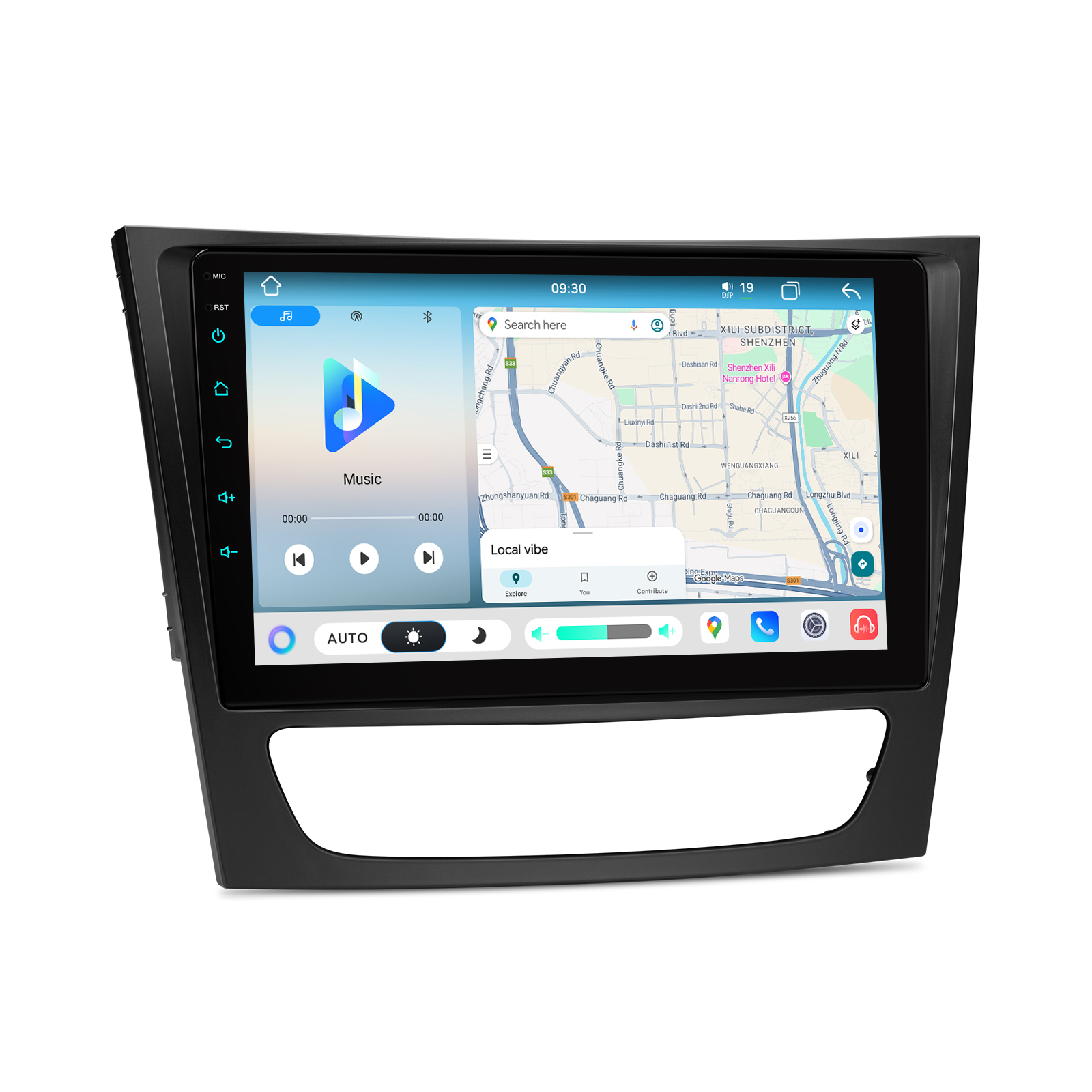

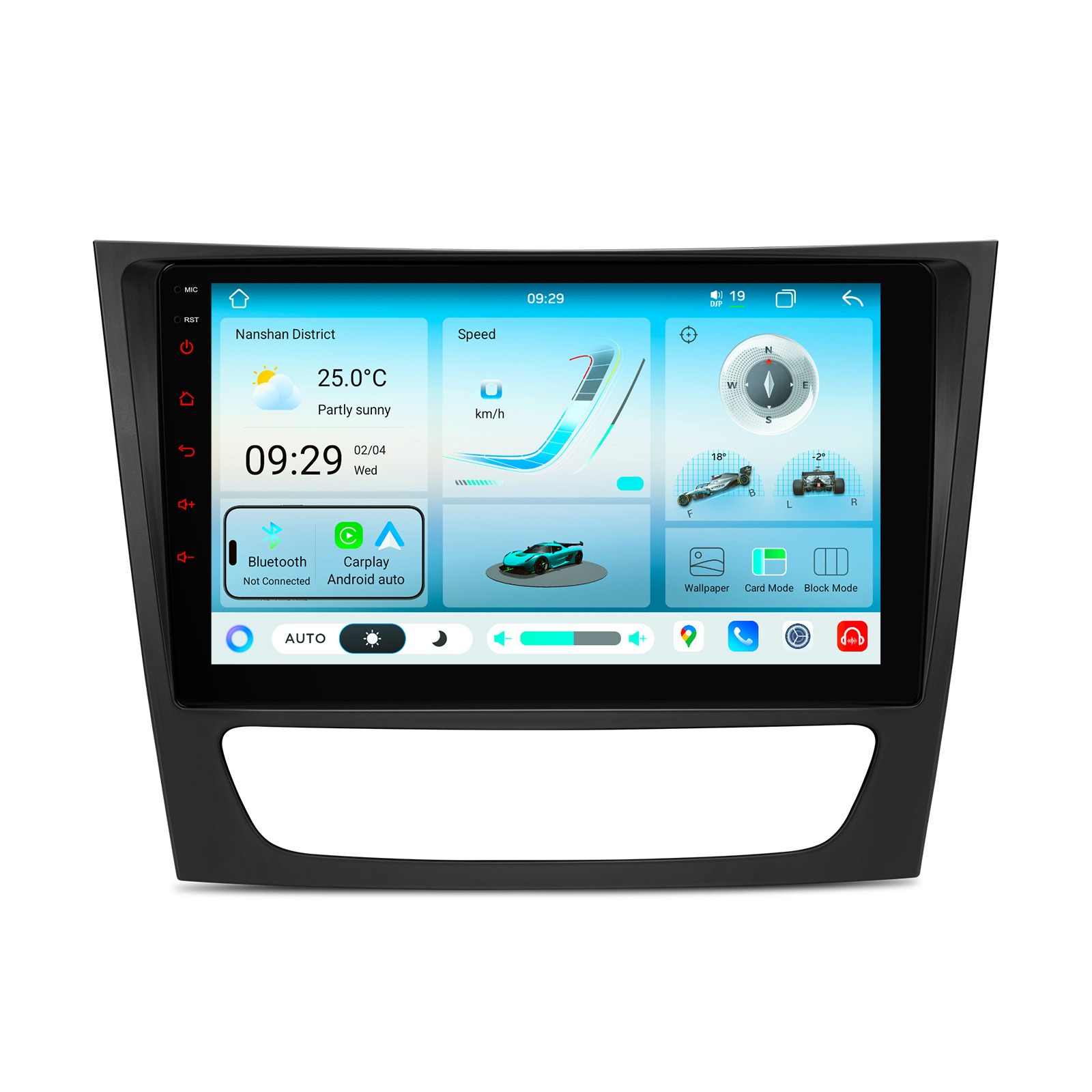

XTRONS IMHP94M211 is a 9″ Android 14 head unit for the Mercedes-Benz E-Class W211 and CLS-Class W219. It brings wireless CarPlay and Android Auto, built-in 4G and an AKM DSP, while CANbus keeps factory features such as ACC and door reminders.
- Wireless CarPlay and Android Auto over dual-band Wi-Fi
- 9″ QLED IPS screen at 1280×720 with G+G tempered glass
- AKM 7604 DSP with 36-band equalisation
- Optical, coaxial and RCA audio outputs
- Global 4G LTE with a Micro-SIM
- Unisoc 7865 Octa-Core with 8GB RAM and 128GB ROM

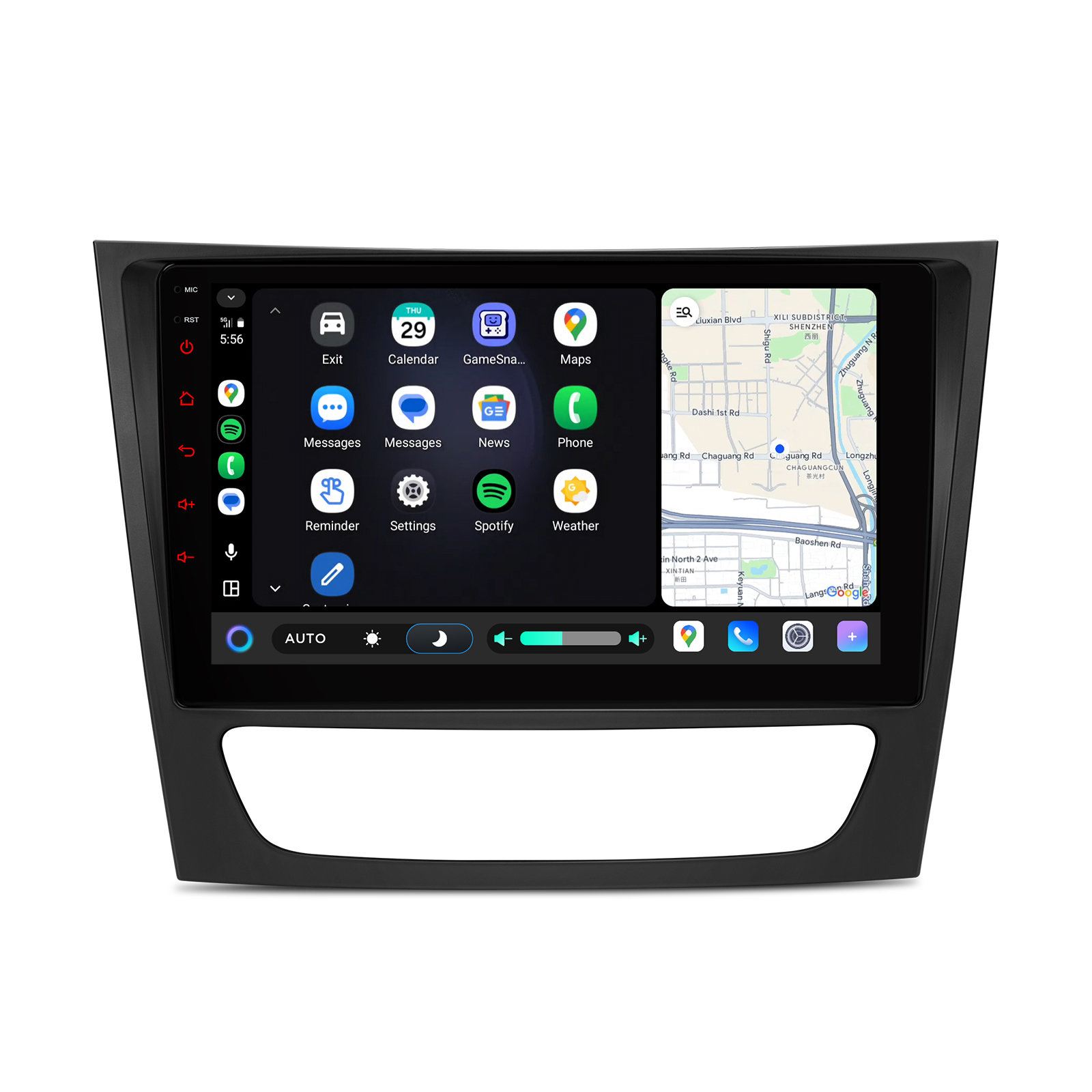

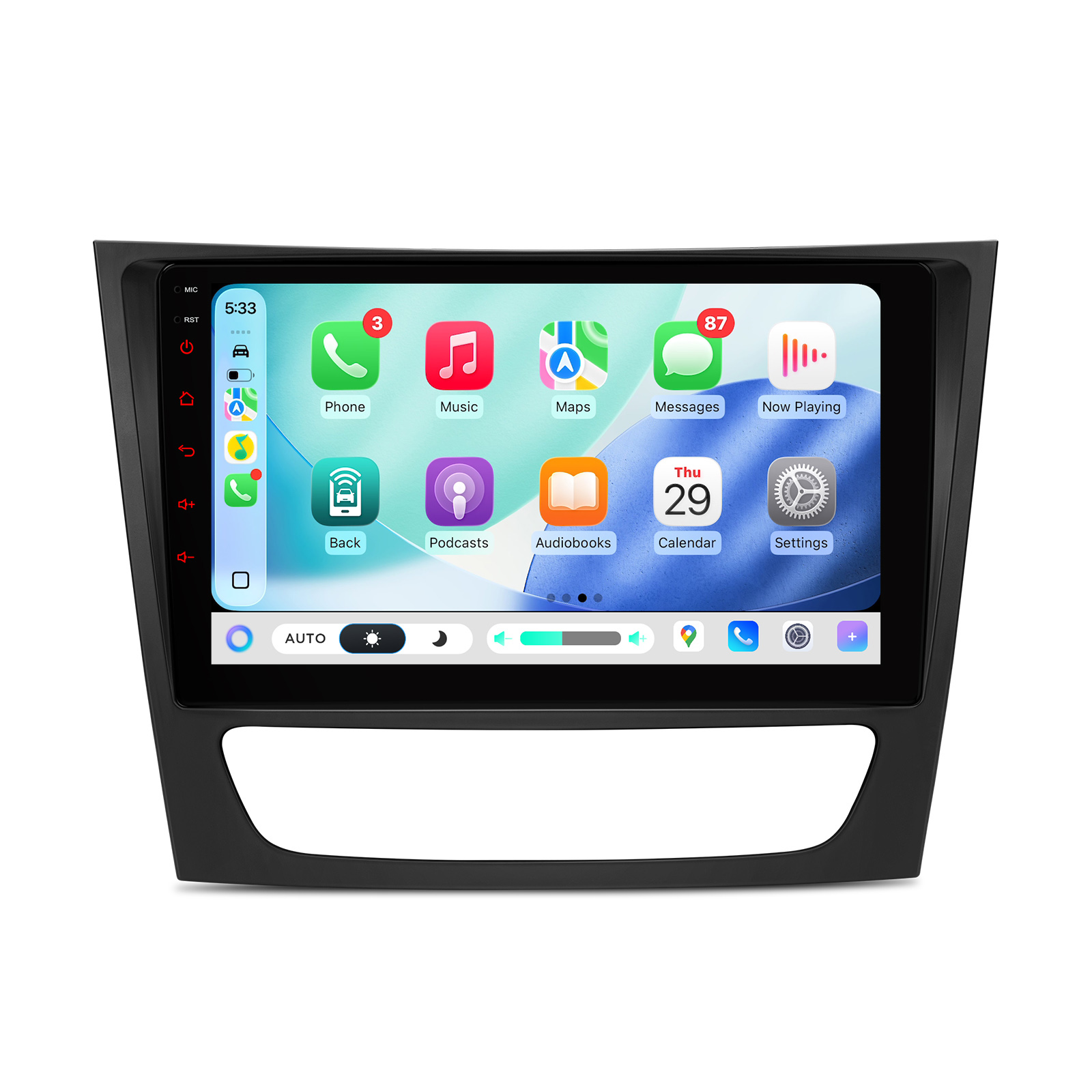

Wireless Apple CarPlay
CarPlay connects over Wi-Fi without a cable, so your iPhone can stay put. Maps, calls, messages and music come up on the 9″ screen, and Siri takes requests by voice.
Wireless Android Auto
Android phones connect wirelessly too, putting Google Maps, music apps and calls on the head unit with voice control.

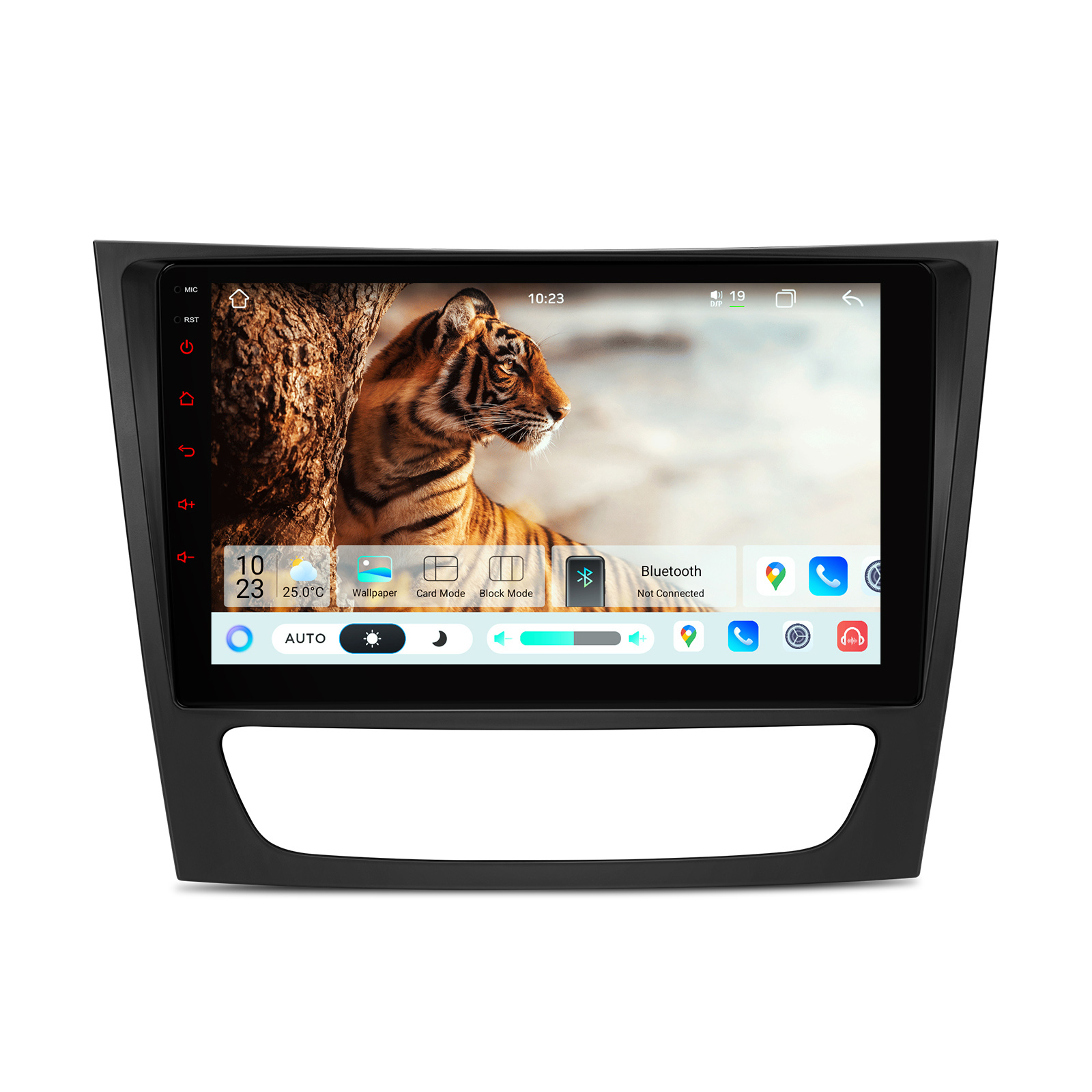

9″ QLED touch screen
The 9″ QLED screen has a 1280×720 resolution behind G+G tempered glass. It's bright and anti-glare, so maps stay readable in sunshine, and 1080P video plays smoothly when parked.
IPS viewing angles
As an IPS panel it keeps its colours from an angle, which helps the passenger see what's on screen.
AKM 7604 DSP
The AKM 7604 DSP gives 36-band equalisation, so you can adjust the sound to suit the car's speakers and cabin.
TDA7851 amplifier
The built-in TDA7851 amplifier is rated at 4x 48W output, enough to drive the factory speakers without a separate amp.
Optical, coaxial and RCA outputs
Fibre-optic, coaxial and RCA outputs make it easy to add an external amplifier later. An RCA cable is supplied.
Global 4G LTE
Insert a standard Micro-SIM and the unit has its own data connection for real-time traffic, weather and streaming, with no tethering. The 4G antenna comes in the box.
Dual-band Wi-Fi
Dual-band Wi-Fi (2.4G/5G) runs wireless CarPlay and Android Auto and can join a hotspot for app and map downloads.

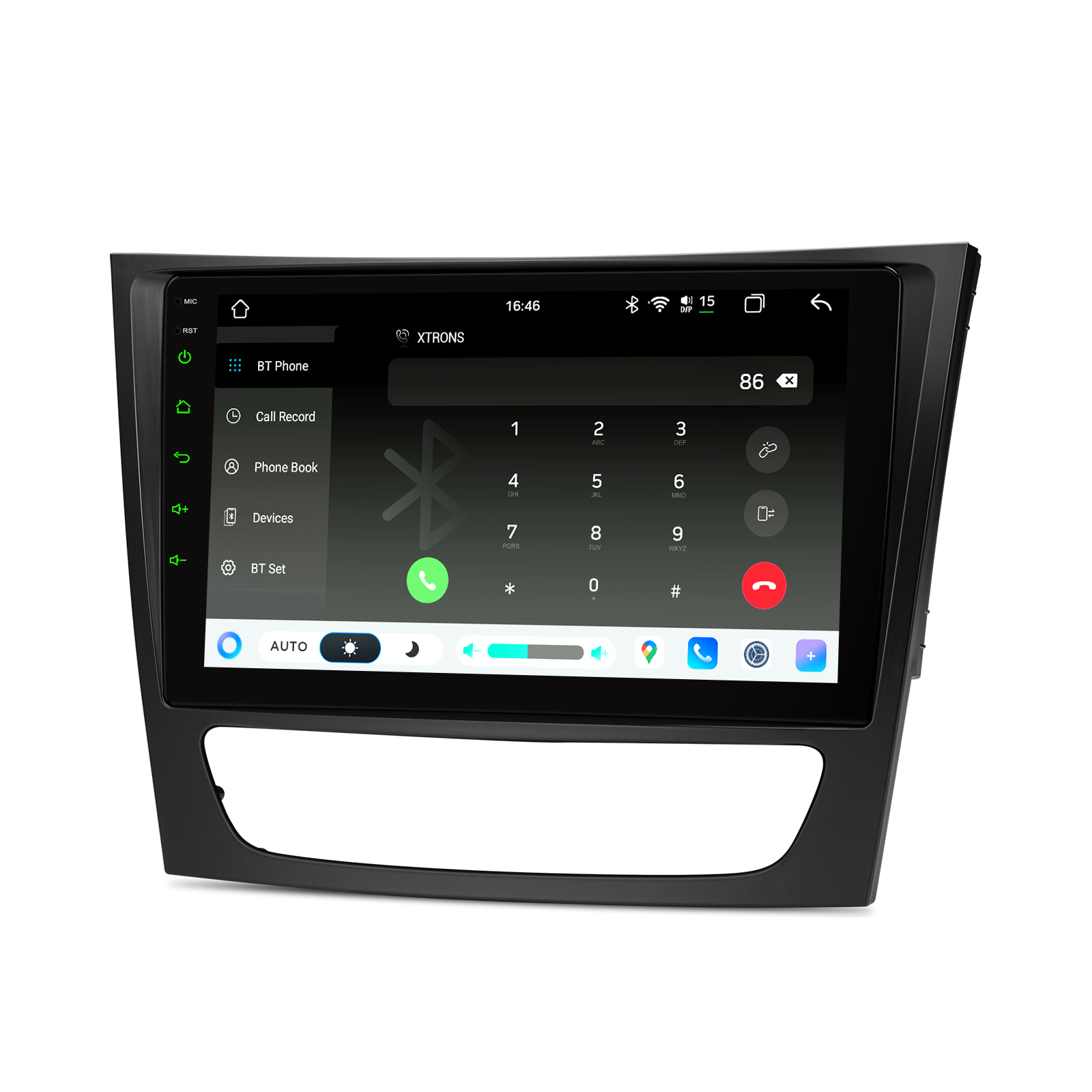

Two Bluetooth modules
Qualcomm and Unisoc Bluetooth modules work side by side. One streams music from your phone with Qualcomm aptX HD, and the Unisoc 5.2 link connects accessories such as OBD-II scanners or dash cams.
OBD-II scanner connection
An OBD-II scanner, sold separately, can connect over the Unisoc Bluetooth link so you can read engine data on the screen.
DAB+ with an external tuner
Digital radio is available once an external DAB tuner is added. The tuner is sold separately.
Screen mirroring
Screen mirroring shows your phone's display on the 9″ screen, handy for apps outside CarPlay and Android Auto when you're parked.
GPS navigation
A GPS antenna is included and navigation apps run on the unit itself. With 4G connected, maps can show live traffic.
Steering wheel controls and factory features
CANbus integration keeps factory features such as ACC and door reminders. The steering wheel control adapter means volume, track and call buttons carry on working.
Gyroscope and performance
A built-in gyroscope and inclinometer show real-time roll and pitch with no extra sensors.
The Unisoc 7865 Octa-Core chipset with 8GB RAM and 128GB UFS 2.2 storage runs Android 14, and the unit is rated from -30°C to +80°C.

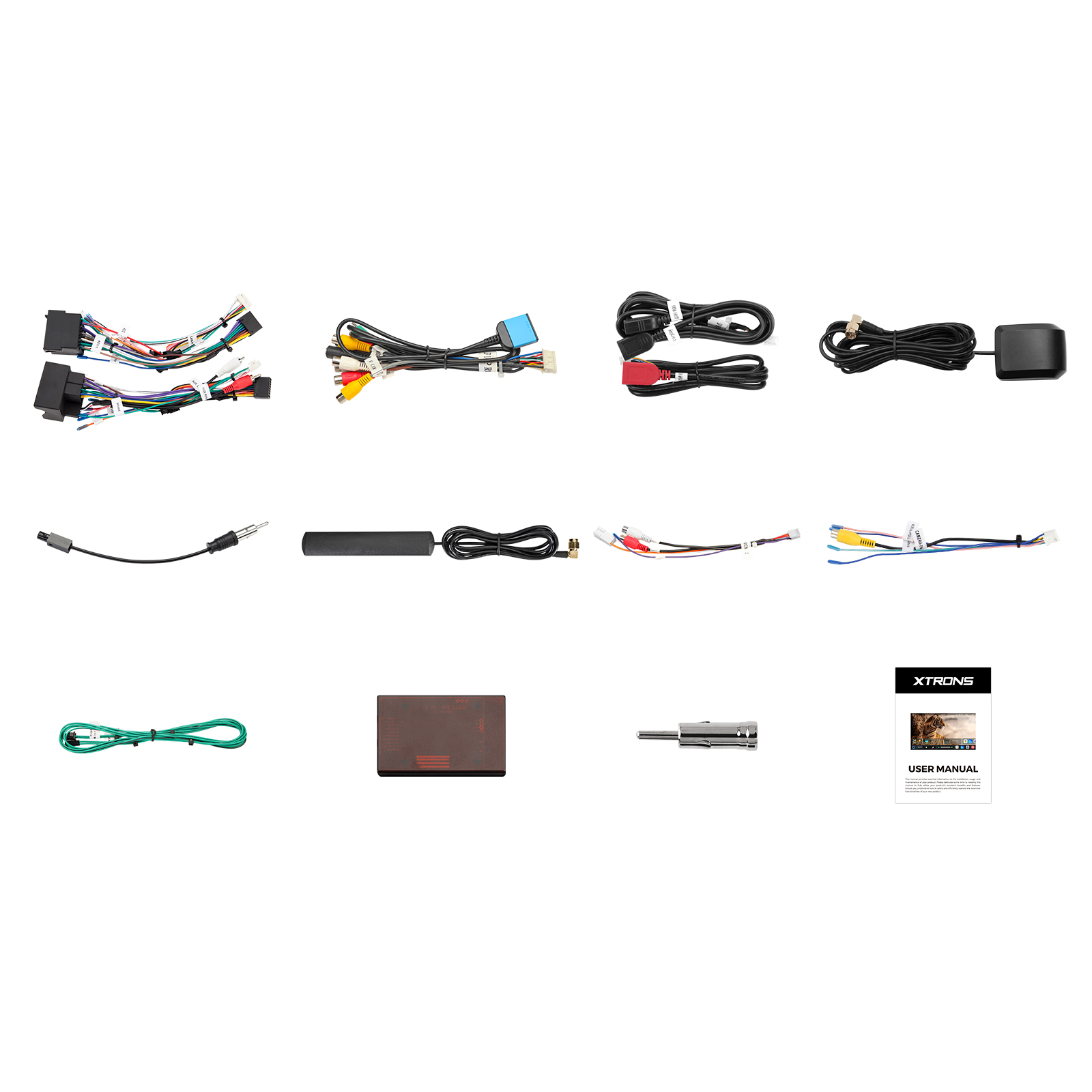

What's in the box
- 1 x 4G Antenna
- 1 x Camera Cable
- 1 x CANbus Box
- 1 x CANbus Cable
- 1 x Extension cable
- 1 x GPS Antenna
- 1 x Radio Adapter Cable
- 1 x Radio Antenna Adapter
- 1 x RCA Cable
- 1 x User Manual
- 2 x ISO Wiring Harness
- 2 x USB Cable

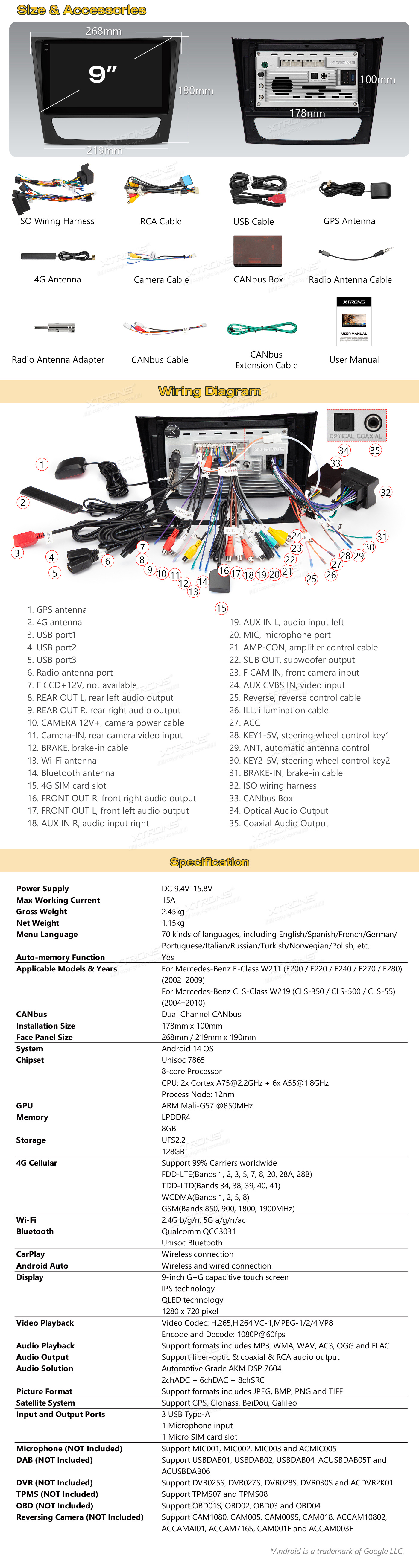

| System | Android 14 OS (UFS 2.2 High-Speed Storage) |
|---|---|
| Chipset | Unisoc 7865 Octa-Core (2x A75 @ 2.2GHz + 6x A55 @ 1.8GHz) |
| Memory | 8GB RAM + 128GB ROM |
| Screen | 9″ QLED IPS (1280×720) – G+G Tempered Glass |
|---|
| Audio output | Optical, Coaxial, RCA (Supports AKM 7604 DSP & 36-Band Equalization) |
|---|---|
| Amplifier | TDA7851 amplifier (4x 48W output) |
| Wireless | Dual Bluetooth (Qualcomm + Unisoc), 4G LTE, Dual-Band WiFi (2.4G/5G) |
|---|
| Power supply | DC 9.4V–15.8V (15A Max Working Current) |
|---|---|
| Temperature range | -30°C to +80°C (Automotive-Grade Durability) |
| Face panel | 268/219x190mm |
|---|
- Mercedes-Benz E-Class (2002-2023)
- Mercedes-Benz CLS-Class (2004-2023)
- For Mercedes-Benz E-Class W211 (E200 / E220 / E240 / E270 / E280) (2002-2009)
- CLS Class W219 (CLS-350 / CLS-500 / CLS-55) (2004-2010)

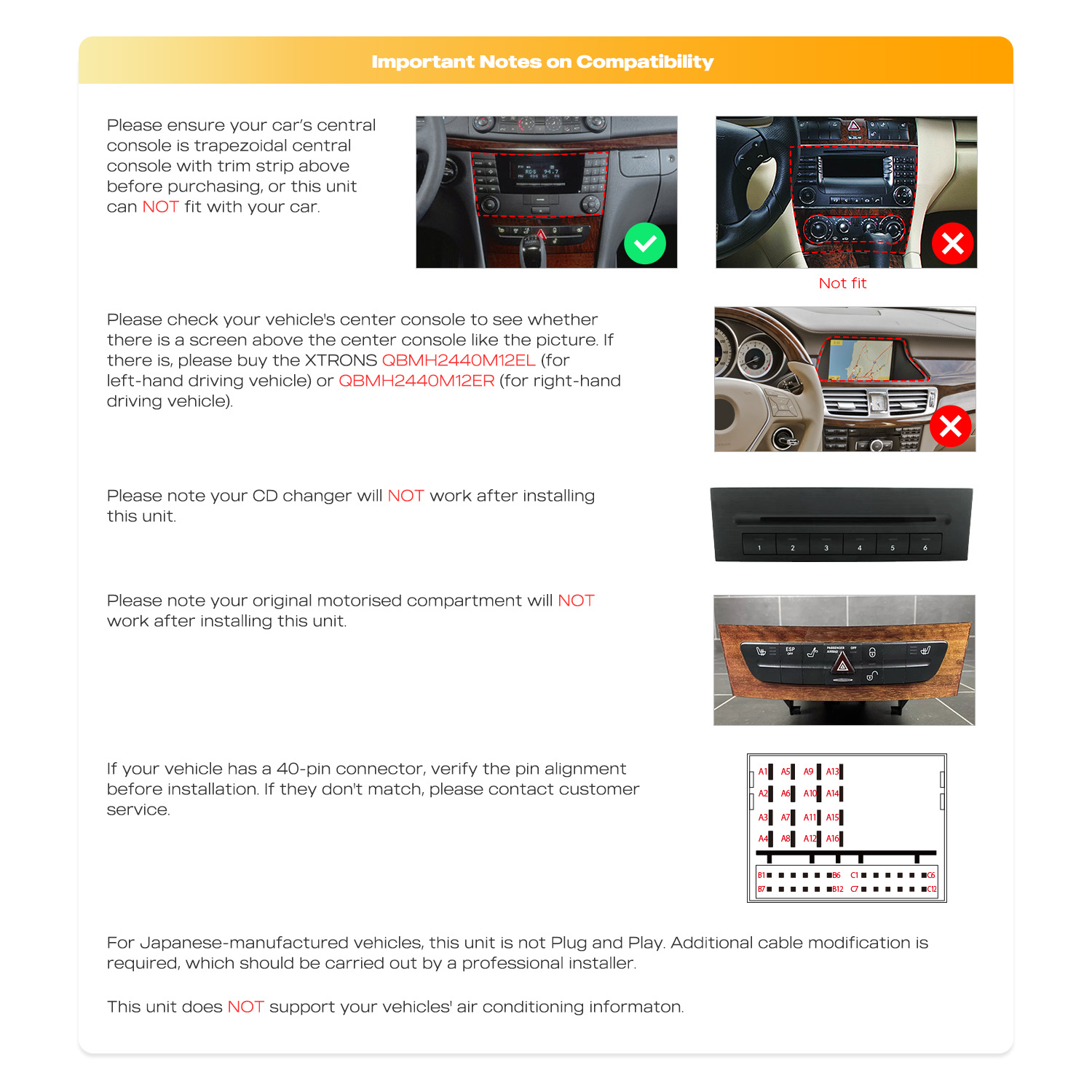

- Please ensure your car's central console is trapezoidal in shape, with a trim strip above before purchasing, or this unit will NOT fit your car.
- Please note your CD changer will NOT work after installing this unit.
- This unit does NOT support your vehicle's air conditioning information.
- Please note your original motorised compartment will NOT work after installing this unit.
- For Japanese-manufactured vehicles, this unit is not Plug and Play. Additional cable modification is required, which should be carried out by a professional installer.

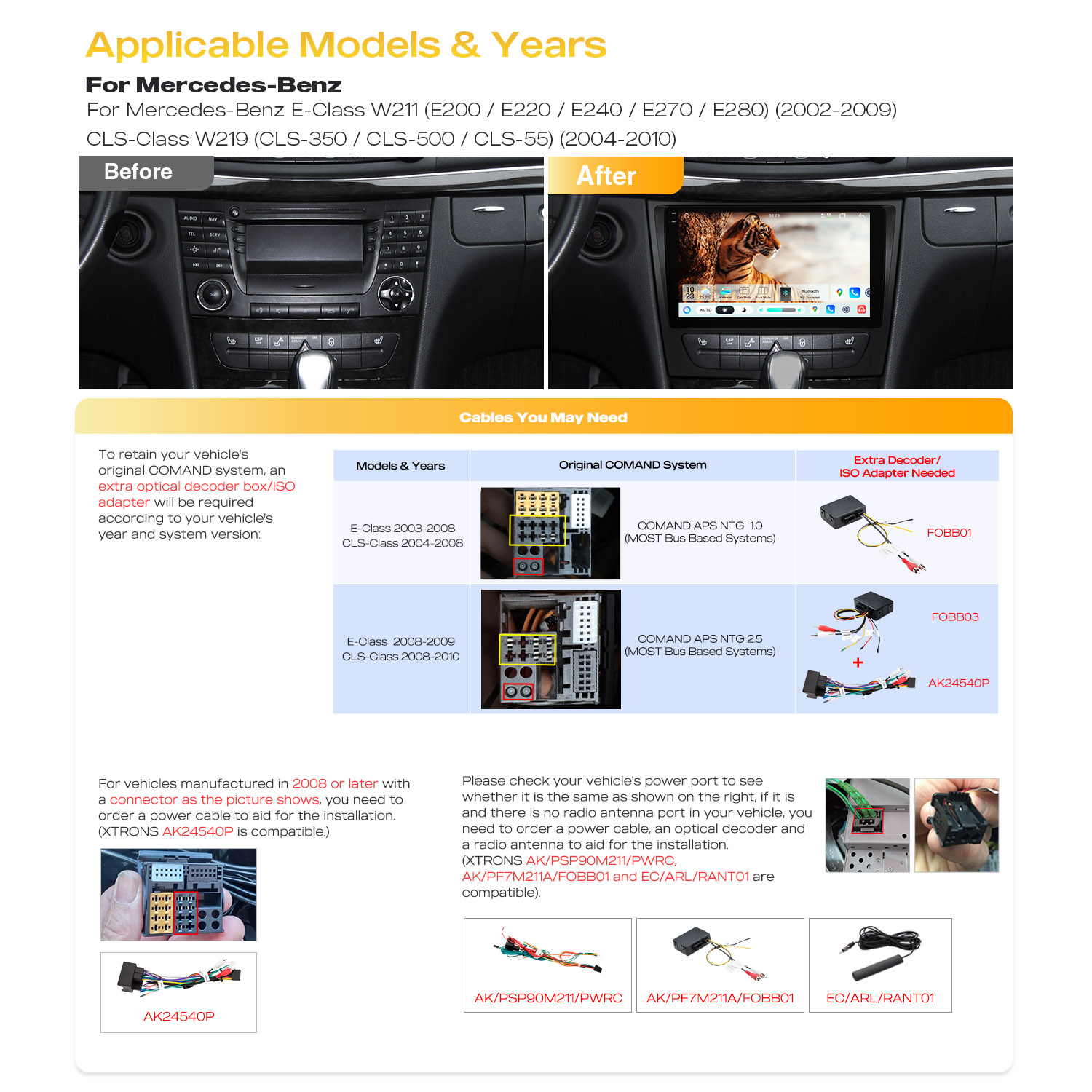

The unit works with the car's original wiring harness and comes with two ISO harnesses, a CANbus box and antenna adapters. To keep COMAND APS NTG 1 (E-class 2003-2008, CLS 2004-2008) you'll need the FOBB01 optical decoder; NTG 2.5 cars need FOBB03 and AK24540P. Some cars need a power cable, optical decoder, radio antenna and antenna adapter (AK/PSP90M211/PWRC, AK/PF7M211A/FOBB01 and EC/ARL/RANT01), so check your power port first. Japanese-built cars need cable modification by a professional installer.
Will it fit my E-Class?
It fits the W211 (2002-2009) and CLS W219 (2004-2010) with a trapezoidal centre console and a trim strip above. If there's a screen above the centre console, choose QBMH2440M12EL for left-hand drive or QBMH2440M12ER for right-hand drive.
Can I keep my COMAND system?
Yes, with an extra decoder that's not included: FOBB01 for NTG 1, or FOBB03 with AK24540P for NTG 2.5.
Will the CD changer and air conditioning display still work?
No. The CD changer and original motorised compartment stop working, and the unit doesn't show air conditioning information.
What SIM card does it take?
A standard Micro-SIM in the global 4G LTE module.
Reviews
What customers say
Bought this product? Sign in to write a review.

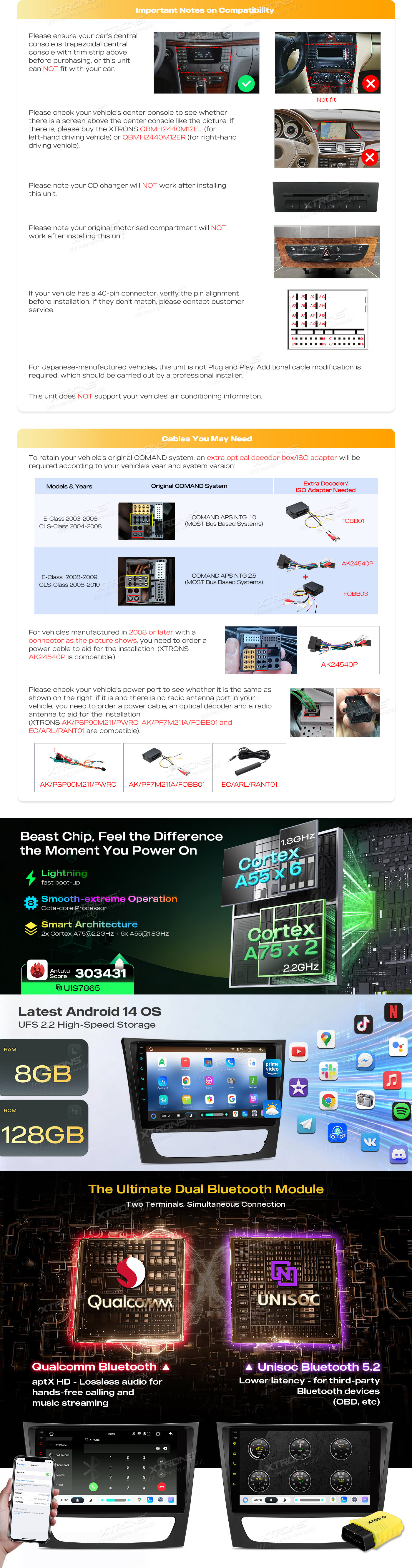

Full specification from XTRONS
