Mercedes-Benz E-Class W211 and CLS W219 7 Inch Android Head Unit with Wireless CarPlay and 4G | UAH75M211L
SKU: UAH75M211L
£304.99
Check if this fits your car
1
Key specifications
- Operating system
- Android 15
- Processor
- ASR8662 Octa-Core CPU
- Memory and storage
- 6 GB DDR4 RAM and 128GB UFS 2.2 ROM
- Boot time
- 50 seconds cold start, 1 second warm start
- Screen
- 7-Inch Grade-A HD IPS QLED Screen
- Resolution
- 1280×720

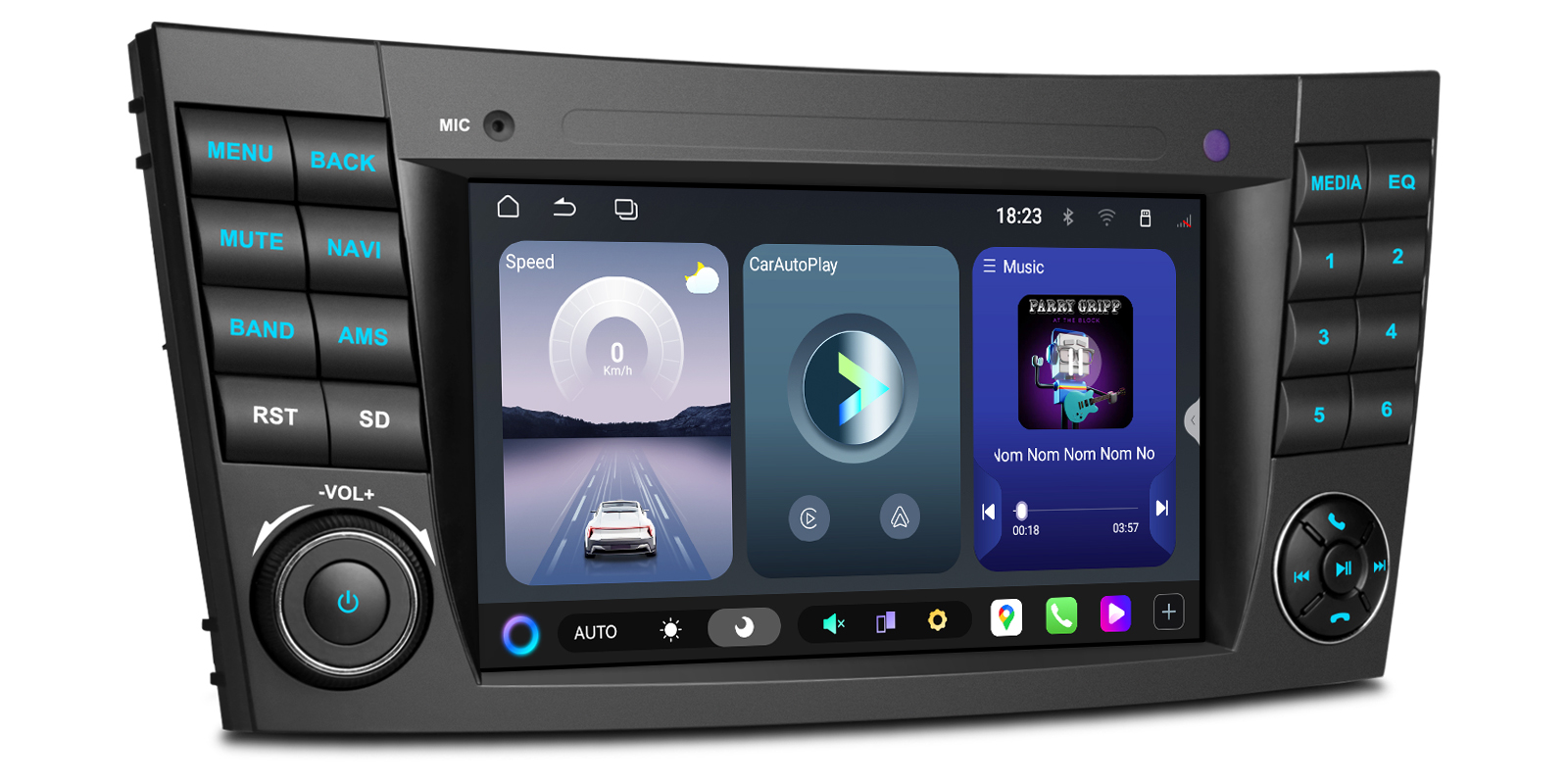

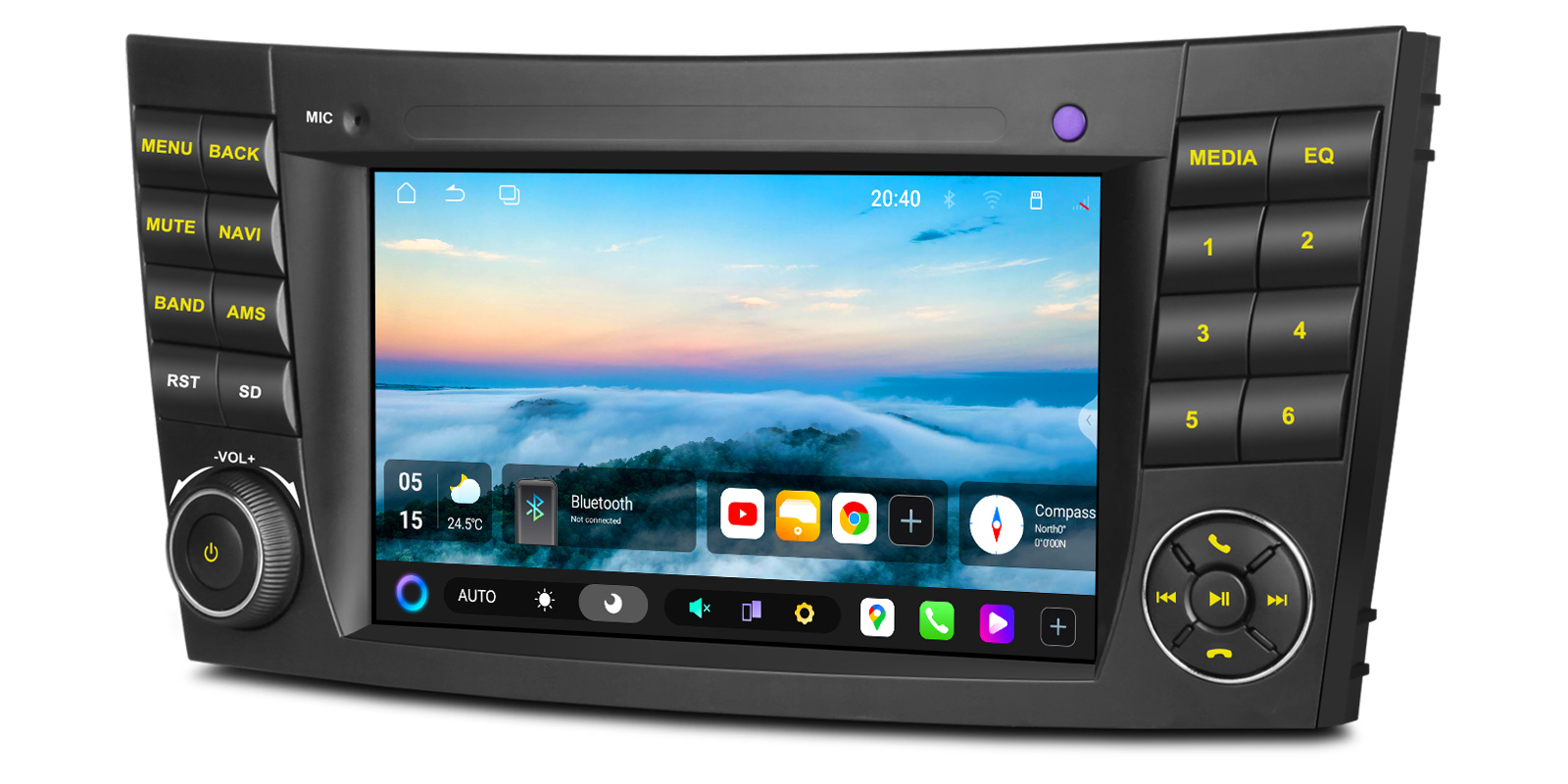

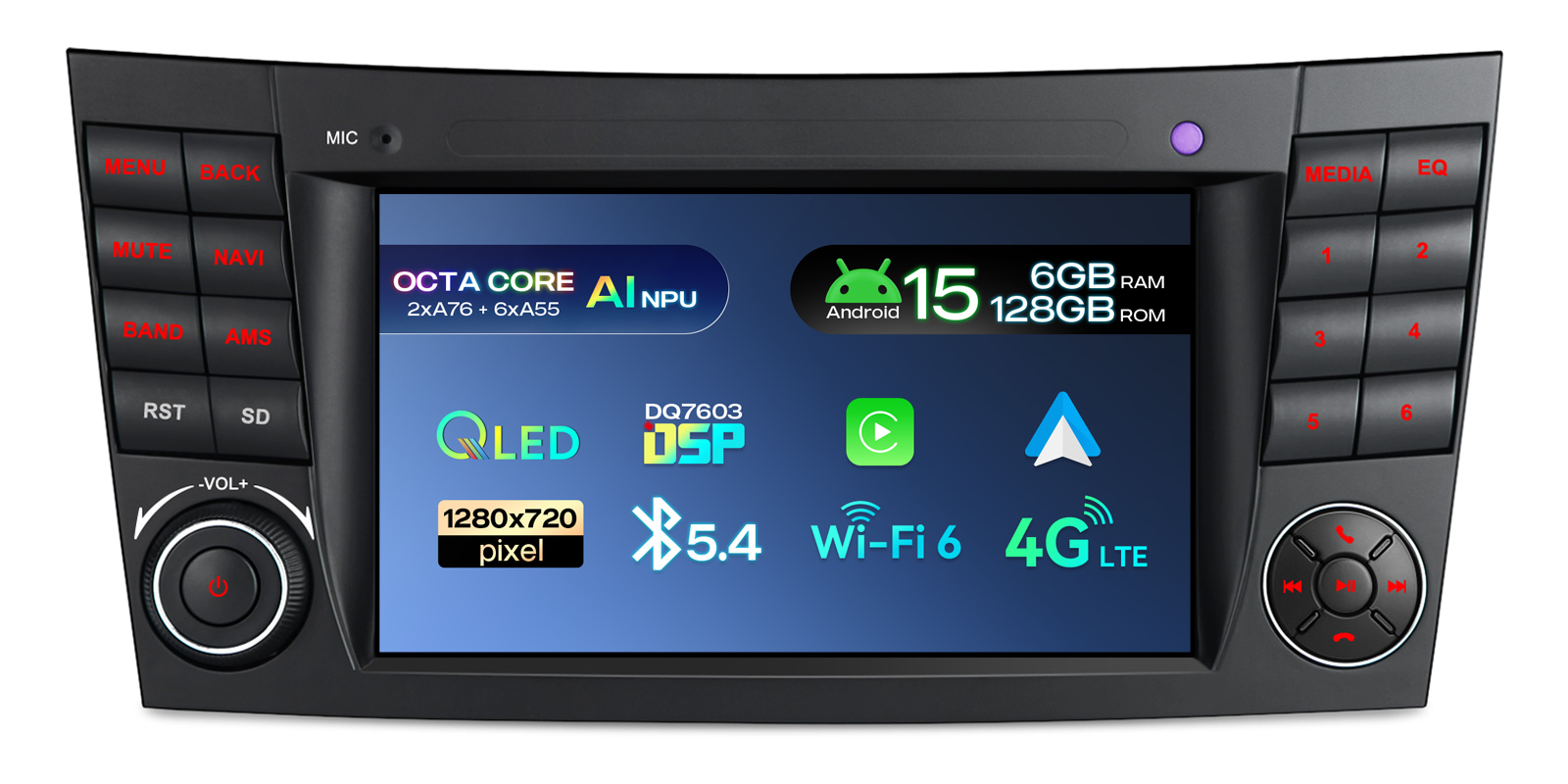

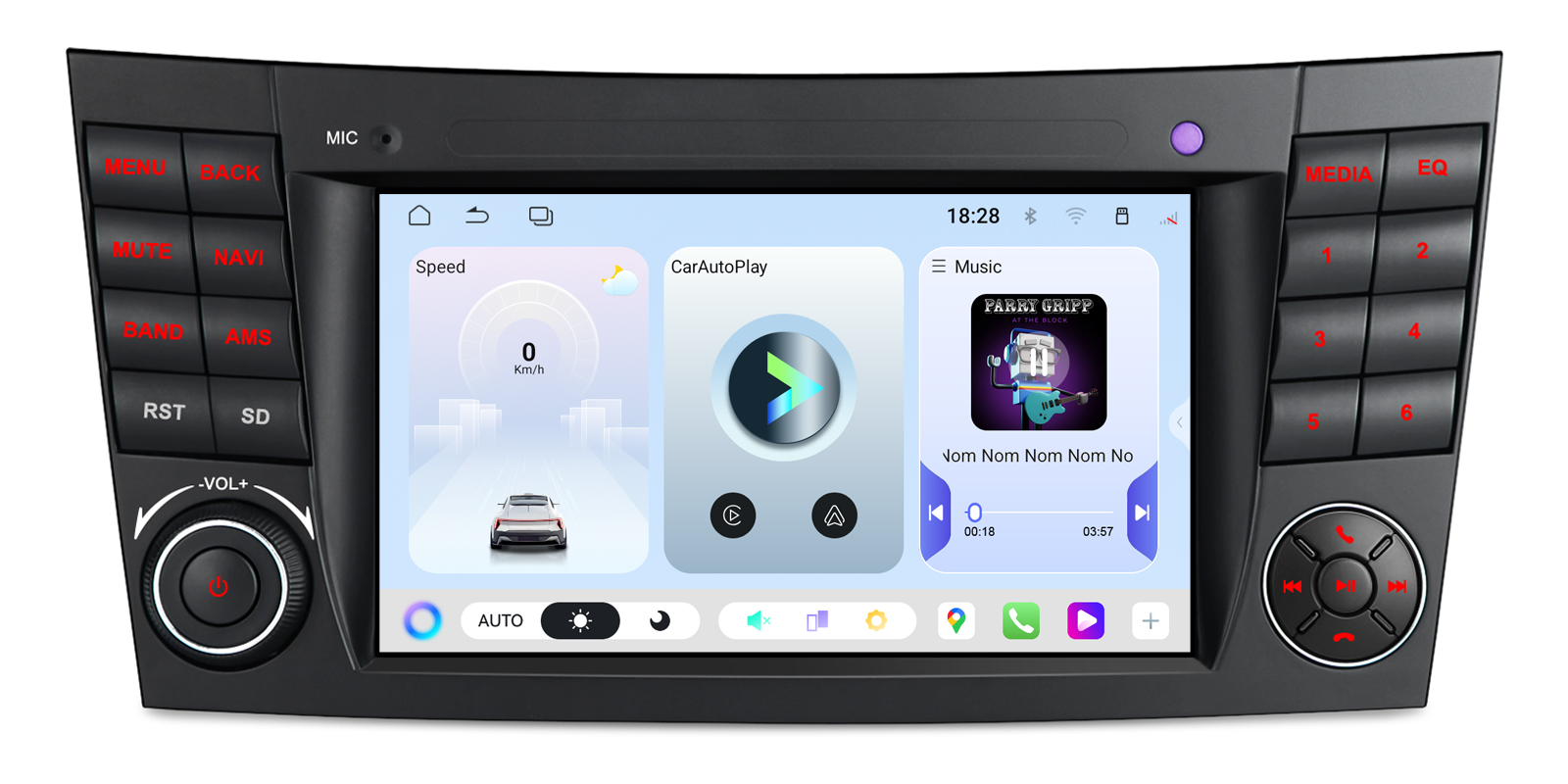

XTRONS UAH75M211L is a 7 inch Android 15 head unit for the Mercedes-Benz E-Class W211 and CLS-Class W219. It replaces the factory radio with wireless CarPlay and Android Auto, a QLED touch screen and a built-in 4G connection.
- Apple CarPlay and Android Auto, wireless or by USB
- 7 inch IPS QLED screen at 1280×720
- Built-in 4G LTE that takes a standard nano SIM
- DSP DQ7603 and a TCB001HQ amplifier rated 4x45W
- Optical, coaxial and RCA outputs for an external amplifier
- Android 15 with 6GB DDR4 RAM and 128GB UFS 2.2 storage

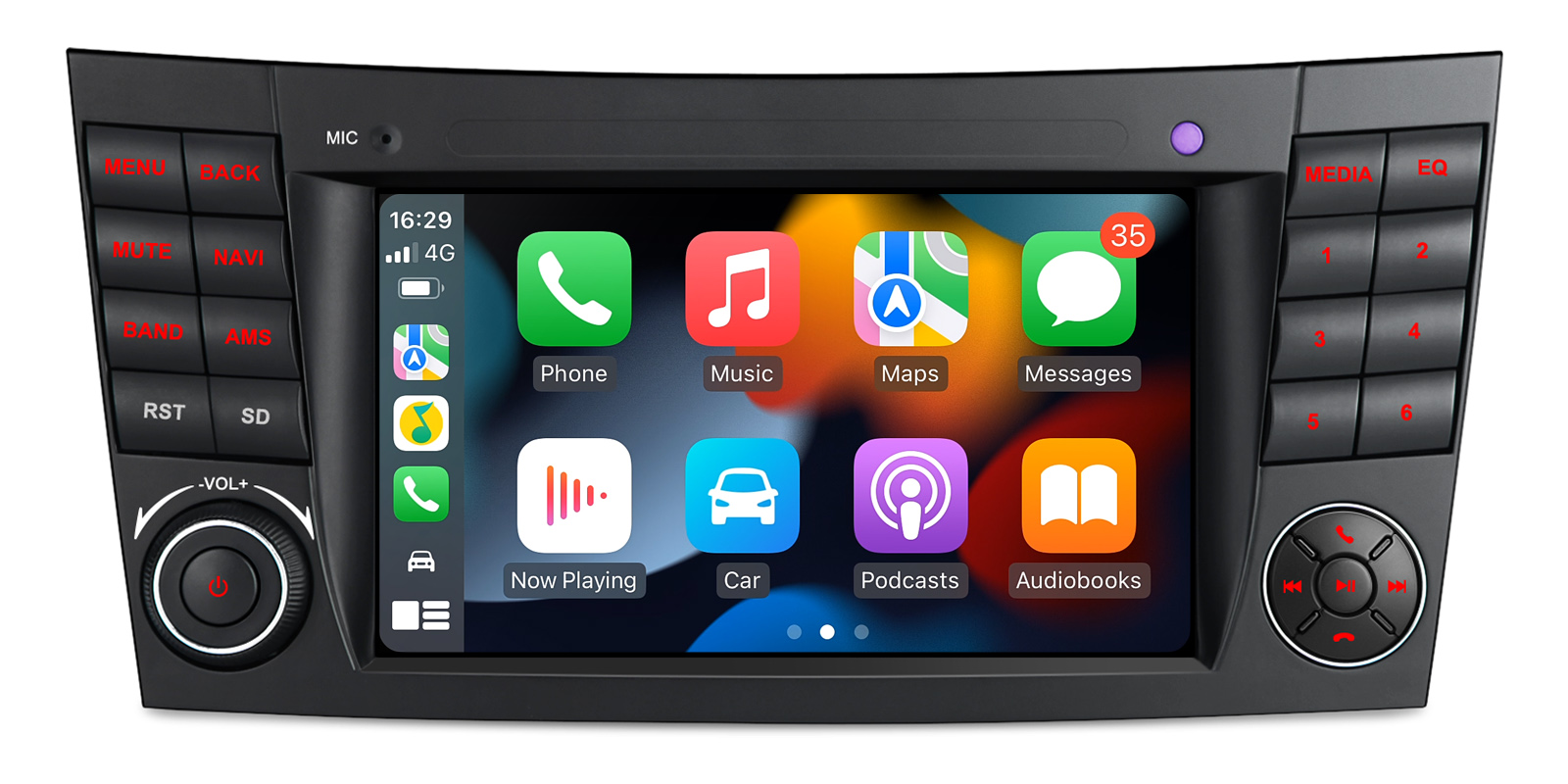

Wireless Apple CarPlay
CarPlay links up over Wi-Fi, so your iPhone doesn't need to come out of your pocket. On a long run you can plug it in by USB instead and use CarPlay wired while it charges.
Maps, calls, messages and music sit on the 7 inch screen, and Siri takes requests by voice.

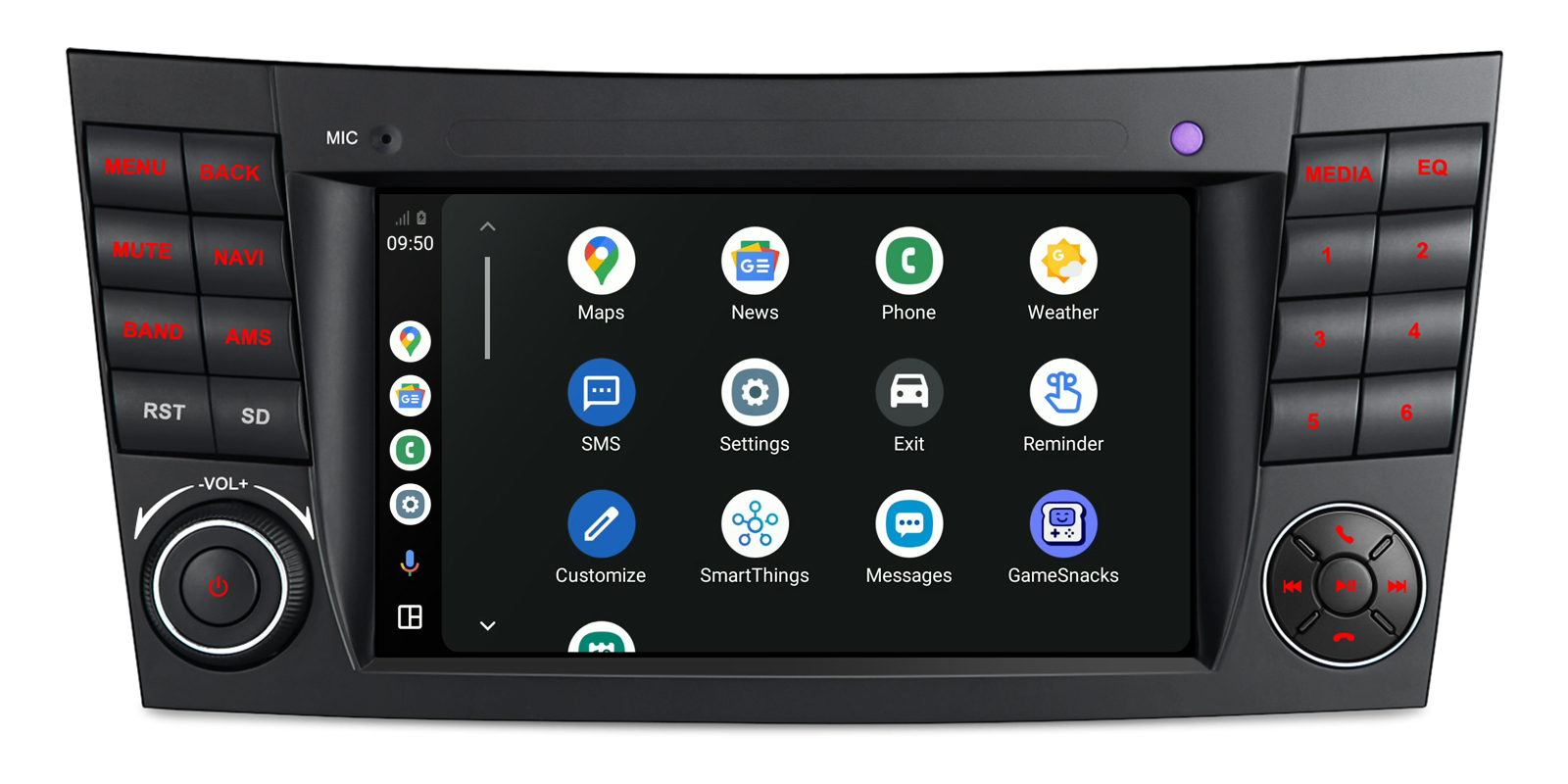

Android Auto, wireless or wired
Android phones connect without a cable or by USB. Google Maps, music apps and calls appear on the head unit, and Google Assistant answers voice commands.

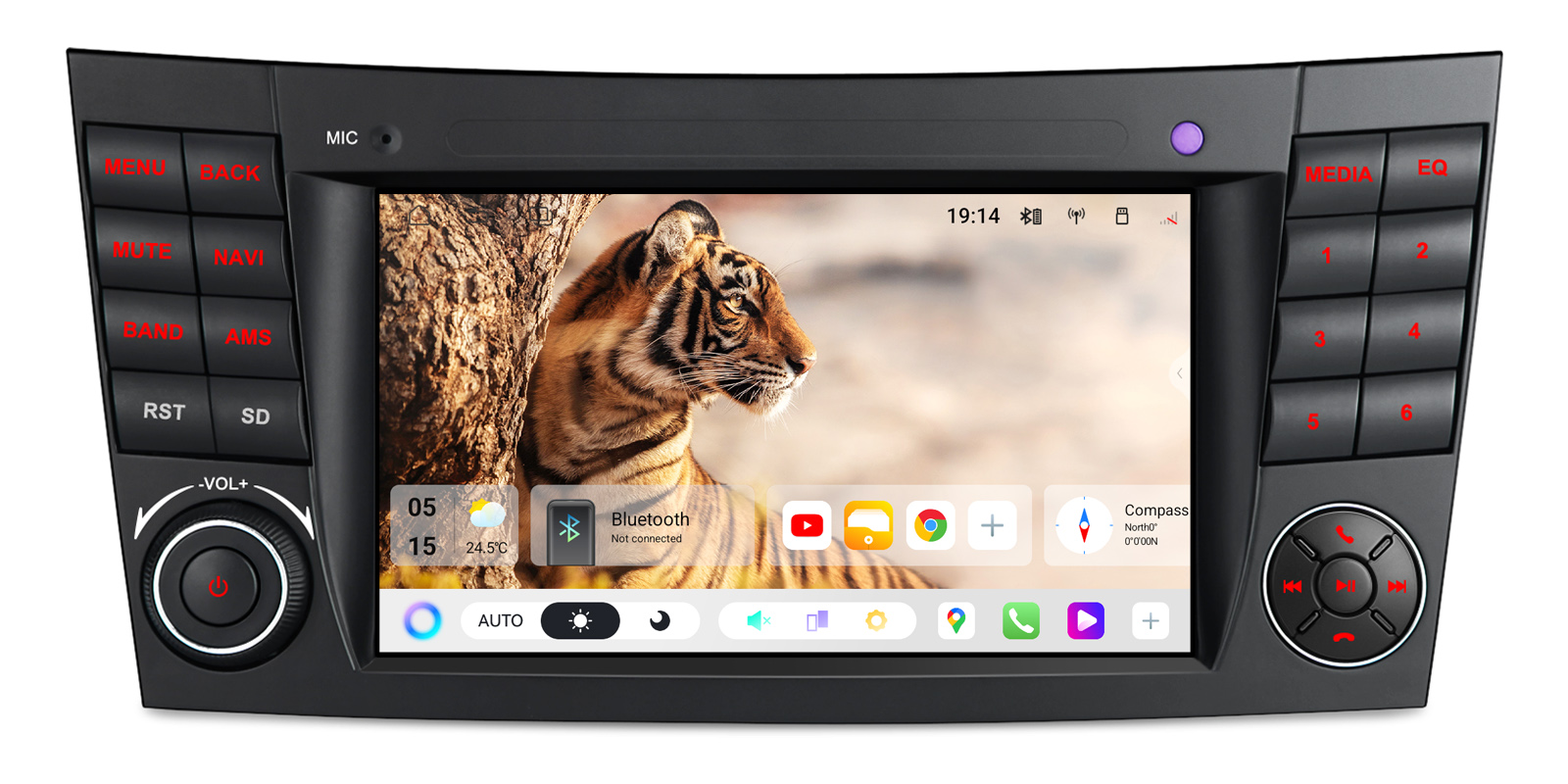

7 inch QLED screen
The Grade-A HD QLED screen has a 1280×720 resolution and strong colours, so maps and album art are sharp and easy to read.
IPS panel with wide viewing angles
As an IPS panel it keeps its colours when viewed from the side, so the passenger gets a clear picture too.
4G LTE with your own SIM
A global 4G LTE module is built in. Insert a standard nano SIM and the unit has its own internet connection for maps, streaming and apps, with no hotspot needed.
The 4G antenna is included.
Dual-band Wi-Fi
Dual-band Wi-Fi (2.4GHz & 5GHz) gives a quicker and steadier connection to a hotspot or your home network for streaming and updates.
DSP sound processing
The built-in DSP DQ7603 lets you tune the sound to the cabin and your speakers. Power comes from an STMicroelectronics TCB001HQ amplifier rated at 4x45W.

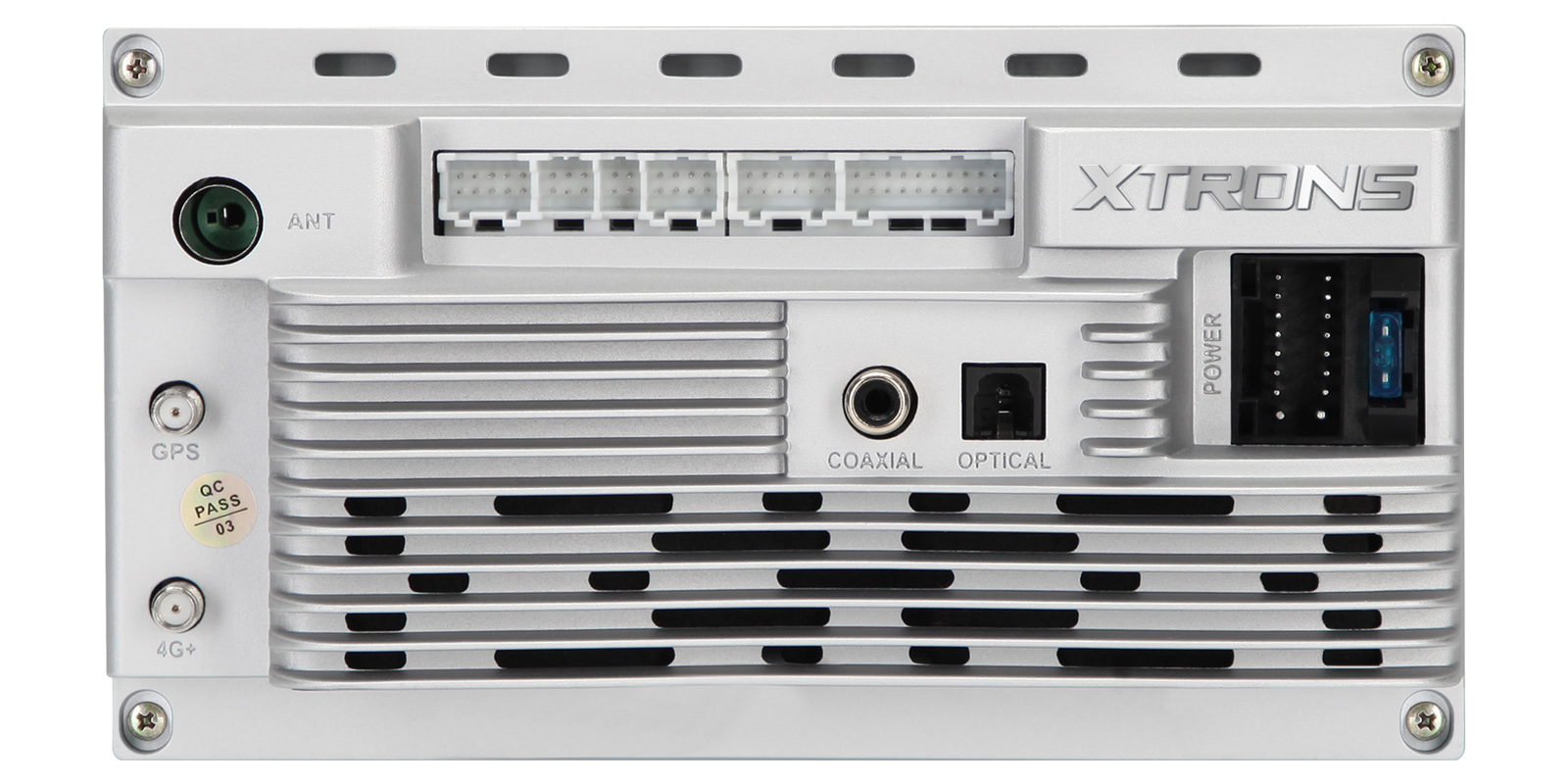

Optical, coaxial and RCA outputs
Optical, coaxial and RCA audio outputs leave room to add an amplifier or sound processor later. An RCA cable is in the box.
DAB+ with an external tuner

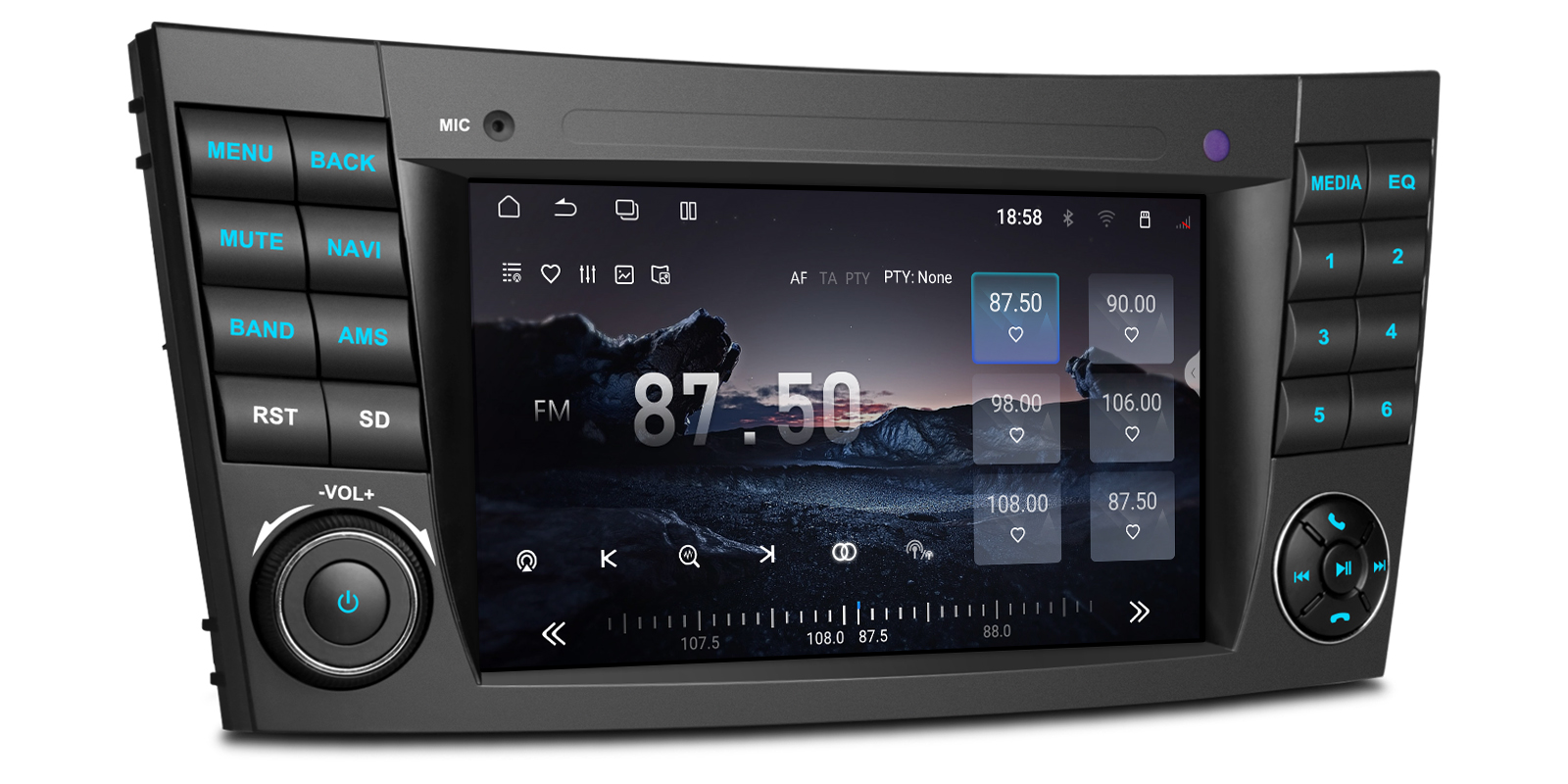

The unit is DAB+ ready: add an external DAB+ tuner and you get digital radio. The RDS-FM/AM tuner works without it.
Screen mirroring
Screen mirroring shows your phone's screen on the head unit, handy for apps outside CarPlay and Android Auto. It's best used when parked or by a passenger.
GPS navigation
The receiver uses GPS, Galileo, GLONASS and BEIDOU for an accurate position. A GPS antenna comes with the unit and you can use the navigation app you prefer.
Bluetooth 5.4
Bluetooth 5.4 handles hands-free calls and music from your phone. The supplied microphone can be placed near the driver so callers hear you clearly.
Reversing camera input
It supports 720P/1080P AHD cameras and shows the picture as soon as you select reverse. The camera connection is part of the wiring harness.

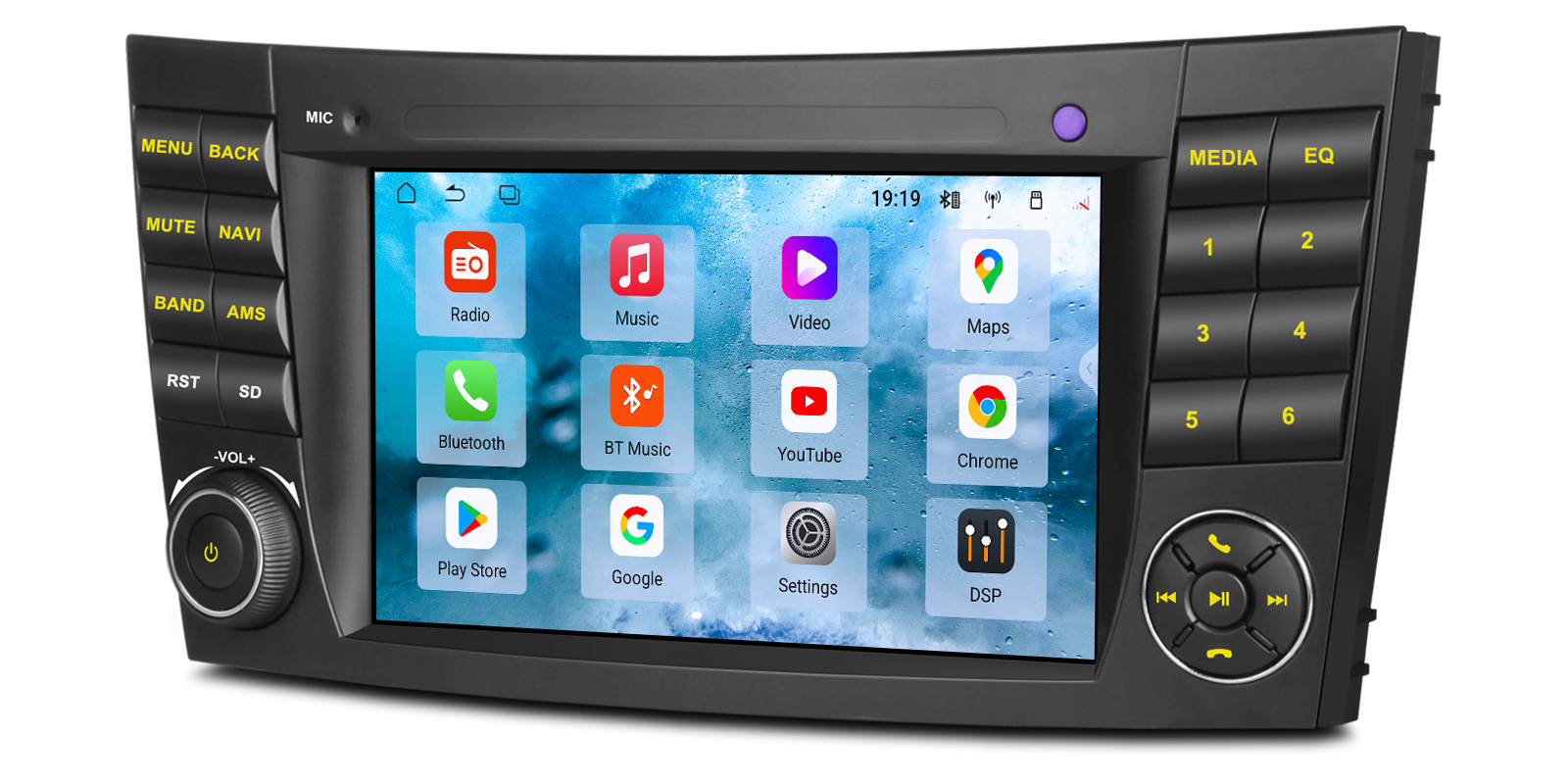

Android 15 performance
An ASR8662 Octa-Core CPU runs Android 15 with 6 GB DDR4 RAM and 128GB UFS 2.2 storage, so apps open quickly and navigation and music run side by side.
Warm start takes 1 second, and a cooling system keeps performance steady on long drives.

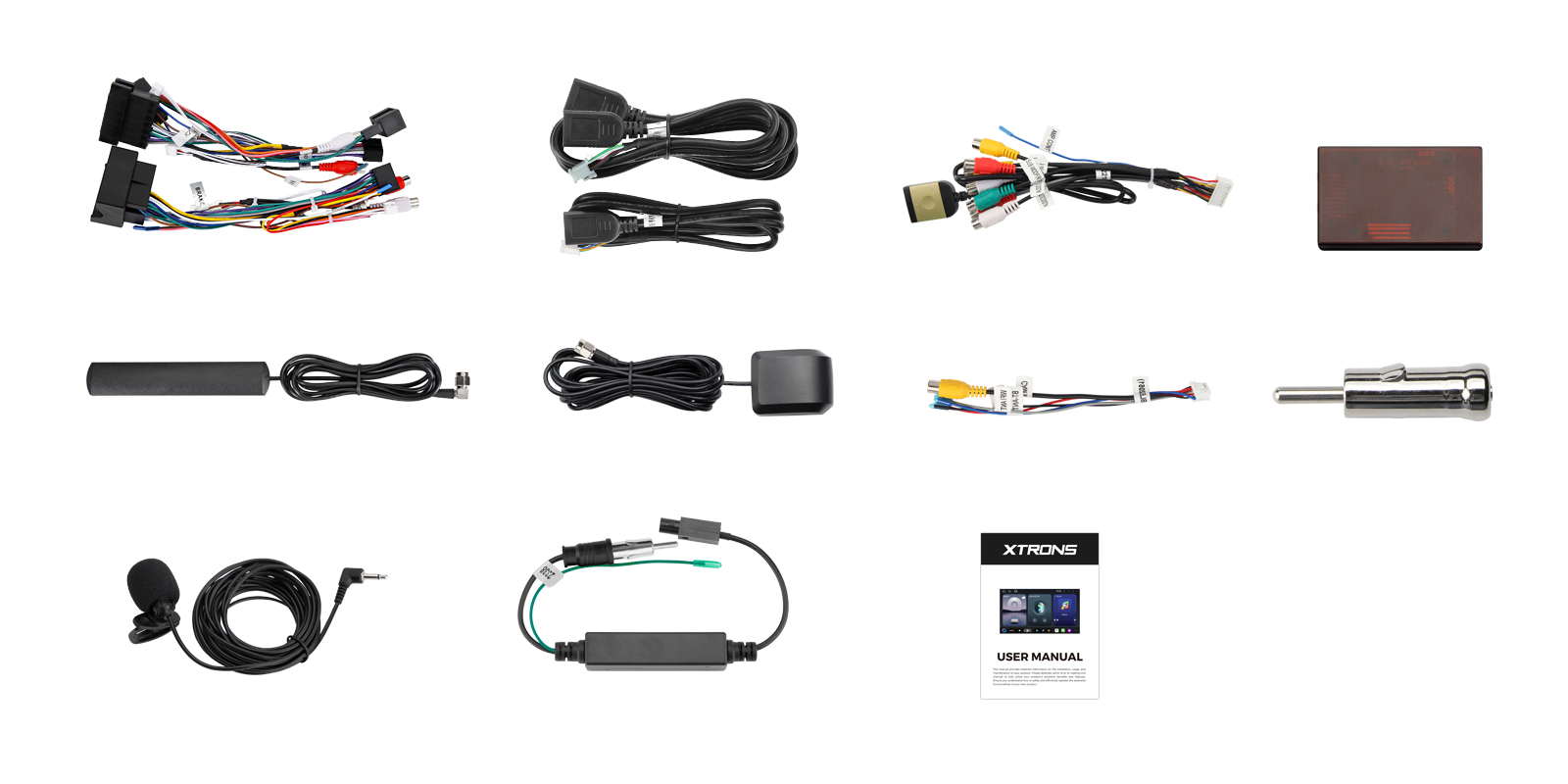

What's in the box
- 1 x 4G Antenna
- 1 x Camera Cable
- 1 x CANbus Box
- 1 x GPS Antenna
- 1 x ISO Wiring Harness
- 1 x Microphone
- 1 x Radio Antenna Cable
- 1 x Radio Cable Adapter
- 1 x RCA Cable
- 1 x USB Cable
- 1 x User Manual

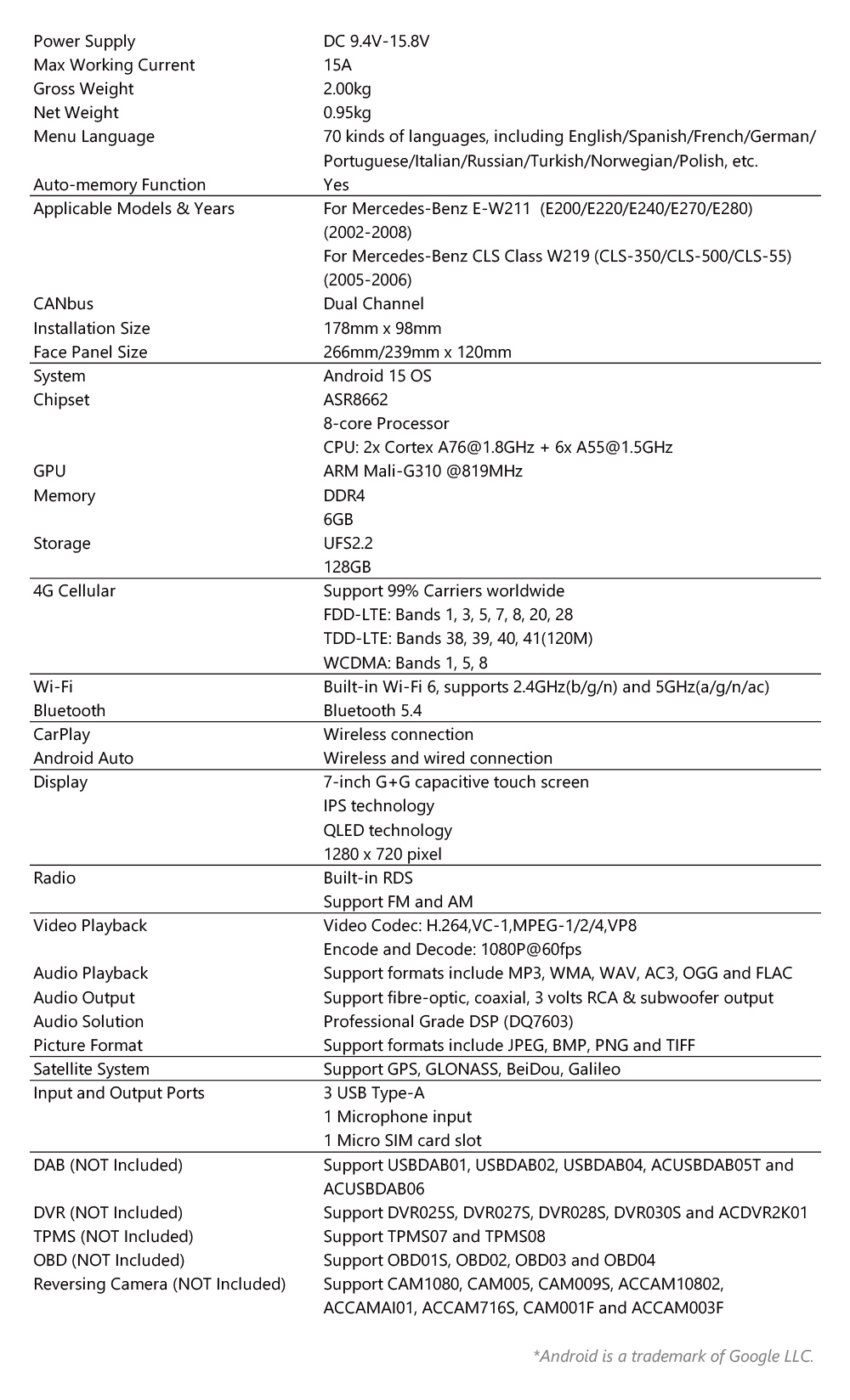

| Operating system | Android 15 |
|---|---|
| Processor | ASR8662 Octa-Core CPU |
| Memory and storage | 6 GB DDR4 RAM and 128GB UFS 2.2 ROM |
| Boot time | 50 seconds cold start, 1 second warm start |
| Screen | 7-Inch Grade-A HD IPS QLED Screen |
|---|---|
| Resolution | 1280×720 |
| DSP | DSP DQ7603 |
|---|---|
| Amplifier | STMicroelectronics TCB001HQ amplifier (4x45W) |
| Outputs | optical, coaxial, and RCA outputs |
| Radio | RDS-FM/AM tuner |
| Mobile data | Built-in Global 4G LTE Module |
|---|---|
| Wi-Fi | Dual Band WiFi (2.4GHz & 5GHz) |
| Bluetooth | Bluetooth 5.4 |
| Satellite navigation | GPS, Galileo, GLONASS, and BEIDOU |
- Mercedes-Benz E-W211(E200/E220/E240/E270/E280)(2002-2008)
- Mercedes-Benz CLS Class W219(CLS-350/CLS-500/CLS-55)(2005-2006)
- Please ensure your car's central console is a trapezoidal central console with trim strip above before purchasing, or this unit can NOT fit with your car.
- Please note your CD changer will NOT work after installing this unit.
- Please note your original motorised compartment will NOT work after installing this unit.
- This unit does NOT support your vehicle's air conditioning information.
- For Japanese-manufactured vehicles, this unit is not Plug and Play. Additional cable modification is required, which should be carried out by a professional installer.
Check that your centre console is the trapezoidal type with a trim strip above before ordering; cars with a screen above the console need QBMH2440M12EL or QBMH2440M12ER instead. Keeping the original COMAND system needs an extra optical decoder box or ISO adapter, depending on year and system version. Cars built in 2008 or later with that connector need a power cable such as AK24540P, and on a 40-pin connector the pin alignment should be checked first. Japanese-built cars need cable modification by a professional installer.
Will it fit my E-Class?
It fits the E-W211 (2002-2008) and CLS W219 (2005-2006) with a trapezoidal centre console and trim strip above. If there's a screen above your centre console, choose QBMH2440M12EL for left-hand drive or QBMH2440M12ER for right-hand drive.
Can I use my own SIM card?
Yes. A standard nano SIM in the built-in 4G LTE module gives the unit its own internet connection.
Will my CD changer still work?
No. The CD changer and the original motorised compartment stop working once this unit is fitted, and it doesn't show the air conditioning information.
Does it have DAB radio?
It's DAB+ ready, so add an external DAB+ tuner for digital radio. FM/AM with RDS works as standard.
