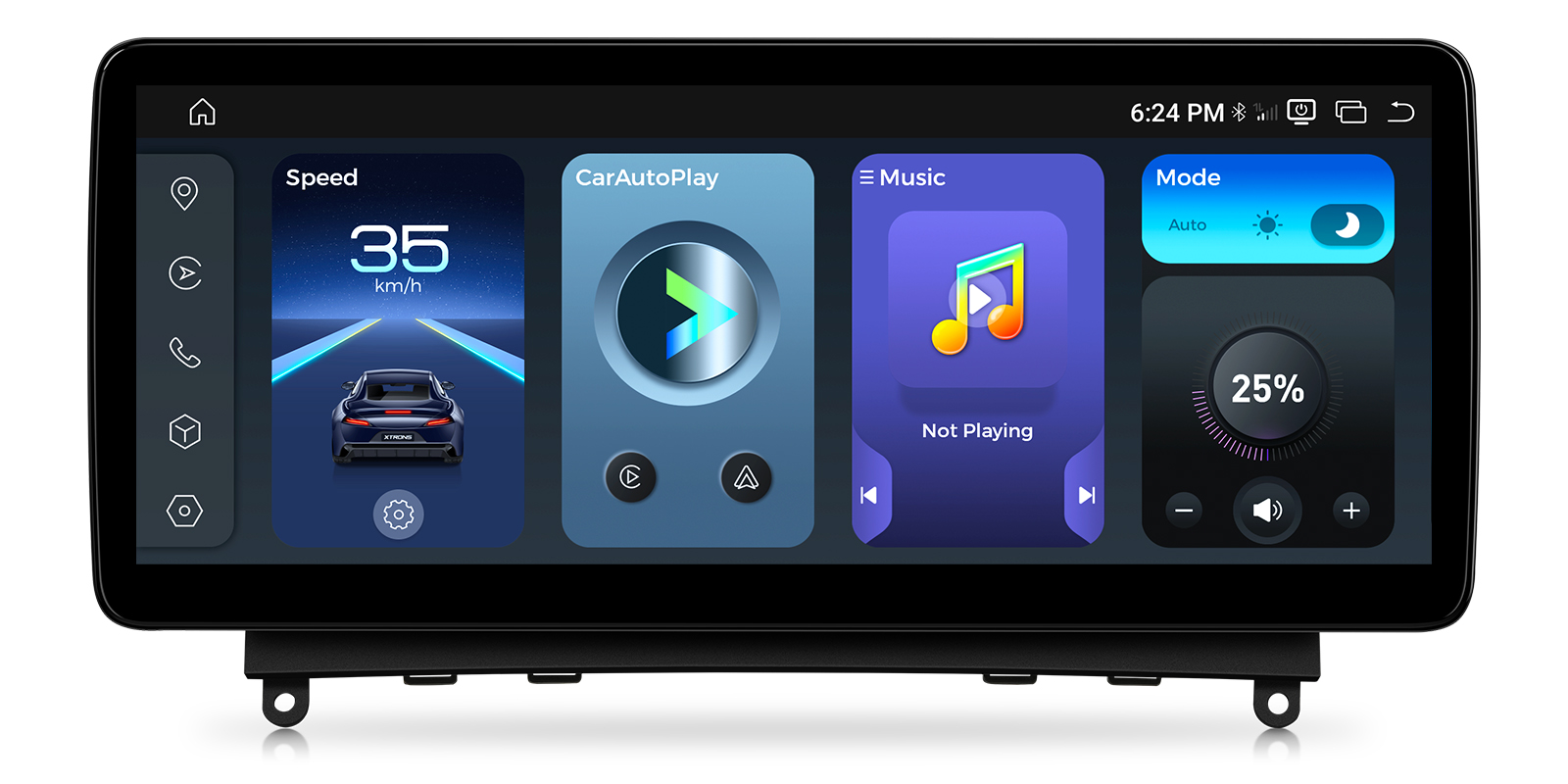

Mercedes-Benz C-Class W204 NTG 4.0 12.3 inch Android Screen with Wireless CarPlay and 4G | QBMH2440M12C40
SKU: QBMH2440M12C40
£434.99
Check if this fits your car
1

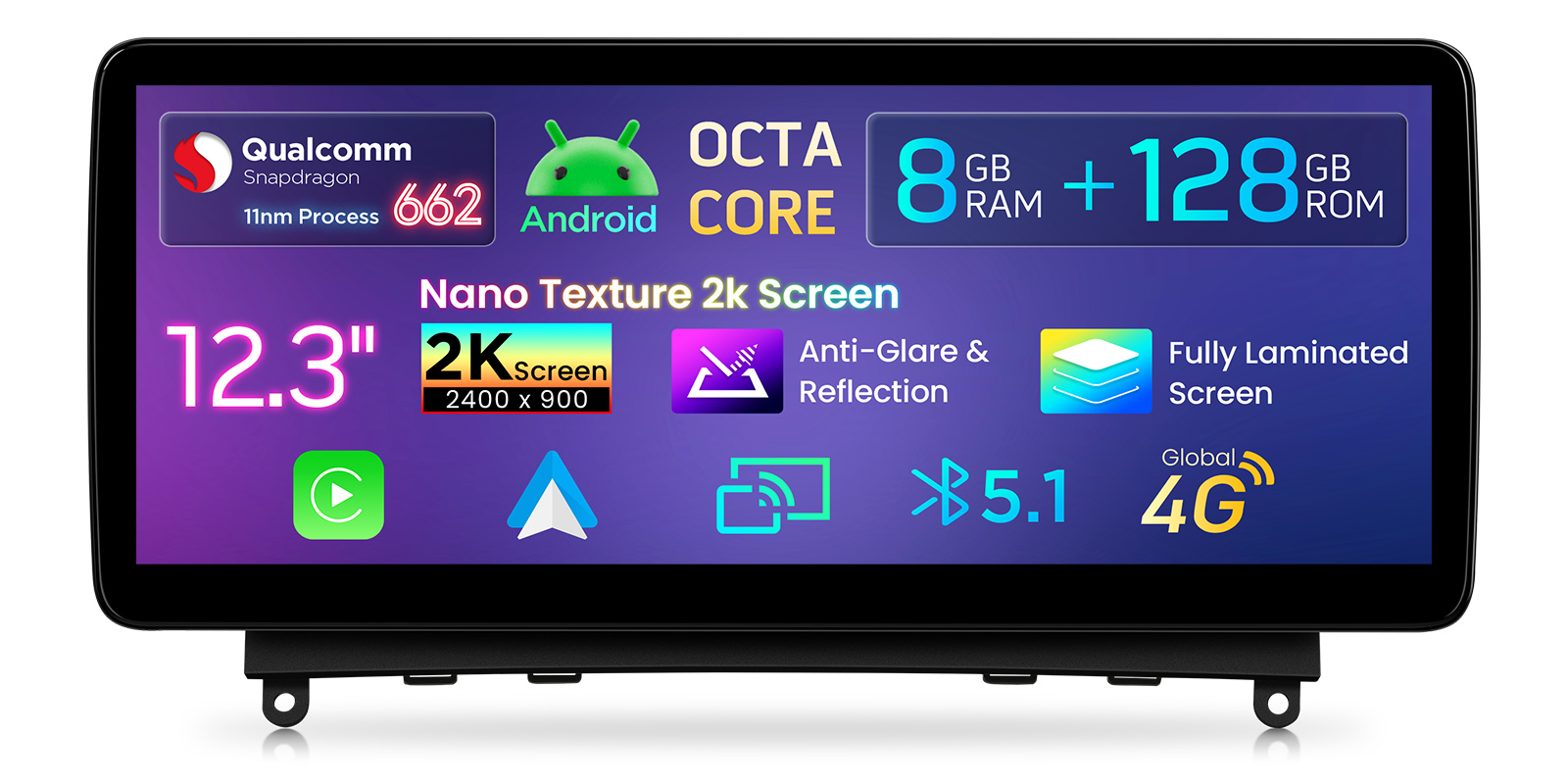

Key specifications
- Processor
- Qualcomm Snapdragon 662 (Kryo 260, 8-core, 2.0GHz)
- Memory and storage
- 8GB LPDDR4 RAM + 128GB UFS 2.2 ROM
- Operating system
- Android 14
- Screen
- 12.3” 2K (2400×900) Nano-Texture IPS Screen
- Phone and network
- Wireless CarPlay/Android Auto, 4G LTE, Dual-Band WiFi (2.4/5GHz), Bluetooth 5.1
- Positioning
- GPS/GLONASS/BeiDou/Galileo

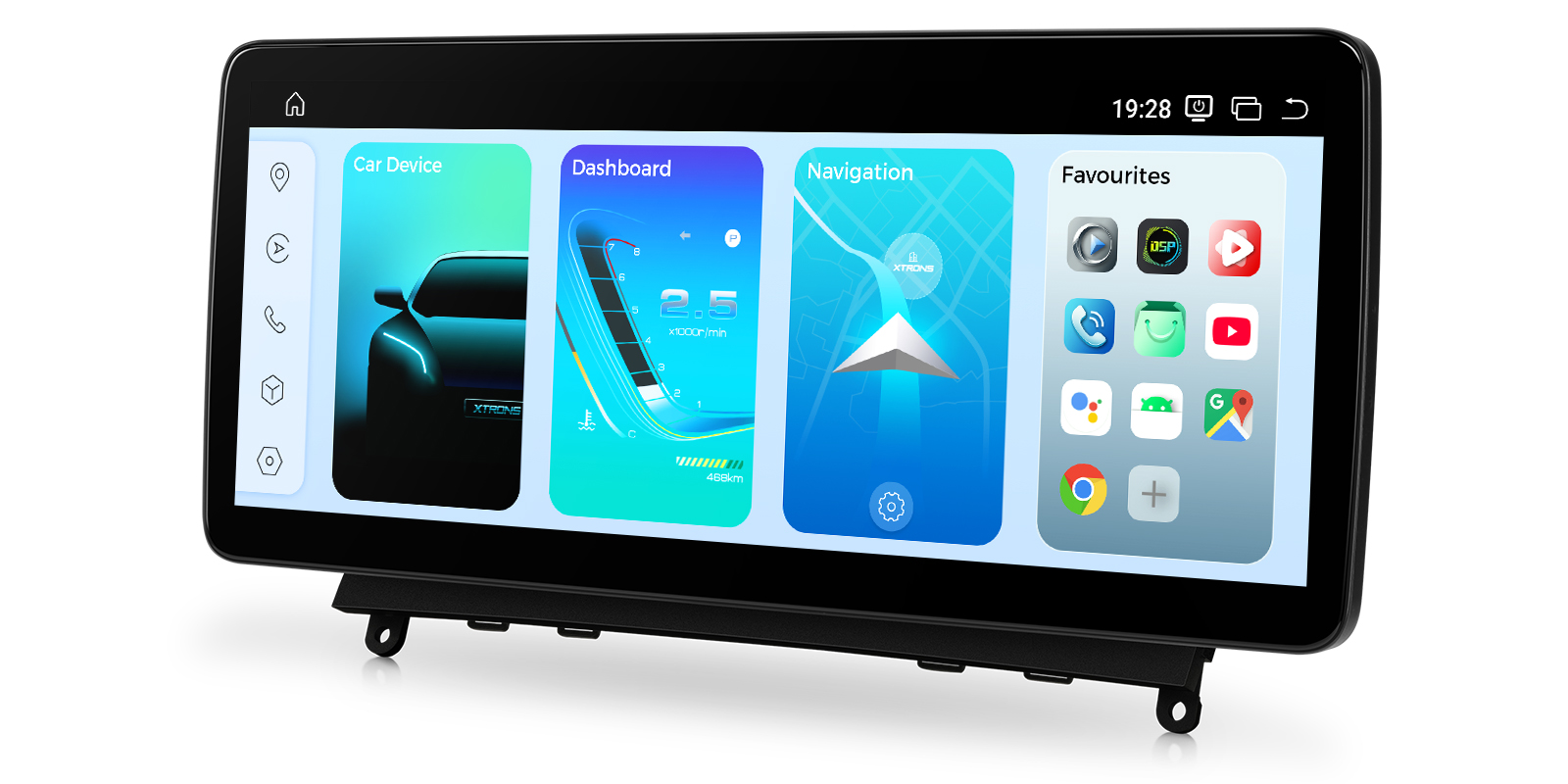

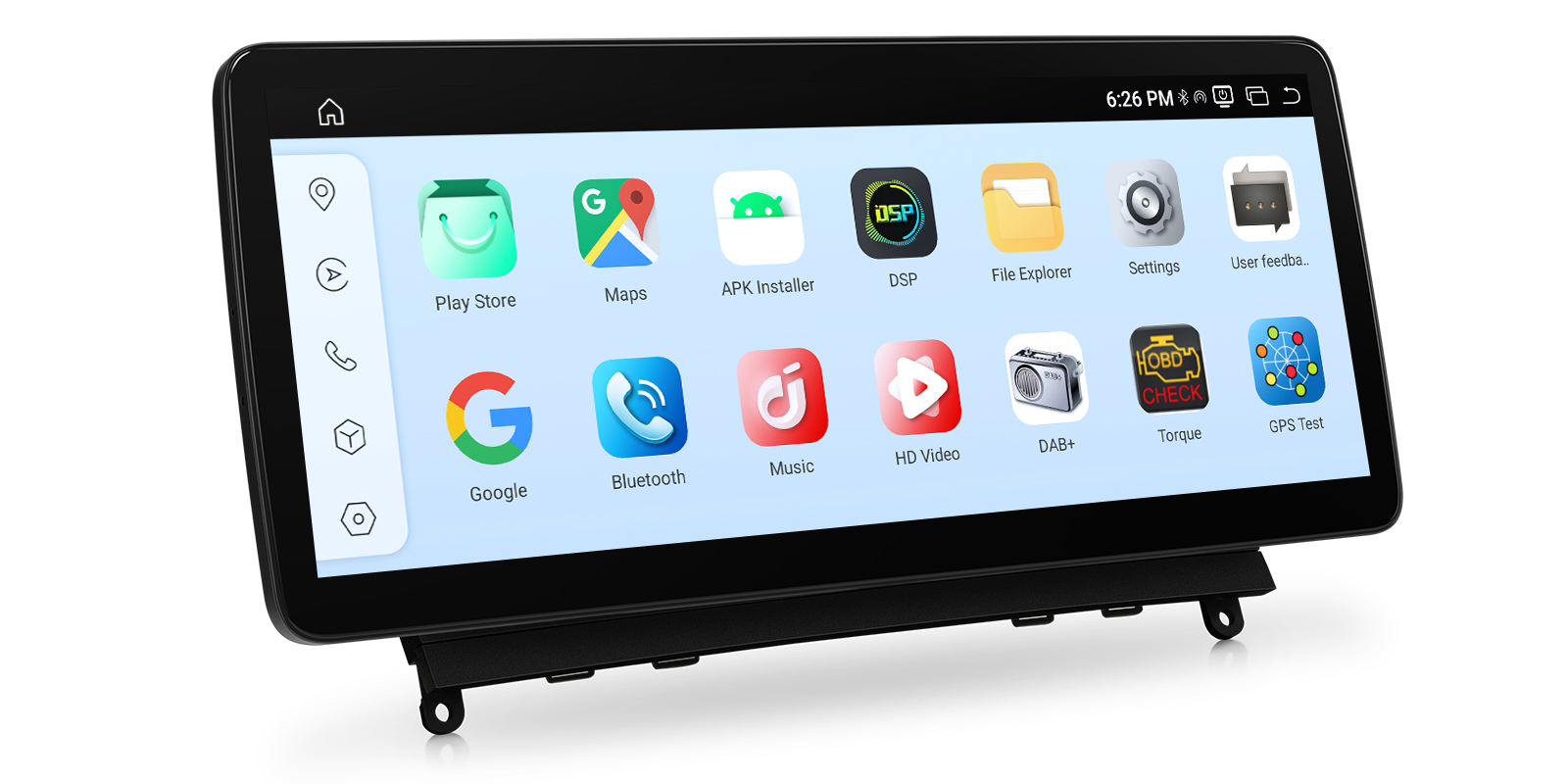

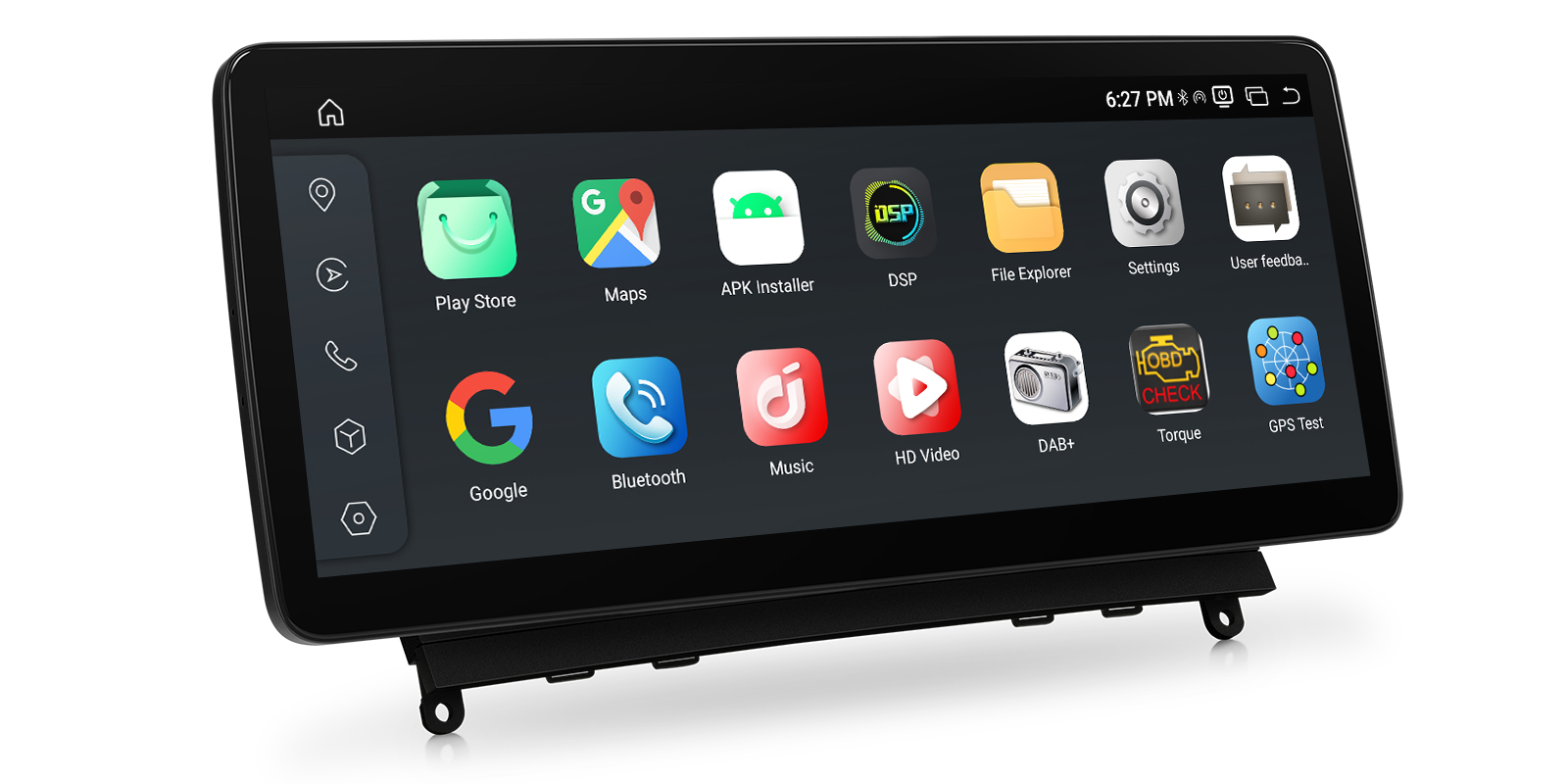

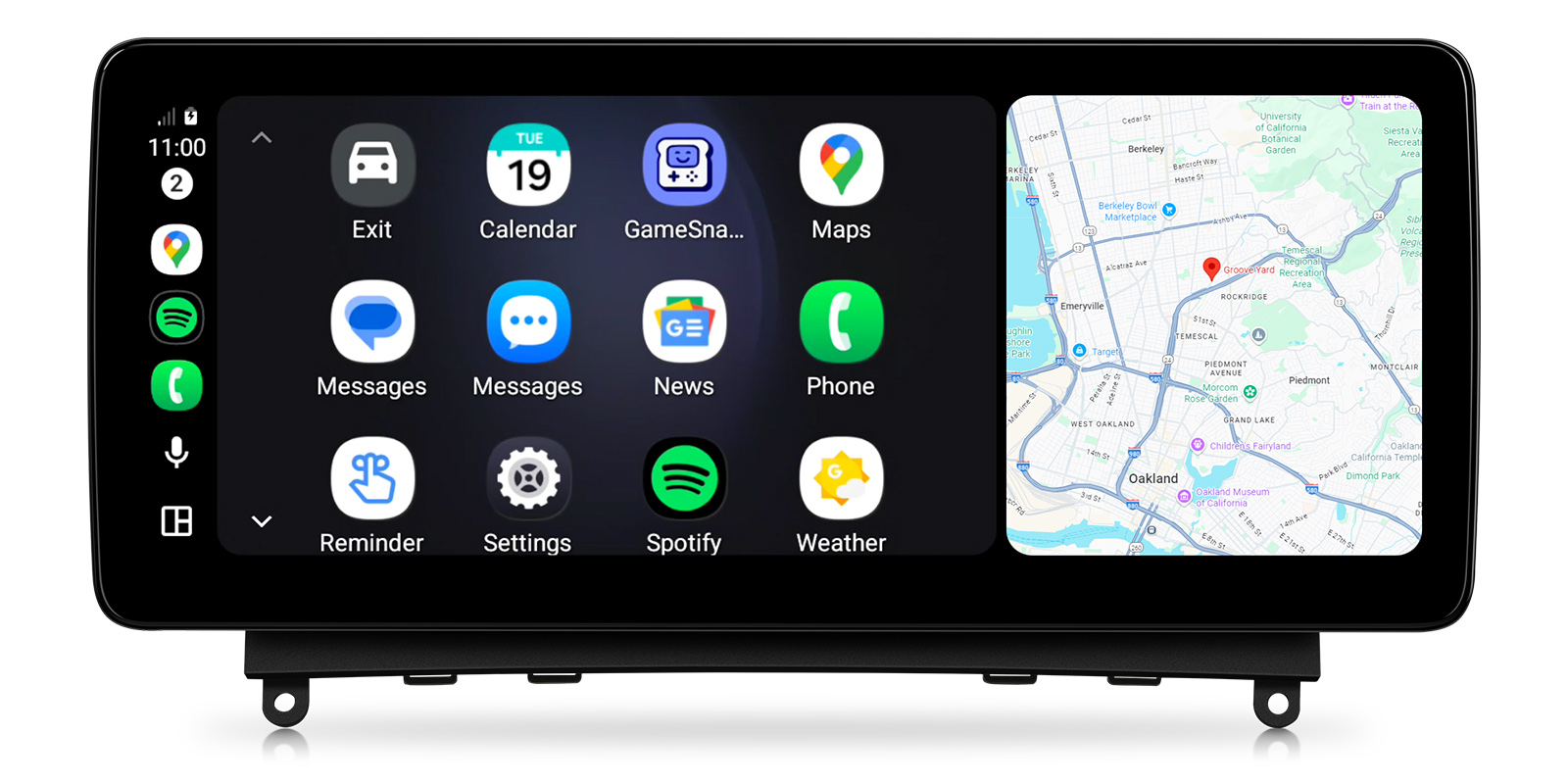

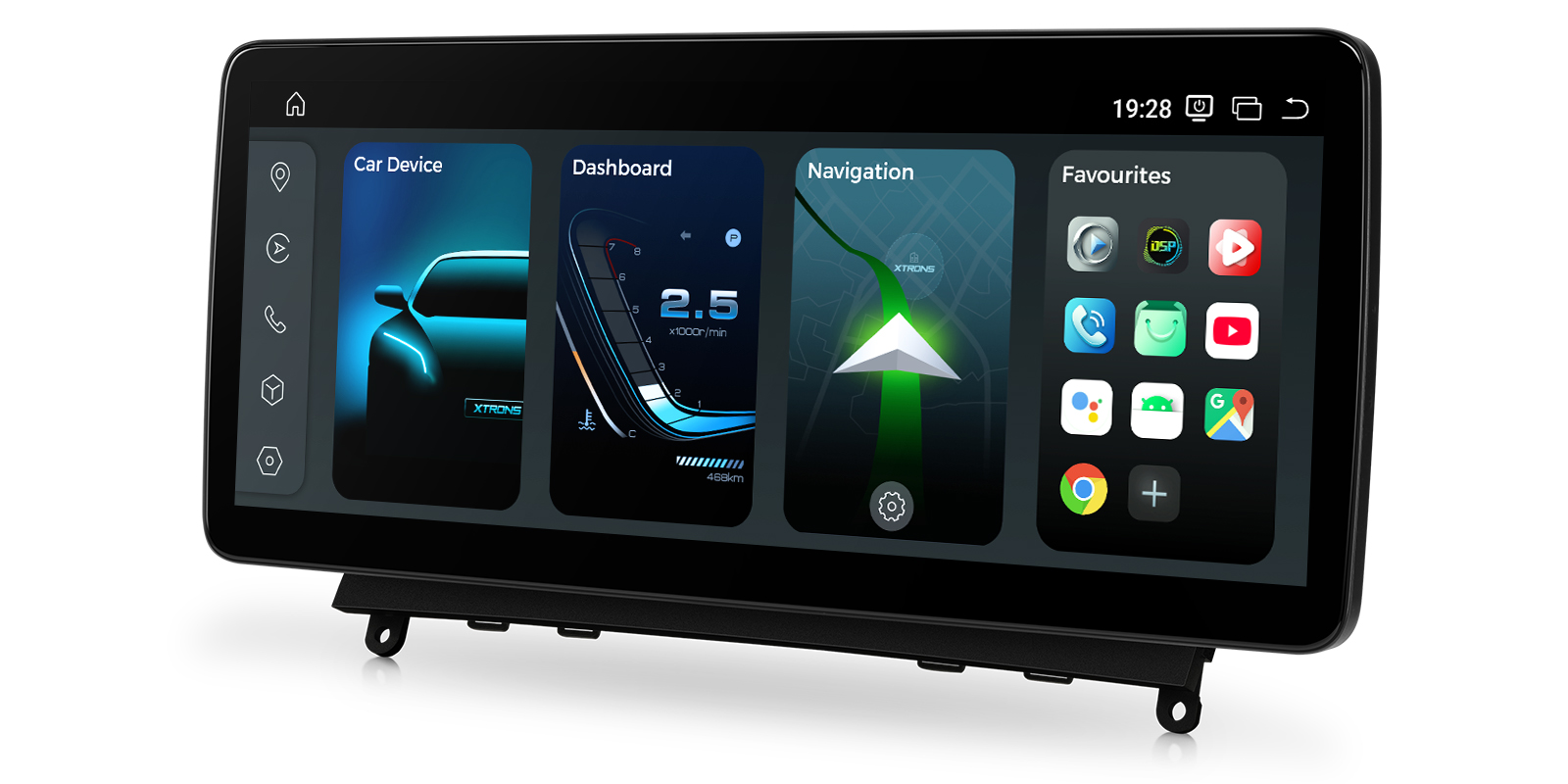

A 12.3 inch Android 14 screen for the Mercedes-Benz C-Class W204 (2007-2010) with the NTG 4.0 system. It runs next to the original COMAND system and adds wireless CarPlay, Android Auto, built-in 4G and a 2K display.
- Wireless Apple CarPlay and wireless Android Auto
- 12.3 inch 2K IPS screen at 2400×900 with nano-texture anti-glare glass
- Built-in 4G LTE for streaming and live traffic
- Qualcomm Snapdragon 662, 8GB RAM and 128GB storage on Android 14
- Keeps COMAND, steering wheel buttons, factory camera and parking sensors
Made for the W204 with NTG 4.0
This screen is for the C-Class W204 with the COMAND APS NTG4.0 system, which has a 10-pin LVDS port or the New Telematic Generation 4.0 menus.
The original COMAND system stays, and you can switch between it and Android. Factory camera support and parking sensors are kept.
Cars with NTG4.5 or NTG4.7 need the XTRONS QBMH2445M12BL (Left-hand Driving) or QBMH2445M12BR (Right-hand Driving), and cars with NTG5.0, NTG5.1 or NTG5.2 need the QBMH2450M12C5.

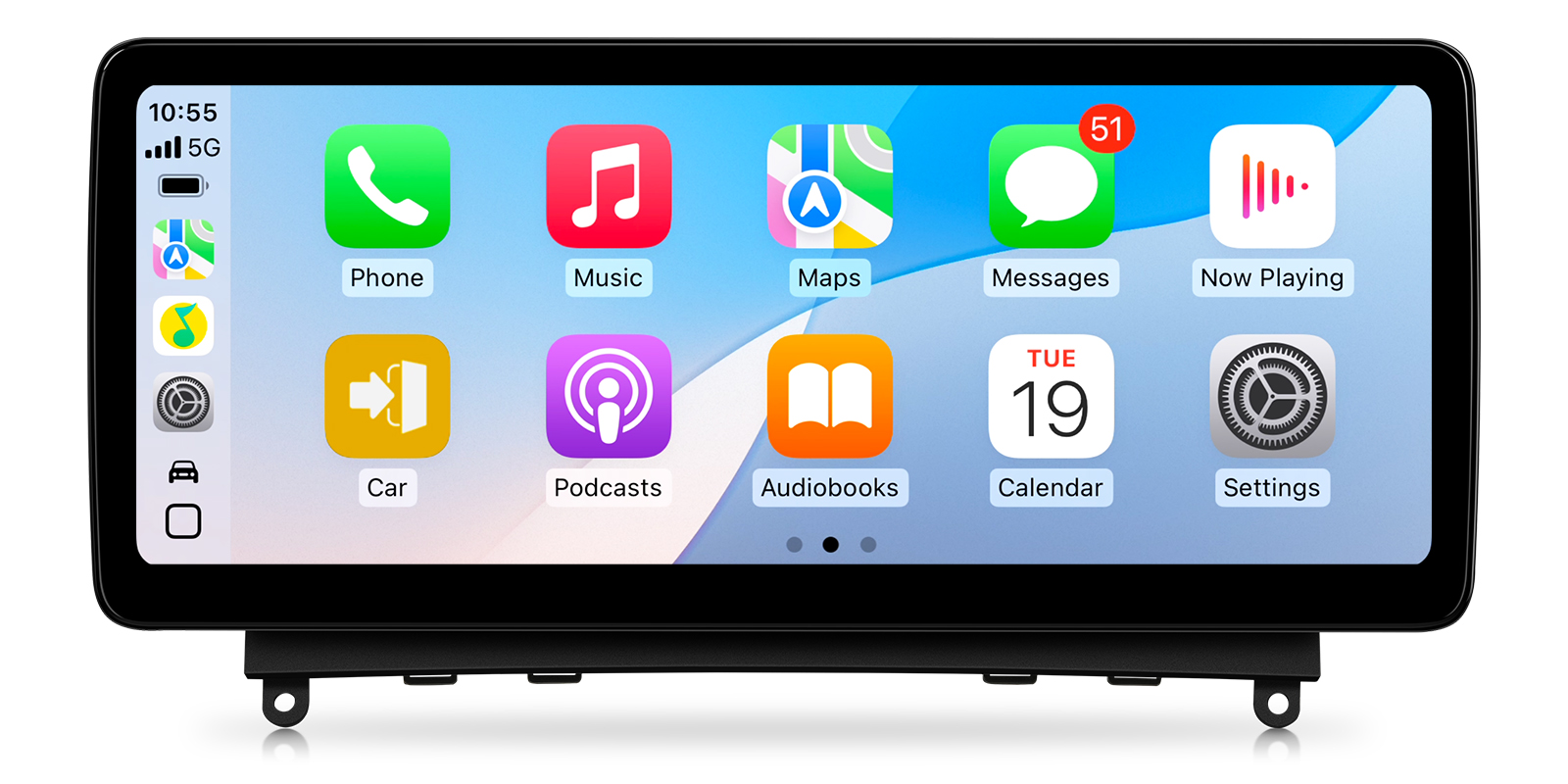

Wireless Apple CarPlay
Your iPhone connects without a cable, putting maps, calls and music on the 12.3 inch screen. Siri works for messages and directions.
Android Auto
Android phones connect wirelessly to Android Auto, with navigation, music and messages on the big screen and Google Assistant for voice commands.

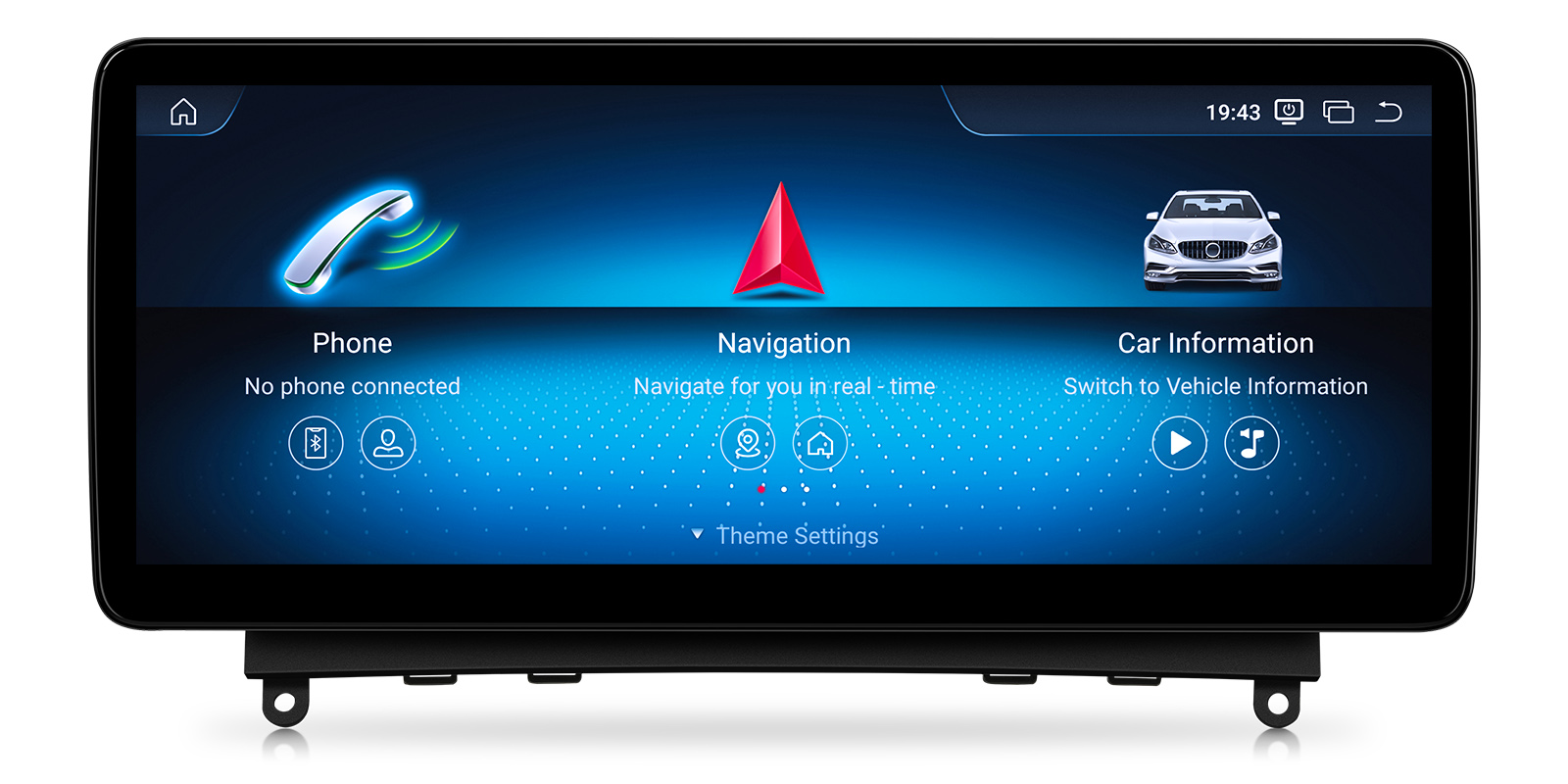

12.3 inch 2K IPS screen
The fully laminated IPS screen runs at 2400×900. Nano-texture glass with an anti-reflective coating keeps glare down when the sun is on the dashboard.
The long, wide shape gives a generous map view.
Built-in 4G
Fit a SIM card and the unit has its own 4G LTE connection for streaming and live maps. A 4G antenna is included.
Dual-band Wi-Fi
Dual-band WiFi (2.4GHz/5GHz) connects to a hotspot or your home network for downloads and updates.
Bluetooth 5.1
Bluetooth 5.1 handles music streaming and hands-free calls. A mini speaker comes in the box.
Steering wheel buttons kept
Volume, track skip and COMAND navigation on the steering wheel keep working through the CANbus connection.
Split screen
Run navigation and another app side by side on the wide screen, so the map stays visible while you pick music.
Screen mirroring
Mirror your phone onto the screen for apps that aren't available in CarPlay or Android Auto.
DAB with an external adapter
DAB radio is supported with an external DAB adapter, which is sold separately.
Dash cam support
A DVR dash cam can be connected and viewed on the screen. The dash cam is sold separately.
Works with

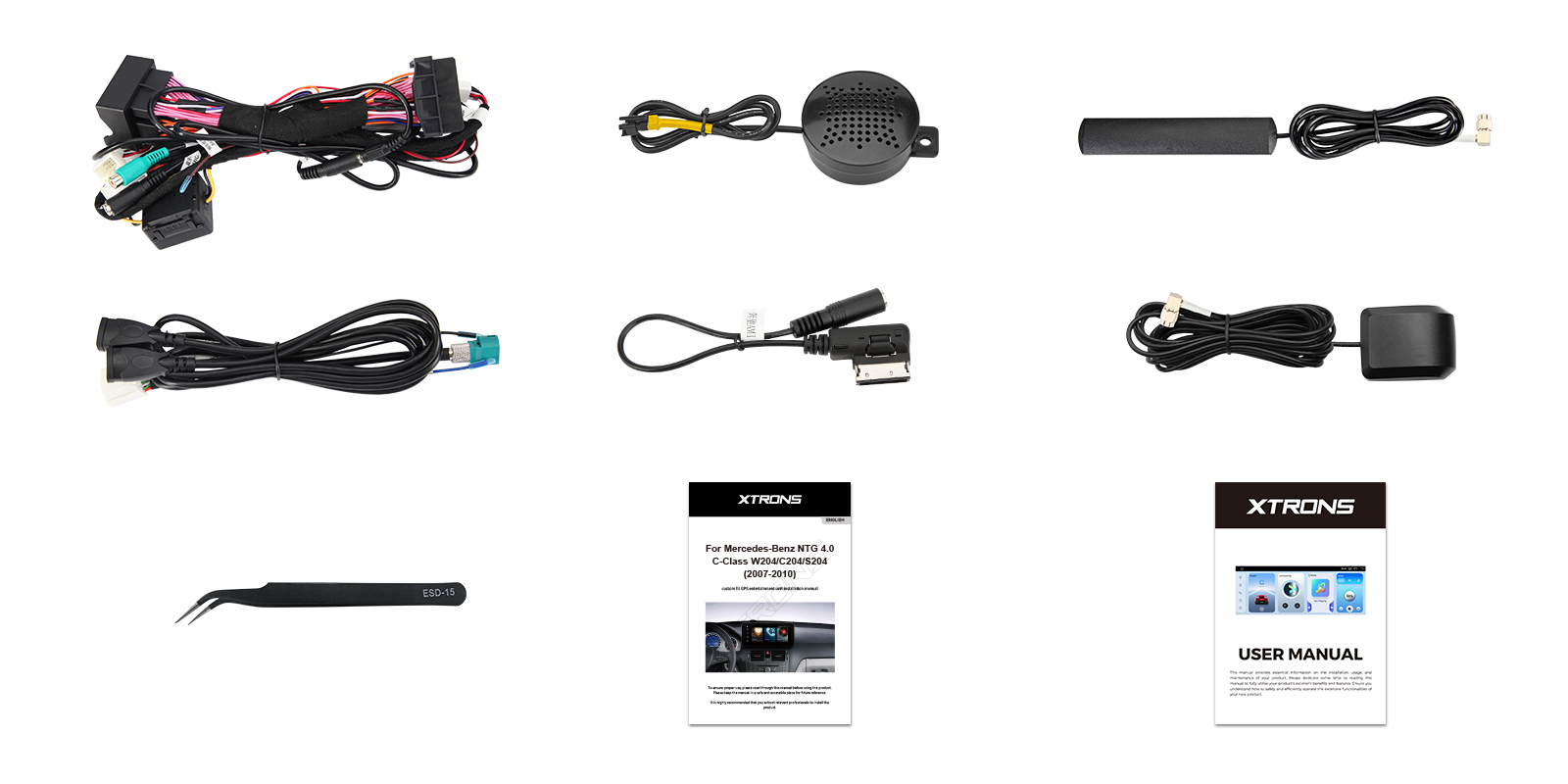

What's in the box
- 1 x 4G Antenna
- 1 X AMI Cable
- 1 x GPS Antenna
- 1 x Installation Instruction
- 1 x ISO Wiring Harness
- 1 x Mini Speaker
- 1 x Tweezers
- 1 x User Manual
- LVDS Cable

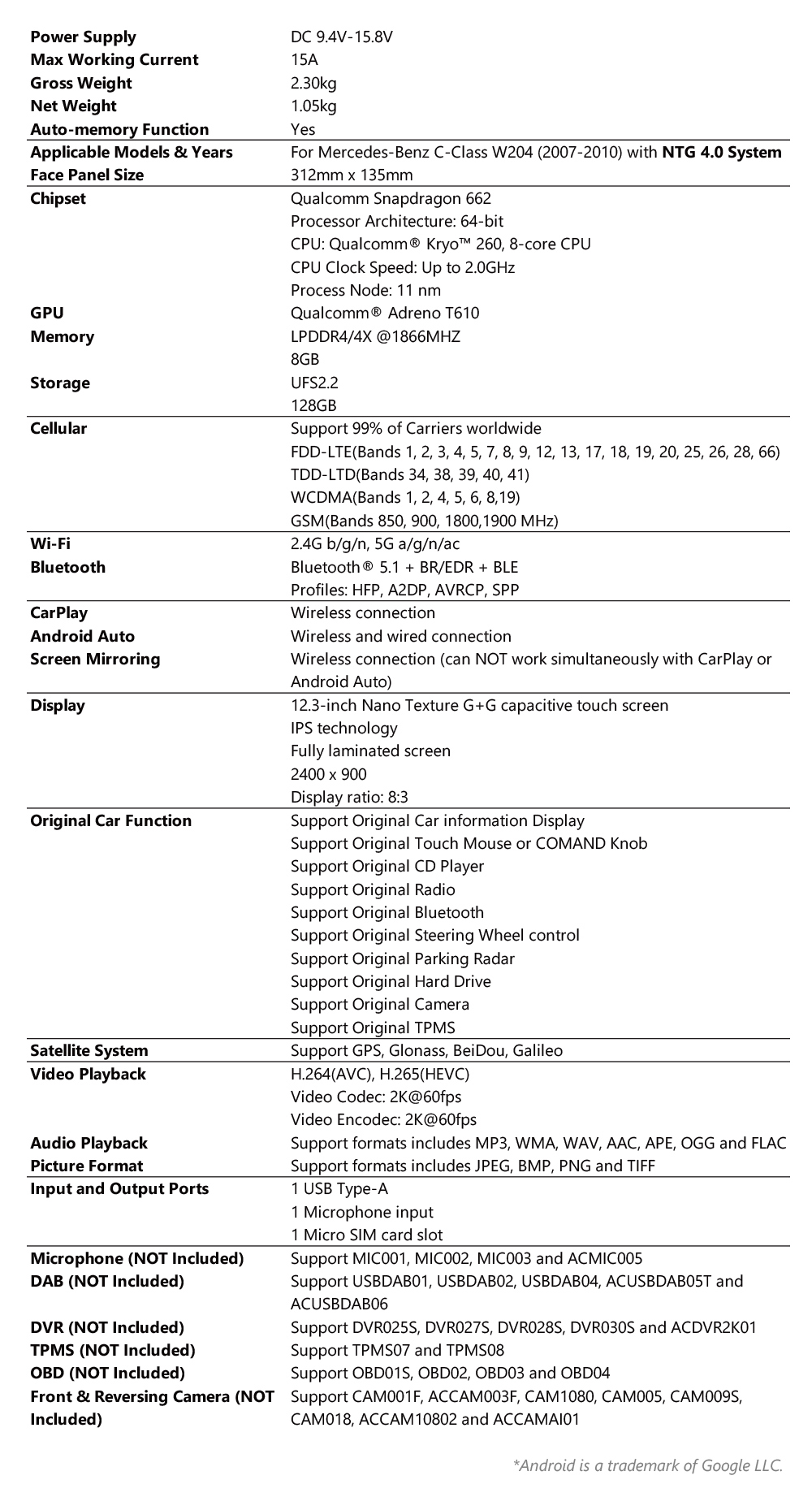

| Processor | Qualcomm Snapdragon 662 (Kryo 260, 8-core, 2.0GHz) |
|---|---|
| Memory and storage | 8GB LPDDR4 RAM + 128GB UFS 2.2 ROM |
| Operating system | Android 14 |
| Screen | 12.3” 2K (2400×900) Nano-Texture IPS Screen |
|---|
| Phone and network | Wireless CarPlay/Android Auto, 4G LTE, Dual-Band WiFi (2.4/5GHz), Bluetooth 5.1 |
|---|---|
| Positioning | GPS/GLONASS/BeiDou/Galileo |
| Power supply | DC 9.4V–15.8V, Max Current: 15A |
|---|

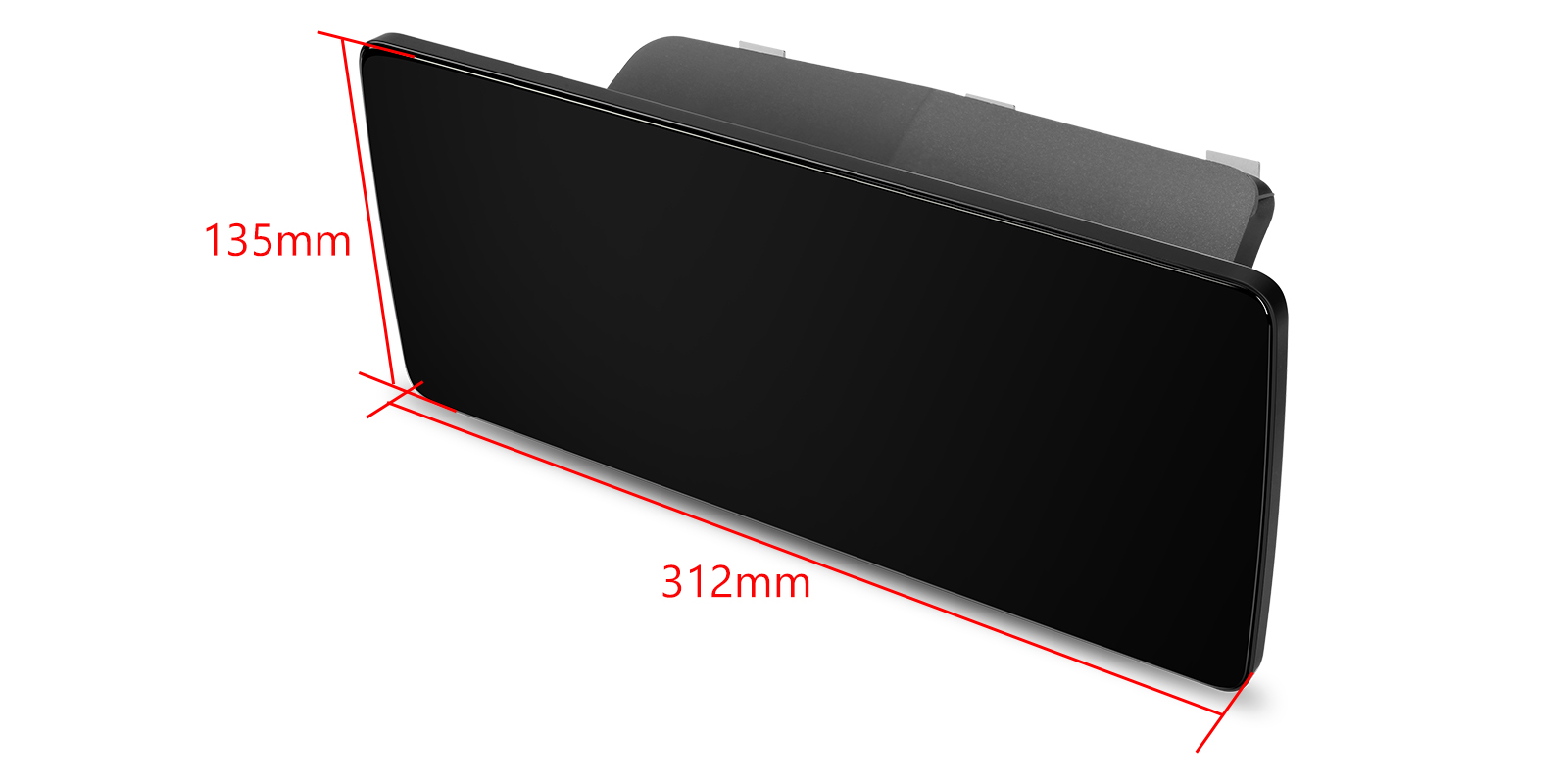

| Dimensions | 312mm x 135mm |
|---|---|
| Weight | 2.30kg (Gross) |
| Operating temperature | -30°C to +80°C |
- Mercedes-Benz C-Class W204 (2007-2014)
- For Mercedes-Benz C-Class W204 (2007-2010) with NTG 4.0 System
- 1. This unit ONLY works with the original Mercedes-Benz C-Class W204 COMAND APS NTG4.0 system which has the following features: a 10-pin LVDS port or a New Telematic Generation 4.0 UI.
- If your car comes with an AMI port, you will need to connect the AMI cable to the ISO cable "audio out" port. (AMI cable provided in the package.)
- Connect the XTRONS unit to your car's AUX input for audio functionality. Ensure AUX is enabled to enjoy the full audio experience with our head unit.

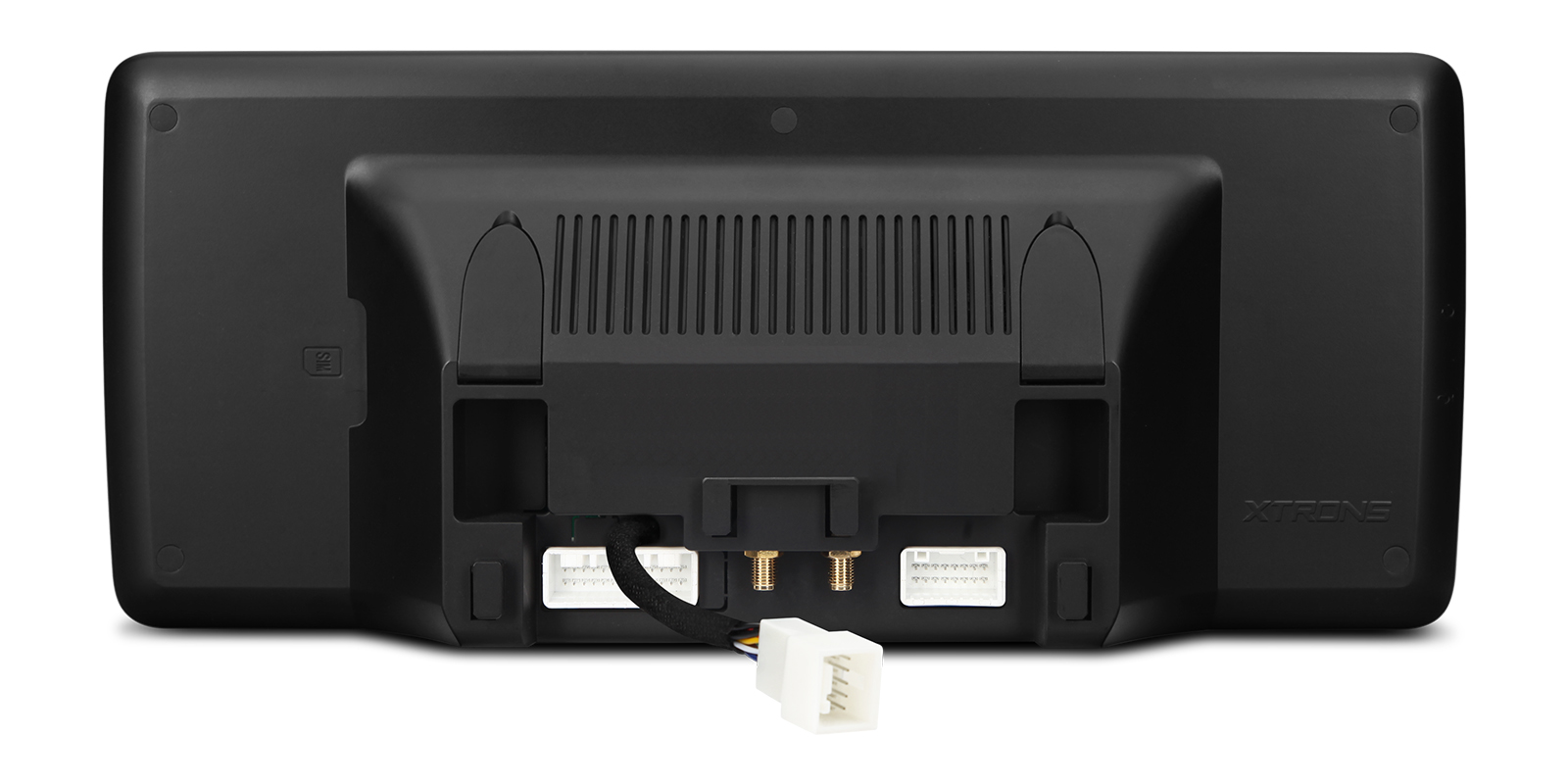

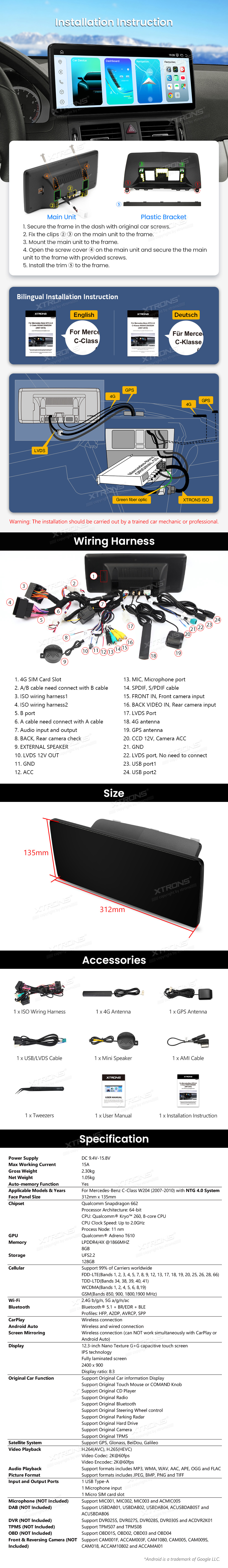

The screen connects with the supplied LVDS cable and ISO wiring harness, keeping the original COMAND system. Sound comes through the car's AUX input, so AUX must be enabled. If your car has an AMI port, connect the supplied AMI cable to the "audio out" port on the ISO cable.
Which W204 cars does it fit?
C-Class W204 cars with the NTG 4.0 system, which has a 10-pin LVDS port. Cars with NTG4.5, NTG4.7, NTG5.0, NTG5.1 or NTG5.2 need a different XTRONS unit.
Will my steering wheel buttons work?
Yes. They're retained through the CANbus connection.
Do I keep my parking sensors and camera?
Yes. Factory camera support and parking sensors are kept, as is COMAND.
Does it have DAB built in?
No. It works with an external DAB adapter, sold separately.
Reviews
What customers say
Bought this product? Sign in to write a review.

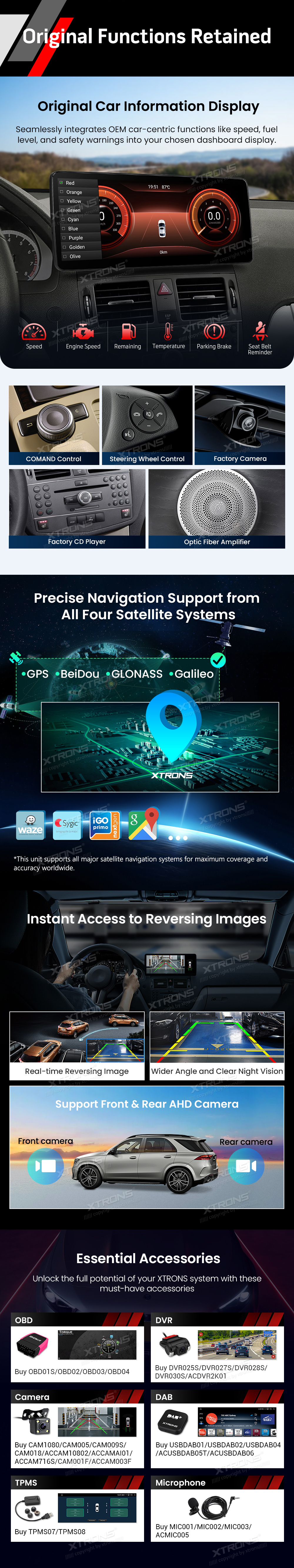

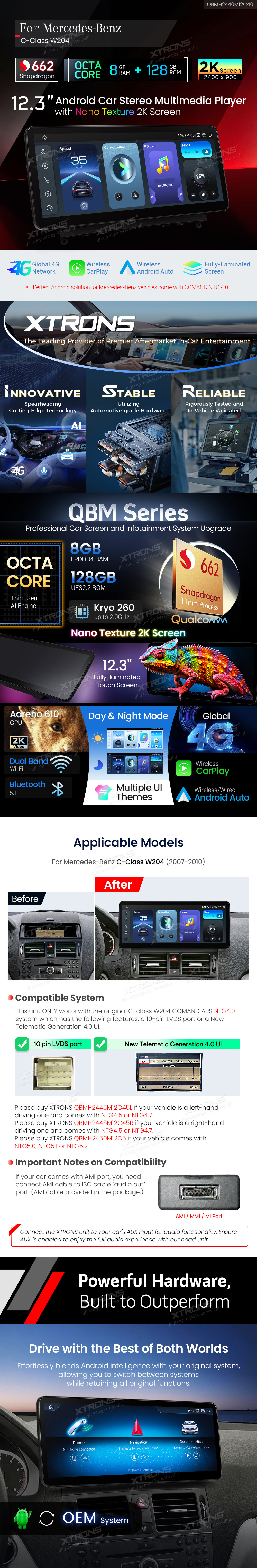

Full specification from XTRONS
