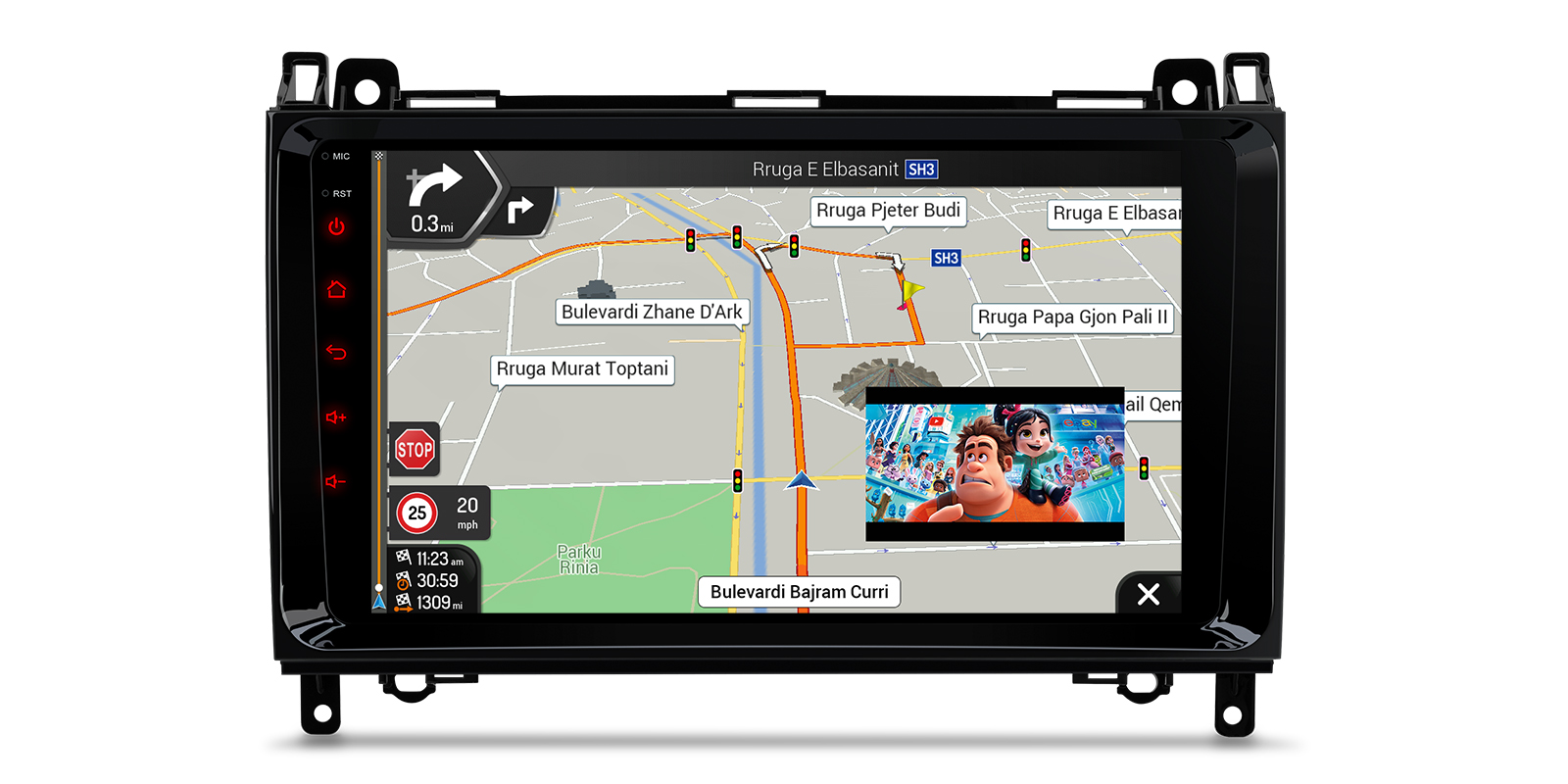

- GPS navigation: read more below
- USB: read more below
- External microphone: read more below
- Built-in amplifier: read more below
In stock

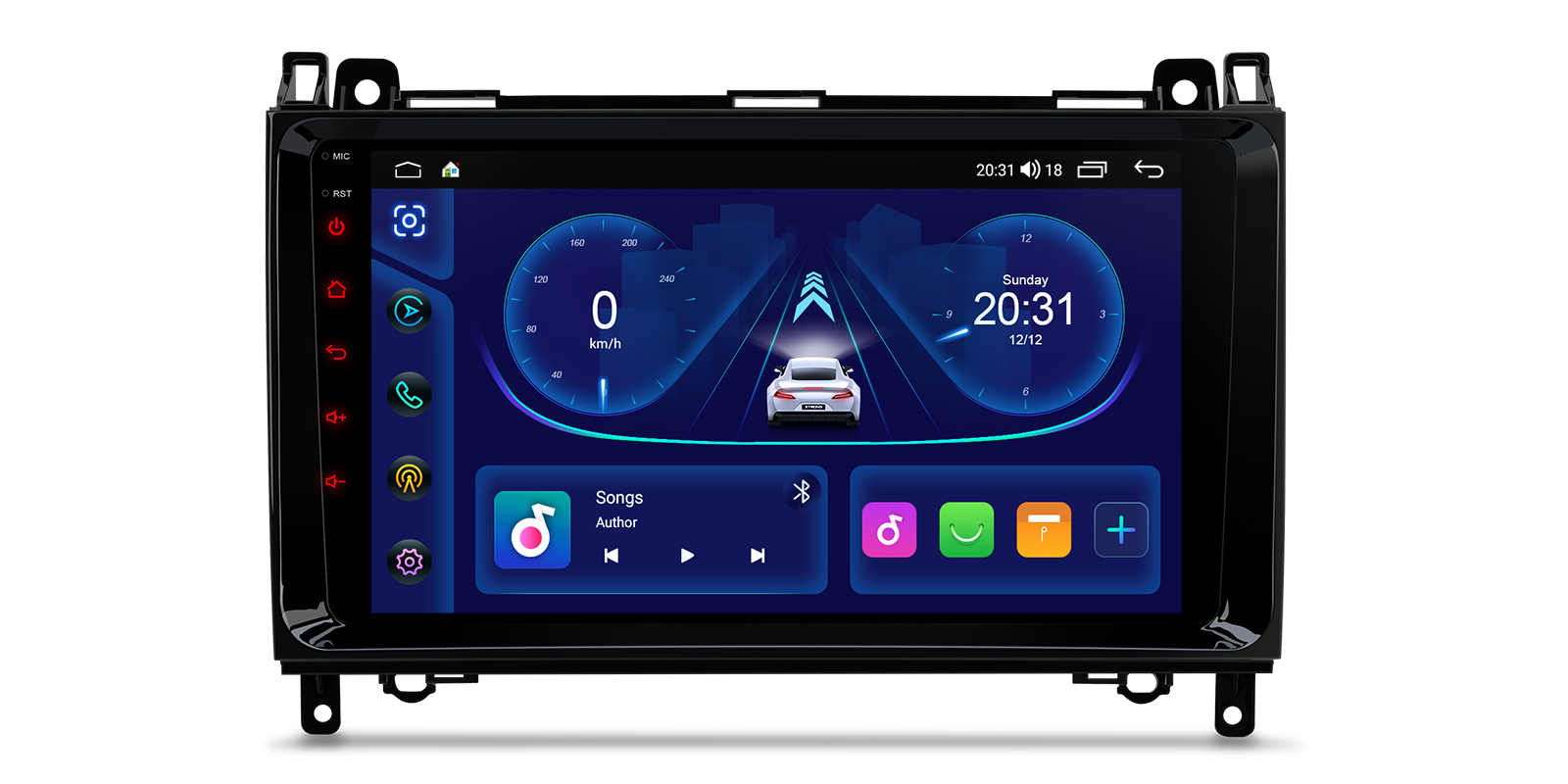

Mercedes A-Class, B-Class, Vito, Sprinter and VW Crafter 9 inch Android Stereo with Wireless CarPlay | IDP90M245
SKU: IDP90M245
£239.99
Check if this fits your car
1

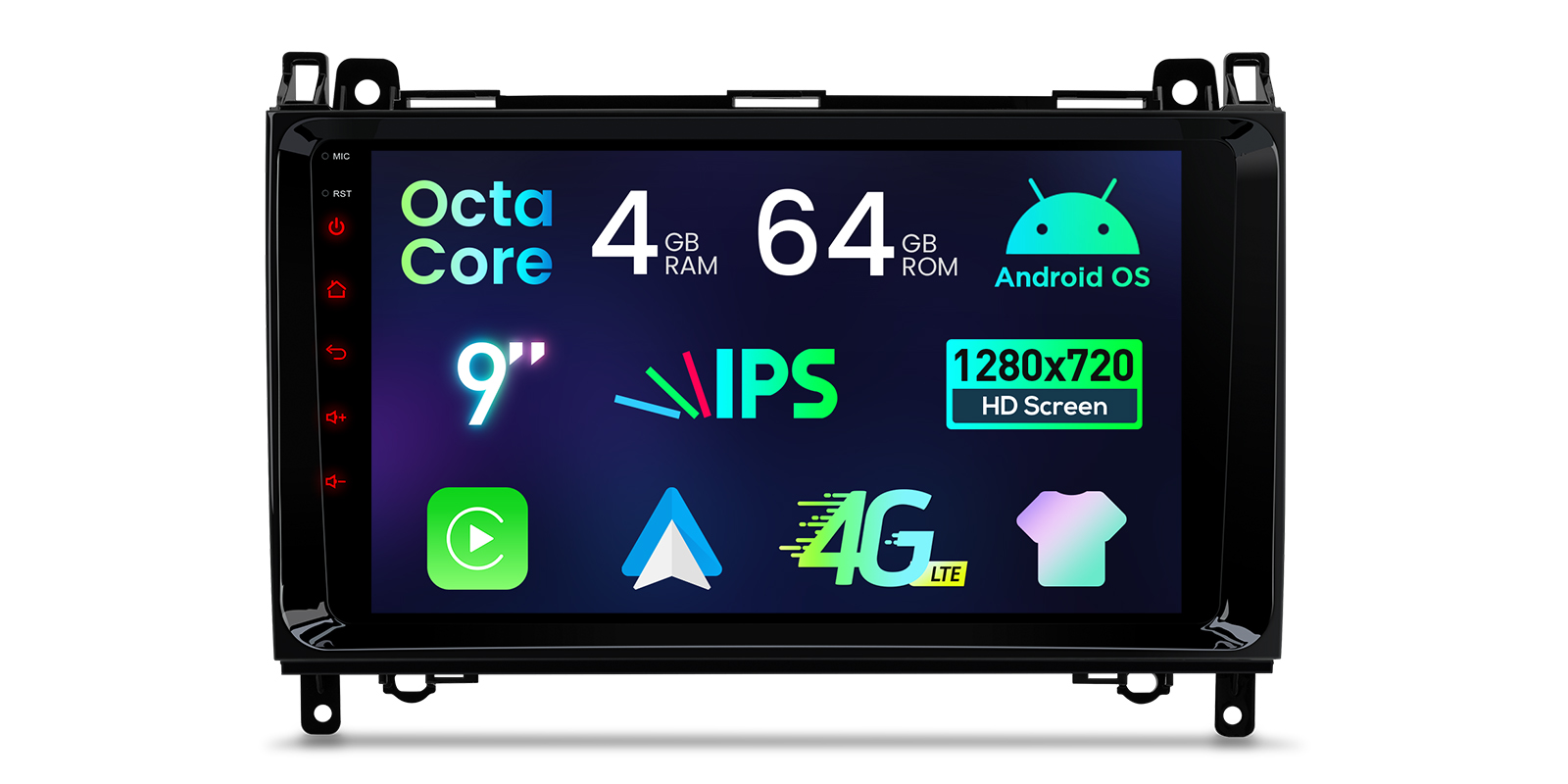

Key specifications
- Processor
- Octa-Core A55 processor
- Memory
- 4GB DDR4 RAM + 64GB Solid State ROM
- Video
- 1080P Video Playback
- Screen
- 9” 1280×720 IPS Screen
- Touch
- Grade-A G+G touch screen
- Amplifier
- 4x45W TCB001HQ amplifier

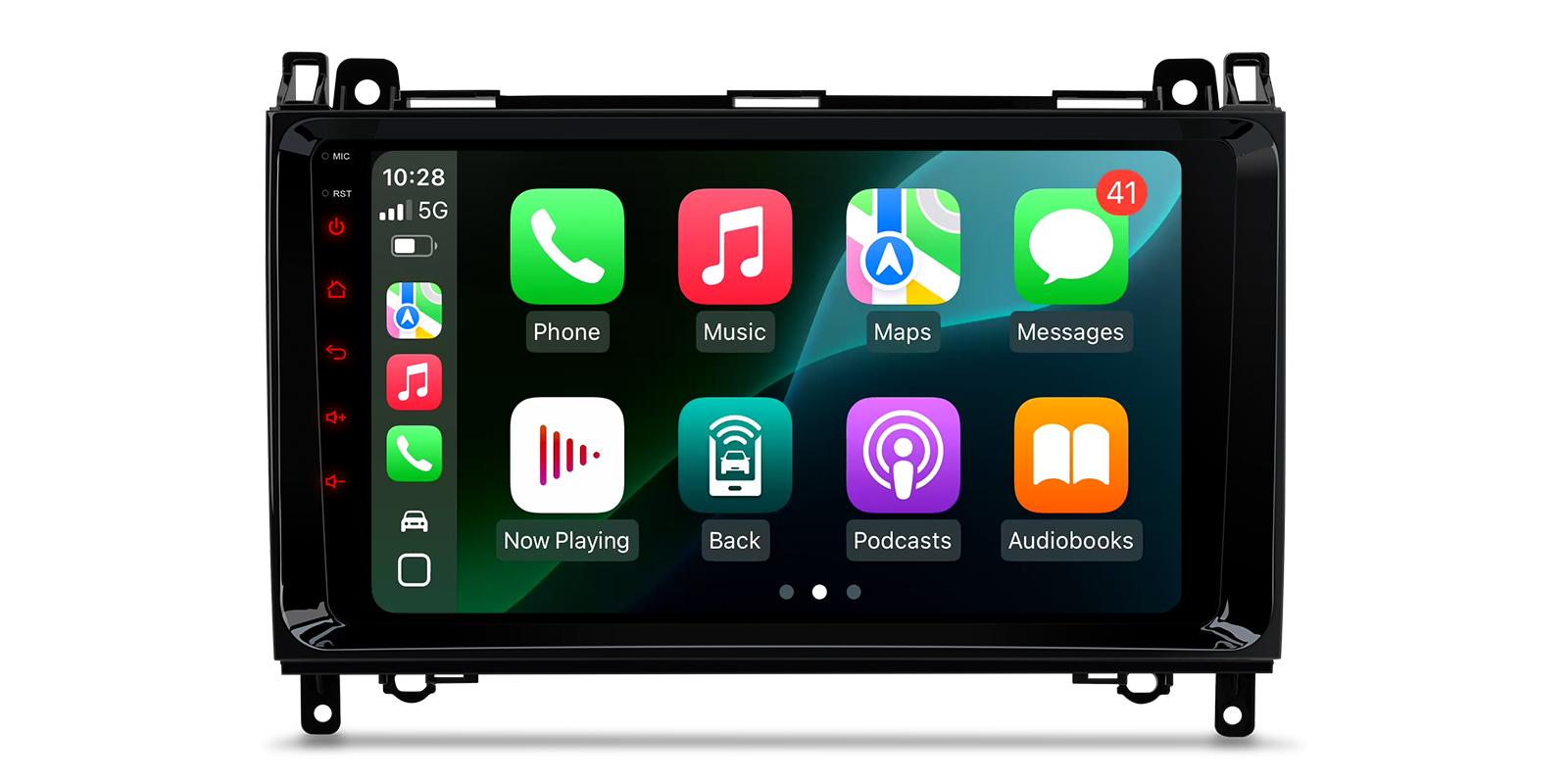

The XTRONS IDP90M245 is a 9 inch Android car stereo custom-fit for the Mercedes-Benz A-Class W169, B-Class W245, Viano and Vito W639, Sprinter W906 and the Volkswagen Crafter. It adds CarPlay and Android Auto, built-in 4G, an adjustable EQ with a 4x45W amplifier and CANbus decoding for the original functions.
- Wireless Apple CarPlay and Android Auto with Siri and Google Assistant
- 9 inch 1280×720 IPS screen with G+G touch glass
- Built-in 4G LTE module for European and Asian networks
- TCB001HQ amplifier at 4x45W with an adjustable EQ
- CANbus decoding shows car information such as ACC and reversing control

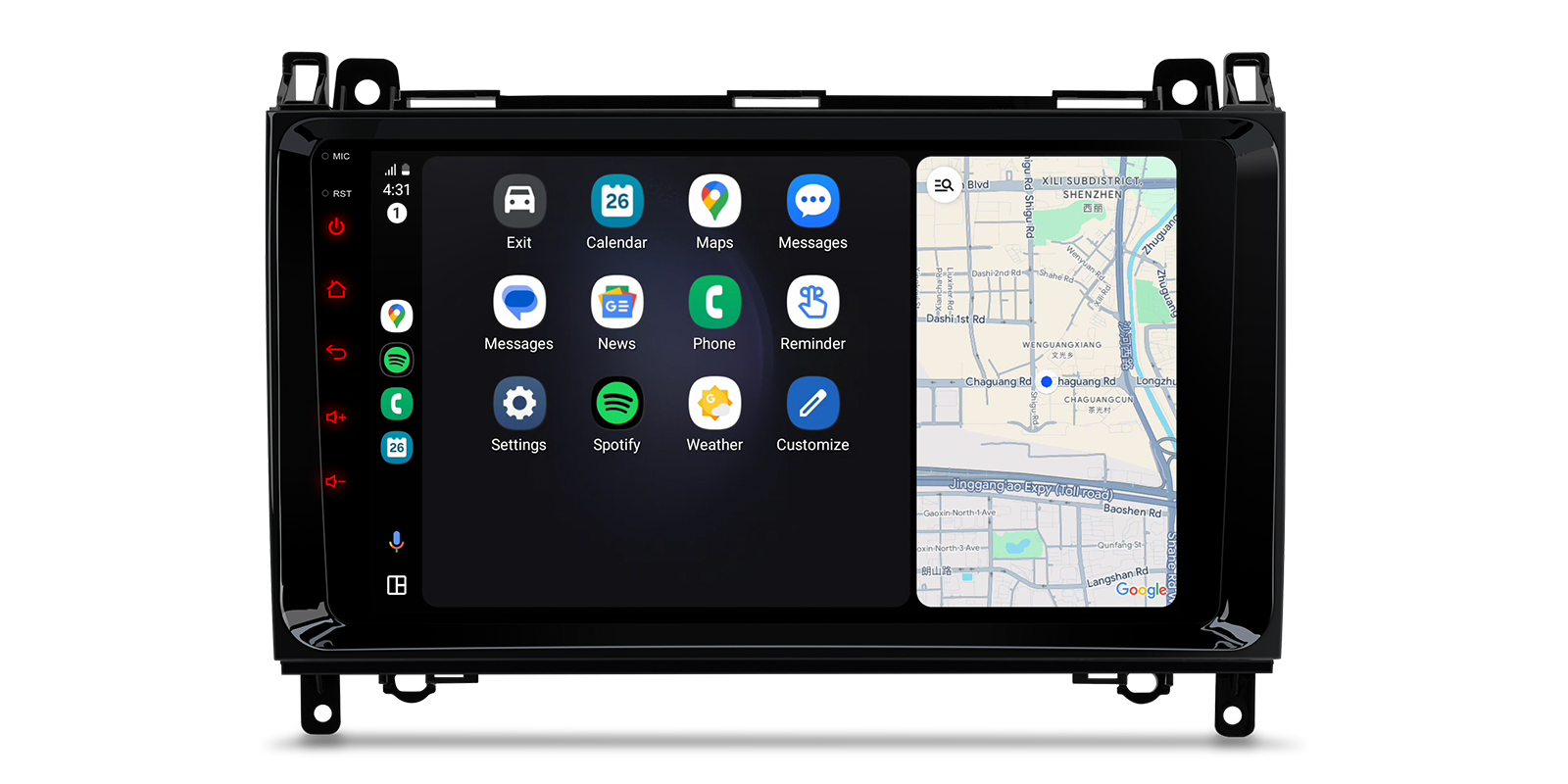

Wireless Apple CarPlay
CarPlay puts your iPhone's maps, calls and music on the 9 inch screen with large touch controls, and Siri is available directly for voice commands. In a van, that means directions and calls without reaching for the phone.
Android Auto
Android phones run Android Auto on the big screen, with Google Maps, calls, music apps and Google Assistant.
9 inch IPS screen
The 9 inch Grade-A HD screen runs at 1280×720 with G+G touch glass for responsive control. The IPS panel keeps the picture clear from the passenger seat.
Built-in 4G LTE
The built-in 4G module supports European and Asian networks. With a SIM card the unit has its own connection for navigation, music streaming and online apps; a SIM card slot cable and 4G antenna are supplied.
Adjustable sound
The DSP and EQ system let you shape the sound and balance it across the cabin.
4x45W amplifier
The TCB001HQ amplifier provides 4x45W and keeps the output stable at different volume levels.
Wi-Fi
Wi-Fi lets the unit join a hotspot or your home network for app downloads and updates.
Screen mirroring
Screen mirroring shows your phone's display on the head unit for apps outside CarPlay and Android Auto.
Microphone for calls and voice
The unit has a microphone for hands-free calls and for using Siri or Google Assistant.
USB
Two USB cables and a USB cable adapter come with the unit for connecting your phone and playing media, including 1080P video.

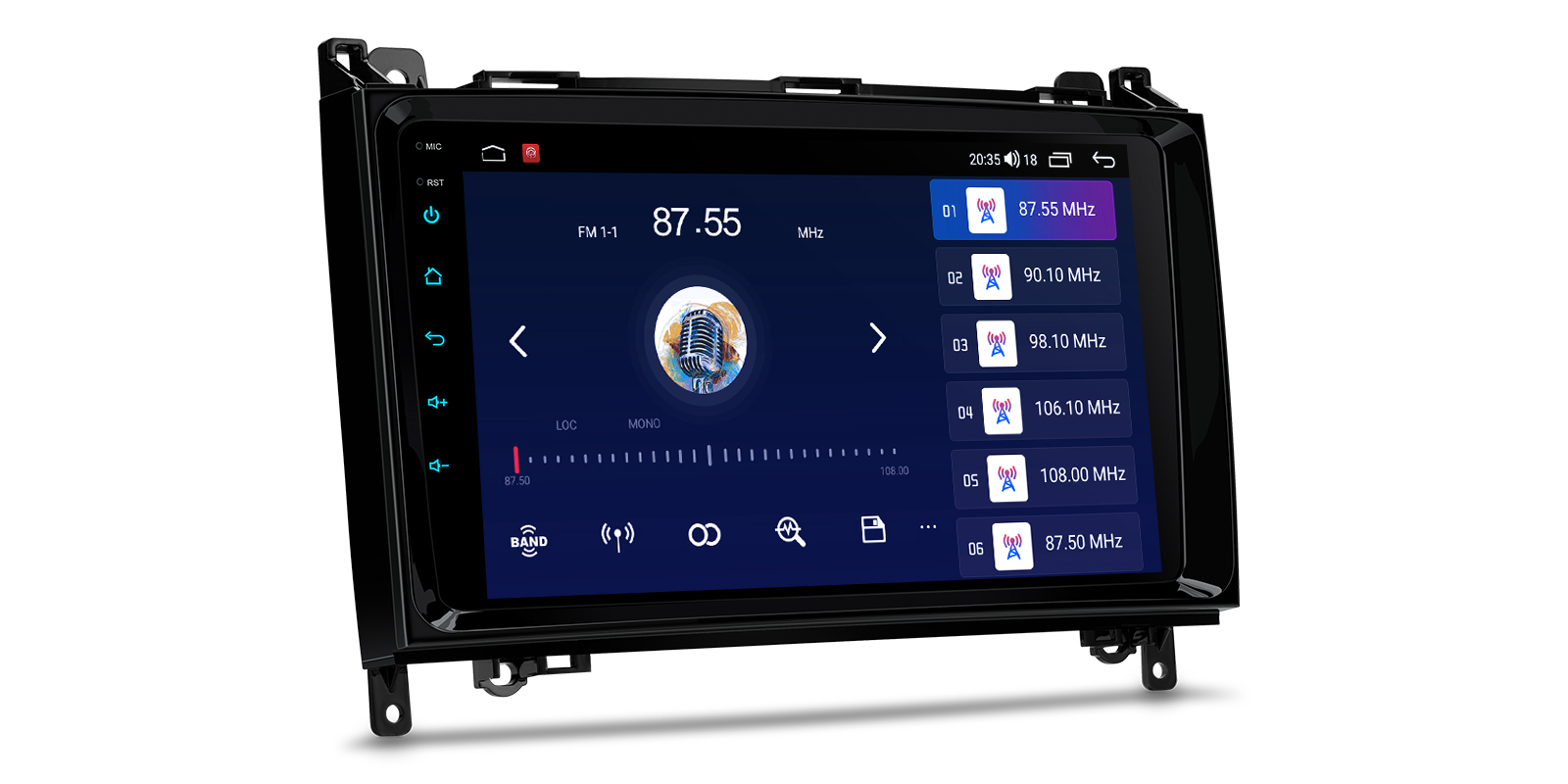

Radio and DAB
An SI4755 radio tuner with RDS shows station names. Add an external DAB tuner for digital stations.
Reversing camera
The unit supports AHD cameras and has a camera cable in the box. If your vehicle has the original reversing camera, you'll need an adapter to keep it working; XTRONS ICE/ACS/FZMRM01 is compatible.
CANbus decoding
The CANbus box keeps original features working after the upgrade and shows car information such as ACC control and reversing control.
If the CANbus box doesn't match your car's CANbus system at first, try connecting the male connector to one of the female connectors, then the other.
Processor and memory
An octa-core A55 processor runs the optimised Android system with 4GB DDR4 RAM and 64GB of solid state storage. The unit doesn't have a DVD drive.
Works with

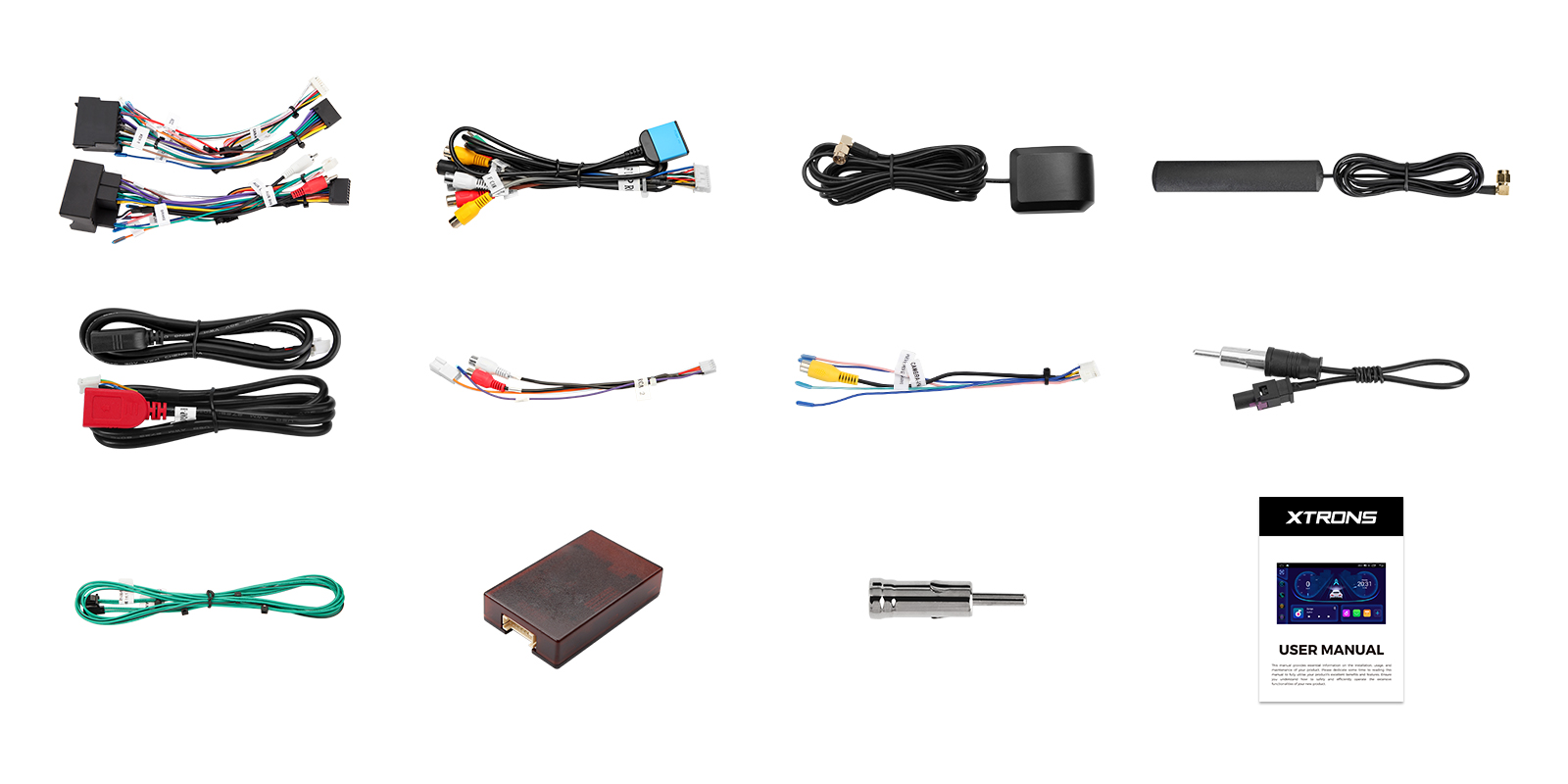

What's in the box
- 1 x 4G Antenna
- 1 x Camera Cable
- 1 x CANbus Box
- 1 x CANbus Cable
- 1 x GPS Antenna
- 1 x Mini Speaker
- 1 x Radio Antenna Adapter
- 1 x Radio Antenna Cable
- 1 x SIM Card Slot Cable
- 1 x USB Cable Adapter
- 1 x User Manual
- 2 x ISO Wiring Harness
- 2 x USB Cable
| Processor | Octa-Core A55 processor |
|---|---|
| Memory | 4GB DDR4 RAM + 64GB Solid State ROM |
| Video | 1080P Video Playback |
| Screen | 9” 1280×720 IPS Screen |
|---|---|
| Touch | Grade-A G+G touch screen |
| Amplifier | 4x45W TCB001HQ amplifier |
|---|---|
| Radio | SI4755 Radio with RDS |
| DAB | External DAB Supported |
| Mobile data | Integrated 4G Solution |
|---|---|
| Phone connection | Built-in CarPlay & Android Auto |
| Camera | Supports AHD Cameras |
|---|

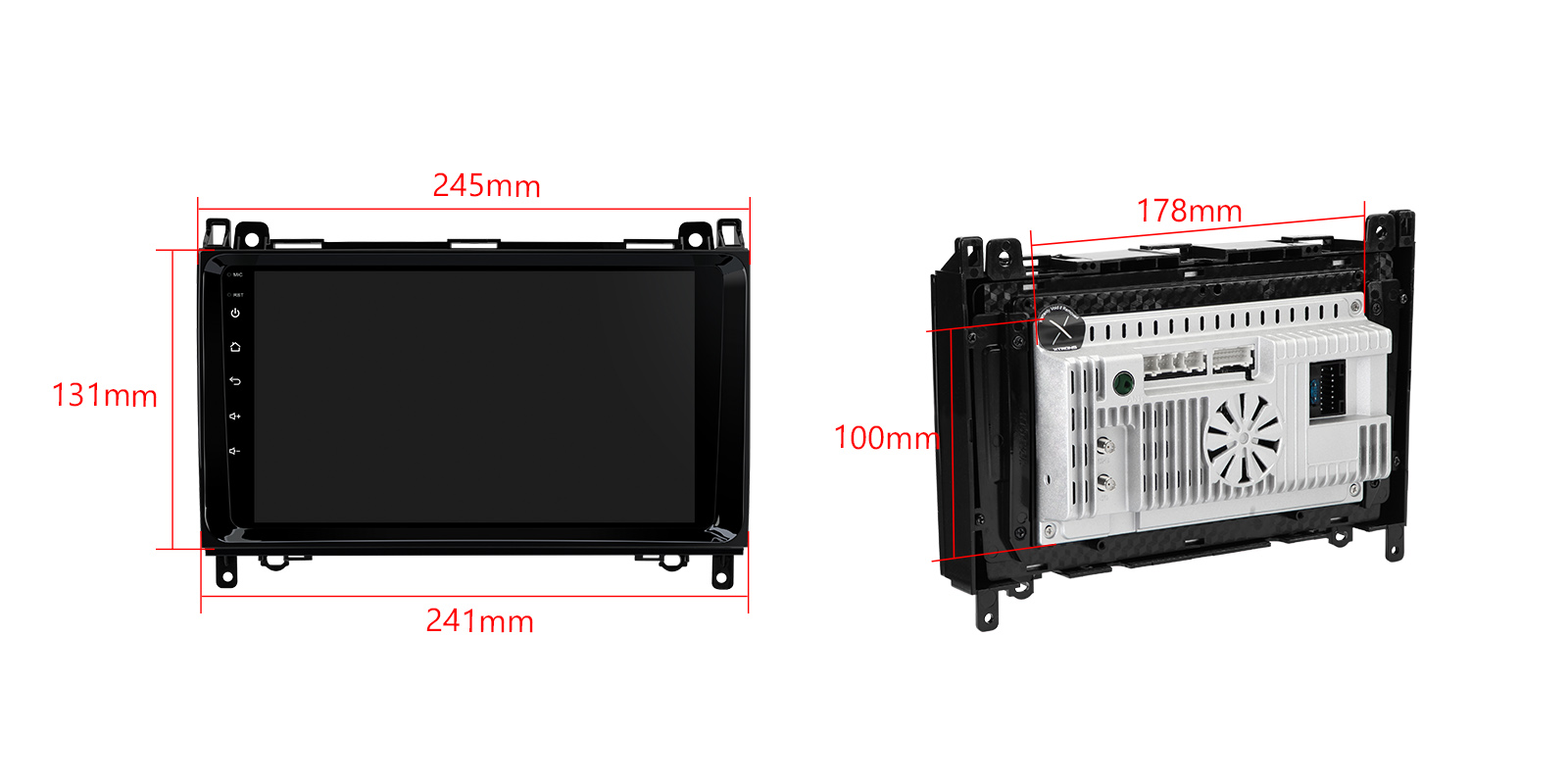

| Face panel | 245/241x131mm |
|---|---|
| DVD drive | This unit doesn't have a DVD drive. |

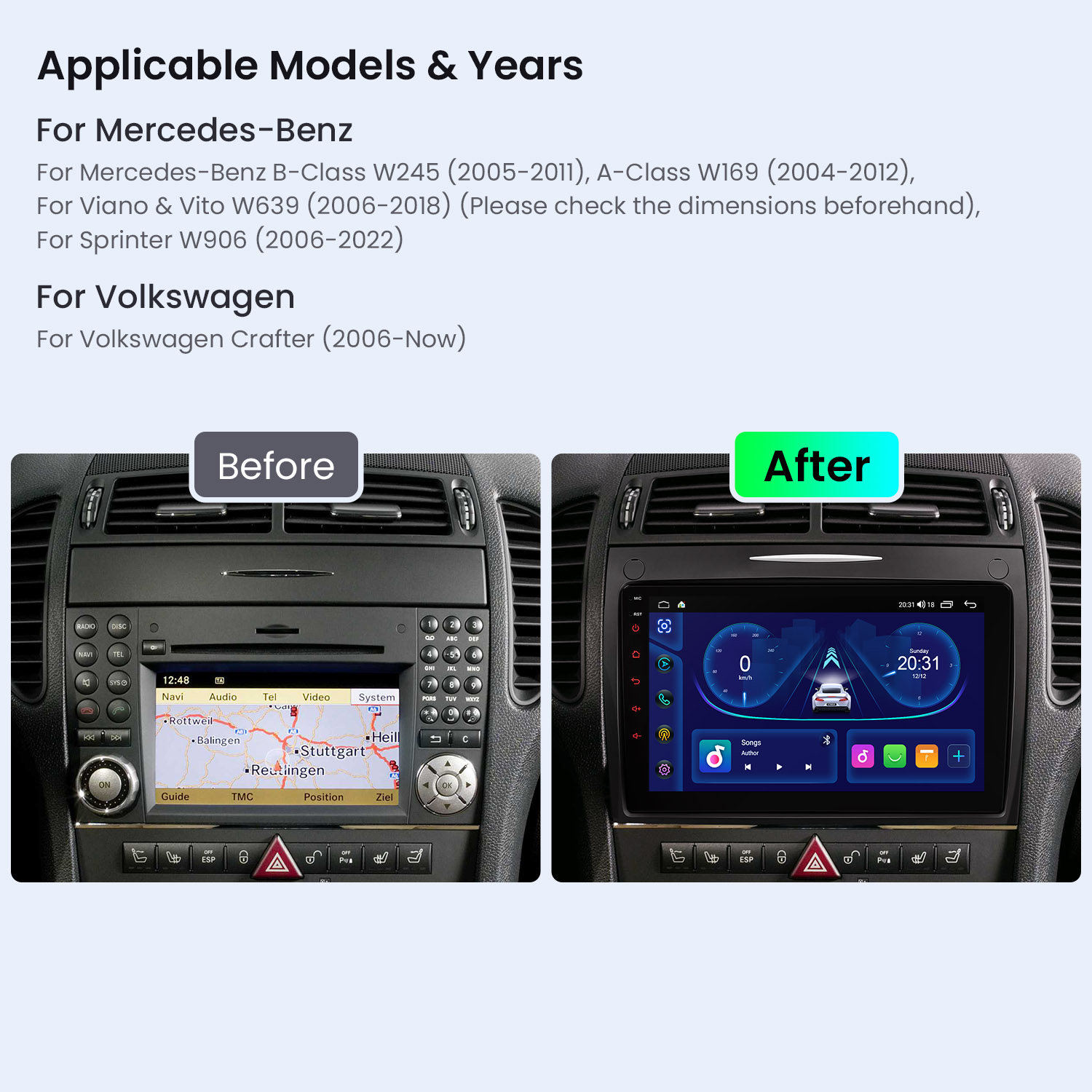

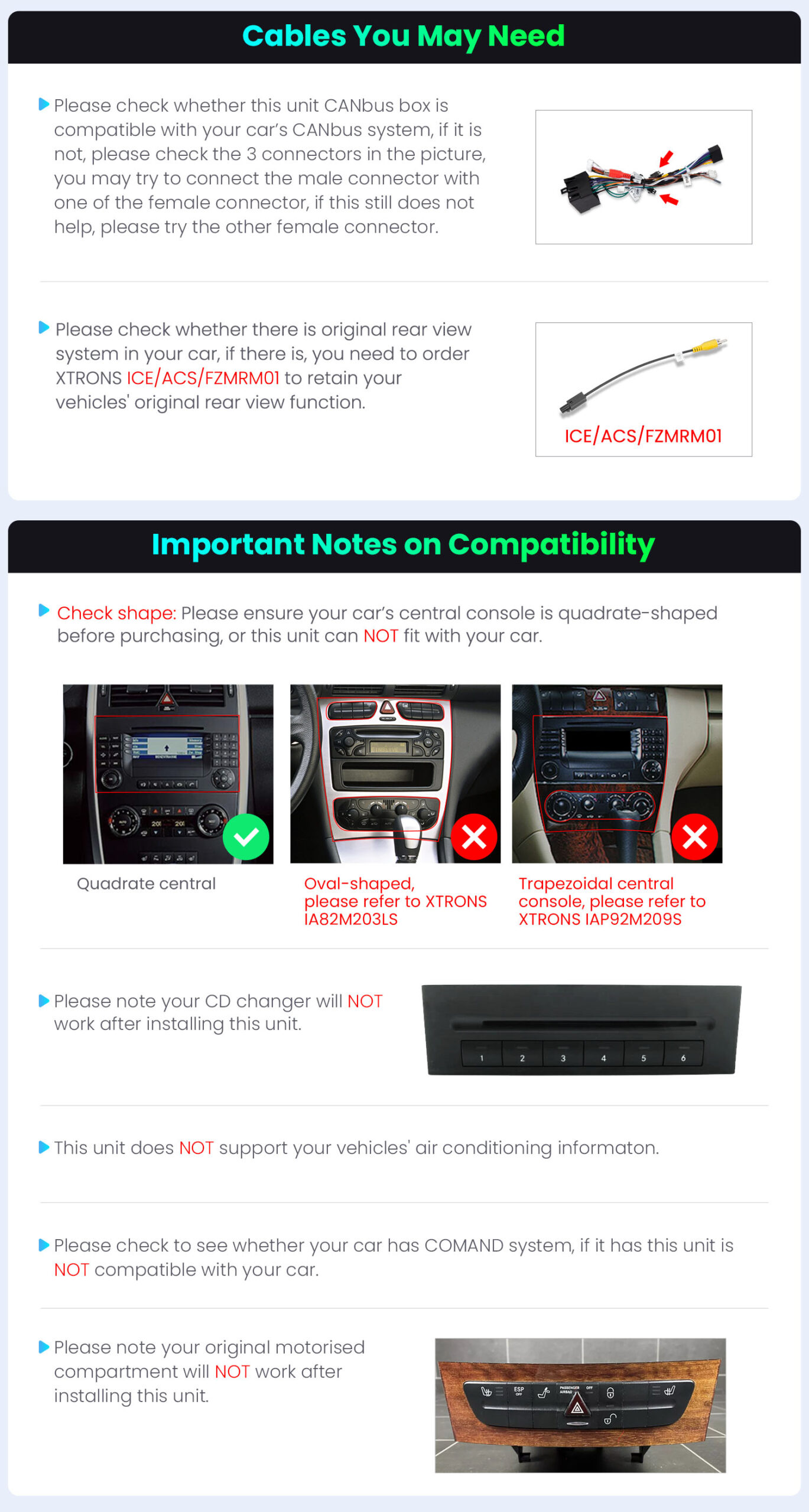

- For Mercedes-Benz B-Class W245 (245-2011), A-Class W169 (2004-2012), Viano & Vito W639 (2006-2018) (Please check the dimensions beforehand), Sprinter W906 (2006-2012),
- For Volkswagen Crafter (2006-Now)
- Please note your CD changer will NOT work after installing this unit.
- Please note your original motorised compartment will NOT work after installing this unit.
- This unit does NOT support decoding your vehicles' air conditioning information.
- Please check to see whether your car has COMAND system, if it has, this unit is NOT compatible with your car.
- If your vehicle comes with the original reversing camera, you need to order an adapter to make the reversing camera work after upgrading. (XTRONS ICE/ACS/FZMRM01 is compatible.)
- Please ensure your car's central console is trapezoidal in shape before purchasing, or this unit will NOT fit your car.
- If it is a trapezoidal-shaped central console with a trim strip above, please refer to XTRONS IAP92M209S.
- If it is oval-shaped, please refer to XTRONS IA83M203LS.
The IDP90M245 is custom-fit and connects with the two supplied ISO wiring harnesses and the CANbus box. It isn't compatible with cars that have the COMAND system. Check the shape of your centre console first: a trapezoidal console with a trim strip above needs XTRONS IAP92M209S, and an oval one needs IA83M203LS. Compare the 245/241x131mm face panel with your dashboard, especially on the Viano and Vito.
Does it work with COMAND?
No. If your car has the COMAND system, this unit isn't compatible.
Will my CD changer still work?
No. The CD changer and the original motorised compartment won't work after fitting.
Does it show the air conditioning settings?
No, it doesn't decode the vehicle's air conditioning information.
Will my factory reversing camera work?
Yes, with an adapter. XTRONS ICE/ACS/FZMRM01 is compatible.
Reviews
What customers say
Bought this product? Sign in to write a review.

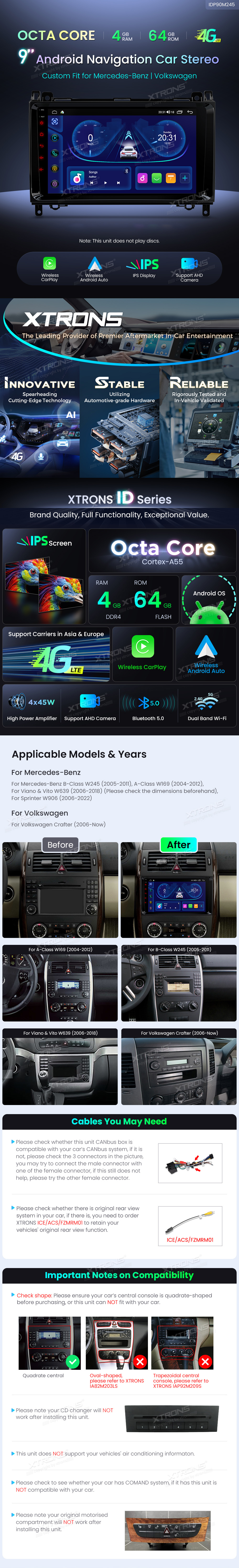

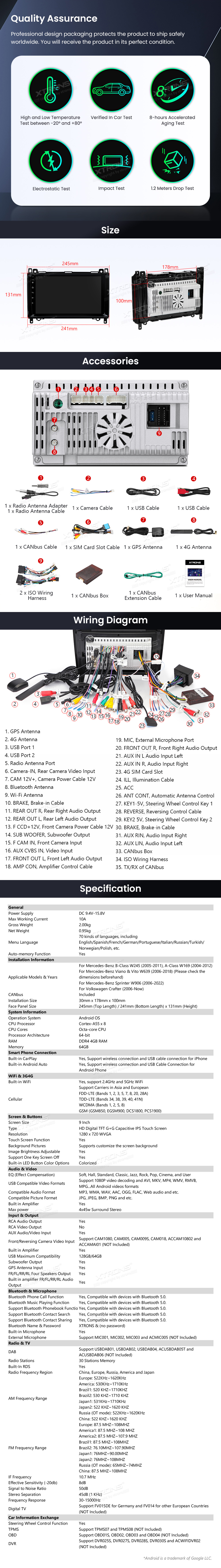

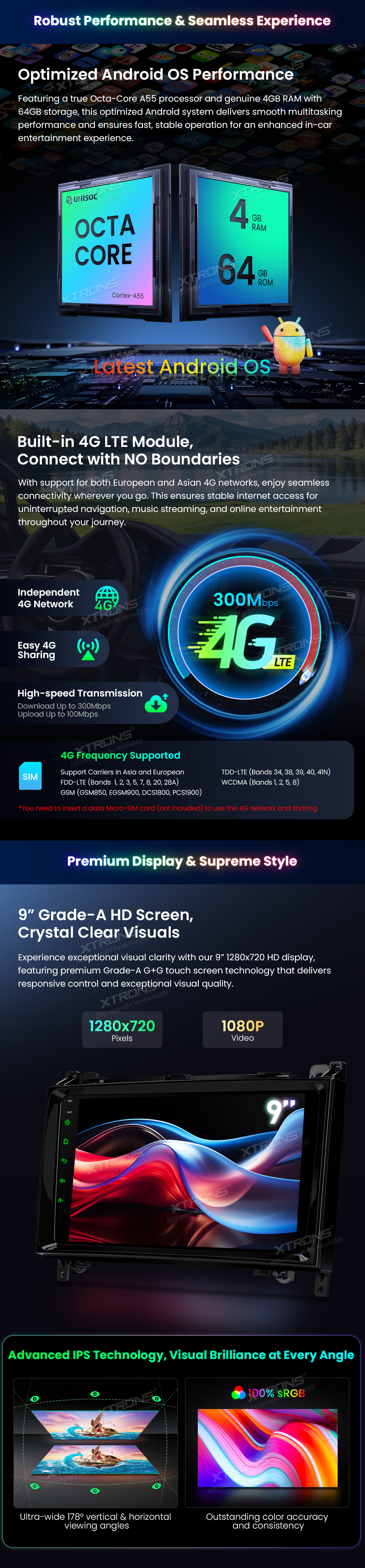

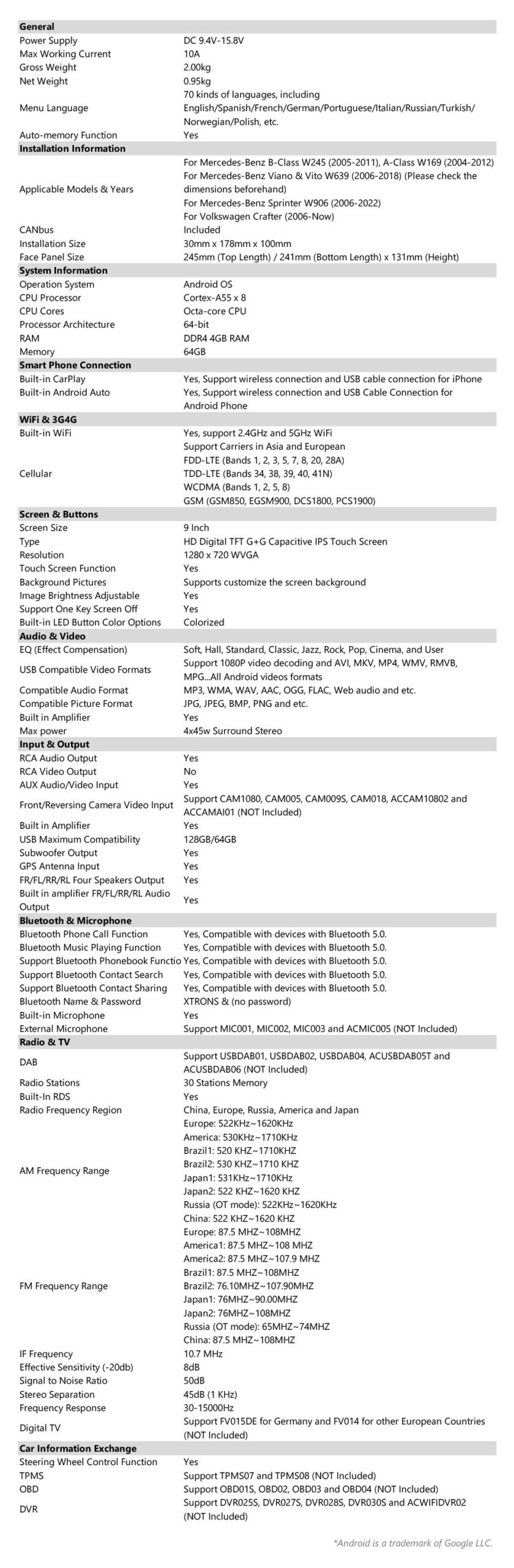

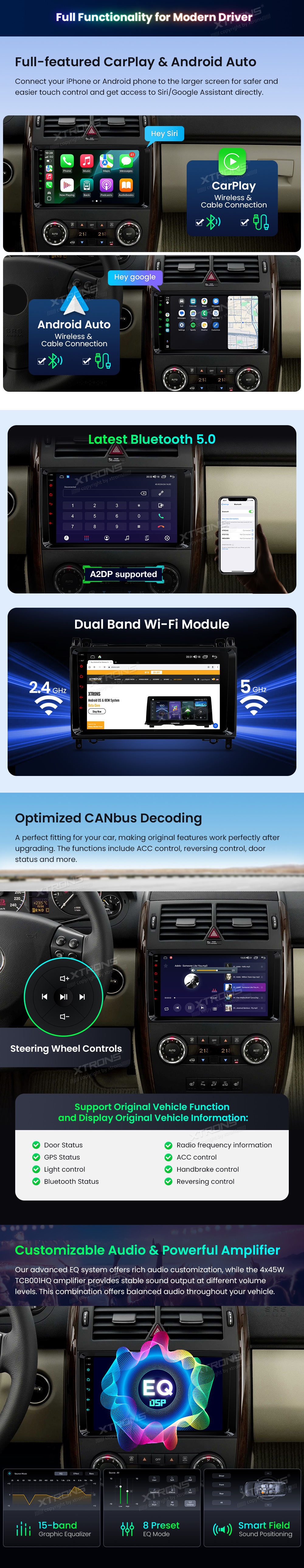

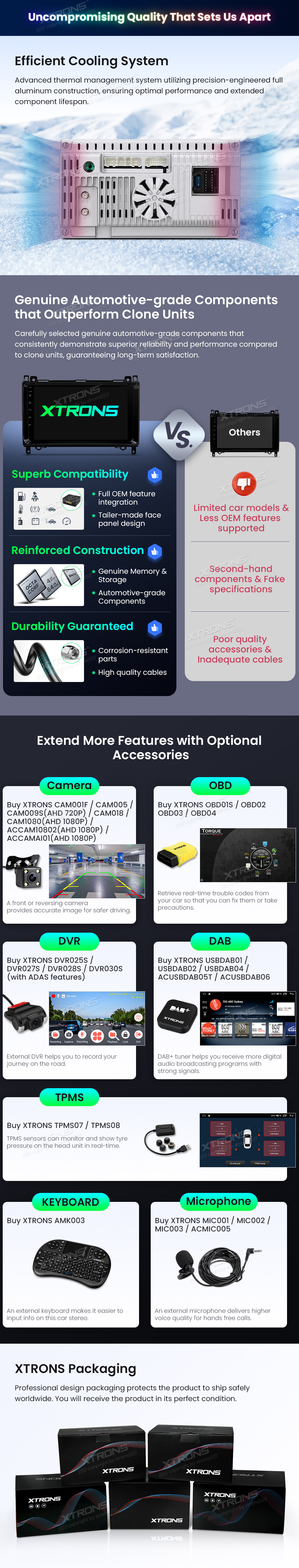

Full specification from XTRONS
