Ford S-Max 9 inch Android Car Stereo with Wireless CarPlay, Android Auto and DSP | IDSP90MXF
SKU: IDSP90MXF
£191.99Was £239.99Save £48.00
Check if this fits your car
1
Key specifications
- Processor
- Octa-Core A55 processor
- Memory
- 2GB RAM + 64GB Solid State ROM
- Video
- 1080P Video Playback
- Screen
- 9” 1280×720 IPS Screen
- Touch
- Grade-A G+G touch screen
- Amplifier
- 4x45W TCB001HQ amplifier

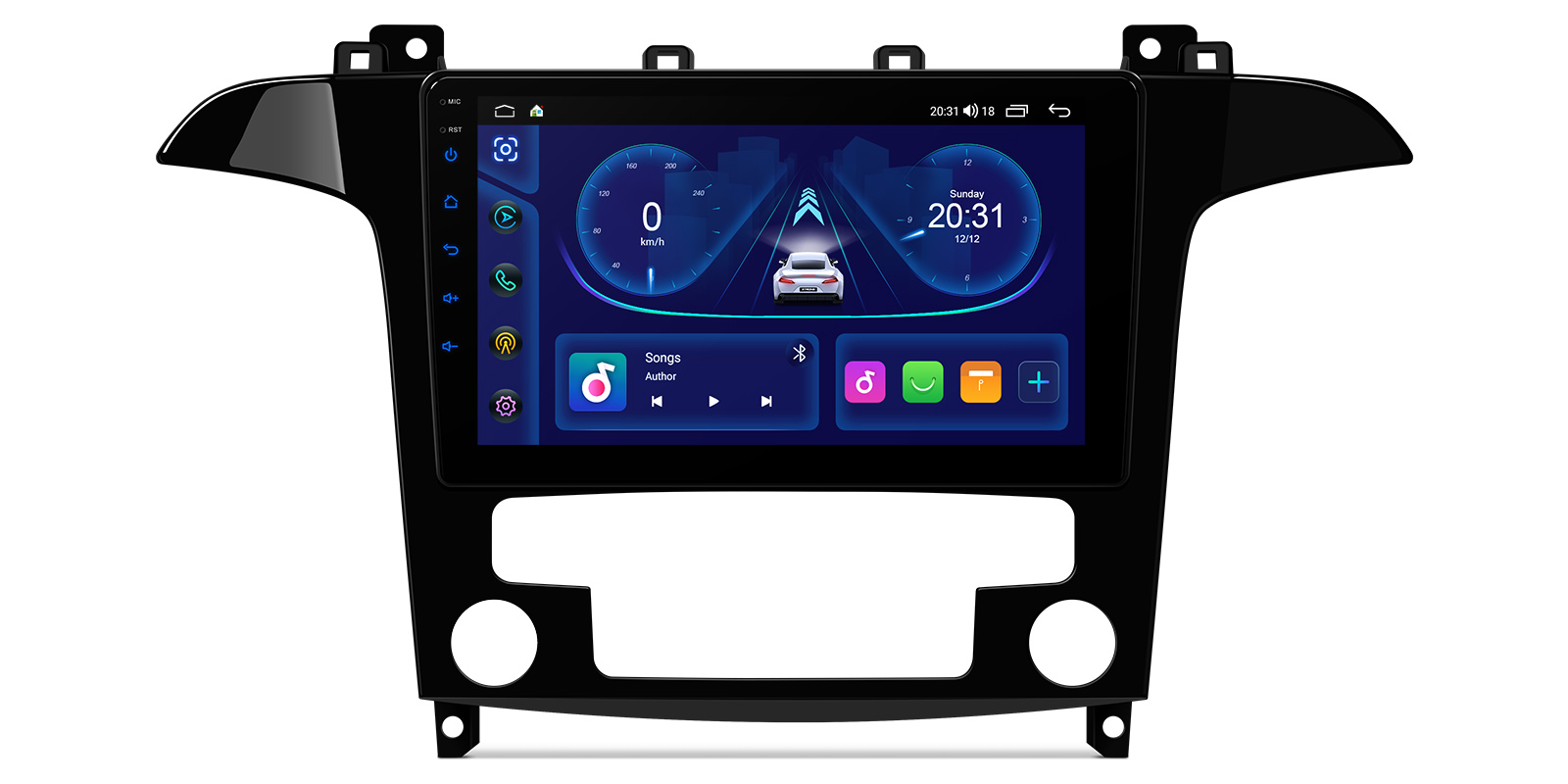

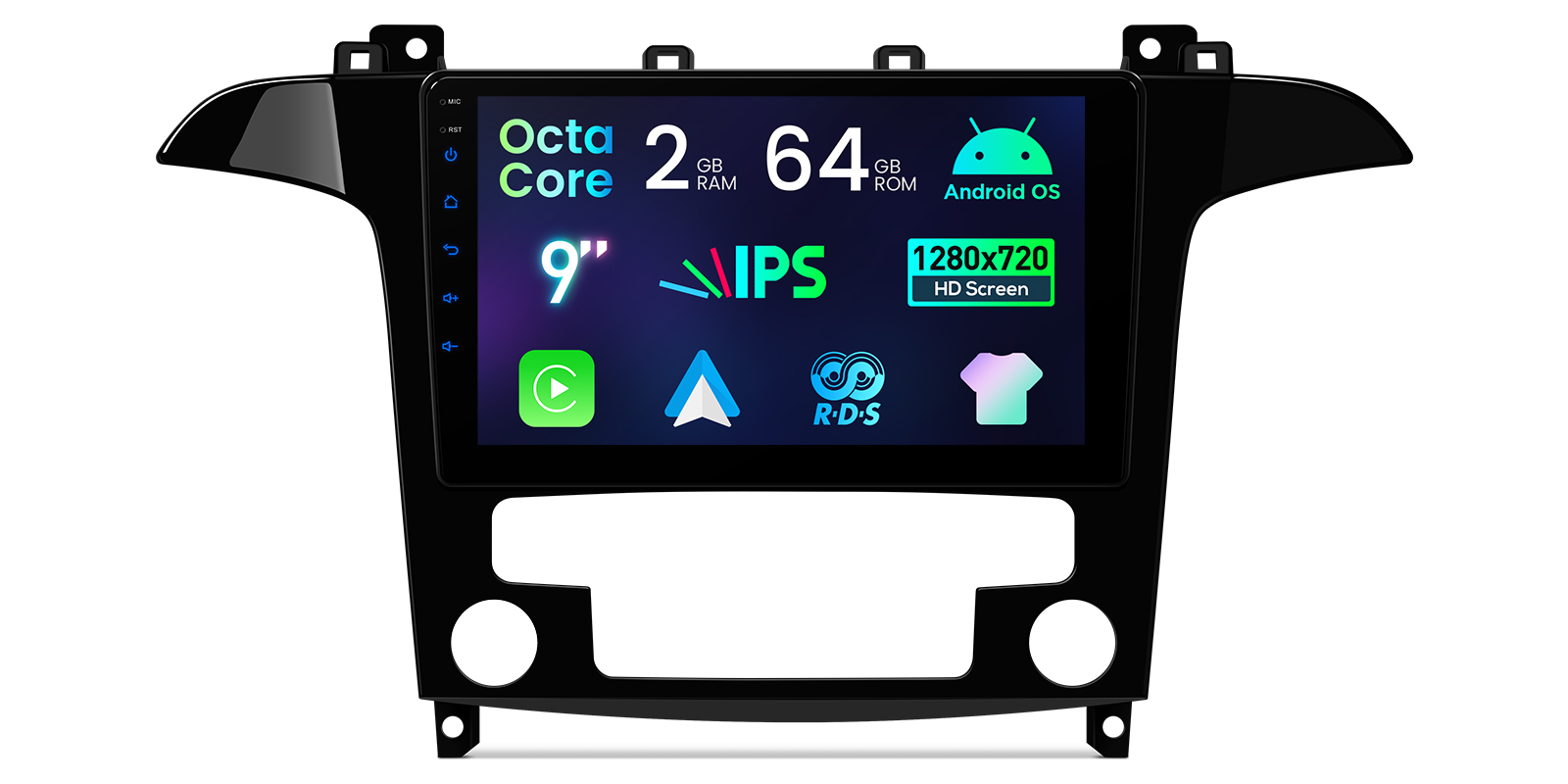

The XTRONS IDSP90MXF is a 9 inch Android car stereo custom-fit for the Ford S-Max (2007-2014). It brings CarPlay and Android Auto, an adjustable EQ with a 4x45W amplifier and support for AHD reversing cameras to the S-Max dashboard.
- Wireless Apple CarPlay and Android Auto with Siri and Google Assistant
- 9 inch 1280×720 IPS screen with G+G touch glass
- 4x45W TCB001HQ amplifier with an adjustable EQ
- Built-in CANbus decoding for the S-Max
- Octa-core A55 processor with 2GB RAM and 64GB storage

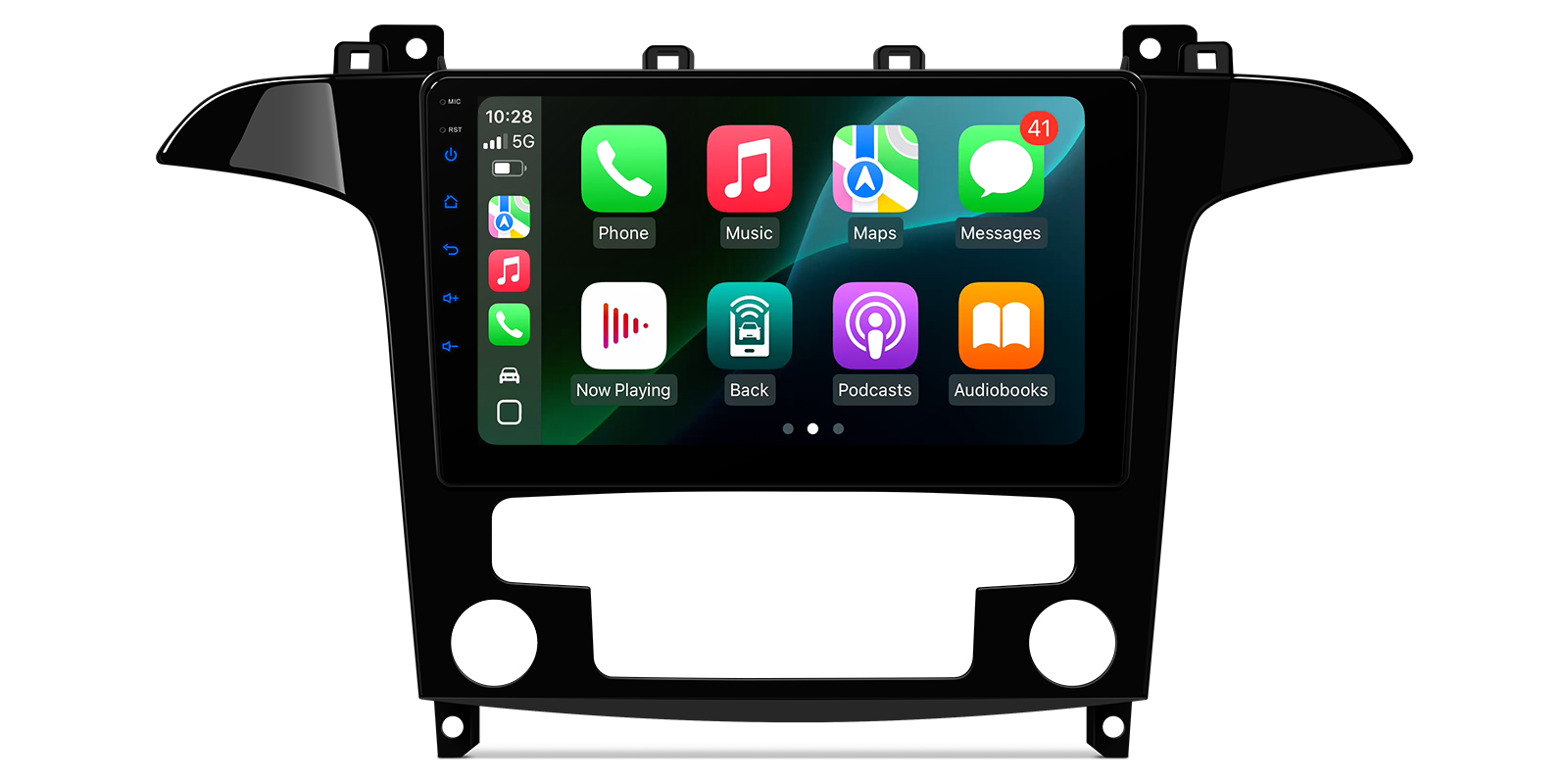

Wireless Apple CarPlay
CarPlay puts your iPhone on the 9 inch screen, with maps, calls and music under large touch controls. Siri is available directly, so you can ask for directions or send a message by voice.
Android Auto
Android phones get Android Auto, with Google Maps, calls and music apps on the bigger screen and Google Assistant for voice control.
9 inch IPS touch screen
The 9 inch Grade-A HD IPS screen runs at 1280×720, with G+G touch glass that responds quickly to taps. IPS keeps the picture clear from the passenger seat as well as the driver's.

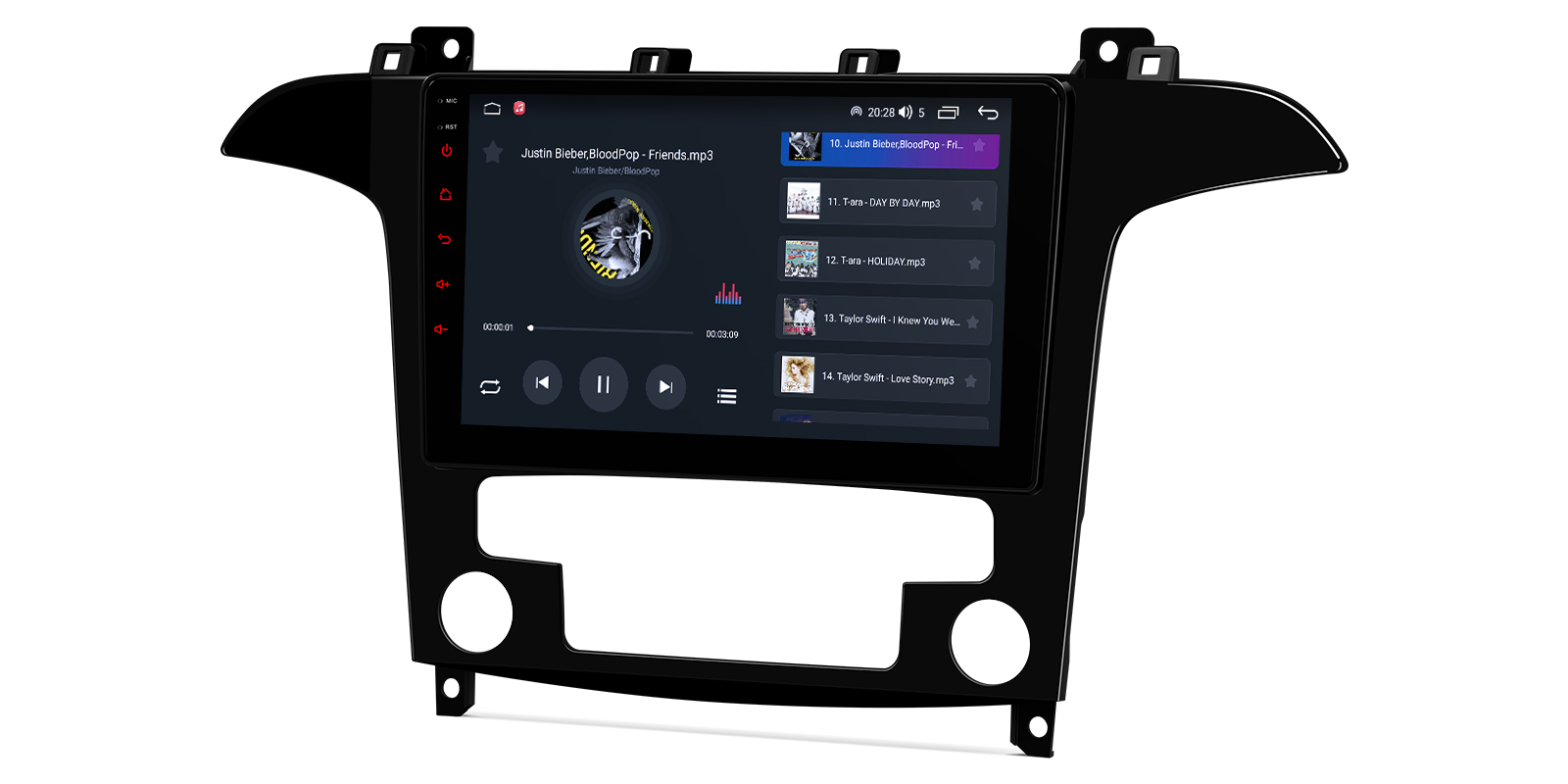

Adjustable sound
The DSP and EQ system let you shape the sound to suit the S-Max cabin, so you can balance it for the people in the front and the back.
4x45W amplifier
A 4x45W TCB001HQ amplifier keeps the sound steady at different volume levels and drives the factory speakers without an extra amp.
Dual-band Wi-Fi
Dual-band Wi-Fi connects the unit to a hotspot or your home network for apps, streaming and updates.
Microphone for calls and voice
The unit has a microphone for hands-free calls and for talking to Siri or Google Assistant.

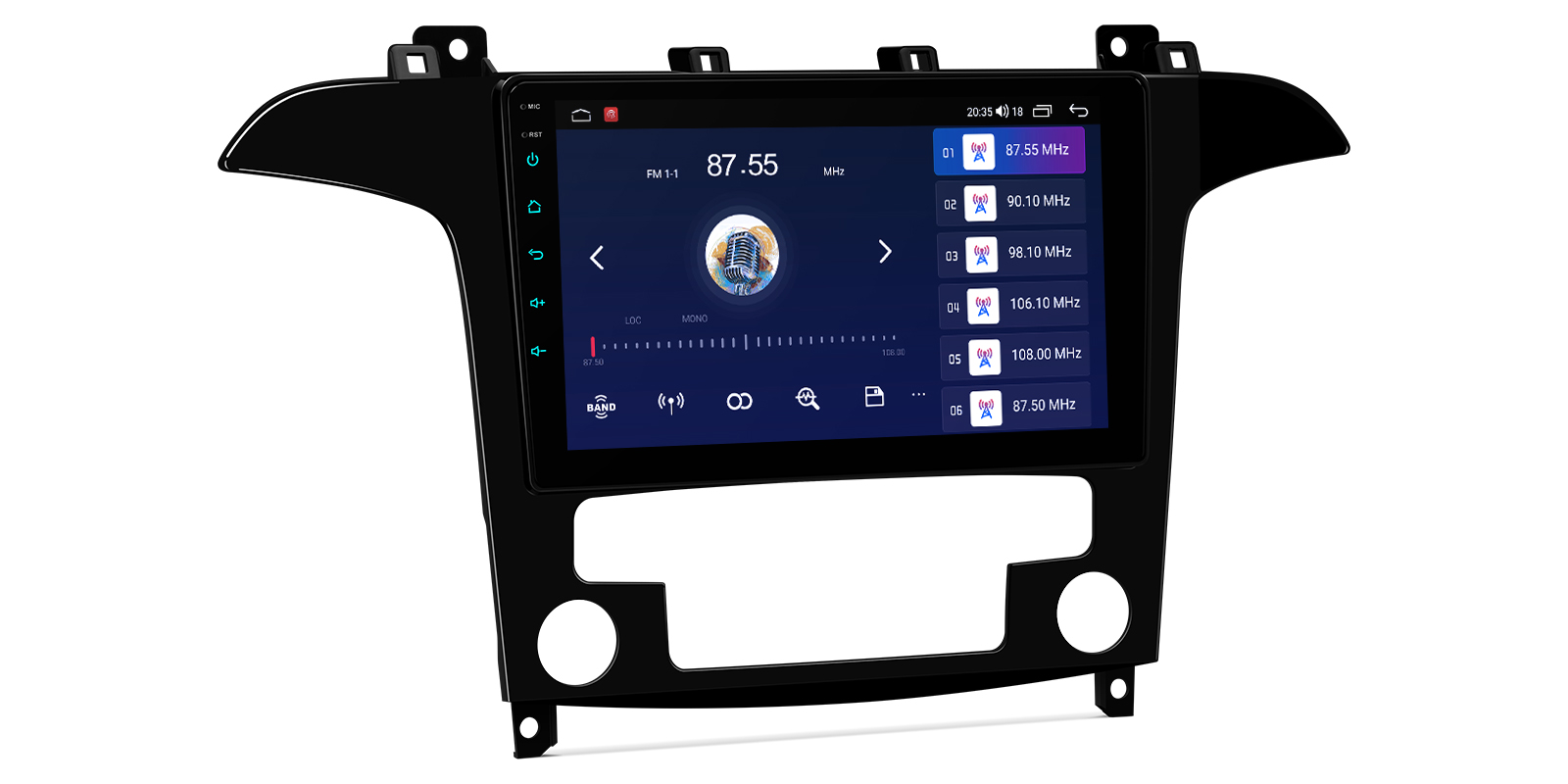

Radio and DAB
An SI4755 radio tuner with RDS shows station names on screen. For digital stations, add an external DAB tuner.
AHD reversing camera support
The unit supports AHD cameras, and a camera cable is in the box, so you can add a reversing camera for a clearer view when parking.
CANbus decoding and custom display
Built-in CANbus decoding links the unit to the S-Max's electronics so it works properly after the upgrade.
The XTRONS interface has a quick display window that shows car speed, navigation or video at a glance, and you can choose your favourite apps and music sources.
Processor and memory
An octa-core A55 processor runs the optimised Android system with 2GB RAM and 64GB storage, enough for everyday navigation, music and 1080P video. The unit doesn't play discs.
Works with
What's in the box
- 1 x Camera Cable
- 1 x CANbus Box
- 1 x CANbus Cable
- 1 x GPS Antenna
- 1 x ISO Wiring Harness
- 1 x Radio Antenna Adapter
- 1 x Radio Antenna Cable
- 1 x RCA Cable
- 1 x User Manual
- 2 x USB Cable

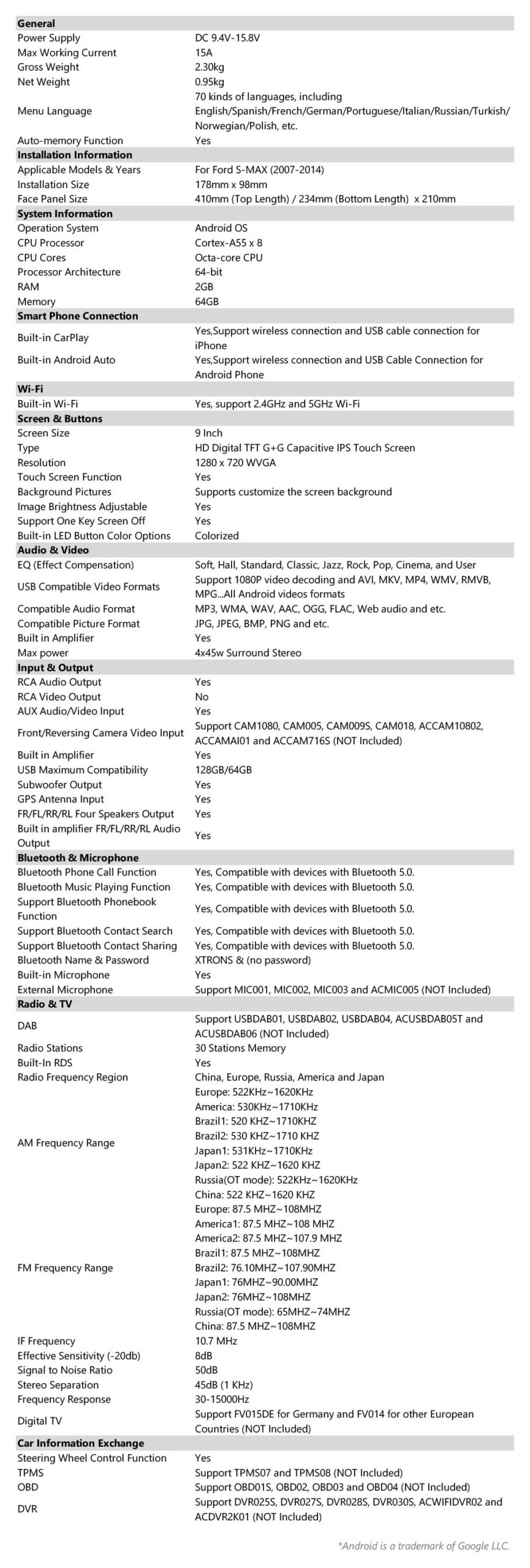

| Processor | Octa-Core A55 processor |
|---|---|
| Memory | 2GB RAM + 64GB Solid State ROM |
| Video | 1080P Video Playback |
| Screen | 9” 1280×720 IPS Screen |
|---|---|
| Touch | Grade-A G+G touch screen |
| Amplifier | 4x45W TCB001HQ amplifier |
|---|---|
| Radio | SI4755 Radio with RDS |
| DAB | External DAB Supported |
| Wi-Fi | Dual Band Wi-Fi |
|---|---|
| Phone connection | Built-in CarPlay & Android Auto |
| Camera | Supports AHD Cameras |
|---|

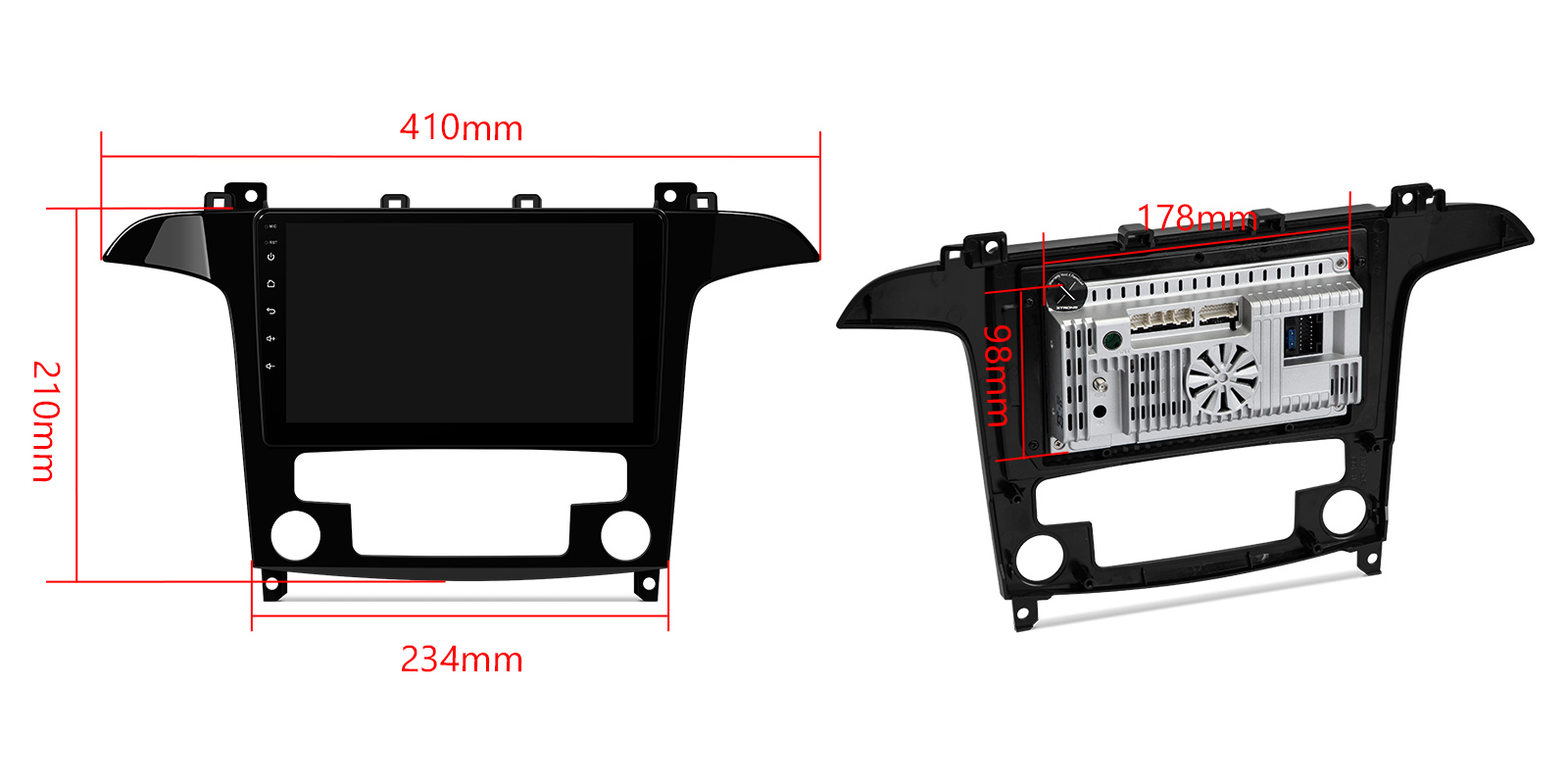

| Face panel | 410/234x210mm |
|---|---|
| Disc player | This unit doesn't play discs. |

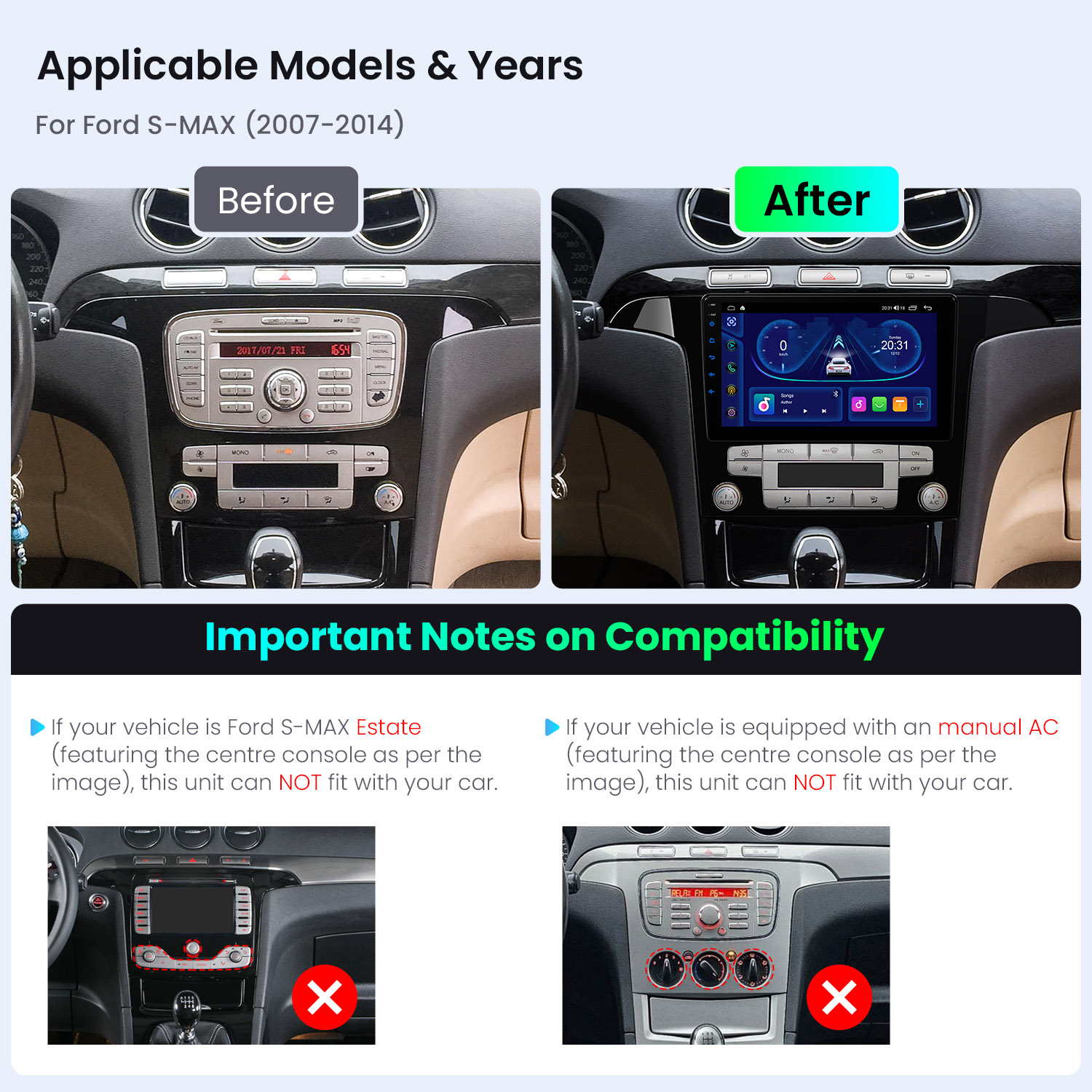

- Ford S-Max
- For Ford S-Max (2007-2014)
- If your vehicle is Ford S-MAX Estate, this unit can NOT fit with your car.
- If your vehicle is equipped with an manual AC, this unit can NOT fit with your car.
The IDSP90MXF is custom-fit for the S-Max and connects with the supplied ISO wiring harness, CANbus box and radio aerial adapters. It won't fit the S-MAX Estate or a car with manual air conditioning. Check the year, dimensions and shape of your centre console against the 410/234x210mm face panel before ordering.
Will it fit my S-Max?
It's made for the Ford S-Max from 2007 to 2014. It won't fit the S-MAX Estate or a car with manual air conditioning.
Does it play CDs?
No, this unit doesn't play discs.
Can I fit a reversing camera?
Yes. It supports AHD cameras, and a camera cable is included.
How much memory does it have?
2GB RAM and 64GB storage, with an octa-core A55 processor.
Reviews
What customers say
Bought this product? Sign in to write a review.

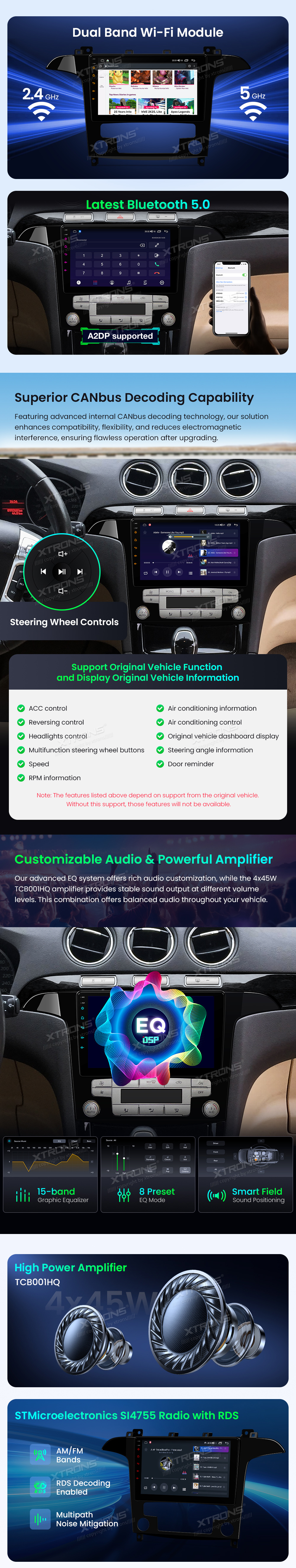

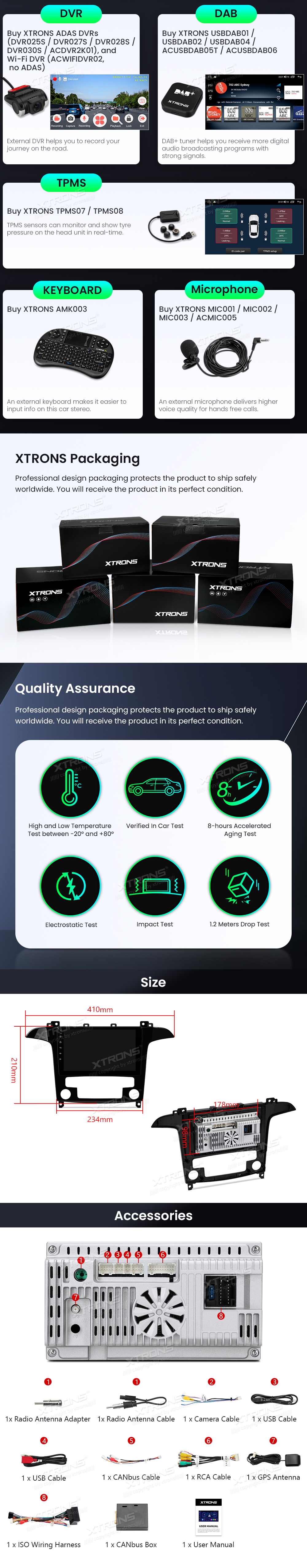

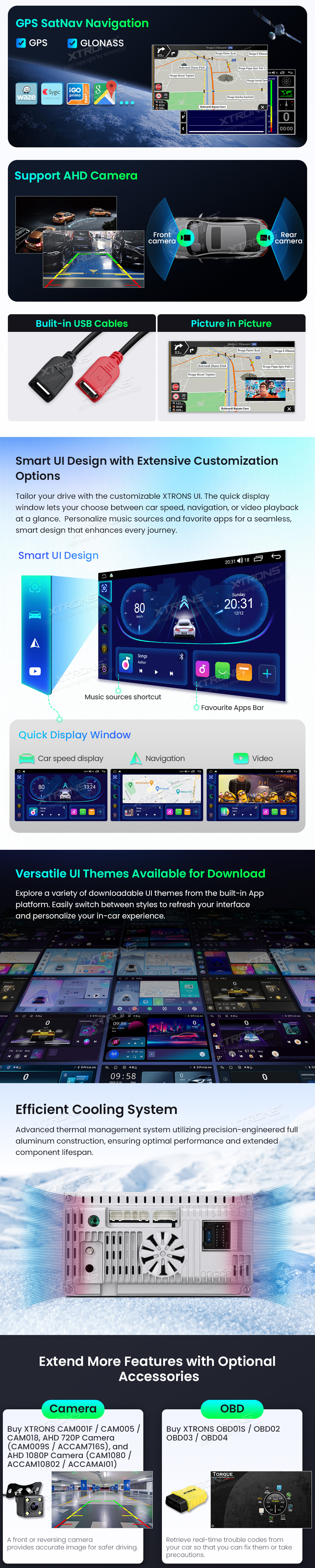

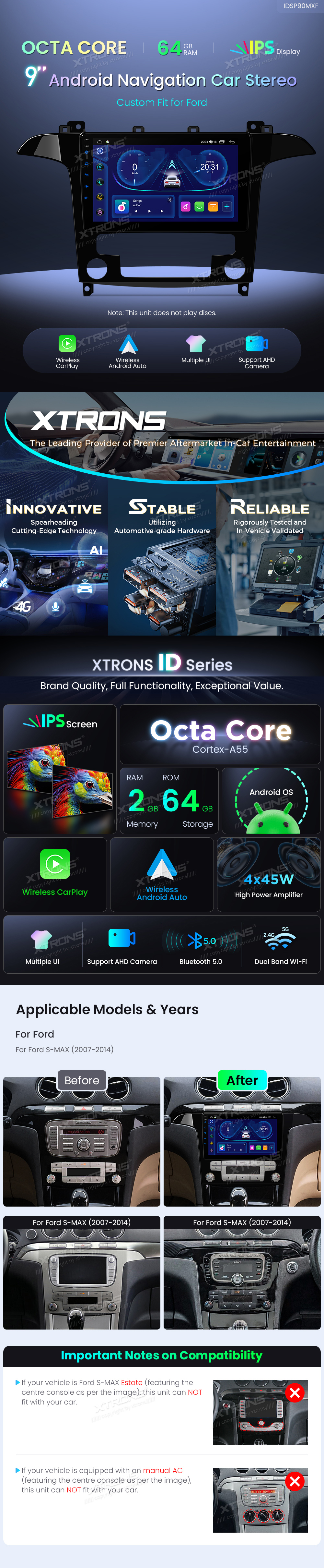

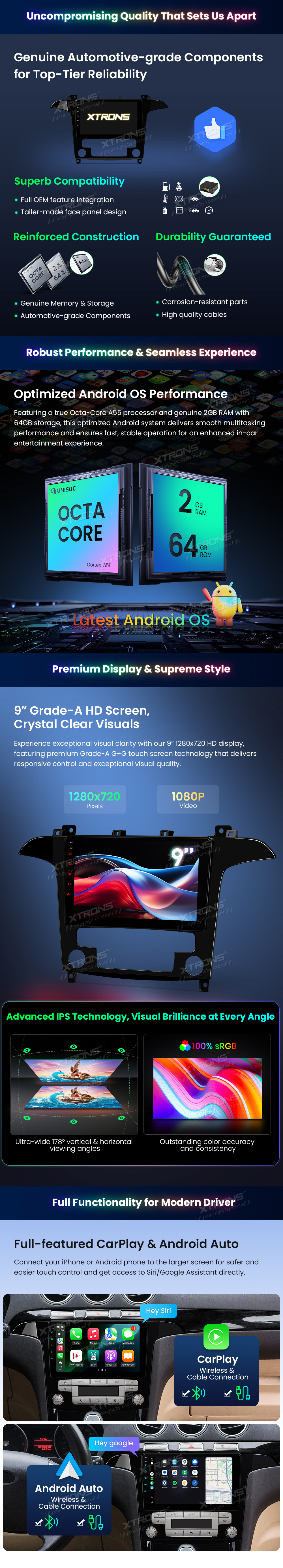

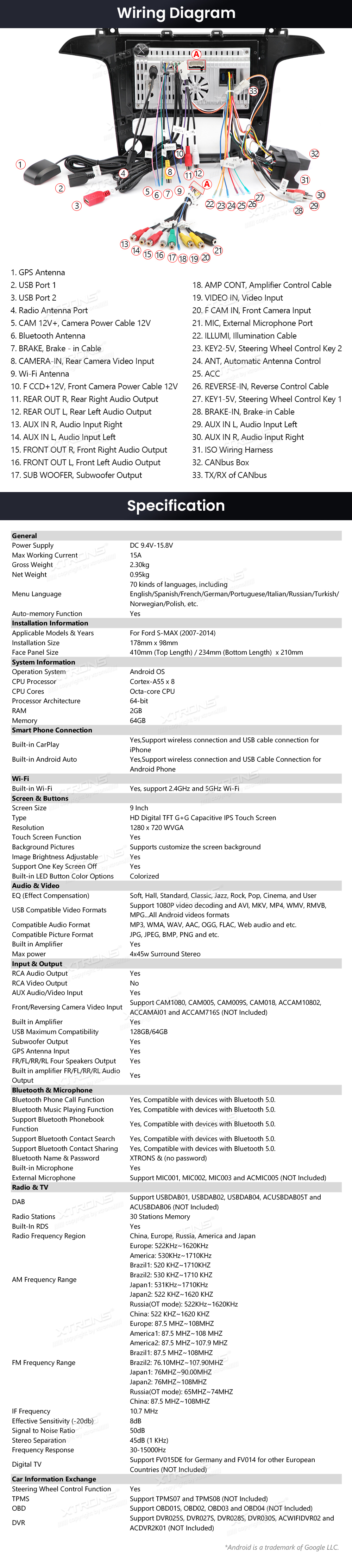

Full specification from XTRONS
