Ford Focus 9 inch Android 14 Head Unit with Wireless CarPlay, Android Auto and 4G | IMHP94FSF
SKU: IMHP94FSF
£339.00Was £399.00Save £60.00
Check if this fits your car
1
Key specifications
- Operating system
- Android 14 OS (UFS 2.2 High-Speed Storage)
- Chipset
- Unisoc 7865 Octa-Core (2x A75 @ 2.2GHz + 6x A55 @ 1.8GHz)
- Memory
- 8GB RAM + 128GB ROM
- Screen
- 9″ QLED IPS (1280×720) – G+G Tempered Glass
- Audio output
- Optical, Coaxial, RCA (Supports AKM 7604 DSP & 36-Band Equalization)
- Amplifier
- TDA7851 amplifier (4x 48W output)

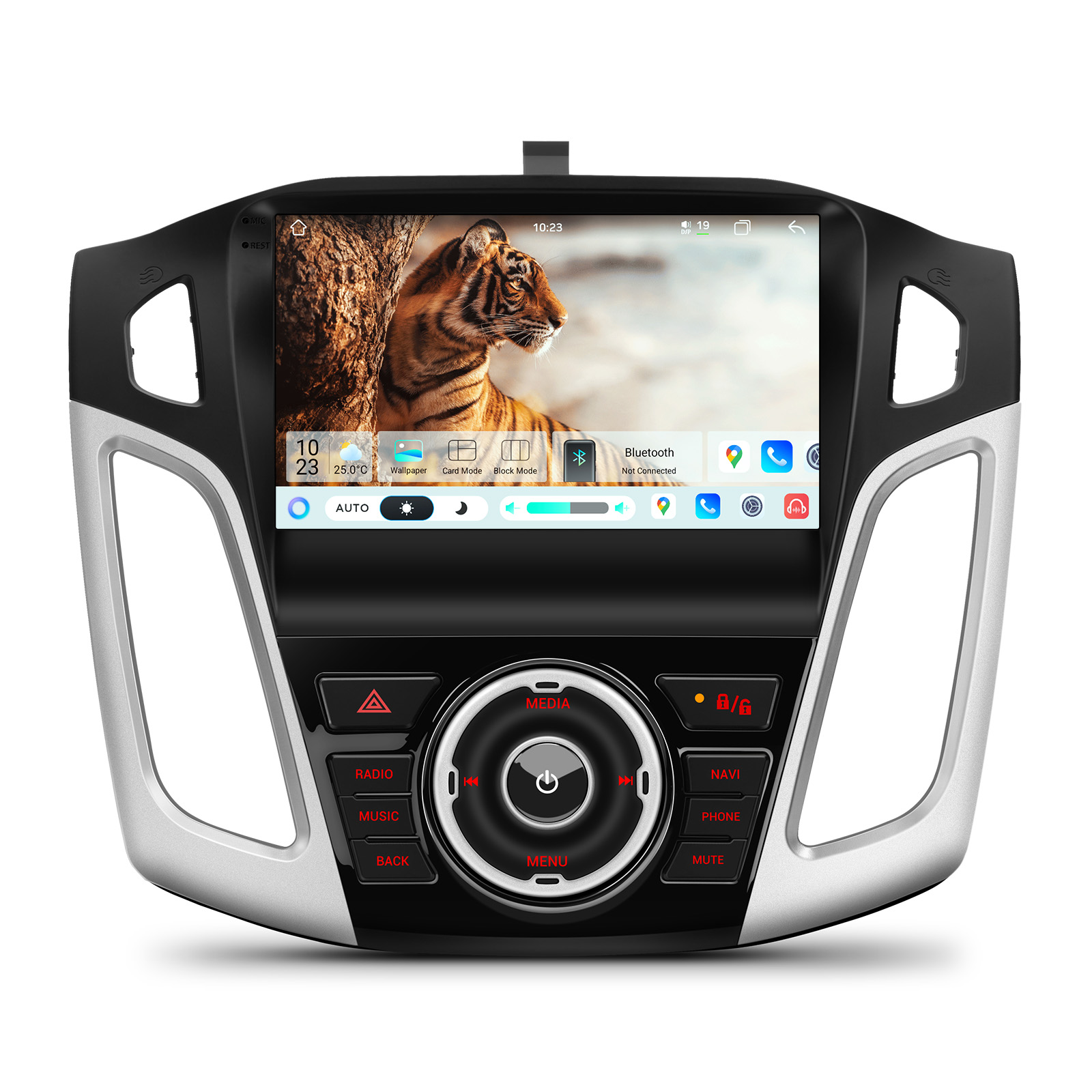

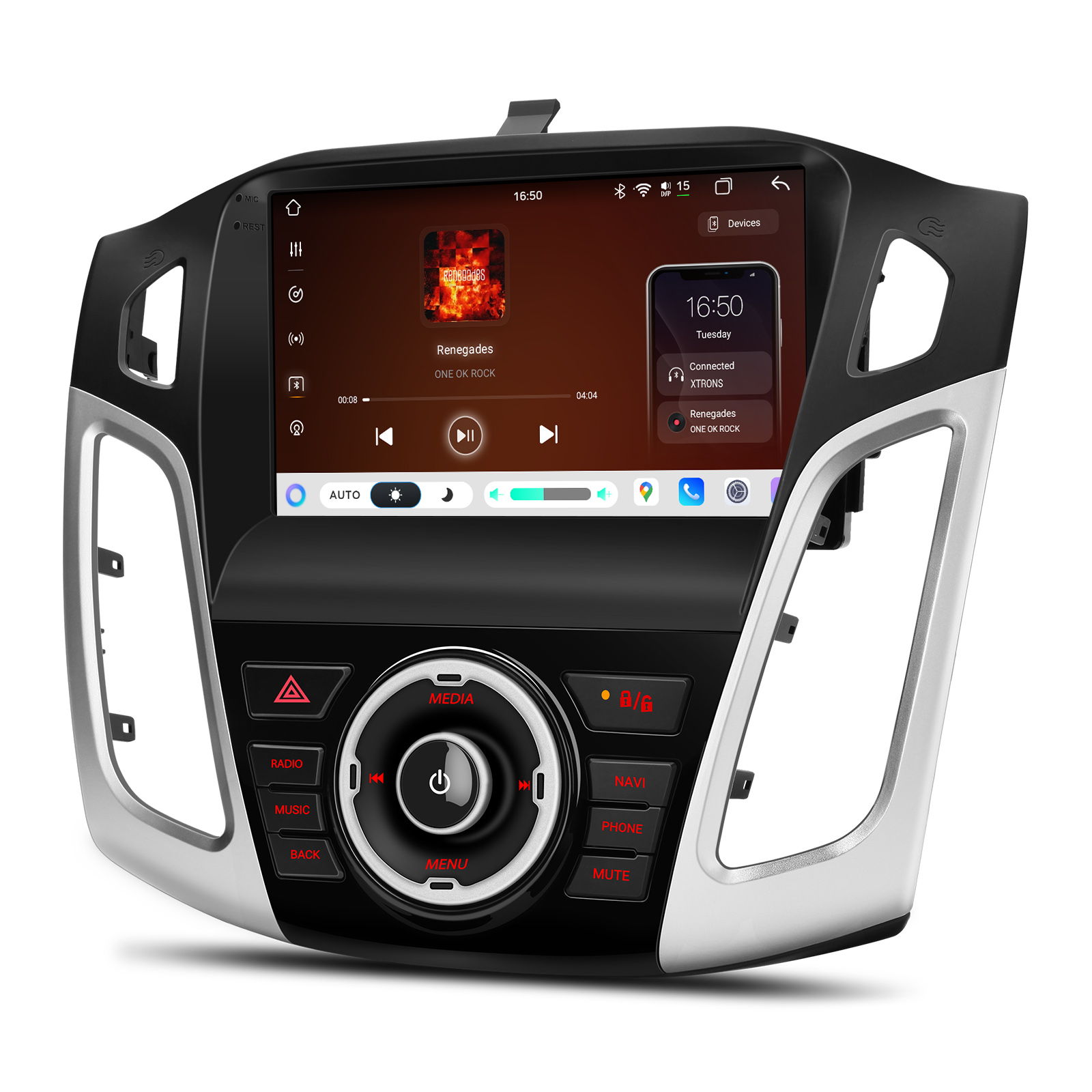

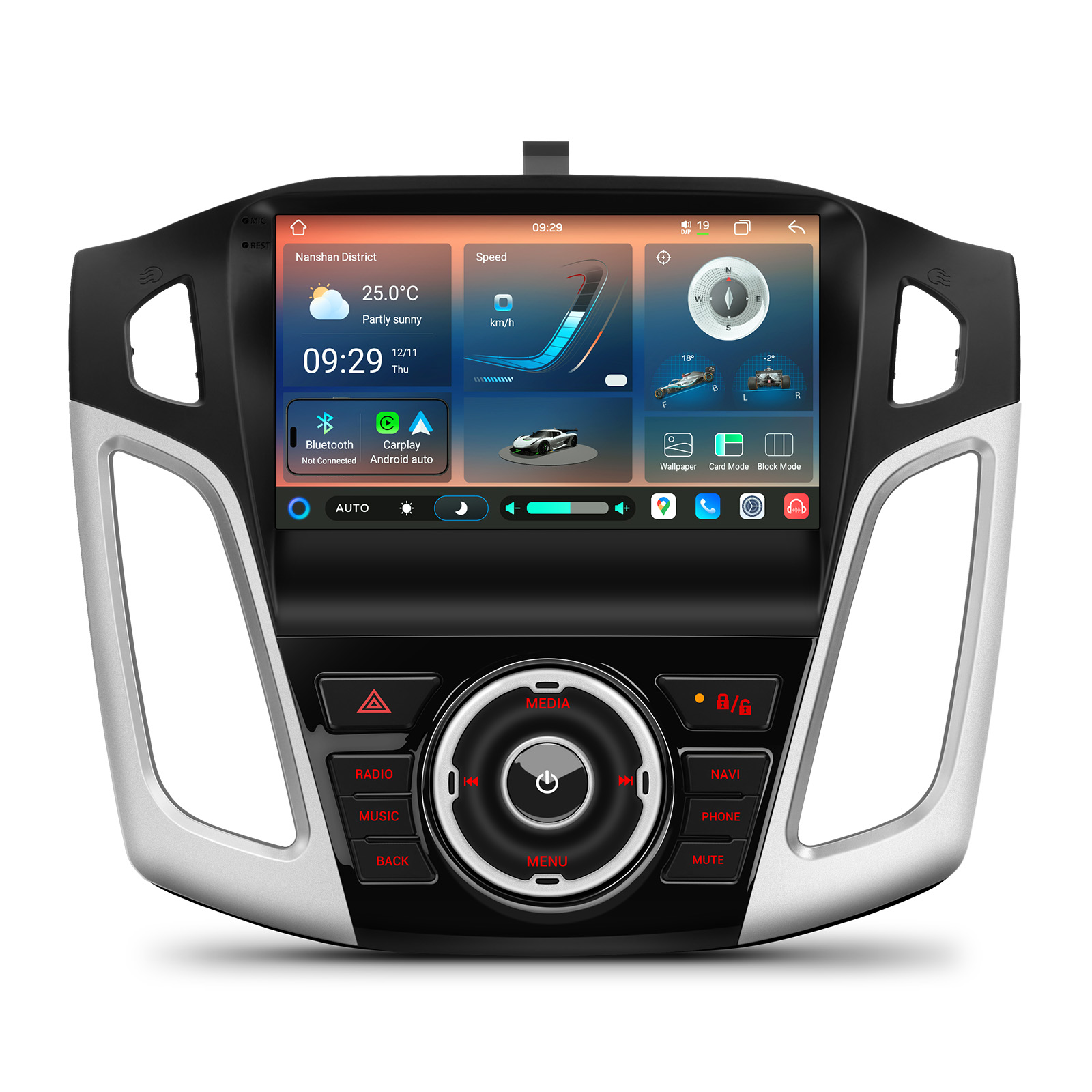

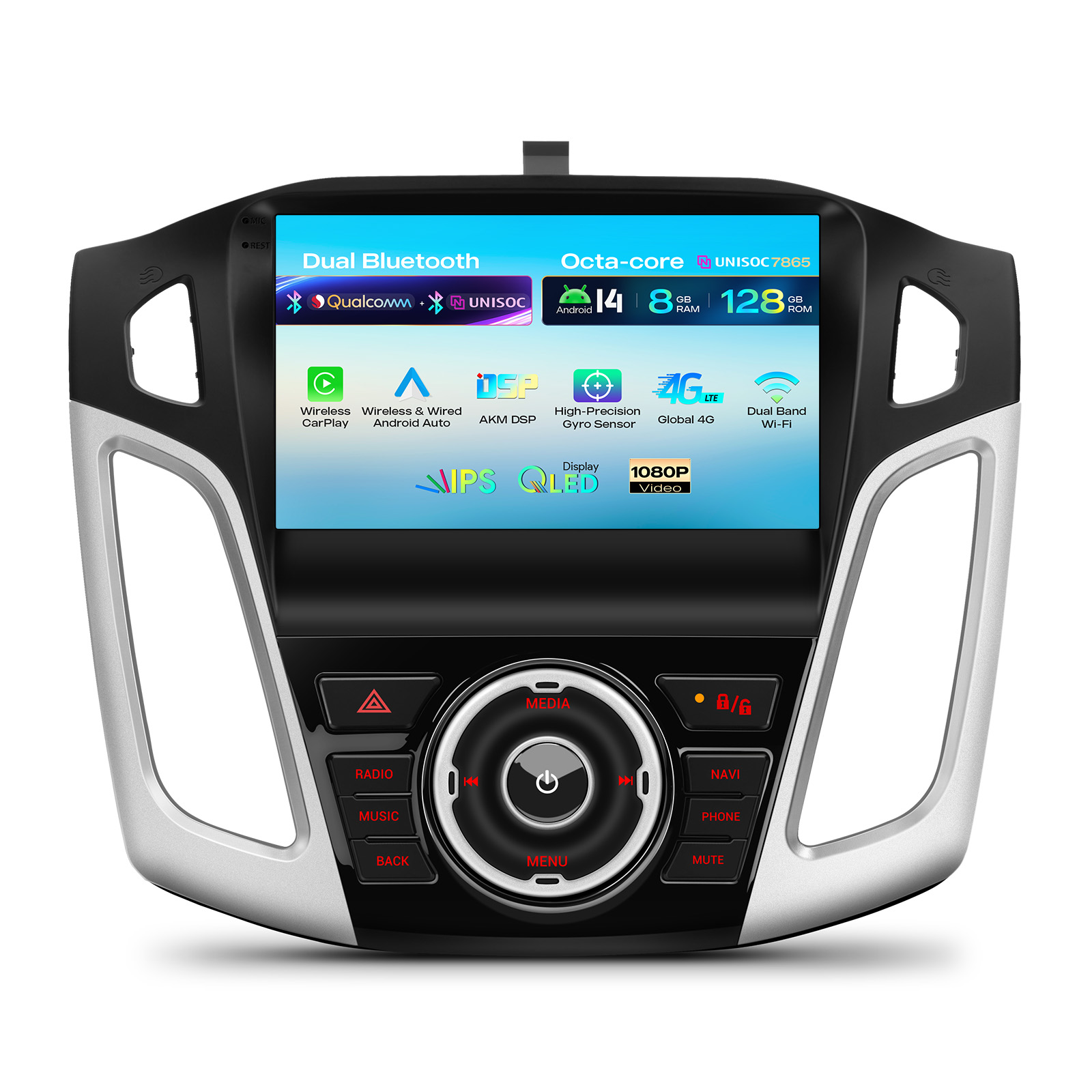

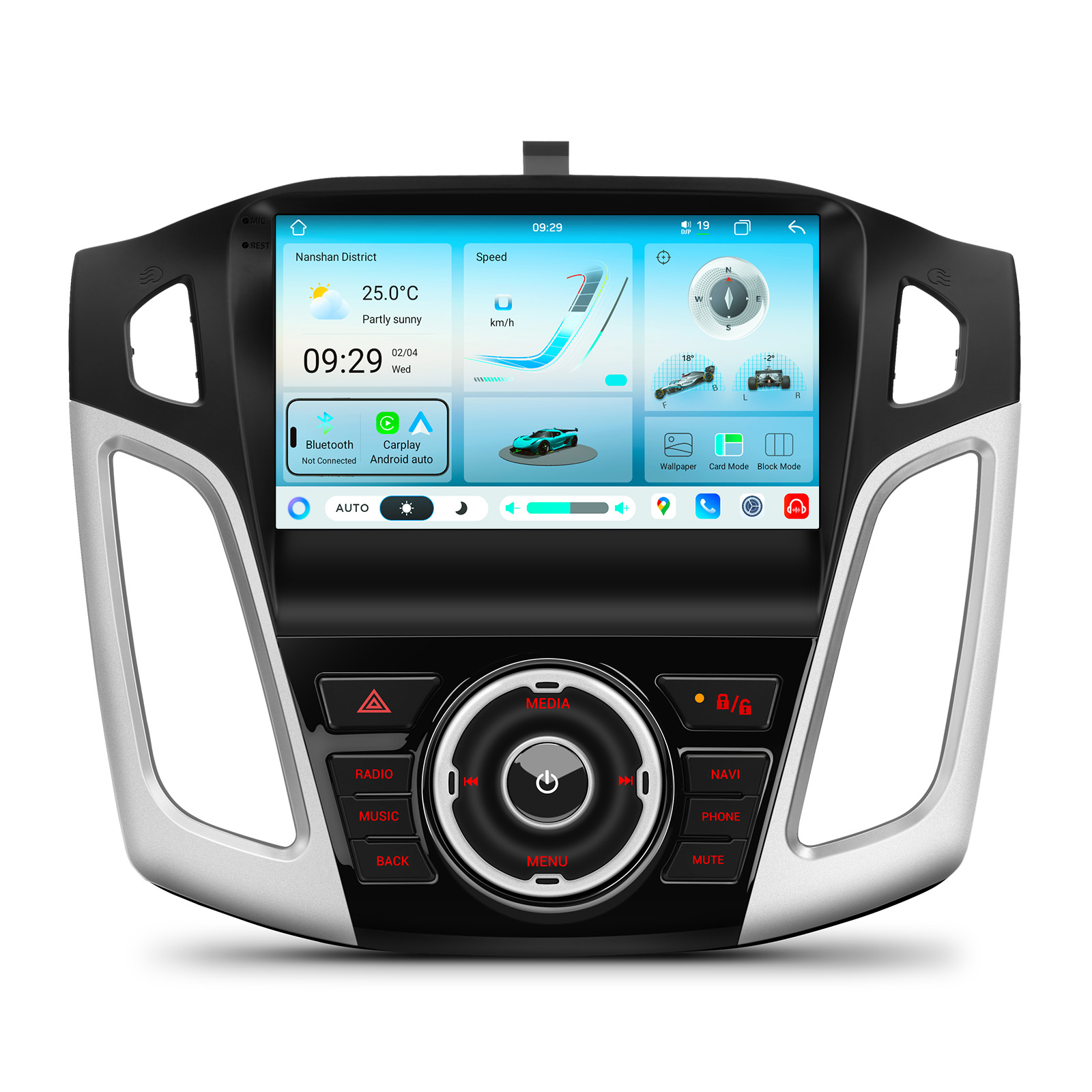

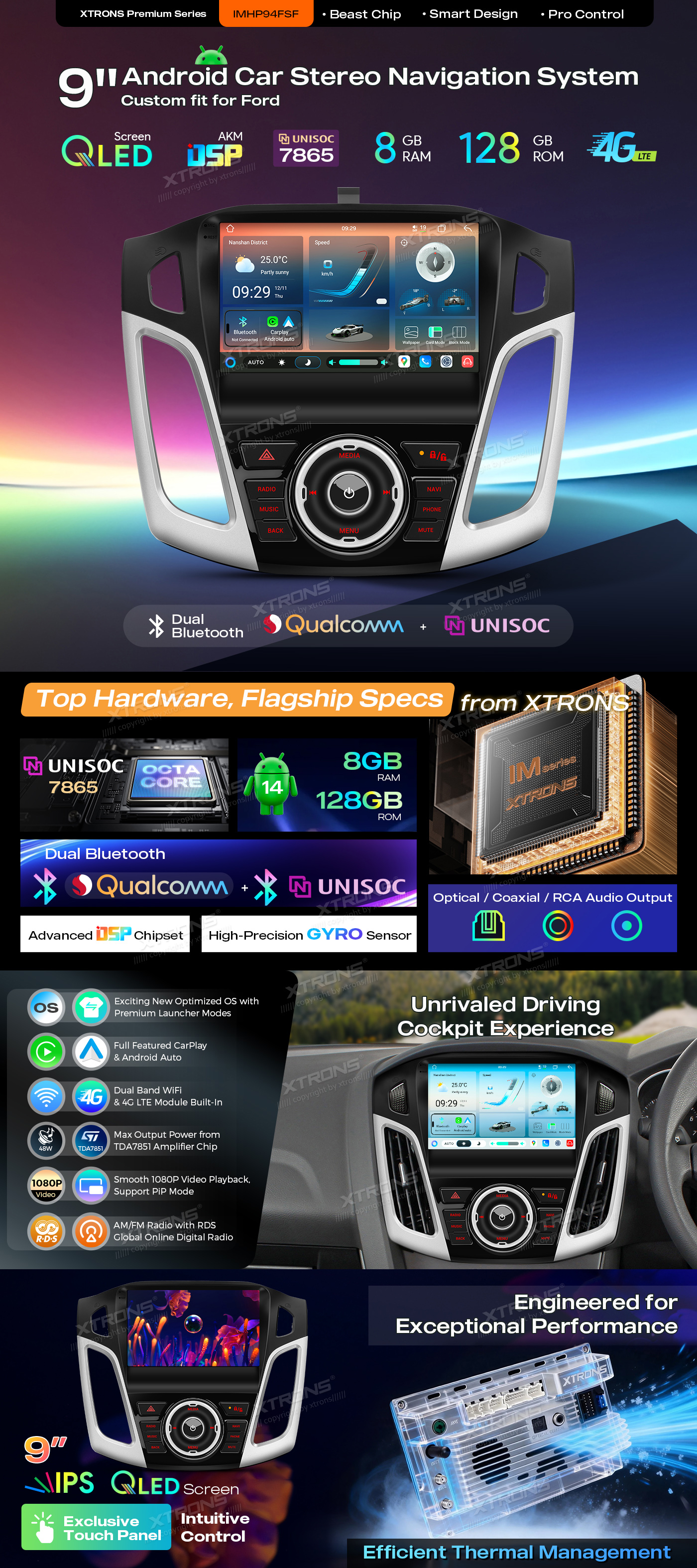

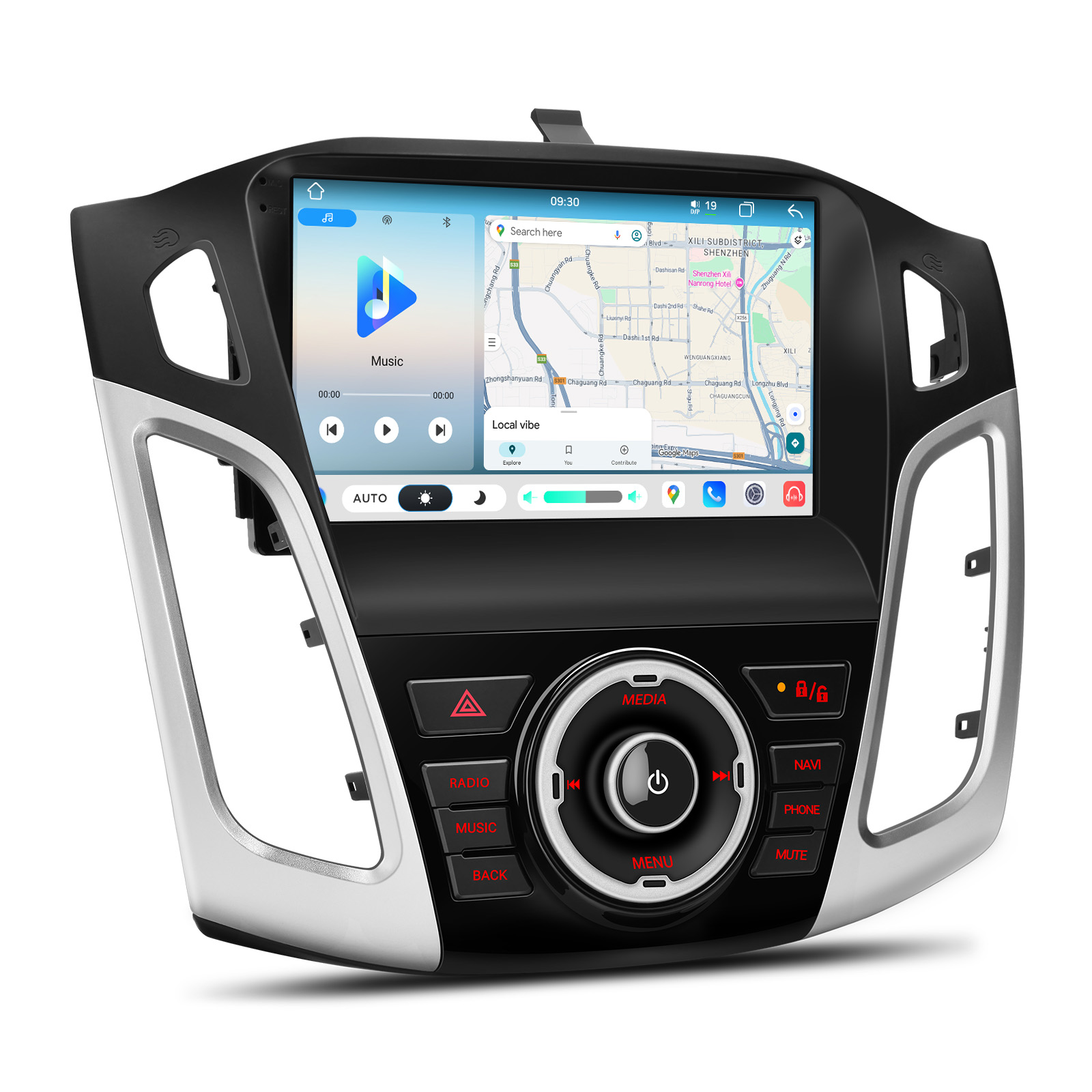

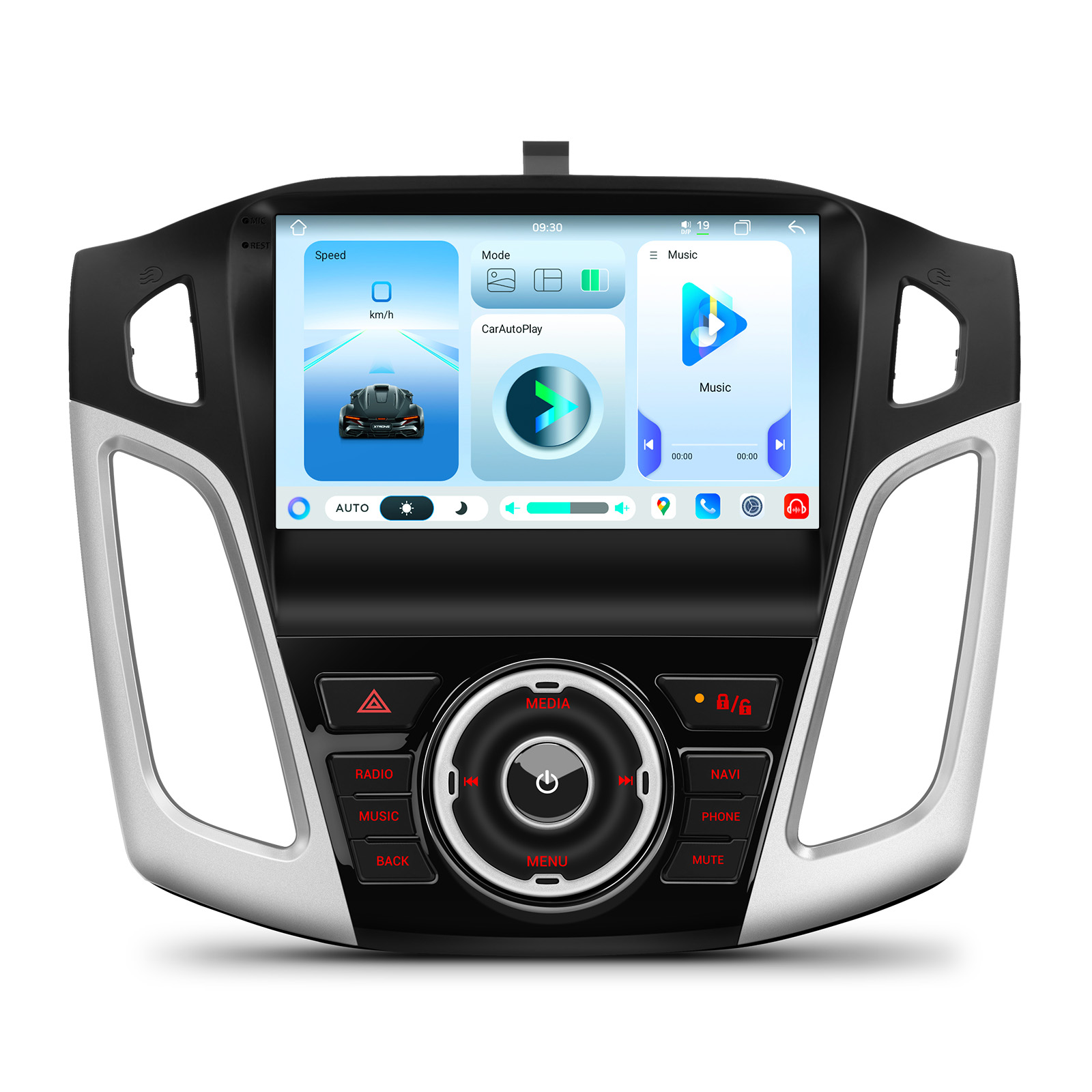

A custom-fit 9-inch Android 14 head unit for the Ford Focus (2012-2017). It replaces the factory radio with a QLED touch screen and adds wireless CarPlay and Android Auto, built-in 4G and an AKM DSP, with CANbus integration for the car's own features.
- Wireless Apple CarPlay and Android Auto over dual-band Wi-Fi
- 9-inch QLED IPS screen at 1280×720 with G+G tempered glass
- AKM 7604 DSP with 36-band equalisation and a 4x 48W amplifier
- Global 4G LTE on a standard Micro-SIM
- Unisoc 7865 octa-core chipset with 8GB RAM and 128GB storage
- Two Bluetooth modules, with aptX HD for music

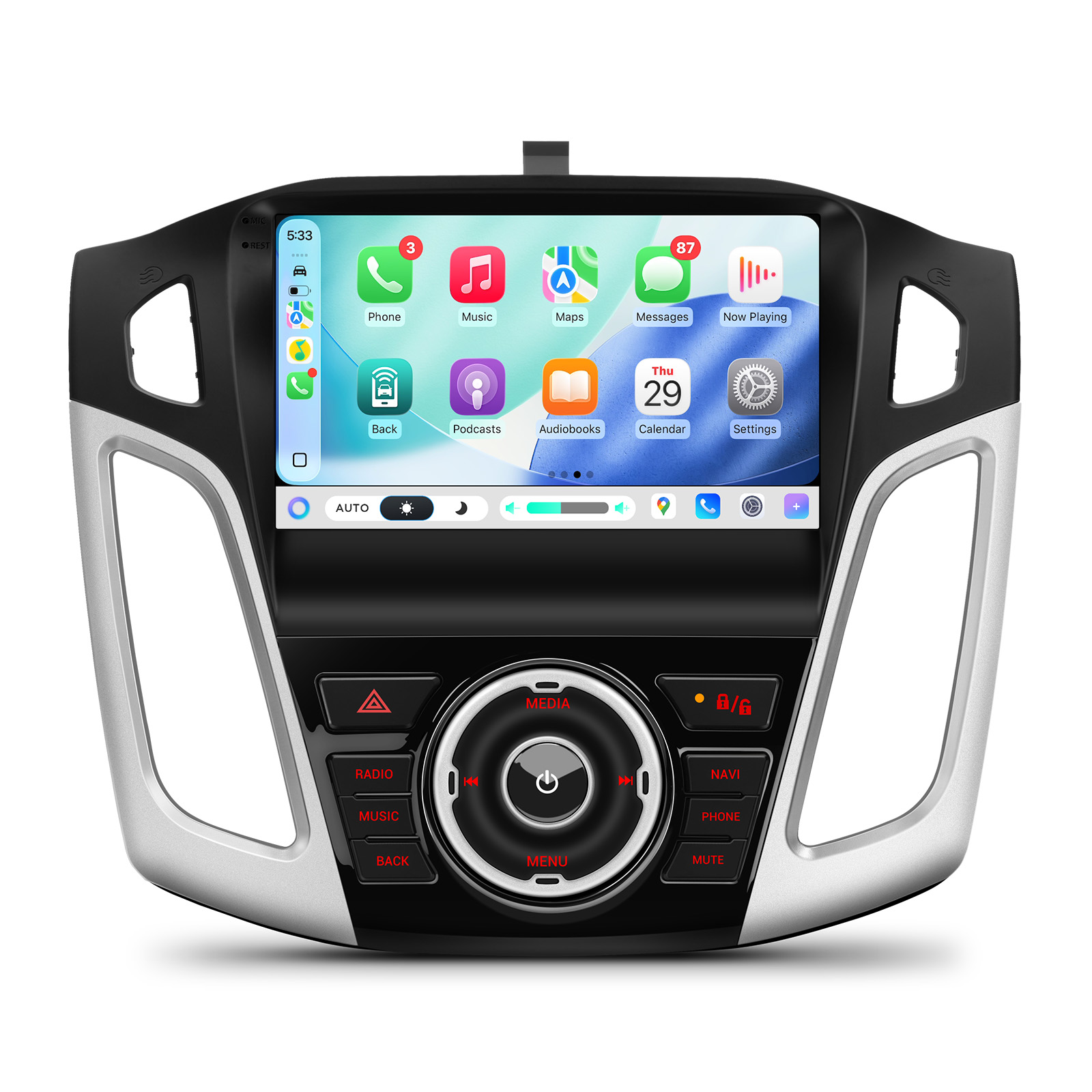

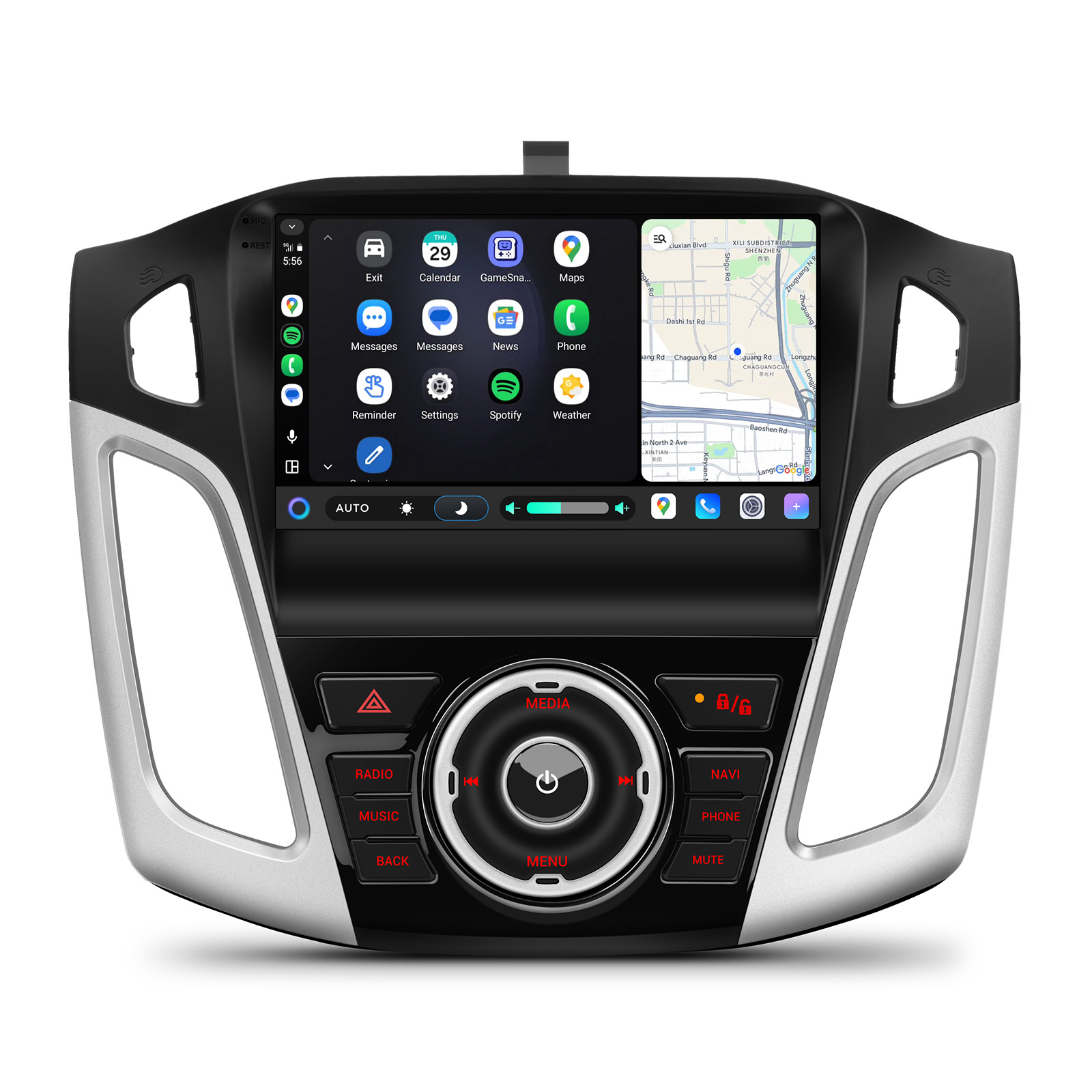

Wireless Apple CarPlay
CarPlay links to your iPhone over Wi-Fi, so there's no cable to plug in each time you get in. Maps, messages, calls and music fill the 9-inch screen, and voice control keeps your hands on the wheel.
Wireless Android Auto
Android phones connect to Android Auto wirelessly as well, bringing navigation, calls and music apps to the dashboard in a simple driving layout.
9-inch QLED display
The 9-inch QLED panel shows 1280×720 with bright, saturated colour and an anti-glare finish that helps on sunny days. G+G tempered glass gives a solid, responsive feel when you tap and swipe.
IPS for wide viewing angles
The IPS panel keeps the picture clear from an angle, so your passenger sees the same sharp image as you do.
AKM 7604 DSP
The AKM 7604 DSP has a 36-band equaliser for detailed control of the sound. You can tune out boom from the doors or bring vocals forward to suit the Focus's speakers.
TDA7851 amplifier
The TDA7851 amplifier, with 4x 48W output, drives the car's speakers without needing a separate amplifier.

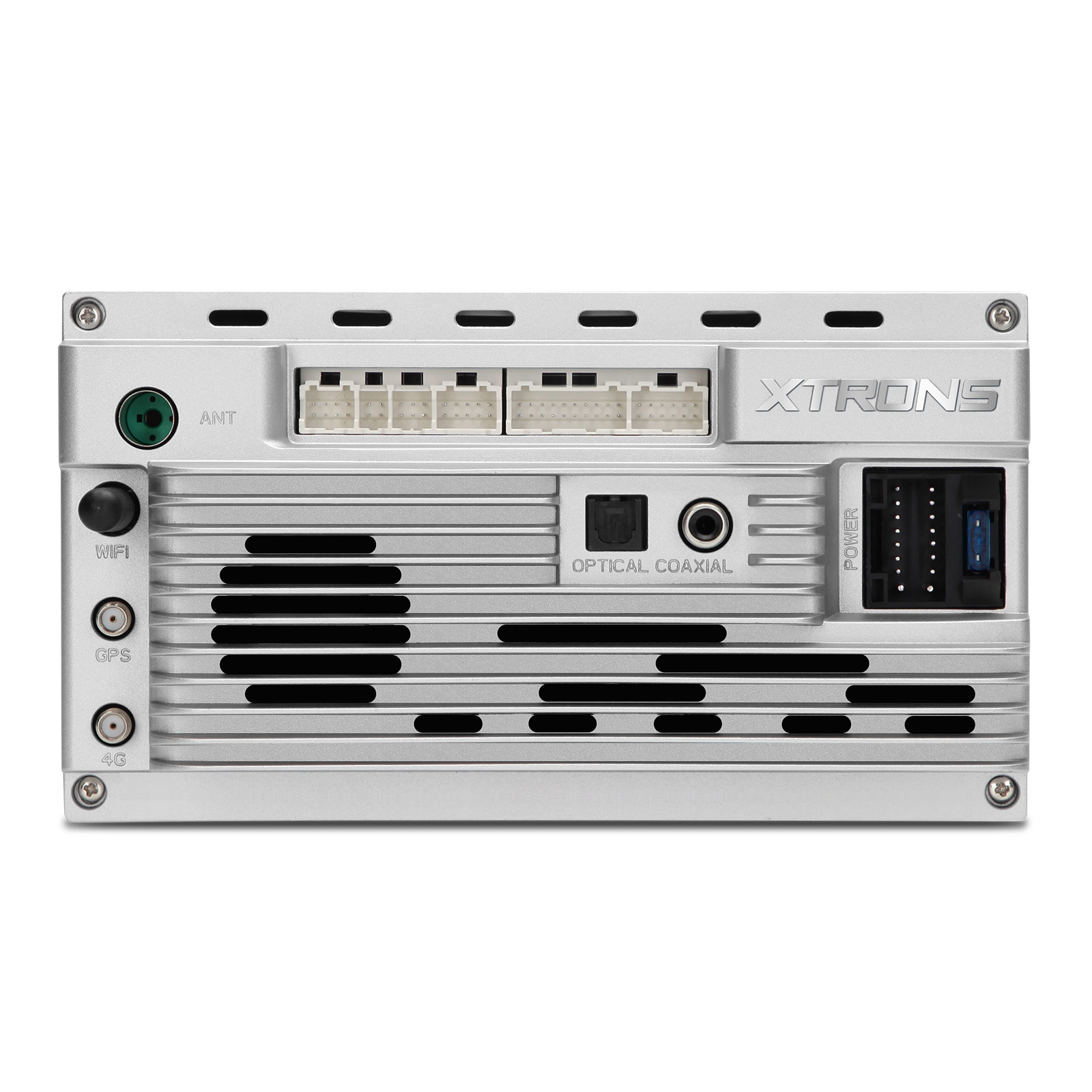

RCA, optical and coaxial outputs
RCA outputs, plus optical and coaxial digital outputs, let you add an external amplifier or processor later. An RCA cable is in the box.
Built-in 4G LTE
With a Micro-SIM fitted, the unit gets its own 4G connection for real-time traffic, weather and streaming, so you don't need to tether your phone.
Dual-band Wi-Fi
Wi-Fi on 2.4G and 5G carries the wireless CarPlay and Android Auto connection, and lets you connect to a network for updates and new apps.
Two Bluetooth modules
A Qualcomm Bluetooth module streams music with aptX HD, while a second Unisoc Bluetooth 5.2 module connects accessories such as an OBD-II scanner or dash cam at the same time.
OBD-II scanner over Bluetooth
An OBD-II scanner can pair with the second Bluetooth module, so engine data shows on the head unit while your phone stays connected.
Dash cam over Bluetooth
A dash cam can also connect through the Unisoc Bluetooth module and be viewed on the head unit.
Screen mirroring
Mirror your phone's screen on the head unit to use apps that don't run inside CarPlay or Android Auto.
DAB with an external tuner
Add an external DAB tuner to listen to digital radio stations. The tuner is a separate accessory.

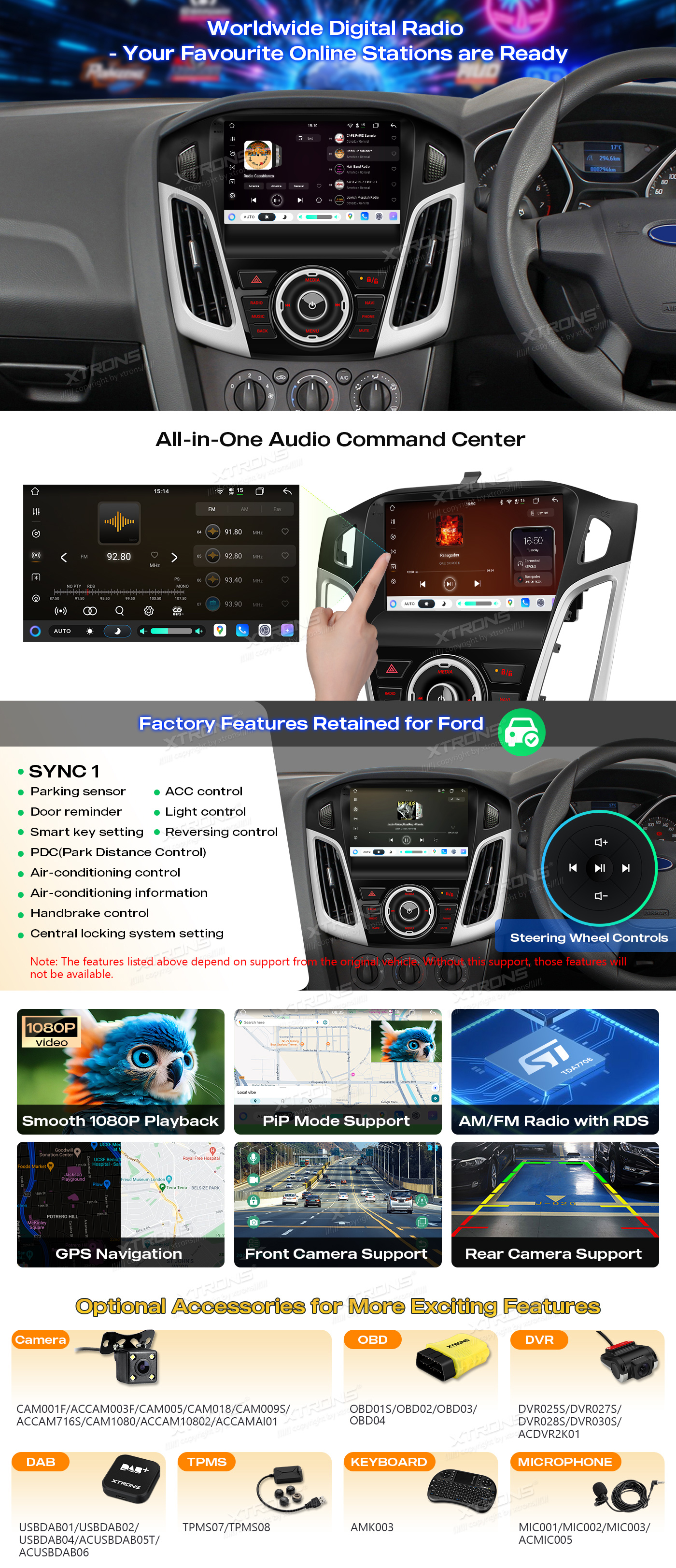

Steering wheel controls and factory features
CANbus integration keeps factory features such as ACC and door reminders, and the steering wheel control adapter lets you change volume and tracks without letting go of the wheel.
Android 14 performance
The Unisoc 7865 octa-core chipset (2x Cortex A75 at 2.2GHz and 6x A55 at 1.8GHz) runs Android 14 with 8GB of RAM and 128GB of UFS 2.2 storage. Navigation, music and 1080P video can run together without stutter.
A built-in gyroscope and inclinometer show roll and pitch, and the unit is rated from -30°C to +80°C. It doesn't play discs.
Works with

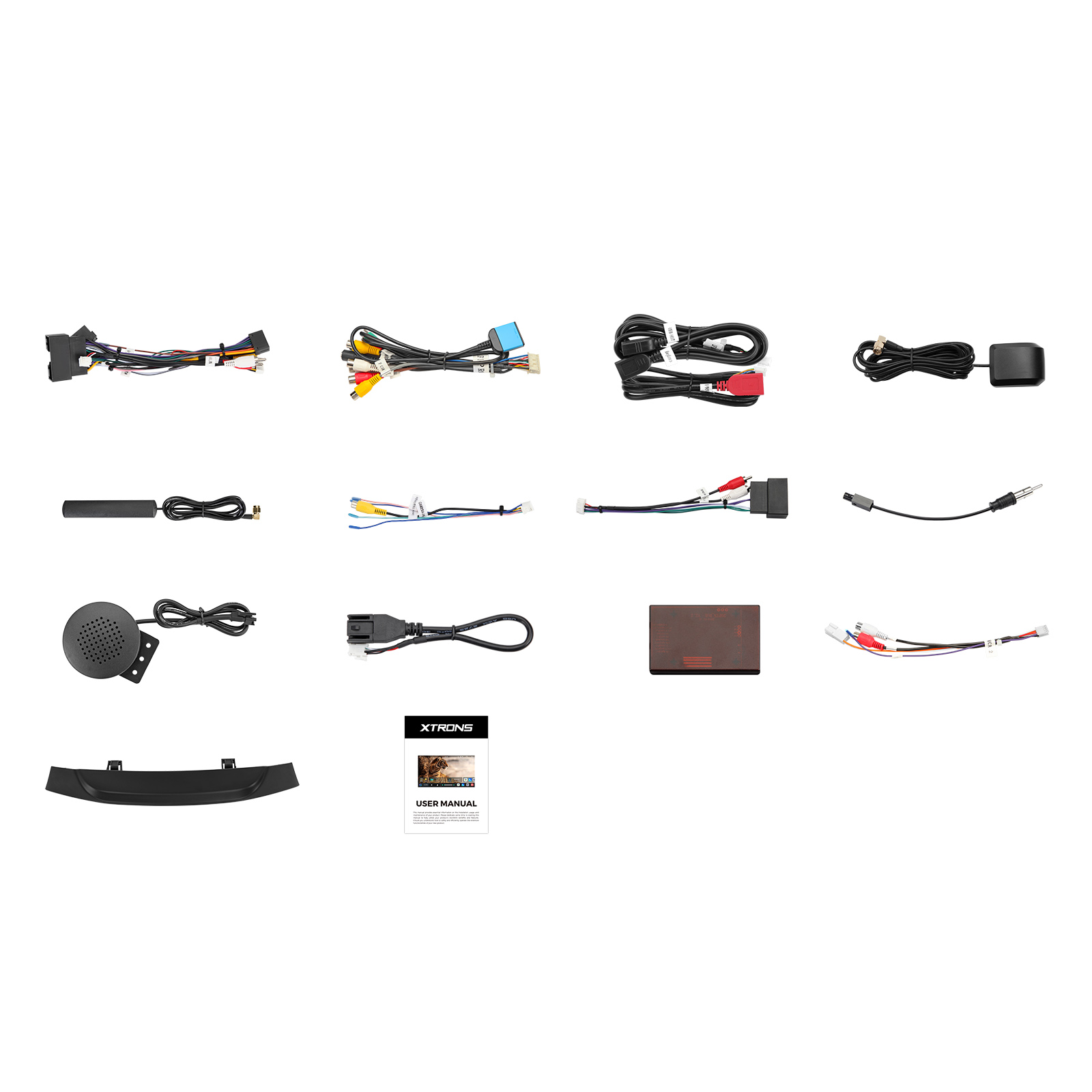

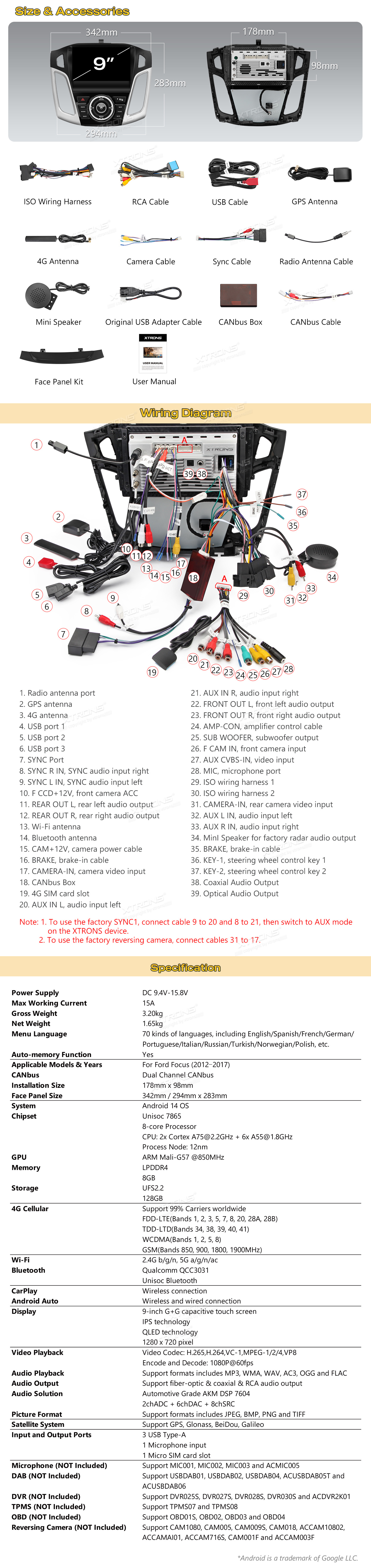

What's in the box
- 1 x 4G Antenna
- 1 x Camera Cable
- 1 x CANbus Box
- 1 x CANbus Cable
- 1 x Fitting Kit
- 1 x GPS Antenna
- 1 x ISO Wiring Harness
- 1 x Mini Speaker
- 1 x Original USB Cable
- 1 x Radio Adapter Cable
- 1 x RCA Cable
- 1 x User Manual
- 2 x USB Cable
| Operating system | Android 14 OS (UFS 2.2 High-Speed Storage) |
|---|---|
| Chipset | Unisoc 7865 Octa-Core (2x A75 @ 2.2GHz + 6x A55 @ 1.8GHz) |
| Memory | 8GB RAM + 128GB ROM |
| Screen | 9″ QLED IPS (1280×720) – G+G Tempered Glass |
|---|
| Audio output | Optical, Coaxial, RCA (Supports AKM 7604 DSP & 36-Band Equalization) |
|---|---|
| Amplifier | TDA7851 amplifier (4x 48W output) |
| Connectivity | Dual Bluetooth (Qualcomm + Unisoc), 4G LTE, Dual-Band WiFi (2.4G/5G) |
|---|---|
| SIM | Micro-SIM |
| Power supply | DC 9.4V–15.8V (15A Max Working Current) |
|---|
| Face panel | 342/294x283mm |
|---|---|
| Disc playback | This unit doesn't play discs. |
| Temperature range | -30°C to +80°C |

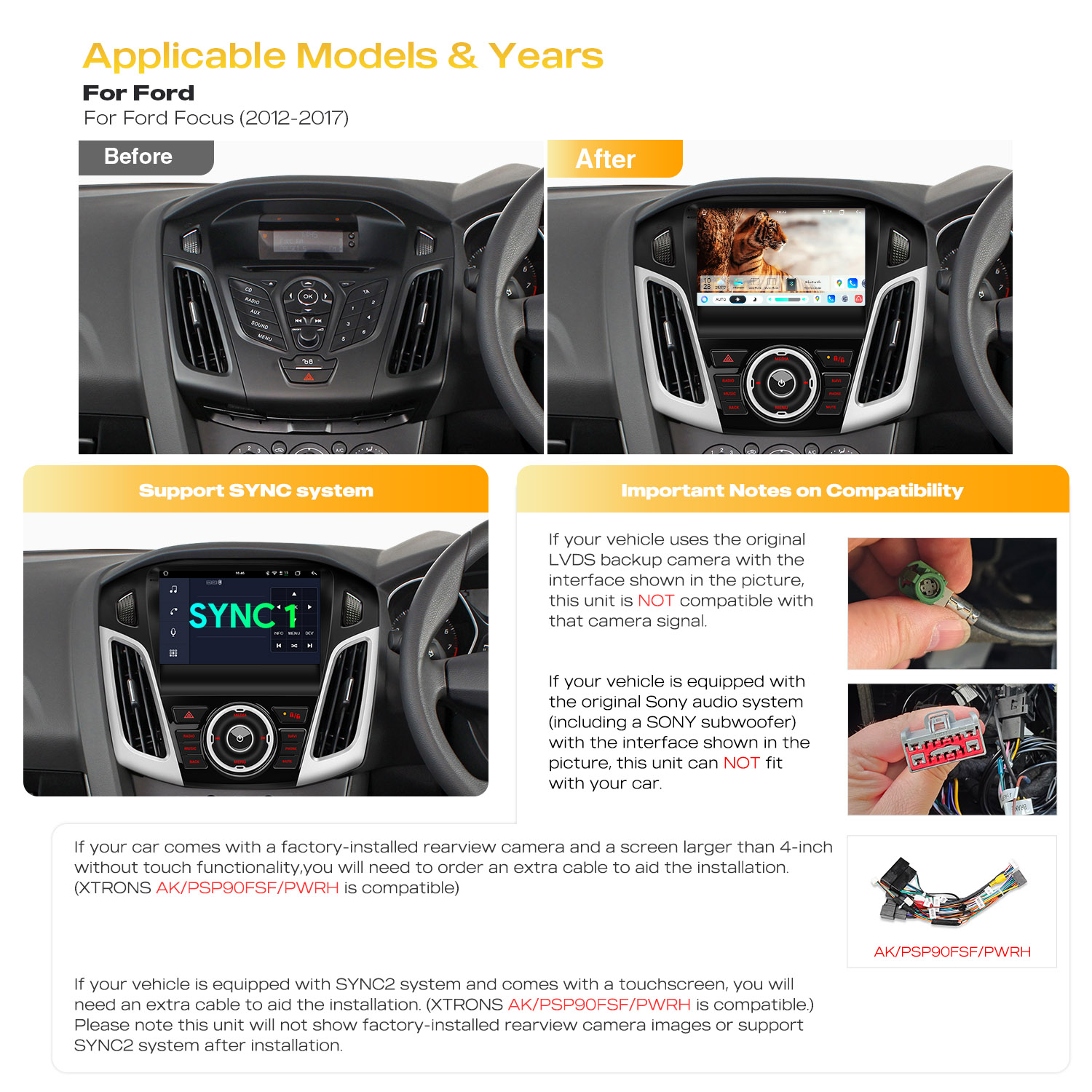

- Ford Focus (2004-2025)
- For Ford Focus (2012-2017)

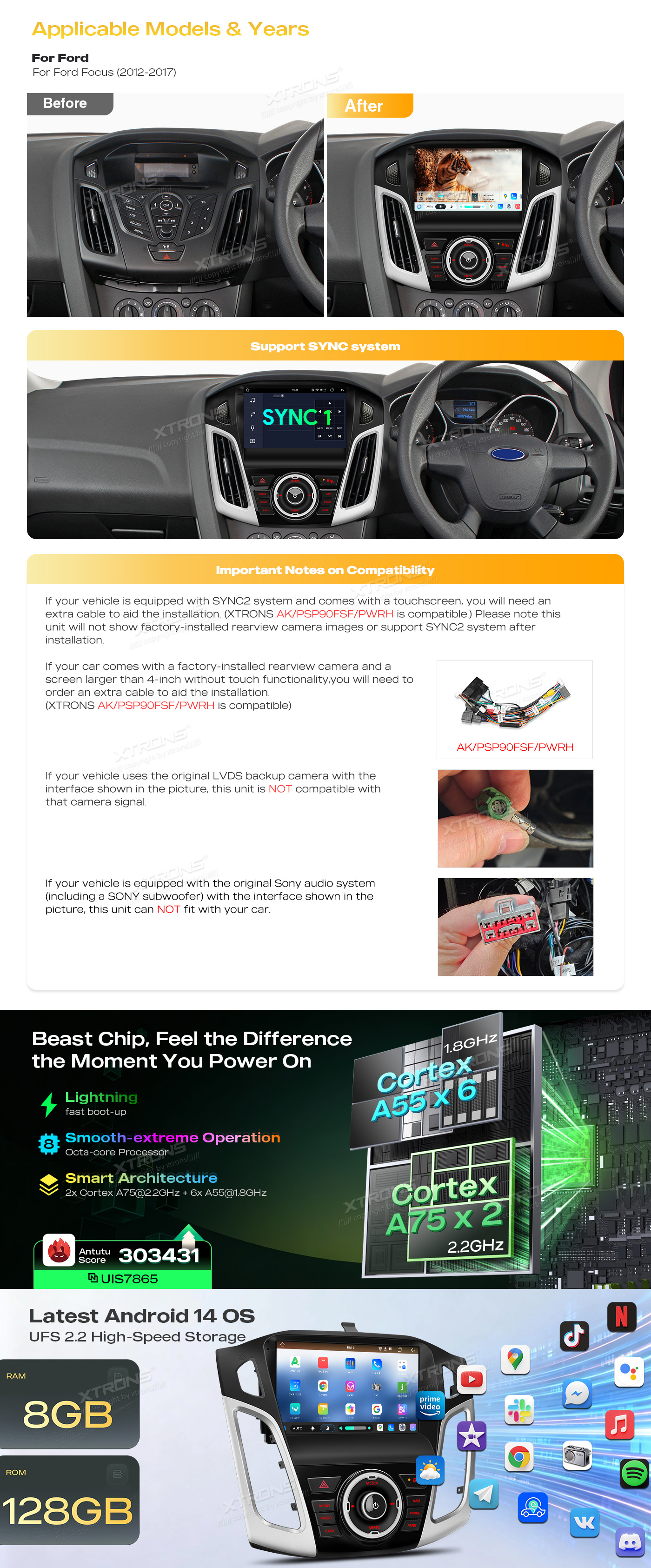

- 1. Please check to see whether your vehicle original car radio comes with a rearview camara, and your car radio comes with a larger than 4" screen but without touch functions, if it is, you need to order this ISO cable AK/PSP90FSF/PWRH to finish the installation.
- 2. If your vehicle is equipped with SYNC2 system and comes with a touchscreen, you will need an extra cable to aid the installation. (XTRONS AK/PSP90FSF/PWRH is compatible.) Please note this unit will not show factory-installed rearview camera images or support SYNC2 system after installation.
- 3. If your vehicle uses the original LVDS backup camera, please check the interface with us, this unit may NOT compatible with that camera signal.
- 4. If your vehicle is equipped with the original Sony audio system (including a SONY subwoofer), please check the interface with us, this unit may NOT fit with your car.

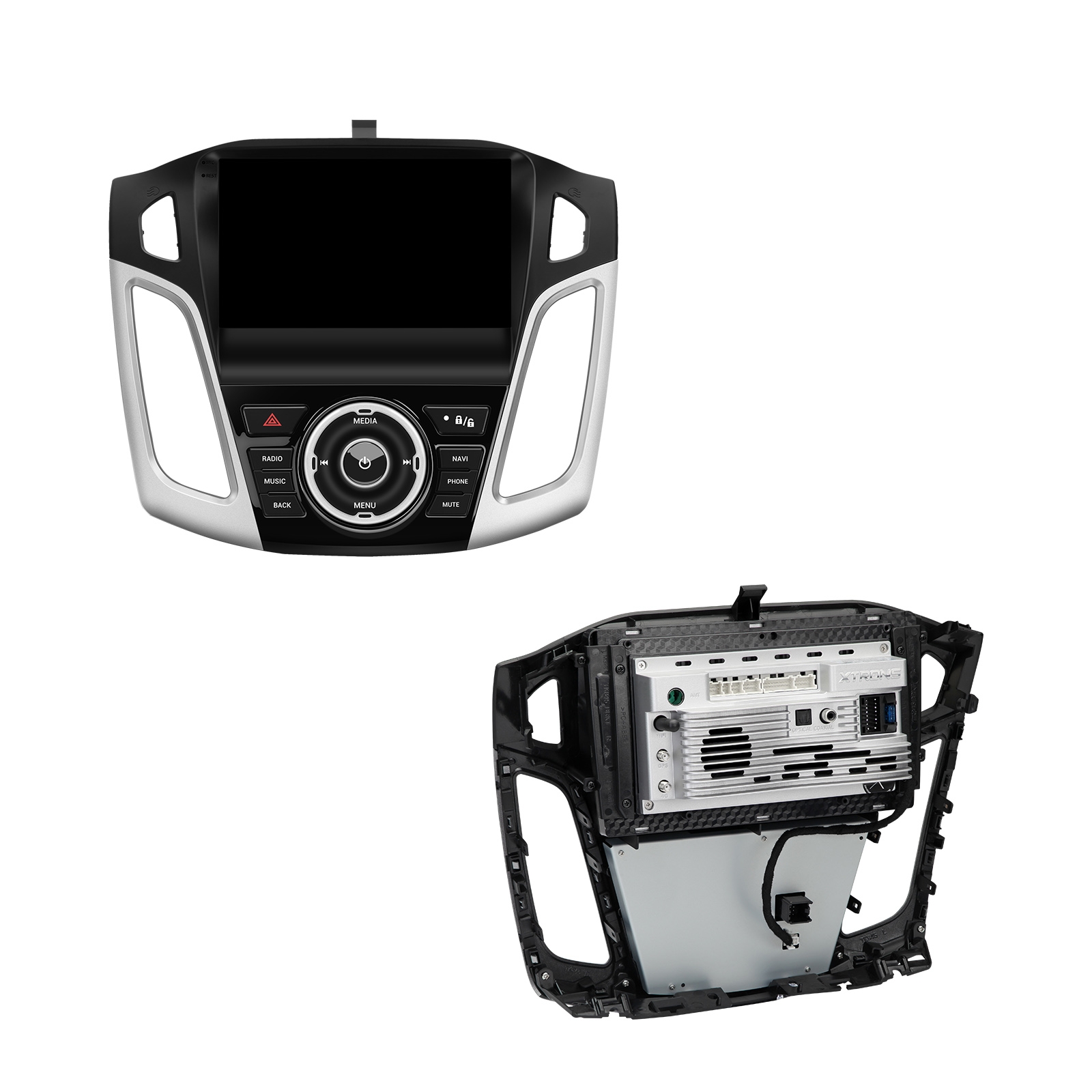

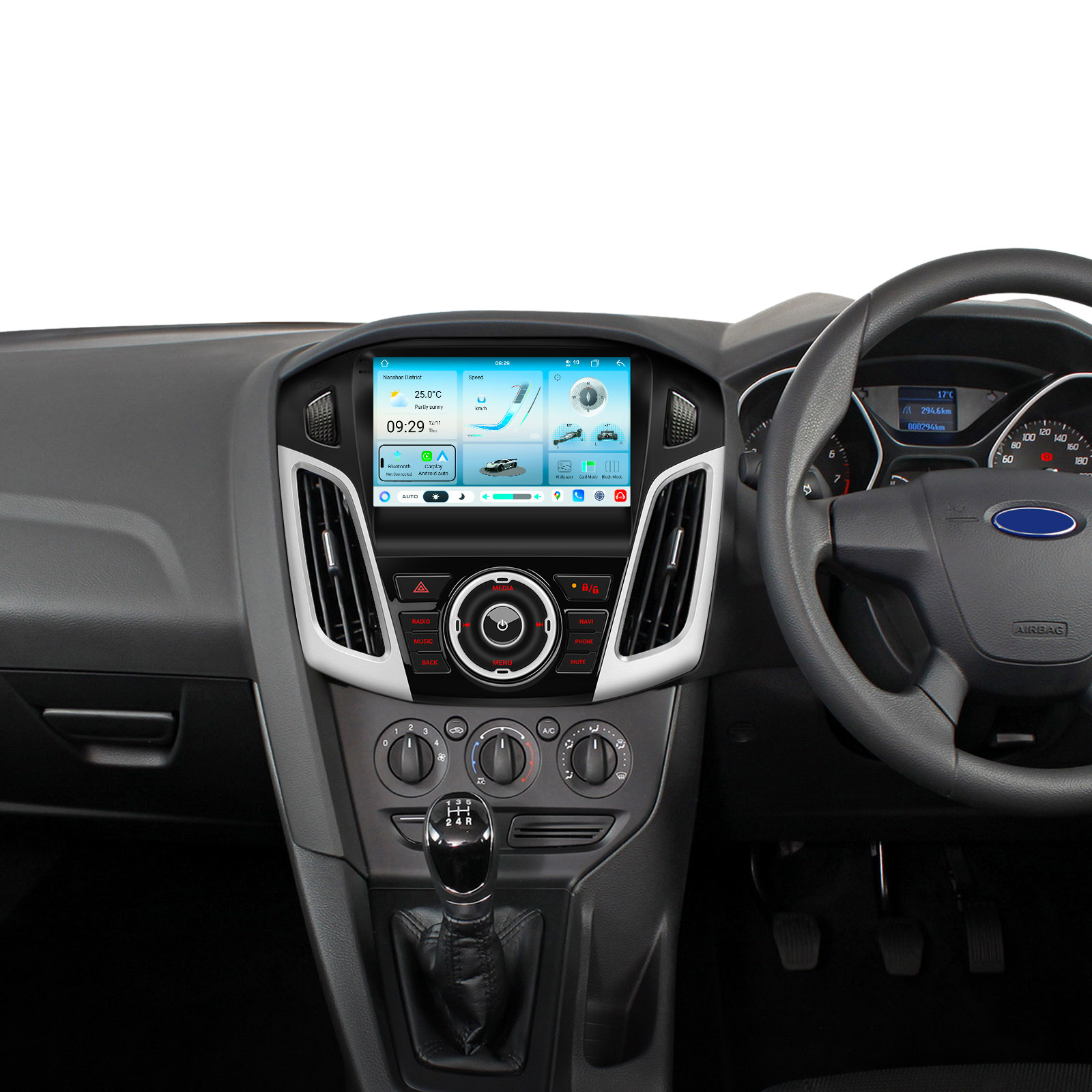

The unit fits the Focus (2012-2017) dashboard with the supplied fitting kit, ISO wiring harness and CANbus box. Check the year, dimensions and shape of your centre console first; the face panel is 342/294x283mm. Cars with a factory rear camera and a non-touch screen larger than 4", or with a SYNC2 touchscreen, need the XTRONS AK/PSP90FSF/PWRH cable. Cars with an original LVDS backup camera or a Sony audio system need checking with us before ordering.
My Focus has SYNC2 with a touchscreen. Will it fit?
It needs the extra XTRONS AK/PSP90FSF/PWRH cable. After fitting, the unit won't show the factory rear camera image or support the SYNC2 system.
Does it work with the Sony audio system?
Cars with the original Sony audio system, including a SONY subwoofer, need checking with us before ordering, as the unit may not fit.
What SIM card does it take?
A standard Micro-SIM for the built-in 4G.
Does it play CDs?
No. This unit doesn't play discs.
Will my steering wheel buttons work?
Yes. A steering wheel control adapter and CANbus integration keep them working.
