SKU: PX74DTFL
£279.00
Check if this fits your car

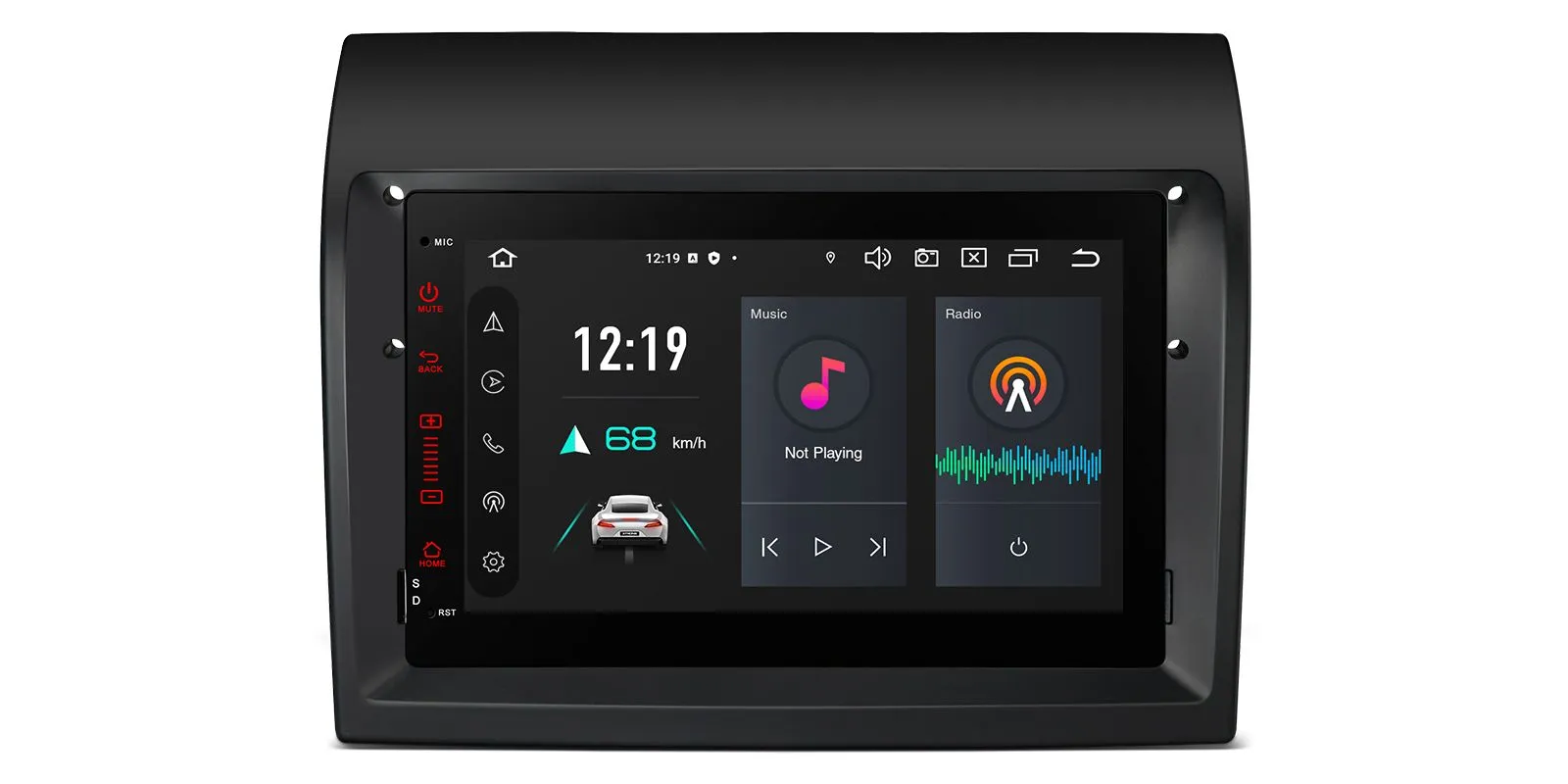

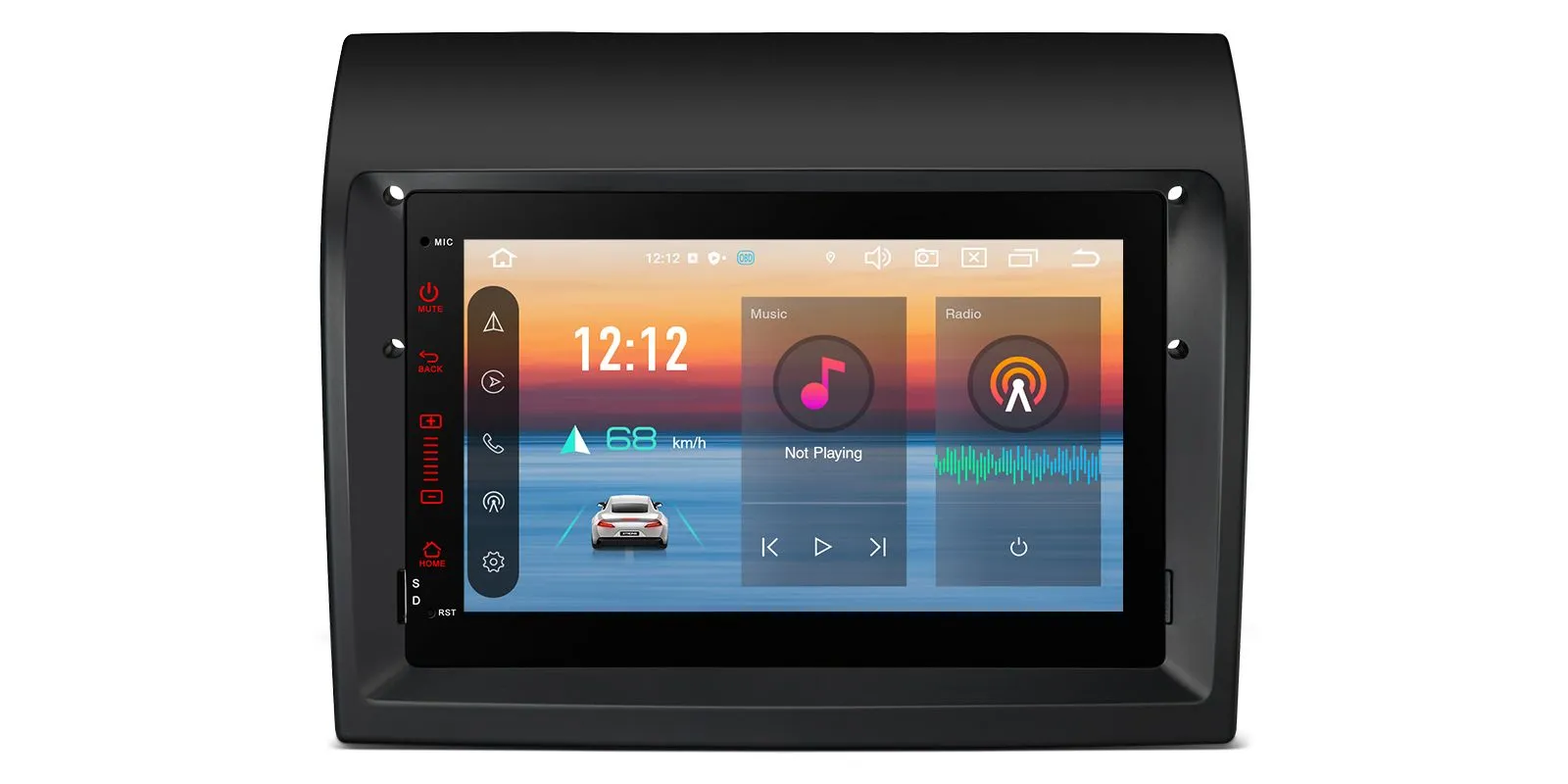

XTRONS PX74DTFL is a 7 inch Android 14 head unit, custom fit for the Fiat Ducato from 2011 to 2015. It brings wireless CarPlay, Android Auto, global 4G and an AKM DSP to the van, with GPS navigation and AHD camera support.

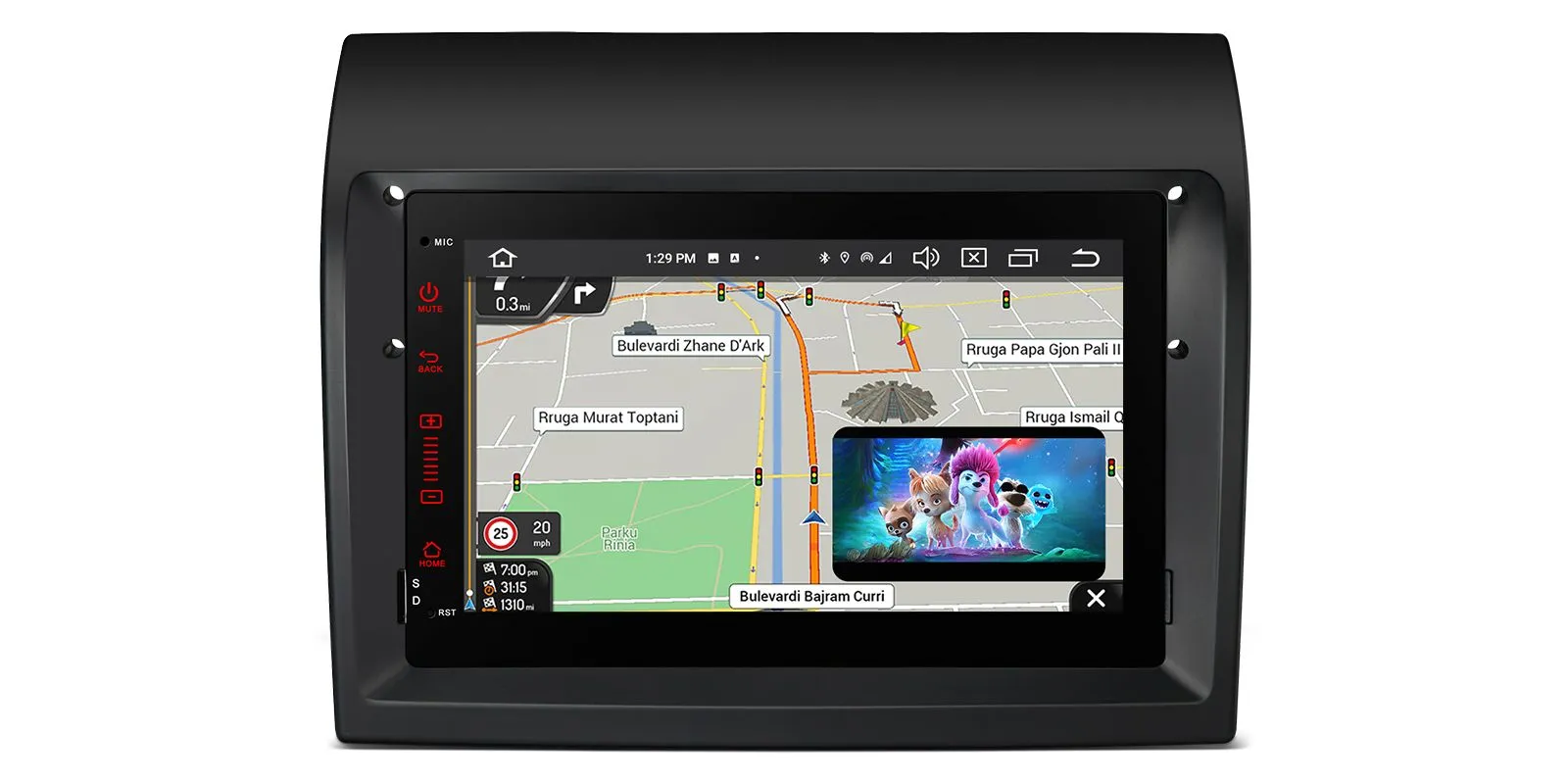

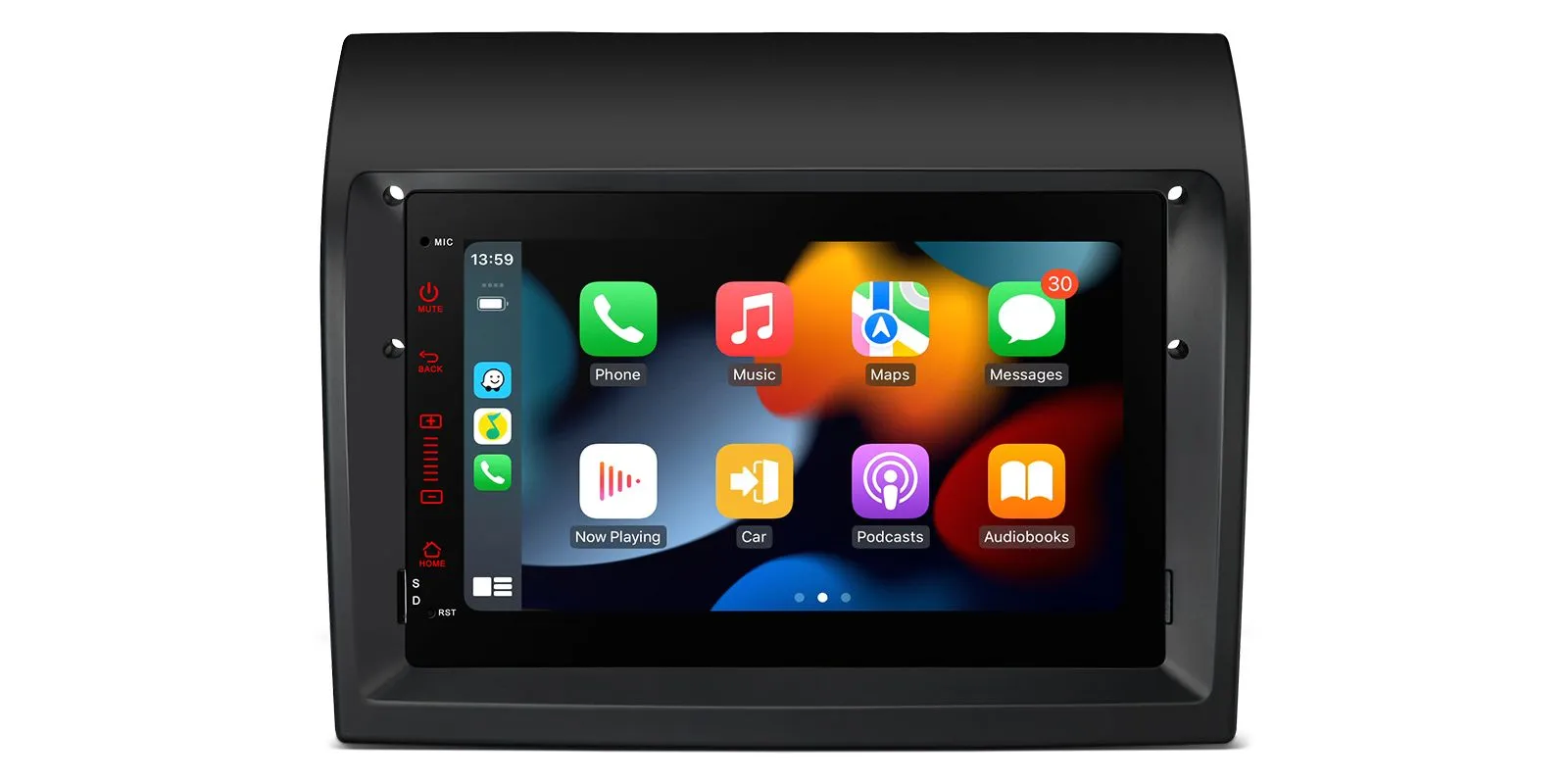

CarPlay connects to your iPhone without a cable, so it's ready shortly after you start the van. Maps, music, calls and messages appear on the 7 inch screen, and Siri handles voice requests.

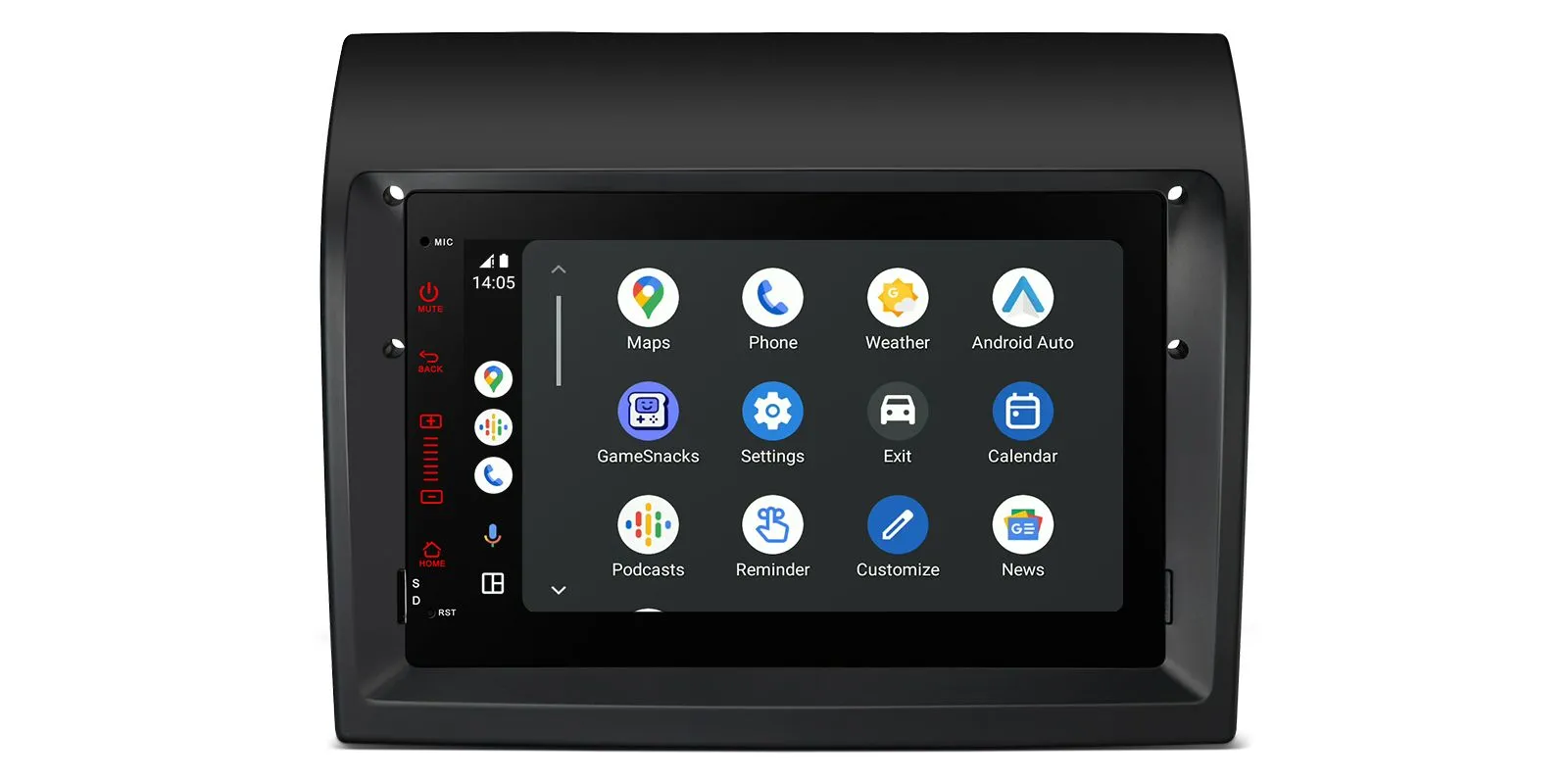

Android phones run Android Auto on the head unit, with Google Maps, music apps and Google Assistant for hands-free control.
Insert a Micro-SIM card and the head unit has its own 4G connection for navigation and streaming. A 4G antenna and SIM card slot cable are supplied, and USB tethering is available if you'd rather use your phone's data.
A separate Wi-Fi antenna comes in the box, so the unit can join a phone hotspot or home network for updates.

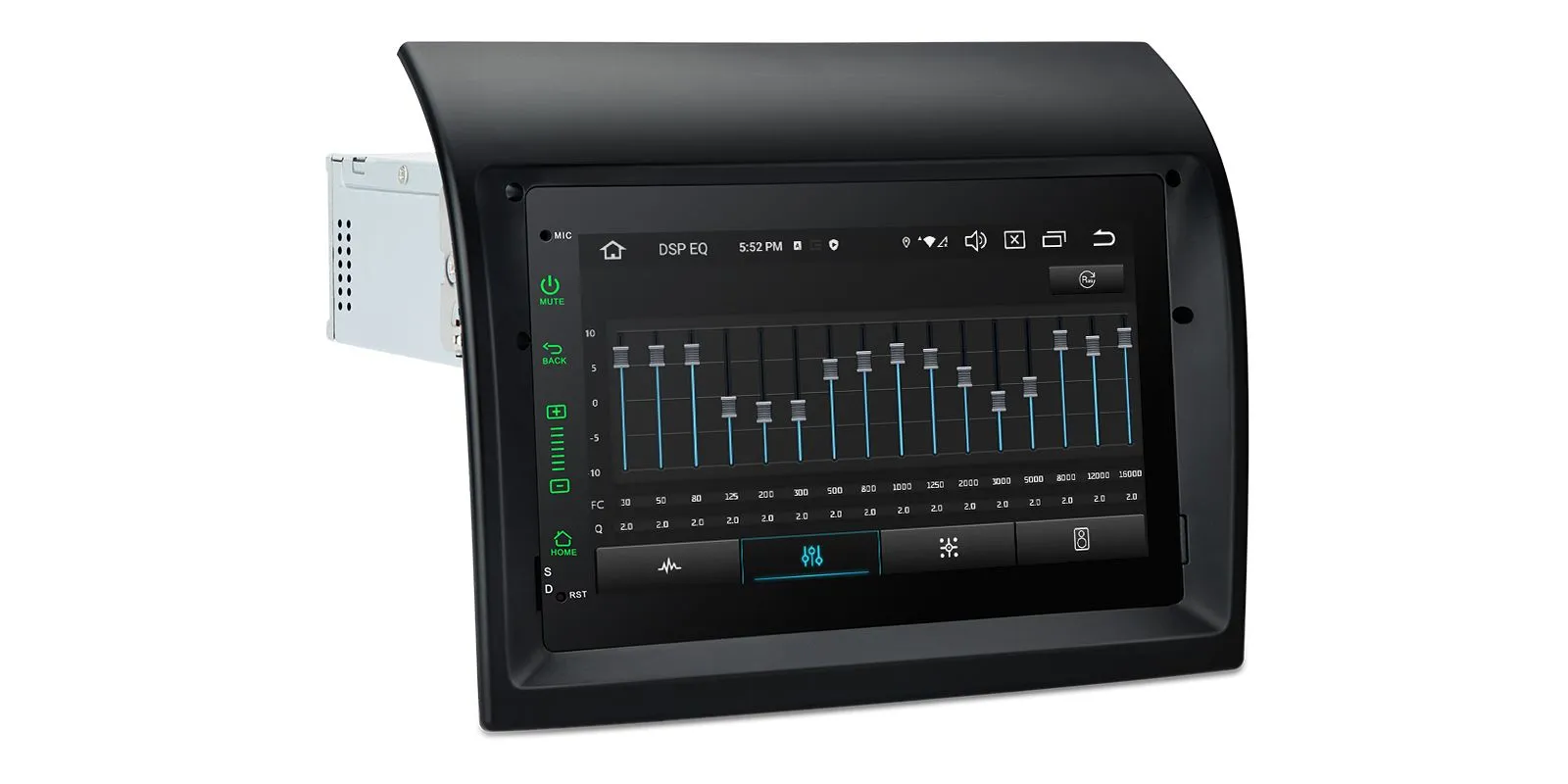

An AKM DSP chip handles the sound, with customisable modes and EQ settings for any kind of music. A TDA7388 amplifier drives the speakers. If your van has an amplifier system, you'll need the XTRONS AKPE71DTFLIS001 ISO cable.

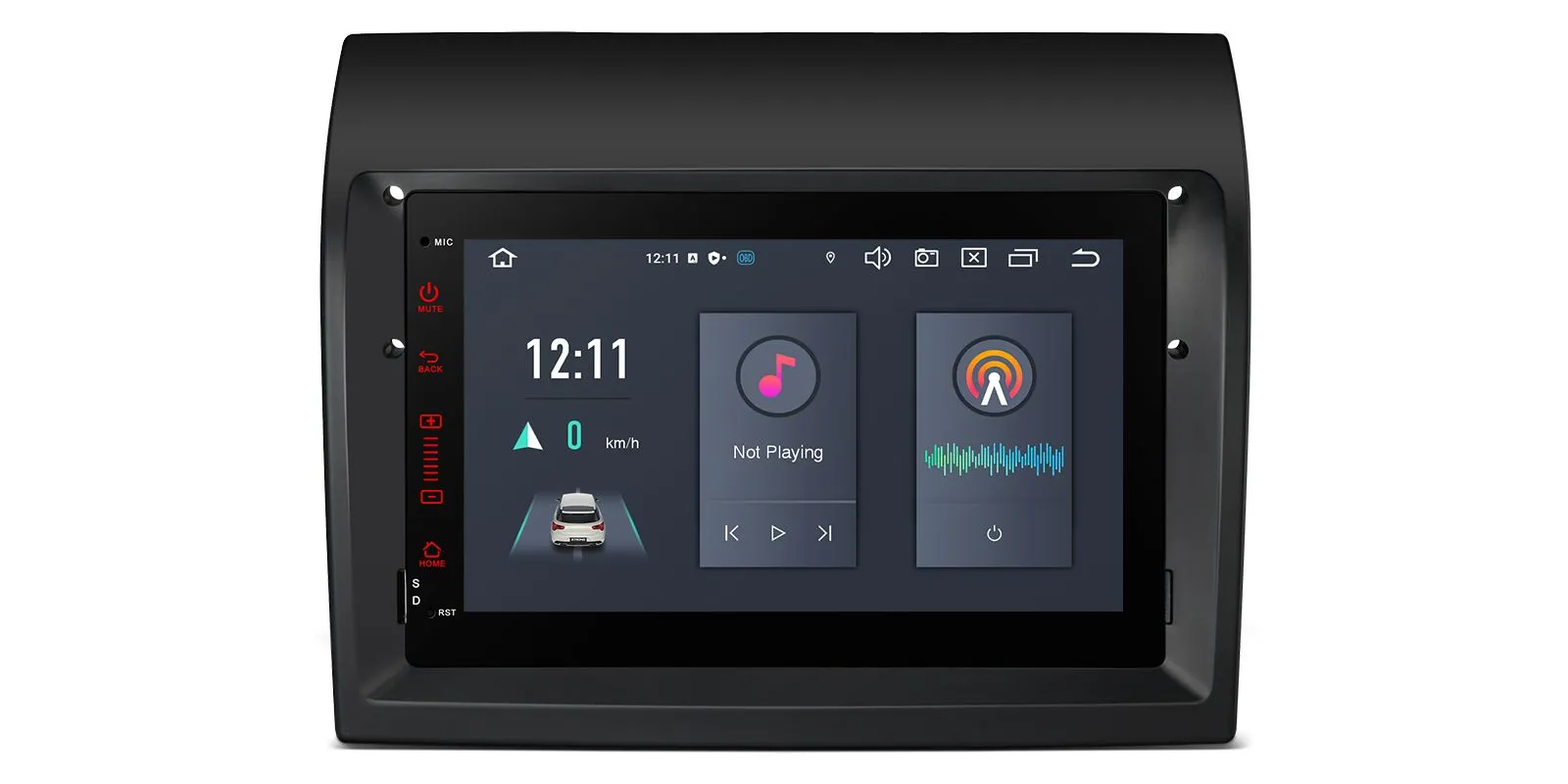

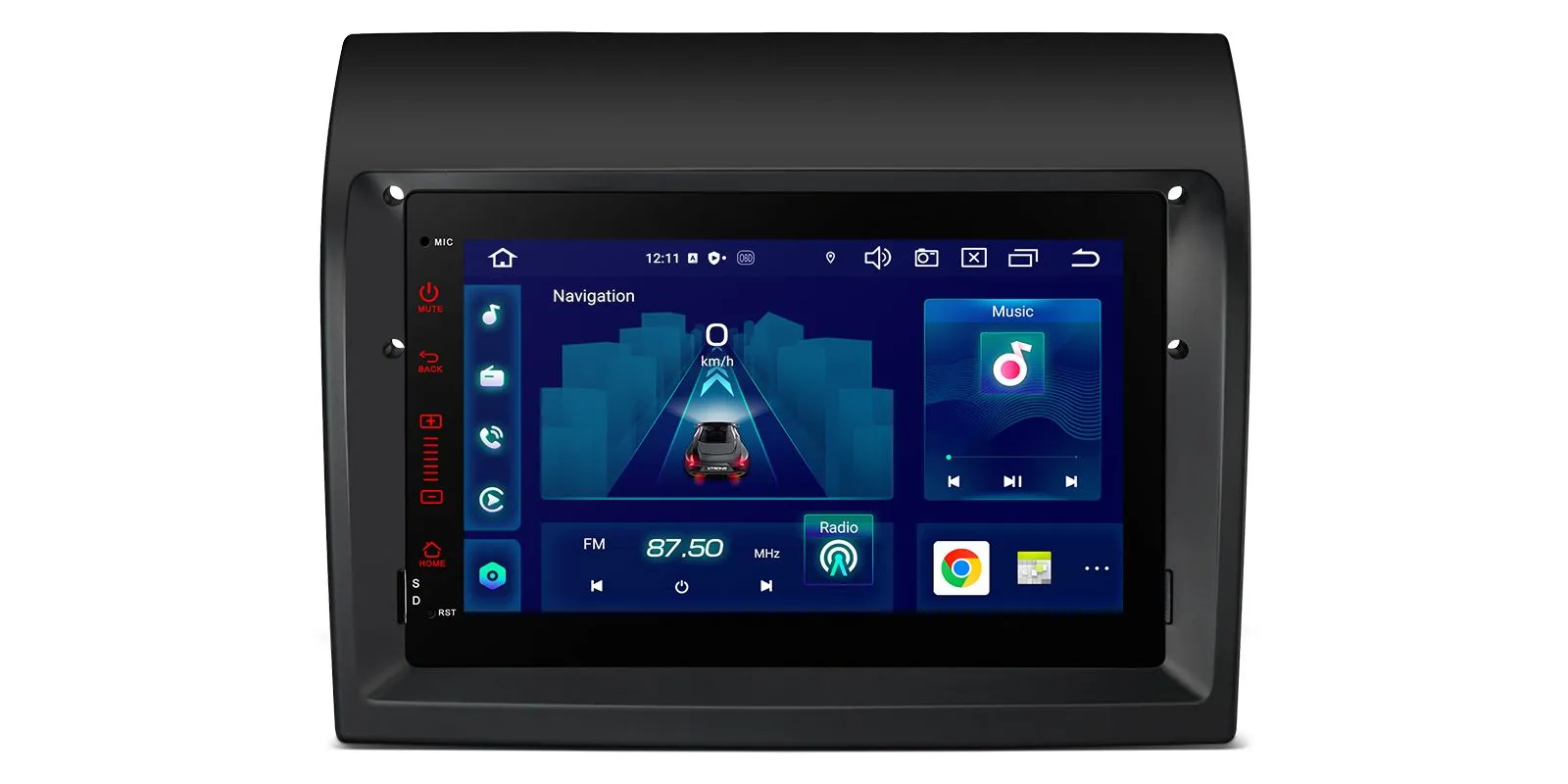

The 7 inch Grade-A G+G capacitive touch screen runs at 1024×600 and uses IPS technology, so it stays clear from the passenger seat. It plays video up to 2K 60fps.
A microphone comes in the box for hands-free calls and voice commands. Mount it near the driver for clear pickup.
Screen mirroring shows your phone's screen on the head unit for apps outside CarPlay and Android Auto. Use it when parked.

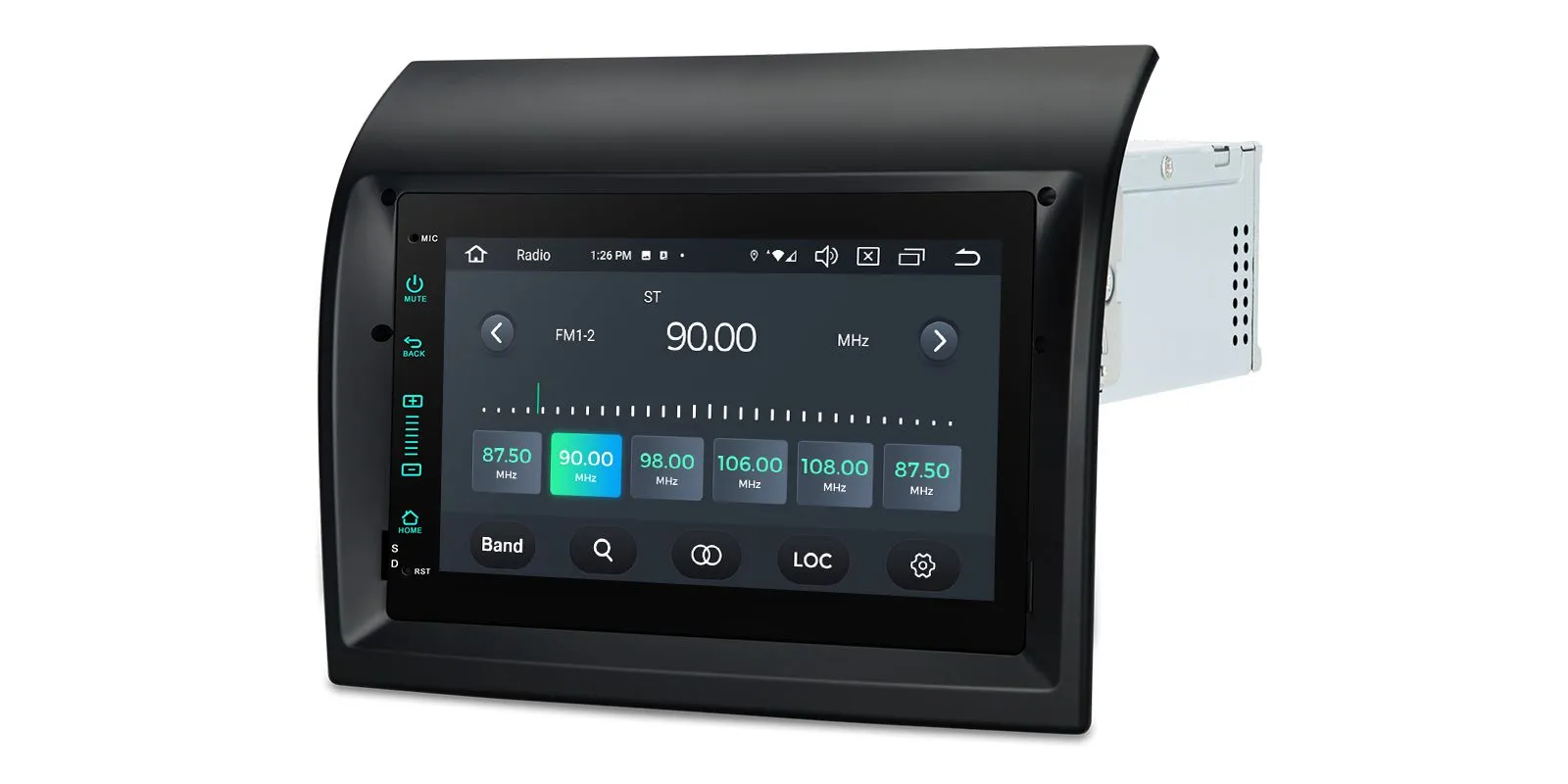

The SI4755 radio has RDS for FM. DAB digital radio works with an external DAB adapter, sold separately.

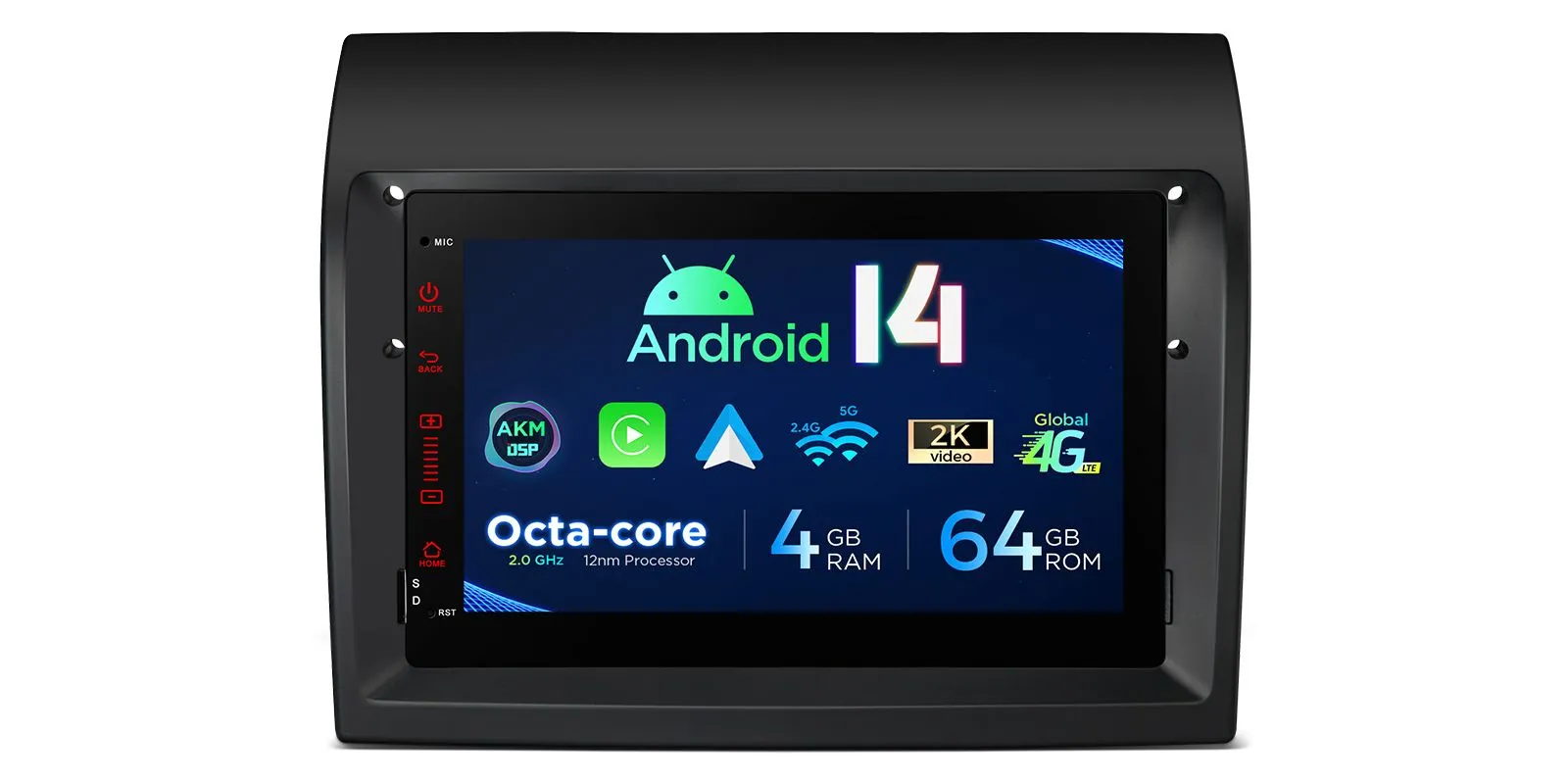

A 12nm octa-core 2.0GHz processor runs Android 14 with 4GB DDR4 RAM and 64GB storage, tested from −30°C to +80°C.
AHD cameras are supported, sold separately, and a camera cable is in the box.
| Processor | 12nm octa core 2.0GHz processor |
|---|---|
| Memory | 4GB DDR4 RAM + 64GB Solid State ROM |
| Operating system | Android 14 |
| Screen | 7” 1024×600 Capacitive Touch Screen |
|---|---|
| Video playback | up to 2K 60fps |
| Radio | SI4755 Radio with RDS |
|---|---|
| Amplifier | TDA7388 Amplifier |
| SIM | Micro-SIM card |
|---|
| Operating temperature | −30°C to +80°C |
|---|---|

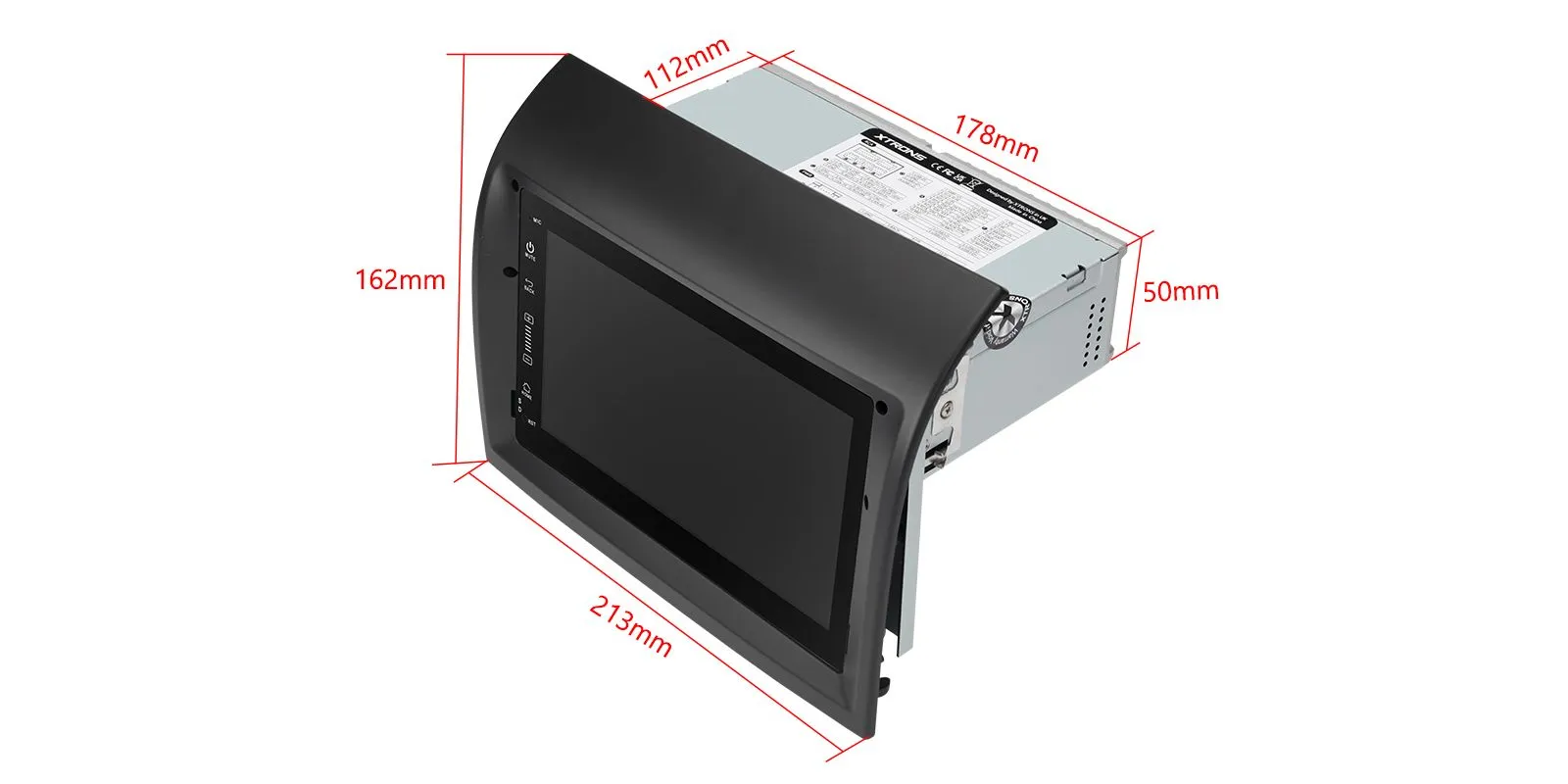

| Face panel | 213x162mm |

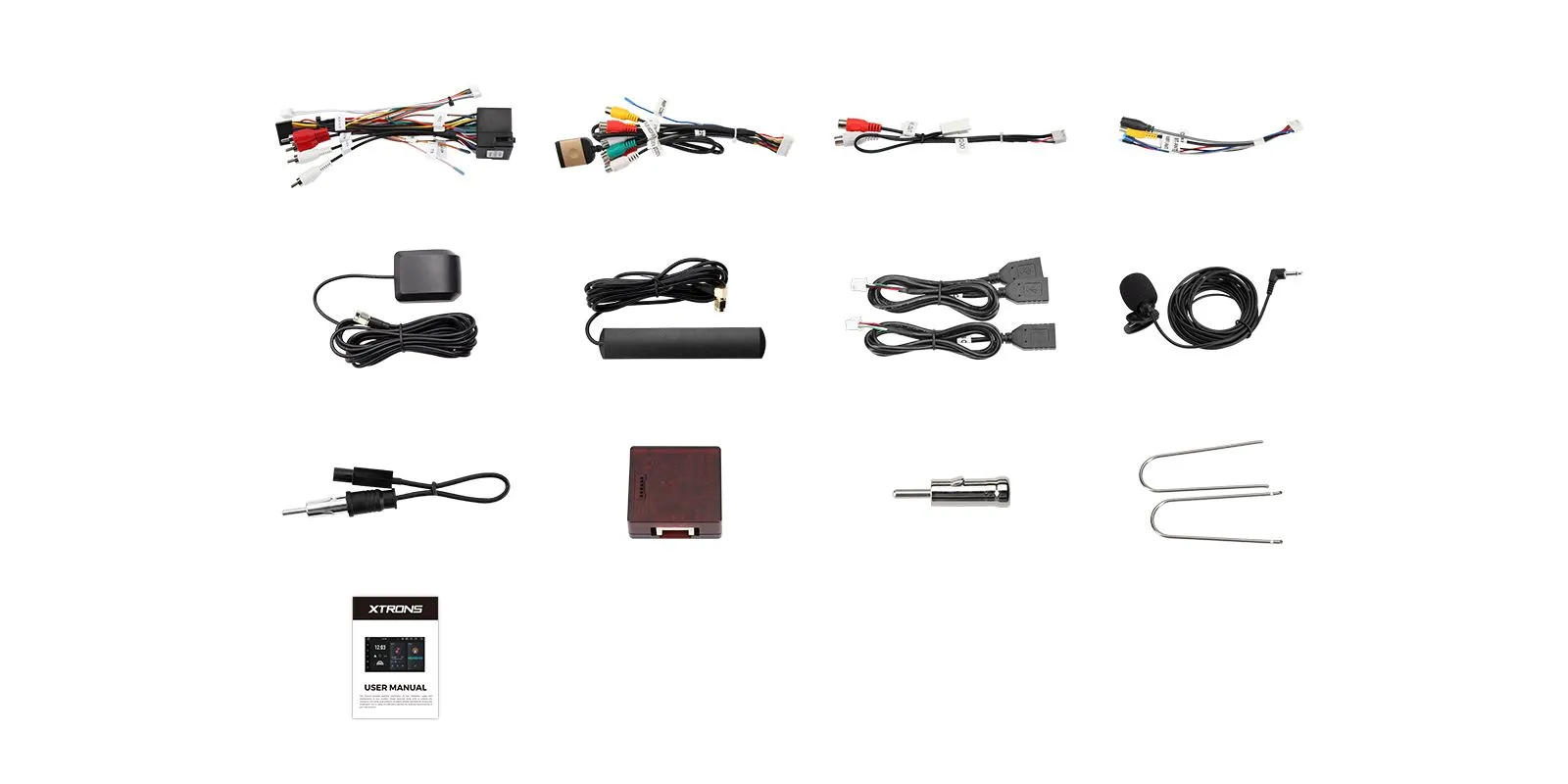

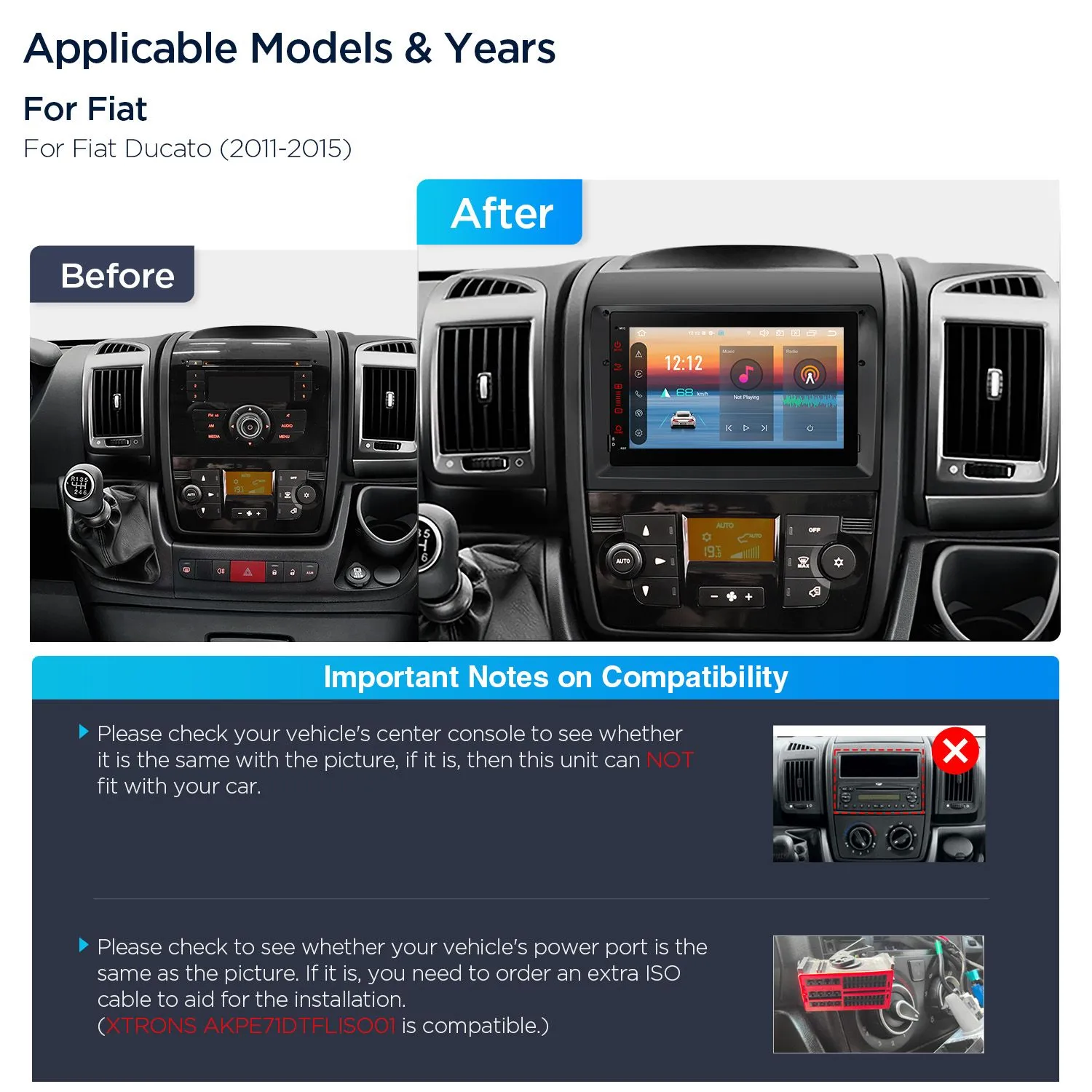

The unit is custom fit for the Ducato, with an ISO wiring harness, radio adapter cable, CANbus box, installation holder and screws supplied. The face panel measures 213x162mm, so check the shape of your centre console carefully. Vans with an amplifier system need the XTRONS AKPE71DTFLIS001 ISO cable as well.
It's made for the Fiat Ducato from 2011-2015. Check your centre console shape against the product photos.
An extra ISO cable, the XTRONS AKPE71DTFLIS001.
A Micro-SIM card, through the supplied SIM card slot cable.
No, it doesn't have a DVD drive.
Reviews
Bought this product? Sign in to write a review.

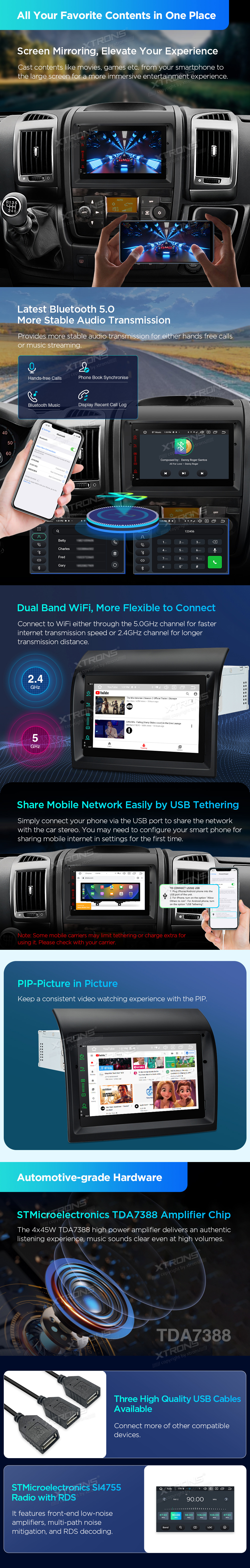

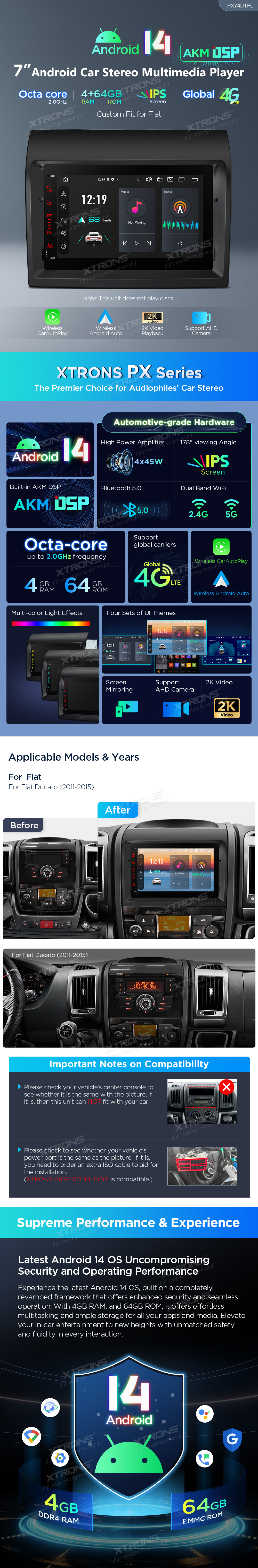

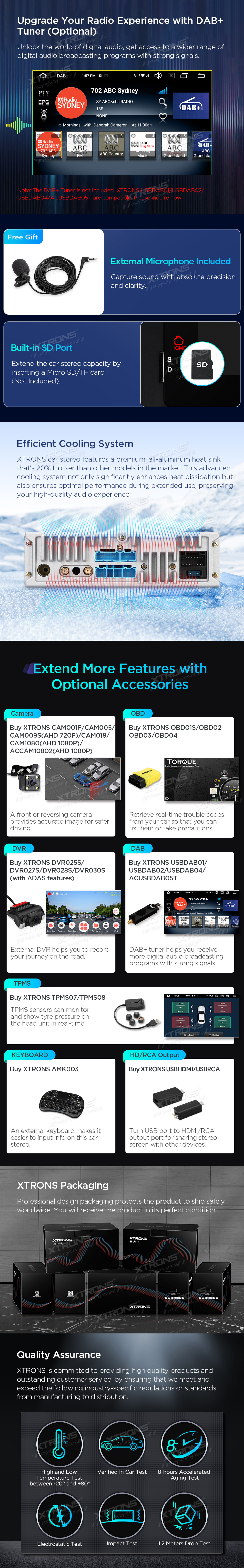

XTRONS's own pages for this product, as the manufacturer publishes them. Open any of them at full size to zoom in.
