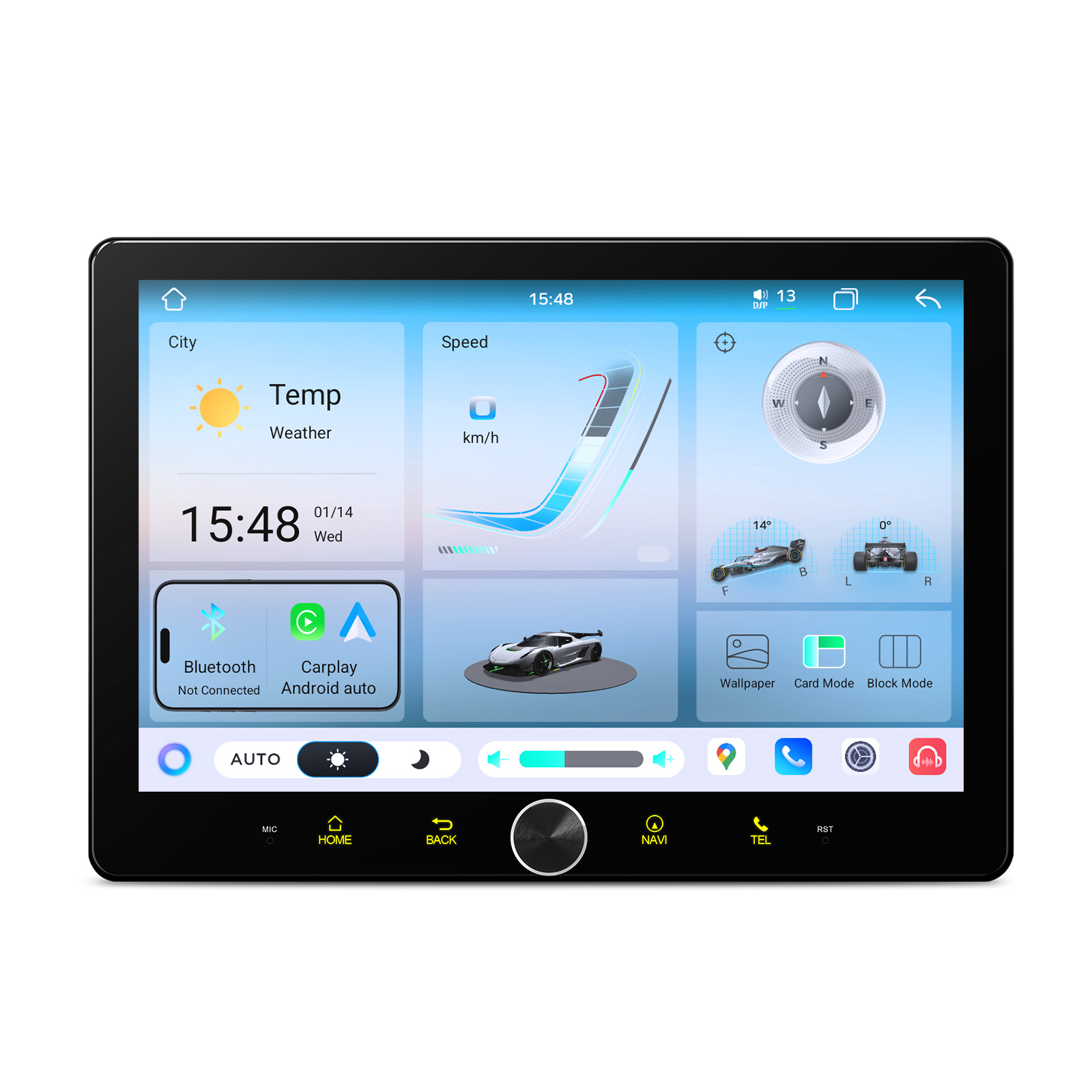

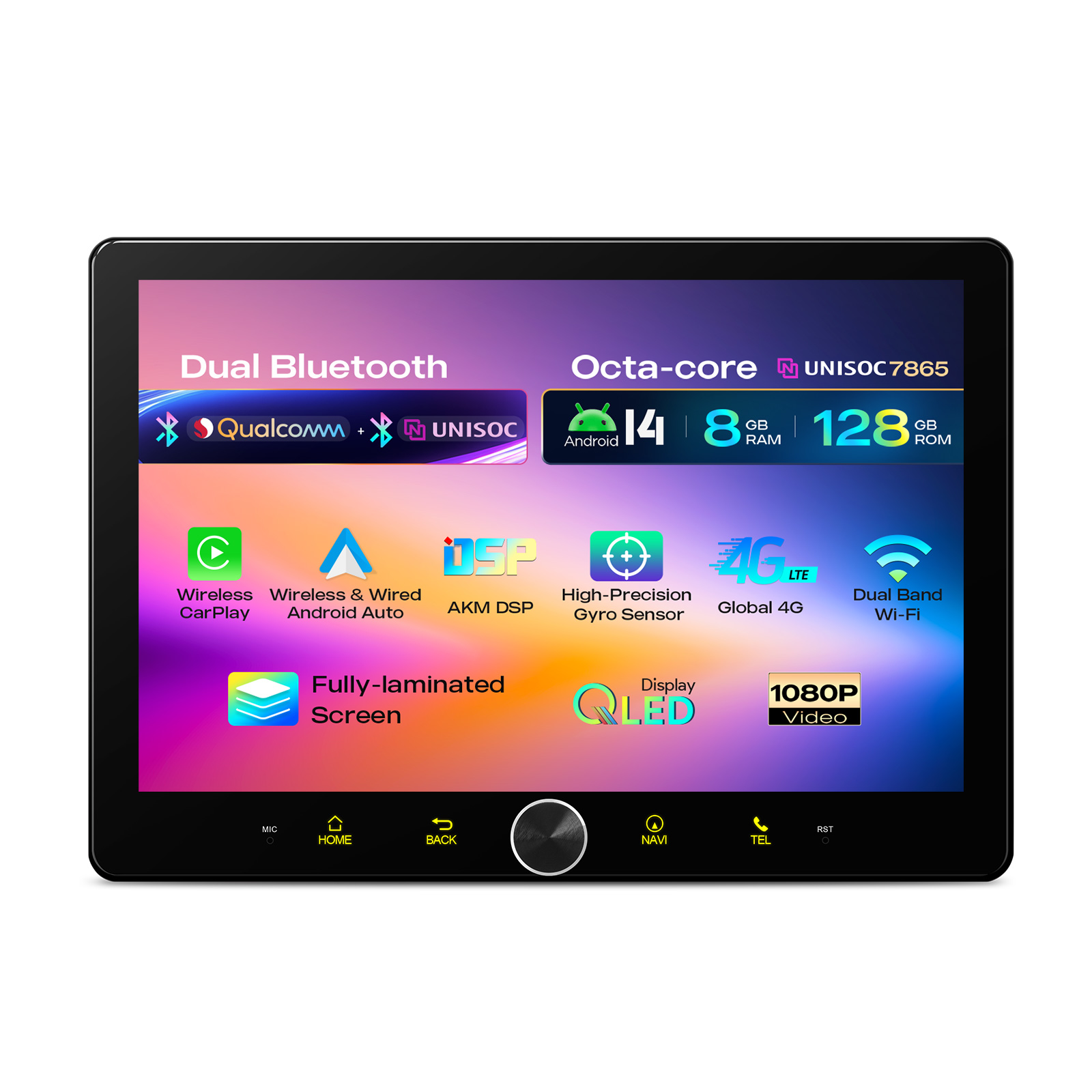

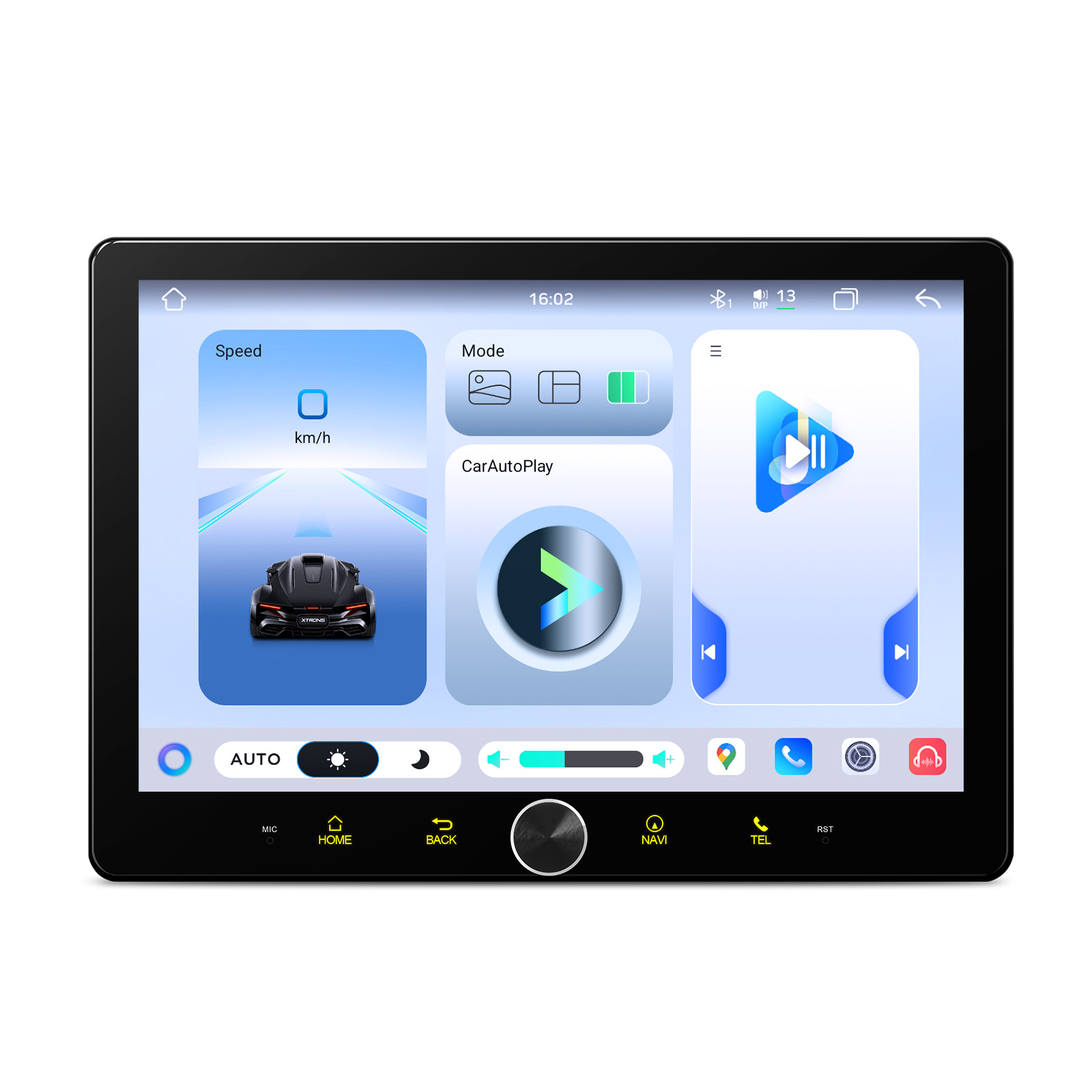

Double DIN 10.1 inch Android Head Unit with Wireless CarPlay, Android Auto and 4G | TIMH128L, image 1 of 17
Double DIN 10.1 inch Android Head Unit with Wireless CarPlay, Android Auto and 4G | TIMH128L, image 2 of 17
Double DIN 10.1 inch Android Head Unit with Wireless CarPlay, Android Auto and 4G | TIMH128L, image 3 of 17
Double DIN 10.1 inch Android Head Unit with Wireless CarPlay, Android Auto and 4G | TIMH128L, image 4 of 17
Double DIN 10.1 inch Android Head Unit with Wireless CarPlay, Android Auto and 4G | TIMH128L, image 5 of 17
Double DIN 10.1 inch Android Head Unit with Wireless CarPlay, Android Auto and 4G | TIMH128L, image 6 of 17
Double DIN 10.1 inch Android Head Unit with Wireless CarPlay, Android Auto and 4G | TIMH128L, image 7 of 17
Double DIN 10.1 inch Android Head Unit with Wireless CarPlay, Android Auto and 4G | TIMH128L, image 8 of 17
Double DIN 10.1 inch Android Head Unit with Wireless CarPlay, Android Auto and 4G | TIMH128L, image 9 of 17
Double DIN 10.1 inch Android Head Unit with Wireless CarPlay, Android Auto and 4G | TIMH128L, image 10 of 17
Double DIN 10.1 inch Android Head Unit with Wireless CarPlay, Android Auto and 4G | TIMH128L, image 11 of 17
Double DIN 10.1 inch Android Head Unit with Wireless CarPlay, Android Auto and 4G | TIMH128L, image 12 of 17
Double DIN 10.1 inch Android Head Unit with Wireless CarPlay, Android Auto and 4G | TIMH128L, image 13 of 17
Double DIN 10.1 inch Android Head Unit with Wireless CarPlay, Android Auto and 4G | TIMH128L, image 14 of 17
Double DIN 10.1 inch Android Head Unit with Wireless CarPlay, Android Auto and 4G | TIMH128L, image 15 of 17
Double DIN 10.1 inch Android Head Unit with Wireless CarPlay, Android Auto and 4G | TIMH128L, image 16 of 17
Double DIN 10.1 inch Android Head Unit with Wireless CarPlay, Android Auto and 4G | TIMH128L, image 17 of 17
  • Android 14
  • Wireless CarPlay / Android Auto
  • 4G
  • QLED
Specifications: 10.1″8+128GB

Image 1 of 17.

Double DIN 10.1 inch Android Head Unit with Wireless CarPlay, Android Auto and 4G

SKU: TIMH128L

£349.00

Price includes VAT · Free UK delivery

Check if this fits your car

In stock
1
  • Navway, UK car stereo specialists since 2014
  • 5,000+ customers
  • UK support Mon–Fri

SKU: TIMH128L

Key specifications

System
Android 14 OS (UFS 2.2 High-Speed Storage)
Chipset
Unisoc 7865 Octa-Core (2x A75 @ 2.2GHz + 6x A55 @ 1.8GHz)
Memory
8GB RAM + 128GB ROM
Screen
10.1″ QLED IPS (1280×800) Fully-laminated Display
Adjustment
60mm vertical adjustment, 30° tilt/swivel
Audio output
Optical, Coaxial, RCA (Supports AKM 7604 DSP & 36-Band Equalization)

What you need to fit this

1 · In the box

  • 1 x 4G Antenna
  • 1 x Camera Cable
  • 1 x CANbus Cable
  • 1 x Fitting Kit
  • 1 x GPS Antenna
  • 1 x Installation Instruction
  • 1 x ISO Wiring Harness
  • 1 x RCA Cable
  • 1 x User Manual
  • 2 x USB Cable
  • 8 x Screws

The XTRONS TIMH128L is a universal double DIN Android 14 head unit with a 10.1 inch floating screen, for cars with a standard 178x100mm radio slot. It has wireless CarPlay and Android Auto, built-in 4G, an AKM DSP and 8GB RAM with 128GB storage.

  • Fits a standard 178x100mm double DIN slot
  • 10.1 inch fully laminated IPS QLED screen at 1280×800 that adjusts up, down and at an angle
  • Wireless CarPlay and Android Auto over dual-band Wi-Fi
  • AKM 7604 DSP with a 36-band equaliser
  • 8GB RAM and 128GB UFS 2.2 storage
  • Dual Bluetooth for a phone and an OBD-II scanner or dash cam at the same time

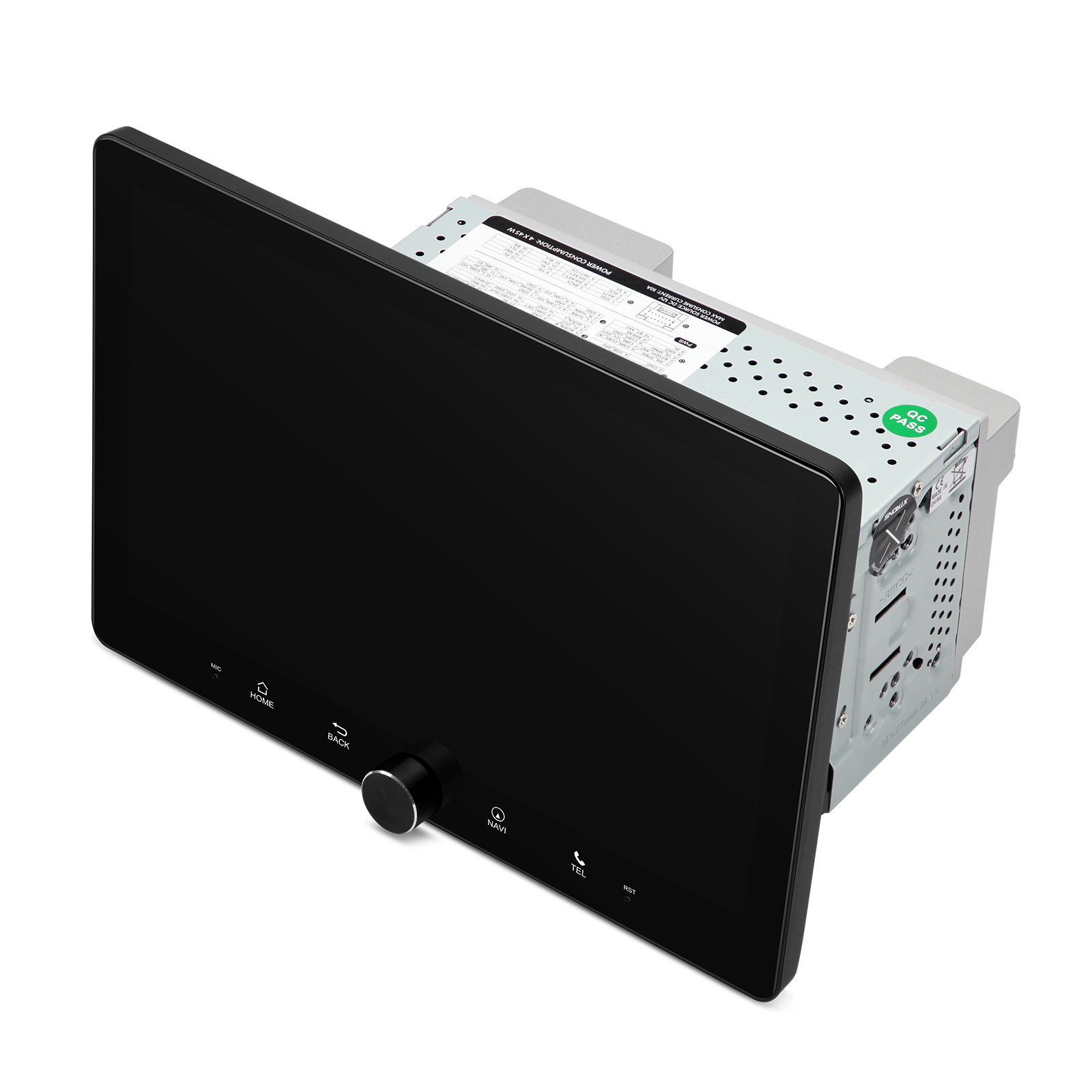

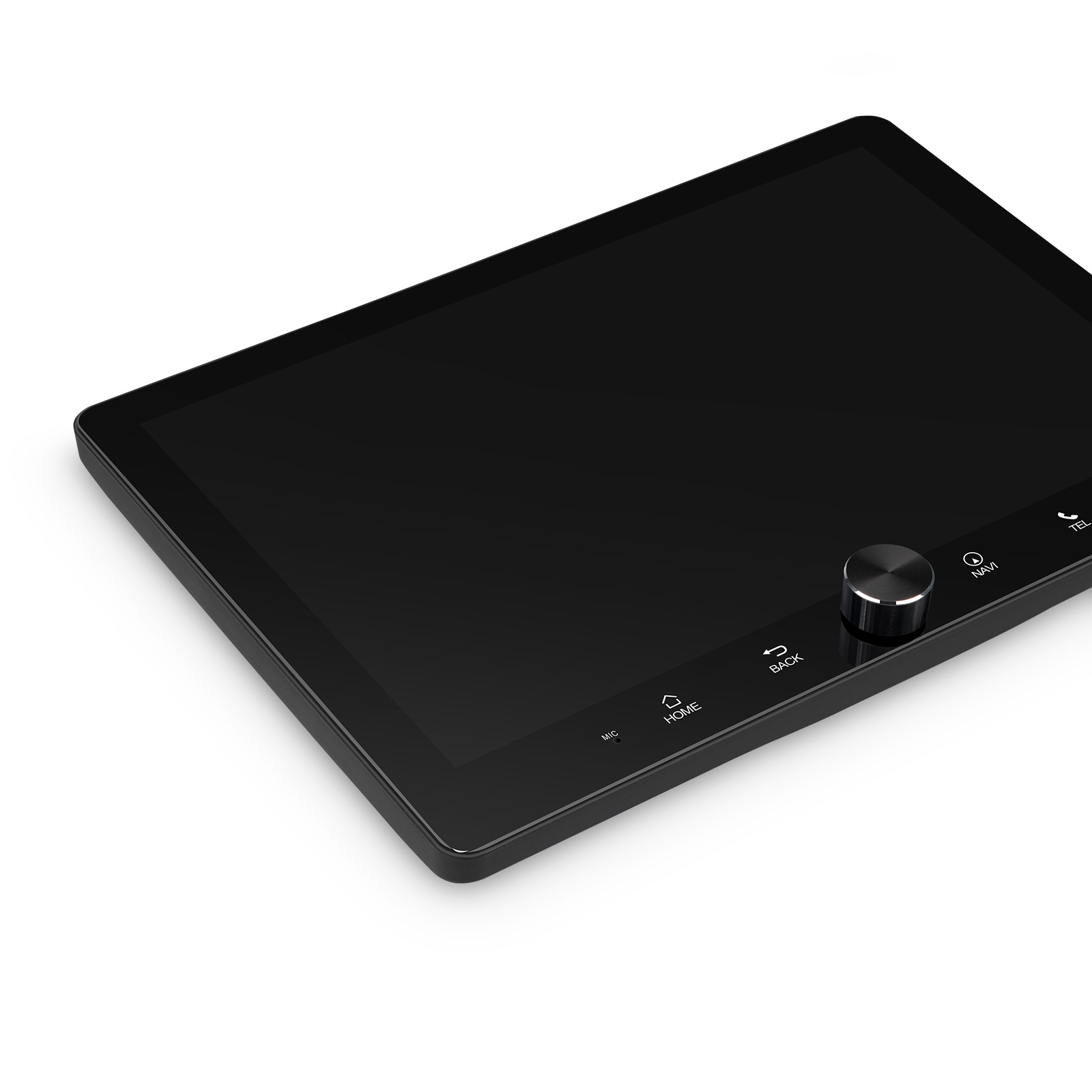

Universal double DIN fit with a floating screen

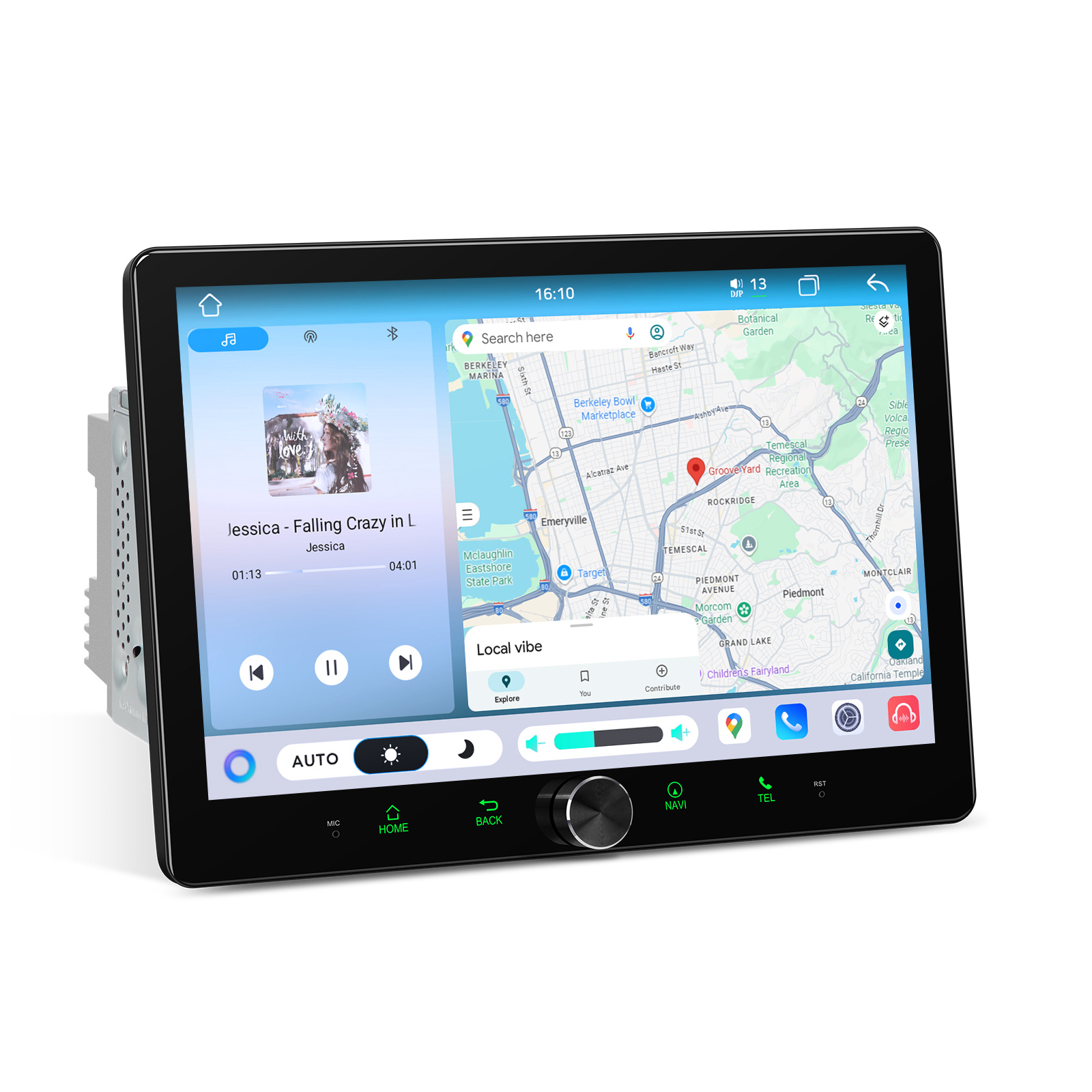

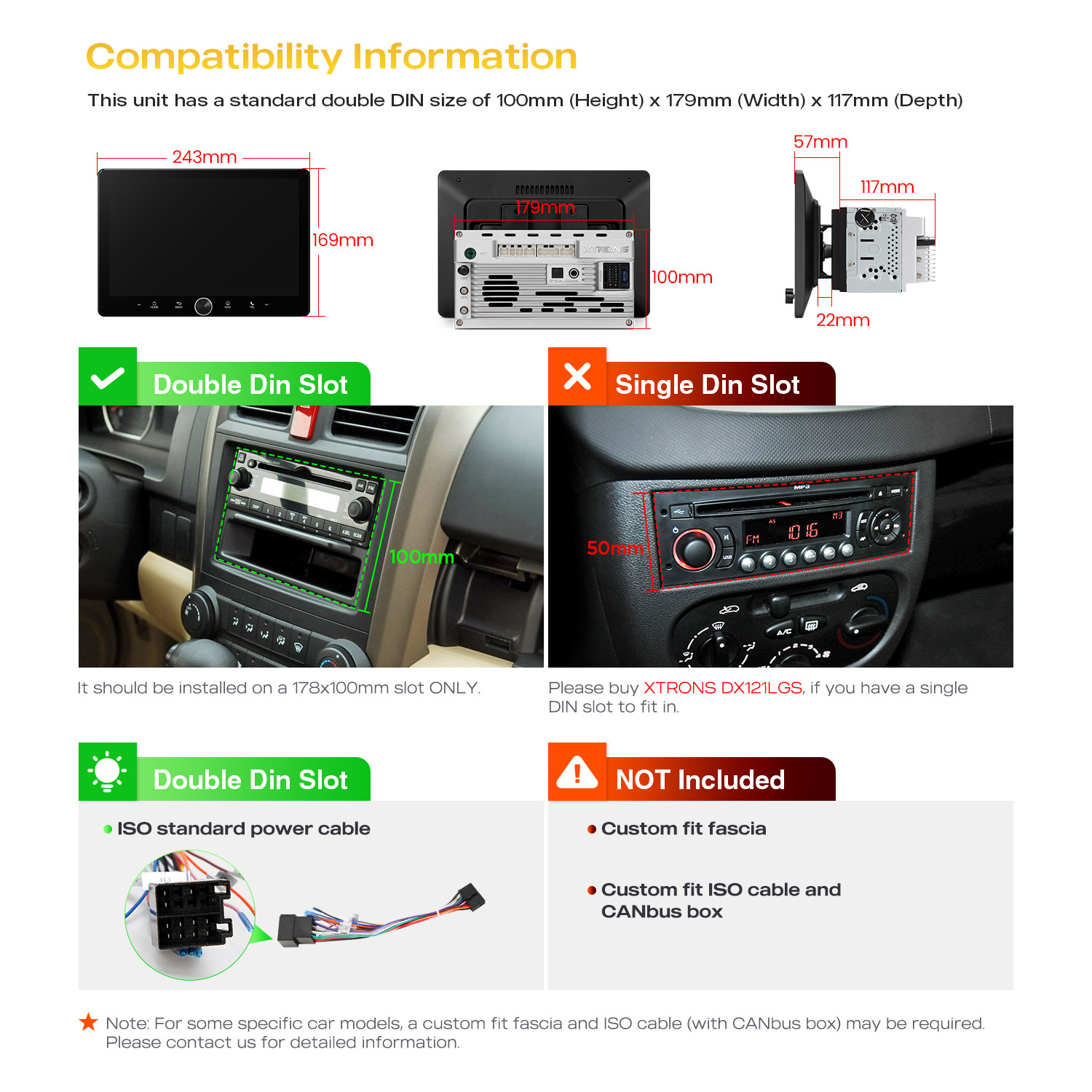

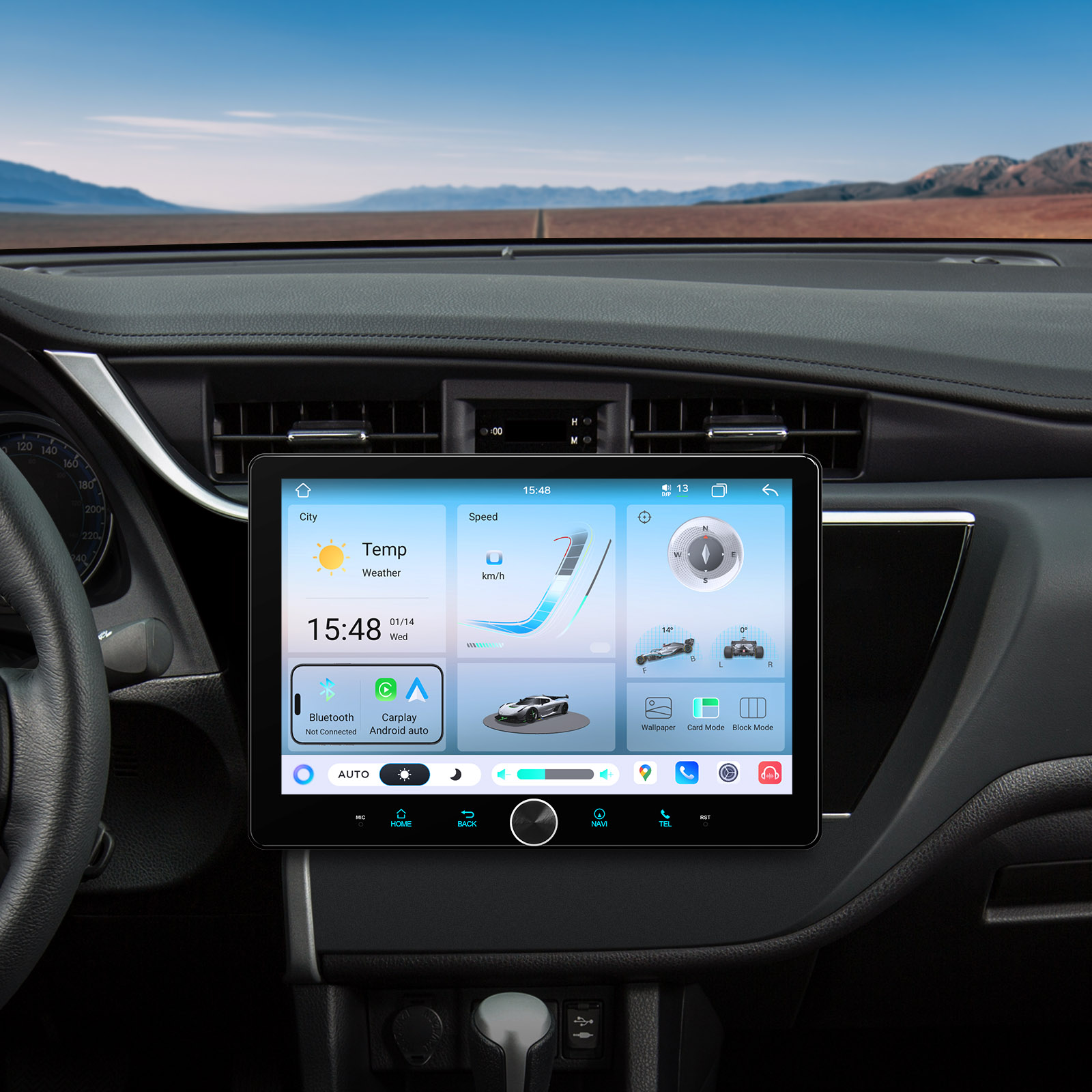

The chassis is a standard double DIN size and goes into a 178x100mm slot. The 10.1 inch screen floats in front of the dash, and you can move it 60mm up or down and tilt or swivel it by 30° to get it right for your driving position.

An ISO standard power cable is included. Some cars also need a custom fit fascia and an ISO cable with a CANbus box, which aren't included, so check what your car needs before ordering.

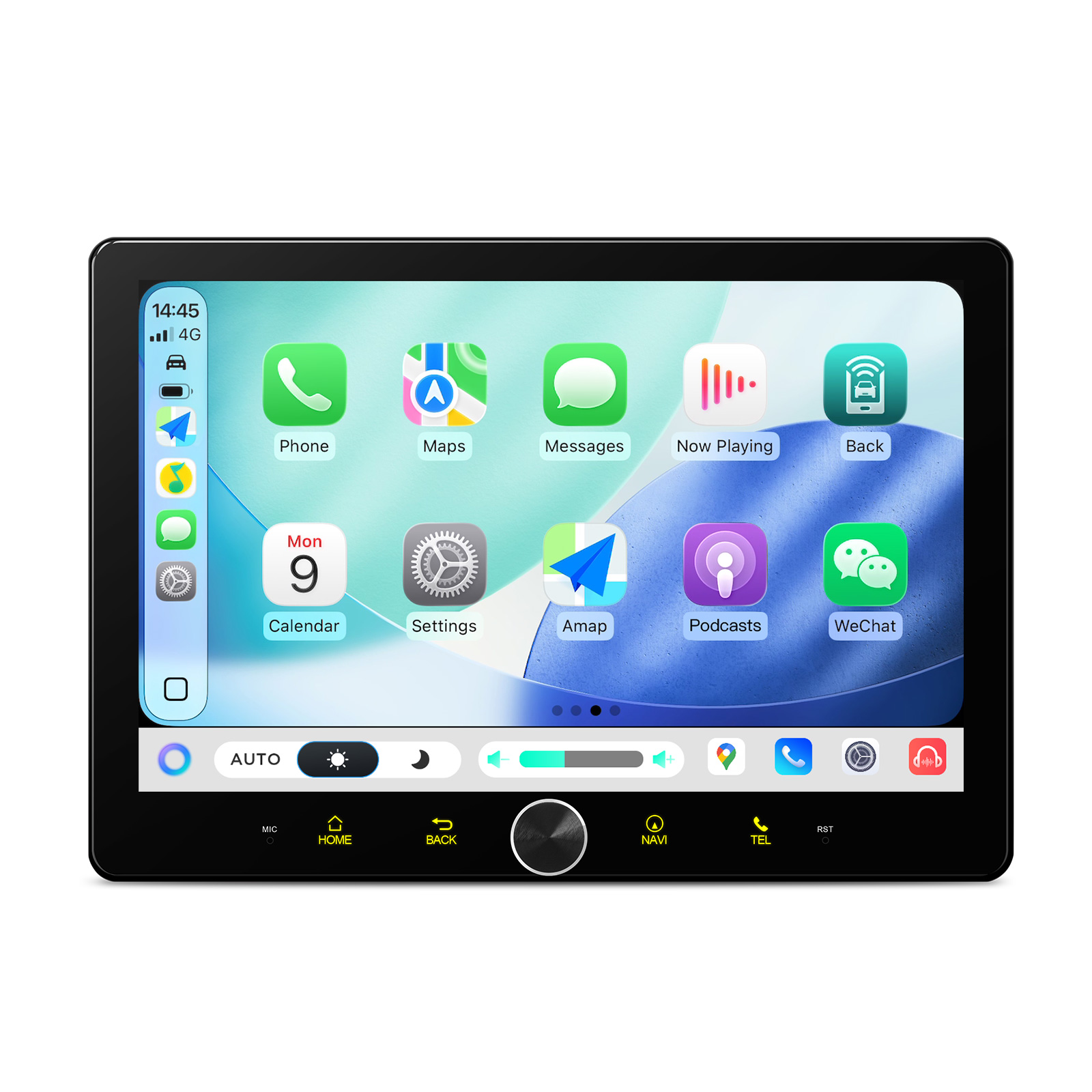

Wireless Apple CarPlay

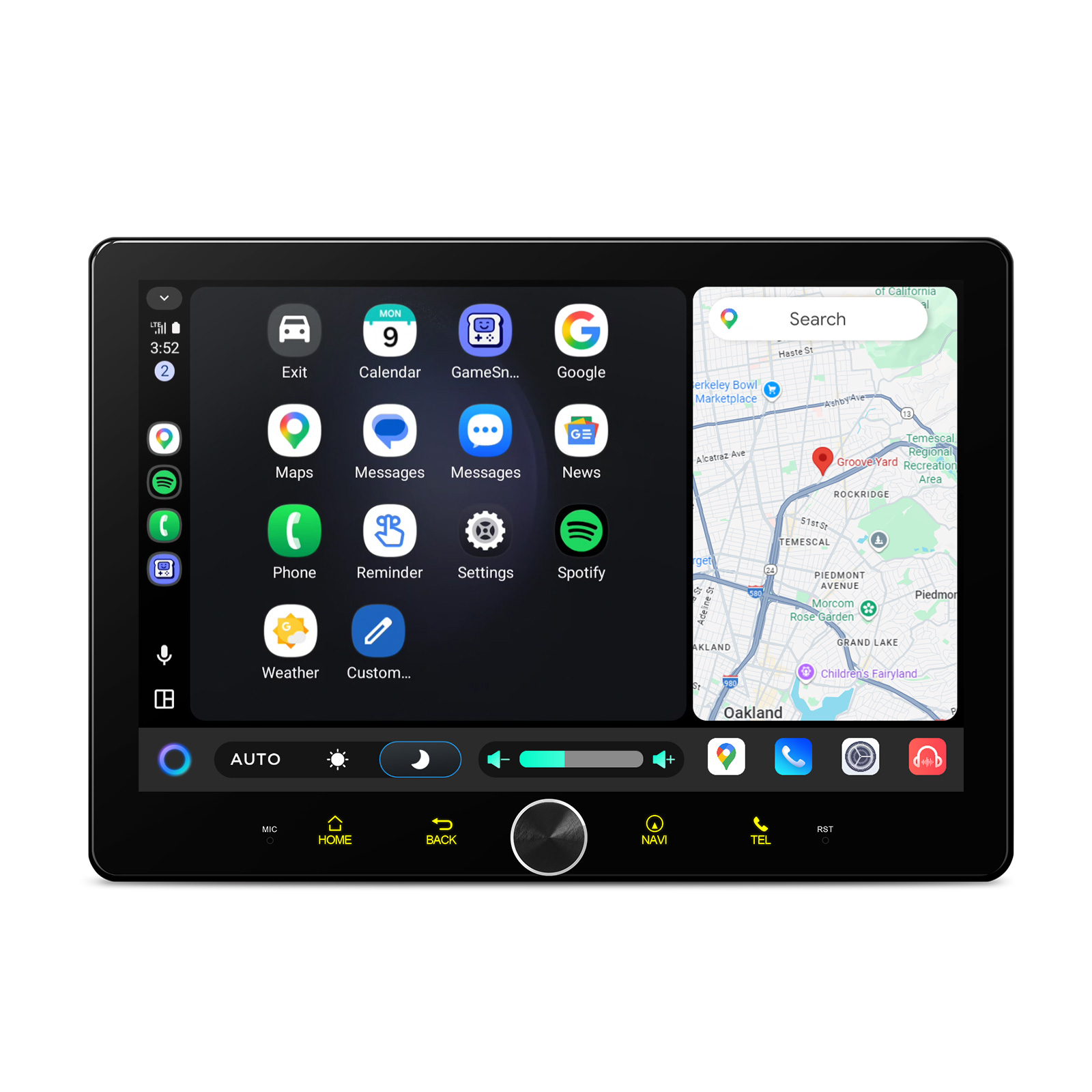

CarPlay connects over Wi-Fi without a cable. Your iPhone's maps, calls and music appear on the large screen and you can use voice commands while driving.

Wireless Android Auto

Android Auto also connects wirelessly, bringing Google Maps, calls and music apps to the 10.1 inch screen as soon as the phone links up.

10.1 inch QLED screen

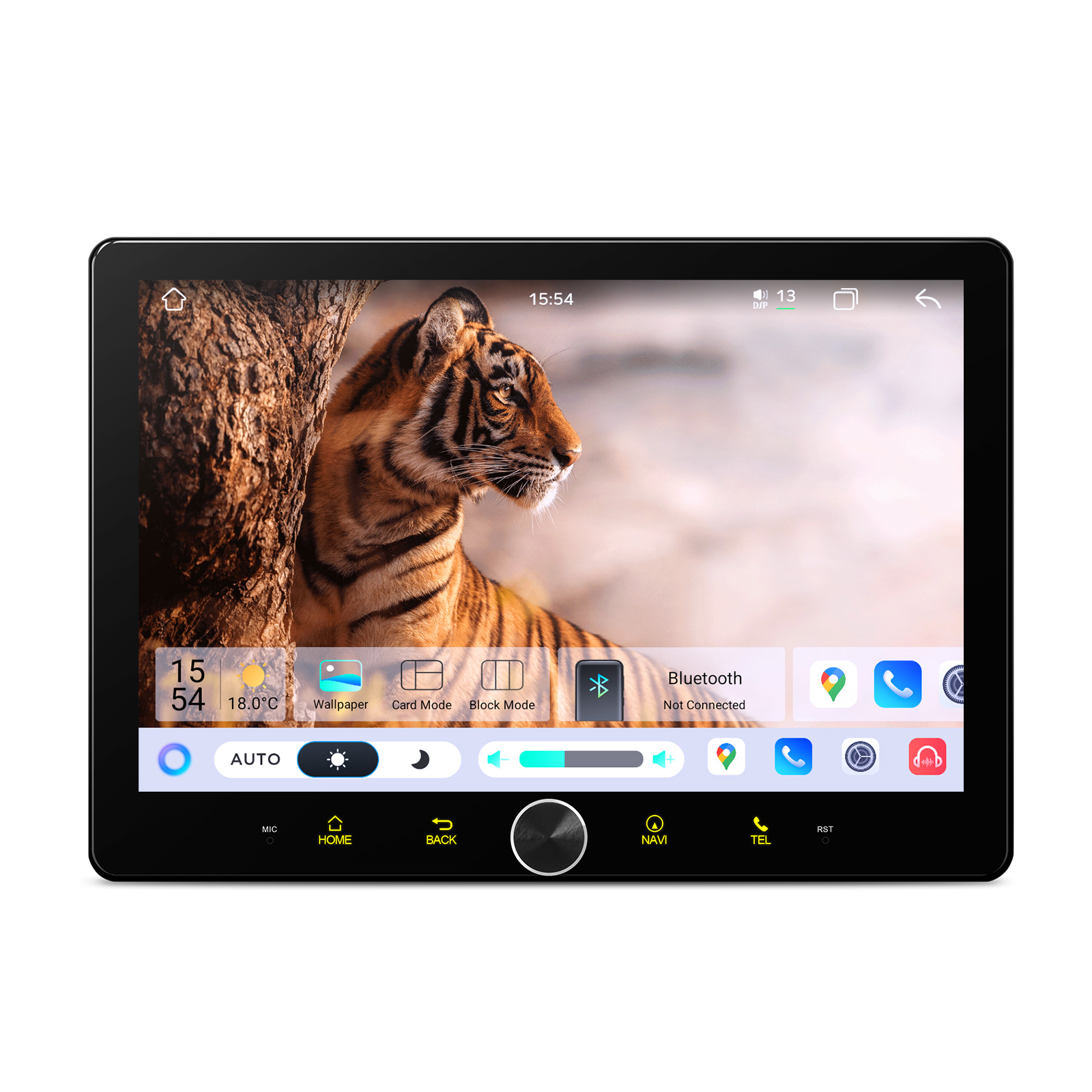

The 10.1 inch QLED screen runs at 1280×800 and is fully laminated, with G+G glass and an anti-glare finish that stays readable in direct sunlight.

IPS viewing angles

IPS keeps colours steady from the side, so the passenger has a clear view of the map as well as the driver.

AKM DSP and 36-band equaliser

The AKM 7604 DSP has a 36-band equaliser, giving you fine control to tune out harsh or boomy frequencies in your car instead of only adjusting bass and treble.

Optical, coaxial and RCA outputs

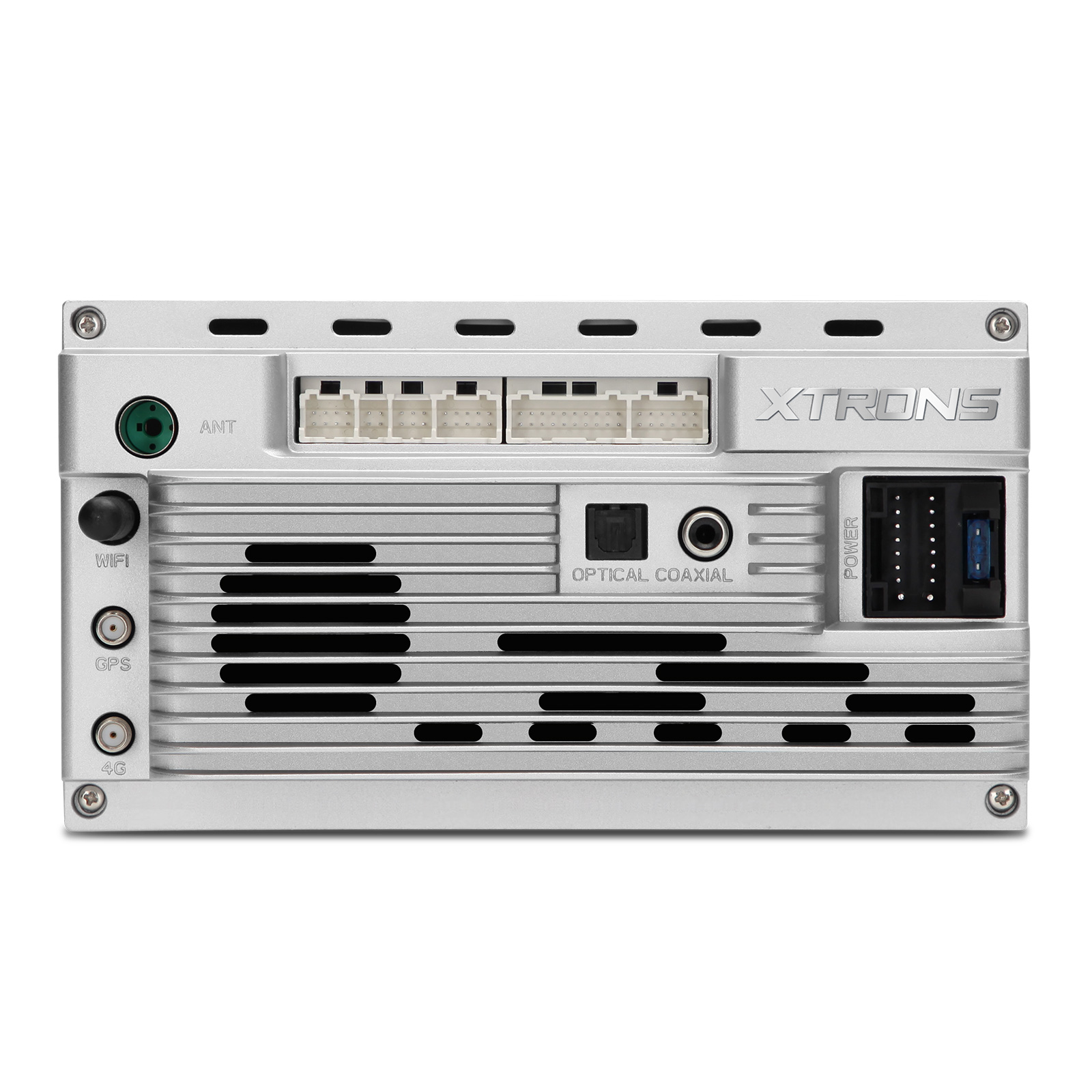

Fibre-optic, coaxial and RCA outputs are there for connecting an external amplifier or processor.

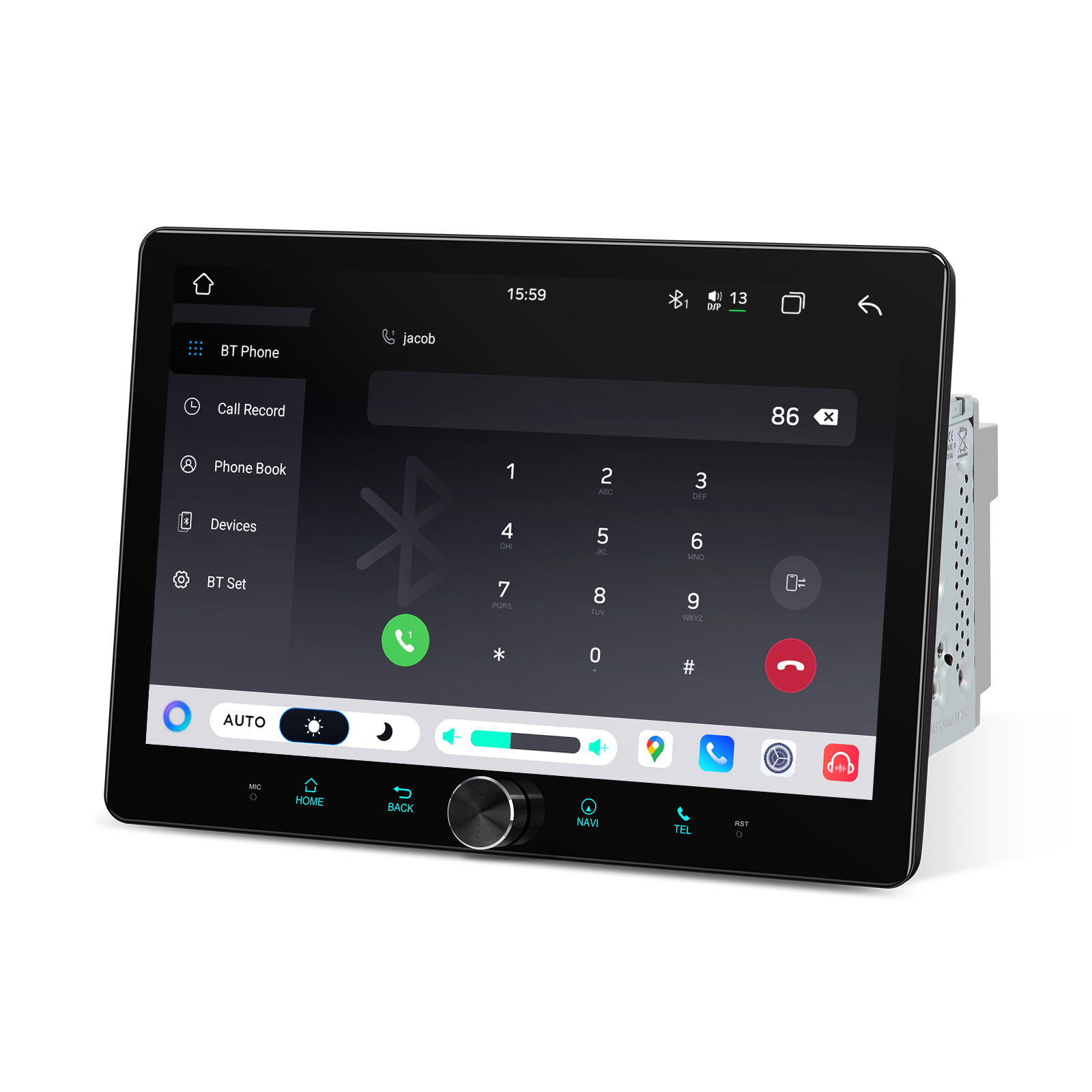

Dual Bluetooth

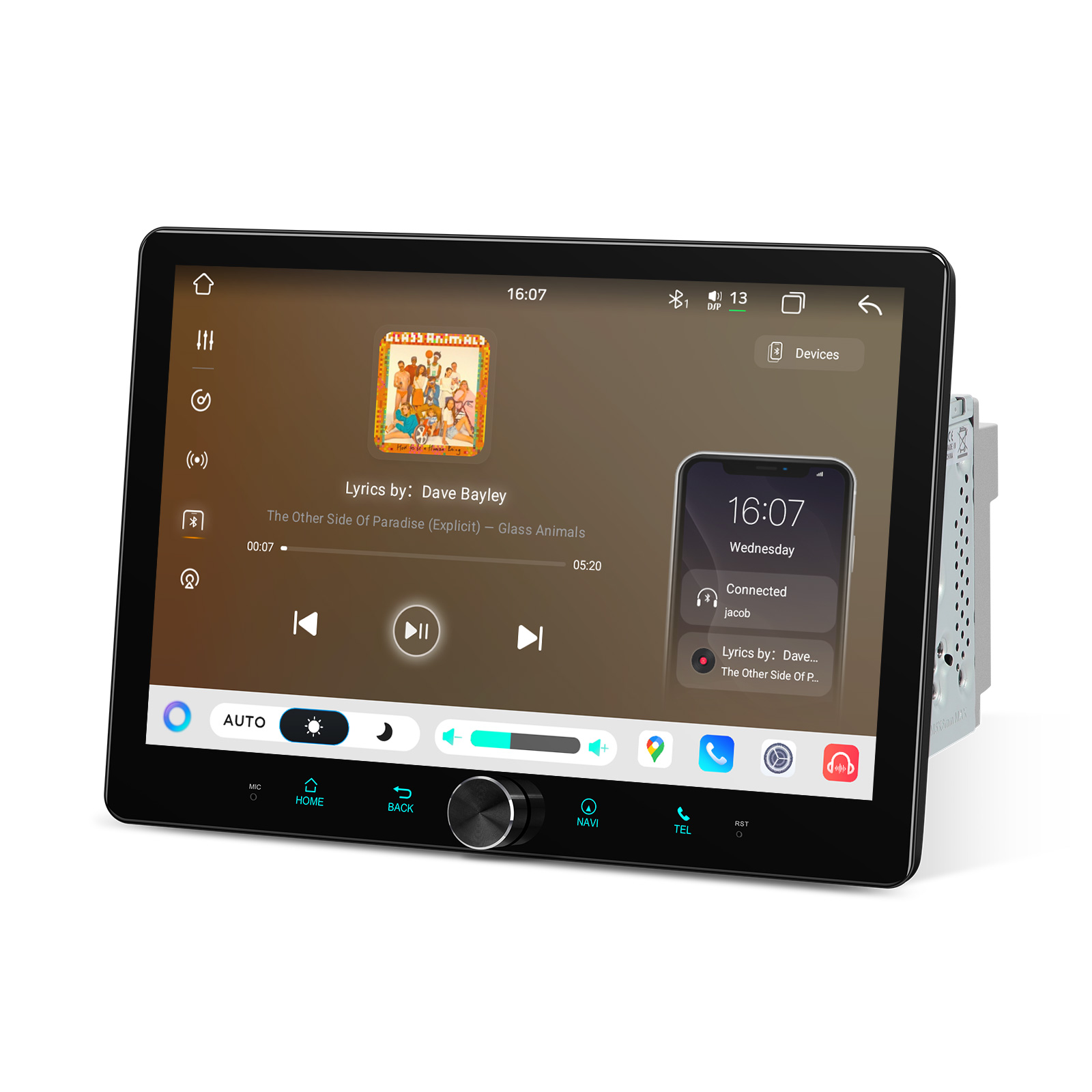

There are two Bluetooth modules. The Qualcomm one streams music with aptX HD; the Unisoc 5.2 one can connect to an OBD-II scanner or a dash cam alongside your phone.

Built-in 4G LTE

Insert a standard Micro-SIM and the unit has its own data for live traffic, weather and streaming, so you're not draining your phone as a hotspot.

Dual-band Wi-Fi

Wi-Fi on 2.4G and 5G bands carries wireless CarPlay and Android Auto and connects the unit to other networks for updates and downloads.

GPS navigation

The supplied GPS antenna lets navigation apps track your position on the 10.1 inch screen.

Screen mirroring

Screen mirroring shows your phone's display on the head unit for apps that aren't available in CarPlay or Android Auto.

DAB radio with an external tuner

Connect an external DAB tuner to add digital radio.

Steering wheel controls

Built-in CANbus integration keeps factory features such as the steering wheel controls for volume, track and calls. Some cars need a custom ISO cable with a CANbus box for this.

Processor, memory and gyroscope

A Unisoc 7865 octa-core chipset (two A75 cores at 2.2GHz and six A55 cores at 1.8GHz) works with 8GB RAM and 128GB UFS 2.2 storage, enough for lots of apps and offline maps. A 6-axis gyroscope and inclinometer show roll and pitch in real time for off-road driving.

The unit doesn't play discs.

Works with

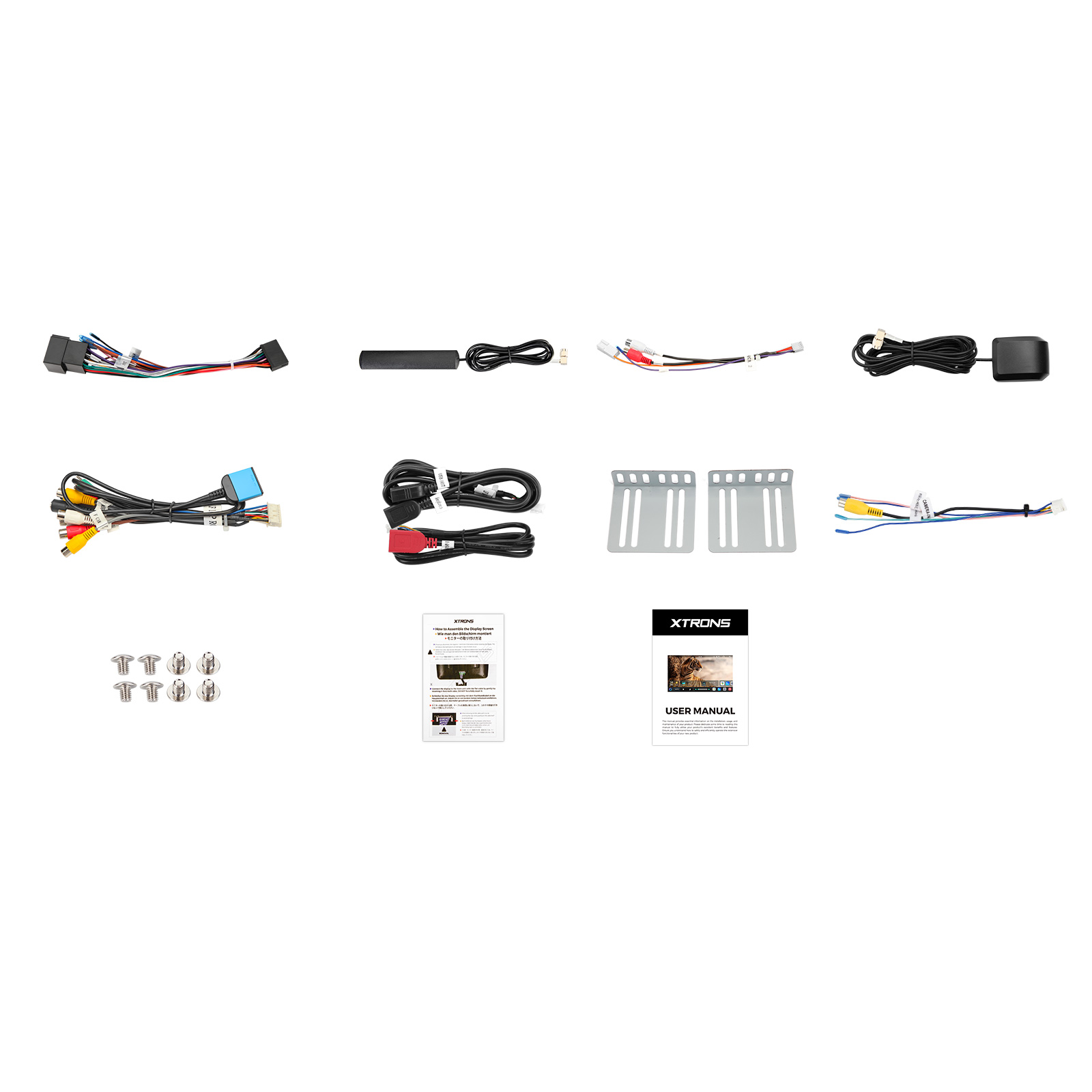

What's in the box

  • 1 x 4G Antenna
  • 1 x Camera Cable
  • 1 x CANbus Cable
  • 1 x Fitting Kit
  • 1 x GPS Antenna
  • 1 x Installation Instruction
  • 1 x ISO Wiring Harness
  • 1 x RCA Cable
  • 1 x User Manual
  • 2 x USB Cable
  • 8 x Screws

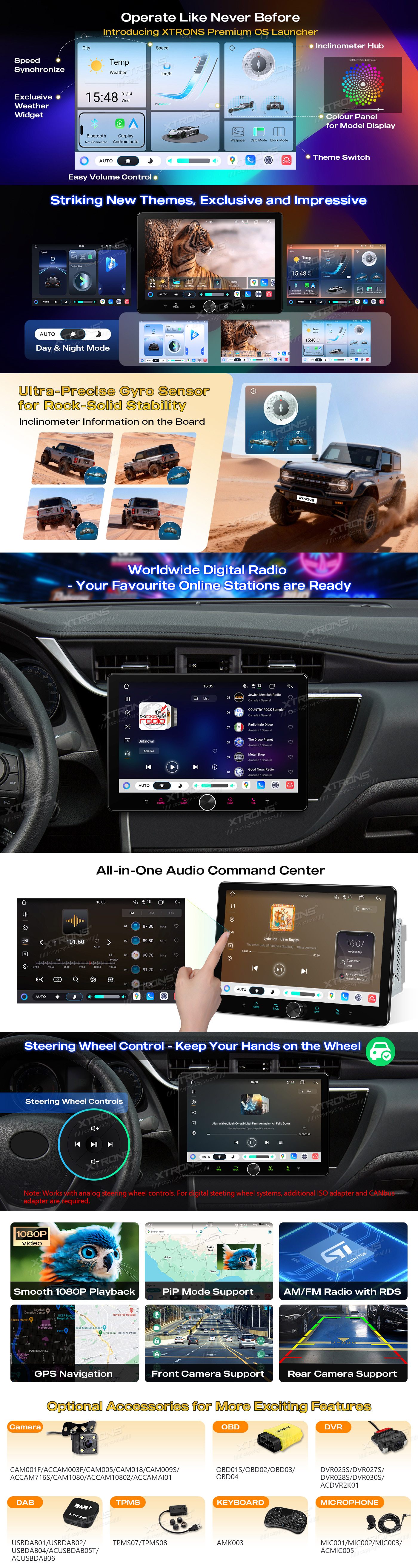

Full specification from XTRONS

XTRONS's own pages for this product, as the manufacturer publishes them.

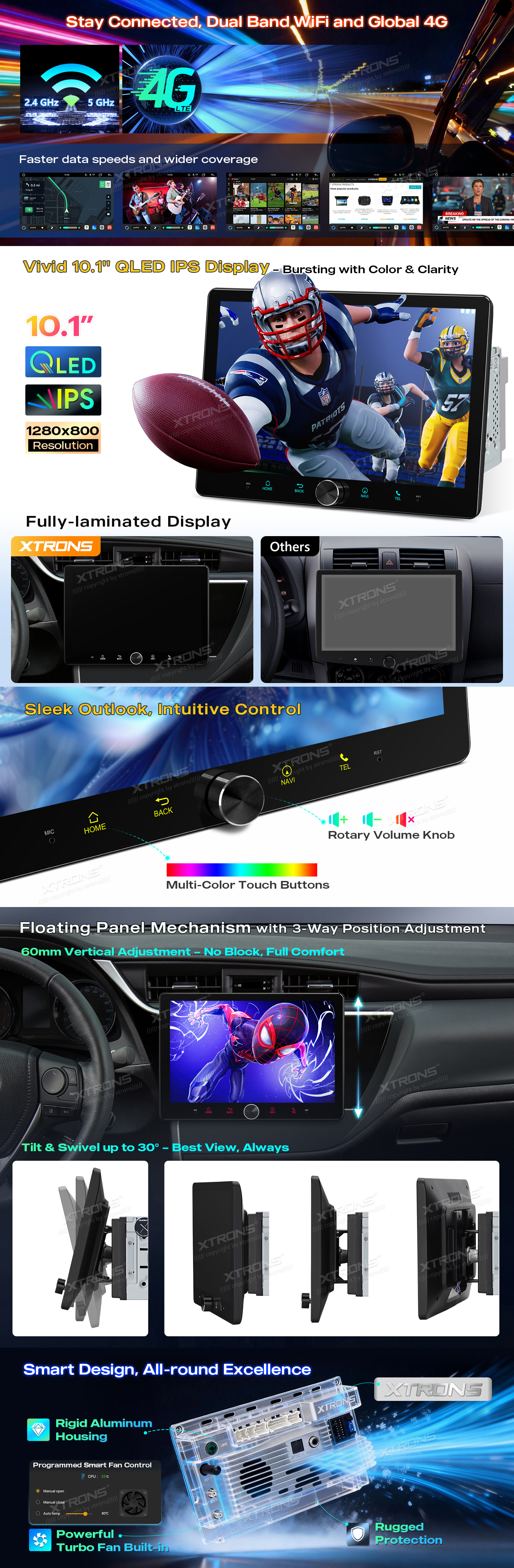

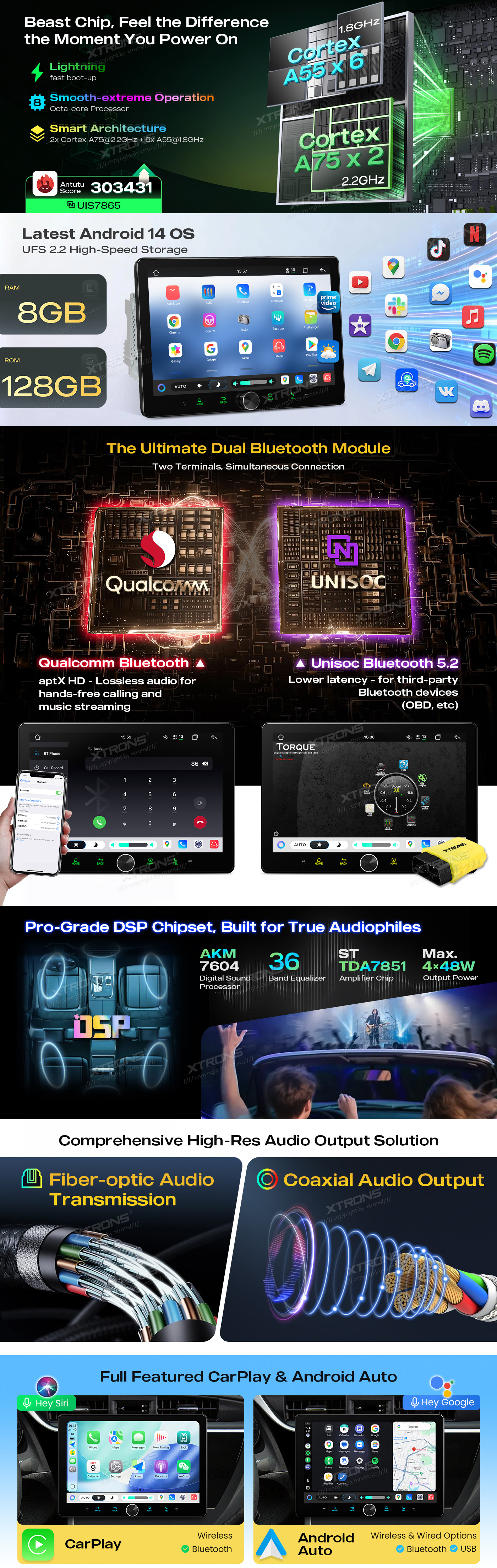

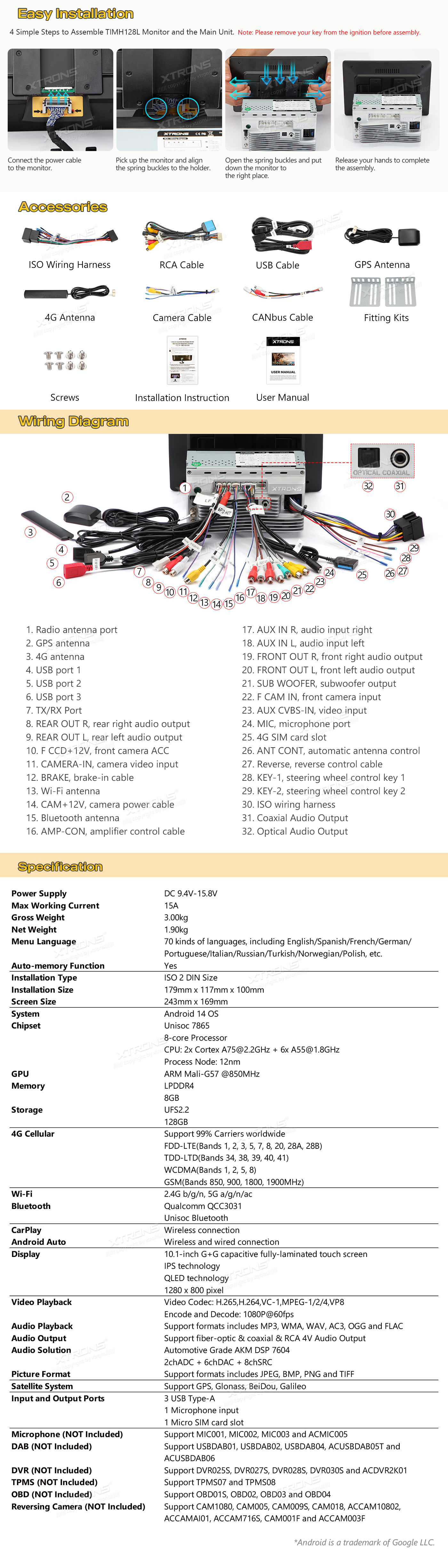

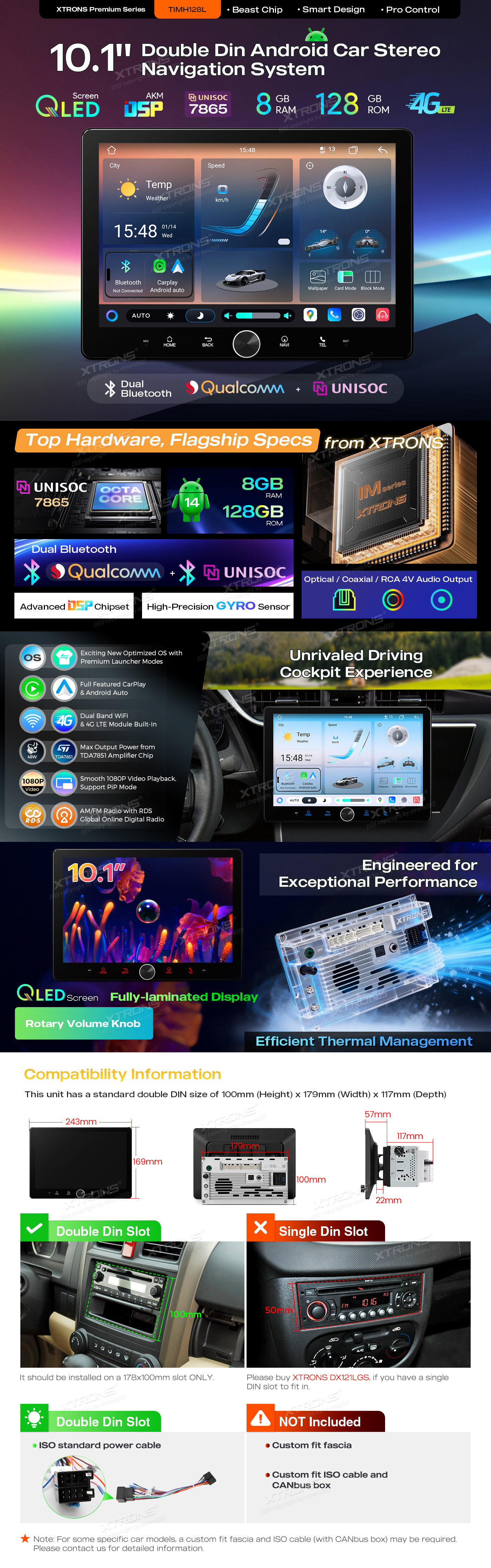

  1. Double DIN 10.1 inch Android Head Unit with Wireless CarPlay, Android Auto and 4G | TIMH128L: XTRONS specification poster 1 of 5
  2. Double DIN 10.1 inch Android Head Unit with Wireless CarPlay, Android Auto and 4G | TIMH128L: XTRONS specification poster 2 of 5
  3. Double DIN 10.1 inch Android Head Unit with Wireless CarPlay, Android Auto and 4G | TIMH128L: XTRONS specification poster 3 of 5
  4. Double DIN 10.1 inch Android Head Unit with Wireless CarPlay, Android Auto and 4G | TIMH128L: XTRONS specification poster 4 of 5
  5. Double DIN 10.1 inch Android Head Unit with Wireless CarPlay, Android Auto and 4G | TIMH128L: XTRONS specification poster 5 of 5
