BMW X5 F15 and X6 F16 NBT 10″ Android Screen with Wireless CarPlay and Split Screen | QTB10X5NB
SKU: QTB10X5NB
£259.24Was £304.99Save £45.75
Check if this fits your car
1
Key specifications
- Screen size
- 10″
- Resolution
- 1920 x 720 Resolution
- Touch screen
- G+G Touchscreen
- Lamination
- Full-laminated Screen
- Wi-Fi
- 2.4GHz and 5GHz band Wi-Fi
- Bluetooth
- Bluetooth 5.0

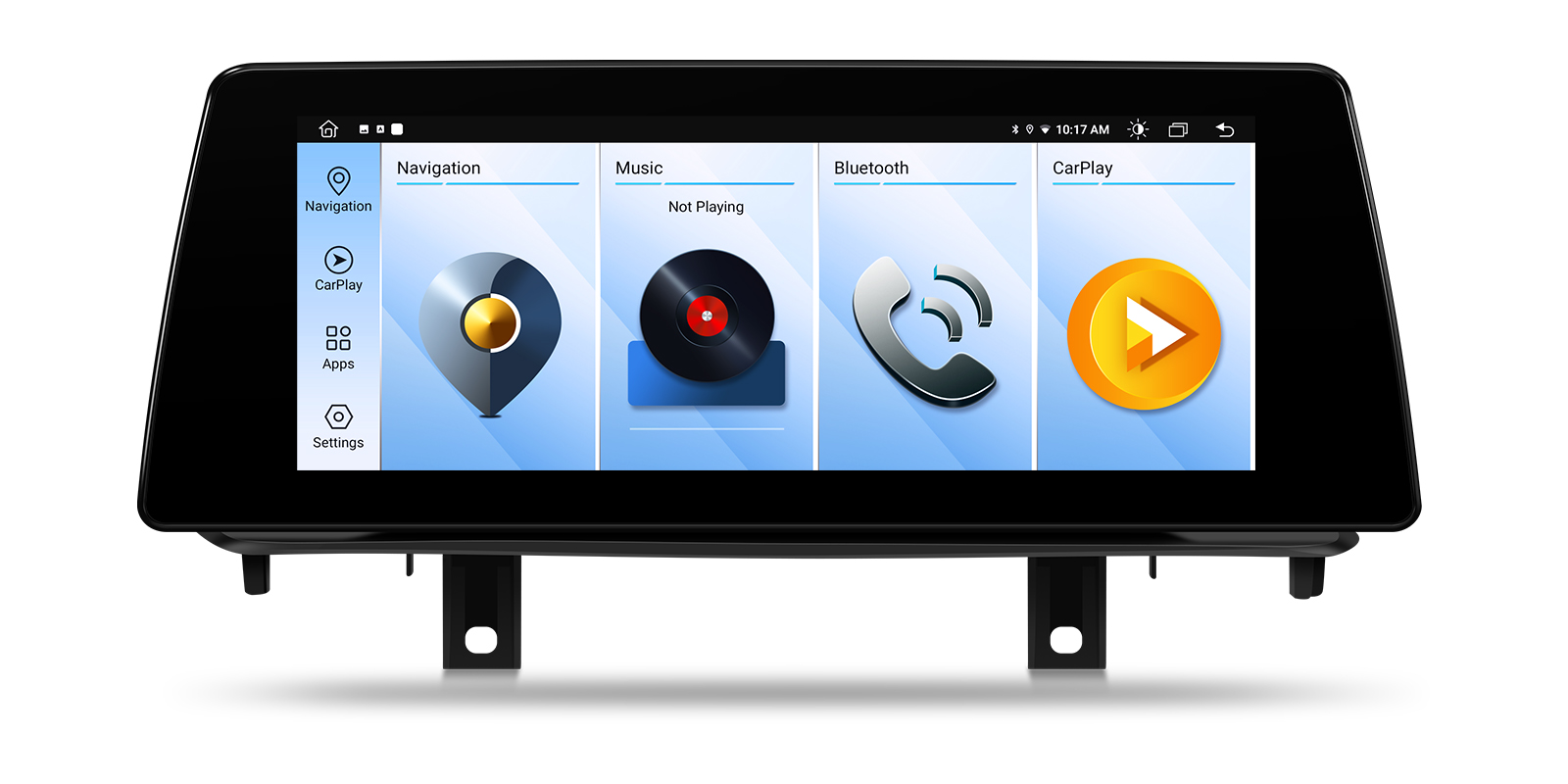

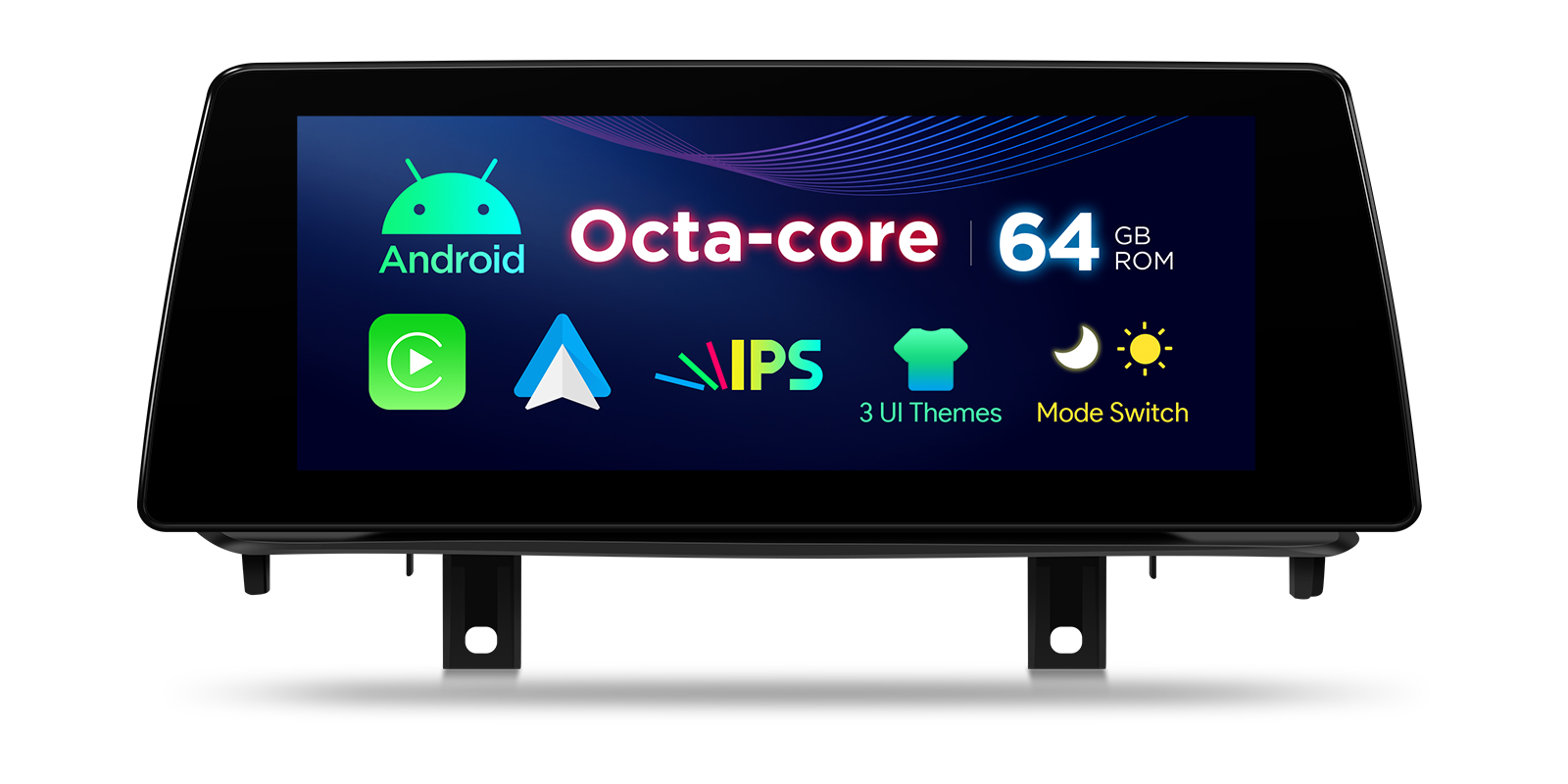

XTRONS QTB10X5NB is a 10″ Android screen for the BMW X5 F15 and X6 F16 with the original NBT system. It keeps iDrive, the factory amplifier, CD player, radio and Bluetooth, and adds wireless CarPlay and Android Auto.
- Keeps iDrive, the amplifier, CD player, radio and original Bluetooth
- Wireless CarPlay, and Android Auto wireless or by cable
- Fully laminated IPS screen at 1920 x 720 with G+G touch
- Split screen for two apps side by side
- Supports AHD cameras up to 1080P, front and rear
Works with the original NBT system
The screen replaces the factory display, and the iDrive, amplifier, CD player, radio and Bluetooth carry on working. Steering wheel controls and the backup camera display are kept too.
It only works with the original X5 F15 and X6 F16 NBT system. NBT has a 6-pin LVDS port and a MEDIA button or touch pad on the iDrive controller; a "Car ConnectedDrive" interface on its own doesn't prove it's NBT.

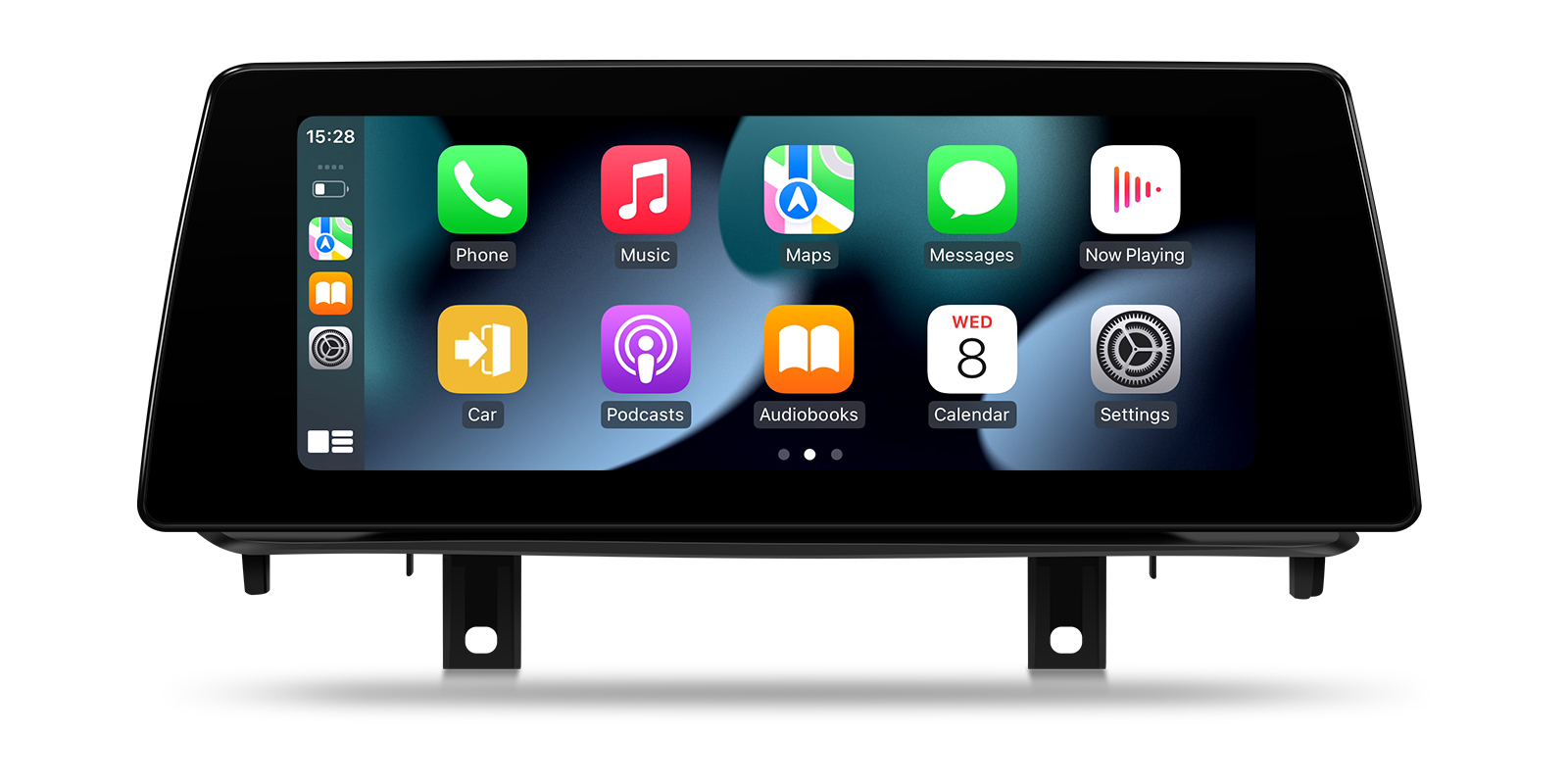

Wireless Apple CarPlay
CarPlay connects wirelessly, so your iPhone can stay in your pocket. Maps, calls and music appear on the 10″ screen and Siri takes voice requests.
Android Auto, wireless or by cable
Android Auto works wirelessly or over a USB cable, with Google Maps, music and calls on the screen and Google Assistant for voice control.

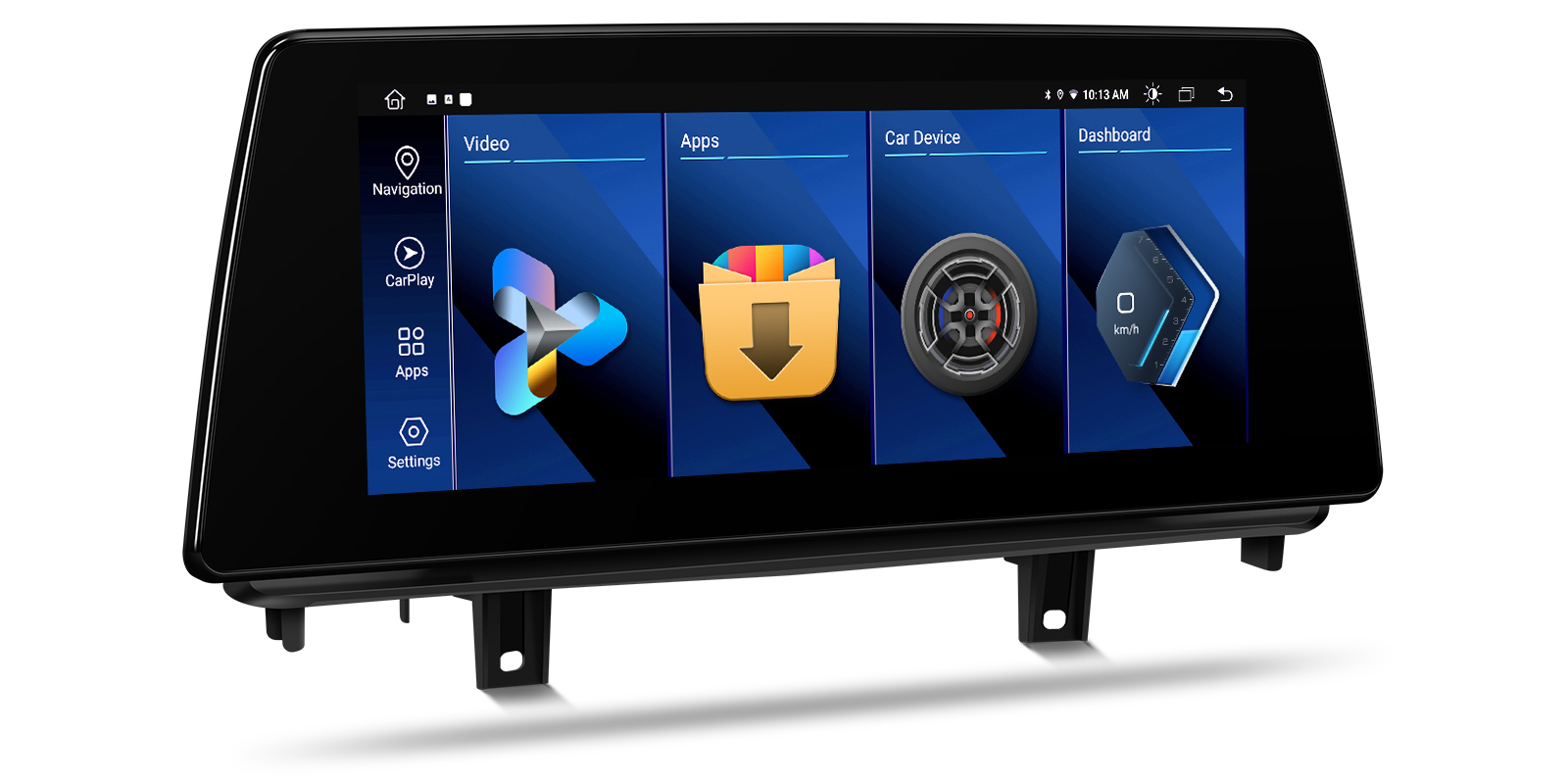

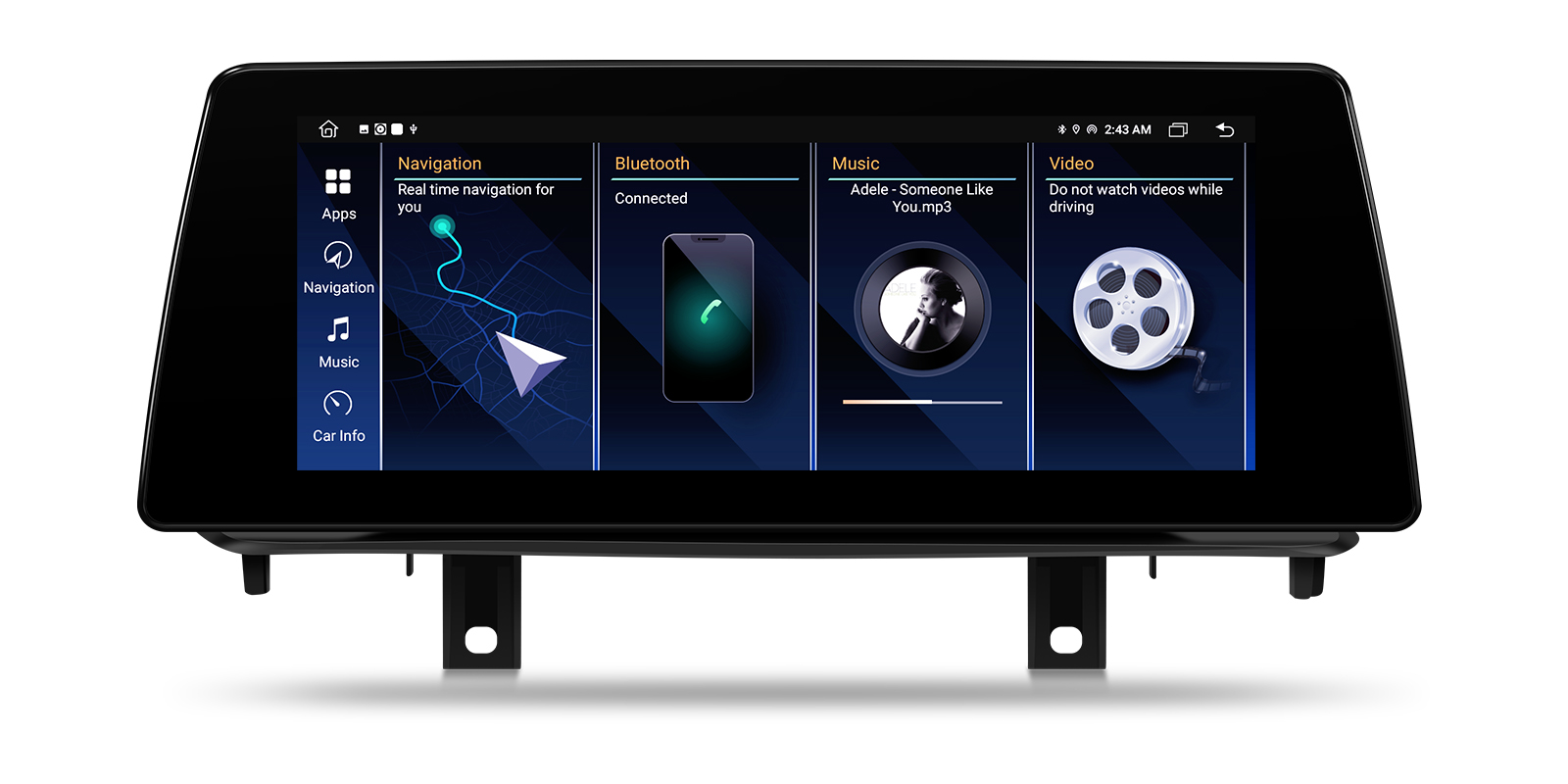

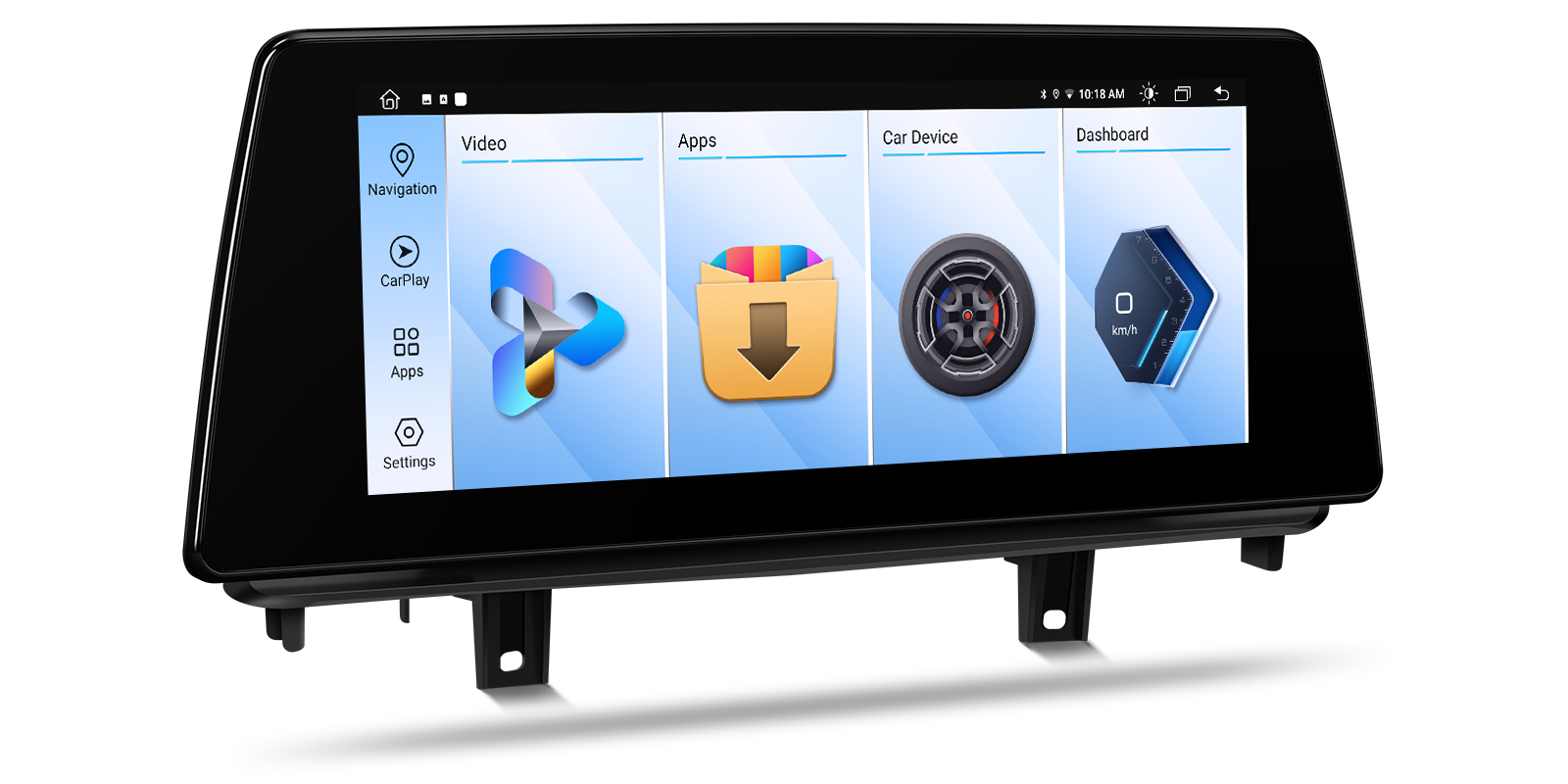

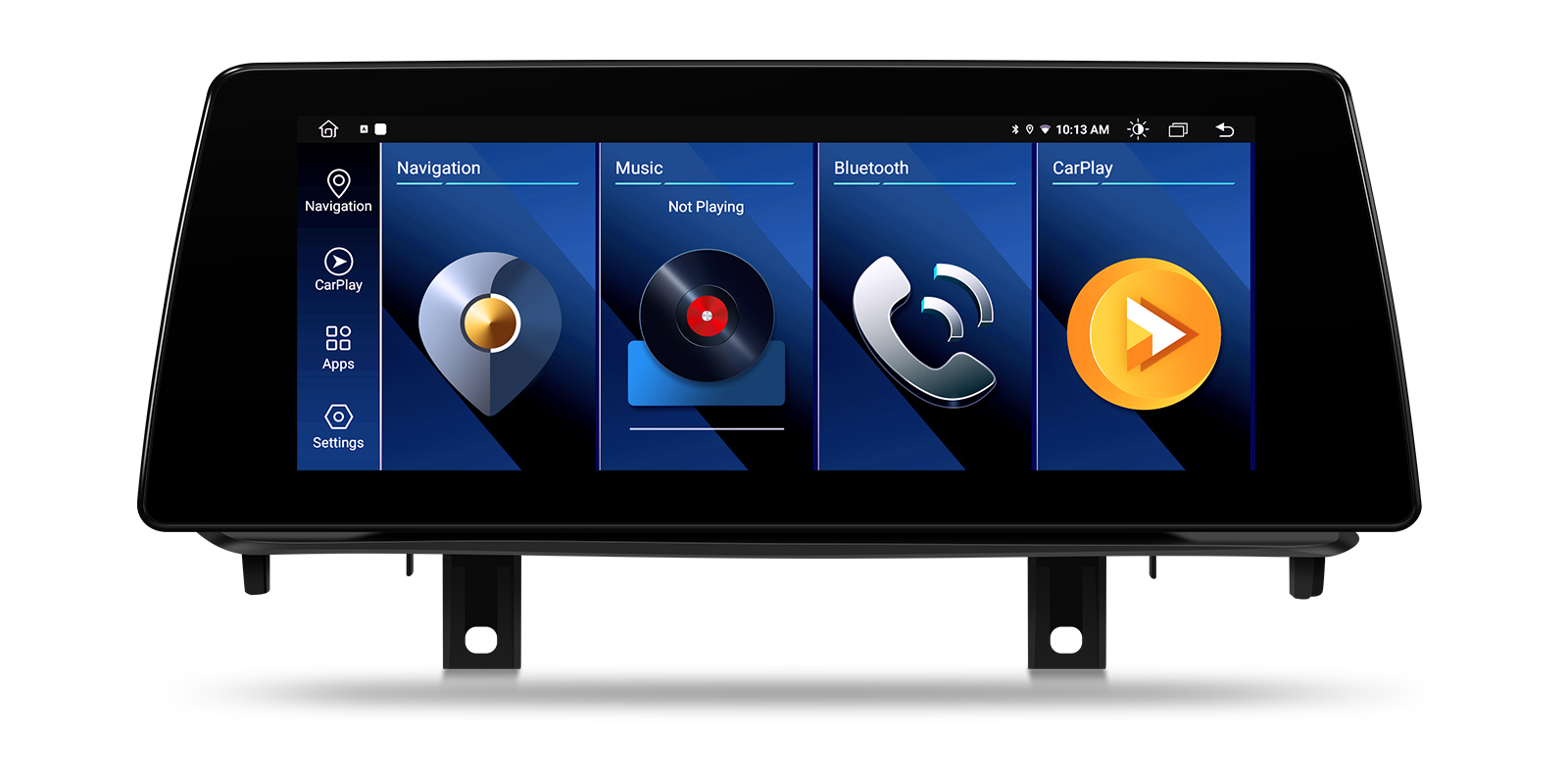

10″ IPS touch screen
The fully laminated IPS screen runs at 1920 x 720 with G+G touch. Lamination reduces light refraction, so the picture looks clean, and wide viewing angles keep colours true from either seat.

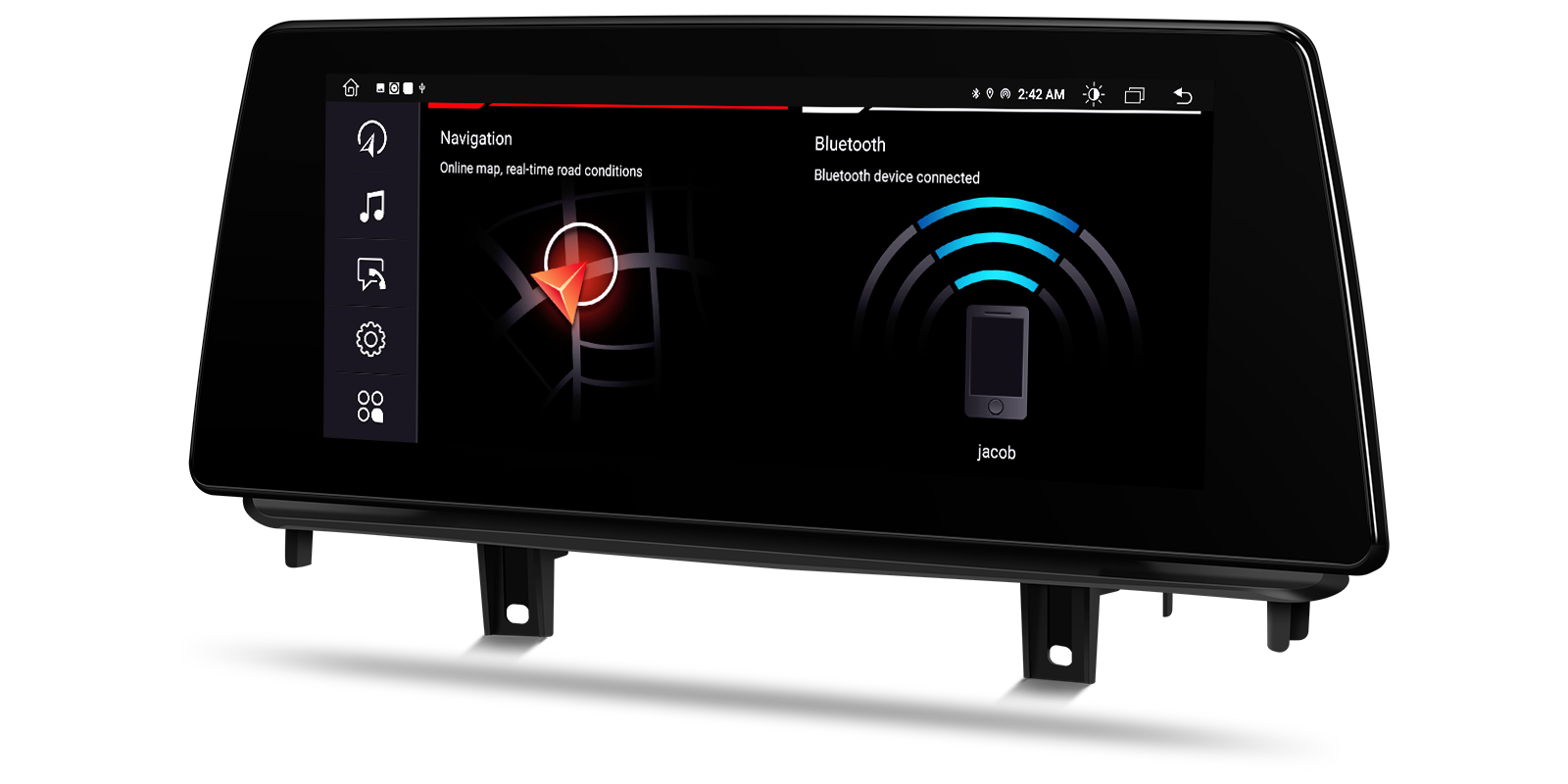

Day and night modes follow the car's lights automatically or can be set by hand, and factory-style themes are available.

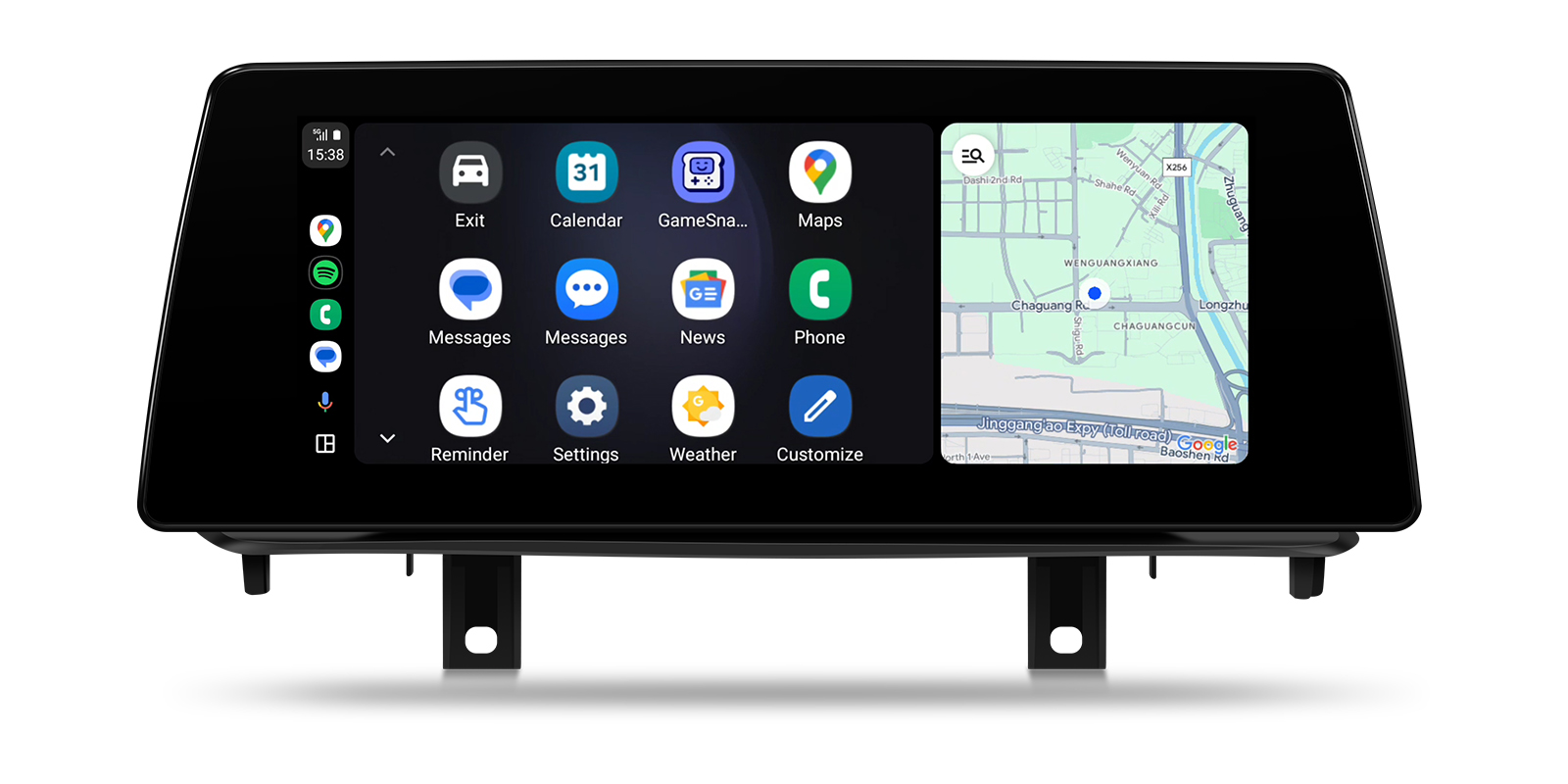

Split screen
Run two windows side by side, such as the map and your music, without switching back and forth.
Dual-band Wi-Fi
Wi-Fi connects on 2.4GHz and 5GHz bands for steady streaming and online navigation through a hotspot.
Bluetooth 5.0
Bluetooth 5.0 gives clear hands-free calls and streams music from your phone.
GPS, GLONASS and BeiDou navigation
GPS, GLONASS and BeiDou work together for an accurate position. A GPS antenna is in the box, and navigation apps can run on the unit itself.
AHD camera support
The unit supports AHD cameras up to 1080P, front and rear, giving a real-time reversing picture with a wide angle and clear night vision.
Steering wheel controls
Steering wheel controls are supported, so the buttons on the wheel keep working after fitting.
Wireless screen mirroring
Mirror your phone wirelessly to share videos with passengers, ideally when parked.
USB
A USB cable is supplied for wired Android Auto and for playing files from a USB stick.
Microphone for calls
The unit supports a microphone for hands-free calls and voice commands.

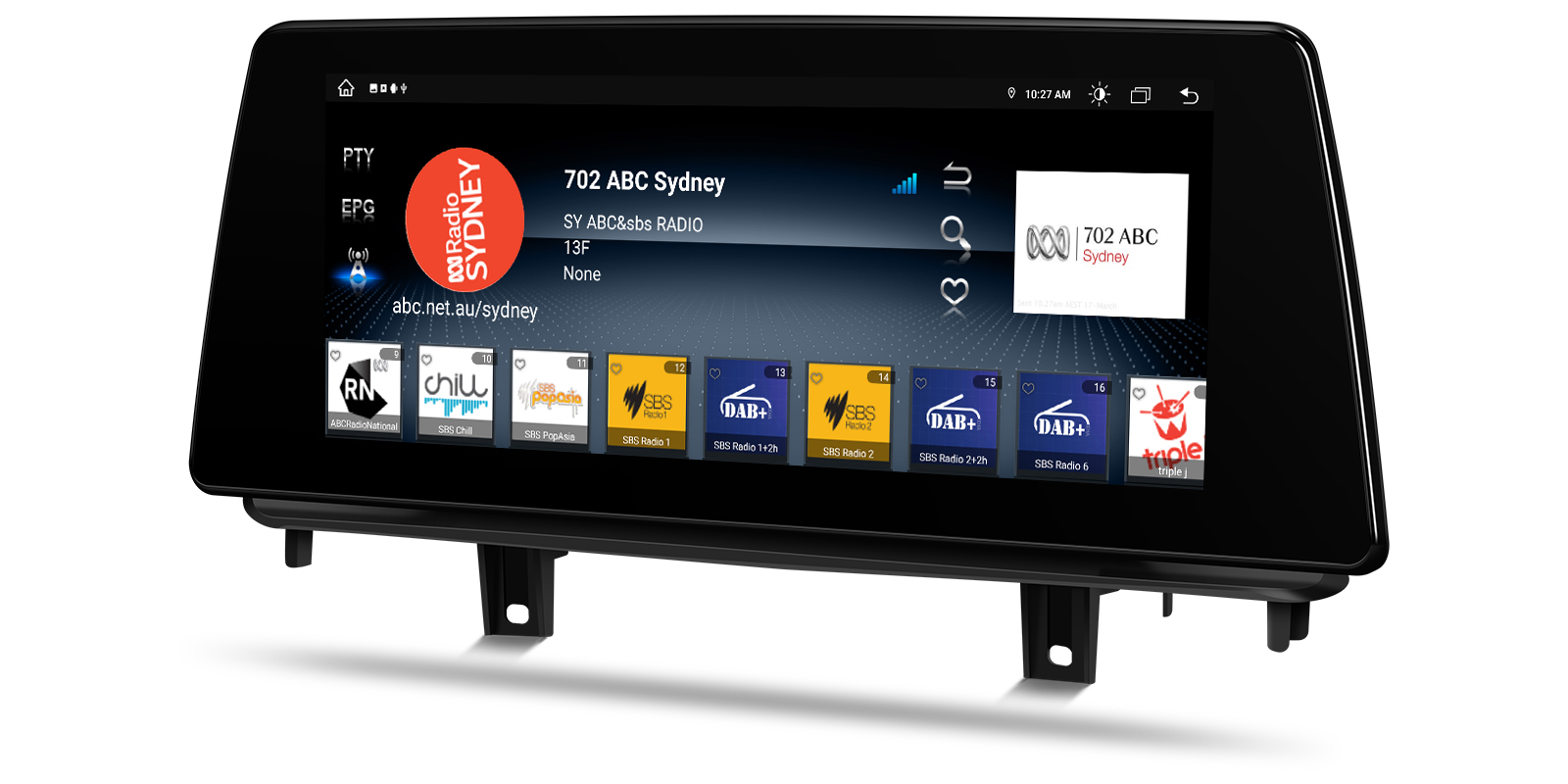

DAB+ with an external tuner
Digital radio works with an external DAB tuner, sold separately.

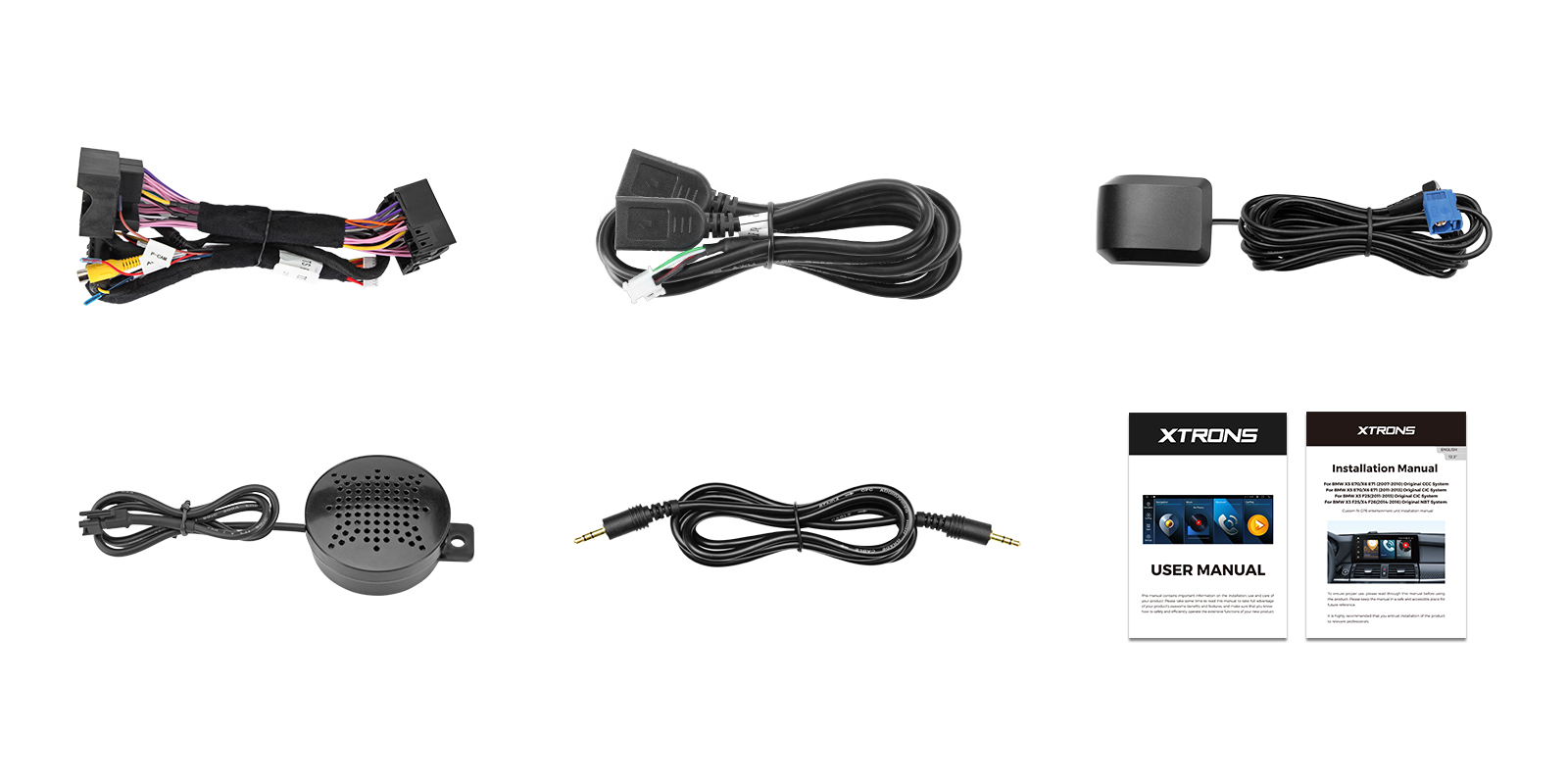

What's in the box
- 1 x Audio Cable
- 1 x GPS Antenna
- 1 x Installation Instructions
- 1 x ISO Wiring Harness
- 1 x Mini Speaker
- 1 x USB Cable
- 1 x User Manual

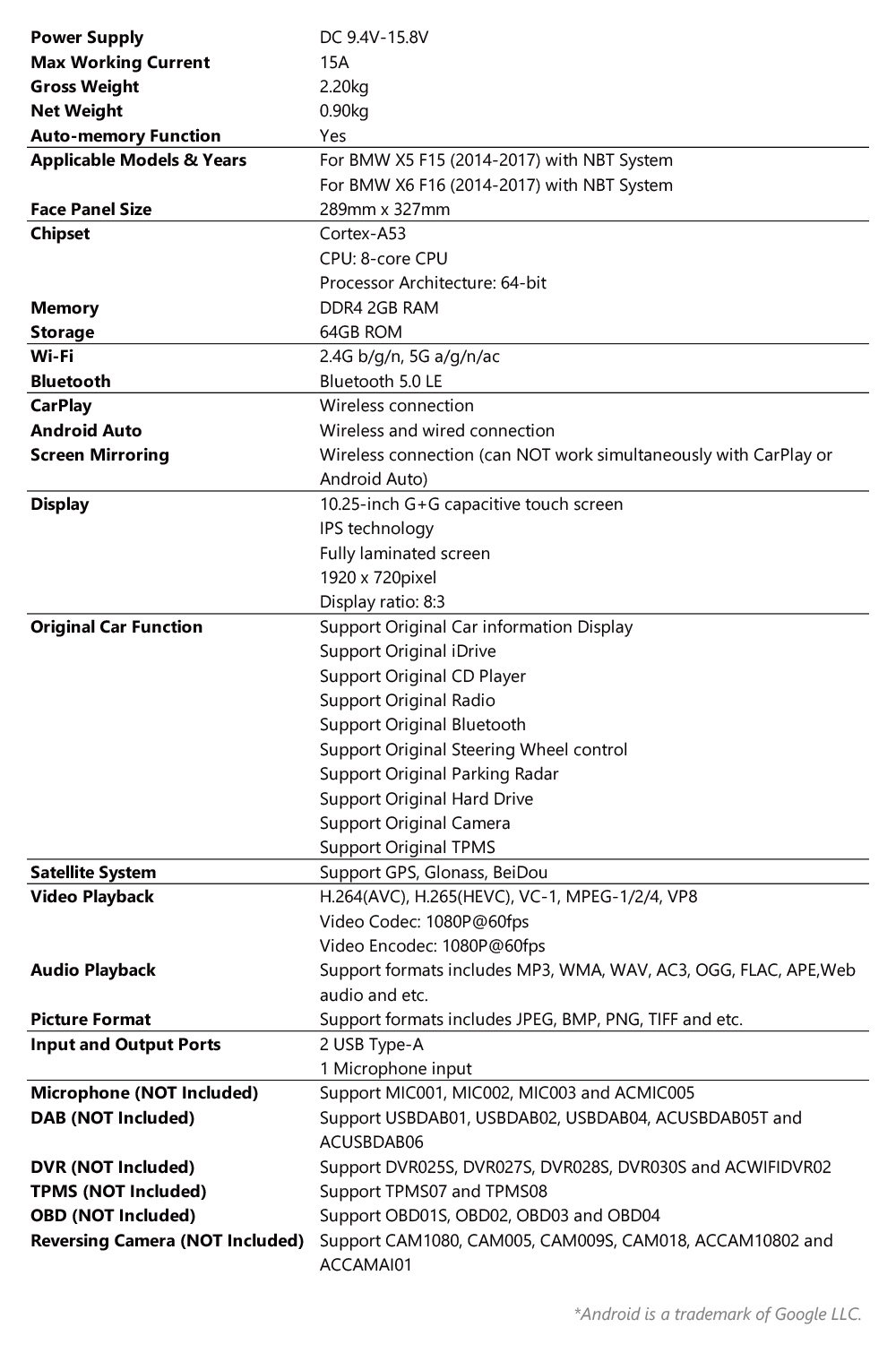

| Screen size | 10″ |
|---|---|
| Resolution | 1920 x 720 Resolution |
| Touch screen | G+G Touchscreen |
| Lamination | Full-laminated Screen |
| Wi-Fi | 2.4GHz and 5GHz band Wi-Fi |
|---|---|
| Bluetooth | Bluetooth 5.0 |
| CarPlay | CarPlay Wireless Connection |
| Android Auto | Android Auto Wireless & Cable Connection |
| Navigation | GPS | GLONASS | BDS |
| Camera | up to 1080P AHD cameras |
|---|
- BMW X5 (2000 onwards)
- BMW X6 (2008 onwards)

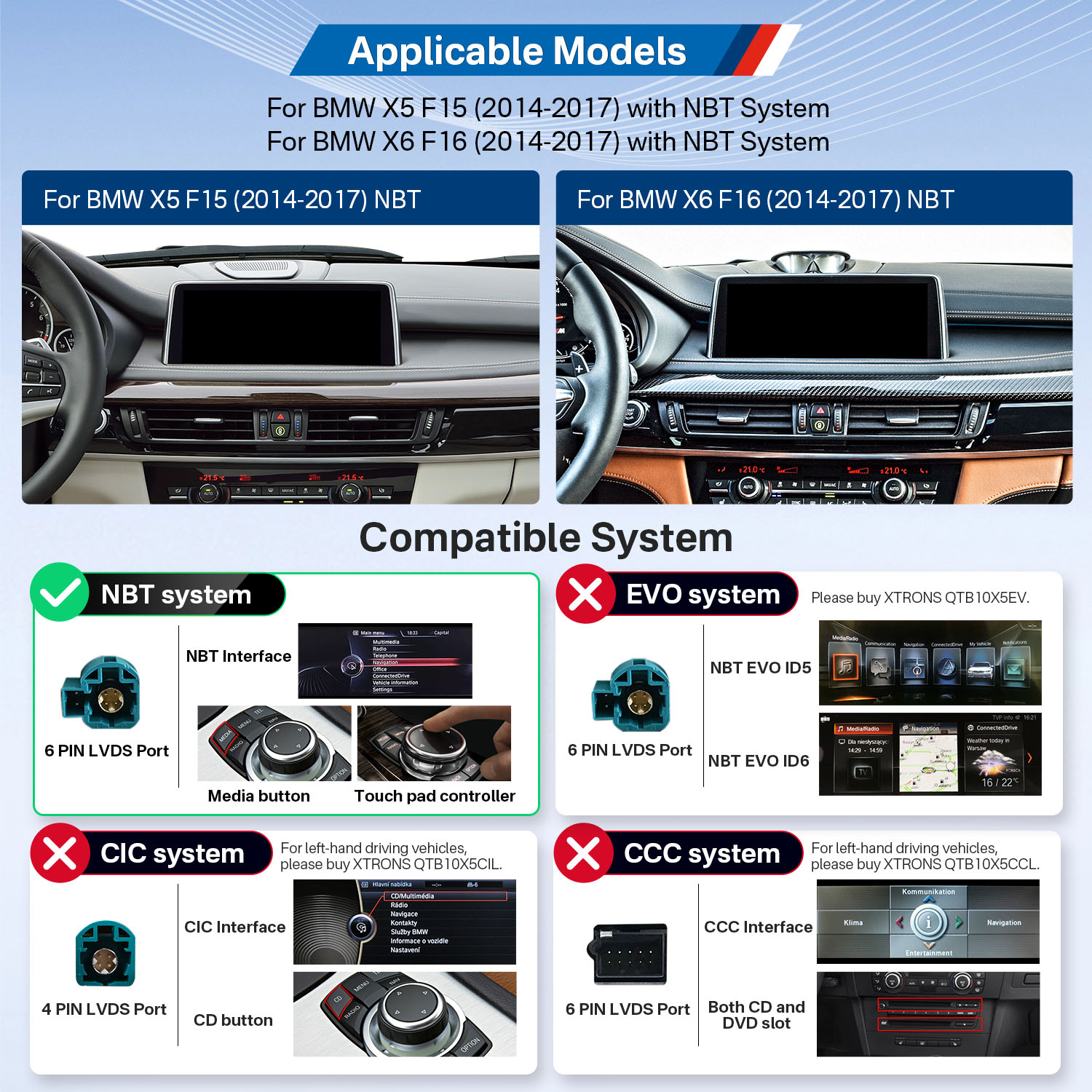

- For BMW X5 F15 (2014-2017) Original NBT System
- For BMW X6 F16 (2014-2017) Original NBT System
- This unit ONLY works with the original X5 F15, X6 F16 NBT system.

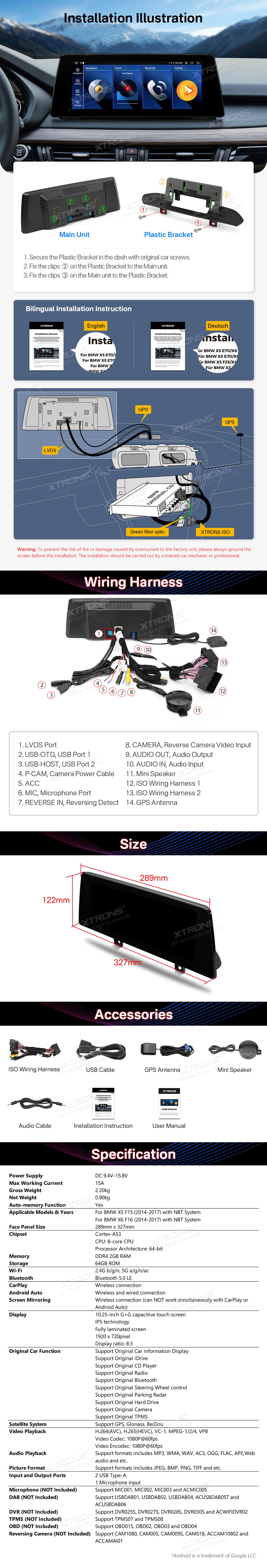

The screen replaces the factory display and connects through the supplied ISO wiring harness and audio cable. Sound runs through the car's AUX input, which must be enabled. Without a working AUX input, you'll need an FM transmitter such as CA/ITR/FM02 or CA/ITR/FM03.
How do I know my car has NBT?
NBT has a 6-pin LVDS port and a MEDIA button or touch pad on the iDrive controller.
My car is left-hand drive with CCC or CIC. Which unit do I need?
QTB10X5CCL for CCC, or QTB10X5CIL for CIC.
Will I keep the factory amplifier?
Yes. iDrive, the amplifier, CD player, radio and original Bluetooth all keep working.
What if my car has no AUX input?
You'll need an FM transmitter, such as CA/ITR/FM02 or CA/ITR/FM03.
Reviews
What customers say
Bought this product? Sign in to write a review.

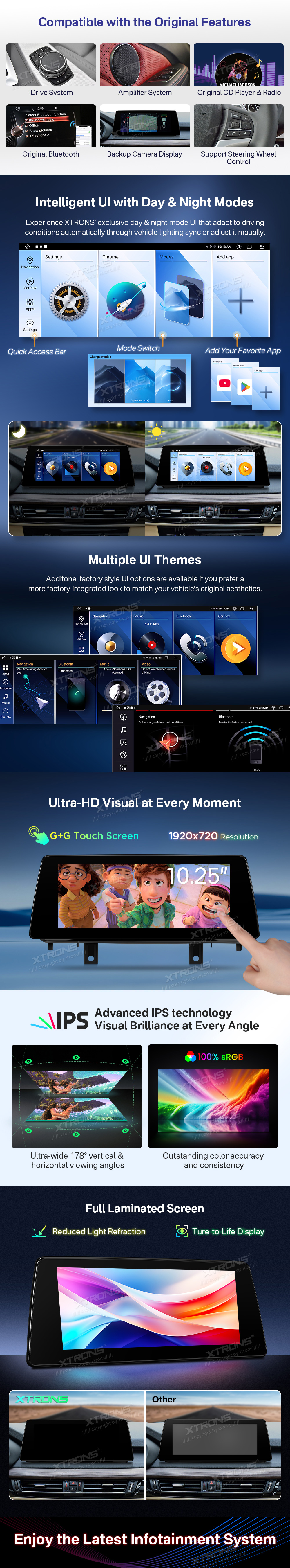

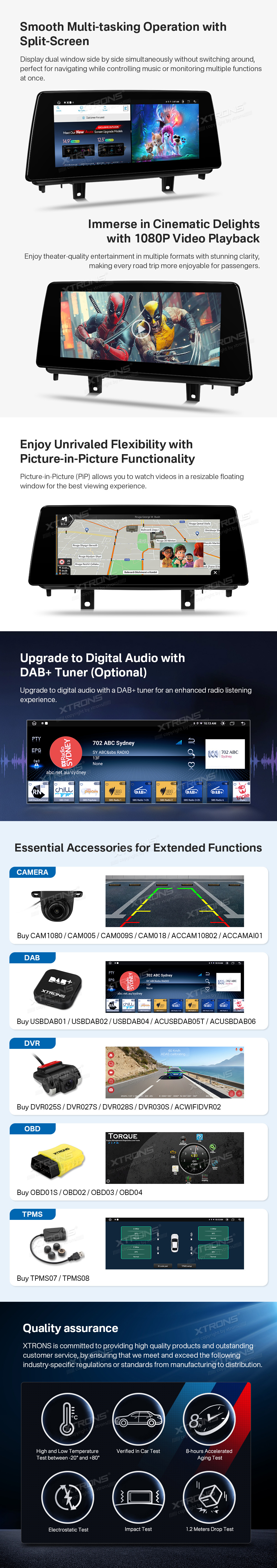

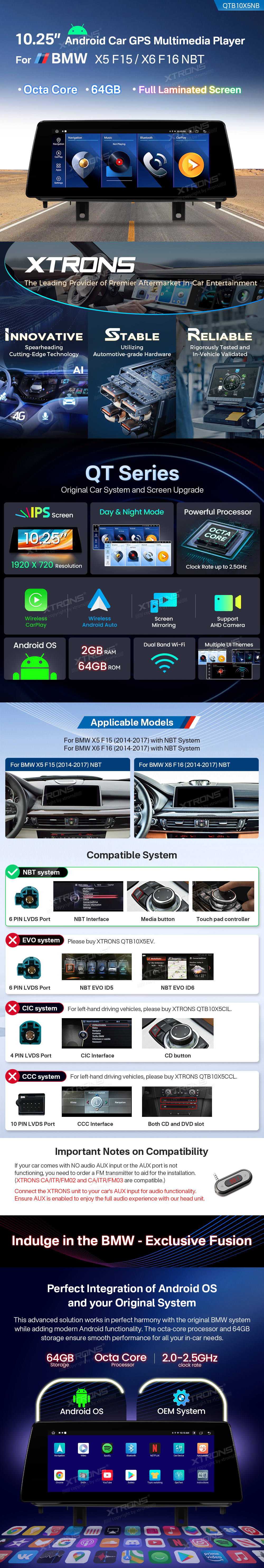

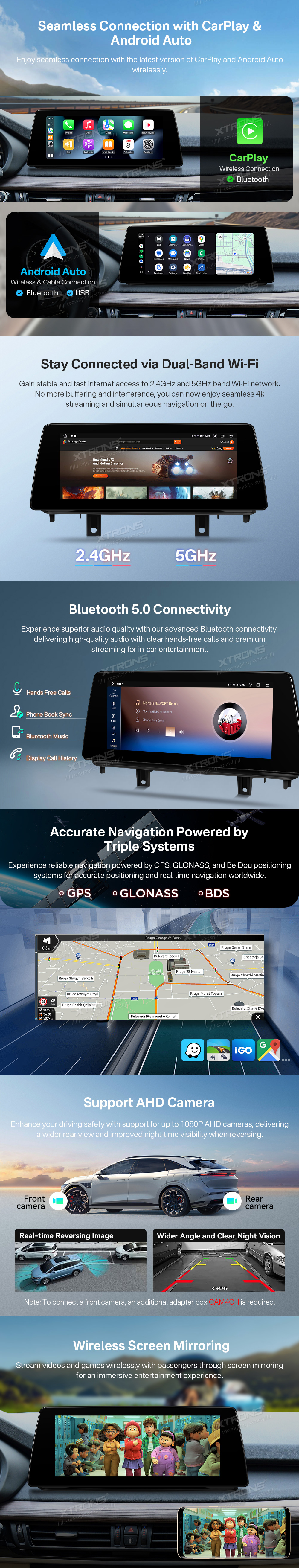

Full specification from XTRONS
