BMW X1 F48 NBT 12.3 Inch Android Head Unit with Wireless CarPlay, Android Auto and 4G | QGB24NB12X1N
SKU: QGB24NB12X1N
£469.99
Check if this fits your car
1
Key specifications
- Processor
- Qualcomm Snapdragon 680
- Cores
- 4 x Kryo 265 Gold and 4 x Kryo 265 Silver cores
- Clock speed
- up to 2.4GHz
- Process
- 6nm technology
- Memory
- 8GB RAM and 128GB ROM
- Operating system
- Android 14

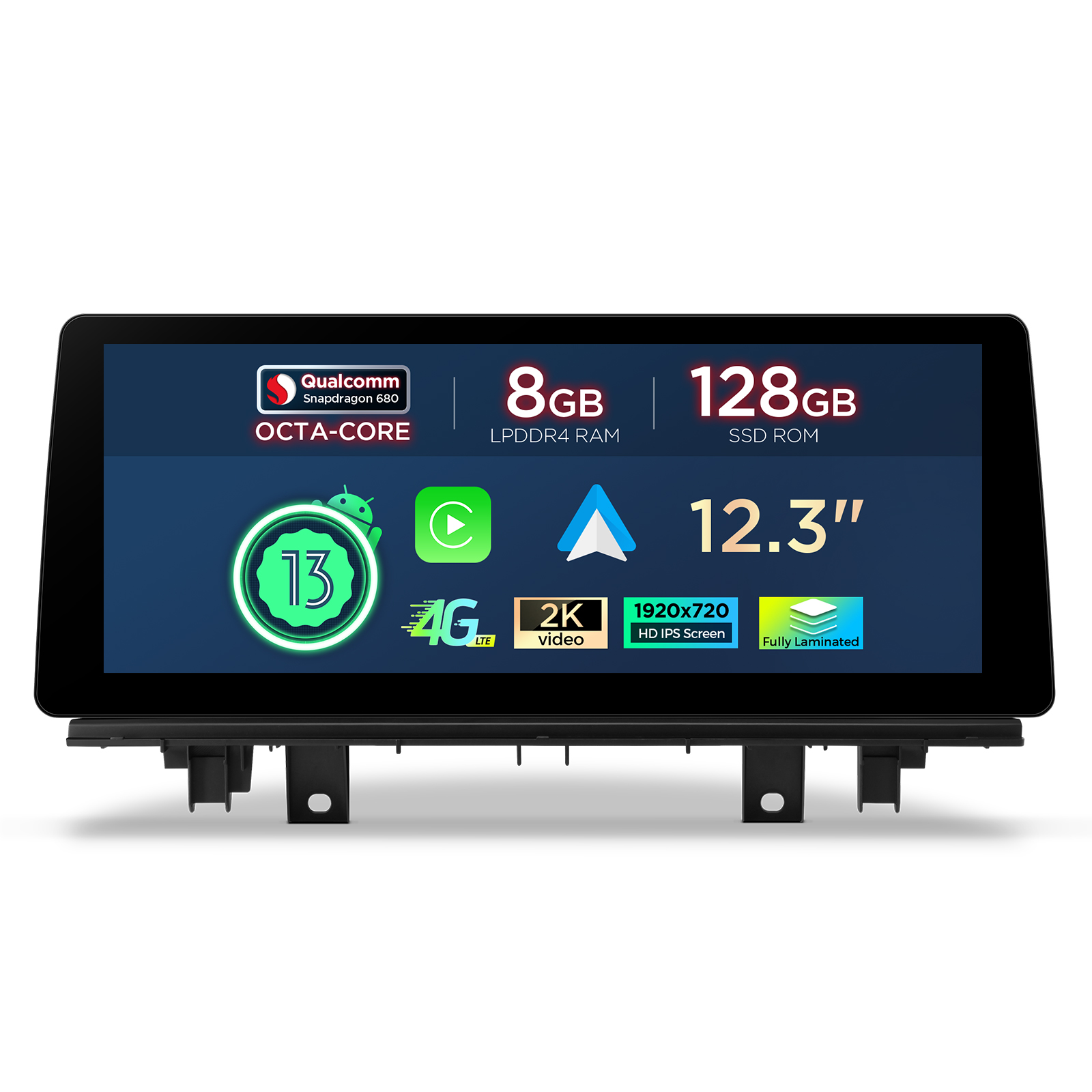

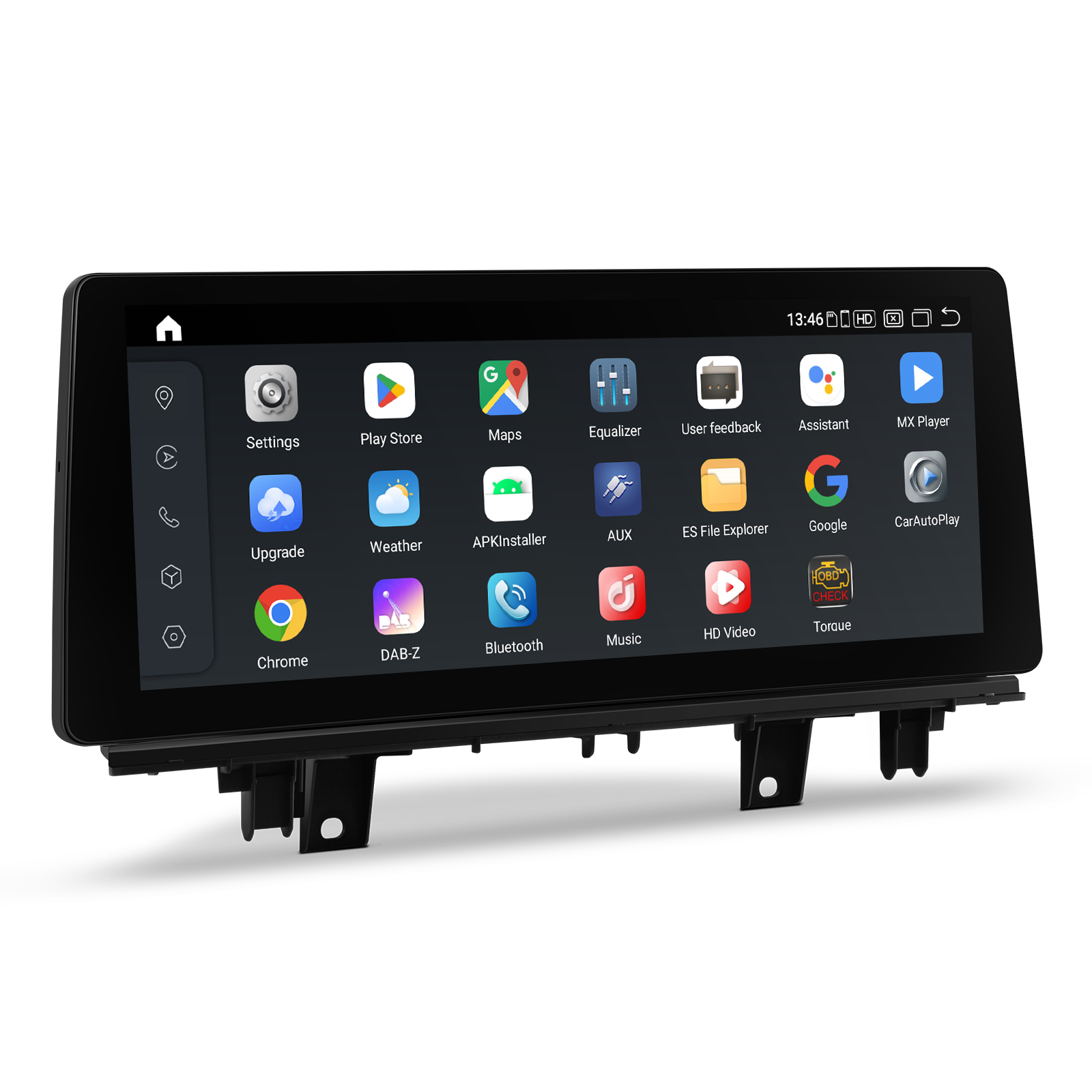

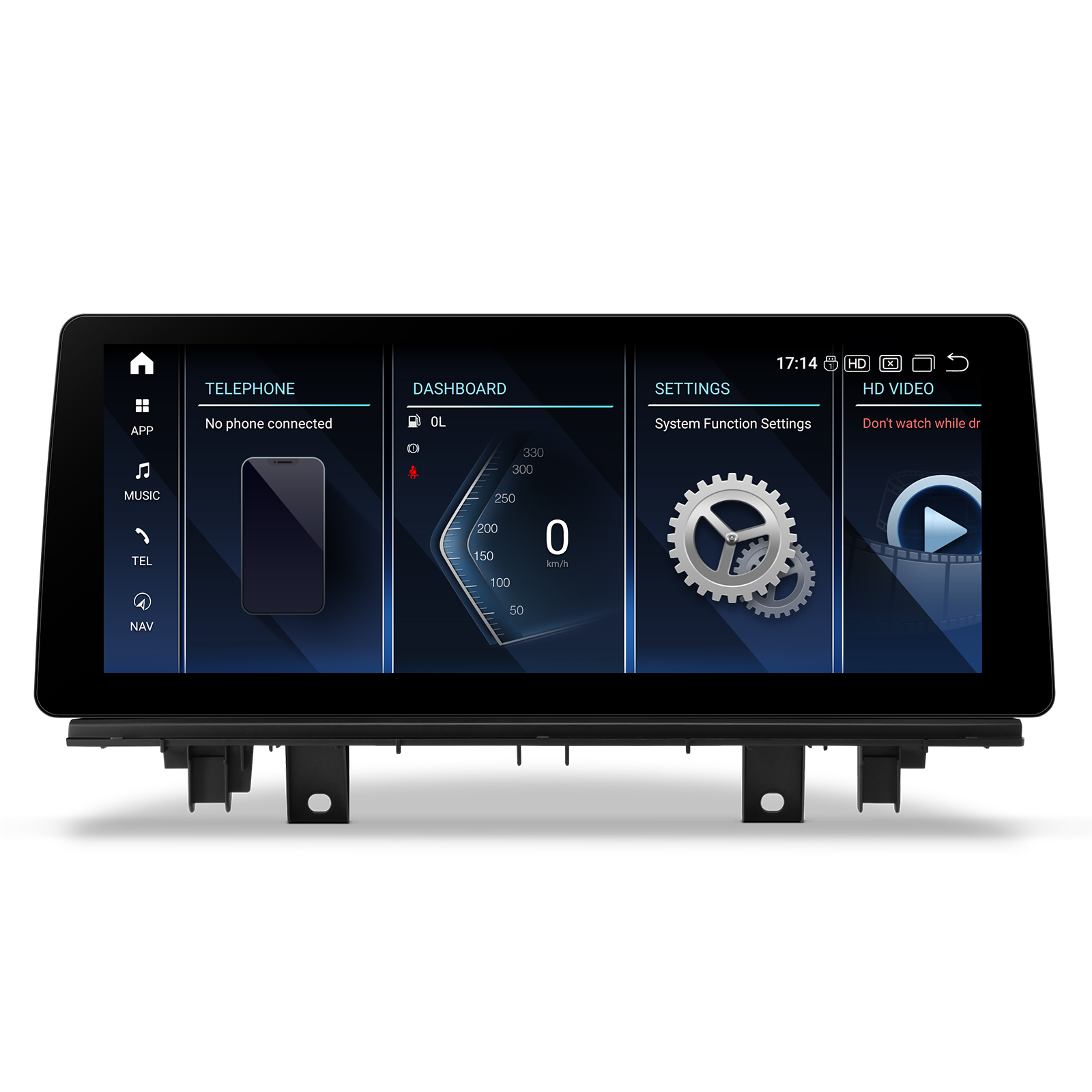

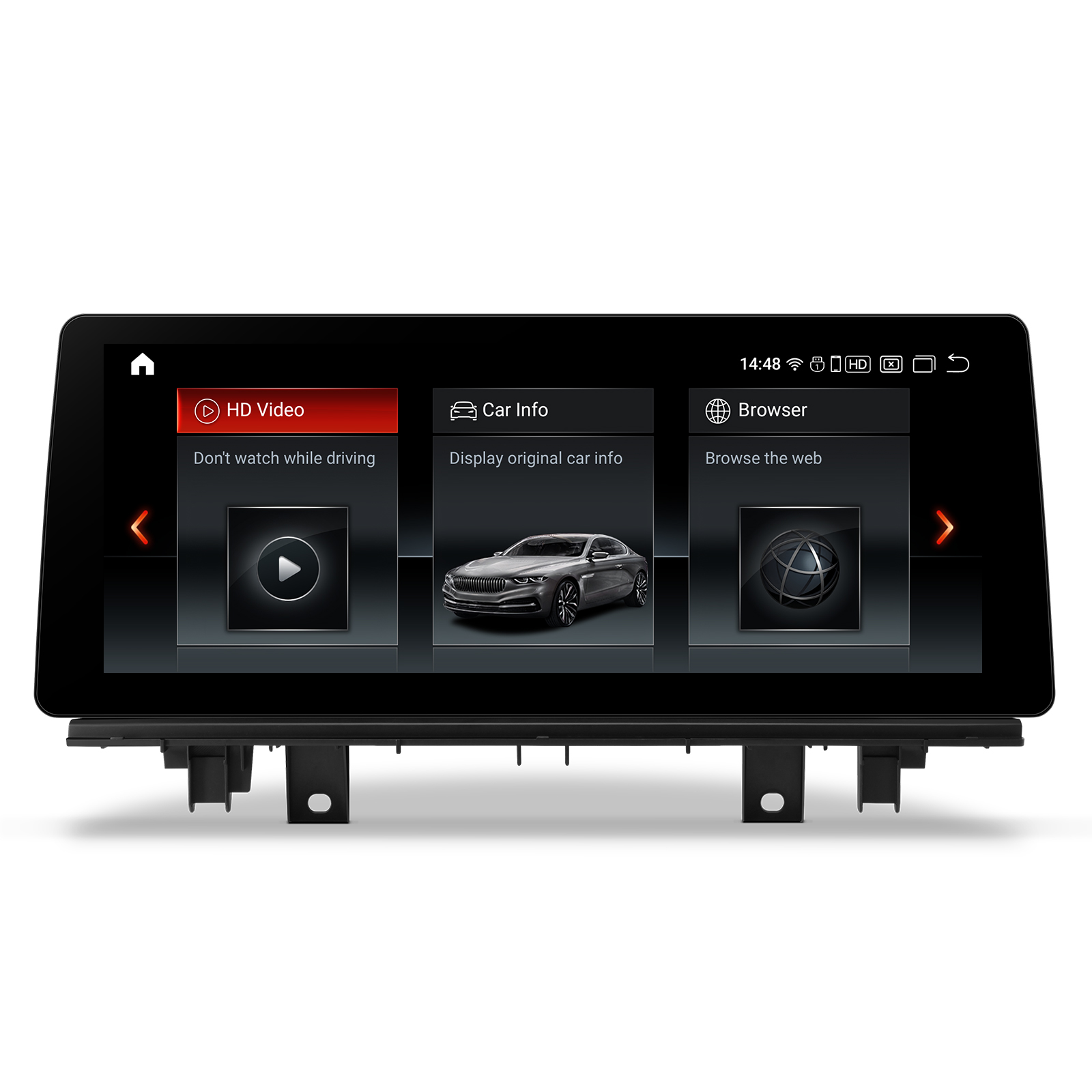

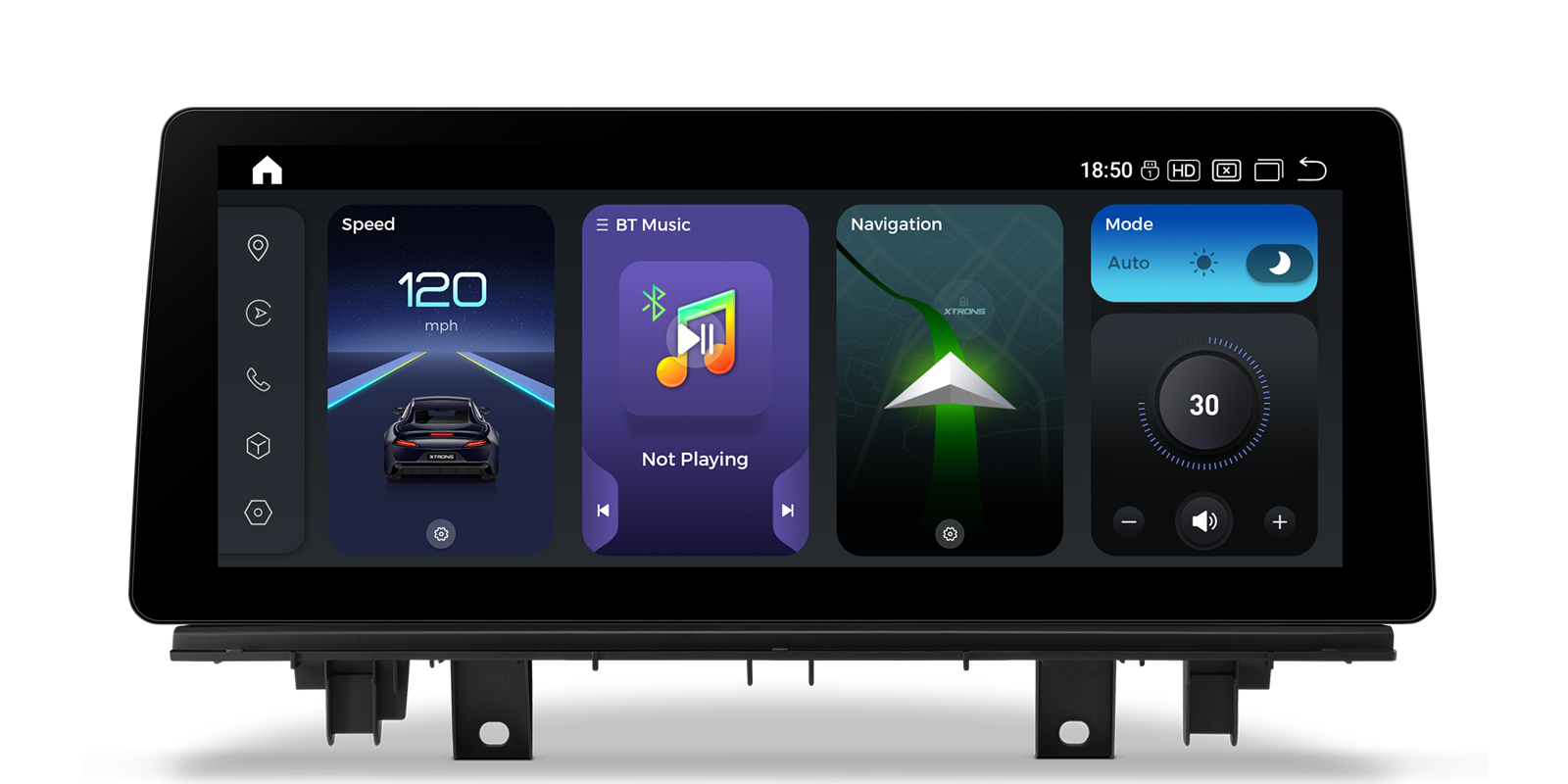

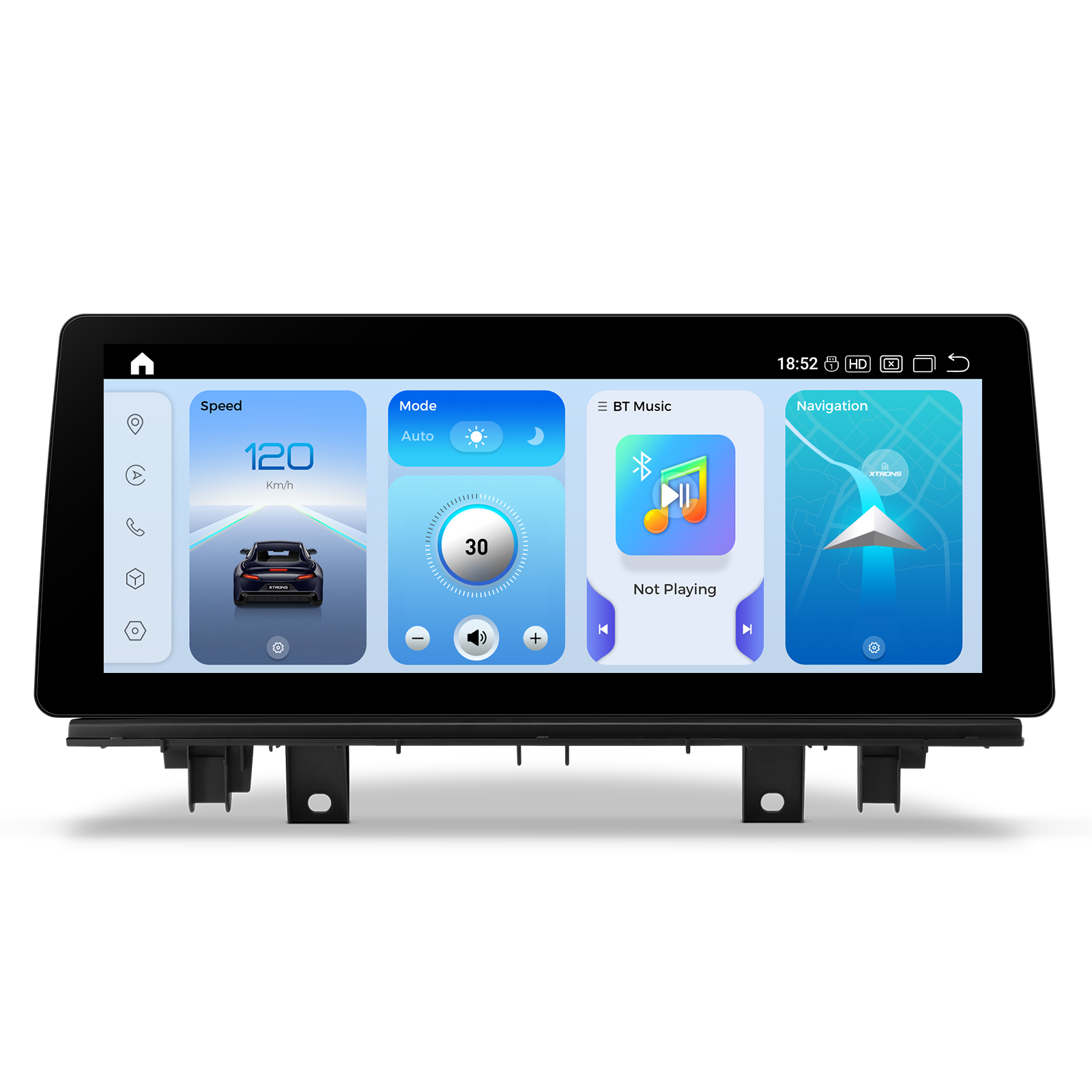

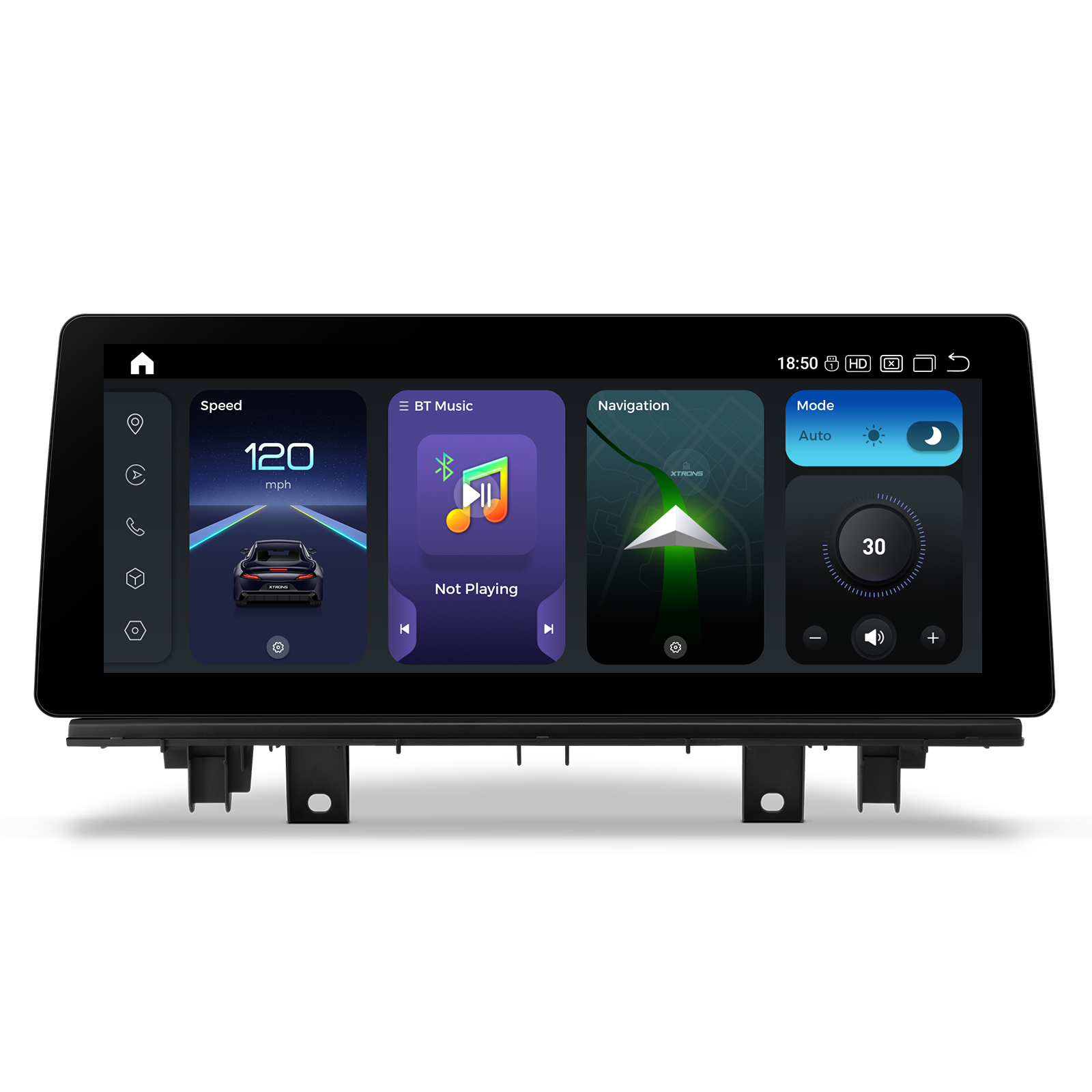

XTRONS QGB24NB12X1N is a 12.3 inch 2K Android 14 screen that replaces the factory display in the BMW X1 F48 with the NBT system, 2016-2017. It works alongside the original stereo and iDrive, adding wireless CarPlay, wireless Android Auto and built-in 4G.
- Wireless CarPlay and wireless Android Auto
- 12.3 inch QHD 2K IPS screen at 2400 x 900, fully laminated

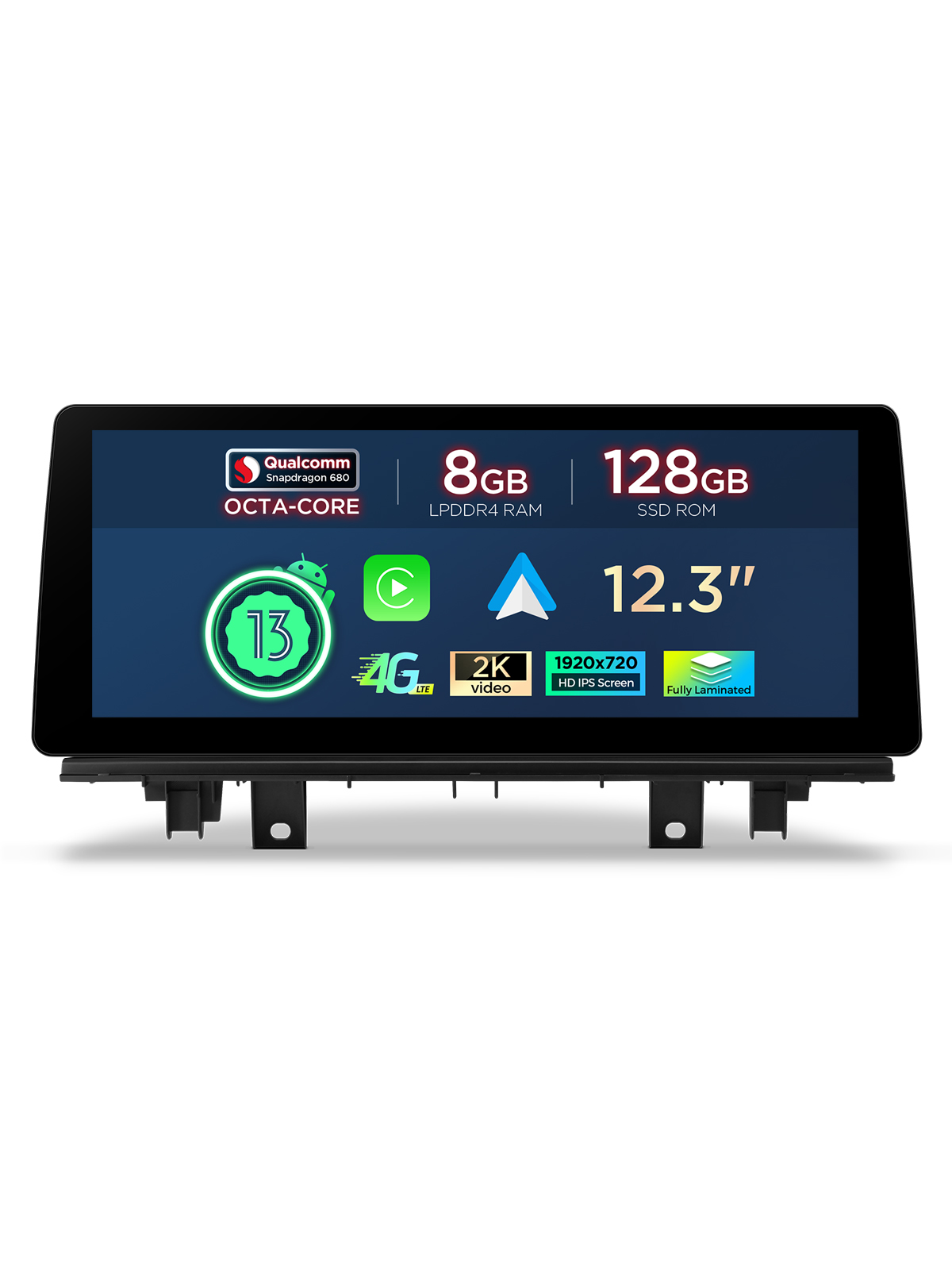

- Qualcomm Snapdragon 680 at up to 2.4GHz with 8GB RAM and 128GB storage
- Built-in 4G LTE and dual-band Wi-Fi
- Keeps the original radio and iDrive system
Wireless Apple CarPlay
CarPlay connects to your iPhone without a cable. Maps, music, calls and messages come up on the 12.3 inch screen, and Siri takes voice requests.
Wireless Android Auto
Android phones connect to Android Auto wirelessly, with Google Maps, music apps and Google Assistant on the wide screen.
12.3 inch 2K IPS screen
The 12.3 inch IPS panel has a QHD 2K resolution of 2400 x 900, with G+G touch and full lamination for a sharp picture with fewer reflections. The wide format suits a map with music controls beside it.
Built-in 4G LTE
Fit a SIM card and the unit has its own connection for music streaming, live navigation and sharing internet with passengers. It covers a wide range of FDD-LTE, TDD-LTE and WCDMA bands, and a 4G antenna is in the box.
Dual-band Wi-Fi
Wi-Fi runs on 2.4GHz and 5GHz bands, so you can join a hotspot or home network for app downloads and updates.
GPS navigation
A GPS antenna comes with the unit for real-time navigation on the large screen.
External microphone option
For clearer hands-free calls, an external XTRONS microphone such as the ACMIC005 can be added and mounted near the driver.
DAB+ with an add-on
DAB+ digital radio needs an external XTRONS DAB tuner, such as the USBDAB01 or ACUSBDAB06, sold separately.
Reversing camera
An XTRONS reversing camera, including AHD 1080P models such as the ACCAM10802, can be added so the view behind shows on the screen.
Snapdragon 680 and Android 14
The Qualcomm Snapdragon 680 is built on 6nm technology, with 4 x Kryo 265 Gold and 4 x Kryo 265 Silver cores reaching up to 2.4GHz. With 8GB DDR4 RAM and 128GB storage, apps open quickly and there's room for plenty of them.
XTRONS dash cams, OBD2 scanners and TPMS sensors can be added later.

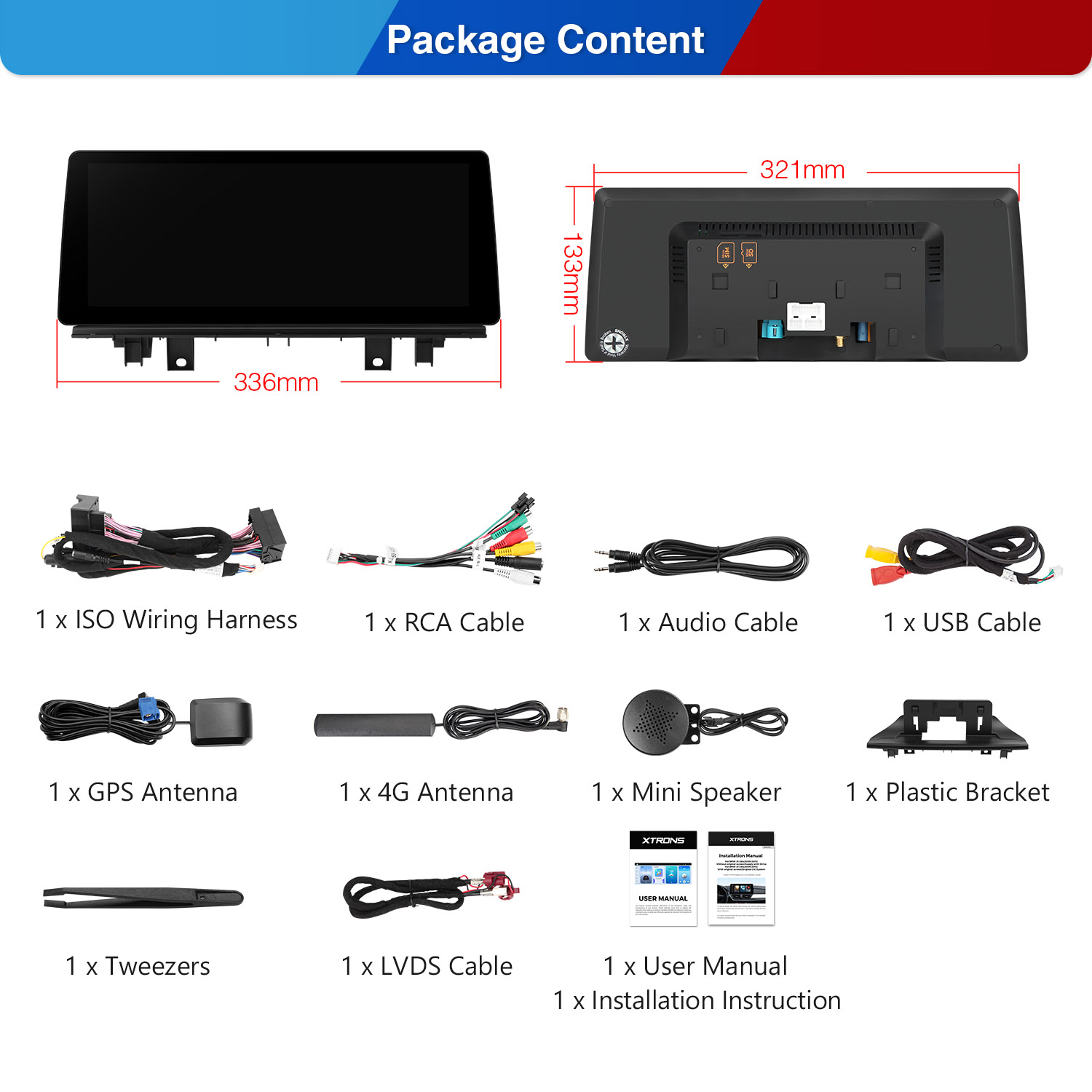

What's in the box
- 1 x 4G Antenna
- 1 x Audio Cable
- 1 x GPS Antenna
- 1 x Installation Instruction
- 1 x ISO Wiring Harness
- 1 x Mini Speaker
- 1 x Plastic Bracket
- 1 x RCA Cable
- 1 x Tweezers
- 1 x USB Cable
- 1 x User Manual
| Processor | Qualcomm Snapdragon 680 |
|---|---|
| Cores | 4 x Kryo 265 Gold and 4 x Kryo 265 Silver cores |
| Clock speed | up to 2.4GHz |
| Process | 6nm technology |
| Memory | 8GB RAM and 128GB ROM |
| Operating system | Android 14 |
| Screen size | 12.3″ Screen |
|---|---|
| Resolution | QHD 2K (2400 x 900) |
| Panel | IPS Technology |
| Touch | G+G Touch Screen |
| Lamination | Fully-laminated Screen |
| FDD-LTE | FDD-LTE (Bands 1,2, 3, 4, 5,7,8, 12, 13, 14, 17,18, 19, 20, 25, 26, 28, 66, 71) |
|---|---|
| TDD-LTE | TDD-LTD (Bands 34, 38, 39, 40, 41) |
| WCDMA | WCDMA(Bands 1, 2, 4, 5, 6, 8, 19) |
| Wi-Fi | 2.4GHz and 5GHz bands |
- BMW X1 (2009 onwards)
- For BMW X1 F48 (2016-2017) with NBT System
- This unit ONLY works with the original BMW NBT system. A NBT system car radio usually comes with Media button, touch pad controller, a 6-pin LVDS port and a BMW NBT Interface.
- Please see XTRONS QGB24CIB12X1N if your vehicle comes with a CIC system.
- Please see XTRONS QGB24EVB12X1N if your vehicle comes with a EVO system.
- If your car comes with NO audio AUX input or the AUX port is not functioning, you will need to order an FM transmitter to aid the installation. (XTRONS CA/ITR/FM02 and CA/ITR/FM03 are compatible.)
The screen is a plug-and-play replacement for the factory display in NBT cars, with an ISO wiring harness, audio cable and plastic bracket supplied. Sound plays through the car's AUX input, so make sure AUX is enabled; without a working AUX input you'll need an FM transmitter such as the XTRONS CA/ITR/FM02 or CA/ITR/FM03.
How do I know if my X1 has NBT?
An NBT radio usually has a Media button, a touch pad controller, a 6-pin LVDS port and the BMW NBT interface. For CIC choose the QGB24CIB12X1N, and for EVO the QGB24EVB12X1N.
Will I keep iDrive and the original radio?
Yes. The unit works alongside the original stereo, so the radio and iDrive system stay.
What if my car has no AUX input?
You'll need an FM transmitter. The XTRONS CA/ITR/FM02 and CA/ITR/FM03 are compatible.
Is CarPlay wireless?
Yes. CarPlay and Android Auto both connect wirelessly.
Reviews
What customers say
Bought this product? Sign in to write a review.

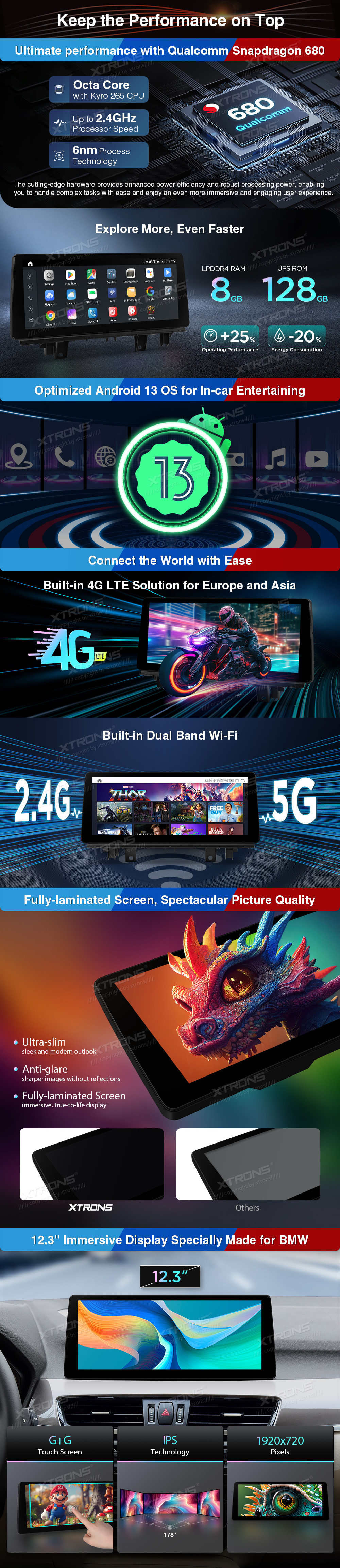

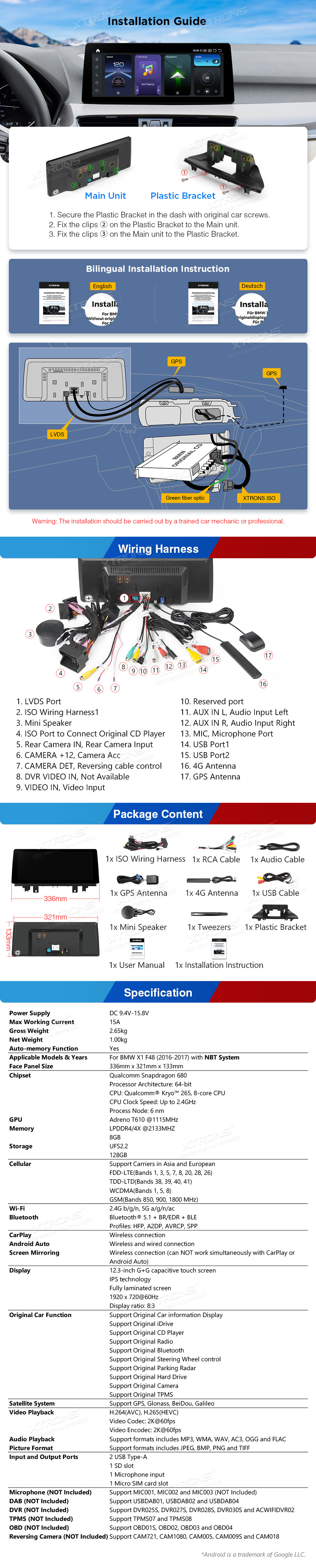

Full specification from XTRONS
