BMW X1 F48 EVO 12.3 inch Android Head Unit with Wireless CarPlay, Android Auto and 4G | QLB22EVB12X1N
SKU: QLB22EVB12X1N
£365.49Was £429.99Save £64.50
Check if this fits your car
1

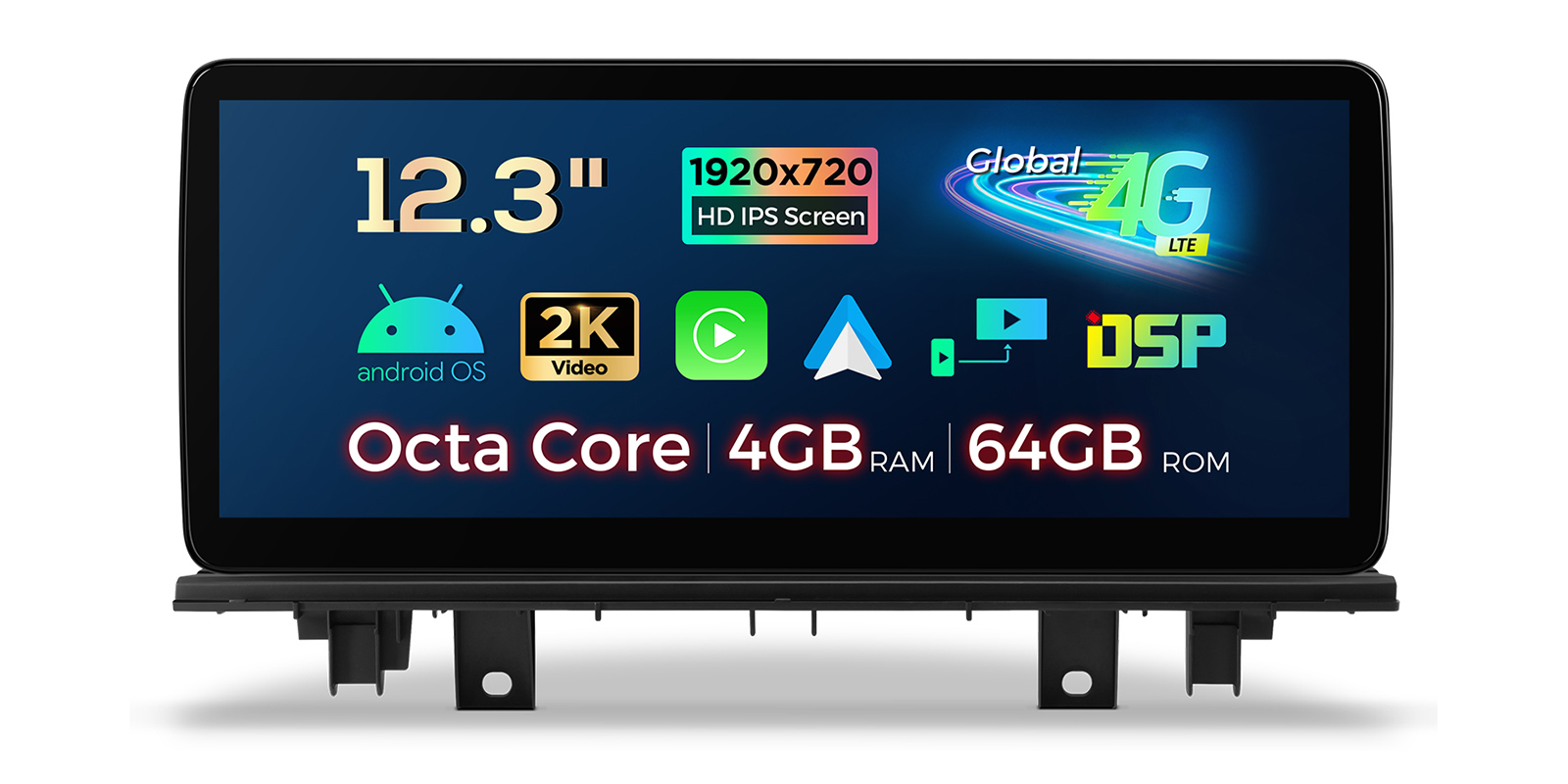

Key specifications
- Processor
- 12nm Octa-core chip
- CPU cores
- (2xCortex-A75 + 6xCortex-A55)
- RAM
- 4GB DDR4 RAM
- Storage
- 64GB Solid State ROM
- Operating system
- Android 13
- Screen size
- 12.3″

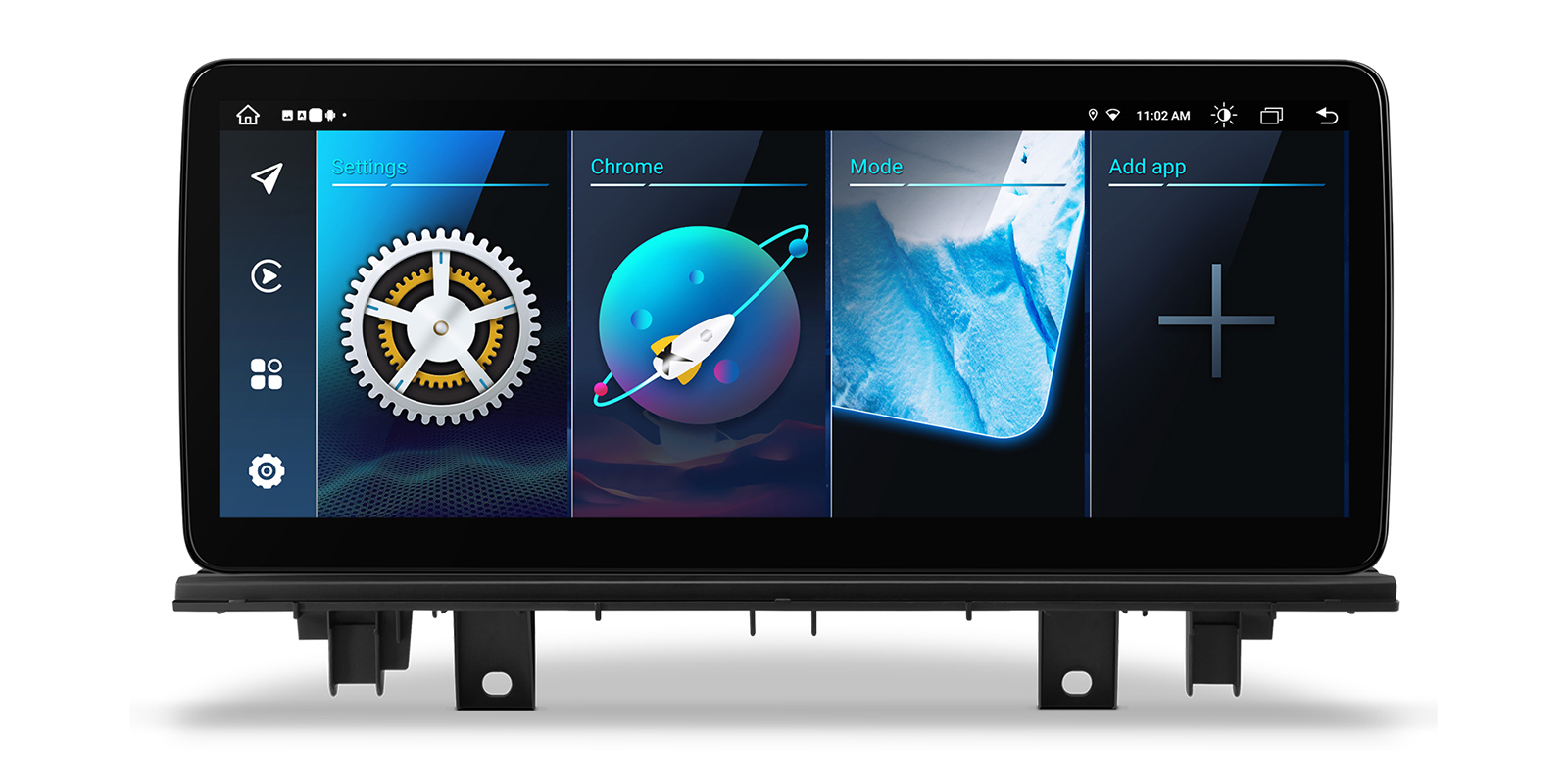

The XTRONS QLB22EVB12X1N is a 12.3 inch Android 13 screen for the BMW X1 F48 from 2018 with the NBT EVO system. It replaces the factory display with a fully laminated screen and adds wireless CarPlay, wireless Android Auto and 4G, while the original CD player stays.
- Wireless CarPlay and wireless Android Auto
- 12.3 inch fully laminated QLED IPS screen that cuts reflections
- 12nm octa-core chip with 4GB DDR4 RAM and 64GB storage
- Built-in 4G module for its own internet connection
- Mini microphone included for hands-free calls

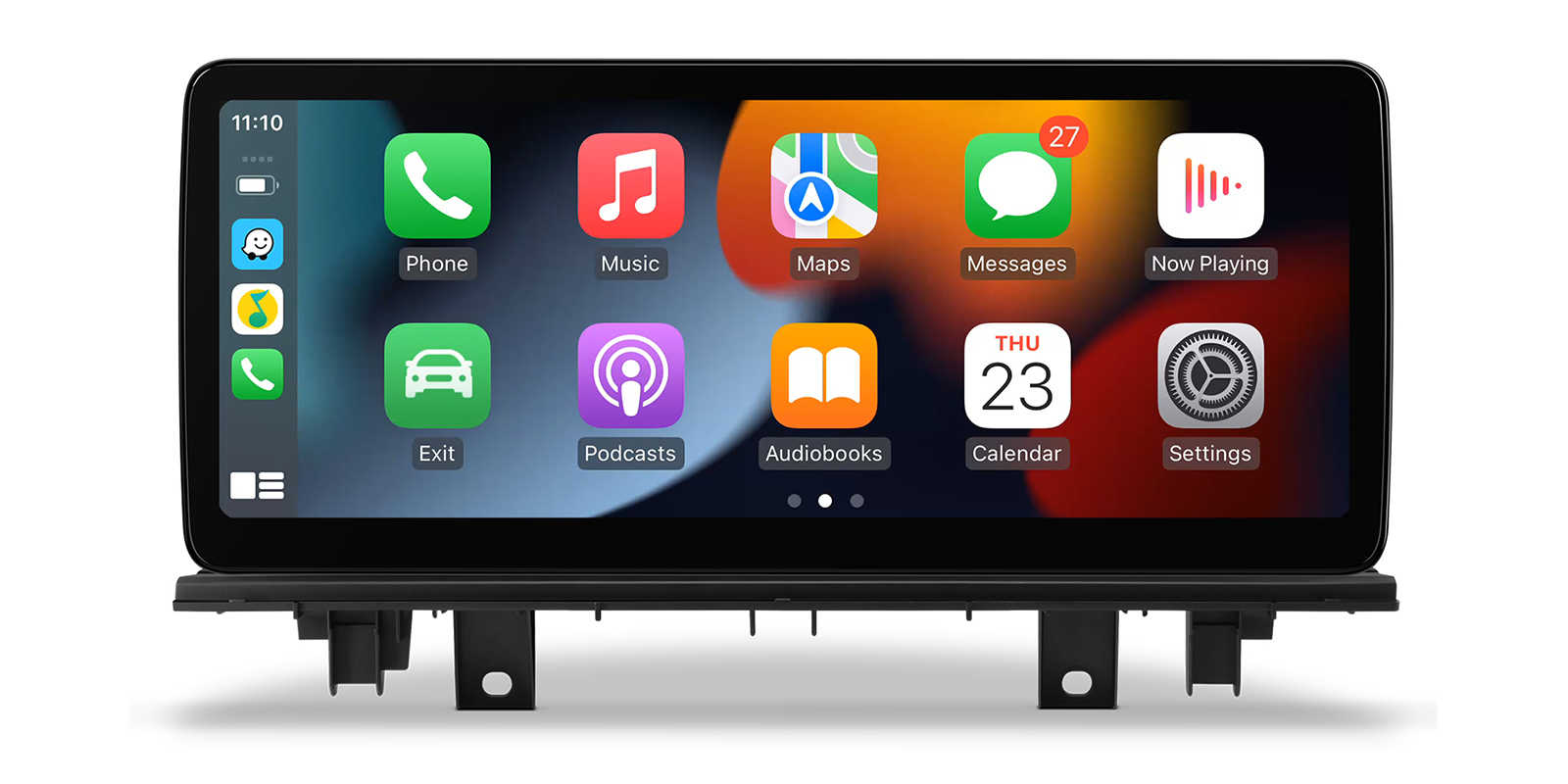

Wireless Apple CarPlay
CarPlay connects to your iPhone without a cable, so maps, messages and music appear on the 12.3 inch screen while the phone stays in your pocket.

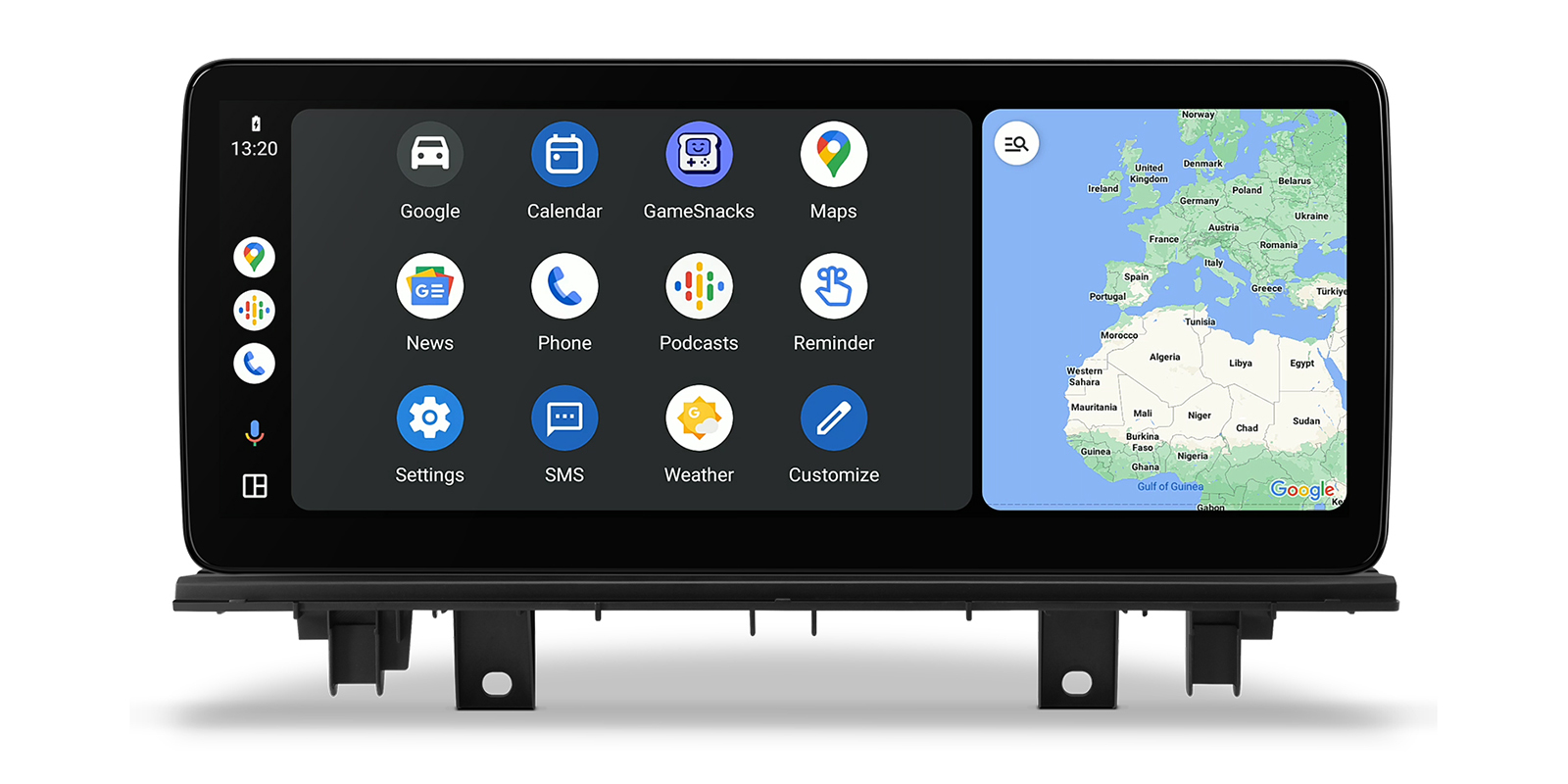

Wireless Android Auto
Android Auto also connects wirelessly, with navigation, calls and music controlled by touch or voice.
12.3 inch QLED screen
The 12.3 inch screen is fully laminated and ultra-slim with a tailor-made bezel. Lamination reduces reflections so it stays readable in sunlight, and QLED gives strong colour.
IPS viewing angles
As an IPS panel, the screen stays clear from the passenger seat as well as the driver's.
Octa-core performance
A flagship 12nm octa-core chip (2xCortex-A75 + 6xCortex-A55) runs Android 13 with 4GB DDR4 RAM and 64GB of storage.
The unit works alongside the original system, and the CD player doesn't need removing. On the original system you use the iDrive controller, as touch and gesture control won't work there.
Built-in 4G
Insert a SIM card and the built-in 4G module gives the unit its own internet connection for navigation and streaming.
Wi-Fi
Wi-Fi connects the unit to a hotspot or your home network for downloads and updates.
Built-in DSP
The built-in DSP lets you adjust the sound from the unit's settings to suit the X1's speakers.
RCA audio output
An RCA audio output lets you connect an external amplifier later.
Screen mirroring
Screen mirroring shows your phone's display on the head unit, useful for apps outside CarPlay and Android Auto while parked.
USB
USB lets you play media from a USB stick or connect a phone by cable.
Mini microphone
A mini microphone comes in the box. Placed near the driver, it picks up your voice clearly on calls.

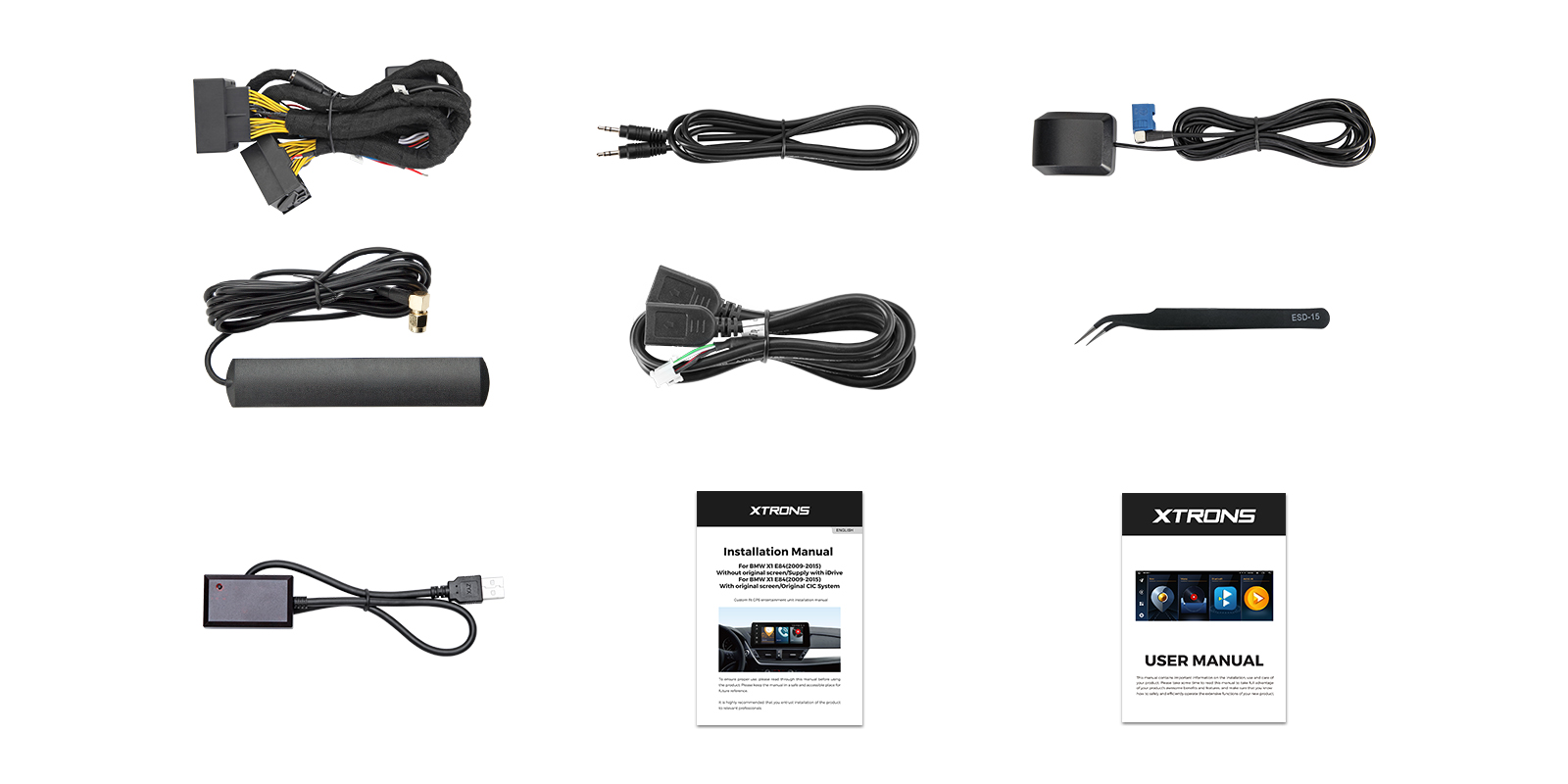

What's in the box
- 1 x Mini Microphone
- 1 x User Manual
- Face Panel (All)
| Processor | 12nm Octa-core chip |
|---|---|
| CPU cores | (2xCortex-A75 + 6xCortex-A55) |
| RAM | 4GB DDR4 RAM |
| Storage | 64GB Solid State ROM |
| Operating system | Android 13 |
| Screen size | 12.3″ |
|---|---|
| Screen type | QLED Screen |
| Panel | IPS Screen |
| Mobile data | 4G |
|---|---|
| Wireless | Wi-Fi |
| Apple CarPlay | Wireless Car Play |
| Android Auto | Wireless Android Auto |
| Audio output | RCA Audio Output |
|---|---|
| USB | USB |
- For BMW X1 F48 from 2018 with EVO System
- BMW X1 F48 (2015-2022)
- This unit ONLY works with the original BMW NBT EVO system. A NBT EVO system car radio usually comes with a 6-pin LVDS port, "NBTevo_xxxx" and "Automatic map update" shows on version info. Note: A "ID5" or "ID6" interface does not guarantee that you have the NBT EVO system.
The screen replaces the factory display and only works with the original BMW NBT EVO system; the CD player stays in place. Sound plays through the car's AUX input, which must be enabled; without one you'll need an FM transmitter such as the XTRONS CA/ITR/FM02 or CA/ITR/FM03. After fitting, gesture control can't be activated and touch doesn't work on the original system, so use the iDrive controller there.
How do I know if my X1 has NBT EVO?
NBT EVO usually has a 6-pin LVDS port, and "NBTevo_xxxx" and "Automatic map update" show in the version info.
My X1 has NBT or CIC. Which unit do I need?
For NBT, choose the XTRONS QLB22NBX1N. For CIC, choose the QLB22CIBX1.
What if my car has no AUX input?
You'll need an FM transmitter; the XTRONS CA/ITR/FM02 and CA/ITR/FM03 are compatible.
Reviews
What customers say
Bought this product? Sign in to write a review.

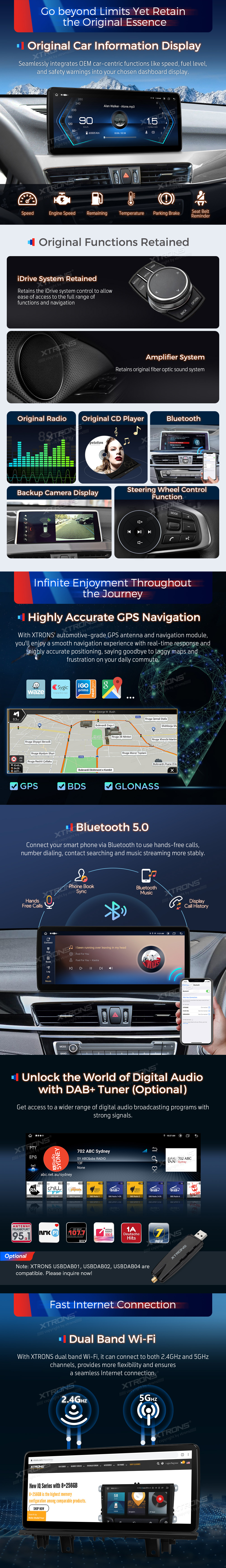

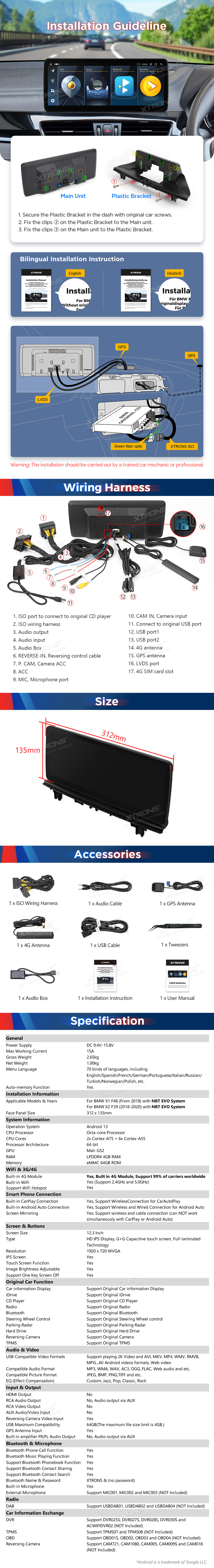

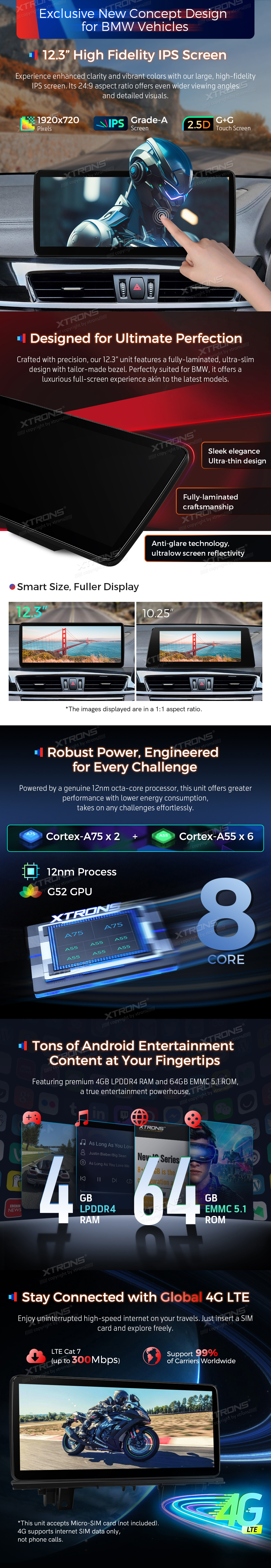

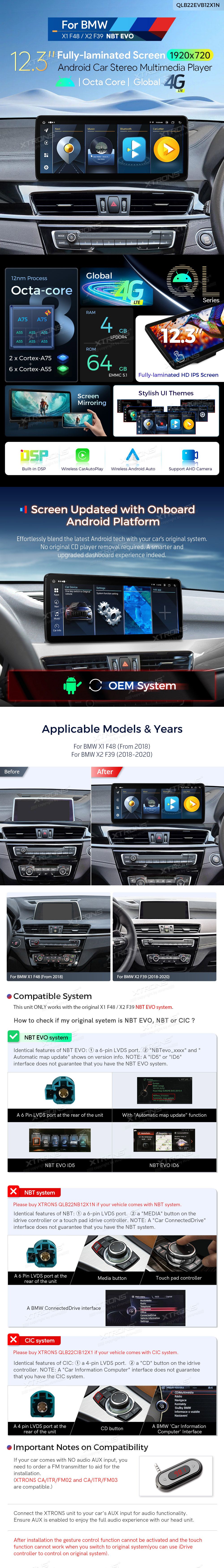

Full specification from XTRONS
