BMW E46, Rover 75 and MG ZT 7 inch Android 14 Head Unit with Wireless CarPlay, Android Auto and 4G | PX7446BL
SKU: PX7446BL
£263.49Was £309.99Save £46.50
Check if this fits your car
1
Key specifications
- Operating system
- Android 14
- Processor
- 12nm octa core 2.0GHz processor
- Memory
- 4GB DDR4 RAM + 64GB Solid State ROM
- Operating temperature
- −30°C to +80°C
- Screen
- 7” 1024×600 Capacitive Touch Screen

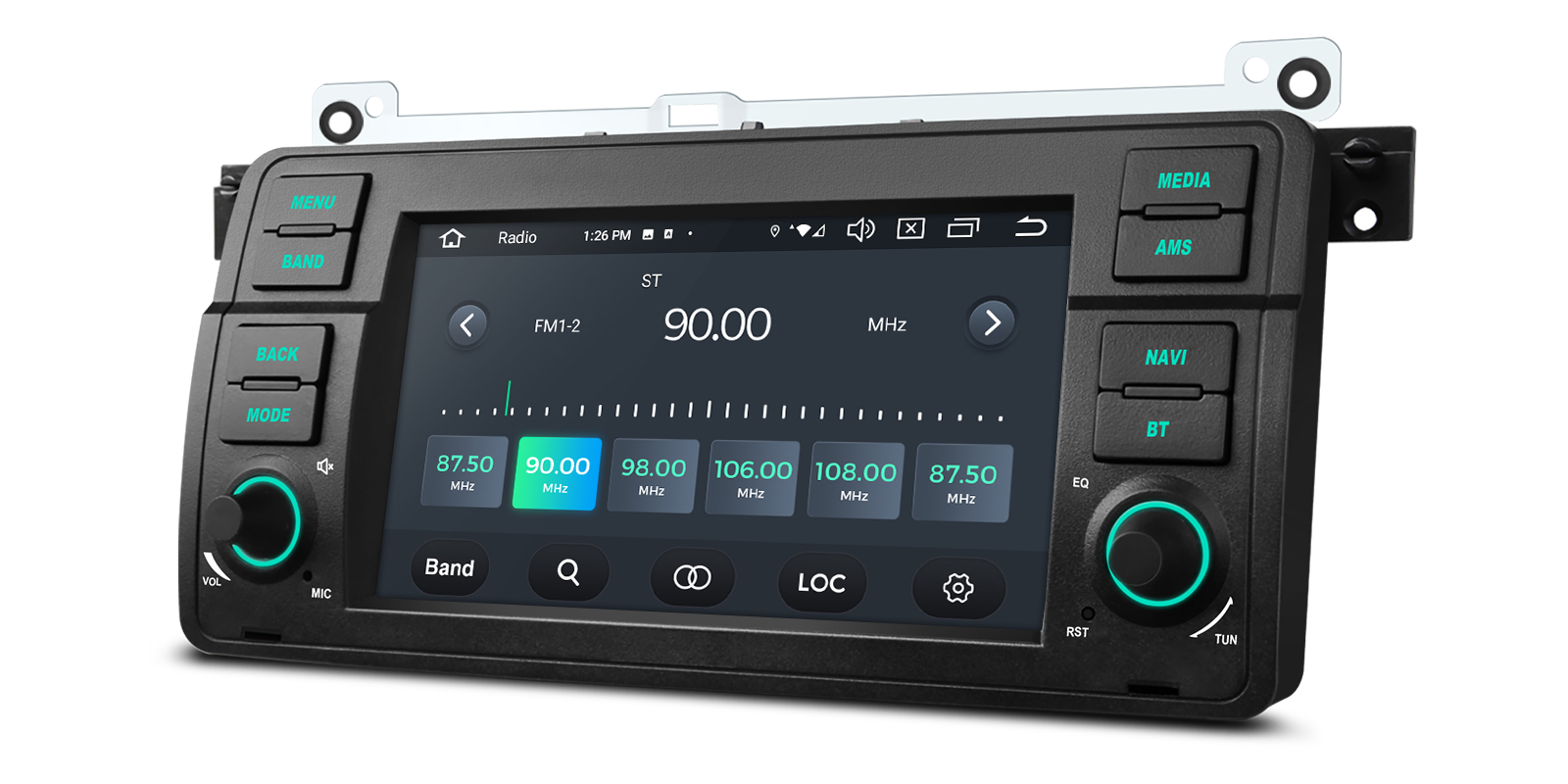

- Radio
- SI4755 Radio with RDS

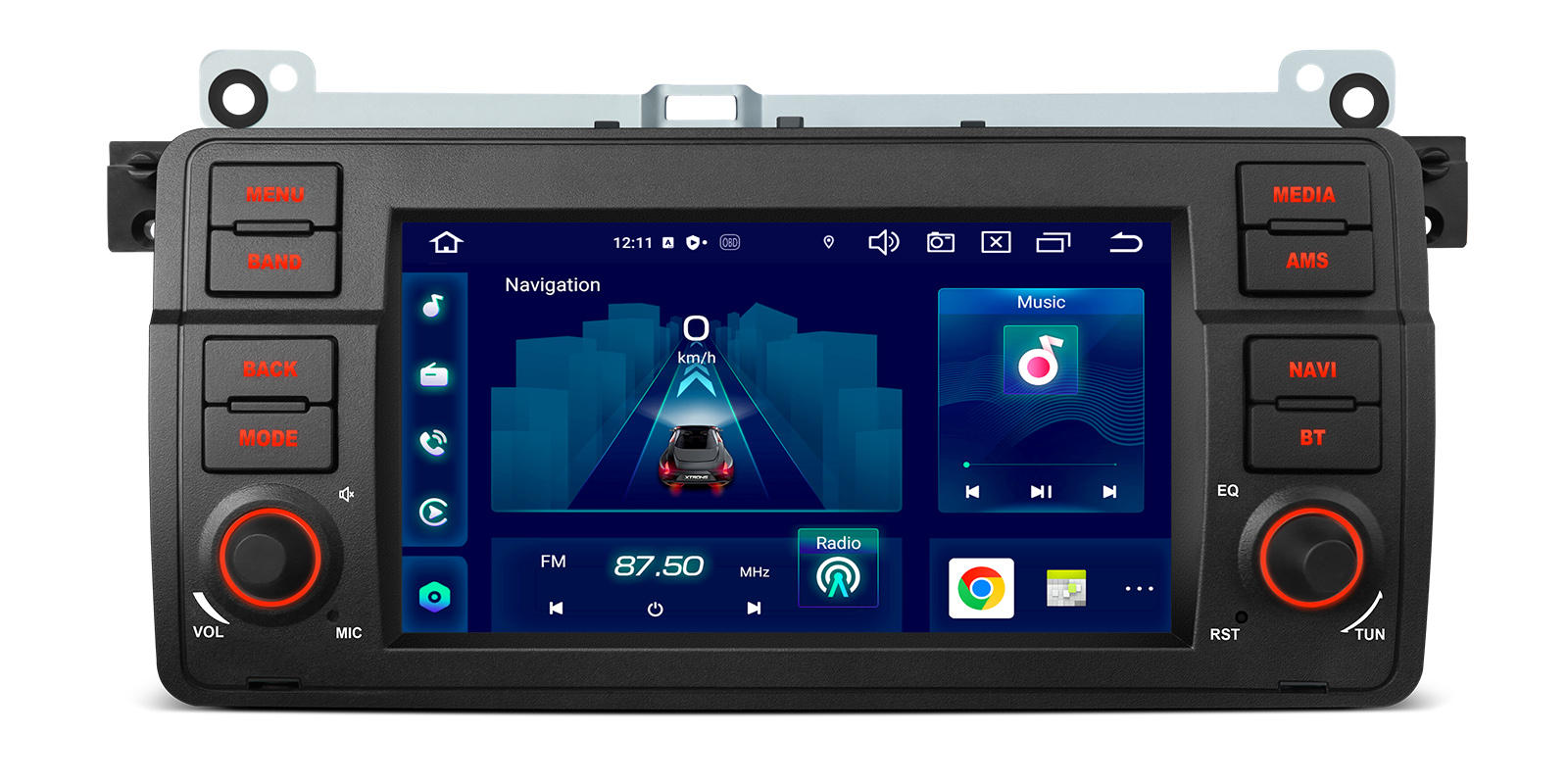

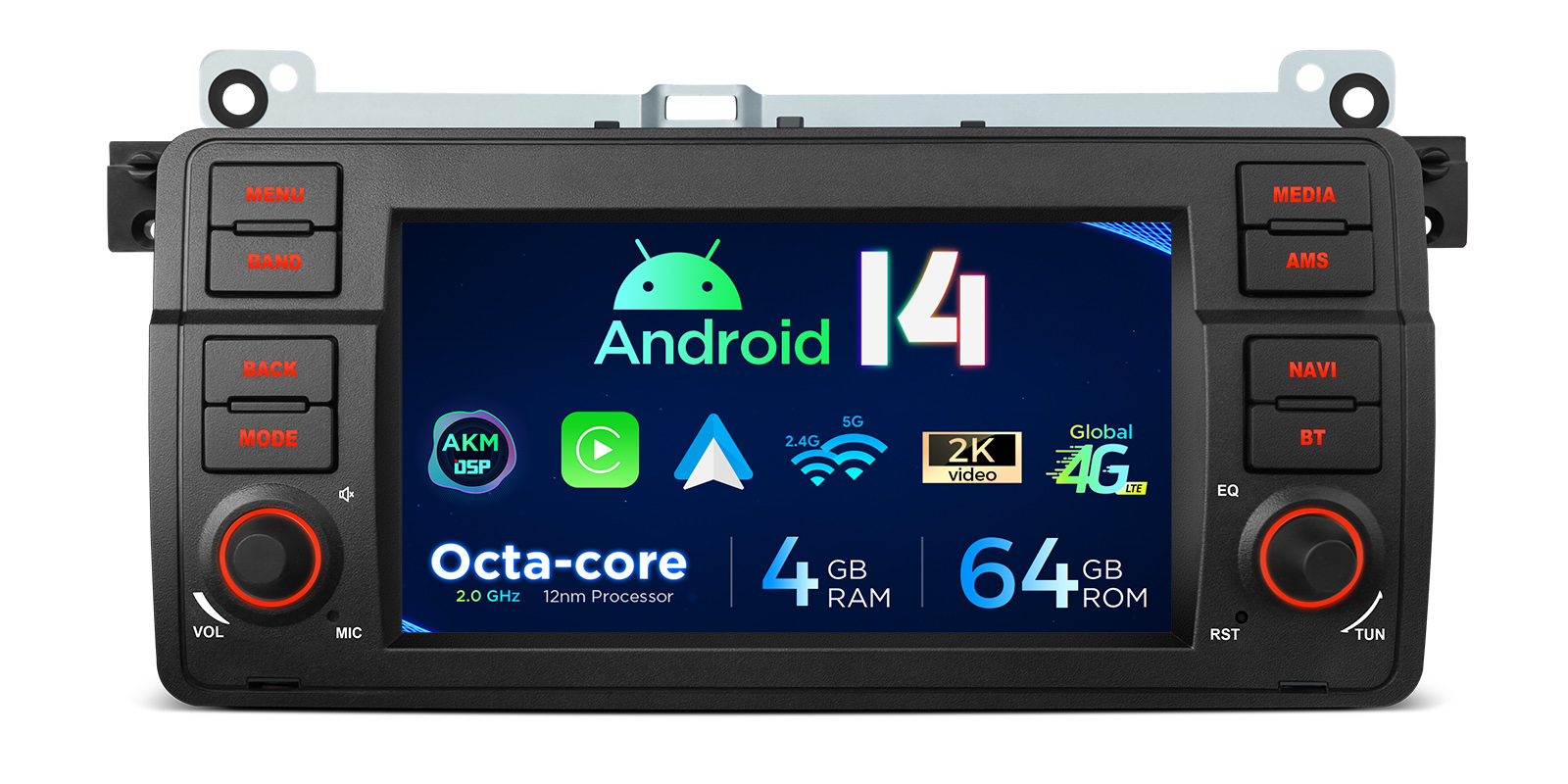

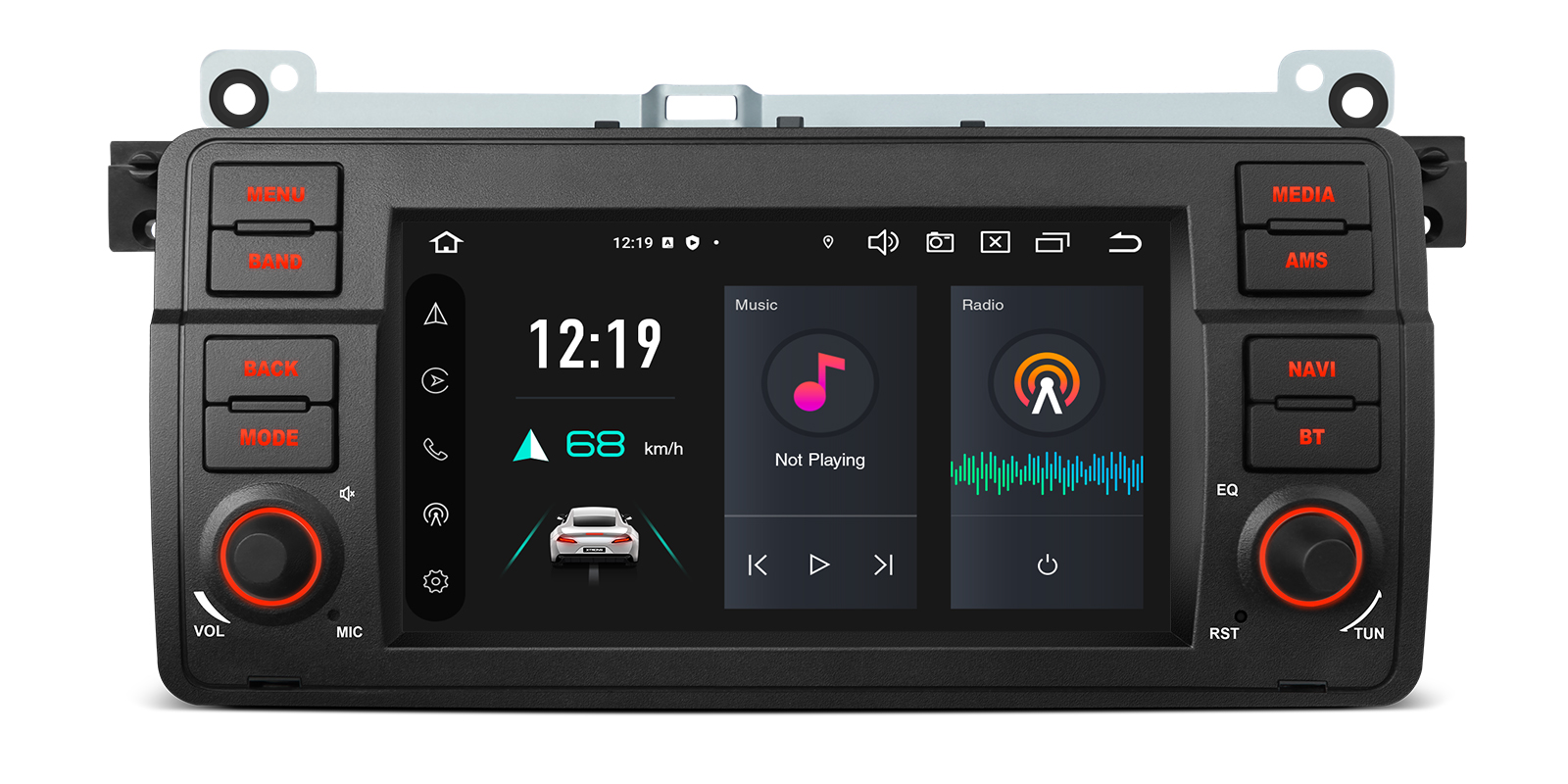

A 7 inch Android 14 head unit made to fit the BMW E46 3 Series, Rover 75 and MG ZT. It adds wireless CarPlay, Android Auto, global 4G and an AKM DSP to cars that came with a basic radio or an early factory screen.
- Wireless CarPlay and full-featured Android Auto
- Global 4G with a Micro-SIM card, plus USB tethering
- AKM DSP with adjustable modes and EQ
- 7” 1024×600 IPS touch screen with G+G glass
- 12nm octa core 2.0GHz processor with 4GB RAM and 64GB ROM

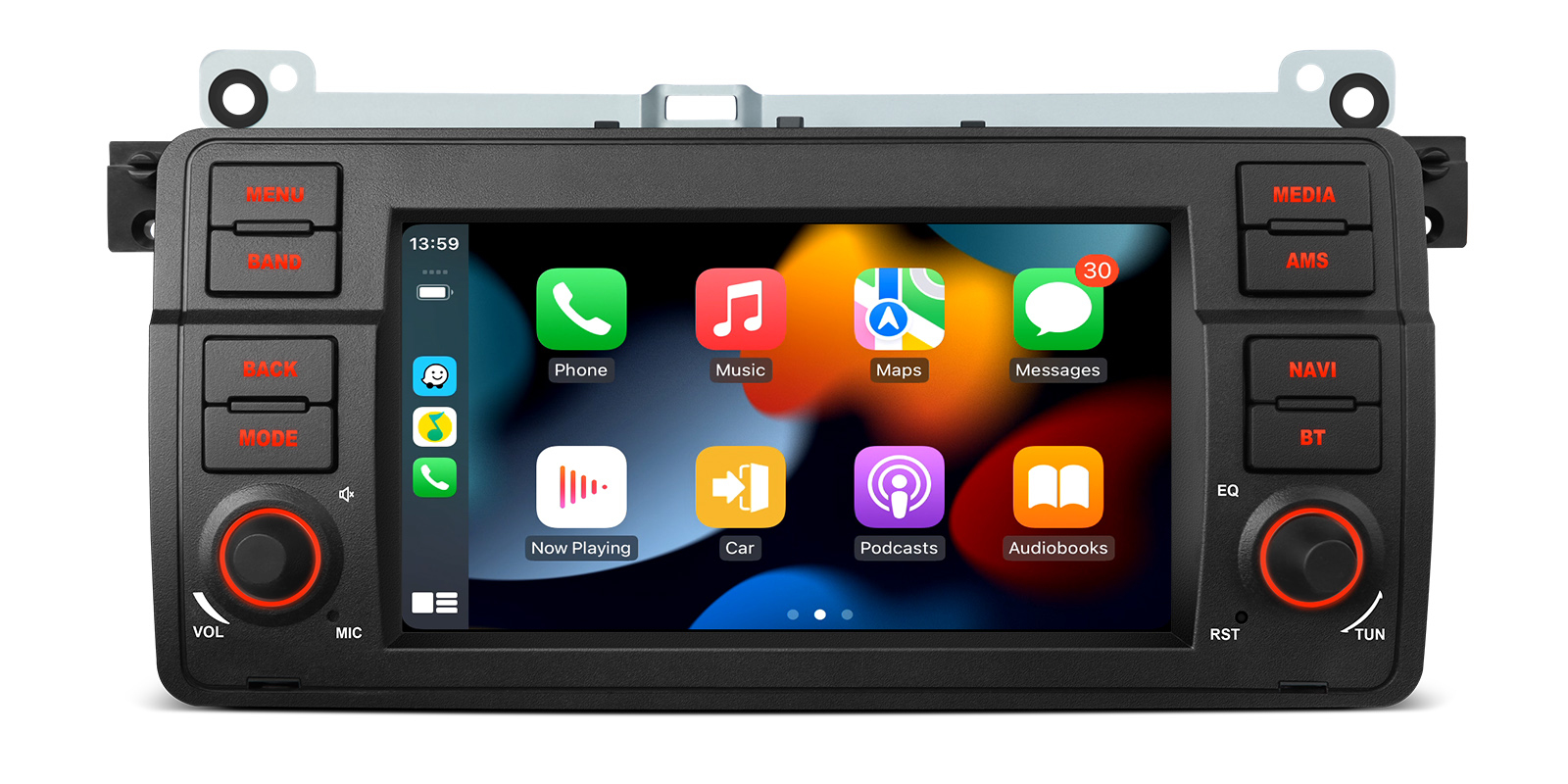

Wireless CarPlay
Your iPhone connects without a cable, so maps, music and calls appear on the 7 inch screen. Voice control means you can send a message or change route without taking your hands off the wheel. It supports iPhone 5 and later models with iOS 8 and above.

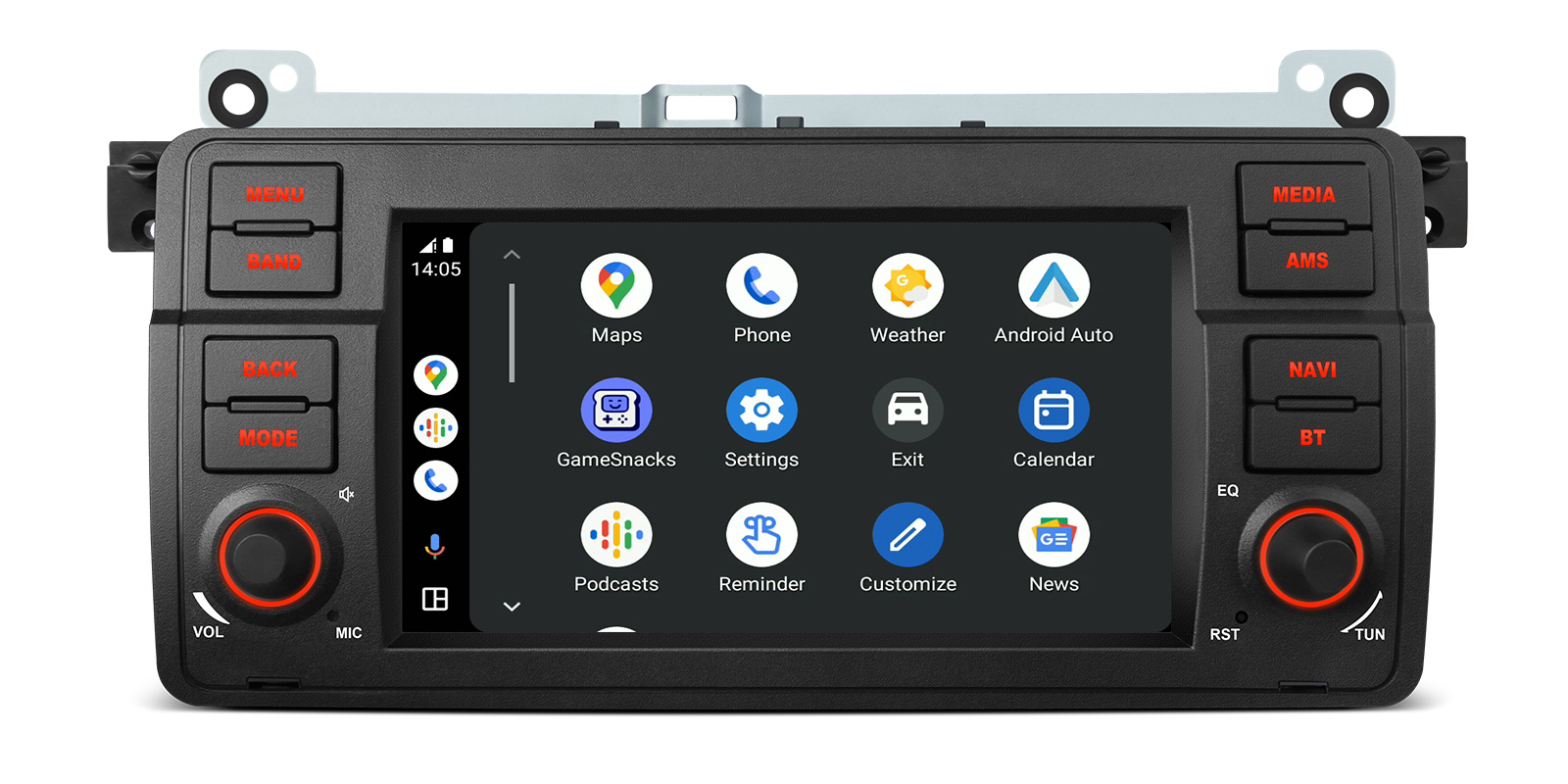

Android Auto
Full-featured Android Auto works wirelessly with Android phones on Android 4.3 and above, with navigation and music on the head unit.

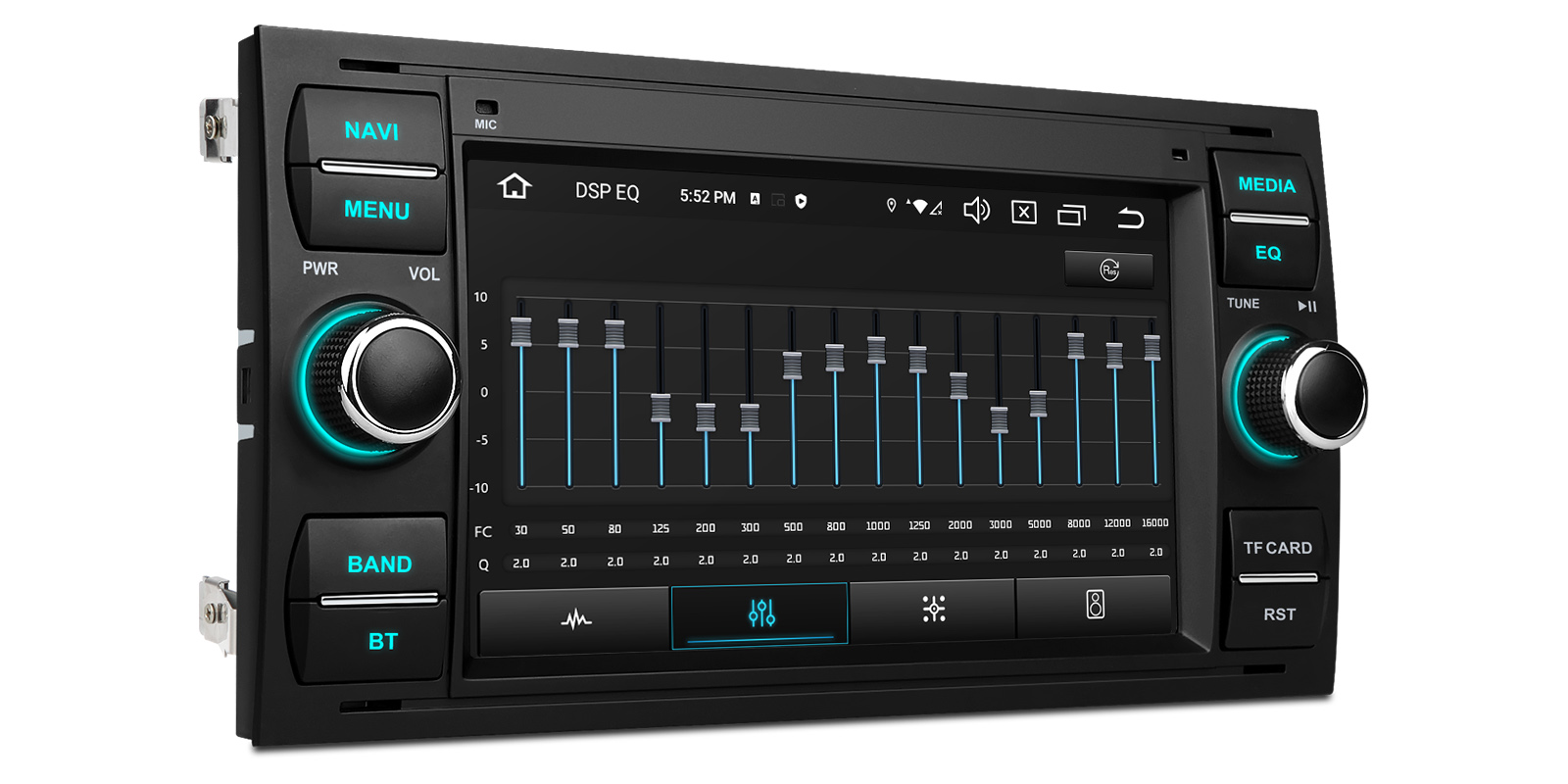

AKM DSP
The automotive-grade AKM DSP chip lets you choose a sound mode and set the EQ to suit what you listen to. A TDA7388 amplifier drives the speakers and the radio is an SI4755 with RDS.

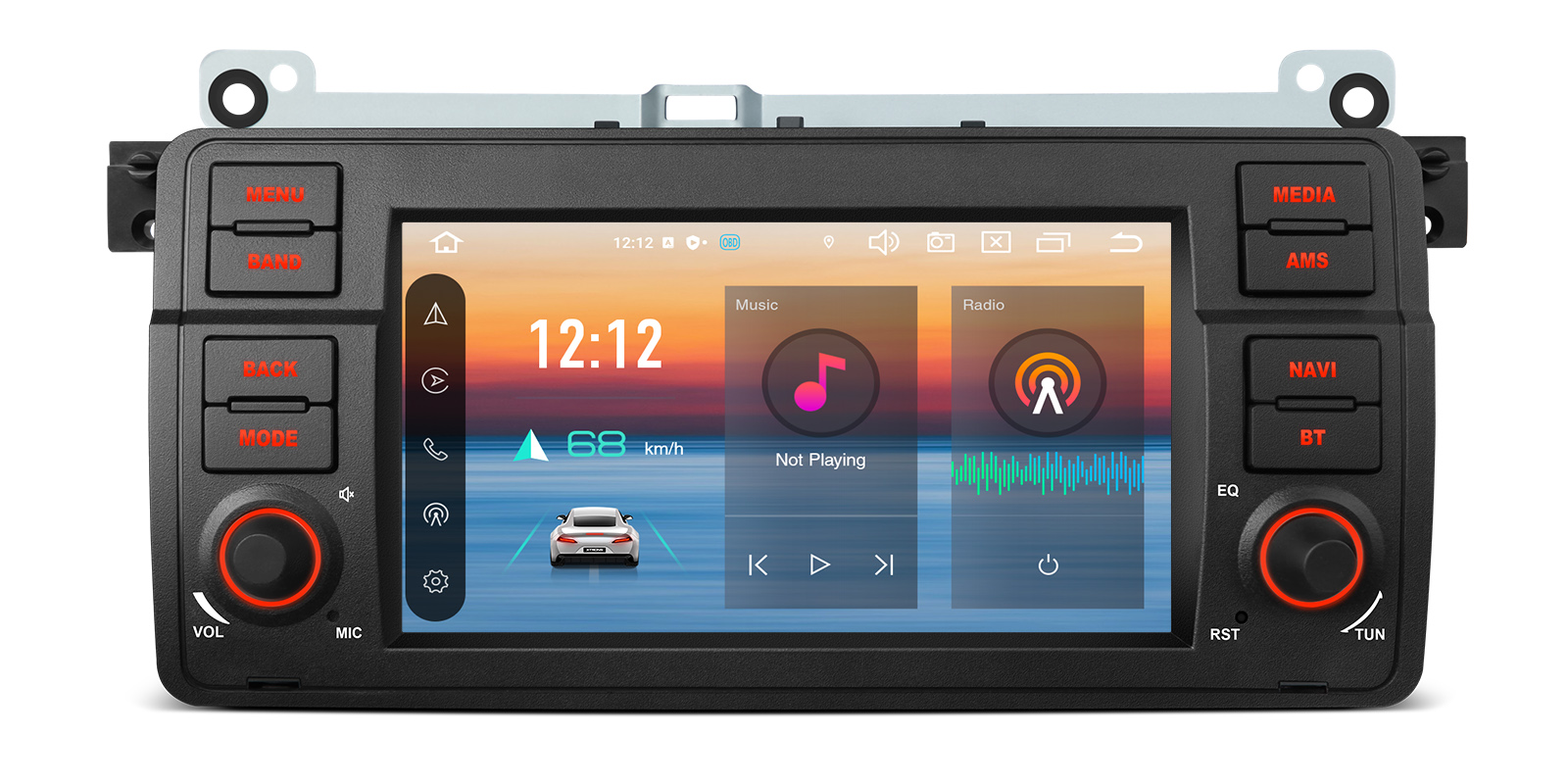

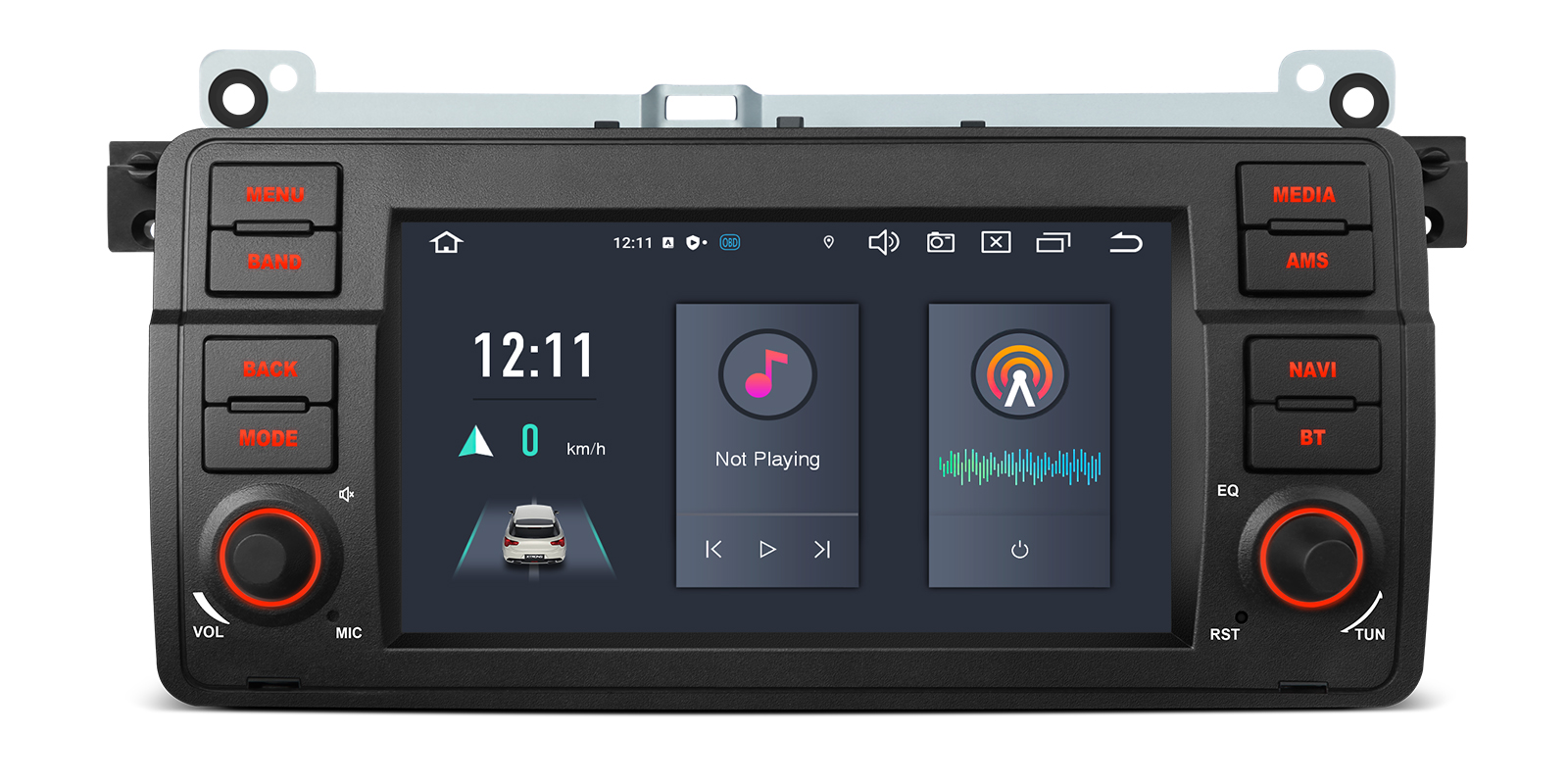

7 inch IPS screen
The 7” capacitive touch screen runs at 1024×600 with G+G glass. IPS keeps the colours steady at wide angles, so the passenger sees the same picture. 2K video playback is supported.
Global 4G
Insert a Micro-SIM card and the unit has its own 4G mobile broadband for live maps and streaming. A 4G antenna and SIM card slot cable are included, and USB tethering is supported too.
Wi-Fi
Wi-Fi connects the unit to a hotspot or home network, and a Wi-Fi antenna is in the box.
GPS navigation

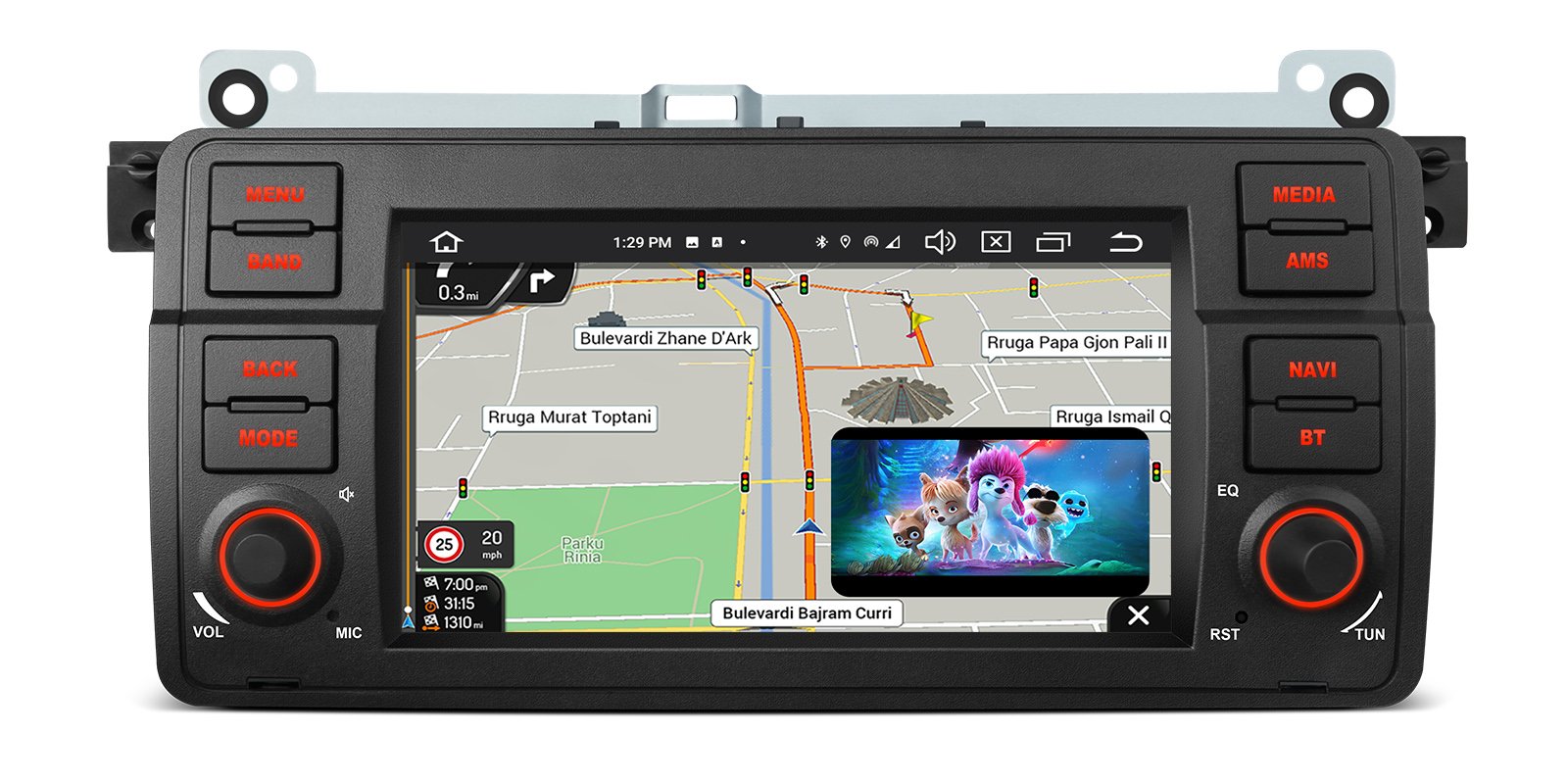

GPS navigation is built in with a GPS antenna supplied. Use an Android maps app or navigate through CarPlay or Android Auto.
Microphone
A microphone is included to place near the driver for clearer hands-free calls.
Screen mirroring
Mirror your phone onto the screen for apps that don't run in CarPlay or Android Auto.
USB
2 USB cables are included for phones and memory sticks.
DAB with an external tuner
DAB radio is supported with an external tuner, sold separately.
Camera support
AHD cameras are supported and a camera cable is in the box. The camera is sold separately.

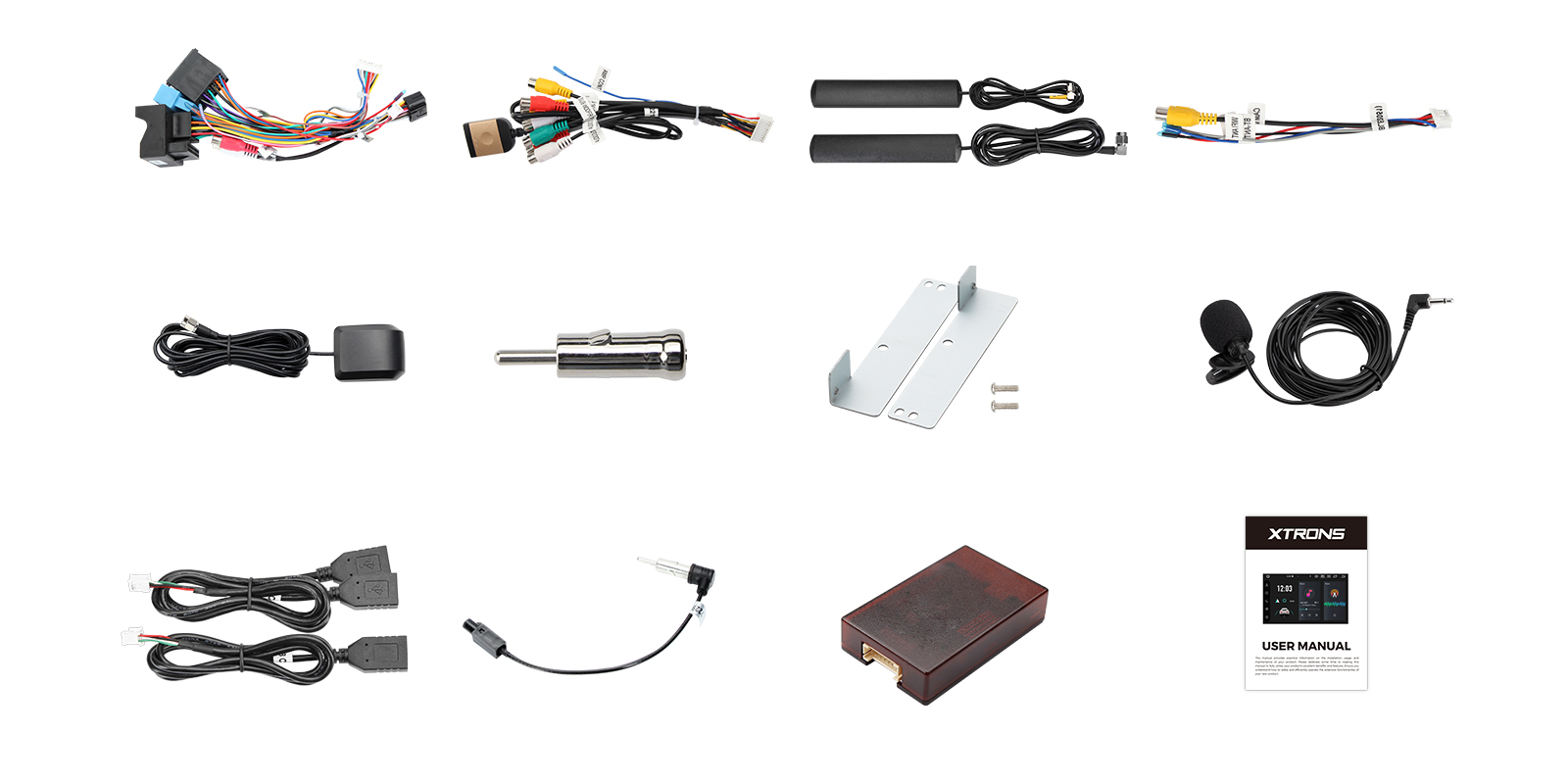

What's in the box
- 1 x 4G Antenna
- 1 x Camera Cable
- 1 x CANbus Box
- 1 x GPS Antenna
- 1 x Microphone
- 1 x Radio Antenna Cable
- 1 x Radio Cable Adapter
- 1 x SIM Card Slot Cable
- 1 x User Manual
- 1 x Wi-Fi Antenna
- 1x ISO Wiring Harness
- 2 x Screws
- 2 x USB Cable
- Installation Holder

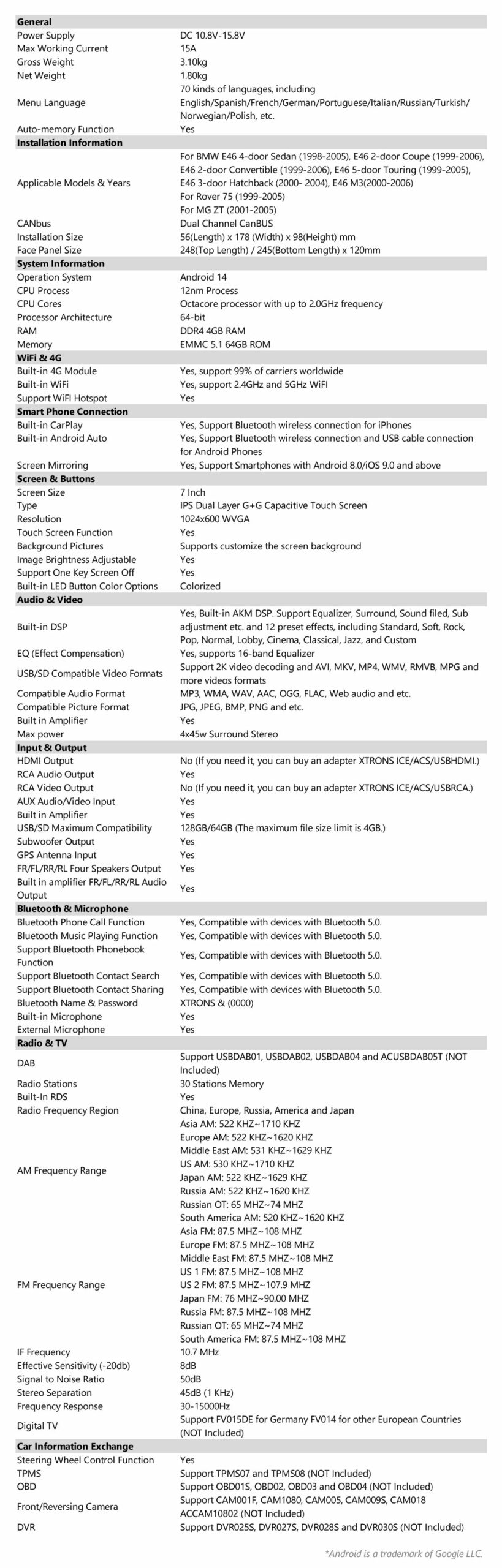

| Operating system | Android 14 |
|---|---|
| Processor | 12nm octa core 2.0GHz processor |
| Memory | 4GB DDR4 RAM + 64GB Solid State ROM |
| Operating temperature | −30°C to +80°C |
| Screen | 7” 1024×600 Capacitive Touch Screen |
|---|
| Radio | SI4755 Radio with RDS |
|---|---|
| Amplifier | TDA7388 Amplifier |
| Android phones | Supports Android phones with Android 4.3 and above |
|---|---|
| iPhone | Supports iPhone 5 and later models with iOS 8 and above |

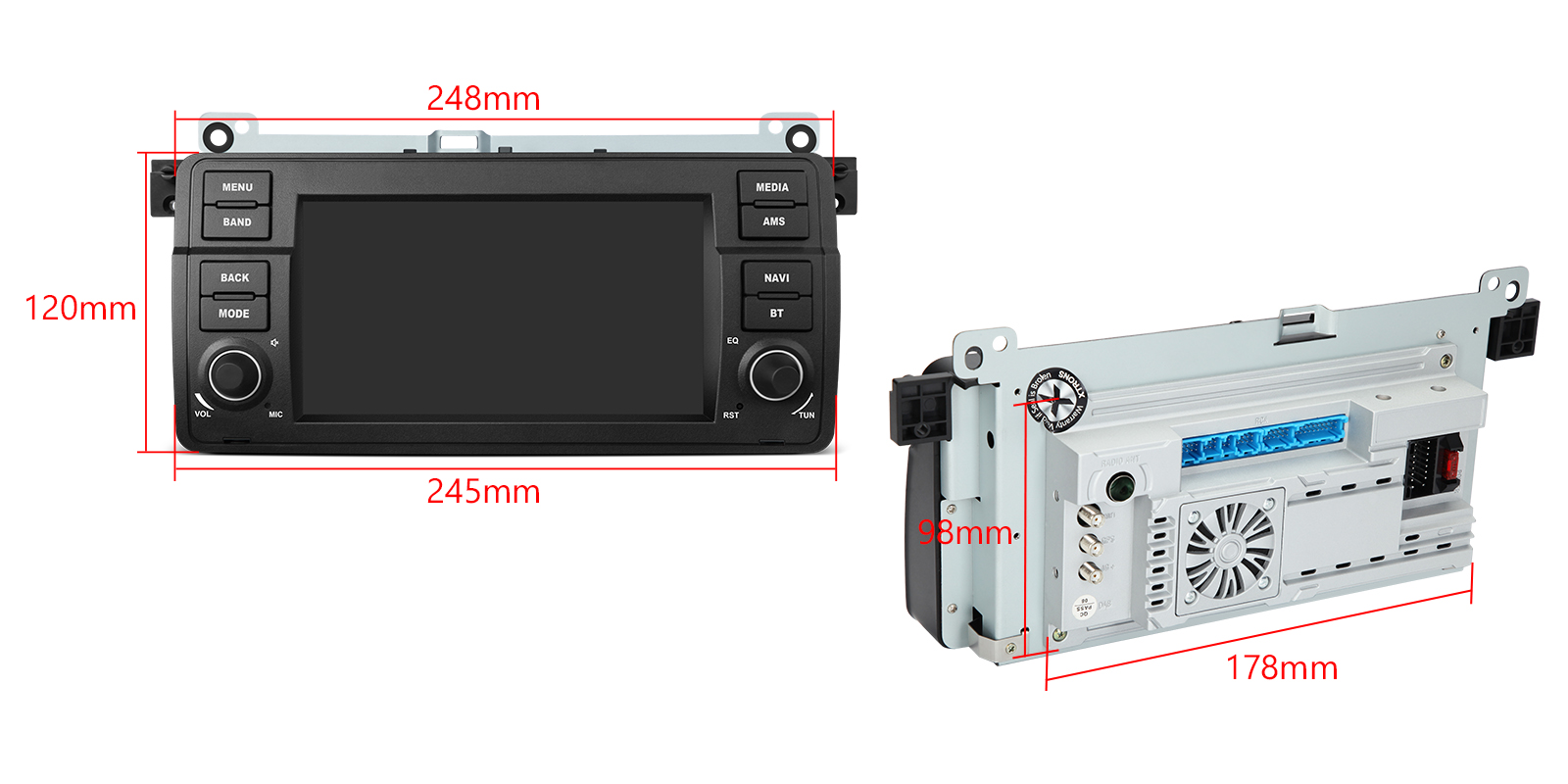

| Face panel | 248/245x120mm |
|---|

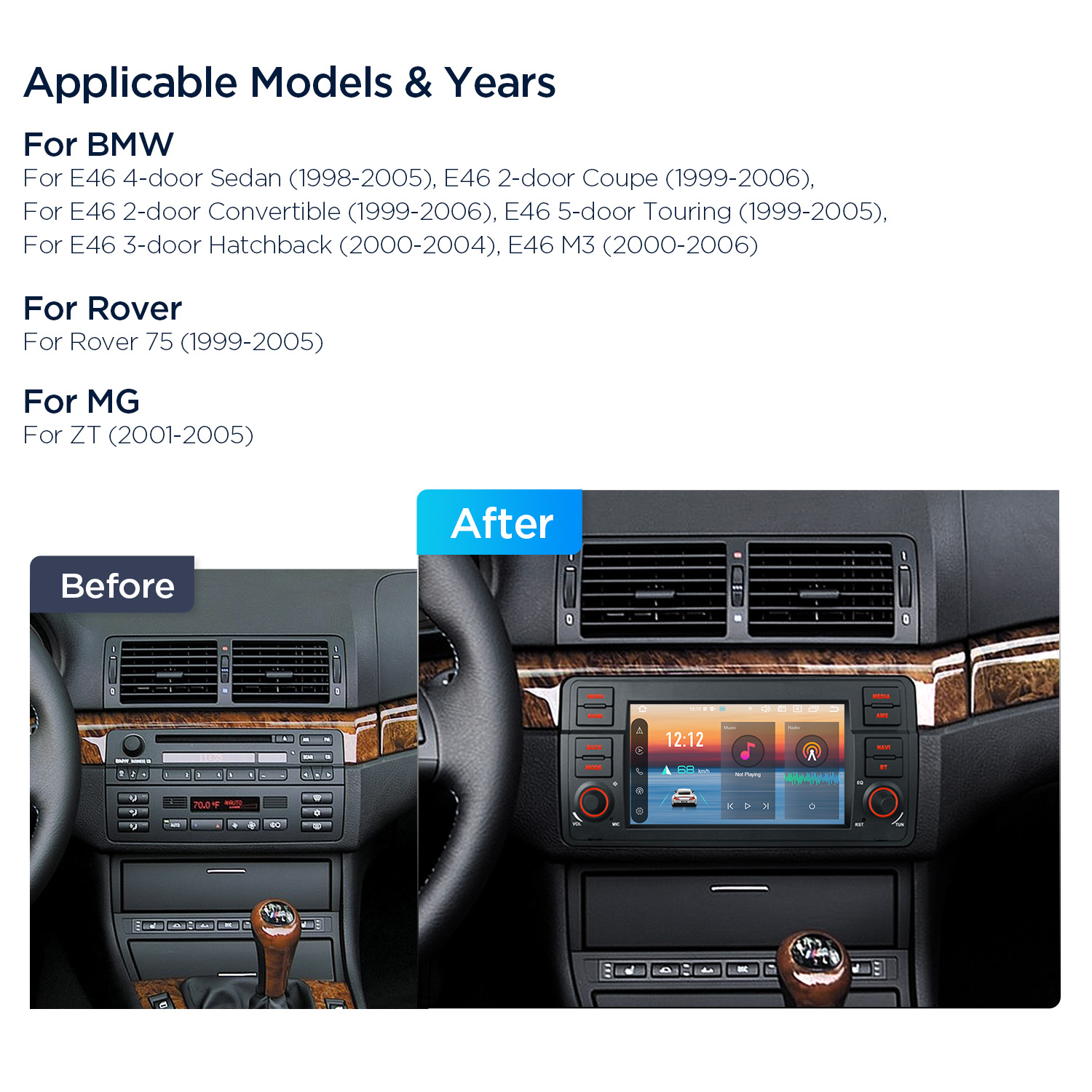

- For BMW E46 4-door Sedan (1998-2005), E46 2-door Coupe (1999-2006), For E46 2-door Convertible (1999-2006), E46 5-door Touring (1999-2005), For E46 3-door Hatchback (2000-2004), E46 M3 (2000-2006)
- For Rover 75 (1999-2005)
- For MG ZT (2001-2005)
- Connect the blue plug in XTRONS ISO wiring harness ONLY if there is a 12-pin plug in your car.
- Caution: Please make sure that all the functions operate properly before trimming.

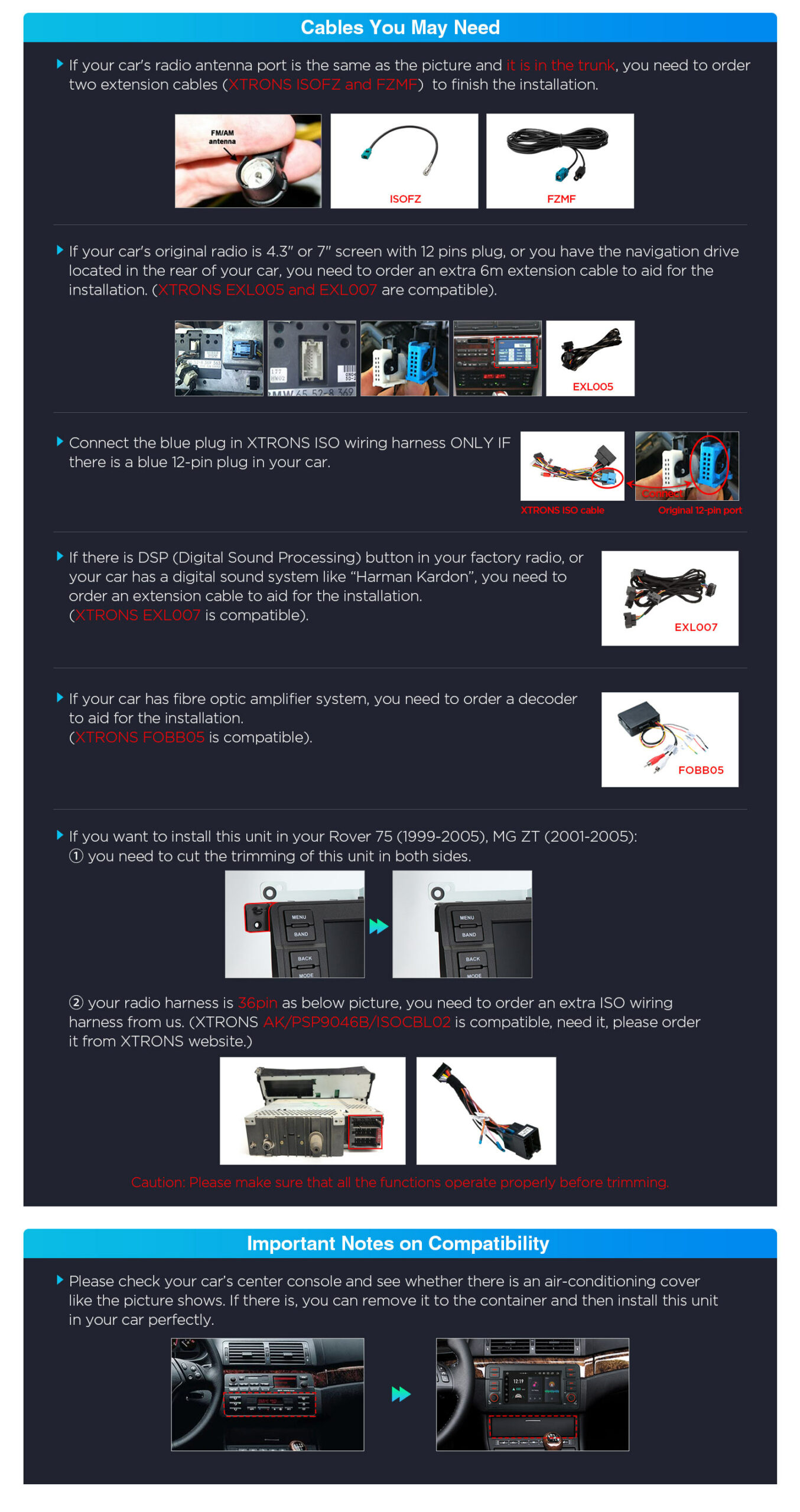

The unit is a custom fit with a 248/245x120mm face panel and comes with an ISO wiring harness, CANbus box and installation holder. If there's an air-conditioning cover in the centre console, it moves to the container. Depending on the car you may need extra cables: ISOFZ and FZMF if the antenna port is at the rear, EXL005 or EXL007 for a factory 4.3" or 7" screen or rear navigation drive, EXL007 for a DSP button or Harman Kardon system, and the FOBB05 decoder for a fibre optic amplifier. In the Rover 75 and MG ZT the unit's side trim must be cut, and a 36pin harness needs the AK/PSP9046B/ISOCBL02.
My E46 has Harman Kardon. Will it work?
Yes, with an extension cable. The XTRONS EXL007 is compatible.
What if my car has a fibre optic amplifier?
You'll need a decoder; the XTRONS FOBB05 is compatible.
Does it fit the Rover 75 and MG ZT without changes?
The trim on both sides of the unit has to be cut, and cars with a 36pin harness need the AK/PSP9046B/ISOCBL02. Test everything before trimming.
What SIM card does it take?
A Micro-SIM card.
