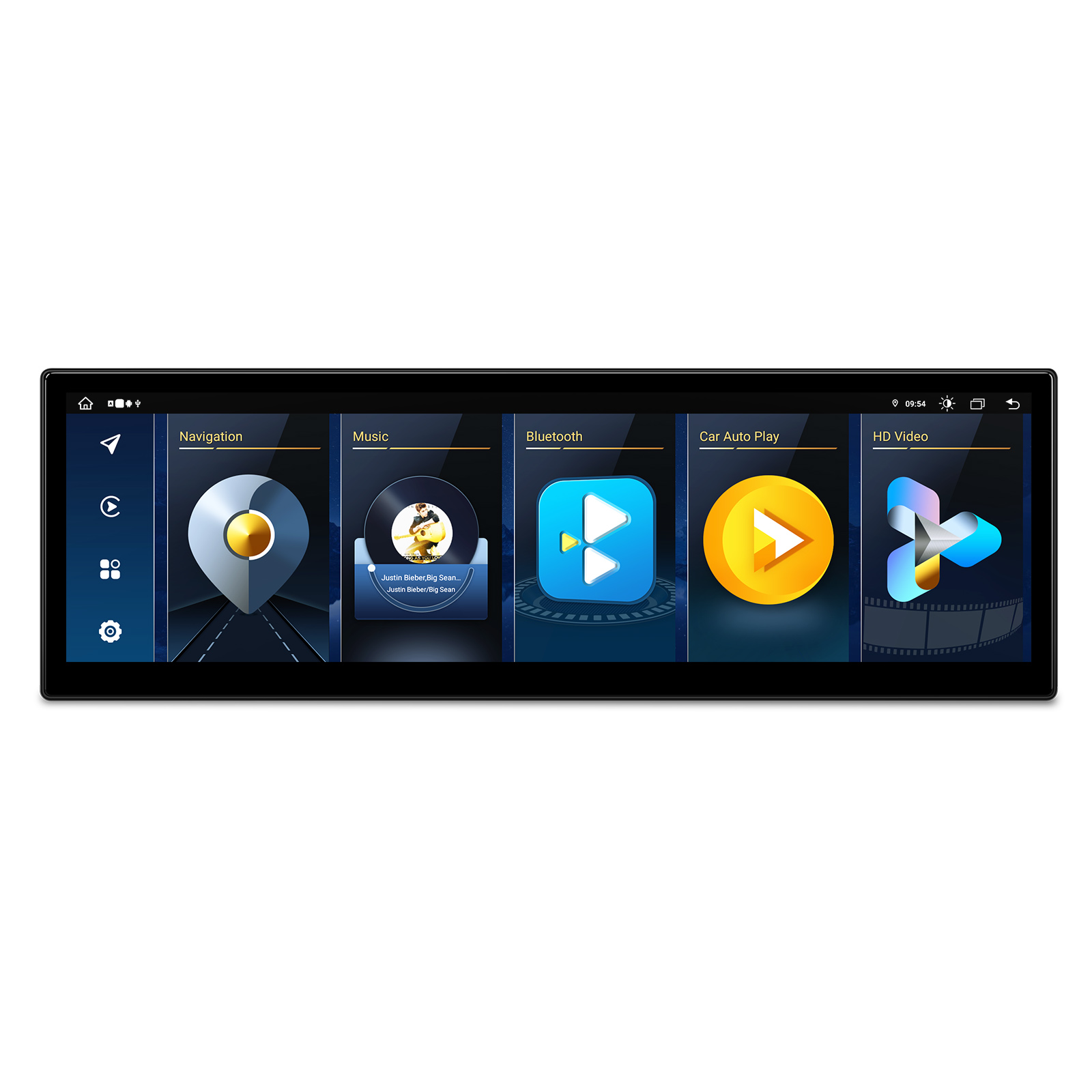

BMW 6 Series F06 F12 F13 NBT 14.9 inch 2K Android Screen with Wireless CarPlay, Android Auto and 4G | QLBH44SXNB
SKU: QLBH44SXNB
£535.49Was £629.99Save £94.50
Check if this fits your car
1
Key specifications
- Processor
- 12nm Octa-core chip
- Cores
- (2xCortex-A75 + 6xCortex-A55)
- Memory
- 8GB DDR4 RAM and 128GB Solid State ROM
- Operating system
- Android 14
- Screen
- 14.9″ Grade-A 2K IPS screen
- Aspect ratio
- 32:9

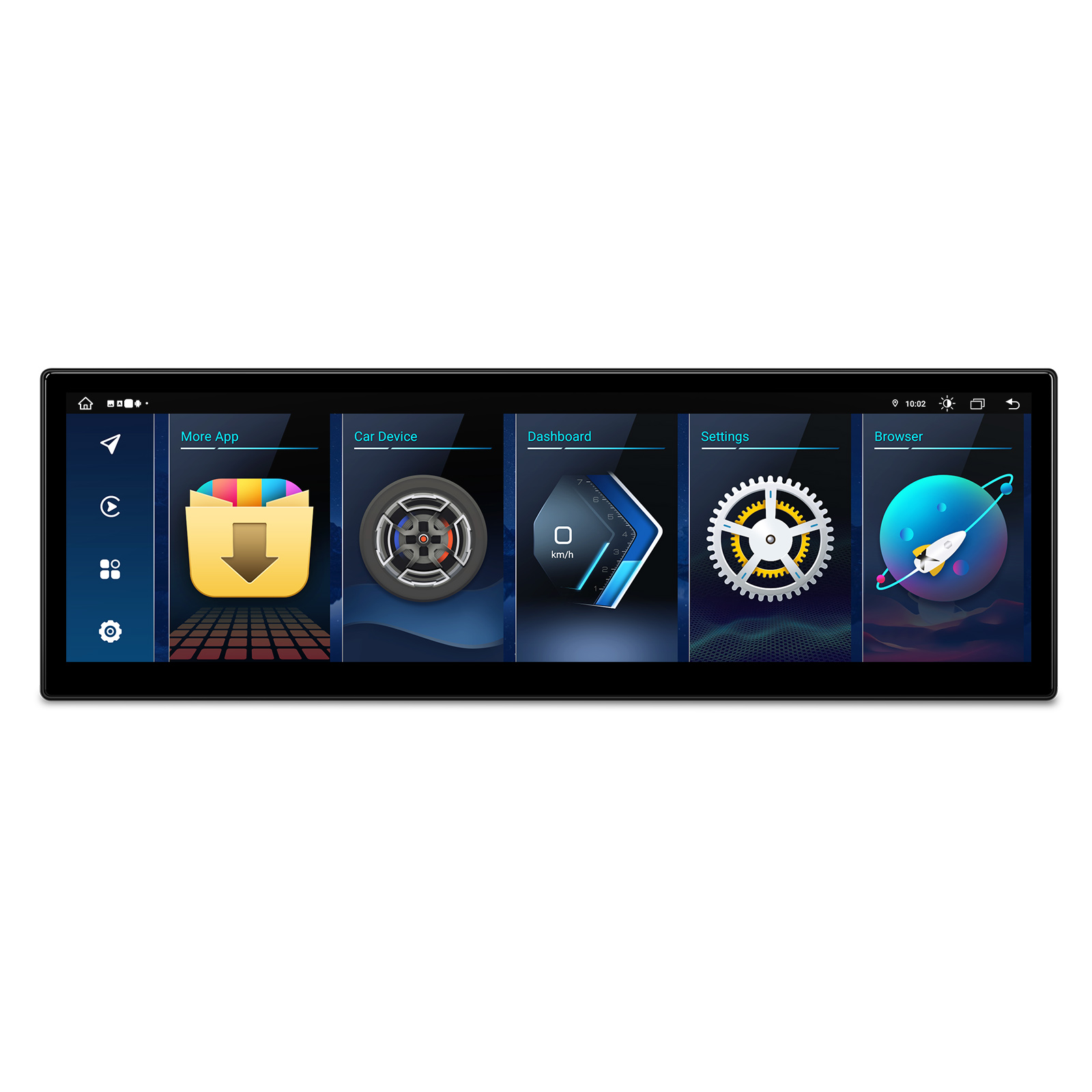

A 14.9 inch 2K Android 14 screen for the BMW 6 Series F06/F12/F13 (2013-2017) with the original NBT system. It runs alongside the car's own system, with no need to remove the CD player, and adds wireless CarPlay, Android Auto, built-in 4G and a DSP.

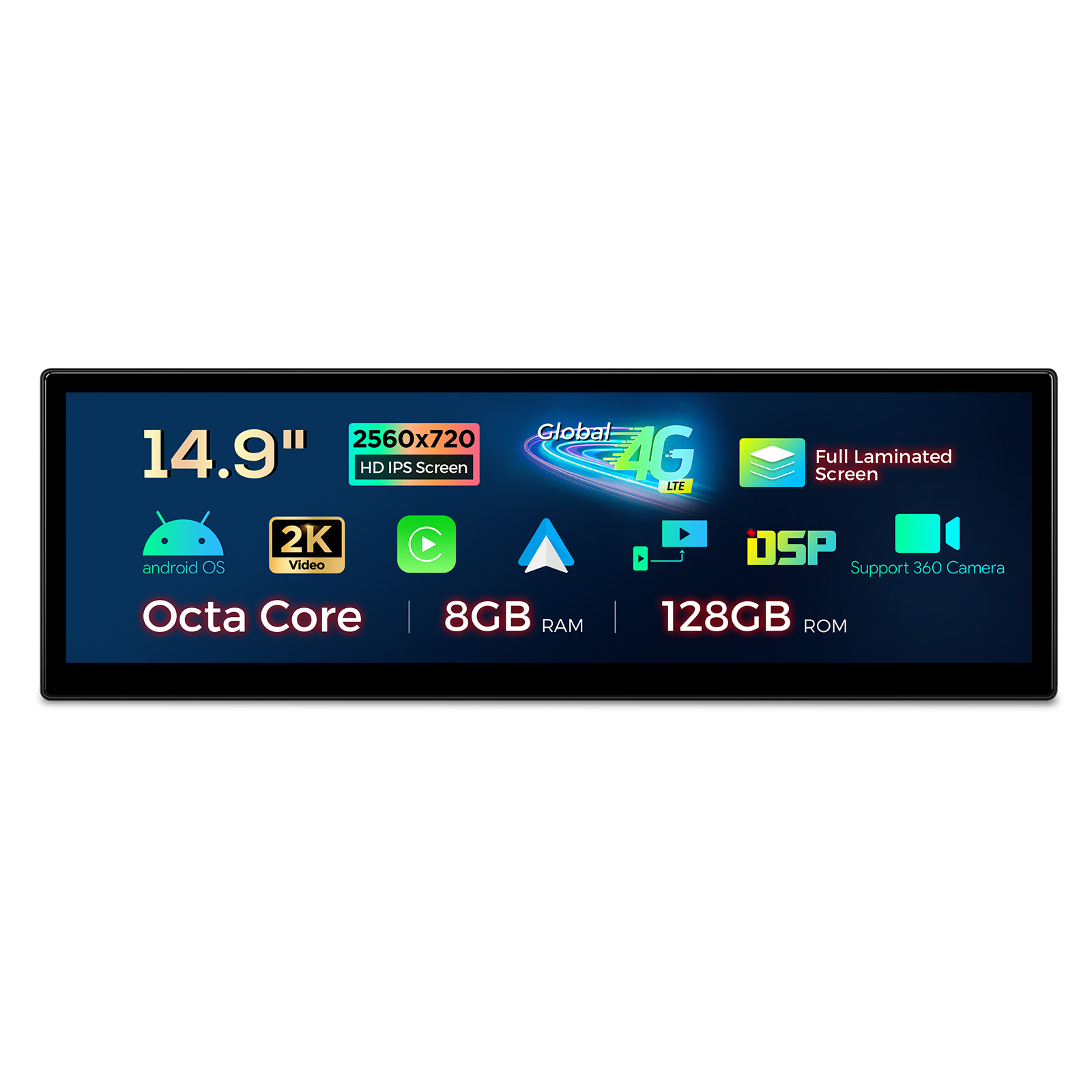

- 14.9 inch 2K IPS screen with an ultra-wide 32:9 aspect ratio, fully laminated
- Wireless Apple CarPlay and Android Auto with voice control
- 12nm octa-core chip with 8GB DDR4 RAM and 128GB storage
- Built-in 4G LTE with a SIM card slot
- Built-in DSP for tuning the sound

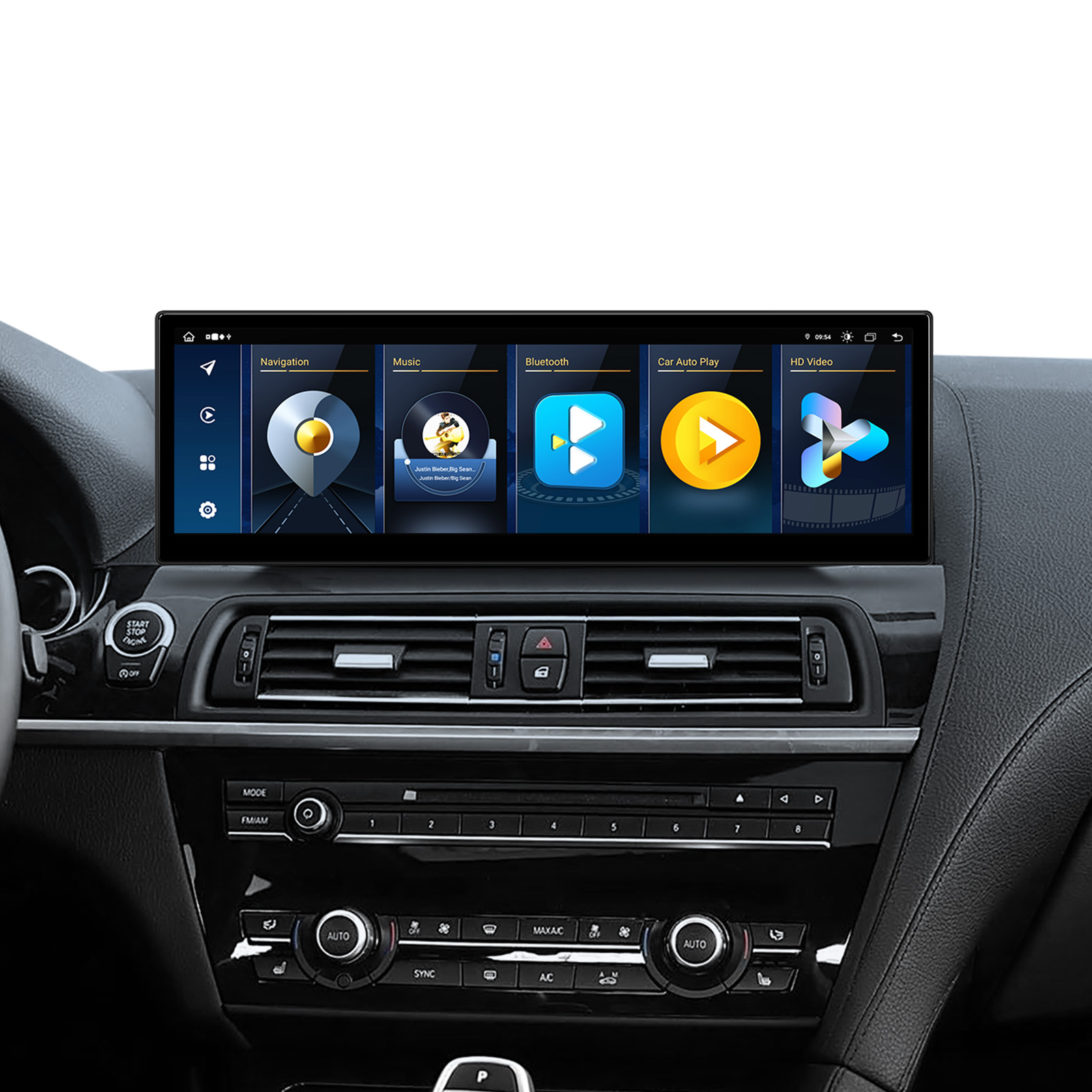

Made for the 6 Series with NBT
The screen is for the 6 Series F06/F12/F13 from 2013-2017 with the original NBT system. It runs Android alongside the BMW system, and the original CD player stays in place.
An NBT radio usually has a 6-pin LVDS port, a MEDIA button or touch pad on the iDrive controller and the BMW ConnectedDrive interface. Check for these before ordering, as the unit only works with NBT.
A 12nm octa-core chip (2xCortex-A75 + 6xCortex-A55) with 8GB DDR4 RAM and 128GB solid state storage keeps Android 14 quick.

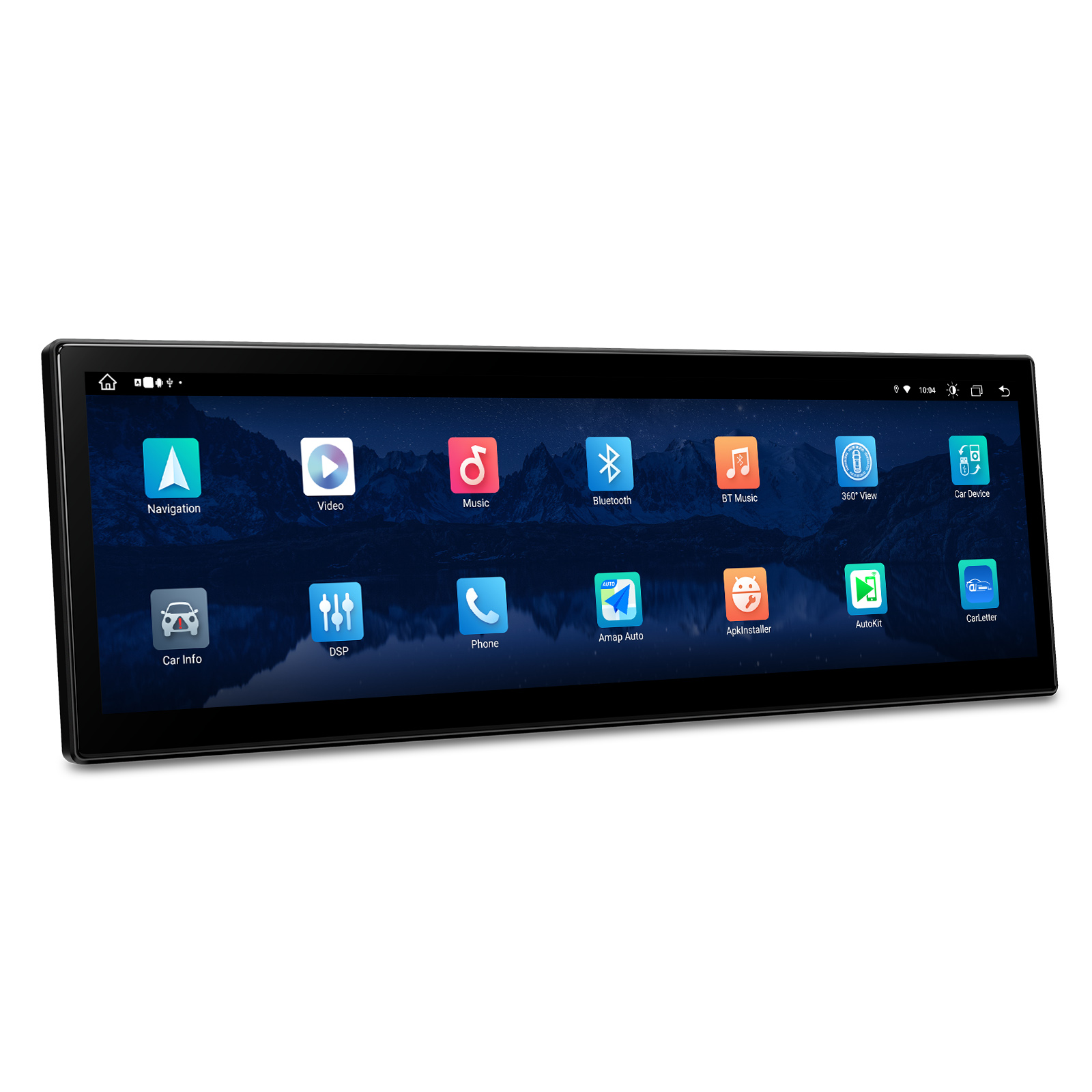

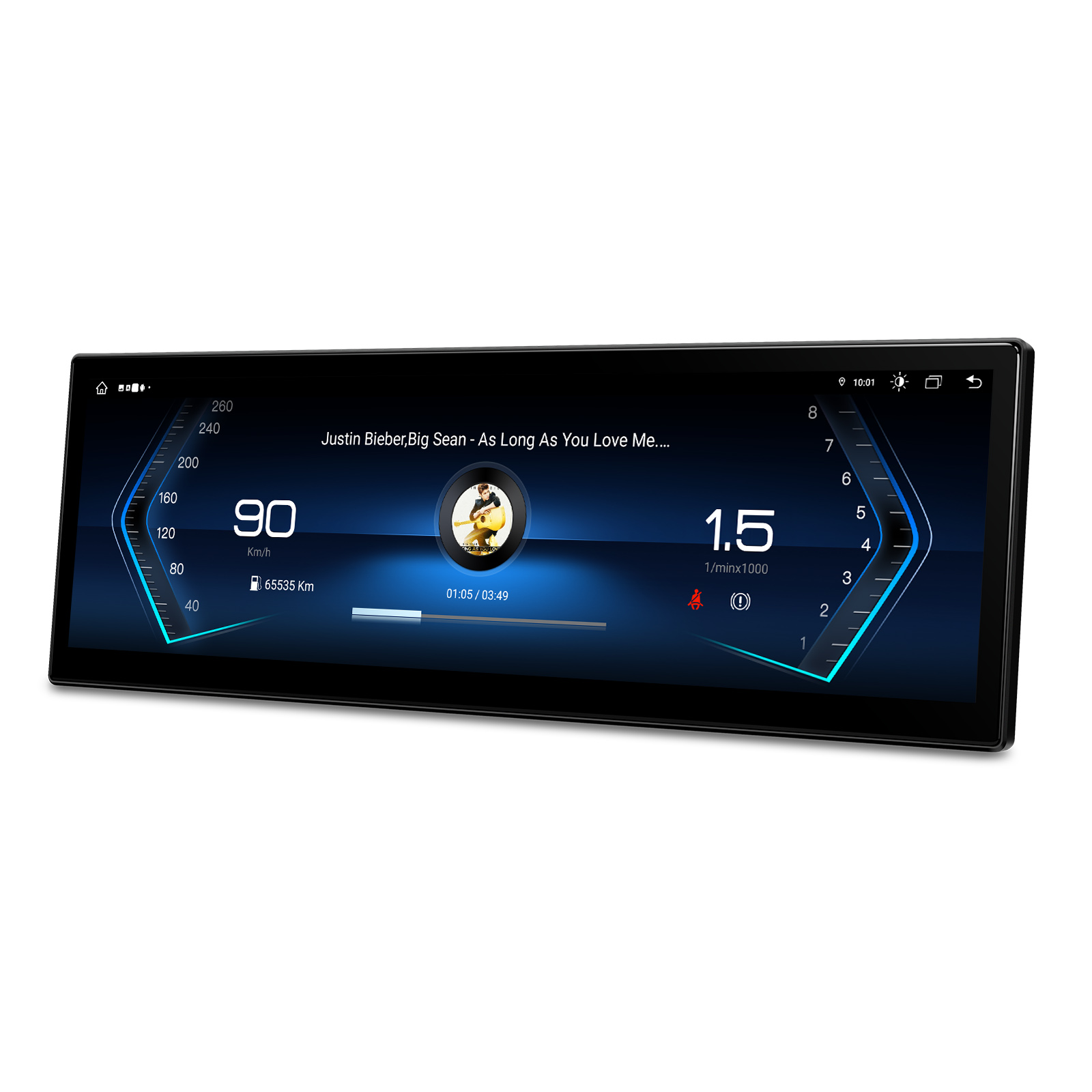

14.9 inch 2K IPS screen
The Grade-A 2K IPS screen has an ultra-wide 32:9 aspect ratio, which works like two screens side by side: keep the map open while you change the music.

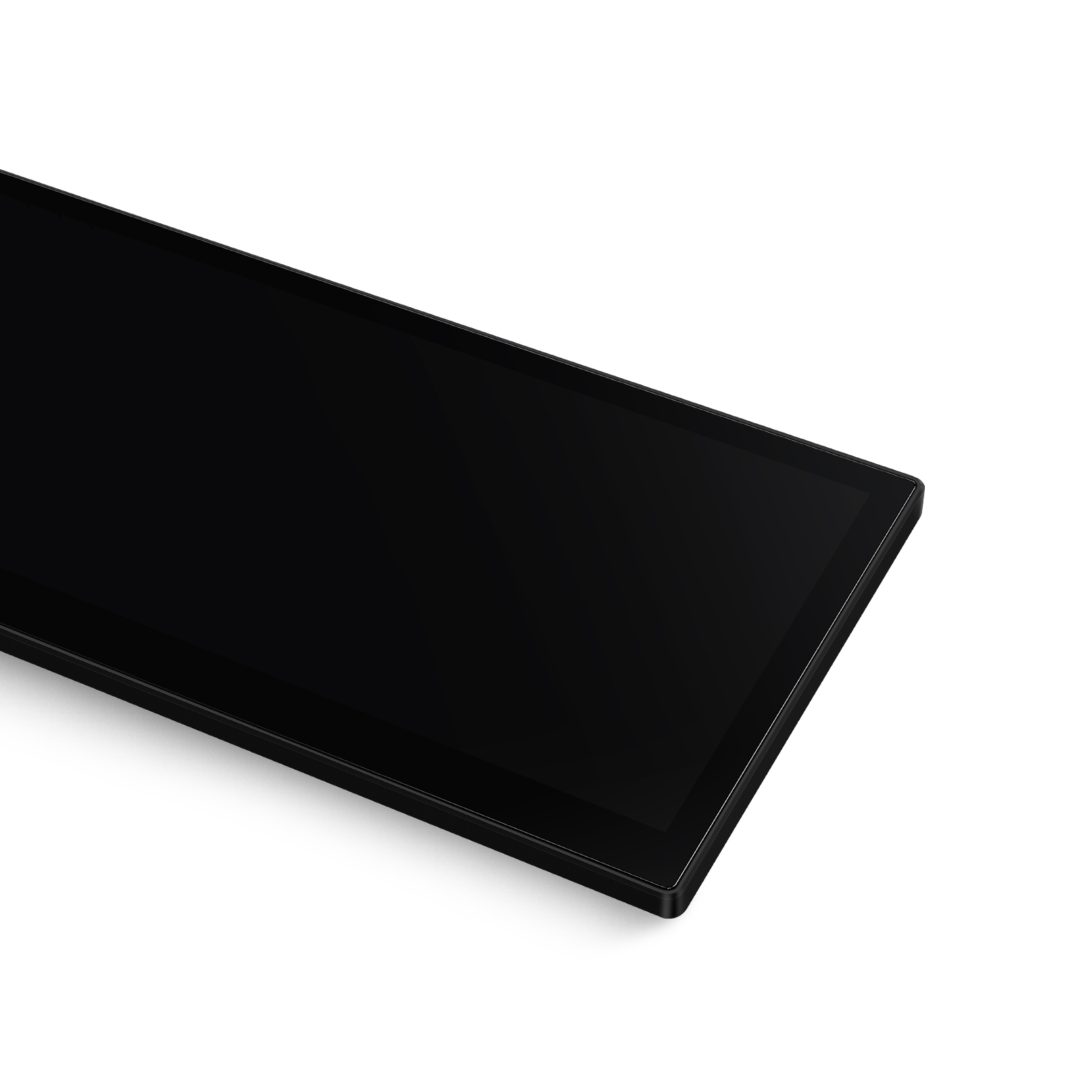

It's fully laminated with a slim custom bezel and 2.5D edge, giving the dashboard the full-screen look of newer models. IPS keeps it clear from both front seats.

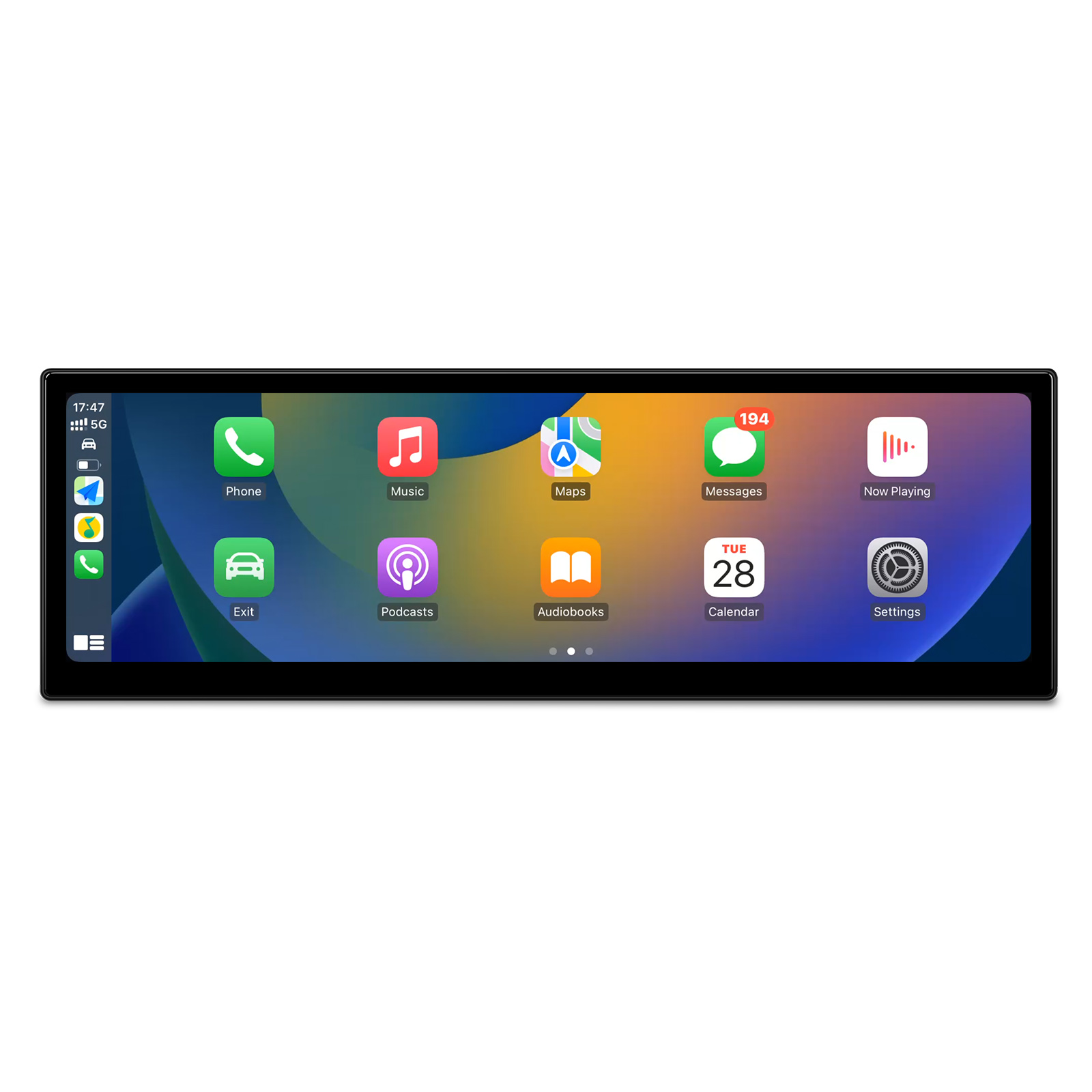

Wireless Apple CarPlay
Your iPhone connects without a cable and the screen becomes a display and controller for it. Maps, music and calls come up on the dashboard, and voice commands keep your hands free.

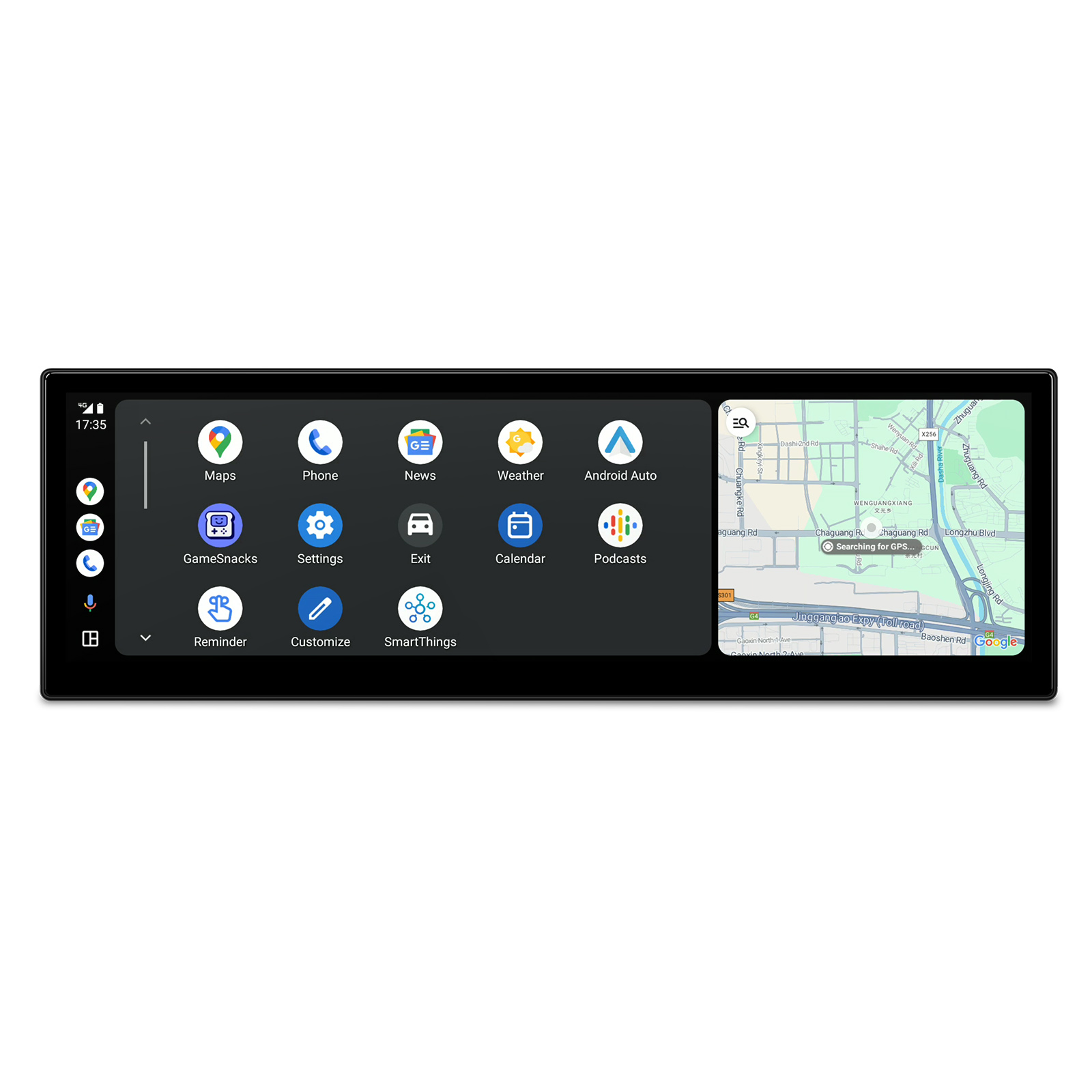

Android Auto
Android phones get the same wireless set-up, with Google Maps, music apps and messages on the big screen and voice control for most tasks.
Built-in 4G
Insert a SIM card and the unit has its own 4G connection for navigation, video and apps, wherever you are, without relying on your phone. The 4G antenna is supplied.
Wi-Fi
Wi-Fi lets the unit connect to a phone hotspot or your home network for app downloads and updates.
Built-in DSP
The built-in DSP lets you adjust the sound to suit the 6 Series cabin, so music sounds balanced from the driver's seat.

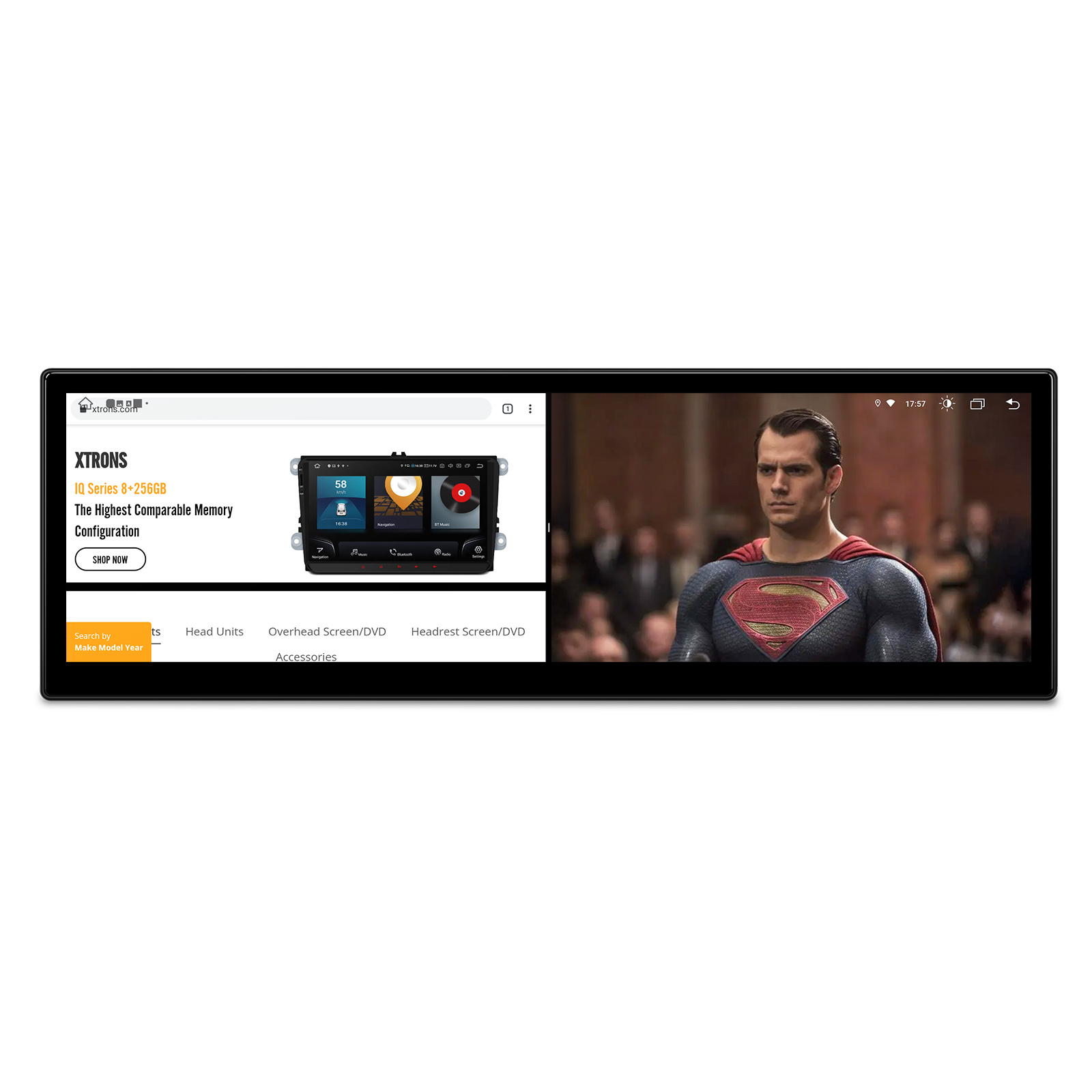

Screen mirroring
Mirror your phone's screen to the 14.9 inch display for apps that don't run in CarPlay or Android Auto.
Mini microphone
A mini microphone comes with the unit. Mount it near the driver for clearer hands-free calls and voice commands.

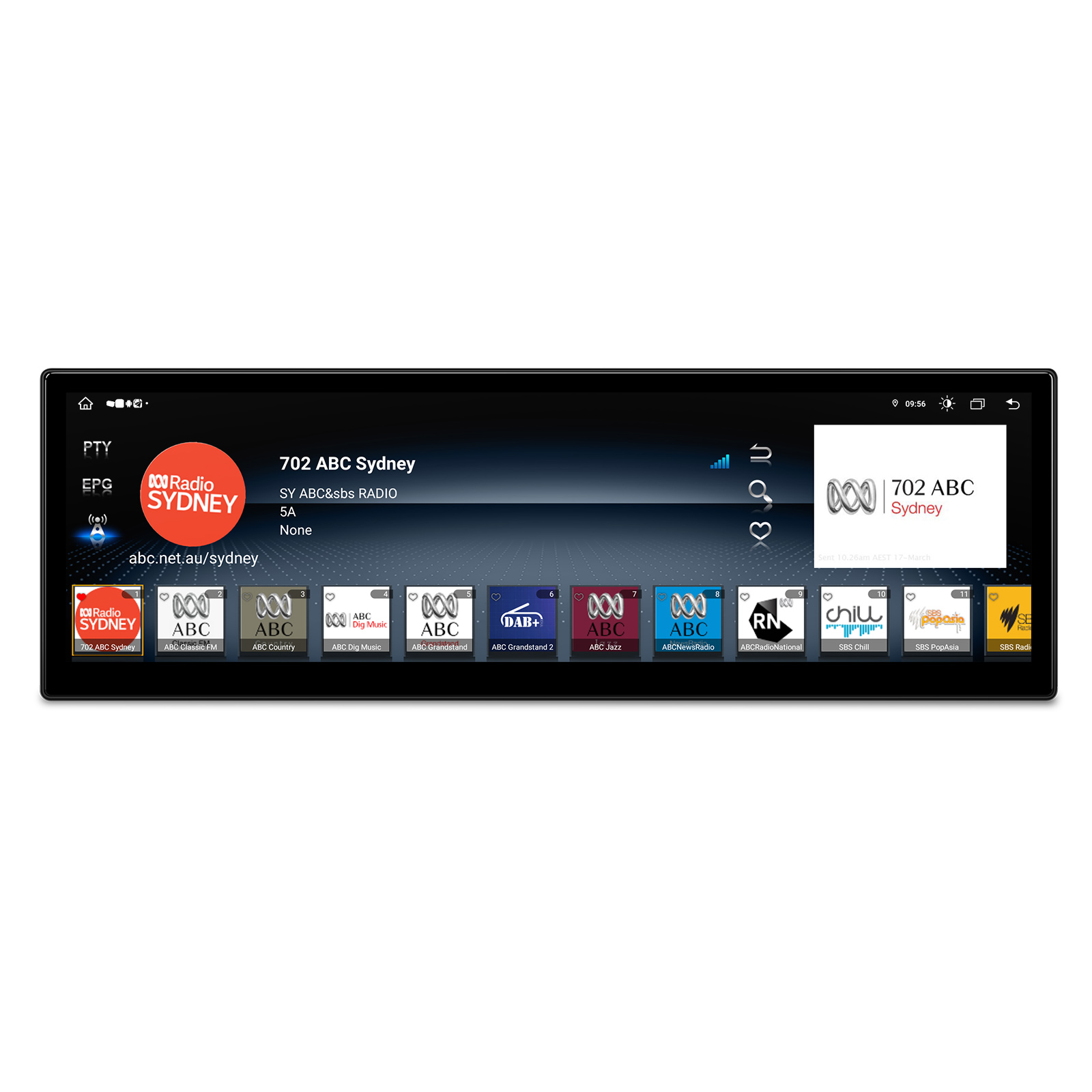

DAB with an external receiver
Digital radio works with an external DAB receiver, which the unit supports. It isn't built in.
USB
A USB cable is supplied for connecting a phone or USB storage.
Works with

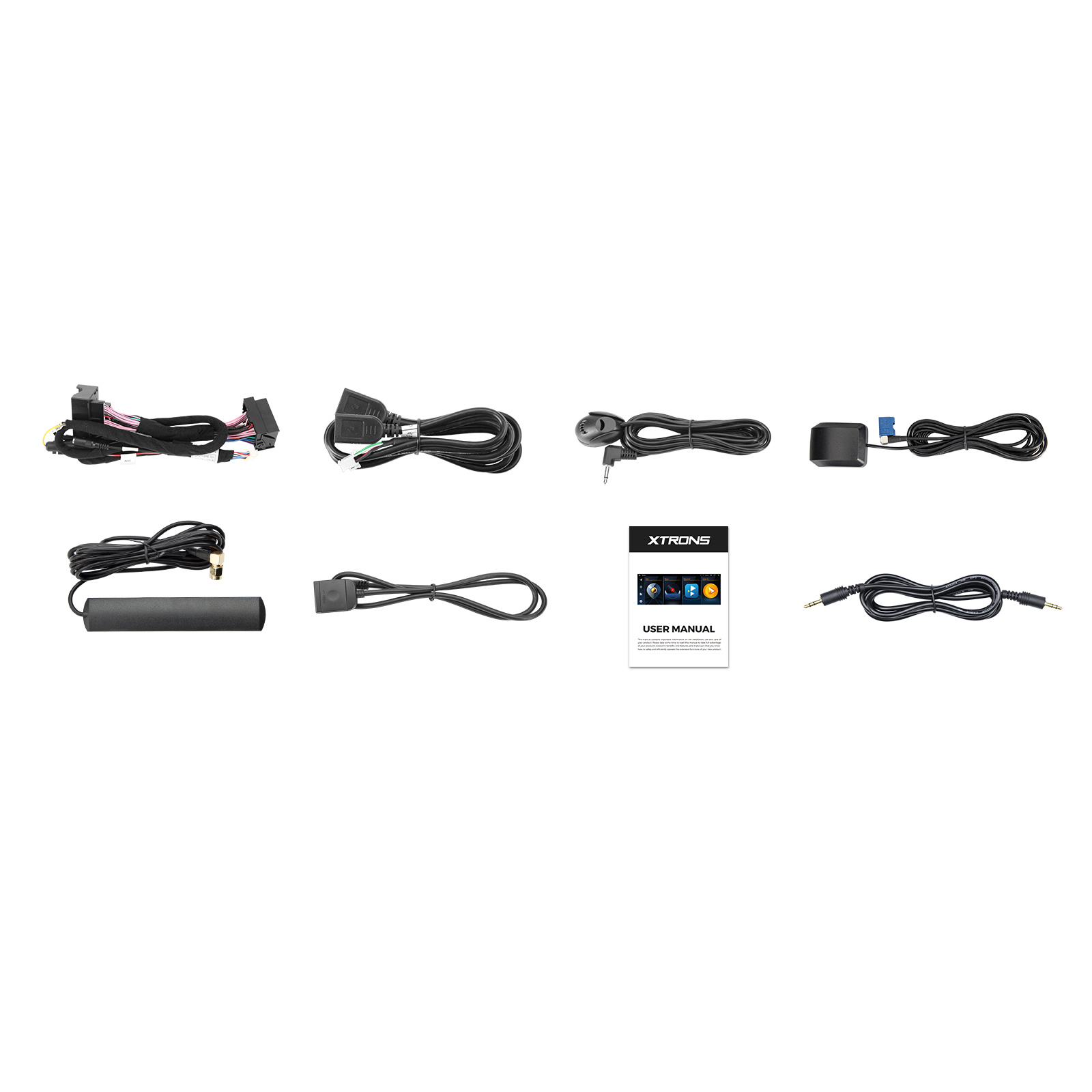

What's in the box
- 1 x 4G Antenna
- 1 x 4G SIM Card Slot
- 1 x Audio Cable
- 1 x GPS Antenna
- 1 x ISO Wiring Harness
- 1 x Mini Microphone
- 1 x USB Cable
- 1 x User Manual
| Processor | 12nm Octa-core chip |
|---|---|
| Cores | (2xCortex-A75 + 6xCortex-A55) |
| Memory | 8GB DDR4 RAM and 128GB Solid State ROM |
| Operating system | Android 14 |
| Screen | 14.9″ Grade-A 2K IPS screen |
|---|---|
| Aspect ratio | 32:9 |
- BMW 6 Series (2004-2023)
- For BMW 6 Series F06/F12/F13 (2013-2017) NBT System Vehicles
- This unit ONLY works with the original BMW NBT system. A NBT system car radio usually comes with a 6-pin LVDS port, a "MEDIA" button on the iDrive controller or a touch pad iDrive controller and a BMW ConnectedDrive interface.
The screen replaces the factory display and connects with the supplied ISO wiring harness and audio cable. The original CD player stays where it is. Check your car has the NBT system before ordering.
How do I know my 6 Series has NBT?
An NBT radio usually has a 6-pin LVDS port, a MEDIA button or touch pad on the iDrive controller and the BMW ConnectedDrive interface.
Do I have to remove the CD player?
No. The original CD player stays in place.
Can I show two apps at once?
Yes. The ultra-wide 32:9 screen shows content side by side, like a dual screen.
Does it have DAB?
It supports an external DAB receiver, sold separately.
Reviews
What customers say
Bought this product? Sign in to write a review.

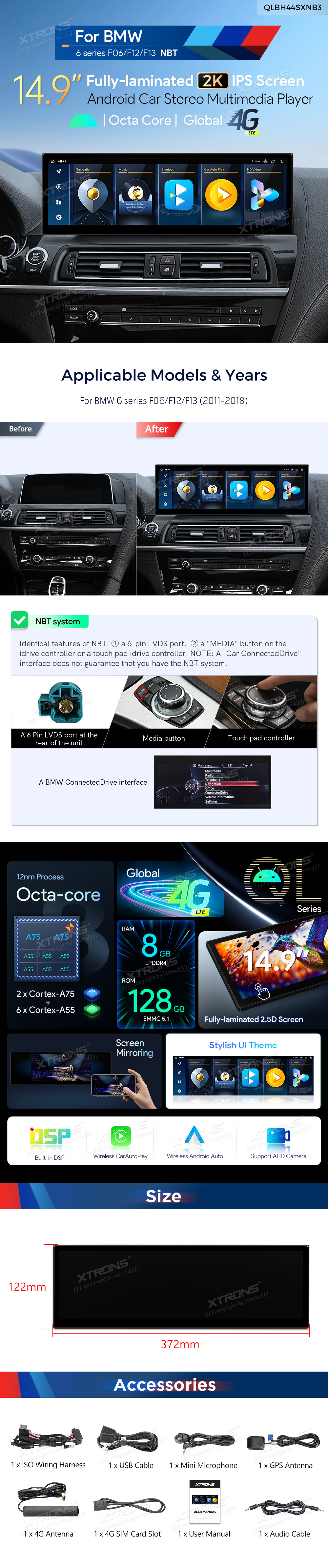

Full specification from XTRONS
