BMW 6 Series and M6 E63 E64 CCC 14.9 inch Android 14 Head Unit with Wireless CarPlay and 4G | QLBX4463CC3
SKU: QLBX4463CC3
£609.00Was £719.00Save £110.00
Check if this fits your car
1
Key specifications
- Processor
- 12nm Octa-core chip
- CPU cores
- (2xCortex-A75 + 6xCortex-A55)
- Memory
- 8GB DDR4 RAM and 256GB Solid State ROM
- Operating system
- Android 14
- Screen
- 14.9″ Grade-A 2K IPS screen
- Aspect ratio
- 32:9 aspect ratio
The XTRONS QLBX4463CC3 is a 14.9 inch 2K Android 14 screen for the BMW 6 Series E63 / E64 (2004-2010) and M6 (2005-2010) with the original CCC system. It brings wireless CarPlay, Android Auto, built-in 4G and a DSP, and the original CD player stays in place.
- 14.9 inch 2K IPS screen in an ultra-wide 32:9 format
- Wireless CarPlay and wireless Android Auto
- 12nm octa-core chip with 8GB DDR4 RAM and 256GB ROM
- Built-in 4G with a SIM card slot
- Works alongside the CCC system with no CD player removal

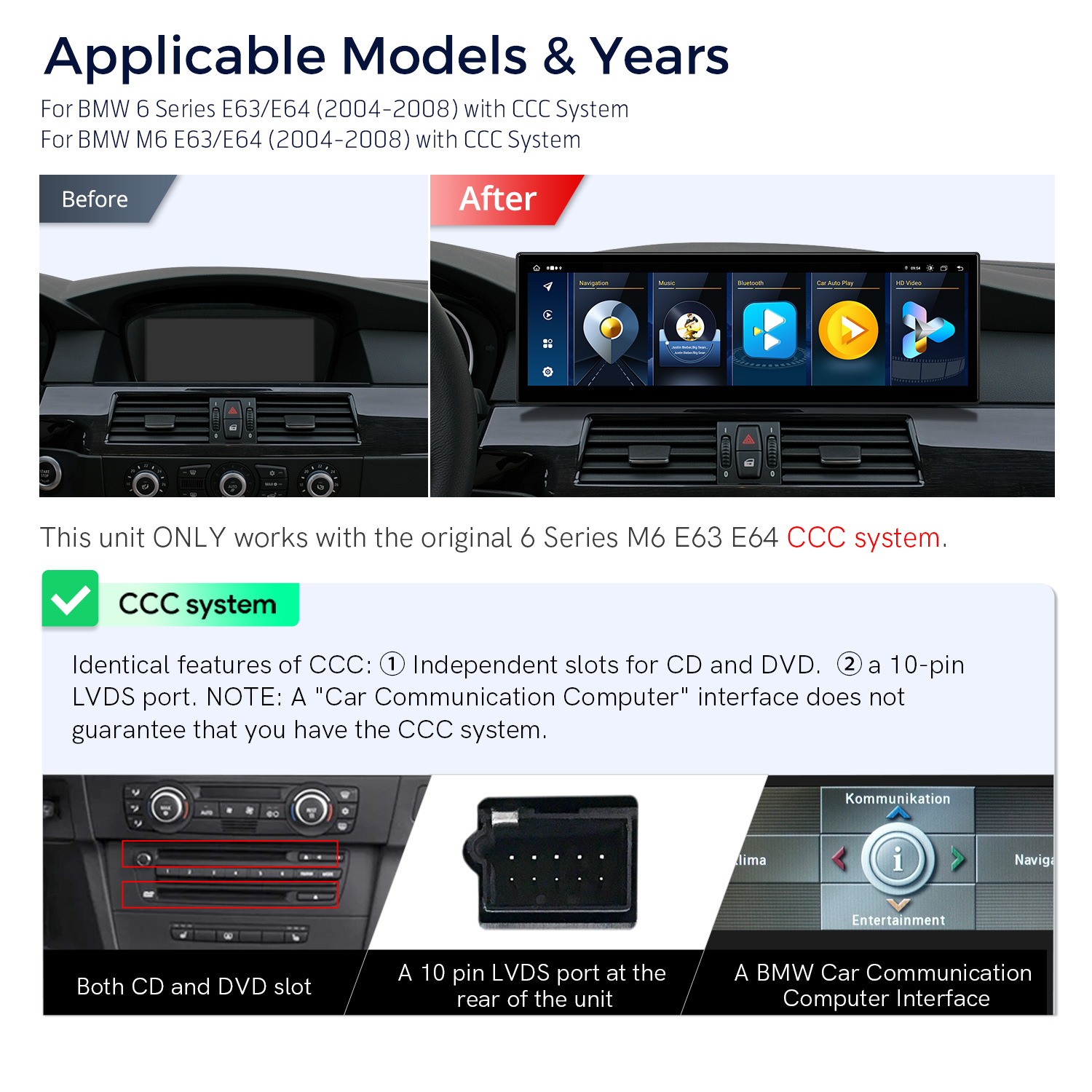

For the E63 and E64 with CCC
This unit only works with the original CCC system in the 6 Series and M6 E63 / E64. A CCC car usually has separate slots for CD and DVD and a 10-pin LVDS port. CIC (4-pin LVDS port and a CD button on the iDrive controller) and NBT (6-pin LVDS port with a MEDIA button or touch pad) are different systems, and the name shown on the iDrive screen alone doesn't confirm which one you have.
The Android screen works alongside the original system, so the CD player stays.

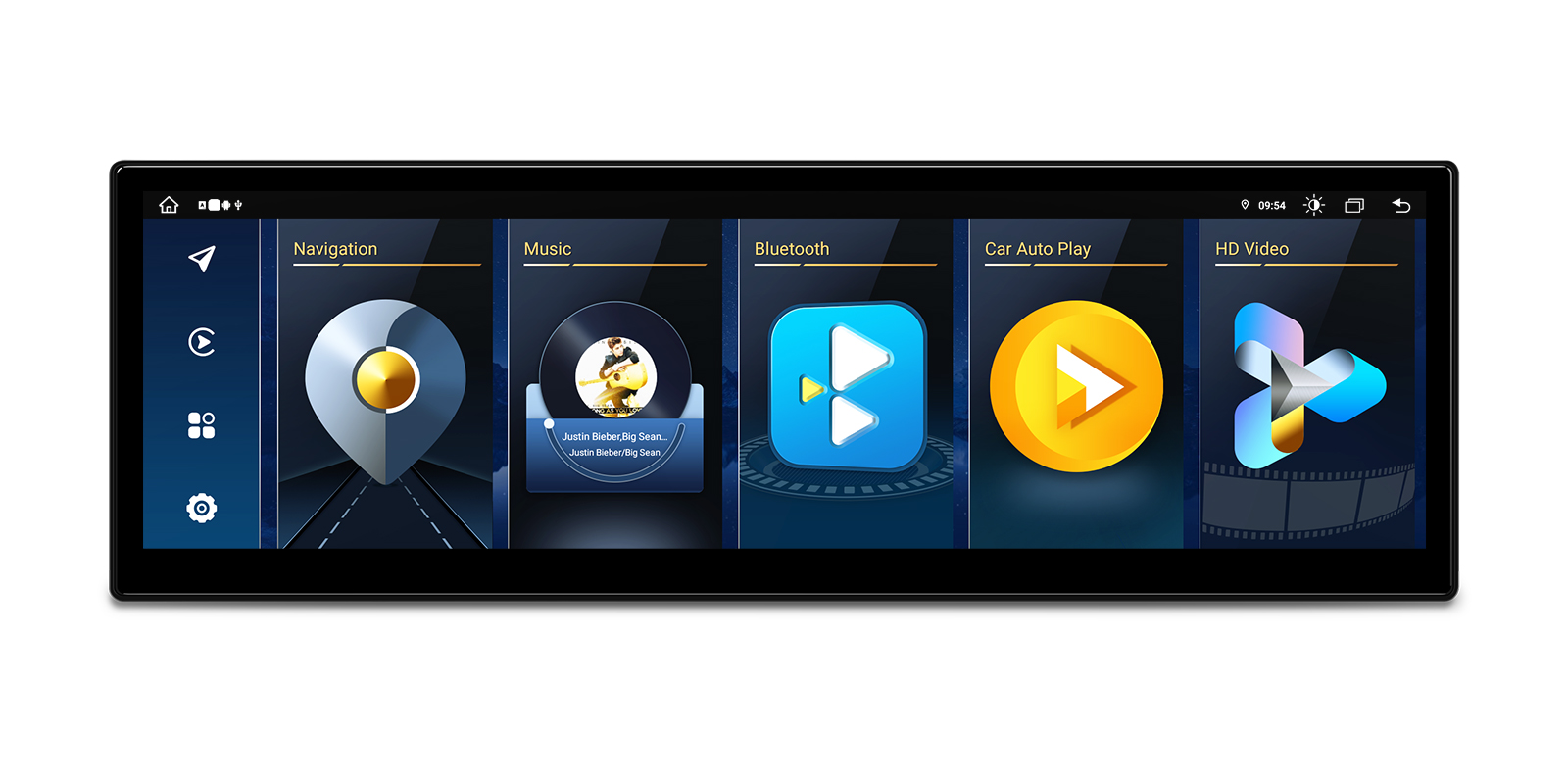

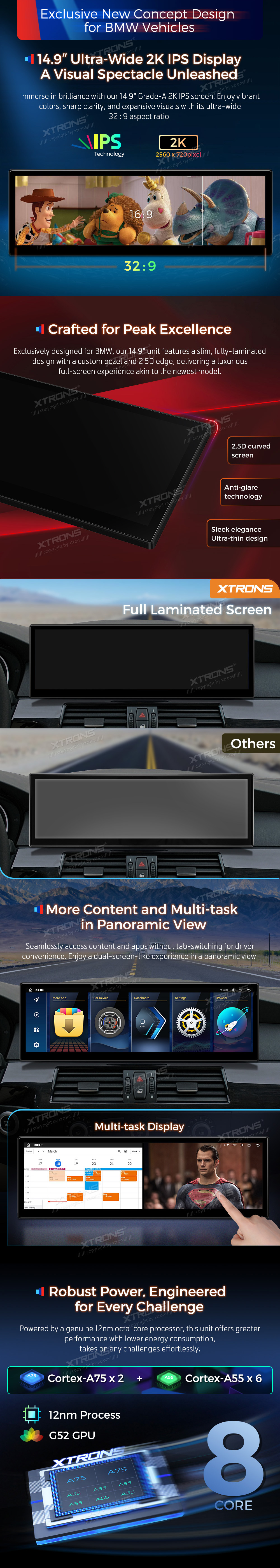

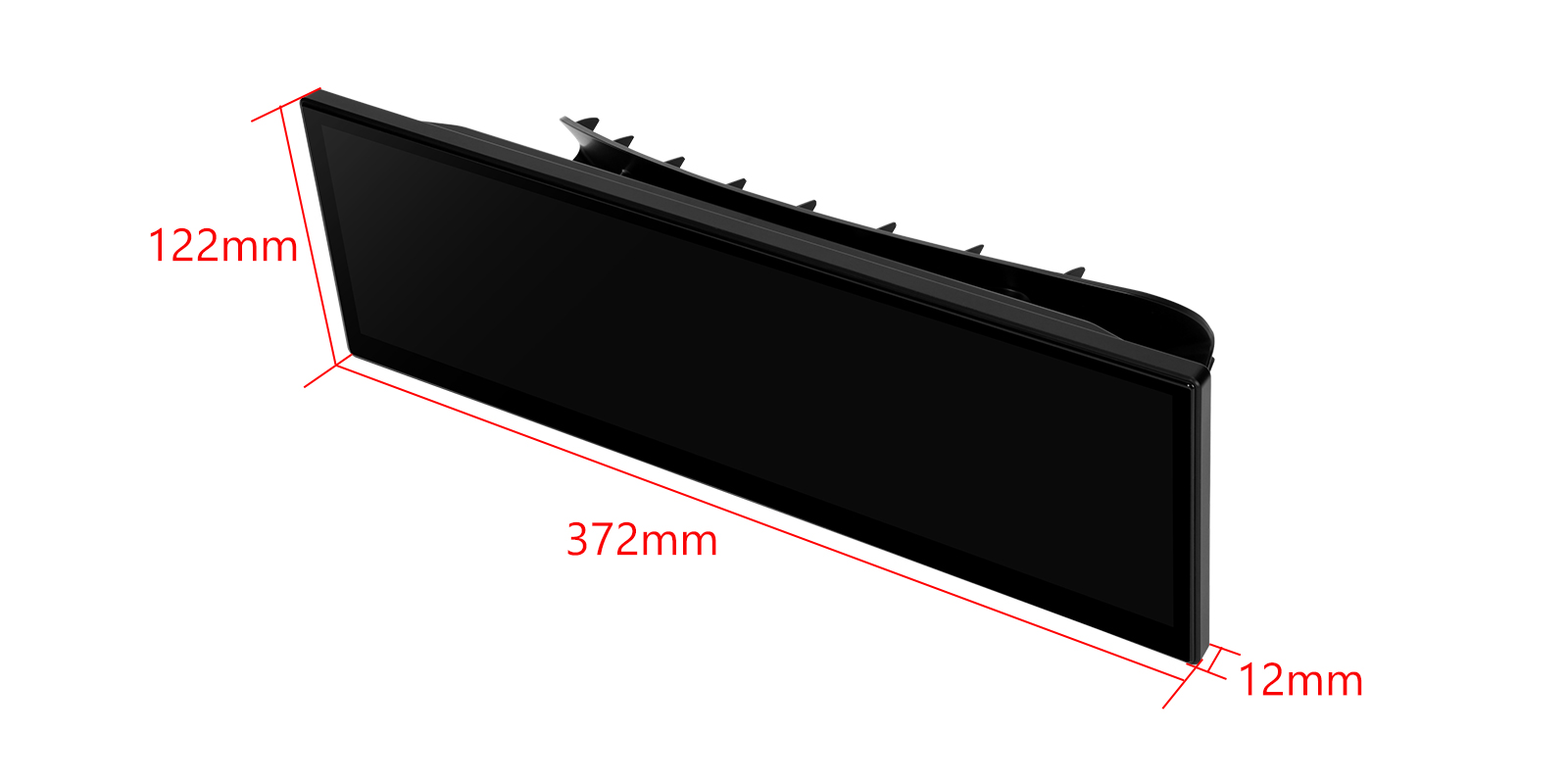

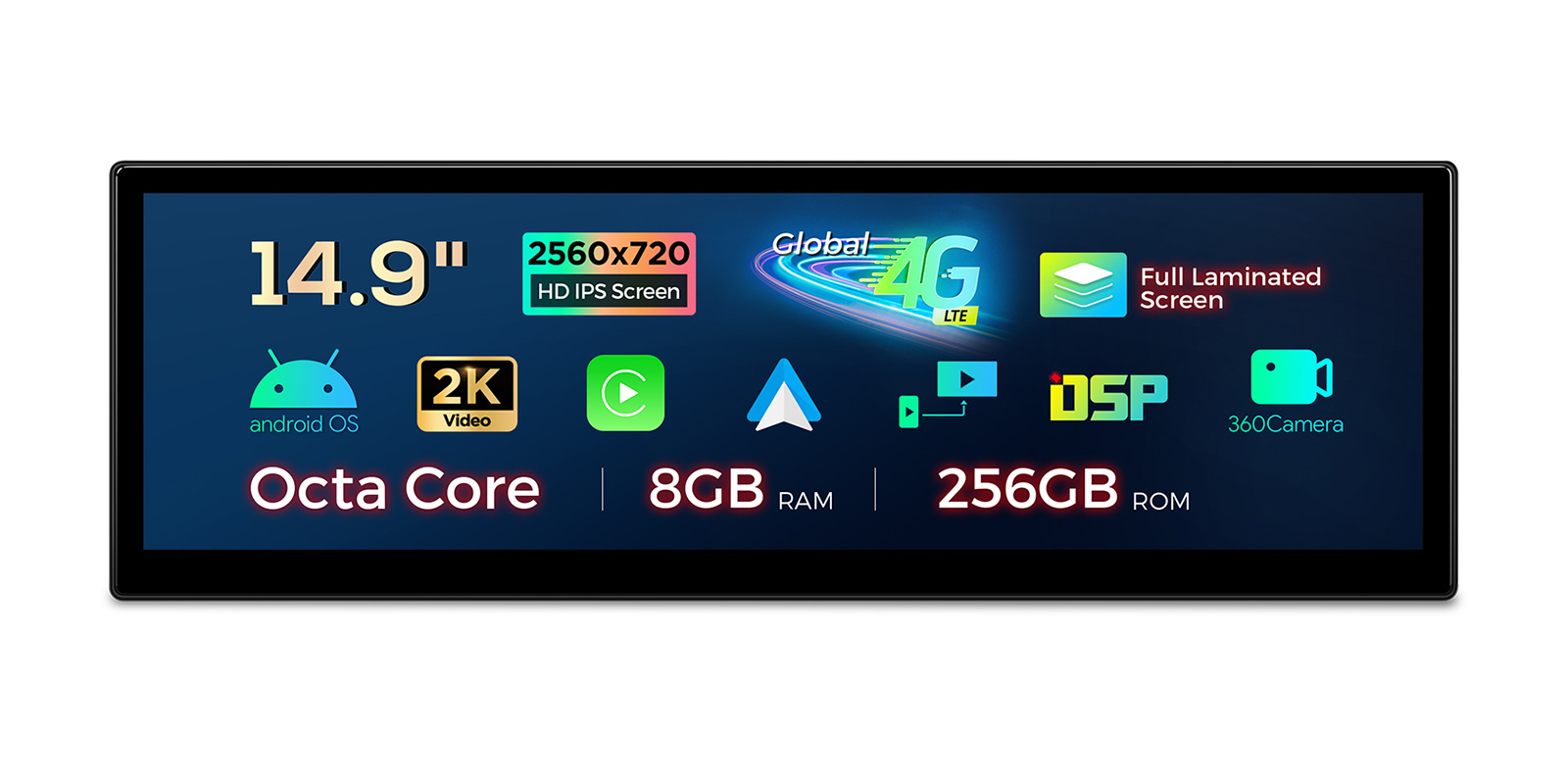

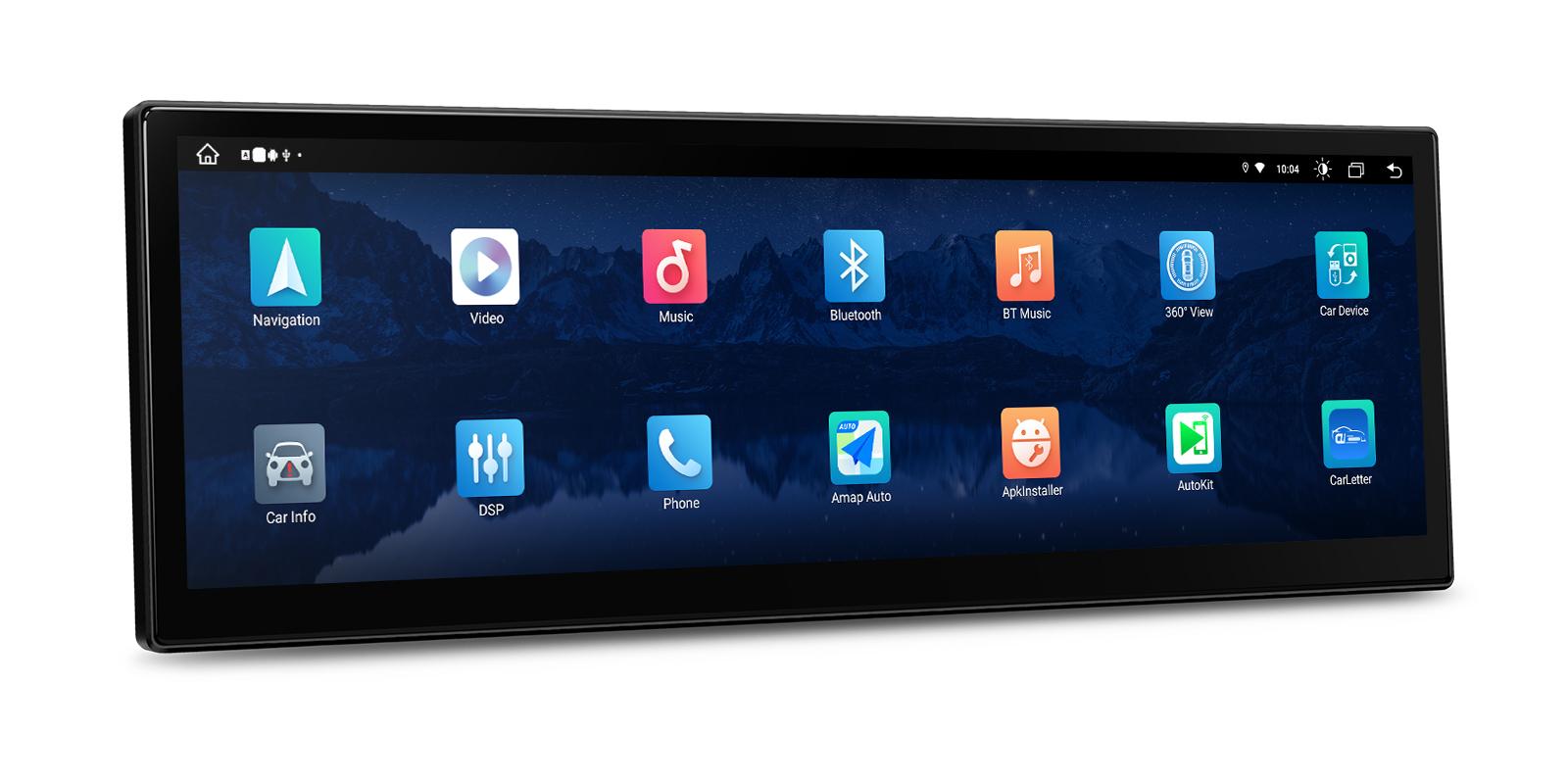

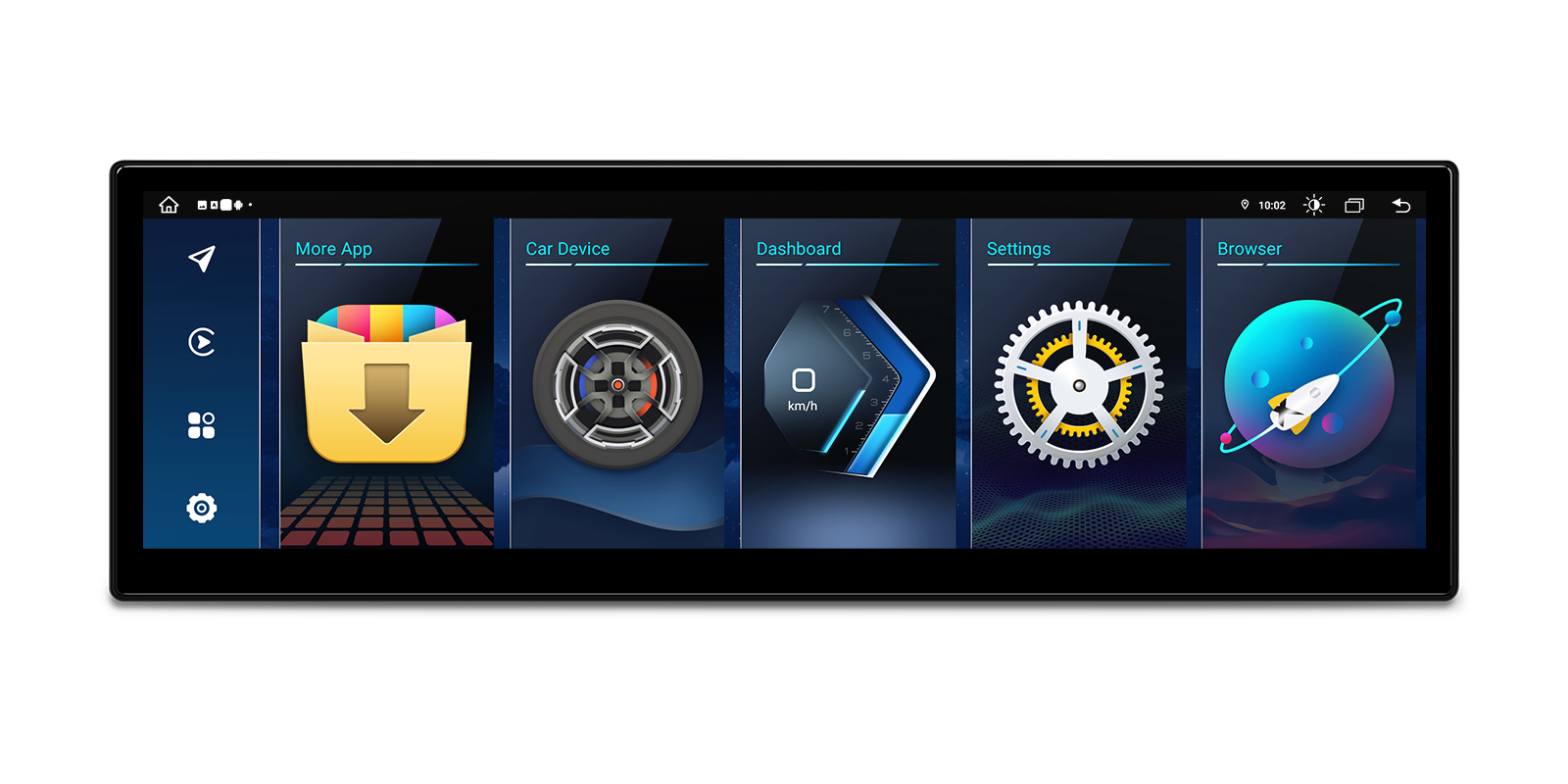

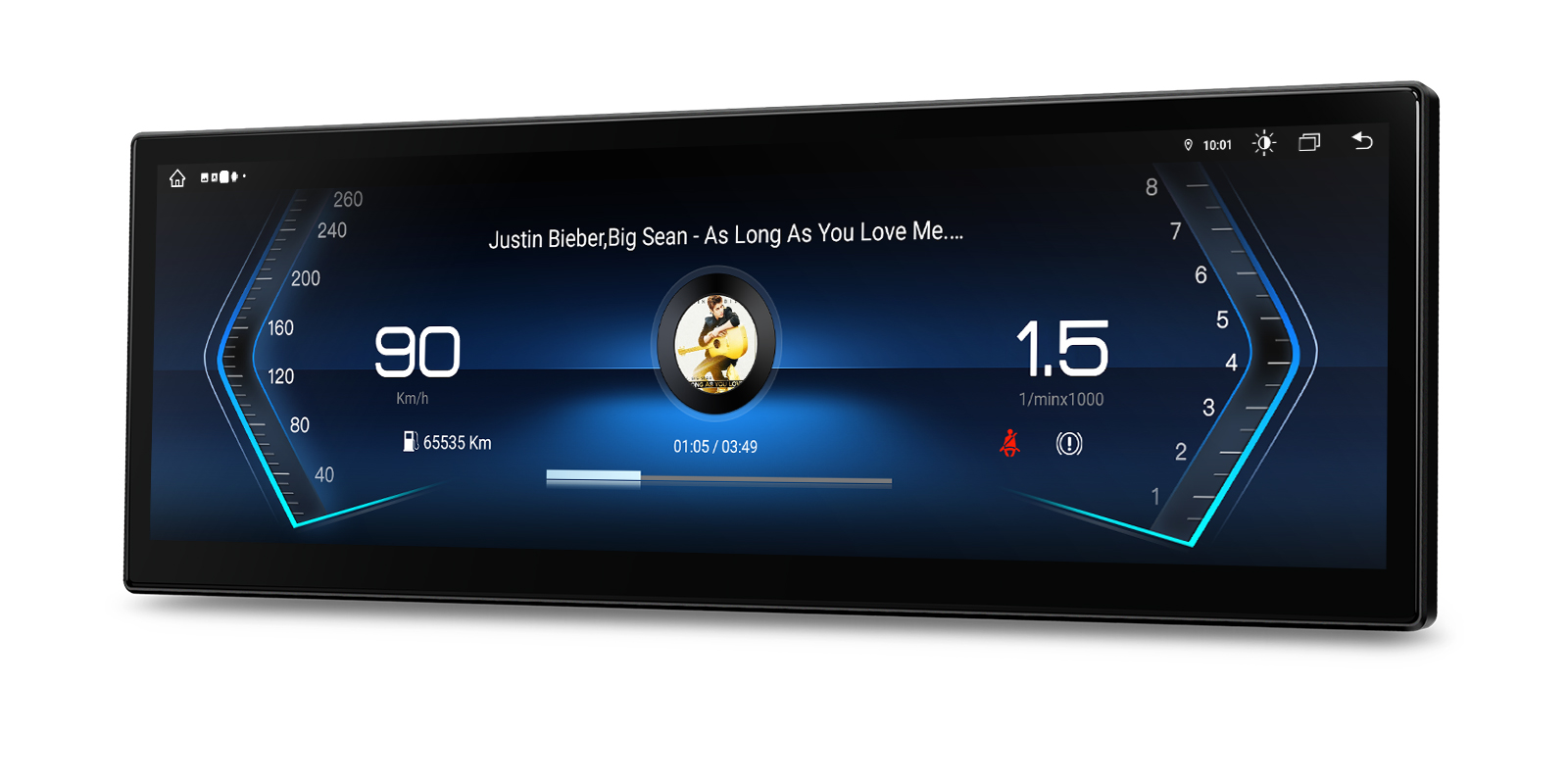

14.9 inch ultra-wide 2K screen

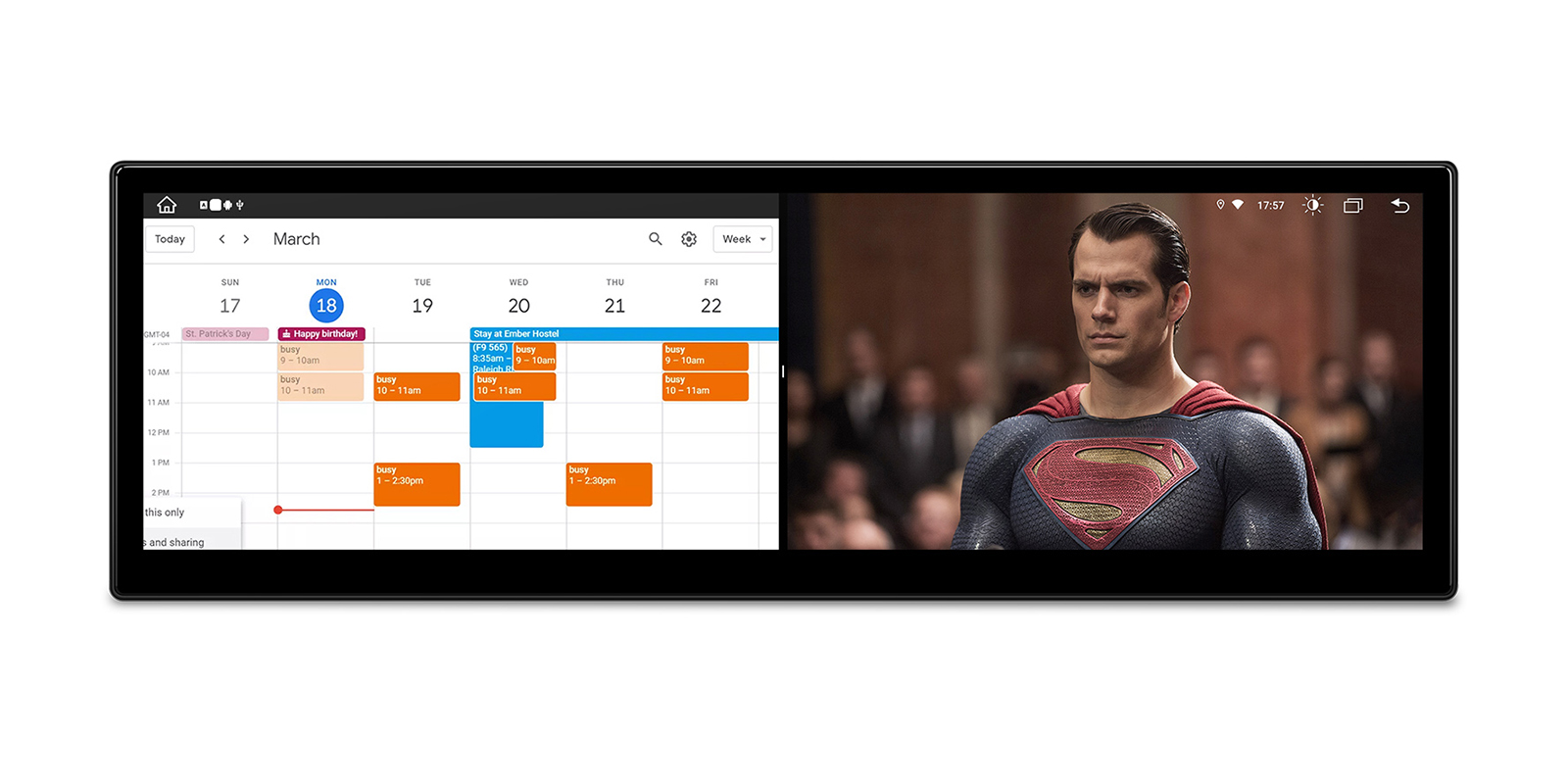

The 14.9 inch Grade-A 2K IPS screen uses a 32:9 shape, so two apps can sit side by side, for example the map and your music. It's fully laminated, with a custom bezel and a 2.5D edge.

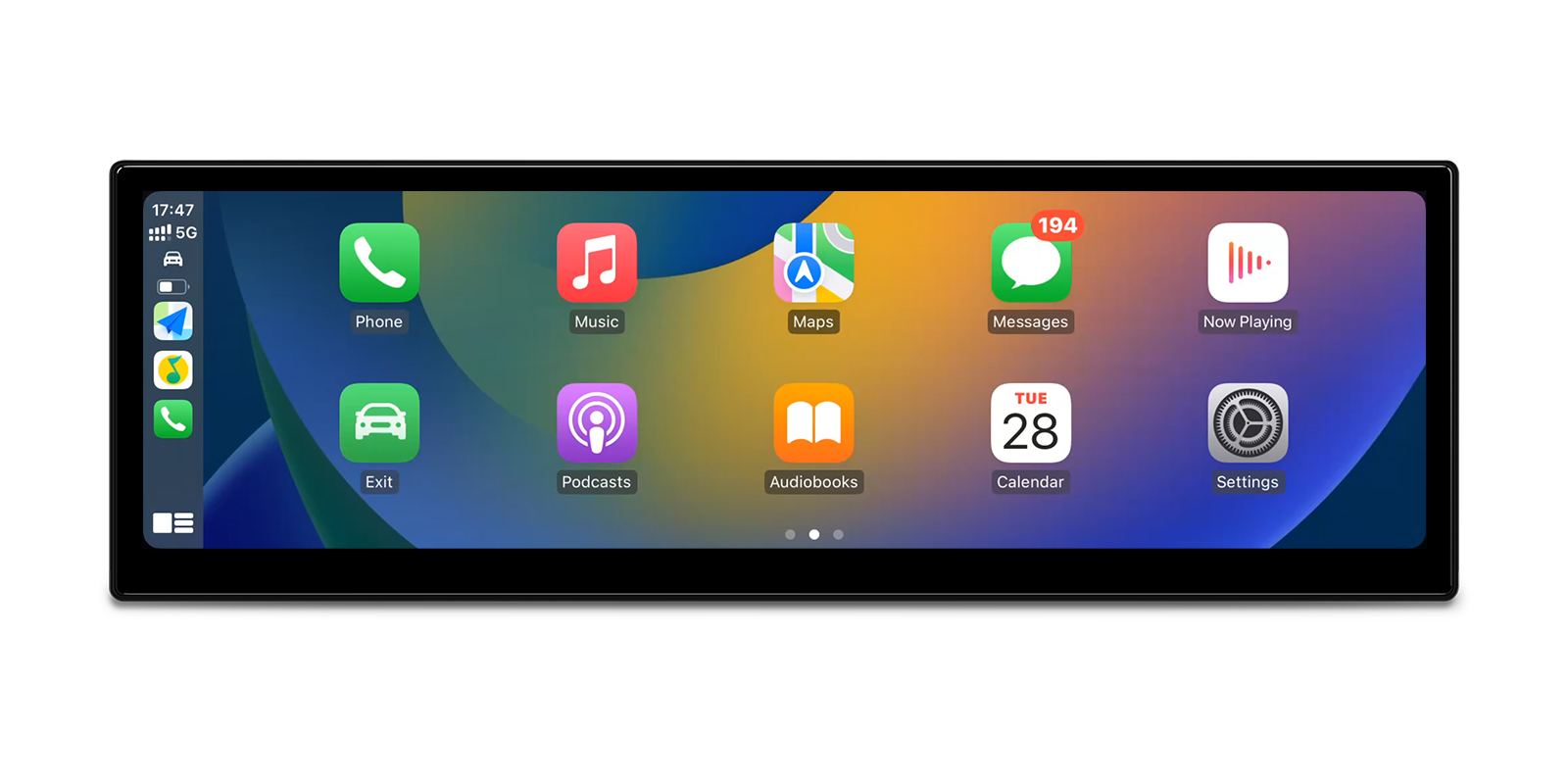

Wireless CarPlay
CarPlay links to your iPhone without a cable, spreading maps, music and messages across the wide display.

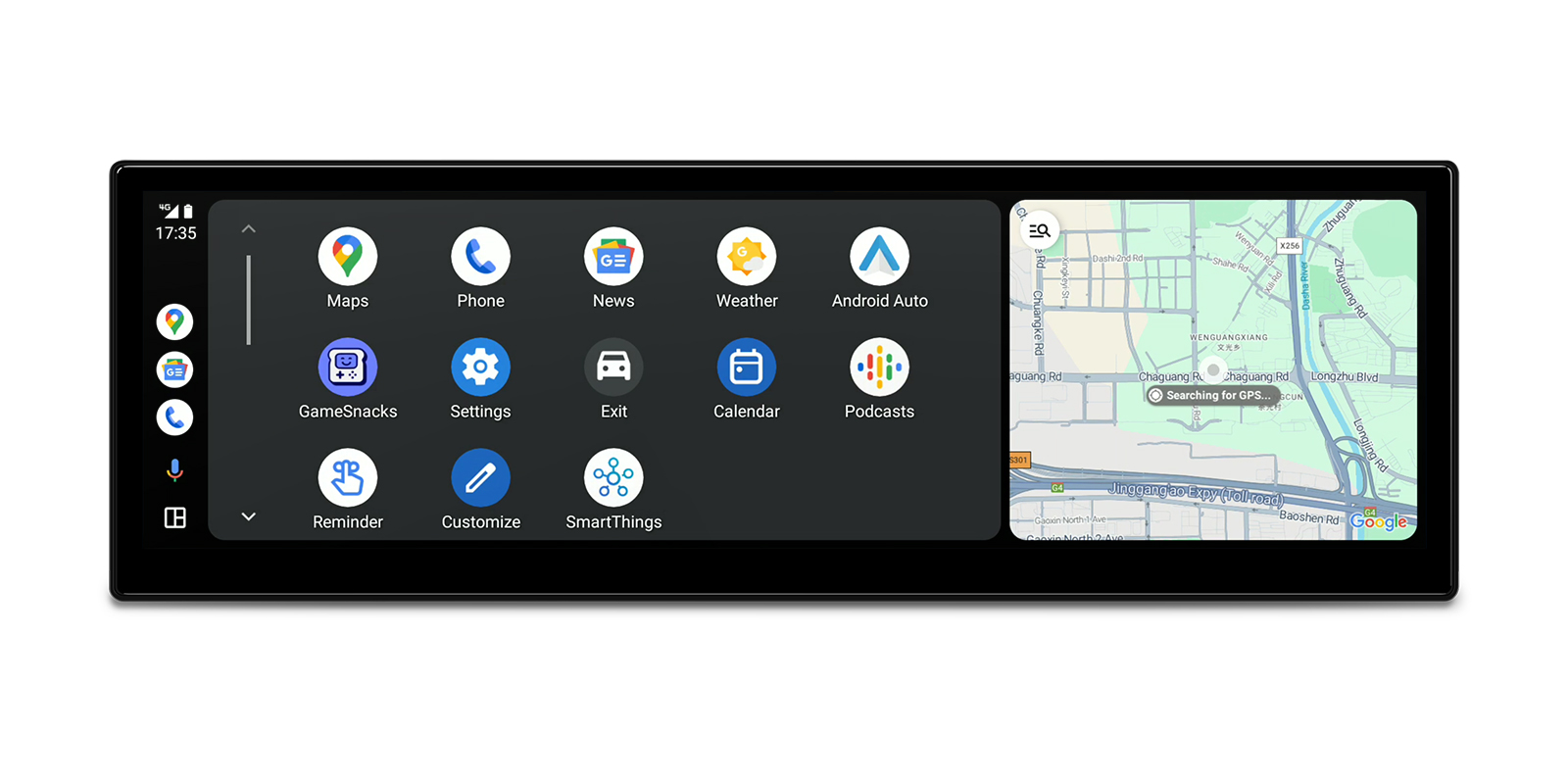

Wireless Android Auto
Android Auto connects wirelessly too, with Google Maps, music and calls on the screen.

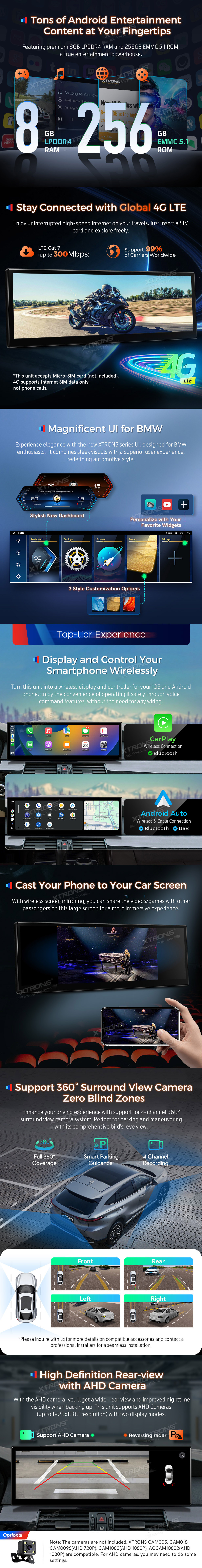

Android 14 with lots of storage
A 12nm octa-core chip with 8GB DDR4 RAM and 256GB ROM runs Android 14, leaving plenty of room for apps and downloaded music.
Built-in 4G
Insert a SIM card and the unit has its own 4G connection for navigation, video and online apps. A 4G antenna is in the box.
Wi-Fi
Wi-Fi lets the unit join a home network or hotspot for downloads.
DSP
The DSP lets you tune the sound to the 6 Series cabin and your seat.
Screen mirroring
Screen mirroring shows your phone's display on the head unit, for apps outside CarPlay and Android Auto.
USB
A USB cable is in the box for connecting a phone or USB device.
Microphone
A mini microphone is included for hands-free calls and voice commands.

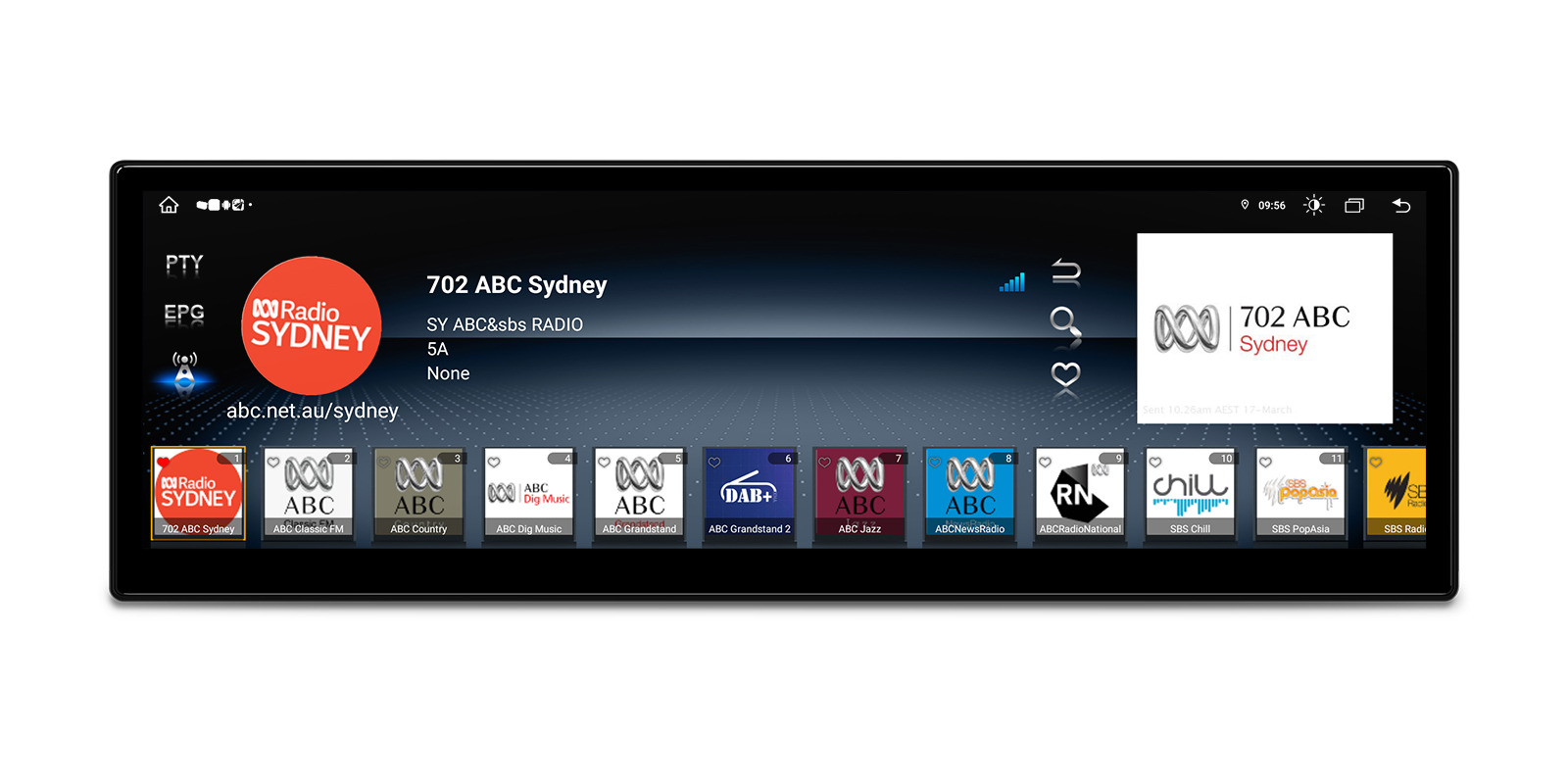

DAB radio
DAB digital radio works when an external DAB tuner is connected.
Works with

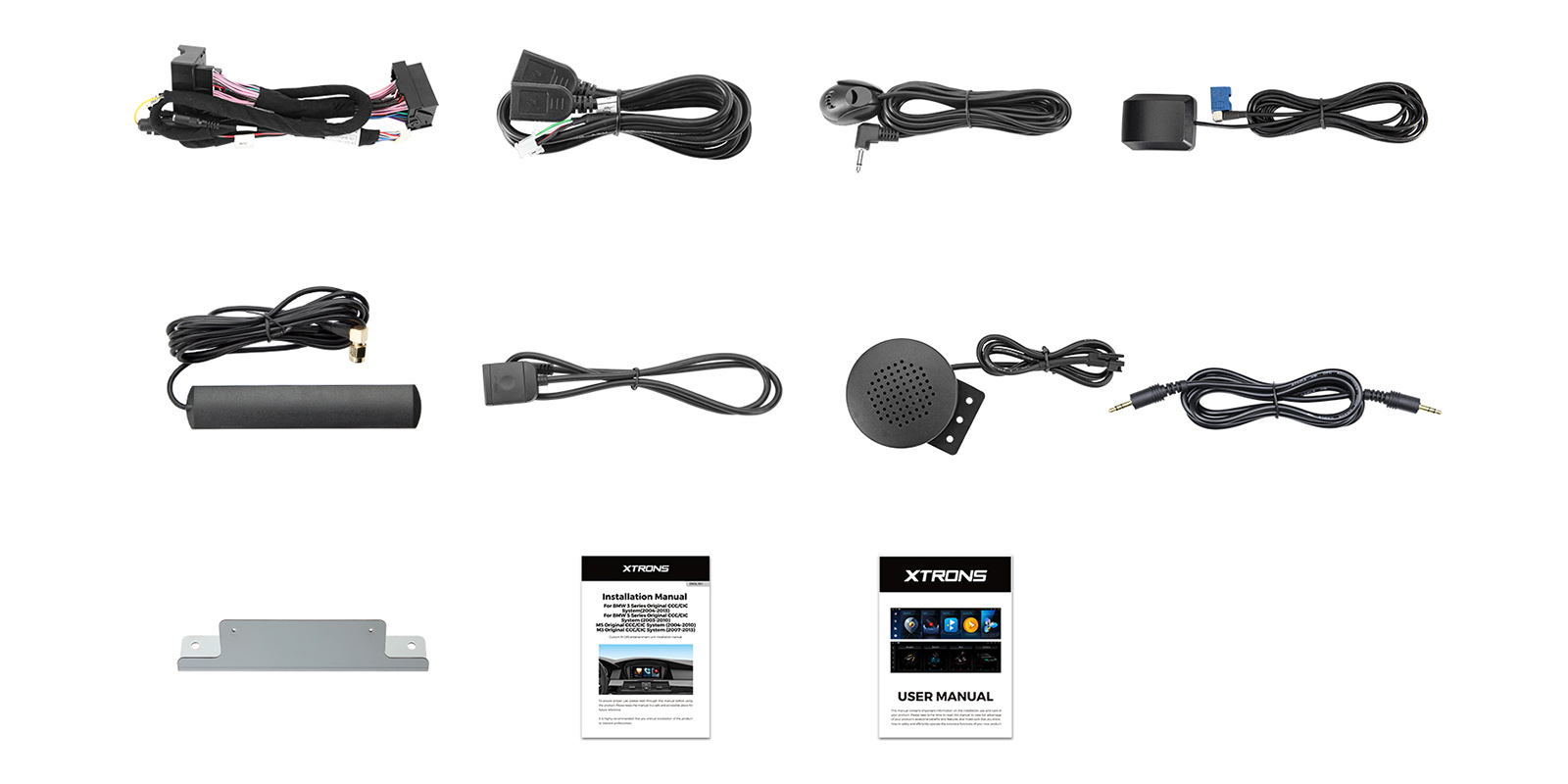

What's in the box
- 1 x 4G Antenna
- 1 x 4G SIM Card Slot
- 1 x Audio Cable
- 1 x Fix Mount
- 1 x GPS Antenna
- 1 x Installation Instruction
- 1 x ISO Wiring Harness
- 1 x Mini Microphone
- 1 x Mini Speaker
- 1 x USB Cable
- 1 x User Manual
| Processor | 12nm Octa-core chip |
|---|---|
| CPU cores | (2xCortex-A75 + 6xCortex-A55) |
| Memory | 8GB DDR4 RAM and 256GB Solid State ROM |
| Operating system | Android 14 |
| Screen | 14.9″ Grade-A 2K IPS screen |
|---|---|
| Aspect ratio | 32:9 aspect ratio |
| Mobile data | Built-in 4G Module |
|---|---|
| DAB | External DAB Supported |
- BMW 6 Series (2004-2023)
- For BMW 6 Series E63 / E64 (2004-2010) with CCC System
- For BMW M6 E63 / E64 (2005-2010) with CCC System
- This unit ONLY works with the original 6 Series M6 E63 E64 CCC system.
The unit fits with the ISO wiring harness, audio cable and fix mount in the box. Sound goes through the car's AUX input, which needs to be switched on. If your car has no AUX input, you'll need an FM transmitter such as the XTRONS CA/ITR/FM02 or CA/ITR/FM03.
How do I know if my 6 Series has CCC?
CCC usually has separate CD and DVD slots and a 10-pin LVDS port.
What if my car has no AUX input?
You'll need an FM transmitter such as the XTRONS CA/ITR/FM02 or CA/ITR/FM03.
Does the CD player have to come out?
No, the original CD player stays.
Does it have built-in internet?
Yes. Insert a SIM card for 4G, or connect to Wi-Fi.
Reviews
What customers say
Bought this product? Sign in to write a review.

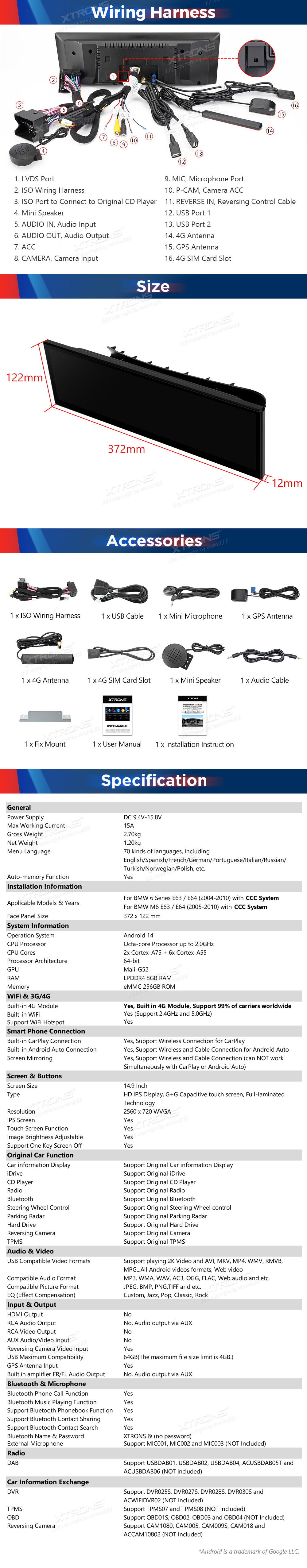

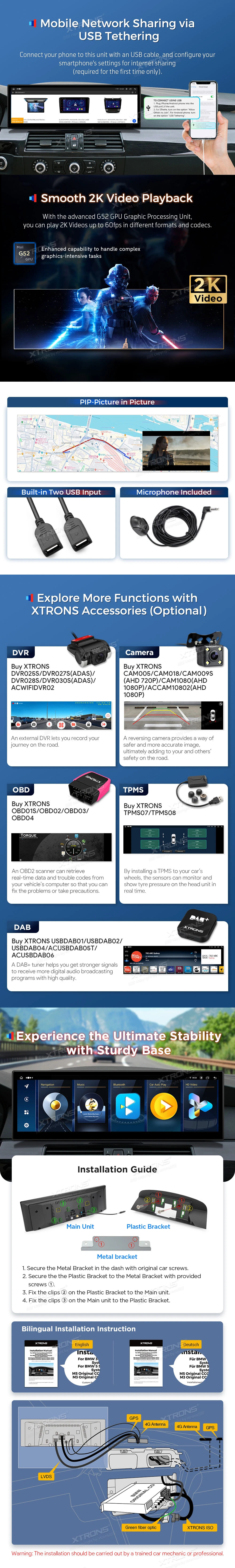

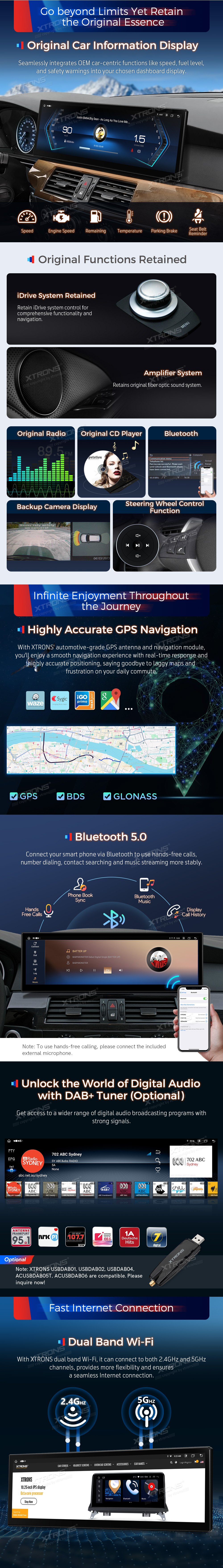

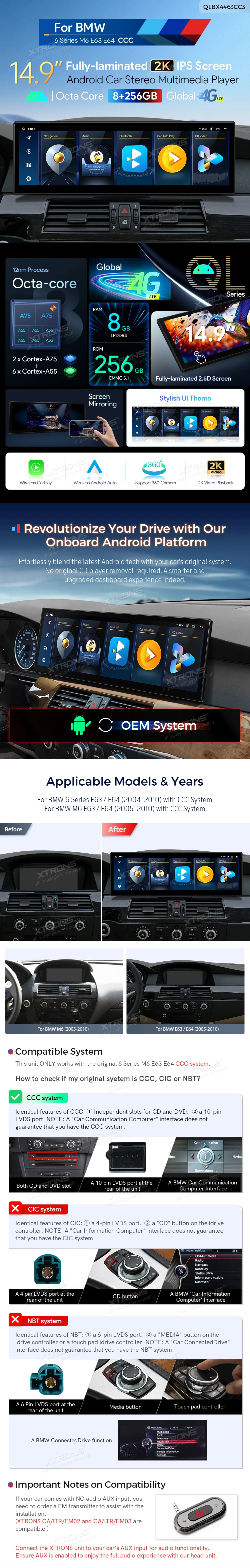

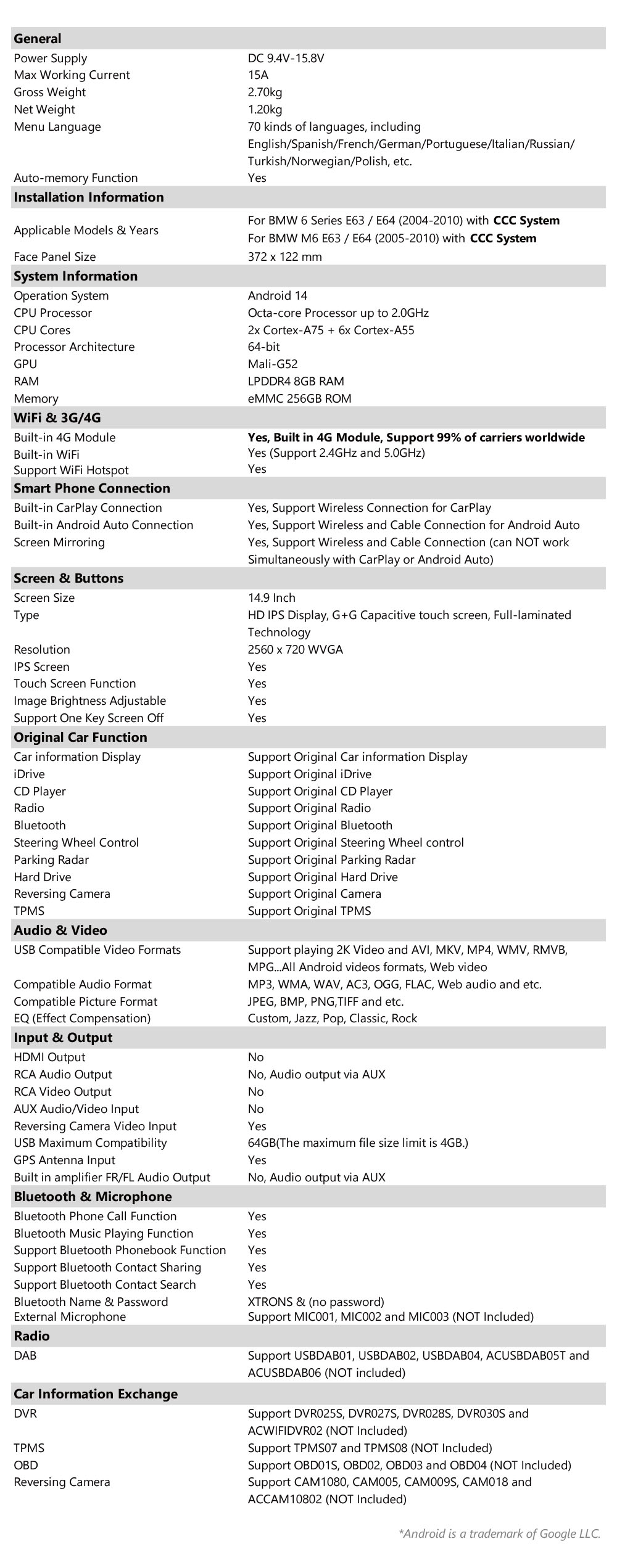

Full specification from XTRONS
