BMW 1/2 Series 12.3 inch Android Head Unit with Wireless CarPlay, Android Auto and 4G | QLB22NB12NER
In stock

Image 1 of 13.
SKU: QLB4260CC
£499.00Was £589.00Save £90.00
Check if this fits your car
A 14.9 inch Android 13 screen that replaces the factory display in the BMW 5 Series E60, E61 and M5 (2005-2008) with the CCC system. It adds wireless CarPlay and Android Auto, built-in 4G and 360 camera support, and the original CD player stays in place.

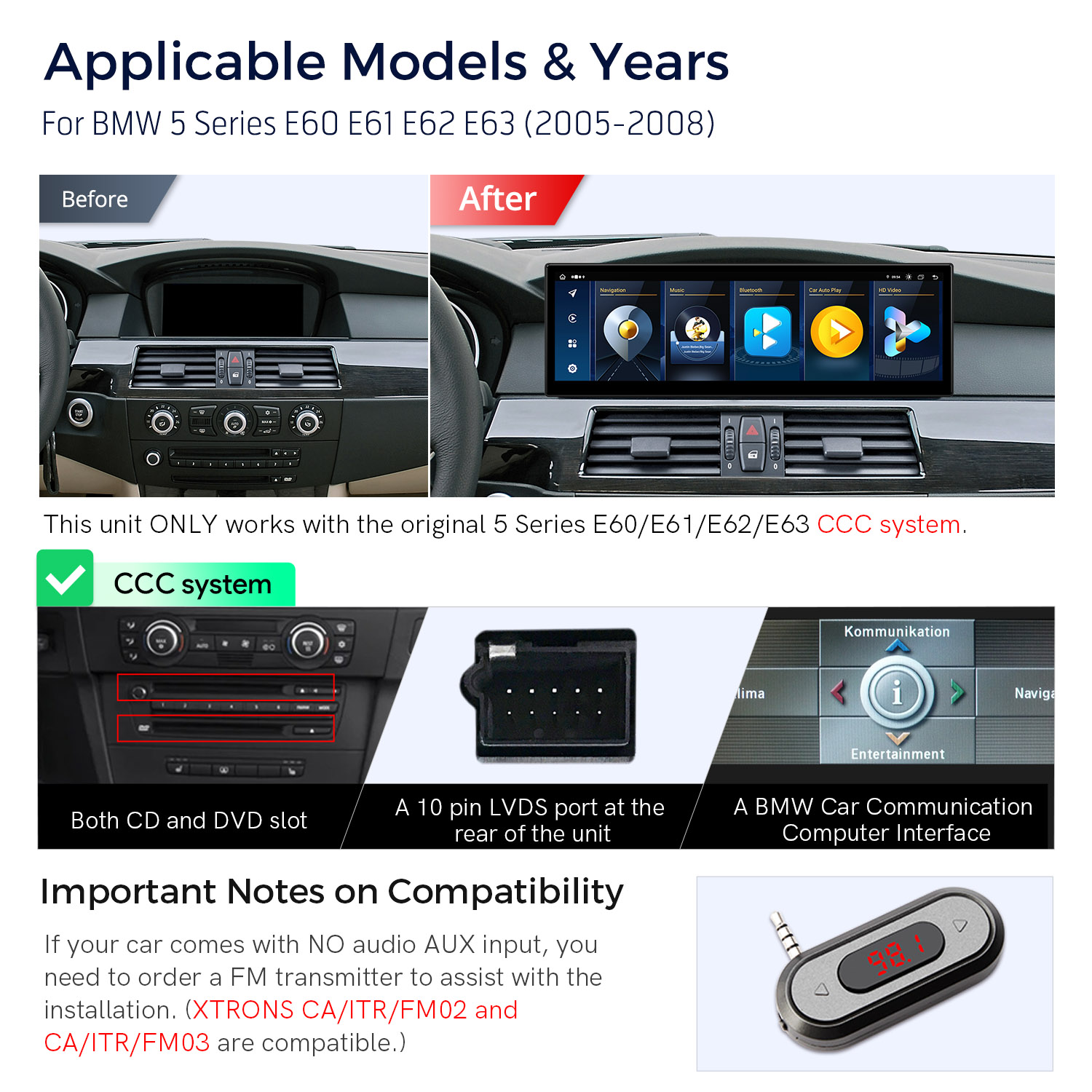

This screen is for the BMW 5 Series E60, E61 and M5 from 2005-2008 with the CCC system, and only works with that system. A CCC radio usually has both CD and DVD slots, a 10-pin LVDS port and the CCC interface.
The Android side works alongside the car’s original system, and the CD player doesn’t need removing.

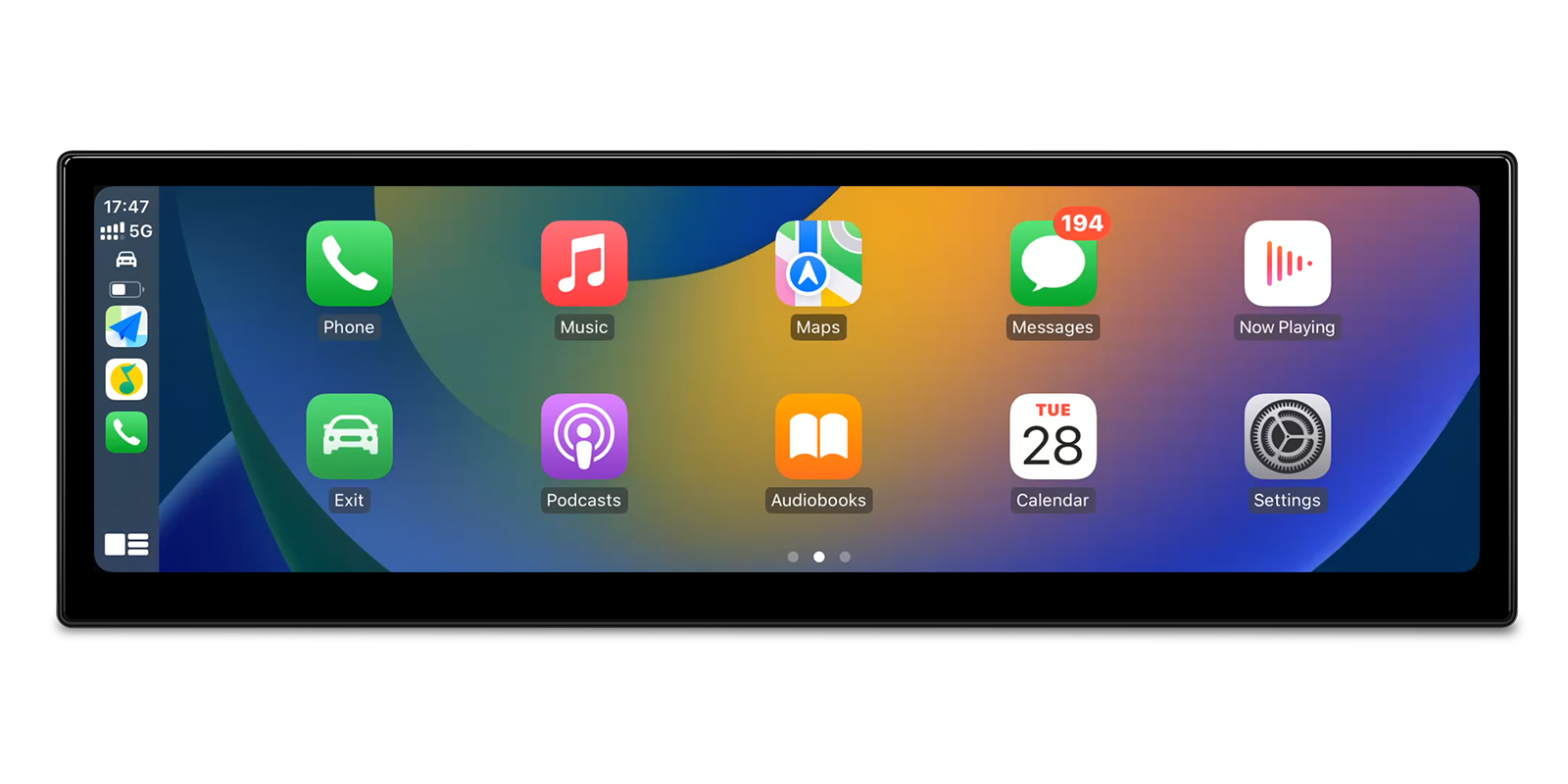

CarPlay connects your iPhone without a cable, so maps, music and calls spread across the wide screen while the phone stays in your pocket.

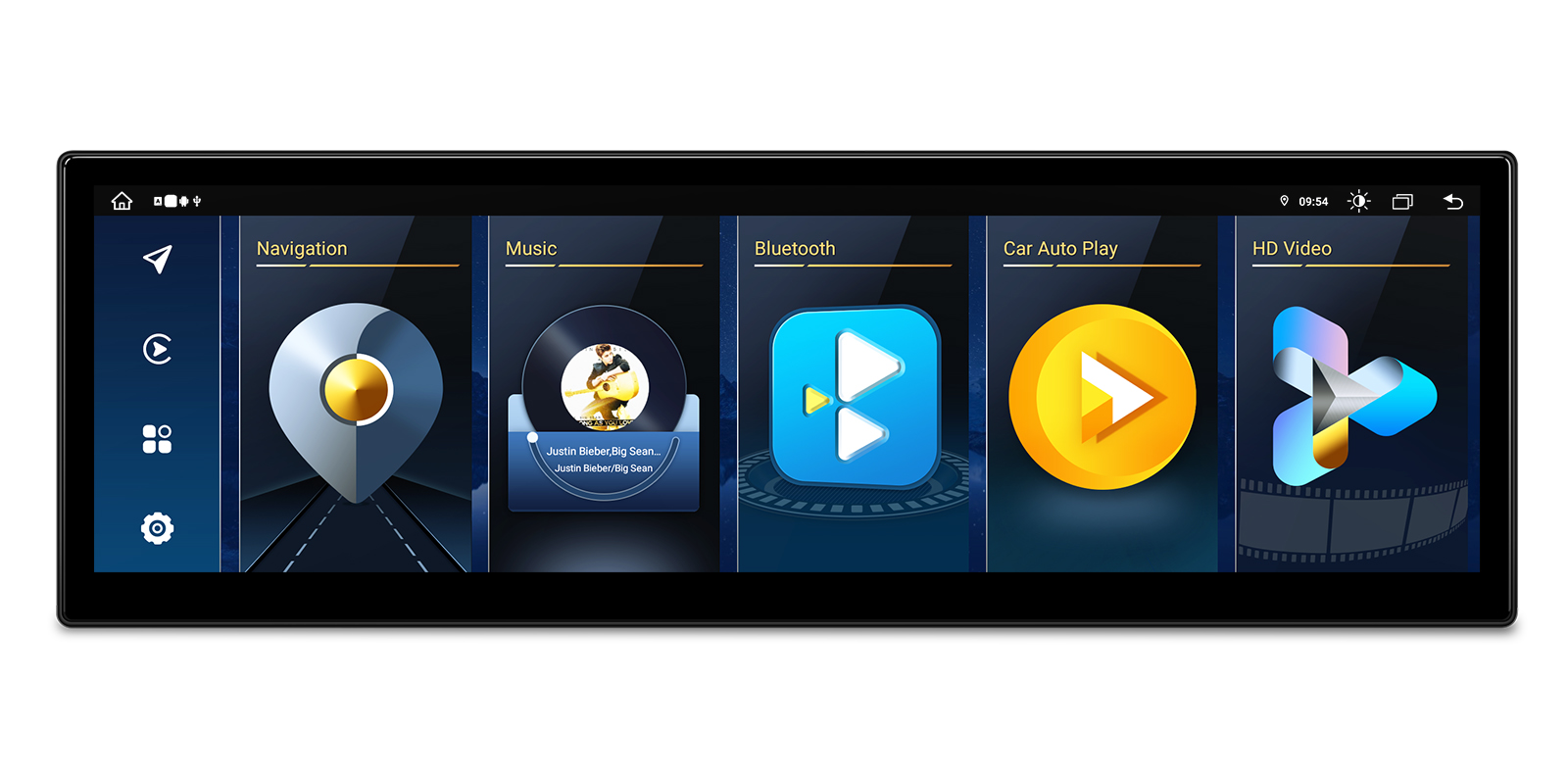

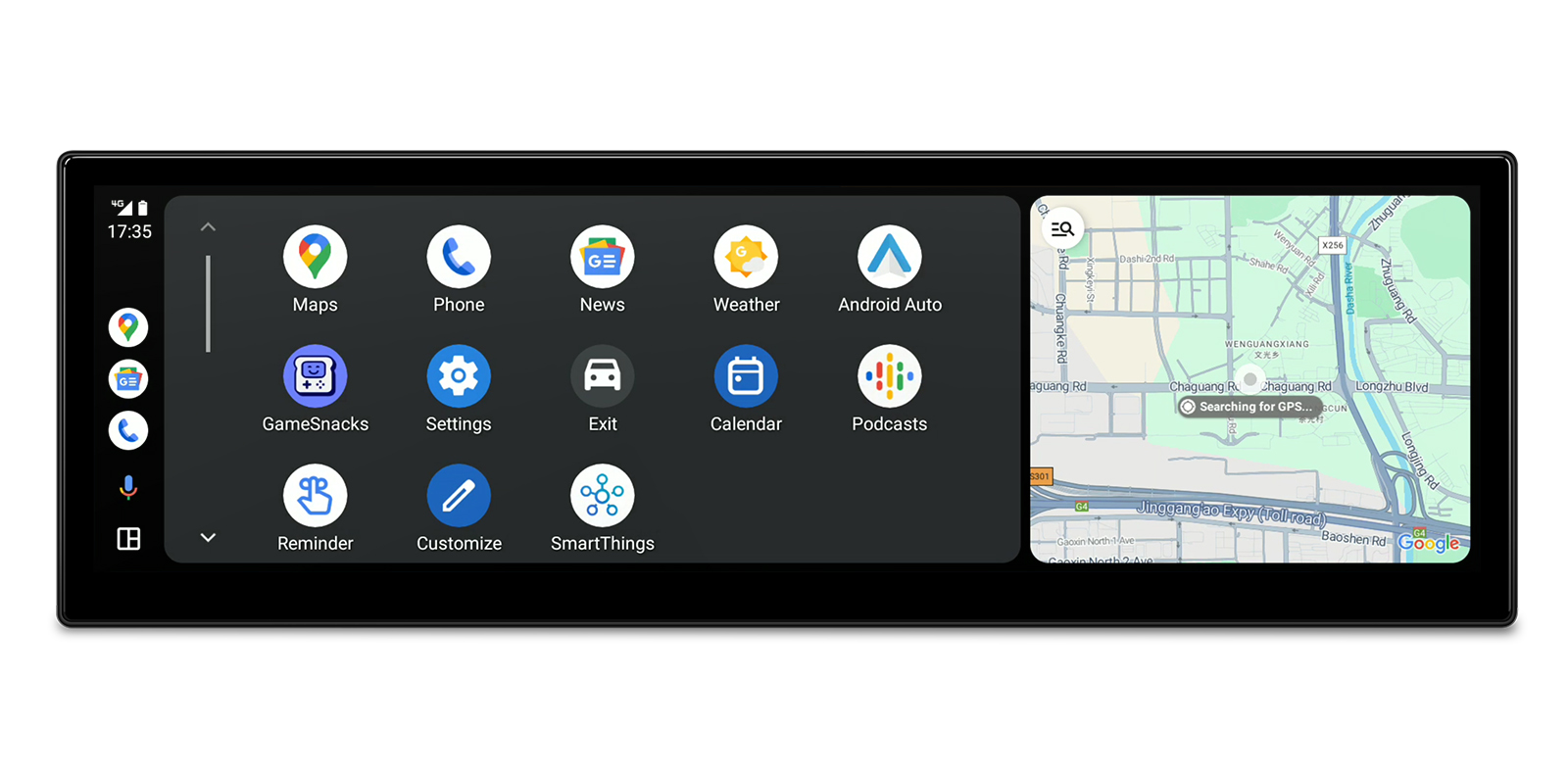

Android Auto connects wirelessly too, putting Google Maps and music apps on the screen in a layout made for driving.

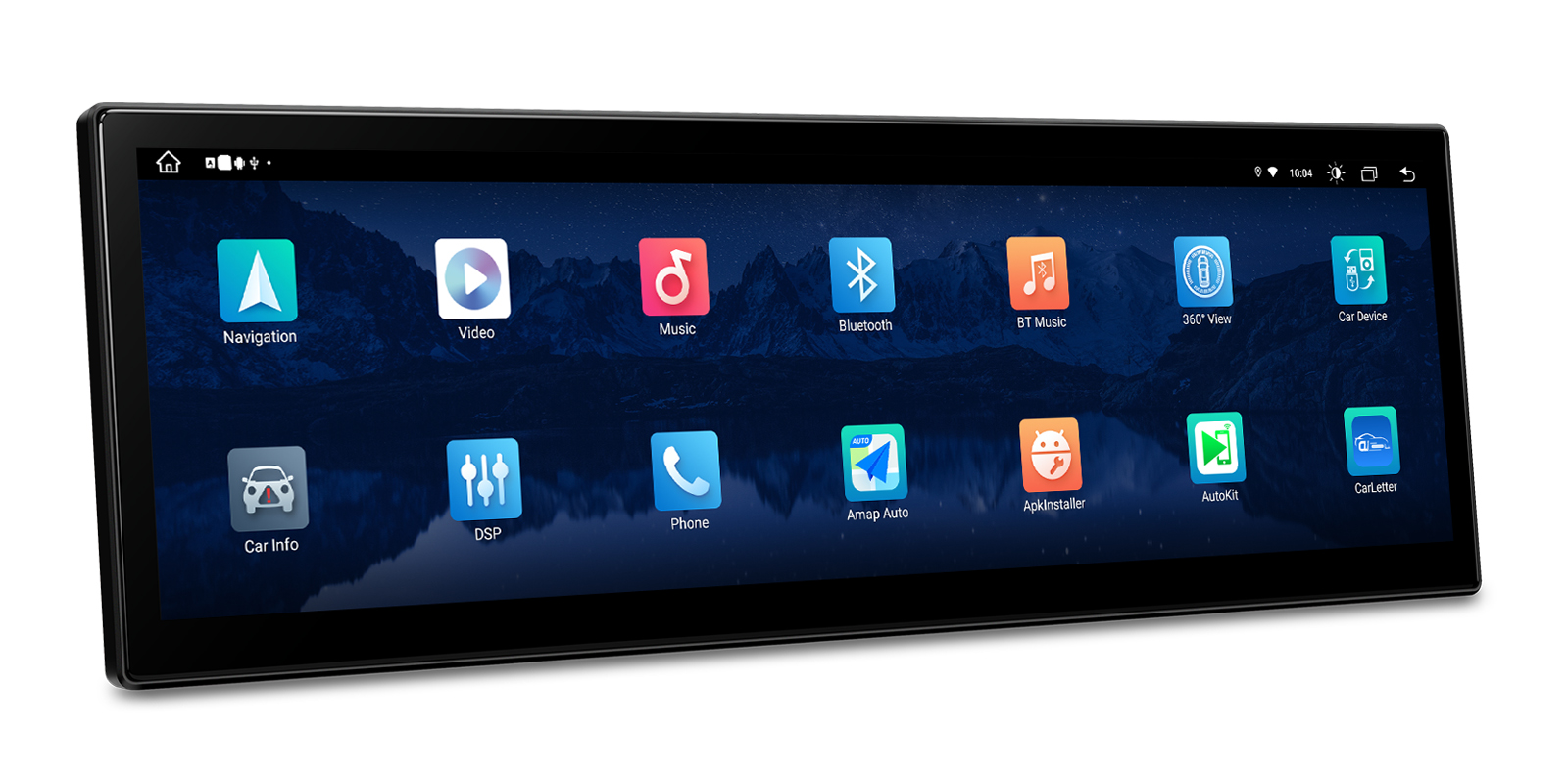

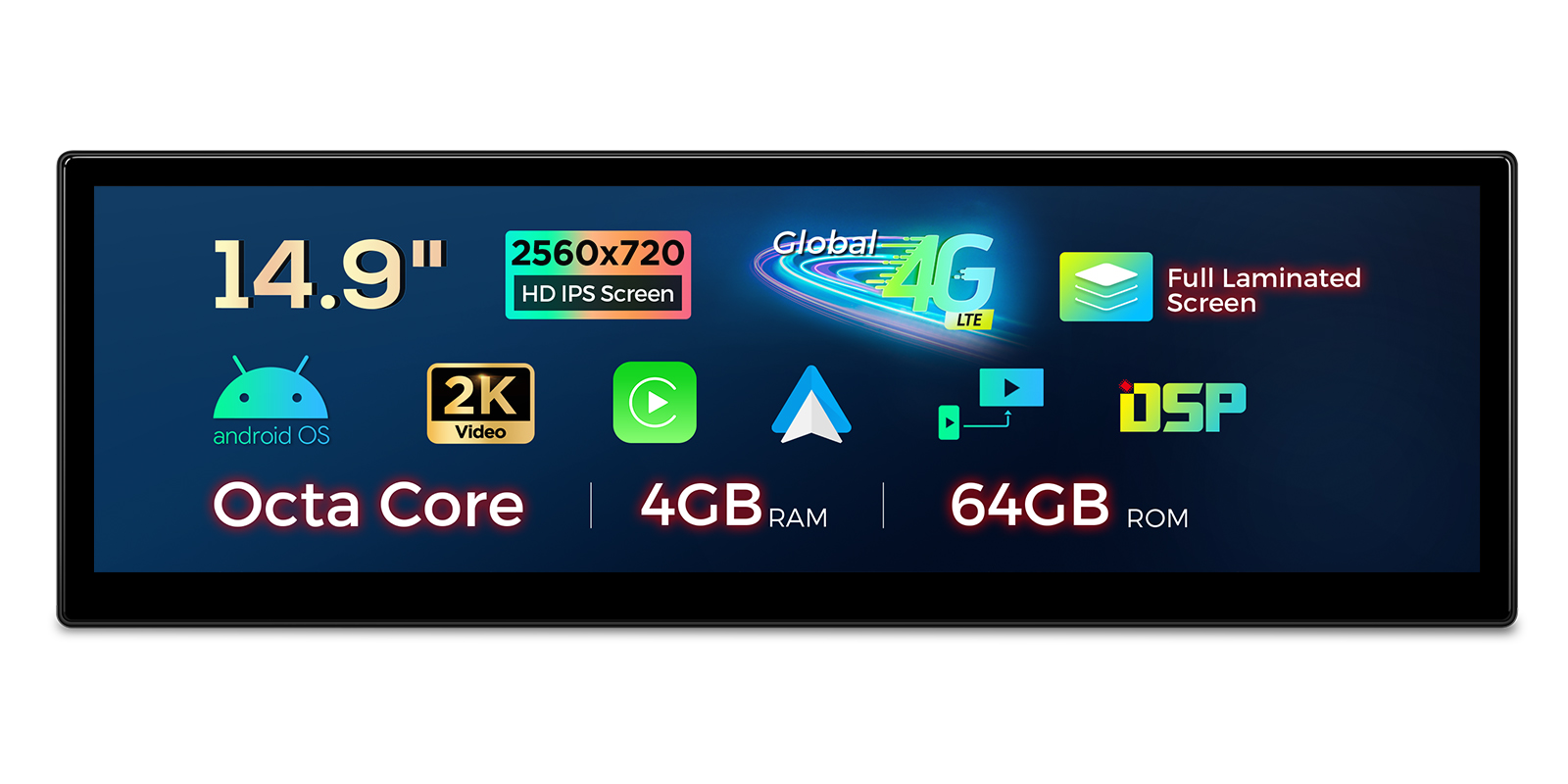

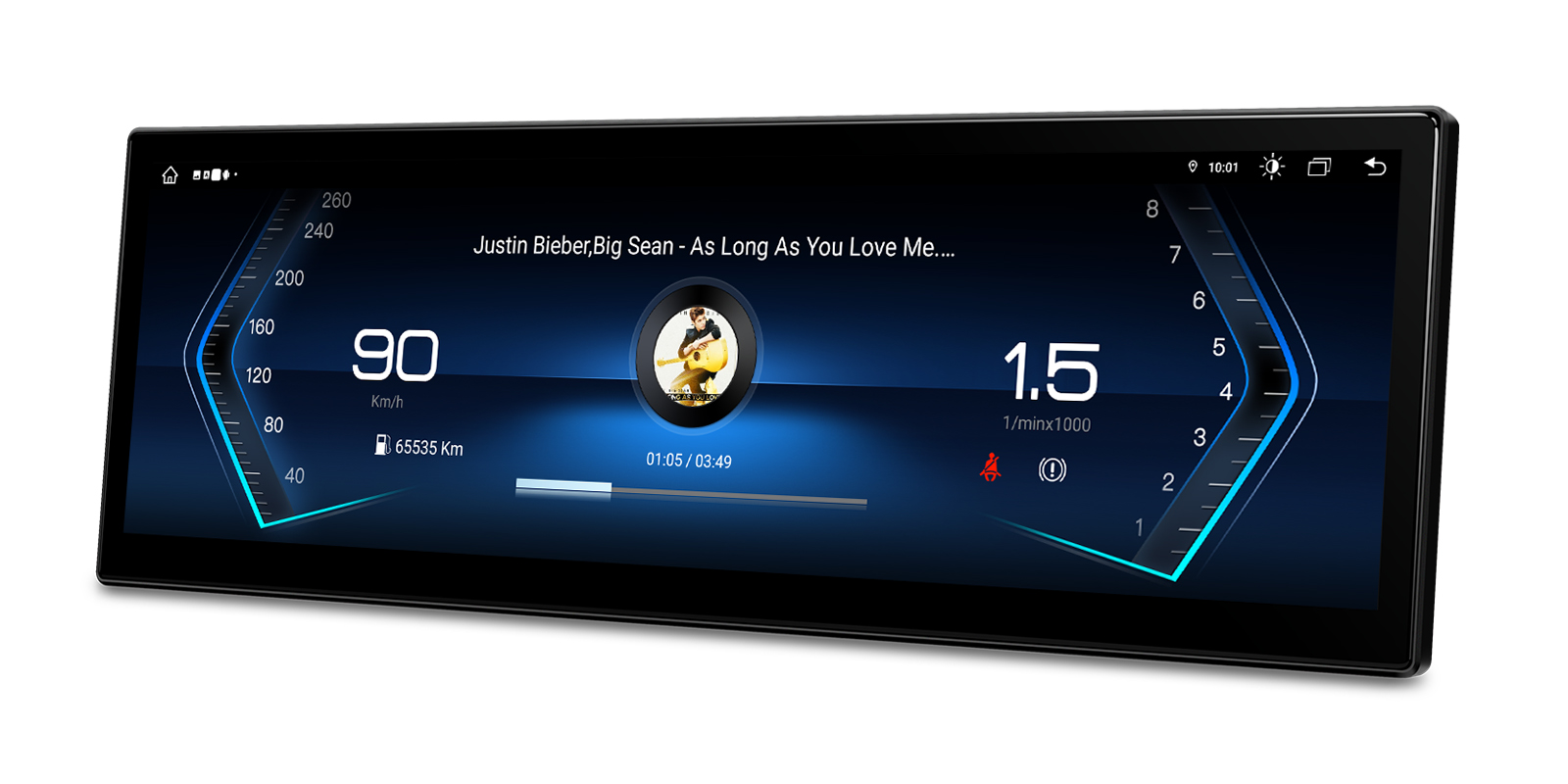

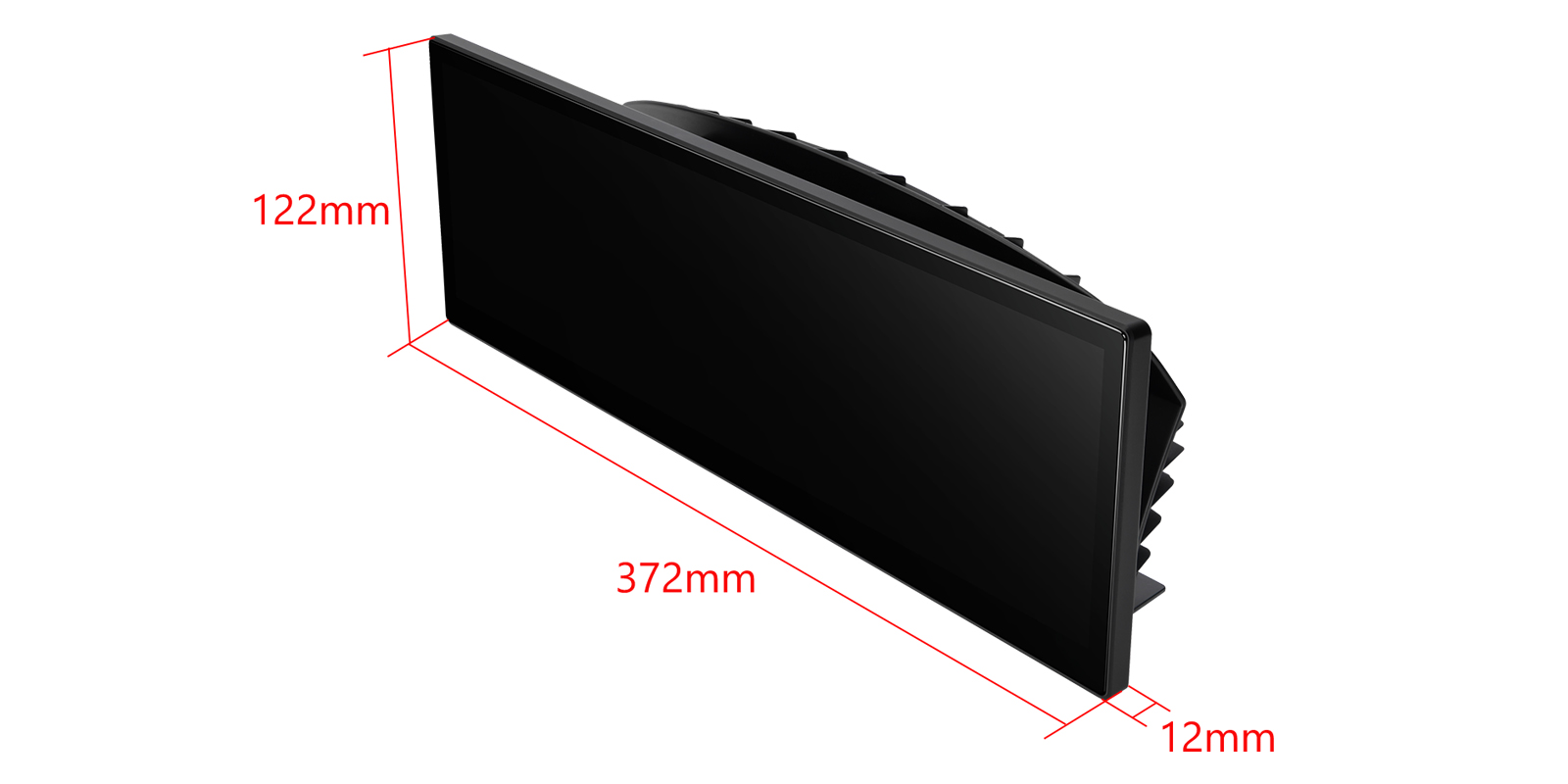

The 14.9 inch QLED screen has a slim, fully-laminated design with a custom bezel and 2.5D edge, giving a full-screen look like BMW's newest models.
The IPS panel keeps the picture clear from both front seats, so the passenger can follow the map too.
Insert a SIM card and the built-in 4G module gives the unit its own data connection for navigation, video and games, without tethering to your phone.
Wi-Fi lets the screen join a hotspot or your home network for app downloads and updates.
The unit supports a 360 camera system, which shows the area around the car on the wide screen when you're parking. The cameras are sold separately.
A built-in DSP lets you adjust how the sound is processed, so you can tune the audio to suit the cabin.
An RCA audio output lets you connect an external amplifier if you want to upgrade the sound later.
A mini microphone is included for hands-free calls and voice commands.

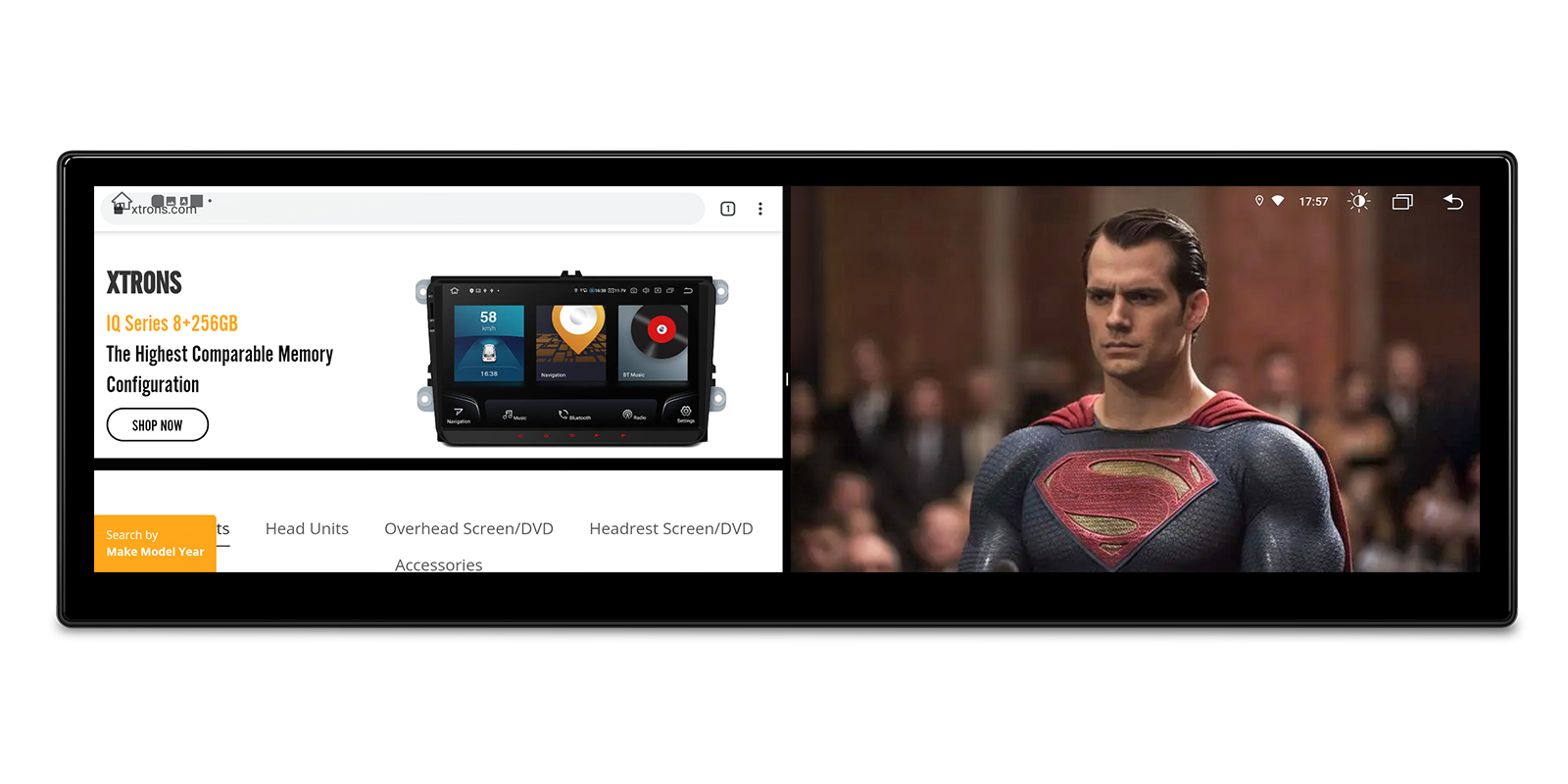

Screen mirroring puts your phone's display on the wide screen, useful for apps that don't run in CarPlay or Android Auto. It's best used when parked.
USB lets you connect a phone or a USB drive with music and video.
A 12nm Octa-core chip (2xCortex-A75 2.0GHz + 6xCortex-A55) runs Android 13 with 4GB DDR4 RAM and 64GB solid state ROM, giving quick response with low power use.
| Operating system | Android 13 |
|---|---|
| Processor | 12nm Octa-core chip |
| CPU cores | (2xCortex-A75 2.0GHz + 6xCortex-A55) |
| RAM | 4GB DDR4 RAM |
| Storage | 64GB Solid State ROM |
| Screen size | 14.9″ |
|---|---|
| Screen type | QLED Screen |
| Panel | IPS Screen |

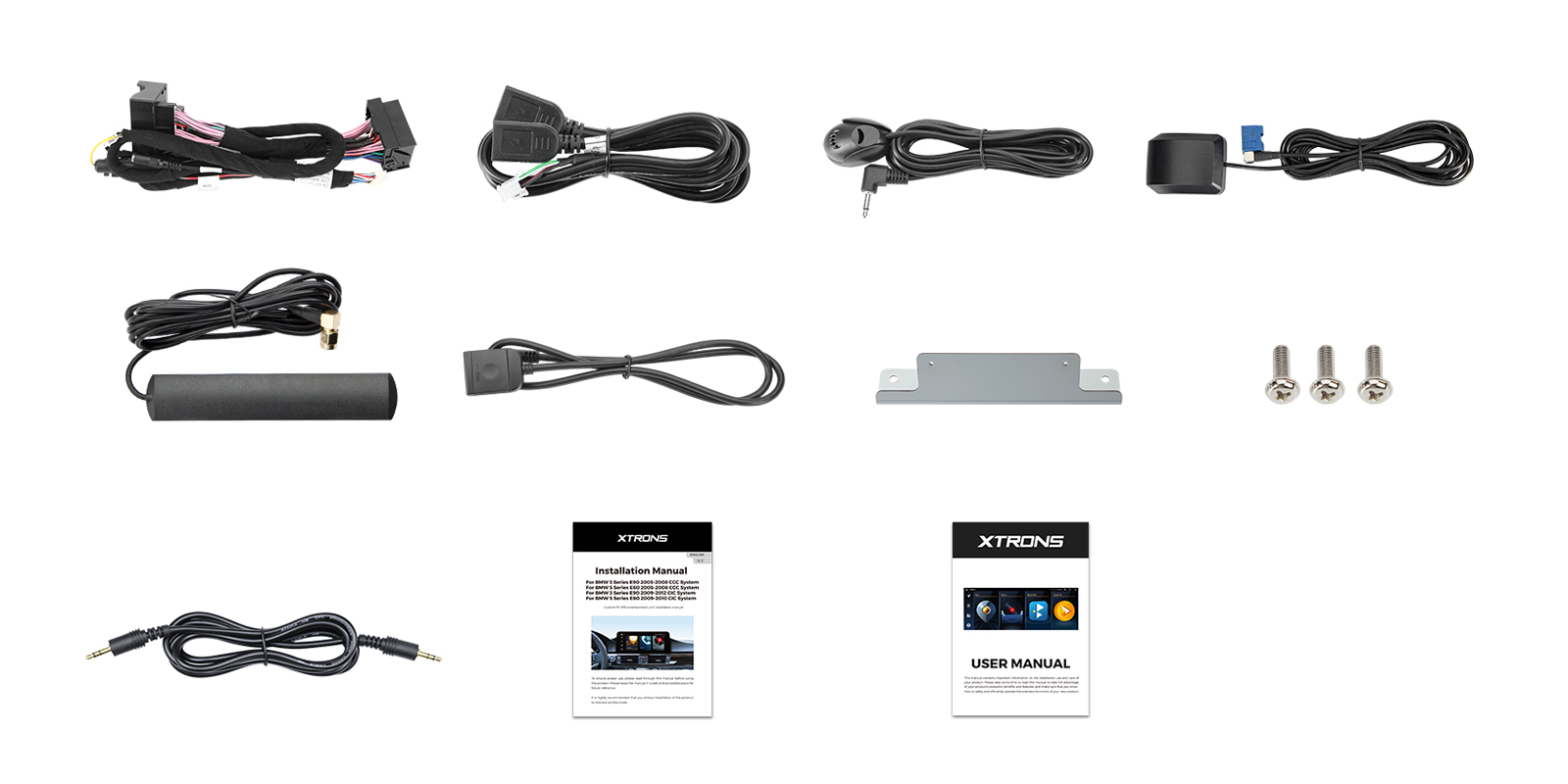

The screen replaces the factory display and the original CD player stays, with a face panel in the box. Sound goes through the car’s AUX input, so make sure AUX is enabled. If your car has no AUX input, you’ll need an adapter; the XTRONS CA/ITR/FM02 and CA/ITR/FM03 (not included) are compatible.
A CCC radio usually has both CD and DVD slots, a 10-pin LVDS port and the CCC interface.
Yes, with an adapter such as the XTRONS CA/ITR/FM02 or CA/ITR/FM03, which aren’t included.
Yes, a 360 camera system is supported. The cameras are sold separately.
Yes. It has wireless CarPlay and wireless Android Auto.
Reviews
Bought this product? Sign in to write a review.

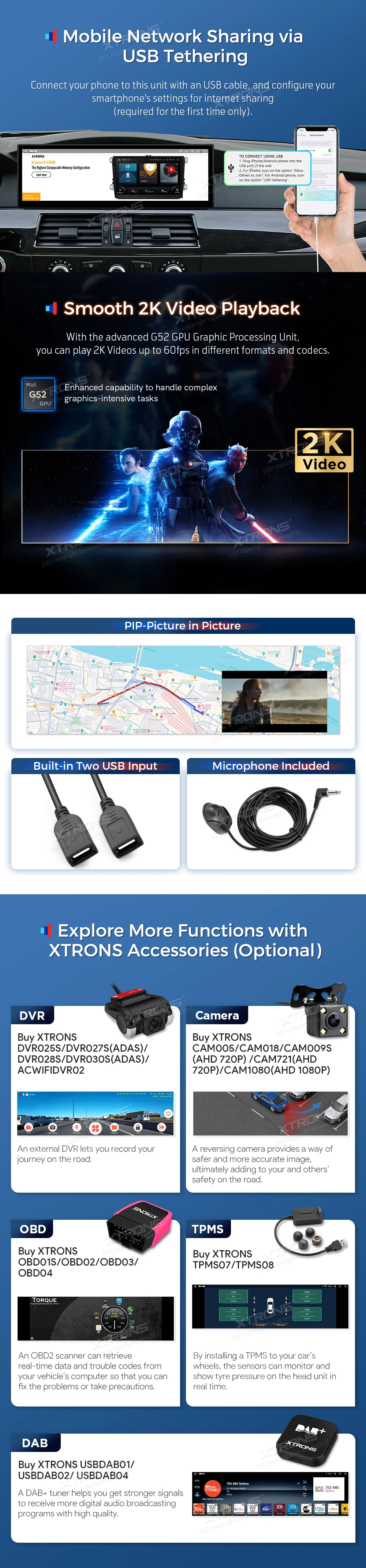

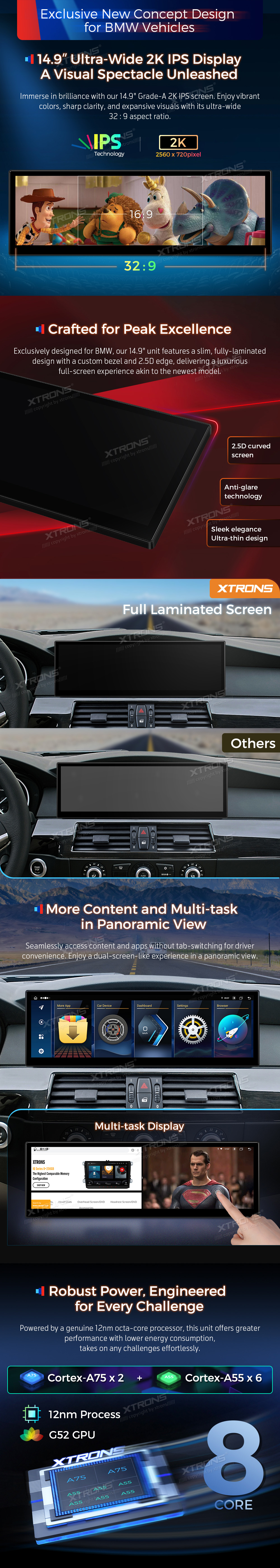

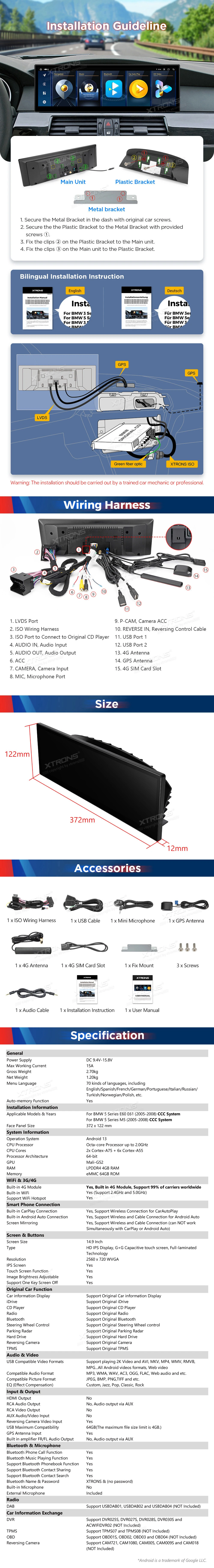

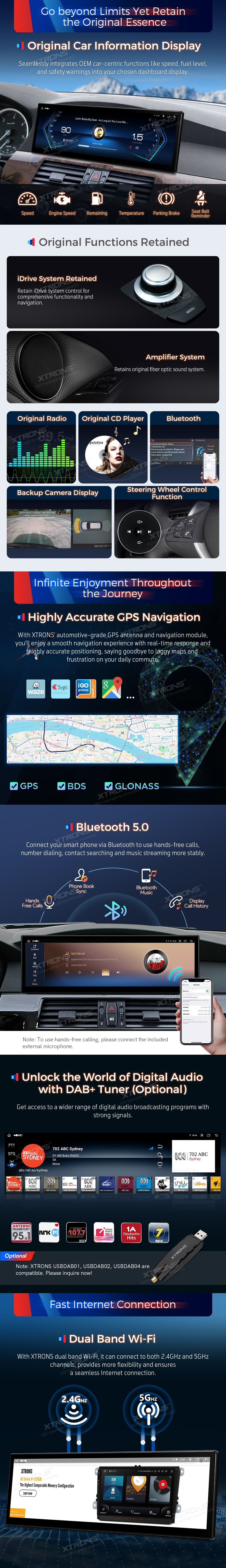

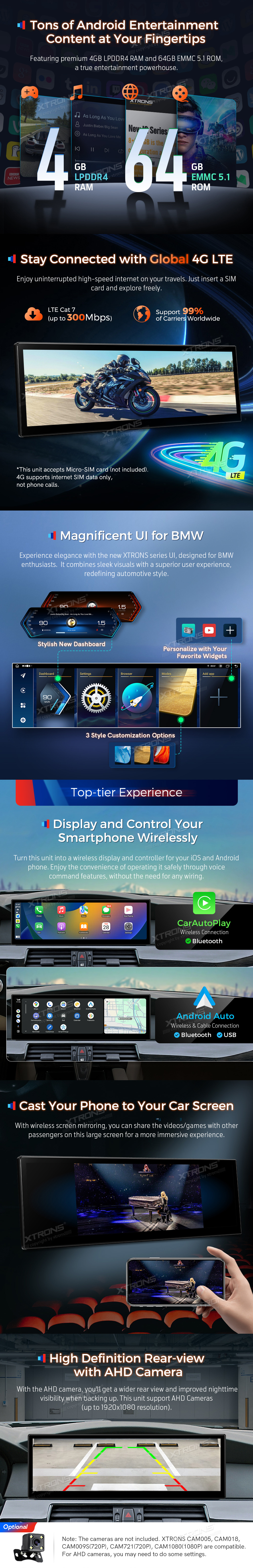

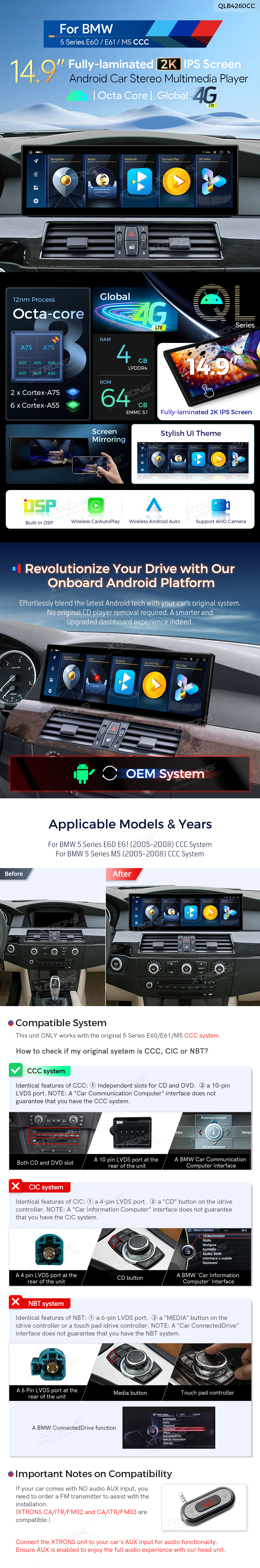

XTRONS's own pages for this product, as the manufacturer publishes them. Open any of them at full size to zoom in.
