Audi TT MK2 8J 9 inch Android 14 Head Unit with Wireless CarPlay, Android Auto and HDMI Output | IQP94TTAP
SKU: IQP94TTAP
£439.00
Check if this fits your car
1
Key specifications
- Operating system
- Android 14
- Processor
- Qualcomm 665 Octa Core
- CPU cores
- 4x Cortex A73 performance cores and 4x Cortex A53 power-efficient cores
- Clock speed
- up to 2.0GHz
- Memory
- 8GB RAM +256GB ROM
- Screen
- 9” 1280×800 QLED IPS Screen

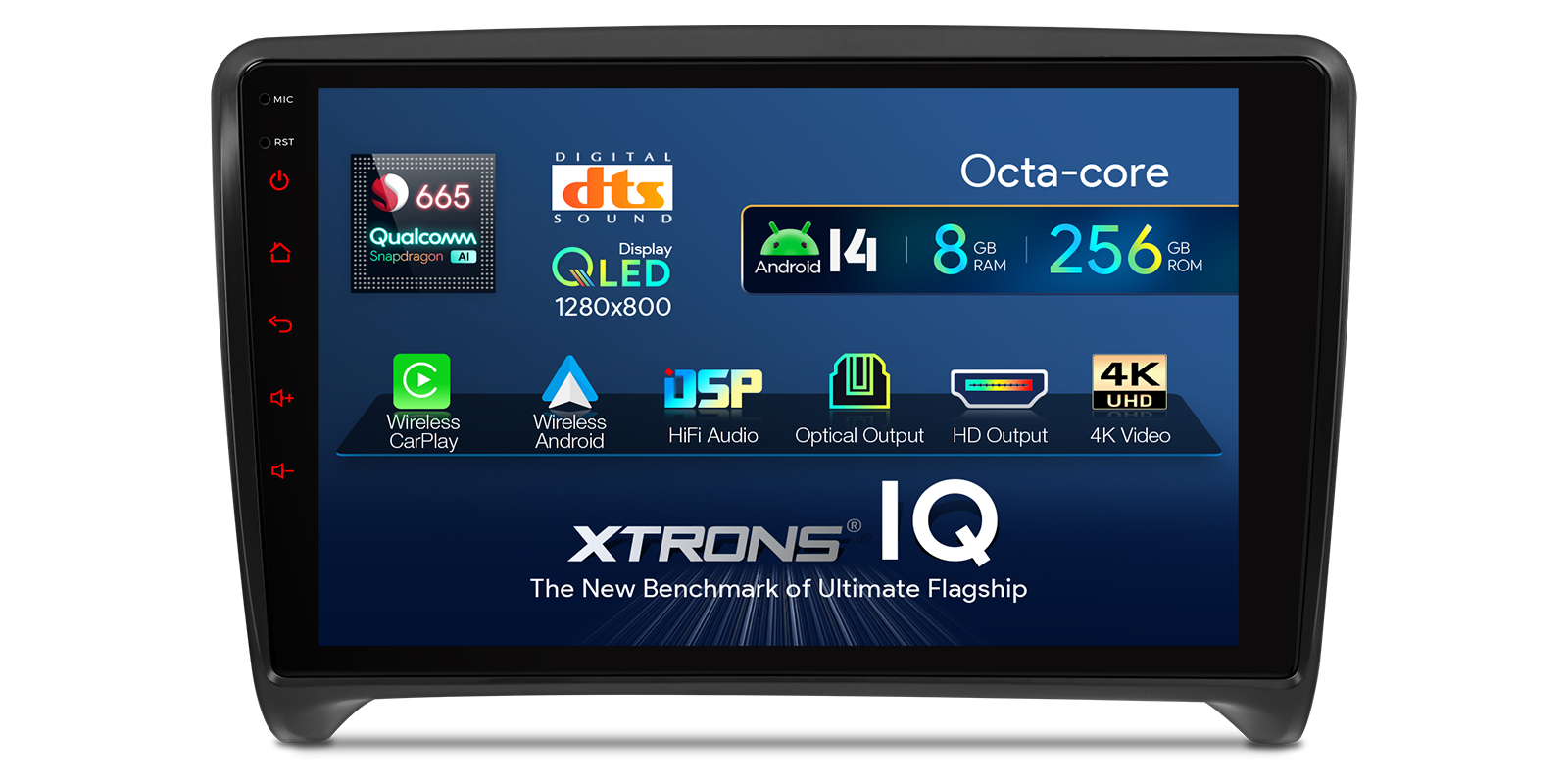

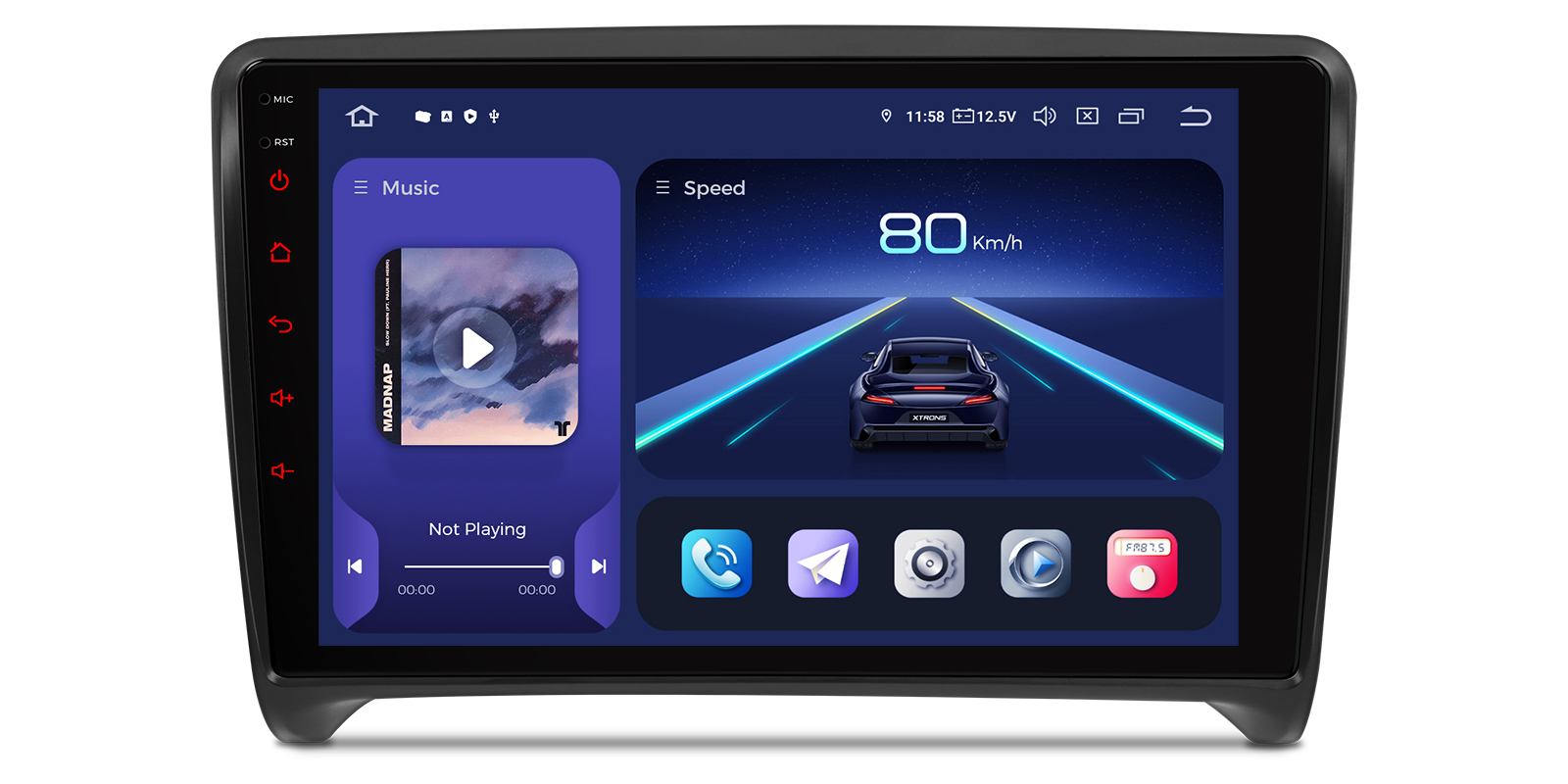

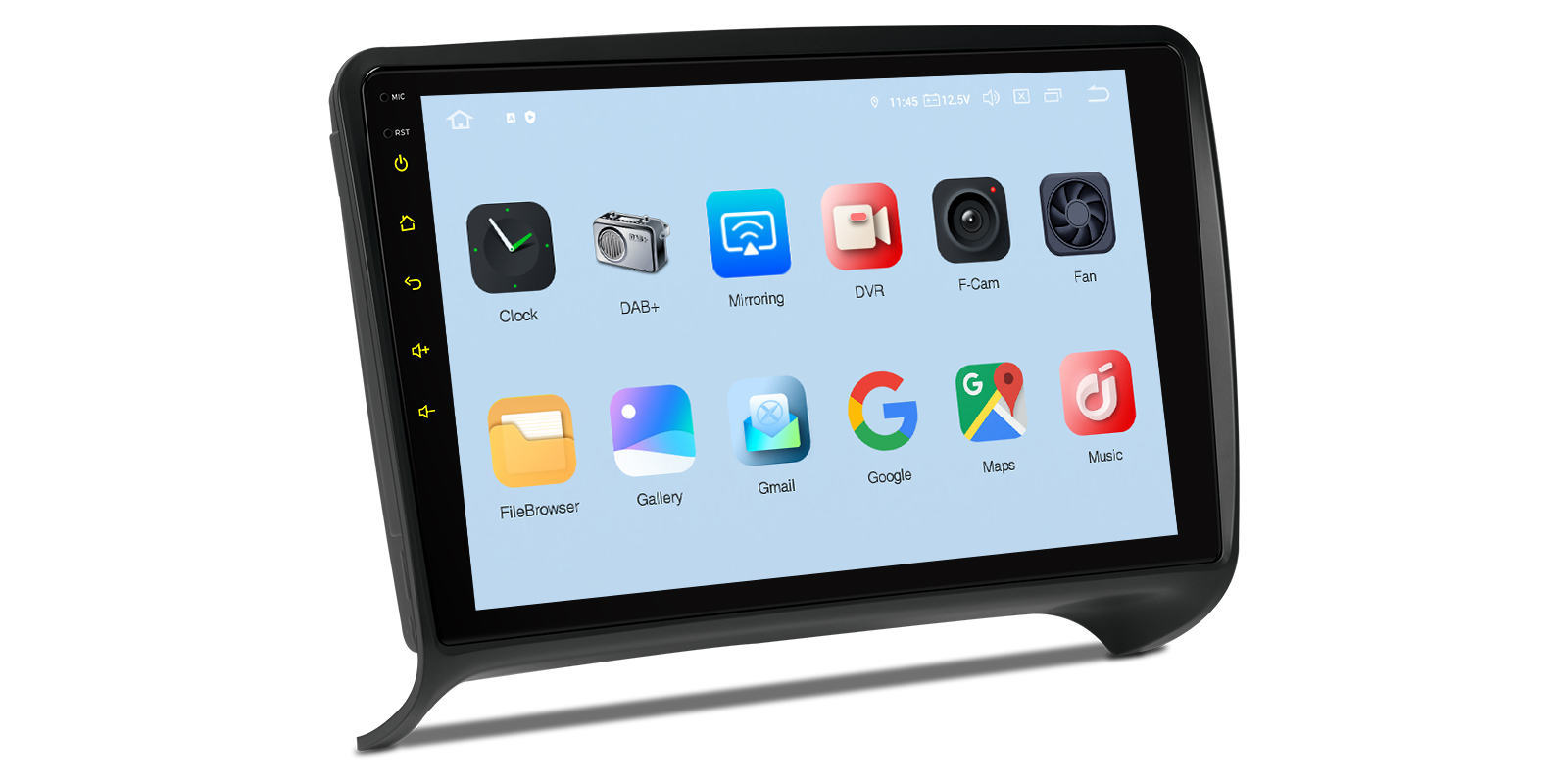

A 9 inch Android 14 head unit made to fit the Audi TT MK2 8J (2006-2012). It runs on a Qualcomm Snapdragon 665 with 8GB RAM and 256GB storage, and adds CarPlay, Android Auto, 4G, DTS sound and an HDMI output, with an amplifier box included for cars with BOSE.
- Wireless Apple CarPlay and Android Auto
- 9” 1280×800 QLED IPS screen
- Qualcomm 665 octa core with 8GB RAM and 256GB ROM on Android 14
- DSP with DTS digital sound and a TDA7808 digital amplifier
- HDMI output to share video with a rear screen
- Amplifier box for BOSE system included

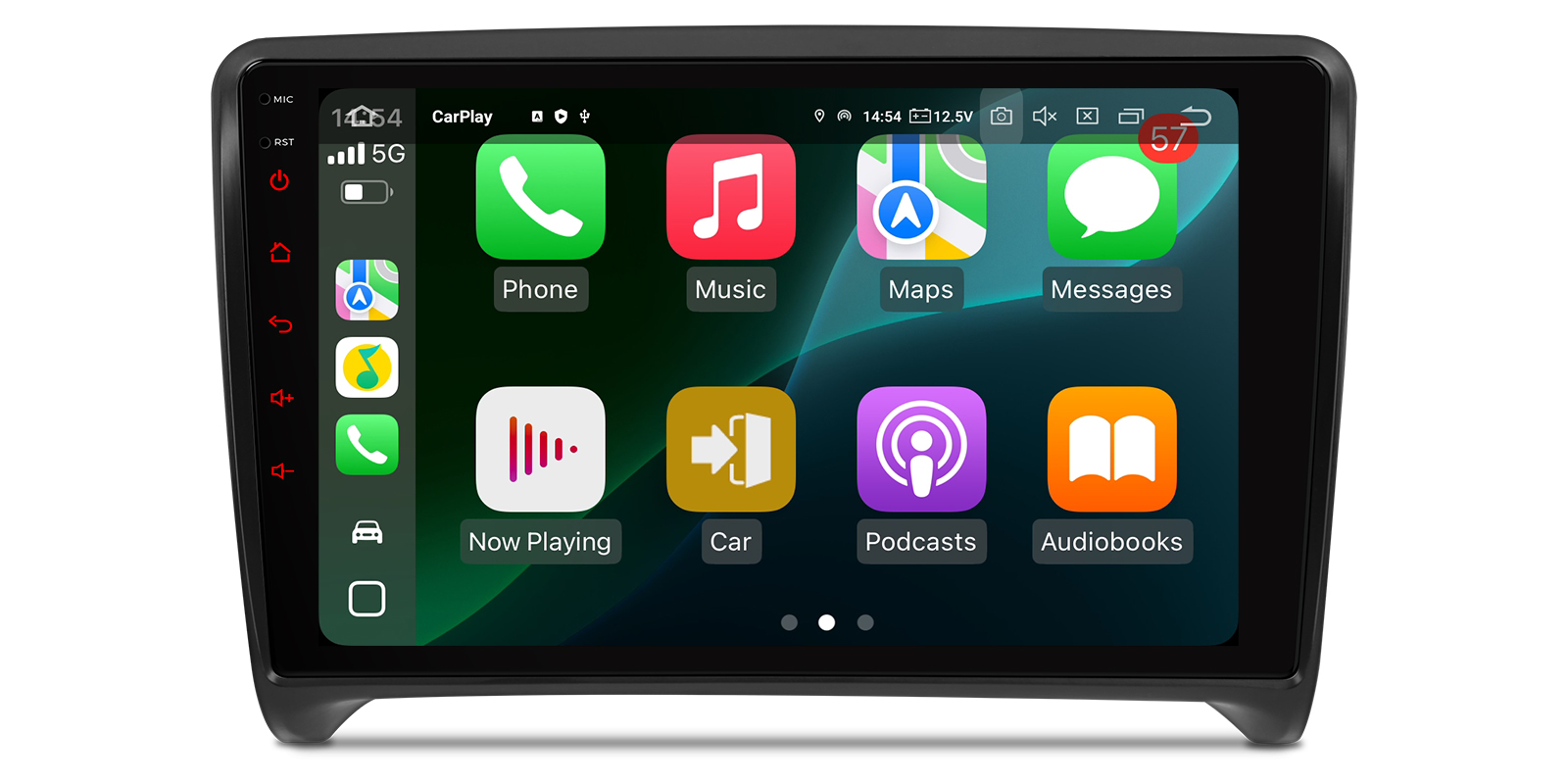

Wireless Apple CarPlay
Your iPhone connects without a cable, so maps, calls and music come up on the 9 inch screen. Siri handles messages and directions by voice.

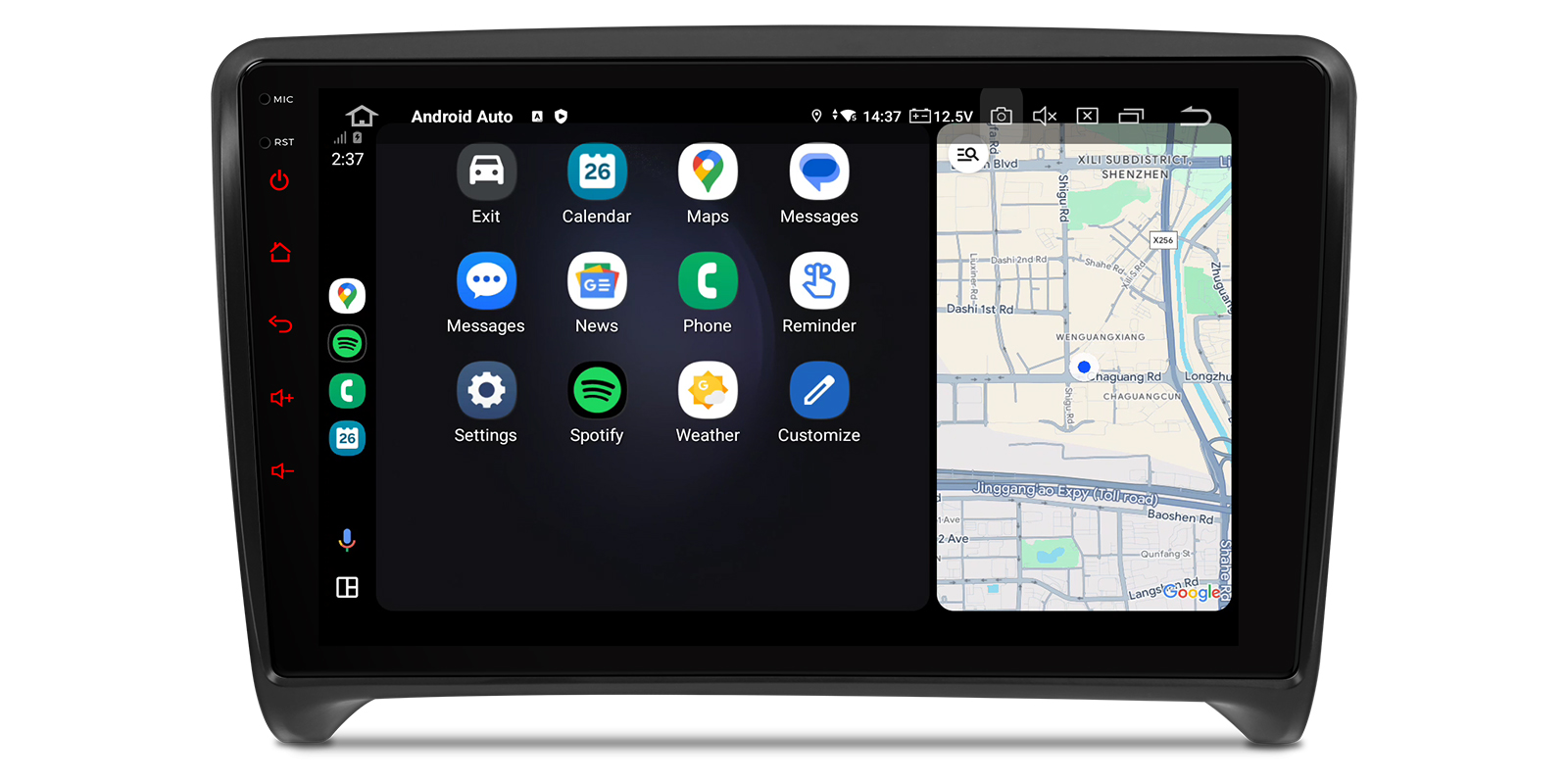

Android Auto
Android Auto puts navigation, music and messages on the head unit, with Google Assistant for hands-free use.

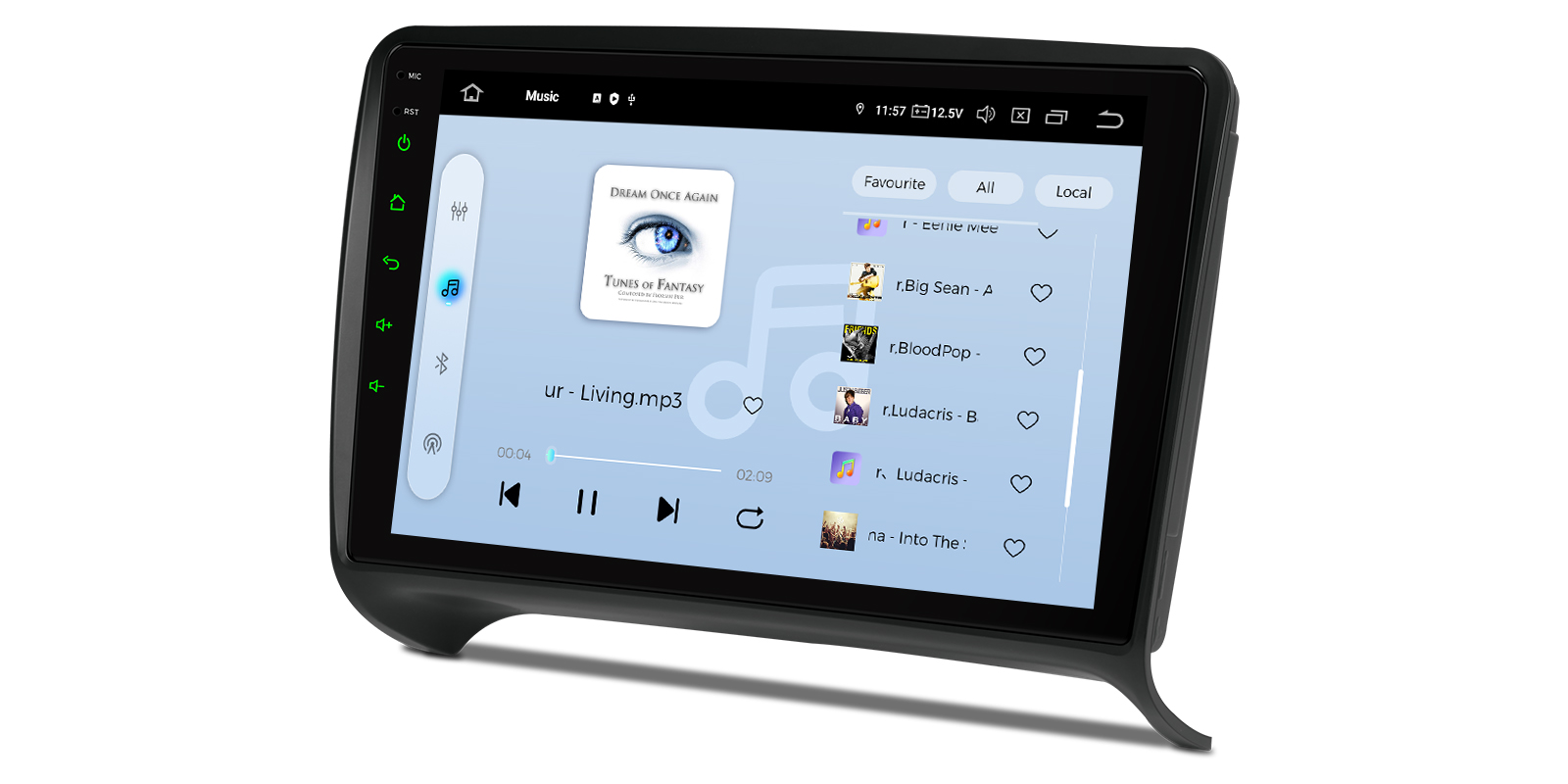

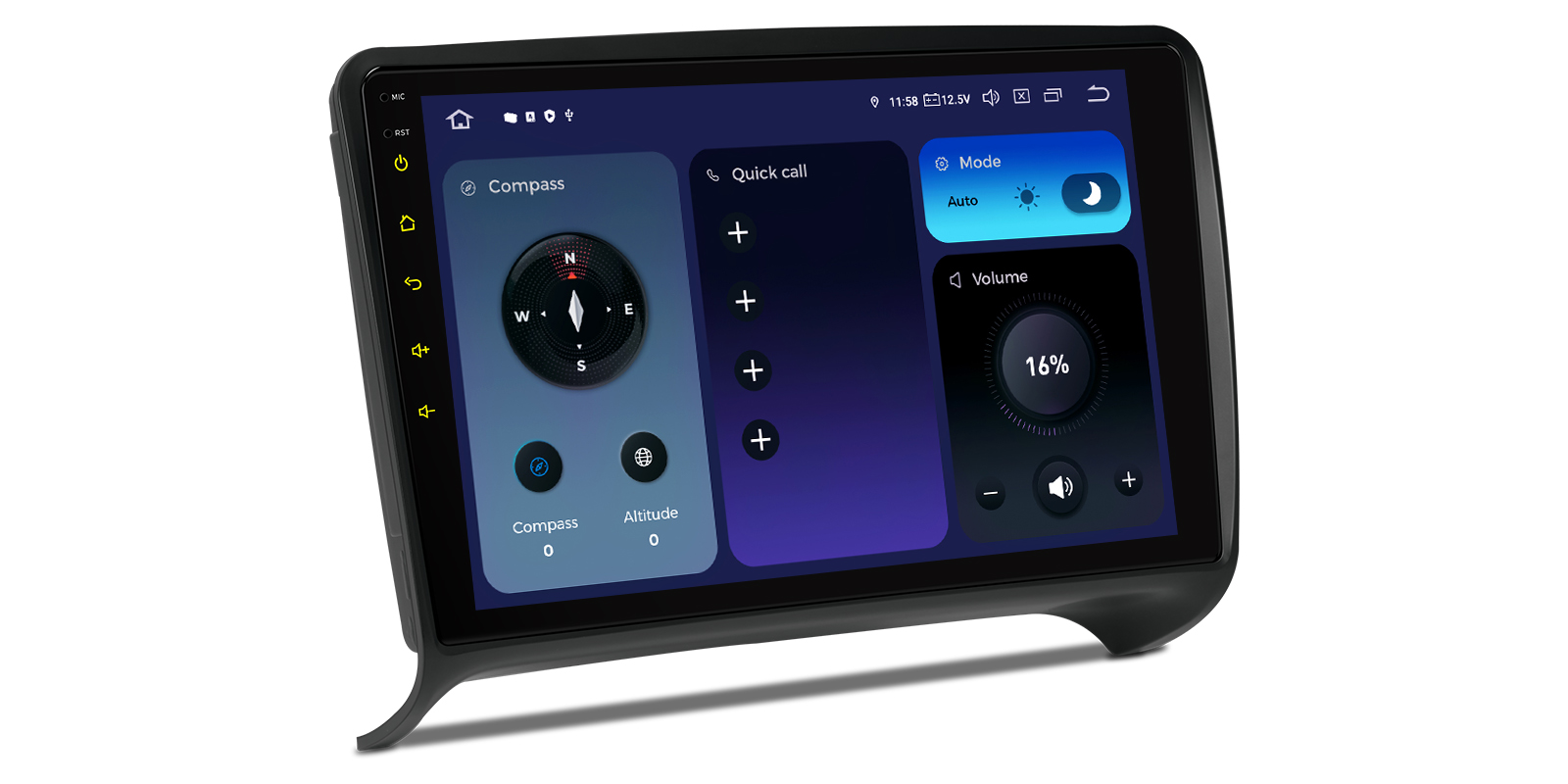

9 inch QLED screen
The 9″ quantum dot screen runs at 1280×800, giving rich colour and fine detail on maps and video. 4K video playback is supported.
IPS viewing angles
The IPS panel keeps the picture clear at wide angles, which matters in a low, wide cabin like the TT's.
DSP and DTS sound
The Si47925 audio processor brings DTS decoding, and the DSP lets you tune the sound to the car. The result is fully digital lossless audio output with good resistance to interference.
TDA7808 digital amplifier
An automotive-grade TDA7808 amplifier chip uses digital processing to drive the speakers efficiently. If your TT has BOSE, the amplifier box for the BOSE system is in the box.

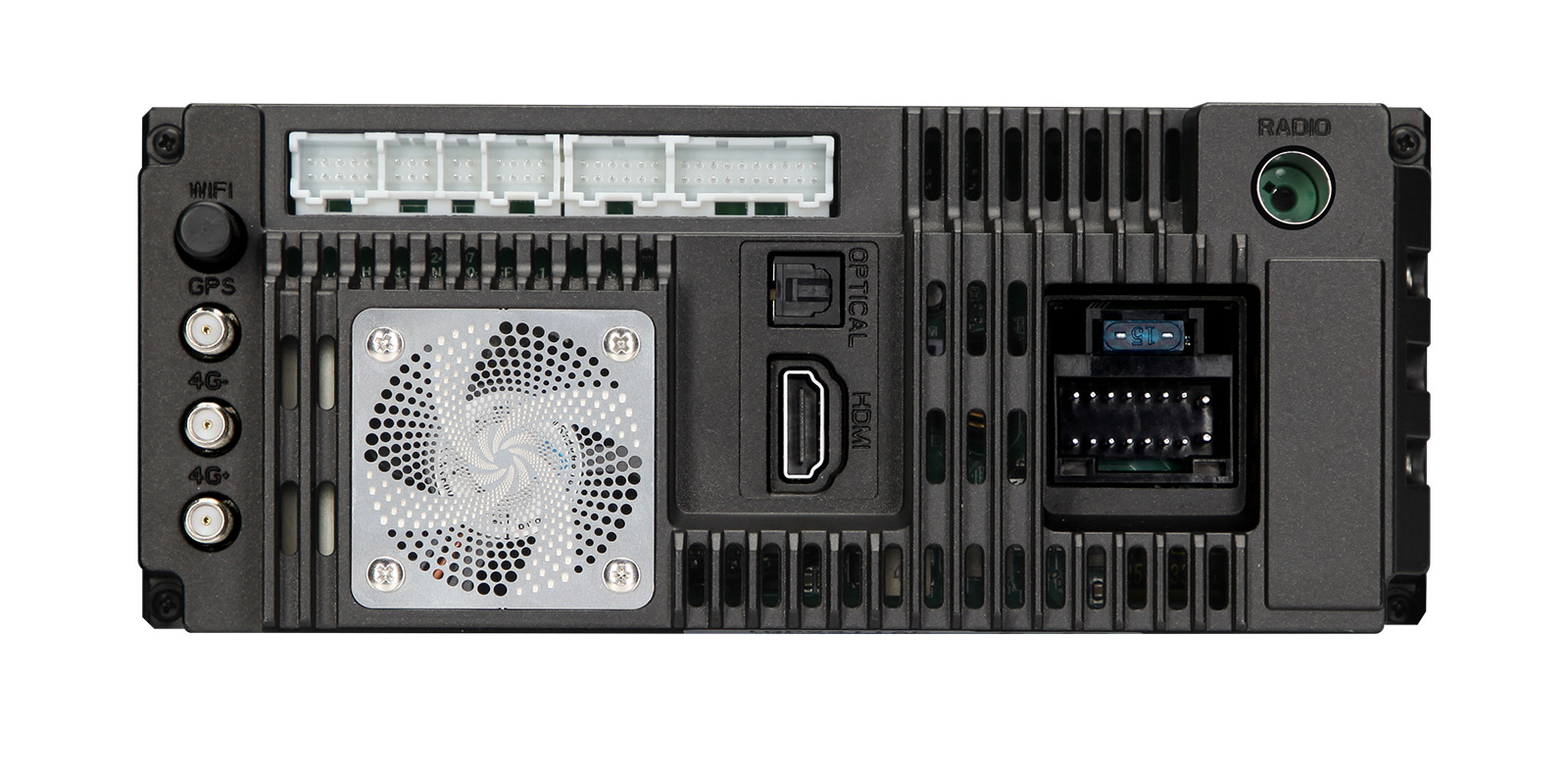

Optical and RCA audio outputs
Optical and RCA audio outputs let you add an external amplifier. An RCA cable is included.
HDMI output
The HD port sends video to another screen, so passengers can watch a film on a separate display.
Built-in 4G
The integrated 4G LTE covers Europe bands 1, 3, 7, 8, 20, 28, 38 and 40. Add a SIM card to stay online for navigation and streaming, or to share the connection. A 4G antenna is supplied.
Wi-Fi
Wi-Fi connects the unit to a hotspot or home network for downloads and updates.
Screen mirroring
Mirror your phone onto the screen for apps that don't run in CarPlay or Android Auto.
USB
2 USB cables are included for phones and memory sticks.
External microphone
An external microphone can be fitted near the driver for clearer hands-free calls.
DAB with an external tuner
DAB radio is supported with an external tuner, sold separately.
Works with

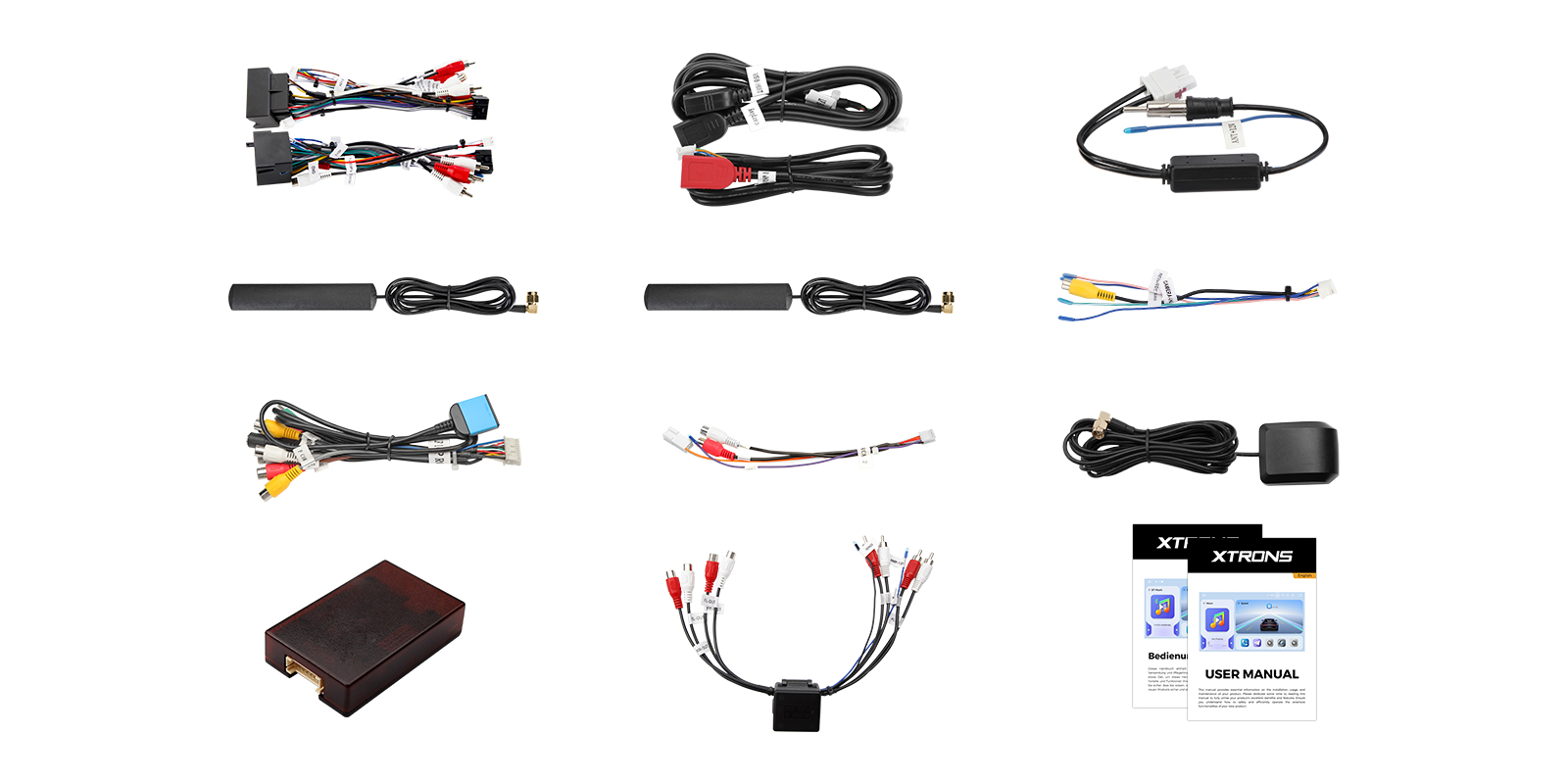

What's in the box
- 1 x 4G Antenna
- 1 x Amplifier Box for BOSE System
- 1 x Camera Cable
- 1 x CANbus Box
- 1 x CANbus Cable
- 1 x GPS Antenna
- 1 x Radio Antenna Cable
- 1 x RCA Cable
- 1 x User Manual
- 2 x ISO Wiring Harness
- 2 x USB Cable
- Face Panel (All)
| Operating system | Android 14 |
|---|---|
| Processor | Qualcomm 665 Octa Core |
| CPU cores | 4x Cortex A73 performance cores and 4x Cortex A53 power-efficient cores |
| Clock speed | up to 2.0GHz |
| Memory | 8GB RAM +256GB ROM |
| Screen | 9” 1280×800 QLED IPS Screen |
|---|
| Amplifier | TDA7808 |
|---|---|
| Audio processor | Si47925 |
| Outputs | HDMI Output Optical RCA Audio Output |
| 4G bands (Europe) | Europe: 1, 3, 7, 8, 20, 28, 38, 40 |
|---|
| Face panel | 240/228x140mm |
|---|---|
| Disc playback | This unit doesn't play discs. |
- Audi TT (1998-2023)
- For Audi TT MK2 8J (2006-2012)
- Note: This unit doesn't play discs.

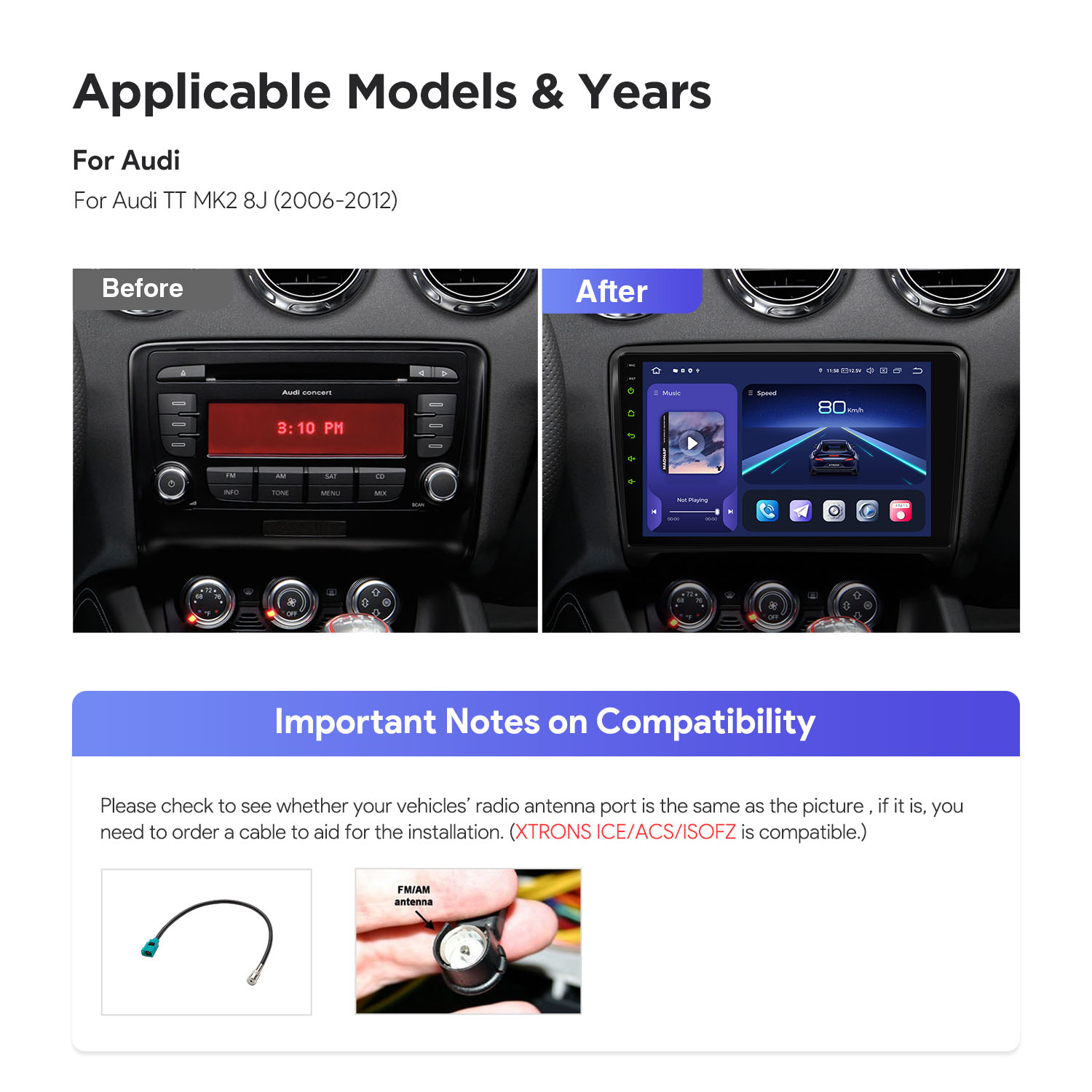

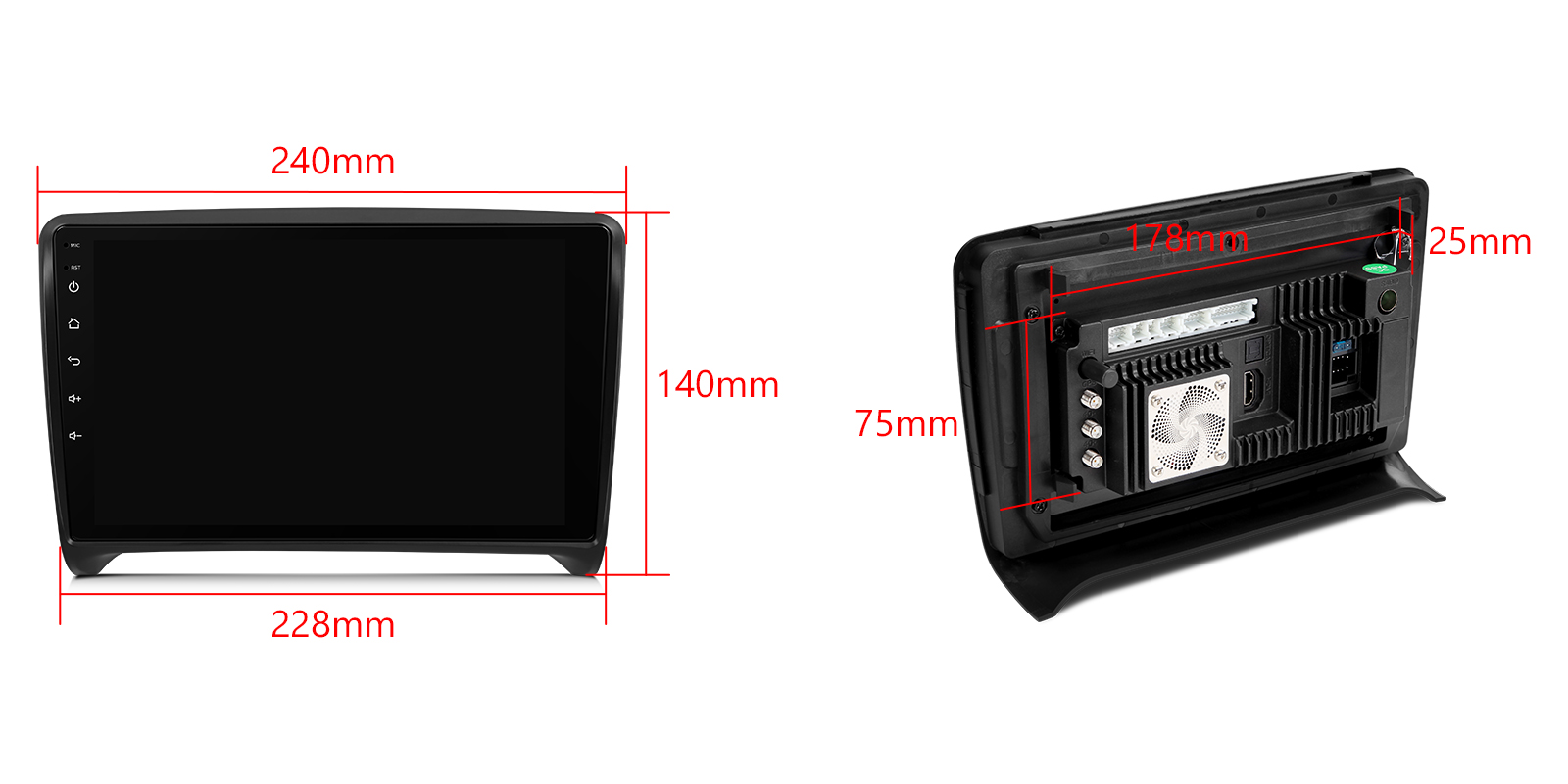

The unit is a custom fit for the TT MK2 with a 240/228x140mm face panel, and comes with two ISO wiring harnesses, a CANbus box and an amplifier box for the BOSE system. Check the year, dimensions and shape of your centre console before ordering. If your radio antenna port matches the photo, you'll also need the XTRONS ICE/ACS/ISOFZ cable.
Which TT does it fit?
The Audi TT MK2 8J from 2006-2012.
Does it work with the BOSE system?
Yes. An amplifier box for the BOSE system is included.
Can I send video to a rear screen?
Yes. The HDMI output can feed a separate display.
Does it play CDs?
No, it doesn't play discs.
Reviews
What customers say
Bought this product? Sign in to write a review.

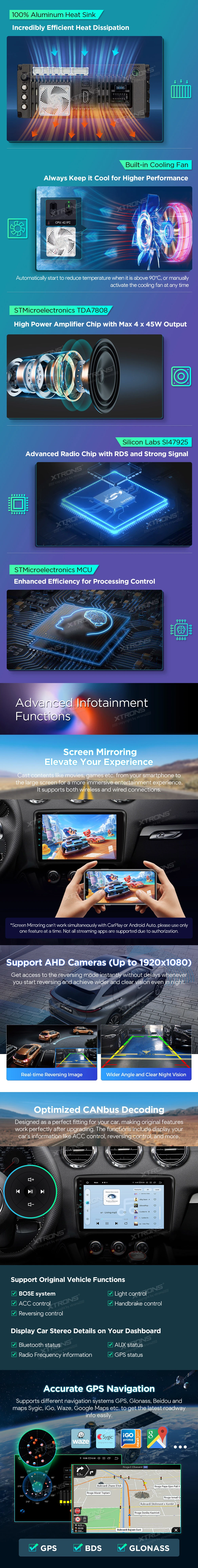

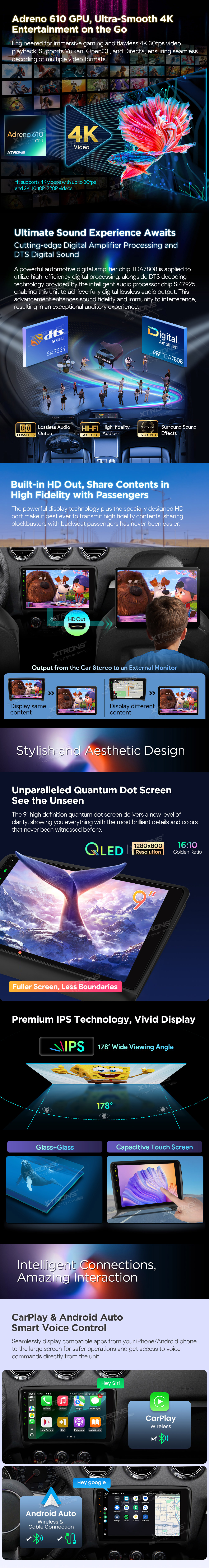

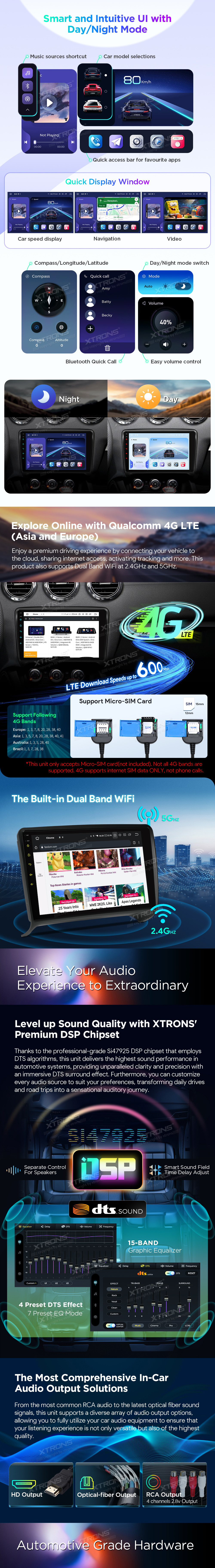

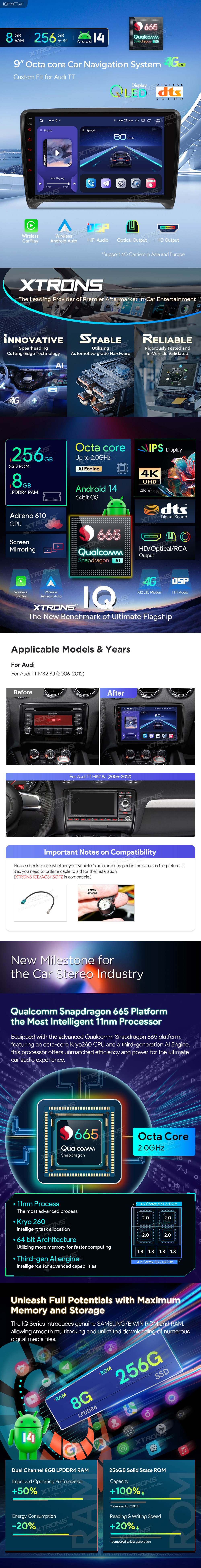

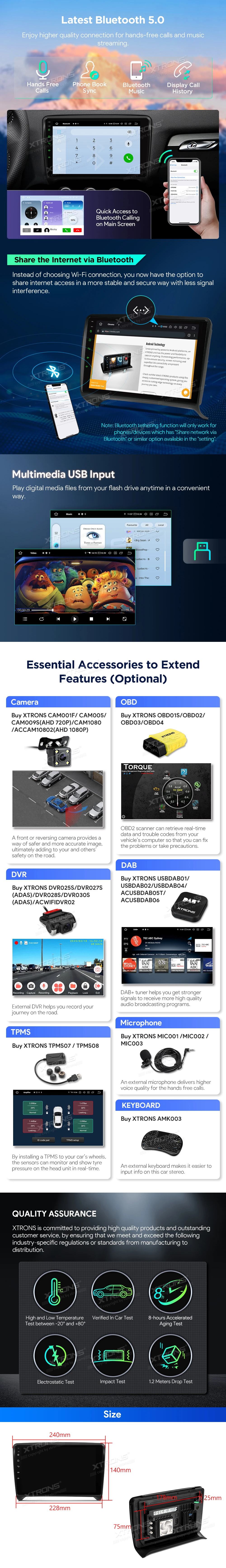

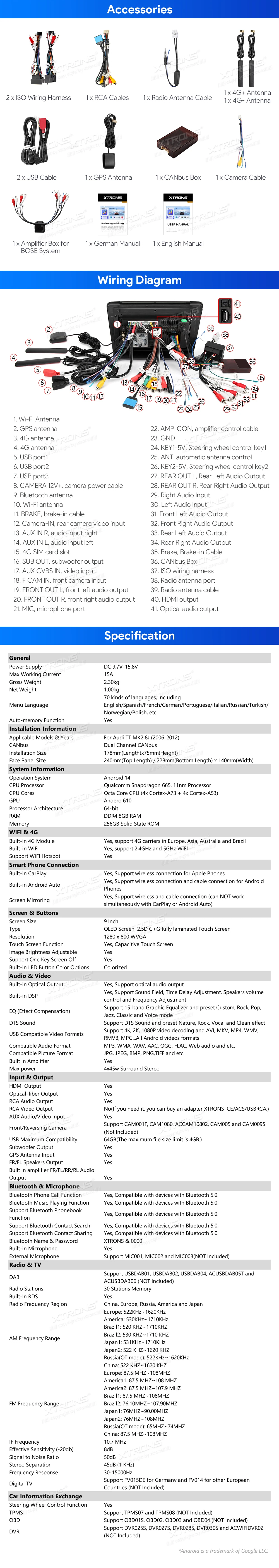

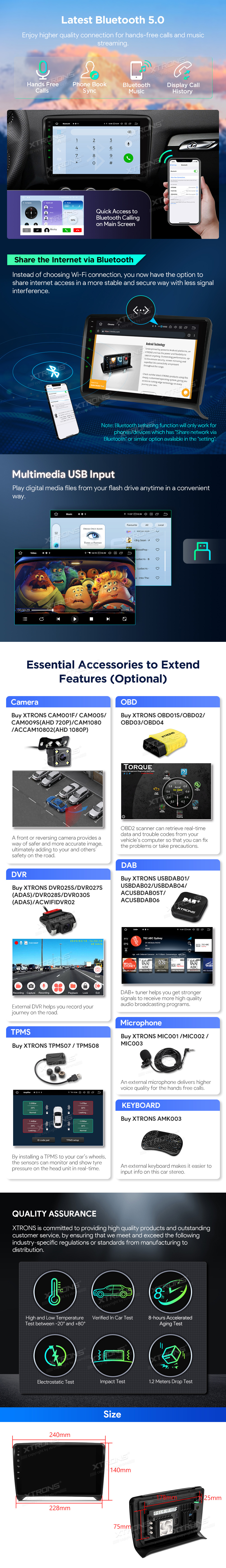

Full specification from XTRONS
