Image 1 of 4.
Functions
- Reversing camera input
Only 2 left
Vauxhall Vivaro, Opel Vivaro and Renault Trafic Brake Light Reversing Camera with IR Night Vision | ICE/SS/CAMOPV001
SKU: ICE/SS/CAMOPV001
£119.99
Check if this fits your car
1
Key specifications
- Sensor
- Sensor: CCD
- Resolution
- Resolution (TV LINES): 420
- Effective pixels
- Effective Pixels: 976×494
- Minimum illumination
- Minimum illumination: 0 Lux with IR night vision (LED on)
- View angle
- View Angle: 170 degrees
- Infrared LEDs
- Infrared LED Lights: 6

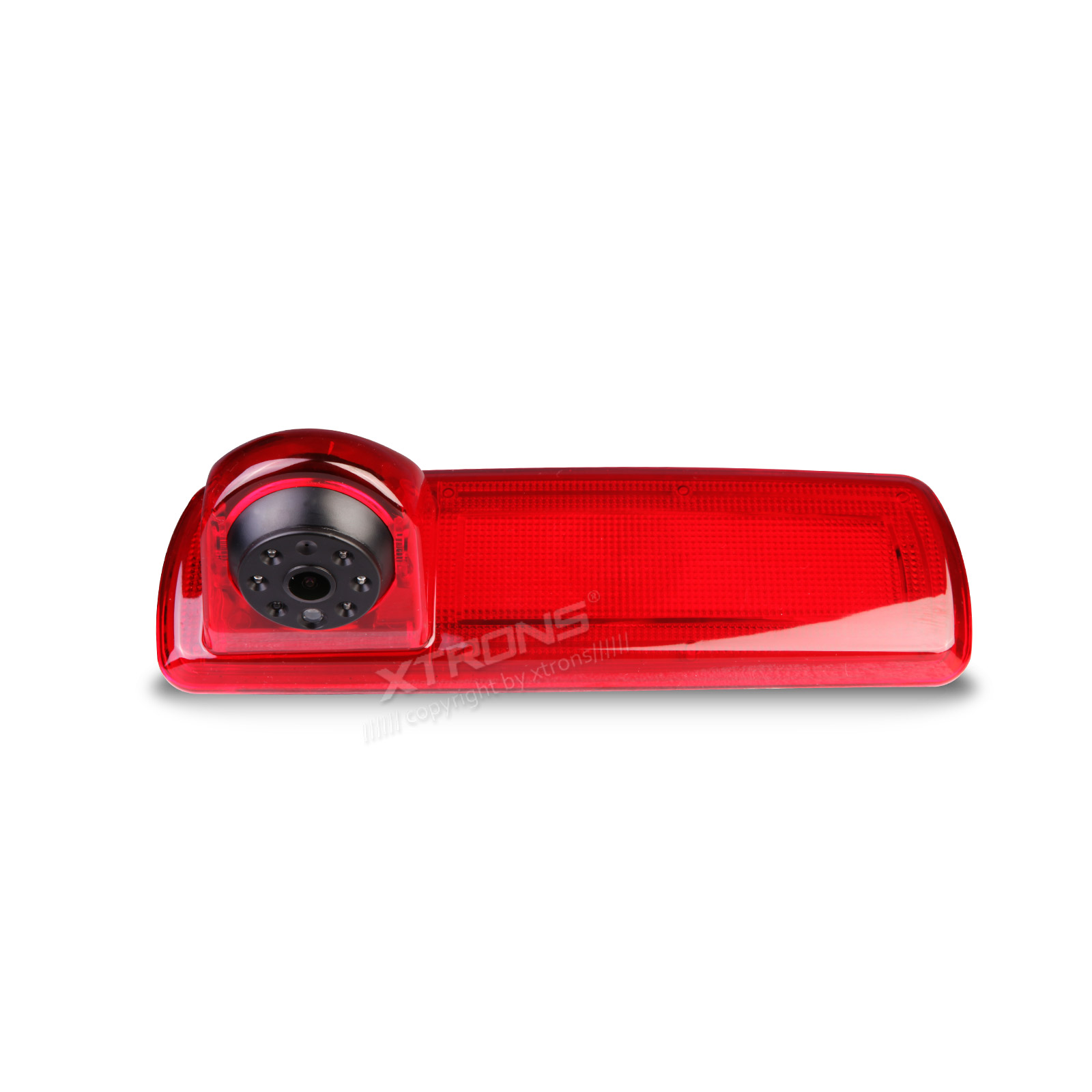

A replacement rear roof brake light with a reversing camera built in, for the Vauxhall Vivaro, Opel Vivaro and Renault Traffic (2014 onwards). It gives a 170 degree view behind the van and has infrared LEDs for night vision.
- OE fit replacement for the factory rear roof brake light
- 170 degree view with a CCD sensor
- 6 infrared LEDs for night vision
- IP68 waterproof, with a built-in microphone
A high view behind the van

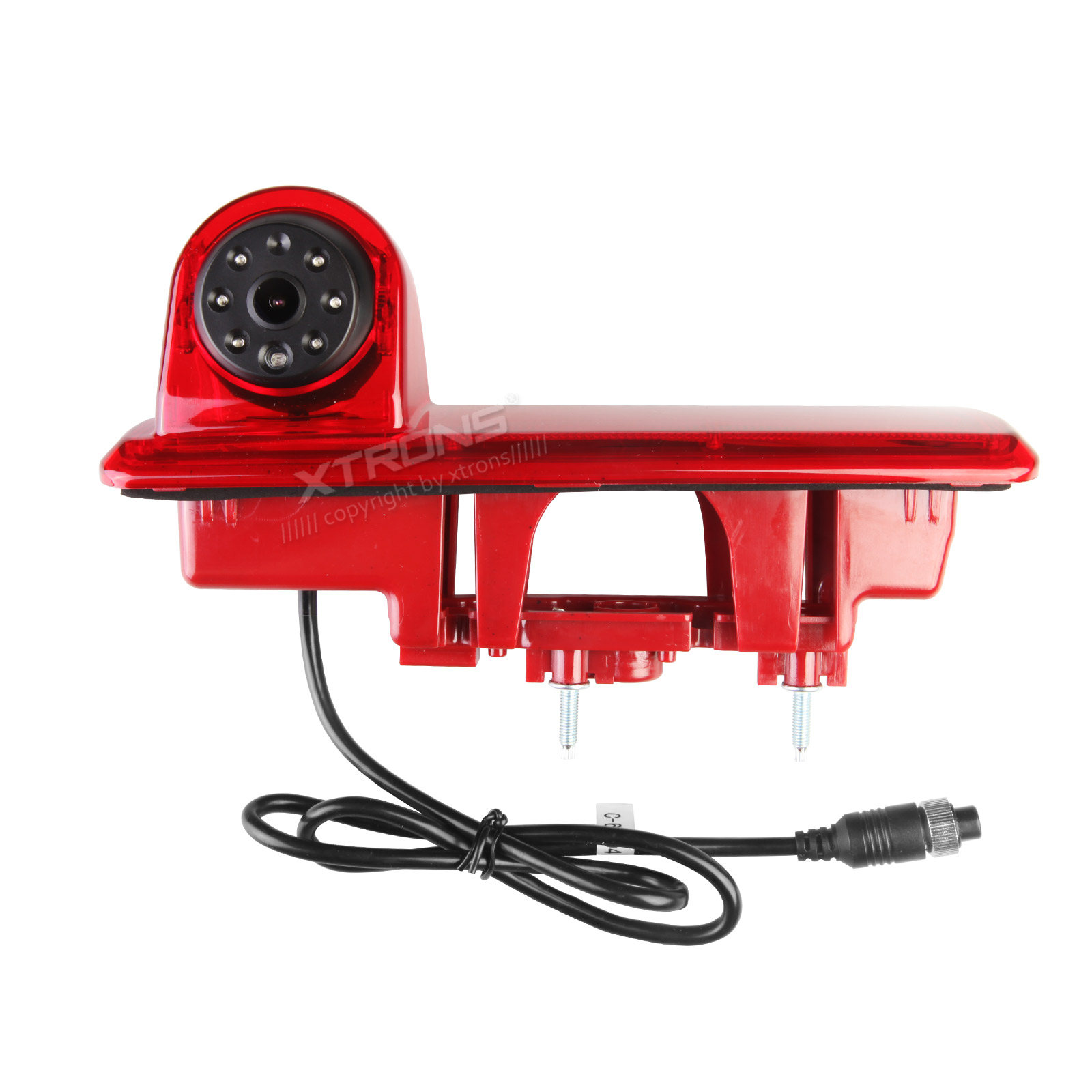

The camera is built into a complete outer lens for the rear roof brake light, so it looks down from the top of the van. To fit it, unscrew the original outer brake light housing and replace it with this unit.
The 170 degree view and CCD sensor cover the area behind the doors, and 6 infrared LEDs keep the picture usable at night.
Built for the outside of a van
It's rated IP68 waterproof and works from -20 degrees Celsius to 70 degrees Celsius on a 12 volt supply. There's a built-in microphone too. Check your van has the factory fitted rear roof brake light, and that your screen has a camera input, before ordering.

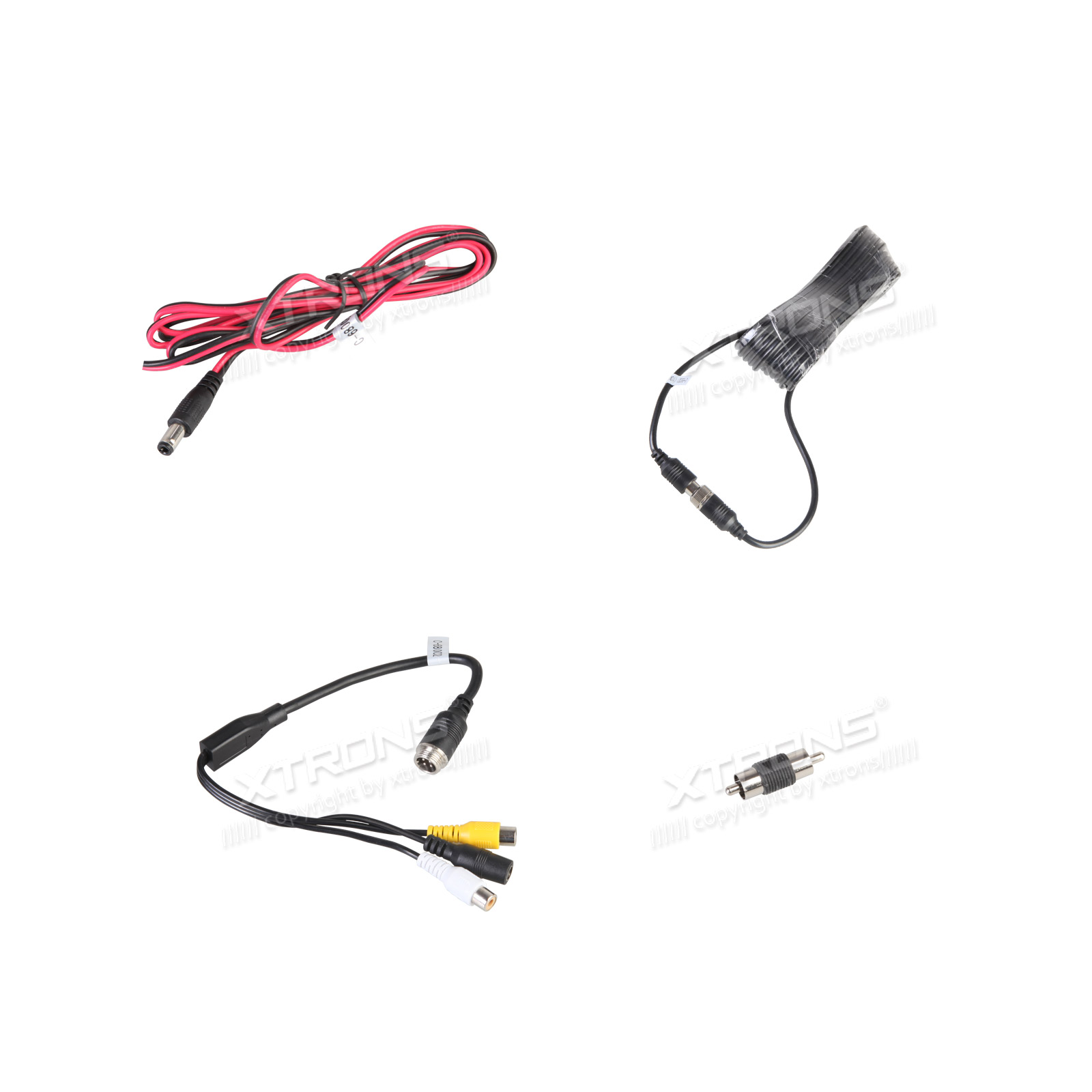

What's in the box
- 1 x Adapter (RCA Male to RCA Male)
- 1 x Converting Cable
- 1 x Power Cable (1.5 meters)
| Sensor | Sensor: CCD |
|---|---|
| Resolution | Resolution (TV LINES): 420 |
| Effective pixels | Effective Pixels: 976×494 |
| Minimum illumination | Minimum illumination: 0 Lux with IR night vision (LED on) |
| View angle | View Angle: 170 degrees |
| Infrared LEDs | Infrared LED Lights: 6 |
| Microphone | Built in Microphone |
| Power supply | Power Supply: 12 volt |
|---|---|
| Waterproof | Waterproof: IP68 |
| Operating temperature | Operating Temperature: -20 degrees Celsius to 70 degrees Celsius |
| Connection cable | Connection Cable (10 metres) |
- Designed to fit Vauxhall Vivaro / Opel Vivaro / Renault Traffic 2014 onwards that have the factory fitted rear roof brake light.
- OE fitting – Vauxhall Vivaro (2014 onwards), Opel Vivaro (2014 onwards), Renault Traffic (2014 onwards).
Unscrew the original outer brake light housing and replace it with this combined brake light and camera. Connect power and run the video connection to your screen's camera input using the supplied cables.
Which vans does it fit?
The Vauxhall Vivaro, Opel Vivaro and Renault Traffic from 2014 onwards with the factory fitted rear roof brake light.
Does it work at night?
Yes. It has 6 infrared LEDs and works down to 0 Lux with the LEDs on.
Is it hard to fit?
The camera replaces the outer brake light housing, which unscrews. The wiring then runs to your screen's camera input.
Reviews
What customers say
Bought this product? Sign in to write a review.
Full specification from XTRONS
XTRONS's own pages for this product, as the manufacturer publishes them.
