Image 1 of 4.
Functions
- Reversing camera input
- External microphone
In stock
Fiat Ducato, Citroen Relay and Peugeot Boxer Brake Light Reversing Camera | ICE/SS/CAMFAD001
SKU: ICE/SS/CAMFAD001
£110.99
Check if this fits your car
1
Key specifications
- Sensor
- CCD
- Resolution (TV lines)
- 700
- Effective pixels
- 976×508
- Minimum illumination
- 0.1 Lux, 0 Lux with IR night vision
- View angle
- 170 degrees
- TV system
- PAL, Colorful

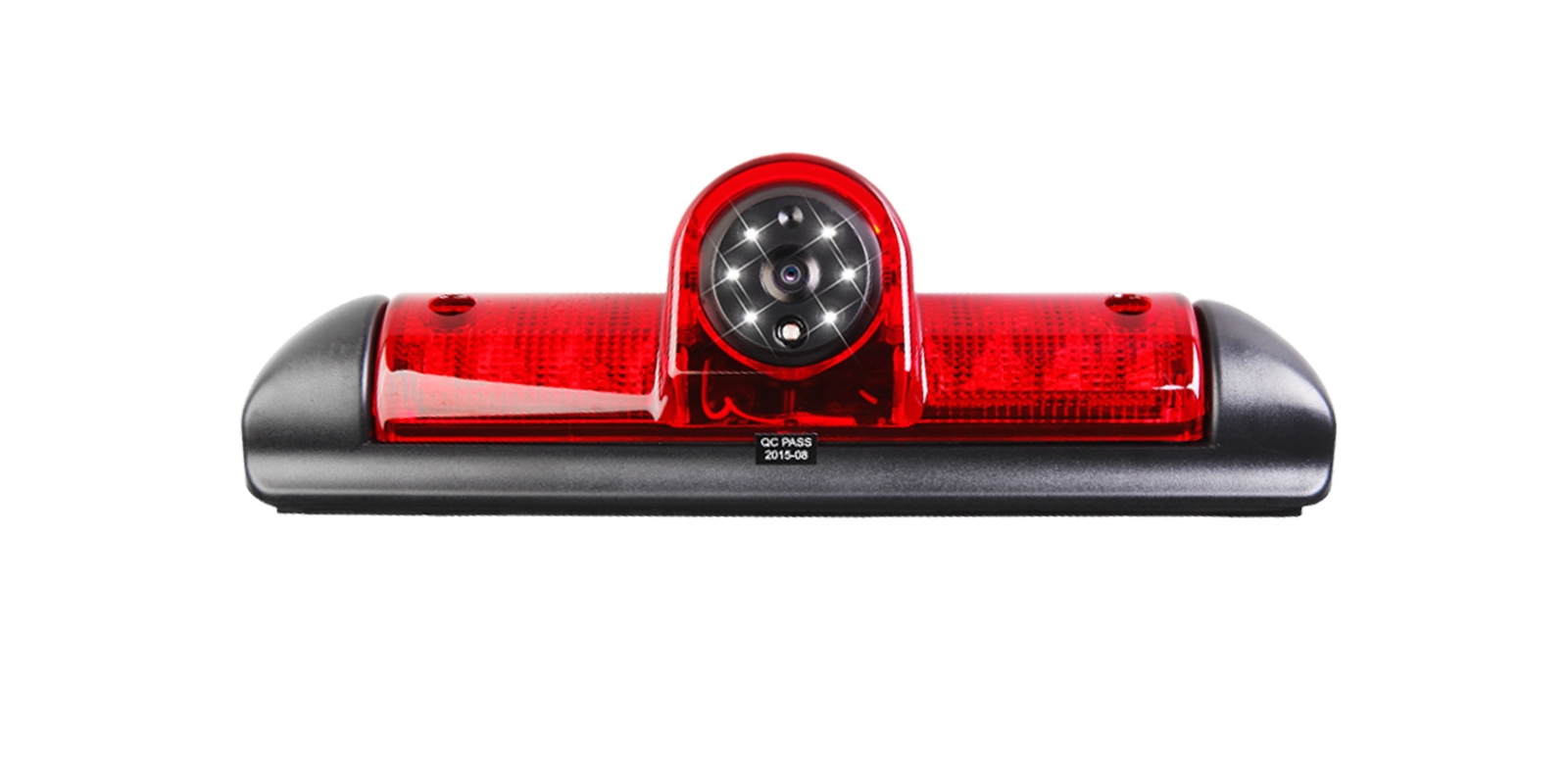

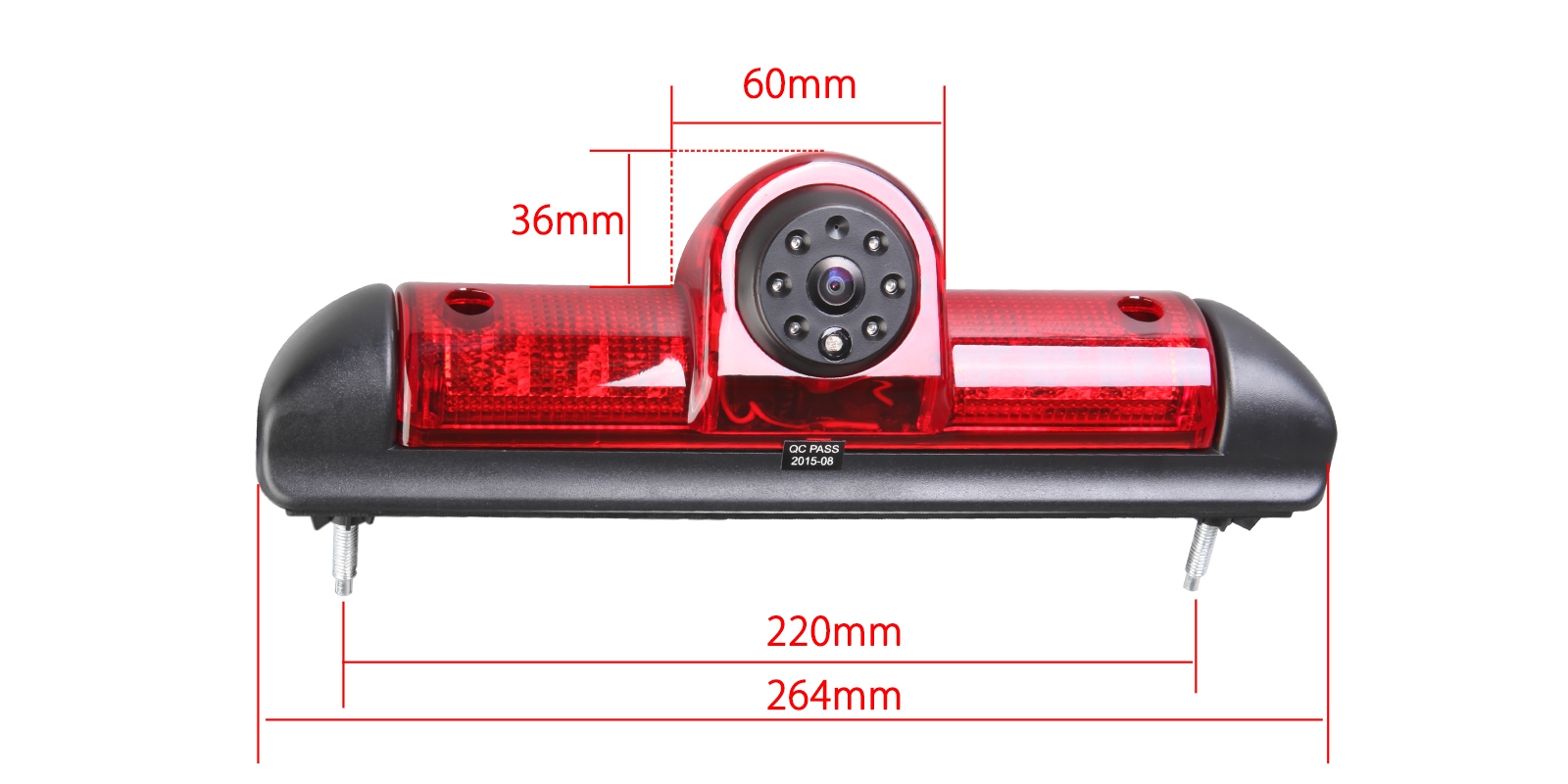

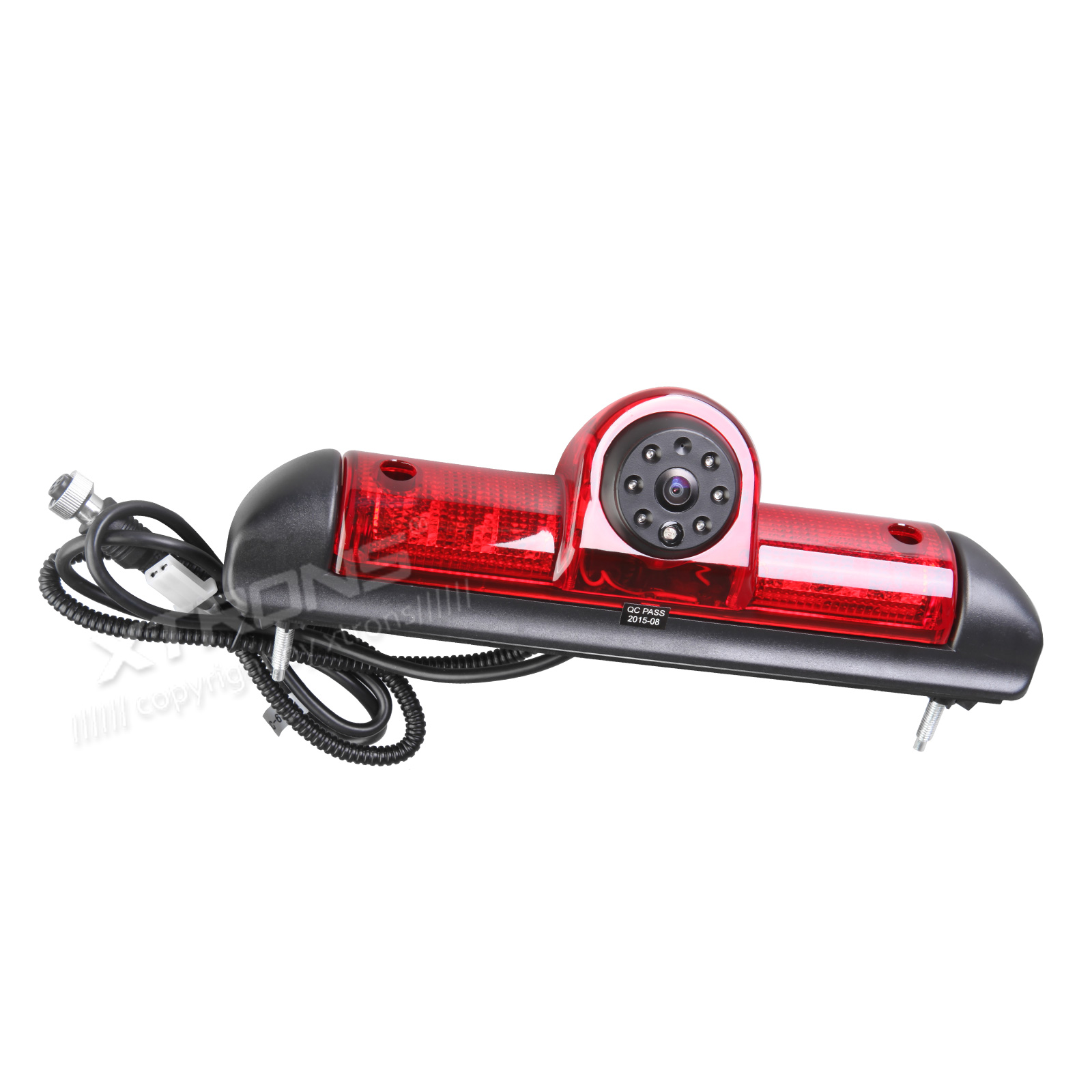

A reversing camera built into a replacement LED rear roof brake light for the Fiat Ducato, Citroen Relay and Peugeot Boxer. It swaps straight in for the factory brake light housing and gives a 170 degree view behind the van, with infrared night vision.
- 170 degree view angle from high on the back of the van
- OE style replacement for the factory rear roof brake light
- 6 infrared LEDs for night vision, down to 0 Lux
- IP68 waterproof, 12 volt supply
- Built in microphone
A high view behind the van
Mounted in the roof brake light, the camera looks down over the back doors with a 170 degree view angle, so you can see what's directly behind the bumper and to either side when reversing a long van.
It uses a CCD sensor with 700 TV lines (976×508 effective pixels). Six infrared LEDs give night vision, working down to 0 Lux, so it still helps in an unlit yard.
Swaps in for the brake light
It's made for Fiat Ducato, Citroen Relay and Peugeot Boxer vans that have the factory rear roof brake light. Unscrew the original outer brake light housing and fit this combined LED brake light and camera in its place.
It runs on 12 volt, is rated IP68 waterproof and works from -20 degrees Celsius to 70 degrees Celsius. The picture is PAL, so check your head unit or monitor has a camera input that accepts it before ordering.

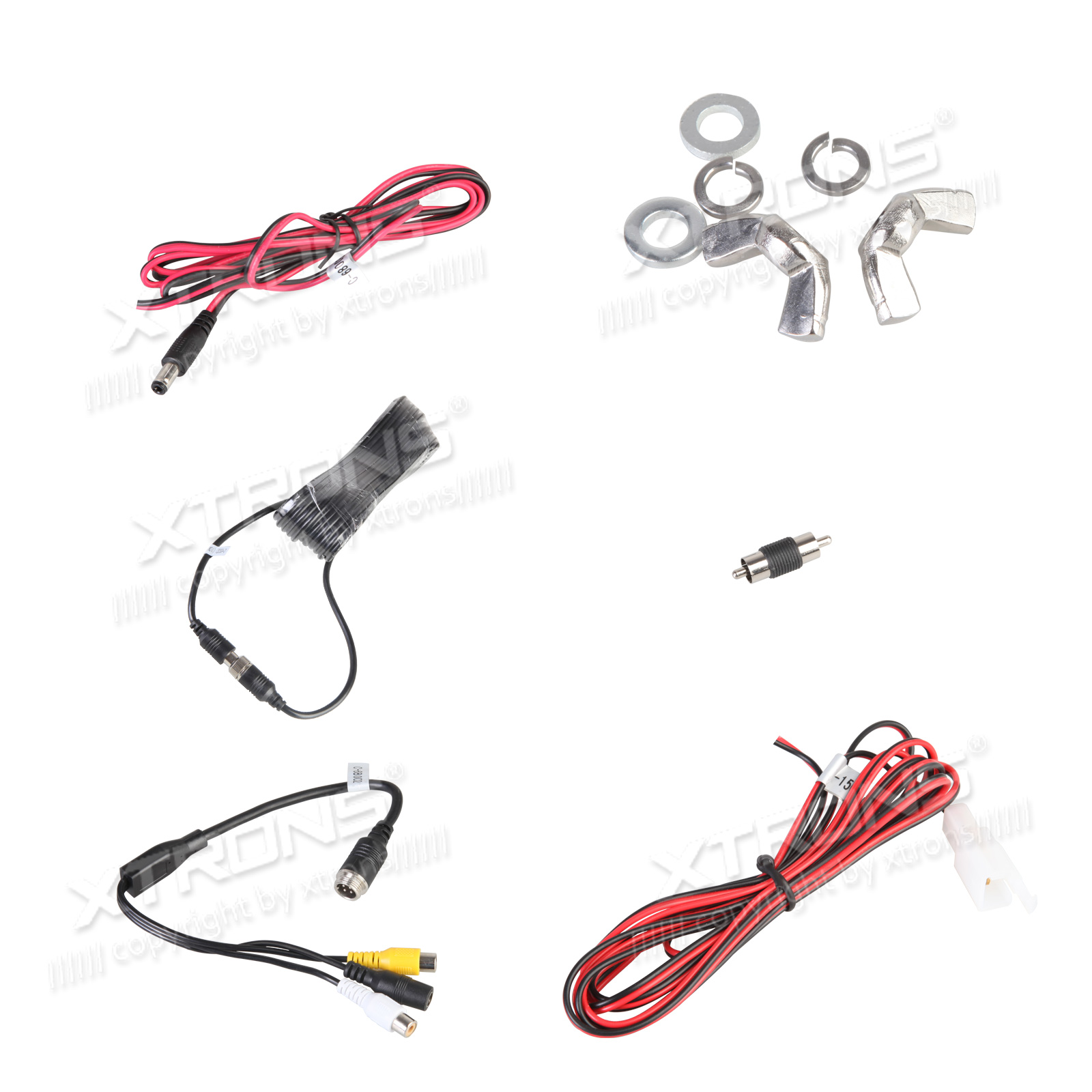

What's in the box
- Power Cable (with plug for lights)
- Wing Nuts
| Sensor | CCD |
|---|---|
| Resolution (TV lines) | 700 |
| Effective pixels | 976×508 |
| Minimum illumination | 0.1 Lux, 0 Lux with IR night vision |
| View angle | 170 degrees |
| TV system | PAL, Colorful |
| Infrared LED lights | 6 |
| Microphone | Built in Microphone |
| Power supply | 12 volt |
|---|---|
| Waterproof | IP68 |
| Operating temperature | -20 degrees Celsius to 70 degrees Celsius |
- Designed to fit Fiat Ducato, Citroen Relay, Peugeot Boxer vans that have the factory fitted rear roof brake light.
Unscrew the original outer brake light housing and replace it with this combined brake light and camera. Then run the video connection to your head unit or monitor's camera input and connect the 12 volt power.
Which vans does it fit?
Fiat Ducato, Citroen Relay and Peugeot Boxer vans with the factory rear roof brake light.
Does it work at night?
Yes. It has 6 infrared LEDs and works down to 0 Lux with IR night vision.
Does it still work as a brake light?
Yes. It's a complete LED brake light lens with the camera built in.
Reviews
What customers say
Bought this product? Sign in to write a review.

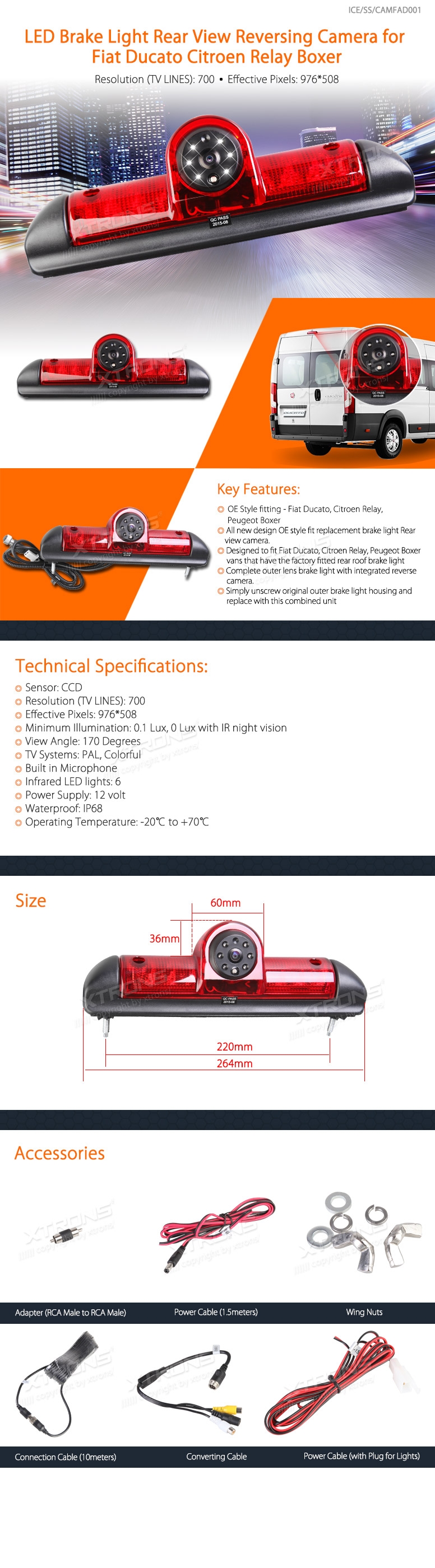

Full specification from XTRONS
