Functions
- RCA pre-outputs
In stock

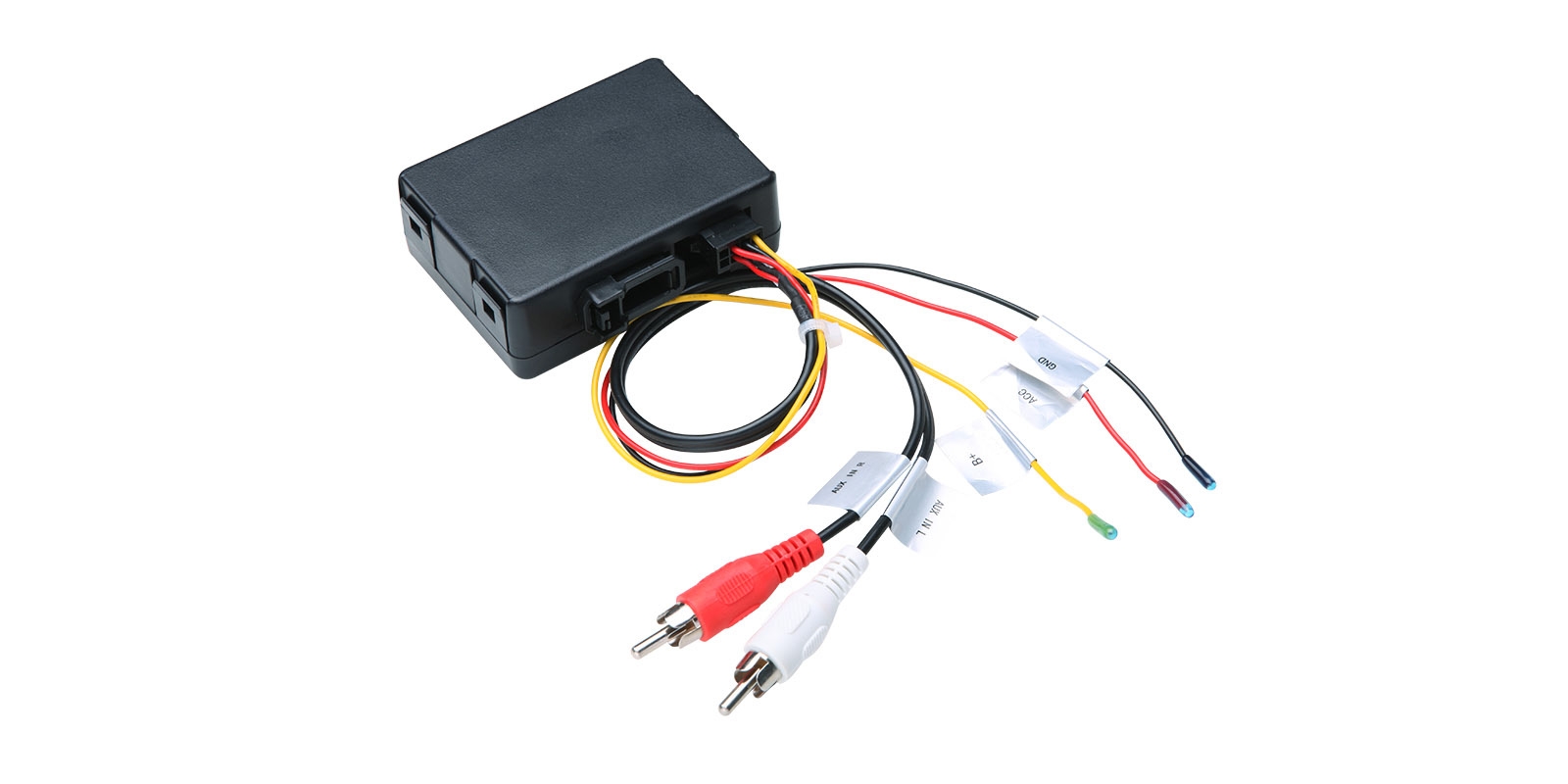

BMW E39, E46, E53 and E90 Series Fibre Optic Decoder Box | AK/BMW01/FOBB05
SKU: AK/BMW01/FOBB05
£84.99
Check if this fits your car
1
An optical fibre decoder box for BMW E39, E46, E53, E90, E91, E92 and E93 models with Logic 7 or a fibre optic radio connection. It lets an aftermarket head unit send sound to the factory system when the radio plug has no speaker wires.
- For BMW E39, E46, E53, E90, E91, E92 and E93
- Needed for Logic 7 or radio plugs with fibre optic input and no 8 speaker wires
- Takes stereo input from the head unit's front left and right RCA outputs
Do you need it
Look at the plug behind your factory radio. If your car has Logic 7, or the plug has a fibre optic input without 8 speaker wires, you need this decoder box to fit an aftermarket head unit. If the plug already has 8 speaker wires, you don't need it.
Connecting it
The box takes a stereo signal from the head unit's front left and right RCA outputs only, so set the fader to the middle in your new radio's balance menu.
The fibre optic loop must stay unbroken. Keep original parts such as CD changers, satellite radio and phone modules connected, or use a bypass loop; XTRONS ICE/ACS/FEXL009 or ICE/ACS/fiberloop is recommended. After fitting, take out the sound system fuse for 15 minutes and put it back to reset the system.

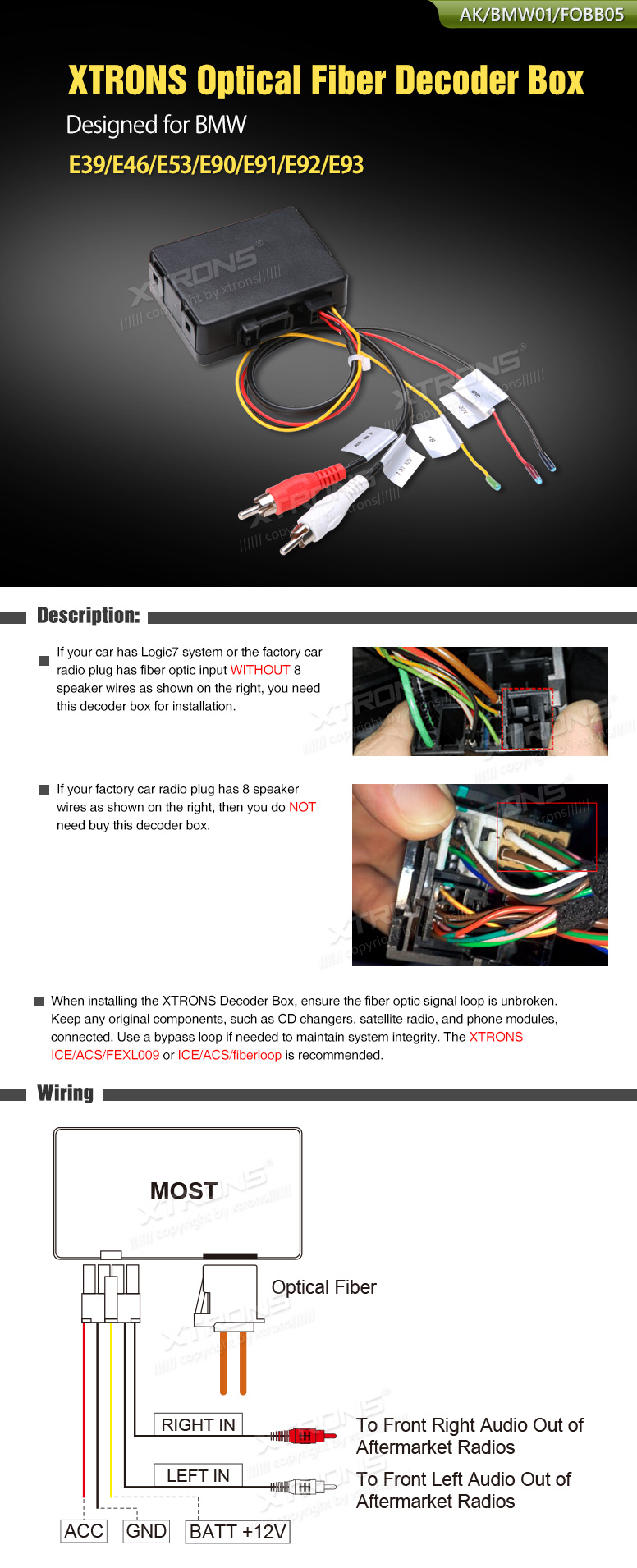

- XTRONS Optical Fiber Decoder Box Designed for BMW E39 / E46 / E53 / E90 / E91 / E92 / E93
- If your car has Logic 7 system or the factory car radio plug has fiber optic input WITHOUT 8 speaker wires as shown on the right ,you need this decoder box for installation.
- If your factory car radio plug has 8 speaker wires as shown on the right ,then you do NOT need buy this decoder box.
Connect the decoder box to the car's fibre optic loop and feed it from the head unit's front left and right RCA outputs, with the fader set to the middle. Keep the fibre loop unbroken, using a bypass loop such as XTRONS ICE/ACS/FEXL009 if a module is removed. Finish by removing the sound system fuse for 15 minutes and refitting it.
How do I know if I need it?
You need it if your car has Logic 7 or the factory radio plug has a fibre optic input without 8 speaker wires. If the plug has 8 speaker wires, you don't.
Which outputs does it use?
Only the head unit's front left and right RCA outputs, so set the fader to the middle.
What if I've removed the CD changer?
Keep the fibre optic loop unbroken with a bypass loop. XTRONS ICE/ACS/FEXL009 or ICE/ACS/fiberloop is recommended.
