24V to 12V DC Step Down Power Converter, 10A (MAX20A) | ICE/ACS/C24T12
SKU: ICE/ACS/C24T12
£13.99
Check if this fits your car
1
Key specifications
- Input
- IN: 24V (15V-40V)
- Output
- OUT: 12V / 10A (MAX20A)
- Protection
- Built-in over-voltage, under-voltage, overload, over-heat and short circuit protection
- Material
- Aluminum alloy material
- Sealing
- Waterproof, quake-proof, moisture-proof and dust-proof
- Red
- Red: Input (+)

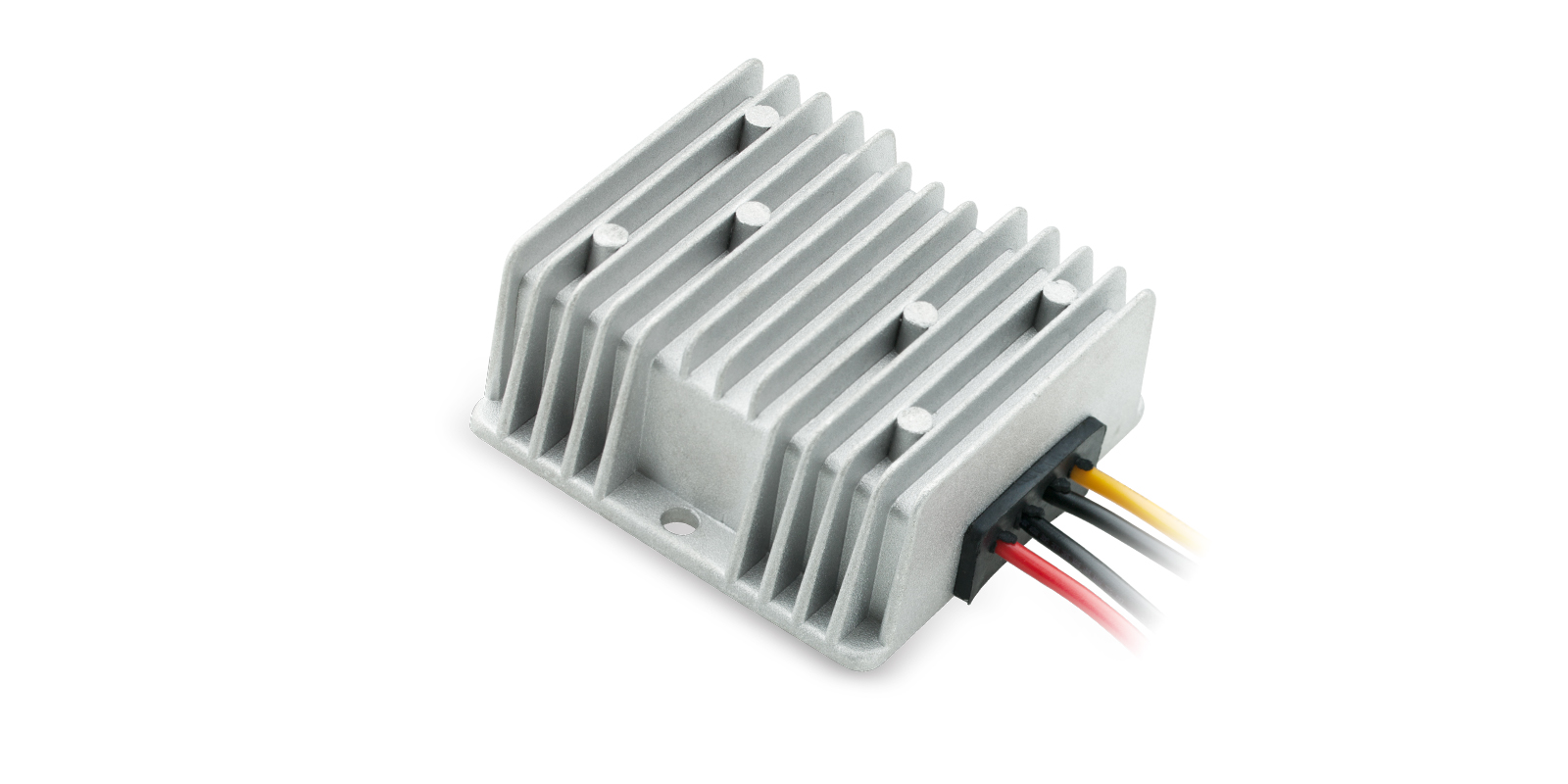

A DC step down converter that turns a 24V supply into 12V at 10A (MAX20A). Fit it in a truck, bus or other 24V vehicle to run 12V equipment such as a head unit.
- Input 24V (15V-40V), output 12V / 10A (MAX20A)
- Over-voltage, under-voltage, overload, over-heat and short circuit protection
- Aluminium alloy case, waterproof, moisture-proof and dust-proof
- Colour-coded input and output wires
Run 12V kit from a 24V vehicle
Many trucks, buses and coaches run on 24V, while most car stereos and accessories expect 12V. This converter steps the supply down to 12V, delivering 10A (MAX20A), so 12V equipment can be fitted safely.
It accepts a wide input range of 15V-40V, and built-in protection guards against over-voltage, under-voltage, overload, overheating and short circuits. Check that the 12V equipment you're powering stays within the 10A rating.
Build and wiring
The case is aluminium alloy and is waterproof, quake-proof, moisture-proof and dust-proof, so it can be mounted out of sight behind trim.

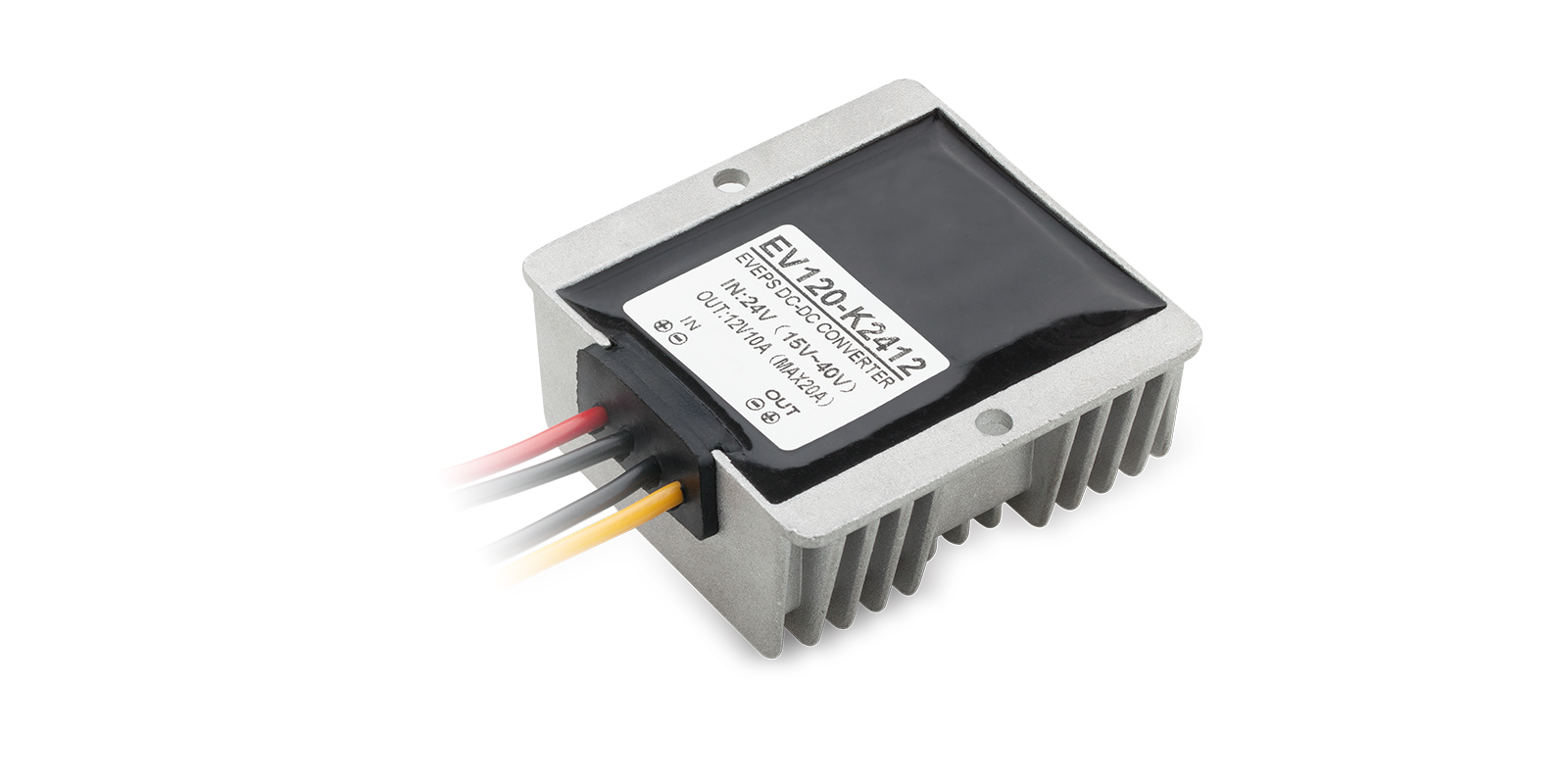

The wires are colour-coded: red for input positive, black for input negative, yellow for output positive and black for output negative.
| Input | IN: 24V (15V-40V) |
|---|---|
| Output | OUT: 12V / 10A (MAX20A) |
| Protection | Built-in over-voltage, under-voltage, overload, over-heat and short circuit protection |
| Material | Aluminum alloy material |
|---|---|
| Sealing | Waterproof, quake-proof, moisture-proof and dust-proof |
| Red | Red: Input (+) |
|---|---|
| Black | Black: Input (-) |
| Yellow | Yellow: Output (+) |
| Black | Black: Output (-) |
We haven't listed the cars this fits yet. Tell us your registration and we'll check it for you before you buy. Ask us
Connect the red and black input wires to the 24V supply and the yellow and black output wires to the 12V equipment. Keep the load within the 10A output rating.
What input voltage does it accept?
24V nominal, with a range of 15V-40V.
How much current can it supply?
12V at 10A (MAX20A).
Is it protected against short circuits?
Yes. It has built-in over-voltage, under-voltage, overload, over-heat and short circuit protection.
Reviews
What customers say
Bought this product? Sign in to write a review.

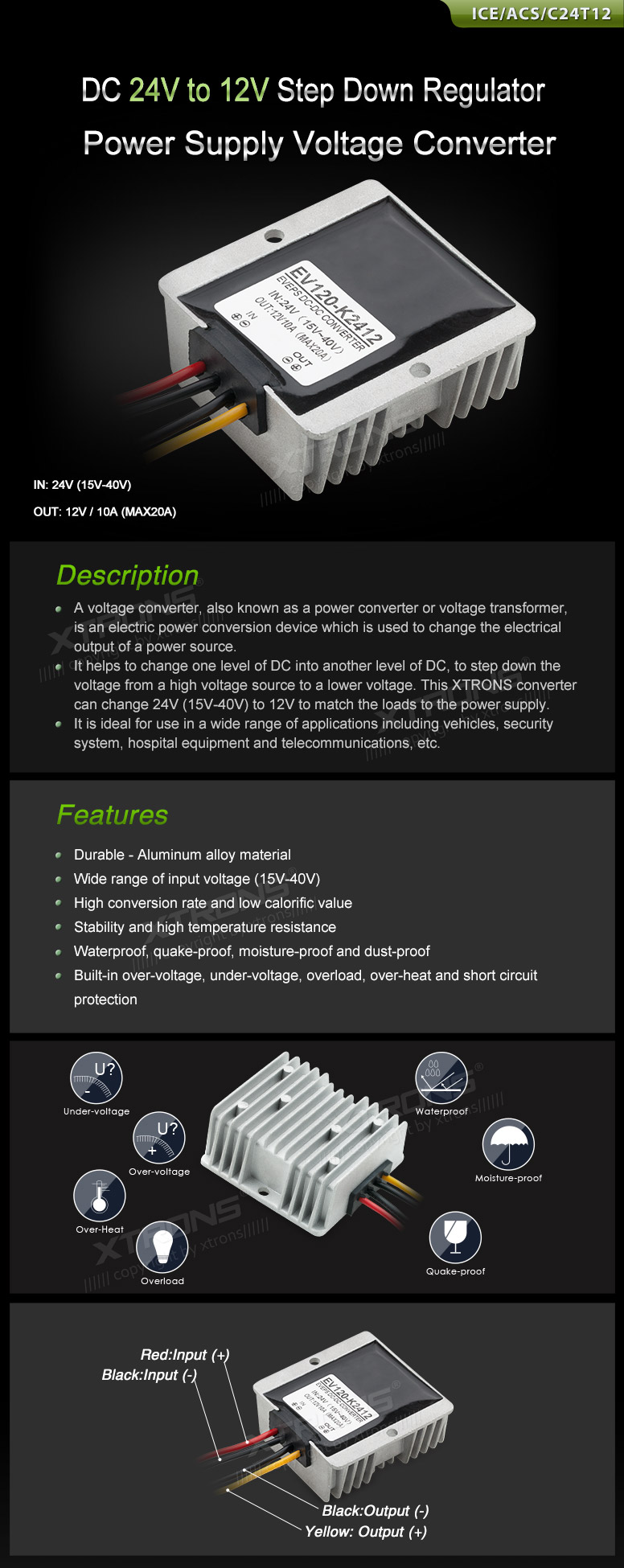

Full specification from XTRONS
